Philips Portable Multimedia Player SPE9025CC User manual

Philips Portable Multimedia Player SPE9025CC User manual

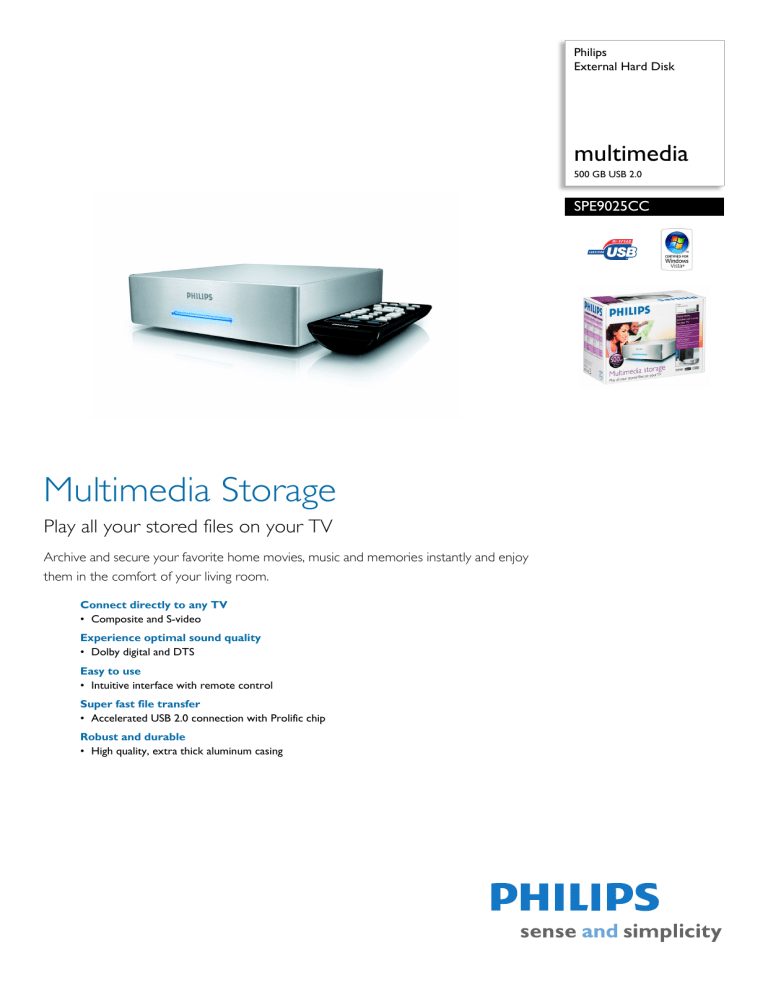

Philips
External Hard Disk
multimedia
500 GB USB 2.0
SPE9025CC
Multimedia Storage
Play all your stored files on your TV
Archive and secure your favorite home movies, music and memories instantly and enjoy
them in the comfort of your living room.
Connect directly to any TV
• Composite and S-video
Experience optimal sound quality
• Dolby digital and DTS
Easy to use
• Intuitive interface with remote control
Super fast file transfer
• Accelerated USB 2.0 connection with Prolific chip
Robust and durable
• High quality, extra thick aluminum casing
SPE9025CC/05
External Hard Disk
multimedia 500 GB USB 2.0
Specifications
Product highlights
Storage Media
•
•
•
•
•
•
Hard Disk Capacity: 500 GB
HDD Type: 3.5" HDD
Rotational speed: 7200 rpm
Transfer rate: 480 Mb/s
Access time (typical): 8.5 ms
Cache memory: 8 MB
Connectivity
• Interface: Hi-Speed USB2.0 / AV - out
• Audio Output - Analog: Audio L/R (cinch)
• Audio Output - Digital: AC3 over S/PDIF
(Optical)
• Video Output - Analog: Composite video out, Svideo
Accessories
•
•
•
•
•
•
•
USB cable
Quick start guide
AC Adapter
User Guide on CD-ROM
CD-ROM
AV cable
Remote control
System Requirements
• PC OS: Windows 2000, Windows XP, Windows
Vista
• Processor: Pentium 4 1 GHz, 128 MB RAM
Packaging Data
•
•
•
•
•
•
•
EAN/UPC/GTIN: 87 12581 37381 8
Height: 130 mm
Width: 215 mm
Length: 290 mm
Gross weight: 2.54 kg
Tare weight: 0.39 kg
Net weight: 2.15 kg
Outer Carton
•
•
•
•
•
•
•
EAN/UPC/GTIN: 87 12581 37383 2
Height: 320 mm
Length: 545 mm
Width: 235 mm
Gross weight: 10.96 kg
Net weight: 10.2 kg
Tare weight: 0.762 kg
Multimedia playback
• Audio formats: MP3, MPEG 4, WMA, AC3, WAV,
OGG Vorbis
• Picture formats: JPG
• Subtitles: SUB (microDVD format), SRT (SubRIP
format) SMI (SAMI), Embedded multiple subtitle
support
• Video formats: MPEG 1 (AVI, APG), MPEG 2 (AVI,
VOB), MPEG 4 (DivX, VOD), ISO, DivX Home
Theatre, Xvid
Product dimensions
• Cable length: 0 cm
• Product dimensions (W x H x D):
16.7 x 4.5 x 16.7 cm
• Weight: 1.59 kg
Packaging dimensions
• Packaging dimensions (W x H x D):
21.5 x 13 x 29 cm
• Nett weight: 2.144 kg
• Gross weight: 2.54 kg
• Tare weight: .396 kg
Outer Carton
•
•
•
•
Outer carton (L x W x H): 54.5 x 23.5 x 32 cm
Nett weight: 8.576 kg
Gross weight: 11.16 kg
Tare weight: 2.584 kg
•
Issue date 2008-08-17
© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 3.0.6
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 34926
EAN: 87 12581 37381 8
www.philips.com
Extra thick aluminum casing
The high quality aluminum casing protects the hard drive
from wear and tear - protecting your data and
guaranteeing a long working life. It also insulates the
sound of the drive to ensure quiet operation.
Accelerated USB 2.0
The Hard Drive is equipped with USB 2.0 and a Prolific
chip for super fast file transfer.
Dolby digital and DTS
Get the most out of your stereo by playing your digital
music on it. The hard disk works with Dolby Digital 5.1
so you can hear superb surround sound from your digital
music and video content.
Composite and S-video
Connect to your TV instantly via Composite or S-video
with plug and play simplicity. The connectors are
compatible with almost every TV and even work with a
scart adapter (not supplied with the product).
Interface with remote control
Get control of your multimedia content with the Philips
remote control. Its intuitive navigation allows you to
simply navigate through all your movies, pictures and
music.
