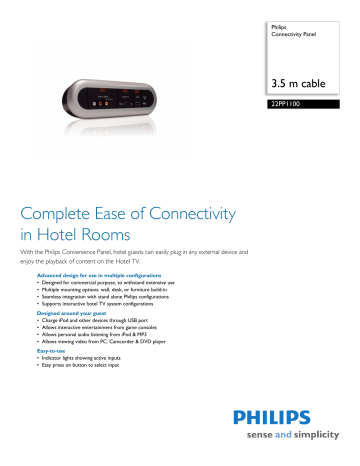

Connectivity Panel
3.5 m cable
Complete Ease of Connectivity
in Hotel Rooms
With the Philips Convenience Panel, hotel guests can easily plug in any external device and
enjoy the playback of content on the Hotel TV.
Advanced design for use in multiple configurations
• Designed for commercial purpose, to withstand extensive use
• Multiple mounting options: wall, desk, or furniture build-in
• Seamless integration with stand alone Philips configurations
• Supports interactive hotel TV system configurations
Designed around your guest
• Charge iPod and other devices through USB port
• Allows interactive entertainment from game consoles
• Allows personal audio listening from iPod & MP3
• Allows viewing video from PC, Camcorder & DVD player
• Indicator lights showing active inputs
• Easy press on button to select input
Connectivity Panel
3.5 m cable
Product highlights
• Connectivity panel connectors: HDMI in, Audio L/R
in (3.5mm jack), Audio L/R in (cinch), CVBS in, SVideo in, USB (5V power), VGA PC in
• Bezel color: Black Front with Silver Bezel
• Product weight (lb): 3.6
• Product dimension (WxDxH) inch: 10.2" x 2.2" x
• Included Accessories: Cable pack (3.5m), User
Manual, Warranty Leaflet, Cable ties, External
power adaptor, HDMI cable, RJ12 cable
(SmartPort), RS232 cable, Screws, S-video to CVBS
adaptor, VGA/audio cable
• Optional accessories: Desktop cover cap 22PP1019
Built for commercial use
Philips Connectivity Panel is a commercial product, built
with high-quality materials for intensive daily use by hotel
USB charging
USB 5V power socket allows guests to charge their
personal devices.
Indicator lights
Indicator lights provide easy to understand feedback to
guests, by showing which input is active.
Interactive entertainment
Game consoles can be connected to the TV through
composite audio/video or HDMI connectors.
iPod & MP3 audio listening
Guests can listen to music from the source of their choice
(iPod, other MP3 Player, or audio output from their PC)
through plug & play connection with 3.5mm audio jack
Multiple mounting options
Philips Convenience Panel can be mounted in various ways,
e.g. in the wall, on the desk or as a furniture build-in. An
optional desktop kit is required to mount the panel to a
Select input press on button
Press on button for easy input selection.
Stand alone configurations
Seamless integration with Philips TVs in stand-alone
configuration is supported, see compatibility list.
Viewing of video media
Viewing of video media from PC, camcorder, DVD player
and various other devices is supported through VGA,
composite audio/video, S-Video and HDMI connectors
Issue date 2008-10-27
© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 1.0.4
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 36995
UPC: 6 09585 15093 5
