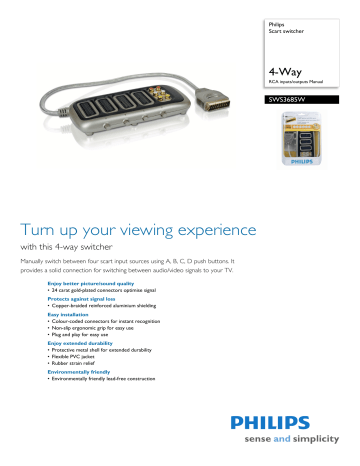

Philips
Scart switcher
4-Way
RCA inputs/outputs Manual
SWS3685W
Turn up your viewing experience
with this 4-way switcher
Manually switch between four scart input sources using A, B, C, D push buttons. It
provides a solid connection for switching between audio/video signals to your TV.
Enjoy better picture/sound quality
• 24 carat gold-plated connectors optimise signal
Protects against signal loss
• Copper-braided reinforced aluminium shielding
Easy installation
• Colour-coded connectors for instant recognition
• Non-slip ergonomic grip for easy use
• Plug and play for easy use
Enjoy extended durability
• Protective metal shell for extended durability
• Flexible PVC jacket
• Rubber strain relief
Environmentally friendly
• Environmentally friendly lead-free construction
SWS3685W/10
Scart switcher
4-Way RCA inputs/outputs Manual
Specifications
Inner Box
•
•
•
•
Gross weight: 1.16 kg
Inner carton (L x W x H): 30.5 x 21.6 x 11.4 cm
Net weight: 0.72 kg
Tare weight: 0.44 kg
Outer Box
• Gross weight: 7.76 kg
• Outer carton (L x W x H): 66.7 x 31.8 x 22.9 cm
Highlights
• Net weight: 4.32 kg
• Tare weight: 3.44 kg
Packaging dimensions
• Packaging dimensions (W x H x D):
19.7 x 28.6 x 4.45 cm
• Gross weight: 0.48 kg
• Net weight: 0.36 kg
• Tare weight: 0.12 kg
•
24 carat gold-plated connector
24 carat gold-plated connectors ensure the best
signal quality for your components.
Braided shielding
Copper-braided reinforced aluminium shielding
protects against signal loss and interference.
Colour-coded connectors
Colour-coded connections make it easy to install
your cable into the correct inputs and outputs
Easy grip
This non-slip grip makes connecting your
components easy and ergonomically comfortable.
Plug and play
Plug and play offers easy installation of components
without time-consuming installations.
Metal shell
The metal shell protects the internal connection of
the cable. It ensures durability and reliability of your
connection.
Flexible PVC Jacket
Flexible PVC jacket provides protection to the
delicate core of the cable. It also offers extended
durability and ease of installation.
Rubber strain relief
Rubber strain relief provides a secure yet flexible
juncture between the cable and the plug.
Issue date 2009-03-09
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 1.0.7
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 34099
EAN: 87 12581 36516 5
www.philips.com
