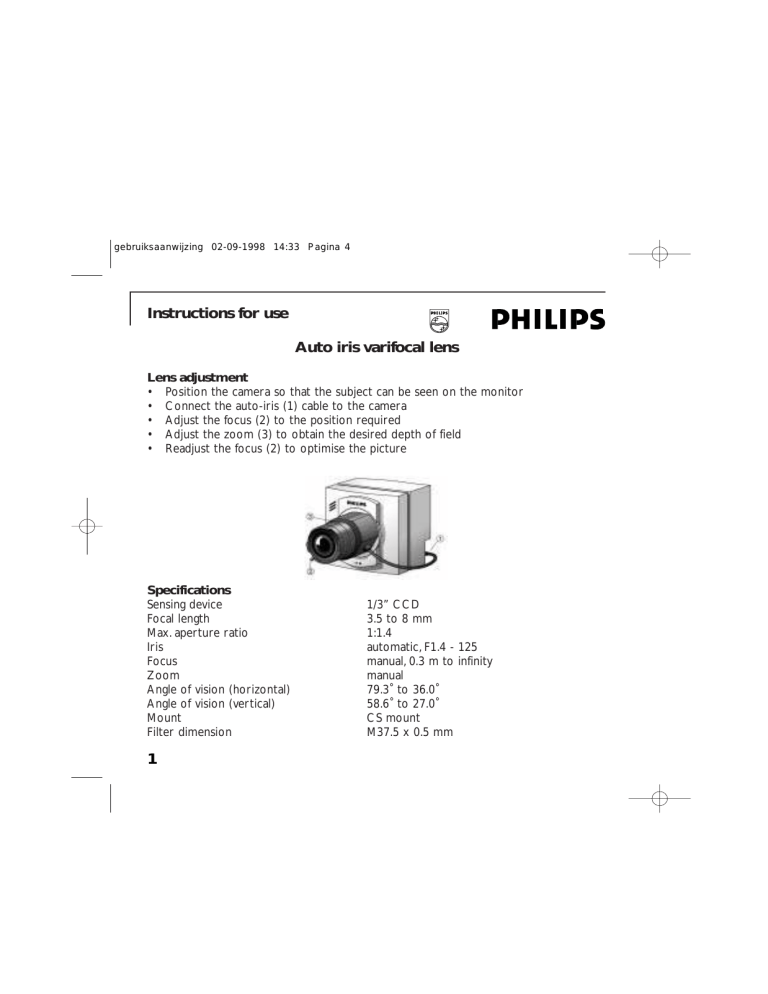

Instructions for use
Auto iris varifocal lens
Lens adjustment
• Position the camera so that the subject can be seen on the monitor
• Connect the auto-iris (1) cable to the camera
• Adjust the focus (2) to the position required
• Adjust the zoom (3) to obtain the desired depth of field
• Readjust the focus (2) to optimise the picture
Specifications
Sensing device
Focal length
Max. aperture ratio
Iris
Focus
Zoom
Angle of vision (horizontal)
Angle of vision (vertical)
Mount
Filter dimension
1
1/3” CCD
3.5 to 8 mm
1:1.4
automatic, F1.4 - 125
manual, 0.3 m to infinity
manual
79.3˚ to 36.0˚
58.6˚ to 27.0˚
CS mount
M37.5 x 0.5 mm
