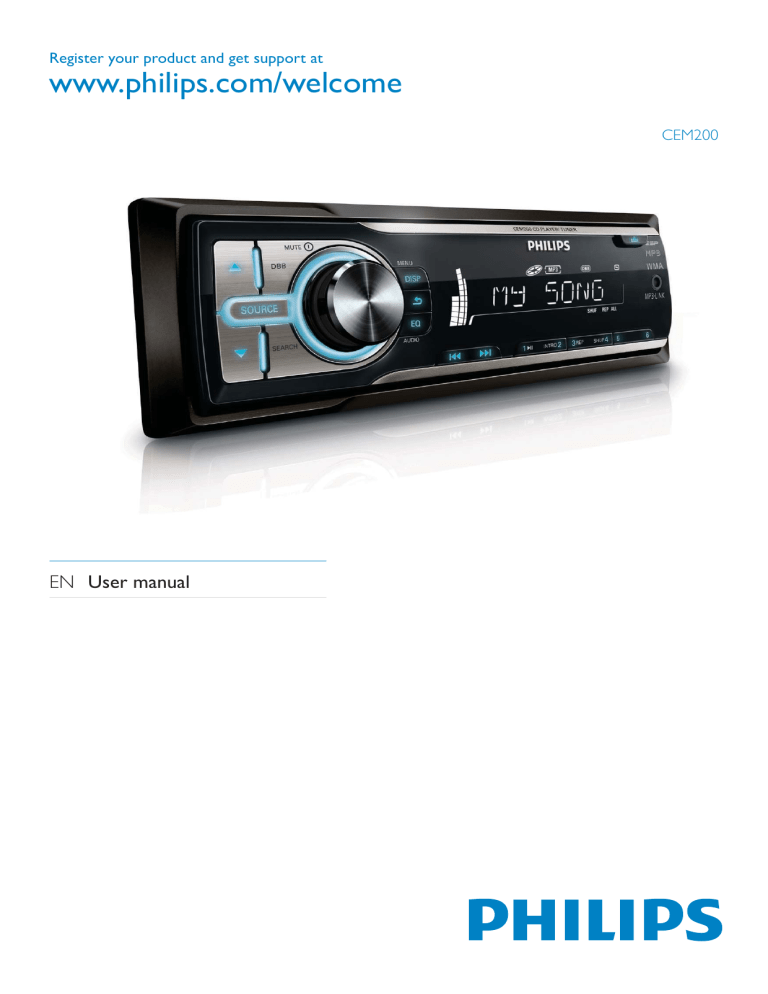

Register your product and get support at
www.philips.com/welcome
CEM200
EN User manual
1 Important
Safety
Notice
2 Your car audio system
Introduction
What’s in the box
Overview of the main unit
Overview of the remote control
3 Get started
Install the car audio
Install remote control battery
Turn on
Set clock
4 Listen to radio
Tune to a radio station
Store radio stations in memory
Tune to a preset station
3OD\DXGLRÀOHV
Play a disc
Control play
Search for an MP3/WMA track
View play information
Intro play
6KXIÁHSOD\
Repeat play
Connect external sound source
6 Adjust sound
Adjust volume
Mute
Turn Dynamic Bass Boost (DBB) on/off
Select preset equalizer
Other sound settings
4
4
4
6
6
6
7
8
9
9
13
14
14
14
14
15
15
7 Adjust system settings
E n g lish
Contents
18
18
18
18
18
19
19
Turn demo mode on/off
Select start volume
Turn beep sound on/off
Turn display scroll on/off
Select shock-protect setting
Reset
8 Additional information
Detach the front panel
Replace fuse
Remove the unit
19
19
20
20
9 Product information
21
10 Troubleshooting
21
11 Glossary
22
15
15
16
16
16
16
16
16
16
17
17
17
17
17
17
EN
3
1 Important
Notice
Safety
‡
‡
‡
‡
‡
‡
‡
‡
‡
‡
‡
‡
Read and understand all instructions
before you use your apparatus. If damage
is caused by failure to follow instructions,
the warranty does not apply.
This apparatus is designed for negative
ground (earth) 12 V DC operation only.
To ensure safe driving, adjust the volume
to a safe and comfortable level.
Improper fuses can cause damage or
ÀUH:KHQ\RXQHHGWRFKDQJHWKHIXVH
consult a professional.
Use only the supplied mounting hardware
for a safe and secure installation.
To avoid short circuit, do not expose the
apparatus, remote control or remote
control batteries to rain or water.
Never insert objects into the ventilation
slots or other openings on the apparatus.
Clean the apparatus and frame with a
soft, damp cloth. Never use substances
such as alcohol, chemicals or household
cleaners on the apparatus.
Never place any objects other than discs
into the apparatus.
Never use solvents such as benzene,
thinner, cleaners available commercially,
or anti-static sprays intended for discs.
Visible and invisible laser radiation when
open. Avoid exposure to beam.
Risk of damage to the apparatus screen!
Never touch, push, rub or strike the
screen with any object.
Caution
‡ Use of controls or adjustments or
performance of procedures other than herein
may result in hazardous radiation exposure or
other unsafe operation.
4
EN
The making of unauthorized copies of
copy-protected material, including computer
SURJUDPVÀOHVEURDGFDVWVDQGVRXQG
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
This apparatus includes these labels:
Class II equipment symbol
This symbol indicates that the apparatus has a
double insulation system.
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheel bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed of with normal household
waste.
Please inform yourself about the local rules on
separate collection of batteries. The correct
disposal of batteries helps prevent potentially
negative consequences on the environment
and human health.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and
old equipment.
$Q\FKDQJHVRUPRGLÀFDWLRQVPDGHWRWKLV
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
2009 © Koninklijke Philips Electronics N.V. All
rights reserved.
6SHFLÀFDWLRQVDUHVXEMHFWWRFKDQJHZLWKRXW
notice. Trademarks are the property of
Koninklijke Philips Electronics N.V. or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
This product complies with the radio
interference requirements of the European
Community.
This product complies with the requirements
of the following directives and guidelines:
2004/108/EC + 2006/95/EC.
EN
5
E n g lish
Recycling
2 Your car audio
system
Congratulations on your purchase, and
ZHOFRPHWR3KLOLSV7RIXOO\EHQHÀWIURPWKH
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
a
b
c
d
e
f
g
h
With the in-car audio system, you can enjoy
your drive while you listen to:
‡ FM or AM (MW) radio
‡ Audio from CD or MP3 disc
‡ Audio from external devices
i
What’s in the box
Check and identify the contents of your
package:
a In-car audio system
b Remote control
c Rubber cushion
d Screw (4 pieces)
e Disassembly tool ( 2 pieces)
f Front panel
g Trim plate
h Carrying case for front panel
i User manual
j Quick start guide
k Standard connector
6
EN
j
k
E n g lish
Overview of the main unit
a
‡
‡
‡
Select tuner band.
Select MP3/WMA folder.
Scroll up or down menu.
b DBB
‡ Turn on or off Dynamic Bass Boost
(DBB) sound.
e MENU / DISP
‡ Display radio frequency, clock and
radio program type (if available).
‡ Display track, elapsed time, artist,
DOEXPWLWOHIROGHUÀOHDQGFORFN
‡ Access system menu.
f
‡
‡
‡
c SOURCE
‡ Select audio source.
d
/MUTE
‡ Turn the unit on or off.
‡ Adjust volume.
‡ &RQÀUPVHOHFWLRQ
‡ Enter characters for search.
‡ Mute or restore volume.
Return to previous menu.
Stop search.
Disable screen blackout.
g Display panel
h
‡
Unlock the panel
i External device socket
EN
7
j 6
‡
Select preset station no. 6
k 5
‡
Select preset station no. 5
Overview of the remote
control
l SHUF, 4
‡ $FWLYDWHRUGHDFWLYDWHVKXIÁHPRGH
‡ Select preset station no. 4
q
m 3, REP
‡ Set repeat play mode.
‡ Select preset station no. 3
o
n INTRO, 2
‡ Turn intro play on or off.
‡ Select preset station no. 2
o 1,
‡
‡
‡
p
Start play
Pause or resume play.
Select preset station no. 1
p
b
n
l
c
d
e
k
f
j
g
m
h
/
‡
‡
i
Tune to a radio station
Skip/search for a track.
q EQ/Audio
‡ Select equalizer (EQ) setting.
‡ Access audio setting menu.
r SEARCH
‡ Store radio stations automatically.
‡ Search a track or folder.
s Panel power connection
t Disc slot
u
‡
Take disc out.
v RESET
‡ Restore default settings.
a SOURCE
‡ Select audio source.
b VOLUME +/‡ Adjust volume.
c EQ
‡ Select EQ setting.
d DBB
‡ Turn on or off Dynamic Bass Boost
(DBB) sound.
e 3, REP
‡ Select repeat play mode.
‡ Select preset station no. 3.
f SEARCH
‡ Store radio stations automatically.
‡ Search a track or folder.
8
EN
a
h 6
‡
i 5
‡
Caution
Select preset station no. 6.
Select preset station no. 5.
Start play.
Pause or resume play.
Select preset station no. 1.
l INTRO, 2
‡ Turn intro play on or off.
‡ Select preset station no. 2.
m AUDIO
‡ Access audio setting menu.
n Navigation buttons
‡
/
Tune for radio station
Skip/search for MP3/WMA track.
‡
/
Select tuner band.
Select MP3/WMA folder.
‡ SEL
&RQÀUPVHOHFWLRQ
o MENU
‡ Access system menu.
p
PWR,
‡ Turn the unit on or off.
‡ Mute or restore volume.
q
‡
‡
‡ Use the controls only as stated in this user
manual.
j SHUF, 4
‡ $FWLYDWHRUGHDFWLYDWHVKXIÁHPRGH
‡ Select preset station no. 4.
k 1,
‡
‡
‡
3 Get started
E n g lish
g DISP
‡ Display radio frequency and clock.
‡ Display track, elapsed time, artist,
DOEXPWLWOHIROGHUÀOHDQGFORFN
Return to previous menu.
Disable screen blackout.
Always follow the instructions in this chapter in
sequence.
If you contact Philips, you will be asked for the
model and serial number of your apparatus. The
model number and serial number are on the
bottom of your apparatus. Write the numbers
here:
Model No. __________________________
Serial No. ___________________________
Install the car audio
These instructions are for a typical installation.
However, if your car has different requirements,
make the corresponding adjustment. If you have
any questions regarding installation kits, consult
your Philips car audio dealer.
Caution
‡ This unit is designed for negative ground
(earth) 12 V DC operation only.
‡ Always install this unit in the car dashboard.
‡
‡
‡
‡
‡
‡
‡
Other locations can be dangerous as the rear
of the unit heats up during use.
To avoid short-circuit: before you connect,
ensure that the ignition is off.
Ensure that you connect the yellow and red
power supply leads after all other leads are
connected.
Ensure that all loose leads are insulated with
electrical tape.
Ensure that the leads do not get caught under
screws orin parts that will move (e.g. seat rail).
Ensure that all ground (earth) leads are run to
a common ground (earth) point.
Use only the supplied mounting hardware for a
safe and secure installation.
,PSURSHUIXVHVFDQFDXVHGDPDJHRUÀUH
When you need to change the fuse, consult a
professional.
EN
9
Note on the power supply lead (yellow)
‡ When you connect other devices to this
apparatus, ensure that the rating of the
car circuit is higher than the total fuse
value of all the connected devices.
Notes on speaker connection
‡ Never connect speaker wires to the
metal body or chassis of the car.
‡ Never connect speaker wires with stripes
to one another.
Connection: for cars with ISO
connectors
Caution
‡ Ensure that all loose leads are insulated with
electrical tape.
1
Pull out the ISO connectors from car
dashboard and connect them to the
bigger end of the supplied standard
connector.
2
Connect the other end of the supplied
standard connector to the unit.
3
&RQQHFWWKHDQWHQQDDQGDPSOLÀHUDV
illustrated, if applicable. You can connect
WKHFDUDXGLRWRWKHDPSOLÀHUWKURXJK
RCA-TO-RCA cables (not supplied).
Overview of parts
These are the supplied parts needed to
connect and install this unit.
a In-car audio system
b Sleeve
c Front panel
d Trim plate
e Rubber cushion
f Disassembly tools
g Screws (4 pieces)
h ISO connector
a
b
c
d
e
10
f
EN
g
h
a
a
b
c
b
c
a
a
b
b
c
c
d
d
d
d
c
L -CH
e
g
R-CH
AMP
b
Connector
1 ANTENNA
2 REAR LINE OUT R
3 REAR LINE OUT L
Connect to
Antenna
Rear right speaker
Rear left speaker
Connection: for cars without ISO
connectors
Caution
‡ Be sure to connect the black ground (earth)
OHDGÀUVW
1
&RQQHFWWKHDQWHQQDDQGDPSOLÀHUDV
illustrated, if applicable.
Cut off the bigger end of the supplied
standard connector.
3
Check the car’s wiring carefully and
connect them to the supplied standard
connector.
1
2
3
4
Green/black strip Left speaker (Rear)
White/black strip Left speaker (Front)
Gray/black strip
Right speaker (Front)
Purple/black strip Right speaker (Rear)
e
a
g
h
i
L -CH
RED
Ignition key +12V DC
when ON/ACC
BLUE
Motor/electric antenna
UHOD\FRQWUROOHDG$PSOLÀHU
relay control lead
BLACK
Ground
ORANGE Illumination switch
YELLOW To the +12V car battery
which is energized at all times
R-CH
AMP
i
2
f
c
h
f
b
Connector
1 ANTENNA
2 REAR LINE OUT R
3 REAR LINE OUT L
4
Connect the supplied standard connector
to the unit.
Connect to
Antenna
Rear right speaker
Rear left speaker
EN
11
E n g lish
a
Tip
‡ The pin arrangement for the ISO connectors
depends on the type of vehicle you drive.
Make sure to make the proper connections to
prevent damage to the unit.
4
Ensure that car dashboard opening is
within these measurements:
Mount in the dashboard
2
m
5m
If the car does not have an on-board
drive or navigation computer, disconnect
the negative terminal of the car battery.
‡ If you disconnect the car battery in
a car that has an on-board drive or
navigation computer, the computer
may lose its memory.
‡ If the car battery is not disconnected,
to avoid short-circuit, ensure that
bare wires do not touch each other.
183
mm
53mm
1
Remove the two screws on the top of the
unit.
5
Install the sleeve into the dashboard and
EHQGWKHWDEVRXWZDUGWRÀ[WKHVOHHYH
Note
‡ 6NLSWKLVVWHSLIWKHXQLWLVQRWÀ[HGE\VOHHYH
but by supplied screws.
3
Remove the mounting sleeve with the
supplied disassembly tools.
12
EN
E n g lish
m
5m
6
Place the supplied rubber cushion over
the end of the mounting bolt.
2
Insert the right side of the panel in the
chassis until it is correctly engaged.
3
Press the left side of the panel and point
the left hole at the left pillar.
4
Release the panel to engage the left side.
Install remote control battery
7
Slide the unit into the dashboard until you
hear a click sound.
8
Reconnect the negative terminal of the
car battery.
Attach the front panel
1
Attach the trim plate.
Caution
‡ Risk of explosion! Keep batteries away from
KHDWVXQVKLQHRUÀUH1HYHUGLVFDUGEDWWHULHV
LQÀUH
‡ Risk of decreased battery life! Never mix
different brands or types of batteries.
‡ Risk of product damage! When the remote
control is not used for long periods, remove
the batteries.
‡ Perchlorate Material - special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/
perchlorate.
)RUÀUVWWLPHXVH
1
Remove the protective tab to activate the
remote control battery.
EN
13
To replace the remote control battery:
1
2
Open the battery compartment.
3
Close the battery compartment.
Insert 1 CR2025 batteries with correct
polarity (+/-) as indicated.
4 Listen to radio
Tune to a radio station
1
Press SOURCE repeatedly to select
Tuner.
2
Press or to select band: [FM1],
[FM2], [FM3], [AM1], or [AM2] .
3
Press
or
to tune to a radio station
manually.
» The radio station is broadcast.
‡
To search for a radio station
automatically, press
or
for 3
seconds.
Select tuner sensitivity
You can adjust the tuner sensitivity if you want
to receive more radio stations or only stations
with strong signal.
Turn on
1
Press to turn on the unit.
‡ To turn off the unit, press
seconds.
1
2
for 3
3
Set clock
1
2
3
4
5
6
Press MENU/DISP for over 2 seconds.
Press or repeatedly until [LOCAL]
or [DX] is displayed.
Rotate to select a setting:
‡ [LOCAL] (local): Only stations with
strong signal can be broadcast.
‡ [DX] (distance): Stations with strong
and weak signals can be broadcast.
Press MENU/DISP for 3 seconds.
Press or repeatedly until the
currently time is displayed.
Turn
clockwise to set hour.
Press
WRFRQÀUP
Turn
anti-clockwise to set minute.
Press
WRFRQÀUP
Select stereo/mono broadcasting
For stations with weak signals: to improve the
reception, change to monoaural sound.
1
2
3
View clock
1
Press MENU/DISP repeatedly until the
clock is displayed.
14
EN
Press MENU/DISP for 3 seconds.
Press or repeatedly until [STEREO]
or [MONO] is displayed.
Turn to select a setting:
‡ [STEREO]: stereo broadcast.
‡ [MONO]: mono broadcast.
5 Play audio files
E n g lish
Store radio stations in
memory
You can store up to 6 stations in each band.
Note
Store staions automatically
1
Press SEARCHÀUVWWKHQSUHVV .
» The six strongest stations of the
selected band are saved in preset
channel automatically: FM1,FM2,FM3
1-6, AM1, AM2.
‡ Ensure that the disc or device contains playable
ÀOHV
Play a disc
Note
Store staions manually
1
Tune to a station that you want to store.
(see ‘Tune to a radio station’ on page 14)
2
Press one of the numbered buttons 1 to
6 for 3 seconds.
» The station is saved in the selected
channel.
‡ You cannot play CDs encoded with copyright
protection technologies.
You can play commercially available audio CDs
and these discs:
‡ CD-Recordables (CD-R)
‡ CD-Re-writables (CD-RW)
‡ MP3 CDs
‡ WMA CDs
Tune to a preset station
1
2
Press
or
to select band.
Press the number button 1 to 6 to select
the preset station.
Note
‡ Ensure that the disc contains playable content.
1
Press
panel.
2
Insert a CD with the printed side facing
up.
3
Close the panel.
» Play starts automatically.
‡
‡
on the front panel to release the
To pause CD play, press 1 .
To resume CD play, press 1
again.
Remove the CD
To take out the CD,
1
2
Press
.
Press
beside the disc slot.
Tip
‡ If the disc is blocked in the disc compartment,
press and hold
until the disc comes out.
EN
15
Control play
Intro play
‡
‡
<RXFDQSOD\WKHÀUVWVHFRQGVRIHDFKWUDFN
‡
‡
‡
To select a folder, press or .
To skip to the previous/next track, press
or
.
To search backward/forward rapidly
within the current track, press
or
for 3 seconds.
To pause, press 1, .
To resume play, press 1,
again.
Search for an MP3/WMA
track
1
Press SEARCH.
» Search menu is displayed.
1
6KXIÁHSOD\
You can play the tracks in random order.
1
» [FOLD SCH]: search by folder
sequence.
» [FILE SCH]: search by track name.
2
Turn to select [FILE] and then press
WRFRQÀUP
3
Turn
press
4
Repeat step 3 until the search term is
complete.
‡
6
7
Turn
to skip over the list.
Press
to select a track.
View play information
1
16
1
‡
Press for 3 seconds to start search.
» :KHQVHDUFKLVÀQLVKHGDOLVWRI
matching tracks are displayed.
During play, press MENU/DISP
repeatedly to view:
‡ Track number and elapsed play time
‡ Artist
‡ Album
‡ Title
‡ Folder
‡ File
‡ Clock
EN
During play, press SHUF, 4 to select:
‡ [SHUF ON]VWDUWVKXIÁHSOD\IRUDOO
tracks.
‡ [SHUF OFF]FDQFHOVKXIÁHSOD\
Repeat play
to enter a character and then
.
5
During play, press INTRO, 2 to select:
‡ [INT ON]$IWHUWKHÀUVW
seconds of each track have been
played, play stops.
‡ [INT OFF] : Cancel intro play and
start normal play.
‡
‡
During play, press 3, REP repeatedly to
select:
[RPT TRK] (repeat one track): play the
current track repeatedly.
[RPT DIR] (repeat a folder): play all tracks
in the current folder repeatedly.
[RPT ALL] (repeat all tracks): play all
tracks repeatedly.
[RPT OFF]: cancel repeat.
Connect external sound
source
1
Connect the external sound source to
MP3 LINK socket with a 3.5 mm cable.
2
Press SOURCE repeatedly until [MP3
LINK] is displayed.
3
Operate the external component (refer
to the instructions supplied with the
external component).
Select preset equalizer
1
Press EQ/Audio.
» The current Equalizer setting is
displayed.
2
Press EQ/Audio again repeatedly to
select a preset EQ:
‡ [OPTIMAL] (optimal)
‡ [FLAT] ÁDW
‡ [POP] (pop)
‡ [USER] (user)
‡ [TECHNO] (techno)
‡ [ROCK] (rock)
‡ [CLASSIC] (classic)
‡ [JAZZ] (jazz)
Adjust volume
1
Turn clockwise/anticlockwise to
increase/decrease volume.
Mute
You can turn off the sound of your audio.
1
During play, press MUTE .
‡ To turn the sound back on, press
MUTE again.
Turn Dynamic Bass Boost
(DBB) on/off
1
Press DBB, the current setting is
displayed:
» [DBB ON] : The Dynamic Bass Boost
(DBB) function is on.
Other sound settings
You can also edit user preset EQ.
1
2
» [DBB OFF] : The DBB function is off.
2
E n g lish
6 Adjust sound
Press DBB again to change the DBB
setting.
3
Press EQ/Audio for 3 seconds.
Press or repeatedly to select the
item to be adjusted:
‡ [BAS] (bass) range: -7 to +7.
‡ [TRE] (treble) range: -7 to +7.
‡ [BAL] (balance) range: 12L to 12R. (L
= left speaker, R = right speaker)
‡ [FAD] (fader) range: 12R to 12F. (R =
rear speaker, F = front speaker)
Turn
to select a value.
EN
17
7 Adjust system
settings
3
Press or repeatedly to until [A-VOL]
is displayed.
4
Turn
Turn demo mode on/off
Turn beep sound on/off
When demo mode is on, when the unit is
idle for more than 2 minutes, all functions are
displayed.
Each time you press a button, the unit beeps.
You can turn off/on this beep sound.
1
2
3
Press MENU/DISP for 3 seconds.
Press or repeatedly to until [DEMO]
is displayed.
» The screen shows current Demo
mode setting.
Turn to select a setting:
‡ [DEMO ON] : Turn on the demo
mode.
‡ [DEMO OFF] : Turn off the demo
mode.
Select start volume
Each time you turn on the unit, it can play at the
last listened volume or at the preset volume.
1
2
3
1
2
3
to select a value: 0 - 47.
Press MENU/DISP for3 seconds.
Press or repeatedly to until [BEEP
ON] or [BEEP OFF] is displayed.
Rotate to select a setting:
‡ [BEEP ON]: Turn on the beep
sound.
‡ [BEEP OFF]: Turn off the beep
sound.
Turn display scroll on/off
For track information that is longer than the
display panel: you can select to cut off the
remainder of the text, or scroll to display the
full text.
Note
Press MENU/DISP for 3 seconds.
Press or repeatedly to until [V LAST] or [V - ADJ] is displayed.
Turn to select a setting:
‡ [V - LAST] : Each time you turn on
the unit, the volume remains from its
previous use.
‡ [V - ADJ] : Each time you turn on
the unit, the volume is at the preset
level.
Store preset volume
You can turn on the unit at a preset volume.
1
2
Select [V - ADJ] as the start volume.
18
EN
Press MENU/DISP for 3 seconds.
‡ If any special characters are present in the
MP3 track name or album name, it may not
display correctly on the screen because these
characters are not supported.
‡ Some WMA is protected by Digital Rights
Management (DRM), it cannot be played on
the unit.
‡ )ROGHUVÀOHVH[FHHGWKHVXSSRUWHGOLPLWRIWKH
unit are not displayed or played.
1
2
3
Press MENU/DISP for 3 seconds.
Press or repeatedly to until [ROLL
ON] or [ROLL OFF] is displayed.
Turn to select a setting:
‡ [ROLL ON] (scroll on): Auto scroll
during play.
‡ [ROLL OFF] (scroll off): No auto
scroll display.
You can select the shock protection setting,
depending on the stability of your car and the
condition of the road.
1
2
3
Press MENU/DISP for 3 seconds.
Press or
displayed.
repeatedly until [ESP] is
Turn to select a setting:
‡ [ESP 10 S]: select this when the road
is smooth and there are few bumps.
‡ [ESP 40 S]: select this when the road
is bumpy and unstable.
8 Additional
information
E n g lish
Select shock-protect setting
Detach the front panel
You can detach the front panel to deter theft.
1
2
Press
3
Pull the panel towards you to detach it
from the chassis.
4
Store the panel in the supplied carry case
to protect it from dirt or damage.
to release the panel.
Press the left side of the panel rightward.
Reset
You can reset the unit to its default setting.
1
Detach the front panel (see ‘Detach the
front panel’ on page 19).
2
Press the reset button by using a ballpoint pen or a similar tool.
» Preset adjustments such as preset
channels and sound adjustments are
erased.
EN
19
Replace fuse
Remove the unit
If the fuse is damaged,
You can remove the unit from the dashboard.
1
2
Check the electric connection.
1
2
3
Replace the fuse.
Buy a fuse that matches the voltage of the
damaged fuse.
SE15FA
U
Note
‡ If the new fuse gets damaged again, there may
be an internal malfunction. Consult your Philips
dealer.
20
EN
Detach the front panel.
Pull out the unit by using the removal
keys.
10 Troubleshooting
E n g lish
9 Product
information
Caution
‡ Never remove the casing of this apparatus.
Note
‡ Product information is subject to change
without prior notice.
Power supply
Fuse
Suitable speaker
impedance
Maximum power
output
Continuous power
output
Pre-Amp output
voltage
Aux-in level
Dimensions
(W x H x D)
Weight
12 V DC (11 V - 16 V),
negative ground
15 A
4-8
45 W x 4 channels
22 W x 4 RMS
(4 10% T.H.D.)
2.0 V
500 mV
188 x 58 x 206 mm
1.57 kg
Radio
Frequency range - FM
Frequency range
- AM(MW)
Usable sensitivity
- FM
Usable sensitivity
- AM(MW)
(S/N = 20 dB)
87.5 - 108.0 MHz
(100 kHz per step
in auto search and
50 kHz per step in
manual search)
522 - 1620 KHz
(9 KHz)
530 - 1710 KHz
(10 KHz)
8 µV
30 µV
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
apparatus, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips web site (www.
philips.com/support). When you contact Philips,
ensure that your apparatus is nearby and the
model number and serial number are available.
No power or no sound.
‡
Car engine is not on. Turn the car engine
on.
‡
Cable is not correctly connected. Check
connections.
‡
Fuse is burnt. Replace fuse.
‡
Volume is too low. Adjust volume (see
‘Adjust volume’ on page 17).
‡
If the above solutions cannot help, press
the RESET button.
‡
Ensure that the track played is of a
compatible format.
Noise in broadcasts.
‡
Signals are too weak. Select other
stations with stronger signals.
‡
Check the connection of the car antenna.
‡
Change broadcast from Stereo to mono.
Cannot play disc
‡
Ensure that the disc label is inserted with
the printed side facing up.
‡
:LSHWKHGLVFZLWKÀEUHFOHDQLQJFORWK
from the centre to the edge in a straight
line.
‡
This disc may be defective. Play another
disc.
‡
(QVXUHWKDWWKH&'LVDÀQDOLVHG&'&'
R/CD-RW.
‡
Ensure that the CD is not encoded with
copyright protection technologies.
EN
21
The CD skips tracks
‡
Ensure that the CD is not damaged or
dirty.
‡
Ensure that random mode is deactivated.
Disc cannot be ejected
‡
Press and hold .
Preset stations lost.
‡
Battery cable is not correctly connected.
Connect the battery cable to the terminal
that is always live.
11 Glossary
M
MP3
$ÀOHIRUPDWZLWKDVRXQGGDWDFRPSUHVVLRQ
system. MP3 is the abbreviation of Motion
Picture Experts Group 1 (or MPEG-1) Audio
Layer 3. With the MP3 format, one CD-R or
CD-RW can contain about 10 times more
data than a regular CD.
W
WMA (Windows Media Audio)
An audio format owned by Microsoft, is a
part of Microsoft Windows Media technology.
Includes Microsoft Digital Rights Management
tools, Windows Media Video encoding
technology, and Windows Media Audio
encoding technology.
22
EN
23
24
25
© 2009 Koninklijke Philips Electronics N.V.
All rights reserved.
CED200_55_UM_V1.1
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
