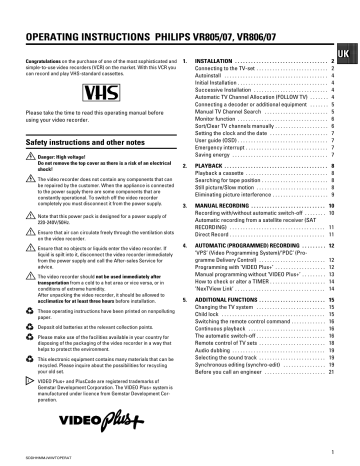

OPERATING INSTRUCTIONS PHILIPS VR805/07, VR806/07
Congratulations on the purchase of one of the most sophisticated and
simple-to-use video recorders (VCR) on the market. With this VCR you
can record and play VHS-standard cassettes.
1.
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting to the TV-set . . . . . . . . . . . . . . . . . . . . . . . . . . .
Autoinstall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Initial Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Successive Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic TV Channel Allocation (FOLLOW TV) . . . . . . .
Connecting a decoder or additional equipment . . . . . . .
Manual TV Channel Search . . . . . . . . . . . . . . . . . . . . . . . .
Monitor function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sort/Clear TV channels manually . . . . . . . . . . . . . . . . . . . .
Setting the clock and the date . . . . . . . . . . . . . . . . . . . . . .
User guide (OSD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency interrupt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
2
4
4
4
4
5
5
6
6
7
7
7
7
2.
PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Playback a cassette . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Searching for tape position . . . . . . . . . . . . . . . . . . . . . . . . .
Still picture/Slow motion . . . . . . . . . . . . . . . . . . . . . . . . . . .
Eliminating picture interference . . . . . . . . . . . . . . . . . . . . .
8
8
8
8
9
3.
MANUAL RECORDING . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Recording with/without automatic switch-off . . . . . . . .
Automatic recording from a satellite receiver (SAT
RECORDING) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Direct Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10
10
AUTOMATIC (PROGRAMMED) RECORDING . . . . . . . . .
’VPS’ (Video Programming System)/’PDC’ (Programme Delivery Control) . . . . . . . . . . . . . . . . . . . . . . . . .
Programming with ’VIDEO Plus+’ . . . . . . . . . . . . . . . . . . .
Manual programming without ’VIDEO Plus+’ . . . . . . . . .
How to check or alter a TIMER . . . . . . . . . . . . . . . . . . . . .
’NexTView Link’ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12
ADDITIONAL FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . .
Changing the TV system . . . . . . . . . . . . . . . . . . . . . . . . . .
Child lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching the remote control command . . . . . . . . . . . . .
Continuous playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The automatic switch-off . . . . . . . . . . . . . . . . . . . . . . . . . .
Remote control of TV sets . . . . . . . . . . . . . . . . . . . . . . . . .
Audio dubbing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting the sound track . . . . . . . . . . . . . . . . . . . . . . . . .
Synchronous editing (synchro-edit) . . . . . . . . . . . . . . . .
Before you call an engineer . . . . . . . . . . . . . . . . . . . . . . .
15
15
15
16
16
16
18
19
19
19
21
Please take the time to read this operating manual before
using your video recorder.
Safety instructions and other notes
A Danger: High voltage!
Do not remove the top cover as there is a risk of an electrical
shock!
A The video recorder does not contain any components that can
be repaired by the customer. When the appliance is connected
to the power supply there are some components that are
constantly operational. To switch off the video recorder
completely you must disconnect it from the power supply.
B Note that this power pack is designed for a power supply of
220-240V/50Hz.
B Ensure that air can circulate freely through the ventilation slots
on the video recorder.
B Ensure that no objects or liquids enter the video recorder. If
4.
liquid is spilt into it, disconnect the video recorder immediately
from the power supply and call the After-sales Service for
advice.
B The video recorder should not be used immediately after
transportation from a cold to a hot area or vice versa, or in
conditions of extreme humidity.
After unpacking the video recorder, it should be allowed to
acclimatize for at least three hours before installation.
C These operating instructions have been printed on nonpolluting
paper.
C Deposit old batteries at the relevant collection points.
C Please make use of the facilities available in your country for
disposing of the packaging of the video recorder in a way that
helps to protect the environment.
C This electronic equipment contains many materials that can be
recycled. Please inquire about the possibilities for recycling
your old set.
5.
11
11
12
12
13
14
14
D VIDEO Plus+ and PlusCode are registered trademarks of
Gemstar Development Corporation. The VIDEO Plus+ system is
manufactured under licence from Gemstar Development Corporation.
1
SDDHHMMJWWTOPERAT
1.
INSTALLATION
Important for the United Kingdom
This apparatus is fitted with an approved moulded 13 Amp
plug. To change a fuse in this type of plug proceed as follows:
Connecting with scart cable and ’Easy
link/NexTView’
a Remove fuse cover and fuse.
b Fix new fuse which should be a BS1362 3A, A.S.T.A. or
BSI approved type.
c Refit the fuse cover.
If the fitted plug is not suitable for your socket outlets, it should
be cut off and an appropriate plug fitted in its place.
If the mains plug contains a fuse, this should have a value of
3A. If a plug without a fuse is used, the fuse at the distribution
board should not be greater than 5A.
With the function ’Easy Link/NexTView’, your video recorder
can exchange information with the television. Heed the
operating instruction of your television.
With ’Easy Link/NexTView’ the TV channels from the TV will
automatically be loaded.
D Note: * The severed plug must be destroyed to avoid a
possible shock hazard should it be inserted into a 13A
socket elsewhere.
How to connect a plug:
The wires in the mains lead are coloured in accordance with
the following code:
BLUE - ’NEUTRAL’ (’N’)
BROWN - ’LIVE’ (’L’)
d The BLUE wire must be connected to the terminal which
is marked with the letter ’N’ or coloured BLACK.
e The BROWN wire must be connected to the terminal
which is marked with the letter ’L’ or coloured RED.
f Do not connect either wires to the earth terminal in the
plug which is marked with the letter ’E’ or by the safety
earth symbol \or coloured green or green-and-yellow.
Before replacing the plug cover, make certain that the cord
grip is clamped over the sheath of the lead - not simply over
the two wires.
a Remove the aerial cable plug from your TV set and insert
it into the
2
socket at the back of the video recorder.
b Plug one end of the aerial cable provided into the TV
socket on the video recorder and the other end into the
aerial input socket on your TV set.
c Plug one end of the special scart cable provided into the
AV1 EXT1 scart socket at the back of the video recorder
and the other end into the scart socket on your TV set.
d Switch on the TV set.
Connecting to the TV-set
When you install your Video recorder for the first time, please
read:
E the paragraph ’Connecting with scart cable and Easy
Link/NexTView’, when your TV-set is equipped with ’Easy
Link/NexTView’.
E the paragraph ’Connecting with scart cable without Easy
Link/NexTView’, when your TV-set is not equipped with
’Easy Link/NexTView’.
E the paragraph ’Connecting without a scart cable’, when
you do not use a scart cable.
2
e Insert one end of the mains cable into the mains socket
4 at the back of the video recorder and the other end
into the wall socket.
f The video recorder will automatically load all TV chan-
nels stored on your TV, in the same sequence.
This may take several minutes.
When all data (TV channels, language, country) has been
copied, the following text appears on the TV screen:
’EASY LINK LOADING COMPLETE’.
g Check if clock and date are correct. Read the paragraph
’Setting Time/Date’ in this chapter.
Connecting with scart cable without ’Easy
Link/NexTView’
Connecting without scart cable
If your television does not have a scart (EURO-AV) socket,
please do not read further here, but turn to the next paragraph
’Connecting without scart cable’.
a Remove the aerial cable plug from your TV set and insert
it into the
2
socket at the back of the video recorder.
b Plug one end of the aerial cable provided into the TV
socket on the video recorder and the other end into the
aerial input socket on your TV set.
c Insert one end of the mains cable into the mains socket
at the back of the video recorder and plug the other
end into the wall socket.
4
a Remove the aerial cable plug from your TV set and insert
it into the
2
socket at the back of the video recorder.
b Plug one end of the aerial cable provided into the TV
socket on the video recorder and the other end into the
aerial input socket on your TV set.
c Plug one end of the scart cable into the scart socket
on the back of the video recorder and the other
end into the scart socket on your TV set.
AV1 EXT1
d Switch on your TV set and select the programme number
that you have chosen for video playback (see operating
manual for your TV set).
e The video recorder will now send a welcoming text on
UHF-channel CH35 or 583MHz.
f Tune in the TV set in the UHF wave band until this picture
appears.
d Switch on the TV set.
e Insert one end of the mains cable into the mains socket
4 at the back of the video recorder and plug the other
end into the wall socket.
CONGRATULATIONS ON THE
PURCHASE OF YOUR NEW
PHILIPS VIDEORECORDER
TO CONTINUE PRESS OK
f When your TV set automatically switches to programme
number e.g.: ’EXT’, ’0’, or ’AV’, a welcoming text appears
on the TV screen.
When your TV set does not switch automatically, select
the required programme number manually (see instruction manual TV set).
g Subsequently, read the paragraph ’Initial Installation’ in
the section ’Autoinstall’.
g Subsequently, read the paragraph ’Initial Installation’ in
the section ’Autoinstall’.
3
Autoinstall
Automatic TV Channel Allocation (FOLLOW
TV)
The video recorder will search for all TV channels. It stores TV
channels found in the following sequence: BBC 1, BBC 2, ITV,
CH 4, CH 5, SKY, others.
Initial Installation
a If the aerial (antenna) has been connected to the video
recorder, press the OK button. Please continue with the
next paragraph at step e .
Successive Installation
number for the video recorder.
c Select the line ’INSTALLATION’ with the menu buttons
P;
and confirm with the
P
button.
d Select the line ’AUTOINSTALL’ with the menu buttons
P=
or
P;
and confirm with the
number for the video recorder.
b Press the MENU button. The main menu appears.
b Press the MENU button. The main menu appears.
or
D With ’Connecting with scart cable and ’Easy Link/NexTView’, this function will start the data transfer.
a Switch on the TV set. If required, select the programme
a Switch on the TV set. If required, select the programme
P=
With this function the video recorder maintains the same
channel sequence as on the TV set, in case you connected
your videorecorder to a TV set without scart cable. This only
functions if the video recorder (socket AV1 EXT1 ) and the TV
set are connected with a scart cable. Additional equipment
connected to socket AV2 EXT2 must be switched off.
P
button.
e ’AUTOINSTALL’ starts. This can take several minutes.
INSTALLATION
AUTOINSTALL
SEARCHING FOR TV CHANNELS
03 CHANNELS FOUND
c Select the line ’INSTALLATION’ with the menu buttons
P=
or
P;
and confirm with the
P
button.
d Select the line ’FOLLOW TV’ with the menu buttons P =
or P ; and confirm with the P button. Take notice of
the message on the TV screen.
e Press the OK button.
If the video recorder recognizes that the TV set has been
connected with a scart cable, ’TV’ 01’ appears in the
display.
E When ’NOTV’ (no signal from TV set) appears in the
display, the TV channels can not be allocated automatically. In this case, read paragraph: ’Manual TV Channel
Number Allocation’.
________________________
f Select programme number ’1’ on the TV set.
g Confirm with the OK button on the video recorder-ref When ’AUTOINSTALL’ is complete, ’AUTOINSTALL
COMPLETE’ will appear on the TV screen.
g To end, press the MENU button.
mote control. The video recorder compares the TV
channels on the TV set and the video recorder.
If the video recorder found the same TV channel as the
TV set, then it stores it at ’P01’.
h Wait until e.g.: ’TV’ 02’ appears.
i Select the next programme number, e.g.: ’2’ on the TV set.
j Confirm with the OK button on the video recorder-re-
mote control.
D If you allocated the wrong TV channeL, you can go back
one step with the menu button Q .
4
k Repeat steps h to j until all TV channels have been
allocated.
g Select function ’ON’ with the menu buttons Q or P .
When you select ’OFF’, the function will be switched off.
l To finish, press the MENU button.
h Confirm with the OK button.
D When the function is switched on, ’DEC’ appears in the
display.
Connecting a decoder or additional
equipment
i To end, press the MENU button.
You can also connect additional equipment to the AV2 EXT2
socket. For instance: decoder, satellite receiver or camera
recorder.
You can connect a HIFI-stereo set to the sockets
AUX OUT L R (audio output left/right) and AUX IN L R (audio input left/right).
Manual TV Channel Search
In certain cases the ’Automatic TV Channel Search’ may not
be able to find all of the TV channels (e.g. coded TV channels).
In that case, use this manual method to set the channels.
D With ’Connecting with scart cable and ’Easy Link/NexTView’ the videorecorder automatically loads the TV
channels from the TV set. Hence, some lines are not
functional.
a Switch on the TV set. If required, select the programme
number for the video recorder.
b Press the MENU button. The main menu appears.
Allocating a decoder
c Select the line ’INSTALLATION’ with the menu buttons
With this function, the connected decoder will automatically
be activated for the TV programme required.
D With ’Connecting with scart cable and ’Easy Link/NexTView’ the decoder must be activated for the TV set.
a Switch on the TV set. If required, select the programme
number for the video recorder.
P=
or
P;
and confirm with the menu button
P
.
d Select the line ’MANUAL SEARCH’ with the menu buttons
P=
or
P;
and confirm with the menu button
P
.
INSTALLATION
MANUAL SEARCH
CHANNEL/FREQ.
CH
ENTRY/SEARCH
34
PROGRAMME NUMBER | 02
}
{ TV CHANNEL NAME
MTV
DECODER
OFF
TV SYSTEM
PAL
NICAM
ON
FINE TUNING
+1
________________________________
TO EXIT
PRESS
MENU
z
b On the video recorder, select the TV programme you wish
to link with the decoder function, using the
button or the digit buttons 0-9 .
P;
or
P=
c Press the MENU button. The main menu appears.
d Select the line ’INSTALLATION’ with the menu buttons
P=
or
P;
and confirm with the
P
button.
e Select the line ’MANUAL SEARCH’ with the menu buttons
P=
or
P;
and confirm with the
P
button.
f Select the line ’DECODER’ with the menu buttons P = or
P;
.
e In the line ’CHANNEL/FREQ.’, select the display for:
’FREQ.’: frequency
’CH’: channel
’S-CH’: special channel
f If you know the frequency or channel of the desired TV
channel, you can enter the data in line ’ENTRY/SEARCH’
with the digit buttons 0-9 .
5
E If you don’t know the frequency or channel of the TV
channel of your choice, press the menu button P to
start the channel search.
g In the line ’PROGRAMME NUMBER’ select the pro-
gramme number you want e.g.: ’01’, using the menu
buttons Q or P .
Sort/Clear TV channels manually
D With ’Connecting with Easy Link/NexTView’ the video
recorder automatically loads the TV channels from the TV
set. Hence, you can not select this function.
a Switch on the TV set. If required, select the programme
number for the video recorder.
h If you want to change the TV channel name, press the
P
button in line ’TV CHANNEL NAME’.
b Press the MENU button. The main menu appears.
E Select the character you want to change with the Q or
the P button. Change the character with the P = or the
P ; button. Select the next character in the same way.
c Select the line ’INSTALLATION’ with the menu buttons
E Keep pressing the menu button
appears.
d Select the line ’TV CHANNEL ALLOCATION’ with the
P
until the cursor dis-
i In the line ’NICAM’, select funtion ’ON’ or ’OFF’ with the
P
or
Q
P=
or
P;
and confirm with the
menu buttons
ton.
P=
or
P;
P
button.
and confirm with the
P
but-
button.
j If you want to change the automatic tv channel setting,
select the line ’FINE TUNING’.
With the menu buttons Q or P you can vary the automatic tv channel setting. Important: This re-tuning is only
necessary and useful in special cases, e.g.: when there
are stripes on the picture with cable-TV systems.
INSTALLATION
TV CHANNEL ALLOCATION
z...
P01 BBC1
z P02 BBC2
} P03 ITV
}
{ P04 CH4
P05 CH5
P06 SKY
{...
________________________________
TO SORT
TO EXIT
PRESS
}
PRESS
MENU
k Press the OK button to store the TV channel.
D If you want to search for further TV channels, start again
at step f.
e With the menu buttons P = or P ; , select the TV chan-
l To end, press the MENU button.
D If you want to delete a TV channel, press the
button.
Monitor function
nel to which you want to allocate a programme number
(starting with ’P01’) and press the P button.
CLEAR (CL)
f With the menu buttons P = or P ; , shift the TV channel
You can switch back and forth between TV reception and
video recorder reception with the MONITOR button. This only
functions when you used a scart cable to connect the video
recorder to your TV set and if your TV set responds to this
switch-over.
to the programme number you wish to allocate to this TV
channel and press the Q button. The TV channel will
be added.
g Repeat steps eto funtil you have allocated a
programme number to all TV channels.
h To store, press the OK button.
i To end, press the MENU button.
6
E Enter/Alter: With the
Setting the clock and the date
E Store: With the
If the time in the video recorder display is not correct or if
’--:--’ appears in the display, please set the clock manually.
OK
Q
or
P
0-9
button.
button.
E Confirm: With the menu button
E Exit menu: With the
or with the
MENU
P
.
button.
a Switch on the TV set. If required, select the programme
number for the video recorder.
b Press the MENU button. The main menu appears.
c Select the line ’INSTALLATION’ with the menu buttons
P=
or
P;
and confirm with the
P
button.
Emergency interrupt
d Select the line ’TIME/DATE’ with the menu buttons P = or
P;
and confirm with the
P
Both the video recorder and the remote control have an
’Emergency interrupt’ button. You can use the STANDBY m button to interrupt any function.
Whenever you have operating problems you can simply
interrupt the function and start again.
You can practise operating your set without any worries. No
matter which buttons you press, you cannot damage it.
button.
INSTALLATION
TIME/DATE
z
{
TIME
YEAR
MONTH
DATE
20:00
| 1998
02
06
}
________________________________
TO EXIT
PRESS
MENU
Important notes for operation
e Adjust ’TIME’, ’YEAR’, ’MONTH’, ’DATE’ if required, using
the digit buttons 0-9 . Switch between fields with the
menu buttons P = or P ; .
f Confirm each entry with the OK button.
g To end, press the MENU button.
D If a TV channel which transmits TXT/PDC is stored with
programme number ’P01’, time (from TXT) and date (from
PDC) will automatically be taken from the TXT/PDC
information.
E You can switch on with the STOP h button, the
tons or by inserting a cassette.
0-9
but-
E Keep your video recorder connected to the mains at all
times to ensure that programmed recordings can be
made and that the television functions normally. The
power consumption required is less than 4W (saving
energy mode).
E When the video recorder is disconnected from the mains,
TV channels will be strored typically 1 year, and
clock/timer data will be stored typically 7 hours.
Saving energy
User guide (OSD)
With OSD (On Screen Display) the corresponding functions
appear on the TV screen as a menu. The most important
button-functions are displayed at the bottom of the screen.
E Call up the menu: With the
MENU
E Select a line: With the
or
P=
P;
button.
You can choose between two methods of switching to
standby.
Normal method: Switch to standby using the STANDBY m button. The clock time remains displayed.
If the clock has not been set, ’--:--’ appears.
To save energy: Press the STANDBY m button twice. The clock
time disappears from the display.
button.
E Select within a line: With the menu buttons
P .
Q
or
7
2.
PLAYBACK
Playback a cassette
a Insert a cassette into the cassette slot.
Searching for tape position with picture
(picture search)
a During playback, press the H (reverse) or I (for-
ward) button once or several times.
b To interrupt at the position required, press the PLAY G
button.
D During picture search, the picture quality is affected and
the sound is turned off.
Still picture/Slow motion
b Press the PLAY G playback button.
c To stop, press the STOP h button.
d To eject, Press the STOP/EJECT ? button on the set.
D Some hired cassettes may have a poor picture/sound
quality. This is not a fault in your set. Please read the
section ’Eliminating picture interference’.
D Some functions switch off automatically after a while
(e.g.: Pause, Still Picture, Scanning). This helps to protect
the cassette and prevent unnecessary power consumption.
NTSC Playback
With this set you can playback cassettes that have been
recorded on another video recorder in the NTSC standard.
This only works for PAL-television sets which are suitable for a
picture frequency of 60 Hz.
During NTSC playback ’60HZ’ appears in the display.
D During NTSC-playback some special features (e.g. still
picture) are not possible.
a Press the STILL R button. A still picture appears on the
screen.
b Each time you press STILL R again the picture will
move on one step.
c When you hold the STILL R button the picture will be
played in slow motion.
d When you press the I button several times, you have
a choice of several playback speeds.
During slow motion the sound is switched off.
Searching for tape position without picture
(wind/rewind)
a Stop the tape with the STOP h button.
b Press the H (reverse) or I (forward) button.
c To interrupt at the position required, press the STOP h
button.
Instant View
Tape position indication
a During playback press the COUNTER button.
b Select one of the following options:
’TIME USED’ to indicate the time used on the tape
’TIME LEFT’ to indicate the time left on the tape
’COUNTER’ to indicate the actual position on the tape
D With the OK button, you can superimpose the actual
tape position on the TV screen.
8
With this function you can switch to picture search during
wind/rewind.
a If you hold the H (rewind) or I (wind) button dur-
ing wind or rewind, you will switch to picture search.
b If you release the button, the video recorder will
automatically switch back to rewind or wind.
Automatic search for tape position (Index
search)
At the beginning of each recording, the video recorder marks
the tape with a index code mark.
Tracking during still picture
If the still picture vibrates vertically, you can improve the still
picture as follows:
a During still picture, press the MENU button.
a Press the INDEX E button. Then press the I button to
select the next code mark or the
vious code mark.
H
button for the pre-
b Select the line ’PLAY FUNCTIONS’ with the menu buttons
P=
b When the video recorder finds the code mark or a blank
space it will automatically switch to playback.
D You can only search for a blank space with recordings
made on a video recorder that does not have this index
code mark function.
or
P;
and confirm with the
P
button.
c Select the line ’VERTICAL STABILITY’ with the menu
buttons
P=
or
P;
.
d Hold the menu buttons Q or P until the picture qual-
ity is at its best.
e Confirm with the OK button.
Eliminating picture interference
f To end, press the MENU button.
When the picture quality is poor, please proceed as follows:
Cleaning the video heads
Tracking during playback
a During playback, press the MENU button.
a During playback, press the MENU button.
b Select the line ’PLAY FUNCTIONS’ with the menu buttons
P=
or
P;
and confirm with the
P
button.
b Select the line ’PLAY FUNCTIONS’ with the menu buttons
P=
or
P;
and confirm with the
P
button.
c Select the line ’HEAD CLEANING’ with the menu buttons
P=
or
P;
.
c Select the line ’MANUAL TRACKING’ with the menu
buttons
P=
or
P;
.
d Press the OK button. ’HEAD CLEANING IN PROGRESS’
appears on the screen.
d Hold the menu buttons Q or P until the playback
quality is at its best.
e Wait a few seconds, until the message disappears and
then press the
MENU
button.
e Confirm with the OK button.
f To end, press the MENU button. This setting will remain
until you remove the cassette.
9
3.
MANUAL RECORDING
Recording without automatic switch-off
Auto-assembling
a Insert a cassette.
You can use the auto-assembling function to join individual
recordings without any major picture disturbance between the
recordings.
b Use the P ; or P = button to select the programme
number (programme name) from which you wish to
record.
D When the function ’Direct record’ is switched on, select
the programme number on the TV set. With the video
recorder switched on, press the RECORD/OTR n button.
D When a TV channel transmits a channel name, it will
show in the display.
D Programme numbers ’E1’ and ’E2’ are provided for
recording from external sources (via scart sockets
AV1 EXT1 and AV2 EXT2 ). Programme number ’E3’ is provided for recording from the front sockets VIDEO and
L-AUDIO-R .
D Programme number ’AUX’ is provided for audio recordings via sockets AUX IN L R .
a During playback, search for the correct position on the
tape.
b Stop playback by pressing the STOP h button. ’PAUSE’
appears on the TV screen.
c Now start recording as usual by pressing the
RECORD/OTR n
button.
Selecting the recording speed (SP/LP)
You can reduce the recording speed by half. This makes it
possible to record, for example, 8 hours instead of 4 hours on
an ’E240’ (4 hour) cassette.
c Press the RECORD/OTR n button.
a Switch on the TV set. If required, select the programme
d Stop recording with the STOP h button.
number for the video recorder.
b Press the MENU button. The main menu appears.
Recording with automatic switch-off (OTR
One-Touch-Recording)
c Select the line ’RECORD FUNCTIONS’ with the menu
a Insert a cassette.
d Select the line ’RECORD SETTINGS’ with the menu
buttons
buttons
P=
P=
or
or
P;
P;
, and confirm with the
, and confirm with the
P
P
button.
button.
b Use the P ; or P = button to select the programme
number (programme name) from which you wish to
record.
e Select the line ’RECORD SPEED’ with the menu buttons
P=
or
buttons
d Press the RECORD/OTR n button repeatedly to obtain the
required end time or length of the recording.
CLEAR (CL)
button.
Erase protection
So that you don’t accidentally delete an important recording,
remove the special tab (erase protection) on the narrow side
of the cassette with a screwdriver or slide the special tab to
the left. Later, if you no longer want the cassette to be erase
protected, you can seal the gap again with adhesive tape or
slide the special tab to the right.
10
.
f Select the required recording speed with the menu
c Press the RECORD/OTR n button.
D To cancel this entry, press the
P;
Q
or
P
.
D ’LP’: Long Play = half recording speed (double recording
time).
’SP’: Standard Play = normal recording speed.
D The picture quality will be adversely affected when
recording at half recording speed (’LP’).
D For playback, the correct recording speed will automatically be selected.
g Confirm with the OK button.
h To end, press the MENU button.
Automatic recording from a satellite
receiver (SAT RECORDING)
Direct Record
You can only use this function, when you have a satellite
receiver, which can control other equipment by a ’programming’ function.
With this function switched on, and the video recorder
switched to standby, the video recorder automatically takes
the channel number which is currently selected on the
television when it starts recording, by means of the scart
cable.
b Press the MENU button. The main menu appears.
D With ’Connecting with scart cable and ’Easy Link/NexTView’, the video recorder also takes the programme
number from the TV set automatically with the video
recorder switched on.
c Select the line ’RECORD FUNCTIONS’ with the menu
a Switch on the TV set. If required, select the programme
a Switch on the TV set. If required, select the programme
number for the video recorder.
buttons
P=
or
P;
, and confirm with the
P
button.
d Select the line ’RECORD SETTINGS’ with the menu
buttons
P=
or
P;
, and confirm with the
P
number for the video recorder.
b Press the MENU button. The main menu appears.
button.
c Select the line ’RECORD FUNCTIONS’ with the menu
e Select the line ’SAT RECORD’ with the menu buttons
P=
or
P;
buttons
P=
or
P;
, and confirm with the
P
button.
.
d Select the line ’RECORD SETTINGS’ with the menu
f Select the required scart socket ’E1’ or ’E2’ with the menu
buttons Q or P .
If you want to switch off the function, select ’OFF’ with
the menu buttons P or Q .
g Confirm with the OK button.
buttons
P=
or
P;
, and confirm with the
P
button.
e Select the line ’DIRECT RECORD’ with the menu buttons
P=
or
P;
.
f Select the function ’ON’ with the menu buttons Q or
P
. If you select ’OFF’, the function will be switched off.
h Use a scart cable to connect the scart socket you
selected on the video recorder ( AV1 EXT1 or AV2 EXT2 ) to
the corresponding scart socket on the satellite receiver.
g Confirm with the OK button.
h To end, press the MENU button.
i Insert a cassette.
i Switch off with the STANDBY m button.
j To end, press the STANDBY m button. The video recorder
is now prepared for recording. The start and end of the
recording is controlled via one of the scart sockets.
D When this function is switched on, ’x’ appears in the
display.
j On the TV set, select the programme number you want
make the recording from.
k Press the RECORD/OTR n button with the video recorder
switched off.
D Don’t select another programme number on your TV set,
until the ’search symbol’ in the display of your video
recorder disappears. This can take up to one minute.
D When ’NOTV’ appears in the display, the programme
number could not be found. The video recorder switches
off automatically.
11
4.
AUTOMATIC (PROGRAMMED) RECORDING
The video recorder needs the following information for every
programmed recording:
d Enter the entire PlusCode number (up to 9 digits) printed
in your TV guide next to the start time of a TV programme.
If you made a mistake, clear with the CLEAR (CL) button.
* the date on which the recording is to be made
* the programme number for the TV channel
* the start and stop time of the recording
* VPS/PDC on or off
* the recording speed (SP/LP)
TIMER
VIDEOPLUS PROGRAMMING
12345678
The video recorder stores all the information mentioned above
in a TIMER block. You can programme up to 6 TIMER blocks,
one month in advance.
’VPS’ (Video Programming System)/
’PDC’ (Programme Delivery Control)
________________________________
MO-FR/WEEKLY
TO STORE
PRESS
SELECT PRESS
OK
e Select programming at daily or weekly intervals with the
button.
’MO-FR’: Recording at daily intervals from Mondays to
Fridays inclusive.
’WEEKLY’: Recording at weekly intervals on the same day
of the week.
SELECT
With ’VPS/PDC’, the TV station controls the beginning and the
length of the programmed recording. This means that the
video recorder switches itself on and off at the right time even
if a TV programme you have programmed begins earlier or
finishes later than expected.
Usually the start time is the same as the VPS/PDC time. If,
however, in the TV guide, in addition to a TV programme’s start
time, a different VPS/PDC time is given, e.g.: ’20.15 (VPS 20.14)’,
you must enter ’20.14’ as the start time exactly to the minute.
If you want to enter a time that differs from the VPS/PDC time,
you must switch off ’VPS/PDC’.
D With most TV stations the VPS/PDC time is always the
same as the start time.
Programming with ’VIDEO Plus+’
All the information required for a programming is contained
encoded in the PlusCode programming number.
f After you confirm with the OK button, the data will ap-
pear on the TV screen.
D If the VIDEO Plus+ system does not recognize the TV
channel, ’PLEASE ENTER PROGRAMME NUMBER’ appears on the TV screen. Select the required programme
number (programme name) with the P ; or the P = button. Confirm with the OK button.
D If ’PLUSCODE NUMBER WRONG’ appears on the TV
screen, you entered an incorrect PlusCode number or the
incorrect date. Repeat the entry or end with the
TIMER s button.
D If ’WEEKEND PROGRAMMING - NOT POSSIBLE’ appears
on the TV screen, the date was incorrectly entered.
’Daily’ programming can only be used for recordings to
be made from Mondays to Fridays inclusive.
D Use the
’START’.
SELECT
button to switch ’VPS/PDC’ on or off in
D Use the SELECT button to select the recording speed ’SP’
or ’LP’ in ’END’.
a Switch on the TV set. If required, select the programme
number for the video recorder.
g Confirm with the OK button.
D The data has been stored in a TIMER block.
b Press the TIMER s button on the remote control.
The programming mode selected last is marked.
c Select the line ’VIDEOPLUS PROGRAMMING’ with the
menu buttons
button OK .
12
P=
or
P;
and confirm with the menu
h To end, press the TIMER s button.
i Please note that you inserted a cassette without erase
protection. Switch off with the STANDBY m button.
The programmed recording will only function when the
video recorder is switched off with the STANDBY m button.
D Select recording at daily or weekly intervals in the field
’DATE’, with the SELECT button.
’MO-FR’: Recording to be made from Mondays to Fridays
inclusive.
’MO’: Weekly recordings on the same weekday.
D If one or more of the TIMER blocks are occupied, ’k’
lights up in the display.
D Use the
’START’.
D If the end of the cassette is reached during a recording,
the cassette will automatically be ejected.
D Use the SELECT button to select the recording speed ’SP’
or ’LP’ in ’END’.
D If you forget to load a cassette, ’NO CASSETTE’ appears
on the TV screen and ’k’ lights up in the display.
f Confirm with the OK button.
D If you inserted a cassette with erase protection when you
want to start a recording, the cassette will be ejected.
D Programme numbers ’E1’ and ’E2’ are provided for
external recordings (via scart socket AV1 EXT1 or
AV2 EXT2 ).
D Programme number ’AUX’ is provided for audio recordings via sockets AUX IN L R .
SELECT
button to switch ’VPS/PDC’ on or off in
D The data has been stored in a TIMER block.
g To end, press the TIMER s button.
h Please note that you inserted a cassette without erase
protection. Switch off with the STANDBY m button.
The programmed recording will only function when the
video recorder is switched off with the STANDBY m button.
Manual programming without ’VIDEO Plus+’
D If one or more of the TIMER blocks are occupied, ’k’
lights up in the display.
a Switch on the TV set. If required, select the programme
D If the end of the cassette is reached during a recording,
the video recorder automatically ejects the cassette. The
set switches off after a few minutes.
number for the video recorder.
b Press the TIMER s button on the remote control.
The programming mode selected last is marked.
c Select the line ’TIMER PROGRAMMING’ with the menu
buttons
P=
or
P;
and confirm with the
P
button.
TIMER
TIMER PROGRAMMING
DATE
VPS
PROG. START PDC END
01
01
20:00
LP
D If you forget to load a cassette, ’NO CASSETTE’ appears
on the TV screen and ’k’ lights up in the display.
D If you inserted a cassette with erase protection, the
cassette will be ejected.
D Programme numbers ’E1’ and ’E2’ are provided for
external recordings (via scart socket AV1 EXT1 or
AV2 EXT2 ).
D Programme number ’AUX’ is provided for audio recordings via sockets AUX IN L R .
21:30
________________________________
TO STORE
PRESS
OK
d Select the entry field with the menu buttons Q or
P
.
e Enter data with the menu buttons P = or P ; or with the
digit buttons
0-9
.
13
How to check or alter a TIMER
’NexTView Link’
a Switch on the TV set. If required, select the programme
This video recorder is equipped with the function ’NexTView
Link’. If your television is also equiped with this function, you
can mark TV programmes on the television for programming.
These TV programmes will automatically be transmitted to a
TIMER block on the video recorder. If you clear the marking of
the TV programme on the television, the corresponding TIMER
block on the video recorder will also be cleared.
For more information, read the instruction manual of your TV
set.
number for the video recorder.
b Press the TIMER s button on the remote control.
The programming mode selected last is marked.
c Select the line ’TIMER LIST’ with the menu buttons P =
or
P;
and confirm with the
P
button.
d Select the TIMER you want to check or alter with the
menu buttons
P=
or
P;
.
e Press the menu button P .
f Select what you want to check or alter data with the
menu buttons
Q
or
P
.
g Alter data with the menu buttons P = or P ; or with the
digit buttons
0-9
.
h Confirm with the OK button.
i To end, press the TIMER s button.
j Please note that you inserted a cassette without erase
protection. Switch off with the STANDBY m button.
The programmed recording will only function when the
video recorder is switched off with the STANDBY m button.
How to clear a TIMER
a Switch on the TV set. If required, select the programme
number for the video recorder.
b Press the TIMER s button on the remote control.
The programming mode selected last is marked.
c Select the line ’TIMER LIST’ with the menu buttons P =
or
P;
and confirm with the
P
button.
d Select the TIMER you want to clear with the menu
buttons
P=
or
P;
.
e Press the CLEAR (CL) button.
f Confirm with the OK button.
g Switch off with the TIMER s button.
14
5.
ADDITIONAL FUNCTIONS
Changing the TV system
Setting the On Screen Display (OSD)
If you play back recordings made on another video recorder,
the automatic TV system switch-over may lead to colour
interferences.
You can switch the On Screen Display of the current operating
information on or off.
a Switch on the TV set. If required, select the programme
a Switch on the TV set. If required, select the programme
number for the video recorder.
number for the video recorder.
b Press the MENU button. The main menu appears.
b Press the MENU button. The main menu appears.
c Select the line ’SPECIAL SETTINGS’ with the menu
c Select the line ’SPECIAL SETTINGS’ with the menu
buttons
P=
or
P;
and confirm with the
P
buttons
Q
or
P
or
P;
and confirm with the
P
button.
MAIN MENU
SPECIAL SETTINGS
d In the line ’TV SYSTEM’ select the required TV system
with the menu buttons
P=
button.
.
} TV SYSTEM
| PAL
}
{ CHILD LOCK
OFF
OSD MODE
AUTO.
16:9 WIDE SCREEN
OFF
VCR 1 OR 2
VCR 1
REPEAT PLAY
OFF
AUTO STANDBY
ON
DEMO
OFF
________________________________
TO EXIT
PRESS
MENU
e Confirm with the OK button.
f To end, press the MENU button.
D If colour interference still occurs, you can switch to ’B/W’
(black and white) in line ’TV SYSTEM’.
d Select the line ’OSD MODE’ with the menu buttons P = or
P;
Child lock
.
e Select one of the options indicated with the menu buttons
a With the video recorder switched on, press the
button on the remote control for a few
seconds until ’{’ appears in the video recorder display.
Keep the remote control in a safe place.
CHILD LOCK u
b If you want to switch off the child lock, press the
button again for a few seconds until ’{’
disappears from the video recorder display.
CHILD LOCK u
D If a button is pressed with activated child lock, ’{’
flashes in the display for a few seconds.
D Programmed recordings are made despite activated child
lock and cannot be interrupted.
P or Q .
’AUTO.’: OSD appears for a few seconds each time an
operating mode is selected and then disappears.
’OFF’: OSD is switched off.
’ON’: OSD is switched on.
f Confirm with the OK button.
g To end, press the MENU button.
D With the OK button you can superimpose the On Screen
Display of current operating mode on the TV screen.
You can also switch the child lock on and off with the menu
button P in the menu ’SPECIAL SETTINGS’, in line ’CHILD
LOCK’.
15
How to switch to 16:9
You can only use this function, when the video recorder
(socket AV1 EXT1 ) and the TV set are connected with a scart
cable.
a Switch on the TV set. If required, select the programme
number for the video recorder.
b Press the MENU button. The main menu appears.
D If the menu does not disappear, the video recorder didn’t
recognize the remote control command. Repeat
step g .
D After you changed the batteries in the remote control, it
will switch back to ’VCR 1’.
D If you entered the wrong remote control command, the
message e.g.: ’VCR ONLY RESPONDS TO VCR 1
COMMANDS’ appears on the TV screen or ’VCR 1’
appears in the video recorder display, when you press a
button for a few seconds.
c Select the line ’SPECIAL SETTINGS’ with the menu
buttons
P=
or
P;
and confirm with the
P
button.
d If you have a TV set in wide-screen format, select ’ON’ in
line ’16:9 WIDE SCREEN’. If not, select ’OFF’ with the
menu buttons P or Q .
e Confirm with the OK button.
Continuous playback
a Press the MENU button. The main menu appears.
b Select the line ’SPECIAL SETTINGS’ with the menu
buttons
P=
or
P;
. Confirm with the menu buton
P
.
f To end, press the MENU button.
c Select the line ’REPEAT PLAY’ with the menu buttons
P=
Switching the remote control command
If you have two video recorders with the same remote control
command, you can change the remote control command of the
handset and the remote control command of one of the video
recorders.
a Switch on the TV set. If required, select the programme
number for the video recorder.
b Press the MENU button. The main menu appears.
or
P;
.
d Select ’ON’ with the menu buttons Q or P . If you se-
lect ’OFF’, the function will be switched off.
e Confirm with the OK button.
f Press the MENU button.
g Insert a cassette and start the continuous playback with
the PLAY G playback button.
When the end of the tape or the end of the recording has
been reached, it rewinds and starts playback again.
c Select the line ’SPECIAL SETTINGS’ with the menu
buttons
P .
P=
or
P;
and confirm with the menu button
The automatic switch-off
d Select the line ’VCR 1 OR 2’ with the menu buttons P = or
P;
.
e Select ’VCR 1’ or ’VCR 2’ with the menu buttons Q or
P
f Confirm with the OK button.
g On the remote control, press the SELECT button and the
digit button 2 at the same time to switch the remote
control to ’VCR 2’.
D If you want to switch back to ’VCR 1, press the SELECT
button and the digit button 1 at the same time.
h Confirm with the OK button.
16
If the video recorder is not used for a few minutes in certain
modes (e.g.: STOP), it switches to standby automatically. You
can switch off this automatic switch-off in order to use the
video recorder as a television receiver.
a Switch on the TV set. If required, select the programme
number for the video recorder.
b Press the MENU button. The main menu appears.
c Select the line ’SPECIAL SETTINGS’ with the menu
buttons
P .
P=
or
P;
and confirm with the menu button
d Select the line ’AUTO STANDBY’ with the menu buttons
P=
or
P;
.
Poor TV reception - Optimize the modulator
f Confirm with the OK button.
With ’Connecting without scart cable’, UHF-channel CH35or
583MHz might already be being used by another TV station in
your reception area. In this case the picture quality on your TV
set will be adversely affected when receiving one or more TV
channels.
g To end, press the MENU button.
a Ensure that no cassette has been loaded. On the video
e Select ’ON’ with the menu buttons Q or P . If you se-
lect ’OFF’, the function will be switched off.
D A TIMER recording only functions when the video
recorder is switched to standby.
The ’DEMO’ function
recorder, simultaneously hold the STOP/EJECT ? and
the PLAY G button for a few seconds until e.g.: ’CH35’
or ’583’ appears in the display. The video recorder
transmits a test picture on this UHF-channel (or this
frequency).
INSTALLATION
OPTIMIZE MODULATOR
When the ’DEMO’ function is switched on and the video
recorder switched off, several menus will be demonstrated on
the TV screen. This has no influence on operating the video
recorder.
} OPTIMIZE
{ MODULATOR
CHANNEL/FREQ.
number for the video recorder.
c Select the line ’SPECIAL SETTINGS’ with the menu
buttons
P=
or
P;
and confirm with the
P
button.
}
________________________________
TO EXIT
PRESS
MENU
a Switch on the TV set. If required, select the programme
b Press the MENU button. The main menu appears.
| CH35
ON
CH
b In line ’CHANNEL/FREQ.’ select the indication for channel
’CH’ or frequency ’FREQ.’, using the menu buttons
Q .
P
or
c Select the line ’OPTIMIZE’ with the menu buttons P ; or
P=
. Press the menu button
P
.
d In the line ’DEMO’, select ’ON’ with the menu buttons
P or Q .
If you select ’OFF’ the function will be switched off.
d When the video recorder finds a ’free’ TV channel, the
channel or frequency will be indicated.
e Confirm with the OK button.
D You can also enter the channel or frequency directly with
the digit buttons 0-9 .
f To end, press the MENU button.
e Tune in the TV set in this channel or frequency.
D The ’DEMO’ function is not possible during a ’TIMER
recording’ and during an ’Automatic recording from a
satellite receiver’.
f Confirm the channel or frequency indicated with the
OK
button.
g To end, press the MENU button.
Switching off the modulator
If you cannot eliminate picture or sound interference, you can
switch off the built-in modulator. You should only do this if you
have connected the video recorder to the TV set with a scart
cable. ’Connecting VCR without scart cable’ is not possible
when the modulator is switched off.
17
D With the function ’Easy Link/NexTView’ the modulator will
be switched off automatically.
a Switch on the TV set. If required, select the programme
number for the video recorder.
b Please note that no cassette has been inserted. Press the
and the PLAY G button simultaneously for several seconds until e.g.: ’CH35’ appears in the
display.
STOP/EJECT ?
c Select the line ’MODULATOR’ on the TV screen or ’M ON’
in the display with the menu buttons
P;
or
P=
.
d With the menu buttons Q or P , select the function
’OFF’ on the TV screen or ’MOFF’ (modulator off) in the
display. Select ’ON’ on the TV screen or ’M ON’
(modulator on) in the display to switch the modulator
back on.
Audio only record
You can use your video recorder as a HiFi tape recorder. You
can record the sound from e.g. a HiFi unit or a second video
recorder.
a Use an audio cable to connect your HiFi (stereo) unit to
the
socket at the back of the video recorder.
b Select the programme number from which the ’only
audio’ recording should be made, using the
button (e.g.: ’AUX’ for the AUX IN L R socket.
P;
or
P=
c Press the MENU button. The main menu appears.
d Select the line ’RECORD FUNCTIONS’ with the menu
buttons
P=
or
P;
and confirm with the
P
button.
e Select the line ’AUDIO ONLY’ with the menu buttons
P=
e Confirm with the OK button.
AUX IN L R
or
P;
and confirm with the
P
button.
f To start sound recording, press the RECORD/OTR n button.
f To end, press the MENU button.
g To stop recording, press the STOP h button.
Remote control of TV sets
h To end, press the MENU button.
Your remote control can operate with a number of remote
control commands for TV sets of different makes.
Using the TV button set, you can activate the following
functions:
Sq
TV volume plus
Sr
TV volume minus
TV y
Switch off sound
TV m
Switch off
TV q
Programme number plus
TV r
Programme number minus
With the
control.
button you can switch to manual audio
current selection appears in the display.
b Keep pressing the MANUAL button until ’MAN’ (manual
audio control) appears in the display.
0-9
.
D If the selected code does not operate with your TV set, or
if the TV make is not contained in the list, you can try out
the codes one after the other.
18
MANUAL
a Press the MANUAL button on the video recorder. The
a Hold down the TV m button and enter the appropriate
remote control command with the digit buttons
You will find a list of all available remote control
commands on the last page of this manual.
Manual audio control
c With the PROGRAMME ; and PROGRAMME = buttons on
the videorecorder, adjust the recording level so that the
’0 dB’ mark lights up during the loudest parts of the
recording.
D At step b you can switch back to ’AUTO.’ (automatic
audio control) with the menu button P .
Audio dubbing
Selecting the sound track
This function enables you to replace (dub) the sound track of
an existing recording with another sound track. To do this,
connect an audio source (e.g.: a CD-player) to the
L-AUDIO-R (programme number ’E3’) socket.
You can select the required sound track. This is of particular
interest when the audio transmissions are multilingual.
a Press the SELECT button. The current setting will appear
on the TV screen.
a Switch on the TV set. If required, select the programme
number for the video recorder.
b By pressing the SELECT button several times you can
b Press the MENU button. The main menu appears.
c Select the line ’RECORD FUNCTIONS’ with the menu
buttons
P=
or
P;
and confirm with the
P
button.
d Select the line ’AUDIO DUBBING’ with the menu buttons
P=
or
P;
and confirm with the
P
button.
select from the four possibilities displayed (’STEREO’,
’RIGHT’, ’LEFT’, ’MONO’).
D During playback you can select a fifth possibility: the
’MIXED’ mode. In this mode you can playback the mono
sound of the normal (linear) audio track together with the
sound of the stereo audio track.
D If there is no stereo sound recorded on the cassette, the
video recorder automatically switches to mono sound.
e Select the programme number for the audio source (e.g.:
’E3’). Switch on the external audio source.
Synchronous editing (synchro-edit)
f During playback, locate the position on the tape at which
the audio dubbing is to end.
g Press the STILL R button. ’STILL’ appears on the TV
screen.
h Press the CLEAR (CL) button. ’0:00:00’ appears on the TV
screen.
i Locate the position at which the audio dubbing is to start.
j Press the STILL R button. ’STILL’ appears on the TV
screen.
k Press the STOP h button.
You can synchronously copy between this video recorder and
an appropriately equiped camera recorder. Both units are
started at the same time with the help of a synchronous
impulse and an adjustable start delay (=preroll time).
Adjusting the video recorder to the camera
recorder.
a Connect the two units with a synchro-edit cable (socket
SYNCHRO EDIT on the left front of the video recorder).
Connect the video/audio source to the input sockets
L-AUDIO-R and VIDEO (programme number ’E3’) of the
video recorder.
Please also observe the instruction manual of the camera
recorder.
l Press the RECORD/OTR n button. The video recorder will
start to record the sound transmitted from the audio
source. The normal (linear) sound track is re-recorded,
the stereo sound will remain.
The audio recording stops automatically when the
counter reaches ’0:00:00’.
b Switch on the TV set. If required, select the programme
number for the video recorder.
c Press the MENU button. The main menu appears.
d Select the line ’RECORD FUNCTIONS’ with the menu
m To end audio dubbing,press the MENU button.
D To play back the audio dubbing, read the section ’Sound
track selection’ in chapter 5, ’ADDITIONAL FUNCTIONS’.
buttons
P .
P=
or
P;
and confirm with the menu button
e Select the line ’CAMERA LINK’ with the menu buttons
P=
or
P;
.
19
f Switch the camera recorder to ’still picture’ (playback-
pause).
g Confirm with the menu button P . The video recorder
now controls the connected camera recorder type.
h The following message appears on the TV screen:
’VCR CONTROL DETECTED’ when the video recorder
controls the camera recorder or ’CAMERA CONTROL
DETECTED’ when the camera recorder controls the video
recorder.
Starting synchro-edit
a Switch on the TV set. If required, select the programme
number for the video recorder.
c Select the line ’RECORD FUNCTIONS’ with the menu
P=
or
P;
a Start copying with the RECORD/OTR n button on the video
recorder.
The camera recorder starts ’PLAYBACK’ and at the same
time the video recorder starts ’RECORDING’.
b Stop copying with the STOP h button on the video re-
corder.
c End copying with the MENU button.
Variant 2, the camera recorder is to control
the video recorder
a Start copying with the corresponding button on the
b Press the MENU button. The main menu appears.
buttons
Variant 1, the video recorder is to control
the camera recorder
and confirm with the
P
button.
camera recorder.
The camera recorder starts ’PLAYBACK’ and at the same
time the video recorder starts ’RECORDING’.
b Stop copying with the PAUSE or STILL button on the
camera recorder.
d Select the line ’SYNCHRO EDIT’ with the menu buttons
P=
or
P;
and confirm with the
P
button.
e The OSD corresponding to the connected camera re-
corder type appears on the TV screen.
f Search the beginning of the recording on the video
recorder.
g Press the STILL R button. ’STILL’ appears on the TV
screen.
h Use the SELECT button to select the OSD for the camera
recorder.
i Search the beginning of the recording on the camera
recorder.
Switch the camera recorder to ’still picture’ (playbackPause).
The way copying is started depends on the camera recorder
type used:
Variant 1 when the video recorder controls the camera
recorder, or
Variant 2 when the camera recorder controls the video
recorder.
c End copying with the MENU button.
Setting the ’preroll time’
When the beginning of the recording is missing, the ’preroll
time’ was too long. Select a shorter ’preroll time’.
If recording started too early, the ’preroll time’ was too short.
Select a longer ’preroll time’. You can select a ’preroll time’
between 1:00 and 5:00 seconds.
a Press the MENU button.
b Select the line ’RECORD FUNCTIONS’ with the menu
buttons
P .
P=
or
P;
and confirm with the menu button
c Select the line ’RECORD SETTINGS’ with the menu
buttons
P .
P=
or
P;
and confirm with the menu button
d In line ’PREROLL TIME’, adjust the ’preroll time’ with the
menu buttons
P
or
Q
.
D You can also directly enter the ’preroll time’ with the digit
buttons 0-9 .
D With the CLEAR (CL) button you can reset the ’preroll time’
to that of the identified camera recorder type.
e Confirm with the OK buton.
f To end, press the MENU button.
20
Before you call an engineer
If, contrary to expectation, you experience any difficulty in
operating this video recorder, it may be caused by one of the
reasons mentioned below. You can also call the customer
service in your country.
You will find the telephone numbers in the enclosed guarantee
leaflet.
Programmed recording does not function:
•
•
•
•
Picture or sound interference on TV reception e.g. when
tuned to ’CH5’:
•
The set does not respond to any button being pressed:
•
•
•
•
No power supply.
A programmed recording is currently being made.
Child lock is active.
Technical disturbance: disconnect from the mains for 30 seconds, then re-connect. If this does not have any effect, you can:
1. Disconnect from mains.
2. Re-connect to mains whilst holding down the STANDBY m
button on the video recorder until the message disappears from
the display. All stored data will be reset (cleared).
TIMER not set properly: Check TIMER blocks.
Time/date wrongly programmed: Check time/date.
A cassette with erase protection has been loaded: Undo erase
protection.
’PDC’ or ’VPS’ switched on but ’PDC/VPS time’ wrong: Enter
PDC/VPS time exactly to the minute. Check aerial.
•
Turn to Chapter 5 ’ADDITIONAL FUNCTIONS’ and read in the
sections ’Poor TV reception - Optimize the modulator’ and
’Switching off the modulator’.
Have your aerial checked.
Enter the serial number of your appliance here:
MODEL NO./TYPE
VR805/07, VR806/07
PROD.NO.:/SER.NR. . . . . .
Cassette jammed:
•
Don’t use force. Pull out the mains plug for a moment.
Remote control does not operate:
•
•
•
Remote control not pointed toward the video recorder.
Batteries are exhausted. Change batteries.
Remote control command wrong. Read the paragraph ’Switching
remote control command’ in chapter ’ADDITIONAL FUNCTIONS’.
This product complies with the requirements of the Directive
73/23/EEC + 89/336/EEC + 93/68/EEC.
Interference
No playback from video recorder:
•
•
•
No recording on the cassette: Change cassette.
The VCR programme number on the TV set was incorrectly
selected or incorrectly set: On the TV set, select the correct
programme number.
The connecting cable between the TV set and the video recorder
has come loose: Check cable.
The Department of Trade and Industry operates a Radio
Investigation Service to help TV licence holders improve
reception of BBC and ITC programmes where these are being
spoilt by interference.
If your dealer cannot help, ask at a Main Post Office for the
booklet ’How to Improve Television and Radio Reception’.
Poor playback from video recorder:
•
•
•
TV set not properly adjusted.
Cassette badly worn or of poor quality: Use new cassette.
Tracking not properly adjusted, video heads dirty: Turn to chapter
’PLAYBACK’ and read the section ’Eliminating picture interference’.
No recording possible:
•
•
TV channel not stored or wrongly selected: Check TV programmes stored.
Cassette with erase protection has been loaded: Undo erase
protection.
21
3103 166 21853
8411/001
(Wwn N Nw nwN nwnWwnNWn NwWNwn )
VR805/07, VR806/07
Remote codes
22
Acura
02
Adyson
20
Akai
18, 33
Akura
21, 25
Alba
02, 07, 21
Allorgan
28
Amplivision
20
Amstrad
02
Anitech
02
Arcam
19, 20
Asuka
21
Audiosonic
15
BPL
26
BSR
28
BTC
21
Basic Line
02, 21
Baur
03, 33
Beko
35
Binatone
20
Blaupunkt
17
Blue Sky
21
Blue Star
26
Bondstec
23
Boots
20
Brandt
15
Britannia
19
Bush
02, 07, 21, 26, 28, 36, 42
CGE
23
CS Electronics
19
CTC
23
Carrefour
07
Cascade
02
Cimline
02
Clatronic
23, 35
Condor
30, 35
Contec
02, 07, 19
Crown
02, 35, 38
Cybertron
21
Daewoo
02, 36
Dainichi
21
Dayton
02
De Graaf
18
Decca
10
Dixi
02
Dual
42
Dual Tec
20
Elite
21, 30
Elta
02
Emerson
33
Ferguson
15
Fidelity
19, 33
Finlandia
18, 32
Finlux
10, 13, 32
Firstline
02, 19, 20, 23, 28, 31
Fisher
18, 20, 35
Flint
40
Formenti
30
Frontech
23, 25
Fujitsu
10
Funai
25, 28
GEC
10, 20
GPM
21
Geloso
02
Genexxa
21
GoldStar
15, 20, 27
Goodmans
07, 10, 20, 29, 36
Gorenje
35
Graetz
33
Granada
10, 18, 20
Grandin
26
Grundig
17
HCM
02, 26
Hanseatic
30, 33
Hinari
02, 07, 21
Hisawa
26, 40
Hitachi
05, 07, 08, 13, 15, 20, 22
Huanyu
19, 36
Hypson
25, 26
ICE
20, 25
ICeS
21
ITT
33
Imperial
23, 35, 38
Inno Hit
10
Interfunk
23, 33
Intervision
12, 20, 25
Isukai
21
JVC
07, 09
Kaisui
02, 19, 20, 21, 26
Kathrein
01
Kingsley
19
Koyoda
02
Leyco
10, 25, 28
Lloytron
05
Luxor
33
M Electronic
02, 13, 15, 20, 32, 36, 41
Magnadyne
12, 23
Magnafon
12
Manesth
20, 25, 30
Marantz
01
Matsui
02, 04, 06, 07, 10, 18, 20, 28, 39
Memorex
02
Metz
34
Mitsubishi
07, 14, 16
Mivar
19, 27
Multitech
02, 12, 19
Neckermann
01
Nikkai
05, 06, 10, 19, 21, 25
Nobliko
12
Nokia
33, 41
Nordmende
15
Oceanic
33
Orion
28, 30, 31
Osaki
05, 10, 20, 21, 25
Oso
21
Osume
05, 10
Otake
29
Otto Versand
01, 03, 07, 20, 30
Palladium
35, 38
Panama
20, 25
Panasonic
24, 34
Pathe Cinema
19, 30
Pausa
02
Perdio
30
Phase
05
Philco
23
Philips
01, 36
Pioneer
15
Profex
02, 33
Proline
31
Protech
02, 12, 20, 23, 25, 38
Quelle
03, 04, 33
Questa
07
Rank Arena
07
Rediffusion
33
Rex
25
Roadstar
02, 21, 25, 38
SEG
07, 20, 25
SEI
12, 28
Saba
15
Saisho
02, 04, 25
Salora
33
Sambers
12
Samsung
01, 02, 20, 25, 27, 35
Sandra
19
Sanyo
04, 07, 10, 18
Schaub Lorenz
33
Schneider
21, 23, 37
Sei-Sinudyne
03
Sentra
06
Sharp
07, 11
Shorai
28
Siarem
12
Siemens
17
Silver
07
Sinudyne
12, 28
Solavox
05
Sonitron
18
Sonoko
02
Sonolor
18
Sony
03, 04, 07
Soundwave
38
Standard
02, 20, 21
Sunkai
28, 31
Susumu
21
Tandy
10, 20, 21
Tashiko
07, 20
Tatung
10, 20
Tec
20, 23
Technema
30
Technics
24
Telefunken
15
Telemeister
30
Teletech
02
Teleton
20
Tensai
21, 28, 29, 30
Texet
19, 21
Thomson
15
Thorn
06, 10, 33
Tomashi
26
Toshiba
06, 07
Uher
30
Ultravox
12
Universum
13, 25, 32, 35
Videosat
23
Videotechnic
20
Visa
02
Vision
30
Waltham
20
Watson
30
Watt Radio
12
Wega
07
White Westinghouse
19, 30
Yoko
20, 25
&
OPERATING INSTRUCTIONS IN BRIEF
The remote control
H
EJECT J
Eject: Eject casette
STANDBY m Switch off : Switch off set, interrupt function,
interrupt TIMER-recording
CHILD LOCK u
Child lock : Switch child lock on/off
STOP h
MONITOR TV monitor : Switch between TV reception and
Pause/Stop: Stop the tape, except during TIMER-recording
I
Forward wind: During STOP and STANDBY: forward wind, during PLAYBACK:
forward scanning
INDEX E
Index search: In combination with H / I search for previous/next recording-index on the cassette.
CLEAR (CL) Delete : Delete last entry/clear TIMER
COUNTER Counter: Select display of tape positon
Rewind : During STOP and STANDBY: rewind, during PLAYBACK: reverse
scanning
RECORD/OTR n
STILL R
VCR playback
Record: Record the programme selected at this moment
Still picture: Stop the tape and display the actual position on the tape as a still
0-9 Digit buttons: 0 - 9
SELECT
TIMER s
Additional TV-function
Select: Function selector
TIMER: Manual TIMER programming or alter/clear a programmed TIMER
MENU Menu button: Call up/end main menu
Sq
TV volume: TV volume up
Sr
TV volume: TV volume down
TV y
TV sound off : Switch off/on sound completely
OK Store/Confirm: Store/Confirm entry
TV m
Switch off : Switch off TV
P ; Programme/Menu button: Programme number
TV q
TV Programme: TV programme number up
TV r
TV Programme: TV programme number down
plus/cursor up
P = Programme/Menu button: Programme number
minus/cursor down
Q Menu button: Cursor left
P Menu button: Cursor right
PLAY G Playback : Playback a recorded cassette
&
Front of the set
Back of the set
4
STANDBY m
RECORD n
Standby : Switch off, interrupt menu function, interrupt TIMER-recording
Record: Record the programme selected at this moment
PROGRAMME ;
Programme number Plus: Programme number up
PROGRAMME =
Programme number Minus: Programme number down
PLAY G
STOP/EJECT ?
STILL R
Playback : Playback a recorded cassette
Still picture: Stop the tape and display the actual position on the tape as a still picture
Rewind : During STOP and STANDBY: rewind, during PLAYBACK: reverse scanning
SPEED I
Forward wind: During STOP and STANDBY: forward wind, during PLAYBACK: forward
scanning
Behind the flap at the lefthand corner on the front:
L-AUDIO-R Audio input socket left/right stereo: To connect a camera recorder or video recorder
(programme number ’E3’)
VIDEO
MANUAL
Video input socket : To connect a camera recorder or video recorder (’E3’)
EDIT input socket : To connect a suitable camera recorder
Manual sound control : To switch between automatic sound control and manual sound
control
Audio input socket, left/right : To connect a HiFi-set (programme number ’AUX’)
AUX OUT L R Audio output socket, left/right : To connect a HiFi-set.
AV2 EXT2
Scart socket 2: To connect a satellite receiver, decoder, video recorder, etc. (programme
number ’E2’).
AV1 EXT1
Scart socket 1: To connect the TV set (programme number ’E1’).
2
Aerial input socket: To connect the aerial cable
TV
Aerial output socket: To connect the TV set
Pause/Stop: Stop the tape, in STOP mode: eject cassette
SPEED H
SYNCHRO EDIT
AUX IN L R
Mains socket: To connect the mains cable
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
