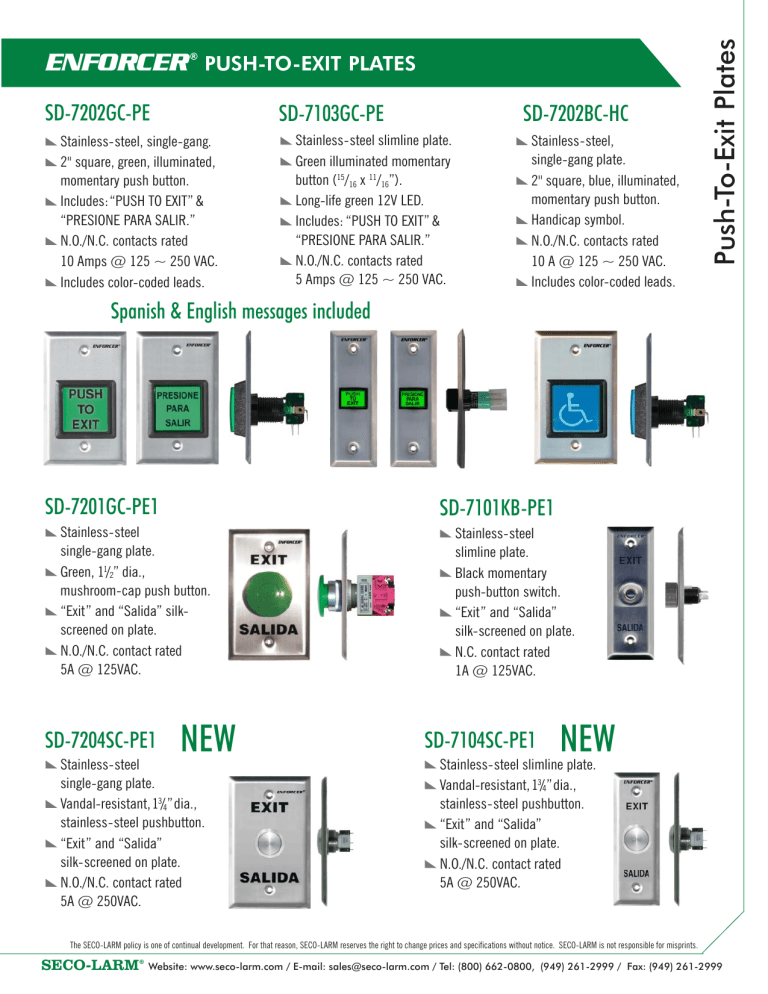

PUSH-TO-EXIT PLATES
SD-7202GC-PE
SD-7103GC-PE
Stainless-steel, single-gang.
2" square, green, illuminated,
momentary push button.
Includes: “PUSH TO EXIT” &
“PRESIONE PARA SALIR.”
N.O./N.C. contacts rated
10 Amps @ 125 ~ 250 VAC.
Includes color-coded leads.
SD-7202BC-HC
Stainless-steel slimline plate.
Green illuminated momentary
button (15/16 x 11/16”).
Long-life green 12V LED.
Includes: “PUSH TO EXIT” &
“PRESIONE PARA SALIR.”
N.O./N.C. contacts rated
5 Amps @ 125 ~ 250 VAC.
Stainless-steel,
single-gang plate.
2" square, blue, illuminated,
momentary push button.
Handicap symbol.
N.O./N.C. contacts rated
10 A @ 125 ~ 250 VAC.
Includes color-coded leads.
Push-To-Exit Plates
ENFORCER
Spanish & English messages included
SD-7201GC-PE1
SD-7101KB-PE1
Stainless-steel
single-gang plate.
Green, 11/2” dia.,
mushroom-cap push button.
“Exit” and “Salida” silkscreened on plate.
N.O./N.C. contact rated
5A @ 125VAC.
SD-7204SC-PE1
NEW
Stainless-steel
single-gang plate.
Vandal-resistant, 13/4” dia.,
stainless-steel pushbutton.
“Exit” and “Salida”
silk-screened on plate.
N.O./N.C. contact rated
5A @ 250VAC.
Stainless-steel
slimline plate.
Black momentary
push-button switch.
“Exit” and “Salida”
silk-screened on plate.
N.C. contact rated
1A @ 125VAC.
SD-7104SC-PE1
NEW
Stainless-steel slimline plate.
Vandal-resistant, 13/4” dia.,
stainless-steel pushbutton.
“Exit” and “Salida”
silk-screened on plate.
N.O./N.C. contact rated
5A @ 250VAC.
The SECO-LARM policy is one of continual development. For that reason, SECO-LARM reserves the right to change prices and specifications without notice. SECO-LARM is not responsible for misprints.
