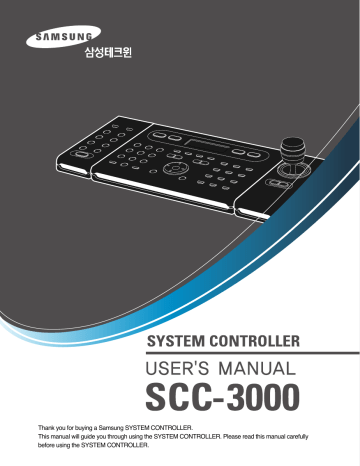

Thank you for buying a Samsung SYSTEM CONTROLLER.
This manual will guide you through using the SYSTEM CONTROLLER. Please read this manual carefully
before using the SYSTEM CONTROLLER.
Contents
●Important Safety Instructions
3
●Major Functions and Features
(5-1) TOUR Setup
19
(5-2) TOUR Operation
19
(1) Overview
5
(6) MODEL
21
(2) Features
5
(7) TRACE
22
●Product Components
5
●System Overview
6
(7-1) TRACE Memory
22
(7-2) TRACE Operation
23
(8) AF
●Names and Functions of Each Part
23
(1) Camera Setup Section
7
(9) OSD
24
(2) Number Pad
8
●DVR Mode
25
(3) External Device Selectors
8
●Controller Mode
(4) Universal Controller
9
(1) Controller Setup Mode
26
(2) Controller ID Setup
27
(6) Camera Controller
11
(3) SERIAL Setup
27
(7) Junction Box
11
(4) DATA COPY
28
(5) RESPONSE
29
(6) PASSWORD
31
(5) DVR Controller
9
●Before Operation
(1) Power-On
12
(2) Initial Screen Display
12
(6-1) PASSWORD Setup
31
(3) Camera ID Setup
12
(6-2) Applying Password-Setup Mode
32
(4) Joystick/Camera Control Button
13
(6-3) Applying Password-Power
32
(5) Camera Movement Speed Control
14
(6-4) Entering Password
32
(6) Camera Zoom Control
14
(7) Camera Focus Control
14
(7) PRIORITY
33
(8) DEFAULT
34
●REFERENCE
●PTZ Mode
(1) PTZ Setup Mode
15
(1) Swing, Group Movement Speed
35
(2) PRESET
16
(2) System Connections
36
(2-1) PRESET Setup
16
(2-1) Connecting Controller and Junction Box
(2-2) PRESET Movement
16
(2-2) Connecting Junction Box and
(3) SWING
17
External Devices
36
36
(3-1) SWING Setup
17
(3) RS-485/422 Pin Layout (D_SUB_FEMALE) ........37
(3-2) SWING Operation
17
(4) RS-232C Pin Layout (D_SUB_MALE)
37
18
(5) Controller Specifications
38
(4-1) GROUP Setup
18
(6) RS-485/422 Specifications
38
(4-2) GROUP Operation
18
(7) Junction Box DIP Switch
38
(4) GROUP
(5) TOUR
《2》
19
Important Safety Instructions
Warning
■ All work related to the installation of this appliance must be performed by qualified service personnel or system installers.
- If the product is connected or installed improperly, electric shock, fire, severe injury, and/or damage can result.
■ Please install the product on a completely flat floor.
- Always check the strength and stability of the installation location.
- Do not drop the appliance on the floor. This may result in damage or injury.
■ Do not attempt to disassemble the appliance. To prevent electric shock, do not remove screws or covers.
- There are no user-serviceable parts inside. Contact qualified service personnel for maintenance.
■ Never use the appliance in places where there are flammable materials.
- Never use the appliance in places where flammable materials such as gas are used.
This may result in fire, explosion, and other serious accidents.
■ Never touch un-insulated parts with wet hands.
- Touching un-insulated parts with wet hands may result in serious electric shock.
■ Never expose the appliance to water or moisture.
- If the appliance gets wet, immediately turn the power off.
- Stop using the appliance if it gets wet. Contact the manufacturer immediately.
■ Stop using the appliance if there appears to be any operational problem.
- Immediately turn the power off to the appliance if there is any abnormal condition such as smoke or unusual smells.
- Continuing to use the appliance under abnormal conditions may result in serious damage.
■ Always use the recommended power.
- Using incorrect power source ratings may result in fire, electric shock, or damage.
■ Always handle the connection cable with care.
- Never damage or modify the connection cable.
- Do not pull, expose to heat, or place heavy objects on the connection cable.
- Non-observance of these warnings may result in fire, electric shock or damage.
Caution
■ Use the appliance indoors only.
- Do not place the appliance outdoors or expose it to rain or moisture.
- If dropped in water, the appliance may be corroded and damaged.
■ Do not use the appliance where there is excessive dust, smoke, or moisture.
- Using the appliance under such conditions may result in fire, electric shock or serious damage.
■ Do not operate the appliance in temperatures beyond those specified.
- Excessive heat or cold may damage the appliance.
- Always operate the appliance within the recommended temperature range of 0˚C ~ 40˚C.
■ Do not place the appliance in direct sunlight.
- This may discolor the appliance.
■ Do not apply excessive shock to the appliance.
- Excessive shock may damage the appliance.
《3》
Important Safety Instructions
Maintenance and Repair
■ If the controller body gets dirty, turn the power off and wipe the surface with a soft cloth.
- Do not use chemical agents such as alcohol or benzene.
■ For detailed information on upgrading the firmware, please direct your inquiries to the installation vendor.
Refer all work related to the installation of this
appliance to qualified service personnel or
system installers.
This equipment has been tested and found to
comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference when the
equipment is operated in a commercial
environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not
installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area
is likely to cause harmful interference, in which
case the user will be required to correct the
interference at his own expense.
《4》
Major Functions and Features
(1) Overview
This product is designed for use only with the Speed Dome camera, CCTV receiver, and Samsung Digital Video Recorder.
● Speed Dome camera : Samsung Techwin (SPD-1600/2200/2500), PELCO-D, PANASONIC (WV-CS854A),
SAMSUNG ELECTRONICS (SCC-643-641)
● CCTV Receiver : SRX-100B
● DVR : Samsung Techwin (SVR-1630/1620/430)
(2) Features
- It is possible to totally control the 255 Speed Dome camera, CCTV Receiver and Samsung Digital Video Recorder.
- If the Speed Dome is set to one-way reception (RESPONSE OFF), it is possible to connect a maximum of 16 subcontrollers, including the master controller.
- If the Speed Dome is set to two-way reception (RESPONSE ON), it is possible to connect a maximum of 12 subcontrollers, including the master controller.
- Camera control with the joystick, zoom buttons, and focus buttons
- Easy camera preset location setup and movement
- Camera control without an operator through automatic operation mode
※Different surveillance cameras may have different names for the same functions, depending on the
manufacturer.Some functions may not be available for certain models.
※If the Speed Dome (SPD-1600/2200/2500) DIP switch is set to one-way reception, each sub-controller can be
controlled independently. If it is set to two-way reception, sub-controllers cannot be controlled independently.
※The SPD-1600/2500 is set to two-way reception and the SPD-2200 is set to one-way reception by factory default.
※Sub-controllers cannot be controlled if the master controller is in use.
Product Components
● SCC-3000 Controller
● Controller Connection Cable
● Junction Box
● Power Adaptor (DC 12V)
● User's Manual
《5》
System Overview
※ Please refer to page 39 for the detailed connection map of the JUNCTION Box, Controllers and external devices.
(1) General Connection
Dome Camera
DVR
Dome Camera + DVR: 255 max.
Junction Box
CCD Camera
Remarks
: Controller Connection Cable
: RS-485/422
: Video Cable
Dome Camera
SVR-1630: 255 max.
Dome Camera
《6》
Names and Functions of Each Part
(1) Camera Setup Section
① RESET : Resets camera power.
② PRESET : Moves camera to the preset location (see p.16).
③ LIGHT : Toggles the lights around the camera on and off.
④ AUX : Toggles the camera’s external case AUX on and off.
⑤ TOUR : Sets more than 1 group for tour and performs continuous group action (see p.19).
⑥ SALVO : Not used; will be applied to F/W in the future.
⑦ SWING : Continuously travels between two assigned locations horizontally (pan) or
vertically (tilt) (see p.17).
⑧ GROUP : Repeats sequential surveillance of assigned preset locations with preset
movement rates and intervals (see p.18).
⑨ AF : Sets the focus to automatic or manual after operating the camera (see p.23).
⑩ OSD : Displays the camera OSD menu (see p. 24).
⑪ FUNCTION : Used to perform 2 functions or more at the same time (see p.8).
※ Some buttons in the camera setup section may not be supported or may be used differently depending on the
camera manufacturer. Please refer to the table below for the buttons supported by the major camera manufacturers.
PANASONIC SAMSUNG ELECTRONICS
(WV-CS854A) (SCC-643/641)
SPD-1600
SPD-2200
SPD-2500
PELCO-D
RESET
O
O
O
O
O
X
PRESET
O
O
O
O
O
O
TOUR
O
O
O
X
X
X
O
O
SALVO
SWING
Not used; will be applied to F/W in the future.
O
X
O(AUTO-PAN)
GROUP
O
O
O
X
O (AUTO-SEQ)
O (SCAN)
AF
O
O
O
O
O
O
O
O
O
O
O
O
OSD
LIGHT
AUX
Applies only to systems with housing and receivers that support the light function. (SRX-100B only)
Applies only to systems with AUX terminals. (SRX-100B only)
《7》
Names and Functions of Each Part
(2) Number Pad
※ 'F' in the table below refers to the Function button.
① 0 ~ 9 : Used for entering camera ID, channel number, monitor number, DVR ID, etc.
(see p.23).
② F + 0 : Activates the system setup menu (see p.24).
③ ▲ / ▼ : Used for increasing or decreasing menu values in detailed setup menus.
※ When using functions that are performed by a combination of the function button and
numeric keys, the setup may be different depending on the camera manufacturer.
Please refer to the table below for the setup for major camera manufacturers.
PANASONIC SAMSUNG ELECTRONICS
(WV-CS854A) (SCC-643/641)
SPD-1600
SPD-2200
SPD-2500
PELCO-D
F+1
TRACE RUN
TRACE RUN
TRACE RUN
TRACE RUN
(PATTERN)
TRACE RUN
(PATTERN)
TRACE RUN
(PATTERN 1)
F+2
TRACE
MEMORY
TRACE
MEMORY
TRACE
MEMORY
-
F2(SPECIAL 2)
TRACE RUN
(PATTERN 2)
-
F3
TRACE RUN
(PATTERN 3)
F+3
TRACE
TRACE
TRACE
MEMORY STOP MEMORY STOP MEMORY STOP
F+4
AUTO
POWER ON
AUTO
POWER ON
AUTO
POWER ON
-
AUTO-SORT
-
F+5
AUTO
POWER OFF
AUTO
POWER OFF
AUTO
POWER OFF
-
-
-
※ Use the AUTO POWER ON setting to allow the camera to resume the tasks in its memory upon power supply, even if
they were previously aborted as a result of power failure, etc.
(3) External Device Selectors
① PTZ : Selects the PTZ mode (see p.15~24).
② DVR : Selects the DVR mode (see p.25).
③ CAMERA : Enter camera number and press the CAMERA button to set the camera ID (PTZ mode) or set the channel
(DVR mode).
④ MONITOR : Not used; will be applied to F/W in the future).
《8》
Names and Functions of Each Part
(4) Universal Controller
① ZOOM W/T : Performs camera zoom action (wide and telephoto).
② FOCUS -/+ : Used for manual focus adjustment.
③ || : Used for moving the menu cursor up (when menu is active), pausing DVR
playback, or playing stills.
④ ■ : Used for moving the menu cursor down (when menu is active) or stopping
DVR playback.
⑤ I▶ : Used for moving the menu cursor left (when menu is active) or Slow Playback.
⑥ ▶▶ : Used for moving the menu cursor right (when menu is active) or Fast Playback
⑦ ▶ : Used for playing recorded video.
⑧ REC / ESC : Used for starting surveillance screen recording, canceling entered
values, or moving to the previous stage.
⑨ ENTER / DIR : Used for executing the entered values, performing setups (PTZ mode
and DVR mode), or playing recorded video in the reverse direction.
INFORMATION
● It is possible to use all the functions except menu cursor movement of ③ ~ ⑨ buttons in only PLAY MODE for
SVR-900/1620. When the user presses the PLAY MODE button of the controller, PLAY MODE is on.
When PLAY MODE is on, [P-MODE] appears on the LCD monitor. Press the PLAY MODE button once again
to release PLAY MODE.
(5) DVR Controller
※ Please refer to the DVR product manual for the buttons without reference pages.
Some functions may not be supported by certain models.
① QUICK SET : The Quick Setup menu is displayed in the DVR monitor.
② STATUS : The current DVR status is displayed in the DVR monitor.
③ SEARCH : Used for searching the DVR recording list.
④ PLAY MODE : Used for recording and playing the DVR with the controller.
(SVR-900/1620 only)
⑤ MENU : The DVR menu is displayed in the DVR monitor.
⑥ MULTI : Used for switching the DVR monitor from single screen playback mode
to multiple screen playback mode.
⑦ AUTO : displays the sequence of cameras connected to the DVR on the monitor.
⑧ ALRAM RESET : Used for resetting the alarm and event display, turning the relay
on and off, and closing the event notification window.
⑨ LIST : Shows the event list saved in the DVR storage device.
⑩ PIP : Used for performing the PIP (Picture In Picture) function.
⑪ DIGITAL ZOOM : Used for zooming in the monitor screen when in single screen
playback mode.
⑫ FREEZE : Used for pausing the video when displaying a surveillance video.
⑬ SPOT : Used to switch to spot monitor.
⑭ COPY : Used for copying, backing up, or deleting saved video.
⑮ LIVE / PLAY BACK : Used for toggling the surveillance screen and playback screen.
⑯ RELAY : Used for manual control of replay output.
《9》
Names and Functions of Each Part
※ Some DVR controller buttons may not be supported or may be used differently than as described in this manual,
depending on the DVR model. Please refer to the table below for the buttons supported by major DVR model
manufacturers. The DVR button with multiple functions works in the same way on the controller.
SVR-430
SVR-900
SVR-1620
SVR-1630
O
-
-
-
STATUS
O
O
O
-
SEARCH
O
O
O
O
PLAY MODE
-
O
O
-
FOCUS -
O
O
O
O
FOCUS +
O
O
O
-
II
O
O
Jog(PLAY MODE)
O
Jog(PLAY MODE)
O
Jog
▶▶
O
■
O
O
Fast Forwarding
(PLAY MODE)
O
Pause
(PLAY MODE)
O
Fast Forwarding
(PLAY MODE)
O
Pause
(PLAY MODE)
I▶
Jog
O
Slow Playback
(PLAY MODE)
O
Slow Playback
(PLAY MODE)
O
ENTER / DIR
O
O
Direction Switching
(PLAY MODE)
O
Direction Switching
(PLAY MODE)
O
REC / ESC
O
Record function for
Surveillance (LIVE)
screen
O
Record function for
Surveillance (LIVE)
screen
O
Record function for
Surveillance (LIVE)
screen
O
Record function for
Surveillance (LIVE)
screen
MENU
O
O
O
O
QUICK SET
O
O
MULTI
O
O
O
O
AUTO
O
O
O
O
ALARM RESET
O
O
O
O
LIST
-
O
O
-
PIP
O
O
O
-
DIGITAL ZOOM
O
O
O
O
FREEZE
-
O
O
-
SPOT
-
O
O
O (A/B)
COPY
O
O
O
O
LIVE/PLAY BACK
O
Screen Selection
Screen Selection
-
RELAY
-
-
-
O
-/+
O
O
O
-
《10》
Names and Functions of Each Part
(6) Camera Controller
① Joystick: Used for moving the camera up, down, left, and right, and for zoom control (see p.13).
1) Tilt up (Up button): Moves the camera up.
2) Tilt down (Down button): Moves the camera down.
3) Tilt left (Left button): Moves the camera left.
4) Tilt right (Right button): Moves the camera right.
5) Turn stick clockwise: Performs telephoto-zoom.
6) Turn stick counter-clockwise: Performs wide zoom.
② SLOW : Sets the camera movement (up, down, left, and right) speed slow.
③ FAST : Sets the camera movement (up, down, left, and right) speed fast.
[Joystick]
[Camera Control Button]
(7) Junction Box
[Back]
[Front]
DIP Switch
Power Input
Connector
Junction Box
Connector
PTZ/DVR
Connector
Sub-Controller
Connector
Reversed
Connector
《11》
Before Operation
(1) Power-On
① Power on the connected external devices before turning the controller on.
② Press the power button at the back of the controller to power on the controller.
③ The [SYSTEM Controller] message and F/W version will be displayed in the LCD
monitor, and the message will disappear when the controller is ready for use.
▤ The [JOYSTICK ERROR] error will be displayed in the LCD monitor if the
joystick is not placed in the center during power-on.
[ power button ]
(2) Initial Screen Display
① CAM ID : Shows the currently selected camera ID. Default is 1.
② SPD : Shows the currently selected camera model name.
①
Default is SPD.
③
③ MONITOR : Not used; will be applied to F/W in the future.
④ [- - -] : Shows the numbers (ID) entered when entering numbers
with the number pad.
⑤ ID : Shows the current controller ID. If the ID is 1, it acts as the master
controller. If the ID is 2 or higher, it acts as a sub -controller.
Sub-controllers cannot be used independently without a master
controller.
PTZ CONTROL SYSTEM
1
SPD
CAM ID:
MONITOR: 1
[ --- ]
ID: 1
⑤
▤ Always assign a unique ID to ensure that the controller IDs do not
conflict with each other.
▤ SPD : SPD-1600/ SPD-2200/ SPD-2500(Samsung Techwin Co., Ltd.)
(3) Camera ID Setup
① Enter a number using the number pad.
② The number entered will be shown in the [- - -] display.
③ Press the CAMERA or ENTER button to set the camera ID with the
number entered.
▤ Any number from 1 to 255 can be selected. If the number entered is
not within the selectable range, the last entered number is taken as
the first number.
《12》
PTZ CONTROL SYSTEM
1
SPD
CAM ID:
MONITOR: 1
[ 5 ]
Enter:PTZ ID Set
PTZ CONTROL SYSTEM
5
SPD
CAM ID:
MONITOR: 1
[ --- ]
ID: 1
②
④
Before Operation
(4) Joystick/Camera Control Button
■ The joystick can be used to control the camera’s left and right (pan) and up and down (tilt) movements.
■ The joystick can be used to control camera zoom functions.
[Camera wide zoom]
[Camera telephoto zoom]
《13》
Before Operation
(5) Camera Movement Speed Control
■ Use the joystick or press the Slow/Fast button at the bottom of the
camera control button section to adjust the camera movement speed.
▤ You must press the ESC button after adjusting the camera
movement speed in order to be able to use other controller buttons.
[SLOW/FAST button]
▤ The SLOW/FAST button can be used to adjust movement speed
for models without a joystick.
(6) Camera Zoom Control
■ Press the ZOOM W/T button to control zoom wide and zoom telephoto.
ZOOM W : Zoom Wide
ZOOM T : Zoom Telephoto
[ZOOM W/T button]
(7) Camera Focus Control
■ Press the FOCUS -/+ button to control camera focus.
FOCUS - : Focus gets nearer.
FOCUS + : Focus gets further.
▤ The FOCUS -/+ button can be used as the ENTER/ESC button for
the SVR-1630 and SPD series.
[FOCUS -/+ button]
《14》
PTZ Mode
(1) PTZ Setup Mode
■ This menu is for setting up the PTZ camera function.
It is impossible to operate Speed Dome and DVR by sub-controllers
when the master controller is set to on.
① At the initial screen, press the Function button and press the 0 button
to activate the [SETUP SYSTEM] menu.
② Press the 1 button to activate the [PTZ SETUP 1 ▶] menu.
SETUP SYSTEM
1:PTZ
2:DVR
3:CONTROLLER
Press Numeric Key
PTZ SETUP 1
1:PRESET
2:SWING
3:GROUP
4:TOUR
Press Numeric Key
③ Press the ▶▶ button to activate the [◀ PTZ SETUP 2] menu.
PTZ SETUP 2
1:MODEL
2:TRACE
3:AF
Press Numeric Key
INFORMATION
● The menu may be different depending on the PTZ camera model.
Menu
Models supported
Menu
Models supported
PRESET
SPD series, PELCO-D, PANASONIC,
SAMSUNG ELECTRONICS
MODEL
SPD series, PELCO-D, PANASONIC,
SAMSUNG ELECTRONICS
SWING
SPD series
TRACE
SPD series, PELCO-D,
PANASONIC
GROUP
SPD series
AF
SPD series, PELCO-D, PANASONIC,
SAMSUNG ELECTRONICS
TOUR
SPD series
-
-
● Press the ESC button to move to an upper setup mode.
《15》
PTZ Mode
(2) PRESET
■ This menu is for setting the camera to move to preset locations.
(2-1) PRESET Setup
① At the [PTZ SETUP 1 ▶] menu, press the 1 button (see p.15).
② Use the joystick or camera control button (SCC-3000 model) to move
the camera to the desired location (move up, down, left, and right, and
control zoom).
③ Enter a preset number.
PTZ SETUP 1
5
SPD
CAM ID:
PRESET NO: 0
Enter:Preset ID Set
PTZ SETUP 1
CAM ID:
5
SPD
PRESET NO: 1
Enter:Preset ID Set
④ Press the Enter button to assign the number to the current location.
(2-2) PRESET Movement
① In the initial screen, enter an assigned preset number.
② The selected number will be shown in the [- - -] display.
③ Press the Preset button to move the camera to the preset location.
▤ If the number entered is not within the selectable range, the last
entered number is taken as the first number.
The selectable range for each camera model is as follows.
● SPD 1600/2200/2500 : 1 ~ 64
● PELCO-D : 1 ~ 80
Certain numbers have special functions other than preset.
33 + PRESET - FLIP COMMAND
97 + PRESET - RANDOM SCAN
98 + PRESET - FRAME SCAN
99 + PRESET - AUTO SCAN
See the camera manual for more information.
● PANASONIC (WV-CS854A) : 1 ~ 64
● Samsung (SCC-641/643) : 1 ~ 127
▤ Preset setup is also available in the OSD menu of the connected
camera.
《16》
PTZ CONTROL SYSTEM
5
SPD
CAM ID:
MONITOR: 1
[ 1 ]
Enter:PTZ ID Set
PTZ Mode
(3) SWING
■ This menu is for setting the camera to alternate between two assigned locations horizontally (pan) or vertically (tilt).
Setting the SWING SETUP menu by controllers is only possible in the SPD series. In case of products by other
manufacturers, the setting has to be done by the OSD menu of the camera. See the camera manual for more
information.
(3-1) SWING Setup
① At the [PTZ SETUP 1 ▶] menu, press the 2 button (see p.15).
② Press the 1 or 2 button to select a horizontal (pan) or vertical (tilt) cycle.
③ Set starting point, ending point, movement speed, and stop time.
- I▶/▶▶ button: Moves between items.
- 1ST : Starting point. Can be set for Preset 1 ~ 64.
- 2ND : Ending point. Can be set for Preset 1 ~ 64.
- SPEED : Movement speed. Can be set for 1 ~ 64 (see p.35).
- STOP : Stop time at the starting point and ending point.
Can be set to 1 ~ 99 (seconds).
SWING SETUP
5
SPD
CAM ID:
1:PAN SET
2:TILT SET
Press Numeric Key
SWING SETUP
IST 2ND SPEED STOP
00
00
00
00
Enter:Swing Set
④ Press the ENTER button to finish the setup (takes 2 or 3 seconds to
finish).
▤ The Swing function cannot be set if an unassigned number or a
number outside the selectable range is entered.
▤ Over 2 PRESET locations have to be set before setting SWING.
(3-2) SWING Operation
① At the initial screen, press the Swing button.
② Press the 1 and 2 buttons to perform the Swing function.
- 1 button: Performs the horizontal cycle (pan).
- 2 button: Performs the vertical cycle (tilt).
PTZ CONTROL SYSTEM
5
SPD
CAM ID:
1:PAN
2:TILT
Press Numeric Key
▤ Move the joystick or press a controller button during the Swing
operation to stop the operation.
▤ AUTO-PAN is performed automatically when the SWING button of
PANASONIC(WV-CS854A) and SAMSUNG ELECTRONICS
(SCC-641/643) cameras is pressed.
《17》
PTZ Mode
(4) GROUP
■ This menu is for setting repeated sequential surveillance of assigned locations with assigned speed and intervals.
Setting the GROUP SETUP menu by controllers is only available for an SPD series. In case of products by other
manufacturers, the setting has to be done by the OSD menu of the camera. See the camera manual for more
information.
(4-1) GROUP Setup
① At the [PTZ SETUP 1 ▶] menu, press the 3 button (see p.15).
② Enter a Group number.
▤ Any number between 1 and 6 can be selected.
③ Set each location’s Preset ID, area movement speed, and stop time.
- I▶/▶▶ button: Moves between items.
- NO : Setup sequence. Up to 64 can be selected.
▤ In the case of SPD 2200, setup via the controller is up to 64, but via
the camera OSD menu it can be up to 128.
- PRESET : Camera Preset ID for assigned location.
- SPEED : Area movement speed. Can be set from 1 ~ 64 (see p.35).
- STOP : Stop time at the starting point and ending point.
Can be set to 1 ~ 99 (seconds).
GROUP SETUP
5
SPD
CAM ID:
GROUP SET NUM? <1-6>
Press Numeric Key
GROUP SETUP
NO PRESET SPEED STOP
01
0
00
00
Enter:Next
Group:Set
④ Press the ENTER button to move to the setup page for the next location.
Press the Group button to finish the Group Setup.
▤ The Group function cannot be set if an unassigned number or a
number outside the selectable range is entered.
▤ Over 2 PRESET locations have to be set before setting GROUP.
(4-2) GROUP Operation
① At the initial screen, press the Group button.
② Press the Group button to execute the operation.
③ The Group function is performed.
▤ AUTO-SEQ and SCAN functions are performed when the GROUP
button is pressed (for PANASONIC(WV-CS854A) and SAMSUNG
ELECTRONICS (SCC-641/643 only).
《18》
PTZ CONTROL SYSTEM
5
SPD
CAM ID:
GROUP RUN NUM? <1-6>
Press Numeric Key
PTZ Mode
(5) TOUR
■ This menu is for setting one or more Groups for Tour so that continuous Group operations can be carried out.
The TOUR SETUP menu is only available for an SPD series.
(5-1) TOUR Setup
① At the [PTZ SETUP 1▶] menu, press the 4 button (see p.15).
② Press a Group number to add to the Tour.
▤ Up to 6 Groups can be added.
TOUR SETUP
1 GROUP NUM? <1-6>
Enter:Tour Set
③ Press the ENTER button to finish the setup.
(5-2) TOUR Operation
① At the initial screen, press the Tour button.
② The Tour function is performed.
▤ The TOUR operation is only available for an SPD series.
《19》
PTZ Mode
TOUR
GROUP 1
《20》
GROUP 3
PTZ Mode
(6) MODEL
■ This menu is for setting the PTZ camera ID and camera type.
① At the [PTZ SETUP 1▶] menu, press the ▶▶ button (see p.15).
② Press the 1 button to move to the Model Setup screen.
PTZ SETUP 2
1:MODEL
2:TRACE
3:AF
Press Numeric Key
③ Press a number in the number pad to set the PTZ camera ID.
The camera model type saved in EEPROM is displayed on the LCD monitor when changing camera ID.
PTZ MODEL SETUP
0
[ 0 ]
PTZ ID:
MODEL:NONE
+,-:Model Change
When
entering '1'
PTZ MODEL SETUP
1
[ 1 ]
PTZ ID:
MODEL:
SPD
+,-:Model Change
④ Press the + and - buttons on the number pad to change the camera type. SPD-1600/2200/2500, PELCO-D,
PANASONIC(WV-CS854A) and SAMSUNG ELECTRONICS (SCC-643) types can be selected.
⑤ Press the ENTER button to finish the setup.
《21》
PTZ Mode
(7) TRACE
■ This menu is for inputting camera movements, through joystick or camera control buttons, into the memory for a
certain period of time, to allow repeating of stored movements when performing the Trace (PATTERN) function.
Setting the TRACE SETUP menu by controller is only available for an SPD series.
In case of products by other manufacturers, the setting has to be done by the OSD menu of the camera.
See the camera manual for more information.
(7-1) TRACE Memory
① At the [PTZ SETUP 1 ▶] menu, press the ▶▶ button (see p.15).
② Press the 2 button to move to the Trace Setup screen.
③ Press the 1 button.
④ Use the joystick or camera control buttons to perform the camera
movement to input. Allowed movements are horizontal movements
(pan), vertical movements (tilt), zoom, and focus controls.
PTZ SETUP 2
1:MODEL
2:TRACE
3:AF
Press Numeric Key
PTZ TRACE SETUP
1:RECORD
2:PLAY
Press Numeric Key
PTZ TRACE RECORDING
REC STOP:PRESS ENTER
⑤ Press the ENTER button to stop camera movement input.
▤ Maximum length for movement memory is approximately 60 ~ 105
seconds. This may vary according to free memory space.
▤ Movement memory length may be shorter if the camera movement
is more complicated.
▤ Press the FUNCTION button and the 2 button to start TRACE
memory.Press the FUNCTION button and the 3 button to stop
TRACE memory. For more information, see p. 8.
(7-2) TRACE Operation
① At the Trace Setup screen, press the 2 button.
《22》
PTZ TRACE SETUP
1:RECORD
2:PLAY ONCE 3:DELETE
Press Numeric Key
PTZ Mode
(8) AF (Auto-Focus)
■ This menu is for adjusting camera focus manually or automatically after
camera operation. If AF is set to OFF in the camera setup menu, set the
AF of the controller to ON and then automatic adjustment is performed
after camera operation.
① At the [PTZ SETUP 1▶] menu, press the ▶▶ button (see p.15).
② Press the 3 button to move to the AF Setup screen.
③ Press the 1 button to automatically adjust the focus after camera
operation. Press the 2 button to disable automatic focus adjustment
after camera operation.
PTZ SETUP 2
1:MODEL
2:TRACE
3:AF
Press Numeric Key
AF STOP SETUP
5
SPD
CAM ID:
1:AF ON
2:AF OFF
Press Numeric Key
▤ Auto Focus Setup is also available in the OSD menu of the camera
connected.
▤ It is recommended that you set up the AF function through the
camera OSD menu.
《23》
PTZ Mode
(9) OSD
■ This is used for displaying the camera menu on the monitor.
① At the initial screen, press the OSD button.
② Use the controller buttons to set up the camera menu.
- OSD : SPD 1600/2200/2500 - Toggle camera menu on/off (hold down for 2
seconds)
PELCO-D - Toggle camera menu on/off (press ESC)
PANASONIC (WV-CS854A) - Toggle camera menu on/off (press ESC)
Samsung (SCC-643/641) - Toggle camera menu on/off (press ESC)
- ESC : Cancels the menu selection.
- ENTER : Selects the menu.
- ▶▶ : Moves the menu cursor right.
- I ▶ : Moves the menu cursor left.
Applies to PANASONIC models only
- II : Moves the menu cursor up.
- ■ : Moves the menu cursor down.
- Joystick : Use the joystick to move the menu cursor up, down, left, and
right.(Applies to SPD, PELCO-D and Samsung models only:)
▤ Joystick or other button inputs cannot be used for camera operation when the
camera menu is displayed on the monitor.
▤ PRESET, SWING, GROUP, and TRACE functions can be set in the OSD menu
of the camera.
▤ Please refer to the camera manual for more information on the camera menu.
▤ When operating the PTZ camera OSD menu while the controller and SVR-1630
are connected, the ENTER and ESC functions can only be performed by the
FOCUS -/+ button.
《24》
DVR Mode
DVR MODEL Setup
■ This menu is for setting the DVR ID and model for operation by a
controller. Sub-controllers cannot be used if the master controller is
in Setup mode.
① At the initial screen, press the FUNCTION button and press the 0 button
to activate the [SETUP SYSTEM] menu.
② Press the 2 button to activate the [DVR SETUP] menu.
SETUP SYSTEM
1:PTZ
2:DVR
3:CONTROLLER
Press Numeric Key
DVR SETUP
1:DVR MODEL SETUP
Press Numeric Key
③ Press the 1 button to activate the [DVR Model SETUP] menu.
④ Press a number on the number pad to set the DVR ID.
The DVR model name saved in EEPROM will be displayed on the LCD
monitor when changing DVR ID.
⑤ Press the + and - buttons to change the DVR model name
(SVR 430 → SVR 900 → SVR 1620 → SVR 1630).
⑥ Press the ENTER button to finish the setup.
DVR MODEL SETUP
0
[ 0 ]
DVR ID:
MODEL: NONE
+,-:Model Change
When entering '1'
DVR MODEL SETUP
1
[ 1 ]
DVR ID:
MODEL: SVR430
+,-:Model Change
▤ When connecting to an SVR-430, the SVR-430 system ID must be set to be the same as the controller DVR ID
(Menu → Network/Communication → RS422/485 → SYSTEM ID).
▤ When connecting to an SVR-900/1620, the SVR-900/1620 system ID must be set to be the same as the
controller DVR ID (Menu → System Setup → Com Port Setup → SYSTEM ID).
▤ When connecting to an SVR-1630, the SVR-1630 keyboard control address must be set to be the same as the
controller DVR ID (Menu → System Setup → Misc.). Also, for the SVR-1630 COM2 RS422/485 menu (Menu →
System Setup → Serial Port), Device must be set to SCC-3000 and Interface to RS-485, and for the COM4
RS422/485 menu (Menu → System Setup → Serial Port), Device must be set to SPD2500 (if an SPD2500 is
connected) and Interface to RS-485.
▤ When controlling a PTZ camera via an SVR-1630, connect the SVR-1630 and the controller to COM2 RX+/RXand connect the SVR-1630 and PTZ camera to COM4 RX+/RX-. Also, at the SVR-1630 channel setup menu, set
the PTZ port of each channel to COM4 and set the PTZ address to be the same as the PTZ camera ID.
《25》
Controller Mode
(1) Controller Setup Mode
■ Sub-controllers cannot be operated if the master controller is in setup mode.
① At the initial screen, press the FUNCTION button and press the 0 button
to activate the [SETUP SYSTEM] menu.
② Press the 3 button to activate the [Controller SETUP 1 ▶] menu.
③ Press the ▶▶ button to activate the [◀Controller SETUP 2 ▶] menu.
④ Press the ▶▶ button to activate the [▶ Controller SETUP 3] menu.
⑤ At the [Controller SETUP 1 ▶], [◀ Controller SETUP 2 ▶] or
[◀ Controller SETUP 3] menu, press a menu number to open a setup
menu.
SETUP SYSTEM
1:PTZ
2:DVR
3:CONTROLLER
Press Numeric Key
CONTROLLER SETUP1
1:CONTROLLER ID
2:SERIAL
3:COPY
Press Numeric Key
CONTROLLER SETUP2
1:RESPONSE
2:PASSWORD
Press Numeric Key
CONTROLLER SETUP3
1:PRIORITY
2:DEFAULT
3:F/W UPDATE
Press Numeric Key
INFORMATION
● Press the ESC button to move to the upper setup mode.
● The Controller Setup menu can be added to enhance controller functionality.
《26》
Controller Mode
(2) Controller ID Setup
■ This menu is for setting controller ID.
① At the [Controller SETUP 1 ▶] menu, press the 1 button (see p.26).
② Press a number on the number pad to enter a controller ID.
③ Press the ENTER button to set the controller ID.
▤ Assign number 1 for setting the controller ID for the master controller.
▤ The lower the ID number, the higher the controller priority.
▤ Sub-controllers can be operated only when connected to a master
controller; Sub-controllers cannot be operated independently.
CONTROLLER SETUP1
1:CONTROLLER ID
2:SERIAL
3:COPY
Press Numeric Key
CONTROLLER ID SET
CONTROLLER ID: 1[ 0 ]
ID 1 IS MASTER ID!
Enter:ID Set <1-16>
(3) SERIAL Setup
■ This menu is for setting the serial port for connecting external devices to the controller.
① At the [Controller SETUP 1 ▶] menu, press the 2 button (see p.26).
② Press the 1 button to activate the Serial 1 PORT Setup screen (PTZ
camera/DVR connection PORT). Press the 2 button to activate the
Serial 2 PORT Setup screen (reserved PORT).
▤ The value displayed at step ② indicates the current setup value.
▤ The BAUD RATE/ DATA BIT/ STOP BIT/ PARATY BIT for PORT
2, which connects to the sub-controller, are fixed and cannot be
changed.
③ The PORT Setup screen will be displayed.
Press the number for a setup menu.
1: Sets the BAUD RATE. (4800, 9600, 19200, 38400)
2: Sets the DATA BIT. (8BIT, 7BIT)
3: Sets the STOP BIT. (1BIT, 2BIT)
4: Sets the PARITY BIT. (NONE, ODD, EVEN)
CONTROLLER SETUP1
1:CONTROLLER ID
2:SERIAL
3:COPY
Press Numeric Key
RS-422/485 SET
1:S1 9600, 8, 1, NONE
2:S3 9600, 8, 1, NONE
Press Numeric Key
RS-422/485 SET
1:BUAD
2:DATA
3:STOP BIT
4:PARITY
Press Numeric Key
▤ Default values for controller SERIAL are 9600 (BAUD RATE), 8BIT
(DATA BIT), 1BIT (STOP BIT) and NONE (PARITY BIT).
《27》
Controller Mode
(4) DATA COPY
■ This menu is for copying master controller menu data to a sub-controller.
The controller ID value is not copied.
① At the [Controller SETUP 1▶] menu, press the 3 button (see p.26).
② Press a number on the number pad to enter the ID number for the subcontroller where the data will be copied.
CONTROLLER SETUP1
1:CONTROLLER ID
2:SERIAL
3:COPY
Press Numeric Key
DATA COPY
SUB-CONTROL ID? [ 0 ]
Enter:ID Set <2-16>
③ Press the ENTER button to set the controller ID.
DATA COPY
Do you want to COPY?
1:YES 2:NO SUB-ID: 2
Press Numeric Key
④ Press the 1 button to start coping data.
Press the 2 button to return to the previous menu.
⑤ The [DATA COPYING SUCCESS] message appears when data copying is complete.
The [DATA COPYING FAIL] message appears if data copying failed.
DATA COPY
Wait a Minute
DATA COPYING SUCCESS
Press Numeric Key
DATA COPY
Wait a Minute
DATA COPYING FAIL
Press Numeric Key
[DATA COPY SUCCESSFUL]
[DATA COPY FAILURE]
▤ Data copy takes approximately 7~10 seconds.
This menu is available only for the master controller (ID: 1).
《28》
Controller Mode
(5) RESPONSE
■ If the camera RESPONSE is set to two-way reception (RESPONSE ON), the controller RESPONSE menu must be
set to ON. If the camera RESPONSE is set to one-way reception (RESPONSE OFF), the controller RESPONSE
menu must be set to OFF.If this is not followed, the system may have a configuration conflict.For more information on
the camera RESPONSE settings, direct your inquiries to the installation vendor. If the DIP switch for the camera
connected to the controller is set to two-way reception (RESPONSE ON), this menu can be used to set up the
RESPONSE value for the controller and the number of sub-controllers.
① At the [Controller SETUP 1 ▶] menu, press the ▶▶ button (see p.26).
② Press the 1 button to open the Response Setup screen.
③ Press the 1 button to set the controller RESPONSE setting to ON.The
controller automatically restarts to apply the change.Press the 2 button
to set the controller RESPONSE setting to OFF.The master controller
display shows the setup screen for the number of the connected subcontroller.
④ Press the 1 ~ 4 button to set the number of the desired sub controller.
The controller automatically restarts to apply the changed settings after
entering the number.
CONTROLLER SETUP2
1:RESPONSE
2:PASSWORD
Press Numeric Key
RESPONSE TYPE SETUP
1:ON
2:OFF
Press Numeric Key
RESPONSE TYPE SETUP
1:MAX-4
2:MAX-8
3:MAX-12
4:MAX-16
Press Numeric Key
- 1: Sets the number of sub-controllers to 4 including the master controller.
- 2: Sets the number of sub-controllers to 8 including the master controller.
- 3: Sets the number of sub-controllers to 12 including the master controller.
- 4: Sets the number of sub-controllers to 16 including the master controller.
▤ Set the maximum number of sub-controllers, to shorten the sub
controller data loading time by making the master controller
memorize the number of sub-controllers.
▤ If Response is set as ON, a maximum of 12 sub-controllers only can be selected.
《29》
Controller Mode
▤ For information on camera RESPONSE settings (DIP switch settings), refer to the camera manual.
(5-1) SPD-1600 DIP Setup
ON
OFF
DIP-SW 1
Not used
Always OFF
DIP-SW 2
Reserved
Always OFF
DIP-SW 3
RESPONSE Setup
HALF DUPLEX FULL DUPLEX
DIP-SW 4
Factory default
Always OFF
[ RESPONSE ON Setup ]
(5-2) SPD-2200 DIP Setup
ON
DIP-SW 1
DIP-SW 2
OFF
RESPONSE Setup FULL DUPLEX
HALF DUPLEX
Reserved
Always OFF
Termination setting
Refer to the camera user manual
DIP-SW 3
DIP-SW 4
[ RESPONSE ON Setup ]
(5-3) SPD-2500 DIP Setup
ON
OFF
DIP-SW 1
Not used
Always OFF
DIP-SW 2
Reserved
Always OFF
DIP-SW 3
RESPONSE Setup
HALF DUPLEX FULL DUPLEX
DIP-SW 4
Factory default
Always OFF
《30》
[ RESPONSE ON Setup ]
Controller Mode
(6) PASSWORD
■ This menu is for setting the password to enter when changing controller setup values upon power-on.
(6-1) PASSWORD Setup
① At the [Controller SETUP 1▶] menu, press the ▶▶ button (see p.26).
② Press the 2 button to activate the Password Setup screen.
③ Press the 1 button to activate the Password Setup screen.
④ Use the number pad to enter a 6-digit password.
⑤ The password verification screen will appear.
Re-enter the same password. The password will be saved.
CONTROLLER SETUP2
1:RESPONSE
2:PASSWORD
Press Numeric Key
PASSWORD SETUP
1:PASSWORD SETUP
2:MENU ON 3:POWER ON
Press Numeric Key
PASSWORD SETUP
INPUT PASSWORD
[
]
Press Numeric Key
PASSWORD SETUP
RE-INPUT PASSWORD
[
]
Press Numeric Key
▤ The factory default password is ****.
Please change the password after installation.
《31》
Controller Mode
(6-2) Applying Password – Setup Mode
① At the Password Setup screen, press the 2 button.
② Press the 1 button to ask for a password every time the setup mode is
selected. Press the 2 button to skip asking for a password.
PASSWORD SETUP
1:PASSWORD SETUP
2:MENU ON 3:POWER ON
Press Numeric Key
PASSWORD SETUP
1:MENU PASSWORD ON
2:MENU PASSWORD OFF
Press Numeric Key
(6-3) Applying Password - Power
① At the Password Setup screen, press the 3 button.
② Press the 1 button to ask for a password every time the appliance is
powered on. Press the 2 button to skip asking for a password.
PASSWORD SETUP
1:PASSWORD SETUP
2:MENU ON 3:POWER ON
Press Numeric Key
PASSWORD SETUP
1:POWER PASSWORD ON
2:POWER PASSWORD OFF
Press Numeric Key
(6-4) Entering Password
If a password is set, the password has to be entered every time the
appliance is powered on or before entering the setup menu. At the screen
as illustrated on the right, enter the password set at step (6-1).
《32》
PASSWORD SETUP
INPUT PASSWORD
[
]
Press Numeric Key
Controller Mode
(7) PRIORITY
■ This menu is for setting the connected sub-controller to use a PTZ camera or DVR within the specified restrictions.
This menu is available for master controller (ID: 1) only.
① At the [Controller SETUP 1 ▶] menu, press the ▶▶ button twice
(see p.26).
② Press the 1 button to activate the Priority Setup screen.
③ Press the 1 button to activate the PTZ Camera Restriction Setup menu.
Press the 2 button to activate the DVR Restriction Setup menu.
④ Use the controller button to set the menu.
[ID]: ID of the assigned sub-controller.
Left [000-255] : The currently selected restriction ID.
Right [000-000] : ID to be assigned.
- I▶/▶▶ : Moves items left and right.
- 2 ~ 16 : Enters ID number.
- ESC : Moves to the upper menu.
- ENTER : Finishes setup.
CONTROLLER SETUP3
1:PRIORITY
2:DEFAULT
3:F/W UPDATE
Press Numeric Key
PRIORITY SETUP
1:PTZ ID LIMIT
2:DVR ID LIMIT
Press Numeric Key
PTZ ID LIMIT
ID
LIMITED RANGE
02 000-255
000-000
Esc:Exit
Enter:Set
[PTZ Camera Restriction Setup Menu]
DVR ID LIMIT
ID
LIMITED RANGE
02 000-255
000-000
Esc:Exit
Enter:Set
[DVR Restriction Setup Menu]
《33》
Controller Mode
(8) DEFAULT
■ This menu is for resetting the changed controller setup values to the default values.
① At the [Controller SETUP 1 ▶] menu, press the ▶▶ button twice
(see p.26).
② Press the 2 button to open the Default Setup screen.
③ Press the 1 button to change the controller setup values to the default
values and restart the controller.
Press the 2 button to cancel the process.
《34》
CONTROLLER SETUP3
1:PRIORITY
2:DEFAULT
3:F/W UPDATE
Press Numeric Key
DEFAULT SETUP
DEFAULT SET NOW?
1:YES
2:NO
Press Numeric Key
REFERENCE
(1) Swing, Group Movement Speed
▤ For Swing setup, the speed setup value can be 240˚/second for pan, and 180˚/second for tilt.
Setup value
Degrees / second
Setup value
Degrees / second
Setup value
Degrees / second
Setup value
Degrees / second
1
0.8
33
23
1
0.8
33
23
2
1.0
34
24
2
1.0
34
24
3
1.5
35
25
3
1.5
35
25
4
2.0
36
26
4
2.0
36
26
5
2.5
37
27
5
2.5
37
27
6
3.0
38
28
6
3.0
38
28
7
3.5
39
29
7
3.5
39
29
8
4.0
40
30
8
4.0
40
30
9
4.5
41
35
921.19
Tm0.1(41
)-1155
《35》
37
REFERENCE
(2) System Connections
(2-1) Connecting Controller and Junction Box
(2-2) Connecting Junction Box and External Devices
[SUB JUNCTION BOX]
JUNCTION BOX
X
X
X
X
X
X
X
X
X
X
X
RX+ RX- TX+ TX-
X
X
X
X
X
X
X
RX+
RX-
X
X
X
[SVR-430/900/1620 connection]
* RX+ and TX+ / RX- and
TX- must be short-circuited.
[PTZ connection]
X
[SVR-1630 connection]
X
RX-
X
TX+ TX-
RX+
X
X
TX-
X
RX+ RX-
TX+
X
TX+ TX-
GRD
X
JUNCTION BOX
X
RX-
X
RX+ RX-
RX+
TX+ TX-
RX+ RX- TX+ TX-
X
RX+ RX-
RX+ RX- TX+ TX-
X
*RX+=DATA+
RX- =DATA-
▤ When connecting with an SVR-1630, only SPD series PTZ cameras can be employed.
▤ When controlling a PTZ camera via an SVR-1630 there is a delay, and the response may be slow.
▤ When controlling a PTZ camera with a sub-controller there is a delay, and the response may be slow.
《36》
REFERENCE
(3) RS-485/422 Pin Layout (D_SUB_FEMALE)
Terminal
Name
1
+12V
2
RX+ (RS-485+)
PORT1
3
RX- (RS-485-)
PORT1
4
TX-
PORT1
5
TX+
PORT1
6
-
7
RX+ (RS-485 +)
5
1
15
11
1
5
6
9
PORT2
8
RX- (RS-485 -)
PORT2
9
TX-
PORT2
10
TX+
PORT2
11
GND
12
RX+ (RS-485 +)
PORT3
13
RX- (RS-485 -)
PORT3
14
TX-
PORT3
15
TX+
PORT3
(4) RS-232C Pin Layout (D_SUB_MALE)
Terminal
Name
1
-
2
RX
3
TX
4
-
5
GND
6
-
7
-
8
-
9
-
《37》
REFERENCE
(5) Controller Specifications
MODEL
SCC-3000
Power (Consumption)
12VDC(Max 700mA)
Control
DVR & Speed Dome (SPD-2500, 1600, 2200)
PTZ Control
SPD-2500, 1600, 2200 all function control
Compatibility
Remote Control
- DVR : SVR-1620 / 900 / 430 / 1630 / 1650
- PTZ : SEC, PELCO-D, PANASONIC
RS-485 / RS-422
Connector
3Port
Baud Rate (bps)
Max 38400bps (Sub-controller : 56400bps)
LCD Display
20 x 4 Character LCD
PTZ Control
Joystick (3Axis Twist Zoom)
Sub Keyboard
Flow control connected with Master Keyboard
Auto Surveillance
Tour, Group, Swing, Preset
Operating temperature(Humidity)
0 ~ 40°(10% ~ 75%)
Storage temperature(Humidity)
-5 ~ 55°(10% ~ 95%)
Weight
2kg
Dimension
400mm X 180mm X 45mm (Without Joystick' height)
(6) RS-485/422 Specifications
Type
Asynchronous Serial, 1 START BIT, 8 DATA BIT, NO PARITY,1 STOP BIT
Transmission method
HALF DUPLEX / FULL DUPLEX
Transmission rate
4800 ~ 38400 (9600bps recommended)
Composition
4 lines (Twist pair)
(7) Junction Box DIP Switch
● RS-485 Termination ON
● RS-422 Termination ON
● RS-485 Termination OFF
● RS-422 Termination OFF
《38》
SALES NETWORK
SAMSUNG TECHWIN CO., LTD.
145-3, Sangdaewon 1-Dong, Jungwon-Gu,
Sungnam, Kyungki-Do, Korea 462-703
TEL: +82-31-740-8137~8141 FAX: +82-31-740-8145
SAMSUNG OPTO-ELECTRONICS AMERICA, INC.
ELECTORONIC IMAGING DIV.
SAMSUNG OPTO-ELECTRONICS UK LTD.
40 Seaview Drive, Secaucus NJ 07094, U.S.A
TEL : +1-201-902-0347 FAX: +1-201-902-0429
Samsung House, 1000 Hillswood Drive
Hillswood Business Park Chertsey Surrey KT16 OPS
TEL: +44 (0)1932 455 308 FAX: +44 (0)1932 455 325
SAMSUNG TECHWIN MOSCOW OFFICE
TIANJIN SAMSUNG OPTO-ELECTRONICS CO., LTD .
LENNINGRADSDY PR-KT, 37A. KORP.14
RUSSIA, 125167, MOSCOW
TEL: +7-095-258-9296, 9298 FAX: +7-095-258-9297
7 Pingchang Rd, Nankai Dist, Tianjin, P.R China
Post Code : 300190
TEL : +86-22-2761-4599 FAX: +86-22-2769-7558
http://www.samsungtechwin.com
http://www.samsungcctv.com
P/No.:6806-0586-01A
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
