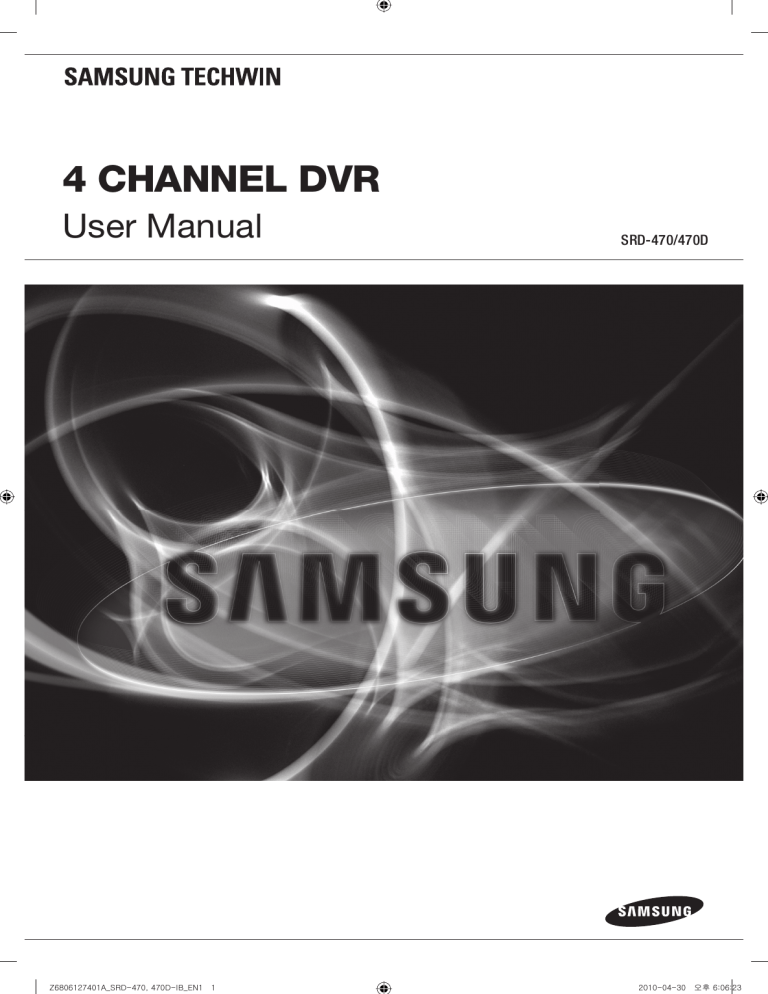

4 CHANNEL DVR
User Manual
Z6806127401A_SRD-470, 470D-IB_EN1 1
SRD-470/470D
2010-04-30 오후 6:06:23
4 Channel DVR
User Manual
Copyright
©2009 Samsung Techwin Co., Ltd. All rights reserved.
Trademark
is the registered logo of Samsung Techwin Co., Ltd.
The name of this product is the registered trademark of Samsung Techwin Co., Ltd.
Other trademarks mentioned in this manual are the registered trademark of their respective company.
Restriction
Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this
document shall be reproduced, distributed or changed, partially or wholly, without formal authorization of
Samsung Techwin.
Disclaimer
Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but
no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on
the user’s own responsibility. Samsung Techwin reserves the right to change the contents of this document
without prior notice.
Warranty
Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this
document shall be reproduced, distributed or changed, partially or wholly, without formal authorization of
Samsung Techwin.
Z6806127401A_SRD-470, 470D-IB_EN2 2
2010-04-30 오후 6:06:39
IMPORTANT SAFETY INSTRUCTIONS
Read these operating instructions carefully before using the unit.
Follow all the safety instructions listed below.
Keep these operating instructions handy for future reference.
1) Read these instructions.
2) Keep these instructions.
3)
Heed all warnings.
4)
Follow all instructions.
5)
Do not use this apparatus near water.
6)
Clean only with dry cloth.
7)
Do not block any ventilation openings, Install in accordance with the manufacturer’s
instructions.
8)
Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9)
Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided for your safety. if the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid injury from
tip-over.
13) Unplug this apparatus during lightning storms or when unused for long
periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
English _3
Z6806127401A_SRD-470, 470D-IB_EN3 3
2010-04-30 오후 6:06:39
overview
BEFORE START
This user manual provides Information for using the DVR such as brief introduction, part names, functions, connection
to other equipment, menu setup, etc.
You have to keep in mind the following notices :
• SAMSUNG retains the copyright on this manual.
• This manual cannot be copied without SAMSUNG’s prior written approval.
• We are not liable for any or all losses to the product incurred by your use of non-standard product or violation of
instructions mentioned in this manual.
• Prior to opening the case, please consult a qualified technician first. Whenever this is needed power must be
removed from the unit.
• Before installing an additional HDD or connecting an external storage device (USB memory or USB HDD) to this
DVR, check the compatibility. Consult your provider for the compatibility list.
Warning
❖ Battery
It is essential that when changing the battery in the unit, the replacement battery must be of the same type
otherwise there may be a possibility of an explosion.
The following are the specifications of the battery you are using now.
• Normal voltage : 3V
CALIFORNIA USA ONLY
• Normal capacity : 170mAh
This Perchlorate warning applies only to primary CR (Manganese Dioxide)
Lithium coin cells in the product sold or distributed ONLY in California USA.
• Continuous standard load : 0.2mA
“Perchlorate Material - special handling may apply,
• Operating temperature : -20°C ~ +85°C
See www.dtsc.ca.gov/hazardouswaste/perchlorate.”
(-4°F ~ +185°F)
J
 Connect the power cord into a grounded outlet.
 The Mains plug is used as a disconnect device and shall stay readily operable at any time.
 Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
❖ System Shutdown
Turning off the power while the product is in operation, or undertaking improper actions may cause damage
or malfunction to the hard drive or the product.
Please turn off the power using the Power button on the front of your DVR.
After selecting <OK> in the pop-up menu, you can pull off the power cord.
You may want to install a UPS system for safe operation in order to prevent damage caused by an
unexpected power stoppage. (Any questions concerning UPS, consult your UPS retailer.)
❖ Operating Temperature
The guaranteed operating temperature range of this product is 0°C ~ 40°C (32°F ~ 104°F).
This product may not work properly if you run right after a long period of storage at a temperature below the
guaranteed one.
Prior to using a device that has been stored for a long period in low temperatures, allow the product to stand
at room temperature for a period.
Especially for the built-in HDD in the product, its guaranteed temperature range is 5°C ~ 55°C (41°F ~ 131°F).
Likewise, the hard drive may not work at a temperature below the guaranteed one.
❖ Ethernet Port
This equipment is in door use and all the communication wirings are limited to inside of the building.
4_ overview
Z6806127401A_SRD-470, 470D-IB_EN4 4
2010-04-30 오후 6:06:40
CONTENTS
OVERVIEW
4
13
CONNECTING WITH OTHER DEVICE
17
LIVE
21
USING THE DVR
32
Before Start
Features
Part Names and Functions (Rear)
Part Names and Functions (Front)
Remote Control
13
14
Checking the installation environment
HDD Addition
17
17
17
18
18
19
Connecting the Video, Audio, and Monitor
Connecting the USB
Connecting POS Device
Connecting the Alarm Input/Output
Connecting the RS485 Device
Connecting the Network
21
23
27
29
29
30
30
30
Getting Started
Live Screen Configuration
Live Mode
Spot Out
Zoom
Audio ON/OFF
Freeze
Event Monitoring
32
42
50
53
56
57
64
System Setup
Setting the Device
Setting the Recording
Setting the Event
Backup
Network Configuration
Controlling a PTZ device
 OVERVIEW
INSTALLATION
4
7
9
10
12
English _5
Z6806127401A_SRD-470, 470D-IB_EN5 5
2010-04-30 오후 6:06:40
overview
66
69
Search
Playback
70
70
71
73
79
83
93
Introducing Web Viewer
Connecting Web Viewer
Using Live Viewer
Using Search Viewer
Viewer Setup
About
BACKUP VIEWER
94
SEC Backup Viewer
96
99
100
103
Product Specification
Product Overview
Default Setting
Troubleshooting
SEARCH & PLAY
66
WEB VIEWER
94
APPENDIX
96
6_ overview
Z6806127401A_SRD-470, 470D-IB_EN6 6
2010-04-30 오후 6:06:41
FEATURES
The SRD DVR (Digital Video Recorder) employs H.264 video encoding for 4 channel inputs and G.723 audio
encoding for 4 channels while simultaneously supports hard disc recording and playback.
These DVRs also supports network connectivity, providing remote monitoring from a remote PC transferring video
and audio data.
• 4 CH Composite Input Connectors
• CIF(S)/2CIF(M)/4CIF(L) Recording
 OVERVIEW
• Network transfer regardless of the recording conditions using network specific codec
• Improved quality using de-interlace chip
• HDD information and status with HDD SMART
• Record at 4CIF Size (NTSC: 704*480, PAL: 704*576) 120(NTSC)/100(PAL)IPS
• 4 CH Loop Through video port
• HDD Overwrite
• Massive HDD backup via USB 2.0
• Backup using USB 2.0 memory and/or external CD/DVD writer
(DVD writer not supported in SRD-470)
• Record and play 4 CH video data simultaneously
• Various search modes (time, event, backup, POS, motion detection)
• Lots of storage modes (time lapse, event, timed recording)
• HDD extension (USB 2.0)
• Alarm connection (input: 4, output:2, reset: 1)
• Remote monitoring via Windows Network Viewer
English _7
Z6806127401A_SRD-470, 470D-IB_EN7 7
2010-04-30 오후 6:06:41
overview
Standards Approvals
M
 This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
Package Contents
Please unwrap the product, and place the product on a flat place or in the place to be installed.
Please check the following contents are included in addition to the main unit.
Remote Control
Adaptor
Power Cable
Network Viewer Software /
User Manual CD
User Manual
Remote Control Battery (AAA)
HDD Fixing Screw
(Only applicable for SRD-470 : 4EA)
SATA Cable
(Only applicable for SRD-470 : 1EA)
M
 For models that are not equipped with the HDD, one SATA cable is provided for HDD installation.
8_ overview
Z6806127401A_SRD-470, 470D-IB_EN8 8
2010-04-30 오후 6:06:42
PART NAMES AND FUNCTIONS (REAR)
1
2
3
4
5
 OVERVIEW
11
10
9
Part Names
8
7
6
Functions
VGA
Output port for VGA video signal.
RS-232C
RS-232C communications port.
VIDEO OUT
BNC type of output port for the composite video signal.
AUDIO OUT
Output port (RCA jack) for the audio signal.
 It is recommended to use an amplifier-integrated speaker for the output of the audio
signal.
AUDIO IN 1~4
Output ports (RCA jacks) for the audio signal.
NETWORK
Network connection port.
DC 12V
Port to be connected to the 12V power source.
ALARM IN
1~4, G : Alarm input ports.
ALARM OUT
1, 2, COM : Alarm output ports.
RS485
Used to establish RS485 communications. (TX+, TX-)
USB
USB connection port.
SPOT
BNC type of output port for the Spot signal.
THROUGH
Port to transfer the video signal to other video devices.
VIDEO IN
Input port for the composite video signal.
Supports both NTSC and PAL video signal.
English _9
Z6806127401A_SRD-470, 470D-IB_EN9 9
2010-04-30 오후 6:06:44
overview
PART NAMES AND FUNCTIONS (FRONT)
SRD-470
1
2
3
5
SRD-470
9
8
7
6
SRD-470D
1
2
3
4
5
SRD-470D
9
8
7
6
10_ overview
Z6806127401A_SRD-470, 470D-IB_EN10 10
2010-04-30 오후 6:06:45
Part Names
Functions
Power LED : Displays the power ON/OFF status.
Power
Power Button : Used to turn the DVR ON/OFF.
In Live mode, pressing it will switch the mode to 4-split, PIP, and Auto Sequence in sequence.
In Search mode, pressing it will switch the mode to 9-split and 4-split in sequence.
 For the Play Screen mode, refer to “Play”. (page 69)
AUDIO
Sets Audio ON/OFF.
ALARM
Cancels the ALARM LED and the audible alarm when the alarm is going off, and to remove the
icon.
REC
Starts or ends the recording.
/
Step Rewind ( ) : Used for backward frame-by-frame search while in PAUSE.
Fast Rewind () : Used for quick backward search while in Play.
(-x2, -x4, -x8, -x16, -x32, -x64)

Stop : Used to stop the playback.
►/
Play/Pause : Used to pause or resume the screen.
/
Fast Forward () : Used for quick forward playback. (x2, x4, x8, x16, x32, x64)
Step Forward ( ) : Used for forward frame-by-frame search while in PAUSE.
Open/Close
Used to open and close the DVR-RW disc tray. (available for SRD-470D only)
 OVERVIEW
MODE
ALARM : Lights on when an event occurs.
HDD : Displays the normal access to HDD.
Upon access to HDD, LED repeats on and off.
LED Indicator
NETWORK : Displays both network connection and data transfer status.
BACKUP : Displays when Backup is in progress.
REC : Lights on when recording is in progress.
Direction &
Select Button
Used to change a value or move the cursor up/down/left/right (
Selects a menu item or executes the selected menu.
◄ ►).
PTZ : Sets PTZ Mode ON/OFF.
ZOOM(TELE) : Sets the screen to the x2 digital zoom.
Runs the TELE function in the PTZ Mode.
Camera Control
FREEZE(WIDE) : Runs the FREEZE function in the Live Mode.
Runs the WIDE function in the PTZ Mode.
SEARCH(VIEW) : This is the function that switches over to the Search mode.
(Perform the VIEW function when selecting the PTZ button.)
MENU : Used to access the Menu screen or move to the previous menu.
Channel
Used to select channel numbers directly in the Live Mode, or numbers in the numeric input
mode.
USB Port
Connects the USB devices.
English _11
Z6806127401A_SRD-470, 470D-IB_EN11 11
2010-04-30 오후 6:06:46
overview
REMOTE CONTROL
SEARCH
Displays the search menu.
BACKUP
Displays the Backup Menu.
OPEN/CLOSE
MODE
Changes the screen mode.
POWER
Opens or closes the CD tray.
DVR
Activates the DVR function.
Displays the Exit pop up screen.
NUMBER [0~+10]
Used as the numeric input keys, or displays a single
channel.
ID
Skip Backward (by unit time),
Slow Rewind, Slow Forward,
Skip Forward (by unit time)
Sets the ID of the system.
Select 2 digits from 0 ~ 9 while pressing the ID Key.
Move Frame
While paused, moves to the previous/next frame.
FR, STOP, PLAY/PAUSE, FF
T/W
Zooms in or out.
PTZ
Displays or ends PTZ.
SCROLL ,.
Moves the menu scroll.
MENU
Goes to the system menu screen.
Up/Down/Left/Right(▲▼◄ ►)/ENTER
Moves the cursor up/down/left/right, and runs the
Select Menu.
FREEZE
Freezes the screen temporarily.
ZOOM
RETURN
Returns to the previous screen.
AUDIO
Turns Audio on/off.
ALARM
Cancels the Alarm.
Runs the digital zoom (x2) function.
REC
Starts or ends the live recording.
VIEW
Runs the View function in the PTZ mode.
REC LOCK
Selects the recording lock function.
PRESET
Displays the Preset Setup.
Using the Numeric buttons
1. Press any button among 1 to 4.
2. Move to the selected channel number.
Changing the Remote Control ID
1. Press the ID button of the remote control and check the ID displayed on the DVR screen.
The factory default ID of the remote control is 00.
2. Enter 2 digits of your selection in order, while pressing the system [ID] button.
3. When ID input is done, press the system [ID] button again to check the setting.
M
 If you want to change the remote control ID to 08: Press 0 and 8 in order while the system [ID] button is pressed.
Remote control's ID and DVR’s ID should be matched for proper operation. Refer to “Remote Devices”. (Page 46)
12_ overview
Z6806127401A_SRD-470, 470D-IB_EN12 12
2010-04-30 오후 6:06:46
installation
Please take note of the followings before using this product.
Do not use the product outdoor.
Do not spill water or liquid in the connection part of the product.
Do not impose the system to excessive shock or force.
Do not pull out the power plug forcefully.
Do not disassemble the product on your own.
Do not exceed the rated input/output range.
Use a certified power cord only.
For the product with an input ground, use a grounded power plug.
 INSTALLATION
•
•
•
•
•
•
•
•
CHECKING THE INSTALLATION ENVIRONMENT
Samsung Digital Video Recorder (“DVR” hereinafter) is a
state-of-art security device, and contains mass storage hard
disk(s) and critical circuits inside.
Temperature
Unit: ºC
One Year: 24HR X 365 DAY =8,760 HR
When the temperature rises inside the product, the product
may breakdown and the product life be shortened. Please
pay attention to the following recommendations before
installation.
Life (Unit: HOURS)
[Figure 1]
The followings are the recommendations when Samsung DVR is installed on a rack.
1. Please ensure that the rack inside is not sealed.
2. Please ensure the air is circulated through the inlet/outlet as shown in the picture.
3. If the DVR or other devices on a rack is to be stacked as in the picture, provide a
suitable space or install a ventilating opening for air circulation.
4. For natural air convection, place the inlet at the bottom of the rack and the outlet on
top.
5. It is strongly recommended that a fan motor is installed at the inlet and the outlet for air
circulation. (Please fit a filter at the inlet to screen dust or foreign substances.)
6. Please maintain the temperature inside the rack or surrounding areas between 0°C ~
40°C (32°F ~ 104°F) as shown in the figure 1.
DIGITA
L VIDEO
RECOR
DER
SRD-47
0D
MODE
AUDIO
ALARM
ALARM
1
HDD
NETWORK
2
REC
BACKUP
REC
3
4
ZOOM
FREEZE
SEARCH
TELE
MENU
WIDE
VIEW
DIGITA
L VIDEO
RECOR
DER
SRD-47
0D
MODE
AUDIO
ALARM
ALARM
1
HDD
NETWORK
2
REC
BACKUP
REC
3
4
ZOOM
FREEZE
SEARCH
TELE
MENU
WIDE
VIEW
DIGITA
L VIDEO
RECOR
DER
SRD-47
0D
MODE
AUDIO
ALARM
ALARM
1
HDD
NETWORK
2
REC
BACKUP
REC
3
4
ZOOM
FREEZE
SEARCH
TELE
MENU
WIDE
VIEW
DIGITA
L VIDEO
RECOR
DER
SRD-47
0D
MODE
AUDIO
ALARM
ALARM
1
HDD
NETWORK
2
REC
BACKUP
REC
3
4
ZOOM
FREEZE
SEARCH
TELE
MENU
WIDE
VIEW
Rack Mount Instructions - The following or similar rack-mount instructions are
included with the installation instructions :
MO
DE
AUDIO
A) Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the
operating ambient temperature of the rack environment may be greater than room
ambient. Therefore, consideration should be given to installing the equipment in an
environment compatible with the maximum ambient temperature (Tma) specified by
the manufacturer.
[Figure 2]
B) Reduced Air Flow - Installation of the equipment in a rack should be such that the
amount of air flow required for safe operation of the equipment is not compromised.
C) Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition is
not achieved due to uneven mechanical loading.
D) Circuit Overloading - Consideration should be given to the connection of the equipment to the supply circuit
and the effect that overloading of the circuits might have on overcurrent protection and supply wiring.
Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.
E) Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular attention should
be given to supply connections other than direct connections to the branch circuit (e.g. use of power strips).
ALAR
ALA
RM
M
HDD
NETW
2
REC
ORK
BAC
KUP
REC
3
4
ZOOM
FRE
EZE
SEA
RCH
TEL
E
ME
NU
WID
E
DIG
ITAL
VID
VIE
W
EO
RECO
RDER
SRD-4
70D
English _13
Z6806127401A_SRD-470, 470D-IB_EN13 13
2010-04-30 오후 6:06:48
installation
HDD ADDITION
You can install additional HDDs.
Make sure to unplug the power cord from the wall outlet to prevent possible electric shock, injury or product
damage.
Please consult your provider for further information on HDD installation since improper installation or settings may
damage the product.
 Number of HDDs supported : SRD-470 : Default 1 HDD + Up to 1 HDD added
SRD-470D : Default 1 HDD
 Make sure to unplug the power cord from the wall outlet before proceeding with the installation.
J
 Cautions for data loss (HDD care)
Please pay attention so that the data inside the HDD is not damaged.
Before adding a HDD, please check the compatibility with this DVR product.
HDD is vulnerable to malfunction due to its sensitive nature especially against shock when operating.
Please ensure that the HDD is free from such shock.
We are not liable for any damage to the HDD incurred by user’s carelessness or miss use..
 Cases might cause damage to HDD or recorded data
To minimize the risk of data loss from a damaged HDD, please backup data as often as possible.
Data may be lost due to external impacts during disassembly or installation of the DVR.
HDD may be damaged if the DVR is suddenly stopped by a power cut or power off during operation.
HDD or files stored inside may be damaged if the main body is moved or impacted during the HDD operation.
Cautions when adding a HDD
1. When adding a HDD, ensure that the cable does not get caught or the insulation does not come off.
2. Pay attention so as not to lose the disassembly screws or accessories.
 If the screws or accessories are not put together correctly, the product may breakdown or not operate properly.
3. Please check the HDD compatibility before adding a HDD.
 Please contact your nearest dealer to obtain the list of compatible devices.
14_ installation
Z6806127401A_SRD-470, 470D-IB_EN14 14
2010-04-30 오후 6:06:51
1. First, loosen the screws on both sides and remove
the cover.
 INSTALLATION
2. Loosen the left and right screws on the lower hard
disk bracket to remove it.
3. Insert the additional hard disk into the bracket and
fix it using the provided screws.
Hard disk bracket
Master hard disk
English _15
Z6806127401A_SRD-470, 470D-IB_EN15 15
2010-04-30 오후 6:06:51
installation
4. Insert the bracket where the additional hard disk is
inserted into the lower bracket and fix it using the
provided screws.
5. When done, connect the power cable and connect
the signal cable (SATA cable) to the connector for
the main board.
SATA2
SATA1
6. Check if the connectors are properly connected
and there is no problem with wiring, and close the
cover and fix it with screws.
16_ installation
Z6806127401A_SRD-470, 470D-IB_EN16 16
2010-04-30 오후 6:06:57
connecting with other device
CONNECTING THE VIDEO, AUDIO, AND MONITOR
VIDEO IN
AUDIO OUT
 CONNECTING WITH OTHER DEVICE
VIDEO OUT(VGA)
VIDEO OUT
AUDIO IN
MONITOR
SPOT OUT
CONNECTING THE USB
1. There is one USB port at the front and one at the back of the product.
2. You can connect a USB HDD, USB CD/DVD player, USB memory or mouse to the USB port.
3. If a USB HDD is connected to the system, recognition and settings are available in “Menu > Setting the Device >
Storage Device”. (Page 44)
4. This product supports hot-plugging, which connects/removes the USB device during the system operation.
J
 If you use the USB device for Backup purposes, format it with FAT32 on PC if it is not formatted on the DVR.
CONNECTING POS DEVICE
1. You can connect a POS device to the RS-232C port on the product’s rear side when you connect it directly with
a RS-232C cable.
2. Connection setup for the RS-232C port is available in “Menu > Device > POS Devices”, press the
<POS Device Setup> button and set <Baudrate, Parity, Data, Stop bit and Transfer Type>. (Page 47)
English _17
Z6806127401A_SRD-470, 470D-IB_EN17 17
2010-04-30 오후 6:07:03
connecting with other device
CONNECTING THE ALARM INPUT/OUTPUT
Connecting the alarm input signal
Connection port for the alarm input signal.
Connect one strand of the sensor signal line (two
strands) to the alarm input port and connect the other
to the [G] port.
Connecting the alarm output signal
Connection port for the alarm output signal.
Connect one strand of the sensor signal line
(two strands) to the alarm output port and connect
the other to the [COM] port.
ALARM IN ALARM OUT
CONNECTING THE RS485 DEVICE
Connect the rear [RS485 +, –] ports to the external device.
M
 ex) you can connect and control the PTZ camera
which supports the RS485 communication.
 Check if the RS485 device is compatible with the
product first.
 Pay attention not to change the polarity (+/-) of the
RS485 device when connecting it.
 Depending on camera’s type, connection polarity can
be different.
For further information, refer to the respective PTZ
Camera’s documentation.
RS485
18_ connecting with other device
Z6806127401A_SRD-470, 470D-IB_EN18 18
2010-04-30 오후 6:07:05
CONNECTING THE NETWORK
Connecting to Internet through Ethernet (10/100/1000BaseT)
 CONNECTING WITH OTHER DEVICE
RJ-45 Ethernet Cable
(Direct Cable)
INTERNET
Back Bone
Hub/Switcher
Windows
Network Viewer
Hub/Switcher
Connecting to the Internet using the router
INTERNET
Router
xDSL or Cable
Modem
xDSL or Cable
Modem
External Remote
PC
DDNS Server
(Data Center)
English _19
Z6806127401A_SRD-470, 470D-IB_EN19 19
2010-04-30 오후 6:07:06
connecting with other device
Connecting to Internet through ADSL
RJ-45 Ethernet Cable
(Direct Cable)
INTERNET
Phone(ADSL) Line
Hub/Switcher
ADSL MODEM
Windows
Network Viewer
20_ connecting with other device
Z6806127401A_SRD-470, 470D-IB_EN20 20
2010-04-30 오후 6:07:08
live
GETTING STARTED
Starting the system
 LIVE
1. Connect the power cable of the DVR to the wall outlet.
2. Press the Power button on the front panel.
REC
3. You will see the initialization screen.
The initialization process will last about 1 minute.
If a new HDD is installed, the initialization process may
take longer.
REC
4. The live screen appears with a beep.
Shutting Down the System
You can shut down the system only if you have logged in to the DVR.
You require permission to shut down the system if you are not logged in as admin.
1. Press the [POWER] button on the remote control or the
front panel, or right-click to display the context sensitive
menu and select <Shutdown>.
2. The “Shutdown” confirmation window appears.
3. Use the arrow keys on the remote control or the front panel
to move to <OK> and press the [ENTER] button or click
<OK>.
The system will shut down.
M
Shutdown
Are you sure to shutdown?
OK
Cancel
 For the permission management, refer to “Permission
Management > Setting Permissions”. (Page 37)
English _21
Z6806127401A_SRD-470, 470D-IB_EN21 21
2010-04-30 오후 6:07:09
live
Login
To access a DVR or restricted menu, you should have logged in to the DVR.
1. In live mode, right-click any area of the screen.
You will see the context sensitive menu as in the right
figure.
Scene Mode
Audio Off
Freeze
Stop Alarm
Record
Play
Search
Backup
Main Menu
Shutdown
Hide Launcher
Login
2. Click <Login>.
The login dialog appears.
You can also see the login dialog to access a desired menu
by pressing the [MENU] button on the remote control or
the front panel.
 The login dialog will also appear if you press a menu button on
the remote control or the front panel of the DVR when the
corresponding menu requires logging in.
Login
x ID
admin
x Password
OK
Cancel
 After logged in, press [RETURN] on the remote control to display
the logout dialog.
 By default, initial ID and password are set to “admin”, and “4321”.
M
 For the restricted permission, refer to “Permission Management > Setting Permissions”. (Page 37)
Locking All Buttons
This will restrict access to all buttons available in the DVR.
1. In Live mode, press buttons in the order of [STOP]
[FREEZE] [STOP] [FREEZE] [MENU].
All buttons will be locked.
2. In the lock condition, press any button to display a dialog
where you are prompted to enter the password for
unlocking the buttons.
The button lock will be released if you enter the admin
password.
Key Lock Password
x ID
admin
x Password
OK
Cancel
22_ live
Z6806127401A_SRD-470, 470D-IB_EN22 22
2010-04-30 오후 6:07:14
LIVE SCREEN CONFIGURATION
Icons on the Live Screen
You can check the status or operation of the DVR with the icons on the live screen.
2010-01-01 00:00:01
 LIVE
CAM 01
Name
Description
Current Date, Time
Displays the current time and date.
Login Information
When you are logged in, the “LOG ON” icon will be displayed.
Displayed if the zoom function is activated.
Displayed if you press the Pause button.
Screen Mode
Displayed in Auto Sequence mode where all channels are switched at the
specific time interval.
Displayed if the recording is in process.
M To cancel the recording, enter the password.
Displayed if there is a problem with the cooling fan.
Displayed if the HDD is full and the DVR has an insufficient space to record.
System Operation
Displayed if no HDD is installed or the existing HDD should be replaced.
Displayed if the HDD needs a technical examination.
Displayed if a new firmware is found from the network.
Video Input Status
Camera Name/ Channel
Displayed if no input is entered in the condition that the camera is set to <ON>.
Nothing will be displayed on the screen if the camera is set to <OFF>.
Displays the camera name and the changed channel, if any.
Displays the resolution of the recording screen. (Page 52)
Displayed in PTZ setting, and highlighted yellow if PTZ is in operation.
Camera Operation
Displays AUDIO ON/MUTE.
Not displayed in video mode if deactivated.
If the sensor is set to <ON>, the input signal will be displayed on the screen of
the connected channel.
Displayed if a motion detected in the condition that the motion detection is set to
<ON>.
Displays the current record mode from Record/Event/Schedule.
English _23
Z6806127401A_SRD-470, 470D-IB_EN23 23
2010-04-30 오후 6:07:20
live
Error Information
• If you turn on the system when the internal HDD is not connected or an error occurs, the “HDD FAIL” icon
) will be displayed on the top left corner. In this case, make sure you contact the service center for
(
assistance as this may cause a failure of recording, playback or backup.
• If the cooling fan does not work properly or has a problem, the <Fan Information> window will appear and
the fan error icon ( ) will be displayed on the top left corner. In this case, check to see if the internal fan
works.
As a fan error can shorten the product life, make sure you contact the service center for assistance.
M
 If you see the fan error icon or No HDD, HDD FAIL icons on the screen, contact the service center for more details.
Live Screen Menu
In addition to the buttons on the front panel or the remote control, you can access a desired menu by rightclicking the mouse any area in live mode.
The context sensitive menu that appears by right-clicking the screen may differ, depending on the login/
logout, screen split mode and DVD operation mode.
M
 Menu items of Search, Record, Backup, Shutdown and PTZ can be deactivated, depending on the user permission.
Scene Mode
Scene Mode
PTZ Control
Audio Off
ZOOM
Freeze
Audio
Stop Alarm
Freeze
Record
Stop Alarm
Play
Record
Search
Play
Backup
Search
Main Menu
Backup
Shutdown
Main Menu
Hide Launcher
Shutdown
Hide Launcher
Login
Login
PTZ
Alarm
Freeze
< Single Mode Menu >
< Split Mode Menu >
Split Mode Menu
The context sensitive menu in split mode differs, depending on the login/logout status.
13
12
11
10
9
8
7
6
5
4
3
2
1
Scene Mode
Spot Out
Audio Off
Freeze
Stop Alarm
Record
Play
Search
Backup
Main Menu
Shutdown
Hide Launcher
Logout
24_ live
Z6806127401A_SRD-470, 470D-IB_EN24 24
2010-04-30 오후 6:07:22
Menu
Description
Refer to “Live Mode”. (Page 27)
Spot Out
Refer to “Spot Out”. (Page 29)
Audio On/Off
Refer to “Audio ON/OFF”. (Page 30)
Freeze
Refer to “Freeze”. (Page 30)
Stop Alarm
Stops the alarm output and the event monitoring. Refer to “Event Monitoring”. (Page 30)
Record/Stop
Starts/stops the standard recording.
Play
Plays the search result (data). Refer to “Search & Play > Play”. (Page 69)
Search
Refer to “Search & Play > Search”. (Page 66)
Backup
Refer to “Using the DVR > Setting the Backup”. (Page 56)
Main Menu
Accesses the main menu. Refer to the Using the DVR section. (Page 32)
Shutdown
Turns down the DVR.
Show/Hide Launcher
Shows or hides the launcher. Refer to “View the Launcher Menu”. (Page 26)
Login/Logout
You can log in or out.
 LIVE
Scene Mode
Single Mode Menu
The single mode menu is available only in Single Mode.
The context sensitive menu for the One Channel mode, in Split mode is different from that of the Single mode.
1
Full Screen
Spot Out
3
2
PTZ Control
ZOOM
Audio
Freeze
Stop Alarm
Record
Play
Shutdown
Hide Launcher
Logout
PTZ
Alarm
Freeze
Menu
Description
Full Screen
Select and click a desired channel in Split mode to switch to the full screen of the selected
channel.
PTZ Control
Accesses the PTZ Control menu. The PTZ menu is activated only in One-Channel Live mode.
(Page 64)
ZOOM
Enlarges the selected image. (Page 29)
English _25
Z6806127401A_SRD-470, 470D-IB_EN25 25
2010-04-30 오후 6:07:30
live
View the Launcher Menu
The Launcher menu appears on the bottom of the live screen.
1. In Live mode, right-click to display the context menu and
select <Show Launcher>.
2. Move the cursor to the bottom and click a desired item in
the Launcher menu.
M
 If no input is entered for 10 seconds, the menu will disappear.
 The Launcher menu can be accessed only by using the mouse.
PTZ
Alarm
Freeze
Menu
Description
Date/Time
Displays the current time and date.
The indication of AM/PM is displayed if you set 12 hours for the time format in
“System > Date/Time/Language > Time”. (Page 32)
Screen Mode
Displays in the sequence of 4-split, PIP and Auto Sequence.
Menu Expansion Button
Click to display the hidden menu to the right.
Audio
Turns ON/OFF the sound of the selected channel.
Zoom
Enlarges the selected area. This is available only in Single Live mode.
PTZ
Runs the PTZ Control launcher.
Alarm
Stops the alarm if it's activated.
Freeze
Freezes the Live screen temporarily.
Play
Enters Play mode if a file to play exist, and if not, enters Search mode.
Record
Start/End recording the Live screen.
26_ live
Z6806127401A_SRD-470, 470D-IB_EN26 26
2010-04-30 오후 6:07:33
LIVE MODE
Displays 4 live video images in 3 different modes.
Switching the screen mode
CH1
CH2
 LIVE
To switch the split mode, select a screen mode in the launcher menu, or right-click to select a screen mode in
the context menu.
Press the [MODE] button on the front panel or the remote control to switch the mode in the sequence of the
launcher menu items.
CH2
CH3
CH1
CH4
CH1
4-split mode
PIP
Auto Sequence
Switching the screen automatically
With SRD-470/470D, you can display 4 live single screens in sequence.
4
CH1
CH1
CH1
CH1
Single mode
M
1
 In Single mode, If you have set <SEQ-Dwell Time> in “Setting the Device > Camera”, Auto Sequence will be
conducted at the set interval. (Page 42)
English _27
Z6806127401A_SRD-470, 470D-IB_EN27 27
2010-04-30 오후 6:07:35
live
Channel Setting
You can display the channel in a desired area of a split screen.
1. Place the cursor over the camera name of each channel to display the <▼> key to the right on the screen.
2. Click a camera name to display a channel list where you can select a different channel.
3. Select a desired channel and click it.
The current channel will be switched to the selected one.
Use the cursor to select a channel to move, and drag and drop it to a desired channel; this can also
change the channel position.
 Ex : if switching CH 1 to CH 4
CH1
CH2
CH3
CH4
CH4
CH2
CH3
CH1
Switching to Single Mode
When in split mode, select and double-click a desired channel to switch to its Single mode.
Press the number corresponding to a desired channel on the front panel or the remote control to switch to its
Single mode.
Refer to “Remote Control > Using the numeric buttons”. (Page 12)
 Ex : If double-clicking CH 3 or pressing the number “3” on the remote control or the front panel.
CH1
CH2
CH3
CH4
CH3
28_ live
Z6806127401A_SRD-470, 470D-IB_EN28 28
2010-04-30 오후 6:07:36
SPOT OUT
The Spot Out monitoring is independent of the Live mode, which monitors a specific channel through the Spot Out
port.
Selecting a Spot Out mode
If an event occurs such as sensor, motion or alarm from the Spot Out port in connection with a monitor, you
can select a output screen mode.
 LIVE
1. In Live mode, right-click any area on the screen.
The Live menu appears.
Scene Mode
Spot Out
Spot Out 1
Audio Off
2. Click Spot Out.
Supports the Spot output in Single screen with Auto
Sequence mode.
 The Spot output is supported only for a designated channel.
For the Spot Out port of a model, refer to “Part Names and
Functions (Rear)”. (Page 9)
Freeze
Stop Alarm
Record
Auto Sequence
Single
CH1
CH2
CH3
CH4
Play
Search
Backup
Main Menu
Shutdown
Hide Launcher
Logout
< Multichannel Live Menu >
ZOOM
This is available only in Single Live mode. In Single mode, select a desired area and use the Zoom function to
enlarge it twice.
1. Select <ZOOM> in the right-click menu.
Press the [ZOOM] button on the front panel or the remote control, or simply click <
menu. The zoom box appears.
> in the launcher
2. Use the direction keys, or drag and drop to specify an area to enlarge.
3. Press the [ENTER] button, or double-click the selected area to enlarge it twice.
 In the enlarged image, use the direction buttons (
◄ ►) on the remote control or the front panel to move the
enlarged area.
4. Press the [ZOOM] button on the front panel or the remote control, or simply click <
menu to release the zoom.
> in the launcher
English _29
Z6806127401A_SRD-470, 470D-IB_EN29 29
2010-04-30 오후 6:07:37
live
AUDIO ON/OFF
You can turn the sound on/off corresponding to the channel in Live mode.
AUDIO ON/OFF in Single mode
Click the audio icon (
to turn it on/off.
M
) on the screen, or press the [AUDIO] button on the front panel or the remote control
 Only the channel where <AUDIO> is set to <ON> in “Device > Camera” displays the audio icon (
) in Live
mode that you can use to turn the sound on/off.
FREEZE
This is available only in Live mode, this pauses playing the Live image temporarily.
1. Press the [FREEZE] button on the front panel or the remote control, or click <
menu.
The playback of the image is stopped temporarily.
2. Press the [FREEZE] button again, or click <
This will release the freeze.
Freeze
Freeze
> in the launcher
>.
EVENT MONITORING
This will display the channel in sync with a specific event (Sensor/Motion/Video Loss) if it occurs.
In “Monitor > Event Display”, set the event monitoring to ON/OFF and specify the event display time. (Page 48)
• If multiple events occur simultaneously, the screen will switch to a split mode.
- 2~4 events : 4-split mode
• If the second event occurs within the set time of <Event Display>, the first event will last until the second
one is terminated. (Page 48)
 Ex : If you set <Event Display> to 5 seconds, and only one event occurs in CH 1.
Event occurrence
5 seconds
Stop alarm
CH1
30_ live
Z6806127401A_SRD-470, 470D-IB_EN30 30
2010-04-30 오후 6:07:46
 Ex : If you set <Event Display> to 5 seconds, and the second event occurs in CH 2 within the set time after the first
event occurred in CH 1.
Event occurrence
4 seconds
9 seconds
Stop alarm
 LIVE
CH1
CH2
CH1
M
 Press the [ALARM] button to reset the alarm settings and to release the event mode.
 If an alarm activates in the condition you have set the event record, and pre/post alarm times, the event record will
be performed.
English _31
Z6806127401A_SRD-470, 470D-IB_EN31 31
2010-04-30 오후 6:07:47
using the DVR
You can setup the system properties, devices, and options for recording, event,
backup and network.
SYSTEM SETUP
You can setup Date/Time/Language, Permission, System Properties and Log.
Date/Time/Language
You can check and setup the current Date/Time and time related properties, as well as the language used for
the interface on the screen.
Setting the Date/Time/Language
Set the Date/Time/Language
Using the mouse may help make setup easier.
1. Press the [MENU] button on the remote control or on the
front panel.
 If not logged in, it prompts with login window.
Refer to “Login”. (Page 22)
2. Use the left/right buttons (◄ ►) to select the <System>.
System property setup menu is selected.
3. Use the up/down buttons (
) to select <Date/Time/
Language> and press the [ENTER] button.
Logout
Exit
System
4. Select <Date/Time/Language>.
A dialog to setup Date, Time and Language.
Date/Time/Language
Permission Management
System Management
◄ ►) to select an item to set
5. Use direction buttons (
and make your changes.
• Date : Sets the date that will appear on the screen.
You can select the date format.
• Time : Sets the time and its format that will appear on the
screen.
Select either one from <24 Hours, 12 Hours (AM/PM)>.
• Time Zone : Sets the time zone of your area based on the
Greenwich Mean Time (GMT).
 GMT (Greenwich Mean Time) is standard World Time and the basis
of world time zone.
Log Information
Date/Time/Language
Date/Time/Language
Holiday
x Date
2010-01-01
YYYY-MM-DD
x Time
08:14:24
24 Hours
x Time Zone
GMT+09:00
x Time Sync.
x DST
x Language
Setup
Dec First (Sun) 0
Dec First (Sun) 0
English
OK
Cancel
• Time Sync. : You can set the DVR’s current time
synchronized to a selected <Time Server> regularly if you select to use <Time Server>.
In this case, <Date/Time/Language> setup does not allow time adjustment.
32_ using the DVR
Z6806127401A_SRD-470, 470D-IB_EN32 32
2010-04-30 오후 6:07:47
- Time Server : Enter an IP or URL address of the time
Date/Time/Language
server.
Date/Time/Language
Holiday
- Last Sync Time : Displays the most recent
Time Synchronization Setup
synchronization time from the selected time server.
- Activate as Server : Set to <Use> to allow the DVR to act
as a Time Server for other DVRs.
• DST : Set up Daylight Saving Time with its period to make
the time earlier than the GMT of its time zone by 1 hour
during the set period.
• Language : Select your language. Sets the language for the
interface.
English, French, German, Spanish, Italian, Chinese, Russian, Korean, Polish, Japanese, Dutch, Portuguese,
Turkish, Czech, Danish, and Swedish are available.
x Date
2010 -01-01
YYYY-MM-DD
Use
x Synchronization
08:14:24
24 Hours
x Time
203.248.240.103
x Time Server
GMT+08:00
x Time Zone
Fail
x Last Sync Time
Setup
Not Used
x Time Sync.
Use
x Activate as Server
Dec First (Sun) 0H
Dec First (Sun) 0H
x DST
x Language
OK
Cancel
OK
Cancel
English
M
 You can also use numeric buttons on the remote control or front panel to enter values for Date, Time and other
numeric fields.
 USING THE DVR
6. When the Date/Time/Language setup is done, press <OK>.
Setting Holiday
You can set specific dates to Holidays according to your preferences.
Holidays are applied to <Recording Schedule> and <Alarm Schedule> too.
Using the mouse may help make setup easier.
3. Use the up/down buttons (
) in <Date/Time/Language> window to select <Date/Time/Language>, and
press the [ENTER] button.
4. Select <Holiday>.
Date/Time/Language
A calendar for Holiday setup appears.
Holiday
Date/Time/Language
5. Use the left/right <
> buttons to select year or month,
2010
Jan
and press the [ENTER] button.
Sun Mon Tue
Wed Thu
Fri
Sat
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Fri
1
Sat
2
31
OK
6. Use direction buttons (
◄ ►) to select a desired date,
and press the [ENTER] button.
You will see the “Setting Holiday” screen.
 Ex : Select January 11th and check on <1/11> only to make
every January 11th a holiday. Check both on <1/11> and <Jan
2nd Mon> to make every January 11th and 2nd Monday of
January holidays.
7. When the Holiday setup is done, press <OK>.
Cancel
Date/Time/Language
Holiday
Date/Time/Language
2010
Jan
Setting
Sun Holiday
Mon Tue
3
4
1 / 11
Wed
5
6
10
11
12
13
17
18
OK
19
20
24
25
26
27
Jan 2nd Mon
Thu
7
8
9
14
15
16
22
23
29
30
Cancel
21
28
31
OK
Cancel
Using the Calendar
Using the mouse may help make setup easier.
{ Select year and month.
Select the left/right <
> key on the left/right side of year/month and press [ENTER] button to
adjust by 1 year/month.
| Use direction buttons to select a date and press [ENTER] button.
 A date with recorded data to be searched will appear in yellow in the System Log, Event Log, Time Search and Event
Search.
English _33
Z6806127401A_SRD-470, 470D-IB_EN33 33
2010-04-30 오후 6:07:51
using the DVR
Permission Management
You can set permissions of each user over the DVR's specific function and settings.
Setting the Administrator
You can set and change Administrator’s ID and password.
The administrator can use and set all menu items and functions.
Using the mouse may help make setup easier.
3. Use the up/down buttons (
) in <System> window to
move to <Permission Management>, and press
[ENTER] button.
4. Select <Admin>.
A dialog for Admin ID and Password input appears.
Permission Management
Admin
Group
x ID
admin
x Password
********
x Confirm P/W
********
User
Setup
◄ ►) to move to a desired
5. Use direction buttons (
item, and set the ID and password.
M
 By default, initial ID and password are set to “admin”, and
OK
Cancel
“4321”.
6. When the administrator setup is done, press <OK>.
Using Virtual Keyboard
{ For alphanumeric inputs, the virtual keyboard window
appears.
| Use direction buttons (
◄ ►) to move to a desired
character, and press the [ENTER] button.
} In the upper text input box of the virtual keyboard, there
displays a list of candidate words containing the selected
character.
`
1
2
3
4
5
6
7
8
9
0
-
=
q
w
e
r
t
y
u
i
o
p
[
]
\
a
s
d
f
g
h
j
k
l
;
‘
Caps Lock
z
x
c
v
b
n
m
,
.
/
Space
OK
Del
Shift
Ctrl
Cancel
~ Select a word from the list, or use the keyboard to enter the
whole word.
 If there are many of candidate words, use < , > buttons to move between them forward and backward.
 You can use mouse wheel and jog shuttle button too.
 Select <OK>.
Entered word is applied.
 For upper case letters, use <Caps Lock> button.





For special characters, use <Shift> button.
Using the virtual keyboard is the same to a normal keyboard use in your region.
You can enter only lower-case alphabets and numeric values for the user ID.
For the password, use alphabets and special characters excluding < \ > and <“>.
You can use number buttons on the remote control or front panel.
34_ using the DVR
Z6806127401A_SRD-470, 470D-IB_EN34 34
2010-04-30 오후 6:07:54
Setting the Group
You can create user groups and setup permissions for those user groups.
You can register a user for each group in <User>.
Using the mouse may help make setup easier.
3. Use the up/down buttons (
) in <System> window to
move to <Permission Management>, and press
[ENTER] button.
5. Use direction buttons (
item, and set the value.
Group
Admin
User
x Group
Add
Setup
Delete
Rename
Group Authority
Live View
Setup
Search
Setup
 USING THE DVR
4. Select <Group>.
A window for <Add>, <Delete>, <Rename>, and
<Group Authority> setup appears.
Permission Management
Setup
Backup
Menu
Setup
Record Lock
PTZ
Remote Alarm Out
Shutdown
◄ ►) to move to a desired
OK
• Add, Delete, Rename : You can add, delete, rename a
group or modify the permissions given to the group.
The virtual keyboard appears when <Add> or <Rename> was selected.
You can add up to 10 groups.
Cancel
- Add : When you first run the DVR with the admin account, only the admin account exists. Add has already
been deactivated. Select to display the virtual keyboard. Enter a group name. You can add up to 10
groups.
- Delete : Deletes a user group that is already registered. Selecting Delete will delete all user accounts
belonging to that group.
- Rename : Renames a group that is already registered. Select <Rename> to display the virtual keyboard.
 For entering a group name, refer to “Using Virtual Keyboard”. (Page 34)
• Group Authority : Sets permissions to access menu items of each group.
Users of a group can access checked functions.
6. When the group setup is done, press <OK>.
To set the group authority
You can set the permissions of the group users to access the menu according to the channel.
1. Select a menu to which the group permission is assigned.
The menu where the group permission is assigned will be
displayed in the Live menu when a group user logs in.
• Live View : You can set the permission to access the Live
screen according to the channel.
• Search : You can set the permission to access the Search
menu according to the channel.
Permission Management
Group
Admin
x Group
Add
Group Authority
Channel
Live View
1
Backup
• Record Lock, PTZ, Remote Alarm Out, Shutdown : Select
an item so that the item will be added to the permissions.
2. Select <OK>.
Select and assign a group user so that the user can
access the specified menu.
Rename
Setup
All
Search
Setup
Delete
Setup
Setup
2
Setup
Menu
Setup
Record Lock
PTZ
3
Remote Alarm Out
OK
• Backup : You can set the permission to access the Backup
menu according to the channel.
• Menu : You can set menus accessible with a specific
permission.
Group users can access the permitted menus only.
Select a menu to display the Menu Permission screen.
User
ABC
OK
4
Shutdown
Cancel
Cancel
Permission Management
Menu Permission Group
Admin
User
All
Group
x System
ABC
Device
Record
Add
Event
Setup
Delete
Backup
Rename
Network
Group Authority
Date/Time/Language
Setup
Live View
Date/Time/Language
Holiday
Setup
Search
System Management
Setup
Backup
System Information
Settings
Setup
Menu
Log Information
Record Lock
PTZ
Remote Alarm Out
Shutdown
System Log
Event Log
Backup Log
OK
OK
Cancel
Cancel
English _35
Z6806127401A_SRD-470, 470D-IB_EN35 35
2010-04-30 오후 6:07:56
using the DVR
To restrict the user permissions
If the admin restricts all permissions of an added group, the users belonging to that group can access only
the default minimum menus and can change the user’s own password only.
1. Start the DVR.
If all permissions are restricted, only the Login dialog
should appear.
2. Log in with a registered user ID.
Login
x ID
abc
x Password
OK
Cancel
3. Right-click any area on the screen.
If all permissions are restricted, only the accessible context
menus should appear.
Scene Mode
Audio Off
Freeze
Stop Alarm
User Menu
Hide Launcher
Logout
To change the user password
If you log in with a user account that is restricted to access the menu, you can change your own password
only.
1. Log in with your account.
2. Select <User Menu>.
The Permission Management setup screen appears.
3. Select <Permission Management>.
The Password setup dialog appears.
Permission Management
User
x ID
abc
x Password
********
x Confirm P/W
********
4. Enter a new password.
5. Select <OK>.
You change to the password will be applied.
OK
Cancel
36_ using the DVR
Z6806127401A_SRD-470, 470D-IB_EN36 36
2010-04-30 오후 6:07:59
Setting the User
Users can be added only if a group was created in <Group> menu.
Using the mouse may help make setup easier.
3. Use the up/down buttons (
) in <System> window to
move to <Permission Management>, and press
[ENTER] button.
5. Use direction buttons (
◄ ►) to select <Add> from the
window.
A window for “Add User” appears.
You can configure the Network Viewer settings including
name, ID, viewer, Select Group and password.
Result of the user setup appears in the <User> window.
To change the user property, use “Edit User”.
The “Edit User” window appears when you select a
desired item to be changed in the <User> window.
• Viewer : If you select <Use>, you will be given access to the
Web Viewer and Network Viewer.
Admin
User
Group
x Group
Setup
All Group
Group
Add
Name
ID
Viewer
Delete
 USING THE DVR
4. Select <User>.
A window for Add User appears.
Permission Management
Previous/Next Page
OK
Cancel
Permission Management
Admin
x Group
Group x Name
 Refer to “Connecting Web Viewer”. (Page 71)
User
Group
Setup
Add
User
All Group
Add
Kim
Name
ID
x ID
ksh
x Viewer
Not Used
x Select Group
ABC
x Password
Viewer
Delete
********
x Confirm
********
OK
 For more information about use of Network Viewer, refer to the
Cancel
Previous/Next Page
Network Viewer's user guide. (Page 8)
OK
Cancel
6. When the user setup is done, press <OK>.
Setting Permissions
You can set restricted access for all general users.
Items with restrictions will require logging in for use.
Using the mouse may help make setup easier.
) in <System> window to
3. Use the up/down buttons (
move to <Permission Management>, and press
[ENTER] button.
4. Select <Setup>.
The Restricted Access, Restriction on Network Access,
Auto Log out, Manual Input of ID setup screen appear.
Permission Management
Admin
◄ ►) to move to a desired
• Restricted Access : All menu items allowed for a user can
be set with restricted access.
- Checked (
User
Setup
Live View
Backup
Record Lock
Search
PTZ
Remote Alarm Out
Shutdown
All
Restriction on Network Access
All Network
x Auto Log out
5. Use direction buttons (
item, and set the value.
Group
Restricted Access
x Manual Input of ID
Web Viewer
3 min
ON
OK
Cancel
) : Restricted
- Not checked (
) : Accessible
 If it is not checked (
) in <Restricted Access>, any user can access the item no matter what the <Group Authority>
setting.
 If it is checked (
) in <Restricted Access>, a user can access the item only if the user has permission in <Group
Authority> setting.
• Restriction on Network Access : Restricts remote access from a <Restricted Access> network.
- All Network : Restricts all access instances via Network Viewer and Web Viewer.
- Web Viewer : Restricts access via the Web Viewer.
• Auto Log out : A user will be automatically logged out if there is no operation on DVR for over set period of
time.
English _37
Z6806127401A_SRD-470, 470D-IB_EN37 37
2010-04-30 오후 6:08:02
using the DVR
• Manual Input of ID : Prompts you to enter the user ID
manually for the login process.
- Checked ( ) : Encloses the registered user IDs with the
[½] symbols.
Use the virtual keyboard to enter the user ID.
Login
x ID
*****
x Password
6. When the permission setup is done, press <OK>.
OK
Cancel
System Management
You can check the system version, update to a newer version, as well as data backup and initialization.
Checking the System Information
You can check the current system version, broadcasting system, MAC address. You can update the system.
Using the mouse may help make setup easier.
) in <System> window to
3. Use the up/down buttons (
move to <System Management>, and press [ENTER]
button.
System Management
System Information
4. Check the Version, Broadcast Format, and MAC Address.
• System Information : Shows the current system’s
information.
The values can not be changed by a user.
Settings
System Information
x Software Version
V1.00h_100315180929
x Broadcast Format
NTSC
x MAC Address
00:00:F0:54:FF:FF
S/W Upgrade
Network
x Version
No S/W Data
• S/W Upgrade : Updates the DVR’s software up to date.
 Ex : If you connect to a storage device that has upgradable software
installed, and return to the <System Management> menu, the
current software version will be displayed.
Upgrade
x Device
Previous
System Management
System Information
Settings
System Information
x Software Version
V1.00h_100315180929
x Broadcast Format
NTSC
x MAC Address
00:00:F0:54:FF:FF
S/W Upgrade
Upgrade
x Device
v3.1.0.4
x Version
V1.00h_100320180929
Previous
38_ using the DVR
Z6806127401A_SRD-470, 470D-IB_EN38 38
2010-04-30 오후 6:08:05
• Updating the Software
1. Connect a device storing the software to be updated.
(It may take about 10 seconds to recognize the device.)
 Upgradeable devices include USB memory, CD/DVD and
network device.
 To update the network, the current DVR should have been
Settings
System Information
x Software Version
System
Format
x Broadcast
V1.00h_100315180929
Upgrade
NTSC
x MAC Address
Current Version 00:00:F0:54:FF:FF
V1.00h_100315180929
New Version
V1.00h_100320180929
S/W Upgrade
Do you want to upgrade?
Upgrade
USB2FlashStorage
x Device
OK
Cancel
V1.08_090731170402
x Version
Previous
2. Select <System Management> from <System> window.
3. Select <System Information>.
4. When the recognized device appears, select <Upgrade>.
 The <Upgrade> button will be activated only if the current <Software Version> of the <System Information> is
same to or older than that of <S/W Upgrade>.
5. Press <OK> in the “System Upgrade” window.
 While updating, it shows the progress.
• Updating progresses with 3 steps as shown in the figure.
 USING THE DVR
connected to the network.
Upgrade via the proxy server may not be enabled due to the
restricted access.
System Management
System Information
System Management
System Information
Settings
System Information
x Software Version
V1.00h_100315180929
Format
x BroadcastS/W
NTSC
Upgrade
x MAC Address
00:00:F0:54:FF:FF
Software upgrading...
S/W Upgrade
x Device
USB2FlashStorage
x Version
V1.08_090731170402
Upgrade
Previous
System Management
System Information
Settings
System Information
x Software Version
V1.00h_100315180929
FormatUpgrade
x BroadcastS/W
NTSC
x MAC Address
00:00:F0:54:FF:FF
Software upgrading...
Software upgrading...
S/W Upgrade
x Device
x Version
Do not turn off during the upgrade.
Upgrade
USB2FlashStorage
V1.08_090731170402
Previous
6. When the updating is done, it automatically restarts.
Do not turn the power off until it finishes restarting.
M
 If “Upgrade Failed” appears, retry from the step 4.
When you experience continued failure, consult the service
center for assistance.
English _39
Z6806127401A_SRD-470, 470D-IB_EN39 39
2010-04-30 오후 6:08:08
using the DVR
Settings
You can copy and import the DVR settings by using a storage media.
Using the mouse may help make setup easier.
3. Use the up/down buttons (
) in <System> window to
move to <System Management>, and press [ENTER]
button.
System Management
Settings
System Information
x Storage Device
4. Select <Settings>.
A window of storage device and load factory default
appears.
x DVR USB
1932 MB (Remained Capacity)
Export
10041400
Import
x USB DVR
Include Network Settings
x Load Factory Default
Default
◄ ►) to move to a desired
5. Use direction buttons (
item, and export or import settings data to a storage
device.
Previous
• Storage Device : Shows the connected storage device.
• Export : Exports DVR settings to the connected storage device.
• Import : Imports DVR settings from the storage device and applies to the DVR.
 If <Include Network Settings> is checked, the network settings will be imported too.
• Load Factory Default : If <Default> is selected, a
confirmation dialog for “Load Factory Default” prompts.
Press <OK> to initialize the system to the factory default.
System Management
Settings
System Information
x Storage Device
6. To move to the previous menu, press <Previous>.
Load
x DVR USB
1932 MB (Remained Capacity)
Factory
Default
38010100
Export
Import
x USB DVR
to Default
Setting?
IncludeSure
Network
Settings
OK
Default
x Load Factory Default
Cancel
Previous
Log Information
You can browse logs on the system and events.
System Log
System Log shows log and timestamp on every system start up, system shutdown, and changes on system
settings.
Using the mouse may help make setup easier.
3. Use the up/down buttons (
) in <System> window to
move to <Log Information>, and press [ENTER] button.
4. Select <System Log>.
Search Day
 Refer to “Using the Calendar”. (Page 33)
Click on the calendar <
Log Information
System Log
First Page
No.
Event Log
2010-01-01
Backup Log
Search
Last Page
Type
Log List
> to display the calendar window.
• Type : When there are too many logs, you can display logs of
the desired format by selecting the type.
5. Use direction buttons (
and press <Search>.
View all
Date/Time
◄ ►) to move to a desired item,
Previous/Next Page
Previous
40_ using the DVR
Z6806127401A_SRD-470, 470D-IB_EN40 40
2010-04-30 오후 6:08:12
Event Log
Event log shows recorded events on alarms, motion detections and video loss.
It also shows the log and its timestamp.
Using the mouse may help make setup easier.
3. Use the up/down buttons (
) in <System> window to
move to <Log Information>, and press [ENTER] button.
4. Select <Event Log>.
System Log
Search Day
First Page
◄ ►) to move to the desired
6. Set Search Day, Channel and Type and the press
<Search>.
Event Log
Last Page
CH
All CHs
Type
View all
No.
Log List
Date/Time
7
Motion Detection [CH 1]
2010-01-01 00:02:14
6
Motion Detection [CH 2]
2010-01-01 00:02:14
5
Motion Detection [CH 3]
2010-01-01 00:02:14
4
Motion Detection [CH 4]
2010-01-01 00:02:18
3
Motion Detection [CH 3]
2010-01-01 00:02:18
2
Motion Detection [CH 2]
2010-01-01 00:02:18
1
Motion Detection [CH 1]
2010-01-01 00:02:18
Previous/Next Page
 Refer to “Using the Calendar”. (Page 33)
Click on the calendar <
Backup Log
Search
2010-01-01
 USING THE DVR
5. Use direction buttons (
item.
Log Information
Previous
> to display the calendar window.
Backup Log
You can find out who backed up and the details (backup time, channel, device to use, file format, etc.).
Using the mouse may help make setup easier.
3. In the <System> window, press the up/down (
) button
to move to <Log Information> and press the [ENTER]
button.
Log Information
System Log
Search Day
First Page
4. Select <Backup Log>.
5. Use the four direction buttons (
desired item.
No.
Backup Log
Event Log
2010-01-01
~
Last Page
Search
2010-01-02
Previous/Next Page
User
Date/Time
◄ ►) to move to a
6. Specify a search term and select <Search> in the right
corner.
Backup details for the search term will be listed.
Previous
English _41
Z6806127401A_SRD-470, 470D-IB_EN41 41
2010-04-30 오후 6:08:15
using the DVR
SETTING THE DEVICE
You can setup Camera, Storage Device, Remote Device, POS Device and Monitor.
Camera
Setting the Camera
You can set Video, Audio, Channel Name and Dwell Time of a Camera.
Using the mouse may help make setup easier.
1. Press the [MENU] button on the remote control or front
panel.
Logout
2. Use the left/right button (◄ ►) to select <Device>.
Device setting menu is selected.
3. Use the up/down buttons (
and press [ENTER] button.
Exit
Device
) to move to <Camera>,
Camera
Storage Device
Remote Device
POS Device
Monitor
4. Select <Camera>.
You will see a window where you can configure the
camera settings including Video, Audio, Channel Name,
Dwell Time and Progressive.
5. Use direction buttons (
item, and set the value.
◄ ►) to move to a desired
• Video
Camera
Camera
CH
PTZ
Video
Audio
1
ON
OFF
CAM 01
5 sec
OFF
2
ON
OFF
CH Name
CAM 02
SEQ-Dwell Time
5 sec
Progressive
OFF
3
ON
OFF
CAM 03
5 sec
OFF
4
ON
OFF
CAM 04
5 sec
OFF
Screen Setup
- <ON/OFF> : You can turn ON/OFF the selected
channel’s camera.
OK
Cancel
- <Covert1> : Shows information other than the video of the selected channel.
 For privacy protection, it does not display the video while the recording continues.
- <Covert2> : Shows nothing but an empty screen while the recording continues.
• Audio
- If set to <ON>, you can turn the audio of the channel ON/OFF on the Live screen.
- If set to <OFF>, the channel’s audio is off on the Live screen and not recorded.
 Audio output is available for only 1 channel.
• CH Name : Up to 15 characters including blanks are allowed.
 Refer to “Using Virtual Keyboard”. (Page 34)
• SEQ-Dwell Time : You can set the dwell time between channels for the Live screen and Spot Out.
 If set to <OFF>, the channel is not listed in the Auto Sequence mode.
42_ using the DVR
Z6806127401A_SRD-470, 470D-IB_EN42 42
2010-04-30 오후 6:08:17
• Progressive : You can set the progressive camera to ON/OFF.
J
 If you set it to <ON> for the progressive camera, screen flickering will be reduced.
• Screen Setup : The video appeared on the screen may vary
depending on the channel’s camera, configure the DVR
display to your preferences.
Select a channel and adjust the < (Brightness)>,
< (Contrast)>, and < (Color)> of the selected channel.
6. When the camera setup is done, press <OK>.
Screen Setup
CH1
50
50
Init
50
OK
Apply to All CH
Cancel
Setting the PTZ
 USING THE DVR
• Press the <Init> to initialize settings back to the default 50.
To use Camera’s PTZ functions, ID and protocols of each camera and DVR should be matched.
For other settings, refer to the “Remote Devices” settings. (Page 46)
Using the mouse may help make setup easier.
) in <Device> window to
3. Use the up/down buttons (
move to <Camera>, and press [ENTER] button.
4. Select <PTZ>.
A window of PTZ settings appears.
5. Use direction buttons (
item, and select it.
◄ ►) to move to a desired
• ID : Set the ID of the connected camera of each channel.
You can easily setup by using the numeric buttons on the
remote control or front panel.
Camera
Camera
PTZ
CH
ID
1
0
>
None
2
1
>
Protocol
None
3
2
>
None
4
3
>
None
OK
Cancel
• Protocol : Set the protocol of the connected camera of each
channel.
M
 You can check the camera’s ID and protocol if you turn the camera off and on after connecting it to the DVR.
(Page 65)
6. When the PTZ setup is done, press <OK>.
English _43
Z6806127401A_SRD-470, 470D-IB_EN43 43
2010-04-30 오후 6:08:19
using the DVR
Storage Device
You can check information on storage devices.
Confirming Devices
You can check storage devices and their free space, usage as well as status.
Devices available are HDD, and USB devices (Memory, HDD, CD/DVD).
Refer to “Product Specifications > Backup”. (Page 96)
Using the mouse may help make setup easier.
3. Use the up/down buttons (
) in <Device> window to
move to <Storage Device>, and press [ENTER] button.
4. Select <Device>.
Storage Device
Device
Format
HDD Alarm
Device
No.
Used/Total
Usage
Status/Management
HDD
1
12.28G/499.37G
Internal
Normal
• No. : Shows the assigned number of the internal HDD.
 To see the detailed positioning of the HDD according to the
number, refer to <HDD Map>.
HDD Map
• Used/Total : Shows the used/total capacity of the storage
device.
• Usage : Sets the storage device’s usage.
- USB memory and storage media such as CD/DVD are used for backup purpose only.
• Status/Management : Shows the current status of the HDD, as in Normal/Check/Replace.
OK
Cancel
- Normal : Available to use
- Check : Available to use but recommended to replace
- Replace : Requires immediate replacement.
• HDD Map : Shows the internal HDD’s locations according
to assigned numbers.
HDD Map
 Refer to this for servicing or additional HDD installation.
5. To move to the previous menu, press <OK>.
OK
<SRD-470>
HDD Map
OK
<SRD-470D>
44_ using the DVR
Z6806127401A_SRD-470, 470D-IB_EN44 44
2010-04-30 오후 6:08:25
Formatting
You can format a storage device.
Using the mouse may help make setup easier.
3. Use the up/down buttons (
) in <Device> window to
move to <Storage Device>, and press [ENTER] button.
4. Select <Format>.
A window for selection of device for formatting appears.
Format
Device
HDD Alarm
Device
Select
Used/Total
Usage
HDD
1
12.28G/499.37G
Internal
◄ ►) to select a device to be
 USING THE DVR
5. Use direction buttons (
formatted.
Storage Device
Format
OK
6. Select <Format> on the bottom of the screen.
Press <OK> on the “Manage” confirmation window will
start formatting the selected device.
Storage Device
Format
Device
Device
7. When the formatting is done, press <OK>.
Cancel
HDD Alarm
Select
Used/Total
Usage
1
12.28G/499.37G
Internal
HDD
Manage
Formatting deletes all recordings.
Proceed formatting?
OK
Cancel
Format
OK
Cancel
HDD Alarm
You can set alarm settings for HDD defects such as Check Alarm Output Port, Replace Alarm Output Port,
and its duration.
Using the mouse may help make setup easier.
3. Use the up/down buttons (
) in <Device> window to
move to <Storage Device>, and press [ENTER] button.
4. Select <HDD Alarm>.
A window for setting HDD check and replace output ports
and their durations appears.
Storage Device
Device
x Check Alarm Output Port
◄ ►) to move to the desired
• Alarm
1
2
BEEP
2
BEEP
All
x Duration
x Replace Alarm Output Port
5. Use direction buttons (
item.
HDD Alarm
Format
OFF
1
All
x Duration
OFF
OK
Cancel
- Alarm signal will output through the alarm out port on the
rear side when selected <1>, <2>.
- If <BEEP> was selected, a beep will sound.
- If <All> was selected, both beep sound and alarm signal through rear side ports will output.
• Check Alarm Output Port : If HDD generates check alarm, the alarm signal will output to the specified alarm
output port.
• Replace Alarm Output Port : If HDD generates replace alarm, the alarm signal will output to the specified
alarm output port.
English _45
Z6806127401A_SRD-470, 470D-IB_EN45 45
2010-04-30 오후 6:08:33
using the DVR
• Duration : Sets the alarm duration for the alarm signal and beep sound.
- If <BEEP> was selected, a beep will sound.
- If <All> was selected, both beep sound and alarm signal through rear side ports will output.
M
 <Check> status means that the HDD is operating but it has problems that require technical examination.
(
) appears on the Live screen.
 <Replace> status means that the HDD has defect and requires immediate replacement.
(
) appears on the Live screen.
6. When the HDD Alarm setup is done, press <OK>.
Remote Devices
You can set the RS-485 communication for use of PTZ Camera and system keyboard with the DVR.
Using the mouse may help make setup easier.
3. Use the up/down buttons (
) in <Device> window to
move to <Remote Device>, and press [ENTER] button.
4. Use direction buttons (
◄ ►) to move to the desired
item, and press [ENTER] button.
5. Set the values of each communication setup of the remote
device.
Remote Device
Baudrate
Parity
Data
Stop Bit
Transfer type
9600
None
8
1
Half Duplex
System Keyboard
OFF
ID
00
Remote Control
ON
ID
00
• Baudrate : Baud rate settings of the DVR, PTZ camera and
system keyboard should be matched for proper operations.
OK
Cancel
6. Make sure to match IDs of the DVR, System Keyboard
and Remote Control, and press <OK>.
M
 For changing the remote control’s ID, refer to “Changing the Remote Control ID”. (Page 12)
POS Devices
You can set properties of POS devices connected to the DVR.
A POS device connection requires channel, preset, and Port/Ethernet settings.
Using the mouse may help make setup easier.
3. Use the up/down buttons (
) in <Device> window to
move to <POS Device>, and press [ENTER] button.
4. Use direction buttons (
item, and set the value.
◄ ►) to move to a desired
POS Device
POS USE
POS Device Setup
POS
CH
1
None
No preset
Preset
Port/Ethernet
None
2
None
No preset
None
3
None
No preset
None
4
None
No preset
None
• POS USE : When selected <POS USE>, DVR and POS will
be connected.
J
 If you change settings for the device and press <OK> while
OK
Cancel
the <POS USE> is not checked, the changes for POS device
will not be saved.
46_ using the DVR
Z6806127401A_SRD-470, 470D-IB_EN46 46
2010-04-30 오후 6:08:36
• POS Device Setup : Sets the communication setups for the
POS device and DVR.
 It is independent to the Remote Device setup.
POS Device
POS USE
POS Device Setup
POS
CH
1
None
Preset
2
NoneSetup
POS
Device
3
4
 If selected a channel input field, “Sync Channel Setup” window
appears.
 One POS device can be synchronized to up to 4 cameras
9600
None
Parity
None
name, start string, and end string.
• Port/Ethernet : Sets the port number for the DVR and POS
device connection.
 COM1 : For RS-232C connections
1
OK
Cancel
OK
Cancel
POS Device Setup
CH
1
None
2
Sync
None
3
None
4
None
Preset
Port/Ethernet
No preset
None
Channel Setup
No preset
None
No preset
None
1 preset2
No
CH
“Event” in “Main Menu > Record > Recording Schedule”.
(Page 50)
 Use <Add> button to display “Add Preset” window, and set its
None
Transfer type
None
Half Duplex
Stop bit
POS USE
POS
 Channels to be synchronized to a POS device should be set to
 Preset name should be unique.
None
No preset
Data
No preset
8
POS Device
(channels), however one channel cannot be synchronized to
multiple POS devices.
• Preset : Sets the name, start and end strings of the receipt
for the preset.
None
No preset
 USING THE DVR
• CH : Select the camera to be synchronized to the POS
device.
Baudrate
None
Port/Ethernet
No preset
OK
Cancel
OK
Cancel
3
4
None
POS Device
POS USE
Preset
Setup
POS
1
No.
2
3
POS Device Setup
CH
Add Preset
None
Name
None
x Name
None
Start
Port/Ethernet Add
Preset
No preset
End
No preset
None
Input char. Set
None
No preset
None
4
None
x Start Keyword
No preset
None
5
None
x End Keyword
None
No preset
None
6
No preset
None
7
None
8
None
OKNo preset Cancel
No preset
OK
Cancel
OK
Cancel
Del
None
None
Previous/Next Page
 7001~7016 : For Ethernet connections
5. When the POS Device setup is done, press <OK>.
English _47
Z6806127401A_SRD-470, 470D-IB_EN47 47
2010-04-30 오후 6:08:38
using the DVR
Monitor
You can configure information to be displayed and its format for Spot Out monitor.
Setting the Monitor
Using the mouse may help make setup easier.
3. Use the up/down buttons (
) in <Device> window to
move to <Monitor>, and press [ENTER] button.
4. Select <Monitor>.
Monitor
Monitor
x Event Display
Spot Out
Mode
OFF
x Display
Date
Time
CH Name
Icon
◄ ►) to move to a desired
5. Use direction buttons (
item, and set the value.
• Event Display : Sets the dwell time of the event channel
display on the monitor when an event occurs.
If selected <Continuous>, it displays the channel until you
press [ALARM] button to release it.
• Display : Displays only checked items on the monitor
screen.
• VGA : The current monitor may not display the video if the <VGA> settings do not match with this player
• Sharpness : You can adjust the sharpness of the video output signal.
x VGA
800x600
x Sharpness
Level1 (Low)
Display Position Setup
OK
Cancel
6. When the monitor setup is done, press <OK>.
Setting Display position
Some monitors many not display information (camera name, icon, time information, etc.) about the DVR,
depending on the condition. Then, you can change the display position of the data.
) button
3. In the <Device> window, press the up/down (
to move to <Monitor> and press the [ENTER] button.
4. Select the <Monitor> item.
5. Select <Display Position Setup> in the bottom.
You will move to the <Display Position Setup> window.
Display Position Setup
30
30
30
30
6. Use the four direction buttons or the number buttons on
the front panel or the remote control to adjust the data
position.
OK
Cancel
48_ using the DVR
Z6806127401A_SRD-470, 470D-IB_EN48 48
2010-04-30 오후 6:08:41
Setting the Spot Out
You can set the DVR to output information / video apart from the monitor out.
Using the mouse may help make setup easier.
3. Use the up/down buttons (
) in <Device> window to
move to <Monitor>, and press [ENTER] button.
4. Select <Spot Out>.
Monitor
Spot Out
Monitor
x Spot Out 1
Mode
All
Set Mode
SEQ
 The number of Spot Out terminals differs according to the
5. Use direction buttons (
item, and set the value.
◄ ►) to move to a desired
OK
• Spot Out 1 : You can select between Auto Sequence, and
Single.
• Set Mode : A window for “Set Spot Out” appears and you
can set the channel for it.
You can set the dwell time between the screen switching in
“Setting the Device > Camera > SEQ-Dwell Time”.
(Page 42)
M
 USING THE DVR
model.
Cancel
Monitor
Spot Out
Monitor
x Spot Out 1
Mode
Set Mode
4-split
Set Spot Out
1
2
3
4
OK
 You can setup using the mouse right button in Live screen.
OK
Cancel
Refer to “Spot Out”. (Page 29)
6. When the Spot Out is done, press <OK>.
Setting the Screen Mode
You can configure the Live screen and Split Screens.
Using the mouse may help make setup easier.
3. Use the up/down buttons (
) in <Device> window to
move to <Monitor>, and press [ENTER] button.
Monitor
Mode
Spot Out
Live Screen
4. Select <Mode>.
5. Use direction buttons (
item, and set the value.
Monitor
◄ ►) to move to a desired
• Live Screen : Select split modes for the Live screen.
4-split screens are included by default.
• Play Screen : Select split modes for the playback screen.
Single screen and 4-split screen are provided by default.
Play Screen
Live
OK
Play
Cancel
6. When the screen mode setup is done, press <OK>.
English _49
Z6806127401A_SRD-470, 470D-IB_EN49 49
2010-04-30 오후 6:08:44
using the DVR
SETTING THE RECORDING
You can setup scheduled recording, event recording and other recording related settings.
Recording Schedule
Make your reservation on a date and time to schedule the recording on specified time.
Using the mouse may help make setup easier.
1. Press the [MENU] button on the remote control or front
panel.
Logout
2. Use the left/right button (◄ ►) to select <Record>.
Record menu is selected.
Exit
Record
) to move to <Recording
3. Use the up/down buttons (
Schedule>, and press [ENTER] button.
Recording Schedule
Event Record Duration
REC Quality & Resolution
Record Option
4. Select <Recording Schedule>.
A window of scheduled recording setup appears.
5. Use direction buttons (
item, and set the value.
◄ ►) to move to a desired
Recording Schedule
CH1
All
0 1 2 3 4
5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Sun
Mon
Tue
Wed
Thu
Fri
Sat
Hol
No Recording
Continuous
Event
OK
• Apply to All CH : If selected <Apply to All CH>, “Apply to
All CH” window appears.
Press <OK> to apply the setup to all channels.
Apply to All CH
Cancel
Recording Schedule
CH1
All
Sun
6. When the recording schedule setup is done, press <OK>.
Both(Cont&Evnt)
Mon
0 1 2 3 4
5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Apply to All CH
Tue
Wed
Thu
Apply recording schedule to all channels?
Fri
OK
Sat
Cancel
Hol
No Recording
Continuous
Event
OK
Both(Cont&Evnt)
Apply to All CH
Cancel
50_ using the DVR
Z6806127401A_SRD-470, 470D-IB_EN50 50
2010-04-30 오후 6:08:47
Recording Color Tags
Color
Function
White
No Recording
Orange
Continuous
Blue
Event
Green
Both(Cont&Evnt)
Description
No schedule / event recording
Scheduled recording only
Event recording only
Both scheduled / event recordings
 USING THE DVR
Each press of a selected cell will cycle through <No Recording>-<Continuous>-<Event><Both(Cont&Evnt)>.
Event Record Duration
You can set the beginning and ending point of a recording on an event.
Using the mouse may help make setup easier.
3. Use the up/down buttons (
) in <Record> window to
move to <Event Record Duration>, and press [ENTER]
button.
Event Record Duration
CH
Pre Event
POST Event
1
OFF
1 min
2
OFF
1 min
3
OFF
1 min
4
OFF
1 min
◄ ►) to move to a desired
4. Use direction buttons (
item, and set the value.
• Pre Event : The recording of an event will start at a
pre-determined time prior to the actual occurrence of the event.
If it is set to 5 seconds, the recording begins from 5
seconds before the event.
• POST Event : The recording will continue for a
pre-determined time after the actual end of an event.
If it is set to 5 seconds, the recording ends in 5 seconds after an event.
OK
Cancel
5. When the event recording duration setup is done, press <OK>.
REC Quality / Resolution
You can set resolution, IPS, and quality of recordings by channel, and by recording type of standard / event.
Setting Standard Recording Properties
You can set each channel’s resolution, quality and IPS for normal recordings.
Using the mouse may help make setup easier.
3. Use the up/down buttons (
) in <Record> window to
move to <REC Quality & Resolution>, and press
[ENTER] button.
REC Quality & Resolution
Standard
CH
4. Select <Standard>.
5. When the recording setup is done, press <OK>.
Event
Resolution
Record Rate
Record Quality
1
4CIF(L)
30ips
2
4CIF(L)
30ips
Level8(High)
3
4CIF(L)
30ips
Level8(High)
4
4CIF(L)
30ips
Level8(High)
OK
Level8(High)
Cancel
English _51
Z6806127401A_SRD-470, 470D-IB_EN51 51
2010-04-30 오후 6:08:50
using the DVR
Setting Event Recording Properties
You can set each channel’s resolution, quality and IPS for event recordings.
Using the mouse may help make setup easier.
3. Use the up/down buttons (
) in <Record> window to
move to <REC Quality & Resolution>, and press
[ENTER] button.
REC Quality & Resolution
Event
Standard
CH
4. Select <Event>.
Event recording setup window appears.
Resolution
Record Rate
Record Quality
1
4CIF(L)
30ips
2
4CIF(L)
30ips
Level8(High)
3
4CIF(L)
30ips
Level8(High)
Level8(High)
4
4CIF(L)
30ips
Level8(High)
5. Use direction buttons (
◄ ►) to move to a desired
item, and select it.
• Resolution : Sets the resolution of the recorded screen.
OK
Cancel
Resolution
Name
Resolution
Description
CIF(S)
NTSC: 352 X 240, PAL: 352 X 288
Samples each half of horizontal and
vertical screen.
2CIF(M)
NTSC: 704 X 240, PAL: 704 X 288
Samples half of the horizontal screen.
4CIF(L)
NTSC: 704 X 480, PAL: 704 X 576
Samples original screen size.
• Record Rate : Image Per Second, means the frames recorded per a second.
• Record Quality : Sets the recording quality.
6. When the Event recording setup is done, press <OK>.
Record Option
You can set the recording to stop or overwrite when the HDD is full.
Using the mouse may help make setup easier.
) in <Record> window to
3. Use the up/down buttons (
move to <Record Option>, and press [ENTER] button.
◄ ►) to move to a desired
4. Use direction buttons (
item, and set the value.
• Disk End Mode : If selected <Overwrite>, recording will
continue despite the HDD full while overwriting the oldest.
If selected <Stop>, the recording will stop when the HDD is
full.
• Disk End Beep : If selected <Stop>, the button is activated.
If you check it, the beep will sound on the disk full and the
recording stops.
Record Option
x Disk End Mode
Overwrite
Disk End Beep
x
Auto Delete
99
day
OK
Cancel
52_ using the DVR
Z6806127401A_SRD-470, 470D-IB_EN52 52
2010-04-30 오후 6:08:52
• Auto Delete : If you check it, Record Period setup is activated.
If you setup the auto delete, recorded data only in the configured period are searchable.
5. When the recording option setup is done, press <OK>.
SETTING THE EVENT
You can set recording options for sensor, motion, and video loss event.
You can set the sensor’s operating condition and connected camera, as well as alarm output and its duration.
Using the mouse may help make setup easier.
1. Press the [MENU] button on the remote control or front
panel.
Logout
2. Use the left/right button (◄ ►) to select <Event>.
Event setting menu is selected.
Exit
 USING THE DVR
Sensor Detection
Event
Sensor Detection
Motion Detection
Video Loss Detection
Alarm Schedule
3. Use the up/down buttons (
) to move to <Sensor
Detection>, and press [ENTER] button.
A window of sensor detection setup appears.
4. Use direction buttons (
item, and set the value.
◄ ►) to move to a desired
Sensor Detection
Sensor
Sensor Operation
Cam
1
OFF
1
None
10 sec
2
OFF
2
None
10 sec
3
OFF
3
None
10 sec
4
OFF
4
None
10 sec
• Sensor Operation : Sets the operation mode of sensors.
- <OFF> : Sensor does not operate.
- <N.O (Normal Open)> : Sensor is opened.
If the sensor is closed, it generates alarm.
- <N.C (Normal Close)> : Sensor is closed.
If the sensor is open by interruption, it generates alarm.
• Cam : Select a channel to be connected to the sensor.
If selected camera, “Cam Preset setup” window appears.
Select a channel and setup the preset.
 Preset setup can be done in PTZ mode.
OK
Alarm
Duration
Cancel
Sensor Detection
Sensor
1
2
3
4
Cam
Preset setup
Sensor Operation
OFF
CH
1
2
OFF
OFF
OFF
Preset
None
None
Cam
1
2
3
4
Alarm
CH
None
None
3
None
4
None
OK
Cancel
OK
Cancel
Duration
10 sec
Preset
10 sec
None
10 sec
None
10 sec
English _53
Z6806127401A_SRD-470, 470D-IB_EN53 53
2010-04-30 오후 6:08:54
using the DVR
• Alarm : Sets the alarm output method.
 For further information on alarm output, refer to “HDD Alarm >
Alarm”. (Page 45)
• Duration : Sets the duration of alarm signal and alarm
sound.
Sensor Detection
Sensor
Sensor Operation
Cam
1
OFF
1
None
10 sec
2
OFF
2
None
10 sec
3
None
4
None
3
Alarm
OFF Setup
4
OFF
1
Alarm
2
Duration
10 sec
10 sec
BEEP
All
OK
5. When the sensor detection setup is done, press <OK>.
OK
Cancel
Cancel
Motion Detection
You can set target detection region and motion, as well as the alarm signal output.
When the motion detection region is set, it detects motion within the area.
Using the mouse may help make setup easier.
3. Use the up/down buttons (
) in <Event> window to
move to <Motion Detection>, and press [ENTER] button.
A window of motion detection area setup appears.
4. Use direction buttons (
◄ ►) to move to a desired
item, and set the value.
• Mode : Sets whether to activate motion detection.
• Sensitivity : Sets the sensitivity level of the motion detection.
• Alarm : Sets the alarm output method.
 For further information on alarm output, refer to “HDD Alarm >
Alarm”. (Page 45)
• Alarm Duration : Sets the duration of alarm signal and alarm
sound.
Motion Detection
CH
Mode
Sensitivity
1
OFF
Very High
None
10 sec
2
OFF
Very High
Alarm
None
Alarm Duration
10 sec
3
OFF
Very High
None
10 sec
4
OFF
Very High
None
10 sec
Motion Region
OK
Cancel
5. When the motion detection setup is done, press <OK>.
Setting the Motion Detection Area
{ Select <Motion Region>.
| When “Motion Region” window appears, select a
channel for detection and set the area of motion
detection.
• To set the area in “Motion Region” window
In the “Motion Region” window, select desired region
from <
>.
Motion Region
1 CH
• To set the area using <Individual> selection
In the “Motion Region” window, you can select cells
individually by using <Individual>.
When selected <Individual>, “Motion Region” window disappears and you can select cells one by one.
When the motion area setup is done, Right-click to select <Menu> in the context menu or the [MENU]
button on the remote control or front panel to display the “Motion Region” window again.
- Select : Selected cell is set to be a part of motion detection area.
Select
- Unselect : Selected cell is removed from the motion detection area.
Unselect
- Inverse : Unselected cells are set to be the motion detection area.
Inverse
- Menu : After selecting individual motion areas, move to the “Motion Region” window.
Menu
 If selected <Apply to All CH>, selected motion area is applied to all channels.
} When the motion detection setup is done, press <OK>.
Individual
OK
Apply to All CH
Cancel
54_ using the DVR
Z6806127401A_SRD-470, 470D-IB_EN54 54
2010-04-30 오후 6:08:57
Video Loss Detection
You can set the alarm to be generated on a camera disconnection, which causes a video loss.
Using the mouse may help make setup easier.
3. Use the up/down buttons (
) in <Event> window to
move to <Video Loss Detection>, and press [ENTER]
button.
A window of video loss detection area setup appears.
CH
Video Loss State
1
OFF
None
10 sec
2
OFF
None
10 sec
3
OFF
None
10 sec
4
OFF
None
10 sec
◄ ►) to move to a desired
Alarm
• Video Loss State : Sets whether to activate video loss
detection.
• Alarm : Sets the alarm output method.
OK
Alarm Duration
 USING THE DVR
4. Use direction buttons (
item, and set the value.
Video Loss Detection
Cancel
 For further information on alarm output, refer to “HDD Alarm >
Alarm”. (Page 45)
• Alarm Duration : Sets the duration of alarm signal and alarm sound.
5. When the video loss detection setup is done, press <OK>.
Alarm Schedule
You can set the conditions and operating hours for scheduled alarms.
Using the mouse may help make setup easier.
3. Use the up/down buttons (
) in <Event> window to
move to <Alarm Schedule>, and press [ENTER] button.
Alarm Schedule
Alarm1
4. A window of <Alarm Schedule> settings appears.
All
0 1 2 3 4
5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Sun
5. Alarm : Sets the alarm output method.
 For further information on alarm output, refer to “HDD Alarm >
Alarm”. (Page 45)
Mon
Tue
Wed
Thu
Fri
Sat
Hol
• <ON> : Marked in orange, and always generates alarm on
scheduled time.
• <OFF> : Marked in white, no alarm is generated even if an
event occurs.
• Event Sync : Marked in Blue, generates alarm only when an event occurs.
• Apply to All Alarm : Applies the configured schedule to all
Alarm Schedule
alarms.
OFF
ON
Apply to All Alarm
Event Sync
OK
Cancel
Alarm1
M
 When the alarm is generated on the scheduled time, you can
stop the alarm by canceling the schedule.
All
Sun
Mon
0 1 2 3 4
Tue
Wed
Apply the alarm scheduling to all?
Thu
6. When the Alarm Schedule setup is done, press <OK>.
5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
Apply to All Alarm
Fri
OK
Sat
Cancel
Hol
OFF
ON
Apply to All Alarm
Event Sync
OK
Cancel
English _55
Z6806127401A_SRD-470, 470D-IB_EN55 55
2010-04-30 오후 6:09:05
using the DVR
BACKUP
You can check the backup device and set the backup schedule by channel or by time.
The product only supports external HDD of USB memory/DVD and USB type. (Page 96)
Setting the Backup
You can backup the desired data to a connected device.
Using the mouse may help make setup easier.
1. Press the [MENU] button on the remote control or front
panel.
Logout
2. Use the left/right button (◄ ►) to select <Backup>.
Backup menu is selected.
Exit
Backup
Backup
3. Press the [ENTER] button.
A backup window appears.
You can directly access it from the “Live screen menu”.
(Page 24)
Backup
x Start
2010-01-01 00:01:06
ALL
1
x End
2010-01-01 08:25:45
~
2
3
4
4. Use direction buttons (
◄ ►) to move to a desired
item, and set the value.
• Backup Range : Sets the <Start> and <End> time for the
backup.
• Channel : Sets the channel to backup.
You can select multiple channels.
• Device : Select a backup device from the recognized devices.
If the built-in internal CD/DVD or external USB CD/DVD is used for the backup, you can select the format of
recording between AVI and SEC.
x Device
USB-Storage
x Type
DVR
x Folder
\20100101\
x Filename
0001
Change
Backup
Used
Free
Check capacity
OK
Cancel
 Since SRD-470 model does not have built-in internal DVD Writer, internal CD/DVD backup is not available.
• Type : Sets the backup data format.
- AVI : Saves the CODEC information provided by the DVR with the recording data, and saved data can be
played back by using external viewers (such as Windows Media Player) on a PC.
- DVR : Saved data can be played back only by the DVR.
- SEC : Saves data in the Samsung’s proprietary format with built-in viewer, which supports immediate
playback on a PC.
• Filename : You can set the back file name.
 Refer to “Using Virtual Keyboard”. (Page 34)
• Check capacity : Shows the size of the selected backup data, used and available capacity of the selected
backup device.
 Checking will stop if the backup size is over 200%.
• Overlap : Shows a list of overlapping data on a same time according to the number of data.
It appears when one channel has multiple data on a certain time point due to changing of time or time zone
settings, etc.
 Refer to time and time zone of “Setting the Date/Time/Language”. (Page 32)
56_ using the DVR
Z6806127401A_SRD-470, 470D-IB_EN56 56
2010-04-30 오후 6:09:08
5. When the backup setup is done, press <OK>.
 If no available device is recognized for backup, <OK> button is not activated.
J
 The application may slow down during the backup.
 You can switch to the menu screen during the backup in operation, but playback of data is not available.
 When a CD/DVD or memory device is used for backup, it is not available to use the full capacity of the media since
the system consumes a part of its capacity.
will fail. In this case, replace the CD/DVD media and try again.
M
 Pressing the <Exit> during the backup will return to the previous menu, while the backup progresses.
NETWORK CONFIGURATION
 USING THE DVR
 If a CD or DVD media causes errors, the disc tray opens and closes a several times, and eventually backup process
It provides networked monitoring of Live screen from a remote place, and supports mail forwarding function with
events. You can configure the network environment which enables such functions.
Connection Mode
You can set the network connection route and protocol.
Setting the Connection
Sets the protocol and environment of the network.
Using the mouse may help make setup easier.
1. Press the [MENU] button on the remote control or front
panel.
Logout
2. Use the left/right button (◄ ►) to select <Network>.
Network menu is selected.
Exit
Network
) to move to <Connection
3. Use the up/down buttons (
Mode>, and press [ENTER] button.
Connection Mode
DDNS
Live Transfer
Mailing Service
4. Select <Connection>.
A window of connection mode setup appears.
5. Use direction buttons (
item, and set the value.
◄ ►) to move to a desired
• Connection Mode : Sets the network connection mode.
• Bandwidth : Sets the maximum data flow to be transferred.
(Upload speed)
Options will vary depending on the selected connection
mode.
- For <Static IP>, <Dynamic IP> : Select one from 50
kbps ~ 2Mbps, and Unlimited.
- For <ADSL>, select one from 50 kbps ~ 600 kbps.
Connection Mode
Connection
Protocol
x Connection Mode
Static IP
x Bandwidth
2Mbps
x IP
192.168. 1.200
x Gateway
192.168. 1.
x Subnet Mask
255.255.255. 0
1
x DNS
Manual
168.126. 63. 1
OK
Cancel
English _57
Z6806127401A_SRD-470, 470D-IB_EN57 57
2010-04-30 오후 6:09:10
using the DVR
• IP, Gateway, Subnet Mask, and DNS
- For <Static IP> : You can directly input IP address,
Gateway, Subnet Mask and DNS.
- For <Dynamic IP> : IP address, Gateway, and Subnet
Mask are set automatically.
- For <ADSL> : IP address, Gateway, and Subnet Mask
are set automatically.
• User ID, Password : In case you selected ADSL, provide the
“User ID” and its “Password”.
M
Connection Mode
Connection
Protocol
x Connection Mode
ADSL
x Bandwidth
600kbps
x IP
192.168. 1.200
x Gateway
192.168. 1.
x Subnet Mask
255.255.255. 0
x DNS
Manual
x User ID
ID
x Password
********
1
168.126. 63. 1
OK
Cancel
 DNS server for <Dynamic IP> and <ADSL> can be set by user only if you selected <Manual>.
6. When the connection setup is done, press <OK>.
Setting the Protocol
) in <Network> window to
3. Use the up/down buttons (
move to <Connection Mode>, and press [ENTER]
button.
4. Select <Protocol>.
5. Use direction buttons (
item, and set the value.
◄ ►) to move to a desired
Connection Mode
Connection
x Protocol Type
Protocol
TCP
x Port(TCP)
554
x Port(UDP)
8000 ~ 8159
x Unicast/Multicast
Unicast
x Multicast IP
224.126. 63. 1
x TTL
x Webviewer Port
• Protocol Type : Select the protocol type between TCP and
UDP.
~
557
5
80
OK
Cancel
 If selected UDP, selections of Port (TCP), Port (UDP), and Unicast/
Multicast are activated.
• Port (TCP) : Initially, <554~557> is set. It increases / decreases by 4.
- TCP: It has better stability and lower speed when compared to UDP, and recommended for internet
environments.
• Port (UDP) : Initially, <8000~8159> is set. It increases / decreases by 160.
- UDP : It has less stability and faster speed when compared to TCP, and recommended for local area
network (LAN) environments.
• Unicast/Multicast : Select one between Unicast and Multicast.
If selected Multicast, Multicast IP and TTL are activated.
- Unicast : Transfers data (UDP, TCP) individually to each connecting client.
- Multicast : Multiple client can receive the data (only in UDP) without putting additional traffic load to the
network.
• Multicast IP : User can directly input.
• TTL : Select from 0 ~ 255. Initial value for the TTL is set to <5>.
• Webviewer Port : Enter the port number for the Web Viewer. Initially, it is set to <80>.
6. When the protocol setup is done, press <OK>.
58_ using the DVR
Z6806127401A_SRD-470, 470D-IB_EN58 58
2010-04-30 오후 6:09:12
DDNS
You can set the DDNS site for a remote user’s network connection.
Using the mouse may help make setup easier.
3. Use the up/down buttons (
) in <Network> window to
move to <DDNS>, and press [ENTER] button.
4. Use virtual keyboard to enter user inputs.
 Refer to “Using Virtual Keyboard”. (Page 34)
DDNS
x DDNS Site
OFF
x Host Name
x User Name
x User Password
********
 USING THE DVR
 If selected <OFF> or <Samsung DDNS>, input fields are
deactivated.
5. When the DDNS setup is done, press <OK>.
OK
M
Cancel
 Refer to <DDNS Setting>. (Page 61)
Connecting and Setting the Network
Networking may differ from the connection method, check your environment before setting the connection
mode.
When no router is used
• Static IP mode
- Internet connection : Static IP ADSL, leased line, and LAN environments allows connection between the
DVR and remote user.
- DVR Network Settings : Set the <Connection Mode> in
<Connection> menu of the connected DVR to <Static IP>.
 Consult your network manager for IP, Gateway and Subnet Mask.
Connection Mode
Connection
Protocol
x Connection Mode
Static IP
x Bandwidth
2Mbps
x IP
192.168. 1.200
x Gateway
192.168. 1.
x Subnet Mask
255.255.255. 0
1
x DNS
Manual
168.126. 63. 1
OK
Cancel
• Dynamic IP (DHCP) mode
- Internet connection : Connect the DVR directly to a cable modem, DHCP ADSL modem or FTTH network.
- DVR Network Settings : Set the <Connection Mode> in <Connection> menu of the connected DVR to
<Dynamic IP>.
• ADSL (PPPoE: ID and password certification)
- Internet connection : An ADSL modem is directly connected to the DVR, where the ADSL connection
requires user ID and password.
- DVR Network Settings : Set the <Connection Mode> in
<Connection> menu of the connected DVR to <ADSL>.
 ADSL <User ID> and <Password> should be the same to the
ADSL user information.
If you don’t know the ID and password, consult your ADSL service
provider.
Connection Mode
Connection
Protocol
x Connection Mode
ADSL
x Bandwidth
600kbps
x IP
192.168. 1.200
x Gateway
192.168. 1.
1
x Subnet Mask
255.255.255. 0
x DNS
Manual
x User ID
ID
x Password
********
168.126. 63. 1
OK
Cancel
English _59
Z6806127401A_SRD-470, 470D-IB_EN59 59
2010-04-30 오후 6:09:14
using the DVR
When a router is used
J
 To avoid IP address conflict with the DVR's static IP, check followings :
• Setting the DVR with a static IP
- Internet connection : You can connect the DVR to a router which is connected to an ADSL/Cable modem or
a router in a Local Area Network (LAN) environment.
• Setting the DVR Network
1. Set the <Connection Mode> in <Connection> menu of the connected DVR to <Static IP>.
2. Check whether the set IP address is in the static IP range provided by the IP router.
IP, Gateway, and Subnet Mask : Consult your network manager.
 Check whether the set IP address is in the static IP range provided by the IP router.
J
 If a DHCP server is configured with starting address (192.168.0.100) and end address (192.168.0.200), you should
set the IP address out of the configured DHCP range (192.168.0.2 ~ 192.168.0.99 and 192.168.0.201 ~
192.168.0.254).
3. Check the Gateway address and subnet mask are equal to those set in the IP router.
• Setting the DHCP IP Address of the IP router
1. To access the IP router’s configurations, open a web browser on the local PC that is connected to the IP
router and enter the router’s address (ex : http://192.168.1.1).
2. At this stage, make the local PC's windows network configurations to the below example :
Ex) IP : 192.168.1.2
Subnet Mask : 255.255.255.0
Gateway : 192.168.1.1
- Once connected to the IP router, it prompts with password. While entering nothing to the User Name field,
enter “admin” into the password field and press <OK> to access the router configurations.
- Access the router’s DHCP configuration menu and set its DHCP server activation, and provide the start and
end address.
Set the start address (192.168.0.100) and end address (192.168.0.200).
M
 Above steps may differ from the router devices depending on the manufacturer.
• Setting Router’s Port Forwarding
1. Set the protocol to <TCP>.
Connection Mode
2. External Port Range : Enter the TCP Port set in the
<Port(TCP)> in <Protocol> menu of the connected DVR.
If more than one DVRs are connected to the router, the
TCP port can be different.
Connection
3. Internal PC IP Address : Enter the IP address set to the
<IP> in <Connection> menu of the connected DVR.
x TTL
x Protocol Type
TCP
x Port(TCP)
554
x Port(UDP)
8000 ~ 8159
x Unicast/Multicast
Unicast
x Multicast IP
224.126. 63. 1
x Webviewer Port
4. Internal Port Range : Set the same to the “External Port
Range”.
M
Protocol
~
557
5
80
OK
Cancel
 Above steps may differ from the router devices depending on the manufacturer.
Port forwarding is required when you want to access the DVR connected to the router from outside of the router’s
network.
60_ using the DVR
Z6806127401A_SRD-470, 470D-IB_EN60 60
2010-04-30 오후 6:09:17
DDNS Setting
DDNS is a short form of Dynamic Domain Naming System.
DNS (Domain Name System) is a service that routes a domain name consisting of user friendly characters
(ex : www.google.com) to an IP address consisting of numbers (64.233.189.104).
DDNS (Dynamic DNS) is a service that registers a domain name and the floating IP address with the DDNS
server so that the domain name can be routed to the IP address even if the IP is changed in a dynamic IP
system.
 USING THE DVR
• Setting DDNS in the DVR
Set <Protocol Type> in the <Protocol> menu of the connected DVR to the following :
Ex) Protocol Type : TCP
Port (TCP) : 0554,0555,0556,0557
DDNS Site : Samsung DDNS
• DDNS Settings of the Router
Select the corresponding menu for the network transfer protocol of the router.
Live Transfer
Sets the quality of the image that is transferred from the DVR to the network.
Using the mouse may help make setup easier.
3. In the <Network> setting window, press the up/down
(
) button to move to <Live Transfer> and press the
[ENTER] button.
The Live Transfer window appears.
4. Use the direction buttons (
item and set the value.
Live Transfer
x Resolution
CIF(S)
x Quality
Low
◄ ►) to move to a desired
5. When the live transfer is done, press <OK>.
 For the resolution of the live transfer, refer to “Resolution”.
(Page 52)
OK
Cancel
English _61
Z6806127401A_SRD-470, 470D-IB_EN61 61
2010-04-30 오후 6:09:18
using the DVR
Mailing Service
You can send an e-mail to a DVR-registered user at a specific time interval, or if an event occurs.
M
 If an event occurs with a channel where the camera’s video is set to <OFF> or the remaining recording count is set
to <OFF>, only the text notification will be sent to the applicable email address.
SMTP Setting
Sets the SMTP mail server.
Using the mouse may help make setup easier.
3. In the <Network> setting window, press the up/down
) button to move to <Mailing Service> and press the
(
[ENTER] button.
4. Select <SMTP>.
You will see the SMTP setting window.
Mailing Service
SMTP
x ServerType
Event
Group
Recipient
SMTP mail Server
x Server
x Port
25
Use Authentication
x User
5. Use direction buttons (
and set the value.
•
•
•
•
•
•
•
•
◄ ►) to move to a desired item
x Password
********
x Secure Transfer
Never.
x Sender
ex. [email protected]
TEST
ServerType : Displays the connected server type.
Server : Enter a server to connect to.
Port : Sets the communication port.
Use Authentication : Check this if the SMTP server uses user authentication.
The account input box will be activated.
User : Enter a user to use authentication when connecting to the SMTP server.
Password : Enter the password of the SMTP server user.
Secure Transfer : Select one from <Never> and <TLS (if available)>.
Sender : Use the virtual keyboard to enter the sender’s e-mail address.
OK
Cancel
 Refer to “Using Virtual Keyboard”. (Page 34)
• TEST : Conducts the test on the server settings.
6. When the SMTP setting is done, press <OK>.
Event Setting
You can set the interval and type of the event that will be sent to the user.
Using the mouse may help make setup easier.
3. In the <Network> setting window, press the up/down
(
) button to move to <Mailing Service> and press the
[ENTER] button.
4. Select <Event>.
5. Use direction buttons (
and set the value.
Mailing Service
SMTP
Event
x Event Interval
Group
Recipient
10 min
x Use Event Transfer
◄ ►) to move to a desired item
Sensor
Motion
Change P/W
HDD Info
Power On/Off
Manual Record
Video Loss
• Event Interval : Set the event interval.
 If a series of events occurs, the e-mail will be sent at the specified
OK
Cancel
interval, not on each event.
• Use Event Transfer : Select an event type to send if an event occurs.
If the selected event occurs, the e-mail will be sent to the group that has the recipient authority.
6. When the event setting is done, press <OK>.
62_ using the DVR
Z6806127401A_SRD-470, 470D-IB_EN62 62
2010-04-30 오후 6:09:20
Group Setting
You can set the group to whom the e-mail is sent, and specify the permission for each group.
You can add recipients for each group in the <Recipient> menu item.
The recipient is set separately from the DVR user group.
Using the mouse may help make setup easier.
3. In the <Network> setting window, press the up/down
(
) button to move to <Mailing Service> and press the
[ENTER] button.
SMTP
Group
Event
Recipient
Delete
◄ ►) to move to a desired item
Sensor
Motion
Rename
Change P/W
HDD Info
Power On/Off
Manual Record
• Add : Select <Add> and use the virtual keyboard to add a
group.
OK
Video Loss
Cancel
 Refer to “Using Virtual Keyboard”. (Page 34)
 USING THE DVR
Add
x Group
x Recipient Permission
4. Select <Group>.
5. Use direction buttons (
and set the value.
Mailing Service
• Delete : Deletes the selected group.
• Rename : You can reset the recipient permission of an existing group.
• Recipient Permission : Set the permission of the recipient group.
6. When the group setting is done, press <OK>.
Recipient Setting
You can add a user to the group or delete him/her from the group, or change the group.
Using the mouse may help make setup easier.
3. In the <Network> setting window, press the up/down
) button to move to <Mailing Service> and press the
(
[ENTER] button.
Mailing Service
SMTP
Group
4. Select <Recipient>.
5. Use direction buttons (
and set the value.
Event
Recipient
Group
All Group
x Group
Add
Name
e-Mail Address
Delete
◄ ►) to move to a desired item
Previous/Next Page
OK
• Add : You can select a recipient name, e-mail address or
group.
You should have created a group in the <Group> menu
item before you can add a user to the group.
 Refer to “Using Virtual Keyboard” for input of the user name and
the e-mail address. (Page 34)
Cancel
Mailing Service
SMTP
x Group
Event
Recipient
Group
ABC
Group
Add
Add recipient
Name
e-Mail Address
Delete
x Name
x Email
x Select Group
ABC
OK
Cancel
6. When the recipient setting is done, press <OK>.
Previous/Next Page
OK
Cancel
English _63
Z6806127401A_SRD-470, 470D-IB_EN63 63
2010-04-30 오후 6:09:22
using the DVR
CONTROLLING A PTZ DEVICE
The DVR enables you to adjust the settings of a PTZ camera as well as an ordinary one to your preference.
PTZ Device
The PTZ device can be activated only if a channel in connection with the PTZ camera is selected.
Getting started with PTZ
The PTZ camera is available, only if a channel is selected, in the following way :
 Using the button on the remote control or the front panel
Scene Mode
Select the [PTZ] button on the remote control or the front panel.
Spot Out
PTZ Control
ZOOM
 Using the launcher menu
Click PTZ <
PTZ
Audio
Freeze
> to display the live launcher.
Stop Alarm
Record
 Using the right-click menu in Live mode
Play
Search
Backup
Right-click any area on the screen to display the context menu, and
select <PTZ Control>.
Main Menu
Shutdown
Hide Launcher
Logout
PTZ
Alarm
Freeze
 Using icons on the live screen
Click the PTZ <
M
> icon on the live screen.
 The PTZ function is available only if the PTZ camera is
connected so that the PTZ icon is displayed on the screen.
Using the PTZ camera
You can use one camera to perform all functions of PAN, TILT and ZOOM for monitoring multiple places and
set the preset to your preference in a desired mode.
1. Launch the <PTZ Control> menu.
> icon on the bottom right corner turns
As the PTZ <
yellow, you access the “PTZ Control” mode to display the
“PTZ Control” menu.
2. Use direction keys in the launcher menu or use direction
buttons (
◄ ►) on the remote control or the front panel
to move the target area to record.
• PTZ Wheel : Clicking a nearer point to the center will move
in that direction slowly; clicking a farther point from the
center will move fast.
PTZ Control CAM01
Auto Pan
Select
Scan
Select
Pattern
Select
Preset
Select
Camera Setup
Select Preset
Save
Rename
Delete
Delete
All All
Delete
Delete
Exit
 Keep clicking left to rotate the lens counter clockwise; keep clicking right to rotate the lens clockwise.
• Zoom : You can use the Zoom function of the PTZ camera.
• IRIS : Adjusts the intensity of radiation incoming to the iris.
64_ using the DVR
Z6806127401A_SRD-470, 470D-IB_EN64 64
2010-04-30 오후 6:09:25
• Focus : Enables you to adjust the focus manually.
• Auto Pan : The camera automatically runs between the two points that you selected.
• Scan : The camera moves to the preset points in the specified sequence.
If multiple presets are specified, the PTZ camera will automatically move to all of the preset points one at a
time.
• Pattern : Makes the PTZ camera remember and follow the past route.
 The functions of Auto Pan, Scan and Pattern are supported in the protocols of Samsung, Panasonic and Pelco, and are
different in terms of the name and setting, depending on the protocols of Samsung, Panasonic and Pelco.
(Panasonic : Auto Pan, Sequence, Sort / Pelco : Auto Pan, Frame Scan, Pattern)
 Before entering the PTZ device control mode, set the values of the PTZ device in the <Setting the PTZ> menu.
(Page 43)
Preset Setting
A preset is a set of specific target points of a PTZ camera, and up to 20 presets per a camera can be stored.
Using the mouse may help make setup easier.
 USING THE DVR
M
1. In PTZ Control mode, use the direction buttons to adjust the camera in a desired direction.
2. Select the <Save> key.
The virtual keyboard for inputting the preset will appear.
 Refer to “Using Virtual Keyboard”. (Page 34)
•
•
•
•
Save : You can save the preset settings.
Rename : You can change the settings of the existing presets.
Delete : Deletes the selected preset.
Delete All : Deletes all existing presets.
M
 If you replace the camera of the channel that stores the preset list with a new one, you should reset the preset
accordingly.
3. Press <OK>.
The preset will be saved as a name that you entered.
Camera Setting
A PTZ camera has its own menu system. Optimize the PTZ camera according to the DVR.
Using the mouse may help make setup easier.
1. Connect the PTZ camera to the DVR and run the PTZ
camera again to display the camera’s protocol setting
window.
2. Check the protocol ID of the camera.
 In “Device > Setting the PTZ”, enter the PTZ camera ID in the
ID input box of the channel that is connected to the PTZ camera.
(Page 43)
SAMSUNG PROTOCOL
ADDR
TYPE
BAUD
LENS
TILT
PAN
3. Select <Camera Setup> in the PTZ Control menu.
The camera-specific menu appears.
** MAIN MENU **
 You can configure the settings of only those cameras that support
the protocols of Samsung, Pelco D/P, AD and Panasonic.
 If you are setting Auto Pan or Pattern in the camera menu, press
0
RS-485,HALF
9600
OK!
OK!
OK!
Camera Setup
and hold the appropriate button for a certain time so that the button
operation can be different from that in normal PTZ setting.
Exit
CAMERA SET...
...
VIDEO SET...
PRESET...
ZONE SET...
AUTO SET...
ALARM SET...
OTHER SET...
CLOCK SET...
SYSTEM INFO...
English _65
Z6806127401A_SRD-470, 470D-IB_EN65 65
2010-04-30 오후 6:09:37
search & play
SEARCH
You can perform the search for recorded data by the time or by the search criteria such as an event.
You can access the <Search> menu directly in Live mode.
1. In Live mode, right-click any area of the screen.
The Live menu appears.
Scene Mode
Spot Out
Audio Off
2. Select <Search>.
Or, press the [SEARCH] button on the remote control or
the front panel.
Freeze
Stop Alarm
Record
Play
Search
Backup
Main Menu
Shutdown
Hide Launcher
Logout
3. The Search menu appears.
 If you have not checked “POS USE” in the “Main Menu >
Device > POS Device” menu, the Search menu does not
include the “POS Search” item. (Page 46)
Return
Time Search
Event Search
4. The search can be restricted by the Auto Delete function.
Refer to “Setting the Recording > Record Option”.
(Page 52)
M
Backup Search
POS Search
Motion Search
 Overlapped data : It only appears if there exists overlapped
data on a certain time, produced due to the change of DVR’s
time setup. The latest data comes first, from <List0>.
It does not appear in <Backup Search>.
Time Search
You can search for recorded data of a desired time.
As the time to display may be different depending on the time zone and the DST standard time, the time of
data recorded in the same time can be displayed differently depending on time zone and DST settings.
Using the mouse may help make setup easier.
4. Select <Time Search> in the <Search> menu.
5. Select a date to search.
Time Search
Go to First
2010-01-01
Go to Last
Overlapped Data List1
 Refer to “Using the Calendar”. (Page 33)
Zoom In
Zoom Out
00:01
All
Data
CAM 01
6. The record data on the specific date will be listed.
The display bar is different according to the data type.
So check the data type for the color in the left pane.
◄ ►) to set the search criteria
7. Use direction buttons (
and press the [ENTER] button.
CAM 02
CAM 03
2010/01/01 00:01:17
Standard
Schedule
Motion
Sensor
V.Loss
Etc
CAM 04
Previous/Next Page
Play
Return
• Go to First : Moves to the earliest date.
• Go to Last : Moves to the most recent date.
• Time : Enter a time to perform the search or use the up/down button <>> to select one.
66_ search & play
Z6806127401A_SRD-470, 470D-IB_EN66 66
2010-04-30 오후 6:09:48
• Zoom In : The map enlarges in detail.
It will switch in the sequence of 24 hours - 4 hours - 1 hour
- 5 minutes.
• Zoom Out : The map will switch in the reverse order of the
detailed mode above.
It will switch in the sequence of 5 minutes - 1 hour - 4 hours
- 24 hours.
M
Time Search
Go to First
2010-01-01
Go to Last
Overlapped Data List1
Zoom In
Zoom Out
00:01
All
Data
CAM 01
CAM 02
CAM 03
2010/01/01 00:01:17
CAM 04
Standard
Schedule
Motion
Sensor
V.Loss
Etc
Previous/Next Page
 Double-click a desired time to zoom it in/out.
Play
Return
 SEARCH & PLAY
• Preview : Click <Channel> and select (click, drag) a time in
<Duration> to display a still image for the portion.
- If the selected channel does not contain any recorded data, it will be marked black.
8. Select a data item and click <Play>.
The screen switches to the data playback mode.
Event Search
You can search for events by the channel and play them.
Using the mouse may help make setup easier.
4. Select <Event Search> in the <Search> menu.
5. Use direction buttons (
◄ ►) to set the search criteria
and press the [ENTER] button.
 All record events on a specific date will be found. (Normal/
Event Search
CAM 01
2010-01-01
Overlapped Data
List1
Go to First
Date/Time Preview
3
02:47:54 ~ 02:48:59
Motion
2
00:39:06 ~ 00:40:30
Motion
1
00:01:22 ~ 00:02:28
Motion
Schedule recording included)
• Date/Time Preview : If you select a data item in the list, the
still image of the selected data will be displayed in the left
preview pane.
• Event : Displays the type of the event that occurred.
Go to Last
No.
Event
2010/01/01 00:01:22
Previous/Next Page
Play
Return
6. Select a data item and click <Play>.
The screen switches to the event data playback mode.
Backup Search
Searches for backup data in the connected backup device.
Only data in the format of DVR is included in the search.
Refer to <Type> in “Backup > Setting the Backup”. (Page 56)
Using the mouse may help make setup easier.
4. Select <Backup Search> in the <Search> menu.
5. Use direction buttons (
◄ ►) to set the search criteria
and press the [ENTER] button.
• Record Period : Displays the record period.
• Channel : Displays the recorded channel.
• Play Start Time : Select a time that you start playing.
6. Select a data item and click <Play>.
The screen switches to the backup data playback mode.
Backup Search
USB:USB2FlashStorage
No.
Folder Name
File Name
1
20100101
16190000
Previous/Next Page
x File Name
16190000
x Channel
x Record Period
2010-01-01 01:01:01 - 2010-01-01 01:01:10
x Play Start Time
2010-01-01
Play
1
01:01:01
Return
English _67
Z6806127401A_SRD-470, 470D-IB_EN67 67
2010-04-30 오후 6:09:53
search & play
POS Search
You can search for data in the POS device that is connected to the DVR.
You can use the mouse to select the related items.
4. Select <POS Search> in the <Search> menu.
◄ ►) to set the search criteria
5. Use direction buttons (
and press the [ENTER] button.
 You can enter specific text to refine your search.
• Keyword : Use the virtual keyboard to enter a keyword.
• Search Criteria :
- <Case Sensitive> : If selected, search will be performed
case-sensitively.
POS Search
Date/Time
2009-12-25 03:41:18
2010-01-01 03:41:18
Keyword
Case Sensitive
Overlapped Data
List1
Go to First
Search
Whole Word
Go to Last
POS
CH
Start Date/Time
1
1
2010-01-01 03:41:15
CHANGE _
1
1
2010-01-01 03:41:15
CASH _
Keyword
1
1
2010-01-01 03:41:10
CASH _
2010/01/01 03:41:15
CHANGE
5.95
Previous/Next Page
Play
Return
- <Whole Word> : If selected, only the exact matches with
the keyword will be found.
• Preview : Select a data item in the list to display the preview image.
Information about the image will be displayed on the bottom of the screen.
•
: You can use these buttons to accelerate your search if you have a huge list of search results.
6. Select a data item and click <Play>.
The screen switches to the POS data playback mode.
Motion Search
If a motion is detected in each channel, you can set a desired area to perform the search.
You can use the mouse to select the related items.
4. Select <Motion Search> in the <Search> menu.
5. Use direction buttons (
◄ ►) to set the search criteria
and press the [ENTER] button.
 If you set the motion area to <Manual Area>, the <Setup>
Motion Search
Channel
CAM 01
Date/Time
2010-01-01 03:41:18
Overlapped Data
Motion Region
List1
Go to First
No.
Start Time
7
01:01:30
6
01:01:25
5
01:01:20
4
01:01:15
3
01:01:10
2
01:01:05
1
01:01:01
button will be activated.
• Motion Region : Select an area to perform the search.
Setup
All Area
2010-01-01 05:11:44
2010/01/01 01:01:30
- All Area : Searches for all areas of the selected channel.
Search
Go to Last
Previous/Next Page
- Current Area : Searches for the motion area for each
channel specified in “Motion Detection >
Setting the Motion Detection Area”. (Page 54)
Play
Return
- Manual Area : You can set the motion area manually.
• Setup : The Setup button will be activated only if you have
set the motion area to Manual. Press this button to display
the area setting window.
• Date/Time : The Date/Time will be automatically set by the
hour, and the end time will be automatically set to one hour
later than the start time if it is set.
• Preview : Select a data item in the list to display the still
image of the item.
Motion Region
1 CH
Individual
OK
Apply to All CH
Cancel
6. Select a data item and click <Play>.
The screen switches to the motion data playback mode.
68_ search & play
Z6806127401A_SRD-470, 470D-IB_EN68 68
2010-04-30 오후 6:09:56
PLAYBACK
Play
You can play data stored in the HDD and backup a desired portion of the data.
Using the mouse may help make setup easier.
1. In Live mode, click <Play> in the right-click menu or
<
> in the launcher menu, or press the Play button on
the remote control or the front panel.
Audio Off
 SEARCH & PLAY
2. Use the up/down button (
Scene Mode
Spot Out
Freeze
Stop Alarm
) to select a menu.
Record
Play
 For data search, refer to <Search>. (Page 66)
Search
Backup
Main Menu
Shutdown
Hide Launcher
Logout
PTZ
Alarm
Freeze
3. Select a data item and click <Play> in the Search menu.
The selected data is played and the play launcher appears
on the screen.
 If there is an existing data, <Play> will start immediately without
performing the search.
•
: You can play up to 4 channels in real time.
- In a split mode, the real time playback may not be
supported, depending on the record quality, resolution
and number of channels. And some frame rates may be
supported.
REC
• Playback Information : Displays the date and time of the current data in the top corner.
• Mode Switch : Select a desired play mode, or press the [MODE] button to switch the screen mode to
4-split and Single in that sequence.
 The default channel of the Live mode is CH1, which can be changed later.
•
: Switches to Live mode.
REC : Records all channels in Live mode.
•
• Play Time : Displays the time and date of the current video.
• Play Bar : Displays the time of recorded data in the selected channel for the past 24 hours; the red gridline
indicates the current play time.
M
 Speed : Supports various speed options of x1, x2(-2), x4(-4), x8(-8), x16(-16), x32(-32) and x64(-64).
 Slow : Supports slow speed options of x1/2(-1/2), x1/4(-1/4) and x1/8(-1/8).
• Backup : Click <
> to set the current time to the start
time of backup; you can specify a backup area using the
mouse (yellow triangle).
Click <
> again to set the current time to the end time of
the backup and the “Backup Range” window appears.
- Type : Supports formats of DVR, AVI and SEC.
Refer to a list of formats in “Setting the Backup”.
(Page 56)
- Device : Select a backup device.
- Check Capacity : Enables you to check the capacity of the
selected storage device.
4. If you want to return to the Live screen in Play mode, click <
[] button on the remote control or the front panel.
Backup Range
x Start
x End
2010-01-01 00:01:06
2010-01-01 01:10:25
x Device
USB Storage
x Type
x Folder
\20100101\
x Filename 0001
DVR
Change
Backup
Used
Free
Check capacity
Backup
Cancel
> in the launcher menu or press the
English _69
Z6806127401A_SRD-470, 470D-IB_EN69 69
2010-04-30 오후 6:10:06
web viewer
INTRODUCING WEB VIEWER
What is Web Viewer?
Web Viewer allows remote access to your DVRs. You have
access to live video, archived video, PTZ control (if configured),
etc.
PRODUCT FEATURES
• Remote access from a standard browser
• Supports PTZ camera controls
• Supports 1, 4 camera viewing formats (maximum of 4
cameras in the list).
• Gets JPEG, BMP format images to print and save to “Print
or Save JPEG, BMP format images”.
• Record video in AVI format-compatible with popular media players. (needed the Xvid codec)
SYSTEM REQUIREMENTS
The following lists the minimum suggested hardware and operating system requirements needed to run the
Web Viewer.
OS
Web Browser
CPU
Windows XP Professional
Windows 2000
Windows Vista Home Basic /Premium
Windows 7
Internet Explorer 6.0.2900.2180 or higher
Intel Pentium 4.2 GHz
Memory
512 MB
Monitor
High Color 16-bit 1024 x 768
HDD
50 MB(Installation space required)
* Additional HDD space required for recording.
Recorded file size will vary depending on recording quality settings.
70_ web viewer
Z6806127401A_SRD-470, 470D-IB_EN70 70
2010-04-30 오후 6:10:17
CONNECTING WEB VIEWER
1. Open your web browser and type the IP address or URL
of DVR into the URL address box.
M
The basic URL of the DVR is as following in case of MAC
address :
 00-00-F0-ab-cd-ef : nabcdef.websamsung.net
 WEB VIEWER
 00-16-6c-ab-cd-ef : mabcdef.websamsung.net
 00-68-36-ab-cd-ef : pabcdef.websamsung.net
 You can also use registered URL which setups up in the Setup menu of your DVR.
2. Set the Admin ID and password same to those of the DVR
Admin.
For general users, enter the DVR user ID and password.
M
 It allows up to 10 simultaneous access including the Admin
and general users.
 It does not allow multiple login of the Admin user.
 Initial password of the Admin user is set to “4321”.
 Password of the Admin and general users can be changed in <Permission Management> menu of the DVR.
 Normal users should have set <Viewer> under <Permission Management> to “Use” before connecting to the
Web Viewer. (Page 37)
 All settings are applied by the DVR’s settings.
3. Click <Install ActiveX Control…>.
4. Click <Install>.
5. Click <Install>.
English _71
Z6806127401A_SRD-470, 470D-IB_EN71 71
2010-04-30 오후 6:10:18
web viewer
6. You may have “Windows Security Alert” that attempts to
block this with the Windows Firewall. In that case, click
<Unblock> to start Web Viewer.
7. Installation is complete.
Now you can see the main screen of Live Viewer.
72_ web viewer
Z6806127401A_SRD-470, 470D-IB_EN72 72
2010-04-30 오후 6:10:21
USING LIVE VIEWER
 WEB VIEWER
The Live Viewer screen consists of following :
This displays the IP address and the model name of the connected DVR.
These menus consist of <LIVE>, <SEARCH>, <SETUP>, <ABOUT>.
These buttons are used for the screen split and full screen mode.
Shows the IP address and model name of the connected DVR.
Select <DVR Time> or <PC Time> for the OSD time information display setting of the Live Viewer.
These buttons are used for sequence and changing the screen channel.
These buttons are used for capture, print, and save the image.
Shows the channel of the connected DVR.
These buttons are used for PTZ related functions.
This displays the screen for connected camera with DVR.
M
 The resolution is set to 1024X768 pixels.
 The initial split-screen mode is set according to the number of channels connected to DVR. You can change the
split-screen mode by clicking buttons for split-screen modes.
English _73
Z6806127401A_SRD-470, 470D-IB_EN73 73
2010-04-30 오후 6:10:24
web viewer
OSD INFORMATION DISPLAY
The channel number, video size, and IP address of the connected
DVR are displayed.
The current date and time will be displayed according to the
selected time information display setting <DVR Time> or <PC
Time>.
Alarm icon appears when alarm is issued.
It disappears when pressed the [ALARM] button of the DVR.
Motion icon appears when motion is detected.
It disappears when pressed the [ALARM] button of the DVR.
It displays whether the PTZ controls are active.
M
 If you have set PTZ cameras for the DVR, “PTZ” is displayed on the
screen. Select a PTZ camera channel and use the [PTZ] button for
camera control.
SPLIT-SCREEN
You can change the split mode by clicking each number icon.
SINGLE MODE
QUAD MODE
• Click <
> button.
The screen displays the selected camera connected to the DVR in
“SINGLE MODE”.
> button.
• Click <
The screen displays the selected camera connected to the DVR in
“QUAD MODE”.
> button.
• Click <
The screen displays the selected camera connected to the DVR in
“FULL SCREEN MODE”.
Double clicking on the screen or pressing any button of the keyboard
returns to the previous mode.
74_ web viewer
Z6806127401A_SRD-470, 470D-IB_EN74 74
2010-04-30 오후 6:10:27
CONNECTED DVR
This displays the IP address and the status of the connecting DVR.
M
 Connection failure message
No Response : Appears when the DVR does not respond.
Access Denied : Appears when the maximum number of users is exceeded.
 The number of simultaneous connections are limited to 10.
 WEB VIEWER
Setting the display of the OSD time information
Select <DVR Time> or <PC Time> for the OSD time information display
setting.
• DVR Time : Based on the time of the connected DVR
• PC Time : Based on the time of the PC currently running the Web Viewer.
CHANGING THE LIVE SCREEN MODE
 4-split mode does not support “SEQUENCE”, “PREVIOUS” and “NEXT”.
• SEQUENCE : When this button is clicked, screens are switched at a
preset interval.
In SINGLE MODE, the channel numbers are sequentially switched from
1 to 4.
In QUAD MODE, the screen refreshes at the preset interval.
 Preset interval (10 seconds)
• PREVIOUS : When this button is clicked, the previous screen appears.
In QUAD MODE, the screen is refreshed.
• NEXT : When this button is clicked, the next screen appears.
In SINGLE MODE, the channel numbers are sequentially switched from
1 to 4.
In QUAD MODE, the screen is refreshed.
English _75
Z6806127401A_SRD-470, 470D-IB_EN75 75
2010-04-30 오후 6:10:31
web viewer
SAVING THE LIVE SCREEN ON THE PC
• CAPTURE : Saves the current screen into a BMP or JPEG
file.
M
 The default saving path is “C:\Program Files\Samsung\Dvr
Web Viewer\SnapShot\Live”. To change the saving path, click
)> button and then select the path you
<SAVE PATH (
want. For Windows Vista or 7, the saving path is “C:\users\
(user ID)\AppData\LocalLow\Samsung\DVR Web Viewer\
SnapShot\” by default, which cannot be modified.
 The file is automatically named as following : “IP address_Port number_YYYYMMDD_HHMMSS_camera number_
index”
Ex) 192.168.0.200_554_20100414_093118_01_00
• PRINT : Prints out the selected screen out of the currently
displayed live screens. It also prints the IP address, time,
camera number and the current event status together.
• RECORD : Saves the current image on the screen and
saves it as a avi video file.
M
 To record it, it is required at least 1GB of available space.
 The default saving path is “C:\Program Files\Samsung\Dvr
Web Viewer\VideoClip\Live”. To change the saving path, click
)> button and then select the path you
<SAVE PATH (
want. For Windows Vista or 7, the saving path is “C:\users\
(user ID)\AppData\Local-Low\Samsung\DVR Web Viewer\VideoClip\”
and it cannot be modified.
 The file is automatically named as following : “IP address_Port number_YYYYMMDD_HHMMSS_camera number_
index”
Ex) 192.168.0.200_554_20100406_070455_01_00
 For AVI Save, you need the Xvid codec for playing saved files.
 HDD Minimum Free Size : During the recording, if there is no more capacity available in the HDD than set free space
will prompt with a popup message : “Cannot record due to insufficient disc space in the HDD”.
76_ web viewer
Z6806127401A_SRD-470, 470D-IB_EN76 76
2010-04-30 오후 6:10:34
CHANGING THE LIVE SCREEN CHANNEL
• Blue numbers : Indicates that the current channel is
connected to a camera.
• Gray numbers : Indicates that the current channel is not
connected to any camera.
 If you select 4-split mode, the channel button for each of
cameras 1 ~ 4 will turn blue.
 WEB VIEWER
USING PTZ CAMERA
Click the direction buttons to control the camera.
•<
>
You can zoom in or out an image by using the ZOOM button.
•<
>
You can adjust the entering light amount by using the IRIS button.
•<
>
You can adjust the focus by using the FOCUS button.
• MENU : Appears the camera menu screen.
English _77
Z6806127401A_SRD-470, 470D-IB_EN77 77
2010-04-30 오후 6:10:37
web viewer
• PRESET : Moves the lens direction to a preset direction.
1. If you click a preset, the camera moves to the selected
preset's position.
2. You can delete the selected preset or all presets.
3. You can save a new preset number and name.
M
 You can save presets up to 20.
• AUTOPAN : Moves the camera lens direction between
2 points set for the camera.
• SCAN : Moves the camera lens direction between 2 preset
points of the camera.
• PATTERN : You can set camera various movement patterns
such as zoom, move, etc. so that a camera automatically
moves according to the pattern.
M
 While the DVR controls a PTZ camera, Web Viewer cannot
control the camera.
 Camera menu setup is only available for camera supporting
the function.
 Each function of PTZ is same to that of the DVR.
 Pan/Tilt of the Smart dome camera is manipulated
automatically to center the camera to the mouse clicked
point.
 If you drag the mouse using the left button on a certain point,
Pan/Tilt of the Smart dome camera is manipulated
automatically to center the camera to the middle point between the dragging start and end position.
Upward dragging will zoom out, while downward dragging will zoom in.
 Tilt of Power PTZ operates properly within 45°.
 Power and Pan Tilt functions are only available for camera supporting the functions.
Ex : Samsung SCC-C6475
78_ web viewer
Z6806127401A_SRD-470, 470D-IB_EN78 78
2010-04-30 오후 6:10:40
USING SEARCH VIEWER
 WEB VIEWER
The Search Viewer screen consists of following :
This displays the IP address and the model name of the connected DVR.
There are 4 tabs available: <LIVE>, <SEARCH>, <SETUP>, <ABOUT>.
Switch to a split mode.
Shows the IP address and model name of the connected DVR.
These buttons are used for capture, print, and save the image.
This displays a calendar at which you can search the recorded video.
This displays a timeline at which you can search the recorded video by the time.
These buttons are used for controlling playback.
This displays the screen for playback of recorded video.
M
 <SEQUENCE>, <PREVIOUS>, <NEXT> buttons are not available in SEARCH menu.
English _79
Z6806127401A_SRD-470, 470D-IB_EN79 79
2010-04-30 오후 6:10:42
web viewer
SPLIT-SCREEN
You can change the split mode by clicking each number icon.
SINGLE MODE
QUAD MODE
• Click <
> button.
The screen displays the selected camera connected to the DVR in
“SINGLE MODE”.
• Click <
> button.
The screen displays the selected camera connected to the DVR in
“QUAD MODE”.
CONNECTED DVR
This displays the IP address and the status of the connecting DVR.
M
 Connection failure message
No Response : Appears when the DVR does not respond.
Access Denied : Appears when the maximum number of users is exceeded.
 The number of simultaneous connection is limited to 3.
80_ web viewer
Z6806127401A_SRD-470, 470D-IB_EN80 80
2010-04-30 오후 6:10:46
SAVING THE LIVE SCREEN ON THE PC
• CAPTURE : Saves the current screen into a BMP or JPEG
file.
M
 The default saving path is “C:\Program Files\Samsung\Dvr
• PRINT : Prints the playback screen that is now being
displayed. It also prints IP address, time, camera number,
and current event state.
 WEB VIEWER
Web Viewer\SnapShot\Search”. To change the saving path,
click <SAVE PATH (
)> button and then select the path
you want. For Windows Vista or 7, the saving path is “C:\
users\(user ID)\AppData\LocalLow\Samsung\DVR Web
Viewer\SnapShot\”and it cannot be modified.
 The file is automatically named as following : “IP address_Port number_YYYYMMDD_HHMMSS_camera number_
index”
Ex) 192.168.0.200_554_20100414_093118_01_00
• RECORD : If you select a channel and click this button
during playback (only play), the video data is saved in a DVR
file. (It is saved in the designated folder on your PC.)
To stop recording, click this button again.
M
 To record it, it is required at least 1GB of available space.
 The default saving path is “C:\Program Files\Samsung\Dvr
Web Viewer\VideoClip\Search”. To change the saving path,
click <SAVE PATH (
)> button and then select the path you want. For Windows Vista or 7, the saving path is
“C:\users\(user ID)\AppData\LocalLow\Samsung\DVR Web Viewer\VideoClip\” and it cannot be modified.
 The file is automatically named as following : “IP address_Port number_YYYYMMDD_HHMMSS_camera number_
index”
Ex) 192.168.0.200_554_20100406_070455_01_00
 For AVI save, you need the Xvid codec for playing saved files.
English _81
Z6806127401A_SRD-470, 470D-IB_EN81 81
2010-04-30 오후 6:10:50
web viewer
SEARCHING THE RECORDED VIDEO IN THE CALENDAR
If the video data has been recorded on a date, the date is
distinguished in green. If you click the date, the recorded video
information is displayed in the time line. When you click
<Today>, it is changed to today’s date.
SEARCHING THE RECORDED VIDEO IN THE TIMELINE
It displays the recorded video data status on the DVR after a date is
selected. The normal mode displays the time ranging from 0 to 24 Hours
while the extension mode displays the time every 2 hours.
[Normal Mode]
• If you click < > button, it changes to the extension mode.
• Each time line represents 1 hour.
[Extension Mode]
• If you click < > button, it changes to the normal mode.
• Each time line represents 5 minutes.
M
 The channels are ranging from CH01 to CH04.
82_ web viewer
Z6806127401A_SRD-470, 470D-IB_EN82 82
2010-04-30 오후 6:10:53
CONTROLLING PLAYBACK
 WEB VIEWER
Fast Backward : Reverse-plays faster(2x).
Reverse Play : Performs Reverse Play.
Play : Performs playback.
Fast Forward : Plays faster(2x).
Go to First : Moves the beginning time of recorded video in the time line.
Step Backward : Performs one step reverseplay by one frame.
Stop : Stops playing.
Step Forward : Performs one step forward by one frame.
Go to Last : Moves the last time of recorded video in the time line.
VIEWER SETUP
You can configure the DVR settings remotely on the network.
To configure the DVR settings, click <Setup>.
System
You can configure the various settings of the DVR system.
Date/Time/Language
For more information, refer to <Date/Time/Language> in the <System Setup> menu. (Page 32)
1. Select <Date/Time/Language> in the System menu.
2. Configure the DVR settings according to your system
environment.
• Date/Time
Set the date and time.
English _83
Z6806127401A_SRD-470, 470D-IB_EN83 83
2010-04-30 오후 6:10:56
web viewer
• Time Synchronization Setup
Set the time synchronization.
• Display
Date Format : Set the date type.
Time : Select a time format to display on the screen.
• DST (Daylight Saving Time)
DST is displayed an hour ahead of the standard time of the
time zone.
• Language
Select a preferred language for the DVR.
Holiday
You can set specific dates to Holidays according to your
preferences.
For more information, refer to <Setting Holiday> in the
<System Setup> menu. (Page 33)
Permission Management
For more information, refer to <Permission Management> in the <System Setup> menu. (Page 34)
• Admin
You can change the admin ID or the password.
84_ web viewer
Z6806127401A_SRD-470, 470D-IB_EN84 84
2010-04-30 오후 6:11:00
• Group
Users are classified into groups and the permission can be
set according to the group.
 First of all, add a group.
 WEB VIEWER
• User
You can add, change or remove a user or users.
• Setup
You can set the user permission.
System Management
For more information, refer to <System Management> in the <System Setup> menu. (Page 38)
• System Information
You can see information of the current system.
Check the software version, broadcast format and
MAC address.
English _85
Z6806127401A_SRD-470, 470D-IB_EN85 85
2010-04-30 오후 6:11:04
web viewer
Device
You can check a list of devices that are connected to the DVR and configure the necessary settings.
Click <Device> in the menu screen.
For more information, refer to “Setting the Device”. (Page 42)
Camera
• Camera
You can configure the settings of the camera that is
connected to the DVR.
• PTZ
You can configure the settings of the PTZ camera that is
connected to the DVR.
Set the ID and protocol.
Storage Device
You can check and change the settings of the storage device.
• Device
You will see a list of storage devices that are connected to the
DVR.
You can check the type, used/total, usage and status of the
device.
86_ web viewer
Z6806127401A_SRD-470, 470D-IB_EN86 86
2010-04-30 오후 6:11:09
• HDD Alarm
You can set the alarm output channel and the alarm duration
for an error.
 WEB VIEWER
Remote Device
You can see a list of remote devices including PTZ cameras
and system keyboards that are connected to the RS-485 port
of the DVR and configure the necessary settings.
POS Device
You can set the channel, preset and communication port of
the POS device that is connected to the DVR.
M
 You cannot set to use the POS device remotely.
Monitor
• Monitor
You can configure the monitoring screen settings and set the
output system.
English _87
Z6806127401A_SRD-470, 470D-IB_EN87 87
2010-04-30 오후 6:11:12
web viewer
• Spot Out
With the monitor connected via the SPOT port, if there occurs
an event such as Sensor, Motion, or Alarm, you can select a
video output mode for external monitoring.
• Mode
You can switch between live mode and play mode.
Record
For more information, refer to <Setting the Recording>. (Page 50)
Recording Schedule
If you set a recording schedule for a specific date and time,
the recording will start at that specific time.
- Apply to All CH : Click <Apply to All CH> to display the
confirmation window.
88_ web viewer
Z6806127401A_SRD-470, 470D-IB_EN88 88
2010-04-30 오후 6:11:17
Event Record Duration
You can set the start and end times of recording that will be
activated if an event occurs.
 WEB VIEWER
REC Quality & Resolution
• Standard/Event
You can set the resolution, frame rate and recording quality for
each channel.
Record Option
You can set the Disk End Mode.
Event
For more information, refer to <Setting the Event>. (Page 53)
Sensor Detection
You can set the sensor operation mode and the synchronized
camera as well as the alarm output type and the duration.
English _89
Z6806127401A_SRD-470, 470D-IB_EN89 89
2010-04-30 오후 6:11:22
web viewer
Motion Detection
You can set the motion detection mode and the sensitivity
as well as the alarm output type and the duration.
• Motion Region
Set the target motion detection area
Video Loss Detection
You can set the alarm output time if a video loss occurs.
Alarm Schedule
You can schedule the alarm output according to the day of
the week and the time.
The default setting is Event Sync, which activates the alarm
only if an event occurs.
90_ web viewer
Z6806127401A_SRD-470, 470D-IB_EN90 90
2010-04-30 오후 6:11:26
Network
For more information, refer to <Network Configuration>. (Page 57)
Connection
A remote user can access the DVR via the network to check
the current mode and the IP address.
• Connection
 WEB VIEWER
You can set the network connection route.
• Protocol
You can configure the protocol related settings.
DDNS
You can check the DDNS settings.
Live Transfer
A remote user can set the images of the DVR.
• Live Transfer
A remote user can set the image resolution of the transferred
data.
English _91
Z6806127401A_SRD-470, 470D-IB_EN91 91
2010-04-30 오후 6:11:31
web viewer
Mailing Service
You can specify the SMTP server that sends a mail if an event
occurs and set the recipient group and users.
• SMTP
You can set the server that sends mails and specify if you use
the authentication process.
• Event
You can set the event interval and specify which events the
server sends mails for.
• Group
You can add a group to receive the mail if an event occurs
and set the permission to receive the event mail for each
group.
• Recipient
You can add a user or users who will receive the mail.
92_ web viewer
Z6806127401A_SRD-470, 470D-IB_EN92 92
2010-04-30 오후 6:11:36
ABOUT
Click <ABOUT>.
Displays the model name of connected DVR and the version
of Web Viewer.
 WEB VIEWER
English _93
Z6806127401A_SRD-470, 470D-IB_EN93 93
2010-04-30 오후 6:11:40
backup viewer
SEC BACKUP VIEWER
You can play a file that is backed up in the format of SEC.
Backup in the format of SEC will involve in generating two files: one for the backup data and one for the viewer.
If you run the backup file viewer, the backup data file will be automatically played.
Recommended System Requirements
PCs with a lower specification than the recommended below may not fully support forward/backward and
high-speed playback.
•
•
•
•
OS : Windows XP professional, Windows Vista, Windows 7
CPU : Intel Core2-Duo 2.4GHz or higher
RAM : DDR PC-3200 1G or more
VGA : Geforce 6200 or higher
94_ backup viewer
Z6806127401A_SRD-470, 470D-IB_EN94 94
2010-04-30 오후 6:11:42
Name
Description
/
A toggle button. Each time you press this button, the audio output will toggle
between activated and deactivated.
Audio
You can adjust the volume level from 0 to 100.
Screen Printout
Prints out the current screen. You should have installed the appropriate printer
driver before you can print out the screen.
File Tamper
Detection
/
A toggle button. Each time you press this button, it will toggle between
activated and deactivated. The closed lock icon indicates activation of the file
tamper detection, which will blink the screen three times and stop playing if
an unauthorized manipulation of a data file is detected.
 A message of "The file is forged” will display in the menu bar.
 BACKUP VIEWER
Saves the current screen as an image file. Supported file formats include
BMP and JPEG.
Collapses the time range that is displayed on the range bar of the storage
time. You can collapse the range bar until the overall range is shortened to 24
hours.
Zoom In/Out
Enlarges the time range that is displayed on the range bar of the storage
time. You can enlarge the range bar until the overall range is extended to 1
minute.
Display of storage time range
Displays the time range of a stored video file.
You can move the gridline of the range bar to select a time point to play.
A toggle button; each time you press this button, the "Slow Playback " icon
changes its color to display it’s activated/deactivated. If it is activated, you can
use the play speed control to adjust the play speed up to x1/32 forward and
backward respectively, whereas if deactivated, you can adjust up to x32
forward and backward.
Speed
A toggle button; each time you press this button, the "Lock Speed" icon
changes its color to display it’s activated/deactivated.
If activated, the adjusted speed will be kept even if you release the mouse on
the speed bar. If deactivated, the adjusted speed will be applied only while
you use the mouse to hold the adjusted speed, and if you release the mouse,
the speed will restore to x1.
You can adjust the play speed up to x32 forward and backward respectively,
which varies according to the frame rate per second of the source.
If the frame rate per second is between 20 and 30, the maximum speed is
limited to x4, if the FPS is between 11 and 19, it is limited to x16, and if the
FPS is 6 or less, it supports up to x32.
Displays the next frame. This is available only if the playback is stopped.
Play
A toggle button. Press it once to start playing the video and switch the button
mode to 'Pause', and press it again to switch the button mode to Play and
stop playing temporarily.
Displays the previous frame. This is available only if the playback is stopped.
English _95
Z6806127401A_SRD-470, 470D-IB_EN95 95
2010-04-30 오후 6:11:46
appendix
PRODUCT SPECIFICATION
Item
Details
Operating System
Embedded OS
Broadcast Format
NTSC/PAL System
Input Voltage
AC 100~240V
Power Consumption
59W
Video In
Video
Composite 4 Channel
- 1.0Vp-p
- 75Ω Hi Z Termination
BNC Type
Loop Through Out 4 Channel
- Auto Termination
Video Out
Composite 2 Channel
- Normal Video Output 1 Channel
- Spot Output 1
- BNC Type
VGA 1 Channel
Audio In
Mono 4 Channel
4 Channel : RCA Type
- 5dBm, 600Ω
Audio Out
Mono 1 Channel
- 6dBm
RCA Type
Note
Audio
NTSC
Resolution & Frame
Rate
Live Screen
Display Mode
PAL
Resolution
704x480
704x576
Frame Rate
120ips
100ips
Single
Split Modes: 4-splits
PIP
Mode sequence
Freeze
2 X Zoom
96_ appendix
Z6806127401A_SRD-470, 470D-IB_EN96 96
2010-04-30 오후 6:11:46
Item
Video : H.264
Audio : G.723
Resolution & Quality
Resolution
CIF(S)
352X240(NTSC)
/352X288(PAL)
2CIF(M)
704x240(NTSC)
/704x288(PAL)
4CIF(L)
704x480(NTSC)
/704x576(PAL)
Spec. (Quality)
Level8 (high)
~ Level1 (low)
Level8 (high)
~ Level1 (low)
Record Mode
Frame Rate
NTSC : 0.9, 1.9, 3.8, 7.5, 15, 30ips
PAL : 0.8, 1.6, 3.1, 6.2, 12.5, 25ips
Search Mode
Play
If you want to
add an internal
HDD, please
refer to
“Adding a
HDD”.
(Page 14)
SRD-470D : SATA HDDx1(MAX)
MAX HDD size : 500GB x 1= 500GB
SRD-470 : SATA HDDx2(MAX)
MAX HDD size : 500GB x 2 = 1TB
Calendar Search
Event Search
- Alarm, Motion, Video Loss
Time/Date Search
Go to First
Go to Last
Backup Search
Text Search(for POS)
Motion Search
Preview
Resolution
Resolution &
Specification
Max Recording Rate
CIF(S)
120ips(NTSC)/
100ips(PAL)
2CIF(M)
120ips(NTSC)/
100ips(PAL)
4CIF(L)
120ips(NTSC)/
100ips(PAL)
Level8 (high)
~ Level1 (low)
Normal Recording REC button
Scheduled Recording Schedule Table
Event Recording
- Alarm Detection
- Motion Detection
- Video Loss
- Pre & Post Recording
Internal
Note
 APPENDIX
Compression
Method
Record
Storage
Details
CIF(S)
352X240(NTSC)
/352X288(PAL)
2CIF(M)
704x240(NTSC)
/704x288(PAL)
4CIF(L)
704x480(NTSC)
/704x576(PAL)
Specification
CIF(S)
120ips(NTSC)/
100ips(PAL)
2CIF(M)
120ips(NTSC)/
100ips(PAL)
4CIF(L)
120ips(NTSC)/
100ips(PAL)
English _97
Z6806127401A_SRD-470, 470D-IB_EN97 97
2010-04-30 오후 6:11:47
appendix
Item
Details
Display Mode
Single /4-splits
Play Mode
Play, Pause, Stop, 2xDigital Zoom
Fast Forward/Fast Reverse
- 2x, 4x, 8x,16x, 32x, 64x
Play
Backup
USB External HDD
USB CD/DVD Writer, Internal DVD(SRD-470D only)
USB Memory
USB HDD-MAX 1(USB hub not supported)
Network
Ethernet : 10/100/1000 BaseT, ADSL(PPPoE), DHCP
Serial Communication
RS-485 PTZ Device Control
Remote Control Device
RS-232C POS
Alarm
Input : 4 channels
Remote Viewer
PC Requirements
CPU : Intel Core 2 Quad 2.5GHz or higher
RAM : 2G
VGA : 32M RAM(64M or more)
DirectX 8.1
Operating
Systems
Windows XP(Pro),
Windows-2000(Pro)
Windows Vista(Home Basic/Premium)
Windows 7
Features
Live Image Monitoring Mode
Local File Search & Play Back Mode
Remote File Search & Play Back Mode
Temperature (Operation)
0°C ~ 40°C (32°F ~ 104°F)
Temperature (Storage)
-20°C ~ 60°C (-4°F ~ 140°F)
Humidity (Operation)
20% to 85% RH
Humidity (Storage)
20% to 85% RH
Dimension (W x H x D)
215 x 353 x 88mm (8.46 x 13.88 x 3.64 inch)
Weight
SRD-470 : ~4Kg(8.82lb)
SRD-470D : ~4.85Kg(10.69lb)
Note
H (leg not included)
It needs extra H/W to support ATM/POS function. So please contact your vendor to obtain H/W.
98_ appendix
Z6806127401A_SRD-470, 470D-IB_EN98 98
2010-04-30 오후 6:11:47
PRODUCT OVERVIEW
• SRD-470/470D
353
12
 APPENDIX
10.5
215
215
10.5
88
SRD-470
88
SRD-470D
English _99
Z6806127401A_SRD-470, 470D-IB_EN99 99
2010-04-30 오후 6:11:48
appendix
DEFAULT SETTING
This returns the factory default settings.
The settings are made as follows;
• Use System/Load Factory Default in MENU
 The default settings are based on SRD-470D.
Category
Details
Date/Time/Language
Date/Time/Language
System Settings
Admin
Permission
Management
Setting
System Management
System Information
Camera
Camera
PTZ
Screen Setup
Device
Storage Device
Remote Device
HDD Alarm
Factory Default
Date
YYYY-MM-DD
Time Format
24 hours
Time Zone
GMT
Time Synchronize
OFF
DST
OFF
Language
English
ID
admin
New Password
4321
Restricted Access
All
Auto Logout
3 Min
Broadcast Format
NTSC/PAL
Video
ON
Audio
OFF
CH Name
CAM 01 ~ CAM 04
SEQ-Dwell Time
5sec
Progressive
OFF
ID
Camera No.
Protocol
None
Brightness
50
Contrast
50
Color
50
Check Alarm Output Port
OFF
Duration
OFF
Replace Alarm Output Port
OFF
Duration
OFF
Baudrate
9600
Parity
None
Data
8
Stop bit
1
Transfer Type
Half Duplex
System Keyboard
OFF
Remote Control
ON(00)
100_ appendix
Z6806127401A_SRD-470, 470D-IB_EN100 100
2010-04-30 오후 6:11:49
Category
Details
Factory Default
POS Device
OFF
Monitor
Device
Spot Out
Mode
OFF
Display
All
VGA
800x600
Sharpness
Level1 (Low)
Display Position Setup
30
Spot Out 1
CH1 ~ CH4
Live Mode
ALL
Play Mode
ALL
Recording Schedule
Channel 1
Event
Event Record
Duration
PRE Event
OFF
POST Event
Normal Recording
REC Quality/
Resolution
Event
Record Option
Disk End Mode
1 min
Resolution
CIF(S)
Frame Rate
7.5 ips
Record Quality
Level 4
Resolution
4CIF(L)
Frame Rate
30 ips
Record Quality
Level 4
Setup
Overwrite
Disk End Beep
OFF
Auto Delete
Recording
Sensor Detection
Event
Motion Detection
OFF
Sensor Operation
OFF
Camera
Camera No.
Alarm
None
Duration
10 sec
Mode
OFF
Sensitivity
Very High
Alarm
None
Duration
10 sec
Motion Region
Video Loss Detection
 APPENDIX
Monitor
Event Display
All Area
Video Loss State
OFF
Alarm
None
Duration
10 sec
English _101
Z6806127401A_SRD-470, 470D-IB_EN101 101
2010-04-30 오후 6:11:49
appendix
Category
Details
Factory Default
Connection Mode
Connection
Connection Mode
Protocol
Network
DDNS
Live Transfer
Static IP
Bandwidth
2Mbps
IP
192.168.1.200
Gateway
192.168.1.1
Subnet Mask
255.255.255.0
DNS
168.126.63.1
Protocol Type
TCP
Port (TCP)
554~557
Webviewer Port
80
DDNS Site
OFF
Resolution
CIF(S)
Quality
Low
SMTP
Mailing Service
Event
Group
Server
OFF
Port
25
Use Authentication
OFF
Secure Transfer
Never
Event Interval
10 min
Use Event Transfer
OFF
Group
OFF
Recipient Permission
OFF
102_ appendix
Z6806127401A_SRD-470, 470D-IB_EN102 102
2010-04-30 오후 6:11:50
TROUBLESHOOTING
Symptom
Countermeasures
y Check if the power supply system is properly connected.
y Check the system for the input voltage from the power source.
y If the problem persists even after you have taken the above actions,
check the power supplier and replace it with a new one if neccessary.
Some channels display just a black screen even if
they receive video sources.
y Check if the camera connected to the system properly displays the
image. Sometimes, this problem may occur on a camera that is not
properly connected to the video source.
y Check if the camera is properly supplied with power.
y Sometimes, this problem may occur on a channel with weak video
signal from a video distributor that is connected to multiple systems. In
this case, input the video source of the camera directly into the DVR.
This may find the cause and solve the problem.
If I press the [REC] button on the front panel, the
REC indicator does not flash, nor the player start
recording.
y Check if there is a free space on the HDD for the recording.
y Check if the record mode is set to ON in the record mode setting.
The screen displays the logo image repeatedly.
y This may occur from a problem with the main board, or the related
software is corrupt.
Contact the nearest service center for more information.
The Channel button does not work on the Live
screen.
y The Channel button does not work if the current screen is in the event
monitoring mode.
In the event monitoring screen, press the [ALARM] button to exit the
screen and select a channel.
The cursor will not move to the Start button when I
start the calendar search.
y Check if the channel and the date that you want to play are marked
with the V symbol.
Both channel and date should be checked before you can start playing
with the Start button.
When the alarm sounds, I press the [ALARM] button
on the front panel to release the alarm but it does
not work. The alarm persists and I could not set it off
in any way.
y Press the [MENU] button on the front panel to release the alarm in the
following way:
1) To release the event monitoring mode : Monitoring Mode – set the
duration of the event monitoring to Off.
2) To release the alarm sound : Event Record Mode - Alarm (Motion
Detection/Video Loss) – deactivate the alarm sound.
3) To release the event : Event Record Mode - Alarm (Motion Detection/
Video Loss) – set the mode to Off.
No response is made even if I press the [PTZ] button
on the Live screen.
y Menu ¬ Camera ¬ Check if the current protocols and other settings
in the PTZ device are properly configured according to the PTZ camera.
 APPENDIX
The system does not turn on and the indicator on the
front panel does not work at all.
English _103
Z6806127401A_SRD-470, 470D-IB_EN103 103
2010-04-30 오후 6:11:50
appendix
Symptom
Countermeasures
I've found that the DVR does not recognize as many
disks as installed when I have connected multiple
external HDDs to the DVR.
y It takes time for the DVR to recognize multiple external HDDs. Try again
in a moment and if the problem (of failure to recognize as many HDDs
as connected) persists, it may occur due to a mechanical error of the
HDD installed. Try again with a different HDD.
A message of “Need to reset date/time.” Is displayed
on the screen.
y This message is displayed if there occurs a problem with the time
setting of the internal clock or an error in the clock itself.
Contact the retailer or the service center for more information.
The time bar is not displayed in Search mode.
y The timeline can switch between normal and extension mode.
In extension mode, the time bar may not be displayed in the current
timeline. Switch to normal mode or use the left or right button to
navigate through the time bar.
The “NO HDD” icon and an error message are
displayed.
y Check the HDD for connection. If the problem persists in a normal
condition, contact the nearest service center to have the HDD checked
by the service personnel.
I have installed an additional HDD on the DVR but it
does not recognize the HDD.
y See the compatibilty list to check if the additional HDD is supported by
the DVR. For the compatibility list, contact the retailer where you
purchased the DVR.
I have connected an external storage device (external
SATA HDD) to the DVR but the DVR seems not to
recognize it.
y See the compatibility list of external storage devices to check if the
connected device is supported by the DVR.
For the compatibility list, contact the retailer where you purchased the
DVR.
If I press the ESC key in full screen mode of the
WebViewer, the system does not switch to a normal
split mode.
y Press the ALT+TAB keys to select ‘ACTIVE MOVIE’ and press the ESC
key again. The system will switch to a normal split mode.
I found it difficult to configure the network settings if
using the default search, backup and router settings.
y For more information, refer to the user manual.
y If you want to check the basics of the product for a quick start, refer to
the quick start guide (backup, search).
I forgot the password.
y Contact the DVR administrator for help.
Backup data is just not played by the PC or DVR.
y When you are backing up data, you have choices about the player
either: PC or DVR. Make your selection before proceeding.
y If you are using the PC to play the data, the format of the backup file
should be either AVI or SEC.
y If you are using the DVR for this purpose, formatting backup files should
be done by the DVR.
My player does not switch to Live mode while in
playback.
y Press the Stop [@] button on the DVR or the remote control, or click the
[
] icon on the launcher to switch to Live mode.
104_ appendix
Z6806127401A_SRD-470, 470D-IB_EN104 104
2010-04-30 오후 6:11:51
Symptom
Countermeasures
y If your player does not display a Live image at all, that indicates
recording does not work so first check if you see an image on the
screen.
y Recording does not work if the recording settings are not properly
configured.
1) Manual Record: Press the [REC] button on the front panel of the DVR
or on the remote control to start recording.
2) Scheduled Record: Specify a desired time in Menu – Record Recording Schedule. Recording will start at the specified time.
- <Continuous> Record: Recording will proceed in any conditions
at the specified time.
- <Event> Record: When an event occurs, recording will perform
only if the event is of alarm, motion detection and video loss.
If there is no event found, recording will not perform.
- <Continuous / Event> Record: If there is no event found,
Continuous recording will perform. Whereas, if an event occurs,
Event recording will perform.
The image quality of the recording data is not good.
y Increase the resolution and quality level in Menu – Record – Quality /
Resolution.
1) Resolution: Select a bigger size when specifying the recording size.
(4CIF> 2CIF>CIF)
The recording image in the CIF format shows a deteriorated quality
as it is enlarged from a small-sized image.
2) Record Quality: Specify a bigger level for the recording quality.
y If you increase the resolution and the recording quality, the data size
increases accordingly. So the HDD will be filled faster. Overwriting will
overwrite the existing data so recording will proceed at a shorter
interval.
 APPENDIX
Recording does not work.
English _105
Z6806127401A_SRD-470, 470D-IB_EN105 105
2010-04-30 오후 6:11:51
Z6806127401A_SRD-470, 470D-IB_EN106 106
2010-04-30 오후 6:11:52
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB
cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly
to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for details of
where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic
accessories should not be mixed with other commercial wastes for disposal.
Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their
working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive
2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery
return system.
Z6806127401A_SRD-470, 470D-IB_EN107 107
2010-04-30 오후 6:11:52
SALES NETWORK
SAMSUNG TECHWIN CO., LTD.
Samsungtechwin R&D Center, 701, Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do, Korea, 463-400
TEL : +82-70-7147-8740~60 FAX : +82-31-8018-3745
SAMSUNG TECHWIN AMERICA Inc.
1480 Charles Willard St, Carson, CA 90746, UNITED STATES
Tol Free : +1-877-213-1222 FAX : +1-310-632-2195
www.samsungcctvusa.com
SAMSUNG TECHWIN EUROPE LTD.
Samsung House, 1000 Hillswood Drive, Hillswood Business
Park Chertsey, Surrey, UNITED KINGDOM KT16 OPS
TEL : +44-1932-45-5300 FAX : +44-1932-45-5325
www.samsungtechwin.com
www.samsungsecurity.com
www.samsungipolis.com
Z6806127401A_SRD-470, 470D-IB_EN108 108
2010-04-30 오후 6:11:53
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
