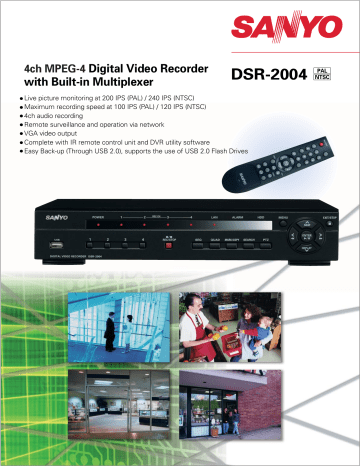

4ch MPEG-4 Digital Video Recorder
with Built-in Multiplexer
DSR-2004
Live picture monitoring at 200 IPS (PAL) / 240 IPS (NTSC)
Maximum recording speed at 100 IPS (PAL) / 120 IPS (NTSC)
4ch audio recording
Remote surveillance and operation via network
VGA video output
Complete with IR remote control unit and DVR utility software
Easy Back-up (Through USB 2.0), supports the use of USB 2.0 Flash Drives
PAL
NTSC
MODEL
PAL
NTSC
General Hard disk capacity
Max HDD Capacity 500GB
720 x 480, 360 x 240 (pixels)
Picture resolution 720 x 576, 360 x 288 (pixels)
Compression
MPEG-4
Picture quality
3 levels (Basic, Normal, Fine)
100IPS / 4ch (360 x 288/ch),
120IPS / 4ch (360 x 240/ch),
Recording speed
25 IPS / 4ch (720 x 576/ch)
30 IPS / 4ch (720 x 480/ch)
Still image capture 720 x 576, 360 x 288
720 x 480, 360 x 240
Number of cameras
4
Menu language
English / French / German / Spanish / Italian / Russian / Chinese / Polish /
Czech / Swedish / Rumanian / Bulgarian / Serbian / Japanese
Telemetry control protocol
SANYO (H-SSP) / PELCO-D / KALATEL / VICON / SENSORMATIC / ELMO
Search Mode
Event Search, Time / Date Search,
Time line Search
PAL standard (Color) / CCIR standard
NTSC standard (color) / EIA standard
Video Signal format
(B/W) auto select, 625 lines, 100 IPS
(B/W) auto select, 525 lines, 120 IPS
Video input
VBS / VS 1.0 V (p-p) 75 Ω BNC x 4
VGA output
VGA x1*1
Main monitor output
VBS 1.0 V (p-p) 75 Ω BNC x 1*1
Audio Audio input
-8 dBs 27 kΩ unbalanced RCA x 4
Audio output
-8 dBs 600 Ω unbalanced RCA x 1
Backup (USB 2.0 only)
Still image & Video data
Interface
ADSL, LAN / Dynamic IP supported
Net
work
LAN port
10BASE-T / 100BASE-TX
Control Sensor alarm input
x4
signal Alarm output
x 1 (0.5 A 12.5 V AC, 1 A 30 V DC)
[Values in parentheses are the relay ratings inside the DSR-2004.]
Remote control
IR remote control can control up to 9 units
Electrical Power source
Input: 100 V to 240 V AC, 50/60 Hz Output: 12 V DC
Power consumption
25 W / 12 V
Operating conditions
Temperature: 5°C to 40°C [41°F to 104°F], Humidity: 80% or less
Physical Dimensions
350(W) x 65(H) x 260(D) mm [13.8 (W) x 2.6(H) x 10.2 (D) in]
Weight
3.2kg [112.9.oz] (with one HDD unit)
NOTE: Specifications subject to change without notice
*1 Either the video output or VGA output can be enabled at any one time.
Warnings regarding HDDs
• Do not attempt to install or replace a HDD on your own. You cannot use these HDDs on PCs.
• The unit may be damaged if it is exposed to an impact or vibration, or the power plug is disconnected during operation.
• Sanyo will not be held liable for any data loss due to an HDD error or a failure during recording.
* “Microsoft” is registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
* All other company and product names are registered trademarks and/or trademarks of their respective owners.
MPEG-4
The MPEG (Moving Picture Experts Group) 4
standard is designed to handle reproduction of
video with a wide dynamic range --- from video
streaming on a slow communication line to that
equivalent to HDTV quality. In MPEG-4, the
picture is broken down into objects, such as the
background, people, and buildings, and the
changes in respective objects are recorded. This is
similar to video recording in the M-JPEG format.
The subjects that can be treated as objects are
not limited to scenes and characters, but extend
to audio data such as speech and music.
Low Bit Rate but High Image Quality
MPEG-4 is capable of providing quality images at a
low bit-rate. It is possible to record for
considerably longer than systems using JPEG
compression.
Network
DSR-2004 offers network connectivity with LAN
and WAN. MPEG-4 is an international standard for
highly efficient digital encoding (compression) of
video and audio signals. This means it is also
highly efficient for transmission over a network.
DSR-2004
260(10.2)
65(2.6)
350(13.8 )
NETWORK
[Unit: mm (inch)]
NTSC/PAL switch
Line in
Four cameras
VGA or Analog
monitor selection
switch
To 12 V DC
power supply
(AC adaptor
packaged)
LAN for
connection to
the Digital Client
Line out
Four sensor
inputs
Alarm output
Not compatible with VSP controllers
VGA monitor
CCTV monitor
PC
PC
PC
PC
Easy Backup (Only through USB 2.0)
Supports the use of USB 2.0 Flash Drives. This
makes it easy to backup still images in JPEG
format and video in AVI format.
Search Functions
Three search functions are available — ”Event
Search”, “Time / Date Search” and “Time line
Search” — find recordings instantly.
Other Features
•Full, QUAD and sequential display •LOG History
•Multi protocol RS-485 telemetry
*Caution: Please consult the instruction manual to ensure safe and proper operation of the product.
DI Company of SANYO Electric Co., Ltd. obtained
Quality Management System ISO9001 and Environmental
Management System ISO14001 certifications.
EC00J0303
Distributed by:
SANYO Electric Co., Ltd.
www.sanyosecurity.com
© 2006 SANYO Printed in Japan
'06.11. AP SMS135
