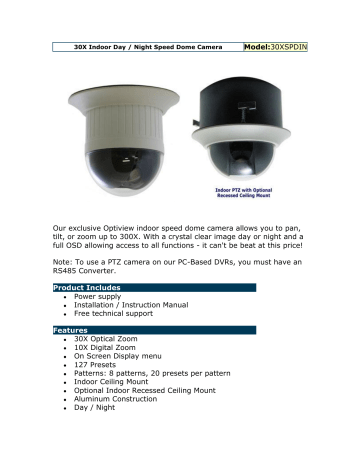

30X Indoor Day / Night Speed Dome Camera
Model:30XSPDIN
Our exclusive Optiview indoor speed dome camera allows you to pan,
tilt, or zoom up to 300X. With a crystal clear image day or night and a
full OSD allowing access to all functions - it can't be beat at this price!
Note: To use a PTZ camera on our PC-Based DVRs, you must have an
RS485 Converter.
Product Includes
Power supply
Installation / Instruction Manual
Free technical support
Features
30X Optical Zoom
10X Digital Zoom
On Screen Display menu
127 Presets
Patterns: 8 patterns, 20 presets per pattern
Indoor Ceiling Mount
Optional Indoor Recessed Ceiling Mount
Aluminum Construction
Day / Night
Specifications
Image sensor:
1/4" Super HAD SONY CCD
480 TV Lines (Color), 570 TV Lines (B/W night
Horizontal Resolution:
mode)
Pan Angle:
360° continuous pan rotation
Pan Speed:
0.1-180° /s
Tilt Speed:
15-60° /s
Pixels:
768 x 494
SN Ratio:
> 50db
Gain Control:
Auto/Manual
Back Light
Auto/Manual
Compensation:
Optical Zoom:
30X
Digital Zoom:
10X
Lens:
4 ~ 99mm, F1.6
Preset Positions:
127
Comm Port:
RS485 Pelco-D, Pelco-P selectable
Operating
0C ~ 50C (22F ~ 122F)
Temperature
Power Supply:
12VDC (included)
