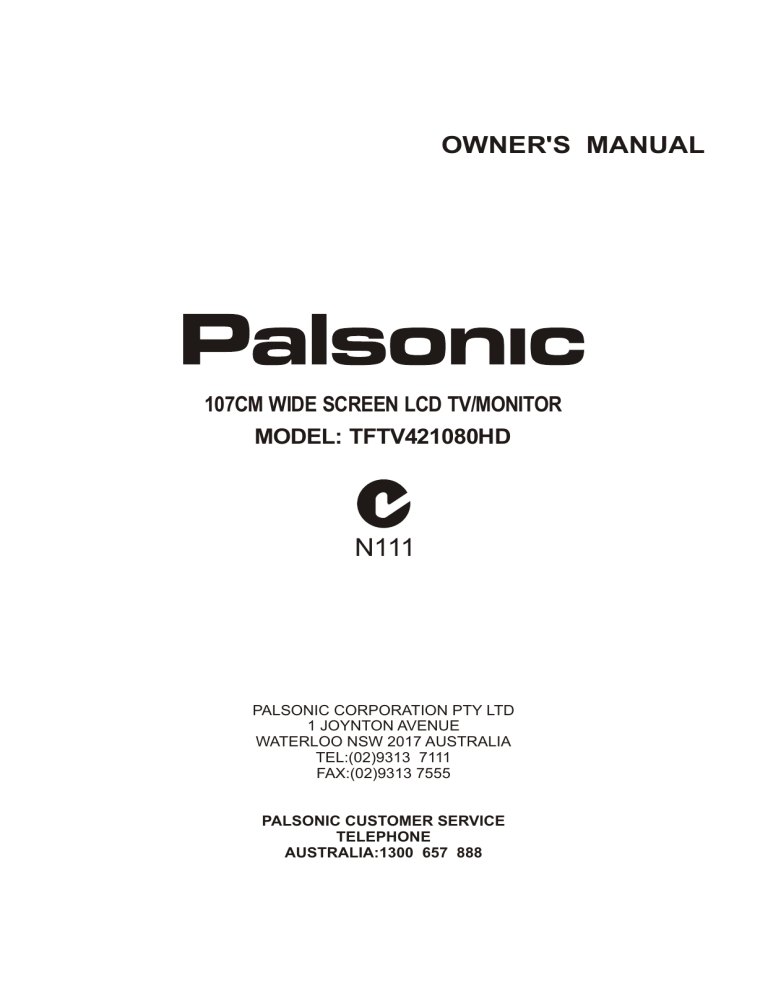

OWNER'S MANUAL
107CM WIDE SCREEN LCD TV/MONITOR
MODEL: TFTV421080HD
N111
PALSONIC CORPORATION PTY LTD
1 JOYNTON AVENUE
WATERLOO NSW 2017 AUSTRALIA
TEL:(02)9313 7111
FAX:(02)9313 7555
PALSONIC CUSTOMER SERVICE
TELEPHONE
AUSTRALIA:1300 657 888
Table of Contents
Important Safety Precautions..........................................................................................................................1
Important Notice............................................................................................................................................3
Preparations....................................................................................................................................................4
Identification of Controls ................................................................................................................................6
Connections....................................................................................................................................................9
Basic Operations...........................................................................................................................................13
Memorizing the Channels .............................................................................................................................15
Channel and Program Selection....................................................................................................................19
Picture Adjustment .......................................................................................................................................20
Sound Adjustment.........................................................................................................................................21
System Setup ................................................................................................................................................23
Rating and Lock Setup ..................................................................................................................................24
Timer Setup..................................................................................................................................................26
EPG Operation.............................................................................................................................................28
Teletext & Subtitle ........................................................................................................................................29
Screen setup for D-SUB (PC) Mode ............................................................................................................30
Troubleshooting............................................................................................................................................31
Specifications ................................................................................................................................................33
Important Safety Precautions
Electrical energy can perform many useful functions, but it can also cause personal injuries and property damage if improperly
handled. This product has been engineered and manufactured with the highest priority on safety. But IMPROPER USE CAN
RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order to prevent potential danger, please observe
the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service
life of your TV product, please read the following precautions carefully before using the product.
1. Read these instructions---All operating instructions must be read and understood before the product is operated.
2. Keep these instructions---These safety and operating instructions must be kept in a safe place for future reference.
3. Heed all warnings---All warnings on the product and in the instructions must be observed closely.
4. Follow all instructions---All operating instructions must be followed.
5.Attachments---Only use attachments/accessories specified by the manufacturer. Do not use attachments not
recommended by the manufacturer. Use of improper attachments can result in accidents.
6. Power source---This product is intended to be supplied by a listed power supply indicated on the marking label. If you are
not sure of the type of power supply to your home, consult your product dealer or local power company. For added
protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it
from the wall outlet and disconnect the cable system.
7.Power cord protection---Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
8.Overloading---Do not overload wall outlets, extension cords, or convenience receptacles on other
equipment as this can result in a risk of fire or electric shock.
9.Entering of objects and liquids---Never insert an object into the product through vents or openings. High voltages are
present in the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do
not spill water or liquid on the product.
10. Servicing---Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
11.Damage requiring service---If any of the following conditions occurs, unplug the power cord from the AC outlet, and
request a qualified service person to perform repairs.
a. When the power cord or plug is damaged.
b. When a liquid is spilled on the product or when objects have fallen into the product.
c. When the product has been exposed to rain or water.
d. When the product does not operate properly as described in the operating instructions.
Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not
described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician.
e. If the product has been dropped or the cabinet has been damaged in any way.
f. When the product displays an abnormal condition or exhibits a distinct change in performance. Any noticeable abnormality
in the product indicates that the product needs servicing.
12. Replacement parts---In case the product needs replacement parts, make sure that the service person uses
replacement parts specified by the manufacturer, or those with the same characteristics and performance as the
original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.
13. Safety checks---Upon completion of service or repair work, request the service technician to perform safety
checks to ensure that the product is in proper operating condition.
14. Wall or ceiling mounting---When mounting the product on a wall or ceiling, be sure to install the product according to
the method recommended by the manufacturer. This is a safety feature.
1
Important Safety Precautions (Continued)
15. Stand---Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. Do not place the product on an unstable
trolley, stand, tripod or table. Placing the product on an unstable base can cause the
product to fall, resulting in serious personal injuries as well as damage to the product.
When mounting the product on a wall, be sure to follow the manufacturer’s instructions.
Use only the mounting hardware recommended by the manufacturer.
16.Careful move---When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over. Sudden stops, excessive force and uneven
floor surfaces can cause the product to fall from the trolley.
Never attempt to move the TV unless the AC power cord has been disconnected.
17. Lightning---Unplug this apparatus during lightning storms or when unused for long
periods of time.
For added protection for this television equipment during a lightning storm, or when it is
left unattended and unused for long periods of time, unplug it from the wall outlet and
disconnect the antenna. This will prevent damage to the equipment due to lightning and
power-line surges.
18. Do not use this apparatus near water---for example, near a bathtub, washbowl,
kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.
Do not use immediately after moving from a low temperature to high temperature
environment, as this causes condensation, which may result in fire, electric shock, or
other hazards.
19. Clean only with dry cloth---Unplug this product from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
20. Ventilation---Do not block any ventilation openings. Install in accordance with the
manufacturer instructions. The vents and other openings in the cabinet are designed for
ventilation. Do not cover or block these vents and openings since insufficient ventilation
can cause overheating and/or shorten the life of the product. Do not place the product on
a bed, sofa, rug or other similar surface, since they can block ventilation openings. This
product is not designed for built-in installation; do not place the product in an enclosed
place such as a bookcase or rack, unless proper ventilation is provided or the
manufacturer’s instructions are followed.
21.Heat sources---Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
22.Panel protection---The display panel used in this product is made of glass.
Therefore, it can break when the product is dropped or impacted upon by other objects.
Be careful not to be injured by broken glass pieces in case the display panel breaks.
23.Pixel defect---The display panel is a very high technology product, giving you finely detailed pictures. Occasionally, a few
non-active pixels may appear on the screen as a fixed point of blue, green or red. Please note that this does not affect the
performance of your product.
2
Important Notice
About Temperature
Do not use in hot and cold rooms (locations)
! When the unit is used in rooms (locations) with low temperature, the picture may
leave trails or appear slightly delayed. This is not a malfunction, and the unit will
recover when the temperature returns to normal.
! Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location
exposed to direct sunlight or near a heater, as this may cause the cabinet to deform
and the screen to malfunction.
! Storage temperature: 0°C to +50°C
! Working temperature: 5°C to +40°C
About After-Image
The extended use of fixed image program material can cause a permanent after-image
on the screen.
This background image is viewable on normal programs in the form of a stationary fixed
image. This type of irreversible screen deterioration can be limited by observing the
following steps:
A. Reduce the brightness/contrast setting to a minimum viewing level.
B. Do not display the fixed image for extended periods of time.
C. Turn the power off when not in actual use.
Important Information Regarding Use of Video Games, Computers,
Captions or Other Fixed Image Displays.
! Do not allow a still picture to be displayed for an extended period, as this can cause a
permanent after-image to remain on the screen.
Examples of still pictures include logos, video games, computer images, teletext and
images displayed in 4:3 mode.
CAUTIONS:
! The permanent after-image on the screen resulting from fixed image use is not an
operating defect and as such is not covered by the warranty.
! This product is not designed to display fixed images for extended periods of time.
Cleaning and
Maintenance
To clean this unit, wipe with a soft, dry cloth.
If the surfaces are extremely dirty, use a soft cloth dipped in a soap and water solution or
a weak detergent solution.
! Use eyeglass cleaner to remove stubborn dirt from the screen.
! Never use alcohol, paint thinner or benzine to clean this unit.
! Before using a chemically treated cloth, read the instructions that came with the
cloth carefully.
3
Preparations
Using the Remote Control
<Use the remote control by pointing it towards the remote sensor window of the
set. Objects between the remote control and sensor window may prevent proper
operation.
30
30
5m
Cautions regarding use of remote control
<Do not expose the remote control to shock. In addition, do not expose the remote
control to liquids, and do not place in an area with high humidity.
<Do not install or place the remote control under direct sunlight. The heat may cause deformation
of the unit.
<The remote control may not work properly if the remote sensor window of the main unit is under direct sunlight or strong
lighting. In such a case, change the angle of the lighting or the TV set, or operate the remote control closer to the remote
sensor window.
Installing the Batteries
If the remote control fails to operate the TV functions, replace the batteries in the remote control.
1 Open the battery cover.
2
Insert two size-AAA batteries.
<(Place the batteries with their terminals corresponding to the (+)
and (–) indications in the battery compartment.)
3
Replace the cover and slide in reverse until the lock snaps.
Precaution on battery use
Improper use of batteries can result in a leakage of chemicals and/or explosion. Be sure to follow the instructions below.
<Place batteries with their terminals corresponding to the (+) and (–) indications.
<Different types of batteries have different characteristics. Do not mix batteries of different types.
<Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries and/or cause old
batteries to leak chemicals.
<Remove batteries as soon as they are non-operable. Chemicals that leak from batteries can cause a rash. If chemical
leakage is found, wipe with a cloth.
<If the remote control is not used for an extended period of time, remove the batteries from the remote control.
<The batteries (battery pack of batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
4
Preparations (continued)
Antenna Connection
INSTALL the unit in a room where direct light will not fall upon the screen. Total darkness or a reflection on the picture
screen may cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.
Optimum reception of colour requires a good signal and will generally mean that an outdoor antenna must be used.
The exact type and position of the antenna will depend upon your particular area.
TV REAR
75-ohm coaxial cable (round cable)
RF
Note
=It is recommended that the 75-ohm coaxial cable be used to eliminate interference and noise which may occur due to radio wave
conditions.
=The antenna cable should not be bundled with the power cord.
Speaker Connection
Connect the speaker audio cable to the external
speaker output jack on the unit matching the "+"
and "-" ends of the cable.
Note
1.Unplug the TV set and all connected components before connecting the speakers.
2.The illustration may be different depending on model.
Power Connection
Insert the AC plug into a conveniently located AC outlet.
Note
=This product should be operated only from the type of power source indicated on the marking label.
=Always unplug the AC cord from power outlet when not using for a long period of time.
5
Identification of Controls
Main Unit (front view/side view)
CH+
3
CHVOL+
4
5
6
VOL-
MENU
SOURCE
7
1 2
1. Indicator
2. Remote Sensor
3. CH+/Press these two buttons to directly change the TV channel.
In OSD menu, press these buttons to choose the OSD items.
4.VOL+/Press the VOL+ or VOL- button to directly increase or decrease the sound volume level;
In OSD menu, press these buttons to adjust the value or setting of each item.
5. MENU
Press this button to access Menu main page.
6. SOURCE
To access source input select menu.
7. POWER
Press this button to turn the unit ON from STANDBY mode. Press it again to turn the set back to STANDBY.
Note
Functions of CH+/-, VOL+/-, MENU, SOURCE and POWER are also provided to the remote control. This
operation manual provides a description based on operating functions with the remote control.
6
Identification of Controls (continued)
Main Unit (rear view)
1
2
3
5
4
6 7
8 9 10
11
1. Power Switch
2. HDMI 1/2/3 interface
To connect with those equipments with HDMI or DVI interface, for example, Set-top box or DVD player. (A
HDMI-to-DVI adapter cable is required when you are connecting a DVI-equipped device to this TV.)
3. D-SUB input
Connect to the D-SUB/AUDIO output jack on your computer.
4. COMPONENT 1/2 inputs
Connect to the audio and component output jacks of a DVD player or Set-Top Box.
5. Headphone jack
Connect to your headphones.
6. AV inputs (Video, Audio L, R)
Receive video/audio signal from external sources such as VCR or DVD player.
7. AV outputs(Video, Audio L, R)
Connect to your VCR to record programs.
8. RS232 interface
For service use . The user cannot operate the unit through this terminal.
9. S/PDIF digital audio out terminal(coaxial)
Connect to the digital audio input of a digital audio component.
10. Antenna input
Connect to your cable system or outdoor antenna.
11. AC Power input
Connect to AC power cord.
7
Identification of Controls (Continued)
Remote Control Unit
1 POWER: Switches the TV power on or Standby.
2 TV/Radio: Switches between TV and Radio mode. (DTV only)
3 EPG: Displays the Electronic Program Guide (DTV only).
1
3
14
15
4
16
2
4 FAV.LIST: Displays the favorite channel list.
5 FAV+/ FAV–: Selects the favorite channel.
6 0 – 9 number buttons: Press to enter channel numbers or
input password.
7 ZOOM: Selects the screen size.
8 MENU: Displays the main menu screen.
5
9 5/6/3/4/OK: Press the arrows to navigate through the
menus or adjust an item. Press OK to confirm a selection or
enter a sub-menu.
6
10 MUTE: Mutes the sound.
7
17
8
18
11 INFO: Displays the information banner.
12 VOL+/–: Increases or decreases the volume.
13 S.MODE: Selects sound mode.
14 STEREO: Selects stereo or mono ( ATV only ), or audio
track(DTV only).
15 FREEZE: To freeze current picture.
16 SLEEP: Sets the sleep timer.
9
10
19
11
20
12
21
13
23
22
24
25
26
27
28
29
30
31
17
18
19
20
RECALL: Returns to the previous channel.
EXIT: Exits the menu screen.
SOURCE: Displays input source menu.
LIST: Displays the channel list.
21 CH / : Changes channel up and down.
22 P.MODE: Selects picture mode.
23
24
25
26
27
28
29
30
31
Below is teletext control buttons:
Colored buttons (RED/GREEN/YELLOW/BLUE): Direct
access to the colored items or corresponding pages. (Teletext)
TTX: Used to call teletext, change to transparent mode and
then exit. (Teletext)
Subtitle: Displays the subtitle. (DTV only)
Size: Press this button several times to display the upper, then
the lower part of the screen and then return to the normal size
teletext page. (Teletext)
Index: Press this button to view the main index page.(Teletext)
Reveal: To reveal or hide the concealed information. (Teletext)
Hold: To stop or resume sub-page acquisition. (Teletext)
Update: Press the button to view the updated teletext page.
(Teletext)
Mix: Press the button to display the Teletext on the screen with
transparent background while viewing the TV proram
simultaneously. (Teletext)
8
Connections
Cautions before connecting
Carefully check the terminals for position and type before making any connections.
The illustration of the external equipment may be different depending on your model.
Loose connectors can result in image or colour problems. Make sure that all connectors are securely inserted into their
terminals.
Refer to the operating manual of the external device as well.
When connecting an external device, turn the power off to avoid any issues.
Connecting digital coaxial audio
TV REAR
Coaxial cable
OR
HIFi System
S/PDIF IN
(Coaxial)
Audio Processor
For a full Home Theater sound experience, you must connect your Hi-Fi or
Audio processor to the S/PDIF OUT(Coaxial) terminal on the TV rear.
Note
The S/PDIF OUT terminal only can output digital TV program’s audio.
9
Connections (Continued)
Connecting a Camcorder
TV REAR
or
Camcorder
Cables are often color-coded
to connectors. Connect red to
red, white to white, etc.
“PlayStation”
AV cable
How to connect:
Connect the Audio/Video cables between the Audio (L/R)/Video jacks on the unit and camcorder.
To playback Camcorder
1. Turn on your TV, then press SOURCE button. The Input Source menu opens.
2. Press 5or6to select AV, then press OK to confirm.
3. Turn on your camcorder and set it to output mode. (For details, refer to your camcorder user manual.)
4. Insert the tape into the camcorder and press Play button.
Note
The operations of the camcorder may be different and is dependant on your model. Please read the user manual of your camcorder
to confirm operation.
Connecting an HDMI device
TV REAR
Device with HDMI output
HDMI cable
How to connect a device using HDMI Connection:
Connect the HDMI cable between the HDMI1, HDMI2 or HDMI3 interface on the unit and HDMI output on the device.
To play from the device using HDMI:
1. Turn on your TV, then press SOURCE button. The Input Source menu opens.
2. Press 5or6to select HDMI1/HDMI2/HDMI3 correspondingly, then press OK to confirm.
3. Turn on your device and set it to the correct mode. See the device’s user guide for more information.
Note
If the external device has DVI output only, use a DVI to HDMI adapter cable to connect to the HDMI terminal. Connect the audio
cable to the D-SUB AUDIO IN jack on the TV rear.
10
Connections (Continued)
Connecting Component Video
TV REAR
Component video cable
Device with
component video
Cables are often color-coded
to connectors. Connect red to
red, white to white, etc.
Audio cable
To connect a device using component video:
Connect the Component Video cable between the Y, Cb/Pb, Cr/Pr input jacks on the unit and Y, Cb/Pb, Cr/Pr output jacks on
the device .
Connect the Audio cable between the AUDIO input jacks on the unit and AUDIO output jacks on the device.
To play component video from an external device:
1. Turn on your TV, then press SOURCE button. The Input Source menu opens.
2. Press 5or6 to select Component1 (or Component2), then press OK to confirm.
3. Turn on your external device and set it to the correct mode. See the device’s user guide for more information.
Connecting a Computer
TV REAR
D-Sub cable
(analog RGB)
To monitor port
(15-pin D-Sub)
To audio output jack
Audio cable
(stereo mini plugs)
How to connect:
Connect a D-sub cable between the D-SUB jack on the computer and the D-SUB input jack on the unit.
Connect an Audio cable between the AUDIO output on the computer and AUDIO input jack on the unit.
To play video from a computer
1. Turn on your TV, then press SOURCE button. The Input Source menu opens.
2. Press5or6to select D-SUB, then press OK to confirm.
3. Turn on your computer, and adjust the display properties as required.
11
Connections (Continued)
Connecting a VCR (for Recording)
TV REAR
VCR for Recording
S-VIDEO
AV cable
How to connect:
Connect the Audio/Video cables between the Audio (L/R)/Video jacks on the unit and VCR.
To record program
1. Turn on your TV, select a program you wish to record.
2. Turn on your VCR, insert a videotape for recording.
3. Press the Record button to begin recording.
Note
! Only analog TV programs and AV input source can be output through the AV output jacks.
Connecting Headphones
Insert the plug of the headphone into the TV’s Headphone jack.
When using headphones, adjust the headphone volume so as to avoid excessive levels, as hearing damage may result.
TV REAR
Headphones
12
Basic Operations
Main Menu Overview
List of main menus to help you with operations
SOUND menu
PICTURE menu
Sound
Time
Picture Mode
Contrast
Brightness
Option
Lock
Channel
Tint
Prev Page
Select
50
50
Balance
Auto Volume
Off
0
Surround Sound
Off
Sound
Time
Menu
Channel
50
50
0
Select
Exit
Move
Menu
Exit
OPTION menu
Option
Lock
Channel
28/Sep /2008 15:30
Off
Off
Sound
Time
Option
Language
English
Hearing Impaired
Off
Lock
Channel
Auto
SPDIF
Off
Sleep Timer
Auto Sleep
Audio Preference
Dolby Digital
Off
Time Zone
VIC GMT+10
Select
Move
Menu
Select
Exit
LOCK menu
Lock
Standard
TIME menu
Option
Next Page
Move
Clock
Off Time
On Time
Time
75
45
Standard
Color
Sharpness
Sound
Sound Mode
Treble
Bass
Sound
Time
Lock
Channel
Exit
Sound
Time
Option
Lock
Channel
Auto Tuning
Off
Set Password
DTV Manual Tuning
Block Program
Parental Guidance
Menu
CHANNEL menu
Option
Lock Tuning
Move
ATV Manual Tuning
Programme Edit
No Block
Restore Factory Default
Select
Move
Menu
Select
Exit
Move
Menu
Exit
To navigate through the OSD main menu
1
2
3
4
With the power on, press MENU and the main menu screen displays.
Press 3or4to select menu. Press 6 to access the menu.
Within the menu, press 5, 6,3or4navigate through the options or adjust
an option. Press OK to confirm a selection or enter a sub-menu.
Press MENU to return to previous menu. Press EXIT to exit the menu screen
directly. Or you may wait for a few seconds and the on-screen menu will
disappear from the screen automatically.
Note
=Some menu items may be different when the unit works in different mode, and menu items that are not selectable are grayed out.
=The Picture menu has more than one page, please use 5or 6to scroll through.
=The illustrations and on-screen displays in this manual are for explanation purpose (some are enlarged, others cropped) and may
vary slightly form the actual ones.
13
Basic Operations (Continued)
Turning On/Off the Power
Turning On
Insert the power cord into the wall outlet. Press the Power Switch on the unit to power on.
If the unit is in standby mode, press Power button on the unit or the remote control to turn on the unit, and you will be ready
to use its features.
Turning Off
With the power on, press the Power button on the unit or on the remote control to turn off the unit, and put the unit in
standby mode. To cut off the power completely, press the Power Switch directly.
Selecting the Input Signal Source
1
2
3
Press SOURCE button.
Press 6or 5to select the input source. Options include:
! DTV — Watch the DTV signal.
! ATV — Watch the ATV signal.
! AV — Watch the signal from the AV input terminals.
! Component1 — Watch the signal from the COMPONENT 1 input terminals.
! Component2 — Watch the signal from the COMPONENT 2 input terminals.
! D-SUB — Watch the signal from the D-SUB input jack.
! HDMI1 — Watch the signal from the HDMI 1 input jack.
! HDMI2 — Watch the signal from the HDMI 2 input jack.
! HDMI3 — Watch the signal from the HDMI 3 input jack.
Input Source
DTV
ATV
AV
Component1
Component2
D-SUB
HDMI1
HDMI2
HDMI3
Move
Select
Press 3,4 or OK to confirm the selection.
Displaying the Information Banner
Press the INFO button to display the information banner. The information banner displays current status information such as
the channel number and signal source.
Depending on the mode, different information is displayed. In DTV mode, more information will be displayed. Below is an
example banner in DTV mode.
In DTV mode, the information banner may contain:
! Channel number and name.
! Current time.
! Current program name, start and end play times.
! Next program name and start and end play times.
! TV or Radio.
! Audio mode, audio track.
! Signal strength for current channel.
! Signal resolution.
! Subtitle, teletext.
2 ABC TV Sydney
DTV
SD MPEG
British Isles: A Natural History
Fri, Feb 27 2008 11:05
11:08
12:00
Next
English
Subtitle
576i
Teletext
Reserved for future use
Alan Titchmarsh continues his epic journey around the
British Isles and discovers why they are so diverse.
Note
=The above OSD is only served as an example, and it is in DTV mode.
Note banner content varies, depending on the broadcaster and your settings.
=Information
14
Memorizing the Channels
When you turn on the TV for the first time, you should perform an auto channel search to set up stations on your TV.
Note: Be sure to select the proper input source (ATV/DTV) before operation.
Auto Channel Search
You should perform an auto channel search to search for all channels available and stores them in memory.
And before you start Auto Tuning, it is necessary to select a country firstly.
1
2
3
4
Press MENU and the main menu screen displays.
Sound
Time
Option
Channel
Auto Tuning
Press 3or4to select Channel menu, press 6 to access the menu.
DTV Manual
TuningSelection
Country
Australia
ATV Manual Tuning
Programme Edit Start
Cancel
Highlight Auto Tuning item, and press 4or OK to access.
Now a confirmation box appears on the screen. Press 3or4to
highlight Start item, and then press OK to begin the auto
channel search.(If you want to cancel, press 4to select Cancel
item, and use OK to confirm.)
Select
Move
Menu
Exit
Channel Tuning
2 %...
5
Lock
Then the TV begins memorizing all ATV/DTV channels available in
your area. During the process, you can press MENU to skip the
search, or EXIT to stop.
Note
78.50MHz
TV
ATV
:2
Programme(s)
DTV
:0
Programme(s)
Radio :0
Programme(s)
Press <Menu> to skip.
= In the confirmation box, the Country Selection item is defaulted to be Australia
Press <Exit> to exit.
and cannot be adjusted.
Manual Searching for DTV programs
If desired digital programs cannot be searched by Auto Tuning, you can make
use of DTV Manual Tuning to search programs manually.
Sound
Time
Option
Lock
Channel
Auto Tuning
1
2
In Channel menu, press 6or5 to select DTV Manual Tuning
item, then press4or OK to access.
DTV Manual Tuning
ATV Manual Tuning
Programme Edit
Highlight VHF CH item, press 3or4 button to select your
desired channel number.
Select
3
Press OK to begin the manual DTV channel search.
Move
DTV Manual Tuning
At the bottom of the menu screen the DTV Signal strength bar is
displayed. You can make use of it to check how strong your DTV
signal is and whether you need to adjust your antenna or digital
cable input. The higher the signal strength is, the less likely you are
to experience picture degradation.
VHF CH
Then all the digital programs available in this channel will be
searched and stored. During the process, you can press MENU to
exit the search.
15
6
Please select channel then
Press OK to search
Bad
4
Menu
Menu
Normal
Exit
Good
Select
Exit
Memorizing the Channels (Continued)
Manual Searching for ATV programs
If desired analog programs cannot be searched by Auto Tuning, you can make
use of ATV Manual Tuning to search programs manually.
1
In Channel menu, press 6or5 to select ATV Manual Tuning
item, then press4or OK to access.
2
Highlight Storage To item, press 3or4 button to select a channel
position in which you want to store.
3
Use 6or5 to select Search item, press 3or4to begin the
manual ATV channel search.
Press 4, the unit searches towards higher frequency;
Press 3, the unit searches towards lower frequency.
4
The search stops when a program is found and this program will be
stored in current channel, then press the RED button to save. During
the process, If you want to stop the search , please press EXIT button.
Sound
Time
Option
Auto Tuning
DTV Manual Tuning
ATV Manual Tuning
Programme Edit
Select
Move
Menu
ATV Manual Tuning
Storage To
1
Color System
PAL
Audio System
BG
Current CH
Search
Fine-Tune
Frequency
1
Exit
445.25 MHz
SAVE
Select
Manual Fine Tuning
Fine Tuning is not necessary under normal conditions. However, in area of
inferior broadcast conditions where adjustment is necessary for a better
picture and sound effect, use Fine Tune.
ATV Manual Tuning
1
2
3
Navigate to ATV Manual Tuning submenu, highlight Current
CH item, press 3or4 to select a channel you want to perform fine
tune.
Press 6 to select Fine-Tune item, and then use 3or4 button to
fine tune until the best possible picture and sound are obtained.
During the process, press EXIT to exit, and RED button to save
the effect.
Storage To
1
Color System
PAL
Audio System
BG
Current CH
Search
Fine-Tune
Frequency
1
Exit
445.25 MHz
SAVE
Select
Note
= Fine Tune is only for analog TV program.
Setting Audio System
Normally it is unnecessary to set audio system. However, if
abnormal sound occurs, you may try to adjust the audio system.
1
Navigate to ATV Manual Tuning submenu, press 5or6 to
highlight the Audio System item.
2
Press 3or4 to select the proper audio system.
3
Press MENU to return to previous menu. Press EXIT to exit the
menu screen directly.
ATV Manual Tuning
Storage To
1
Color System
PAL
Audio System
BG
Current CH
Search
Fine-Tune
Frequency
1
Exit
16
Channel
Lock
SAVE
445.25 MHz
Select
Exit
Memorizing the Channels (Continued)
Labeling Channels
If required, you can give a name to the programs.
1
Press MENU and the main menu screen displays.
2
Press 3or4to select Channel menu, press 6 to access the menu.
3
Press 6or5 to select Programme Edit item, press 4 or OK to
open the Programme Edit menu.
Sound
Time
ATV Manual Tuning
Programme Edit
Within the program list, press 6or5 to select a channel you want to
edit, press GREEN button to start to label. Then a name symbol
appears alongside.
Move
Use 6or5 to select character to input, use 3or4 to move the cursor.
To delete the inputting, please press RED button.
After finishing inputting, press OK to confirm.
The maximum length of label is 5 characters.
Repeat the above steps to set up more channel labels.
Menu
1 S-03
2 C-42
3 S-04
4 C-04
TV
TV
DEL
NAME
MOVE
NAME
SKIP
Fav.List
Note
! The labels of DTV channels are automatically assigned and cannot be changed by user.
! There will be no NAME item in DTV mode.
Setting Favorite Channels
You can set up favorite channels list so that you can quickly browse through your
favorite channels by using Favorite button.
1
Navigate to the Channel menu, press 5or6 to select Programme
Edit item, press 4 or OK to open the Programme Edit menu.
Favourite List
TV
TV
2
3
Use 6or5 to select your favorite program, use FAV.LIST button to
mark the selected program as favorite (a favorite symbol appears). To
cancel the favorite mark, just press FAV.LIST button again and the
symbol disappears. If the program list has more than one page, you can
press 6or5to scroll the page.
Repeat the above steps to set more favorite programs.
To exit, press EXIT button.
Now you can press FAV.LIST button to display the favorite list,
press 6or5 to browse through the favorite programs and press
OK to access the channel. Or you can use FAV+/FAV- to cycle
among the favorite channels.
17
Exit
Program Edit
TV
TV
5
Channel
Lock
DTV Manual Tuning
Select
4
Option
Auto Tuning
TV
TV
Move
1 S-03
2 C-42
3 S-04
4 C-04
OK
Select
Memorizing the Channels (Continued)
Channel List Management
After auto search, a default channel list is created. You can make use of Program Edit menu to select program, to skip
unnecessary channels, to sort programs, and to create a favorite channel list.
To skip unnecessary channels
After auto search, you can skip unnecessary channels so that only the channels you want to watch can be selected by
CH / CH .
1
2
3
Navigate to Channel menu and press 6or5 to select Programme Edit item
and then press 4 or OK to access.
Programme Edit
TV
Press 6or5 to select your unwanted channel, press BLUE button and a skip
symbol appears alongside the selected channel in the list, which means this
channel will be skipped.
If you want to skip more channels, repeat the above steps to set more skip
symbols to more channels.
Press EXIT to quit the list. Now when you press Channel / , these unwanted
channels will be skipped.
TV
TV
TV
DEL
1 S-03
2 C-42
3 S-04
4 C-04
NAME
MOVE
SKIP
SKIP
Fav.List
Note
=If the Program Edit menu has more than one page, you may press6or5 to scroll the page upward or downward.
= To restore a skipped channel, navigate to the Programme Edit menu, select the channel and press BLUE button to cancel the skip symbol.
To sort channels
This function allows you to arrange the channel order.
1
2
3
Programme Edit
Select the channel you want to move in the Programme Edit menu.
TV
TV
TV
Press YELLOW button and a move symbol appears alongside the
selected channel in the list, then use 6or5to move the channel
upward or downward to a desired new position.
Repeat the above steps for each channel you wish to move.
TV
DEL
1 S-03
2 C-42
3 S-04
4 C-04
NAME
MOVE
MOVE
SKIP
Fav.List
Note
=If the Program Edit menu has more than one page, you may press5or6 to scroll the page upward or downward.
=The order of the DTV channels is automatically assigned and thus cannot be changed by user.
=There will be no MOVE item in DTV mode.
To delete channels
This function allows you to delete your unwanted channels.
1
2
3
Programme Edit
Select the channel you want to move in the Programme Edit menu.
TV
TV
TV
Press 6or5 to select your unwanted channel, press RED button
and a delete symbol appears alongside the selected channel in the
list. Press RED button again to finish the delete.
Repeat the above steps for more channels you want to delete.
TV
DEL
1 S-03
2 C-42
3 S-04
4 C-04
NAME
Note
=If the Program Edit menu has more than one page, you may press5or6 to scroll the page upward or downward.
=The deleted channels cannot be found unless you perform a channel search again.
18
MOVE
DEL
SKIP
Fav.List
Channel and Program Selection
Please note: your new TV is capable of receiving both radio and TV broadcasts. And for TV reception, your new TV is capable
of receiving both traditional analog channels and digital channels.
When watching digital TV program and you want to listen to radio program, simply press TV/Radio button to
switch. To return to TV program, press TV/Radio button again. (When watching analog TV program, the TV/Radio
button does not work.)
The TV allows channel and program selection in the following ways:
Method 1— Using CH
Press the CH
CH or CH
or CH
or CH to cycle among all available channels. The skipped channels can not be selected by
button.
Note
=By using CH
or CH
, you can not select analog channels in DTV mode, or digital channels in ATV mode.
Method 2— Using RECALL button
Press RECALL to switch to the previously tuned channel.
Press RECALL again to switch back to the currently tuned channel.
Note
=RECALL will not work if no channel has been changed after TV is turned on.
Method 3— Using 0 – 9 and OK button
Press the 0 – 9 number buttons to input a channel number, then wait for some seconds or press OK to go directly to that
channel.
When selecting, the TV will indicate the channel through the information banner.
Note
= By using 0 – 9 number buttons, you can not select analog channels in DTV mode, or digital channels in ATV mode.
= When in Radio mode, you can press TV/Radio button to switch to TV mode.
= If you input one-digit or two-digit channel number, you can press OK to go directly to the channel without waiting.
Method 4— Using channel list
Channel List
Press LIST button to display the channel list. Use 5or6to select a channel and then press
OK button.
1 S-03
2 C-42
3 S-04
4 C-04
TV
TV
TV
TV
Note
=If the channel list has more than one page, you may press 5or6 to scroll the page upward or
downward.
Move
OK
Select
Favourite List
Method 5— Using favorite channel list
TV
TV
After you have created the favorite channel list, you can press FAV.LIST button to display
the favorite channel list. Use 5or6to select a channel and then press OK button.
TV
TV
1 S-03
2 C-42
3 S-04
4 C-04
Note
= You can directly press FAV+/ FAV– button to cycle among the favorite channels.
Move
19
OK
Select
Picture Adjustment
Customizing the Picture
1
2
3
4
Press MENU and the main menu screen displays.
Press 3or4to select Picture menu, press 6 to access the menu.
Within the menu, press 5 or 6 to scroll through the page upward or downward,
and press 5,6,3,4 to navigate through the options or adjust an option.
Press MENU to return to previous menu. Press EXIT to exit the menu screen directly.
Sound
Time
Picture Mode
Contrast
Brightness
Option
Lock
Channel
Sound
Time
75
45
Color Temperature
Red
Green
Color
Sharpness
50
50
Blue
Aspect Ratio
Tint
0
Noise Reduction
Standard
Prev Page
Select
Next Page
Move
Option
50
Select
Exit
Channel
23
20
16:9
Off
Prev Page
Menu
Lock
Cool
Next Page
Move
Menu
Exit
Option
Description
Picture Mode
Selects a desired picture mode. You can select from Standard, Dynamic, Mild and User.
Standard: Select for a standard picture.
Dynamic: Select for a bright and vivid picture.
Mild: Select for a finely detailed picture.
User: The picture quality you set.
Note: To quickly change the picture mode, press the P.MODE button on the remote control repeatedly.
Contrast
Adjusts image contrast.
Brightness
Adjusts screen brightness for easier viewing of dark picture such as night scenes and black hair.
Color
Adjusts color saturation.
Sharpness
Adjusts image sharpness and displays a sharp image.
Tint
Adjusts tint for image.
Note: The Tint item is only for NTSC system.
Color Temperature
Selects one of three automatic color adjustments. Sets to Warm to enhance hotter colors such as
red, or set to Cool to see less intense colors with more blue. You can select from Warm, Cool
and Normal. Or you can select User to customize the color as your like.
Note: The option User can only be selected in D-SUB mode, and then you can adjust the value of Red, Green and Blue.
Aspect Ratio
You can select the aspect ratio (display proportions) according to your video signal type or
personal preference. You can select from 16:9, Zoom1, Zoom2 , Auto and 4:3.
16:9: Displays a 16:9 picture.
Zoom1: Enlarges the picture, the top and bottom portions may be cropped.
Zoom2: Enlarges the picture to fill the full screen.
Auto: Displays picture automatically in proper ratio.
4:3: Displays a 4:3 picture.
Note: You can press the ZOOM button repeatedly to select a desired aspect ratio.
Noise Reduction
Select from Low/Middle/High to reduce noise in the picture, commonly called snow.
Select Off to turn off this function.
20
Sound Adjustment
Adjusting the Volume
Using the volume buttons (VOL+ and VOL – )
Press the VOL + or VOL- to increase or decrease the volume.
Using the Mute
Press the MUTE button to temporarily turn off all sound. To restore the sound, press the MUTE button again.
Adjusting the Sound
1
2
Press MENU and the main menu screen displays.
3
Within the menu, press 5 or 6to navigate through the options,
press3or4to adjust an option.
4
Press 3or4to select Sound menu, press 6 to access the menu.
Press MENU to return to previous menu. Press EXIT to exit the
menu screen directly.
Sound
Sound Mode
Treble
Bass
Time
Option
Channel
50
50
Balance
Auto Volume
Off
Surround Sound
Off
Select
Lock
Standard
0
Move
Menu
Exit
Option
Description
Sound Mode
Selects a desired sound mode. You can select from Standard, Music, Movie, Sports and User.
Standard: Select for normal programs.
Music: Select for a music program.
Movie: Select for a movie program.
Sports: Select for a sports program.
User: The sound quality you set.
Note: To quickly change the sound mode, press the S.MODE button repeatedly.
Treble
Adjusts Treble (high sounds).
Bass
Adjusts Bass (low sounds)
Balance
Adjusts volume balance (left and right volumes).
Auto Volume
Select On to equalize overall volume levels across all channels.
Select Off to turn off the auto volume control.
Surround Sound
Select On to turn on the surround sound effect. The benefits of surround sound are enormous.
You can be completely enveloped in sound, just as if you were at a concert hall or cinema.
Select Off to turn off surround sound.
21
Sound Adjustment (Continued)
Stereo/Bilingual Selection (for analog channels)
You can quickly select sound multiplex mode by using the STEREO button on the remote control.
NICAM Broadcast Selection
This enables the selection of the reception mode when receiving a NICAM signal. To let you enjoy NICAM broadcasting, this
TV set receives NICAM system stereo, bilingual, and monaural broadcasts.
Stereo
When the TV set is receiving a stereo broadcast, press the STEREO button to select Stereo or Mono. When Mono is
selected, the TV sound is output monaurally.
Bilingual
When the TV set is receiving a bilingual program, press the STEREO button to select NICAM DUAL A or NICAM
DUAL B.
IGR (German stereo system) Broadcasts
This enables the selection of the reception mode when receiving an IGR signal. To let you enjoy IGR broadcasting, this TV set
receives IGR system stereo and bilingual broadcasts.
Stereo
When the TV set is receiving a stereo broadcast, press the STEREO button to select Stereo or Mono. When Mono is
selected, the TV sound is output monaurally.
Bilingual
When the TV set is receiving bilingual program, press the STEREO button to select NICAM DUAL A or
DUAL B.
NICAM
Audio Track Selection (for digital channels)
The digital-TV transmission system is capable of simultaneous transmission of many audio tracks (for example,
simultaneous translations of the program into foreign languages, or different commentators for sport events). You can
press STEREO button to select the audio track.
Note
=The availability of these additional “multi-tracks” depends upon the broadcaster.
22
System Setup
System Setup
You may change system settings such as Hearing impaired, SPDIF, Audio Preference etc. by making use of Option menu.
1
2
Press MENU and the main menu screen displays.
3
Within the menu, press 5,6,3,4 to navigate through the options
or adjust an option.
4
Press MENU to return to previous menu. Press EXIT to exit the
menu screen directly.
Press 3or4to select Option menu, press 6 to access the menu.
Option
Description
Language
Selects on-screen menus language.
Sound
Time
Option
Language
English
Hearing Impaired
Off
Lock
Channel
Auto
SPDIF
Audio Preference
Select
Dolby Digital
Move
Menu
Exit
Note: The default selection of this item is English, and cannot be adjusted.
Hearing Impaired
(Only for digital programs)
SPDIF
Press 3/4 to select On to display the subtitles (if available) for the hearing impaired.
Select Off to turn off the function.
Selects the digital audio output mode for S/PDIF. You can select Auto or PCM.
(Only for digital programs) Auto: Output audio signal as its original format. If both AC3 and PCM are available in a program,
then AC3 format will be selected in preference.
PCM: Output audio signal by PCM format (if available).
Note: To select Auto is recommended.
Audio Preference
Selects the audio output mode. You can select MPEG or Dolby Digital.
(Only for digital programs) MPEG: Output audio signal in MPEG format (if available).
Dolby Digital: Output audio signal in Dolby Digital format (if available).
23
Rating and Lock Setup
Password Setup
The Password setup sub-menu is used to set a new system password or to change an existing system password. By default, the
system password is 0000 and you may change it. To access Parental Guidance, to lock or unlock channels, to view locked
channels, etc., the system password is required.
To create a new password
1
Press MENU and the main menu screen displays.
Press 3/4to select Lock menu, press 6 to access the menu.
2
Now a password is required to input. Use number buttons to input
the correct password (the default password is 0000).
3
Press 5or6 to select Set Password item, and then press 4 or
OK button to access its submenu.
4
Use the number buttons to input a new password (4- digit).
5
Time
Lock
Channel
English
- - - -
Block Program
Parental Guidance
Off No Block
Restore Factory Default
Select
Move
Sound
Time
Menu
Option
Exit
Lock
Lock Tuning
Off
Please enter Password
Set Password
New English- - - -
Block Program
Channel
- - - Off No Block
Confirm
Parental Guidance
Note
! Be sure to write down your password and retain it for future use. If you
do forget the password, the unit provides a super password “2580”.
Please DO NOT let your children know the super password.
Option
Off
Please enter Password
Set Password
Input the new password again.
Now the new password has been created successfully.
Sound
Lock Tuning
Restore Factory Default
Select
Move
Menu
Exit
Block Program Setup
The Block Program function blocks any channels that you do not want to
watch or that you do not want your children to watch.
1
Sound
Time
Navigate to the Lock menu and input the correct password to
access.
Lock Tuning
2
Use 5or6to highlight Block Program item, press 4 or OK to
access.
Parental Guidance
3
Now the Block Program screen opens. Use 5or6to select the
channel you want to lock, then press GREEN button to set lock to
the channel. A lock symbol appears alongside the locked channel.
4
Repeat the above steps for each program you wish to lock.
5
Press MENU to return to previous menu. Press EXIT to exit the
menu screen directly. Then the Block Program comes into effect
for the Locked channel.
Note
call up Block Program screen, then use GREEN button to unlock the
channel, and the lock symbol will disappear.
24
Lock
Channel
Off
Set Password
Block Program
No Block
Restore Factory Default
Select
Move
Menu
Block Program
TV
TV
TV
OK
! To view a locked channel, just input the password.
! To cancel channel lock, use password to enter into the Lock menu, and
Option
20 S-48
21 S-51
22 S-56
LOCK
Exit
Rating and Lock Setup (Continued)
Parental Guidance Setup
Parental Guidance blocks programs according to their classification so that
children can not view certain programs.
Sound
Time
Option
Lock Tuning
Lock
Channel
Off
Set Password
Block Program
1
Navigate to the Lock menu and input the correct password to
access.
2
Press 5or6 to highlight the Parental Guidance item.
3
Use3or4to select your desired
rating.
Use the “Block All” setting to completely
block all viewing. The menu can still be
accessed to unblock all programs.
Parental Guidance
No Block
Restore Factory Default
Select
Move
Press MENU to return to previous
menu. Press EXIT to exit the menu
screen directly.
Exit
G (General Audiences): Content not
offensive to most viewers.
PG (Parental Guidance Suggested):
Content is such that parents may not want
their children to view the program.
Block All
M (Mature Audience): Suitable for mature
audience.
Block PG and above
MA(Mature Adult Audience): May contain
mature themes, profane language, graphic
violence, and sexual situations.
Block M and above
Block G and above
Block MA and above
Block AV and above
AV (Adult Audience): Strong violence.
4
Menu
Block R and above
R (Restricted viewing): Not for children
under age 17. Strong elements of sex
and/or violence.
No Block
Lock Tuning Setup
Making use of Lock Tuning you can protect some TV settings from being
accidentally changed.
1
Navigate to the Lock menu and input the correct password to
access.
2
Now the Lock Tuning item will be highlighted automatically.
Sound
Time
Option
Lock Tuning
Lock
Channel
Off
Set Password
3
Block Program
Parental Guidance
Use 3or4to turn on or turn off the Lock System.
Once you turn on Lock Tuning, the Channel Menu can not be
accessed by the user without the correct password. To cancel, use
password to enter into Lock Menu and set Lock Tuning item to OFF.
No Block
Restore Factory Default
Select
Move
Menu
Exit
Restoring Factory Default
Running this function to reset all settings to its original factory condition.
1
Navigate to the Lock menu and input the correct password to
access.
2
Press 5or6to select the Restore Factory Default item, press 4
or OK to activate the function.
Sound
Lock Tuning
Now the screen will display a dialog box for you to confirm your
operation. Use 3or4to toggle between YES or NO item, and
press OK to confirm your operation.
Channel
OffOff
English
Yes
No BlockNo
Restore Factory Default
Select
! This function will clear most of your customized settings. So make sure you do want to reset
25
Lock
Block Program
Note
all settings to its original factory condition before you perform this operation.
Option
Are you sure?
Set Password
Parental Guidance
3
Time
Move
Menu
Exit
Timer Setup
Time Zone Selection
To obtain local time, you should first set local time zone. and it depends on
your local station whether has broadcast time zone information.
1
2
3
Sound
Time
Clock
Off Time
On Time
Press MENU and the main menu screen displays.
Option
Lock
Channel
28/Sep /2008 15:30
Off
Off
Press 3or4to select Time menu, press 6 to access.
Sleep Timer
Auto Sleep
Press 5or6 to select Time Zone item, and then press 3or4to
select the appropriate one.
Time Zone
Off
Off
VIC GMT+10
Select
Move
MENU
Exit
Current Time Setup
Make use of this function can set the current time for the TV.
1
2
3
Navigate to the Time menu press 6 to access.
Press 5or6 to select Clock item, Press4or OK to access the
submenu.
Within the menu, use 5or6 to highlight the Date, Month, Year,
Hour or Minute item, and use 3or4 to adjust the values.
When finished, use 5or6 to select Close and press OK to
confirm the setting.
Sound
Time
Clock
Off Time
On Time
Option
Lock
Channel
28/2 /2008 15:30
28
Off
Sep
Off
2008
Off
15
Off
30
VIC GMT+10
Date
Month
Year
Hour
Minute
Sleep Timer
Auto Sleep
Time Zone
Close
Select
Move
MENU
Exit
Note
! Before setting Off timer and On timer, please set the Clock Time for the TV.
On Timer Setup
With On Timer function On, the TV will automatically turn on at the preset time.
1
2
3
Navigate to the Time menu press 6 to access.
Press 5or6 to select On Time item, Press 4or OK to access
the submenu.
Now the Activate item will be highlighted automatically, press
3or4to select On . (If you want to cancel setting, please choose
Off )
4
Press 5or6 to select Hour or Minute item, and press 3or4to
adjust the value.
5
After setting On Timer, you can press 5,6,3or4to navigate
through the following three options and adjust the options .
Option
Description
Volume
Sets desired volume for the On program.
Mode
Selects one source to be viewed through On timer.
Program Number
Selects a broadcasting program for On timer.
Sound
Clock
Off Time
On Time
Sleep Timer
Auto Sleep
Time Zone
Select
6
When finished, use 5or6 to select Close item and press OK to confirm the setting.
7
Press to switch the TV to standby mode. At the preset time, the TV will
auto turn on and broadcast the preset program at the preset volume.
26
Time
Option
Lock
Channel
28/2 /2008
Activate
On15:30
Off 00
Hour
00
Minute Off
00
Volume Off
Mode
Off DTV
22 ABC TV
VIC GMT+10
Close
Move
MENU
Exit
Time Setup (Continued)
Off Timer Setup
With Off Timer function On, the TV will automatically turn off at the preset time.
1
2
3
4
Navigate to the Time menu press 6 to access.
Press 5or6 to select Off Time item, press 4or OK to access
the submenu.
Now the Activate item will be highlighted automatically, press
3or4to select On . (If you want to cancel setting, please choose Off )
Press 5or6 to select Hour or Minute item, and press 3or4to
adjust the value.
When finished, use 5or6 to select Close and press OK to confirm
the setting.
Sound
Time
Clock
Off Time
On Time
Option
Lock
Channel
28/2 /2008 15:30
Activate
On
Off
00
Hour
Off
00
Minute
Off
Sleep Timer
Auto Sleep
Off
Close
Time Zone
VIC GMT+10
Select
Move
MENU
Exit
Note
! Once you have set On timer or Off timer function, the unit will perform it everyday at the preset time.
Sleep Timer Setup
Sleep timer lets you select the amount of time before your TV turns itself off
automatically. This setting is cleared when the TV is turned off.
1
2
Navigate to the Time menu , press 6 to access.
3
Press 3or4to select the amount of the time; to turn off the timer,
please select Off.
Sound
Time
Option
Clock
Off Time
On Time
Press 5or6 to select Sleep Timer item.
Lock
Channel
28/2 /2008 15:30
Off
Off
Sleep Timer
Auto Sleep
Off
Off
Time Zone
VIC GMT+10
Select
Move
MENU
Exit
Note
! You may directly press SLEEP button on the remote control to set sleep timer.
! After you have set sleep timer, when the last 30 seconds have come up, the Power Off screen will
appear to remind you after how many seconds the TV will power off. You can press any button to quit.
Auto Sleep Setup
When there is no signal input for a certain time, the unit will turn off
automatically.
Sound
1
2
Navigate to the Time menu, press 6 to access.
Clock
Off Time
On Time
Press 5or6 to select Auto Sleep item.
Sleep Timer
Auto Sleep
3
Press 3or4to select On or Off.
Time
Option
Channel
Off
On
Time Zone
Select
VIC GMT+10
Move
Note
! After you have set Auto Sleep, when the last 30 seconds have come up, the Power Off screen will
appear to remind you after how many seconds the TV will power off. You can press any button to quit.
27
Lock
28/2 /2008 15:30
Off
Off
MENU
Exit
EPG Operation
EPG
The Electronic Programme Guide (EPG) makes it possible for users to see details about the
programme they are watching, other programmes and even a schedule of the next 7 days. The
information available includes the number and name of the channel, the name and type of
programme, the start and end time, and a summary. Thus viewers can easily select the
programmes they want to see.
Opereation
1
Press the EPG button to open the EPG (Electronic
Program Guide). In the EPG window (as shown on
the right), several channels’ current and upcoming
program’s information will be displayed.
PROGRAMME GUIDE
28 Jul 2008 15:03
15:00
BLUE HEELERS
28 Jul
16:00
No information
70 7 HD Digital
BLUE HEELERS
No information
71 7 Digital 1
BLUE HEELERS
No information
72 7 Digital 2
BLUE HEELERS
No information
73 7 Digital 3
BLUE HEELERS
No information
DTV
7 7 Digital
2
3
Press YELLOW button to highlight the date bar,
use 3or4to select the proper date, and then
press YELLOW button again to exit.
Use 5,6,3or4to navigate among the channels
and program events, and press INFO button to get
more detailed information (if available) about the
programme you choose.
If you want to switch between TV and Radio
programmes, please press TV/Radio.
EXIT
Info
Press OK to tune to the channel you have selected.
To clear the EPG window, press EXIT button.
Note
! The EPG will only work when you are receiving digital channels.
! To enable EPG to work properly, it is suggested to set the appropriate time zone.
28
DTV
72 7 Digital 2
15:00 - 16:00 BLUE HEELERS
TV/Radio
OK
DATE
Teletext & Subtitle
Teletext
What Is Teletext?
Your System receives Teletext signals broadcast by a TV network, and decodes them into graphical format for viewing.
News, weather and sports information, stock exchange prices and programme previews are among the many services
available.
To Turn On/Off Teletext
Select a TV channel providing the Teletext program.
Press TTX button to display the teletext.
Press TTX button again to switch back to TV screen.
Teletext control button list
! 5/6 button
Used to scroll page upward or downward.
! 0 – 9 button
Directly select any page by using 0 – 9.
! Coloured buttons (RED/GREEN/YELLOW/BLUE)
Coloured areas are displayed at the bottom of the screen. The 4 coloured
buttons are used to access the items or corresponding pages.
! Hold button
Certain pages contain sub-pages which are automatically displayed
successively. This button is used to stop or resume sub-page acquisition.
! Reveal button
Press the button to reveal the concealed information such as games
solutions. Press the button again to hide the information.
! Size button
Press this button several times to display the upper, then the lower part of
the screen and then return to the normal size teletext page.
! Index button
In teletext mode, press this button to display the index page.
! Mix button
Press the button to display the Teletext on the screen with transparent
background while viewing the TV program simultaneously.
! Update button
Press the button to view the updated teletext page.
Subtitle
1
If the program has subtitle, simply press Subtitle button to display subtitle.
2
Press Subtitle again to cancel the subtitle.
Note
! The subtitle function only works in digital channels.
29
Screen Setup for D-SUB(PC) Mode
Before adjusting the screen, make sure that you select the correct source (D-SUB).
Screen Setup
1
Press MENU and the main menu screen displays.
2
Press 3or4to select the Picture menu, press 6 to access the menu.
3
Within the menu, press 5 or 6 to scroll through the page upward or downward until you select the Screen
item, then press 4or OK to access.
4
Press 5,6,3,4 to navigate through the options or adjust an option. To confirm, press ENTER.
5
Press MENU to return to previous menu. Press EXIT to exit the menu screen directly.
Sound
Time
Option
Lock
Channel
Screen
Prev Page
Select
Sound
Time
Option
Lock
Channel
Auto Adjust
Horizontal Pos.
Vertical Pos.
50
50
Size
Phase
0
60
Next Page
Move
Option
MENU
Select
Exit
Move
MENU
Exit
Description
Auto adjust
Selects and activates to start auto adjustment. The set automatically adjusts the image settings,
such as position and phase.
Horizontal Position
Moves the image on the screen left or right.
Vertical Position
Moves the image on the screen up or down.
Size
Adjust the horizontal width of the image on the screen.
Phase
Improves the focusing of a stable image.
30
Troubleshooting
If, after reading these operating instructions, you have additional questions related to the use of your television, please call the
services center in your local area.
Before calling service, please check the symptoms and follow suggested solutions.
Remote Control
Problem
Remote control does not operate
Possible Solutions
! The batteries could be weak. Replace the batteries.
! Check the orientation of the batteries.
! Make sure the power cord is plugged in.
Video and Audio
Problem
Possible Solutions
No picture (screen not lit),
No sound
! Make sure the power cord is plugged in.
! Press POWER on the TV or on the remote control.
! Try another channel; it could be station trouble.
Dark, poor or no picture
(Screen lit), good sound
! Select a proper picture mode.
! Adjust the brightness in the video setting.
! Check the antenna connections.
No color/dark picture/color
is not correct
! Adjust the color saturation in the video setting.
Only snow and noise appear
on the screen
! Check the antenna connections.
! Try another channel; it could be station trouble.
Dotted lines or stripes
! Adjust the antenna.
! Move the TV away from noise sources such as cars, neon signs, or hair dryers.
Double images
! Using a highly directional outdoor antenna or a cable may solve the problem.
Good picture, no sound
! The sound may be muted. Press MUTE again to cancel.
! Make sure the stereo mode is set to stereo or mono.
Audio noise
! Communication problems may occur if infrared communication equipment (e.g.,
infrared cordless headphones) is used near the TV. Move the infrared
communication equipment away from the TV until the noise is eliminated.
31
Troubleshooting
General
Problem
One or some channels can’t be
displayed
Lost password
Possible Solutions
! These channels may be locked. Please unlock them (see <Rating and Lock Setup>
section).
! These channels may be set skipped in the channel list. You may set it to not skipped or
select them with 0-9 number buttons.
! You may use the super password (2580)to overwrite the old password, and the
system will auto reset the password to 0000.
Some items can’t be accessed
! If a setting option appears in gray, this indicates that the settings option is unavailable
in current input mode.
TV cabinet creaks
! When the TV is in use, there is a natural rise in temperature, causing the cabinet to
expand or contract and may be accompanied by a slight creaking noise. This is not a
malfunction.
Some settings (such as volume
setting, etc.)may not be memorized
when the TV loses power or you
press main Power Switch to turn off
the TV.
! After you make some settings or adjustments, and within 30 seconds you turn off the
Control buttons do not operate
! Disconnect the power cord and wait for a few seconds. Then re-plug the power cord
TV by main Power Switch or the TV loses power, then the settings you have made
within 30 seconds may not be memorized. But you can use Power button to switch
the TV to standby mode before cutting off the power, then the settings can be
memorized.
and turn on the unit again.
Note
If your problem is not solved, turn your unit off and then on again.
Cautions:
Never attempt to repair a defective TV yourself.
32
Specifications
Type:
LCD TV
Display Size diagonal:
42”
Power Supply:
AC100-240V 50/60Hz
Power Consumption:
200W
Dimensions(mm):
1070 (W) x 815(H) x 325(D)
Unit Weight(kg):
37
TV System:
Analogue: CCIR(PAL-B/G, NTSC(AV))
Digital: DVB-T(2K/8K OFDM)
Note
! Design and specifications are subject to change without notice.
33
PALSONIC CORPORATION PTY LTD
1 JOYNTON AVENUE
WATERLOO NSW 2017 AUSTRALIA
TEL:(02)9313 7111
FAX:(02)9313 7555
PALSONIC CUSTOMER SERVICE
TELEPHONE
AUSTRALIA:1300 657 888
5944032490
Ver 1.0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
