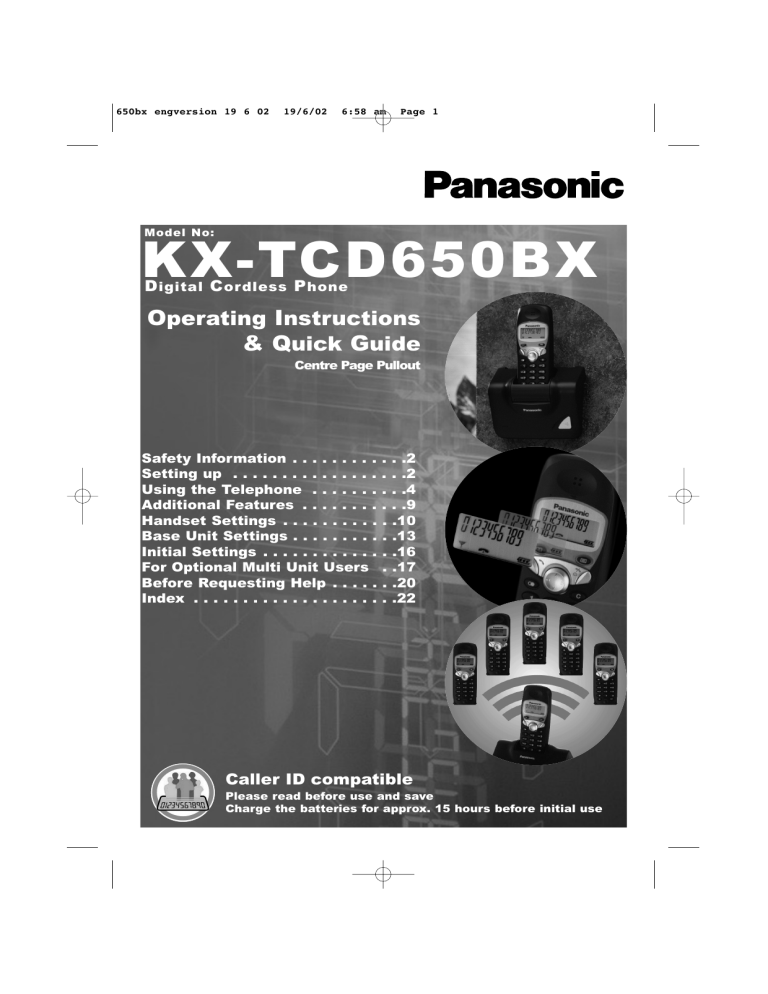

Model No:
KX-TCD650BX
D igital C ordless P hone
Operating Instructions
& Quick Guide
Centre Page Pullout
Safety Information . . . . . . . . .
Setting up . . . . . . . . . . . . . . .
Using the Telephone . . . . . . .
Additional Features . . . . . . . .
Handset Settings . . . . . . . . . .
Base Unit Settings . . . . . . . . .
Initial Settings . . . . . . . . . . . .
For Optional Multi Unit Users
Before Requesting Help . . . . .
Index . . . . . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
. .2
. .2
. .4
. .9
.10
.13
.16
.17
.20
.22
Caller ID compatible
Please read before use and save
Charge the batteries for approx. 15 hours before initial use
650bx engversion 19 6 02
19/6/02
6:58 am
Page 2
General Safety
Battery Caution
Only use the power supply included
with the product.
Use only specified batteries.
Only use rechargeable batteries.
Do not connect the AC Adaptor to any
AC outlet other than the
standard AC230V.
Do not mix old and new batteries.
Do not dispose of batteries in a fire,
they may explode. Check local waste
management codes for special
disposal instructions.
The apparatus is approved for use
with PQLV19CE power supply.
This apparatus is unable to make
emergency telephone calls under the
following conditions:
Do not open or mutilate the
batteries. Released electrolyte is corrosive and may cause burns or injury
to the eyes or skin. The electrolyte
may be toxic if swallowed.
The portable handset batteries
need recharging, or have failed.
During a mains power failure.
When the Key Lock is set to
ON.
When the unit is in Direct Call
mode.
Do not open the base unit or handset
(other than to change the batteries).
Exercise care in handling the
batteries in order not to short the
batteries with conductive materials
such as rings, bracelets and keys.
The batteries and/or conductor may
overheat and cause burns.
This apparatus should not be used
near emergency/intensive care
medical equipment and should not be
used by people with pacemakers.
Charge the batteries provided in
accordance with the information
given in this operating guide.
Care should be taken that objects do
not fall onto, and liquids are not
spilled into the unit. Do not subject
this unit to excessive smoke, dust,
mechanical vibration or shock.
Setting Up
Accessories (Included)
Environment
AC Adaptor
Do not use this unit near water.
Safety Information
This unit should be kept away from
heat sources such as radiators, cookers, etc. It should also not be placed
in rooms where the
temperature is less than 5oC or
greater than 40oC.
1
Telephone Line 1
Cord
The AC Adaptor is used as the main
disconnect device, ensure that the AC
outlet is located / installed near the
unit and is accessible.
WARNING:
Batteries
(AA Size)
2
Battery Cover 1
Operating
Instructions
TO PREVENT THE RISK OF
ELECTRICAL SHOCK, DO NOT
EXPOSE THIS PRODUCT TO
RAIN OR ANY OTHER TYPE OF
MOISTURE.
1
Additional accessories are available
for purchase. Contact your
Panasonic Service Centre for further details.
2
650bx engversion 19 6 02
19/6/02
6:58 am
Page 3
Location
Insert the Batteries
For maximum distance noise-free
operation, place your base unit:
-Away from electrical appliances such
as TV, radio, personal computer or
another phone.
-In a convenient high and central location.
Wall Mounting
Please ensure the batteries are
inserted as shown.
This unit can be mounted on a wall.
Insert screws into wall. The centres of
the screw holes should be 6cm
vertically apart.
Connection
Plug in the AC adaptor and the telephone line cord in order #, $, %.
WARNING:
Connect the AC adaptor and the telephone line cord.
Arrange the wires as shown, then
mount the unit.
DO NOT CONNECT THE TELEPHONE LINE CORD TO THE
PHONE SOCKET & UNTIL THE
HANDSET IS FULLY CHARGED.
6cm
6v
#
LINE
&
$
%
All features of this type
will be marked throughout the manual with this
icon.
Hook
The AC Adaptor must remain connected at all times. (It is normal for
the adaptor to feel warm during use).
Please note throughout this operating instructions/Quick Guide that the
word “PRESS” is depicted by this
symbol Z.
3
Setting Up
Notice
Some features described in these
operating instructions/Quick Guide
are dependent upon subscription to
your Network provider (e.g Caller ID).
Fasten the AC adaptor cord to prevent it from being disconnected.
650bx engversion 19 6 02
19/6/02
6:58 am
Battery Charging
Page 4
Replacing the batteries
(Before Initial Use)
If the Û icon flashes after a few
telephone calls even when the handset batteries have been fully charged,
the batteries must be replaced.
! The batteries must be charged
for approximately 15 hours
before initial use.
After the batteries have been inserted
into the handset, place the handset in
the powered up base unit.
(The telephone line cord must not
be connected to the telephone
socket at this time. Please leave
your standard telephone connected until battery charging is complete).
The batteries are fully charged only
when Ò is flashing.
! Charge new batteries for
approximately 15 hours before
initial use.
(The telephone line cord must not
be connected to the telephone
socket at this time).
If the batteries are removed, the battery icon is reset to Û (less than
30% capacity). In this case, even if
fully charged batteries are fitted, the
icon remains as Û until a full
charge cycle is complete.
On replacing the batteries, ensure
that the correct battery type is selected (see ‘Handset Settings’).
(After Initial Use)
When the battery icon flashes (and, if
programmed, battery low alarm
sounds), the handset should be
charged immediately because there is
little energy left in the batteries.
Turning the Power ON/OFF
Turn Power ON
Battery Life
Z and hold ±.
When button is released, display
changes to the standby mode and a
confirmation tone sounds.
Using the Telephone
Battery life is dependent on use and
conditions but in general when using
fully charged Ni-MH batteries:
Talk time: 20hrs approx.
Standby time: 200hrs approx.
When using Ni-Cd batteries (based on
800mA per hour)
Talk time: 12hrs approx.
Standby time: 100hrs approx.
(Times indicated are for peak performance)
The batteries reach peak performance
after several full charges.
The batteries cannot be overcharged
unless they are repeatedly removed
and replaced.
If battery life is shortened then
please check that battery and charge
terminals are clean.
For maximum battery life it is recommended that the handset is not
recharged until battery icon flashes
Û).
(Û
Turn Power OFF
From the standby mode, Z and
hold ± until a long tone sounds.
The display goes blank. If you put the
handset in the base unit, the battery
icon will display.
Answering Calls
When the phone rings,
Z‰,K
K-I,N
N,J
J or L.
When an external call is incoming,
you can temporarily turn off the
handset ringer.
During an incoming call, Z and
hold U.È is displayed and the handset ringing stops. (This function will
not work when the handset is on the
base unit or if an internal call is
incoming.)
4
650bx engversion 19 6 02
19/6/02
6:58 am
Page 5
Making Calls
Making a Call from the
Redial List
Z‰.
Dial the number.
After a few seconds, the call duration
is displayed. The dialled number is
stored in the redial memory.
The last 10 numbers dialled are
stored.
From the standby mode ZX.
When you are finished with the
call, Z±.
Alternatively, dial the number,
then Z‰. This procedure
allows you to edit / confirm the
number before dialling.
If you misdial, ZW.
If Î flashes and an alarm tone
sounds when you press ‰,
move closer to the base unit and
try your call again.
ZS/U
U to select number.
(To exit the redial list, Z±).
Z‰.
Caller ID Service
Caller ID is a service of your
Network provider and will only
operate if you have subscribed to
this feature.
After subscribing to Caller
ID, this phone will display
the callers information.
If your unit is connected to a PBX or a
telephone line that does not support this
service you will not be able to use it.
Caller ID does not display caller
information while using the handset
for an intercom call. However, the
caller’s information will be stored to
the Caller ID List.
Setting the Receiver
Volume
During a phone call, Z S / U
to change the volume setting to
LOW (o), MEDIUM (oo) or HIGH
(ooo).
Handset Locator / Paging
Using this feature you can locate
a misplaced handset by paging.
ZÏ on the base unit.
All handsets ring for 1 minute.
ZÏ again orZ
Z‰ on (one of)
the handset(s) to stop ringing.
The last 50 caller’s phone numbers
are stored in the order the calls were
received.
U.
From the standby mode ZS/U
The newest number is displayed.
If there are no numbers stored
in the Caller ID list no item is
displayed.
ZS / U to select number.
ZU to scroll to previous calls
and S to the most recent calls.
Only the most recent call from
the same phone number is
stored.
Only 12 digits of a phone number are displayed. To display
the remaining digits of longer
phone numbers, ZC.
On selection Z‰.
Redialling
Redialling the Last Number
Dialled
Z‰.
ZX.
The last number dialled displays and
is dialled.
5
Using the Telephone
Making a Call from the
Caller ID List
650bx engversion 19 6 02
19/6/02
6:58 am
Making a Call from the
Caller ID List (cont.)
Page 6
I.
To add digits ZK-I
To clear digits ZW.
Either Z‰ to dial or to save
the number, ZY.
save speed is displayed.
ZY.
ZY to save.
After you have viewed a phone number, answered the call or called back
the caller, “⁄” is added to the caller’s
number.
After viewing all new caller ID numbers, the call counter is reset to zero.
To exit the Caller ID list Z±.
clear
(Clear a Number in the
List):
Caller ID List Menu /
Redial List Menu
ZV.
ZS / U to select yes (YES).
ZV.
cleared is displayed, a confirmation
tone sounds and the next number is
displayed. If you clear the last number, no item is displayed.
You can save numbers from the redial
list/Caller ID list into speed dial, edit
or clear from memory.
From the standby mode ZX
(to access Redial list) or ZS /
U (to access Caller ID list).
ZS / U to select number from
list.
all clear
ZV.
save speed is displayed.
(Clear all Numbers in the
List):
ZS / U to select a menu item
then follow the instructions
below.
ZV.
ZS / U to select yes (YES).
ZV.
A confirmation tone sounds and
cleared, then no item is displayed.
save speed
Using the telephone
(Save a Number in the List
as a Speed Dial):
To exit the menu at any time,
Z±.
ZV.
Á is displayed.
ZY.
edit call no
(Edit a Number in the List):
ZV.
ZT / V to move the edit point.
Digits are added or deleted to the left
of the flashing digit.
6
650bx engversion 19 6 02
19/6/02
6:59 am
Page 7
Speed Dialling
You can store up to 20 telephone
numbers in the handset.
ZV.
Storing New Numbers
ZS / U to select a menu item
then follow the instructions that
follow:
edit is displayed.
From the standby mode ZY.
new speed is displayed.
ZV.
Á and an index number 00 - 19 is
displayed.
*Enter a phone number (max 24
digits).
ZY.
saved is displayed. To enter another
number repeat from *.
If speed dial memory is full memory
full is displayed.
edit
(Edit the Speed Dial
Number):
ZV.
ZT / V to move the edit point.
Digits are added or deleted to the left
of the flashing digit.
To add digits ZK - I.
To clear digits ZW.
ZY to save.
Dialling Stored Numbers
ZÁ.
ZS / U to select number.
OR
Z00 - 19 to select index number
directly.
Z‰.
If you press W, or no digits are
entered for over 1 minute, speed dial
is cancelled.
clear
(Clear a Speed Dial
Number):
ZV.
ZS / U to select yes (YES).
ZV.
cleared is displayed, a confirmation
tone sounds and the next number is
displayed. If you clear the last
number, no item is displayed.
Saving Numbers to Speed
Dial from Other Lists
Please reference “Caller ID List
Menu/Redial List Menu”.
(Register a Speed Dial
Number as a Hot Key
A - I):
ZV.
ZS / U to select a key
from 1-9.
If a key has already been assigned as
a hot key, it will flash in the
display.
ZV.
ZS/U
U to select yes (YES).
ZV.
The speed dial number is displayed
and a confirmation tone sounds.
To exit the menu at any time,
Z±.
Speed Dial List Menu
You can edit or clear a speed dial
number from memory or assign a hot
key to any speed dial number.
From the standby mode ZÁ.
ZS / U to select number from
list.
7
Using the telephone
hot key reg
650bx engversion 19 6 02
19/6/02
6:59 am
Hot Key
Dialling a Hot Key Number
You can assign the dialling buttons
A - I as hot keys. You can
choose 9 phone numbers from the
speed dial list (See “Register a Speed
Dial Number as a Hot Key”).
Z and hold a key A - I.
The number stored with that key is
displayed.
ZS / U to view other numbers
stored.
Z‰ to dial.
Clearing Caller Information
from a Hot Key
Z and hold a key A - I.
The number stored with that key is
displayed.
ZV. clear is displayed.
ZV.
ZS / U to select yes (YES).
ZV.
Using the telephone
8
Page 8
650bx engversion 19 6 02
19/6/02
6:59 am
Page 9
Dialling Pause
Key Lock
You can lock the handset dialling buttons. Only incoming calls are accepted while the key lock is ON.
! This function is for PBX
line/long distance service users.
Turn Key Lock ON
A dialling pause is used when a
pause in the dialling of the phone
number is necessary using a PBX or
accessing a long distance service. (see
“Select Pause Timing”).
Z and hold Y until a beep sounds.
‘Ó’ is displayed and all dialling
buttons are locked.
! When the key lock is ON,
emergency calls cannot be made
until key lock is cancelled.
For example, when 9 (line access
number) is dialled followed by a
pause to access an outside line
through a PBX:
Turn Key Lock OFF
Z and hold Y until a beep sounds.
‘Ó’ disappears and key lock is cancelled.
The key lock is also cancelled if the
handset is turned off.
ZI.
ZX. (‘p’ is displayed on the
LCD).
Enter telephone number.
Z‰.
Entering a pause prevents misdialling when you redial or dial a stored
number.
Recall Feature
M is used to access special telephone services. Contact your Network
provider for details.
If your unit is connected to a PBX,
pressing M allows you to access
some features of your host PBX such
as transferring an extension call.
Pressing X once creates one pause.
To extend the pause requirement
time, ZX accordingly.
Additional Features
Temporary Tone Dialling
! This function is for Rotary or
Pulse service users.
ZJ before entering access numbers which require tone dialling.
The dialling mode is switched to tone.
You can enter numbers for dialling
which require tone dialling eg. electronic banking service.
When you hang up, the mode will
return to pulse.
9
650bx engversion 19 6 02
19/6/02
6:59 am
Page 10
Handset Settings
1
2
3
4
You can change the handset settings using a handset near the base unit.
Before proceeding with any of the main menu items listed in this chapter, the following procedure must initially be carried out:
From the Standby mode, ZV.
ZS / U to select setting hs (Setting Handset).
ZV.
ZS / U to select main menu items from below (see menus in shaded text
boxes):
To exit the menu at any time, Z±.
ZT or W to return to previous step during programming.
time alarm
ringer opt
(Alarm Settings):*
(Ringer Settings):
ZV.
ZS/U
U.
ZV.
ZS/U
U.
set time
ringer vol
(Set Time of Alarm):*
(Select the Handset Ringer
Volume):
ZV.
ZK - I to enter time (4 digits) - 24 hour clock. Digits are entered
over the flashing digit.
To clear ZW.
ZY to save.
ZS/U
U to select once (Once),
repeat daily (Repeat Daily) or
off (Off).
ZV.
ZV.
ZS/U
U to select Ringer Volume.
The choices are 6 levels or OFF.
ZV.
ext ringer
(Select Ringer Pattern for
External Incoming call)**
To program see ** below.
set alarm
int ringer
(Set Alarm):
Handset Settings
(Select Ringer Pattern for
Internal call)**
ZV.
ZS/U
U to select once (Once),
repeat daily (Repeat Daily) or
off (Off).
ZV.
To program see ** below.
paging
(Select Ringer Pattern for
Paging tone)**
To Stop Alarm
To program see ** below.
When the alarm sounds, Z‰,
K - I, J or L.
Alarm stops and display returns to
the standby mode. If once is selected,
the setting is turned off.
When in talk or intercom mode the
alarm will not sound until the call is
ended.
* For this feature to work you must
first set the Clock (see “Base Unit
Settings”).
alarm
(Select Ringer Pattern for
Alarm tone):**
** There are 20 patterns available
for each ringer option.
ZV.
ZS/U
U to select ringer pattern.
ZV.
10
650bx engversion 19 6 02
19/6/02
6:59 am
Page 11
Before programming, please follow steps 1 to 4 of ‘Handset Settings’.
! Time will only be displayed if
the clock has been set (see “Base
Unit Settings”).
tone opt
(Tone Settings):
talk mode
ZV.
ZS/U.
(Select Talk Mode Display):
key tone
ZV.
ZS / U to select from talk
time (Length of Call) or phone no
(Phone Number).
ZV.
(Set Key Confirmation
Tone ON/OFF)***
To program see *** below.
call waiting
(Set Call Waiting Tone
ON/OFF)***
call opt
(Call Options):
To program see *** below.
Call waiting tone sounds when an
incoming external call is received
during an intercom call.
ZV.
ZS / U.
call bar
range alarm
(Set Call Prohibition
ON/OFF):
(Set Range Alarm ON/OFF)***
To program see *** below.
Alarm will sound when you move out
of range of a base unit.
This allows you to make emergency
and intercom calls only.
ZV.
Enter handset PIN (4 digits).
If the PIN is incorrect an error tone
sounds.
ZS / U to select on (On) or off
(Off).
battery low
(Set Battery Low Tone
ON/OFF)***
*** Program as follows:
ZV.
ZS / U to select ON/OFF.
ZV.
ZV.
If on is selected, Ô is displayed.
(Enter a Direct Call
Number):
display opt
(Display Options):
After a Direct Call phone number has
been entered and Direct Call set to
ON, you can call the Direct Call number only, by pressing ‰. Incoming
calls are accepted.
ZV.
Enter phone number.
ZY.
ZV to save the entered number.
ZS / U to select on (On) or off
(Off).
ZV.
If on is selected, Ë is displayed.
ZV.
ZS / U.
standby mode
(Select Standby Mode
Display):
ZV.
ZS / U to select from bs no
(Base Unit number), hs no
(Handset Number), clock (Clock)
or off (Off).
ZV.
11
Handset Settings
direct no
650bx engversion 19 6 02
19/6/02
6:59 am
Page 12
Before programming, please follow steps 1 to 4 of ‘Handset Settings’.
set direct
battery type
(Set Battery Type Ni-MH /
Ni-Cd):
(Set Direct Call ON/OFF):
ZV.
ZS / U to select on (On) or off
(Off).
ZV.
If ON is selected, Ë is displayed.
Select the type of battery installed. If
the battery type selected is not the
same as the type of battery installed,
the battery level icons will not be correct.
ZV.
ZS / U to select ni-mh (Ni-MH)
or ni-cd (Ni-Cd).
ZV.
other opt
(Other Options):
ZV.
ZS / U.
registration
(Registration):*
hspin change
(Change Handset PIN):
ZV.
ZS / U.
Handset Settings
You can change the 4 digit password
for the handset. The factory preset is
0000.
ZV.
Enter current handset PIN (4 digits).
Enter new PIN (4 digits). (The new
PIN does not display).
Re-enter the new PIN. (If the PIN
is entered incorrectly, an error tone
sounds and display returns to
new pin ____.
! Once you have programmed the
password, you cannot confirm it. We
recommend you write down the
password. If you forget it, please
consult your nearest Panasonic
Service Centre.
register hs
(Registering a Handset to
a Base Unit)*
cancel base
(Cancelling a Base Unit)*
select bs
(Select Base Unit)*
*For information on registering
handset(s), cancelling and selecting
base unit(s), please refer to ‘For
Optional Multi-Unit Users’.
reset hs
(Reset the Handset
Settings):
auto talk
(Set Auto Talk ON/OFF):
You can reset all of the handset settings to their initial factory settings
(see ‘Handset Initial Settings’).
If you set Auto Talk to ON, you can
answer the phone by lifting the handset off the base unit.
ZV.
ZS / U to select on (On) or off
(Off).
ZV.
ZV.
Enter handset PIN (4 digits).
If PIN is correct, no is displayed.
ZS / U to select yes (Yes).
ZV.
cleared is displayed and display
returns to settings menu.
12
650bx engversion 19 6 02
19/6/02
6:59 am
Page a
A basic guide to operations & features.
Pull out this Quick Guide for easy reference
Quick Guide &
Useful Information
Function
Action
Switch handset on / off
Z± until a confirmation tone sounds.
Answer a call
Z‰.
Make a call
Dial the number and Z‰.
Hang up
Z±.
Turn Key Lock on/off
ZY and hold for more than 2 seconds.
Redial last number
Z‰, ZX.
Store a number
ZY. ZV enter number, ZY.
Dial a stored number
ZÁ. ZS/U to select a number, Z‰.
Dial from the Redial List
ZX. ZS/U to select a number, Z‰.
Adjust Receiver volume
ZS/U during a call.
Call another handset
ZN then the handset number.
Transfer a call
ZN enter the handset number, Z±.
Three way call
ZN enter the handset number, ZC.
Dial from the Caller ID List
ZS/U to select a number, Z‰.
a
650bx engversion 19 6 02
19/6/02
6:59 am
Page b
Your Guide to the Display
Note: The LCD display of the handset can display up to 7 segments and each
character will be displayed as shown in the following table. Some characters will
be displayed in a different way; for example, the character M is displayed n.This
is not a defect of the handset display, it is simply the representation of the characters used in this kind of display.
9
Display Message
Display Meaning
alarm
all clear
auto
auto talk
base
battery low
battery type
bs no
bs pin
call bar
call opt
call waiting
cancel base
clear
cleared
clock
direct no
display opt
edit
edit call no
Alarm
All Clear
Automatic
Automatic Talk
Base
Battery Low
Battery Type
Base Number
Base Unit Pin
Call Bar
Call Option
Call Waiting
Cancel Base
Clear
Cleared
Clock
Direct Number
Display Option
Edit
Edit a Call no.
ext ringer
hs no
hs pin
hs pin change
hot key reg
input code
int ringer
key tone
memory full
new speed
new pin
no
External Ringer
Handset Number
Handset PIN
Change Handset PIN
Register Hot Key
Input Code
Internal Ringer
Key Tone
Memory Full
New Speed
New PIN
No
b
650bx engversion 19 6 02
19/6/02
6:59 am
Display Message
Page c
Display Meaning
Ni-Cd
Ni-MH
No Item
Off
Old Pin
On
Once
Other Option
Out of Area
Paging
Phone Number
Private
Range Alarm
Register Handset
Registration
Ringer
Ringer Off
Ringer Option
Ringer Volume
Repeat Daily
Reset Handset
Save
Saved
Save Speed
Select Base
Set Alarm
Set Direct
Set Time
Setting Base
Setting Handset
Standby Mode
Talk Mode
Talk Time
Time Alarm
Tone Option
Verify
Volume
Yes
ni-cd
ni-nh
no item
off
old pin
on
once
other opt
out of area
paging
phone no
private
range alarm
register hs
registration
ringer
ringer off
ringer opt
ringer vol
repeat daily
reset hs
save
saved
save speed
select bs
set alarm
set direct
set time
setting bs
setting hs
standby mode
talk mode
talk time
time alarm
tone opt
verify
vol
yes
c
650bx engversion 19 6 02
19/6/02
6:59 am
Page d
Location of Controls
Handset controls
#
)
*
$
+
,
-
%
&
.
/
0
'
(
#
$
%
&
'
(
)
*
+
,
.
/
0
-
Receiver
Function/OK Button
Talk Off/Power Button
Cancel Button
Intercom Button
Charge Contact
Display
Speed Dial Button
Talk Button
Navigator Key
Redial/Pause Button
Recall Button
Charge Contact
Microphone
Base unit controls
- Page button
Handset Display
Icon
Displays
Flashes
Î
Within range of a base unit
Out of range
Ï
Intercom mode
Paging or another unit pages the
handset

Making or answering calls
Outside call is received
Û
Less than 30% battery capacity
Û - Recharge battery
Ú
30% to 50% battery capacity
Ò
50% to 100% battery capacity
Ë
In Direct Call mode
Ô
In Call Prohibition mode
Â
In setting mode
È
Ringer tone temporarily OFF
Ó
Key Lock ON
Á
Speed Dial List/Mode
d
Ò - Fully charged
650bx engversion 19 6 02
19/6/02
6:59 am
Page 13
Base Unit Settings
You can change the base unit settings using a handset near the base unit.
Before proceeding with any of the base settings listed in this chapter,
the following procedure must initially be carried out:
1 From the standby mode, ZV.
2 ZS / U to select setting bs (Setting Base).
3 ZV.
input code is displayed. From this display, follow the instructions after
each heading.
Please note: Where ‘Enter PIN’ is stated in this chapter, it refers to the 4 digit
Base Unit PIN. (The factory setting is 0000).
To exit the menu at any time, Z±.
Ringer Mode
Select Base Unit
Ringer Volume
To select all handsets to
ring
ZB twice.
ZK (Off) or A - C to
select volume.
ZV.
ZA.
Enter PIN.
ZA.
ZV.
To select specific handset(s) to ring
ZA.
Enter PIN.
ZB.
ZA - F to select handset(s).
The selected handsets will be flashing.
ZV.
You can change the dialling mode to
tone or pulse depending upon your
network service. If you have a touch
tone service, select tone. If you have
rotary or pulse service, select pulse.
To select specific handset(s)
then all handsets to ring
ZC.
Enter PIN.
ZA.
ZA for Tone
OR
ZB for Pulse
ZV.
The specific handset(s) will ring for a
selected number of rings. If not answered,
all handsets will ring.
ZA.
Enter PIN.
ZC.
ZA - F to select handset(s)
to ring.
ZV.
ZA - F to select number of
rings.
ZV.
13
Base Unit Settings
Select Dialling mode
(Tone/Pulse)
650bx engversion 19 6 02
19/6/02
6:59 am
Page 14
Before programming, please follow steps 1 to 3 of ‘Base Unit Settings’.
Select the Earth or
Flash Mode
If entered incorrectly, an error tone
sounds.
If entered correctly, a confirmation
tone sounds.
! Once you have programmed
the password, you cannot confirm it. We recommend you
write down the password. If you
forget it, please consult your
nearest Panasonic Service
Centre.
An earth relay can be installed as an
option depending on your PBX
requirements (see ‘Additional
Features’). Please consult your nearest Panasonic Service centre for
installation. On installation, you can
select flash or earth mode to suit
your PBX or network provider.
ZC.
Enter PIN.
ZB then B for earth mode
OR
ZB then A for flash mode.
If flash is selected and flash times are
required:
ZA for flash 1 (100 msec) or
ZB for flash 2 (600 msec) or
ZC for flash 3 (300 msec)
ZV.
Set Call Restriction
You can restrict selected handset(s)
from dialling selected phone numbers.
You can assign up to 6 call restriction
numbers (up to 8 digits).
ZF.
Enter PIN.
All registered handset numbers are
displayed.
ZA - F to select handset(s) to restrict.
The selected handset(s) will flash.
ZV.
Enter a restriction number (max.
8 digits).
(If you misdial ZW).
ZY to confirm restriction number.
To continue entering call restriction
numbers (max. 8 digits), enter the
number, then ZY.
On completion, ZY.
! If you dial a restricted number,
the call does not connect and
restricted number flashes.
Select Pause Timing
You can set the pause timing to 3 or 5
seconds, depending on your PBX
requirements (see “Dialling Pause”).
Base Unit Settings
ZC.
Enter PIN.
ZC.
ZA to select 3 seconds
OR
ZB to select 5 seconds.
ZV.
Set the 4 - Digit Base
Unit PIN
Cancel Call Restricted
Handset(s)
You can change the 4 - digit password
for the base unit. The factory preset
is 0000.
ZF.
Enter PIN.
ZA - F to select handset(s)
to cancel.
The selected handset(s) will stop
flashing.
ZV.
Z± to return to the standby mode.
ZE.
Enter PIN.
Enter New PIN (4 digits) twice.
14
650bx engversion 19 6 02
19/6/02
6:59 am
Page 15
Before programming, please follow steps 1 to 3 of ‘Base Unit Settings’.
Cancel Call Restricted
Numbers
ZF.
Enter PIN.
ZV.
ZW to cancel number.
ZY.
Z± to return to the standby mode.
Set the Clock
ZJ.
Enter a new time (4 digits) (24
ZK - I).
hour time) (Z
ZY.
! After a mains power failure the
clock needs to be reset.
Reset the Base Unit
Base Unit Settings
You can reset all of the base unit settings to their initial factory settings.
(see “Base Unit Initial Settings”).
ZK.
Enter PIN.
ZY.
! If the base unit is reset,
the Caller ID list will
clear.
15
650bx engversion 19 6 02
19/6/02
6:59 am
Page 16
Handset Initial Settings
To reset handset to initial settings refer to “Handset Settings”.
Function
Initial Setting
Time Alarm Mode
Alarm Time
Handset Ringer Volume
Handset External Ringer Pattern
Handset Internal Ringer Pattern
Handset Paging Tone Pattern
Handset Alarm Tone Pattern
Key Tone
Call Waiting Tone
Range Warning Alarm
Battery Low Alarm
Standby Mode Display
Talk Mode Display
Call Prohibition Mode
Direct Call Mode
Direct Call Number
4 Digit Handset PIN
Auto Talk
Base Unit Access
Handset Receiver Volume
Redial Memory
OFF
Clear
3
1
1
1
1
ON
ON
OFF
ON
Base Unit Number
Length of the Call
OFF
OFF
Clear
0000
OFF
Automatic Base Unit Access
2
All Clear
Base Unit Initial Settings
To reset base unit to initial settings refer to “Base Unit Settings”.
Function
Initial Setting
Initial Settings
Ringer Mode
Number of Rings
Dialling Mode
Earth/Flash
Flash Timing
Pause Timing
Call Restricted Handset(s)
Call Restriction Number(s)
Base Unit PIN
Base Unit Ringer Volume
All Handsets
3
Tone
Flash
600m seconds
3 seconds
All Clear
All Clear
0000
Medium
16
19/6/02
6:59 am
Operating Additional
Handsets
Page 17
NOTE: Calls are disconnected
when the handset moves from one
radio cell to another.
Additional KX-A120EX handsets are
available to purchase separately. Up
to 6 handsets can be registered to a
single base unit. Using additional
handsets allows you to have an intercom call while simultaneously conducting a call to an outside line.
Registering a Handset
to a Base Unit
The handset supplied with the base
unit is already registered. If an optional
handset is purchased, it must be registered as follows.
Operating Additional
Base Units
! Charge the optional handset
batteries for 15 hours before
initial use.
You can register and operate your
handset with up to 4 base units. Each
base unit forms 1 radio cell. If the individual bases are
linked to the
same telephone
line then
you can
2
1
extend
the operating
3
range of
the system
by positioning the
bases so
that the
two
radio
cells
4
overlap.
If the
handset is
5
set to AUTO
Radio Cell base selection, then in
Eg.
standby mode the handAdditional
set will automatically
handsets
swap to the second base
(KX-A120EX) if the range on the first
registered with base is exceeded.
1 From the Standby mode, ZV.
2 ZS / U to select setting hs
(Setting Handset).
3 ZV.
4 ZS / U to select:
registration
(Registration):
5 ZV.
register hs
(Register Handset):
ZV.
Z and hold Ï on the base unit
for 10 seconds. A base registration
tone sounds
! Handset must be registered within 1 minute. If over 1 minute
Z±, then restart registration.
ZS / U to select base 1-4
(base 1-4).
ZV.
Enter base unit PIN (4 digits factory preset is 0000).
ZV.
When handset and base unit
connect a confirmation tone
sounds.
If handset registration is not
successful within 5 minutes, an
error tone sounds.
2 base units.
It is not possible to
transfer calls between bases (only
between handsets linked to the same
base unit).
17
For Optional Multi-Unit Users
650bx engversion 19 6 02
650bx engversion 19 6 02
19/6/02
6:59 am
Cancelling a Handset
Page 18
Selecting a Base Unit
Each handset can cancel itself or
another handset.
When auto (Automatic Base Unit
Access) is selected, if you move outside of the radio range of the current
base unit the handset automatically
searches for other registered base
units.
From the standby mode, ZV .
ZS / U to select setting bs.
ZV.
ZG when input code is displayed.
When a specified base unit is selected,
the handset will access that base unit
only.
Follow steps 1 to 3 of “Registering a
Handset to a Base Unit”, then:
Enter base unit PIN (4 digits).
ZA - F to select handset
to cancel.
ZS / U to select:
ZY.
select bs
Cancelling a Base
Unit
(Select Base Unit):
ZV.
ZS / U to select auto or a specific base unit 1 -4 (only registered base unit numbers are displayed).
Follow steps 1 to 5 of
“Registering a Handset to a Base
Unit”, then:
ZS / U to select:
ZV to confirm selection.
Calls (both incoming and outgoing), can
be conducted only via the selected base
unit, even if the radio cells overlap with
neighbouring base units.
cancel base
(Cancel a Base Unit)
You can cancel any base unit that your
handset is registered to.
ZV.
Intercom Between
Handsets
Enter handset PIN (4 digits).
For Optional Multi-Unit Users
ZS / U to select base unit(s) to
cancel.
You can use your handsets as a 2-way
intercom. For example, when Handset 1
calls Handset 2:
ZV to set selection.
Selected base number(s) flash(es).
ZV.
Handset 1-
ZS / U to select yes (Yes) or no
(No).
ZN. Ï blinks.
ZV to confirm selection.
ZB (desired handset number).
If selection was yes, cleared is displayed briefly.
Handset 2 (ringing) Z‰ to answer.
Handset 1 and 2 Z± to end the call.
! Intercom calls can be conducted
within the radio cell of the current
base unit, but not with units in
neighbouring radio areas.
18
650bx engversion 19 6 02
19/6/02
6:59 am
Transferring Calls to
Another Handset
Page 19
Conference Calls
The intercom can be used during a
call to transfer an external call
between handsets that are registered
to the same base unit.
During a conversation in an external
call, you can make an intercom call to
another handset and then combine
the calls together to establish a conference call.:
For example, when handset 1 transfers a call to Handset 2:
Handset 1 -
Handset 1 -
ZN then
During the call,Z
ZB (desired handset
number).
The call is put on hold.
If there is no answer , ZN to
return to the caller.
During the call, ZN.
Ï is displayed and the call is put on
hold.
ZB (desired handset number).
A ring back tone is heard until
Handset 2 answers.*
Handset 2 (ringing) Z‰ or N to answer.
Handset 2 (ringing) -
Handset 1 -
Z‰ or N to answer.
Handset 1 & Handset 2 -
ZC to establish the conference call.
(Have conversation).
Handset 1 or Handset 2 -
Handset 1 -
Z± to end the conference call.
Z± to release the call for
transfer
OR
ZN to connect to external
caller again.
For Optional Multi-Unit Users
To transfer the call directly, without
speaking to the other handset:
Handset 1 Z± at *.
Handset 2 Z‰.
The transfer is complete.
If the transferred call is not answered
within 30 seconds, Handset 1 will
ring again. Z‰ to answer the call.
19
650bx engversion 19 6 02
19/6/02
6:59 am
Page 20
Before Requesting Help
If you experience any problems with the normal use of your apparatus, you
should unplug it from the telephone outlet and connect a known working telephone in its place. If the known working telephone still has problems, then please
contact the customer service department of your Network provider. If it operates
correctly, then the problem is likely to be a fault in your apparatus. In this case,
contact your supplier for advice. Your Network provider may charge you if they
attend a service call that is not due to apparatus supplied by them.
Problem
NO LCD display in
handset.
Handset will not turn
on.
Possible cause
• Handset not turned on.
• Turn on power (pg. 4).
• Batteries not inserted.
• Insert x 2 rechargeable batteries supplied (pg. 3).
• Place handset in base and
connect AC adaptor to base
and AC outlet (full charge
period 15 hrs).
• Clean charge / battery contact and retry charge.
• Connect AC adaptor to base
unit and AC outlet.
• Register handset to base.
• Batteries not charged.
Batteries charge icon
not counting up.
• Dirty charge contact.
• Base not powered up.
Î icon flashing.
Handset busy tone
heard when ‰ is
pressed.
No dial tone.
Before Requesting Help
Cannot dial out.
Base unit will not
ring.
Solution
• Handset not registered to
base.
• Handset out of range of
base.
• Handset out of range of
base.
• Another handset in use.
• Telephone line not connected.
• Call prohibition mode set.
• Particular dialled number
is restricted.
• Key lock mode ON.
• Base ringer turned off.
Handset will not
ring.
• Ringer switched off.
Last number redial
does not work.
No Caller ID number
displayed.
• Number exceeded 24 digits.
• Service not supplied.
• Caller has withheld info.
Û icon flashes.
• Battery low.
Transferring calls
on PBX not possible.
• Recall time incompatible.
20
• Move handset closer to
base.
• Move handset closer to
base.
• Wait for other user to complete call.
• Insert telephone cord to network.
• Turn feature off.
• Remove number from call
restricted list.
• Turn key pad lock OFF.
• Set ringer to one of 3 volume levels (see “Base Unit
Settings”).
• Set ringer to one of 6 volume levels (see “Handset
Settings”).
• Redial manually.
• Caller ID service must be
arranged with Network
provider.
• Recharge batteries.
• Change handset or PBX setting (see “Base Unit
Settings”).
650bx engversion 19 6 02
19/6/02
Problem
Cannot register
handset to base.
6:59 am
Page 21
Possible cause
Solution
• Max. number of bases
already registered to
handset.
• Max. number of handsets
already registered to base
unit.
• Wrong PIN number
entered (Default 0000).
• Delete unused base registrations from handset.
• Electrical noise in local
area.
• Delete unused handset registrations from base.
• If PIN number is lost, contact your Panasonic
Customer Care Helpline.
• Move base / handset away
from sources of electrical
noise ( e.g TV, radio ).
Technical Information
Standard:
Number of channels:
Frequency range:
Duplex procedure:
Channel spacing:
Bit rate:
Modulation:
RF Transmission Power:
Voice coding:
Operating range:
Power source:
Power consumption, base unit:
Operating conditions:
Dimensions, Base Unit:
Dimensions, Handset:
Telephone line cord length:
AC adaptor cord length:
DECT=(Digital Enhanced Cordless
Telecommunications).
GAP=(Generic Access Profile).
120 Duplex Channels.
1.88 GHz to 1.9 GHz.
TDMA (Time Division Multiple Access).
1728 kHz.
1152 kbit/s.
GFSK.
approx. 250 mW.
ADPCM32kbit/s.
Up to 300 m outdoors (line of sight), up to
50 m indoors.
AC Adaptor 220-240 V AC ~50/60Hz.
5 VA.
5o - 40oC, 20 - 80% relative air humidity (dry)
About (103mm x 122mm x 60mm) x 180gr
About (134mm x 46mm x 30mm) x 85gr
(without batteries)
About 2.3m
About 1.9m
• Specifications are subject to change.
• The illustrations used in this manual may differ slightly from the original device.
21
Before Requesting Help
Specifications:
650bx engversion 19 6 02
19/6/02
6:59 am
Page 22
Index
AC Adaptor
Accessories
Additional
Base Units
Features
Handsets
Alarm settings
Answering Calls
Auto Talk
Base Unit
connection
initial settings
PIN
reset
selection
settings
Batteries
caution
charging
insert
life
type
Battery Low Alarm
Index
Call Bar
Caller ID List
clear a number
clear all numbers
edit a number
making a call from
menu / redial list menu
save a number
Call Restriction
Calls
answer
finishing
hang up
making
redial
threeway
transferring
Cancel a Base Unit
Cancel a Handset
2,3,20,21
2
Clear Speed Dial Number
Clock
Conference Calls
Connection
Controls Location
17
9
17
10
4
12
3
16
14
15
18
13,14,15
2
4
3
4
12
11
Dialling
mode
pause
Direct Call Number
Display
guide
standby mode
talk mode
b
11
11
Earth Mode
Edit Speed Dial Number
14
7
Flash Mode
15
Handset
display
initial settings
locator
ON/OFF
paging
reset
ringer
tones
PIN
settings
Help
Hot Key Dialling
11
6
6
6
5
6
6
14
4
5
a
5
5
a
19
18
18
22
7
15
19
3
d
13
9
11
11
16,d
5
4
5
12
10
11
12
10,11,12
20
8
Icons
Intercom
d
18
Key
lock
tone
a,9
11
Making Calls
from the redial list
from the caller ID list
from the speed dial list
5
5
5
7
Network Dependent features
3
650bx engversion 19 6 02
19/6/02
6:59 am
Page 23
Index
ON / OFF
alarm
auto talk
call prohibition
direct call
key lock
power
tones
Paging
Pause Timing
Power ON / OFF
Pulse Dialling
Quick Guide
controls
display
icons
Range Warning Alarm
Recall
Receiver Volume
Redialling
Registering a Handset
Register Speed Dial Number
Reset Base
Reset Handset
Ringer Pattern
alarm
external
internal
paging
10
12
11
11,12
9
4
11
5
14
4
13
11
11
11
11
19
Volume
base unit
handset
13
10
Wall Mounting
3
a
d
b
d
11
9
5
5
17
7
15
12
10
10
10
10
Index
Safety
2
Setting Up
2,3
Specifications
21
Speed Dial
clear speed dial number
7
dialling stored numbers
7
edit speed dial number
7
register speed dial number
7
saving numbers to speed dial
7
storing new numbers
7
Technical Information
Telephone Line Cord
Three Way Conversation
Tone Dialling
Tone Option
battery low
call waiting tone
key tone
range alarm
Transferring a Call
21
2,3,21
19
13
23
650bx engversion 19 6 02
19/6/02
6:59 am
Page 24
MODEL No. KX-TCD650BX
For your future reference
Serial No.
(found on the bottom of the unit)
Date of purchase
Name and address of dealer
Technical specifications are subject to change.
Kyushu Matsushita Electric (U.K.) Ltd.
Pencarn Way, Duffryn, Newport, South Wales, NP10 8YE, United Kingdom
Printed in Thailand
QUQX00043ZA KU0602LL1
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
