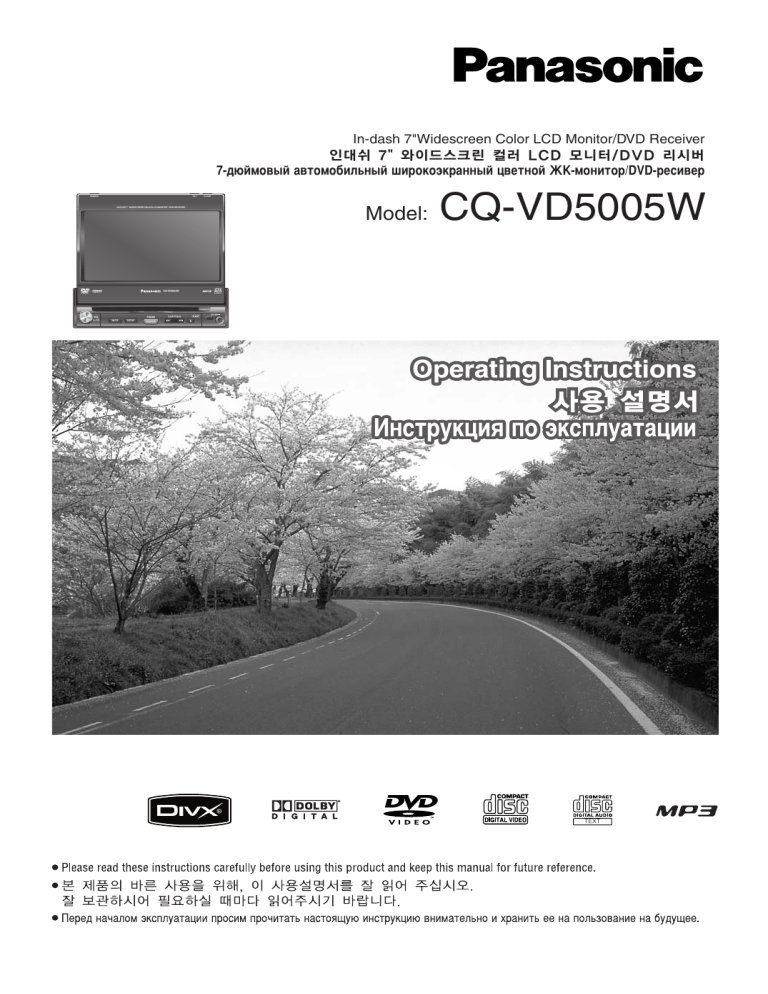

IN-DASH 7" WIDESCREEN COLOR LCD MONITOR / DVD RECEIVER
CQ-VD5005W
DIMMER
DIM
CQ-VD5005W
CQ-VD5005W
TEXT
TILT
OPEN
AV1 IN
VOL
PUSH SEL
POWER
MUTE
SETUP
TUNE/TRACK
SOURCE
TEXT
English
Safety Information
1
■ Read the operating instructions for the unit and all other
components of your car audio system carefully before using
the system. They contain instructions about how to use the
system in a safe and effective manner. Panasonic assumes
no responsibility for any problems resulting from failure to
observe the instructions given in this manual.
Warning
This pictograph intends to alert you to the presence of important operating instructions and
installation instructions. Failure to heed the
instructions may result in severe injury or
death.
Warning
Observe the following warnings when using
this unit.
❑ The driver should neither watch the display nor
operate the system while driving.
Watching the display or operating the system will distract
the driver from looking ahead of the vehicle and can cause
accidents. Always stop the vehicle in a safe location and
use the parking brake before watching the display or operating the system.
❑ Use the proper power supply.
This product is designed for operation with a negative
grounded 12 V DC battery system. Never operate this
product with other battery systems, especially a 24 V DC
battery system.
❑ Protect the Deck Mechanism.
Do not insert any foreign objects into the slot of this unit.
❑ Do not disassemble or modify the unit.
Do not disassemble, modify the unit or attempt to repair
the product yourself. If the product needs to be repaired,
consult your dealer or an authorized Panasonic Service
Center.
❑ Do not use the unit when it is out of order.
If the unit is out of order (no power, no sound) or in an
abnormal state (has foreign objects in it, is exposed to
water, is smoking, or smells), turn it off immediately and
consult your dealer.
❑ Refer fuse replacement to qualified service personnel.
When the fuse blows out, eliminate the cause and have it
replaced with the fuse prescribed for this unit by a qualified
service engineer. Incorrect replacement of the fuse may
lead to smoke, fire, and damage to the product.
■ This manual uses pictographs to show you how to use the
product safely and to alert you to potential dangers resulting
from improper connections and operations. The meanings of
the pictographs are explained below. It is important that you
fully understand the meanings of the pictographs in order to
use this manual and the system properly.
Caution
This pictograph intends to alert you to the presence of important operating instructions and
installation instructions. Failure to heed the
instructions may result in injury or material damage.
Observe the following warnings when
installing.
❑ Disconnect the lead from the negative (–) battery
terminal before installation.
Wiring and installation with the negative (–) battery terminal connected may cause electrical shock and injury due to
a short circuit.
Some cars equipped with the electrical safety system have
specific procedures of battery terminal disconnection.
FAILURE TO FOLLOW THE PROCEDURE MAY LEAD TO
THE UNINTENDED ACTIVATION OF THE ELECTRICAL
SAFETY SYSTEM RESULTING IN DAMAGE TO THE VEHICLE AND PERSONAL INJURY OR DEATH.
❑ Never use safety-related components for installation, grounding, and other such functions.
Do not use safety-related vehicle components (fuel tank,
brake, suspension, steering wheel, pedals, airbag, etc.) for
wiring or fixing the product or its accessories.
❑ Installing the product on the air bag cover or in a
location where it interferes with airbag operation
is prohibited.
❑ Check for piping, gasoline tank, electric wiring,
and other items before installing the product.
If you need to open a hole in the vehicle chassis to attach
or wire the product, first check where the wire harness,
gasoline tank, and electric wiring are located. Then open
the hole from outside if possible.
❑ Never install the product in a location where it interferes with your field of vision.
❑ Never have the power cord branched to supply
other equipment with power.
❑ After installation and wiring, you should check the
normal operation of other electrical equipment.
The continuation of their using in abnormal conditions may
cause fire, electrical shock or a traffic accident.
❑ In the case of installation to an airbag-equipping
car, confirm warnings and cautions of the vehicle
manufacturer before installation.
❑ Make sure the leads do not interfere with driving
or getting in and out of the vehicle.
❑ Insulate all exposed wires to prevent short circuiting.
2
CQ-VD5005W
Observe the following cautions when using
this unit.
❑ Keep the sound volume at an appropriate level.
Keep the volume level low enough to be aware of road and
traffic conditions while driving.
❑ Do not insert or allow your hand or fingers to be
caught in the unit.
To prevent injury, do not get your hand or fingers caught in
moving parts or in the disc slot. Especially watch out for
infants.
❑ This unit is designed for use exclusively in automobiles.
❑ Do not operate the unit for a prolonged period with
the engine turned off.
Operating the audio system for a long period of time with
the engine turned off will drain the battery.
❑ Do not expose the unit to direct sunlight or excessive heat.
Otherwise these will raise the interior temperature of the
unit, and it may lead to smoke, fire, or other damage to the
unit.
❑ Do not use the product where it will be exposed to
water, moisture, or dust.
Exposure of the unit to water, moisture, or dust may lead
to smoke, fire, or other damage to the unit. Make especially
sure that the unit does not get wet in car washes or on
rainy days.
❑ Set the volume level to low enough before the AUX
connection is completed.
Failure to observe this, the loud noise may come out and
damage your speakers and your hearing. Direct connection
of the speaker/headphone output of an external device
without any attenuator may distort sound or damage the
connected external device.
Observe the following cautions when
installing.
❑ Take care not to damage the leads.
When wiring, take care not to damage the leads. Prevent
them from getting caught in the vehicle chassis, screws,
and moving parts such as seat rails. Do not scratch, pull,
bend or twist the leads. Do not run them near heat sources
or place heavy objects on them. If leads must be run over
sharp metal edges, protect the leads by winding them with
vinyl tape or similar protection.
English
Caution
2
❑ Use the designated parts and tools for installation.
Use the supplied or designated parts and appropriate tools
to install the product. The use of parts other than those
supplied or designated may result in internal damage to the
unit. Faulty installation may lead to an accident, a malfunction or fire.
❑ Do not block the air vent or the cooling plate of the
unit.
Blocking these parts will cause the interior of the unit to
overheat and will result in fire or other damage.
❑ Do not install the product where it is exposed to
strong vibrations or is unstable.
Avoid slanted or strongly curved surfaces for installation. If
the installation is not stable, the unit may fall down while
driving and this can lead to an accident or injury.
❑ Installation Angle
The product should be installed in a horizontal position
with the front end up at a convenient angle, but not more
than 30˚.
The user should bear in mind that in some areas there may
be restrictions on how and where this unit must be
installed. Consult your dealer for further details.
❑ Wear gloves for safety. Make sure that wiring is
completed before installation.
❑ To prevent damage to the unit, do not connect the
power connector until the whole wiring is completed.
❑ Do not connect more than one speaker to one set
of speaker leads. (except for connecting to a
tweeter)
❑ Refer wiring and installation to qualified service
personnel.
Installation of this unit requires special skills and experience. For maximum safety, have it installed by your dealer.
Panasonic is not liable for any problems resulting from
your own installation of the unit.
❑ Follow the instructions to install and wire the product.
Not following the instructions to properly install and wire
the product could cause an accident or fire.
CAUTION:
• PLEASE FOLLOW THE LAWS AND REGULATIONS OF YOUR STATE, PROVINCE OR COUNTRY FOR WIRING,
INSTALLATION, AND USE OF THIS UNIT AND THE DEVICES TO BE CONNECTED.
CQ-VD5005W
3
English
Safety Information (continued)
3
Caution
THIS PRODUCT IS A CLASS I LASER PRODUCT.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE
OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR BY YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
This system is designed so that you
cannot see moving pictures while
you are driving.
¡Park your car in a safe place and pull the side
brake (parking brake) lever before watching the
monitor.
¡A rear monitor (option) displays moving pictures while driving.
Note:
¡Be sure to connect the side brake (parking
brake) connection lead. (a Installation
Instructions)
4
CQ-VD5005W
Liquid Crystal Panel
¡Do not cause impact to the liquid crystal panel.
¡Usage temperature range: 0 °C to 40 °C
When the temperature is very cold or very hot, the
image may not appear clearly or may move slowly.
Also, movement of the image may seem to be out of
synchronization or the image quality may decline in
such environments. Note that this is not a malfunction
or problem.
¡In order to protect the liquid crystal panel, keep it out
of direct sunlight while the unit is not in use.
¡Sudden changes in the temperature inside the car such
as those which occur immediately after the car’s air
conditioner or heater has been turned on may cause
the inside of the liquid crystal panel to cloud over due
to water vapor or it may cause condensation (droplets
of water) to form and, as a result, the panel may not
work properly. Do not use the unit while these symptoms are in evidence but leave the unit standing for
about and hour, and then resume or start use
English
Notes on Use
4
Before Reading These Instructions
Differences Among 4 Models
This operating instruction manual is for 4 models CQ-VD5005W2/CQ-VD5005W3/
CQ-VD5005W4 and CQ-VD5005W5.
The following table shows the playable region number for each model.
Model
Playable region number
CQ-VD5005W2
2 (ALL)
CQ-VD5005W3
3 (ALL)
CQ-VD5005W4
4 (ALL)
CQ-VD5005W5
5 (ALL)
Example:
2
3
4
5
2 3
4 5
ALL
“Before Disc Playback”
(a page 16)
Components
DIMMER
TILT
CLOSE
TILT
OPEN
1. Main Unit
(LCD monitor/DVD player)
IN-DASH 7" WIDESCREEN COLOR LCD MONITOR / DVD RECEIVER
CQ-VD5005W
DIMMER
DIM
CQ-VD5005W
Qty.: 1
TEXT
AV1 IN
VOL
PUSH SEL
POWER
MUTE
SETUP
TUNE/TRACK
SOURCE
XXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXX
XXXXXXXXXXXXXXXX
OO-OOOOO
2. Operating Instructions
<YFM284C684ZA>
Note:
¡The number in parenthesis underneath each accessory
part name is the part number for maintenance and
service.
¡Accessories and their parts numbers are subject to
modification without prior notice due to improvements.
Qty.: 1
XXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXX
XXXXXXXXXXXXXXXX
OO-OOOOO
3. Installation Instructions
<YFM294C104ZA>
Qty.: 1
4. Installation Hardware (screws,
cords, etc.)
(a Installation Instructions)
CQ-VD5005W
5
English
Features
Panasonic welcomes you to our constantly growing family of electronic products owners.
We endeavor to give you the advantages of precise electronic and mechanical engineering, manufactured with carefully
selected components, and assembled by people who are proud of the reputation their work has built for our company.
We know this product will bring you many hours of enjoyment, and after you discover the quality, value and reliability
we have built into it, you too will be proud to be a member of our family.
5
■ Integration of the monitor, FM/AM radio,
■
DVD Video/Video CD player and
CD/MP3/DivX player
Built-in AV Input/Output Terminals
For more convenient connection and setup, all terminals are now provided on the unit itself.
Note:
¡If a non-Panasonic product is connected to this unit,
we do not guarantee the operations of the product.
■ SQ (Sound Quality)
You have 6 preset modes (Flat, Rock, Pop, Vocal,
Jazz, Club). You can customize your setting for these
(except Flat) and save them for instant recall.
SQ3 (3-Band Sound Quality)
Center frequency and level are adjustable in each of 3
bands. This lets you fine-tune sound quality for each
genre to suit car-interior acoustics and your personal
preferences. (a page 35)
■ GUI (Graphic User Interface)
GUI displays various indications with colorful symbols to enhance visibility, enjoyment, and operability.
■ Disc type auto-detection
The signal auto-detection function of this unit allows
users to be free from selection between PAL and
NTSC before use of your discs. (For output signal,
set TV Type . (a page 36))
6
CQ-VD5005W
■ Touch Panel Operation
Simply touch the screen lightly to operate virtually all
functions. Easy-to-use menus and icons let you
“touch and choose” what you want, so you can start
using your system from the very first day. That also
means that while you drive, you can concentrate on
the road.
■ DVD–R, DVD–RW Playback
(a page 16, 44 for details)
■ ID code
4-digit ID code for increased security.
Fill in the ID code memo (a page 42).
Contents
English
2
한국어
48
êÛÒÒÍËÈ
94
¢ Safety Information .......................... 2
¢ Notes on Use ................................................... 5
¢ Before Reading These Instructions .............. 5
¢ Components .................................................... 5
¢ Features ........................................................... 6
¢ Contents .......................................................... 7
¢ Preparation...................................... 8
Settings, symbols used in this manual
¢ Name of Controls and Functions ................ 10
¢ Anti-Theft System ......................................... 11
¢ Touch Panel Operation Overview................ 12
¢ General .......................................... 14
Power on/power off, display open/close, source
selection, volume, mute, tilt angle, folding down the
display temporarily
¢ Before Disc Playback..................... 16
¢ Disc Player..................................... 18
¢ Notes on MP3/DivX ....................................... 22
¢ Radio.............................................. 24
¢ TV Tuner Control .......................... 26
¢ AV1/AV2 ......................................... 28
¢ Settings ......................................... 30
Setup operation
User, screen, audio, DVD, radio
¢ About DivX VOD Content ............................. 38
¢ Troubleshooting ........................... 39
¢ Maintenance .................................................. 43
¢ Notes on Discs .............................................. 44
¢ Language Code List...................................... 45
¢ Definition of Terms ....................................... 46
¢ Specifications................................................ 47
CQ-VD5005W
7
English
Preparation
7
Settings
User (user settings) ( a page 32)
clock, ID code, input select, memory clear, other
Screen (screen settings) (a page 34)
dimmer, picture, aspect
Audio (audio settings) (a page 35)
SQ3, bass/treble, balance/fader
DVD
(DVD settings) (a page 36)
language, display, down mix, dynamic range compression,
DivX registration
Radio
(radio settings) (a page 37)
FM set up
Note:
¡Refer to “Settings” (a page 30) for further information
about operations, settings, and others of the menu
screen.
You may need to set the following depending on the
devices to be connected.
AV1/AV2 (Camcorder, VCR, etc.)
¡Adjust
Input Select
. (a page 33)
Warning
¡When you connect external devices to AV1 IN/
AV2 IN (AV1/AV2), be sure to connect the side
brake connection lead (aInstallation Instructions).
8
CQ-VD5005W
English
Symbols used in this manual
Pictographs
Disc Marks
You can perform some operations of this unit in one or
more methods with the touch panel or remote control.
This book explains such operations in tabular form as follows. Refer to the following for the pictographs located in
the upper part of each table.
The following pictographs are used for the descriptions
of disc operation. (a page 17-21)
8
DVD : DVD
VCD : VCD (Video CD)
CD : CD
Compatible
Discs
MP3 : CD-Rs/RWs containing MP3 files
Compatible types of disc
The discs compatible with the targeted operation.
Compatible
Discs
DivX : CD-Rs/RWs or DVD-Rs/RWs containing DivX files
Operation on the Touch Panel
YouDisques
can use the touch panel to perform the targeted
compatiblesIf the operation is not executable with the
operation.
touch panel, “––” is displayed.
END
DVD
VTR
RADIO
CH-C
Compatible
Discs
Operation on the Main Unit
You can use the Main Unit to perform the targeted operation.
If the operation is not executable with the Main Unit,
Compatible
“––”Discs
is displayed.
Compatible
Discs
Discos
compatibles
Compatible
Discs
CQ-VD5005W
9
English
Name of Controls and Functions
!0 [TILT]
(Display Raised)
TILT
DIMMER
CLOSE
o [OPEN] (CLOSE)
IN-DASH 7" WIDESCREEN COLOR LCD MONITOR / DVD RECEIVER
9
q [DIM] (DIMMER)
Display
Disc slot
w [VOL]
(PUSH SEL)
CQ-VD5005W
DIMMER
DIM
CQ-VD5005W
TEXT
TILT
i AV1 IN
OPEN
AV1 IN
VOL
e [MUTE]
PUSH SEL
TUNE/TRACK
POWER
MUTE
SETUP
SOURCE
u [u]
r [SETUP]
t [SOURCE] (POWER)
y [s] [d] (TUNE/TRACK)
!0 [TILT]
(Display Closed)
DIMMER
q [DIM] (DIMMER)
DIM
CQ-VD5005W
TILT
OPEN
o [OPEN] (CLOSE)
AV1 IN
VOL
PUSH SEL
POWER
MUTE
SETUP
TUNE/TRACK
SOURCE
Remote control sensor
q [DIM]
(DIMMER)
¡The screen brightness is toggled between
the set level and maximum luminance.
u [u]
Note:
¡A disc is in the slot when this is illuminated in blue.
¡Adjusts the sound volume.
w [VOL]
(PUSH SEL) ¡Adjusts audio settings.
e [MUTE]
¡Mutes the sound temporarily.
r [SETUP]
¡Shows the setup screen.
t [SOURCE] ¡Switches on/off the power.
¡Changes the modes such as sound and
(POWER)
picture.
y [s] [d] ¡Selects or searches for a track, file, station.
(TUNE/TRACK)
¡Fast forward/fast reverse.
¡Slow playback ([d]).
10
CQ-VD5005W
¡Ejects/reloads a disc.
i AV1 IN
¡From line output of external audio/video
device. (a Installation Instructions)
o [OPEN]
(CLOSE)
!0 [TILT]
¡Opens/closes the monitor.
¡Adjusts the monitor position.
¡Tilts the monitor forward temporarily.
This unit is equipped with a removable face plate.
Removing this face plate makes the unit totally inoperable.
DIMMER
DIM
CQ-VD5005W
TILT
OPEN
English
Anti-Theft System
AV1 IN
VOL
POWER
PUSH SEL
MUTE
SETUP
TUNE/TRACK
SOURCE
10
Removable face plate
Remove the Face Plate
q Switch off the power of the unit.
w Hold the top and bottom of the center part of the face
plate and pull it down toward you.
e Pull the face plate toward you.
r Place the face plate into the case and take it with you
when you leave the car.
w
e
Install the Face Plate
q Engage the right and left concave parts (A) on the
lower rear side of the face plate with the convex parts
(B) of the main unit.
w Raise and press the face plate toward the main unit
until a click is heard while engaging (A) with (B).
q
Detection switch
(B)
(A)
(B)
(A)
w
Face Plate Removal Alarm
This alarm sounds to warn you not to forget to remove
the face plate before leaving your car.
This function is activated when Security Alarm is set to
On . (a page 33)
Caution
¡ Be sure to follow the procedure mentioned above to mount the face plate appropriately. Improper mounting such
as forcible mounting without engaging the concave parts with the convex parts may cause trouble.
¡ Use caution not to damage the detection switch while mounting the face plate. Failure to observe this may cause
trouble.
¡ Use caution not to apply excessive force to the removed face plate when the plate is carried or stored. Failure to
observe this may cause trouble. It is recommended not to put the removed face plate into the pocket directly but
to use the optional storage case (YEFA134269). (For the optional storage case, ask your dealer.)
¡ This face plate is not waterproof. Do not expose it to water or excessive moisture.
¡ Do not remove the face plate while driving your car.
¡ Do not place the face plate on the dashboard or nearby areas where the temperature rises high.
CQ-VD5005W
11
English
Touch Panel Operation Overview
11
❒ Notes on the Touch Panel
Before operation
¡Clean the surface of the touch panel. (a page 43)
Operation
¡Use only your fingers to operate the touch panel.
¡Do not press the panel forcefully.
¡Do not scratch the panel with fingernails or any
hard objects.
¡Do not use a pen or other sharp implements to
operate the touch panel.
¡Do not bump the front panel.
a Failure to observe the above may damage or
break the glass on the surface of the touch
panel.
The State of Operation Screen
Example: DVD mode
Note:
¡The following picture is partly darkened for explanation.
¡Displaying contents and their positions partly vary with each mode. Refer to the description of each mode for details.
Aspect Button (a page 34)
(only for video source)
Current
mode
Disc indicator (a page 17)
(Lights when a disc is loaded)
Prohibition
Input is not possible because the user has
attempted to perform an operation which
is not supported by the disc contents.
Clock time (a page 32)
Source Button
Setup Button
(Content varies with each
source)
Displays the Source Selection Screen.
Source Selection Screen
Source Selection Screen appears.
Touch desired source button.
Touch
to quit.
Press [SOURCE] to change to
desired source.
Note:
¡The screen above appears when no external
device is connected to AV1, AV2.
12
CQ-VD5005W
Displays the Setup Screen.
Setup Screen
Setup Screen appears. Select desired setting.
Setup menu, (a page 30)
Press [SETUP] to let Setup
Screen appear.
English
Switching the Display
Note:
¡Refer to the instructions of each source.
12
Audio Source
❒ CD
Touch
.
Touch
.
Operation Screen
List Screen
❒ MP3
Touch
.
Touch
Operation Screen 1
(folder/file name)
.
Operation Screen 2
(ID3 tag)
Touch
List Screen
.
Video Source
Note:
¡ To switch Operation Screen on, touch the center of touch panel. (Touch
to cancel)
¡ If no operation takes place for more than 10 seconds when Operation Screen is ON, Operation Screen is turned off.
❒ DVD
Touch
.
Touch
.
Touch
.
Touch
.
Operation Screen 1
Operation Screen 2
Operation Screen 3
❒ DivX
Touch
.
Touch
Touch
Operation Screen 1
.
.
Operation Screen 2
Touch
List Screen
.
CQ-VD5005W
13
English
General
[VOL]
[TILT]
DIM
DIMMER
CQ-VD5005W
[OPEN]
TILT
TILT
OPEN
OPEN
13
AV1 IN
VOL
TUNE/TRACK
POWER
PUSH SEL
MUTE
SETUP
[MUTE]
SOURCE
[SOURCE]
(POWER)
Preparation: Turn your car’s ignition key to the ACC or ON position.
General Operations
Operations
Power
Power
ON :
–
[SOURCE]
END
DVD
VTR
RADIO
CH-C
OFF :
–
[SOURCE]
Display Open/Close
–
[OPEN]
¡Press once to open. Press again to close.
Note:
¡When the display is opened or closed, a loud beep sounds three times.
¡If the unit stops halfway, press [OPEN] again to draw it all the way out.
¡Opening/closing the display can be done when the power is off.
Source selection
(a page 12)
[SOURCE]
RADIO (AM/FM)
(a page 24)
DVD (DVD/VCD (Video CD)/CD/MP3/DivX)
(a page 18)
AV1/AV2
(a page 28)
Note:
¡If there is no external sources connected, AV1/AV2 mode can be set
to skip. (a page 33)
Volume
Note:
¡The sound level for
each source is
stored in memory.
–
w
q
q Up
w Down
Setting range: 0 to 40, default: 13
Note:
¡ The volume level can be set independently for each source and each
disc format.
…… Touch/Press and hold for more than 2 seconds
14
CQ-VD5005W
English
14
General Operations (continued)
Operations
Mute
–
[MUTE]
END
Tilt Angle
–
DVD
VTR
RADIO
CH-C
[TILT]
Mutes the sound.
To cancel, press again.
q Press and hold for more than 2 seconds.
w Touch to adjust.
or
Setting range: 1 to 5
default: 5
AUTO
–
the monitor is opened automatically when turning ON ACC.
MANUAL
–
the monitor is not opened automatically.
default:
MANUAL
Warning
1
5
¡Do not touch the unit while the display is moving. Inserting hands, fingers or foreign objects into the unit can cause injuries and damage to the unit.
Note:
¡Vertical angle (TILT) is saved in the memory, so when the display is drawn out next, it
is automatically set at the angle and in the position adjusted before.
¡After adjusting its angle, also adjust the brightness as well. (a page 34)
¡The car model and installation conditions may impose some restrictions on the
adjustment of the monitor's angle.
Folding Down the
Display
Temporarily
–
[TILT]
To raise the display, press again.
Note:
¡Even when the unit power is off, you can fold down the display temporarily.
Caution
¡Avoid physical shock to the monitor.
¡Do not place any object on the display, or subject it to undue force.
¡Do not move the display forcibly.
¡The monitor movable range may be limited by the type of car, the position where
the display is mounted, etc.
CQ-VD5005W
15
English
Before Disc Playback
15
Discs that can be Played Back
❒ Disc Type
DISC
DVD
VCD
(Video CD)
CD
CD-R/RW
Recordable
¡DivX files recorded on CD-Rs/RWs and DVD-Rs/RWs
are playable. Refer to “Notes on MP3/DivX” for further
information. (a page 22)
ReWritable
❒ Symbols used on jackets
Mark/logo
TEXT
❒ About DivX
(Examples of such symbols include)
(IEC62107)
Disc Size
Video
Format
Audio
Format
12 cm
NTSC / PAL
LPCM,
MPEG1,
MPEG2,
Dolby
Digital
LPCM
(CD-DA*1),
MPEG1,
MPEG2
(SVCD)
2
¡
LPCM (CD-DA*1),
MP3
¡ 2
: Number of audio tracks
¡
: Number of angles
3
The numbers indicate the number of languages, tracks,
angles, etc., recorded on the disc.
Region No. 2, 3, 4, 5, ALL*2
Screen size (H:V aspect ratio)
*1 CD-DA : A general music CD format.
Note:
¡Only discs with logos shown in the “Mark/logo” row of
the table above are playable.
¡About CD-Rs and CD-RWs, refer to “Notes on CDRs/RWs, DVD-Rs/RWs”. (a page 44)
¡Some copy-protected music CDs are not playable.
¡Even if you play a dts DVD or a dts CD, analog sound cannot be reproduced.
¡
4:3
: 4:3 standard size
¡
LB
: Letterbox (a page 36)
¡ 16:9 wide size
16:9 LB
16:9 PS
❒ Notes on DVD-Rs/RWs
¡Do not mix DVD-Video formatted data and other formatted data on the same disc.
¡Discs in the video recording (VR) format are
unplayable.
¡Unfinalized discs are unplayable.
¡Use disc-at-once recording for DVD-R DL (double-layer).
¡Some discs are unplayable depending on the disc itself,
device, drive and software that are used for disc recording.
❒ Discs not supported
The following discs are not played back on this product.
¡DVD-Audio
¡DVD-ROM
¡DVD-RAM
¡DVD+R
¡DVD+RW
¡VSD
¡CVD
¡CD-G
¡CD-ROM (except MP3)
¡CD-RW (except MP3/DivX and CD-DA)
¡CD-R (except MP3/DivX and CD-DA)
¡SACD
¡Photo CD
¡CDV
¡Hybrid SACD (except CD-DA)
¡CD-EXTRA (audio-only playback possible)
¡DVDs with a region number other than “2”, “3”, “4”,
“5” or “ALL”*2
¡Playing back a photo CD disc with this unit could
damage the data that is recorded on the disc.
16
: Number of subtitle languages
CQ-VD5005W
: Playback in letterbox format on a standard
screen (4:3).
: Playback in Pan & Scan (pan and scan)
(a page 36) format on a standard screen
(4:3).
Note:
¡The size of the image that is displayed on the screen
depends on the screen mode ( Aspect a page 34), and
on the screen size for the content on the disc.
❒ Region Management Information
This product is designed and manufactured to respond to
the Region Management Information that is recorded on
a DVD disc. If the Region number described on the DVD
disc does not correspond to the Region number of this
product, this product does not play the disc.
*2The Region number for this product is “2” (for CQVD5005W2),“3” (for CQ-VD5005W3), “4” (for CQVD5005W4), “5” (for CQ-VD5005W5) or “ALL”.
Example:
2
3
4
5
2 3
4 5
ALL
English
Disc Insert/Eject
■ When a disc is in the player...
16
DIMMER
TILT
CLOSE
TILT
OPEN
IN-DASH 7" WIDESCREEN COLOR LCD MONITOR / DVD RECEIVER
Printed side
CQ-VD5005W
DIMMER
Caution
CQ-VD5005W
TEXT
[u] (eject)
lights.
AV1 IN
VOL
PUSH SEL
¡When the disc is inserted or ejected, to prevent disc
scratches never exert any downward force on the
disc.
Disc Insert
DIM
DVD VCD CD MP3 DivX
CH-C
¡The mode that supports the disc is selected, and playback starts.
DVD VCD DivX
¡The audio format is automatically identified.
(a page 16)
¡When the menu screen appears, see “Chapter/title
Selection” on page 20.
When a disc is in the player, change to disc player
mode (CD, MP3, DivX, DVD or VCD (Video CD)) and
playback starts.
Note:
¡Do not insert a disc when the eject button
lights because a disc is already loaded.
¡The power will be turned on automatically when a disc
is loaded.
¡You can play a disc even if the monitor is closed.
POWER
MUTE
SETUP
TUNE/TRACK
SOURCE
Do not insert a disc when the eject button
because a disc is already loaded.
Disc Eject
DVD VCD CD MP3 DivX
lights
CH-C
Press [u] to stop playback and eject the disc.
(Press [u] again to reload the disc.)
Note:
¡If you leave a disc in the slot for more than 30 seconds
after its ejection, the disc will be automatically reloaded
after loud beep is energized three times.
DVD VCD CD MP3 DivX
CH-C
¡Due to limitations of certain discs, some DVD and
VCD (Video CD) discs may not operate as described
in this manual. Refer to the disc jacket for further
details.
¡This unit does not support DVD and VCD (Video
CD) karaoke functions.
DVD VCD DivX
¡The sound may be interrupted for a few moments
while the audio format is being identified.
Caution
¡Do not use irregularly shaped discs.
¡Do not insert foreign object into the disc slot.
¡This unit does not support 8-cm disc. In case of
load such a disc, eject and remove the disc from
the slot immediately.
CQ-VD5005W
17
English
Disc Player
Source Button
Source Selection
DIMMER
q Touch “Source Button”.
TILT
CLOSE
TILT
OPEN
IN-DASH 7" WIDESCREEN COLOR LCD MONITOR / DVD RECEIVER
d
(DVD)
w Touch
on the Source
Selection Screen.
17
CQ-VD5005W
DIMMER
Press [SOURCE] to change to the
desired mode.
To switch Operation Screen ON, touch the center of
touch panel. (Only for Video Mode)
DIM
TEXT
CQ-VD5005W
AV1 IN
VOL
POWER
PUSH SEL
SETUP
MUTE
TUNE/TRACK
SOURCE
[SOURCE]
Repeat/random indicator
[s] [d]
Video Mode Display
VCD (Video CD)
DVD
Source Button
Playing time
Operation Buttons
Source Button
DivX
Playing time
Playing time
Operation Buttons
Operation Buttons
List (Folder/File/Track) Selection
Audio Mode Display
MP3
Playing time
Source Button
(Example: MP3 mode)
: Folder
Source Button
: MP3/DivX file
Folder selection
Title/text scroll
q Touch
(folder name) to select a folder.
,
: scrolls up/down the file list
by 1 page.
,
: scrolls up/down the file list
by 1 line.
w Touch
(file
name) to play.
END
Operation Buttons
Note:
to change the display. (a page 13)
¡Touch
CD
Current track
Source Button
Operation Buttons
18
CQ-VD5005W
Playing time
Title/text scroll
DVD
VTR
RADIO
CH-C
Note:
¡[s] and [d] of the main unit can scroll up and
down the file list by 1 page, respectively, too.
¡It is not possible to display the whole tree and file list
in a folder.
¡The displayed contents on the touch panel vary with
circumstances.
English
Basic Operations
Operations
Operations
Compatible
Discs
18
Track/file Selection
DVD VCD
CD
Compatible
MP3
DivX
Discs
DVD
Fast Forward/
Fast Reverse
Disques
DVD VCD
compatibles
CD
MP3 DivX
Compatible
DVD VCD DivX
Discs
Next track/file
[d]
[s]
DVD
VTR
RADIO
CH-C
END
Note:
¡When playing a DVD, there are cases where it is not possible to return to
the start of a chapter that spans 2 titles.
Fast forward
Release to resume playback.
Fast reverse
[s]
Release to resume playback.
The speeds of fast forward and fast reverse change incrementally in 4 steps
every time the corresponding button is pressed.
[d]
Folder Selection
–
MP3 DivX
Title/text Scroll
Beginning of the current track/file
Previous track/file (Touch/press twice.)
Next folder
Previous folder
Compatible
Discs
CD MP3 DivX
–
Scrolls the title/text once
–
To resume playback, touch
–
To resume playback, touch again or touch
.
DVD VCD
Stop
Compatible
CD
Discs
.
MP3 DivX
DVD VCD
Pause
CD
Discos
MP3 DivX
compatibles
Slow Playback
[d]
DVD VCD
DivX
Compatible
Discs
Repeat Play
¡Touch/press and hold in the pause mode.
Playback is at about 1/3 normal speed.
To resume normal playback, touch
.
Note:
¡Reverse slow playback is not possible.
DVD VCD
*
–
To cancel, touch again.
MP3 DivX
–
To cancel, touch and hold for more than 2 seconds again.
CD
–
To cancel, touch again.
–
To cancel, touch again.
–
To cancel, touch and hold again.
CD
MP3 DivX
Repeat Play within the
Current Folder
Scan Play
Random Play
*
CD
*
MP3 DivX
Random Play within the
Current Folder
MP3 DivX
*
…… Touch/Press and hold
* Touch panel symbols will change to indicate these current mode.
,
(
= folder)
CQ-VD5005W
19
English
Disc Player (continued)
To switch Operation Screen ON, touch the center of touch panel.
Chapter/title Selection
Operations
Operations
19
Showing menu and
selecting an item
Compatible
Discs
Compatible
Discs
DVD
* Note on VCD:
For VCD, touch
instead of
.
1
VCD
END
*
1
DVD
VTR
RADIO
CH-C
d
d
*1
Disques
compatibles
q Menu appears.
–
or
–
w Select the desired item.
–
d
e Determine the setting.
–
Returns to the previous display.
–
q Toggles “Chapter number input
mode”, “Title number input mode”
and “Number input mode”.
d
*2
Compatible
Discs
Starting Playback
from a specific
chapter/title
Touch the numerical
key to enter a number
directly
Compatible
Discs
DVD
VCD
Compatible
Discs
d
to
–
d
d
w Input desired number.
d
–
e Playback starts.
Note:
¡For retrying selection during number entry, touch
.
Discos
compatibles
Note:
, the operation buttons disappear.
¡If no operation is performed for 8 seconds after you have touched
¡If the title/chapter number is inputted and no operation is performed for 8 seconds, playback will start from the number of the title/chapter entered.
Compatible
Discs
Showing Source button and Setup button
*2 On-Screen Direct Operation (Only for DVD)
Press
. The Source button and Setup button
Some DVDs allow you to operate the DVD menu by
appear.
touching the screen.
Source Button
(a page 12) Setup Button
(a page 12)
Moving operation buttons (Only for DVD)
When the operation buttons interfere with operations,
press
. The buttons are transferred as shown
below.
20
CQ-VD5005W
English
DVD mode display
Chapter/title selection
Fast forward/fast reverse
Touch
.
Touch
.
Touch
.
Touch
.
Repeat play
Stop/pause/play
Return
20
Audio Language/
Angle/
Subtitle Language
DVD menu
Useful Function
Operations
Operations
Compatible
Discs
Subtitle Language
–
Compatible
DVD
Discs
DivX
Audio Language
Angle
It is possible to change the subtitle language during play if multiple languages are recorded on the disc.
Note:
¡There may be a brief delay before the subtitles appear.
Disques
compatibles
DVD
DivX
¡Touch during playback.
END
DVD
VTR
RADIO
CH-C
–
¡Touch during playback.
It is possible to change the audio language during play if multiple audio languages are recorded on the disc.
Compatible
Discs
–
¡Touch during playback.
For DVDs which contain scenes which have been shot simultaneously from
a number of different angles the same scene can be viewed from each of
Compatible these different angles during play. ( Angle Mark a page 36)
Discs
DVD
Stereo & Monaural
–
VCD
Compatible
Discs
Discos
compatibles
It is possible to switch the audio between stereo sound and monaural sound
(L or R).
ST
d
L-ch
d
R-ch
: stereo sound
: the left channel audio is output on both the left and
right speakers.
: the right channel audio is output on both the left and
right speakers.
Compatible
Note:
Discs
is touched , the operation buttons disappear.
¡If no operation is performed for 10 seconds or
¡It may not be possible to switch the language unless the unit is at the DVD menu (a previous page) or is at the DVD
settings. (a page 36)
¡The language on the DVD settings takes priority when the power is turned on or the disc is loaded.
¡The number of languages and angles depend on the disc. Some discs have only one language/angle or have no language/angle.
CQ-VD5005W
21
English
Notes on MP3/DivX
21
What is MP3/DivX?
Display Information (on the Main Unit)
MP3*: MP3 (MPEG Audio Layer-3) is the compression format
of digital audio. It is developed by MPEG (Motion Picture
Experts Group). Using this compression format, you can
record the contents of about 10 music CDs on a single CD
(This figure refers to data recorded on a 650 MB CD-R or CDRW at a fixed bit rate of 128 kbps and a sampling frequency of
44.1 kHz).
Displayed items
*MPEG Layer-3 audio coding technology licensed form
Fraunhofer IIS and Thomson.
Displayable characters
DivX: The video compression format developed by DivX, Inc.
compresses video files without any considerable loss of video
quality.
Note:
¡MP3/DivX encoding and CD writing software programs are
not supplied with this unit.
Points to remember when making MP3/DivX files
Common
¡High bit rate and high sampling frequency are recommended
for high quality sound.
¡Selecting VBR (Variable Bit Rate) is not recommended
because playing time is not displayed properly and sound
may be skipped.
¡The playback sound quality differs depending on the encoding circumstances. For details, refer to the instructions of
your own encoding software and writing software.
MP3
¡ It is recommended to set the bit rate to “128 kbps or more”
and “fixed”.
DivX
¡DivX files greater than 2GB or having no index may not play
properly on this unit.
¡This unit supports all resolutions up to maximum of 720 x
480 (NTSC)/720 x 576 (PAL).
¡You can select up to 8 types of audios and subtitles on this
unit.
¡ GMC (Global Motion Compensation) is not supported.
Caution
¡ Never put “.mp3” to other than MP3-formatted
data or “.DIVX”, “.divx”, “.AVI”, and “.avi” to
other than DivX-formatted data. This may not
only produce noise from the speaker damage,
but also damage your hearing.
22
CQ-VD5005W
¡ CD-TEXT
Disc title
Track title
¡ MP3/DivX
Folder name
File name
¡ MP3 (ID3 tag)
Album name
Title and artist name
¡Displayable length of file name/folder name: within 64 characters. (Unicoded file and folder names are reduced by half
in the number of displayable characters.)
¡Name files and folders in accordance with the standard of each
file system. Refer to the instructions of writing software for
details.
¡ASCII character set can be displayed.
¡Some Cyrillic characters in the Unicode can be displayed.
ASCII character set
A to Z, a to z, digits 0 to 9, and the following symbols:
(space) ! ” # $ % & ’ ( ) * + , - . / : ; < = > ? @ [ \ ] ˆ _ ` { | } ~
Note:
¡With some software in which MP3/DivX format files have been
encoded, the character information may not be displayed properly.
¡Undisplayable characters and symbols will be converted into
an asterisk ( ).
¡It is recommended that the length of the file name is less
than 8 (excluding the file extension).
*
¡ You may encounter trouble in playing MP3/DivX files or displaying the information of MP3/DivX files recorded with certain writing software or CD/DVD recorders.
¡ This unit does not have a play list function.
¡ Although Multi-session recording is supported, the use of
Disc-at-Once is recommended.
English
Recording Recording
MP3/DivX
MP3/WMA
files onfiles
a CD/DVD-media
on a CD-media
¡ It is recommended not to use a disc holding two or more
different format types of files.
¡ If CD-DA files are on the same disc as MP3 or DivX files,
the songs and the movies may not play in the intended
order, or some songs or movies may not play at all.
¡ When storing MP3 data and DivX data on the same disc,
use different folders for each data.
¡ Do not record files other than MP3/DivX files and unnecessary folder on a disc.
¡ The name of an MP3/DivX file should be added by rules as
shown in the following descriptions and also comply with
the rules of each file system.
¡ The file extension “.mp3” should be assigned to MP3 files.
¡ The file extension “.DIVX”, “.divx”, “.AVI” or “.avi” should be
assigned to DivX files.
22
Supported file systems
ISO 9660 Level 1/Level 2, Apple Extension to ISO 9660, Joliet,
Romeo
Note:
¡ Apple HFS, UDF 1.50, Mix CD and CD Extra are not supported.
Audio compression formats (Recommendation: “Points to remember when making MP3/DivX files” on the previous page)
Compression method
Bit rate
VBR
Sampling frequency
MPEG 1 audio layer 3 (MP3)
32 k – 320 kbps
Yes
32, 44.1, 48 kHz
MPEG 2 audio layer 3 (MP3)
8 k – 160 kbps
Yes
16, 22.05, 24 kHz
DivX data created using ver.3.11, 4.x, 5.x* 8 k – 320 kbps
Yes
8 k – 48 kHz
* DivX video system/MP2, MP3
Note:
¡ VBR is not recommended.
Folder selection order/file playback order
Maximum number of files/folders
¡ Maximum number of files: 999
¡ Maximum number of files in one folder: 999
¡ Maximum depth of trees: 8
¡ Maximum number of folders: 255 (Root folder is included.)
Root Folder
(Root Directory)
1
2
q
Folder Selection
3
w
In the order
1
–
8
4
e
Note:
¡ You can shorten the duration between data read and
5
playback by decreasing the quantity of files or folders, or
the depth of the hierarchy.
¡ This unit counts the number of folders irrespective of the
presence or absence of an MP3/DivX file.
¡ If the selected folder does not contain any MP3/DivX files,
the nearest MP3/DivX files in the order of playback will be
played.
¡ Playback order may be different from other MP3/DivX players even if the same disc is used.
¡ “ROOT” appears when displaying the root folder name.
6
File Selection
In the order
–
y
q
r
7
8
Tree 1
Tree 2
Tree 3
t
y
Tree 4
Tree 8
(Max.)
Copyright
No warranty
It is prohibited by copyright laws to copy, distribute and
deliver copyrighted materials such as music without the
approval of copyright holder except enjoying yourself
personally.
The above description complies with our investigations as of
December 2006. It has no warranty for reproducibility and
displayability of MP3/DivX.
CQ-VD5005W
23
English
Radio
Source Button
Frequency
Source Selection
q Touch “Source Button”.
DIMMER
d
All
TILT
CLOSE
TILT
OPEN
IN-DASH 7" WIDESCREEN COLOR LCD MONITOR / DVD RECEIVER
w Touch
(RADIO) on the
Source Selection
Screen.
23
/
Each
indicator
*List selection
Band selection
Preset stations
CQ-VD5005W
DIMMER
DIM
Press [SOURCE] to change to the
desired mode.
CQ-VD5005W
TEXT
AV1 IN
VOL
PUSH SEL
POWER
MUTE
SETUP
TUNE/TRACK
SOURCE
[SOURCE]
[s] [d]
* Appears only when
Setup e Radio e
All
FM Setup
is selected. (a page 37)
e Auto Preset e Each
/
Auto presetting
All
Tuning
Operations
Band Selection
–
END
List Selection
Refer to the next page.
Each
FM 1
All
FM
DVD
VTR
RADIO
CH-C
FM 2
FM 3
AM
AM
Preparation: Select All . (a page 37)
Setup e Radio e FM Setup e Auto Preset
e
Each
/
All
–
FM 1 (list 1)
FM 2 (list 2)
FM 3 (list 3)
There are 6 stations in each list. You can call up next 6 stations by switching from one
list to another.
Station
Selection
Seek Tuning
–
–
[d]
Up
[s]
Down
[d]
Up
[s]
Down
Press and hold for more than 0.5 second then release. Seeking starts.
…… Press and hold
24
CQ-VD5005W
English
Preset Memory
Manual Preset
Memory
Up to 6 stations can be
preset in each band.
Select a band and frequency.
to
–
blinks once
24
¡Touch and hold for more than 2 seconds.
¡The frequency blinks once, and a receiving station is saved in the memory.
New stations overwrite existing saved stations.
Auto Preset
Memory
A
Preparation: Select Each . (a page 37) (default: Each )
Setup e Radio e FM Setup e Auto Preset e
Each / All
Each
Six stations are automatically preset in each band.
Select a band.
–
6 stations with first to 6th highest in signal
strength of each band will be preset.
¡Touch and hold for more than 2 seconds.
¡Once set, the preset stations are sequentially scanned for 5 seconds each. (scanning)
New stations overwrite existing saved stations.
B
All
In total 18 FM stations are
automatically preset.
Preparation: Select All . (a page 37)
Setup e Radio e FM Setup e Auto Preset
–
e
Each
/
All
18 stations with first to 18th highest in signal
strength of all FMs will be preset at once.
¡Touch and hold for more than 2 seconds.
¡Once set, the preset stations are sequentially scanned for 5 seconds each. (scanning)
New stations overwrite existing saved stations.
Preset Station
Calling
Select a band or a list.
to
–
¡Touch desired preset button.
Preset Swap
A station preset is interchangeable with another
station preset.
Preparation: Select All . (a page 37)
Setup e Radio e FM Setup e Auto Preset
e
Each
/
All
q Select the list and the preset number that contains the station to be interchanged
(see “Preset station calling” above).
w Select the list and hold down the preset number that contains the targeted channel
for more than 2 seconds.
to
–
The preset station selected in the step q is
interchanged with the targeted preset channel selected in the step w (Preset Swap).
…… Touch and hold
CQ-VD5005W
25
English
TV Tuner Control
25
Preparation:
¡Connect a TV tuner (CY-TUP133W/CY-TUN133W,
option) to the unit.
¡Select TV with use of “AV2 Input Selection”. (a
page 33)
¡It is required to install the TV antenna to receive TV
broadcasts.
¡For receiving TV broadcasts, stop your car where
there is no obstacle to broadcast reception around.
Source Selection
q Touch “Source Button”.
d
(TV)
w Touch
on the Source
Selection Screen.
(Content varies with
connected devices)
the authorities concerned in the country or area where
CY-TUP133W/CY-TUN133W is used.
¡For the operations of the TV tuner with its remote control, aim the remote control at the remote control sensor of this unit.
¡The remote control of the TV tuner (CY-TUP133W/CYTUN133W, option) cannot turn on or off the power of
the TV tuner.
Source Button
TILT
DIMMER
CLOSE
IN-DASH 7" WIDESCREEN COLOR LCD MONITOR / DVD RECEIVER
Press [SOURCE] to change to the TV
mode.
Channel selection/
Channel seeking
To switch Operation Screen ON, touch the center of
touch panel.
TV menu
Note:
¡CY-TUP133W/CY-TUN133W is an analog TV-specific
tuner.
¡If the analog broadcast system is replaced with the digital broadcast system in a country or area where CYTUP133W/CY-TUN133W is used, TV broadcasts cannot be received.
¡Inquire about the termination of analog broadcasting to
CQ-VD5005W
DIMMER
DIM
CQ-VD5005W
TEXT
TILT
POWER
MUTE
SETUP
TUNE/TRACK
SOURCE
[SOURCE]
[s] [d]
Operations
–
END
DVD
VTR
RADIO
CH-C
TV 1
Channel
Selection
Channel Seeking
[d]
Up
[s]
Down
[d]
Up
[s]
Down
–
Selecting an Item
on the TV Menu
–
…… Touch/Press and hold
26
TV 2
Displaying TV
Menu
CQ-VD5005W
Preset channel
selection
Band selection
AV1 IN
VOL
PUSH SEL
Tuning
Band Selection
OPEN
Calls up the menu of the tuner.
To cancel, touch again.
Left/right
Up/down
English
Preset Memory
Operations
Auto Preset
Memory
12 channels with first to 12th highest in signal strength will be preset to each band.
26
END
DVD
RADIO
VTR
–
CH-C
Select a band.
¡Touch and hold for more than 2 seconds.
¡ “–” appears if the number of receivable channels is less than 12.
New channels overwrite existing saved channels.
Writing Preset
Memory
Favorite preset channels
can be written after you
have set the preset channel once.
Select a band and a channel.
–
d
¡Preset channel writing mode
display appears.
–
Select a channel that you want to exchange.
–
Determine.
–
¡Exit from the preset writing.
d
Preset Channel
Calling
Down
–
Up
Deleting Preset
Memory
Select a band and a channel.
–
Favorite preset channels
can be deleted after you
have set the preset channel once.
d
¡Preset channel deleting mode
display appears.
–
Select a preset number that you want to
delete.
–
Determine.
–
¡Exit from the preset channel deletion.
d
…… Touch and hold for more than 2 seconds
CQ-VD5005W
27
English
AV1/AV2
Preparation:
¡Connect an optional external device to the AV1/AV2.
Source Selection
27
Source Button
You can view the images and listen to the sounds from
the connected external devices in the AV1/AV2 mode
respectively.
DIMMER
TILT
CLOSE
TILT
OPEN
IN-DASH 7" WIDESCREEN COLOR LCD MONITOR / DVD RECEIVER
q Touch “Source Button”.
d
/
w Touch
(AV1/AV2) on the
Source Selection
Screen.
CQ-VD5005W
DIMMER
DIM
CQ-VD5005W
TEXT
AV1 IN
VOL
PUSH SEL
Press [SOURCE] to change to the
desired mode.
POWER
MUTE
SETUP
[SOURCE]
To switch Operation Screen ON, touch the center of
touch panel.
Note:
¡You can set up the system so that the AV mode is not
selected (source skip). ( Input Select a page 33)
¡If no operation is performed for 10 seconds or
is touched, the operation buttons disappear.
¡Only the pin jack of the supplied Conversion Cable for
AV 1 IN or a pin jack that has the same electrode
arrangement can be connected to the AV 1 IN terminal.
(See Fig. 1.)
¡Use of the supplied Conversion Cable for AV 1 IN or an
audio pin jack that has the same electrode arrangement
also allows users to enjoy only music. In this case, the
screen background becomes black.
28
CQ-VD5005W
TUNE/TRACK
SOURCE
<Fig. 1>
Audio (L)
Audio (R)
Video
Ground
AV1 IN
English
28
CQ-VD5005W
29
English
Settings
29
30
User
Clock
ID-Code
Input Select
Memory Clear
Other
User
Clock setting
ID Code Setting
AV1/AV2 Input Selection
Memory clearance
Other settings
(a page 32)
(a page 32)
(a page 33)
(a page 33)
(a page 33)
Screen
Dimmer
Aspect
Screen
Adjusting the brightness
Display appearance
Display aspect setting
(a page 34)
(a page 34)
(a page 34)
Audio
SQ3
Bass/Treble
Balance/Fader
Audio
SQ3 setting
Bass/treble adjustment
Balance/fader adjustment
(a page 35)
(a page 35)
(a page 35)
DVD
Language
Display
Down Mix
DR COMP
DivX Registration
DVD
Language Setting
Appearance of DVD image
Selection of type of down mix
Selection of compression style
DivX Registration
(a page 36)
(a page 36)
(a page 37)
(a page 37)
(a page 37)
Radio
FM Setup
Radio
Setting for FM stations
(a page 37)
CQ-VD5005W
English
❏ Setup Operation
(Example: DVD mode)
q
w
Touch
e
Touch desired setting.
in Operation Screen.
(Example: setting screen of
Input Select
30
a page 33)
Determines the setting and goes back to the previous menu out of the menu.
Determines the setting and gets out of the menu
Note:
¡ The display returns to the previous status if there is no operation for more than 60 seconds after changing to the setting menu.
¡ The item may not be temporarily selected depending on the current disc type or the state of this unit. In such a case,
change the source to another one and try to set up the item again.
CQ-VD5005W
DIMMER
DIM
CQ-VD5005W
TEXT
TILT
OPEN
[DIM] (DIMMER)
(The screen brightness is toggled between the
set level and maximum luminance.)
DIMMER
TILT
CLOSE
TILT
OPEN
AV1 IN
VOL
PUSH SEL
POWER
MUTE
SETUP
TUNE/TRACK
IN-DASH 7" WIDESCREEN COLOR LCD MONITOR / DVD RECEIVER
SOURCE
[SOURCE]
(Exit from the menu)
[VOL]
(PUSH SEL)
[SETUP]
(Shows the menu display/
Goes back to the previous menu)
CQ-VD5005W
DIMMER
DIM
CQ-VD5005W
TEXT
AV1 IN
VOL
PUSH SEL
POWER
MUTE
SETUP
TUNE/TRACK
SOURCE
CQ-VD5005W
31
English
Settings (continued)
31
User
Screen
Audio
DVD
Radio
Clock
ID-Code
Clock setting
ID Code Setting
Display
(Clock display)
On
: clock display ON (“– –:– –” is displayed
before adjusting the clock.)
Off
: clock display OFF
default:
Hour Adjust
Off
(Hour adjustment)
] : puts back hour
Prior to operating this unit, it is advisable to assign a 4digit ID code for security. Once the ID code has been set,
the unit cannot be operated if the main power supply is
disconnected then re-connected. It is electronically locked
so that a thief cannot use the stolen unit unless that person knows the code you have set.
The ID code operation must be performed only by the
person to whom the unit belongs.
Generally, it is not necessary to enter the ID code each
time when using the unit if it has not been disconnected
from the main power supply (car battery).
[ : puts forward hour
Minute Adjust
(Minute adjustment)
] : puts back minute
0 to 9
4 digits numeric code
default: none
How to set your ID code (for the first time)
q Enter an 4 digit ID code.
w Enter the same 4 digit ID code again.
[ : puts forward minute
Note:
/ [SOURCE].
¡To start the clock, touch/press
¡Set the Daylight Saving Time manually.
default: Hour Adjust: 0
Minute Adjust: 0
How to change your ID code
q Enter the preset (old) 4 digit ID code. If the wrong ID
code is entered, a new ID code cannot be registered.
w Enter a new 4 digit ID code.
e Enter the new 4 digit ID code again.
How to cancel the known ID code
q Enter the preset (old) 4 digit ID code. If the wrong ID
code is entered, it is not possible to cancel the ID code
function.
until “Completed!” is
w Touch and hold
displayed. The ID code cancelling procedure is completed. The unit now works without an ID code.
Note:
¡Should your unit ever require service, cancel your ID
code before sending for repair.
¡The ID code setting cannot be eliminated even by the
memory clear function.
¡The inputted code is not displayed for your security.
Caution
¡Record your registered ID code and keep it in a
secure location. (Fill in the ID code memo (a
page 42).) If you forget it, you will be unable to
use the unit. In case you forget the ID code,
please consult your nearest Panasonic Service
Center.
32
CQ-VD5005W
English
Input Select
AV1/AV2 input selection
AV1
Yes
(AV1 input selection)
AV1
: an external device is connected to AV1.
Skip
: skips AV1.
Caution
(AV2 input selection)
: an external device is connected to AV2.
NAVI
: car navigation system is connected to
AV2.
Skip
¡Be aware that this setting restores the unit to default
settings, so that all the memories and settings that
you have set will be eliminated.
Other
: TV tuner is connected to AV2.
Other settings
: skips AV2.
default:
AV2
Note:
¡If a non-Panasonic navigation system is connected to
this unit, we do not guarantee the operations of the
navigation system.
Camera
: no memory clear.
AV1
AV2
TV
32
: proceed.
OK
Cancel
default:
AV2
appears when
is selected.
Really?
(Rear view camera set up)
Selection of the terminal that connects to the rear view
camera.
Preparation: Connect the reverse lead. (a Installation
Instructions)
On
: connected to the CAMERA IN
Off
: unconnected
default:
Off
Note:
¡Make sure to select Off when no rear view camera is
connected.
¡The image from the rear view camera may be blurred
in the night or a dark place.
ACC Select
(Setting ACC selection ON and
OFF)
On
: sets to ON if your car has ACC position.
Off
: sets to OFF if your car has no ACC position.
On
default:
Note:
¡For an ACC-equipped car, select ON. The following
functions are available.
¡The power is turned on automatically when inserting
a disc or magazine.
¡ Off selection disables turning on the power of the
main unit through the remote control.
Caution
¡Be sure to select off when your car has no ACC
position in the ignition switch. Failure to do this
could cause the battery to go dead.
OFF
ACC
Memory Clear
Memory clearance
The state of all of the current memories are returned to
default settings.
Note:
¡The ID code is not deleted by executing memory clear.
Yes
: clears the memory to default settings
No
: no memory clear.
The display returns to the previous one.
IGN
Security Alarm
(Security Alarm)
On
: activates the security alarm.
(a page 11)
Off
: inactivates the security alarm.
default:
On
CQ-VD5005W
33
English
Settings (continued)
33
Screen
User
Audio
DVD
Radio
(Display)
Dimmer
Aspect
Adjusting the brightness
1
2
Darker
Display aspect setting
Normal
3
Brighter
default: 1
Note:
¡When [DIM] is pressed, the screen brightness is toggled between the set level that is adjusted by the procedure above and the maximum luminance.
Full
Display appearance
Contrast
¡The conventional display image
has a 4 to 3 ratio of horizontal to
vertical.
¡In this case, a blank area remains
on the right and left sides of the
display.
¡The screen is extended horizontally
as a whole to the aspect ratio of 16
to 9.
¡The extension ratio is the same at
any point of the screen.
Zoom
¡The screen is fully extended at the
normal aspect ratio of 4 to 3.
¡The top and bottom of the screen
are slightly cut.
Just
¡The screen is extended horizontally
to the aspect ratio of 16 to 9.
¡The extension ratio increases
toward the right and left ends of
the screen.
(Adjust the image contrast)
] : decreases the contrast between black and white.
[ : increases the contrast between black and white.
Bright
(Adjust the image brightness)
] : darkens.
[ : lightens.
Color
(Adjust the image color depth)
] : lightens the depth of color on the display.
[ : deepens the depth of color on the display.
Tint
(Adjust the image tone or tint)
default: Normal
Note:
¡The aspect setting screen can be also activate Aspect
when the button is displayed.
(a page 12)
¡This adjustment is common to video mode.
¡You cannot change the aspect in the menu screen and a
screen in the CD, MP3 and radio mode. These are fixed
to “Full”.
¡When the rear view camera is in operation with the
transmission gear shift in the reverse position, the
image is shown on the “Full” screen only.
¡In some cases, the picture looks different from the
original one due to your selection of aspect.
] : emphasizes red in the color image.
[ : emphasizes green in the color image.
Note:
¡When the video signal is PAL/SECAM format, adjustment cannot be performed.
Setting range: –15 to +15
default: ±0
34
CQ-VD5005W
Caution
¡This is to remind you that compression or extension
of the screen using the aspect ratio (screen mode)
changing function of this product for commercial
purpose of profit making or viewing/listening by the
public could infringe on the rights of the author protected by the copyright law.
¡If you expand normal picture (4 to 3) by using
“Just”, “Zoom” or “Full” aspect to the full of the
screen, you might not see the periphery of the picture, or you might see a distorted picture.
Therefore, use the “Normal” mode to see the original picture as the author intended it.
Screen
Audio
DVD
English
User
Radio
SQ3
Balance/Fader
SQ3 setting
34
Balance/fader adjustment
Six SQ presets are already provided at shipment in this
unit.
(Sound level adjustment
between right and left speakers)
Balance
Flat : flat frequency response
[ : right enhanced
Pop : wide-ranged and deep sound
] : left enhanced
Rock : speedy and heavy sound
Setting range: Right 15 to Left 15
default: Center
Jazz : jazz-specific deep sound
Club : club and disco-specific sound
default:
Flat
You may set your own SQ or modify factory presettings
in each memories by following the instructions below:
Adjusting level of each preset
q Select the preset SQ that you prefer to adjust.
to select a frequency in a freor
w Touch
quency band (BASS/MID/TRE).
to adjust each frequency.
or
e Touch
Adjustable range: –12 dB to +12 dB
Adjustable frequency:
BASS; 60 Hz, 80 Hz, 100 Hz, 200 Hz
MID; 500 Hz, 1 kHz, 2 kHz, 3 kHz
TRE; 10 kHz, 12 kHz, 15 kHz, 18 kHz
Note:
¡The new level adjustment will overwrite the previous
level adjustment.
¡For resuming the factory settings, touch and hold
Default for more than 2 seconds.
[ : front enhanced
] : rear enhanced
Setting range: Front 15 to Rear 15
default: Center
Audio setting with [VOL] (PUSH SEL)
on the main unit
Audio settings of Bass , Treble , Balance and
Fader
can be performed with [VOL] (PUSH SEL)
on the main unit.
q Press [VOL] (PUSH SEL) to select a setting item.
(Regular mode)
d
Bass
Bass/Treble
d
Bass/treble adjustment
Bass
(Sound level adjustment between
front and rear speakers)
Fader
Vocal : clear sound
(Bass adjustment)
Treble
d
[ : more
Balance
] : less
d
Treble
(Treble adjustment)
Fader
[ : more
] : less
w Rotate [VOL] to make an adjustment.
Setting range: –12 dB to +12 dB
default: ±0 dB
CQ-VD5005W
35
English
Settings (continued)
35
User
Screen
Audio
DVD
Radio
Language
Display
Language Setting
Menu
ENG
CHN
FRA
Other
Display aspect and DVD software mode
(DVD menu language)
DVD Aspect
Narrow
Wide
: English
: Chinese
(Display aspect setting)
: plays a video in 4:3 screen.
: plays a video in wide screen (16:9).
: French
default:
: other language. Input the language code.
(a page 45)
default: ENG
Letter Box
Wide
(DVD software mode)
Pan & Scan : plays wide-screen video in Pan & Scan
Subtitle
(Subtitle language)
Note:
¡A disc supporting closed captioning and subtitles may
overlap each other on the screen. In this case, turn the
subtitle off.
ENG
CHN
FRA
Other
default:
: English
: Chinese
: French
: other language. Input the language code.
(a page 45)
default: ENG
Audio
(Audio language)
Note:
¡These adjustments being executed, playback will start
from the beginning of a disc.
ENG
CHN
FRA
Other
Letter Box
mode (in which the left and right edges
of the screen are cut off).
: plays wide-screen video in letterbox
mode (in which black bands appear at
the top and bottom of the screen).
: English
: Chinese
Note:
¡Set the software setting according to the symbol used
on jacket. (a page 16)
¡DVD software mode setting is ignored if Pan & Scan
or Letter Box is already set in the software.
¡Screen aspect of the display unit is changed according
to the aspect ratio setting (a page 34) and DVD software’s aspect.
TV Type
PAL
NTSC
: French
: other language. Input the language code.
(a page 45)
default: ENG
Pan & Scan
(VIDEO OUT terminal setting)
: sets PAL in accordance with the equipment connected to VIDEO OUT.
: sets NTSC in accordance with the
equipment connected to VIDEO OUT.
default:
Angle Mark
PAL
(Angle mark setting)
The angle mark is displayed to indicate the parts where
multi-angle data is recorded.
On
: activates angle mark.
Off
: inactivates angle mark.
default:
36
CQ-VD5005W
On
Screen
Audio
DVD
English
User
Radio
FM Setup
Down Mix
To use the down mix function, specify the type.
Setting for FM stations
Lt/Rt
: surround element decodable down mix
(Lt = Left total, Rt = Right total)
Lo/Ro
: simple stereo down mix
(Lo = Left only, Ro = Right only)
Note:
¡This function is available only when “Dolby Digital”
source is playing.
default:
Auto Preset
36
(Auto preset setting)
Each
: saves the preset stations in each band.
All
: saves the preset stations in all FM lists
regardless of band.
default:
Each
Lt/Rt
DR COMP (Dynamic Range Compression)
Maintaining the ambience even while listening at a low
volume level
Compression style selecting
STD
MIN
: DR COMP ON
Off
: DR COMP OFF
: made with the greatest compression,
roughly equivalent to a TV broadcast.
default:
Off
DivX Registration
Show the DivX Registration Code (a page 38)
CQ-VD5005W
37
English
About DivX VOD Content
37
DivX Video-on-Demand (VOD) content is encrypted for copyright protection. In order to play DivX VOD content on this
unit, you first need to register the unit.
Follow the on line instructions for purchasing DivX VOD content to enter the unit’s registration code and register the
unit. For more information about DivX VOD, visit www.divx.com/vod.
Display the unit’s registration
code
q Touch
w Touch
w Touch
.
DVD
.
DivX Registration
.
8 alphanumeric characters
Note:
¡ We recommend that you make a note of this code for
future reference.
¡ After playing DivX VOD content for the first time,
another registration code is then displayed in “DivX
Registration”. Do not use this registration code to purchase DivX VOD content. If you use this code to purchase DivX VOD content, and then play the content on
this unit, you will no longer be able to play any content
that you purchased using the previous code.
¡ If you purchase DivX VOD content using a registration
code different from this unit’s code, you will not be
able to play this content. (“Authorization Error” is displayed.)
38
CQ-VD5005W
Regarding DivX content that
can only be played a set number of times
Some DivX VOD content can only be played a set number
of times. When you play this content, the remaining number of plays is displayed. You cannot play this content
when the number of remaining plays is zero.
(“Rental Expired” is displayed.)
When playing this content
¡ The number of remaining plays is reduced by one if
- you press [SOURCE].
- you press [s] / [d] (a / f)
etc. and arrive at another content or the start of the
content being played.
❑ If You Suspect Something Wrong
Check and take steps as described below.
If the described suggestions do not solve the problem, it is recommended to take the unit to your nearest authorized Panasonic
Service Center. The product should be serviced only by qualified
personnel. Please refer checking and repair to professionals.
Panasonic shall not be liable for any accidents arising out of neglect of checking the unit or your own repair after your checking.
Never take measures especially those other than indicated by
italic letters in “Possible Solution” described below because
those are too dangerous for users to handle themselves.
Warning
¡Do not use the unit in an irregular condition, for example, without sound, or with
smoke or a foul smell, which can cause
ignition or electric shock. Immediately stop
using the unit and consult your dealer.
¡Never try to repair the unit by yourself
because it is dangerous to do so.
English
Troubleshooting
38
■ Common
Problem
Possible cause a Possible solution
The power cord (battery, power and ground) is connected in the wrong way.
aCheck the wiring.
No power to the unit
Sound is not
generated.
Noise
Fuse blows out.
aEliminate the cause of fuse blowout and replace the fuse with new one.
Consult your dealer.
MUTE is set to ON.
aSet MUTE to OFF.
The wiring of speaker lines is not correct, or a break or poor contact arises.
aCheck the wiring in accordance with the wiring diagram. (Installation
Instructions)
There is an electromagnetic-wave generator such as a cellular phone near the unit
or its electrical lines.
aKeep the electromagnetic-wave generator such as a cellular phone away
from the unit and the wiring of the unit. In case noise cannot be eliminated
due to the wiring harness of the car, consult your dealer.
The contact of the ground lead is poor.
aMake sure that the ground lead is connected to an unpainted part of the
chassis securely.
Noise is made in step
with engine revolutions.
Alternator noise comes from the car.
aChange the wiring position of the ground lead.
aMount a noise filter.
Some operations are not
executable.
Some operations are not executable in particular modes such as menu mode
aRead the operating instructions carefully and cancel the mode. If the unit is
still out of order, consult your dealer.
No sound from
speaker(s)
There is a break, a short circuit, poor contact or wrong wiring regarding the
speaker wiring.
aCheck the speaker wiring.
The speaker channels
are reversed between
right and left.
The speaker wiring is reversed between right and left.
aPerform the speaker wiring in accordance with the wiring diagram.
The power of the unit
fails unintentionally.
The safety device works.
aConsult your dealer, or your nearest Panasonic Service Center.
CQ-VD5005W
39
English
Troubleshooting (continued)
39
■ Common (continued)
Output
disabled/distorted
video/audio.
The conversion cable for AV 1 IN supplied with this unit is not used for the
terminal of AV1 IN.
aUse the conversion cable for AV 1 IN supplied with this unit for the
connection.
■ Display Settings
The picture is dark. The
picture is whitish. Something
is wrong with the picture.
The picture is light in color.
The screen is not adjusted properly.
aMake every adjustment of the screen.
The display does not go
back into the unit.
The monitor stops on the way to the home position.
aPress [OPEN].
■ Radio
Poor reception or noise
Antenna installation or wiring of antenna cable is faulty.
aCheck whether the antenna mounting position and its wiring are correct. In
addition, check to see whether the antenna ground is securely connected to
the chassis.
No power is supplied to the antenna amplifier (when using a film antenna, etc.).
aCheck the wiring of the antenna power lead.
The number of auto
preset stations is less
than 6.
The number of receivable stations is less than 6.
aMove to an area where receivable stations number is maximum, and try presetting.
Preset stations cannot
be stored.
The contact of the battery lead is poor, or the battery lead is not always powered.
aMake sure that the battery lead is connected securely, and preset stations
again.
■ CD
No playback or disc
ejected
Sound skipping or noise
Sound skipping due to
vibration
Disc unejectable
40
CQ-VD5005W
The disc is inserted upside down.
aInsert a disc correctly.
There is a flaw or foreign object on the disc.
aRemove the foreign object, or use a flawless disc.
There is a flaw or foreign object on the disc.
aRemove the foreign object, or use a flawless disc.
The unit is not sufficiently secured.
aSecure the unit to the console box.
The unit is tilted at over 30˚ in the front-to-end direction.
aMake the angle 30˚ or less.
Something such as a peeled label obstructs the disc coming out.
aPress and hold the [u] for more than 10 seconds (disc forced ejection). In
case that the disc forced ejection does not work, consult your dealer.
The microcontroller in the unit operates abnormally due to noise or other factors.
aUnplug the power cord and plug it again. In case the unit is still out of order,
consult your dealer.
English
■ MP3/DivX
No playback or disc
ejected
The CD-Rs/RWs/DVDRs/RWs that are
playable on other
devices are not playable
on this unit.
Sound skipping or noise
The disc has unplayable formatted data.
aRefer to the description about MP3/DivX for playable formats.
40
The playability of some CD-Rs/RWs/DVD-Rs/RWs may depend on the combination of media, recording software and recorder to be used even if these CDRs/RWs/DVD-Rs/RWs are playable on other devices such as a PC.
aMake CD-Rs/RWs/DVD-Rs/RWs in a different combination of media, recording
software and recorder after referring to the description about MP3/DivX.
There is a flaw or foreign objects on the disc.
aRemove the foreign objects, or use a flawless disc. For MP3/DivX, refer to
the description about MP3/DivX.
Playing VBR (Variable Bit Rate) files may cause sound skipping.
aPlay Non-VBR files.
The picture stops.
The picture may stop if the DivX files are greater than 2 GB.
aKeep the file size under 2 GB.
Note:
¡Refer to “Notes on MP3/DivX”. (a page 22)
■ DVD
Cannot switch the audio
language/subtitle
language/angle.
¡It is not possible to switch if the disc does not have multiple audio
languages/subtitle languages/angles recorded on it. (Refer to the guide provided with your disc.)
¡Some discs permit switching through a menu screen.
¡Sometimes, switching angles is possible only with certain scenes.
The audio/subtitle
language selected in the
DVD settings is not
used.
If audio or subtitles in that language are not recorded on the disc, the audio or
subtitles do not switch to that language. (Some discs permit switching through a
menu screen. Refer to the guide provided with your disc.)
A DVD–R or DVD–RW is
not playable.
Sound is not generated.
The disc is still unfinalized.
aFinalize the disc.
Refer to “Before Disc Playback” (a page 16) or “Notes on Discs”
(a page 44) for other cases.
The disc is in the video recording (VR) format.
aPlay video formatted discs.
Refer to “Before Disc Playback” (a page 16) or “Notes on Discs”
(a page 44) for other cases.
The audio format is output disabled for this unit such as dts.
aUse output enabled discs.
Refer to “Before Disc Playback” (a page 16) or “Notes on Discs”
(a page 44) for other cases.
CQ-VD5005W
41
English
Troubleshooting (continued)
41
❑ Error Display Messages
■ CD/MP3/DivX/DVD/VCD (Video CD)
Display
Non Playable Disc
Mechanism Error
File Error
No Disc
Region Code Error
Possible cause a Possible solution
Disc is dirty, or is upside down.
aCheck disc.
Disc has scratches.
aCheck disc.
No operation by some cause.
aPress [u]. If failure persists, press the reset switch. If normal operation is not
restored, call the store where you purchased the unit or the nearest Panasonic
Service Center.
The type of the file that is selected is not supported.
aCheck disc.
No disc is in the player.
aInsert disc into the disc slot.
The region code of the disc to be used is not compatible with this unit.
aPress [u] and check the disc.
You are trying to play the DivX VOD content that was purchased with a different
registration code.
aPurchase the DivX VOD content with the registration code of this unit.
(a page 38)
The DivX VOD content has no available play count.
aPurchase again the content or play another content. (a page 38)
Note:
¡There may be cases when the disc numbers affected by an error are displayed before “Non Playable Disc”.
❑ In case you forget the ID
code...
In case you forget the ID code, please consult
your nearest Panasonic Service Center.
ID code memo
Copy the memo at right, fill in the ID code, and
keep it in a secure location.
42
CQ-VD5005W
Model No. CQ-VD5005W
ID CODE
If the suggestions in the charts do not solve the problem,
we recommend that you take it to your nearest authorized
Panasonic Service Center. The product should be serviced
only by a qualified technician.
❑ Replacing the Fuse
Use fuses of the same specified rating (15 A). Using different substitutes or fuses with higher rating, or connecting the product directly without a fuse, could cause fire or
damage to this unit.
If the replacement fuse fails, contact your nearest
Panasonic Service Center for service.
❑ If the Unit Begins to
English
❑ Product Servicing
Reset switch
Remove the face plate (a page 11) and insert a hard,
slender stick into the hole and push the switch.
42
Malfunction...
Important
Push the switch only when the unit fails to operate with
any buttons. (Stored settings and adjustments are not
cleared.)
If the unit fails to return to normal condition, call the nearest Panasonic Service Center and ask for repairs.
CQ-VD5005W
TILT
OPEN
AV1 IN
Reset switch
Note:
¡If the ID-CODE has been already set, you will be asked
to enter the ID-CODE right after the unit is restarted.
Maintenance
❑ Cleaning this Unit
Your product is designed and manufactured to ensure a
minimum of maintenance. Use a dry soft cloth for routine
exterior cleaning. Never use benzine, thinner or other solvents.
To remove stubborn stains
1 Moisten the soft cloth in dishwashing
soap diluted with water and wring well.
2 Wipe lightly. Go over the same surface
with a dry cloth.
Alcohol
Alcohol
Pesticide
Pesticide
Wax
Wax
Thinner
Thinner
Note:
¡Since there is the possibility of water drops getting
inside of the unit, do not directly apply cleanser to the
surface.
¡Do not scratch the screen with your nails or other hard
objects. The resulting scratches or marks will obscure
the images.
Benzine
Benzine
Caution
¡If water drops or similar wet substances get inside
the monitor, it may cause a malfunction.
CQ-VD5005W
43
English
Notes on Discs
43
How to hold the disc
¡Do not touch the underside of the disc.
¡Do not scratch the disc.
¡Do not bend disc.
¡When not in use, keep disc in the case.
Printed side
Do not use discs that fit any of the descriptions given
below. Using these discs may damage the discs or
cause the unit to malfunction.
¡Special discs in a shape which is not round
¡Partly or wholly transparent disc
Wholly transparent disc*
Partly transparent disc
*Wholly semi-transparent disc may not be played back.
Disc insert
The surfaces of new discs tend to be slippery. Therefore,
when using such a disc for the first time, it may not load
satisfactorily even when it has been inserted into the
unit. At a time like this, insert the disc into the unit as far
as it will go until it is loaded properly.
¡When inserting a disc into or ejecting and removing
it from the unit, insert it straight in or eject and
remove it straight out in parallel with the unit.
Otherwise, the disc may be scratched or marked in
the process.
¡When inserting a disc, do not put one disc on another. Failure to observe this may cause the discs to
be jammed.
Do not leave discs in the following places:
¡Direct sunlight
¡Near car heaters
¡Dirty, dusty and damp areas
¡On seats and dashboards
Disc cleaning
Use a dry, soft cloth to wipe from the center outward.
Do not attach any seals or labels to your discs.
Do not write on the disc label in a heavy pen or ballpoint
pen.
¡Discs with adhered labels, etc. on them
<Correct>
Disc with adhered stickers
or tape
Protective films or sheets
Labels created by a printer
Disc accessories (stabilizers, etc.)
¡Damaged or deformed discs
Shoddily made discs
Discs with burrs
Please remove the burrs
before use.
Discs with cracks,
scratches or parts missing
<Wrong>
Notes on CD-Rs/RWs,
DVD–Rs/RWs
¡You may have trouble playing back some CD-R/RW,
DVD–R/RW discs recorded on CD/DVD recorders (CDR/RW, DVD–R/RW drives), either due to their recording characteristics or dirt, fingerprints, scratches, etc.
on the disc surface.
¡CD-R/RW, DVD–R/RW discs are less resistant to high
temperatures and high humidity than ordinary music
CDs. Leaving them inside a car for extended periods
may damage and make playback impossible.
¡The unit may not successfully playback a CD-R/RW,
DVD–R/RW that was made by the combination of writing software, a CD/DVD recorder (CD-R/RW,
DVD–R/RW drives) and a disc if they are incompatible
with one another.
¡This player does not play CD-R/RW, DVD–R/RW discs
if the session is not closed.
¡Be sure to observe the handling instructions of CDR/RW, DVD–R/RW discs.
¡This player does not play CD-R/RW, DVD-R/RW discs
which contain other than CD-DA or MP3/DivX data.
44
CQ-VD5005W
In “Other” cases... (a page 36)
Input the four digit language code pressing the buttons
Touch
to determine.
DVD language menu (a page 36)
to
.
Note:
¡Setting is finished and the display returns to the main menu.
.
¡For retrying selection during number entry, touch
Code
Language Name
Code
Language Name
Code
Language Name
6565
6566
6570
6577
6582
6583
6589
6590
6665
6669
6671
6672
6678
6679
6682
6765
6779
6783
6789
6865
6869
6890
6976
6978
6979
6983
6984
6985
7065
7073
7074
7079
7082
7089
7165
7168
7176
7178
7185
7265
7273
7282
7285
Afar
Abkhazian
Afrikaans
Ameharic
Arabic
Assamese
Aymara
Azerbaijani
Bashkir
Byelorussian
Bulgarian
Bihari
Bengali; Bangla
Tibetan
Breton
Catalan
Corsican
Czech
Welsh
Danish
German
Bhutani
Greek
English
Esperanto
Spanish
Estonian
Basque
Persian
Finnish
Fiji
Faroese
French
Frisian
Irish
Scots Gaelic
Galician
Guarani
Gujarati
Hausa
Hindi
Croatian
Hungarian
7289
7365
7378
7383
7384
7387
7465
7473
7487
7565
7575
7576
7577
7578
7579
7583
7585
7589
7665
7678
7679
7684
7686
7771
7773
7775
7776
7778
7779
7782
7783
7784
7789
7865
7869
7876
7879
7982
8065
8076
8083
8084
8185
Armenian
Interlingua
Indonesian
Icelandic
Italian
Hebrew
Japanese
Yiddish
Javanese
Georgian
Kazakh
Greenlandic
Cambodian
Kannada
Korean
Kashmiri
Kurdish
Kirghiz
Latin
Lingala
Laothian
Lithuanian
Latvian, Lettish
Malagasy
Maori
Macedonian
Malayalam
Mongolian
Moldavian
Marathi
Malay
Maltese
Burmese
Nauru
Nepali
Dutch
Norwegian
Oriya
Panjabi
Polish
Pashto, Pushto
Portuguese
Quechua
8277
8279
8285
8365
8368
8372
8373
8375
8376
8377
8378
8379
8381
8382
8385
8386
8387
8465
8469
8471
8472
8473
8475
8476
8479
8482
8484
8487
8575
8582
8590
8673
8679
8779
8872
8979
9072
9085
Rhaeto-Romance
Romanian
Russian
Sanskrit
Sindhi
Serbo-Croatian
Singhalese
Slovak
Slovenian
Samoan
Shona
Somali
Albanian
Serbian
Sundanese
Swedish
Swahili
Tamil
Telugu
Tajik
Thai
Tigrinya
Turkmen
Tagalog
Tonga
Turkish
Tatar
Twi
Ukrainian
Urdu
Uzbek
Vietnamese
Volapük
Wolof
Xhosa
Yoruba
Chinese
Zulu
CQ-VD5005W
English
Language Code List
44
45
English
Definition of Terms
45
Dolby Digital
This fully discrete format divides the music signals
into 5.1 channels: Front Left (L), Front Right (R),
Centre (C), Left Surround (LS), Right Surround (RS)
and Subwoofer (SW: 0.1 channel) for recording and
playback. The number of channels that are recorded
depends on the software. (1 to 5.1 channels)
Manufactured under license from Dolby
Laboratories.
“Dolby” and the double-D symbol are trademarks
of Dolby Laboratories.
Confidential unpublished works. Copyright
1992–1997 Dolby Laboratories. All rights
reserved.
Interactive DVD
An interactive DVD is DVD software which includes
multiple angles, multiple plot endings, etc.
Letterbox screen
This refers to a screen on which the playback picture
of wide-screen DVDs or VCD (Video CD)s appears
with black bands running along the top and bottom.
LPCM (Linear PCM audio)
In this format, the audio signal is converted to digital
data and recorded in two channels without compression. Because the capacity of a DVD disc is large, it
can store more data with better accuracy than a CD.
Pan & Scan screen
This refers to a screen on which the playback picture
of wide-screen DVDs or VCD (Video CD)s is cut off
at the left and right sides.
46
CQ-VD5005W
Playback control (VCD (Video CD))
If the VCD (Video CD) has “With Playback Control”
or others written on the disc surface or on the jacket,
the scenes or information to be viewed (or listened
to) can be selected interactively with the screen by
looking at the menu shown on the screen.
In these instructions, playback using the menu
screen is referred to as the “menu play” for video
CDs. This player supports Video CDs with playback
control.
DivX
DivX is a popular media technology created by DivX,
Inc. DivX media files contain highly compressed
video with high visual quality that maintains a relatively small file size. DivX files can also include
advanced media features like menus, subtitles, and
alternate audio tracks. Many DivX media files are
available for download online, and you can create
your own using your personal content and easy-touse tools from DivX.com.
This product incorporates copyright protection
technology that is protected by U.S. patents and
other intellectual property rights. Use of this
copyright protection technology must be authorized
by Macrovision, and is intended for home and other
limited viewing uses only unless otherwise
authorized by Macrovision. Reverse engineering or
disassembly is prohibited.
Official DivX® Certified product
Plays all versions of DivX® video (including DivX® 6)
with standard playback of DivX® media files
DivX,DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.
General
AM radio
¡Power supply
¡Frequency range
¡Usable sensitivity
¡Image rejection ratio
: 12 V DC (11 V – 16 V), test
voltage 14.4 V, negative
ground
¡Current consumption : Less than 10 A (during disc
playback)
: 18 W x 4 ch
¡Power Output
(1 kHz, 1 %, 4 Ω)
¡Maximum power output : 45 W x 4 ch
¡Compatible speaker
impedance
: 4Ω
¡Video input signal
: Composite video signal, 1.0
Vp-p (75 Ω)
¡Audio input sensitivity : 2 Vrms
¡Video output signal
: Composite video signal, 1.0
Vp-p (75 Ω)
¡Pre-Amp output voltage : 2 Vrms
¡Pre-Amp output impedance: Less than 600 Ω
¡Dimensions (W x H x D) : 178 x 50 x 165 mm
¡Weight
: 2.4 kg
Front AV input (AV1 IN)
¡Input impedance
: 47 kΩ
¡Allowable external input : 2.0 V
¡Connector
: 3.5 mmø Stereo mini pin
(Equipped with video input
terminal)
¡Video input signal
: Composite video signal, 1.0
Vp-p (75 Ω)
¡Audio input sensitivity : 2 Vrms
: 531 kHz – 1 602 kHz
: 28 dB/µV
: 50 dB
English
Specifications
46
Audio section
¡Output voltage/
Impedance
¡Frequency
characteristics
¡Dynamic range
¡S/N ratio
: 2 Vrms/600 Ω
: 20 Hz – 20 kHz (±1 dB)
: 96 dB (during CD playback)
: 95 dB (during CD playback)
Monitor
¡Liquid crystal panel
¡Screen dimensions
(W x H x D)
¡Number of pixels
¡Valid pixel ratio
¡Display method
¡Drive method
: 7-inch wide
: 154 x 87 x 177 mm
: 336 960 pixels (234 vertical
x 480 horizontal x 3)
: Over 99.99%
: Transparent color filter format
: TFT (Thin Film Transistor)
active matrix format
FM stereo radio
¡Frequency range
¡Usable sensitivity
¡Stereo separation
¡S/N ratio
:
:
:
:
87.5 MHz – 108 MHz
7 dB/µV
30 dB (1 kHz)
62 dB
Note:
¡Specifications and the design are subject to modification without notice due to improvements in technology.
¡Some figures and illustrations on this manual may be different from your product.
Playable region number
This operating instruction manual is for 4 models CQ-VD5005W2/CQ-VD5005W3/CQ-VD5005W4 and CQ-VD5005W5.
The following table shows the playable region number for each model.
Model
Playable region number
CQ-VD5005W2
2 (ALL)
CQ-VD5005W3
3 (ALL)
CQ-VD5005W4
4 (ALL)
CQ-VD5005W5
5 (ALL)
CQ-VD5005W
47
CQ-VD5005W
Matsushita Electric Industrial Co., Ltd.
Web Site : http://panasonic.net
YFM284C684CA
PTW1206-2037
Printed in China
Installation Instructions
àÌÒÚÛ͈Ëfl ÔÓ ÏÓÌÚ‡ÊÛ
Model:
CQ-VD5005W
TEXT
English
Safety Information
1
CAUTION:
• PLEASE FOLLOW THE LAWS AND REGULATIONS
OF YOUR STATE, PROVINCE OR COUNTRY FOR
INSTALLATION OF THE UNIT.
• TO
REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE
THIS APPLIANCE TO RAIN, SPLASHING, DRIPPING OR MOISTURE.
2
CQ-VD5005W
English
Upgrade Options
2
Rear Monitor
TV Tuner
(CY-TUP133W/CY-TUN133W, option)
CQ-VD5005W
Contents
Safety Information................................................2
Upgrade Options ..................................................3
Contents................................................................3
Installation ............................................................4
Electrical Connections ......................................10
CQ-VD5005W
3
English
Installation
3
Preparation
Caution
¡Please follow the laws and regulations of your
province or country for installation of the unit.
¡When bending the mounting tab of the mounting
collar with a screwdriver, be careful not to injure
your hands and fingers.
¡We strongly recommend you to wear gloves for
installation work to protect yourself from injuries.
Dashboard Installation
Installation Opening
The unit can be installed in any dashboard having an
opening as shown below. The dashboard should be 4.5
mm – 6 mm thick in order to be able to support the unit.
53 mm
182 mm
¡Before installation, check the radio operation with
antenna and speakers.
¡Disconnect the cable from the negative (–) battery terminal (see caution below).
¡The unit should be installed in a horizontal position
with the front end up at a convenient angle, but not
more than 30°.
Installation Precautions
This product should be installed by a professional
installer, if possible.
In case of difficulty, please consult your nearest authorized Panasonic Service Center.
1. This system is to be used only in a 12 V DC battery
system (car) with negative ground.
0 – 30°
2. Follow the electrical connections carefully (a page 10
– 15). Failure to do so may result in damage to the
unit.
3. Connect the power lead after all other connections are
made.
4. Be sure to connect the battery lead (yellow) to the positive terminal (+) of the battery or fuse block (BAT) terminal.
Caution
¡Do not disconnect the battery terminals of a car with
trip or navigational computer since all user settings
stored in memory will be lost. Instead take extra
care with installing the unit to prevent shorts.
4
CQ-VD5005W
5. Insulate all exposed wires to prevent short circuiting.
6. Secure all loose wires after installing the unit.
7. Please carefully read the operating and installation
instructions of the respective equipment before connecting it to this unit.
No.
Item
English
❏ Installation Hardware
(For Installation)
❏ Installation Hardware
(For Wiring)
Diagram
q Trim Plate
Qty.
1
No.
Item
1
1
<YAJ024C122CA>
!1 Conversion Cable for AV1 IN
1
<YEAERA33000K>
<YFX214C433CA>
e Mounting Spring
Qty.
!0 Power Connector
<YFC054C087CA>
w Mounting Collar
4
Diagram
2
<YFX054C077CA>
r Mounting Bolt (5 mmø)
1
<YEJV01060>
Round Head Screw
t
(5 mmø x 6 mm)
Flat-Head Screw
y
(5 mmø x 6 mm)
Round Head Screw
u
(4 mmø x 3 mm)
2
4
Note:
¡The number in parenthesis underneath each accessory
part name is the part number for maintenance and service.
¡Accessories and their parts numbers are subject to
modification without prior notice due to improvements.
¡Use the supplied screws for installation exclusively. In
case of losing any of them, please order the specific
screw.
4
<ZZBISVD7001B>
i Spacer
2
1
set
o Double-Faced Adhesive Tape
<ZZBISVD7001E>
❏ Transportation Bracket Removal
Be sure to remove the transportation brackets before use (installation).
Use round head screws (5 mmø x 6 mm) for installation. (a page 8)
Round Head Screw
(5 mmø x 6 mm)
Be careful not to lose these screws.
Round Head Screw
(5 mmø x 6 mm)
Transportation
Bracket
Transportation
Bracket
CQ-VD5005W
5
English
Installation
5
(continued)
Mounting the Main Unit
❏ Installation Procedures (When using Mounting Collar w)
1
Note:
¡The car model, installation conditions and combination of the units
used may impose some restrictions on opening and closing the
monitor as well as on the angle
and position to which the monitor
can be adjusted.
Insert the Mounting Collar w into the dashboard, and
bend the mounting tabs out with a screwdriver.
Fastening the Mounting Collar
How much to bend the tabs will vary depending on the
car. Bend them with a screwdriver to fasten the
Mounting Collar w securely in the dashboard.
Dashboard
IMPORTANT
When this unit is installed in dashboard, ensure that there is sufficient
air flow around the unit to prevent
damage from overheating. Do not
block any ventilation holes on the
unit.
w Mounting Collar
Tab
r Mounting Bolt
(5 mmø)
!0 Power Connector
e Mounting Spring
y Flat-Head Screw
(5 mmø x 6 mm)
2
3
4
5
6
6
CQ-VD5005W
Attach the Mounting Springs e to the unit.
Establish the rear connection of the unit.
After fixing Power Connector !0, fix the rear of the unit to
the car body by either method (a) or (b) shown at right.
Insert the unit into Mounting Collar w.
Secure the clamp plate of Mounting Collar
w to the hook of Mounting Spring e.
Clamp plate
Insert Trim Plate q.
After installation
reconnect the negative
(–) battery terminal.
English
Method for Fixing the Mounting Spring
Two holes of the mounting spring allow you to select between two mounting types as shown below.
(A) Regular installation method
6
(B) Deeper installation method
A few millimeters of
console projecting
y Flat-Head Screw
Less projecting
y Flat-Head Screw
y Flat-Head Screw
y Flat-Head Screw
Caution
¡Method (B) is not available in some types of cars.
Method for Fixing the Rear of the Unit
(a) Using the Rear Support Strap (option)
Fire wall of car
3 mmø
Rear Support Strap
(option, YEFG044C002)
Tapping Screw
(5 mmø x 16 mm)
(option, XTT5+16AFN)
(b) Using the Rubber Cushion (option)
Rear Support Bracket
(Provided on the Car)
Rubber Bushing
(option)
Hex. Nut
(5 mmø)
(option, YEJN99023)
r Mounting Bolt
(5 mmø)
r Mounting Bolt
(5 mmø)
CQ-VD5005W
7
English
Installation
7
(continued)
❏ Installation Procedures (When not using Mounting Collar w)
Use the brackets supplied with your car when mounting this unit. The bracket shape and mounting method vary with car
manufacturers, car types and manufacturing year. Please consult your nearest dealer or installer.
Select mounting screws according to the hole positions and hole shape of the bracket.
t Round Head Screw (5 mmø x 6 mm)
2 pieces
Recycle the Round Head Screws that fixed the transportation brackets for two more
positions.
u Round Head Screw (4 mmø x 3 mm)
4 pieces
y Flat-Head Screw (5 mmø x 6 mm)
When using these
mounting holes
4 pieces
t Round Head Screw
(5 mmø x 6 mm)
Use the supplied Spacer i if mounting hole of your
car is shaped like below.
i Spacer
Mounting Hole
of a Bracket
(in section)
Bracket
Existing Bracket (R)
o Double-Faced
Adhesive Tape
t Round Head Screw
(5 mmø x 6 mm)
i Spacer
o Double-Faced Adhesive Tape
Existing Bracket (L) (Bracket originally attached to the car)
To Remove the Unit
q Push the right and left clamp plates outward, one at a time, and pull the unit toward yourself.
w After removing the right and left clamp plates, pull the unit with both hands till it comes out.
w
q
Push here to
remove the
clamp plates.
8
CQ-VD5005W
English
Connecting the Side Brake (Parking Brake) Connection Lead
8
Caution
¡For safety, be sure to ask your nearest professional installer to do this connection.
Hand brake
Foot brake
Side brake (parking brake) switch
The side brake (parking brake) switch position varies with car model.
For details on the exact location of the side brake (parking brake) switch
in your car, contact your dealer.
Brake light
Battery
+
SIDE BRAKE
Side Brake (Parking Brake) Connection
Lead (Bright green)
When the side brake (parking brake) lever is
engaged, the unit is grounded by the chassis.
q Attach a Clip Connector to the end of the side brake
(parking brake) connection lead.
Clip Connector
(Commercialized product)
—
Car chassis
w The Clip Connector is connected to the power
source side lead of the side brake (parking brake)
lever.
Comes up to this point.
Side Brake (Parking Brake) Connection Lead
(Bright green)
Power source side lead
CQ-VD5005W
9
English
Electrical Connections
9
Caution
¡This unit is designed for use in a car having a 12 V negative ground battery system.
¡Be sure to insulate any exposed wires from the car chassis. Bundle all cables and keep cable terminals free from
any metal parts.
¡Note that if your car has a driving computer or a navigation computer, disconnecting the cable from the battery
may clear the memory.
¡Run the cords avoiding the spots where the temperature can be extremely high.
!0 Power Connector
Motor Antenna Relay Control Lead (Blue)
(To motor antenna) (Max. 100 mA)
This lead is not intended for use with a switch actuated
power antenna.
SIDE BRAKE
Side Brake (Parking Brake) Connection Lead (Bright
green)
Be sure to wire the side brake (parking brake) for safety and
preventing accidents. (a page 9)
Front Right + (Gray)
Front Right – (Gray/black stripe)
FRONT SP
External Amplifier Control Power Lead (Blue/white stripe)
To an external amplifier.
Note:
¡Use the power control lead of the TV tuner for TV
tuner connection.
¡Connect both the power control lead of the TV
tuner and the amplifier control connector of the
external amplifier when the TV tuner and external
amplifier are connected at the same time.
Front Left + (White)
Front Left – (White/black stripe)
Rear Right + (Violet)
Rear Right – (Violet/black stripe)
REAR SP
Rear Left + (Green)
Rear Left – (Green/black stripe)
Reverse Lead (Violet/white stripe)
When connecting the rear view camera, use the reverse
lead. (a page 13)
Speaker connections
ACC
Power Lead (Red)
To ACC power, +12 V DC.
BATTERY 15 A
Battery Lead (Yellow)
To the car battery, continuous +12 V DC.
Ground Lead (Black)
To a clean, bare metallic part of the car chassis
10
CQ-VD5005W
¡ Do not connect more than one speaker to one set of
speaker leads (except for connecting to a tweeter).
Use of speakers which do not match the specifications can cause burning, smoking or damage of the
speakers.
¡ Do not use a 3-wire type speaker system having a
common earth lead.
1
English
Note:
¡To prevent from damage to the unit, be sure to follow the wiring diagrams below.
¡Be sure to fully plug in the connectors. Secure them with clamps and tapes.
¡All other installation methods require the use of dedicated metal fittings. Consult with a qualified servicing engineer or
your dealer if other methods are required.
¡Installation of this product may interfere with the grounding properly. In such a case, connect the ground lead of the
external equipment to be connected to the mounting bolt r that secures this product.
¡The pre-out connector is used exclusively to an external amplifier. Accordingly, do not connect the audio input terminal and the like of other external devices to this connector.
10
*Fuse (15 A) Refer fuse replacement to
your nearest authorized Panasonic
Service Center. Do not try fuse replacement by yourself.
3
2
CQ-VD5005W
(Rear)
Radio Antenna Connector (RADIO ANT IN)
VIDEO OUT
(Yellow)
(R)(Red)
PRE OUT FRONT
(L)(White)
(R)(Red)
PRE OUT REAR
REMOTE OUT
(L)(White)
(Black)
(R)(Red)
AV2 IN
(L)(White)
(Yellow)
CAMERA IN
(Yellow)
Video Output Terminal (VIDEO OUT)
Connect the rear monitor. (a page 14)
Pre-Out Connector (front)
To an external amplifier.
Pre-Out Connector (rear)
To an external amplifier.
Remote-Out Lead
To Remote-In of connected device.
Video Input Terminal (AV2 IN)
Connect a TV tuner, VCR, camcorder, other
brand’s car navigation system, etc. (a page
15)
Camera Input Terminal (CAMERA IN)
Connect a rear view camera. (a page 13)
CQ-VD5005W
11
English
Electrical Connections
(continued)
Connection with TV Tuner
Note:
¡Refer to the operating instructions for the connected devices, in addition.
11
External Amplifier Control Power Lead
Note:
¡Connect both the power control lead of the TV tuner and the amplifier control
connector of the external amplifier when the TV tuner and external amplifier are
connected at the same time.
Clip connector
(option)
Power Control Lead
PWR-CONT
!0 Power
Connector
Power Connector
(supplied with CY-TUP133W/
CY-TUN133W)
CQ-VD5005W
(Rear)
TV Tuner
CY-TUP133W/
CY-TUN133W (option)
RCA Cord
(supplied with CY-TUP133W/
CY-TUN133W)
(Video)
(Yellow)
(Video) (Yellow)
(L) (White)
AV2 IN
(R) (Red)
(Black)
REMOTE OUT
12
CQ-VD5005W
(L) (White)
(R) (Red)
RCA Cord
RCA Cord
English
Connection with Rear View Camera
Note:
¡Refer to the operating instructions for the connected devices, in addition.
Rear View Camera
Control Unit
CQ-VD5005W
(Rear)
12
Camera Input
Rear View Camera
(CY-RC50KW)
(Video)
(Yellow)
Panaso nic
RCA Cord
CAMERA IN
Camera Input Terminal
!0 Power
Connector
(Yellow)
(Video)
(Yellow)
Reverse lamp
Clip connector
(Commercialized product)
Battery
Reverse Lead
(Violet/white stripe)
Car chassis
P
R
N
D
2
L
Transmission gear
Connecting the Reverse Lead
If using an optional rear view camera, the reverse lead
must be connected.
Connect the reverse lead (violet/white stripe) to the positive (+) lead of the reverse lamp (the lamp with a clear
lens that lights when the transmission gear is shifted into
the reverse position).
Note:
¡Connect the reverse lead after cutting the terminal at
the end.
¡Use a Reverse Extension Cord (option) if needed.
Check the reverse lamp.
Take it out of the back of
the tail lamp mount.
CQ-VD5005W
13
English
Electrical Connections
13
(continued)
Connection with Rear Monitor
Note:
¡Refer to the operating instructions for the connected devices, in addition.
¡Please observe what shapes the connectors of the connecting devices are and where each of them is connected to in
order to establish a proper connection.
STAND BY (R)
ON (G)
COLOR LCD MONITOR
Caution
Rear Monitor
¡For people sitting in the front seats, please
enjoy only audio during driving.
Panasonic
Example:
VM1500
Audio Right
Audio Left
Video Input
(Video) (Yellow)
RCA Cord
14
CQ-VD5005W
CQ-VD5005W
(Rear)
(Video) (Yellow)
VIDEO OUT
Note:
¡Refer to the operating instructions for the connected devices, in addition.
¡Please observe what shapes the connectors of the connecting devices are and where each of them is connected to in
order to establish a proper connection.
English
Connection with VCR or Camcorder
14
❏ AV1 IN
Note:
¡Be sure to use the Conversion Cable for AV1 IN that is supplied with
this product when an external device is connected to the AV1 IN terminal. Failure to observe this results in an audio or video output error.
¡Only the pin jack of the supplied Conversion Cable for AV 1 IN or a pin
jack that has the same electrode arrangement can be connected to the
AV 1 IN terminal. (See Fig. 1.)
¡Use of the supplied Conversion Cable for AV 1 IN or an audio pin jack
that has the same electrode arrangement also allows users to enjoy only
music. In this case, the screen background becomes black.
AV1 IN
CQ-VD5005W
(Front)
Conversion Cable
for AV1 IN
(Video) (Yellow)
<Fig. 1>
(R) (Red)
Audio (L)
Audio (R)
Camcorder
RCA Cord
(L) (White)
(L)
(White)
(R)
(Red)
(Video)
(Yellow)
VCR
Video
Ground
INTELLIGENT SYSTEM
POWER
Example:
BS G-CODE
Video Output
Audio Left
Audio Right
❏ AV2 IN
CQ-VD5005W
(Rear)
(Video) (Yellow)
RCA Cord
AV2 IN
(R) (Red)
(L)
(White)
(L) (White)
(R)
(Red)
(Video)
(Yellow)
INTELLIGENT SYSTEM
POWER
BS G-CODE
Camcorder
VCR
Example:
Video Output
Audio Left
Audio Right
CQ-VD5005W
15
Installation Instructions
Matsushita Electric Industrial Co., Ltd.
Web Site : http://panasonic.net
YFM294C104CA
PTW1206-1037
Printed in China
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
