Panasonic Digital Photo Frame MW-20 User manual

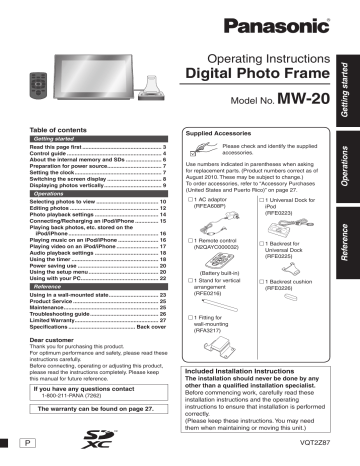

Digital Photo Frame
Model No.
Read this page first ................................................... 3
Control guide ............................................................. 4
About the internal memory and SDs ....................... 6
Preparation for power source................................... 7
Setting the clock ........................................................ 7
Switching the screen display ................................... 8
Displaying photos vertically ..................................... 9
Operations
Selecting photos to view ........................................ 10
Editing photos ......................................................... 12
Photo playback settings ......................................... 14
Connecting/Recharging an iPod/iPhone ............... 15
Playing back photos, etc. stored on the
iPod/iPhone .......................................................... 16
Playing music on an iPod/iPhone .......................... 16
Playing video on an iPod/iPhone ........................... 17
Audio playback settings ......................................... 18
Using the timer ........................................................ 18
Power saving use .................................................... 20
Using the setup menu ............................................. 20
Using with your PC .................................................. 22
Reference
Using in a wall-mounted state ................................ 23
Product Service ....................................................... 25
Maintenance ............................................................. 25
Troubleshooting guide ............................................ 26
Limited Warranty...................................................... 27
Specifications ........................................... Back cover
Supplied Accessories
Please check and identify the supplied
accessories.
Use numbers indicated in parentheses when asking
for replacement parts. (Product numbers correct as of
August 2010. These may be subject to change.)
To order accessories, refer to “Accessory Purchases
(United States and Puerto Rico)” on page 27.
1 AC adaptor
(RFEA608P)
1 Remote control
(N2QAYC000032)
(Battery built-in)
1 Stand for vertical
arrangement
(RFE0216)
1 Universal Dock for
iPod
(RFE0223)
1 Backrest for
Universal Dock
(RFE0225)
1 Backrest cushion
(RFE0226)
1 Fitting for
wall-mounting
(RFA3217)
Dear customer
Thank you for purchasing this product.
For optimum performance and safety, please read these
instructions carefully.
Before connecting, operating or adjusting this product,
please read the instructions completely. Please keep
this manual for future reference.
If you have any questions contact
1-800-211-PANA (7262)
The warranty can be found on page 27.
P
Operations
Getting started
Included Installation Instructions
The installation should never be done by any
other than a qualified installation specialist.
Before commencing work, carefully read these
installation instructions and the operating
instructions to ensure that installation is performed
correctly.
(Please keep these instructions. You may need
them when maintaining or moving this unit.)
VQT2Z87
Reference
Table of contents
MW-20
Getting started
Operating Instructions
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
OR PRODUCT DAMAGE,
z DO NOT EXPOSE THIS APPARATUS TO RAIN,
MOISTURE, DRIPPING OR SPLASHING AND THAT
NO OBJECTS FILLED WITH LIQUIDS, SUCH AS
VASES, SHALL BE PLACED ON THE APPARATUS.
z USE ONLY THE RECOMMENDED ACCESSORIES.
z DO NOT REMOVE THE COVER (OR BACK); THERE
ARE NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used
batteries according to the manufacturer’s instructions.
THE SOCKET OUTLET SHALL BE INSTALLED NEAR
THE EQUIPMENT AND SHALL BE EASILY
ACCESSIBLE.
-If you see this symbolInformation on Disposal in other Countries outside
the European Union
This symbol is only valid in the European
Union.
If you wish to discard this product, please
contact your local authorities or dealer and
ask for the correct method of disposal.
Warning
Risk of fire, explosion and burns. Do not disassemble,
heat above 60°C (140°F) or incinerate.
Product Identification Marking is located on the bottom of
unit.
SDXC Logo is a trademark of SD-3C, LLC.
Macintosh and Mac OS are registered trademarks or
trademarks of Apple Inc.
Other names, company names and product names
appearing in this document are the registered trademarks
or trademarks of the respective developer companies.
Note that TM and ® mark do not appear in this document
in some cases.
VQT2Z87
Button-type battery (Lithium battery)
• Insert with poles aligned.
• Do not touch the terminals (+ and –) with metal objects.
• Do not recharge, disassemble, remodel, heat or throw
into fire.
• Keep out of reach of children.
2
If any electrolyte should come into contact with your hands
or clothes, wash it off thoroughly with water.
If any electrolyte should come into contact with your eyes,
never rub the eyes.
Rinse eyes thoroughly with water, and then consult a
doctor.
FCC Note:
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
FCC Caution: To assure continued compliance, follow the
attached installation instructions and use
only shielded interface cables with ferrite
core when connecting to computer or
peripheral devices.
Any changes or modifications not expressly approved by
the party responsible for compliance could void the user’s
authority to operate this equipment.
Declaration of Conformity
Trade Name: Panasonic
Model No.: MW-20
Responsible Party: Panasonic Corporation of North
America One Panasonic Way,
Secaucus, NJ 07094
Support Contact: Panasonic Consumer Electronics
Company 1-800-211-PANA (7262)
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired operation.
MW-20
User memo:
DATE OF PURCHASE
DEALER NAME
DEALER ADDRESS
TELEPHONE NUMBER
The model number and serial number of this product can
be found on either the back or the bottom of the unit.
Please note them in the space provided below and keep
for future reference.
MODEL NUMBER
SERIAL NUMBER
MW-20
SD memory card, SDHC memory card, SDXC memory
card, miniSD card, microSD card, microSDHC card and
micro SDXC memory card
ΠSD or SD card
Playable media and file formats
„ Playable photos (JPEG)
(Playback may not be possible in some cases.)
„ Types of iPod/iPhone that can be used on this
unit (as of August, 2010)
Name
Memory size
iPod touch 3rd generation
32 GB, 64 GB
iPod nano 5th generation (video
camera)
8 GB, 16 GB
iPod touch 2nd generation
8 GB, 16 GB, 32 GB
120 GB, 160 GB (2009)
File format
JPEG
iPod classic
Number of pixels
Max. 5120 × 3840 pixels
Min. 64 × 64 pixels
iPod nano 4th generation (video) 8 GB, 16 GB
Maximum file size
10 MB
Approximate number of
1000 folders
folders practically usable
Approximate number of
files practically usable
10000 files
(1000 files per folder)
• Files in folders lower than the sixth hierarchy cannot be
played back.
• Files in folder “SD_VIDEO” and “SD_AUDIO” cannot be
played back.
„ Usable SD cards (as of August, 2010)
iPod classic
160 GB (2007)
iPod touch 1st generation
8 GB, 16 GB, 32 GB
iPod nano 3rd generation (video) 4 GB, 8 GB
iPod classic
80 GB
iPod nano 2nd generation
(aluminum)
2 GB, 4 GB, 8 GB
iPod 5th generation (video)
60 GB, 80 GB
iPod 5th generation (video)
30 GB
iPod nano 1st generation
1 GB, 2 GB, 4 GB
Read this page first
Descriptions in these operating instructions
Getting started
Read this page first
Panasonic SD cards are recommended.
Formatted in FAT12 format or
FAT16 format compliant with the
SD standard
• SDHC memory card
• microSDHC card¼
(4 GB to 32 GB)
Formatted in FAT32 format
compliant with the SD standard
• SDXC memory card
• microSDXC card¼
(48 GB, 64 GB)
Formatted in exFAT format
compliant with the SD standard
¼
Be sure to attach the dedicated adaptor when using on
this unit.
Name
Memory size
iPhone 4
16 GB, 32 GB
iPhone 3GS
16 GB, 32 GB
iPhone 3G
8 GB, 16 GB
iPhone
4 GB, 8 GB, 16 GB
Note
• Playback of motion pictures is available only for the type
iPod®/iPhone compatible with video playback.
• You cannot record/save data onto the iPod/iPhone using
this unit.
• Depending on the iPod/iPhone in use or its version,
operations or displays may differ from the normal ones,
but this will not affect the basic playback. Use the latest
version if possible.
VQT2Z87
• SD memory card
• miniSD card¼
• microSD card¼
(8 MB to 2 GB)
3
Control guide
Main unit
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
9
10
9
14
ヱヰヸユン
ヮユワヶ
ンユヵヶンワ
ュリヴヱロモヺ
ヮヰュユ
ヷヰロヶヮユ
15
11
10
11
12
13
14
15
16
Display
Remote control signal sensor (¼P5)
Panasonic Logo (¼P21)
Speakers
Light sensor (¼P20)
Cursor buttons (e, r, w, q and OK) Selecting to confirm
[MENU] Displaying/closing the menu screen
[ RETURN] Returning to the previous screen, displaying the
thumbnail screen (¼P11), displaying track list (¼P17)
[DISPLAY MODE] Displaying the display mode selection screen
(¼P8, 9)
[VOLUME 4]/[VOLUME 3] Adjusting the volume
SD card slot
Stand
Terminal for the Universal Dock (¼P15)
[POWER 8] Standby/on switch
USB port (¼P22)
AC adaptor terminal (¼P7)
12
16
13
„ Button operation display on the main unit
MENU
RETURN
DISPLAY MODE
VOL +
VOL -
• When [MENU], [ RETURN] and [DISPLAY MODE] are pressed
once, the guide (A) is displayed. When these buttons are pressed
while the button guide is displayed, they will function normally as
buttons.
• You can operate [VOLUME 4] and [VOLUME 3] regardless of the
button guide display status.
A
Inserting an SD card
Back of product
Face (the side with the corner cut) (B) up and insert straight to the
end.
„ To remove an SD card
Press the center of the SD card. When the card slightly pops out, pull
it out with your fingers.
• Never remove the SD card while the SD card is reading. Otherwise,
the data may be destroyed.
• Keep the Memory Card out of reach of children to prevent
swallowing.
VQT2Z87
B
4
This manual explains operations using the remote control in most sections.
7
8
2
9
3
10
4
5
11
6
12
13
1 [^] Standby/on switch
2 [iPod/PLAY MENU] Displaying the iPod menu screen (¼P16, 17)
3 [SELECT PHOTOS] Displaying the photo selection menu screen
(¼P10, 11)
4 [e, r, w, q]/[OK] Selecting to confirm, switching the photos
(¼P11, 16), skipping/searching a track (¼P17)
5 [DISPLAY MODE] Displaying the display mode selection screen
(¼P8, 9)
6 [SLIDESHOW] Viewing the slideshow (¼P11), switching the
remote control mode (¼P21)
7 [iPod/q/h] Play/Stop (Pause) (¼P17)
8 [CLOCK] Switching to the clock screen (¼P8), switching the
remote control mode (¼P21)
9 [iPod/DISPLAY] Switching to the iPod Display screen
10 [MENU] Displaying/closing the menu screen
11 [ RETURN] Returning to the previous screen, displaying the
thumbnail screen (¼P11), displaying track list (¼P17)
12 [ROTATE/-ZOOM] Rotating photos (¼P11), switching the volume
button to the zoom in/out button (¼P11)
13 [4 IN/VOL]/[3 OUT/VOL] Adjusting the volume, zooming in/out
photos (¼P11)
Control guide
1
Getting started
Remote control
To use the remote control
„ When inserting the battery
Extract the insulation sheet (C) before use.
2
C
• Dispose of the extracted insulation sheet properly.
1
„ Usable range
I
D
H
E
F
G
D Remote control signal sensor
E Within approx. 7 meters (23 feet) at the front
F Transmission window
G Approx. 30º
H Approx. 75º
I Approx. 20º
1 Pull out while pressing.
2 Button-type battery (Lithium battery) (CR2025): Face “+”
upward.
• Do not heat or expose to flame.
• Do not leave the battery in an automobile exposed to
direct sunlight for a long period of time with doors and
windows closed.
• Remove the battery if the remote control is not going to be
used for a long period of time. Store in a cool, dark place.
• Keep the Button-type battery out of reach of children to
prevent swallowing.
< For USA-California Only >
This product contains a CR Coin Cell Lithium Battery
which contains Perchlorate Material - special handling
may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate
„ Caution
Note
• When you set the unit in a cabinet, the remote controlling
range may decrease depending on the thickness or colors
of glass cabinet doors.
VQT2Z87
• Do not place an object between the signal sensor and the
remote control.
• Do not place the signal sensor under direct sunlight or the
strong light of an inverter fluorescent lamp.
• Keep the transmission window and the unit’s sensor free
from dust.
5
About the internal memory and SDs
About the internal memory
Back up the internal memory periodically.
It is recommended that you back up the internal memory
to your PC or an SD card periodically to prevent the data
from being lost due to static electricity, electromagnetic
wave, damage, malfunctions, etc.
• Note that Panasonic assumes no liability for indemnification
for any damage of the internal memory contents caused by
use of this product, failures, malfunctions, etc.
• If this unit is repaired, the internal memory may be
restored to the factory default conditions.
About SDs
Usable SD cards (¼P3)
• Multimedia cards (MMC) cannot be used.
• The usable area will be less than the indicated capacity.
• SDHC memory cards and SDXC memory cards can be
used on equipment that supports respective cards.
(SDHC memory cards can also be used on equipment
that supports SDXC memory cards.)
Using those cards with incompatible equipment may
format the cards or delete recorded contents.
When using those cards on computer or equipment
incompatible with SDXC memory cards, a message
asking you to format the card may appear. Do not
format the card because your important data will be
deleted and cannot be restored.
See the following site for using SDXC memory cards.
http://panasonic.net/avc/sdcard/information/SDXC.
html
„ Write-Protect switch
When the switch is slid to the “LOCK” side, it is not possible
to write or delete data on the card and format it. When the
switch is unlocked, these functions become available.
A Write-protect
B When recording/editing
A
B
„ Handling cautions
VQT2Z87
•
•
•
•
•
6
Be sure to store the card in the case when not in use.
Do not disassemble or modify the card.
Do not remove the attached label.
Do not attach a new label or seal.
Do not touch the metal terminal on the back side with hand
or metal.
Cautions when disposing of/transferring SD
cards and the unit
“Format” and “Delete” functions of this unit or a PC only
change the file management information and cannot
completely erase data stored on the SD card or in the
internal memory of this unit.
• When disposing of/transferring SD cards, it is
recommended that you physically destroy the SD card
itself or completely erase the data on the SD card using a
commercially available data erasing software for PCs.
• When disposing of/transferring the unit, perform physical
format. (¼below)
Manage data on the SD card and in the internal memory
under your responsibility.
„ To completely delete data in the internal
memory using the physical format (approx.
10 minutes)
1. Press [MENU].
2. Press [e, r, w, q] to select “Settings Menu” and press
[OK].
3. Press [e, r, w, q] to select “Format Internal Memory”
and press [OK].
4. Press [w, q] to select “Yes” and press [OK].
5. Press and hold [MENU] for 3 seconds or more when
“Photos set as protected will also be deleted. Do you
really want to perform this operation?” is displayed.
6. Press [w, q] to select “Yes” and press [OK].
Back of product
C AC adaptor terminal
D AC adaptor
E To household AC outlet
Setting the clock
This unit is equipped with the clock/calendar and timer
functions. Set the time first.
1. Press [^].
• You can also press [POWER 8] on the main unit.
2. Press [MENU].
Menu
Slideshow
Single View
Select Photos
E
C
Photo Menu
2
D
iPod Play/Pause
iPod Display
iPod Play Menu
OK
3. Press [e, r, w, q] to select “Settings Menu” and
press [OK].
Note
• While using this unit, the AC adaptor may become a little
hot. This is not a malfunction.
• The included AC adaptor is for use with this unit only.
Do not use it with other equipment. Also, do not use AC
adaptor from other equipment with this unit.
• Do not use any other AC adaptors except the supplied
one.
Menu
Audio Menu
Settings Menu
Select Item
Installation of this unit
OK
4. Press [e, r, w, q] to select “Clock/Calendar
Settings” and press [OK].
5. Press [e, r] to select “Set Clock” and press [OK].
6. Press [w, q] to select the items (Month, Day, Year,
Hour, Minute and AM/PM¼), and press [e, r] to set.
7. Press [OK].
• The clock starts from 00 second.
F
F Adjustable with the angle of between approx. 50 degrees
and 75 degrees for comfortable viewing.
„ For better sound effects
The sound quality changes depending on the setup of this
unit. Enjoy better sound quality according to the instructions
below.
• Install the unit on a flat and stable place.
• Make the surrounding conditions of the speakers as
balanced as possible. Make the surrounding reflection as
low as possible.
Note
• These speakers do not have magnetic shielding. Do not
place a clock or magnetic cards (credit card, etc.) near this
unit, or do not place this unit near a TV or a computer.
• Using this unit at high volume for a long period of time may
deteriorate the speaker characteristic or extremely shorten
speaker life.
• When the sound is distorted, turn down the volume even in
the normal use. (Failure to do so may cause the speakers
to be damaged.)
„ When the introduction screen for the time
setting appears
If you attempt to operate a function that requires time setting
while the time is not set, the introduction screen for the time
setting appears.
1. Press [e, r] to select “Set time” and press [OK].
2. Press [w, q] to select the items (Month, Day, Year, Hour,
Minute and AM/PM¼), and press [e, r] to set.
3. Press [OK].
¼
Only for the 12-hour display (¼P20)
„ To display the clock
1. Press [MENU].
2. Press [e, r, w, q] to select “Clock” and press [OK].
About the internal memory and SDs / Preparation for power source / Setting the clock
Select Item
Note
• Period that can be set: January 2000 to December 2099.
• There is a small precision error of the clock. Periodical time
correction is recommended.
VQT2Z87
1
Clock
Getting started
Preparation for power source
7
Switching the screen display
This unit has display categories of “Slideshow”, “Single
View”, “Clock” and “iPod Display”.
Each display category has a variety of display modes. You
can select a display according to your preferences and
moods.
Types of display mode
„ Slideshow
Display Mode
Slideshow
Single View
Clock
iPod Display
Factory settings are indicated with underlines.
Slideshow
Switching photos automatically
Single View
Displaying one photo fixed
Clock
Displaying date, clock or calendar
iPod Display
Displaying audio information, etc.
1. Press [DISPLAY MODE].
A
Display Mode
Slideshow
Single View
Clock
iPod Display
Normal
Select Item
OK
Normal
Slideshow with 1 photo per slide in
normal size
Full Screen
Slideshow with 1 photo per slide in full screen size
Frame 1 to 3
Slideshow with 2 or 3 framed photos per slide
Frame 4
(Random)
Slideshow with random photos using
the frame 1 to 3
Multi
Slideshow with 2 or 3 photos per slide
Clock 1 to 3
Slideshow with 1 photo per slide
displaying the clock
Calendar 1 to 3
Slideshow with 1 photo per slide
displaying the calendar
Normal +
Date Indication
Slideshow with 1 photo per slide
displaying the date of photo¼
Full Screen +
Date Indication
Slideshow with 1 photo per slide in
full screen size displaying the date of
photo¼
Normal
(Vertical)
Slideshow with 1 photo per slide
displayed vertically
Full Screen
(Vertical)
Slideshow with 1 photo per slide
displayed vertically in full screen size
Calendar1
Select Item
OK
B
C
A Current display category
B Current display mode
C Cursor
2. Press [e, r, w, q] to select the display category
or display mode and press [OK].
• You can also select the display categories of
“Slideshow”, “Clock” and “iPod Display” by pressing
[SLIDESHOW], [CLOCK] and [iPod/DISPLAY]
respectively.
„ Single View
Display Mode
Slideshow
Single View
Clock
iPod Display
Normal
VQT2Z87
Select Item
8
OK
Normal
Displaying a photo in normal size
Full Screen
Displaying a photo in full screen size
Normal +
Photo Info
Displaying a photo and photo
information (folder name, file name,
number of pixels, etc.)
Full Screen +
Photo Info
Displaying a photo in full screen size
and photo information (folder name,
file name, number of pixels, etc.)
Normal +
Date Indication
Displaying a photo and the date of
photo¼
Full Screen +
Date Indication
Displaying a photo in full screen size
and the date of photo¼
Normal (Vertical) Displaying a photo vertically
Full Screen
(Vertical)
Displaying a photo vertically in full
screen size
Displaying photos vertically
„ Clock
Photos are displayed vertically by switching the display
mode.
Single View
Clock
iPod Display
1. Press [DISPLAY MODE].
2. Press [e, r, w, q] to select “Normal (Vertical)”
or “Full Screen (Vertical)” in the “Slideshow” or
“Single View” and press [OK].
• The photo is displayed vertically.
3. Turn the unit off and remove the AC adaptor from
the unit.
Clock1
Select Item
OK
4. Fold the stand part.
Clock 1 to 7
Displaying the clock
Calendar 1 to 7
Displaying the calendar
• To view a calendar of different month, press [w, q] while
the calendar is displayed.
5. Insert the stand for vertical arrangement to
the screw hole on the bottom face of this unit.
Tighten the screw firmly to attach it.
D Stand for vertical arrangement
E Screw hole
F Cloths, etc.
„ iPod Display
Display Mode
Slideshow
Single View
Clock
iPod Display
D
E
Track List
Select Item
Track List
Displaying track list
Album Artwork + Displaying album artwork (an image
Track List
attached with a track) and track list
Album Artwork
Displaying album artwork
When selecting “Videos” or “All (iPod display)” in the
iPod menu
iPod Normal
iPod Full Screen
Displaying the iPod/iPhone screen in
normal size
Displaying the iPod/iPhone screen
with approx. 1.33 times the normal
size
6. Connect the AC adaptor and turn the unit on.
„ To restore the horizontal arrangement
1. Turn the unit off, remove the AC adaptor and the stand for
vertical arrangement.
2. Open the stand part of the unit, connect the AC adaptor
and turn the unit on.
Note
• Use a cloth, etc. to prevent damage of the product or floor
when attaching the stand for vertical arrangement.
• Check if the stand for vertical arrangement is screwed
firmly. Otherwise, the stand may fall.
If photo shooting date information is not present for some
photos, the updated date information of photo files is
displayed.
VQT2Z87
¼
F
OK
Getting started
Slideshow
Switching the screen display / Displaying photos vertically
Display Mode
9
Selecting photos to view
You can play back photos on the SD or in the internal
memory.
• Playable photos (JPEG) ¼P3
1. Insert the SD card containing photo files.
If the SD card is inserted while each display mode
screen is displayed, the SD card menu screen
appears.
• Import photo data into the internal memory. (¼P12)
The following explains how to select and play photos
in the internal memory.
1. Press [SELECT PHOTOS].
• You can also select from “Select Photos” in the “Menu”.
D
E
Internal Memory Photo Selection Menu
All Photos
Recently Imported Photos
SD Card Menu
Date Search
Used:
Space:
Photos:
34.25MB
1.76GB
118
Folder Search
View Most Recent Photos
Favorites
Select Photo to View
LUMIX Scene Mode
Copy Photo
Switch to SD Card
Cancel
Select Item
Select Item
F
OK
2. Press [e, r] to select “Select Photo to View” and
press [OK].
• If “View Most Recent Photos” is selected, the newly
dated photo in “Date Search” is played back.
3. Press [e, r, w, q] to select photo category
(¼right) and press [OK].
• Repeat the above step as necessary.
A
B
SD
Photo Selection Menu
All Photos
Date Search
Folder Search
Used:
Space:
Photos:
36.03MB
1.78GB
118
LUMIX Scene Mode
Switch to Internal Memory
Select Item
OK
OK
C
A Media
B Media information (¼P11)
C To switch to the internal memory
4. Press [e, r, w, q] to select the photo and press
[OK].
• The photo is displayed with single view.
„ When the SD card menu screen is not
displayed or the SD card is already inserted
Perform the following steps instead of the above steps 1 and
2.
1. Press [SELECT PHOTOS].
2. Press [e, r] to select “Switch to SD Card” and press
[OK].
D Media
E Media information (¼P11)
F To switch to the SD card
2. Press [e, r] to select photo category (¼below) and
press [OK].
• Repeat the above step as necessary.
3. Press [e, r, w, q] to select the photo and press [OK].
• The photo is displayed with the single view.
Note
• Displaying photos may take time.
„ Photo categories
Factory setting is indicated with underline.
All Photos
Select from all photos in the SD
or the internal memory.
Recently Imported
Photos
(Only for the internal memory)
Select from 100 photos imported
to the internal memory recently.
• Photos directly copied from a
computer are not included. (¼P22)
Date Search
Select photos by shooting date.
Folder Search
Select from the folder.
SD Favorite 1 to 10¼1
(Only for the SD)
Select from photos registered as
“Favorite” on the Panasonic digital
camera LUMIX, etc.
LUMIX: SD Favorite 4
• For details on how to register
“Favorite” on the LUMIX, etc.,
see those operating instructions.
Favorites
(Favorite 1 to 10)
(Only for the internal memory)
Select from photos registered as
“Favorite” on this unit. (¼P13)
LUMIX Scene Mode
Photos taken with a Panasonic digital
camera LUMIX can be selected among
the similar categories on this unit to
those of LUMIX such as “Intelligent
Auto Mode” and “Scene Mode”.
„ Scene mode categories
Portrait etc./
Scenery etc./
Night Scenery etc./
Events/
Baby/
Pet/
Food/
Others
Note
VQT2Z87
• After extracting the SD card, the selector automatically
selects “Internal Memory”.
10
¼1
Displayed only if photos are present.
Zooming photos
When displaying with the single view
1. Press and hold [ROTATE/
-ZOOM] for more than
1 second.
(The photo is enlarged to ×1.5.)
2. Press [4 IN/VOL].
×2 ×3 ×4
• While zoomed, you can move
to preferred position using
[e, r, w, q].
• Press [3 OUT/VOL] to reduce
the enlarged photo.
Confirming media
information
Press [SELECT PHOTOS].
• The used capacity, remaining
capacity and number of photos
of the SD card and internal
memory are displayed on the
photo selection menu screen.
„ Operations during play back
Selecting photos
Press [w, q].
Selecting photos
from the thumbnail¼2
view
1. Press [ RETURN].
2. Press [e, r, w, q] to select
the photo and press [OK].
Selecting photos by
scrolling¼3
Press and hold [w, q], when
playing the photo or thumbnail
view.
• When you release your finger,
scrolling stops and the photo
displayed in the center is
displayed with the single view.
Rotating photos
Press [ROTATE/-ZOOM], when
displaying with the single view.
• Each time you press, the photo
rotates anticlockwise by 90°.
Note
• When photos are being played back in display mode
“Frame 1 to 3” or “Multi” and if you press [w, q] to switch
photos, the combinations of photos are also changed.
• If some images cannot be displayed with the thumbnail
view, “
” is displayed.
• Depending on the photo, the scrolling thumbnail images
may be displayed as “ ”.
• Scrolling is not possible when the slideshow order is set to
Random (¼P14). Also, [w] is disabled during playing back
slideshow.
• If the unit is turned off or SD card is removed, the image
rotation setting for SD is canceled.
Selecting photos to view
Viewing single
Press [OK] while playing the
slideshow.
• You can also select from
“Single View” in the “Menu” by
pressing [MENU].
Thumbnail is a reduced image of multiple pictures to view
them as a list.
¼3
Scrolling is a function to display images with right and left
movement.
¼2
„ Searching screen
The searching screen may be displayed in the following
cases till the photo is displayed.
• When “Date Search” or “LUMIX Scene Mode” in the photo
category is selected
• When “Date Search” or “LUMIX Scene Mode” has been
selected when the unit is turned on
SD
Date Search
Searching photo files.
50%
[RETURN]:Cancel
• Pressing [ RETURN] will stop the photo search and exit
the above screen.
Note
• When the unit is turned on, if the above screen is
canceled, the first photo in “All Photos” is automatically
selected.
VQT2Z87
Playing back
slideshow
Press [SLIDESHOW] when
displaying with the single view or
thumbnail view.
• You can also select from
“Slideshow” in the “Menu” by
pressing [MENU].
Operations
Note
• The “SD Favorite” is classified based on the DPOF
setting information, which means the Favorite set on units
other than Panasonic products may be classified as “SD
Favorite”.
• A date for Date Search can be selected from January 2000
to December 2099.
• If photo shooting date information is not present for some
photos, the Date Search classifies such photos according
to the updated date information of photo files.
• The “LUMIX Scene Mode” categories displayed on this
unit may differ from the “LUMIX Scene Mode” categories
displayed on Panasonic digital camera LUMIX.
• If photos have scene mode information which is not
applicable, such photos are classified as “Others” of
“LUMIX Scene Mode”.
11
Editing photos
Copying photos
You can import and export photos between the internal
memory (2 GB) and the SD card.
• Due to the restriction of the file system, the displayed
internal memory capacity does not accord to the amount
of file data that can be copied.
• If copied, the file names and folder names of photo are
named as below.
Import
Export
Example: If copied on October 4, 2010
Folder name: 101004_1
File name: 10040001.JPG
Folder name: 100_PSDV
File name: P1000001.JPG
(Number indications are examples.)
• Insert the SD card. (If the SD card menu is displayed,
select “Copy Photo” and perform the below operation from
step 4.)
• Select the photo category. (¼P10)
1. Press [MENU].
2. Press [e, r, w, q] to select “Photo Menu” and
press [OK].
3. Press [e, r] to select “Copy Photo” and press
[OK].
4. Press [e, r] to select “Import from SD Card” or
“Export to SD Card” and press [OK].
5. Press [e, r, w, q] to select the photo and press
[OK].
• “ ” is displayed on the selected photos.
• Repeat the above step as necessary.
• To cancel, press [OK] again.
• If you press [MENU], you can select “Select All”
or “Clear All” of photos, or switch to single view to
select photos.
6. Press [MENU], press [e, r] to select “Copy” and
press [OK].
7. Press [w, q] to select “Yes” and press [OK].
„ To stop copying
VQT2Z87
Press [ RETURN].
• Photos already copied remain in the SD or the internal
memory.
12
„ Compressing data when imported
The number of photos that can be copied will be increased.
1. Select “Import from SD Card with Compression” in step 4
(¼left) and press [OK].
2. Press [e, r, w, q] to select the photo and press [OK].
3. Press [MENU], press [e, r] to select “Copy with
Compression” and press [OK].
4. Press [w, q] to select “Yes” and press [OK].
Note
• Even if photos are set to Favorite or protected, the
information is not copied.
• If the photo media is “Internal Memory”, the newly created
folder by copying is automatically selected.
• The size of the compressed photo cannot be recovered to
the original data size.
• It may be impossible to compress data depending on
photos.
• The audio will be stopped (paused) automatically, during
playback.
1. Press [MENU].
2. Press [e, r, w, q] to select “Photo Menu” and
press [OK].
3. Press [e, r] to select “Edit Photo” and press [OK].
4. Press [e, r] to select “Add to Favorite” and press
[OK].
5. Press [e, r, w, q] to select the photo and press
[OK].
• “ ” is displayed on the selected photos.
• Repeat the above step as necessary.
• To cancel, press [OK] again.
• If you press [MENU], you can select “Select All”
or “Clear All” of photos, or switch to single view to
select photos.
6. Press [MENU], press [e, r] to select “Select
Favorite Destination” and press [OK].
7. Press [e, r, w, q] to select favorite photos to
register and press [OK].
„ Rearranging the order of registered photos
1. After the above step 3, press [e, r] to select “Edit
Favorites” and press [OK].
2. Press [e, r, w, q] to select favorite photos and press
[OK].
3. Press [e, r, w, q] to select photo to be moved and press
[OK].
4. Press [MENU], press [e, r] to select “Select Move
Destination” and press [OK].
5. Press [e, r, w, q] to select move destination and press
[OK].
„ Canceling the registration
1. After the above step 3, press [e, r] to select “Edit
Favorites” and press [OK].
2. Press [e, r, w, q] to select favorite and press [OK].
3. Press [e, r, w, q] to select the photo and press [OK].
4. Press [MENU], press [e, r] to select “Remove Favorite”
and press [OK].
Note
• Up to 999 photos can be registered with “Favorites”
respectively.
• Some photos may not be registered.
• The audio will be stopped (paused) automatically, during
playback.
• Select the photo category. (¼P10)
1. Press [MENU].
2. Press [e, r, w, q] to select “Photo Menu” and press
[OK].
3. Press [e, r] to select “Edit Photo” and press [OK].
4. Press [e, r] to select “Delete Files” and press [OK].
5. Press [e, r, w, q] to select the photo and press [OK].
• “ ” is displayed on the selected photos.
• Repeat the above step as necessary.
• To cancel, press [OK] again.
• If you press [MENU], you can select “Select All” or “Clear
All” of photos, or switch to single view to select photos.
6. Press [MENU], press [e, r] to select “Delete” and
press [OK].
7. Press [w, q] to select “Yes” and press [OK].
„ To stop deleting
Press [
RETURN].
Operations
• Select the photo category. (¼P10)
(Only for the internal memory)
The deleted photos cannot be recovered.
Note
• To delete completely, perform “Format Internal Memory”
(¼P21) or the physical format (¼P6).
• Deleting all photos in the folder automatically deletes the
folder itself.
• The audio will be stopped (paused) automatically, during
playback.
Protecting photos
Editing photos
(Only for the internal memory)
By registering photos to Favorite 1 to 10, you can play back
registered photos only, or rearrange the order of photos.
Deleting photos
(Only for the internal memory)
You can protect photos to prevent them from being deleted
by mistake.
• Select the photo category. (¼P10)
1. Press [MENU].
2. Press [e, r, w, q] to select “Photo Menu” and press
[OK].
3. Press [e, r] to select “Edit Photo” and press [OK].
4. Press [e, r] to select “Set Protection” and press [OK].
5. Press [e, r, w, q] to select the photo and press [OK].
• “ ” is displayed on the selected photos.
• Repeat the above step as necessary.
• To cancel, press [OK] again.
• If you press [MENU], you can select “Select All” or “Clear
All” of photos, or switch to single view to select photos.
6. Press [MENU], press [e, r] to select “End
Protection Setting” and press [OK].
„ Canceling the protection
1. In the above step 5, press [e, r, w, q] to select photos
to cancel protection and press [OK].
2. Press [MENU], press [e, r] to select “End Protection
Setting” and press [OK].
Note
• Even if protection is set to photos, they will be deleted if
the internal memory is formatted (¼P21).
• The audio will be stopped (paused) automatically, during
playback.
VQT2Z87
Collecting favorite photos
13
Photo playback settings
You can make the settings for image quality for photo
playback, settings for slideshow playback method, etc.
according to your preferences.
„ Basic operation
1. Press [MENU].
2. Press [e, r, w, q] to select “Photo Menu” and
press [OK].
Menu
Slideshow
Single View
Select Photos
Clock
Photo Menu
iPod Play/Pause
Slideshow Effects
iPod Display
iPod Play Menu
Select Item
OK
3. Press [e, r] to select “Image Quality Settings” or
“Photo Playback Settings” and press [OK].
Photo Menu
Image Quality Settings
Photo Playback Settings
Copy Photo
Edit Photo
Select Item
OK
4. Press [e, r] to select the item (¼below, right)
and press [w, q] to select the setting.
5. Press [MENU] to close the menu screen.
„ Image quality settings
Factory settings are indicated with underlines.
Image Quality Mode
Adjust Brightness
Standard:
Standard image quality
Soft:
Eye-friendly image quality
Dynamic:
Vivid image quality with clear
distinction of bright and dark
Brightness is adjusted with the
range from “1” to “10”.
• When setting “1”, Panasonic
Logo automatically turns off.
„ Photo playback settings
Factory settings are indicated with underlines.
VQT2Z87
Slideshow Order
14
Normal:
Photos in the selected category
are played in order of file names.
Random:
Photos in the selected category
are played at random.
Slideshow Interval
Color Effects
Fade:
Photos are switched gradually.
Motion:
Plays while enlarging and moving
the photo up and down, right and
left, and in the diagonal direction.
• When “Motion” is set, the
“Slideshow Interval” setting is
disabled.
Slide-in:
Photos are switched with flowing
movement either from right or left.
Wipe 1/Wipe 2:
The displayed photo is switched
to the next photo in wiping motion.
Dissolve:
Photos are switched as the next
photo gradually overlaps the
currently displayed photo.
Center Cross:
Cross-shaped switching from
center toward outside
Blind:
The photos are switched by the
horizontal band from top to bottom.
Checker Wipe:
Check-shaped switching from left
to right
Random:
Various slideshow effects are used
randomly for switching photos.
5 sec/10 sec/30 sec/1 min/
5 min/10 min/30 min/
1 hour/3 hours/12 hours/24 hours
Change On The Hour:
Photos are switched on the hour
every hour.
Change Daily:
Photos are switched when the
calendar date is changed.
Sync Music:
Photos are switched every time
“Music” or “Videos” on the
iPod/iPhone is switched.
Setting a color tone of photo for the
single view or slideshow playback.
Color/Black and White/Sepia
• When photos are displayed with the
thumbnail view, they are displayed
with the original color tone.
Note
• When the display mode for “Slideshow” is set to “Multi” (¼P8),
the “Motion” and “Slide-in” effects cannot be selected.
• When the “Slideshow Effects” is set to “Motion” or “Slidein” with the display mode set to “Multi”, the “Fade” effect is
automatically assigned to “Motion” and “Slide-in”.
• When the slideshow playback is performed for the small
number of photos with a short interval, the photos may not
be normally displayed.
• Reading photos may require longer time than the set
slideshow interval. Also, when the display mode for
“Slideshow” is set to “Frame 1 to 3” (¼P8), it may require
longer time than the set slideshow interval.
Connecting/Recharging an iPod/iPhone
A compatible iPod/iPhone can be connected to this unit.
No warranty is provided against any trouble about the
iPod/iPhone data management.
„ When operating iPod touch or iPhone
Support the iPod/iPhone and Universal Dock for iPod with
hand to prevent them from falling down.
Usable iPods/iPhones ¼P3
• Turn the unit off.
• Turn off the iPod/iPhone before connecting.
• Remove the iPod/iPhone if it is in the iPod/iPhone case.
1. Attach the Dock Adaptor (supplied with iPod/
iPhone)¼ to the Universal Dock for iPod.
• Insert the hook (B) of the Dock Adaptor (A) from
front and push in until it clicks.
A
C
C When you use the iPod touch, attach the backrest
cushion.
3. Connect the Universal Dock for iPod with this unit
(1) and insert the iPod/iPhone main unit to the
Universal Dock for iPod (2).
D Terminal for the Universal Dock
E Universal Dock for iPod
Back of product
e.g.:) iPhone
D
1
2
E
• Bringing the unit and the Universal Dock for iPod closer to each
other may weaken the sensitivity of electric wave reception for
iPhone. Using them apart from each other is recommended.
Recharging starts when the iPod/iPhone is connected.
When the unit is off, “iPod Charging” appears on the right
bottom of the unit’s screen.
(The recharging indicator may not disappear depending on
the type of iPod/iPhone even if the recharging is complete.)
“Made for iPod” and “Made for iPhone” mean that an
electronic accessory has been designed to connect
specifically to iPod, or iPhone, respectively, and has been
certified by the developer to meet Apple performance
standards.
Apple is not responsible for the operation of this device or
its compliance with safety and regulatory standards.
Please note that the use of this accessory with iPod, or
iPhone may affect wireless performance.
iPhone, iPod, iPod classic, iPod nano, and iPod touch are
trademarks of Apple Inc., registered in the U.S. and other
countries.
Photo playback settings / Connecting/Recharging an iPod/iPhone
When the Dock Adaptor is not supplied with the
iPod/iPhone, purchase it from Apple Inc.
2. (Only when connecting an iPod touch/iPhone)
Attach the Universal Dock backrest to the
Universal Dock for iPod.
¼
VQT2Z87
B
Operations
Note
• The included Universal Dock for iPod is exclusively
for this unit’s use. Do not use it with other equipment.
Do not use other connection devices for connecting
iPod/iPhone to this unit.
• Before connection, make sure to confirm that there
is no dust or foreign objects stuck to the connection
part.
• Insert/remove the iPod/iPhone slowly. Otherwise, the
connector may be damaged.
• Disconnect the iPod/iPhone from the Universal Dock
for iPod after recharging is complete when you will
not use it for a long period of time. Even if the battery
is discharged naturally after recharging, the battery is
not additionally charged.
• If you connect iPods other than iPod touch/iPhone, make
sure to remove the Universal Dock backrest.
• Make sure to turn the main unit off before connecting/
disconnecting the Universal Dock for iPod.
• The iPod/iPhone cannot be charged while connecting with
the computer.
• Please read the operating instructions supplied with the
iPod/iPhone.
• Keep the backrest cushion out of reach of children to
prevent swallowing.
15
Playing back photos, etc.
stored on the iPod/iPhone
Playing music on an
iPod/iPhone
You can view photos, videos, YouTube motion pictures,
music, etc. on the display of this unit by operating the
iPod/iPhone.
Operating this unit enables you to listen to the music on an
iPod/iPhone connected to this unit.
• Turn down the volume of this unit.
• Connect the iPod/iPhone.
• Turn down the volume of this unit.
• Connect the iPod/iPhone.
1. Press [iPod/PLAY MENU].
• You can also select from “iPod Play Menu” in the
“Menu” by pressing [MENU].
1. Press [iPod/PLAY MENU].
• You can also select from “iPod Play Menu” in the
“Menu” by pressing [MENU].
2. Press [e, r] to select “All (iPod display)” and
press [OK].
2. Press [e, r] to select “Music” and press [OK].
iPod
iPod
h
Menu
h
Menu
Music
Music
Videos
Videos
List of Currently Playing Tracks
List of Currently Playing Tracks
All (iPod display)
All (iPod display)
Select Item
Select Item
• “Please refer to the iPod display for operations.”
appears on the screen.
3. Play back photos, videos, YouTube
motion pictures, or music, etc. by operating the
iPod/iPhone.
„ When operating on the main unit
Music
Videos
List of Currently
Playing Tracks
OK
OK
¼right
¼P17
The track list is displayed during
audio playback. (¼right)
3. Press [e, r] to select the track selection method
(¼P17) and press [OK].
• Repeat the above step as necessary.
4. Press [e, r, w, q] to select tracks and press [OK].
• Playback will start.
„ iPod Display screen
(Album Artwork + Track List)
A
ㄊヱㄐㄅ
モㄍチョㄊㄏ㄂ㄍ
モㄍチヱ㄂ㄓㄕㄊㄆ
モㄗㄆチㄅㄆチヤㄓㄊㄔㄕ㄂ㄍ
ヤㄐㄏㄅㄐㄓチヮ㄂ㄍ㄄ㄖ
ヤㄖㄕㄊㄎㄖㄚ
„ Operations available on the remote control of
this unit
Switching photos,
Press [w, q].
etc.
Select and OK on the Press [e, r] to select and press
menu screen, etc.
[OK].
ユㄍチモㄓ㄃ㄐㄍチㄅㄆチㄎㄊチュㄆㄔㄕㄊㄏㄐ
ユㄍチㄖㄍㄕㄊㄎㄐチモㄎ㄂ㄏㄆ㄄ㄆㄓ
モㄏㄅㄆㄔ
ロㄐㄔチヱ㄂ㄏ㄂ㄔ
モㄍチョㄊㄏ㄂ㄍ
リㄏㄈㄓ㄂ㄕㄊㄕㄖㄅ
ロ㄂チヷㄆㄏㄕ㄂ㄏ㄂
ヮㄊチヱㄆ㄄㄂ㄅㄐ
ヒバビビ
ビホビパ
B C
D
E
F
A Album Artwork (When there is no information, a
temporary image is displayed.)
B
Album name
Artist name
Track name
C Playback status
D Repeat: ALL
One
Shuffle: Songs
VQT2Z87
Albums
E Current track number/Total number of tracks
F Elapsed playback time
16
Podcasts
Audiobooks
„ Operations available on the remote control of
this unit during audio playback
Press [iPod/q/h].
• Press again to resume.
While displaying “iPod Display”,
Skip
press [w, q].
Fast backward/Fast
While displaying “iPod Display”,
forward (Search)
press and hold [w, q].
Press [4 IN/VOL], [3 OUT/VOL].
• 0 (Min.) to 20 (Max.)
Adjusting the volume • You can also press
[VOLUME 4]/[VOLUME 3] on
the main unit.
While displaying “iPod Display”,
Return to track list
press [ RETURN].
Stop (Pause)
Shuffle
Tracks or albums are
played at random.
Repeat
• Selecting from “Off”,
“One” and “All”
1. Press [MENU].
2. Press [e, r, w, q] to select
“Audio Menu” and press [OK].
3. Press [e, r] to select “Play
Mode” (¼below) and press
[w, q] to select the setting.
4. Press [MENU].
1. Press [MENU].
2. Press [e, r, w, q] to select
“Audio Menu” and press [OK].
3. Press [e, r] to select “Repeat”
and press [w, q] to select the
setting.
4. Press [MENU].
Playing video on an
iPod/iPhone
When an iPod/iPhone compatible with video playback is
connected to this unit, you can view videos on this unit.
• Turn down the volume of this unit.
• Connect the iPod/iPhone.
1. Press [iPod/PLAY MENU].
• You can also select from “iPod Play Menu” in the
“Menu” by pressing [MENU].
2. Press [e, r] to select “Videos” and press [OK].
iPod
h
Menu
Music
Videos
List of Currently Playing Tracks
All (iPod display)
Select Item
OK
3. Press [e, r, w, q] to select the type of videos and
press [OK].
4. Press [e, r, w, q] to select the video and press
[OK].
• Video playback will start.
„ Play Mode
Shuffle: Off
Shuffle: Songs
Shuffle: Albums
Normal playback.
Songs in the selected playlist are
played at random.
Albums in the album playlist are
played at random.
(The tracks in the album are
played back in the proper order.)
„ Operations available on the remote control of
this unit during playback of motion pictures
Press [iPod/q/h].
• Press again to resume.
While displaying “iPod Display”,
Skip
press [w, q].
Fast backward/Fast
While displaying “iPod Display”,
forward (Search)
press and hold [w, q].
Press [4 IN/VOL], [3 OUT/VOL].
• 0 (Min.) to 20 (Max.)
Adjusting the volume • You can also press
[VOLUME 4]/[VOLUME 3] on
the main unit.
Stop (Pause)
Operations
Songs
Searching from all playlists
Searching from artist names
Searching from album titles
Searching from all tracks
registered to the iPod/iPhone
Searching from episodes of radio
program obtained at iTunes store
Searching from titles in
Audiobooks purchased at iTunes
store or “audible.com”
Playing back photos, etc. stored on the iPod/iPhone / Playing music on an iPod/iPhone
Playing video on an iPod/iPhone
Playlists
Artists
Albums
Note
• The settings for the playback position, shuffle playback and
repeat playback remain unchanged even if the iPod/iPhone
is disconnected from this unit. Also, the settings made on
the iPod/iPhone before connected to this unit remain
unchanged.
• If video is played back (¼below), the Shuffle setting may
automatically become “Off”.
• When the play mode is switched, the track list on the “iPod
Display” screen may be different from the tracks played
back. If this occurs, select tracks from the track selection
menu again.
VQT2Z87
„ iPod/iPhone track selection menu for “Music”
17
Audio playback settings
Using the timer
You can make the settings for display at the time of audio
playback of the iPod/iPhone. You can also set the sound
quality for your preference.
The power is automatically turned on at the set time and
photos or audio are played. The power is automatically
turned off at the end time.
“Timer 1”, “Timer 2” and “Timer 3” can be set.
The following explains the case when setting “Timer 1” as an
example.
„ Basic operation
1. Press [MENU].
2. Press [e, r, w, q] to select “Audio Menu” and
press [OK].
Menu
• Set the clock. (¼P7)
• Select the photo category.
• Prepare playback sources on an iPod/iPhone.
1. Press [MENU].
Audio Menu
2. Press [e, r, w, q] to select “Settings Menu” and
press [OK].
Settings Menu
3. Press [e, r, w, q] to select “Timer” and press
[OK].
Select Item
4. Press [w, q] to select “Timer 1 Settings” and
press [OK].
OK
3. Press [e, r] to select the item (¼below) and
press [w, q] to select the setting.
Timer Setting Menu
Timer 2 Settings
Timer 1 Settings
4. Press [MENU] to close the menu screen.
AM12
Sun
3
6
9
PM12
3
Timer 3 Settings
6
9
Mon
Factory settings are indicated with underlines.
Play Mode
Repeat
Audio Information
Equalizer
iPod Information
¼P17
¼P17
Displays audio information
currently playing while the display
categories other than “iPod
Display” are set.
On: Display
Off: No display
Flat:
When the sound quality effect is
not used.
Heavy:
Emphasizes the bass sound with
sharp sound quality.
Clear:
Emphasizes the treble range with
clear sound quality.
Displays the model name and
version of the connected
iPod/iPhone.
Tue
Wed
Thu
Fri
Sat
Select Item
OK
5. Press [e, r] to select “Standby” and press [OK].
6. Press [e, r] to select “Enable This Timer” and
press [OK].
7. Press [e, r] to select “Day” and press [OK].
8. Press [e, r] to select the day, add the check mark
with [w, q] and press [OK].
9. Press [e, r] to select “Time” and press [OK].
10.Press [e, r, w, q] to set the start/end time and
press [OK].
11.Press [e, r] to select “Confirm” and press [OK].
If the operation time overlaps other timer settings,
“The set time overlaps with another timer. Do you want
to give priority to this timer and register it?” appears.
• If “Yes” is selected, other timers with the overlapped
time are disabled.
• If “No” is selected, the previous screen is restored
with the timer setting contents saved.
A
Timer 1 Settings
Enable
Standby
Day
Mon Tue Wed Thu Fri
Time
7 : 00 AM - 10 : 00 AM
Audio Playback
Off
Confirm
Select Item
OK
VQT2Z87
A To set audio playback ¼ P19
18
12.Press [MENU] to close the menu screen.
„ To disable the set timer
1. After performing step 10 (¼P18), press [e, r] to
select “Audio Playback” and press [OK].
1. Select “Disable This Timer” in step 6 (¼P18) and press
[OK].
2. Press [e, r] to select “Confirm” and press [OK].
2. Press [e, r] to select “Audio Playback” and press
[w, q] to select “On”.
• If you select “Off”, proceed to the below step 7.
„ To delete the timer setting
3. Press [e, r] to select “Playback Time” and press
[w, q] to select the playback time.
10 minutes/30 minutes/1 hour/2 hours/3 hours/No Limit
• If the audio playback time is set longer than the length
of time from timer start time to timer end time, the
timer end time takes priority.
4. Press [e, r] to select “Update Source/Volume” and
press [OK].
„ When the timer is set
5. Press [4 IN/VOL], [3 OUT/VOL] to adjust the
volume.
(You can also press [VOLUME 4]/[VOLUME 3] on the
main unit.)
• Press [iPod/q/h] and you can play audio and confirm
the volume.
1. Select “Initialize This Timer” in step 6 (¼P18) and press
[OK].
2. Press [e, r] to select “Confirm” and press [OK].
• When the unit is off, the unit is automatically turned on at
the timer start time, and the timer playback starts.
• At the timer end time, the unit is automatically turned off.
• If the audio playback is “On”, “z” is displayed on the
bottom right of the screen one minute before the timer
start time. (Only for “iPod Display” screen when the unit is
on)
At the timer start time, the sound is faded in to the set
volume (gradually increased) and audio is played back.
“z” blinks during audio playback. (Only for “iPod Display”
screen)
Update Timer 1 Sound Source/Volume
No
You can play the audio source in this screen to check the volume.
Select Item
OK
6. Press [w, q] to select “Yes” and press [OK].
7. Press [e, r] to select “Confirm” and press [OK].
8. Perform the steps 11 and 12 (¼P18).
VQT2Z87
Do you want to update
this setting?
• The timer less than 10 minutes is displayed with
10 minute-width on the timer setting menu screen.
• The timer operates at the set time unless you set it to
disable.
• The setting status such as the playback mode is reflected
in audio playback.
• The timer audio playback does not start when the menu
screen is being displayed and when audio selection screen
is being displayed.
• The timer does not start even at the timer start time if the
audio selector selecting “Audio Playback” and the audio
selector selected at the timer start time are the same and if
the iPod/iPhone is being played or searched.
Audio playback settings / Using the timer
Note
Source : iPod
Volume : 3
Yes
Operations
„ To set audio playback
19
Power saving use
Using the setup menu
Using the light sensor, adjust the brightness of the main unit’s
display according to the surrounding brightness and set the
auto power off when the surrounding area becomes dark.
You can format the internal memory, initialize this unit, etc.
A
Back of product
„ Basic operation
1. Press [MENU].
2. Press [e, r, w, q] to select “Settings Menu” and
press [OK].
3. Press [e, r, w, q] to select the item
(¼below and P21) and press [OK].
Settings Menu
A Light sensor
Power Save Settings
Timer
1. Press [MENU].
Clock/Calendar Settings
2. Press [e, r, w, q] to select “Settings Menu” and
press [OK].
View Demo
3. Press [e, r, w, q] to select “Power Save Settings”
and press [OK].
Panasonic Logo
4. Press [e, r] to select “C.A.T.S” or “Auto Power
Off” and press [w, q] to select the setting.
5. Press [MENU] to close the menu screen.
„ Setting items
Factory settings are indicated with underlines.
C.A.T.S
(Contrast Automatic
Tracking System)
Auto Power Off
When this is set to On, the darker
the surrounding area becomes,
the darker the screen becomes.
(3 levels)
On (Display):
When the power consumption
is reduced, the number of “
”
increases (up to 3).
On (No display):
“
” is not displayed.
Off:
The screen brightness is fixed.
Enable:
When the surrounding area
becomes dark and the following
conditions continue 1 minute or
more, the power is automatically
turned off.
– No operation
– Not during audio playback of
iPod/iPhone
Disable:
The power is not automatically
turned off.
„ When the auto power off is set to Enable
• “The power will soon be turned off automatically.” is
displayed at the bottom of the screen 1 minute before the
auto power off function is activated.
VQT2Z87
Note
20
•“
” presents approximation.
• While copying photos, etc., “Auto Power Off” does not
function even without operation.
• If the light sensor is blocked with finger, etc., brightness
cannot be detected.
• With the power save setting enabled, when you set the
unit at a place where light is difficult to reach the rear
side of the unit, such as in a cabinet or near a darkcolored wall, the screen may become dark automatically
or the power may be turned off automatically, even if the
surrounding area is bright.
Remote Control Mode
Wall-mount Setting
Initialize Settings
Select Item
OK
4. Press [e, r, w, q] to select the item or setting.
5. Press [MENU] to close the menu screen.
Factory settings are indicated with underlines.
Power Save Settings
Timer
Clock/Calendar
Settings
¼left
¼P18
This adjust the clock, set different
colors for holidays and Saturdays,
etc.
„ Set Clock (¼P7)
„ Holiday Settings
Select the date you want to set
and set the same color as that for
Sundays.
1. Select “Holiday Settings” in
step 4 in the basic operation
and press [OK].
2. Set “Month”, “Day” and “Year”
and press [OK].
3. Select “On” in “Holiday Setting”.
4. Select “Every Year” or “No” in
“Repeat”.
Every Year:
Set the same color for the
same day/month every year as
that for Sundays.
No:
Set the same color for the set
day/month/year as that for
Sundays.
„ Saturday Setting (On/Off)
Displayed with a different color
from that for Monday to Friday
when it is On.
„ Set Date Indication
Select “Month/Day/Year” or “Day/
Month/Year”.
„ Set Clock Indication
Select “12-hour System” or
“24-hour System”.
Wall-mount Setting¼
Panasonic Logo
Initialize Settings¼
¼
The audio is automatically stopped (paused) if it is being
played back.
„ When setting the remote control mode to 1
1. Select “Remote Control 1” in step 4 in the basic operation
(¼P20) and press [OK].
2. Press and hold [OK] on the remote control without aiming
it at this unit, and press and hold [SLIDESHOW] for more
than 2 seconds.
3. Press [OK].
Operations
Power saving use / Using the setup menu
Remote Control
Mode
All the data in the SD card will be
deleted.
1. Select “Yes” in step 4 in the
Format Card¼
basic operation (¼P20) and
press [OK].
2. Select “Yes” again and press
[OK].
You can initialize (format) the
internal memory. All photo data
in the internal memory will be
deleted.
1. Select “Yes” in step 4 in the
basic operation (¼P20) and
press [OK].
2. “Photos set as protected
Format Internal
will also be deleted. Do you
Memory¼
really want to perform this
operation?” is displayed, and
then select “Yes” again and
press [OK].
• Protected photos are also
deleted.
• For using the physical format,
see page 6.
You can confirm the system
System Software Info software information (version) of
this unit.
This is a function when updating
the system software is necessary
in the future to improve the
performance.
Update System
Please make sure to complete
Software¼
user registration which is
necessary to receive information
related to the system software
update.
Note
• When the same day/month/year is set for “Holiday
Settings” and “Saturday Setting”, “Holiday Settings” takes
priority.
• When the display mode is set to vertical arrangement
(¼P8), or “Adjust Brightness” (¼P14) is set to “1”, the
Panasonic Logo does not light on even if “Panasonic Logo”
is set to “On”.
• For the latest version of information, see the following
homepage.
http://panasonic.jp/support/global/cs/audio/
VQT2Z87
View Demo¼
When “View Demo” is selected in
the basic operation (¼P20), the
Demo is displayed.
And the demo function is
automatically activated when the
following conditions continues
2 minutes or more without
operation.
• When the SD card is not
inserted
• When the iPod/iPhone is not
connected
• When there are no photos in the
internal memory
To stop displaying the demo,
press any of the buttons other
than the power button on the main
unit or the remote control.
Change the remote control mode
when malfunction occurs on this
unit while using the remote
control of other devices.
Remote Control 1 / Remote
Control 2
Example: When setting the
remote control mode to 2
1. Select “Remote Control 2” in
step 4 in the basic operation
(¼P20) and press [OK].
(“Simultaneously press
[CLOCK] and [OK] on your
remote control for at least
2 seconds, and change the
mode on your remote control.”
is displayed.)
2. Press and hold [OK] on the
remote control without aiming it
at this unit, and press and hold
[CLOCK] for more than
2 seconds.
3. Press [OK].
¼P23
Select “On” or “Off” in step 4 in
the basic operation (¼P20) and
press [OK].
On:
Lights up logo
Off:
Lights off logo
This unit’s settings are restored
to the factory defaults. The clock
setting, wall-mount setting and
photo files in the internal memory
remain unchanged.
1. Select “Yes” in step 4 in the
basic operation (¼P20) and
press [OK].
2. Select “Yes” again and press
[OK].
21
Using with your PC
Photo files can be exchanged among this unit’s internal
memory, SD and computer.
Always use a genuine Panasonic USB connection cable
(K2KZ4CB00015; optional).
„ To exchange photo files with a computer
• Open the folder to exchange photo files on the computer.
• Connect this unit to the PC.
• Insert the SD card.
1. Select “Internal Memory” or “SD Card” in step 4
(¼left).
System configurations required
OS for PC
• Windows® 7
• Windows Vista®
• Windows® XP
• Mac OS X
Port
• USB port
• Operations are not necessarily guaranteed for all
computers.
• Data exchange with iPod/iPhone is not possible.
2. Open “Removable Disk” in “My computer” of your
PC.
• There is the photo folder of this unit or SD card.
• For Windows Vista® or Windows® 7, open
“Removable Disk” in “Computer”.
• For Macintosh, this unit’s drive is displayed on the
desktop.
3. Open the photo folder on this unit and exchange
files between the folders.
• Folders and files can be dragged and dropped.
„ To connect to a PC
• Turn the unit off.
• Start up the computer.
Note
1. Confirm the direction of the USB connection
cable and insert it to the USB port of this unit.
Back of product
Insert it fully.
B
A
A USB port
B USB connection cable (optional)
2. Insert the USB connection cable to the computer.
• If you remove and insert the USB connection cable or SD
card while “Accessing Do not remove the card or cable.”
message is displayed, the data on the SD card may be lost
or damaged.
• If you make multiple USB connections or use hubs with
1 computer, malfunction may occur.
• If you are using the 10.2 or older version of Mac OS X,
set the write-protect switch of SDHC memory card to the
“LOCK” side when importing photos from the SDHC card
to the computer.
• When this unit is connected, do not use the format function
of the computer to format this unit’s internal memory or SD
card.
3. Turn this unit on.
4. Press [e, r] to select the USB connection
memory (“Internal Memory” or “SD Card”) and
press [OK].
This unit functions as a reader/writer and is
recognized as an external device of computer.
„ To remove the USB connection cable
Remove the cable using the safely remove hardware on the
task tray of the PC.
If the remove icon is not displayed, check that “ACCESS” is
not displayed on the unit and remove it.
Note
VQT2Z87
• Keep the USB connection cable as far away as possible
from other electric appliances when using.
• The iPod/iPhone cannot be charged while connecting with
the computer.
• You cannot operate this unit while connecting with the
computer. If the USB connection cable is removed, this
unit is turned off.
• When switching the USB connection memory, remove the
USB connection cable once, then reconnect it and perform
from the beginning.
22
Recording and operating problems may occur on some
computer systems.
Please note that Panasonic and Panasonic dealers cannot
be held liable for any lost photo data or other direct or
indirect damage except in cases of intentional or gross
negligence.
Using in a wall-mounted state
Prepare commercially available screws that match the screw
holes of the unit’s bottom face.
Screw hole on the main
unit’s bottom face
5 mm (13/64")
11 mm (7/16")
„ Recommended type of screw
• 2 screws for wall-mounting
• 2 screws for the fitting for wall-mounting
1. Press [MENU].
2. Press [e, r, w, q] to select “Settings Menu” and
press [OK].
3. Press [e, r, w, q] to select “Wall-mount Setting”
and press [OK].
4. Press [e, r] to select “Yes” and press [OK].
Wall-mount Setting
Yes
Selecting “Yes” will rotate the display by 180 degrees.
The main unit controls cannot be used in this mode.
Select Item
OK
5. Press [w, q] to select “Yes” and press [OK].
The power will be turned off and on automatically.
When the power is turned on, the main unit’s screen
display is turned upside down.
Note
• The audio will be stopped (paused) automatically, during
playback.
„ When using with the wall-mount setting
The following buttons and functions that can be used will be
restricted.
Unusable buttons on
the main unit
Except [POWER 8]
Unusable buttons on
the remote control
• [iPod/PLAY MENU]
• [iPod/DISPLAY]
• [iPod/q/h]
Timer audio playback
function
Automatically disabled (with the
setting contents preserved)
Menu items
•
•
•
•
•
Panasonic Logo
Automatically turned off
7.4 mm (19/64") to 9.4 mm (3/8")
Power Save Setting
Automatically disabled
iPod/iPhone
connection
4 mm
(5/32")
2.2 mm (3/32") to 3 mm (1/8")
Cannot be used
3 mm (1/8") to 4 mm (5/32")
USB connection
Cannot be used
“iPod Play/Pause”
“iPod Display”
“iPod Play Menu”
“Audio Menu”
“Sync Music” in the “Photo
Playback Settings”
Operations
No
A length which supports the strength of 5 kg (11.1 lb.) or
more must be kept for each screw.
At least 30 mm (13/16")
Using with your PC
Wall-mount settings
Reference
Notes for installation
z Do not install this unit at the following locations to ensure
this unit’s performance and to prevent potential troubles.
– Locations other than vertical walls
– Locations near a sprinkler or a sensor
– Locations near high-voltage lines or power sources
– Locations where wind from a heating device hits the unit
– Locations where the unit is subject to vibration or
impact
– Locations near sources of magnetism, heat, vapor, oil
smoke, etc.
– Locations of high temperature, such as near ceiling
lights (spotlight, halogen light, etc.)
– Locations where there may be water droplet (i.e. under
an air conditioner)
– High places where the SD insertion part cannot be
reached easily
z Use a proper installation method that suits the structure
and material of the installing location.
z Use a cloth, etc. to prevent damage of the product or
floor during installation.
z When tightening screws, make sure the screws are not
loosely-tightened or overtightened.
z Secure safety in the surrounding areas and pay enough
attention during installation.
Note
• Panasonic is not liable for incidental or consequential
damages resulting from improper installation or operation.
• Keep the screws out of reach of children to prevent swallowing.
Using in a wall-mounted state
The specific setting is required to use the main unit in a
wall-mounted state. Make the wall-mount settings on the
menu and install it on the wall.
Make sure to ask a professional mounter or a dealer
for installation/uninstallation.
VQT2Z87
Use commercially available screws with the nominal
diameter of 4 mm (5/32") or equivalent which are suitable for
materials of the wall (i.e. wood, steel, concrete, etc.)
23
Using in a wall-mounted state
5. Fix the fitting for wall-mounting to the wall.
Attaching to a wall
• Make sure to turn the power off to the unit and unplug the
AC adaptor.
• Remove the Universal Dock for iPod.
Wall
1. Attach the screws for wall-mounting according
to the illustration below.
105 mm (49/64")
G
53 mm (23/32")
G Make sure to attach 2 screws for the fitting.
2. Attach the screws for wall-mounting.
B
Wall
Note
Wall
3 mm (1/8") to
4 mm (5/32")
A
A Screw for wall-mounting
B Fix with the screws stuck out 3 mm (1/8") to 4 mm (5/32")
from the wall.
• Make sure to attach 2 screws for wall-mounting.
• Use a level guide, etc. so the screws for wall-mounting
become horizontal when attaching.
3. Connect the AC adaptor to the unit, and then
insert the fitting for wall-mounting.
C
D
E
C Fold the stand part and turn upside down.
D AC adaptor
E Fitting for wall-mounting
4. Hook the main unit on the screws for
wall-mounting with the fitting for
wall-mounting inserted into the main unit.
Wall
F
VQT2Z87
F Set the 2 screws firmly to this position.
24
• The vertical arrangement of the main unit is not available
when using in the wall-mounted state.
„ When using the unit on a desk after removing
from the wall
1. Select “No” for “Wall-mount Setting” in the setup menu
(¼P23) and press [OK].
2. Turn the unit off and remove the unit from the wall.
Note
• When the “Wall-mount Setting” is changed to “No”, the
setting automatically returns to the previous state in which
the wall-mount setting was not set.
– Timer audio playback settings
– Power Save Settings
– Panasonic Logo
Product Service
To prevent injury, the unit must be securely attached
to the wall in accordance with the installation
instructions.
Do not install the unit where it cannot support the load.
If the mounting parts are not strong enough, this may
cause the unit to fall, resulting in injury.
Do not use installation methods other than instructed.
This may cause the unit to fall and be damaged, resulting
in injury.
Do not install the unit at locations other than vertical
walls.
This may cause the unit to fall and be damaged, resulting
in injury.
Take the safety factor for mounting strength into
account (approx. 10 times the product weight).
Insufficient strength will cause the unit to fall, resulting in
injury.
The wall on which the unit is to be attached to should
be capable of supporting 5 kg (11.1 lb.) per screw.
Insufficient strength of the walls will cause the unit to fall in
the long run.
Do not disassemble or modify the wall-mounting hanger.
This will cause the unit to fall and be damaged, resulting
in injury.
CAUTION!
Do not install this unit at humid or dusty locations, or
locations where airborne grease or steam may come
into contact with the unit, or under an air conditioner
where water may drip onto the unit.
This may have negative impact on the unit, resulting in fire
or electric shock.
Secure enough space of more than 25.4 mm (1") above
the main unit and more than 25.4 mm (1") on the left
and right sides respectively. Keep space between the
wall and rear of the unit clear of obstructions.
Blocking the exhaust holes on the main unit may result in
fire.
Use the designated components for installation.
Otherwise, the main unit may fall and be damaged,
resulting in injury.
Prevent the mounting screws or power cord from
coming into contact with metal parts inside the wall
during installation.
Failure to do so may cause electric shock.
When removing the main unit, remove the wall
mounting screws as well.
Otherwise the wall mounting screws may hit a person and
lead to injury.
Install the unit at a height where the SD card slot can
be seen for safe operation.
Operating at improper position may cause the unit to fall
and be damaged, resulting in injury.
The servicer will require all components to service your
system.
Therefore, should service ever be necessary, be sure to
bring the entire system.
Product information
For product information or assistance with product
operation:
Refer to “Customer Services Directory (United States and
Puerto Rico)” on page 27.
Maintenance
Unplug the AC adaptor from the household AC outlet
and wipe it using a soft and dry cloth.
• When the dirt is heavy, wring water out of a wet cloth to
wipe the dirt and then wipe with a dry cloth.
• Do not use solvents including benzine, thinner, alcohol,
kitchen detergent, etc. This might cause the exterior case
to be deformed or the coating to come off.
• Before using chemically treated cloth, read the instructions
that come with the cloth carefully.
Reference
Only a qualified building contractor shall install or
uninstall this unit.
Improper installation may cause the unit to fall, resulting in
injury.
Using in a wall-mounted state / Product Service
Maintenance
WARNING!
1. Damage requiring service — The unit should be
serviced by qualified service personnel if:
(a) The AC Adaptor has been damaged; or
(b) Objects or liquids have gotten into the unit; or
(c) The unit has been exposed to rain; or
(d) The unit does not operate normally or exhibits a
marked change in performance; or
(e) The unit has been dropped or the cabinet damaged.
2. Servicing — Do not attempt to service the unit beyond
that described in these operating instructions. Refer all
other servicing to authorized servicing personnel.
3. Replacement parts — When parts need replacing
ensure the servicer uses parts specified by the
manufacturer or parts that have the same characteristics
as the original parts. Unauthorized substitutes may result
in fire, electric shock, or other hazards.
4. Safety check — After repairs or service, ask the servicer
to perform safety checks to confirm that the unit is in
proper working condition.
VQT2Z87
Safety cautions
25
Troubleshooting guide
Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the remedies indicated
in the chart do not solve the problem, refer to “Customer Services Directory (United States and Puerto Rico)” on page 27.
This unit may become hot if used for a long period of time, however, this is not a problem for use.
„ Common problems with the whole system
All operations are ignored.
• Press [POWER 8] of the main unit for more than 10 seconds to turn the unit off. If the
problem persists, do the following operations and return the settings to the factory defaults.
1. Remove the AC adaptor from the household AC outlet once. Then connect the AC
adaptor while pressing down [POWER 8] of the main unit.
2. Press and hold [POWER 8] of the main unit until “The settings have been reset.”
appears on the display.
When the unit is turned on, “Please wait.”
is displayed for a long period of time.
• When photos are present in the internal memory or the SD card has been inserted, it may
take long time for the unit to become operable after it is turned on.
Booming noise occurs during
audio playback.
• There may be the AC power supply cord of another device or fluorescent light near this unit.
ˆ Keep the electric appliances as far away as possible from this unit.
„ SD
Data on the SD card cannot be
read.
• Use an SD card compatible with this unit. The file format and the folder hierarchy in the
SD card must conform to the specifications of this unit.
Photos cannot be played.
• Insert the SD card compatible with this unit. (¼P3)
• Insert the SD card correctly. (¼P4)
• Cancel the write protection switch if it is on the “LOCK” side. (¼P6)
„ iPod/iPhone
The iPod/iPhone is not recognized • Check if the iPod/iPhone is compatible with this unit. (¼P3)
even if connected.
Video playback becomes
impossible on the iPod/iPhone.
• Confirm the iPod/iPhone video settings.
The display of the iPod/iPhone video
playback shows an unexpected one.
• Confirm the iPod/iPhone video settings.
Example: Set the TV signal to “NTSC” on the iPod/iPhone video setting.
iPod/iPhone videos cannot be played back. • Check your iPod/iPhone version.
Only images on iPod/iPhone
videos cannot be displayed.
• Select “Videos” in the iPod menu again.
„ Photo
Photos are not displayed on the
thumbnail screen.
The date displayed using the Date
Search differs from the shooting date.
Editing (copying, etc.) takes long time.
Photos are not played back in the
order of file names even if the
“Slideshow Order” is set to “Normal”.
• Photos edited on the computer, etc. may not be displayed.
• A date when a file was updated may be displayed for photos edited on the computer,
etc.
• When there are many files and folders, editing may take long time.
• If 9 or more characters are assigned as a photo file name (excluding the file extension)
on a computer, etc., the files may not be played back in order of file names.
„ Remote control
Cannot operate the remote
control.
• Insert (+, –) of battery correctly. (¼P5)
• Replace with the new battery. (¼P5)
• If the remote control mode on the main unit does not match the one on the remote
control, match the mode of the remote control to the one of the main unit. (¼P21)
• Another device does not operate • Change the remote control mode of this unit so another device does not interfere with
properly when using the remote
this unit’s operation. (¼P21)
control of this unit.
• The unit does not operate
properly when using the remote
control of another device.
VQT2Z87
„ Error message
26
A communication error occurred.
• Connect the iPod/iPhone correctly. (¼P15)
Set the mode on your remote
control to “Mode 1” (or “Mode 2”).
• The remote control mode settings do not match the main unit settings.
Change the remote control mode on the remote control. (¼P21)
F76
• The unit turns off after the message. Abnormal power circuit. If the message still
remains even if the power is turned on again, consult your dealer.
Limited Warranty
Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094
Panasonic Home Audio Products
Limited Warranty
Product or Part Name
Labor
1 year
1 year
DVD Home Theater System
1 year
1 year
1 year
Not
Applicable
90 days
90 days
USB Reader-writer, PC Card Adapters
(defective exchange)
Accessories: Headphones, cartridges,
Microphones, Adapters
Rechargeable Batteries, DVD-RAM Disc
(defective exchange)
SD Memory Cards, Rechargeable Battery
Packs (defective exchange)
10 days
90 days
Not
Applicable
Not
Applicable
During the “Labor” warranty period there will be no charge for labor. During
the “Parts” warranty period, there will be no charge for parts. This Limited
Warranty excludes both parts and labor for non-rechargeable batteries,
antennas, and cosmetic parts (cabinet). This warranty only applies to
products purchased and serviced in the United States or Puerto Rico. This
warranty is extended only to the original purchaser of a new product which
was not sold “as is”.
Carry-In or Mail-In Service
To find a service center please visit http://www.panasonic.com/help or call
1-800-211-PANA (7262).
When shipping the unit, carefully pack, include all accessories, and send it
prepaid, adequately insured and preferably in the original carton. If Lithium
Ion batteries are shipped by air the package must be labeled “Contains
Lithium Ion Battery (No lithium metal)”. Damaged batteries are prohibited
from shipment by US Mail. Batteries must be securely packed in a manner
to prevent short-circuiting and a package cannot contain more than 3
Lithium Ion batteries. Include a letter detailing the complaint, a return
address and provide a daytime phone number where you can be reached.
A valid registered receipt is required under the Limited Warranty.
IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE
PURCHASER WILL BE REQUIRED TO FURNISH A SALES
RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE,
AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE
CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT
SUCH PROOF OF PURCHASE.
Limited Warranty Limits And Exclusions
This warranty ONLY COVERS failures due to defects in materials or
workmanship, and DOES NOT COVER normal wear and tear or cosmetic
damage. The warranty ALSO DOES NOT COVER damages which
occurred in shipment, or failures which are caused by products not
supplied by the warrantor, or failures which result from accidents, misuse,
abuse, neglect, mishandling, misapplication, alteration, faulty installation,
set-up adjustments, misadjustment of consumer controls, improper
maintenance, power line surge, lightning damage, modification,
introduction of sand, humidity or liquids, commercial use such as hotel,
Customer Services Directory (United States and Puerto Rico)
Obtain Product Information and Operating Assistance;
locate your nearest Dealer or Service Center; purchase
Parts and Accessories; or make Customer Service and
Literature requests by visiting our Web Site at:
http://www.panasonic.com/help
or, contact us via the web at:
http://www.panasonic.com/contactinfo
You may also contact us directly at:
1-800-211-PANA (7262)
Monday-Friday 9am-9pm, Saturday-Sunday 10am-7pm EST
Reference
Parts
Audio Products (except items below)
office, restaurant, or other business or rental use of the product, or service
by anyone other than a Factory Service Center or other Authorized
Servicer, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER
“LIMITED WARRANTY COVERAGE”.
THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS
PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY.
(As examples, this excludes damages for lost time, travel to and from the
servicer, loss of or damage to media or images, data or other memory or
recorded content. The items listed are not exclusive, but for illustration
only.)
ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE
WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD
OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or
consequential damages, or limitations on how long an implied warranty
lasts, so the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have other
rights which vary from state to state. If a problem with this product
develops during or after the warranty period, you may contact your dealer
or Service Center. If the problem is not handled to your satisfaction, then
write to the warrantor’s Consumer Affairs Department at the addresses
listed for the warrantor.
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED
WARRANTY, ARE YOUR RESPONSIBILITY.
For hearing or speech impaired TTY users, TTY: 1-877-833-8855
Accessory Purchases (United States and Puerto Rico)
Purchase Parts, Accessories and Instruction Books online for all
Panasonic Products by visiting our Web Site at:
http://www.pstc.panasonic.com
Or, send your request by E-mail to:
npcparts@us.panasonic.com
You may also contact us directly at:
1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only)
(Monday-Friday 9am-9pm EST)
Panasonic Service and Technology Company
20421 84th Avenue South, Kent, WA 98032
(We accept Visa, MasterCard, Discover Card, American
Express, and Personal Checks)
For hearing or speech impaired TTY users, TTY: 1-866-605-1277
As of November 2009
Troubleshooting guide / Limited Warranty
If your product does not work properly because of a defect in materials or
workmanship, Panasonic Consumer Electronics Company (referred to as
“the warrantor”) will, for the length of the period indicated on the chart
below, which starts with the date of original purchase (“warranty period”), at
its option either (a) repair your product with new or refurbished parts, (b)
replace it with a new or a refurbished equivalent value product, or (c)
refund your purchase price. The decision to repair, replace or refund will be
made by the warrantor.
VQT2Z87
Limited Warranty Coverage (For USA and Puerto Rico Only)
27
Specifications
„ PHOTO
LCD screen
LCD size:
Number of pixels:
Screen size
(W × H):
Aspect ratio:
Maximum number
of pixels:
Minimum number
of pixels:
Maximum decode
file size:
Usable file format
(SD/internal memory):
Internal memory
capacity:
Compatible media:
9 inch TFT
800 × 480
4:2:0, 4:2:2, 4:4:4 type base line JPEG
Refer to the list of compatible types.
¼3
Factory setting or when playing the internal memory.
¼4
Slideshow, iPod/iPhone charge and when playing back audio with
maximum volume.
¼5
Without iPod/iPhone charge.
¼6
For horizontal arrangement, maximum open angle (75º) of LCD
panel.
¼1
199.2 mm (727/32") × 110.2 mm (411/32")
16 : 9
5120 × 3840
64 × 64
10 MB
JPEG: Exif 2.2, JFIF¼1
• Progressive JPEG No support
2 GB
SD/SDHC/SDXC
iPod/iPhone¼2
Internal memory
„ MUSIC
Compatible media:
iPod/iPhone¼2
RMS output Power Stereo mode
Both ch driven
1 W Per channel: 8 Ω, 1 kHz 10 % THD
Total RMS Stereo
mode power:
2W
Speaker:
Semi-dome type
„ VIDEO
Compatible media:
Permissible operating
temperature:
0 ºC to 35 ºC (32 ºF to + 95 ºF)
Permissible relative
humidity:
35 % to 80 % RH (No condensation)
iPod/iPhone¼2
„ INTERFACE
SD card slot
Terminal for Universal Dock
USB:
USB mini B type
USB 2.0 High Speed
¼2
• Specifications are subject to change without notice.
• Some characters are not displayed on this unit due to the
restrictions of font data.
• Since the internal memory includes area that contains management
information such as file system, the actual capacity that can be
used is less. Also, the memory capacity in general is calculated as
1 GB =1,000,000,000 bytes, however, on this unit, it is calculated as
1 GB = 1,024 × 1,024 × 1,024= 1,073,741,824 bytes. Therefore, the
displayed capacity is less than the general value.
Auto power save: This unit is equipped with the Auto power save
function that automatically reduces the power consumption when
operations such as audio playback are not performed approx. 10
minutes.
The LCD display on the display part is made with high-precision
technology employed, but black dots may sometimes appear on the
LCD display or the display may always light (with red, blue and green
dots). This is not a malfunction. The pixels on the LCD display are
managed with more than 99.99 % of high accuracy, however, the
pixel deficiency may occur within 0.01 % of probability. We assure
you that these dots are not recorded on the SD card or internal
memory.
„ AC ADAPTOR
Input:
Output:
AC 110 V to 240 V, 50/60 Hz, MAX 0.45 A
DC 6 V, 1.8 A
„ GENERAL
Main set rating:
Power consumption
Normal¼3:
Maximum¼4:
DC 6 V, 1.8 A Max
Approx. 4.5 W
Approx. 13 W
Power consumption in standby mode¼5: Approx. 0.1 W
Dimensions
(W × H × D):
Mass (Weight):
244.2 mm (95/8") × 154 mm (61/16") ×
88.7 mm (333/64")¼6
At the thinnest point: Approx. 9.4 mm (3/8")
Approx. 583 g (20.4 oz)
Panasonic Consumer Electronics
Company, Division of Panasonic
Corporation of North America
As an ENERGY STAR® Partner,
Panasonic has determined that this
product meets the ENERGY STAR®
guidelines for energy efficiency.
En
One Panasonic Way, Secaucus,
New Jersey 07094
http://www.panasonic.com
© Panasonic Corporation 2010
Printed in Malaysia
VQT2Z87
H0810YR0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
