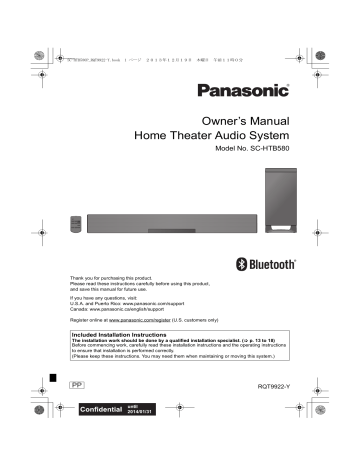

Owner’s Manual
Home Theater Audio System
Model No. SC-HTB580
Thank you for purchasing this product.
Please read these instructions carefully before using this product,
and save this manual for future use.
If you have any questions, visit:
U.S.A. and Puerto Rico: www.panasonic.com/support
Canada: www.panasonic.ca/english/support
Register online at www.panasonic.com/register (U.S. customers only)
Included Installation Instructions
The installation work should be done by a qualified installation specialist. (> p. 13 to 18)
Before commencing work, carefully read these installation instructions and the operating instructions
to ensure that installation is performed correctly.
(Please keep these instructions. You may need them when maintaining or moving this system.)
PP
RQT9922-Y
2014/01/31
SC-HTB580P_RQT9922-Y.book
2 ページ
2013年12月19日
木曜日
午前11時0分
IMPORTANT SAFETY INSTRUCTIONS
Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and
the applicable safety instructions listed below. Keep these operating instructions handy for future reference.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other.
A grounding-type plug has two blades and a third
grounding prong. The wide blade or the third prong
are provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
Only use attachments/accessories specified by the
manufacturer.
Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used, use
caution when moving the cart/
apparatus combination to avoid injury
from tip-over.
Unplug this apparatus during lightning storms or
when unused for long periods of time.
Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
WARNING
Unit
≥ To reduce the risk of fire, electric shock or product damage,
j Do not expose this unit to rain, moisture, dripping or splashing.
j Do not place objects filled with liquids, such as vases,
on this unit.
j Use only the recommended accessories.
j Do not remove covers.
j Do not repair this unit by yourself. Refer servicing to
qualified service personnel.
≥ To prevent injury, this apparatus must be securely attached
to the wall in accordance with the installation instructions.
AC power supply cord
≥ The power plug is the disconnecting device.
Install this unit so that the power plug can be unplugged
from the socket outlet immediately.
Button-type battery (Lithium battery)
≥ Risk of fire, explosion and burns. Do not disassemble,
heat above 60 oC (140 oF) or incinerate.
Small object
≥ Keep the screws out of reach of children to prevent
swallowing.
≥ Keep the adhesive tape out of reach of children to
prevent swallowing.
≥ Keep the button-type battery out of reach of children to
prevent swallowing.
DO NOT INGEST BATTERY,
CHEMICAL BURN HAZARD
This product contains a coin/button cell battery. If the coin/
button cell battery is swallowed, it can cause severe
internal burns in just 2 hours and can lead to death. Keep
new and used batteries away from children. If the battery
compartment does not close securely, stop using the
product and keep it away from children. If you think
batteries might have been swallowed or placed inside any
part of the body, seek immediate medical attention.
If any electrolyte should come into contact with your
hands or clothes, wash it off thoroughly with water.
If any electrolyte should come into contact with your
eyes, never rub the eyes. Rinse eyes thoroughly with
water, and then consult a doctor.
<For USA-California only>
This product contains a CR Coin Cell Lithium Battery which
contains Perchlorate Material s special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
2
RQT9922
3 ページ
2013年12月19日
CAUTION
≥ Do not place sources of naked flames, such as lighted
candles, on this unit.
≥ Product Identification Marking is located on the bottom
of the unit.
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following measures:
≥ Reorient or relocate the receiving antenna.
≥ Increase the separation between the equipment and
receiver.
≥ Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
≥ Consult the dealer or an experienced radio/TV
technician for help.
Any unauthorized changes or modifications to this equipment
would void the user’s authority to operate this device.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
Responsible Party:
Panasonic Corporation of North America
Two Riverfront Plaza, Newark, NJ 07102-5490
Support Contact: http://www.panasonic.com/contactinfo
Placement
≥ To reduce the risk of fire, electric shock or product
damage,
j Do not install or place this unit in a bookcase, built-in
cabinet or in another confined space. Ensure this unit
is well ventilated.
j Do not obstruct this unit’s ventilation openings with
newspapers, tablecloths, curtains, and similar items.
Button-type battery (Lithium battery)
≥ Danger of explosion if battery is incorrectly replaced. Replace
only with the type recommended by the manufacturer.
≥ Keep out of reach of children.
≥ Insert with poles aligned.
≥ Mishandling of batteries can cause electrolyte leakage
and may cause a fire.
j Remove the battery if you do not intend to use the remote
control for a long period of time. Store in a cool, dark place.
j Do not heat or expose to flame.
j Do not leave the battery(ies) in a car exposed to
direct sunlight for a long period of time with doors and
windows closed.
j Do not touch the terminals (i and j) with metal objects.
j Do not recharge, disassemble, remodel, heat or
throw into fire.
≥ When disposing of the batteries, please contact your
local authorities or dealer and ask for the correct
method of disposal.
The following mark and symbols are located
on bottom of the unit.
THE FOLLOWING APPLIES ONLY IN
CANADA.
This device complies with RSS-210 of the IC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
(2) This device must accept any interference received,
including interference that may cause undesired operation
of the device.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the
presence of uninsulated “dangerous
voltage” within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
午前11時0分
THE FOLLOWING APPLIES ONLY IN THE
U.S.A.
FCC Note:
Unit
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
木曜日
CAN ICES-3(B)/NMB-3(B)
‘
THE FOLLOWING APPLIES IN THE U.S.A.
AND CANADA
This transmitter must not be co-located or operated in
conjunction with any other antenna or transmitter.
This equipment complies with FCC/IC radiation exposure
limits set forth for an uncontrolled environment and meets
the FCC radio frequency (RF) Exposure Guidelines in
Supplement C to OET65 and RSS-102 of the IC radio
frequency (RF) Exposure rules. This equipment has very
low levels of RF energy that is deemed to comply without
maximum permissive exposure evaluation (MPE). But it is
desirable that it should be installed and operated keeping
the radiator at least 20 cm (7 7/8q) or more away from
person’s body (excluding extremities: hands, wrists, feet
and ankles).
Conforms to UL STD 60065.
Certified to CAN/CSA STD C22.2 No.60065.
RQT9922
3
Precautions
SC-HTB580P_RQT9922-Y.book
SC-HTB580P_RQT9922-Y.book
4 ページ
2013年12月19日
木曜日
午前11時0分
Table of contents
IMPORTANT SAFETY INSTRUCTIONS ........................................................... 2
Before use
Supplied items .................................................................................................. 5
This system (SC-HTB580) ...................................................................................................5
Accessories .........................................................................................................................5
Control reference guide ................................................................................... 6
This system (Front) ..............................................................................................................6
This system (Rear) ..............................................................................................................7
Remote control ....................................................................................................................8
Getting started
Step 1 Connections ......................................................................................... 9
Connection with the TV .......................................................................................................9
Connection from an HDMI compatible device ...................................................................10
Connection to a 4K Ultra HD TV ........................................................................................11
Using the IR Blaster ...........................................................................................................11
AC power supply cord connection .....................................................................................12
Step 2 Placement ........................................................................................... 13
Safety Precautions ............................................................................................................13
The active subwoofer ........................................................................................................13
Wireless interference .........................................................................................................13
Selecting the placement method .......................................................................................14
When placing the main unit on a rack or on a table ..........................................................15
When attaching the main unit to a wall ..............................................................................16
Step 3 Wireless connections ........................................................................ 19
Active subwoofer wireless connection ...............................................................................19
Bluetooth® connection .......................................................................................................19
Remote control code ......................................................................................20
Operations
Using this system ...........................................................................................21
3D sound .........................................................................................................22
Sound menu ....................................................................................................22
Audio format ......................................................................................................................23
Setup menu .....................................................................................................24
Linked operations with the TV (VIERA LinkTM “HDAVI ControlTM”) ............ 25
Reference
Troubleshooting .............................................................................................26
About Bluetooth® ............................................................................................29
Unit care ..........................................................................................................29
Licenses ..........................................................................................................29
Specifications ................................................................................................. 30
Limited Warranty (ONLY FOR U.S.A. AND PUERTO RICO) ........................ 32
Limited Warranty (ONLY FOR CANADA) ...................................................... 33
4
RQT9922
SC-HTB580P_RQT9922-Y.book
5 ページ
2013年12月19日
木曜日
午前11時0分
Before us e
≥ The illustrations shown may differ from your unit.
≥ Operations in this Owner’s Manual are described mainly with the remote control, but you can
perform the operations on the main unit if the controls are the same.
Supplied items
Before use
∏ 1 Active subwoofer
(SB-HWA580)
Accessories
Check the supplied accessories before using this system.
∏ 1 IR Blaster
(K2ZZ02C00007)
∏ 2 AC power supply cords
(K2CB2CB00022)
∏ 2 Screws
(XYN5+J14FJK)
∏ 2 Wall mount brackets
(RMQ2281A, RMQ2281B)
Getting started
∏ 1 Remote control (with a
battery)
(N2QAYC000098)
(ONLY FOR CANADA)
The enclosed Canadian French label sheet corresponds to the English display on the remote control and
the top and rear of the main unit and active subwoofer.
Operations
∏ 1 Main unit (speaker)
(SU-HTB580)
Precautions
This system (SC-HTB580)
Reference
≥ Product numbers are correct as of December 2013. These may be subject to change.
≥ For U.S.A. and Puerto Rico:
To order accessories, refer to “Accessory Purchases (United States and Puerto Rico)” on page 32.
For Canada: To order accessories, call the dealer from whom you have made your purchase.
≥ The supplied AC power supply cord is for use with this system only.
Do not use it with other equipment. Also, do not use cords from other equipment with this system.
RQT9922
5
SC-HTB580P_RQT9922-Y.book
6 ページ
2013年12月19日
木曜日
午前11時0分
Control reference guide
This system (Front)
1
2
3 4
5
Main unit
6
7
8
Active subwoofer
1
Standby/on switch (Í/I)
Press to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.
Adjust the volume of this system (> p. 21)
Select the input source (> p. 21)
“TV” --# “BD/DVD” --# “BLUETOOTH”
^--------------------------------------------------------}
2
3
6
RQT9922
4
5
6
7
8
Select the Bluetooth® device as the source
(> p. 21)
NFC touch area (> p. 20)
Remote control signal sensor (> p. 8)
Display
WIRELESS LINK indicator (> p. 19)
SC-HTB580P_RQT9922-Y.book
7 ページ
2013年12月19日
木曜日
午前11時0分
This system (Rear)
Main unit
1
1
2
5
Before use
3
4
6
2
5
Active subwoofer
1
2
3
HDMI AV IN (BD/DVD) terminal (> p. 10)
HDMI AV OUT (TV (ARC)) terminal (ARC
compatible) (> p. 9, 10)
OPTICAL DIGITAL AUDIO IN (TV) terminal
(> p. 10)
4
5
6
Ir SYSTEM terminal (> p. 11, 12)
AC IN terminal (> p. 12)
Active subwoofer on/off button (> p. 19)
§ 1 For service use only
§ 2 The I/D SET button is only used when the main unit is not paired with the active subwoofer. (> p. 28)
RQT9922
7
SC-HTB580P_RQT9922-Y.book
8 ページ
2013年12月19日
木曜日
午前11時0分
Remote control
∫ Before using for the first time
Remove the insulation sheet A.
1
5
2
INPUT
6
3
4
SETUP
7

1
2
SOUND
OK
8

Turn the main unit on or off (> p. 21)
Select the input source (> p. 21)
“TV” --# “BD/DVD” --# “BLUETOOTH”
^--------------------------------------------------------}
Select the setup menu (> p. 24)
Select the sound menu (> p. 22)
Select the Bluetooth® device as the source
(> p. 21)
Adjust the volume of this system (> p. 21)
Mute the sound (> p. 21)
Select and confirm the option
3
4
5
6
7
8
∫ To replace a button-type battery
Battery type: CR2025 (Lithium battery)


≥ Set the button-type battery with its (i) mark
facing upward.
∫ About remote control signal sensor
The remote control signal sensor is located on the main unit.
≥Use the remote control within the correct operation range.
Distance: Within approx. 7 m (23 ft) directly in front
Angle: Approx. 30o left and right
For table top layout
For wall mounting layout

B
C
8
Remote control signal sensor for table top layout
Remote control signal sensor for wall mounting layout
RQT9922

SC-HTB580P_RQT9922-Y.book
9 ページ
2013年12月19日
Step 1 Connections
木曜日
午前11時0分
Getting started
≥Turn off all equipment before connection and read the appropriate operating instructions.
Do not connect the AC power supply cord until all other connections are completed.
∫ HDMI (High-Definition Multimedia Interface)
≥ The HDMI connection supports VIERA Link “HDAVI Control” (> p. 25) when used with a compatible Panasonic TV.
≥ Use ARC compatible High Speed HDMI Cables. Non-HDMI-compliant cables cannot be utilized.
≥ It is recommended that you use Panasonic’s HDMI cable.
∫ IR (Infrared) Blaster
≥ Do not use the IR Blaster if the TV’s remote control sensor is not blocked by the main unit. (> p. 14)
Connection with the TV
Connection differs depending on the label printed next to the HDMI terminal.
Labeled “HDMI (ARC)”: Connection [A]
Not labeled “HDMI (ARC)”: Connection [B]
∫ What is ARC?
ARC is an abbreviation of Audio Return Channel, also known as HDMI ARC. It refers to one of the HDMI functions. When you
connect the main unit to the terminal labeled “HDMI (ARC)” on the TV, the optical digital audio cable that is usually required in
order to listen to sound from a TV is no longer required, and TV pictures and sound can be enjoyed with a single HDMI cable.
Before use
Verify if the TV’s HDMI terminal is labeled “HDMI (ARC)”.
Make the connection.
Getting started
[A] Labeled “HDMI (ARC)”
HDMI IN (ARC)
TV
A
AV OUT
TV(ARC)
Be sure to connect to
the TV’s ARC
compatible terminal.
(Refer to the operating
instructions for the TV.)
A HDMI cable
RQT9922
9
SC-HTB580P_RQT9922-Y.book
10 ページ 2013年12月19日
木曜日
午前11時0分
[B] Not labeled “HDMI (ARC)”
A
HDMI IN
B
OPTICAL OUT
AV OUT
TV
TV(ARC)
OPTICAL
DIGITAL
AUDIO IN
TV
A HDMI cable
B Optical digital audio cable
≥ When you use the optical digital audio cable, insert
the tip correctly into the terminal.
Connection from an HDMI compatible device
You can direct the audio signal from the connected Blu-ray Disc player, DVD player, Set Top Box, etc. to
this system.
Preparation
≥Connect the main unit to the TV. (> p. 9)
HDMI OUT
AV IN
BD/DVD
A
e.g., Blu-ray Disc player
A HDMI cable
∫ HDMI standby pass-through
Even if the main unit is in standby mode, the audio and/or video signal from the device connected to the HDMI AV IN terminal
will be sent to the TV connected to the HDMI AV OUT terminal (the sound will not be output from this system).
∫ 3D compatibility
Compatible with FULL HD 3D TV and Blu-ray Disc player.
≥ The main unit can pass-through the 3D video signal from a 3D compatible Blu-ray Disc player to a FULL HD 3D TV.
≥ Refer to the operating instructions of the connected HDMI compatible device for the settings required to output the video and
audio signals.
10
RQT9922
SC-HTB580P_RQT9922-Y.book
11 ページ 2013年12月19日
木曜日
午前11時0分
Connection to a 4K Ultra HD TV
This system cannot pass-through the 4K content of a 4K compatible equipment to a 4K Ultra HD TV.
However, you can connect the system to a 4K Ultra HD TV to enjoy the 4K content.
Connect both ends
to ARC compatible
HDMI terminals.
HDMI IN (ARC)
TV
HDMI IN (4K)
(4K compatible)
A
e.g., Blu-ray Disc player
(4K compatible)
HDMI OUT
AV OUT
TV(ARC)
A HDMI cable
≥ Refer to the operating instructions of the 4K Ultra HD TV (VIERA) and the 4K/60p compatible equipment for setup and for
playing the 4K content.
≥ To enjoy multi-channel output from this system, set the audio output of other equipment to Bitstream.
≥ The audio signal input to this system is up to 5.1 channels.
Using the IR Blaster
With the IR Blaster connection, it is possible to send the IR signal received by this system’s remote
control signal sensor to the TV’s sensor.
Use the TV’s remote control within the operation range of this system’s remote control signal sensor.
≥For the operation range, refer to page 8.
Connect the jack plug to the main unit’s Ir SYSTEM terminal.
Infrared emitter
Ir SYSTEM
RQT9922
11
Getting started
A
SC-HTB580P_RQT9922-Y.book
12 ページ 2013年12月19日
木曜日
午前11時0分
Place the infrared emitter in sight of the TV’s remote control signal
sensor.
≥ For the location of the TV’s remote control signal sensor, refer to the operating instructions for the TV.
Aim the TV’s remote control at this system’s remote control sensor and
operate the TV.
≥ For the location of this system’s remote control signal sensor, refer to page 8.
≥ Make sure to clean the surface, where the adhesive tape is to be attached.
≥ If you peel off the adhesive tape, the surface may become damaged and exposed adhesive may remain. Once you have
confirmed the TV is operating correctly, secure it by attaching the adhesive tape.
≥ The supplied IR Blaster is only compatible with Panasonic TVs.
∫ Placement example
On the rear of the main unit:
Adhesive tape (supplied)
TV remote control
signal sensor
AC power supply cord connection
≥ Connect only after all other connections are completed.


AC IN

A To an AC outlet
B AC power supply cord (supplied)
≥This system consumes a small amount of AC power (> p. 30) even when it is turned off. In the interest
of power conservation, if you will not be using this system for a long time, unplug it from the AC outlet.
12
RQT9922
SC-HTB580P_RQT9922-Y.book
13 ページ 2013年12月19日
木曜日
午前11時0分
Step 2 Placement
Professional installation is required.
The installation should never be done by any other than a qualified installation specialist.
PANASONIC DISCLAIMS ANY PROPERTY DAMAGE AND/OR SERIOUS INJURY, INCLUDING
DEATH RESULTING FROM IMPROPER INSTALLATION OR INCORRECT HANDLING.
≥ Be sure to install the main unit as indicated within this Owner’s Manual.
≥ Attach using techniques suited to the structure and materials of the installation location.
Precautions
Safety Precautions
Caution
≥ This system is to be used only as indicated in these instructions. Failure to do so may
lead to damage to the amplifier and/or the speaker, and may result in the risk of fire.
Consult a qualified service person if damage has occurred or if you experience a
sudden change in performance.
≥ Do not attempt to attach the main unit to a wall using methods other than those
described in this manual.
The active subwoofer
When carrying the active subwoofer
A Do not hold the active subwoofer from this
opening.
The parts inside may get damaged.
B Always hold the bottom of the active subwoofer when
moving it.
A
B
Wireless interference
To avoid interference, maintain the following distances between the main unit/active subwoofer
and other electronic devices that use the same radio frequency (2.4 GHz band).
D
C Main unit/active subwoofer
D Wireless router, cordless phone and
other electronic devices: approx. 2 m
(6 1/2 ft)
C
RQT9922
13
Getting started
≥ Do not hold the main unit in one hand to avoid injury, you may drop the main unit when carrying it.
≥ To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.
SC-HTB580P_RQT9922-Y.book
14 ページ 2013年12月19日
木曜日
午前11時0分
Selecting the placement method
Choose a placement method that suits you best.
When placing the main unit
on a rack or on a table
≥ Place the main unit on a flat
and horizontal surface.
Page 15
When attaching the main
unit to a wall
≥ Place the main unit on a
flat and vertical surface.
Page 16
∫ When placing the main unit in front of the TV
The main unit may block or interfere with the TV’s various sensors (C.A.T.S. (Contrast Automatic
Tracking System) sensor, remote control sensor, etc.) and the 3D Eyewear transmitters on a 3D
compatible TV.
≥If interference occurs, move the main unit further away from the TV. If the TV still does not function
correctly, try using it in a rack or in the wall mount position.
∫ If the TV’s remote control sensor is blocked by the main unit
Try using the TV’s remote control from a different angle. If the problem persists, you can use the supplied
IR Blaster to relay the signal to the TV. (> p. 11, 12)
≥ Place the active subwoofer within a few meters of the main unit and in a horizontal position with the top panel facing upward.
≥ Do not use the main unit or the active subwoofer in a metal cabinet.
≥ Placing the active subwoofer too close to the walls and corners can result in excessive bass. Cover walls and windows with
thick curtains.
≥ If irregular coloring occurs on your TV, turn the TV off for about 30 minutes. If it persists, move the main unit and active
subwoofer further away from the TV.
≥ Keep magnetized items away. Magnetized cards, watches, etc., can be damaged if placed too close to the main unit and active
subwoofer.
14
RQT9922
SC-HTB580P_RQT9922-Y.book
15 ページ 2013年12月19日
木曜日
午前11時0分
When placing the main unit on a rack or on a table
Additionally required accessories (commercially available)
≥Fall prevention cord ...................................................................................................................... k 2
≥Screw eyes (to attach the fall prevention cord) ............................................................................. k 2
Precautions
≥ Use commercially available screws that are capable of supporting over 26 kg (57.3 lbs).
≥ Use a cord that is capable of supporting over 26 kg (57.3 lbs) (with a diameter of about 1.5 mm (1/16q)).
Attach the cord to the main unit.

Getting started

A Cord§
§ If the cord cannot be threaded through the holes, try bending the cord in 2 locations,
about 5 mm (3/16q) apart from the tip, at an angle of 45o (as illustrated above).
Place the main unit in the desired position and attach each cord onto the
rack or table.
≥ Make sure that the slack of the cord is minimal.
≥ Do not lean the main unit against the TV or wall.

B Screw eye
≥Attach at a position capable of supporting over 26 kg (57.3 lbs).
≥Depending on the placement of the main unit, the screwing position of the screw eye may differ.
RQT9922
15
SC-HTB580P_RQT9922-Y.book
16 ページ 2013年12月19日
木曜日
午前11時0分
When attaching the main unit to a wall
The main unit can be wall mounted using the supplied wall mount brackets, etc. Make sure that the
screw used and the wall are strong enough to support the weight of at least 26 kg (57.3 lbs).
The screws and other items are not supplied as the type and size will vary with each installation.
≥Refer to step 3 for details about the required screws.
≥Be sure to attach the fall prevention cord as a secondary safety measure.
Supplied accessories
∏ 2 Screws
∏ 2 Wall mount brackets
Additionally required accessories (commercially available)
≥Screws for wall mounting ............................................................................................................. k 2
≥Fall prevention cord ..................................................................................................................... k 2
≥Screw eyes (to attach the fall prevention cord)............................................................................ k 2
≥ Use a cord that is capable of supporting over 26 kg (57.3 lbs) (with a diameter of about 1.5 mm (1/16q)).
Attach the cord to the main unit.


A Cord§
§ If the cord cannot be threaded through the holes, try bending the cord in 2 locations,
about 5 mm (3/16q) apart from the tip, at an angle of 45o (as illustrated above).
16
RQT9922
SC-HTB580P_RQT9922-Y.book
17 ページ 2013年12月19日
木曜日
午前11時0分
Attach the wall mount brackets to the main unit.
Precautions


A Wall mount bracket (supplied)
B Screw (supplied)
Drive a screw into the wall.
≥
≥
≥
≥
Use the measurements indicated below to identify the screwing positions on the wall.
Leave at least 100 mm (3 15/16q) of space above of the main unit to allow enough space for fitting the main unit.
Position the main unit with at least 50 mm (2q) of free space to its right. If not, it may not be possible to access the buttons.
Be sure to use a level to insure that both mounting holes are level to each other.


C
D
E
F
G



At least 30 mm (1 3/16q)
‰4.0 mm (5/32q)
‰7.0 mm to ‰9.4 mm ( 9/32q to 3/8q)
Wall or pillar
1.6 mm to 2.5 mm (1/16q to 3/32q)
Front view (semi-transparent image)









H 400 mm (15 3/4q)
I 275 mm (10 13/16q)
J 275 mm (10 13/16q)
K 27 mm (1 /16q)
L 110 mm (4 /32q)
M Wall mounting hole
1
11
RQT9922
17
Getting started

SC-HTB580P_RQT9922-Y.book
18 ページ 2013年12月19日
木曜日
午前11時0分
Fit the main unit securely onto the screw(s).
DO
DO NOT
≥ Move the speaker so
that the screw is in
this position.
Secure the cord to the wall.
≥ Make sure that the slack of the cord is minimal.


A Screw eye
B Cord
18
RQT9922
≥ In this position, the
speaker will likely fall
if moved to the left or
right.
SC-HTB580P_RQT9922-Y.book
19 ページ 2013年12月19日
木曜日
午前11時0分
Step 3 Wireless connections
Preparation
≥ Turn on the main unit.
Press [BÍ CI].
Bluetooth ® connection
By using the Bluetooth® connection, you can listen
to the sound from the Bluetooth® audio device
from this system wirelessly.
≥ Refer to the operating instructions of the Bluetooth® device for
further instruction on how to connect a Bluetooth® device.
Preparation
≥ Turn on the Bluetooth® feature of the device and
place the device near the main unit.
Precautions
Active subwoofer
wireless connection
Bluetooth ® pairing
Press [ ] to select “BLUETOOTH”.
≥ If “PAIRING” is indicated on the display, go to step 3.
Check that the wireless link is
activated.
Select “SC-HTB580” from the
Bluetooth® device’s Bluetooth® menu.
≥ If prompted for the passkey on the Bluetooth® device, enter “0000”.
≥ Once the Bluetooth® device is connected, the name of the
connected device will be indicated on the display for a few
seconds.
≥ You can register up to 8 devices with this system. If a 9th
device is paired, the device that has not been used the
longest will be replaced.
Connecting a paired
Bluetooth ® device
Press [ ] to enter Bluetooth® mode.
“BLUETOOTH READY” is indicated on the display.
Select “SC-HTB580” from the
Bluetooth® device’s Bluetooth® menu.
WIRELESS LINK indicator
Lights red:
The wireless link is not activated.
Lights green:
The wireless link is activated.
Blinks green:
The active subwoofer is trying to activate the
wireless link with the main unit.
The wireless link will be activated when the main unit and the
active subwoofer are both turned on.
∫ Disconnecting a Bluetooth® device
Press and hold [ ] until the “BLUETOOTH
READY” is indicated on the display.
≥ When “BLUETOOTH” is selected as the source, this
system will automatically try and connect to the last
connected Bluetooth® device.
≥ The Bluetooth® device will be disconnected if a different
audio source (e.g. “TV”) is selected.
≥ This system can only be connected to one device at a time.
≥ To change the sound quality, refer to page 24 “LINK MODE”.
RQT9922
19
Getting started
Active subwoofer on/off button [B Í C I]
Use this button to turn the active subwoofer on
and off.
C I:
The active subwoofer is on.
B Í:
The active subwoofer is off.
The active subwoofer will still consume a small
amount of power even when it is turned off (B, Í).
Press and hold [ ] until “PAIRING”
is indicated on the display.
SC-HTB580P_RQT9922-Y.book
20 ページ 2013年12月19日
One-Touch Connection
(Connecting by NFC)
For NFC-compatible AndroidTM devices only
Simply by touching an NFC (Near Field
Communication)-compatible Bluetooth® device on
the main unit, you can complete all preparations,
from registering a Bluetooth® device to
establishing a connection.
≥ Android device version lower than 4.1 requires
the installation of the app “Panasonic Music
Streaming” (Free of charge). Download the app
to your Bluetooth® device.
– Enter “Panasonic Music Streaming” in the search
box of Google PlayTM to search, and then select
“Panasonic Music Streaming”.
Preparation
≥ Turn on the NFC feature of the device.
Press [ ] to select “BLUETOOTH”.
Touch and hold your device on the
NFC touch area of the main unit [ ].
(> p. 6)
– Once the registration and connection of the
Bluetooth® device is complete, the name of the
connected device is indicated on the display for a
few seconds. Move the device away from the main
unit.
≥ When the connection is not established even if your
device has touched the NFC touch area, move the
device so it can be detected.
Start playback on the Bluetooth ®
device.
≥ If you touch another device to the main unit, you can
update the Bluetooth® connection. The previously
connected device will be disconnected automatically.
≥ If the image and sound are out of sync during playback,
restart the playback app you are using.
≥ The One-Touch Connection may not work properly
depending on the type of device being used.
20
RQT9922
木曜日
午前11時0分
Remote control code
When other Panasonic devices respond to this
system’s remote control, change the remote
control code on this system and the remote
control.
Preparation
≥ Turn off all other Panasonic products.
≥ Turn on the main unit.
∫ To set the code to “REMOTE 2”
Press and hold [MUTE] and [OK] for more than
4 sec.
“REMOTE 2” is indicated on the display.
∫ To set the code to “REMOTE 1”
Press and hold [MUTE] and [4] for more than
4 sec.
“REMOTE 1” is indicated on the display.
SC-HTB580P_RQT9922-Y.book
21 ページ 2013年12月19日
Using this system
木曜日
午前11時0分
Operations
Preparation
∫ To adjust the volume of this system
Press [i VOL j].
≥ Turn on the active subwoofer.
≥ Turn on the TV and/or connected device.
≥ Volume range: 0 to 100
∫ To mute the sound
Press [MUTE].
≥ While muting, “MUTE” is indicated on the display.
≥ To cancel, press the button again or adjust the volume.
≥ Muting is canceled if the main unit is turned off.
INPUT
SETUP
SOUND

OK

If this system does not operate as
expected or sound is unusual, returning
the settings to the factory preset may
solve the problem. (> p. 26)
≥ If there is sound coming out of the TV’s speakers, reduce
the volume of the TV to its minimum.
Press [Í] to turn on the main unit.
Select the source.
[INPUT]
[
]
To select
“TV” --------------# “BD/DVD”
^--- “BLUETOOTH”---}
“BLUETOOTH”
Getting started
Press
≥ This remote control cannot be used to control the
operations of the connected devices.
∫ When “BLUETOOTH” is selected as
the source
On the Bluetooth® device:
Select this system as the output source of the
connected Bluetooth® device and start the
playback.
Operations
∫ When “BD/DVD” is selected as the
source
On the TV and the connected device:
Select the TV’s input for this system and start the
playback on the connected device.
RQT9922
21
SC-HTB580P_RQT9922-Y.book
22 ページ 2013年12月19日
3D sound
This system provides a feeling that the sound and
the image are as one.
≥ To change the applied effect, refer to “Sound
menu”. (> right)
e.g., Image of 3D sound field
Dolby Virtual
Speaker
®
3D surround
effect
Clear-mode
dialog
3D sound
With this effect you can enjoy
a surround sound effect
similar to 5.1ch.
Adding to the Dolby Virtual
Speaker effect, Panasonic
has applied its own sound
field controlling technology to
expand the sound field
forwards, backwards,
upwards, and downwards,
providing a sound with depth
and force that better matches
3D images.
Sports commentary and
dialogs from TV dramas are
heard as if the sound is
coming from the TV, giving
the feeling that the sound and
the image are one.
Also, the dialog will stand out
from the other sounds during
normal volume playback and
when the volume is lowered
for night time viewing.
≥ Dolby Virtual Speaker effect is ON except in STEREO
mode.
≥ To turn off Dolby Virtual Speaker and the 3D surround
effects, select “STEREO” as the sound mode. (> right)
≥ To turn off the 3D surround and the Clear-mode dialog
effects, refer to “3D CLR DIALOG”. (> p. 23)
22
RQT9922
木曜日
午前11時0分
Sound menu
Press [SOUND] repeatedly to select
the sound effect.
Press [3, 4] repeatedly to select
the desired setting and then press
[OK].
SOUND
MODE
STANDARD: Best suited
for dramas and comedy
shows.
STADIUM: Produces a
realistic sound for live
sports broadcasts.
MUSIC: Enhances the
sound of musical
instruments and songs.
CINEMA: Produces threedimensional sound unique
to movies.
NEWS: Enhances the
voice of news and sports
commentaries.
STEREO: Plays any
source of sound in stereo.
SUBWOOFER
You can adjust the amount
of bass. This system
automatically selects the
most suitable setting
according to the type of
playback source.
LEVEL 1
LEVEL 2: Default for
2 channel audio source
LEVEL 3: Default for multichannel audio source
LEVEL 4
The setting you make is
retained and recalled every
time you play the same
type of source.
DIALOG
Adjusts the dialog level.
LEVEL 1
LEVEL 2
LEVEL 3
LEVEL 4
“DIALOG” is not indicated
on the display when “3D
CLR DIALOG” is set to
“OFF”.
H.BASS
3D CLR
DIALOG
23 ページ 2013年12月19日
Enhances the harmonic
bass effect.
ON
OFF
The 3D Clear Mode Dialog
feature creates a sound
field similar to the sound
coming from a TV screen
and makes dialogues
clearer.
ON: 3D Surround, Clear
Mode Dialog and Dolby
Virtual Speaker effect
OFF: Dolby Virtual
Speaker effect
The setting is set back to
“ON” every time you turn
the main unit on.
DUAL
AUDIO
Sets the preferred audio
channel mode when there
are two audio modes
received by this system.
MAIN: Main
SAP: Secondary
MAIN + SAP: Main +
Secondary
This effect only works if the
audio output of the TV or
player is set to “Bitstream”
and “Dolby Dual Mono” is
available in the sound
source.
AGC
Auto gain control prevents
sudden loud sound by
reducing the sound level
automatically when the
input is too high.
ON
OFF
LOW VOL
MODE
木曜日
午前11時0分
Audio format
You can view the current audio format.
Press and hold [SOUND] for more than 4 sec.
DOLBY
DIGITAL
Dolby Digital is the audio
source.
DTS
DTS is the audio source.
PCM MULTI
Linear pulse-code
modulation is the audio
source.
PCM
2 channel pulse-code
modulation is the audio
source.
Operations
SC-HTB580P_RQT9922-Y.book
Enhances the dialog in low
volume condition.
ON
OFF
Select “OFF” to cancel this
effect if the dialog does not
sound natural in low
volume condition.
≥ The default setting is underlined. Changed settings will be
kept until it is changed again, unless otherwise indicated.
RQT9922
23
SC-HTB580P_RQT9922-Y.book
24 ページ 2013年12月19日
木曜日
Setup menu
LINK
MODE
Change the Bluetooth ®
connection link mode to
suit the connection type.
Make sure to disconnect
the current connected
device (“BLUETOOTH
READY” is indicated on the
display).
MODE 1: Emphasis on
connectivity.
MODE 2: Emphasis on
sound quality.
VIERA
LINK
Turn on the VIERA Link
function.
ON
OFF
Select “OFF” when your
HDAVI Control device does
not work correctly with this
system. ARC will be
disabled. Connect an
optical digital audio cable.
Turn off all connected
devices and then turn them
on again after changing the
setting.
Press [SETUP] repeatedly to select
the setup item.
Press [3, 4] repeatedly to select
the desired setting and then press
[OK].
DIMMER
Dims the display after
5 seconds of inactivity.
ON
OFF
AUTO
POWER
DOWN
The main unit is
automatically turned off if
there is no audio input and
when you do not use it for
approx. 20 minutes.
ON
OFF
VOL
LIMITATION
Sets the volume limit to 50
when you turn on the main
unit although the volume is
set to above 50 before it is
turned off.
ON
OFF
BLUETOOTH
STANDBY
This function allows you to
connect a paired
Bluetooth® device when
the main unit is in standby
mode.
ON
OFF
The main unit will be
turned on automatically
when you connect a paired
Bluetooth® device.
24
RQT9922
午前11時0分
≥ The default setting is underlined. Changed settings will be
kept until it is changed again, unless otherwise indicated.
SC-HTB580P_RQT9922-Y.book
25 ページ 2013年12月19日
木曜日
午前11時0分
Linked operations with the TV
(VIERA LinkTM “HDAVI ControlTM”)
VIERA LinkTM is a new name for EZ SyncTM.
VIERA Link “HDAVI Control” is a convenient
function that offers linked operations of this
system, and a Panasonic TV (VIERA) under
“HDAVI Control”.
You can use this function by connecting the
equipment with an HDMI cable. See the
operating instructions for connected
equipment for operational details.
Preparation
1 Confirm that the HDMI connection has been
made. (> p. 9, 10)
2 Set the “HDAVI Control” operations on the
connected equipment (e.g., TV).
3 For the optimal “HDAVI Control” operations
change the following settings on the
connected TV§1.
≥ Set the default speaker settings to this system.§2
≥ Set the speaker selection settings to this system.
4 Turn on all “HDAVI Control” compatible
equipment and select the TV’s input for this
system so that the “HDAVI Control” function
works properly.
5 If a device is connected to the HDMI AV IN
terminal, start play to check that the picture is
displayed on the TV correctly.
When the connection or settings are changed,
repeat this procedure.
§1 The availability and function of the settings may vary
depending on the TV. Refer to the operating instructions
for the TV for details.
§2 If the TV has a default speaker setting within the VIERA
Link setting items, choosing this system as the default
speaker will automatically change the speaker selection
to this system.
≥ VIERA Link “HDAVI Control”, based on the control
functions provided by HDMI which is an industry standard
known as HDMI CEC (Consumer Electronics Control), is a
unique function that we have developed and added. As
such, its operation with other manufacturers’ equipment
that supports HDMI CEC cannot be guaranteed.
≥ This unit supports “HDAVI Control 5” function.
“HDAVI Control 5” is the standard for Panasonic’s HDAVI
Control compatible equipment. This standard is compatible
with Panasonic’s conventional HDAVI equipment.
≥ Please refer to individual manuals for other manufacturers’
equipment supporting VIERA Link function.
What you can do with
VIERA Link “HDAVI Control”
To make sure that the audio is output from this
system, turn the main unit on by using the TV’s
remote control and selecting home theater from
the speaker menu of VIERA Link menu.
The availability and function of the settings may
vary depending on the TV. Refer to the operating
instructions for the TV for details.
∫ Speaker control
You can select whether audio output is from this system
or the TV speakers by using the TV menu settings.
Home theater
This system is active.
≥ When the main unit is in standby mode, changing the TV
speakers to this system in the VIERA Link menu will
automatically turn the main unit on.
≥ You can control the volume setting of this system using the
volume or mute button on the TV remote control.
≥ If you turn off the main unit, TV speakers will be
automatically activated.
≥ Audio will automatically be output from this system if the TV
is compatible to VIERA Link “HDAVI Control 4” or later.
TV
TV speakers are active.
≥ The volume of this system is set to its minimum.
∫ Automatic input switching
When the following operations are performed, the
main unit will automatically change the input to
the corresponding source.
jWhen play starts on an HDMI connected device.§3
jWhen the TV input or the TV channel is changed.
§3 If the speaker output setting on the TV is set to this
system, the TV and the main unit turn on automatically
(Power on link).
∫ Power off link
When the TV is turned off, the main unit also turns
off automatically. (This function does not work
when Bluetooth® is the source.)
∫ Automatic lip-sync function
(for HDAVI Control 3 or later)
Delay between audio and video is automatically
adjusted by adding time-lag to the audio output,
enabling you to enjoy smooth audio for the picture.
The delay information is automatically set if the TV is
compatible to VIERA Link “HDAVI Control 3” or later and the
VIERA Link is set to on.
RQT9922
25
Operations
What is VIERA Link “HDAVI
Control”?
SC-HTB580P_RQT9922-Y.book
26 ページ 2013年12月19日
Troubleshooting
木曜日
午前11時0分
Reference
Before requesting service, make the following
checks. If you are in doubt about some of the
check points, or if the solutions indicated in the
following guide do not solve the problem, refer to
“Customer Services Directory (United States and
Puerto Rico)” on page 32 if you reside in the
U.S.A. or Puerto Rico, or refer to “Limited
Warranty (ONLY FOR CANADA)” on page 33 if
you reside in Canada.
To return to the factory defaults.
While the main unit is on, press and hold [Í/I] on
the main unit for more than 4 sec.
(“RESET” is indicated on the display when this
system is reset.)
If this system does not operate as expected,
returning the settings to the factory defaults
may solve the problem.
≥ The remote control code will return to
“REMOTE 1” when this system is returned to
the factory preset. To change the remote
control code, refer to page 20.
General operation
No power.
≥ Unplug the AC power supply cord for 10 sec
before plug in again.
≥ After turning the main unit on, if the main unit
immediately turns off, unplug the AC power
supply cord and consult your dealer.
The remote control does not work properly.
≥ The battery is depleted. Replace it with a new
one. (> p. 8)
≥ It is possible that the insulation sheet has not
been removed. Remove the insulation sheet.
(> p. 8)
≥ It may be necessary to set the code of the
remote control again after changing the battery
of the remote control. (> p. 20)
≥ Use the remote control within the correct
operation range. (> p. 8)
≥ Check which remote control signal sensor is
working by the following operation.
jPress and hold [INPUT] on the main unit for
more than 4 sec. “ON TABLE” or “ON WALL”
is indicated on the display for 4 sec.
jRefer to page 8 “About remote control signal
sensor” for the remote control signal sensor
location.
26
RQT9922
The main unit is automatically switched to
standby mode.
“AUTO POWER DOWN” function is on.
The main unit will automatically switch to standby
mode when no signal is input and no operation is
performed for approx. 20 minutes. Refer to page
24 to turn this function off.
The main unit is turned off when the TV’s
speakers are selected in the speaker control.
This is a normal feature when using VIERA Link
(HDAVI Control 4 or later). Please read the
operating instructions for the TV for details about
its power save feature. (> p. 25)
HDMI
This system does not operate correctly.
If the HDMI cable is connected to the wrong
terminal (HDMI AV IN or HDMI AV OUT), this
system will not operate correctly. Turn the main
unit off, disconnect the AC power supply cord and
reconnect the HDMI cable(s). (> p. 9, 10)
VIERA Link related operations no longer
function properly.
≥ Check the VIERA Link setting on the connected
devices.
≥ Have you turned the VIERA Link settings off?
(> p. 24)
≥ When the HDMI connections are changed, after
a power failure or after the AC power supply
cord has been removed, VIERA Link operations
may not function properly.
jTurn on all the devices that are connected to
the TV with an HDMI cable and then turn the
TV on.
jTurn off the VIERA Link settings of the TV and
turn it on again. For details refer to the
operating instructions for the TV.
jWhile the main unit and the TV are connected
with the HDMI cable, turn on the TV and then
remove the main unit’s AC power supply cord
and reconnect it again.
27 ページ 2013年12月19日
The first few seconds of audio cannot be
heard when using the HDMI connection.
This may occur during DVD-Video chapter
playback. Change the digital audio output setting
on the connected device from “Bitstream” to
“PCM”.
When operating an HDMI compatible device of
a different brand, the main unit reacts in an
unwanted manner.
HDAVI Control commands may use a different
signal depending on the brand of the device. In
this case, turn VIERA Link off. (> p. 24)
Bluetooth®
Pairing cannot be done.
Check the Bluetooth® device condition.
The device cannot be connected.
≥ The pairing of the device was unsuccessful or
the registration has been replaced. Try pairing
the device again. (> p. 19)
≥ This system might be connected to a different
device. Disconnect the other device and try
pairing the device again.
The device is connected but audio cannot be
heard through this system.
For some built-in Bluetooth® devices, you have to
set the audio output to “SC-HTB580” manually.
Read the operating instructions for the device for
details.
The sound is interrupted.
≥ The device is out of the 10 m (33 ft)
communication range. Bring the Bluetooth ®
device closer to the main unit.
≥ Remove any obstacle between the main unit
and the device.
≥ Other devices that use the 2.4 GHz frequency
band (wireless router, microwaves, cordless
phones, etc.) are interfering. Bring the
Bluetooth® device closer to the main unit and
distance it from the other devices.
≥ Select “MODE1” for stable communication.
(> p. 24)
木曜日
午前11時0分
Sound
No sound (or image).
≥ Turn muting off. (> p. 21)
≥ Check the connections to the other devices.
(> p. 9, 10)
≥ Make sure that the received audio signal is
compatible with this system. (> p. 30)
≥ Turn this system off and then on again.
≥ If the main unit is connected to the TV with only
an HDMI cable, make sure that the TV’s HDMI
terminal is labeled “HDMI (ARC)”. If not,
connect using the optical digital audio cable.
(> p. 9, 10)
≥ If the main unit is connected to a Panasonic TV
and turned on using the button on the main unit
or the remote control, sound might not be output
from this system. In this case, turn the main unit
on using the TV’s remote control. (> p. 25)
≥ If the connections are correct, there might be a
problem with the cables. Redo the connections
with different cables.
≥ Check the audio output settings on the
connected device.
The dual audio cannot be changed from main
to secondary.
If the audio received from the connected device is
not “Dolby Dual Mono” or the output setting is not
“Bitstream”, the setting cannot be changed from
this system. Change the setting on the connected
device.
The volume is lowered when the main unit is
turned on.
“VOL LIMITATION” is on.
If the main unit is turned off with the volume
setting in the greater half (above 50), the main
unit will automatically lower the volume to the
middle (50) when the main unit is turned on.
(> p. 24)
The dialog is too persistent or the dialog does
not sound natural.
This system has a function to make the dialog
stand out when the volume is low. (> p. 23)
The One-Touch Connection (NFC feature) is
not working.
Turn on the NFC feature of the device.
RQT9922
27
Reference
SC-HTB580P_RQT9922-Y.book
SC-HTB580P_RQT9922-Y.book
28 ページ 2013年12月19日
There is no audio.
The power of the main unit turns off
automatically.
(When the main unit detects a problem, a safety
measure is activated and the main unit
automatically switches to standby mode.)
≥ There is a problem with the amplifier.
≥ Is the volume extremely high?
If so, lower the volume.
≥ Is this system placed in an extremely hot place?
If so, move this system to a cooler place and
wait a few moments and then try to turn it on
again.
If the problem persists, confirm the display, turn
this system off, remove the AC power supply cord
and consult your dealer. Please be sure to
remember the display that was indicated and
inform the dealer.
Main unit displays
“F61”
≥ There is a problem with the amplifier of the
system.
≥ Disconnect the AC power supply cord and
consult the dealer.
“F70 HDMI”
≥ Check HDMI connection.
≥ Turn off the main unit and then switch it on
again.
≥ Disconnect the HDMI cable.
“F76”
≥ There is a problem with the power supply.
≥ Disconnect the AC power supply cord and
consult the dealer.
木曜日
午前11時0分
Active Subwoofer
No power.
Ensure the AC power supply cord of the active
subwoofer is connected properly.
After turning the subwoofer on, it immediately
turns off.
Unplug the AC power supply cord and consult
your dealer.
No sound from the subwoofer.
≥ Check that the active subwoofer is turned on.
≥ Check that the WIRELESS LINK indicator lights
green. (> p. 19)
The WIRELESS LINK indicator lights red.
≥ There is no link between the main unit and the
active subwoofer.
jCheck that the main unit is turned on.
jTurn the active subwoofer off and then back
on. Alternatively, turn the active subwoofer off,
disconnect the AC power supply cord and
then reconnect it.
≥ The active subwoofer and the main unit may not
be paired correctly. Try the following operation.
(Wireless pairing)
1 Turn on the main unit and active subwoofer.
2 Press and hold [ID SET] on the rear of the
active subwoofer for more than 3 sec.
(The WIRELESS LINK indicator will blink in
red.)
3 While pressing and holding [INPUT] on
remote control, press and hold [VOL i] on
the main unit for more than 4 sec.
(“SUBWOOFER PAIRING” will be indicated
on the display.)
≥ When the wireless pairing is successful, “PAIRED”
will be indicated on the display for 2 sec and
WIRELESS LINK indicator lights green.
4 Turn the main unit off and on.
≥ Consult your dealer if the problem persists.
28
RQT9922
29 ページ 2013年12月19日
About Bluetooth®
Panasonic bears no responsibility for data
and/or information that is compromised
during a wireless transmission.
∫ Frequency band used
This system uses the 2.4 GHz frequency band.
∫ Certification of this device
≥ This system conforms to frequency restrictions
and has received certification based on
frequency laws. Thus, a wireless permit is not
necessary.
≥ The action below are punishable by law in some
countries:
jTaking apart or modifying the unit.
jRemoving specification indications.
∫ Restrictions of use
≥ Wireless transmission and/or usage with all
Bluetooth® equipped devices is not guaranteed.
≥ All devices must conform to standards set by
Bluetooth SIG, Inc.
≥ Depending on the specifications and settings of
a device, it can fail to connect or some
operations can be different.
≥ This system supports Bluetooth ® security
features. But depending on the operating
environment and/or settings, this security is
possibly not sufficient. Transmit data wirelessly
to this system with caution.
≥ This system cannot transmit data to a
Bluetooth® device.
∫ Range of use
Use this device at a maximum range of 10 m (33 ft).
The range can decrease depending on the
environment, obstacles or interference.
∫ Interference from other devices
≥ This system may not function properly and
troubles such as noise and sound jumps may
arise due to radio wave interference if the main
unit is located too close to other Bluetooth®
devices or the devices that use the 2.4 GHz
band.
≥ This system may not function properly if radio
waves from a nearby broadcasting station, etc.
are too strong.
∫ Intended usage
≥ This system is for normal, general use only.
≥ Do not use this system near equipment or in an
environment that is sensitive to radio frequency
interference (example: airports, hospitals,
laboratories, etc.).
木曜日
午前11時0分
Unit care
∫ Clean this system with a soft, dry
cloth
≥ When dirt is heavy, wring a cloth moistened in
water tightly to wipe the dirt, and then wipe it
with a dry cloth.
≥ When cleaning the speakers, use a fine cloth.
Do not use tissues or other materials (towels,
etc.) that can fall apart. Small grains may get
stuck inside the speaker cover.
≥ Never use alcohol, paint thinner or benzine to
clean this system.
≥ Before using chemically-treated cloth, carefully
read the instructions that came with the cloth.
∫ To dispose or transfer this system
This system may keep the user settings
information in the main unit. If you discard the
main unit either by disposal or transfer, then follow
the procedure to return all the settings to the
factory presets to delete the user settings.
(> p. 26, “To return to the factory defaults.”)
≥ The operation history may be recorded in the
memory of the main unit.
Licenses
Manufactured under license from Dolby Laboratories.
Dolby, Pro Logic, and the double-D symbol are
trademarks of Dolby Laboratories.
Manufactured under license under U.S. Patent Nos:
5,956,674; 5,974,380; 6,487,535 & other U.S. and
worldwide patents issued & pending.
DTS, the Symbol, & DTS and the Symbol together are
registered trademarks & DTS Digital Surround and the
DTS logos are trademarks of DTS, Inc. Product includes
software.
© DTS, Inc. All Rights Reserved.
HDMI, the HDMI Logo, and High-Definition Multimedia
Interface are trademarks or registered trademarks of
HDMI Licensing LLC in the United States and other
countries.
HDAVI Control™ is a trademark of Panasonic
Corporation.
VIERA Link™ is a trademark of Panasonic Corporation.
EZ Sync™ is a trademark of Panasonic Corporation.
The Bluetooth® word mark and logos are owned by the
Bluetooth SIG, Inc. and any use of such marks by
Panasonic Corporation is under license. Other trademarks
and trade names are those of their respective owners.
Google Play and Android are trademarks of Google Inc.
RQT9922
29
Reference
SC-HTB580P_RQT9922-Y.book
SC-HTB580P_RQT9922-Y.book
30 ページ 2013年12月19日
木曜日
午前11時0分
Specifications
AMPLIFIER SECTION
RMS output power: Dolby Digital Mode
Front ch (L, R ch)
60 W per channel (6 ≠), 1 kHz, 10 % THD
Center ch (C ch)
60 W per channel (6 ≠), 1 kHz, 10 % THD
Subwoofer ch
130 W per channel (8 ≠), 100 Hz, 10 % THD
Total RMS Dolby Digital mode power
310 W
FTC output power: Dolby Digital Mode
Front ch (L, R ch)
30 W per channel (6 ≠),
170 Hz to 20 kHz, 1 % THD
Center ch (C ch)
30 W per channel (6 ≠),
170 Hz to 20 kHz, 1 % THD
Subwoofer ch
80 W per channel (8 ≠),
40 Hz to 200 Hz, 1 % THD
Total FTC Dolby Digital mode power
170 W
TERMINAL SECTION
HDAVI Control
This unit supports “HDAVI Control 5” function.
HDMI AV input (BD/DVD)
1
Input connector
Type A (19 pin)
HDMI AV output (TV (ARC))
1
Output connector
Type A (19 pin)
Digital audio input (TV)
Optical digital input
Optical terminal
Sampling frequency
32 kHz, 44.1 kHz, 48 kHz
88.2 kHz, 96 kHz (only LPCM)
Audio format
LPCM, Dolby Digital, DTS Digital Surround
IR Blaster
Terminal Type
3.5 mm (1/8q) jack
USB Port
For service use only.
30
RQT9922
GENERAL
Power consumption
Main unit
31 W
Active subwoofer
21 W
In standby condition
Main unit (When the other connected devices
are turned off)
Approx. 0.4 W
Active subwoofer (Power switch release)
Approx. 0.2 W
Power supply
AC 120 V, 60 Hz
Dimensions (WkHkD)
Main unit
For table top layout
950 mmk53 mmk110 mm
(37 13/32qk2 3/32qk4 11/32q)
For wall mounting layout
950 mmk110 mmk57 mm
(37 13/32qk4 11/32qk2 1/4q)
Active subwoofer
180 mmk408 mmk306 mm
(7 3/32qk16 1/16qk12 1/16q)
Mass (Weight)
Main unit
For table top layout
Approx. 2.6 kg (5.7 lbs)
For wall mounting layout
Approx. 2.7 kg (5.8 lbs)
Active subwoofer
Approx. 5.0 kg (11.0 lbs)
Operating temperature range
0 oC to i40 oC (r32 oF to r104 oF)
Operating humidity range
20 % to 80 % RH (no condensation)
SC-HTB580P_RQT9922-Y.book
31 ページ 2013年12月19日
木曜日
午前11時0分
SPEAKER SECTION
Front speakers (Built-in)
Full range
6.5 cm (2 1/2q) cone type k1 /ch
Center speaker (Built-in)
Full range
6.5 cm (2 1/2q) cone type k1
Active subwoofer
Woofer
16 cm (6 1/2q) cone type k1
WIRELESS SECTION
Wireless module
Frequency Range
2.40335 GHz to 2.47735 GHz
No. of channels
38
Bluetooth® SECTION
Bluetooth® system specification
Version 3.0
Wireless equipment classification
Class 2
Supported profiles
A2DP
Operating frequency
2402 MHz to 2480 MHz
(Adaptive Frequency Hopping)
Operating distance
10 m (33 ft) Line of Sight
Reference
≥ Specifications are subject to change without notice.
≥ Mass and dimensions are approximate.
≥ Total harmonic distortion is measured by a digital spectrum
analyzer.
RQT9922
31
SC-HTB580P_RQT9922-Y.book
32 ページ 2013年12月19日
木曜日
午前11時0分
Limited Warranty
(ONLY FOR U.S.A. AND PUERTO RICO)
Panasonic Products Limited Warranty
Limited Warranty Coverage
(For USA and Puerto Rico Only)
If your product does not work properly because of a defect in materials or
workmanship, Panasonic Corporation of North America (referred to as “the
warrantor”) will, for the length of the period indicated on the chart below,
which starts with the date of original purchase (“warranty period”), at its
option either (a) repair your product with new or refurbished parts, (b)
replace it with a new or a refurbished equivalent value product, or (c) refund
your purchase price. The decision to repair, replace or refund will be made
by the warrantor.
Product or Part Name
Parts
Labor
Home Theater Audio System
1 Year
1 Year
All included Accessories
(Except Non-Rechargeable Batteries)
90 Days
Not
Applicable
Only Non-Rechargeable Batteries
10 Days
Not
Applicable
During the “Labor” warranty period there will be no charge for labor. During
the “Parts” warranty period, there will be no charge for parts. This Limited
Warranty excludes both parts and labor for non-rechargeable batteries,
antennas, and cosmetic parts (cabinet). This warranty only applies to
products purchased and serviced in the United States or Puerto Rico. This
warranty is extended only to the original purchaser of a new product which
was not sold “as is”.
Mail-In Service--Online Repair Request
Online Repair Request
To submit a new repair request and for quick repair status visit our Web Site
at www.panasonic.com/repair.
When shipping the unit, carefully pack, include all supplied accessories
listed in the Owner’s Manual, and send it prepaid, adequately insured and
packed well in a carton box. When shipping Lithium Ion batteries please
visit our Web Site at www.panasonic.com/BatteryHandling as Panasonic is
committed to providing the most up to date information. Include a letter
detailing the complaint, a return address and provide a daytime phone
number where you can be reached. A valid registered receipt is required
under the Limited Warranty.
IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE
PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/
PROOF OF PURCHASE INDICATING DATE OF PURCHASE,
AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE
CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT
SUCH PROOF OF PURCHASE.
Limited Warranty Limits And Exclusions
This warranty ONLY COVERS failures due to defects in materials or
workmanship, and DOES NOT COVER normal wear and tear or cosmetic
damage. The warranty ALSO DOES NOT COVER damages which
occurred in shipment, or failures which are caused by products not supplied
by the warrantor, or failures which result from accidents, misuse, abuse,
neglect, mishandling, misapplication, alteration, faulty installation,
set-up adjustments, misadjustment of consumer controls, improper
maintenance, power line surge, lightning damage, modification, introduction
of sand, humidity or liquids, commercial use such as hotel, office,
restaurant, or other business or rental use of the product, or service by
anyone other than a Factory Service Center or other Authorized Servicer, or
damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED
UNDER “LIMITED WARRANTY COVERAGE”.
THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS
PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS
WARRANTY.
(As examples, this excludes damages for lost time, travel to and from the
servicer, loss of or damage to media or images, data or other memory or
recorded content. The items listed are not exclusive, but for illustration
only.)
ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE
WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD
OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or
consequential damages, or limitations on how long an implied warranty
lasts, so the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have other
rights which vary from state to state. If a problem with this product develops
during or after the warranty period, you may contact your dealer or Service
Center. If the problem is not handled to your satisfaction, then write to the
warrantor’s Consumer Affairs Department at the addresses listed for the
warrantor.
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS
LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.
Customer Services Directory (United States and Puerto Rico)
Obtain Product Information and Operating Assistance; locate
your nearest Dealer or Service Center; purchase Parts and
Accessories; or make Customer Service and Literature
requests by visiting our Web Site at:
http://www.panasonic.com/support
or, contact us via the web at:
http://www.panasonic.com/contactinfo
For hearing or speech impaired TTY users, TTY: 1-877-833-8855
Accessory Purchases (United States and Puerto Rico)
Purchase Parts, Accessories and Owner’s Manual online for all
Panasonic Products by visiting our Web Site at:
http://www.pstc.panasonic.com
Or, send your request by E-mail to:
[email protected]
You may also contact us directly at:
1-800-237-9080 (Fax Only)
(Monday-Friday 9am-9pm EST)
Panasonic National Parts Center
20421 84th Avenue South, Kent, WA 98032
(We accept Visa, MasterCard, Discover Card, American Express)
For hearing or speech impaired TTY users, TTY: 1-866-605-1277
As of November 2013
The model number and serial number of this product can be
found on either the back or the bottom of the unit.
Please note them in the space provided below and keep for
future reference.
MODEL NUMBER
SERIAL NUMBER
32
RQT9922
SC-HTB580
User memo:
DATE OF PURCHASE ______________________________
DEALER NAME ___________________________________
DEALER ADDRESS________________________________
_________________________________________________
TELEPHONE NUMBER _____________________________
SC-HTB580P_RQT9922-Y.book
33 ページ 2013年12月19日
木曜日
午前11時0分
Limited Warranty (ONLY FOR CANADA)
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
PANASONIC PRODUCT - LIMITED WARRANTY
Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use
and for a period as stated below from the date of original purchase agrees to, at its option either (a) repair your product
with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your
purchase price. The decision to repair, replace or refund will be made by Panasonic Canada Inc.
Technics Audio Product - One (1) year, parts and labour
Panasonic BD/DVD Product - One (1) year, parts and labour
Panasonic Audio Receivers - One (1) year, parts and labour
Home Theater Systems Product - One (1) year, parts and labour
This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic
brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in
Canada, which product was not sold “as is”, and which product was delivered to you in new condition in the original
packaging.
IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR
OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS
REQUIRED
LIMITATIONS AND EXCLUSIONS
This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal
wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or
failures which are caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents,
misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of
consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand,
humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or
service by anyone other than an Authorized Servicer, or damage that is attributable to acts of God.
Dry cell batteries are also excluded from coverage under this warranty.
THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY
EXPRESS OR IMPLIED WARRANTY. (As examples, this warranty excludes damages for lost time, travel to and from
the Authorized Servicer, loss of or damage to media or images, data or other memory or recorded content. This list of
items is not exhaustive, but for illustration only.)
In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages,
or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable. This warranty
gives you specific legal rights and you may have other rights which vary depending on your province or territory.
WARRANTY SERVICE
For product operation, repairs and information assistance, please visit our Support page:
www.panasonic.ca/english/support
RQT9922
Reference
IF YOU SHIP THE PRODUCT TO A SERVICENTRE
Carefully pack and send prepaid, adequately insured and preferably in the original carton.
Include details of the defect claimed, and proof of date of original purchase.
33
SC-HTB580P_RQT9922-Y.book
34 ページ 2013年12月19日
木曜日
午前11時0分
-If you see this symbolInformation on Disposal in other Countries outside the
European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact
your local authorities or dealer and ask for the
correct method of disposal.
Panasonic Corporation of North America
Panasonic Canada Inc.
Two Riverfront Plaza, Newark, NJ 07102-5490
http://www.panasonic.com
5770 Ambler Drive,
Mississauga, Ontario,
L4W 2T3
www.panasonic.com
Panasonic Corporation 2014
Printed in Malaysia
RQT9922-Y
F1213SB0
