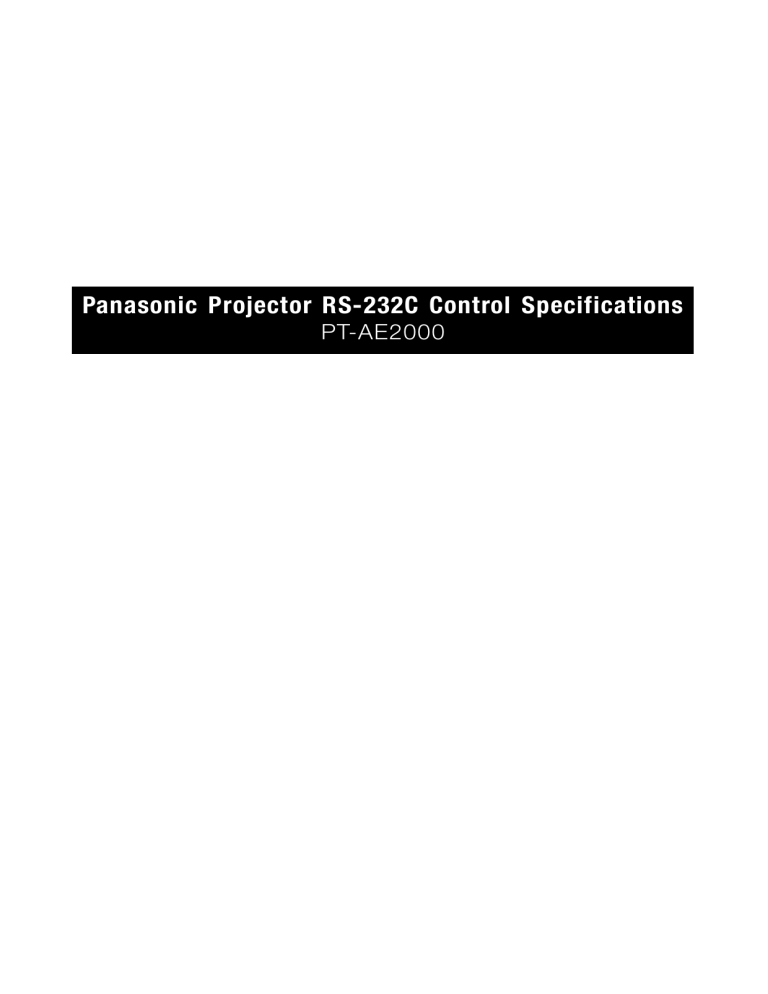

Panasonic Projector RS-232C Control Specifications
P T- A E 2 0 0 0
RS-232C Control Specifications PT-AE2000
Serial connector
The serial connector complies with RS-232C. To control the projector from a personal computer, commands must be input through communication software, based on the format and satisfying the communication conditions shown below.
Pin assignments and signal names
D-sub 9-pin
Description
Description
No. Signal name
1
–
NC
6
–
NC
2
TXD
Send data
7
RTS
Connected internally
3
RXD
Receive data
8
CTS
Connected internally
4
–
NC
9
–
NC
5
GND
Ground
No. Signal name
Communication conditions (factory setting)
Signal level
RS-232C-compliant
Synchronization method
Start-stop synchronization
Baud rate
9,600 bps
Parity
None
Character length
8 bits
Stop bit
1 bit
X parameter
None
S parameter
None
Basic format
Transmission from the computer begins with STX, then the ID, command, parameter, and ETX are sent
in this order. Add parameters according to the details of control.
STX
C1 C2 C3
Start
(1 byte)
:
P1 P2 P3 P4
ETX
Colon
Parameter
Command
(1 byte)
(1-4 bytes)
(3 bytes)
(Control and/or query commands)
End
(1 byte)
CAUTIION
When sending multiple commands, be sure to send the next command after receiving a response from the projector.
Cable specifications
Projector
1
PC (DTE)
NC
NC
3
3
4
NC
NC
DSR
NC
6
7
7
8
8
9
As of October 2007
4
5
5
6
1
2
2
NC
NC
9
< 2 >
RS-232C Control Specifications PT-AE2000
Control commands
Command: <Parameter>
Function
Callback: <Parameter>
P ON *
P OF *
I IS:<input si gnal>
O FZ:<off_on>
O EN
V PM:<picture mode>
<NOR>
<DYN>
<CN1>
<CN2>
<CN3>
<CL1>
<CL2>
O MN
O CU
O CD
O CL
O CR
O SH *
O ST
O VM
V S1
O BK
O LE
O OT:<off_time r>
O WM:<x>
Power on (standby mode on)
Power off (standby mode off)
Input signal selection
Freeze
Enter
Picture mode
Normal
Dynamic
Cinema 1
Cinema 2
Cinema 3
Colour 1
Colour 2
Menu
Cursor up
Cursor down
Cursor left
Cursor right
Shutter
The same function as “DEFAULT” button
The same function as “PICTURE MODE” button
The same function as “ASPECT” button
The same function as “RETURN” button
The same function as “LENS” button
Off timer
Waveform monitor activate/off
PON
POF
IIS:<input signal>
OFZ:<off_on>
OEN
VPM:<picture mode>
<NOR>
<DYN>
<CN1>
<CN2>
<CN3>
<CL1>
<CL2>
OMN
OCU
OCD
OCL
OCR
OSH
OST
OVM
VS1
OBK
OLE
OOT:<off_timer>
OWM:<x>
Parameter value
Min
Max
–
0
–
1
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
0
0
7
8
* Do not send PON, POF, or OSH commands continuously in a short period of time. Doing so may burst the lamp or shorten the lamp replacement cycle.
Status asking commands
Command
Description
Q PW
Q IN
Q PM
Standby power status
Input signal status
Picture mode status
Normal
Dynamic
Cinema 1
Cinema 2
Cinema 3
Colour 1
Colour 2
Freeze status
Off timer status
Shutter function status
Waveform monitor status
Q FZ
Q OT
Q SH
Q WM
As of October 2007
Callback
<Parameter>
<power condition>
<input signal>
<NOR>
<DYN>
<CN1>
<CN2>
<CN3>
<CL1>
<CL2>
<off_on>
<off_timer>
<off_on>
<x>
< 3 >
RS-232C Control Specifications PT-AE2000
Parameter format
Parameter format
Size (Byte)
<off_on>
<input signal>
1
3
<power condition>
<off_timer>
3
1
<x>
1
Difinition
0 = off, 1 = on
VID = video, SVD = S-video, RG1 = computer, CP1 = component 1,
CP2 = component 2, HD1 = HDMI 1, HD2 = HDMI 2, HD3 = HDMI 3
000 = power on (standby mode on), 001 = power off (standby mode off)
0 = off, 1 = 60 min, 2 = 90 min, 3 = 120 min, 4 = 150 min, 5 = 180 min,
6 = 210 min, 7 = 240 min
0 = off, 1 = full scan (Y), 2 = full scan (R), 3 = full scan (G), 4 = full scan (B),
5 = single line (Y), 6 = single line (R), 7 = single line (G), 8 = single line (B)
NOTE: If a wrong command is received, the projector will send an ER401 command to the computer.
Command example
To set the volume to +30, send the command as shown below.
STX
Start
AVL
:
Command
30
ETX
Parameter
End
NOTE: When sending commands without parameters, a colon (:) is not necessary.
As of October 2007
< 4 >
