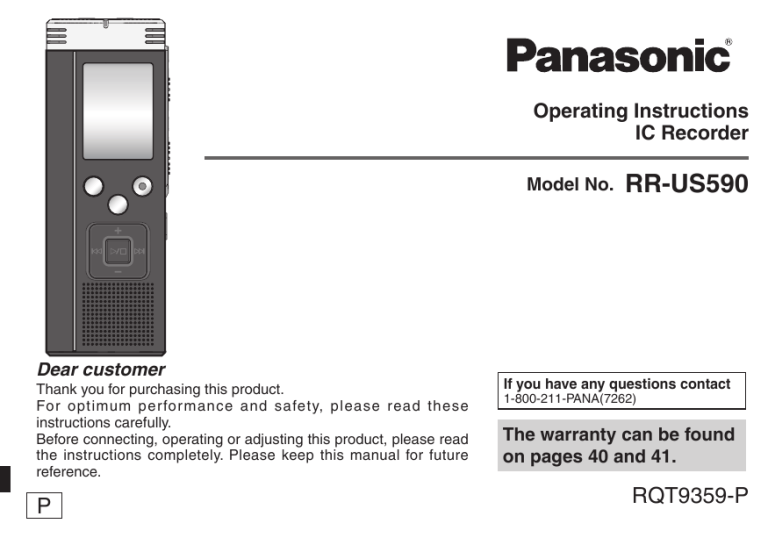

Operating Instructions
IC Recorder
Model No.
Dear customer
Thank you for purchasing this product.
For optimum perfor mance and safety, please read these
instructions carefully.
Before connecting, operating or adjusting this product, please read
the instructions completely. Please keep this manual for future
reference.
P
RR-US590
If you have any questions contact
1-800-211-PANA(7262)
The warranty can be found
on pages 40 and 41.
RQT9359-P
Supplied accessories
Features
Recording
Meeting
Lesson
Lecture
Dictation
Playing back
to listen
• Recorded file
• MP3 music file
with speaker
or earphones
(not included)
Using a computer
• Copy/Organize (Delete) recorded files/
Play back to listen
From a computer
• Transfer MP3 music files
RQT9359
To order accessories, refer to
“Accessory Purchases (United States
and Puerto Rico)” on page 41.
1 USB cable [K2KZ4CB00012]
Connecting this unit to a computer
2
Please check and identify the supplied
accessories.
Use numbers indicated in parentheses
when asking for replacement parts.
(Product numbers correct as of December
2008. These may be subject to change.)
Basic Operations
Recording settings ............................................................ 8
Switching recording position ........................................ 8
Recording ......................................................................... 9
Playing ............................................................................ 10
Listening to the audio using earphones.......................... 11
Deleting recorded files .................................................... 12
Locking recorded files (File protection)........................... 13
Advanced Operations
Changing recording settings
(Monaural/Stereo, Microphone sensitivity) ..................... 14
Changing recording settings
(Zoom microphone/Recording mode (XP/LP/SLP)) ....... 15
Preventing unnecessary recording (VAS) ....................... 16
Confirming possible (remaining) recording time ............. 16
Setting the playback speed control function ................... 17
Reducing noise (EQ setting)........................................... 18
Slight return playback ..................................................... 18
Repeat play/Successive play .......................................... 19
A-B Repeat play ............................................................. 19
Security functions ........................................................... 20
Recording using an external microphone ....................... 22
Recording from other devices ......................................... 22
Recording to other devices ............................................. 23
Canceling the operation beep......................................... 23
Using with a computer
Connecting this unit to a computer ................................. 24
Opening the folder of this unit using a computer ............ 25
Importing the recorded files in this unit to a
computer/Organizing files ............................................... 26
Returning the files imported to the computer
to this unit ....................................................................... 27
Listening to music on this unit
(Transferring MP3 music files to this unit) ....................... 28
Listening to music on this unit
(Playing MP3 music files on this unit) ............................. 29
Creating MP3 music files ................................................ 30
Other
System requirements...................................................... 31
Q & A (Frequently Asked Questions).............................. 32
Troubleshooting guide .................................................... 33
Care and use .................................................................. 36
Product Service .............................................................. 38
Specifications ................................................................. 39
Limited Warranty ............................................................. 40
Maintenance ................................................................... 42
RQT9359
Preparation
Features ........................................................................... 2
Supplied accessories ....................................................... 2
Part names ....................................................................... 4
Inserting the batteries ....................................................... 5
Turning ON/OFF the Power .............................................. 6
Hold function..................................................................... 6
Setting the time................................................................. 7
Preparation
Table of contents
3
Part names
Main unit
ԁ
Ԃ
ԃ
„
‟
Ԅ
ӻ
†
‡
•
‣
․
‥
ӹ
Ӻ
′
Ӽ
ӽ
Ӿ
ӿ
″
Ԁ
‴
„ Recording indicator (red)
‟ LCD display
† FOLDER
‡ STOP
• + (Volume)
‣ u (Fast backward)
․ q/g (Play/Stop/Enter)
‥ – (Volume)
… i (Fast forward)
‧ Built-in speaker
OPR/HOLD
Recording position switch
(ZOOM/WIDE/MANUAL)
‪ REC/PAUSE
‫• ‫‬MENU/−REPEAT
‬ ERASE
‭ USB jack
‫ ‮‬Built-in microphone
Ԃ External microphone jack (MIC)
‰ Headphone/earphone jack (W)
‱ Stand
When you perform zoom
recording with the unit placed
on the desk, etc., stable zoom
effect can be obtained by
putting up the stand.
stand
′ Zoom microphone
″ġBattery cover
‴ġHand strap hole
Display
: Noise reduction
: Playback speed control
: Formatting
: Folder
Remaining memory/Recording level
XPLPSLP : Recording mode
SPEED
RQT9359
: Monaural/Stereo
: Microphone sensitivity
4
: Battery indicator
: Delete
: Security
: File protection
: VAS recording
: Operation beep
: Zoom recording
: Successive/Repeat play
: Possible remaining recording time
Recording (Playback) elapsed time/Possible remaining recording time/Remaining playback time/Current time etc.
Clock/Recording (Playback) time/Recording date
File number
: Slight return playback
ALL
The remaining battery display shown below is
displayed while recording or playing.
Blinking
1
3
2
2 AAA LR03 batteries
(not included)
Make sure the batteries face the right direction.
* If the batteries run out, “ ” blinks. Replace the
batteries as soon as possible.
* Remove the batteries from the unit if you will not
use it for a long period of time.
* Please replace batteries within approx. 30
seconds for preservation of the clock data.
Preparation
Inserting the batteries
Make sure to turn the power off before
removing the batteries.
• If the batteries are removed while recording,
deleting, etc, all data on this unit may be lost or
this unit may be destroyed.
RQT9359
* Use alkaline batteries.
5
Turning ON/OFF the Power
Button operations are ignored when you set Hold
on.
OPERATION/HOLD Switch
HOLD
OPR
Hold function
OPR: operation
Switching Hold on/off
Hold on
HOLD
RQT9359
Turning the power ON
• Slide OPERATION/HOLD switch to OPR side,
then the power turns on and the display lights on.
6
Turning the power OFF
• Slide and hold OPERATION/HOLD switch to OPR
side for 2 seconds.
Also, when you do not operate the unit for more
than approx. 15 minutes while the unit is stopped,
“
” is displayed and the power automatically
turns off.
* When batteries are inserted for the first time,
“
” blinks on the display. Please set the
time (➜ page 7).
OPR
Hold off
HOLD
OPR
• When the Hold function is on, button operation is
ignored even if the unit is on (“
” is displayed).
Accordingly, operation mistakes (i.e. Recording or
playback stops midway.) can be prevented.
When the power is turned on, “
” blinks on the display when the time is not set (e.g. at the time of
purchase). (In power-on condition, the display changes to “
” (blinking) in approx. 1 minute.)
The clock is used for preserving recording date. Please set the time first.
Recording is possible even if the clock is not set. However, the Recording date, Recording start time will be displayed as “
”.
REPEAT
When “
” is blinking
• Turn the power on (➜ page 6).
STOP
1
2
Press q/g .
Press +, – to set the year and
press q/g to enter.
Set month and day in the same way.
Year
Month
Day
The above illustration is a display example.
3
Press u, i to select the time
display and press q/g to enter.
24-hour display
4
12-hour display
Press +, – to set the time and
press q/g to enter.
You can adjust the time quickly by
pressing and holding +, –.
24-hour display
12-hour display
When the time display is
“ ” (blinking) or you change
the time
• Turn the power on (➜ page 6).
• Press
1
STOP
to stop the unit.
Press • MENU/ REPEAT .
“
” (blinking) or “
is displayed.
” (blinking)
2
Press +, – to select “
and press q/g to enter.
3
Follow step 2 , 3 and 4
shown at left.
If “
”
” blinks, press q/g to enter.
STOP
* Press
to stop the setting process
midway.
* The clock operates with the monthly
loss/gain of approx. 60 seconds at
normal temperature.
* The time setting is cleared, if the battery
has been consumed completely.
RQT9359
• MENU/
Preparation
Setting the time
7
This unit has 4 recording setting items related to
recording quality. Using different combinations of
recording settings, you can adjust audio quality
according to recording situations.
Recording
setting item
Setting contents and
display
RQT9359
Recording High-quality
mode
(➜ page 15) Long recording
8
Switching
Monaural
Monaural/
Stereo
Stereo
(➜ page 14)
:
:
Microphone High
sensitivity Normal
(➜ page 14)
Low
:
:
:
:
:
:
Switching recording position
This unit is equipped with 3 recording positions:
[ZOOM], [WIDE] and [MANUAL]. The [ZOOM] and
[WIDE] content settings are fixed while [MANUAL]
content settings can be changed according to your
preference. You can switch among the positions
using Recording position switch.
The total possible recording time (➜ page
39) changes according to the combination
of the recording mode and Stereo/Monaural.
FOLDER
STOP
Recording Setting contents (display)
position
and situations
For lessons, lectures,
etc. (Recording the
ZOOM
aimed person’s voice).
WIDE
Zoom
Zoom microphone ON
microphone
:
(➜ page 15) Zoom microphone OFF
: No display
REC/PAUSE
For meetings, etc. (Recording
with a lively feeling).
✽
position has been set to
be suitable for dictation at the time
of purchase. You can change the
setting according to your preference
(➜ pages 14, 15).
You can change the recording mode (XP,
LP, SLP) in all positions (➜ page 15).
MANUAL
✽ [MANUAL]
For
dictation,
etc.
MANUAL
MANUAL WIDE
WIDE ZOOM
ZOOM
Recording settings
Recording
position switch
Recording
Slide recording position switch to
select a position.
Switch modes according to situations (➜ page 8).
2
3
Select a folder for recording.
FOLDER
The folder is switched each time you press
.
Select among “
” (The factory setting is
“ ”).
When you select “ ”, recording is automatically
saved in “ ” (If the folder already contains 99 files,
the next folder with recordable space is used).
Press
REC/PAUSE
(Recording starts).
Each time you press Pause
Recording resumes
Display during recording
Light stays on. (Blinks while paused.)
The display changes depending
on recording levels.
In stereo Top side: ch-L/Bottom
side: ch-R
Recording elapsed time
(Blinks while paused.)
To stop: Press
STOP
.
File
Recorded audio data from the starting point to the
ending point is saved as a file.
The saved data is called a file.
* Even if you change the position of Recording
position switch during recording, the setting
will not be changed until the recording is
complete.
* Change the recording mode as necessar y
(➜ page 15).
* Do not block the holes of the zoom microphone
and built-in microphone dur ing recording
(➜ page 4).
RQT9359
1
[Folder] for this unit means locations in which
recording (music) files are stored. There are 4
” and 1 music folder “ ” in
audio folders “
this unit.
Using each folder according to the purposes of
recording enables you to search files easily later.
A maximum of 99 files can be saved into each
audio folder to .
Basic Operations
Folder
• Turn the power on (➜ page 6).
• Press STOP to stop the unit.
9
Playing
• Press STOP to stop the unit.
• Select a folder (➜ right).
• Select a file (➜ right).
FOLDER
STOP
1
Press q/g (Playback starts).
Adjusting the volume
Turn up the volume: Press +.
Turn down the volume: Press –.
Volume range is 0 to 20.
(The factory setting is 13.)
Operations during playback
Select a folder
The folder is switched each time you
FOLDER
press .
Select among “ ”, “ ”, “ ”, “ ”, “ ”.
Select the folder that contains the file to
play.
Select a file
Press u, i to select.
Each time you press, the file number
changes.
Jump (Skip):
Press u, i.
Press u midway while playing a
file and the playback jumps to the
beginning of the file. To return to the
previous file, press u again within 1
second.
RQT9359
Fast backward/Fast forward
(Search):
10
Press and hold u, i.
Stop: Press q/g or
STOP
.
File number
When a file is selected, the recording
information below is displayed.
Recording date → Recording start time →
Recording time → Total number of files in the
folder
Listening to the audio using earphones
Confirming the
remaining time
Connect stereo earphones (not included).
Plug type: ø 3.5 mm (1/8") stereo mini plug
Press and hold for
1 second or longer
during playback.
Adjusting the volume:
Insert
securely.
Built-in
speaker
Remaining
playback
time
* The remaining playback time
for the last approx. 3 seconds
of file is not displayed.
You can adjust the volume by pressing
+, –, but the recording level is not
affected.
Listening to the audio
during playback
The audio during playback comes from
the speaker. Listening may be difficult in
noisy places due to the speaker output.
In that case, connect stereo earphones
(not included).
* The built-in speaker is turned off when
earphones are connected.
RQT9359
The remaining time of the file
being played is displayed for
approx. 3 seconds.
Monitoring the recording
progress
Basic Operations
FOLDER
11
Deleting recorded files
• Select a folder (➜ page 10).
STOP
ERASE
1
Press
ERASE
while playing or
the unit is stopped.
2
Press u, i to select the file.
ӱ Deleting one file
Ӳ Deleting all files in
one folder
ӳ Deleting all files in
folder A through D
Ӵ Deleting all files in
all folders
RQT9359
ӵ Formatting this unit
12
ӱ to Ӵ : Protected files and files which
cannot be played back on this
unit cannot be deleted.
3
4
Press q/g to enter.
Press u, i to select “
and press q/g to enter.
”
When deleting is complete, “ ” is
displayed.
It may take dozens of seconds until
deleting is complete.
Formatting
If the unit is formatted, all existing files
including protected files, music files,
data files transferred from PCs, etc. are
deleted.
* Deleted files cannot be recovered.
* You cannot delete a portion of a file.
STOP
* Press
to stop the operation midway.
* The file numbers displayed on this unit
are moved forward after deleting files.
* Both deleting and formatting data are
not available when the remaining battery
display shows “
” (blinking).
Locking recorded files (File protection)
• MENU/
STOP
REPEAT
• Press
1
3
to stop the unit.
Press • MENU/ REPEAT .
“
2
STOP
” (blinking) is displayed.
Press +, – to select “
press q/g to enter.
4
Press q/g to enter.
5
Press u, i to select “ ”
and press q/g to enter.
” and
Press u, i to select the
file.
Lock is performed.
It may take dozens of seconds until
locking is complete.
To cancel lock:
ӱ Selecting one file
Follow step 1 to 4 , select “
enter in step 5 .
Ӳ Selecting all files in
one folder
to stop the setting process
* Press
midway.
*“
” is displayed for the locked files
when the file is selected.
*“
” is not displayed when there is no
file in the selected folder.
* Yo u c a n n o t l o c k f i l e s w h e n t h e
remaining battery display shows “
”
(blinking).
ӳ Selecting all files in all
folders
” and
STOP
RQT9359
• Select a folder (➜ page 10).
Basic Operations
Locked files cannot be deleted on this unit (except when formatting).
Use this function to protect files.
13
Changing recording settings (Monaural/Stereo, Microphone sensitivity)
Switching Monaural/Stereo
STOP
• MENU/
REPEAT
• Set the Recording position switch to
[MANUAL] (➜ page 8).
• Press
MANUAL WIDE ZOOM
RQT9359
1
14
Changing microphone sensitivity
STOP
to stop the unit.
Press
• MENU/
“
” (blinking) is displayed.
REPEAT
• Press
.
2
Press +, – to select “
and press q/g to enter.
3
Press u, i to select “
”
or “ ” and press q/g to enter.
Monaural
Stereo
• Set the Recording position switch to
[MANUAL] (➜ page 8).
”
STOP
to stop the unit.
1
Press • MENU/ REPEAT .
2
Press +, – to select “
press q/g to enter.
3
Press u, i to select
microphone sensitivity and
press q/g to enter.
“
” (blinking) is displayed.
Low
Normal
” and
High
STOP
* Press
to stop the setting process midway.
Recording
” is on ( ➜ page 15), “
* If “ ” is selected and entered while “
position switch (“
” disappears.)
” turns off.
Changing recording settings (Zoom microphone/Recording mode (XP/LP/SLP))
When the zoom is set to “ ”, the surrounding sound volume
is lowered, and the sound in front is clearly recorded.
When recording with zoom microphone, the audio becomes monaural.
STOP
• Set the Recording position switch to [MANUAL] (➜ page 8).
• MENU/ REPEAT
• Set to “
” (Monaural) (➜ page 14).
• Press
STOP
to stop the unit.
1
2
Press +, – to select “
to enter.
3
Press u, i to select “ ” or “
press q/g to enter.
” (blinking) is displayed.
Zoom ON
MANUAL WIDE ZOOM
STOP
Recording
position switch
1
STOP
to stop the unit.
Press • MENU/ REPEAT .
“
” (blinking) is
displayed.
Press • MENU/ REPEAT .
“
• Press
” and press q/g
” and
2
Press q/g to enter.
3
Press u, i to
select among “XP”,
“LP” and “SLP” and
press q/g to enter.
Zoom OFF
* Press
to stop the setting process midway.
* When “ ” is set ( ➜ page 14), you cannot set the zoom
” is not displayed on the menu screen.
microphone and “
* The zoom function does not work as long as a device is connected to the
external microphone jack even if the zoom is set to ON on this unit.
* When you perform zoom recording with the unit placed on the
desk, etc., we recommend putting up the stand (➜ page 4).
* If noise bothers you when
recording/playing in SLP
mode, use XP or LP
mode.
Advanced Operations
How to set the
recording mode
(XP/LP/SLP)
RQT9359
Changing Zoom microphone setting
15
Preventing unnecessary recording (VAS)/Confirming possible (remaining) recording time
VAS (Voice Activated System) function
Recording stops automatically when silence
continues for about 3 seconds. If the unit
detects sound, the recording resumes.
STOP
Recording indicator
to stop the unit.
• MENU/ REPEAT • Press
FOLDER
Press • MENU/ REPEAT .
STOP
1
“
” (blinking) is displayed.
2
Press +, – to select “
press q/g to enter.
3
Press u, i to select “ ” and
press q/g to enter.
Then “
” and
” is displayed.
Start recording to activate this function.
When the VAS function is active and the
recording is paused during recording, “ ”
and the recording indicator blink.
RQT9359
Canceling VAS function:
16
” and enter in step 3 .
Select “
* Turn the function off when recording
important matters.
* Press
STOP
to stop the setting process midway.
Confirming possible
(remaining) recording time
1
Press and hold
for 1 second
or longer while
recording or
stopped.
FOLDER
Remaining
recording time
hour minute
second
Remaining recording time is
displayed for approx. 3 seconds.
When there is only a little∗ remaining
memory left while recording, the display
is automatically changed to the remaining
recording time display.
The “ ” display while
stopped shows approximate
remaining memory.
“ ” lights up in response to
the remaining time.
When there is only a little∗ remaining
memory left, “ ” blinks.
∗ When the remaining recording time falls
below approx. 1 hour.
Setting the playback speed control function
Playback speed can be adjusted at 5 different speeds.
2
Press i to select “SPEED” and press q/g to enter.
3
Press u, i to select playback speed.
4
Press q/g to enter.
“ ” (blinking) and “SPEED ” (lighting) are displayed.
(Only “SPEED ” (blinking) is displayed when “ ” is selected.)
STOP
When pressing i, the playback speed becomes faster and “ ” (blinking) moves to the right.
When pressing u, the playback speed becomes slower and “ ” (blinking) moves to the left.
× 0.5
× 0.75
×1
× 1.5
×2
Advanced Operations
REPEAT
Press • MENU/ REPEAT during playback.
STOP
* Press
to stop the setting process midway.
* When playing with speed other than × 1 speed, the bar at the top blinks and
“SPEED ” lights up.
e.g. When playing back with × 0.75 speed
RQT9359
• MENU/
1
17
Reducing noise (EQ setting)/Slight return playback
• MENU/
STOP
REPEAT
Reducing noise (EQ setting)
Setting Slight return playback
This function makes it easier to hear
sounds during playback.
You cannot make this setting when “ ” is
selected.
Slight Return Playback function: When u
is pressed during playback, the play point
reverses about 5 seconds, and playback
resumes from the point.
1
Press • MENU/ REPEAT during playback.
• Press
“ ” (blinking) and “SPEED ” (lighting) are
displayed.
1
Press • MENU/ REPEAT .
2
Press +, – to select “
press q/g to enter.
3
Press u, i to select “
and press q/g to enter.
2
Press q/g to enter.
3
Press u, i to select “
and press q/g to enter.
After setting, “
playing.
”
” is displayed while
Canceling Noise reduction (EQ setting):
” and enter in step 3 .
RQT9359
Select “
18
STOP
STOP
“
Then “
to stop the unit.
” (blinking) is displayed.
” and
”
” is displayed.
Canceling Slight return playback:
Select “
” and enter in step 3 .
* Press
to stop the setting process midway.
* Slight return playback cannot be done during A-B Repeat play (➜ page 19).
Repeat play/Successive play, A-B Repeat play
Each time you press and hold • MENU/ REPEAT
for 1 second or longer while stopped, the
playback style is switched as follows.
Playback repeats between the start point (A)
and finish point (B) if those points are set.
ALL → ALL
“ALL” display
” display
Plays all files in the
folder repeatedly.
No display
When the playback for
one file finishes, the unit stops.
“ ” display
Plays one file repeatedly.
• Select one of the above settings
and, press q/g to start playback.
• MENU/
REPEAT
Press and hold
for 1
second or longer while playing.
The start point (A) is set
and “ ” (blinking) and “
(lighting) are displayed.
→ No display →
The selected file until
the last file in the selected folder are
played successively. The unit stops
when the playback finishes. (The
factory setting is “ALL”.)
“ALL
1
2
”
Press • MENU/ REPEAT at the finish point (B).
The display changes to “ ”
(lighting) and repeat play starts.
Canceling A-B Repeat:
• MENU/
REPEAT
Press and hold
for 1 second or longer, or press
u, i while playing or the unit is stopped.
* You cannot set A-B Repeat in the following cases;
• Within approx. 1 second from the beginning of the file
and within approx. 2 seconds from the end of the file
• Less than approx. 2 seconds between the
start point (A) and finish point (B)
* When only the start point (A) is set and playback
continues until the end of the file, the end becomes
the finish point (B) and A-B Repeat begins.
* During A-B Repeat playback, the Slight return
playback (➜ page 18) is not available.
Advanced Operations
REPEAT
A-B Repeat play
RQT9359
• MENU/
Repeat play/Successive play
19
Security functions
If you set a password, password authentication is necessary when playing back this unit or connecting to
a computer. When the unit is lost or stolen, the recorded data stored in this unit cannot be played or the
computer does not recognize this unit as long as the password does not match.
If you forget the password, you cannot
4 Press +, – to select a number
play files in folder A to D. Please write it
and press q/g to enter.
down in MEMO section (➜ right) not to
Move to the next digit and select a
• MENU/ REPEAT
forget.
number. Repeat this until the 4th digit.
STOP
(You can select a digit with u, i.)
The password is determined when
you finish entering the 4th digit.
Then “ ” is displayed.
MEMO
Setting the password
(4-digit number)
• Press
STOP
to stop the unit.
1
Press • MENU/ REPEAT .
2
Press +, – to select “ ” and
press q/g to enter.
3
Press u, i to select “
and press q/g to enter.
“
Password
” (blinking) is displayed.
If the password has been set and you
press q / g to play a file, the password
entry display appears (➜ page 21).
”
Canceling the security lock:
„ Select “ ” and enter in step 3 .
‟ Perform step 4 . (Enter the password.)
Enters the password entry display.
RQT9359
STOP
20
to stop the setting process
* Press
midway.
* To change the password, cancel the
security lock and set a password again
from step 1 .
To initialize the password, delete all files.
ӱ Release all locks set on files in folder A through
D (➜ page 13).
Ӳ Delete all files in folder A through D
(➜ page 12).
ӳ Select “
” in step 3 of “Setting the password
(4-digit number)” and press q/g to enter
(➜ page 20).
(Enter the password.)
g When the password matches
* The security lock is temporarily released and
the audio file can be played. (“ ” blinks while
temporarily canceling.)
* In the condition , the security lock is set again.
A
• When you do not operate for more than
approx. 15 minutes and the power turns off
while the unit is stopped (➜ page 6)
• When the unit is off for more than approx. 15
minutes
g When the password is wrong
* The unit beeps and “
” is displayed,
then the password entry display reappears.
When wrong passwords are entered 5 times in
succession, the unit stops accepting password
entry. In that case, reenter the password in the
condition (➜ above).
* If this unit is connected to a computer when the
security lock is not canceled, the computer does not
recognize this unit.
After connecting the USB cable, the password entry
display appears. Then, authenticate the password.
* Even if the security lock is not canceled, recording
and playing music are available.
This security function is only to limit a playback
function for files by password, not by encryption.
We do not guarantee any kind of loss in case
your password gets discovered.
Advanced Operations
g When you have forgotten the password
Perform step 4 in page 20.
RQT9359
Authenticating the password
21
Recording using an external microphone/Recording from other devices
Recording using an external microphone
• Change the setting to monaural/stereo on this
unit according to the microphone’s monaural/
stereo (➜ page 14).
Insert
securely
Plug type:
ø 3.5 mm
(1/8")
stereo mini
plug
MIC
External
microphone
(not included)
ӱ Record the audio (➜ page 9).
RQT9359
* If the recording level is too low or high, adjust the
microphone sensitivity (➜ page 14).
22
Recording from other devices
• Set monaural/stereo to stereo (➜ page 14).
Head phone
jack
Audio Cable with resistor (not included)
(Stereo
device)
Stereo
mini plug
Stereo
mini plug
(Monaural
device)
Monaural
mini plug
Stereo
mini plug
Playing
Insert
securely MIC
Plug type:
ø 3.5 mm
(1/8")
stereo mini plug
ӱ On the source, play audio you want to copy.
Ӳ On this unit, record the audio (➜ page 9).
* Use the connection cable that matches monaural/stereo of the connected device.
Wrong connection may cause recording trouble (i.e. Only 1 channel is recorded.).
* The recorded sound may differ from the original recording sound.
* Adjust the recording volume on the source to the desired level.
* Read the operating instructions for the connected device.
* The microphone function of this unit does not work as long as a device is connected to the external
microphone jack.
Canceling the operation beep
• Cancel the operation beep while copying (➜ right).
Audio Cable with resistor (not included)
Stereo
mini plug
Stereo
mini plug
Stereo
mini plug
Monaural
mini plug
Insert
securely
Mini microphone
jack
• Press
• MENU/
REPEAT
1
(Stereo
device)
to stop the unit.
Press • MENU/ REPEAT .
“
STOP
STOP
” (blinking) is displayed.
2
Press +, – to select “ ”
and press q/g to enter.
3
Press u, i to select
“ ” and press q/g to
enter.
(Monaural
device)
Recording
Plug type:
ø 3.5 mm
(1/8")
stereo mini plug
ӱ On this unit, play the file you want to copy (➜ page 10).
Ӳ Record using recording equipment.
Select “
” and enter in step 3 .
RQT9359
* Read the operating instructions for the
connected device.
* Use the connection cable that matches monaural/stereo
of the connected device. Wrong connection may cause
recording trouble (i.e. Only 1 channel is recorded.).
* The recorded sound quality may differ from the
sound quality of this unit.
* Adjust the recording volume on this unit to the
desired level.
Setting the operation beep ON:
Advanced Operations
Recording to other devices
* Press
STOP
to stop the setting process midway.
23
Connecting this unit to a computer
You can copy files recorded on this unit to the
computer.
• Start the computer beforehand.
• Press
STOP
to stop the unit.
1. Insert the USB cable into this unit.
2. Insert the USB cable into the computer.
This unit
Insert the USB
cable straight in
the same direction
as that of the
terminal.
Computer
USB cable (included)
• Do not use any other USB connection cables except the supplied one.
“ ” is displayed on the unit’s screen when the computer recognizes this unit.
Use the supplied USB cable.
Do not use the supplied cable with other devices.
RQT9359
Caution: Use only the included USB cable with a
ferrite core when connecting to computer.
24
When the computer does not recognize this unit
” is displayed, enter the password (➜ page 21).
If “
If “
” is displayed, disconnect this unit from the computer
once, replace the batteries and reconnect the unit to the computer.
* Even if you connect this unit to the computer
without the battery or with the depleted battery, the
computer cannot recognize this unit (➜ page 33).
g System requirements (OS)
Windows 2000 (SP4), Windows XP and SP2, SP3,
Windows Vista and SP1 (As of December 2008)
* Please see page 31 for details of system requirements.
g Removing the USB cable
Double-click the icon (Windows 2000/Windows XP: [ ], Windows
Vista: [ ]) on the task tray at the bottom of the computer screen
and follow the on-screen instructions to remove the USB cable. (The
icon may not be displayed depending on the OS settings.)
After the cable is removed, this unit turns off.
g USB mass storage function
This unit functions as a USB memor y and is
recognized as a computer’s external storage device.
Data files in the computer can be transferred and saved in this unit.
* When the unit is connected to the computer, the computer may
not start (restart). It is recommended that the USB cable is
removed from this unit when starting (restarting) the computer.
* When the unit is connected to the computer, if you start (restart) the
computer or the computer enters standby mode, the computer may not
recognize the unit. Disconnect the unit and reconnect to the computer
or reconnect the unit after the computer is restarted.
* Operation is not guaranteed when 2 or more USB devices are
connected to 1 computer, or a USB hub or extension cable are used.
* Please see the Operating Instructions for the computer.
Opening the folder of this unit using a computer
The illustrations show Windows XP (OS). The
display may differ depending on the OS.
• Connect this unit to a Computer beforehand
(➜ page 24).
2. Right-click to open the removable disk
(this unit).
The folders (A to D, MUSIC) in this unit appear.
(They are displayed as
on this unit’s
screen.)
ユーザー名
3. Right-click to open the folder.
Recorded files in this unit appear.
A removable disk is an external storage device (SD
memory card, USB memory etc.) connected to the
computer.
The components of the computer and the external
storage device illustrated here is an example.
The display may differ depending on the computer
you are using.
“H” indicated in Removable Disk (H:) is not a fixed
character.
RQT9359
This unit is displayed as a removable disk.
Using with a computer
1. Click [Start] → [My Computer].
25
Importing the recorded files in this unit to a computer/Organizing files
• Open the removable disk (this unit) displayed on
the computer screen and open the audio folder
(A to D) beforehand (➜ page 25).
Importing recorded files to a computer
1. Select the recorded file in this unit, rightclick and select [Copy].
2. Select a folder in the computer, right-click and
select [Paste] to import to the computer.
Folder in this unit
Folder in the computer
Playing recorded files on the computer:
RQT9359
Select the recorded file in this unit, right-click and
select [Play].
26
Delete unnecessary files using the
computer:
Select the recorded file in this unit, right-click,
select [Delete] and [Yes] to enter.
Do not change the folder names
If you change the names of folders (A, B, C,
D, MUSIC) of this unit, new A, B, C, D and
MUSIC folders are generated when this unit is
disconnected from the computer. The files in the
folders with changed names cannot be played on
this unit.
* Using [drag and drop], you can import the files to
the computer as well.
* If the file is deleted, file numbers displayed on
this unit are moved forward.
* “ ” (blinking) is displayed during the data
transmission. Never remove the USB cable
while “ ” is blinking. File data or this unit may be
destroyed, or all the data in this unit may be lost.
* When this unit is removed from the computer
or the power is turned on afterwards, “
” is
displayed for a moment while updating the file
data.
* Do not format this unit using a computer.
Reload the files to the original folder that the files
were imported from. When you reload the files to other
folders, those files cannot be played on this unit.
(Confirm the first character (A to D) of the file name
matches the folder name (A to D).)
File naming rules
(for recorded files on this unit)
Returning recorded files to this
unit from the computer
Do not change the file names
If you change file names, those files cannot be
played on this unit. Return the file name to the
original one or move the file to MUSIC folder.
The file name consists of [Folder name (1 byte,
1 character (A to D)) + File number (1 byte, 3
characters + Recording date (1 byte, 4 numbers)].
e.g. if the file is recorded as the first file in folder A on
July 20, the name is “A0010720.mp3”. The second
file on the same day is named as “A0020720.mp3”.
RQT9359
1. Select the recorded file imported to the computer
(➜ page 26), right-click and select [Copy].
2. Select the original folder in this unit, right-click
and select [Paste] to return the recorded file.
* MP3 music files which were not recorded on
this unit can be played only in MUSIC folder.
If the file is returned to folder A to D, it cannot
be played on this unit. (The file number is not
displayed on the screen of this unit.)
* Up to 99 files in folder A to D respectively can
be played on this unit. Files over 99 cannot be
played on this unit.
* If you create folders in folder A to D, and put
recorded files in the new folder, those files
cannot be played on this unit.
* The files that are returned to this unit are
played back in the order the files are received.
For example, even if the file is recorded first,
the playback order becomes 5th if the file is
reloaded from the computer at 5th.
• Open the audio folder (A to D) of this unit
beforehand (➜ page 25).
Using with a computer
Returning the files imported to the computer to this unit
27
Listening to music on this unit (Transferring MP3 music files to this unit)
You can enjoy music by transferring MP3 music files stored in the computer to this unit.
Transferring MP3 music files to
this unit from the computer
• Open MUSIC folder ( ) of this unit beforehand
(➜ page 25).
1. Select an MP3 music file or folder which
has MP3 music files in the computer, rightclick and select [Copy].
2. Select MUSIC folder of this unit, right-click
and select [Paste] to transfer to this unit.
* The files in the folder that was created into the MUSIC folder
are playable. However, note that playable folders are the
ones on the 1st hierarchy and 2nd hierarchy only. Folders on
the 3rd hierarchy and after are not playable.
RQT9359
* The audio files and folders that are loaded to this unit are played
back in the order the files and folders are received. But in case of
the structure at right, files in M2 are played after all files in M1 are
played since the loaded order of 1st hierarchy takes priority. Even
if M1-2 is loaded after M2-1, the files in M1-2 are played first.
28
* Files just under the folder are played first; e.g., even if
A.mp3 was loaded last, A.mp3 is played first.
* In the case of the structure shown at right, the
order of successive playback on this unit is
A.mp3 → B.mp3 → C.mp3 → D.mp3 → E.mp3 → F.mp3 → G.mp3.
Folder/file structure in MUSIC folder (example)
This is an example when M1 was loaded before M2 for M1
and M2, M1-1 was loaded before M1-2 for M1-1 and M1-2,
C.mp3 was loaded before D.mp3 for C.mp3 and D.mp3.
MUSIC
A
M1
A
M1-1
A
When two or more files are
loaded at a time, those are
loaded in an order decided
by the computer.
C.mp3
D.mp3
M1-2
A
E.mp3
B.mp3
M2
A
This is not playable
because this is on the 3rd
hierarchy.
M2-1
A
M2-1A
G.mp3
F.mp3
H.mp3
A.mp3
(M1, etc. represent a folder and A.mp3, etc. represent a file.)
* “ ” (blinking) is displayed during data transmission.
Never remove the USB cable while “ ” is blinking.
File data or this unit may be destroyed.
• Remove the USB cable (➜ page 24).
• Turn the power on (➜ page 6).
STOP
• Press
to stop the unit.
1
STOP
2
FOLDER
Press
to select “ ” (MUSIC
folder).
Press u, i to select the
file you want to listen.
File number
After selection, the length of the music
and the total number of files in MUSIC
folder are displayed.
3
Press q/g (Playback starts).
Stop:
Press q/g or
STOP
.
RQT9359
FOLDER
* See pages 10 and 11 for playback
operations.
* In “ ” folder, you can play a maximum
of 999 files. Files over 999 cannot be
played on this unit.
* The file name or folder name cannot be
displayed. Successive numbers, starting
” (file number) are displayed
from “
according to the order of playback.
* Files other than files with MP3 format,
such as WMA, AAC format files cannot
be played. (The number is not displayed
on screen.)
* Copyright-protected MP3 music files
cannot be played.
* MP3 music files with variable bit rate
m ay b e p l aye d , bu t t h e p l ay b a ck
elapsed time display may differ from the
actual time.
Using with a computer
Listening to music on this unit (Playing MP3 music files on this unit)
29
Creating MP3 music files
This unit is not equipped with the function or computer software to create MP3 file from music CD. You can
create MP3 music files using separately sold computer software, etc.
Windows XP or Windows Vista users can create MP3 music files using Windows Media Player 11.
Following is the example of operating instructions when using Windows XP and Windows Media Player
11. See [Help] section of Windows Media Player for more details. (The display and operations may differ
depending on the OS.)
• Start the computer beforehand.
1. Select [Start] - [All Programs] and start
[Windows Media Player] on the computer.
2. Select [Rip] → [Format] → [mp3].
3. Select [Rip] → [Bit Rate] and select among
[128kbps] (Smallest Size), [192kbps],
[256kbps] and [320kbps] (Best Quality).
If you select low Bit Rate for ripping, more songs
will be ripped.
RQT9359
4. Select [Rip] → [Rip CD Automatically
When Inserted] and select [Never].
5. Set music CD into the computer.
6. In “ ” for the album, add the check mark
as “ ”.
30
If there are songs you do not want to rip, remove
the check mark “ ”.
7. Click [Start Rip] to begin ripping.
Music files ripped (encoded) into the
computer using Windows Media Player
are saved in [My Music] folder of [My
Document] if the destination to save has
not been changed.
* Windows Media Player 9 and older versions
cannot create MP3 music file.
* Please see the homepage of the Microsoft
company for details of download/update of
Windows Media Player etc.
http://www.microsoft.com/windows/
windowsmedia/player/11/default.aspx
* If you cannot create MP3 music files successfully
or do not know how to operate the computer,
please consult the computer manufacturer.
• See page 28 for transferring MP3 music file to this
unit and page 29 for playback.
System requirements
RQT9359
IBM PC/AT compatible machines
• Windows® 2000 Professional SP4
OS
• Windows® XP Home Edition/Professional and SP2, SP3
• Windows Vista® Home Basic/Home Premium/Business/Ultimate and SP1
USB port
Interface
(Operation cannot be guaranteed if you use a USB hub or extension cable.)
✽ Even if the system requirements mentioned in this document are fulfilled, some personal computers
cannot be used.
✽ Operation is guaranteed only on compliant OSes.
✽ Operation is not guaranteed on an upgraded OS.
✽ Not compatible with multiboot environments.
✽ Operation is not guaranteed on home-made computers.
✽ Operation is not guaranteed on 64-bit computers.
✽ When using Windows Media® Player, your computer must fulfill the system requirements of Windows
Media® Player. Please consult Microsoft Corporation for details of Windows Media® Player.
✽ Microsoft, Windows, Windows Media and Windows Vista are registered trademarks or trademarks of
Microsoft Corporation of the U.S. and other countries.
✽ MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson multimedia.
✽ IBM and PC/AT are registered trademarks of International Business Machines Corporation of the U.S.
✽ Other system names and product names appearing in this document are in general the registered trademarks or
trademarks of the respective developer companies. Note that the ™ mark and ® mark do not appear in this document.
✽ Depending on the computer environment, malfunctions may occur (e.g. Audio data recorded on this
unit cannot be used. etc.). Panasonic and Panasonic dealers cannot be held liable for any lost audio
data or other direct or indirect damage except in cases of intentional of gross negligence.
✽ This model is not compatible with TRC/ADPCM format IC recorders made by Panasonic. Also, files recorded on this unit
cannot be played on those IC recorders and/or cannot be read using Voice Editing software supplied with those IC recorders.
✽ You can transfer contents recorded on this unit to your PC without using the dedicated software. The
computer software (Voice Editing) is not supplied with this unit.
Using with a computer/Other
Computer
31
Q & A (Frequently Asked Questions)
RQT9359
Question
32
Answer
Can I play recording files stored on • Can play if they are transferred to MUSIC folder (➜ page 27).
Panasonic IC recorder RR-US750?
Can I play recording files stored • Cannot play because the recording format is different.
on other Panasonic IC recorders
than RR-US750?
Can I use audio editing software • The Voice Editing cannot be used for this product because the
(Voice Editing) included in other recording format differs from the format used for other Panasonic
Panasonic IC Recorder?
IC recorders. The recording format used for this product is MP3
format. This product is not compatible with the voice editing
software (Voice Editing) supplied with Panasonic IC recorders
using ADPCM and TRC format.
Can I secure any folder in this • Only folder A through D can be secured. MUSIC folder cannot be
unit?
secured.
• If the security lock is set when connected to a computer, the
password authentication is necessary for the computer to
recognize this unit.
What kind of files can be played? • Only MP3 file can be played. WMA, AAC and other files cannot be
played.
What kind of computers can be • Windows 2000 (SP4), Windows XP, Windows Vista only. Please
connected with this unit?
refer to “System requirements” (➜ page 31).
Can I do timer recording?
• No, you cannot.
Can I divide a file or delete a • No, you cannot.
portion of a file?
Troubleshooting guide
RQT9359
Symptom
Checkpoints
Battery
Cannot use a battery that can be • This unit considers the battery as empty even if there is actually
still used on other equipment.
power left in it. This is to preserve the clock setting.
Operations
No operation.
• Make sure the batteries are correctly inserted.
• You cannot operate on this unit when the unit is connected to a computer.
• The Hold function is on. Switch Hold off (➜ page 6).
Cannot operate when “
” appears.
Display
• Please set the time (➜ page 7).
”, “
” blinks.
“
• There are 99 files in folder A, B, C, D.
” appears.
“
• There is no remaining memory (➜ page 39). Delete unnecessary
recording files, files and data other than MP3 files (➜ pages 12, 26).
” is displayed even if the
• If the batteries are extremely exhausted, “
“
” appears.
unit is connected to the computer and the computer does not recognize this
unit. Disconnect this unit from the computer once, replace the batteries (If
batteries are not inserted, insert batteries.) (➜ page 5) and reconnect it.
“
” is not displayed on menu screen. • “ ” has been set. When set to “
”, “
” is displayed on menu screen (➜ page 15).
• This appears when updating data in this unit (e.g. after disconnecting
“
” appears.
this unit from the computer, when turning the power on, etc.).
N o r m a l d i s p l a y a p p e a r s • When you do not operate for 60 seconds during setting operation, the
during setting operation
setting in process is canceled and normal display appears.
“
” appears.
• Format was performed on a computer, etc., or the file system is damaged. Perform
format on this unit (The data is all erased after formatting is complete.) (➜ page 12).
Other
Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the remedies indicated
in the chart do not solve the problem, refer to “Customer Services Directory (United States and Puerto Rico)” on page 41.
33
Troubleshooting guide
Symptom
Display
” appears.
“
” appears.
“
RQT9359
Record
The memory is used
completely earlier than
expected.
(“
” is displayed earlier
than expected.)
Recording stops halfway.
Howling occurs when
listening to the recording in
progress with earphones.
34
Checkpoints
• The operation program is damaged. Consult your dealer.
• You tried to play an MP3 file that cannot be played on this unit, or the
MP3 file is damaged. Delete the MP3 file that cannot be played. If the
problem persists, the file system is damaged. Perform format on this
unit (The data is all erased after formatting is complete.) (➜ page 12).
• Available recording time differs approx. 16 times, comparing Stereo/
XP mode with Monaural/SLP mode (➜ page 39).
You can record longer if recording in Monaural/SLP mode (➜ pages 14, 15).
• If you lower the Bit Rate for ripping music CDs, more songs will be saved (➜ page 30).
• Is much data other than MP3 stored? Delete unnecessary data (➜ page 26).
• VAS is functioning (➜ page 16).
• Turn down the volume (➜ page 10).
• Keep earphones and this unit separate.
• When you are using an external microphone, keep earphones and
external microphone separate.
Recording ended halfway.
• The data may not be updated if the unit receives a shock (e.g. it is
dropped), or the battery goes out during recording.
“
” appears instead of the • Set the time (➜ page 7).
recording date.
“
” is not displayed.
• You are using the external microphone (➜ page 15).
Playing
Cannot play the recorded file though • The file name was changed. Only files named according to the file
it was recorded on this unit.
naming rules (➜ page 27) can be played in folder A through D.
Checkpoints
• Ensure the plug is inserted firmly.
• Wipe the plug clean.
• Please lower the microphone sensitivity (➜ page 14) or keep more
distance from the recording sound source.
• There is no sound when you have connected earphones.
• Move a mobile telephone away from this unit when you use the two in the same area.
• Reduce noise ( ➜ page 18). Noise is reduced and listening may
become easier.
• The batteries may have run out. Replace the batteries with the new ones (➜ page 5).
• When you do not operate for more than approx. 15 minutes, the power automatically turns off.
When you slide the OPERATION/HOLD switch to “ OPR ” side, the power is turned on (➜ page 6).
• The file is protected (➜ page 13).
• The folder is already empty.
• “ ” (blinking) is displayed (➜ page12).
This unit is not recognized by • The OS on the computer may not be compliant with this unit (➜ page 31).
a computer.
• The password has been set (➜ page 21).
• Are the batteries in this unit? If they are not, insert batteries.
• When the voltage of the battery is too low, “
” is displayed and
the computer cannot recognize this unit (➜ page 33).
Other
• You changed the playback speed (➜ page 17).
• This occurs because files imported from the computer are placed at
the end in the folder.
RQT9359
Symptom
Playing
Playback speed is too fast or slow.
The order of playing changed after
reloading files that were once imported
to the computer to this unit.
There is no sound from the earphones
or it is difficult to hear or noisy.
The sound is distorted. There is a
noise at the beginning of sound.
No sound from the speaker.
I hear noises.
Recorded sounds contain noise that
makes it difficult to hear sounds.
Others
The power cannot be turned on.
T h e p ow e r a u t o m a t i c a l ly
turns off.
Cannot delete a file or folder.
35
Care and use
To reduce risk of radio interference caused by headphone-, earphone- or microphone cables, only use
adequate accessories with a cable length of less than 3 m (9.8 ft.).
g Unit
• Avoid using or placing this unit near sources of heat.
• To avoid product damage, do not expose this product to rain, water or other liquids.
• The unit’s speaker does not have magnetic shielding. Do not place the unit near televisions, personal
computers, magnetized cards (bank cards, commuter passes) or other devices easily influenced by a magnet.
g Batteries
•
•
•
•
•
•
•
•
•
RQT9359
•
36
Do not peel off the covering on batteries and do not use the batteries if the covering has been peeled off.
Align the poles ( and ) correctly when inserting the batteries.
Do not mix different types of batteries or old and new batteries.
Remove the batteries if you do not intend to use the unit for a long time.
Do not heat or expose to flame.
Do not leave the batteries in an automobile exposed to direct sunlight for a long period of time with
doors and windows closed.
Do not attempt to recharge dry cell batteries.
Battery mishandling can cause electrolyte leakage which can damage items the fluid contacts and may
cause a fire. If electrolyte leaks from the batteries, consult your dealer. Wash thoroughly with water if
electrolyte comes in contact with any part of your body.
Keep the AAA LR03 batteries out of reach of children to prevent swallowing. Accidental swallowing of
batteries can result in stomach and intestinal damage.
When carrying batteries in a pocket or bag, ensure no metal objects such as necklaces are placed
together with them. Contact with metal may cause short-circuiting which can cause a fire. For safety,
carry the batteries in the battery carrying case.
g Allergies
• Discontinue use if you experience discomfort with the earphones or any other parts that directly contact
your skin.
• Continued use may cause rashes or other allergic reactions.
g Listening caution
Do not play your headphones or earphones at a high volume. Hearing
experts advise against continuous extended play.
If you experience a ringing in your ears, reduce volume or discontinue use.
Do not use while operating a motorized vehicle. It may create a traffic
hazard and is illegal in many areas.
Even if your headphones or earphones are the open-air type designed to let you hear outside sounds,
don’t turn up the volume so high that you can’t hear what’s around you.
Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of sound. So
what sounds “normal” can actually be loud and harmful to your hearing.
Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.
Other
You should use extreme caution or temporarily discontinue use in potentially hazardous situations.
To establish a safe level:
• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.
RQT9359
Once you have established a comfortable sound level:
• Leave it there.
37
Product Service
1. Damage requiring service – The unit should be serviced by qualified service personnel if:
(a) Objects or liquids have gotten into the unit; or
(b) The unit has been exposed to rain; or
(c) The unit does not operate normally or exhibits a marked change in performance; or
(d) The unit has been dropped or the cabinet damaged.
2. Servicing – Do not attempt to service the unit beyond that described in these operating instructions.
Refer all other servicing to authorized servicing personnel.
3. Replacement parts – When parts need replacing ensure the servicer uses parts specified by the
manufacturer or parts that have the same characteristics as the original parts. Unauthorized substitutes
may result in fire, electric shock, or other hazards.
4. Safety check – After repairs or service, ask the servicer to perform safety checks to confirm that the
unit is in proper working condition.
Product information
For product information or assistance with product operation:
RQT9359
Refer to “Customer Services Directory (United States and Puerto Rico)” on page 41.
38
DC 3.0 V (2 AAA LR03 batteries)
Audio
Sampling Frequency
(Stereo/Monaural)
Recording Format
Playable Bit Rate
(MUSIC folder)
Playable Sampling
Frequency (MUSIC
folder)
Frequency Response
(-10 dB, Rec-Play,
Monaural)
Built-in Microphone
S/N Ratio
USB
Audio
Output
Audio
Input
Earphone
Speaker output
External
Microphone
XP: 44.1 kHz/44.1 kHz
LP: 22.05 kHz/16 kHz
SLP: 8 kHz/8 kHz
MP3
8 kbps to 320 kbps
8 kHz to 48 kHz
XP: 180 Hz to 15,100 Hz
LP: 180 Hz to 6,700 Hz
SLP: 180 Hz to 2,900 Hz
40.5 dB (XP) Filter (JIS A)
USB2.0 (Hi-Speed)
ø 3.5 mm (1/8"), 16 Ω, Max. 3 mW
ø 20 mm (25/32"), 8 Ω, Max. 330 mW
ø 3.5 mm (1/8");
0.80 mV plug in power
Built-in Memory
2 GB∗1
Operating Temperature 0°C to 40°C (32°F to 104°F)
Operating Humidity
20% to 80% (non-condensing)
∗1 GB means one billion bytes. Usable capacity will be less.
Battery life (may be less depending on the operating conditions.)
Battery
Recording mode
Rec∗3
Play∗4
(AAA LR03)
XP approx.23 h.
approx.35 h.
Stereo LP approx.29 h.
approx.35 h.
SLP approx.32 h.
approx.35 h.
Alkaline
∗2
battery
approx.35 h.
XP approx.32 h.
Monaural LP approx.42 h.
approx.35 h.
SLP approx.45 h.
approx.35 h.
∗2 Using Panasonic Alkaline battery.
∗3 When zoom microphone is off.
∗4 When audio is output from speaker (Volume: 13,
EQ: off, playback speed control : x 1)
Standard recordable time
Recording mode
Time
Bit rate
XP
36 h.00 min.
128 kbps
Stereo
LP
72 h.00 min.
64 kbps
SLP
288 h.00 min.
16 kbps
XP
72 h.00 min.
64 kbps
Monaural
LP
144 h.00 min.
32 kbps
SLP
576 h.10 min.
8 kbps
Max. Dimensions (W × H × D)
40.4 mm × 110.6 mm × 16.8 mm (1-19/32" × 4-11/32" × 21/32")
Cabinet dimensions (W × H × D)
39 mm × 110.6 mm × 15.1 mm (1-17/32" × 4-11/32" × 19/32")
Mass (Weight)
Approx. 65 g (2.30 oz.) with battery
Approx. 43 g (1.52 oz.) without battery
* Specifications are subject to change without notice.
RQT9359
Power
Batteries
Other
Specifications
39
Limited Warranty
Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094
Panasonic Audio Products Limited Warranty
Limited Warranty Coverage (For USA and Puerto Rico Only)
If your product listed below does not work properly because of a defect
in materials or workmanship, Panasonic Consumer Electronics Company
(referred to as “the warrantor”) will, for the length of the period indicated on
the chart below, which starts with the date of original purchase (“warranty
period”), at its option either (a) repair your product with new or refurbished
parts, or (b) replace it with a new or a refurbished product. The decision to
repair or replace will be made by the warrantor.
RQT9359
Product or Part Name
Parts
Labor
Radio, Clock Radio, Radio with Tape Player
or Recorder, Portable CD Player, IC Recorder,
One (1) Year One (1) Year
Headphone Stereo, Tape Recorder
Not
Rechargeable batteries (in exchange for
Ten (10) Days
defective item)
Applicable
Not
SD Memory Card (in exchange for defective Ninety (90)
item)
Days
Applicable
During the “Labor” warranty period there will be no charge for labor. During
the “Parts” warranty period, there will be no charge for parts. You must
mail-in your product during the warranty period. This Limited Warranty
excludes both parts and labor for batteries, antennas, and cosmetic parts
(cabinet). This warranty only applies to products purchased and serviced
in the United States or Puerto Rico. This warranty is extended only to the
original purchaser of a new product which was not sold “as is”. A purchase
receipt or other proof of the original purchase date is required for warranty
service.
40
Mail-In Service
For assistance in the U.S.A. and Puerto Rico in obtaining repairs please
ship the product prepaid to:
Panasonic Service and Technology Company, Exchange Center,
4900 George McVay Drive, Suite B Door #12, McAllen, TX 78503
[email protected]
When shipping the unit carefully pack, include all accessories, and send it
prepaid, adequately insured and preferably in the original carton. Include
a letter detailing the complaint, a return address and provide a day time
phone number where you can be reached. A valid registered receipt is
required under the Limited Warranty.
Limited Warranty Limits And Exclusions
This warranty ONLY COVERS failures due to defects in materials or
workmanship, and DOES NOT COVER normal wear and tear or cosmetic
damage. The warranty ALSO DOES NOT COVER damages which occurred
in shipment, or failures which are caused by products not supplied by the
warrantor, or failures which result from accidents, misuse, abuse, neglect,
mishandling, misapplication, alteration, faulty installation, set-up adjustments,
misadjustment of consumer controls, improper maintenance, power line surge,
lightning damage, modification, introduction of sand, humidity or liquids,
commercial use such as hotel, office, restaurant, or other business or rental
use of the product, or service by anyone other than a Factory Service Center or
other Authorized Servicer, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED
UNDER “LIMITED WARRANTY COVERAGE”.
Obtain Product Information and Operating Assistance;
locate your
nearest Dealer or Service Center; purchase Parts and
Accessories; or make Customer Service and Literature
requests by visiting our Web Site at:
http://www.panasonic.com/help
or, contact us via the web at:
http://www.panasonic.com/contactinfo
You may also contact us directly at:
1-800-211-PANA (7262),
Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.
For hearing or speech impaired TTY users, TTY: 1-877-833-8855
Accessory Purchases (United States and Puerto Rico)
Other
Some states do not allow the exclusion or limitation of incidental or
consequential damages, or limitations on how long an implied warranty lasts,
so the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have other rights
which vary from state to state. If a problem with this product develops during
or after the warranty period, you may contact your dealer or Service Center.
If the problem is not handled to your satisfaction, then write to the warrantor’s
Consumer Affairs Department at the addresses listed for the warrantor.
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED
WARRANTY, ARE YOUR RESPONSIBILITY.
Customer Services Directory (United States and Puerto Rico)
Purchase Parts, Accessories and Instruction Books online for all
Panasonic Products by visiting our Web Site at: http://www.pstc.
panasonic.com
or, send your request by E-mail to: [email protected]
You may also contact us directly at:
1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only)
(Monday – Friday 9 am to 9 pm, EST.)
Panasonic Service and Technology Company
20421 84th Avenue South, Kent, WA 98032
(We Accept Visa, MasterCard, Discover Card, American Express, and
Personal Checks)
For hearing or speech impaired TTY users, TTY: 1-866-605-1277
As of October 2008
RQT9359
T H E WA R R A N TO R I S N OT L I A B L E F O R I N C I D E N TA L O R
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS
PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY.
(As examples, this excludes damages for lost time, cost of having
someone remove or re-install an installed unit if applicable, travel to and
from the servicer, loss of or damage to media or images, data or other
memory or recorded content. The items listed are not exclusive, but are for
illustration only.)
ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE
WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD
OF THE LIMITED WARRANTY.
41
Maintenance
Clean this unit with a dry and soft cloth.
• If the unit becomes too dirty, wring a cloth moistened in water, wipe the dirt with it and clean with a dry
cloth.
• Do not use solvents including benzene, thinner, alcohol, kitchen detergent, a chemical wiper, etc. This
might cause the exterior case to be deformed or the coating to come off.
The serial number of this product can be found
on either the back or the bottom of the unit.
Please note it in the space provided below and
keep for future reference.
RR-US590
MODEL NUMBER
SERIAL NUMBER
User memo:
DATE OF PURCHASE
DEALER NAME
DEALER ADDRESS
TELEPHONE NUMBER
RQT9359
Product Identification Marking is located on
the bottom of unit.
42
-If you see this symbolInformation on Disposal in other Countries
outside the European Union
This symbol is only valid in the
European Union.
If you wish to discard this
product, please contact your local
authorities or dealer and ask for
the correct method of disposal.
CAUTION
Danger of explosion if battery is incorrectly
replaced. Replace only with the same
or equivalent type recommended by the
manufacturer. Dispose of used batteries
according to the manufacturer’s instructions.
RQT9359
Other
MEMO
43
THE FOLLOWING APPLIES ONLY IN THE U.S.A.
FCC Note:
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
FCC Caution:
To assure continued compliance, follow
the attached installation instructions
and use only shielded interface cables
with ferrite core when connecting to
computer or peripheral devices.
Any changes or modifications not expressly approved
by the party responsible for compliance could void the
user’s authority to operate this equipment.
Declaration of Conformity
Trade Name:
Panasonic
Model no.:
RR-US590
Responsible party: Panasonic Corporation of
North America
One Panasonic Way,
Secaucus, NJ 07094
Support Contact: Panasonic Consumer
Electronics Company 1-800211-PANA (7262)
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094
http://www.panasonic.com
© Panasonic Corporation 2008
Printed in Malaysia
En
RQT9359-P
H1208TY0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
