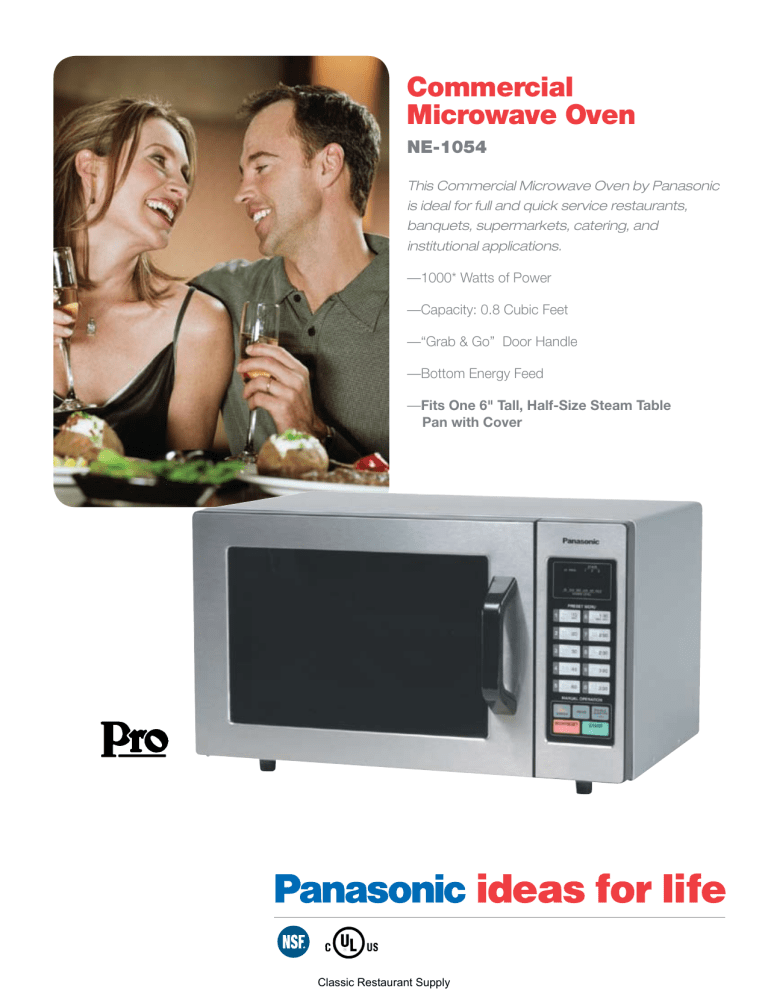

Commercial
Microwave Oven
NE-1054
This Commercial Microwave Oven by Panasonic
is ideal for full and quick service restaurants,
banquets, supermarkets, catering, and
institutional applications.
—1000* Watts of Power
—Capacity: 0.8 Cubic Feet
—“Grab & Go” Door Handle
—Bottom Energy Feed
—Fits One 6" Tall, Half-Size Steam Table
Pan with Cover
Classic Restaurant Supply
NE-1054 Commercial Microwave Oven
Additional Features:
Specifications
• Compact Size
• Program List/Cycle Counter
• Stainless Steel Front
• Self Diagnostics
• Touch Control Keypad
with Braille
• 99:99 Minute Capacity
• Beep Control (On/Off)
NE-1054
120V, 60Hz,
Single Phase
NEMA 5-15 R or
Receptacle Required
NEMA 5-20 R
Frequency
2,450MHz
Required Power
13.4A
Output
1000 Watts*
Outer Dimensions (wxdxh)
201/8" x 169/16" x 12"
Cavity Dimensions (wxdxh)
13" x 13" x 81/16"
Net Weight
34 lbs.
Shipping Weight
39 lbs.
24 x 183/4 x 143/4,
Shipping Box Size (wxdxh)
3.8 cu. ft.
Timer
99 Min., 99 Sec.
Memory Capability
20 Programs
Power Source
• See-Through Oven Door
• Interior Oven Light
• 10 Programmable Memory Pads;
• Chef Technical Support
20 Memory Capability
• Anti-Theft Equipped
• 6 Power Levels
• Will Ship via UPS
• 2- and 3-Stage Cooking
• NSF & UL Commercial
• Programmable and Manual
Approved
Operations
Bottom Energy Feed
The energy travels less distance
to reach the food, compared
to side or top energy feed, for
increased efficiency.
“Grab & Go”
Door Handle
Without the hassle of moving parts like
those found in push button doors or
trigger-activated handles, the “Grab &
Go” Door Handle is fast and durable.
Touch-Control Keypad
Featuring an electronic keypad with 10 programmable memory
pads and a 20-memory capability, the NE-1054 cooks with speed
and precision with its 6 power levels and 2- and 3-stage cooking.
To Specify a Panasonic
Commercial Microwave Oven
The NE-1054 Commercial Microwave Oven meets or
exceeds all safety performance and sanitation standards
set for commercial food service microwave ovens
by UL, DHHS, FCC and NSF. Plus, oven shall have
output power 1000 Watts*, stainless steel front, bottom
energy feed, 10 programmable memory pads, Braille
keypad, 20-memory capability, Double Quantity
Key, 6 power levels, 2- and 3-stage cooking,
programmable lock, unique “quick pick” preset
times and self-diagnostics, and Chef/Test
Kitchen technical support. 3 years
limited warranty. 1 year parts &
labor. 3 years magnetron.
* I.E.C. 60705 Test Procedure. Specifications subject to change without notice.
Panasonic Home & Commercial Appliance Group
Panasonic Corporation of North America
Executives Offices: One Panasonic Way, Panazip 1H-2
Secaucus, NJ 07094
Toll-free: 877-CMO-OVEN (266-6836)
Sales Support, Recipes and Training at: www.panasonic.com/cmo
For a Panasonic Distributor/Services nearest you, 1-800-350-9590
FS080512SS
Design and specifications subject to change without notice.
