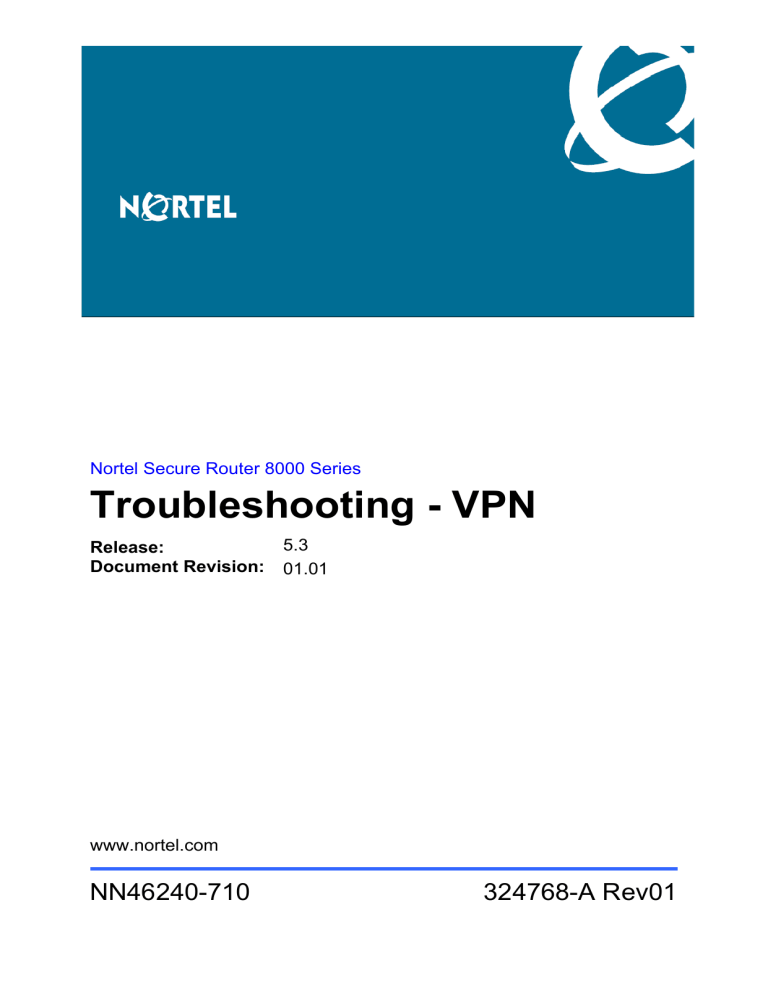

Nortel Secure Router 8000 Series
Troubleshooting - VPN
Release:
Document Revision:
5.3
01.01
www.nortel.com
NN46240-710
324768-A Rev01
Nortel Secure Router 8000 Series
Release: 5.3
Publication: NN46240-710
Document Revision: 01.01
Document status: Standard
Document release date: 30 March 2009
Copyright © 2009 Nortel Networks
All Rights Reserved.
Printed in Canada, India, and the United States of America
LEGAL NOTICE
While the information in this document is believed to be accurate and reliable, except as otherwise expressly
agreed to in writing NORTEL PROVIDES THIS DOCUMENT "AS IS" WITHOUT WARRANTY OR CONDITION OF
ANY KIND, EITHER EXPRESS OR IMPLIED. The information and/or products described in this document are
subject to change without notice.
Nortel, the Nortel logo, and the Globemark are trademarks of Nortel Networks.
All other trademarks are the property of their respective owners.
ATTENTION
For information about the safety precautions, read "Safety messages" in this guide.
For information about the software license, read "Software license" in this guide.
Nortel Secure Router 8000 Series
Troubleshooting - VPN
Contents
About this document .......................................................................................................................1
1 L2TP troubleshooting................................................................................................................1-5
1.1 L2TP overview ............................................................................................................................................1-5
1.1.1 Two typical L2TP tunnel modes........................................................................................................1-5
1.1.2 L2TP tunnel session setup .................................................................................................................1-5
1.2 VPDN troubleshooting on the L2TP ...........................................................................................................1-5
1.2.1 Networking environment...................................................................................................................1-5
1.2.2 Configuration notes ...........................................................................................................................1-5
1.2.3 Diagnostic flowchart .........................................................................................................................1-5
1.2.4 Troubleshooting procedures ..............................................................................................................1-5
1.3 Troubleshooting L2TP access to the Layer 3 VPN......................................................................................1-5
1.3.1 Networking environment...................................................................................................................1-5
1.3.2 Configuration notes ...........................................................................................................................1-5
1.3.3 Diagnostic flowchart .........................................................................................................................1-5
1.3.4 Troubleshooting procedure................................................................................................................1-5
1.4 Troubleshooting cases .................................................................................................................................1-5
1.4.1 The session disconnects as soon as it is set up ..................................................................................1-5
1.5 FAQs............................................................................................................................................................1-5
1.6 Diagnostic tools...........................................................................................................................................1-5
1.6.1 Display commands ............................................................................................................................1-5
1.6.2 Debugging commands.......................................................................................................................1-5
2 GRE troubleshooting.................................................................................................................2-1
2.1 GRE overview .............................................................................................................................................2-2
2.1.1 Introduction to GRE ..........................................................................................................................2-2
2.1.2 Related concepts of GRE ..................................................................................................................2-2
2.1.3 Applications of GRE .........................................................................................................................2-3
2.2 Troubleshooting GRE..................................................................................................................................2-4
2.2.1 Typical networking............................................................................................................................2-4
2.2.2 Configuration notes ...........................................................................................................................2-4
2.2.3 Troubleshooting flowchart ................................................................................................................2-7
2.2.4 Troubleshooting procedure................................................................................................................2-8
Issue 5.3 (19 January 2009)
Nortel Networks Inc.
i
Nortel Secure Router 8000 Series
Troubleshooting - VPN
2.3 Troubleshooting cases ...............................................................................................................................2-10
2.3.1 Ping of the peer tunnel fails although the network layer protocols on both ends are up .................2-11
2.3.2 PCs cannot ping through each other although tunnel interfaces on two ends can ping each other
successfully ..............................................................................................................................................2-14
2.4 FAQs..........................................................................................................................................................2-15
2.5 Diagnostic tools.........................................................................................................................................2-17
2.5.1 display commands ...........................................................................................................................2-17
2.5.2 debugging commands......................................................................................................................2-19
2.5.3 Alarms .............................................................................................................................................2-21
3 BGP/MPLS IP VPN troubleshooting .....................................................................................3-1
3.1 BGP/MPLS IP VPN overview.....................................................................................................................3-2
3.1.1 Introduction to VPN ..........................................................................................................................3-2
3.1.2 Network topology..............................................................................................................................3-3
3.1.3 Operation model................................................................................................................................3-3
3.2 MPLS L3VPN troubleshooting ...................................................................................................................3-5
3.2.1 Typical networking............................................................................................................................3-5
3.2.2 Configuration notes ...........................................................................................................................3-6
3.2.3 Troubleshooting flowchart ................................................................................................................3-9
3.2.4 Troubleshooting procedure..............................................................................................................3-10
3.3 Troubleshooting cases ...............................................................................................................................3-14
3.3.1 PE fails to send private network routes to the remote CE ...............................................................3-14
3.3.2 CEs cannot communicate ................................................................................................................3-17
3.3.3 Failure to ping large packets of the private network .......................................................................3-18
3.3.4 PE cannot ping through the remote CE network segment ...............................................................3-19
3.3.5 Failure to establish the MP-EBGP peer in inter-AS VPN-OptionC ................................................3-20
3.4 FAQs..........................................................................................................................................................3-21
3.5 Diagnostic tools.........................................................................................................................................3-23
3.5.1 display commands ...........................................................................................................................3-23
3.5.2 debugging commands......................................................................................................................3-23
3.5.3 Alarms .............................................................................................................................................3-24
3.5.4 Logs.................................................................................................................................................3-26
4 MPLS L2VPN troubleshooting................................................................................................4-1
4.1 MPLS Layer 2 VPN overview.....................................................................................................................4-2
4.1.1 Introduction to MPLS Layer 2 VPN..................................................................................................4-2
4.1.2 CCC MPLS Layer 2 VPN .................................................................................................................4-3
4.1.3 SVC MPLS Layer 2 VPN..................................................................................................................4-4
4.1.4 Martini MPLS Layer 2 VPN .............................................................................................................4-4
4.1.5 PWE3 MPLS Layer 2 VPN...............................................................................................................4-5
4.1.6 Kompella MPLS Layer 2 VPN..........................................................................................................4-6
4.1.7 MPLS Layer 2 VPN IP-interworking................................................................................................4-6
4.2 Layer 2 VPN troubleshooting......................................................................................................................4-7
ii
Nortel Networks Inc.
Issue 5.3 (19 January 2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4.2.1 Typical networking............................................................................................................................4-8
4.2.2 Configuration notes .........................................................................................................................4-10
4.2.3 Troubleshooting flowchart ..............................................................................................................4-13
4.2.4 Troubleshooting procedure..............................................................................................................4-14
4.3 Troubleshooting cases ...............................................................................................................................4-17
4.3.1 VC type is not supported when setting up a PW on an ATM subinterface ......................................4-17
4.3.2 A static PW cannot be switched with other PWs.............................................................................4-19
4.3.3 Switch-L2VC is down after PW switching configuration ...............................................................4-21
4.3.4 PW attributes cannot be changed by using the reset pw command .................................................4-22
4.3.5 VC is up but the PPP session cannot establish ................................................................................4-26
4.3.6 VC under the interface is missing after the link protocol changes ..................................................4-27
4.3.7 Both the session and the AC are up, but the VC cannot be up ........................................................4-29
4.3.8 Ethernet interconnects with ATM, the VC is up, but the ping between CEs fails ...........................4-33
4.3.9 CEs cannot communicate by using the accessing mode of VLAN .................................................4-35
4.3.10 CEs cannot access each other though the static VC is up..............................................................4-35
4.3.11 VC is down though AC is up .........................................................................................................4-37
4.3.12 Large-sized packets are lost between CEs on two ends of Layer 2 VPN ......................................4-38
4.3.13 Failure to establish the MPLS LDP session between PEs when RIP-1 is used in the Layer 2 VPN
backbone ..................................................................................................................................................4-39
4.4 FAQs..........................................................................................................................................................4-40
4.5 Diagnostic tools.........................................................................................................................................4-44
4.5.1 display commands ...........................................................................................................................4-44
4.5.2 debugging commands......................................................................................................................4-45
5 VPLS troubleshooting...............................................................................................................5-1
5.1 VPLS overview ...........................................................................................................................................5-2
5.1.1 Related concepts of VPLS.................................................................................................................5-2
5.1.2 Encapsulation type ............................................................................................................................5-3
5.1.3 MTU..................................................................................................................................................5-4
5.2 VPLS troubleshooting .................................................................................................................................5-4
5.2.1 Typical networking............................................................................................................................5-4
5.2.2 Configuration notes ...........................................................................................................................5-6
5.2.3 Troubleshooting flowchart ..............................................................................................................5-10
5.2.4 Troubleshooting procedures ............................................................................................................5-10
5.3 Troubleshooting cases ...............................................................................................................................5-11
5.3.1 A VSI cannot be up in LDP signaling mode....................................................................................5-12
5.3.2 Packets cannot forward successfully between two PEs though VSI is up.......................................5-14
5.3.3 A VSI cannot be up in BGP signaling mode....................................................................................5-15
5.4 FAQs..........................................................................................................................................................5-17
5.5 Diagnostic tools.........................................................................................................................................5-19
5.5.1 display commands ...........................................................................................................................5-19
5.5.2 debugging command .......................................................................................................................5-20
Issue 5.3 (19 January 2009)
Nortel Networks Inc.
iii
Nortel Secure Router 8000 Series
Troubleshooting - VPN
Figures
Figure 1-1 Typical L2TP tunnel modes ............................................................................................................1-5
Figure 1-2 The process flow for setting up an L2TP tunnel .............................................................................1-5
Figure 1-3 Networking of the L2TP tunnel ......................................................................................................1-5
Figure 1-4 The flowchart for diagnosing faults on L2TP .................................................................................1-5
Figure 1-5 Networking of the L2TP access to the Layer 3 VPN ......................................................................1-5
Figure 1-6 Networking of the disconnection of the L2TP session....................................................................1-5
Figure 2-1 Format of an encapsulated tunnel packet ........................................................................................2-2
Figure 2-2 Two networks interconnecting through the GRE tunnel .................................................................2-3
Figure 2-3 Typical GRE networking diagram...................................................................................................2-4
Figure 2-4 GRE troubleshooting flowchart ......................................................................................................2-7
Figure 2-5 Networking diagram of the GRE troubleshooting I ......................................................................2-11
Figure 2-6 Networking diagram of the GRE troubleshooting II.....................................................................2-14
Figure 3-1 BGP/MPLS VPN network topology ...............................................................................................3-3
Figure 3-2 BGP/MPLS VPN instances.............................................................................................................3-4
Figure 3-3 BGP/MPLS VPN networking .........................................................................................................3-6
Figure 3-4 MPLS VPN troubleshooting flowchart .........................................................................................3-10
Figure 3-5 Networking diagram .....................................................................................................................3-14
Figure 3-6 BGP/MPLS VPN networking diagram .........................................................................................3-17
Figure 3-7 PE cannot ping through the remote CE network segment.............................................................3-19
Figure 3-8 Networking diagram of the inter-AS VPN-OptionC troubleshooting...........................................3-20
Figure 4-1 MPLS LAYER 2 VPN networking .................................................................................................4-2
Figure 4-2 MPLS Layer 2 VPN label stack processing ....................................................................................4-3
Figure 4-3 Martini signaling process................................................................................................................4-5
Figure 4-4 PWE3 signaling process..................................................................................................................4-5
Figure 4-5 Local cross-connection networking ................................................................................................4-8
Figure 4-6 Remote connection networking ......................................................................................................4-8
Issue 5.3 (19 January 2009)
Nortel Networks Inc.
v
Nortel Secure Router 8000 Series
Troubleshooting - VPN
Figure 4-7 Multihop connection networking ....................................................................................................4-9
Figure 4-8 Inter-AS networking .....................................................................................................................4-10
Figure 4-9 Troubleshooting flowchart of the MPLS Layer 2 VPN remote connection fault..........................4-13
Figure 4-10 Troubleshooting flowchart of the MPLS Layer 2 VPN local connection fault ...........................4-14
Figure 4-11 Sketch map of the SVC remote connection label........................................................................4-15
Figure 4-12 Sketch map of the CCC remote connection label .......................................................................4-16
Figure 4-13 Networking diagram of the switching between the static PW and dynamic PW ........................4-19
Figure 4-14 Networking diagram of Switch-L2VC troubleshooting ..............................................................4-21
Figure 4-15 Networking diagram ...................................................................................................................4-26
Figure 4-16 Networking diagram ...................................................................................................................4-29
Figure 4-17 Networking diagram ...................................................................................................................4-33
Figure 4-18 IP address configuration diagram................................................................................................4-34
Figure 4-19 Networking diagram of the Layer 2 VPN backbone adopting RIP.............................................4-39
Figure 4-20 Networking scheme using DCE and DTE as the interface types ................................................4-41
Figure 5-1 Basic VPLS networking..................................................................................................................5-4
Figure 5-2 Hierarchical VPLS Networking ......................................................................................................5-5
Figure 5-3 VPLS troubleshooting flowchart...................................................................................................5-10
Figure 5-4 VPLS networking diagram............................................................................................................5-12
vi
Nortel Networks Inc.
Issue 5.3 (19 January 2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
Tables
Table 1-1 Description of the output of the display L2tp tunnel command .....................................................1-5
Table 1-2 Description of the output of the display L2tp session command.....................................................1-5
Table 2-1 Description of the display this command output ...........................................................................2-18
Table 2-2 Description of the display this interface command output ...........................................................2-18
Issue 5.3 (19 January 2009)
Nortel Networks Inc.
vii
Nortel Secure Router 8000 Series
Troubleshooting - VPN
Contents
About this document .......................................................................................................................1
Issue 5.3 (19 January 2009)
Nortel Networks Inc.
i
Nortel Secure Router 8000 Series
Troubleshooting - VPN
About this document
About this document
Overview
This part describes the organization of this document, product version, intended audience,
conventions, and update history.
Related versions
The following table lists the product versions to which this document relates.
Product name
Version
Nortel Secure Router 8000 Series
V200R005
Intended audience
The intended audiences of this document are:
z
Network operators
z
Network administrators
z
Network maintenance engineers
Organization
The following table identifies the five chapters in this document.
Chapter
Description
1
This chapter describes the basic knowledge about the Layer
2 VPN tunneling protocol (L2TP), troubleshooting
procedures for L2TP faults, troubleshooting cases,
diagnostic tools, and FAQs.
L2TP troubleshooting
Issue 5.3 (19 January 2009)
Nortel Networks Inc.
1
Nortel Secure Router 8000 Series
Troubleshooting - VPN
About this document
Chapter
Description
2
This chapter describes the basic knowledge about Generic
Routing Encapsulation (GRE), troubleshooting procedures
for GRE faults, troubleshooting cases, diagnostic tools, and
FAQs.
GRE troubleshooting
3 BGP/MPLS IP VPN
troubleshooting
This chapter describes the basic knowledge about
MultiProtocol Label Switching/Border Gateway Protocol
(MPLS/BGP) IP virtual private networks (VPN),
troubleshooting procedures for BGP/MPLS IP VPN faults,
troubleshooting cases, diagnostic tools, and FAQs.
4 MPLS Layer 2 VPN
troubleshooting
This chapter describes the basic knowledge about MPLS
Layer 2 VPN (L2VPN), troubleshooting procedures for
MPLS L2VPN faults, troubleshooting cases, diagnostic
tools, and FAQs.
5
This chapter describes the basic knowledge about VPLS,
troubleshooting procedures for VPLS faults,
troubleshooting cases, diagnostic tools, and FAQs.
VPLS troubleshooting
Conventions
Symbol conventions
The following table defines the symbols in this document.
Symbol
Description
Indicates a hazard with a high level of risk that, if you do not
avoid, results in death or serious injury.
Indicates a hazard with a medium or low level of risk which, if
you do not avoid, can result in minor or moderate injury.
Indicates a potentially hazardous situation that, if you do not
avoid, can cause equipment damage, data loss, and
performance degradation or unexpected results.
Indicates a tip that can help you solve a problem or save time.
Provides additional information to emphasize or supplement
important points of the main text.
2
Nortel Networks Inc.
Issue 5.3 (19 January 2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
About this document
General conventions
Convention
Description
Times New Roman
Normal paragraphs use Times New Roman.
Boldface
Names of files, directories, folders, and users use boldface.
For example, log in as user root.
Italic
Book titles use italics.
Courier New
Terminal display uses Courier New.
Command conventions
Convention
Description
Boldface
The keywords of a command line use boldface.
Italic
Command arguments use italics.
[]
Items (keywords or arguments) in square brackets [ ] are
optional.
{ x | y | ... }
Alternative items are grouped in braces and separated by
vertical bars. Select one of the items.
[ x | y | ... ]
Optional alternative items are grouped in square brackets
and separated by vertical bars. Select one or none of the
items.
{ x | y | ... } *
Alternative items are grouped in braces and separated by
vertical bars. Select a minimum of one or a maximum of all
of the items.
[ x | y | ... ] *
&<1-n>
#
Optional alternative items are grouped in square brackets
and separated by vertical bars. Select many or none of the
items.
You can repeat the parameter before the ampersand sign (&)
1 to n times.
A line that begins with the number sign (#) indicates
comments.
GUI conventions
Convention
Description
Boldface
Buttons, menus, parameters, tabs, windows, and dialog titles
use boldface. For example, click OK.
Issue 5.3 (19 January 2009)
Nortel Networks Inc.
3
Nortel Secure Router 8000 Series
Troubleshooting - VPN
About this document
Convention
Description
>
Multilevel menus use boldface and a greater-than sign (>)
separates the menu choices. For example, choose File >
Create > Folder.
Keyboard operation
Format
Description
Key
Press the key. For example, press Enter and press Tab.
Key 1+Key 2
Press the keys concurrently. For example, press Ctrl+Alt+A
means you press the three keys at the same time.
Key 1, Key 2
Press the keys in turn. For example, press Alt, A means you
press the two keys one after the other.
Mouse operation
Action
Description
Click
Press and release the primary mouse button without moving
the pointer.
Double-click
Quickly press the primary mouse button twice without
moving the pointer.
Drag
Press and hold the primary mouse button and move the
pointer to a specific position.
Update history
Updates between document versions are cumulative. The latest document version contains all
updates made to previous versions.
Updates in Issue 1.0 ( 6 June 2008 )
The first commercial release.
4
Nortel Networks Inc.
Issue 5.3 (19 January 2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
Contents
1 L2TP troubleshooting................................................................................................................1-1
1.1 L2TP overview..............................................................................................................................................1-2
1.1.1 Two typical L2TP tunnel modes ..........................................................................................................1-2
1.1.2 L2TP tunnel session setup....................................................................................................................1-3
1.2 VPDN troubleshooting on the L2TP .............................................................................................................1-4
1.2.1 Networking environment .....................................................................................................................1-4
1.2.2 Configuration notes..............................................................................................................................1-5
1.2.3 Diagnostic flowchart............................................................................................................................1-7
1.2.4 Troubleshooting procedures.................................................................................................................1-9
1.3 Troubleshooting L2TP access to the Layer 3 VPN...................................................................................... 1-11
1.3.1 Networking environment ................................................................................................................... 1-11
1.3.2 Configuration notes............................................................................................................................1-12
1.3.3 Diagnostic flowchart..........................................................................................................................1-16
1.3.4 Troubleshooting procedure ................................................................................................................1-16
1.4 Troubleshooting cases .................................................................................................................................1-16
1.4.1 The session disconnects as soon as it is set up ...................................................................................1-16
1.5 FAQs ...........................................................................................................................................................1-18
1.6 Diagnostic tools...........................................................................................................................................1-20
1.6.1 Display commands.............................................................................................................................1-20
1.6.2 Debugging commands........................................................................................................................1-23
Issue 5.3 (19 January 2009)
Nortel Networks Inc.
i
Nortel Secure Router 8000 Series
Troubleshooting - VPN
Figures
Figure 1-1 Typical L2TP tunnel modes ..............................................................................................................1-2
Figure 1-2 The process flow for setting up an L2TP tunnel ...............................................................................1-3
Figure 1-3 Networking of the L2TP tunnel ........................................................................................................1-4
Figure 1-4 The flowchart for diagnosing faults on L2TP ...................................................................................1-8
Figure 1-5 Networking of the L2TP access to the Layer 3 VPN ......................................................................1-12
Figure 1-6 Networking of the disconnection of the L2TP session ...................................................................1-16
Issue 5.3 (19 January 2009)
Nortel Networks Inc.
iii
Nortel Secure Router 8000 Series
Troubleshooting - VPN
Tables
Table 1-1 Description of the output of the display L2tp tunnel command .....................................................1-20
Table 1-2 Description of the output of the display L2tp session command ....................................................1-21
Issue 5.3 (19 January 2009)
Nortel Networks Inc.
v
Nortel Secure Router 8000 Series
Troubleshooting - VPN
1 L2TP troubleshooting
1
L2TP troubleshooting
About this chapter
The following table lists the contents of this chapter.
Section
Describes
1.1 L2TP overview
This section describes the concepts that you should know
before troubleshooting Layer Two Tunneling Protocol
(L2TP).
1.2 VPDN troubleshooting on
the L2TP
This section contains the L2TP configuration notes, the
troubleshooting flowchart, and the procedures for
troubleshooting in the L2TP Virtual Private Data Network
(VPDN) networking environment.
1.3 Troubleshooting L2TP
access to the Layer 3 VPN
This section contains notes for configuring L2TP access
to the L3 Virtual Private Network (VPN), the
troubleshooting flowchart, and the detailed
troubleshooting procedures.
1.4 Troubleshooting cases
This section presents troubleshooting cases.
1.5 FAQs
This section lists frequently asked questions (FAQ) and
their answers.
1.6 Diagnostic tools
This section lists the diagnostic tools, including the
display command and debugging command.
Issue 5.3 (19 January 2009)
Nortel Networks Inc.
1-1
Nortel Secure Router 8000 Series
Troubleshooting - VPN
1 L2TP troubleshooting
1.1 L2TP overview
L2TP is a VPDN tunnel protocol. This protocol supports transmission in a tunnel that is
encapsulated by the PPP link and is applicable to remote access, such as remote user access to
the internal source of the enterprise.
1.1.1 Two typical L2TP tunnel modes
The tunnel modes of PPP frames, which are between the user and L2TP Network Server
(LNS), and between the user and L2TP Access Concentrator (LAC) clients (hosts running
L2TP), are shown in Figure 1-1.
Figure 1-1 Typical L2TP tunnel modes
LAC client
LAC
Internet
LNS
PSTN/ISDN
Remote
system
LAC
Internal server
Frame Relay
or ATM
LNS
Internal server
The methods of establishing a tunnel are as follows:
1-2
z
NAS-initialized: Initiated by remote dial-up users. The remote system dials LAC through
the Public Switched Telephone Network (PSTN) or Integrated Services Digital Network
(ISDN). LAC sends a request to establish a tunnel connection to LNS through the
Internet. The addresses of the dial-up users are assigned by LNS. The agent on LAC or
LNS performs the authentication and accounting of remote dial-up users.
z
Client-initialized: Initiated directly by LAC users who support L2TP. In this case, LAC
users can directly send a request to establish a tunnel connection to LNS, without the
need to pass through another LAC device. The addresses of the LAC users are assigned
by LNS.
Nortel Networks Inc.
Issue 5.3 (19 January 2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
1 L2TP troubleshooting
1.1.2 L2TP tunnel session setup
Figure 1-2 shows the process for setting up an L2TP tunnel.
Figure 1-2 The process flow for setting up an L2TP tunnel
PC
LAC
RouterA
LAC
RADIUS Server
LNS
RouterB
LNS
RADIUS Server
(1) call setup
(2) PPP LCP setup
(3) PAP or CHAP
authentication
(4) access request
(5) access accept
(6) tunnel establish
(7) PAP or CHAP authentication
(challenge/response)
(8) authentication passes
(9) user CHAP response, PPP
negotiation parameter
(10) access request
(11) access accept
(12) CHAP authentication twice(challenge/response)
(13) access request
(15) authentication passes
(14) access accept
The procedure for setting up an L2TP tunnel is as follows:
1.
The PC on the user side sends a connection request.
2.
The PC and LAC device (Router A) negotiate the PPP LCP.
3.
LAC carries out PAP or CHAP authentication based on the information from the PC.
4.
LAC sends an access request with the VPN user name and password to the RADIUS
server for identity authentication.
5.
The RADIUS server authenticates this user and sends an access accept message, such as
the LNS address. After the authentication succeeds, LAC is ready to start a new tunnel
request.
6.
LAC makes a tunnel request to the LNS specified by the RADIUS server.
7.
LAC informs LNS of a CHAP challenge, and LNS sends a CHAP response and its
CHAP challenge. LAC then sends back a CHAP response.
8.
The authentication succeeds.
9.
LAC transmits the information about the CHAP response, response identifier, and PPP
negotiation parameters to LNS.
Issue 5.3 (19 January 2009)
Nortel Networks Inc.
1-3
Nortel Secure Router 8000 Series
Troubleshooting - VPN
1 L2TP troubleshooting
10. LNS sends an access request to the RADIUS server for authentication.
11. The RADIUS server reauthenticates this access request and sends back a response if
authentication succeeds.
12. If local mandatory CHAP authentication is configured at LNS, LNS authenticates the
VPN user by sending a challenge. The VPN user at the PC side sends back a response.
13. LNS resends this access request to the RADIUS server for authentication.
14. The RADIUS server reauthenticates this access request and sends back a response if
authentication is successful.
15. After all authentications pass, the VPN user can use the internal resources of the
enterprise.
1.2 VPDN troubleshooting on the L2TP
The section describes the following topics:
z
Networking environment
z
Configuration notes
z
Diagnostic flowchart
z
Troubleshooting procedure
1.2.1 Networking environment
Figure 1-3 shows the networking of the L2TP tunnel.
Figure 1-3 Networking of the L2TP tunnel
RADIUS Server
RADIUS Server
IP
Network
IP
Network
PSTN/ISDN
PC
WAN
RouterA
LAC
PC
RouterB
LNS
PC
Router A works on the LAC side and Router B works on the LNS side. The user from the
LAC side sends the request for connection to the LNS side. This achieves the interconnection
with other PCs.
1-4
Nortel Networks Inc.
Issue 5.3 (19 January 2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
1 L2TP troubleshooting
1.2.2 Configuration notes
Item
Sub-item
Description
Configuring
AAA
Configure the
authentication mode
To use the default local authentication, you
need to configure the user name and the
password in the AAA mode.
To use any other authentication, such as
RADIUS, you must configure the RADIUS
authentication.
Configuring
VT
Configuring
L2TP
Issue 5.3 (19 January 2009)
Configure the domain
and the authentication
mode
You must configure the items for domain user
access.
Configure the address
pool
Configure an address pool on the LNS side.
You need to configure common users to access
an address pool in the AAA mode and
configure domain users to access an address
pool in the domain mode.
Configure the user
name and password
The user names and passwords on the user side,
the LAC side, and the LNS side must be
consistent.
Configure the PPP
authentication
After the LCP renegotiation on the LNS side is
executed, you need to configure the PPP
authentication mode on the virtual interface
template. Otherwise, the user cannot pass the
authentication.
Appointment of the
address pool
To configure an address pool for a user, the
number of address pool configured here must
be the same as that configured in the AAA
view.
Configure the MTU
Nortel recommends that you configure the
MTU value as 1450.
Enable the L2TP
Configure the L2TP only after the L2TP is
enabled.
Source interface of the
tunnel on the LAC side
You can specify the loopback interface,
Ethernet interface, and GigabitEthernet
interface as the source interface of the tunnel.
The name of the tunnel
The name of the tunnel on the LAC side must
be consistent with the name of the remote end
to receive the tunnel on the LNS side.
The authentication of
the tunnel
The configuration for tunnel authentication on
the LAC side must be the same as that on the
LNS side.
The password of the
authentication of the
tunnel
After tunnel authentication is enabled, the
passwords on both the LAC side and the LNS
side must be consistent.
Nortel Networks Inc.
1-5
Nortel Secure Router 8000 Series
Troubleshooting - VPN
1 L2TP troubleshooting
Item
Domain
Sub-item
Description
The list separator of the
user postfix
If you establish the connection with L2TP
through the domain, you need to run the l2tp
domain command to configure the separator of
the user postfix.
The static route on the
LAC side
When the LNS side uses the IP address of the
loopback interface as the IP address of the
L2TP group, you must configure the route to be
reachable to the LNS loopback interface on the
LAC side.
The request for the
connection with the
L2TP allowed on the
LNS side
If the number of the L2TP is 1, you need not
specify the remote-name. If you specify the
remote name in the L2TP group 1 view, L2TP
group 1 does not work as the default L2TP
group.
The IP address of the
L2TP group bound on
the LNS side
The IP address of the Ethernet interface,
GigabitEthernet interface, and loopback
interface can be used as the IP address of an
L2TP group. After the loopback interface is
bound, it cannot be used for other services.
The user authentication
on the LNS side
After the LCP renegotiation is configured on
the LNS side, you need to configure the PPP
authentication mode on the correct virtual
interface template. Otherwise, the user cannot
pass the authentication.
—
Generally, bind VTs and configure address
pools in the domain view when L2TP users
access Layer 3 VPN groups. In other cases,
bind VTs in the L2TP group view.
As an example for the configuration notes for the L2TP LNS, consider users in different
domains that access the VPN.
1.
Configure the interface of the LNS and LAC Ethernet2/0/0 and the address.
[Nortel] interface ethernet2/0/0
[Nortel-Ethernet2/0/0] ip address 10.1.1.3 255.255.255.0
[Nortel-Ethernet2/0/0] quit
2.
Create a virtual template (VT) required by the L2TP group.
[Nortel] interface virtual-template 1
[Nortel-Virtual-Template1] ip address 35.1.1.1 255.255.255.0
[Nortel-Virtual-Template1] mtu 1450
[Nortel-Virtual-Template1] ppp authentication-mode pap
[Nortel-Virtual-Template1] quit
The VT executes the LCP and PAP negotiation with the user.
3.
Configure the loopback interface required by the L2TP group.
[Nortel] interface LoopBack 0
1-6
Nortel Networks Inc.
Issue 5.3 (19 January 2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
1 L2TP troubleshooting
[Nortel-LoopBack0] ip address 100.1.1.1 255.255.255.255
[Nortel-LoopBack0] quit
As the terminal IP of the tunnel, the interface is responsible for decompressing the L2TP
header and preparing for the next forwarding.
4.
Configure the attributes on the L2TP group to be consistent with those on the LAC side.
# Enable the L2TP.
[Nortel] l2tp enable
# Set the identifier of the domain to be the @ symbol.
[Nortel] l2tp domain suffix-separator @
# Create the L2TP group.
[Nortel] l2tp-group 1
# Configure the name of the local tunnel as LNS.
[Nortel-l2tp1] tunnel name LNS
# Specify the VT to negotiate with the user, and the remote name (you do not need to
configure the remote name if the L2TP group number is 1).
[Nortel-l2tp1] allow l2tp virtual-template 1 remote LAC
# Configure the tunnel authentication to be consistent with the LAC.
[Nortel-l2tp1] tunnel authentication
# Configure the password of the tunnel to be the same as the LAC.
[Nortel-l2tp1] tunnel password simple 12345
# Configure the destination number of the tunnel to be loopback 0.
[Nortel-l2tp1] tunnel destination loopback 0
[Nortel-l2tp1] quit
5.
Create a domain and bind the virtual template and the corresponding address pool in the
domain.
[Nortel] aaa
[Nortel-aaa] domain nortel1.com
[Nortel-aaa-domain-nortel1.com] ip pool 8 8.1.1.2 8.1.1.10
[Nortel-aaa-domain-nortel1.com] quit
[Nortel-aaa] domain nortel2.com
[Nortel-aaa-domain-nortel2.com] ip pool 9 9.1.1.2 9.1.1.10
[Nortel-aaa-domain-nortel2.com] quit
6.
Create two user names and passwords.
[Nortel-aaa] local-user [email protected] password simple 11111
[Nortel-aaa] local-user [email protected] password simple 22222
1.2.3 Diagnostic flowchart
Figure 1-4 shows the flowchart for diagnosing faults on L2TP.
Issue 5.3 (19 January 2009)
Nortel Networks Inc.
1-7
Nortel Secure Router 8000 Series
Troubleshooting - VPN
1 L2TP troubleshooting
Figure 1-4 The flowchart for diagnosing faults on L2TP
Data cannot
be transmitted.
Is the user
address correct?
No
Configure the correct
user address.
Yes
Is the network
free of
congestion?
No
Solve the
problem of the
network
congestion.
Yes
Does the tunnel
exist?
No
Check every
configuration and
establish the tunnel.
No
Reconfigure the
PPP parameters
on the LNS side.
Yes
Is the
configuration of
PPP negotiation
on the LNS side
correct?
Yes
Can LAC
ping through the
LNS interface?
No
Check the Loopback
interface bound by
the L2TP group of
the route and LNS.
Yes
Is the
PPP negotiation on
LAC normal?
No
Reconfigure the
PPP parameter
on the LAC side.
No
Seek the
technology
support.
Yes
Is the problem
solved?
Yes
End
1-8
Nortel Networks Inc.
Issue 5.3 (19 January 2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
1 L2TP troubleshooting
1.2.4 Troubleshooting procedures
The troubleshooting procedures are as follows.
Step 1 Determining that the user address is correct
Step 2 Checking whether network congestion occurs
Step 3 Checking that the tunnel exists
Step 4 Checking the state of PPP negotiation on the LNS side
Step 5 Checking that the LAC can ping through the loopback interface of the LNS
Step 6 Checking the status of PPP negotiation on the LAC side
----End
The following sections describe the troubleshooting steps.
Determining that the user address is correct
The LNS can assign the address to the user, or the user can specify the address. If the assigned
address and the specified address are not in the same network segment, the data transmission
fails. Nortel recommends that the LNS assign the address. The two cases are as follows:
z
When the user accesses LNS with the full name, LNS checks that the correct address
pool is bound in the VT. You must configure the address pool in the AAA view correctly.
Run the remote address pool pool-number command to bind the address pool.
z
When the user accesses LNS with the domain name, LNS checks whether a correct
address pool is configured in the domain view. You can use the ip pool pool-number
first-address [ last-address ] command to configure the address pool in the domain view.
Then, use the remote address pool pool-number command in the VT interface view to
bind the address pool to this interface.
Checking whether network congestion occurs
L2TP transmits data based on the User Datagram Protocol (UDP). The UDP does not
implement error control on the packets. If you apply L2TP when the link is unstable, the data
transmission can fail.
Checking that the tunnel exists
You can use the display l2tp tunnel command to check whether the tunnel is established on
the LAC and LNC. If no corresponding tunnel exists, check the configuration using the
following methods:
1.
Run the display this command in the L2TP group view on the LAC end to check
whether the LNS address with the start l2tp command is correctly configured. The
address should be the same as the loopback address on the LNS end. If they are different,
you need to reconfigure the LNS address.
2.
Run the display this command in the L2TP group view on the LAC side to check
whether the LNS address is correct in the allow l2tp command. The address must be
consistent with the IP address of the loopback interface on the LNS end. If they are
inconsistent, you must reconfigure them.
Issue 5.3 (19 January 2009)
Nortel Networks Inc.
1-9
Nortel Secure Router 8000 Series
Troubleshooting - VPN
1 L2TP troubleshooting
3.
Check whether the tunnel authentication and the password are correctly configured on
the LAC and LNS ends. The request for the tunnel authentication can be initiated from
either the LAC or the LNS. If one end starts the tunnel authentication, the tunnel can be
established only when the remote end also starts the tunnel authentication and the
passwords of both ends are consistent. Run the display this command in the L2TP group
view on the LAC and LNS sides to check if the passwords of the tunnels are consistent.
If one end is configured with the tunnel authentication but the passwords on both ends
are inconsistent, use the tunnel password { simple | cipher } password command to
configure the passwords.
4.
Check whether the correct virtual template (VT) is bound on the LNS side.
5.
If one end is forcibly disconnected, while the remote end does not receive the Disconnect
packet, the tunnel between the two ends cannot be connected. This is because the remote
end requires a period of time to test the disconnection of the link.
6.
LNS does not accept the request for the connection of the tunnel from the LACs that
have the same IP addresses. If the two LACs simultaneously send the request for the
connection of the tunnel, the tunnel cannot be established.
Checking the state of PPP negotiation on the LNS side
1.
Check that LCP renegotiation or forced CHAP authentication is configured.
Run the display this command in the L2TP group view to check if LCP renegotiation or
forced CHAP authentication is configured. When the device is connected with the LAC
equipment of other companies, the user authentication on the LNS uses the LCP
renegotiation. You can configure the LAC device according to actual requirements.
After you configure LCP renegotiation on the LNS side, you must configure PPP
authentication on the corresponding virtual interface template. Otherwise, the user cannot
pass the authentication.
2.
Check that the LNS configures the corresponding user name and the password.
The two cases are as follows:
−
For local authentication, check whether the correct user name and password are
configured in the AAA view. If they are incorrect, configure them by using the
local-user user-name password { simple | cipher } password command.
−
For RADIUS authentication, see the section about VAS troubleshooting in Nortel
Secure Router 8000 Series Troubleshooting - VAS (NN46240-709).
3.
Use the display ip pool command to check whether the address pool is small or no
address pool is configured.
4.
Use the display this command in the VT view to check whether the authentication type
is consistent with that of the LAC.
Checking that the LAC can ping through the loopback interface of the LNS
1-10
1.
Ping the loopback interface from the LAC. If you can ping through the loopback
interface, a reachable route between the LAC and LNS exists. If not, check whether the
static route of the loopback interface on the LNS has been configured by the display ip
routing-table command.
2.
If a static route exists, you can use the display this command in the L2TP group view on
the LNS side to check that the L2TP group binds the loopback interface. If no loopback
interface is bound, use the tunnel destination loopback command to bind it.
Nortel Networks Inc.
Issue 5.3 (19 January 2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
1 L2TP troubleshooting
Checking the status of PPP negotiation on the LAC side
The user needs to pass the PPP authentication on the LAC end before the L2TP tunnel and
session are established. The methods are as follows:
1.
If the LAC end uses local authentication, you can use the local-user user-name
password { simple | cipher } password command in the AAA mode to check that the
correct user name and password are configured on the LAC end.
2.
If the LAC end uses RADIUS authentication, see the section about VAS troubleshooting
in Nortel Secure Router 8000 Series Troubleshooting - VAS (NN46240-709).
3.
If access with the full user name is used, you can use the display local-user command to
check that the corresponding user is configured and the user matches with the name of
the client. If not, modify the user name of either end. Use the start l2tp ip ip-address
fullusername user-name command to modify the user name on the LAC end.
4.
If access with the domain name is used, check that the postfix of the domain name
matches the domain name of the end user, and check if the list separator of the domain
name postfix corresponding with the end user is configured. If they do not match, modify
the postfix of the domain name with the start l2tp ip ip-address domain domain-name
command. If no list separator of the domain name postfix exists, use the l2tp domain
suffix-separator command to configure it.
5.
Check whether the PPP authentication mode configured on the user interface on the LAC
end is consistent with that on the LNS side. The command for PPP authentication is ppp
authentication { pap | chap }.
6.
Check whether the authentication mode on the LAC end is consistent with that on the
user end. If not, modify the authentication end on one end. For example, the default
authentication mode of the VPN connection created by Windows 2000 is MSCHAP. If
the LAC does not support MSCHAP, change the mode to CHAP.
If the preceding configurations are correct, the user can pass the authentication on the LAC
end. If you still cannot resolve the L2TP faults, contact Nortel technical support.
1.3 Troubleshooting L2TP access to the Layer 3 VPN
The section describes the following topics:
z
Networking environment
z
Configuration notes
z
Diagnostic flowchart
z
Troubleshooting procedure
1.3.1 Networking environment
If many enterprises use one LNS and users of an enterprise need to communicate with their
own headquarters, but the network address is a private IP address, for example 10.8.0.0, the
users cannot access the internal server of the enterprise through the Internet. To enable users
to access the internal network of the enterprise, you can establish a VPN that supports
multiple instances.
As shown in Figure 1-5, the domain name of headquarters of the 01 enterprise is 263.net and
PC1 is the user of the enterprise. The domain name of headquarters of the 02 enterprise is
163.net and PC2 is the user of the enterprise.
Issue 5.3 (19 January 2009)
Nortel Networks Inc.
1-11
Nortel Secure Router 8000 Series
Troubleshooting - VPN
1 L2TP troubleshooting
Figure 1-5 Networking of the L2TP access to the Layer 3 VPN
Headquarter
01
Modem
PC1
WAN
PSTN
RouterA
ISDN
LAC
RouterB
tunnel
LNS
PC2
Headquarter
02
1.3.2 Configuration notes
Item
Sub-item
Description
Configuring AAA
Configure the
authentication mode
To use the default local authentication,
you need to configure the user name and
the password in the AAA mode.
To use any other authentication, such as
RADIUS, you must configure the
RADIUS authentication.
Configuring VT
1-12
Configure the domain
and the authentication
mode
You must configure the items for domain
user access.
Configure the address
pool
Configure an address pool on the LNS
side. You need to configure common users
to access an address pool in the AAA
mode, and configure domain users to
access an address pool in the domain
mode.
Configure the user
name and password
The user names and passwords on the user
side, the LAC side, and the LNS side must
be consistent.
Configure PPP
authentication
After the LCP renegotiation on the LNS
side is executed, you need to configure the
PPP authentication mode on the virtual
interface template. Otherwise, the user
cannot pass the authentication.
Assign the address
pool
To configure an address pool for a user,
the number of address pool configured
here must be the same as that configured
in the AAA view.
Configure the MTU
Nortel recommends that you configure the
MTU value to 1450.
Nortel Networks Inc.
Issue 5.3 (19 January 2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
Item
Configuring L2TP
Issue 5.3 (19 January 2009)
1 L2TP troubleshooting
Sub-item
Description
Bind the VPN
Bind the corresponding VPN in the VT
view.
Enable L2TP
L2TP can be configured only after L2TP
is enabled.
The source interface
of the tunnel on the
LAC side
You can specify the loopback interface,
Ethernet interface, and GigabitEthernet
interface as the source interface of the
tunnel.
The name of the
tunnel
The name of the tunnel on the LAC side
must be consistent with the name of the
remote end to receive the tunnel on the
LNS side.
The authentication of
the tunnel
The configuration for whether to enable
tunnel authentication on the LAC side
must be the same as that on the LNS side.
The password of the
authentication of the
tunnel
After tunnel authentication is enabled, the
passwords on both the LAC and LNS ends
must be consistent.
The list separator of
the user postfix
If you establish the connection with the
L2TP through the domain, you need to run
the l2tp domain command to configure
the separator of the user postfix.
The static route on the
LAC side
When the LNS side uses the IP address of
the loopback interface as the IP address of
the L2TP group, you must configure the
route to be reachable to the LNS loopback
interface on the LAC side.
The request for the
connection with the
L2TP allowed on the
LNS side
If the number of the L2TP group is 1, you
need not specify the remote name. If you
specify the remote name in the L2TP
group 1 view, the L2TP group 1 does not
work as the default L2TP group.
The IP address of the
L2TP group bound on
the LNS side
You can use the IP address of the Ethernet
interface, GigabitEthernet interface, and
loopback interface as the IP address of an
L2TP group. After the loopback interface
is bound, it cannot be used for other
services.
The user
authentication on the
LNS side
After LCP renegotiation is configured on
the LNS side, you need to configure the
PPP authentication mode on the
corresponding virtual interface template.
Otherwise, the user cannot pass the
authentication.
Nortel Networks Inc.
1-13
Nortel Secure Router 8000 Series
Troubleshooting - VPN
1 L2TP troubleshooting
Item
Sub-item
Description
Domain
—
Generally, bind VTs and configure
address pools in the domain view when
L2TP users access Layer 3 VPN groups.
In other cases, bind VTs in the L2TP
group view.
VPN
Configure the VPN
instances
Configure the VPN instances and then
associate them to the VT.
The following section describes the configuration based on the preceding networking
environment.
1.
Configure the user side.
Establish a dial-up network. The number is the access number of the Nortel1 router. The
dial-up network receives the address assigned by the LNS server.
In PC1, enter the user name [email protected] in the dial-up terminal window with the
password 11111. (The user name and the password must be registered in LNS.)
In PC2, enter the user name [email protected] in the dial-up terminal window with the
password 22222. (The user name and the password must be registered in LNS.)
2.
Configure the LAC side.
# Configure the user authentication on the LAC side.
# Configure the L2TP group and relative attributes.
# Start the tunnel authentication and configure the password of the tunnel authentication.
# Configure the separator of the domain name postfix.
# Configure the user name, the password, and the access domain name to be the same as
those on the client side.
3.
Configure the LNS side.
# Configure the interface Ethernet2/0/0 of the LNS and LAC interfaces and configure the
address.
[Nortel] interface ethernet2/0/0
[Nortel-Ethernet2/0/0] ip address 10.1.1.3 255.255.255.0
[Nortel-Ethernet2/0/0] quit
# Create a virtual template for the L2TP group.
[Nortel] interface virtual-template 1
[Nortel-Virtual-Template1] ip address 35.1.1.1 255.255.255.0
[Nortel-Virtual-Template1] mtu 1450
[Nortel-Virtual-Template1] ppp authentication-mode pap
[Nortel-Virtual-Template1] quit
# Create a loopback interface for the L2TP group.
[Nortel] interface LoopBack 0
[Nortel-LoopBack0] ip address 100.1.1.1 255.255.255.255
[Nortel-LoopBack0] quit
# Create an L2TP group and configure its attributes (consistent with that on the LAC
side).
1-14
Nortel Networks Inc.
Issue 5.3 (19 January 2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
1 L2TP troubleshooting
[Nortel] l2tp enable
[Nortel] l2tp domain suffix-separator @
[Nortel] l2tp-group 1
[Nortel-l2tp1] tunnel name LNS
[Nortel-l2tp1] allow l2tp virtual-template 1
[Nortel-l2tp1] tunnel authentication
[Nortel-l2tp1] tunnel password simple 12345
[Nortel-l2tp1] tunnel destination loopback 0
# When the Nortel LAC device is connected with the device of another company, the
user authentication on the LNS side uses LCP renegotiation. You can configure the
Nortel LAC device according to your actual requirements.
[Nortel-l2tp1] mandatory-lcp
[Nortel-l2tp1] quit
# Create two domains and configure the corresponding address pool in the domain.
[Nortel] aaa
[Nortel-aaa] domain 263.net
[Nortel-aaa-domain-263.net] binding virtual-template 8
[Nortel-aaa-domain-263.net] ip pool 8 8.1.1.2 8.1.1.10
[Nortel-aaa-domain-263.net] quit
[Nortel-aaa] domain 163.net
[Nortel-aaa-domain-163.net] binding virtual-template 9
[Nortel-aaa-domain-163.net] ip pool 9 9.1.1.2 9.1.1.10
[Nortel-aaa] quit
# Create two VPN instances.
[Nortel] ip vpn-instance vpn1
[Nortel–vpn-instance-vpn1] route-distinguisher 1:10
[Nortel–vpn-instance-vpn1] vpn-target 1:10 export-extcommunity
[Nortel–vpn-instance-vpn1] vpn-target 1:10 import-extcommunity
[Nortel–vpn-instance-vpn1] quit
[Nortel] ip vpn-instance vpn2
[Nortel–vpn-instance-vpn2] route-distinguisher 1:11
[Nortel–vpn-instance-vpn2] vpn-target 1:11 export-extcommunity
[Nortel–vpn-instance-vpn2] vpn-target 1:11 import-extcommunity
[Nortel-vpn-instance-vpn2] quit
# Create two corresponding virtual templates and bind them with VPN instances.
[Nortel] interface virtual-template 8
[Nortel-Virtual-Template8] ip binding vpn-instance vpn1
[Nortel-Virtual-Template8] ip address 8.1.1.1 255.255.255.0
[Nortel-Virtual-Template8] mtu 1450
[Nortel-Virtual-Template8] remote address pool 8
[Nortel-Virtual-Template8] ppp authentication-mode pap
[Nortel-Virtual-Template8] quit
[Nortel] interface virtual-template 9
[Nortel-Virtual-Template9] ip binding vpn-instance vpn2
[Nortel-Virtual-Template9] ip address 9.1.1.1 255.255.255.0
[Nortel-Virtual-Template9] mtu 1450
[Nortel-Virtual-Template9] remote address pool 9
[Nortel-Virtual-Template9] ppp authentication pap
[Nortel-Virtual-Template9] quit
Issue 5.3 (19 January 2009)
Nortel Networks Inc.
1-15
Nortel Secure Router 8000 Series
Troubleshooting - VPN
1 L2TP troubleshooting
# Create two user names and passwords.
[Nortel-aaa] local-user [email protected] password simple 11111
[Nortel-aaa] local-user [email protected] password simple 22222
In the preceding configuration, you need to modify the AAA configuration if the LNS end
uses RADIUS authentication.
1.3.3 Diagnostic flowchart
The diagnostic flowchart is the same as the flowchart shown in Figure 1-4.
1.3.4 Troubleshooting procedure
The troubleshooting procedure is as follows:
Step 1 Check faults by using the steps in “VPDN troubleshooting on the L2TP.”
Step 2 Check that the correct VPN instances are bound on the VT on the LNS side.
Step 3 Check that the correct VT is bound in the AAA domain.
----End
1.4 Troubleshooting cases
1.4.1 The session disconnects as soon as it is set up
Networking environment
Figure 1-6 Networking of the disconnection of the L2TP session
Modem
PC1
WAN
PSTN
RouterB
RouterA
Tunnel
ISDN
LAC
LNS
Server
headquarter
PC2
Fault symptom
The sessions on both the LAC and LNS sides disconnect as soon as they are set up.
1-16
Nortel Networks Inc.
Issue 5.3 (19 January 2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
1 L2TP troubleshooting
Fault analysis
The establishment of the session indicates that LAC and LNS are reachable. It also indicates
that the request for the connection with the L2TP is initiated. Faults on the LNS may cause the
disconnection of the session.
Enable debugging of the L2TP control on the LNS. By verifying the debugging information,
you can determine whether the session is disconnected when the interface receives the Call
Down message.
When you enable debugging of PPP on the LNS by using the debugging ppp all command,
you can find abnormalities.
*0.2426289 Nortel PPP/8/debug2:Slot=1;
PPP Event:
Virtual-Template1:0 : Ask AAA peer's IP address
*0.2426417 Nortel PPP/8/debug2:Slot=1;
PPP Event:
Virtual-Template1:0 : WaitPeerIP Timer starting
*0.2426545 Nortel PPP/8/debug2:Slot=1;
PPP Event:
Virtual-Template1:0 : Receive Peer's IP address 0.0.0.0 from AAA
*0.2426705 Nortel PPP/8/debug2:Slot=1;
PPP Event:
Virtual-Template1:0 : WaitPeerIP Timer finished
*0.2426833 Nortel PPP/8/debug2:Slot=1;
The preceding information shows that the interface receives the IP address 0.0.0.0. To check
the configuration, see the procedure in the section “VPDN troubleshooting on the L2TP.” You
can find that the access user is the domain user and no configured address pool is in the
domain. Although the VT is bound with the address pool, the domain user applies for the IP
address from the address pool in the domain. So, when the application for the address and the
IPCP negotiation of the PPP fail, the session is disconnected.
Troubleshooting procedure
Step 1 View the L2TP debugging information to determine that the interface receives the Call Down
information.
Step 2 Viewing the PPP debugging information to determine that the interface does not apply for an
IP address.
Step 3 Based on the configuration in the debugging information, you can find that no address pool is
configured in the domain.
----End
Summary
The cause is a configuration error. To resolve the problem, you need to understand the
differences between common user access and domain user access.
Issue 5.3 (19 January 2009)
Nortel Networks Inc.
1-17
Nortel Secure Router 8000 Series
Troubleshooting - VPN
1 L2TP troubleshooting
1.5 FAQs
z
Q: Why is the interface on the LAC side unable to ping through the loopback
interface of the LNS?
A: A possible cause is that the LAC has no route to the loopback interface of the LNS.
z
Q: Why is the PPP negotiation between the user and the LAC unsuccessful?
A: A possible cause is that the authentication modes configured on the user and the LAC
are different (one is PAP and the other is CHAP).
z
Q: Why is the PPP negotiation between the user and the LNS unsuccessful?
A: The possible causes are as follows.
z
−
The configured address pool on the LNS end is too small or no address pool is
configured on the LNS end.
−
No corresponding user is configured on the LNS end.
−
The authentication of the tunnel between the LNS end and LAC does not pass.
−
The authentication of the VT and the user are different.
−
The IP address assigned by the LNS to the user conflicts with other addresses of the
user.
Q: The data cannot be transmitted although the connection is established. Why
does this occur?
A: The possible causes are as follows.
z
−
Either the Forward Information Base (FIB) entry of the loopback interface on the
LNS has no decapsulation mark or the FIB entry of the user route on the LNS has no
encapsulation mark.
−
Either network congestion or instability of the network quality occurs.
−
The user end is configured with the IP address, but the IP address is not in the same
network segment as the VT.
Q: What are the differences between agent authentication, enforced CHAP
authentication, and LCP renegotiation?
A: The LCP renegotiation has the highest authority. That is, if you configure the LCP
renegotiation and the enforced CHAP authentication at the same time, the L2TP uses the
LCP renegotiation in the mode configured on the VT.
The enforced CHAP authentication has the secondary priority. That is, if you configure
only the enforced CHAP authentication without the LCP renegotiation, the LNS end
authenticates the user in CHAP mode. If the authentication does not pass, the session
cannot be established.
The agent authentication has the lowest authority. That is, if you do not configure the
enforced CHAP authentication or the LCP renegotiation, the LNS uses the agent
authentication. With agent authentication, the LAC transmits all authentication
information it gets from the users and the authentication mode configured on the LAC
end to the LNS. The LNS authenticates the users by the information and the
authentication mode transmitted from the LAC end.
The relationship between agent authentication and the authentication mode configured
on the VT are is follows:
−
1-18
If you configure PAP authentication mode on LAC, while the authentication mode
configured on the VT on LNS is CHAP, the LAC cannot pass authentication because
the priority of CHAP on the LNS is higher.
Nortel Networks Inc.
Issue 5.3 (19 January 2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
−
1 L2TP troubleshooting
In other cases, the authentication mode sent by the LAC is used regardless of the type
of authentication mode configured on the VT.
When the LCP is configured for renegotiation and no authentication is configured on the
VT, the user is authenticated once. In other cases, the user is authenticated twice.
z
Q: What is the process of the L2TP tunnel authentication?
A: If two ends are configured with tunnel authentication, the L2TP tunnel authentication
process is as follows. The tunnel authentication and the tunnel establishment are
performed simultaneously.
z
−
When the LAC sends the request for SCCRQ to the LNS, a random character string is
generated and sent to the LNS as the local CHAP challenge.
−
After the LNS receives the challenge, it generates a new character string by adding
the locally configured password and SCCRP to the random character string,
determines a 16-byte response by MD5, and sends the response in the SCCRP
message with one random character string LNS Challenge to the LAC.
−
The LAC adds the locally configured password and the SCCRP to its CHAP
challenge to generate a new character string. The LAC determines a 16-byte character
string by MD5. The LAC compares the 16-byte character string with the LNS CHAP
response received from the SCCRP. If they are identical, the LNS passes the
authentication. Otherwise, the tunnel is disconnected.
−
The LNS authenticates the LAC in the same way: After the LAC finds the LNS
CHAP challenge in the SCCRP, it adds the local password and the SCCN to the
character string to generate a new character string. The LAC determines a 16-byte
character string by MD5 and sends it, as the LAC CHAP response, to the LNS in the
SCCCN message.
−
After the LNS receives the SCCCN message, it adds the local password and the
SCCCN to the local CHAP challenge to make a character string. Then the LNS
determines a 16-byte character string by MD5 and compares it with the LAC CHAP
response received from the SCCCN message. If they are identical, the LAC passes
the authentication; if not, the tunnel is disconnected.
Q: Are there special considerations if the LNS end is a Nortel router and the LAC
end is not?
A: It is possible that the LNS end does not support certain parameters that are obtained
through PPP prenegotiation between the LAC end and the client end, so the PPP session
on the LNS end cannot be established. You need to configure the parameters of the PPP
renegotiation on the LNS end and force the LNS and the client end to perform the PPP
negotiation.
z
Q: Are there special considerations if the LAC end is a Nortel router and the LNS
end is not?
A: It is possible that the LAC end does not support certain parameters that are obtained
through PPP prenegotiation between the LNS end and the client end, so the PPP session
on the LAC end cannot be established. During configuration, examine the parameters of
the negotiation between the LNS end and the client end and ensure that these parameters
are supported.
Issue 5.3 (19 January 2009)
Nortel Networks Inc.
1-19
Nortel Secure Router 8000 Series
Troubleshooting - VPN
1 L2TP troubleshooting
1.6 Diagnostic tools
1.6.1 Display commands
Command
Description
display l2tp tunnel
Displays the L2TP tunnel.
display l2tp session
Displays the L2TP session.
display access-user
Displays the access user.
display current-configuration
configuration | include l2tp
Displays the current L2TP configuration.
display current-configuration
configuration aaa
Displays the current AAA configuration.
display current-configuration
interface
Displays the current interface configuration.
display l2tp tunnel
<Nortel> display l2tp tunnel
Total tunnel = 1
LocalTID RemoteTID RemoteAddress Port Sessions RemoteName
2
22849
11.1.1.1
1701
1
lns
Table 1-1 Description of the output of the display L2tp tunnel command
Item
Description
Total tunnel
The number of tunnels
LocalTID
The ID of the local tunnel
RemoteTID
The ID of the remote tunnel
RemoteAddress
The remote IP address
Port
The number of the remote interface
Sessions
The number of sessions on the tunnel
Remote Name
The name of the remote end
display l2tp session
<Nortel> display l2tp session
LocalSID
1
RemoteSID
LocalTID
1
2
Total session = 1
1-20
Nortel Networks Inc.
Issue 5.3 (19 January 2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
1 L2TP troubleshooting
Table 1-2 Description of the output of the display L2tp session command
Item
Description
Total session
The number of sessions
LocalSID
The ID of the local session (the only identifier
of the session)
RemoteSID
The ID of the remote session (the only
identifier of the session)
LocalTID
The number of the local identifier
display access-user
# Check the information about the access user.
<Nortel> display access-user
--------------------------------------------------------------------------Total
users
: 1
Wait authen-ack
: 0
Authentication success
: 1
Accounting ready
: 1
Accounting state
: 0
Wait leaving-flow-query
: 0
Wait accounting-start
: 0
Wait accounting-stop
: 0
Wait authorization-client
: 0
Wait authorization-server
: 0
------------------------------------------------------------------Domain-name
Online-user
------------------------------------------------------------------default
: 0
home
: 1
------------------------------------------------------------------The used CID table are
:5
---------------------------------------------------------------------
The preceding information indicates that one access user belongs to the home domain and its
ID is 5.
# Check the information about the access user (specify the ID of the user).
<Nortel-aaa> display access-user user-id 5
------------------------------------------------------------------User access index
: 5
State
: Used
User name
: [email protected]
User access VLAN/PVC
: 0
User MAC
: ffff-ffff-ffff
User IP address
: 120.1.1.11
Vpn-Instance
: Public
User access type
: PPP
User authentication type
Current authen method
Issue 5.3 (19 January 2009)
: PPP authentication
: Local authentication
Nortel Networks Inc.
1-21
Nortel Secure Router 8000 Series
Troubleshooting - VPN
1 L2TP troubleshooting
Authen result
: Success
Current author method
: Local authorization
Author result
: Success
Action flag
: Idle
Authen state
: Authed
Author state
: Idle
Accounting method
: No accounting
Accounting start time
: 2005-11-25 09:04:45
Accounting state
: Ready
ACL-number
: -
Priority
: -
Up CAR enable
: NO
Up average rate
: 0(bps)
Up peak rate
: 0(bps)
Down CAR enable
: NO
Down average rate
: 0(bps)
Down peak rate
: 0(bps)
Up packets number(high,low)
: (0,20)
Up bytes number(high,low)
: (0,2360)
Down packets number(high,low) : (0,20)
Down bytes number(high,low)
: (0,1120)
-------------------------------------------------------------------
The preceding information shows detailed information about the user with the ID 5, including
the user name, the IP address, the AAA, the online time, and the traffic.
display current-configuration configuration | include l2tp
# Check the current L2TP configuration.
<Nortel> display current-configuration configuration | include l2tp
#
L2tp enable
#
l2tp-group 1
undo tunnel authentication
allow l2tp virtual-template 1
tunnel name lns
#
return
display current-configuration configuration aaa
# Check the current AAA configuration.
<Nortel> display current-configuration configuration aaa
#
aaa
local-user [email protected] password simple nortel
ip pool 1 120.1.1.2 120.1.1.10
#
authentication-scheme default
#
authorization-scheme default
#
accounting-scheme default
1-22
Nortel Networks Inc.
Issue 5.3 (19 January 2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
1 L2TP troubleshooting
#
domain default
domain home
ip pool 2 120.1.1.11 120.1.1.20
#
#
return
display current-configuration interface
# Check the current interface configuration.
<Nortel> display current-configuration interface
#
interface Pos1/0/0
clock master
link-protocol ppp
ip address 31.1.1.2 255.255.0.0
#
interface Virtual-Template1
ip address 120.1.1.1 255.255.0.0
# interface Pos1/0/0
ip address 19.60.1.12 255.0.0.0
#
return
1.6.2 Debugging commands
Command
Description
debugging l2tp all
Enables debugging of L2TP.
debugging l2tp control
Enables debugging of the L2TP control packet.
debugging l2tp dump
Enables debugging of the L2TP PPP packet.
debugging l2tp error
Enables debugging of L2TP errors.
debugging l2tp event
Enables debugging of L2TP events.
debugging l2tp hidden
Enables debugging of the Attribute Value Pair (AVP)
hidden by the L2TP.
debugging l2tp payload
Enables debugging of the L2TP data packet.
debugging l2tp timestamp
Enables debugging of the timestamp displayed by the
L2TP.
debugging ppp all
Checks the PPP debugging information about the
domain user access to the LNS end.
Example of L2TP debugging of the domain user access to the LNS end
<Nortel> debugging l2tp control
*0.2679317 Nortel L2TP/8/L2TDBG:Slot=1; L2TP::Recv mbuf vrfindex is 0
Issue 5.3 (19 January 2009)
Nortel Networks Inc.
1-23
Nortel Secure Router 8000 Series
Troubleshooting - VPN
1 L2TP troubleshooting
*0.2679393 Nortel L2TP/8/L2TDBG: L2TP::Proc Peer control type=1, len = 75
*0.2679473 Nortel L2TP/8/L2TDBG: L2TP::Tunnel 1 rcv SCCRQ in state 1 from 31.1.1.1
*0.2679569 Nortel L2TP/8/L2TDBG: L2TP::Tunnel 1 rcv SCCRQ fill vpn-index 0
*0.2679649 Nortel L2TP/8/L2TDBG: L2TP::Check SCCRQ MSG Type 1
*0.2679729 Nortel L2TP/8/L2TDBG: L2TP::Parse AVP Protocol version: 100
*0.2679809 Nortel L2TP/8/L2TDBG: L2TP::Parse AVP Host name, value: lac
*0.2679889 Nortel L2TP/8/L2TDBG: L2TP::Tunnel Password in l2tp Group:
*0.2679969 Nortel L2TP/8/L2TDBG: L2TP::Parse AVP Vendor name, value: Nortel
*0.2680049 Nortel L2TP/8/L2TDBG: L2TP::Parse AVP Framing capability : 3
*0.2680129 Nortel L2TP/8/L2TDBG: L2TP::Parse AVP Remote call number, value: 1
*0.2680225 Nortel L2TP/8/L2TDBG: L2TP::Parse AVP Receive window size, value: 128
*0.2680321 Nortel L2TP/8/L2TDBG: L2TP::Put AVP Message Type:
START_CONTROL_CONNECTION_REPLY
*0.2680417 Nortel L2TP/8/L2TDBG: L2TP::Put AVP Protocol version: 100
*0.2680497 Nortel L2TP/8/L2TDBG: L2TP::Put AVP Framing capability :3
*0.2680577 Nortel L2TP/8/L2TDBG: L2TP::Put AVP Host name: lns
*0.2680657 Nortel L2TP/8/L2TDBG: L2TP::Put AVP Assigned Tunnel ID: 1
*0.2680737 Nortel L2TP/8/L2TDBG: L2TP::Put AVP Bearer capability: 3
*0.2680817 Nortel L2TP/8/L2TDBG: L2TP::Put AVP Receive window size: 128
*0.2680897 Nortel L2TP/8/L2TDBG: L2TP:: O Tunnel 1 send START_CONTROL_CONNECTION_REPLY
to Tunnel 1
*0.2681025 Nortel L2TP/8/L2TDBG: L2TP::Tunnel 1 Create 60 seconds Hello timer
*0.2681121 Nortel L2TP/8/L2TDBG:Slot=1; L2TP::Recv mbuf vrfindex is 0
*0.2681201 Nortel L2TP/8/L2TDBG:Slot=1; L2TP::Recv mbuf vrfindex is 0
*0.2681281 Nortel L2TP/8/L2TDBG: L2TP::Proc Peer control type=3, len = 20
*0.2681361 Nortel L2TP/8/L2TDBG: L2TP::Tunnel 1 rcv SCCCN in state 3
*0.2681441 Nortel L2TP/8/L2TDBG: L2TP::Tunnel 1 Resume 60 second Hello timer
*0.2681521 Nortel L2TP/8/L2TDBG: L2TP::Check SCCCN MSG Type 3
*0.2681601 Nortel L2TP/8/L2TDBG: L2TP::Tunnel 1 Start Waiting Calls
*0.2681681 Nortel L2TP/8/L2TDBG: L2TP::Proc Peer control type=10, len = 68
*0.2681761 Nortel L2TP/8/L2TDBG: L2TP::Call 7834 recv ICRQ in state 2 from Call 0
*0.2681857 Nortel L2TP/8/L2TDBG: L2TP::Tunnel 1 Resume 60 second Hello timer
*0.2681937 Nortel L2TP/8/L2TDBG: L2TP::Check ICRQ MSG Type 10
*0.2682017 Nortel L2TP/8/L2TDBG: L2TP::Parse AVP Remote call ID 7256
*0.2682097 Nortel L2TP/8/L2TDBG: L2TP::Parse AVP Call serial number: 7256
*0.2682177 Nortel L2TP/8/L2TDBG: L2TP::Parse AVP Bearer type: 3
*0.2682257 Nortel L2TP/8/L2TDBG: L2TP::Parse AVP Physical channel ID:0
*0.2682337 Nortel L2TP/8/L2TDBG: L2TP::Parse AVP Dialed number: 8888
*0.2682417 Nortel L2TP/8/L2TDBG: L2TP::Put AVP Message Type: INCOMING_CALL_REPLY
*0.2682513 Nortel L2TP/8/L2TDBG: L2TP::Put AVP Assigned call ID: 7834
*0.2682593 Nortel L2TP/8/L2TDBG: L2TP::Call 7834 send INCOMING_CALL_REPLY to Remote Call
7256
*0.2682721 Nortel L2TP/8/L2TDBG:Slot=1; L2TP::Recv mbuf vrfindex is 0
*0.2682801 Nortel L2TP/8/L2TDBG: L2TP::Proc Peer control type=12, len = 139
*0.2682882 Nortel L2TP/8/L2TDBG: L2TP::Call 7834 rcv ICCN in state 5 from Remote Call
7256
*0.2682977 Nortel L2TP/8/L2TDBG: L2TP::Tunnel 1 Resume 60 second Hello timer
*0.2683057 Nortel L2TP/8/L2TDBG: L2TP::Check ICCN MSG Type 12
*0.2683137 Nortel L2TP/8/L2TDBG: L2TP::Parse AVP Tx connect speed: 64000
*0.2683217 Nortel L2TP/8/L2TDBG: L2TP::Parse AVP Framing type: 3
*0.2683297 Nortel L2TP/8/L2TDBG: L2TP::Parse AVP Initial recv lcp configure request:
5 6 20 E3 DA 8F
*0.2683425 Nortel L2TP/8/L2TDBG: L2TP::Parse AVP Last sent lcp configure request: 3 4
C0 23 5 6 0 25 E8 7F
1-24
Nortel Networks Inc.
Issue 5.3 (19 January 2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
1 L2TP troubleshooting
*0.2683553 Nortel L2TP/8/L2TDBG: L2TP::Parse AVP Last received lcp configure request:
5 6 20 E3 DA 8F
*0.2683681 Nortel L2TP/8/L2TDBG: L2TP::Parse AVP Proxy authenticate type 3.
*0.2683761 Nortel L2TP/8/L2TDBG: L2TP::Parse AVP Proxy authenticate name:[email protected]
*0.2683857 Nortel L2TP/8/L2TDBG: L2TP::Parse AVP Proxy authentication ID: 40435440.
*0.2683953 Nortel L2TP/8/L2TDBG: L2TP::Parse AVP Proxy authenticate response:31 32 33
*0.2684049 Nortel L2TP/8/L2TDBG: L2TP::Parse AVP Private group ID
*0.2684129 Nortel L2TP/8/L2TDBG: L2TP::Parse AVP (Rx)connect speed 64000
*0.2684209 Nortel L2TP/8/L2TDBG: L2TP::Call 7834 established , Send Call Struct to IO
slot 1
*0.2684305 Nortel L2TP/8/L2TDBG:Slot=1; L2TP::IPC Recv Src IPC ID=11 Dst node=7 Dst IPC
ID=11 Len=172
*0.2684433 Nortel L2TP/8/L2TDBG:Slot=1; L2TP::IPC rec data type=100 len=172
*0.2684513 Nortel L2TP/8/L2TDBG:Slot=1; L2TP::IPC Proc IPC data result 0
*0.2684609 Nortel L2TP/8/L2TDBG:Slot=1; L2TP::IO: Proc ctrl L2TP_INCALL_ESTABLISHED
from main
*0.2684721 Nortel L2TP/8/L2TDBG:Slot=1; L2TP::IO:: rec main establish call ID 7834 group
1 VT 1
*0.2684833 Nortel L2TP/8/L2TDBG: L2TP::IPC Recv Src IPC ID=11 Dst node=1 Dst IPC ID=11
Len=16
*0.2684945 Nortel L2TP/8/L2TDBG: L2TP::IPC rec data type=16 len=16
*0.2685025 Nortel L2TP/8/L2TDBG: L2TP::IPC Proc IPC data result 0
*0.2685105 Nortel L2TP/8/L2TDBG: L2TP::Put AVP Message Type: SET_LINK_INFO
*0.2685185 Nortel L2TP/8/L2TDBG: L2TP::Put AVP ACCM: 0 0
*0.2685249 Nortel L2TP/8/L2TDBG: L2TP:: O Call 7834 send SLI
*0.2685313 Nortel L2TP/8/L2TDBG:Slot=1; L2TP::IPC Recv Src IPC ID=11 Dst node=7 Dst IPC
ID=11 Len=1384
*0.2685441 Nortel L2TP/8/L2TDBG:Slot=1; L2TP::IPC rec data type=100 len=1384
*0.2685521 Nortel L2TP/8/L2TDBG:Slot=1; L2TP::IPC Proc IPC data result 0
*0.2685601 Nortel L2TP/8/L2TDBG:Slot=1; L2TP::IO: Proc ctrl L2TP_PHY_READY from main
*0.2685697 Nortel L2TP/8/L2TDBG:Slot=1; L2TP::LNS Virtual Access for Call :7834 UP
*0.2685793 Nortel L2TP/8/L2TDBG:Slot=1; L2TP::LNS Link IO Ctrl Recv Phy CMD 23
*0.2685889 Nortel L2TP/8/L2TDBG:Slot=1; L2TP::LNS Link IO Ctrl Recv Phy CMD 24
*0.2685985 Nortel L2TP/8/L2TDBG:Slot=1; L2TP::LNS Link IO Ctrl Recv Phy CMD 41
*0.2686081 Nortel L2TP/8/L2TDBG:Slot=1; L2TP::Send ACCM. CALL = 7834
*0.2686161 Nortel L2TP/8/L2TDBG:Slot=1; L2TP::IPC sent ctrl L2TP_INCALL_ESTABLISHED
len=16 result=0 to main
*0.2686289 Nortel L2TP/8/L2TDBG:Slot=1; L2TP::Recv mbuf vrfindex is 0
*0.2686369 Nortel L2TP/8/L2TDBG: L2TP::Proc Peer control len = 12
*0.2699426 Nortel L2TP/8/L2TDBG:Slot=1; L2TP::LNS Link IO Ctrl Recv Phy CMD 36
*0.2699521 Nortel L2TP/8/L2TDBG: L2TP::IPC Recv Src IPC ID=11 Dst node=1 Dst IPC ID=11
Len=16
*0.2699633 Nortel L2TP/8/L2TDBG: L2TP::IPC rec data type=4 len=16
*0.2699713 Nortel L2TP/8/L2TDBG: L2TP::IPC Proc IPC data result 0
*0.2699793 Nortel L2TP/8/L2TDBG: L2TP::Proc Call Down , Call in State 9
*0.2699873 Nortel L2TP/8/L2TDBG: L2TP::Put AVP Message Type: CALL_DISCONNECT_NOTIFY
*0.2699969 Nortel L2TP/8/L2TDBG: L2TP::Put AVP Result code: LOSS_OF_CARRIER
*0.2700049 Nortel L2TP/8/L2TDBG: L2TP::Put AVP Assigned call ID: 7834
*0.2700129 Nortel L2TP/8/L2TDBG: L2TP:: O Call 7834 send CALL_DISCONNECT_NOTIFY
*0.2700225 Nortel L2TP/8/L2TDBG: L2TP::Clean Call Structure ID = 7834
*0.2700305 Nortel L2TP/8/L2TDBG:Slot=1; L2TP::IPC Recv Src IPC ID=11 Dst node=7 Dst IPC
ID=11 Len=32
*0.2700417 Nortel L2TP/8/L2TDBG:Slot=1; L2TP::IPC rec data type=100 len=32
*0.2700497 Nortel L2TP/8/L2TDBG:Slot=1; L2TP::IPC Proc IPC data result 0
Issue 5.3 (19 January 2009)
Nortel Networks Inc.
1-25
Nortel Secure Router 8000 Series
Troubleshooting - VPN
1 L2TP troubleshooting
*0.2700577 Nortel L2TP/8/L2TDBG:Slot=1; L2TP::IPC sent ctrl L2tp down to main len=16
result=0 to main
*0.2700705 Nortel L2TP/8/L2TDBG:Slot=1; L2TP::IO: Proc ctrl L2TP_LNSINCALL_CLEAR from
main
*0.2700801 Nortel L2TP/8/L2TDBG:Slot=1; L2TP::Call 7834 Proc main call clear
*0.2700881 Nortel L2TP/8/L2TDBG:Slot=1; L2TP::LNS Link IO Ctrl Recv Phy CMD 2
*0.2700977 Nortel L2TP/8/L2TDBG:Slot=1; L2TP::LNS Link IO Ctrl Recv Phy CMD 11
*0.2701073 Nortel L2TP/8/L2TDBG:Slot=1; L2TP::IO:: Call clear 7834
*0.2701153 Nortel L2TP/8/L2TDBG:Slot=1; L2TP::Recv mbuf vrfindex is 0
*0.2701248 Nortel L2TP/8/L2TDBG: L2TP::Proc Peer control len = 12
Example of PPP debugging of the domain user access to the LNS end
<Nortel> debugging ppp all
*0.2347645 Nortel PPP/8/debug2:Slot=1;
PPP State Change:
Virtual-Template1:0 LCP : initial --> reqsent
*0.2347761 Nortel PPP/8/debug2:Slot=1;
PPP State Change:
Virtual-Template1:0 LCP : reqsent --> ackrcvd
*0.2347889 Nortel PPP/8/debug2:Slot=1;
PPP State Change:
Virtual-Template1:0 LCP : ackrcvd --> opened
*0.2348017 Nortel PPP/8/debug2:Slot=1;
PPP Event:
Virtual-Template1:0 : PPP Notify low layer to send remote accm 0 , local
accm 0 Packet
*0.2348193 Nortel PPP/8/debug2:Slot=1;
PPP Event:
Virtual-Template1:0 PAP Initial Event
state Initial
*0.2348337 Nortel PPP/8/debug2:Slot=1;
PPP Event:
Virtual-Template1:0 PAP AAA Result Event
state WaitAAA
*0.2348481 Nortel PPP/8/debug2:Slot=1;
PPP Packet:
Virtual-Template1:0 Output PAP(c023) Pkt, Len 52
State WaitAAA, code Ack(02), id 0, len 48
Msg Len: 43 Msg:Welcome to use Nortel ROUTER, Nortel Tech.
*0.2348769 Nortel PPP/8/debug2:Slot=1;
PPP State Change:
Virtual-Template1:0 PAP : WaitAAA --> ServerSuccess
*0.2348913 Nortel PPP/8/debug2:Slot=1;
PPP Event:
Virtual-Template1:0 : Ask AAA peer's IP address
*0.2349041 Nortel PPP/8/debug2:Slot=1;
PPP Event:
Virtual-Template1:0 : WaitPeerIP Timer starting
*0.2349169 Nortel PPP/8/debug2:Slot=1;
PPP Event:
Virtual-Template1:0 : Receive Peer's IP address 120.1.1.11 from AAA
*0.2349329 Nortel PPP/8/debug2:Slot=1;
PPP Event:
Virtual-Template1:0 : WaitPeerIP Timer finished
*0.2349457 Nortel PPP/8/debug2:Slot=1;
1-26
Nortel Networks Inc.
Issue 5.3 (19 January 2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
1 L2TP troubleshooting
PPP Event:
Virtual-Template1:0 IPCP Open Event
state initial
*0.2349601 Nortel PPP/8/debug2:Slot=1;
PPP State Change:
Virtual-Template1:0 IPCP : initial --> starting
*0.2349729 Nortel PPP/8/debug2:Slot=1;
PPP Event:
Virtual-Template1:0 IPCP Lower Up Event
state starting
*0.2349889 Nortel PPP/8/debug2:Slot=1;
PPP State Change:
Virtual-Template1:0 IPCP : starting --> reqsent
*0.2350017 Nortel PPP/8/debug2:Slot=1;
PPP Packet:
Virtual-Template1:0 Output IPCP(8021) Pkt, Len 14
State reqsent, code ConfReq(01), id 0, len 10
IP Address(3), len 6, val 78010101
*0.2350273 Nortel PPP/8/debug2:Slot=1;
PPP Packet:
Virtual-Template1:0 Input IPCP(8021) Pkt, Len 38
State reqsent, code ConfReq(01), id 1, len 34
IP Address(3), len 6, val 00000000
Primary DNS Server Address(81), len 6, val 00000000
Secondary DNS Server Address(83), len 6, val 00000000
Primary NBNS Server Address(82), len 6, val 00000000
Secondary NBNS Server Address(84), len 6, val 00000000
*0.2350833 Nortel PPP/8/debug2:Slot=1;
PPP Event:
Virtual-Template1:0 IPCP RCR-(Receive Config Bad Request) Event
state reqsent
*0.2351009 Nortel PPP/8/debug2:Slot=1;
PPP Packet:
Virtual-Template1:0 Output IPCP(8021) Pkt, Len 32
State reqsent, code ConfRej(04), id 1, len 28
Primary DNS Server Address(81), len 6, val 00000000
Secondary DNS Server Address(83), len 6, val 00000000
Primary NBNS Server Address(82), len 6, val 00000000
Secondary NBNS Server Address(84), len 6, val 00000000
%Oct 20 03:51:14 2005 Nortel IFNET/5/UPDOWN:Slot=1;PPP IPCP protocol on the interface
Virtual-Template1:0 turns in UP state
*0.2352256 Nortel PPP/8/debug2:Slot=1;
PPP Packet:
Virtual-Template1:0 Input IPCP(8021) Pkt, Len 14
State reqsent, code ConfAck(02), id 0, len 10
IP Address(3), len 6, val 78010101
*0.2352513 Nortel PPP/8/debug2:Slot=1;
PPP Event:
Virtual-Template1:0 IPCP RCA(Receive Config Ack) Event
state reqsent
*0.2352673 Nortel PPP/8/debug2:Slot=1;
PPP State Change:
Virtual-Template1:0 IPCP : reqsent --> ackrcvd
*0.2352801 Nortel PPP/8/debug2:Slot=1;
PPP Packet:
Issue 5.3 (19 January 2009)
Nortel Networks Inc.
1-27
Nortel Secure Router 8000 Series
Troubleshooting - VPN
1 L2TP troubleshooting
Virtual-Template1:0 Input IPCP(8021) Pkt, Len 14
State ackrcvd, code ConfReq(01), id 2, len 10
IP Address(3), len 6, val 00000000
*0.2353057 Nortel PPP/8/debug2:Slot=1;
PPP Event:
Virtual-Template1:0 IPCP RCR-(Receive Config Bad Request) Event
state ackrcvd
*0.2353233 Nortel PPP/8/debug2:Slot=1;
PPP Packet:
Virtual-Template1:0 Output IPCP(8021) Pkt, Len 14
State ackrcvd, code ConfNak(03), id 2, len 10
IP Address(3), len 6, val 7801010b
*0.2353489 Nortel PPP/8/debug2:Slot=1;
PPP Packet:
Virtual-Template1:0 Input IPCP(8021) Pkt, Len 14
State ackrcvd, code ConfReq(01), id 3, len 10
IP Address(3), len 6, val 7801010b
*0.2353745 Nortel PPP/8/debug2:Slot=1;
PPP Event:
Virtual-Template1:0 IPCP RCR+(Receive Config Good Request) Event
state ackrcvd
*0.2353921 Nortel PPP/8/debug2:Slot=1;
PPP Packet:
Virtual-Template1:0 Output IPCP(8021) Pkt, Len 14
State ackrcvd, code ConfAck(02), id 3, len 10
IP Address(3), len 6, val 7801010b
*0.2354177 Nortel PPP/8/debug2:Slot=1;
PPP State Change:
Virtual-Template1:0 IPCP : ackrcvd --> opened
*0.2354305 Nortel PPP/8/debug2:Slot=1;
PPP Packet:
Virtual-Template1:0 Input IP(0021) Pkt, Len 100
*0.2354433 Nortel PPP/8/debug2:Slot=1;
PPP Packet:
Virtual-Template1:0 Output IP(0021) Pkt, Len 60
1-28
Nortel Networks Inc.
Issue 5.3 (19 January 2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
Contents
2 GRE troubleshooting.................................................................................................................2-1
2.1 GRE overview...............................................................................................................................................2-2
2.1.1 Introduction to GRE.............................................................................................................................2-2
2.1.2 Related concepts of GRE .....................................................................................................................2-2
2.1.3 Applications of GRE ............................................................................................................................2-3
2.2 Troubleshooting GRE....................................................................................................................................2-4
2.2.1 Typical networking ..............................................................................................................................2-4
2.2.2 Configuration notes..............................................................................................................................2-4
2.2.3 Troubleshooting flowchart ...................................................................................................................2-7
2.2.4 Troubleshooting procedure ..................................................................................................................2-8
2.3 Troubleshooting cases .................................................................................................................................2-10
2.3.1 Ping of the peer tunnel fails although the network layer protocols on both ends are up....................2-11
2.3.2 PCs cannot ping through each other although tunnel interfaces on two ends can ping each other
successfully.................................................................................................................................................2-14
2.4 FAQs ...........................................................................................................................................................2-15
2.5 Diagnostic tools...........................................................................................................................................2-17
2.5.1 display commands..............................................................................................................................2-17
2.5.2 debugging commands ........................................................................................................................2-19
2.5.3 Alarms................................................................................................................................................2-21
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
i
Nortel Secure Router 8000 Series
Troubleshooting - VPN
Figures
Figure 2-1 Format of an encapsulated tunnel packet..........................................................................................2-2
Figure 2-2 Two networks interconnecting through the GRE tunnel...................................................................2-3
Figure 2-3 Typical GRE networking diagram ....................................................................................................2-4
Figure 2-4 GRE troubleshooting flowchart ........................................................................................................2-7
Figure 2-5 Networking diagram of the GRE troubleshooting I........................................................................2-11
Figure 2-6 Networking diagram of the GRE troubleshooting II.......................................................................2-14
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
iii
Nortel Secure Router 8000 Series
Troubleshooting - VPN
Tables
Table 2-1 Description of the display this command output .............................................................................2-18
Table 2-2 Description of the display this interface command output .............................................................2-18
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
v
Nortel Secure Router 8000 Series
Troubleshooting - VPN
2 GRE troubleshooting
2
GRE troubleshooting
About this chapter
The following table describes the contents of this chapter.
Section
Describes
2.1 GRE overview
This section provides the knowledge you need before you
troubleshoot the Generic Routing Encapsulation (GRE).
2.2 Troubleshooting GRE
This section provides notes about configuring GRE, the
GRE troubleshooting flowchart, and the troubleshooting
procedure in a typical GRE network.
2.3 Troubleshooting cases
This section presents several troubleshooting cases.
2.4 FAQs
This section lists frequently asked questions and their
answers.
2.5 Diagnostic tools
This section describes common diagnostic tools: display
commands, debugging commands, and alarms.
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
2-1
Nortel Secure Router 8000 Series
Troubleshooting - VPN
2 GRE troubleshooting
2.1 GRE overview
This section covers the following topics:
z
Introduction to GRE
z
Related concepts of GRE
z
Applications of GRE
2.1.1 Introduction to GRE
Generic Routing Encapsulation (GRE) encapsulates packets of any network layer, such as
Internetwork Packet Exchange (IPX), to enable their transmission by another network layer
protocol such as IP.
GRE is a Layer 3 virtual private network (VPN) tunneling protocol that provides a tunnel for
transparent transmission of various protocol packets.
A tunnel is a virtual point-to-point connection, and it can be considered as a virtual interface
that supports point-to-point (P2P) connections only. The virtual interface provides a path for the
transmission of data that can be encapsulated and decapsulated at both ends of the path.
2.1.2 Related concepts of GRE
Encapsulation and decapsulation of packets
Payload refers to the datagram received by the system for encapsulation and routing. The
payload is first added with a GRE header. That is, the payload is encapsulated into GRE packets.
The GRE packets are then encapsulated into IP packets to be transported over the IP layer.
Figure 2-1 shows the format of an encapsulated tunnel packet.
Figure 2-1 Format of an encapsulated tunnel packet
Delivery Header ( Transport Protocol )
GRE Header ( Encapsulation Protocol )
Payload Packet ( Passenger Protocol )
Transmission of packets
The transmission of packets in the tunnel involves encapsulation and decapsulation. Use Figure
2-2 as an example to describe the process.
2-2
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
2 GRE troubleshooting
Figure 2-2 Two networks interconnecting through the GRE tunnel
Group1
Group2
Internet
GRE tunnel
NortelA
NortelB
Encapsulation process
After receiving an IP datagram, the interface on Nortel A that connects with Group 1 sends the
datagram to the IP module for processing.
The IP module determines how to route this datagram based on the destination address
contained in the IP header. If the network with the network number 1f passes its destination
address (the virtual network ID of the tunnel), this datagram is sent to the tunnel interface of
that network.
After receiving this datagram, the GRE module encapsulates it and sends it to the IP module.
The IP module appends an IP header to the datagram and then sends it to the corresponding
network interface based on the packet destination address and the routing table.
Decapsulation process
The decapsulation process is the reverse of the encapsulation process.
After receiving an IP packet from the GRE tunnel interface, Nortel B checks for the destination
address of the packet. If the destination is found to be a local router, the IP header of the packet
is removed. According to the protocol field in the IP header, the packet is determined to be a
GRE packet and sent to the GRE module. After processing, the GRE module removes the GRE
header and sends the datagram to the IP module according to the protocol field. The IP module
then handles this datagram.
2.1.3 Applications of GRE
You can use GRE to perform the following functions:
z
Transmit packets from multiprotocol local networks over a backbone network that runs a
single protocol
z
Connect discontinuous subnets to extend the operation space of the network whose routing
protocol is limited in hops.
z
Build VPNs.
z
Resolve the defect of IPSec that cannot protect multicast packets in combination with
IPSec.
z
Provide two less strong security mechanisms, namely, checksum verification and key
verification.
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
2-3
Nortel Secure Router 8000 Series
Troubleshooting - VPN
2 GRE troubleshooting
2.2 Troubleshooting GRE
This section covers the following topics:
z
Typical networking
z
Configuration notes
z
Troubleshooting flowchart
z
Troubleshooting procedure
2.2.1 Typical networking
Figure 2-3 Typical GRE networking diagram
Nortel3
POS1/0/0
100.1.1.2/24
POS2/0/0
100.2.1.1/24
POS1/0/0
100.1.1.1/24
POS1/0/0
100.2.1.2/24
Nortel1
Nortel2
Tunnel
Tunnel1/0/0
30.1.1.1/24
POS1/0/0
10.1.1.2/24
Tunnel1/0/0
30.1.1.2/24
PC1
POS2/0/0
10.2.1.2/24
PC2
10.1.1.1/24
10.2.1.1/24
As shown in Figure 2-3:
z
A GRE tunnel is set up between Nortel 1 and Nortel 2.
z
Nortel 1 and Nortel 3 directly connect.
z
Nortel 2 and Nortel 3 directly connect.
2.2.2 Configuration notes
If you create a tunnel interface on a distributed device, configure the same slot numbers for the tunnel
interface and the tunnel source. Use the slot that sends out GRE packets to improve the forwarding
efficiency.
2-4
Item
Subitem
Notes
Configuring the
encapsulation
mode on both
ends of a tunnel
Tunnel
protocol
The encapsulation mode must be the same on both
ends of a tunnel.
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
2 GRE troubleshooting
Item
Subitem
Notes
Specifying the
source address of
the tunnel
Source
The source address of a tunnel is the IP address of the
physical interface that sends the GRE packets.
Specifying the
destination
address of the
tunnel
The source address of a tunnel can be
Destination
z
Source interface
z
IP address of the source interface
z
Another tunnel interface
The destination address of the tunnel is the IP address
of the interface that receives GRE packets.
You must specify the destination address as the IP
address of the destination end.
The source address and the destination address
uniquely identify a tunnel. These configurations must
be performed on both ends of a tunnel.
Assigning an IP
address for the
tunnel interface
IP address
If the tunnel supports dynamic routing protocols, you
must configure an IP address or configure
unnumbered IP addresses for the tunnel.
The IP address of the tunnel interface does not need to
be a public network address.
Configuring the
routes forwarded
by the tunnel
Static route or
dynamic route
The routes on both ends of a tunnel must use routes
that are forwarded by the tunnel to forward
GRE-encapsulated packets correctly. Configure static
or dynamic routes at both ends of the tunnel.
While you configure static routes, note that the
destination address is the address of the interface that
receives the packet without the GRE encapsulation.
The next hop is the address of the local tunnel
interface.
While you configure dynamic routes, you must enable
the dynamic protocol on both the tunnel interface and
the interface of the router that connects with the
private network. To ensure that the correct route is
chosen, do not choose the tunnel interface as the
outgoing interface.
Configuring the
GRE key
(optional)
GRE key
If the GRE key is required, configure the key on both
ends and specify the same key-number.
Use Figure 2-3 as an example to describe the notes about configuring GRE.
z
Configuring a tunnel interface on Nortel 1
# Assign an IP address for POS 1/0/0:
[Nortel1] interface pos 1/0/0
[Nortel1-Pos1/0/0] ip address 100.1.1.1 255.255.255.0
# Assign an IP address for the tunnel interface:
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
2-5
Nortel Secure Router 8000 Series
Troubleshooting - VPN
2 GRE troubleshooting
[Nortel1] interface tunnel 1/0/0
[Nortel1-Tunnel1/0/0] ip address 30.1.1.1 255.255.255.0
# Specify the source address of the tunnel.
z
Configuring the IP address of the interface that sends out packets as the source address::
[Nortel1-Tunnel1/0/0] source 100.1.1.1
z
Or setting the interface that sends out packets as the source address:
[Nortel1-Tunnel1/0/0] source pos 1/0/0
# Specify the destination address of the tunnel:
[Nortel1-Tunnel1/0/0] destination 100.2.1.2
z
Configuring a tunnel interface on Nortel 2
# Assign an IP address for POS 1/0/0:
[Nortel2] interface pos 1/0/0
[Nortel2-Pos1/0/0] ip address 100.2.1.2 255.255.255.0
# Assign an IP address for the tunnel:
[Nortel2] interface tunnel 1/0/0
[Nortel2-Tunnel1/0/0] ip address 30.1.1.2 255.255.255.0
# Specify the source address of the tunnel.
z
Configuring the IP address of the interface that sends out packets as the source address:
[Nortel2-Tunnel1/0/0] source 100.2.1.2
z
Or setting the interface that sends out packets as the source address:
[Nortel2-Tunnel1/0/0] source pos 1/0/0
# Specify the destination address of the tunnel:
[Nortel2-Tunnel1/0/0] destination 100.1.1.1
z
Configuring routes to enable communication between Nortel 1 and Nortel 2
# Configure a static route to Nortel 2 on Nortel 1:
[Nortel1] ip route-static 100.2.1.0 255.255.255.0 100.1.1.2
# Configure a static route to Nortel 1 on Nortel 2:
[Nortel2] ip route-static 100.1.1.0 255.255.255.0 100.2.1.1
z
Configuring carrier network routes or customer network routes forwarded by the tunnel
−
Configure carrier network routes forwarded by the tunnel:
[Nortel1] ip route-static 30.1.1.0 255.255.255.0 tunnel 1/0/0
[Nortel2] ip route-static 30.1.1.0 255.255.255.0 tunnel 1/0/0
−
Or configure customer network routes forwarded by the tunnel:
[Nortel1] ip route-static 10.2.1.0 255.255.255.0 tunnel 1/0/0
[Nortel2] ip route-static 10.1.1.0 255.255.255.0 tunnel 1/0/0
2-6
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
2 GRE troubleshooting
2.2.3 Troubleshooting flowchart
Figure 2-4 shows the troubleshooting flowchart.
Figure 2-4 GRE troubleshooting flowchart
Ping of the
peer tunnel
fails
Network
layer protocol
Up
No
Encapsulation
modes are
same
No Configure same
encapsulation
modes
Network
Yes
layer protocol
Up
No
Yes
Yes
Tunnel
interface
complete and
correct
No
Configure
complete and
correct tunnel
interfaces
Yes
Network
layer protocol
Up
Yes
Route exists
No
between source &
destination
No
Configure route
between source
& destination
Network
Yes
layer protocol
Up
No
Yes
Seek technical
support
No
GRE keys are
consistent
No
Configure same
key number or
do not configure
on both ends
Yes
Route of
peer tunnel on
two ends
Ping
through the peer
tunnel
Ping
Yes
through the peer
tunnel
Yes
No
No Configure route
to the peer
tunnel
Yes
Ping
through the peer
tunnel
End
No
Yes
Seek technical
support
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
2-7
Nortel Secure Router 8000 Series
Troubleshooting - VPN
2 GRE troubleshooting
2.2.4 Troubleshooting procedure
This section provides the troubleshooting steps.
Two different situations are possible.
Network layer protocol of one end or both ends of the tunnel interface is down
Step 1 Check that both ends of the tunnel use a consistent encapsulation type.
Run the display this interface command in the tunnel interface view to check the
encapsulation type. View the display of the tunnel interface to find the encapsulation type on
both ends of the tunnel. The sample display is as follows:
[Nortel1-Tunnel1/0/0] display this interface
Tunnel1/0/0 current state : UP
Line protocol current state : UP
Description : Nortel Series, Tunnel1/0/0 Interface, Route Port
The Maximum Transmit Unit is 1500 bytes
Internet Address is 30.1.1.1/24
Encapsulation is TUNNEL, loopback not set
Tunnel source 100.1.1.1 (Serial1/0/0), destination 100.2.1.2
Tunnel protocol/transport GRE/IP , key disabled
Checksumming of packets disabled
QoS max-bandwidth : 64 Kbps
Output queue : (Urgent queue : Size/Length/Discards)
0/50/0
Output queue : (Protocol queue : Size/Length/Discards) 0/1000/0
Output queue : (FIFO queuing : Size/Length/Discards)
0/75/0
5 minutes input rate 0 bytes/sec, 0 packets/sec
5 minutes output rate 0 bytes/sec, 0 packets/sec
0 packets input,
0 bytes
0 input error
0 packets output,
0 bytes
0 output error
The tunnel currently supports three types of encapsulation:
z
GRE (default type)
z
IPv6-IPv4
z
Multiprotocol Label Switching (MPLS) Traffic Engineering (TE)
You can find that the tunnel uses GRE encapsulation by viewing the information in boldface in
the display.
If the same encapsulation type is set at both ends, go to step 2.
Step 2 Check that IP addresses, source addresses, and destination addresses are correct on the tunnel
interfaces on both ends.
The source address of one end is the destination address of another end and the destination
address of one end is the source address of another end. Otherwise, a tunnel cannot establish
because a source and a destination address together identify a unique tunnel.
Run the display this command in the tunnel interface view to check the configuration at both
ends of the tunnel.
For example, the correct tunnel configuration for Figure 2-3 is as follows:
2-8
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
2 GRE troubleshooting
# Tunnel configuration on Nortel 1
[Nortel1-Tunnel1/0/0] display this
#
interface Tunnel1/0/0
ip address 30.1.1.1 255.255.255.0
source 100.1.1.1
destination 100.2.1.2
#
return
# Tunnel configuration on Nortel 2
[Nortel2-Tunnel1/0/0] display this
#
interface Tunnel1/0/0
ip address 30.1.1.2 255.255.255.0
source 100.2.1.2
destination 100.1.1.1
#
return
If the display shows that both ends reverse the source address and the destination address, then
run the display this interface command in the tunnel interface view. Go to the next step, if you
find that Line protocol current state is down; it indicates that the tunnel status is down.
Step 3 Check that reachable routes exist between the tunnel source and destination addresses.
If the tunnel interface configuration at both ends is correct, but the status of the tunnel is still
down, check for reachable routes between the source and destination interfaces of the tunnel.
z
If the two interfaces do not directly connect, check for the route to the remote tunnel
interface on each interface.
z
If the two interfaces directly connect, no problem exists with routes.
Use the display ip routing-table command to check the routing table. If the table is correct, use
the display fib command to view the Forwarding Information Base (FIB) table to see whether
the data is forwarded correctly. The FIB must be consistent with the routing table.
Use Nortel 1 and Nortel 2 shown in Figure 2-3 as an example.
The output of the display fib command on Nortel 1 is as follows:
FIB Table:
Total number of Routes : 10
Destination/Mask
Nexthop
Flag TimeStamp
Interface
Token
127.0.0.1/32
127.0.0.1
HU
t[0]
InLoop0
0x0
127.0.0.0/8
127.0.0.1
U
t[0]
InLoop0
0x0
100.1.1.1/32
127.0.0.1
HU
t[0]
InLoop0
0x0
100.1.1.0/24
100.1.1.1
U
t[0]
Pos1/0/0
0x0
10.1.1.2/32
127.0.0.1
HU
t[0]
InLoop0
0x0
10.1.1.0/24
10.1.1.2
U
t[0]
Pos2/0/0
0x0
30.1.1.1/32
127.0.0.1
HU
t[0]
InLoop0
0x0
30.1.1.0/24
30.1.1.1
U
t[0]
Tun1/0/0
0x0
Flag TimeStamp
Interface
Token
The display of Nortel 2 is as follows:
FIB Table:
Total number of Routes : 10
Destination/Mask
Issue 5.3 (30 March 2009)
Nexthop
Nortel Networks Inc.
2-9
Nortel Secure Router 8000 Series
Troubleshooting - VPN
2 GRE troubleshooting
127.0.0.1/32
127.0.0.1
HU
t[0]
InLoop0
0x0
127.0.0.0/8
127.0.0.1
U
t[0]
InLoop0
0x0
100.2.1.2/32
127.0.0.1
HU
t[0]
InLoop0
0x0
100.2.1.0/24
100.2.1.2
U
t[0]
Pos1/0/0
0x0
10.2.1.2/32
127.0.0.1
HU
t[0]
InLoop0
0x0
10.2.1.0/24
10.2.1.2
U
t[0]
Pos2/0/0
0x0
30.1.1.2/32
127.0.0.1
HU
t[0]
InLoop0
0x0
30.1.1.0/24
30.1.1.2
U
t[0]
Tun1/0/0
0x0
The preceding FIB shows that Nortel 1 has no route to Nortel 2 on the network segment
100.2.1.0; Nortel 2 has no route to Nortel 1 on the network segment 100.1.1.0. Therefore, the
status of the tunnel interface at both ends is down, and the two ends cannot ping each other.
Configure a static route or dynamic routing protocol on Nortel 1 and Nortel 2 respectively.
Then, Nortel 1 has routes from 100.1.1.0 to 100.2.1.0; Nortel 2 has routes from 100.2.1.0 to
100.1.1.0.
----End
If the network layer protocol is still down, contact Nortel technical personnel.
If the network layer protocol on both ends of the tunnel interface changes to up but the ping of
the peer tunnel fails, perform the troubleshooting steps in the following section.
Network layer protocols on both ends of the tunnel interface are up
Step 1 Check that the configurations of the GRE keys on both ends are consistent.
Use the display interface tunnel interface-number command on both ends to check that the
GRE keys are consistent.
The correct configuration is one of the following two situations:
z
No GRE key is configured on either end.
z
The same key-number is configured on both ends.
If the configuration is correct but the two ends cannot ping through each other, perform as
follows.
Step 2 Check that reachable routes exist between the tunnel interfaces.
After you complete the previous step, the tunnel status at both ends is up and the physical
interface can ping through each other. But you cannot ping the tunnel interface successfully.
Check whether the IP addresses of the tunnel interfaces on both ends are on the same network
segment; if not, configure routes to the IP address of the remote tunnel interface.
----End
If the GRE tunnel fault persists, contact Nortel technical personnel.
2.3 Troubleshooting cases
This section provides the following troubleshooting cases:
z
2-10
Ping of the peer tunnel fails although the network layer protocols on both ends are up
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
z
2 GRE troubleshooting
PCs cannot ping through each other although tunnel interfaces on two ends can ping each
other successfully
2.3.1 Ping of the peer tunnel fails although the network layer
protocols on both ends are up
Fault symptom
Figure 2-5 Networking diagram of the GRE troubleshooting I
Loopback1
1.1.1.1/32
Loopback1
2.2.2.2/32
network
Nortel1
Nortel2
GRE Tunnel
Tunnel1/0/0
11.1.1.1/24
Tunnel1/0/0
21.1.1.1/24
The network layer protocols on both ends of the GRE tunnel are up. But, Tunnel 1/0/0 on Nortel
1 and Tunnel 1/0/0 on Nortel 2 cannot ping through each other.
Fault analysis
The possible causes are as follows:
z
The GRE keys on both ends are inconsistent.
z
The IP addresses of the tunnel interfaces on two ends are not in the same network segment
and no reachable route exists between two ends of the tunnel
Use the display interface tunnel interface-number command on both ends to check whether
the GRE keys are consistent.
The output of the command on Nortel 1 is as follows:
[Nortel1] display interface Tunnel 1/0/0
Tunnel1/0/0 current state : UP
Line protocol current state : UP
Description : Nortel Series, Tunnel1/0/0 Interface
The Maximum Transmit Unit is 1000 bytes
Internet Address is 11.1.1.1/24
Encapsulation is TUNNEL, loopback not set
Tunnel source 1.1.1.1 (LoopBack1), destination 2.2.2.2
Tunnel protocol/transport GRE/IP , key 0x2
linkalive disabled
Checksumming of packets disabled
QoS max-bandwidth : 64 Kbps
Output queue : (Urgent queue : Size/Length/Discards)
0/50/0
Output queue : (Protocol queue : Size/Length/Discards) 0/1000/0
Output queue : (FIFO queuing : Size/Length/Discards)
0/256/0
5 minutes input rate 0 bytes/sec, 0 packets/sec
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
2-11
Nortel Secure Router 8000 Series
Troubleshooting - VPN
2 GRE troubleshooting
5 minutes output rate 0 bytes/sec, 0 packets/sec
0 packets input,
0 bytes
0 input error
0 packets output,
0 bytes
0 output error
The output of the command on Nortel 2 is as follows:
[Nortel2] display interface Tunnel 1/0/0
Tunnel1/0/0 current state : UP
Line protocol current state : UP
Description : Nortel Series, Tunnel1/0/0 Interface
The Maximum Transmit Unit is 1000 bytes
Internet Address is 21.1.1.1/24
Encapsulation is TUNNEL, loopback not set
Tunnel source 2.2.2.2 (LoopBack1), destination 1.1.1.1
Tunnel protocol/transport GRE/IP , key disabled
linkalive disabled
Checksumming of packets disabled
QoS max-bandwidth : 64 Kbps
Output queue : (Urgent queue : Size/Length/Discards)
0/50/0
Output queue : (Protocol queue : Size/Length/Discards) 0/1000/0
Output queue : (FIFO queuing : Size/Length/Discards)
0/256/0
5 minutes input rate 0 bytes/sec, 0 packets/sec
5 minutes output rate 0 bytes/sec, 0 packets/sec
0 packets input,
0 bytes
0 input error
0 packets output,
0 bytes
0 output error
From the preceding output, you can see that Nortel 1 uses the GRE key with the key number 2;
while Nortel 2 does not use a GRE key.
Perform one of the following configurations to remove the fault:
z
Use the undo gre key command on Nortel 1 to disable the GRE key.
z
Use the gre key2 command on Nortel 2 to enable the GRE key.
If you cannot remove the fault, run the display this command in the interface view on both ends
of the tunnel to view the IP addresses of the two ends.
The display on Nortel 1 is as follows:
#
interface Tunnel1/0/0
ip address 11.1.1.1 255.255.255.0
source LoopBack1
destination 2.2.2.2
gre key 2
mtu 1000
#
The display on Nortel 2 is as follows:
#
interface Tunnel1/0/0
ip address 21.1.1.1 255.255.255.0
source LoopBack1
2-12
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
2 GRE troubleshooting
destination 1.1.1.1
gre key 2
#
From the preceding display, you can see that the IP addresses of both ends are 24-bit. They IP
addresses are not in the same network segment: one is 11.1.1.1 and the other is 21.1.1.1.
Use the display fib command on both ends to check whether the route to the peer Tunnel 1/0/0
is configured on both ends.
The display on Nortel 1 is as follows:
FIB Table:
Total number of Routes : 11
Destination/Mask
Nexthop
Flag TimeStamp
Interface
TunnelID
127.0.0.1/32
127.0.0.1
HU
t[138]
InLoop0
0x0
127.0.0.0/8
127.0.0.1
U
t[138]
InLoop0
0x0
1.1.1.1/32
127.0.0.1
HU
t[140437]
InLoop0
0x0
172.2.6.1/32
127.0.0.1
HU
t[407843]
InLoop0
0x0
172.2.6.0/24
172.2.6.1
U
t[407843]
Eth4/2/0
0x0
172.2.4.0/24
172.2.6.2
DGU
t[442303]
Eth4/2/0
0x0
2.2.2.2/32
172.2.6.2
DGHU t[442303]
Eth4/2/0
0x0
11.1.1.1/32
127.0.0.1
HU
t[494003]
InLoop0
0x0
11.1.1.0/24
11.1.1.1
U
t[494003]
Tun1/0/0
0x0
The display on Nortel 2 is as follows:
FIB Table:
Total number of Routes : 13
Destination/Mask
Nexthop
Flag TimeStamp
Interface
Token
127.0.0.1/32
127.0.0.1
HU
t[0]
InLoop0
0x0
127.0.0.0/8
127.0.0.1
U
t[0]
InLoop0
0x0
172.2.4.1/32
127.0.0.1
HU
t[0]
InLoop0
0x0
21.1.1.1/32
127.0.0.1
HU
t[0]
InLoop0
0x0
2.2.2.2/32
127.0.0.1
HU
t[0]
InLoop0
0x0
172.2.4.0/24
172.2.4.1
U
t[0]
Eth3/2/0
0x0
172.2.6.0/24
172.2.4.2
DGU
t[0]
Eth3/2/0
0x0
1.1.1.1/32
172.2.4.2
DGHU t[0]
Eth3/2/0
0x0
From the preceding display, you can see that no route to the remote tunnel interface is
configured on both ends. Therefore, configure the route to peer Tunnel 1/0/0 on both ends:
z
Configure ip route-static 21.1.1.0 24 tunnel 1/0/0 on Nortel 1.
z
Configure ip route-static 11.1.1.0 24 tunnel 1/0/0 on Nortel 2.
After you complete the configuration, on both Nortel 1 and Nortel 2, ping their peer Tunnel
1/0/0 separately and receive the response packets. A GRE tunnel establishes normally.
If the fault persists after the preceding configuration, contact Nortel technical personnel.
Troubleshooting procedure
Step 1 Check that the GRE keys are consistent on both ends of the tunnel interface.
Step 2 Check that the route to the peer tunnel interface is configured on both ends.
----End
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
2-13
Nortel Secure Router 8000 Series
Troubleshooting - VPN
2 GRE troubleshooting
Summary
Because the network layer protocols of the tunnel interfaces on both ends of the GRE tunnel are
up does not guarantee that the GRE tunnel is configured correctly. Two additional requirements
exist:
z
The GRE keys on both ends are consistent.
z
The route to the peer tunnel interface is configured on both ends.
2.3.2 PCs cannot ping through each other although tunnel
interfaces on two ends can ping each other successfully
Fault symptom
Figure 2-6 Networking diagram of the GRE troubleshooting II
Router3
Tunnel
Tunnel1/0/0
PC1
Tunnel2/0/0
Nortel1
Nortel2
10.1.1.1/16
PC2
10.2.1.1/16
In Figure 2-6, the interfaces on both ends of the tunnel are configured correctly and they can
ping each other successfully. However, PC1 and PC2 cannot ping through each other.
Fault analysis
The possible causes are:
z
No route to PC1 exists on Nortel 1.
z
No route to PC2 exists on Nortel 2.
z
PC1 does not specify Nortel 1 as its default gateway.
z
PC2 does not specify Nortel 2 as its default gateway.
Use the display ip routing-table command on Nortel 1 and Nortel 2 to view:
z
Whether a route passes through Tunnel 1/0/0 to 10.2.0.0/16 on Nortel 1.
z
Whether a route passes through Tunnel 2/0/0 to 10.1.0.0/16 on Nortel 2.
If the two routes do not exist, use the ip route-static command in the system view to configure
them.
For example, on Nortel 1, the configuration command is [Nortel1] ip route-static 10.2.0.0
255.255.0.0 tunnel 1/0/0.
After you complete the configuration, ping the peer tunnel on Nortel 1 and Nortel 2 to receive
the response packets.
2-14
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
2 GRE troubleshooting
If the PCs cannot ping through each other, check that PC1 specifies Nortel 1 as the default
gateway and PC2 specifies Nortel 2 as the default gateway.
Troubleshooting procedure
Step 1 Check that a route passes through Tunnel 1/0/0 to 10.2.0.0/16 on Nortel 1.
Step 2 Check that a route passes through Tunnel 2/0/0 to 10.1.0.0/16 on Nortel 2.
Step 3 Check that PC1 specifies Nortel 1 as its default gateway.
Step 4 Check that PC2 specifies Nortel 2 as its default gateway.
----End
Summary
To ensure that the GRE encapsulated packet forwards normally, routes must pass through the
tunnel on both the source router and the destination router.
2.4 FAQs
Q: The system supports specifying the source address of the tunnel by using the
source interface. When I use this method, the tunnel status is not up. After
running the display this interface command in the interface view, I find that the
tunnel source is 0.0.0.0. Why?
A: The cause is that no IP address is specified for the tunnel source interface.
Assign an IP address for the source interface and specify this interface as the source address of
the tunnel.
Q: Why is the tunnel status not up after completing these steps: following the
sequence of configuring an IP address for the tunnel, specifying IP addresses for
the source and destination, and specifying the IP address for the source interface
while configuring a tunnel?
A: The possible cause is that two tunnels are established by using the same source and
destination addresses.
One tunnel uses the IP address as the tunnel source address and the other uses the source
interface as the tunnel source address. In this case, if an IP address is specified for the source
interface, only the status of the tunnel that uses the source interface is up, whereas the status of
the tunnel that uses the IP address cannot be up. To resolve this, specify different source and
destination addresses.
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
2-15
Nortel Secure Router 8000 Series
Troubleshooting - VPN
2 GRE troubleshooting
Q: Why is the tunnel source interface found to be another interface when the
display this interface command is run in the interface view? This happens when
specifying an IP address as the tunnel source address, and this IP address belongs
to some source interface.
A: The reason is that after tunnel configuration, the IP address assigned for the tunnel source is
transferred to another interface.
After the tunnel detects that the source interface where its source address is located has changed,
it updates the source interface of the tunnel source.
Q: Why is the status of the tunnel still down after the IP address, source address,
and destination address are specified for the tunnel?
A: To change the tunnel status to up, the following conditions must be met:
z
An IP address is assigned for the tunnel interface.
z
The source and destination addresses are specified.
z
Reachable routes exist between the source and destination addresses.
If the status of the tunnel is down even after you meet all three conditions, check for reachable
routes between the source and destination addresses. If no reachable routes exist, use the ip
route-static command to configure a static route or run a dynamic routing protocol to allow
reachable routes between the source and destination addresses of the tunnel.
Q: Why can I not ping the IP address of the remote tunnel interface? All the
configurations are complete, a reachable route exists between the source and
destination addresses, and the tunnel is up.
A: The possible causes are as follows:
z
The IP addresses of the tunnel interfaces on two ends are not in the same network segment.
z
The GRE keys on the two ends are inconsistent. If only one end is configured with the
GRE key or the key-numbers of two ends are different, the fault occurs.
Q: Why does the ping fail even after I configure a multilayer embedding tunnel?
A: A tunnel supports up to three-layer embedding. If this specification is exceeded, the ping will
fail. Check the tunnel layers.
Q: Suppose three routers exist: Router A, Router B, and Router C. Router A and
Router B directly connect; Router B and Router C directly connect; I need a tunnel
between Router A and Router C. In this case, what configurations should be
performed to establish the tunnel successfully?
A: You need to perform the following configurations:
2-16
z
First, complete the interface configuration on Router A, Router B, and Router C, and
create a tunnel interface on both Router A and Router C.
z
On Router A, specify the physical interface of Router A that connects with Router B as the
tunnel source interface and specify the physical interface of Router C that connects with
Router B as the tunnel destination address.
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
2 GRE troubleshooting
z
On Router C, specify the physical interface of Router C that connects with Router B as the
tunnel source interface; specify the physical interface of Router A that connects with
Router B as the tunnel destination interface.
z
Configure a static route from Router A to Router C and from Router C to Router A.
You can set up a tunnel that spans multiple routers using the preceding method.
Q: Why do packets not forward correctly even after a GRE tunnel establishes
successfully?
A: The source router and the destination router must use the routes that are forwarded by the
tunnel. Only packets with GRE encapsulation forward correctly.
You can configure a static route or a dynamic routing protocol that is required on both ends of
the tunnel.
You can use the ip route-static dest-ip-address { mask | mask-length } tunnel tunnel-number
command to configure a static route. dest-ip-address is not the IP address of the tunnel
destination interface but the destination address of the packet prior to GRE encapsulation. The
outgoing interface must be the local tunnel interface, with the next hop as the address of the
remote tunnel interface.
If you choose to configure a routing protocol, you must enable it on the tunnel interface and on
the router interface that connects with the private network. To ensure that a correct route is
chosen, do not configure the next hop of the route to the physical address of the tunnel
destination as the tunnel interface.
2.5 Diagnostic tools
2.5.1 display commands
Command
Description
display this
Displays the basic configuration of this tunnel. Run this
command in the tunnel interface view.
display this interface
Displays information on this tunnel interface. Run this
command in the tunnel interface view.
display fib
Displays information on the FIB.
display this
[Nortel-Tunnel4/0/0] display this
#
interface Tunnel4/0/0
ip address 2.2.2.2 255.255.255.0
source Ethernet3/2/0
destination 192.168.1.1
gre key 10
gre checksum
#
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
2-17
Nortel Secure Router 8000 Series
Troubleshooting - VPN
2 GRE troubleshooting
Return
Table 2-1 Description of the display this command output
Item
Description
ip address 2.2.2.2 255.255.255.0
The IP address of the tunnel interface is 2.2.2.2
and the mask is 255.255.255.0.
source Ethernet3/2/0
The source interface of the tunnel interface is
Ethernet 3/2/0.
destination 192.168.1.1
The destination address of the tunnel interface is
192.168.1.1.
gre key 10
The key number of the tunnel interface is 10.
gre checksum
Checksum is enabled on the tunnel interface.
display this interface
[Nortel-Tunnel1/0/0] display this interface
Tunnel1/0/0 current state : UP
Line protocol current state : UP
Description : Nortel Series, Tunnel1/0/0 Interface, Route Port
The Maximum Transmit Unit is 1500 bytes
Internet Address is 30.1.1.2/24
Encapsulation is TUNNEL, loopback not set
Tunnel source 100.1.1.1 (Serial1/0/0), destination 100.1.1.2
Tunnel protocol/transport GRE/IP , key disabled
Checksumming of packets disabled
QoS max-bandwidth : 64 Kbps
Output queue : (Urgent queue : Size/Length/Discards)
0/50/0
Output queue : (Protocol queue : Size/Length/Discards) 0/1000/0
Output queue : (FIFO queuing : Size/Length/Discards)
0/75/0
5 minutes input rate 0 bytes/sec, 0 packets/sec
5 minutes output rate 0 bytes/sec, 0 packets/sec
0 packets input,
0 bytes
0 input error
0 packets output,
0 bytes
0 output error
Table 2-2 Description of the display this interface command output
Item
Description
Tunnel1/0/0 current state : UP
The status of the tunnel interface is Up.
Line protocol current state : UP
The protocol status of the tunnel interface is Up.
The Maximum Transmit Unit is 1500
bytes
The MTU of the tunnel interface is 1500 bytes.
Internet Address is 30.1.1.2/24
The IP address of the tunnel interface is 30.1.1.2.
The mask is 24-bit, namely, 255.255.255.0.
2-18
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
2 GRE troubleshooting
Item
Description
Tunnel source 100.1.1.1 (Serial1/0/0),
destination 100.1.1.2
The source address of the tunnel interface is
100.1.1.1 (source interface is Serial 1/0/0) and the
destination address is 100.1.1.2.
Tunnel protocol/transport GRE/IP , key
disabled
The tunnel protocol is GRE.
The network layer protocol is IP.
The GRE key is disabled on the tunnel interface.
Checksumming of packets disabled
Checksum of the packet is disabled on the tunnel
interface.
QoS max-bandwidth : 64 Kbps
The maximum bandwidth of the tunnel interface
is 64 Kb/s.
display fib
<Nortel> display fib
FIB Table:
Total number of Routes : 8
Destination/Mask
Nexthop
Flag TimeStamp
Interface
Token
127.0.0.1/32
127.0.0.1
HU
t[0]
InLoop0
0x0
127.0.0.0/8
127.0.0.1
U
t[0]
InLoop0
0x0
1.1.1.3/32
127.0.0.1
HU
t[0]
InLoop0
0x0
1.1.1.0/24
1.1.1.3
U
t[0]
Eth3/1/0
0x0
192.168.1.3/32
127.0.0.1
HU
t[0]
InLoop0
0x0
192.168.1.0/24
192.168.1.3
U
t[0]
Eth3/2/0
0x0
2.2.2.2/32
127.0.0.1
HU
t[0]
InLoop0
0x0
2.2.2.0/24
2.2.2.2
U
t[0]
Tun4/0/0
0x0
Use the display fib command to check the reachability of other interfaces of the router.
When the status of this tunnel is down, you can use the display fib command to check for a
reachable route between the source and the destination addresses of the tunnel.
2.5.2 debugging commands
Command
Description
debugging tunnel
Displays the debug information on the tunnel.
debugging ip packet acl
Displays information on packets that match access
control list rules.
debugging ip icmp
Displays information on ping packets.
debugging tunnel
Use the output of the debugging tunnel command as an example.
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
2-19
Nortel Secure Router 8000 Series
Troubleshooting - VPN
2 GRE troubleshooting
*0.93688561 PE TUNNEL/8/ATKDBG:Slot=2;Tunnel2/0/0-Out: Mbuf length = 84 from GRE Tunnel
out
The preceding information shows the tunnel interface (Tunnel2/0/0) on which packets are
encapsulated as well as the packet length.
*0.93688656 PE TUNNEL/8/ATKDBG:Slot=2;Tunnel2/0/0-Out: GRE/IP encapsulated
192.168.1.3->192.168.1.2(len = 108).
The preceding information shows the source and the destination addresses in the IP header of
the encapsulated packet.
*0.93688784 PE TUNNEL/8/ATKDBG:Slot=2;Tunnel-In: Get packet,the tunnel is
src(192.168.1.2)/dest(192.168.1.3),length = 108 .
*0.93688928 PE TUNNEL/8/ATKDBG:Slot=2;
Judge keepalive finished. NOT keepalive packet.
The preceding information shows the IP address resolved from the response packet and the
packet length.
(4) Reply from 1.1.1.2: bytes=56 Sequence=2 ttl=255 time=4 ms
The preceding information shows that the response is received from the remote tunnel interface.
Parameters of the packet are also shown.
(5)*0.93689024 PE TUNNEL/8/ATKDBG:Slot=2;Tunnel-In: Enter Tunnel Input and GRE mode
found.
The preceding information shows that received packets are sent to the tunnel-input queue.
(6)*0.93689120 PE TUNNEL/8/ATKDBG:Slot=2;Tunnel2/0/0-In: GRE decapsulated IP
1.1.1.2->1.1.1.3(len = 84).
The preceding information shows that packets are resolved, with the tunnel IP address removed
from the GRE header.
debugging ip packet acl
The display of the debugging ip packet acl command is as follows:
*0.94698304 PE IP/8/debug_case:Slot=2;
Sending, interface = Tunnel2/0/0, version = 4, headlen = 20, tos = 0,
pktlen = 84, pktid = 9490, offset = 0, ttl = 255, protocol = 1,
checksum = 37520, s = 1.1.1.3, d = 1.1.1.2
prompt: Sending the packet from local at Tunnel2/0/0
*0.94698640 PE IP/8/debug_case:
Delivering, interface = Tunnel2/0/0, version = 4, headlen = 20, tos = 0,
pktlen = 84, pktid = 36363, offset = 0, ttl = 255, protocol = 1,
checksum = 10647, s = 1.1.1.2, d = 1.1.1.3
prompt: IP packet is delivering up!
The output contains packets that match access control list (ACL) rules.
The ACL rules used in this example are:
#
acl number 3001
rule 5 permit ip source 1.1.1.2 0 destination 1.1.1.3 0
rule 10 permit ip source 1.1.1.3 0 destination 1.1.1.2 0
2-20
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
2 GRE troubleshooting
2.5.3 Alarms
Item
Description
Alarm message
Same tunnel exist
Meaning
The same tunnel exists.
Possible cause
With the same source and the destination address, only one tunnel can
establish.
You cannot configure the same source and destination address on
different tunnel interfaces encapsulated with the same protocol.
The source and the destination address identify a tunnel uniquely.
Solution
Issue 5.3 (30 March 2009)
Use the other source address or destination address.
Nortel Networks Inc.
2-21
Nortel Secure Router 8000 Series
Troubleshooting - VPN
Contents
3 BGP/MPLS IP VPN troubleshooting .....................................................................................3-1
3.1 BGP/MPLS IP VPN overview ......................................................................................................................3-2
3.1.1 Introduction to VPN.............................................................................................................................3-2
3.1.2 Network topology ................................................................................................................................3-3
3.1.3 Operation model...................................................................................................................................3-3
3.2 MPLS L3VPN troubleshooting .....................................................................................................................3-5
3.2.1 Typical networking ..............................................................................................................................3-5
3.2.2 Configuration notes..............................................................................................................................3-6
3.2.3 Troubleshooting flowchart ...................................................................................................................3-9
3.2.4 Troubleshooting procedure ................................................................................................................3-10
3.3 Troubleshooting cases .................................................................................................................................3-14
3.3.1 PE fails to send private network routes to the remote CE..................................................................3-14
3.3.2 CEs cannot communicate...................................................................................................................3-17
3.3.3 Failure to ping large packets of the private network ..........................................................................3-18
3.3.4 PE cannot ping through the remote CE network segment..................................................................3-19
3.3.5 Failure to establish the MP-EBGP peer in inter-AS VPN-OptionC...................................................3-20
3.4 FAQs ...........................................................................................................................................................3-21
3.5 Diagnostic tools...........................................................................................................................................3-23
3.5.1 display commands..............................................................................................................................3-23
3.5.2 debugging commands ........................................................................................................................3-23
3.5.3 Alarms................................................................................................................................................3-24
3.5.4 Logs ...................................................................................................................................................3-26
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
i
Nortel Secure Router 8000 Series
Troubleshooting - VPN
Figures
Figure 3-1 BGP/MPLS VPN network topology.................................................................................................3-3
Figure 3-2 BGP/MPLS VPN instances ..............................................................................................................3-4
Figure 3-3 BGP/MPLS VPN networking ...........................................................................................................3-6
Figure 3-4 MPLS VPN troubleshooting flowchart...........................................................................................3-10
Figure 3-5 Networking diagram .......................................................................................................................3-14
Figure 3-6 BGP/MPLS VPN networking diagram ...........................................................................................3-17
Figure 3-7 PE cannot ping through the remote CE network segment ..............................................................3-19
Figure 3-8 Networking diagram of the inter-AS VPN-OptionC troubleshooting.............................................3-20
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
iii
Nortel Secure Router 8000 Series
Troubleshooting - VPN
3
3 BGP/MPLS IP VPN troubleshooting
BGP/MPLS IP VPN troubleshooting
About this chapter
The following table describes the contents of this chapter.
Section
Describes
3.1 BGP/MPLS IP VPN
overview
This section describes the knowledge you need before you
troubleshoot the Border Gateway Protocol
(BGP)/Multiprotocol Label Switching (MPLS) IP virtual
private network (VPN).
3.2 MPLS L3VPN
troubleshooting
This section provides notes about configuring MPLS
Layer 3VPN, the MPLS Layer 3 VPN troubleshooting
flowchart, and the troubleshooting procedure in a typical
MPLS Layer 3 VPN Network.
3.3 Troubleshooting cases
This section presents several troubleshooting cases.
3.4 FAQs
This section lists frequently asked questions and their
answers.
3.5 Diagnostic tools
This section describes common diagnostic tools: display
commands, debugging commands, alarms, and logs.
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
3-1
Nortel Secure Router 8000 Series
Troubleshooting - VPN
3 BGP/MPLS IP VPN troubleshooting
3.1 BGP/MPLS IP VPN overview
This section covers the following topics:
z
Introduction to VPN
z
Network topology
z
Operation model
3.1.1 Introduction to VPN
A public network is a set of uncorrelated systems that can exchange information freely with
each other. A private network is owned and managed by a single organization, formed by a
group of devices that share information.
In a private network, different sites use a dedicated leased line to realize interconnection,
ensuring that the connection between sites is exclusive. A private network is used only by the
enterprise that deploys it.
Though a single VPN service model can simplify network operations, it cannot meet the
requirements of various customers. Customer requirements can differ in such aspects such as:
security, number of sites, number of users, route complexity, key application, traffic model,
traffic volume, experience in network operation, and the willingness to outsource network
services. To address the requirements, service operators must offer a series of services,
including diversifying VPN service models.
The following multiple VPN service models exist:
z
Traditional VPN
z
Frame relay (Layer 2)
z
Asynchronous Transfer Mode (ATM) (Layer 2)
z
Customer premise equipment (CPE)-based VPN
z
Layer 2 Tunneling Protocol (L2TP) and Point-to-Point Tunneling Protocol (PPTP) (Layer
2)
z
IPsec (Layer 3)
z
VPN deployed by service providers
z
MPLS Layer 2 VPN (Layer 2)
z
BGP/MPLS IP VPN or RFC2547bis (Layer 3)
RFC2547bis defines a mechanism, which allows service providers to use their own IP
backbone to provide VPN services. This mechanism is called BGP/MPLS VPNs where BGP
transfers VPN routing information from one site to another and MPLS establishes a tunnel that
carries traffic from one provider edge (PE) to another on the backbone network.
3-2
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
3 BGP/MPLS IP VPN troubleshooting
3.1.2 Network topology
Figure 3-1 BGP/MPLS VPN network topology
VPN1
VPN1
Provider Network
CE
CE
Site1
Site2
P
PE
PE
P
P
CE
CE
Site3
Site4
VPN2
VPN2
Figure 3-1 shows a basic BGP/MPLS VPN network topology. In a basic BGP/MPLS VPN
network topology, the customer edge (CE) can be a host, switch, or router. An adjacency
establishes between the CE and its directly-connected PE. The CE sends its VPN routes to the
PE and learns remote VPN routes from the PE.
The PE exchanges routing information with the CE through a static route, Routing Information
Protocol (RIP), Open Shortest Path First (OSPF), Intermediate System-to-Intermediate System
(IS-IS) or Exterior BGP (EBGP). Every PE router maintains a VPN routing and forwarding
(VRF) table for every directly-connected site. A PE router can maintain multiple VRFs. You
can associate a VRF with multiple interfaces. After learning local VPN routes from local CEs,
the PE router exchanges them with other peer PEs using Interior BGP (IBGP).
The provider router (P) is a router that exists in the operator network that does not directly
connect with the CE. The P acts as an MPLS Label Switching Router (LSR), used to forward
VPN traffic between PEs. Because the MPLS backbone uses a two-level label stack, the P only
needs to maintain the routes to the PE rather than VPN routing information.
3.1.3 Operation model
The BGP/MPLS VPN uses two types of communication traffic:
z
Control traffic: traffic used to distribute and switch VPN routes, and establish label switch
paths
z
Data traffic: data traffic of users
The process to forward BGP/MPLS VPN traffic is as follows:
z
Routing information exchange
z
LSP
z
Forward data traffic
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
3-3
Nortel Secure Router 8000 Series
Troubleshooting - VPN
3 BGP/MPLS IP VPN troubleshooting
Figure 3-2 BGP/MPLS VPN instances
VPN1
VPN1
Site1
Site2
CE1
CE2
Provider Network
VRF1
PE1
PE2
P
VRF2
P
CE3
VRF1
VRF2
P
CE4
Site3
Site4
VPN2
VPN2
Figure 3-2 shows a BGP/MPLS VPN topology. In a basic BGP/MPLS VPN network topology,
a service operator provides BGP/MPLS VPN service to multiple enterprises. Two PEs connect
with four different customer sites.
Routing information exchange
As shown in Figure 3-2, the CE1-bound interface or subinterface on PE1 is associated with
VRF1. When CE1 advertises the route with the prefix of 10.1.0.0/16 to PE1, PE1 adds this route
to VRF1.
The PE1 marks 10.1.0.0/16 with the private and public label successively, and sends it to PE2.
The PEs uses Multiple Protocol IBGP (MP-IBGP) to carry VPN Target (VT) and Route
Distinguisher (RD) information and use the loopback address as the next hop of the IBGP route.
This process resolves the problem of the repeated address realm and simplifies the route
filtering.
By using the RD and VPN-IPv4 address family (defined in RFC 1918), RFC2547bis supports
the overlapping address space. By using the technique of BGP extension attribute-based
filtering, RFC2547bis implements forced route exchange between PE routers.
Upon receiving the routing information from PE1, PE2 filters it according to the existing BGP
extension attribute. The PE2 also determines whether to add the 10.1.0.0/16 route to VRF1.
Once the 10.1.0.0/16 route is added to VRF1, PE2 will advertise it to CE2.
LSP establishment
To transfer VPN routes transparently from one PE to another, you can use the Label
Distribution Protocol (LDP) or Reservation Protocol (RSVP) to establish LSPs on the network
of the service operator. To ensure interoperation between devices from different vendors, all PE
and P routers should support LDP. The LSP based on LDP and that based on RSVP establish
between a pair of PE routers. You can establish one LSP or multiple parallel LSPs between PE
3-4
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
3 BGP/MPLS IP VPN troubleshooting
routers. The LSPs can implement a variety of Quality of Service (QoS) functions through
configuration.
Forward data traffic
Use Figure 3-2 as an example. If Site 2 has the host (10.2.3.4/16), CE2 performs the
longest-match on the destination IP address and forwards packets to PE2.
The MPLS uses two layers of labels to forward packets from PE2 to PE1.
For this data stream, PE2 is the ingress LSR of the LSP, and PE1 is the egress LSR of the LSP.
The PE2 pushes a label (109569, for example) into the label stack, which serves as the inner
label before transmission of packets.
PE1 distributes routing information to the 10.1.0.0/16 segment by using IBGP. When PE2
receives the routing information, label 109569 is allocated to VRF1.
The PE2 pushes the original MPLS label from the next hop (the P router) to the label stack,
which will make it act as the outer label.
After the label enters the stack and once PE2 receives packets, PE2 searches for routes in VRF1.
The following information can be obtained:
z
Private network label distributed by PE1 (with the label value being 109569)
z
BGP next hop of the route (loopback address of PE1)
z
Egress interface (or subinterface) of the LSP from PE2 to PE1
z
Original MPLS label from PE2 to PE1
Along the LSP, PE2 forwards MPLS packets from the egress interface to the first P. The P router
exchanges packets based on the outer label. The penultimate P pops the outer label and
forwards packets to the PE1.
After receiving packets, based on the inner label 109596, the PE1 identifies the next hop to the
10.1/16 segment is the directly connected CE1. The PE1 forwards IPv4 packets to CE1. The
CE1 then forwards them to the server 10.1.3.8/16 of Site 1.
3.2 MPLS L3VPN troubleshooting
This section covers the following topics:
z
Typical networking
z
Configuration notes
z
Troubleshooting flowchart
z
Troubleshooting procedure
3.2.1 Typical networking
Figure 3-3 shows a typical MPLS L3VPN networking. Consider this networking to discuss
MPLS L3VPN troubleshooting as follows:
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
3-5
Nortel Secure Router 8000 Series
Troubleshooting - VPN
3 BGP/MPLS IP VPN troubleshooting
Figure 3-3 BGP/MPLS VPN networking
Loopack 0
1.1.1.1/32
Loopack 0
2.2.2.2/32
Loopack 0
3.3.3.3/32
GbE1/0/0
203.1.1.2 /24
GbE2/0/0
10.1.1.101/24
PE1
GbE1/0/0
102.1.1.1/24
P
GbE2/0/0
10.2.1.202/24
PE2
MPLS Backbone
CE1
CE2
vpna
Site1
vpna
Site2
PC1
PC2
In Figure 3-3, the following solution is used:
z
CE1 and PC1 belong to Site 1 of vpna; CE2 and PC2 belong to Site 2 of vpna.
z
EBGP connections are used between PE1 and CE1, and between PE2 and CE2.
z
An IBGP adjacency establishes between PE1 and PE2 to transfer VPNv4 routing
information that contains inner labels.
z
Both MPLS and LDP are enabled on PE1, P, and PE2.
3.2.2 Configuration notes
Item
Subitem
Notes
VPN
instance
Route distinguisher
The local route distinguisher (RD) is used to
distinguish routes of different VPN instances.
Export VPN target
The export VPN target marks the attributes of
exported routes, which must be consistent with the
import VPN target of the remote PE.
Import VPN target
The import VPN target marks the attributes of
imported routes, which must be consistent with the
export VPN target of the remote PE.
Binding VPNs and
interfaces
The binding of VPNs and interfaces must be
configured in the view of the interface that connects to
CE.
After the interface is bound with VPN, the
configuration of the network layer, for example, IP
addresses, are deleted.
3-6
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
3 BGP/MPLS IP VPN troubleshooting
Item
Subitem
Notes
MPLS
LSR-ID
LSR ID is similar to router ID. An LSR ID specifies
an address. LDP, by default, uses this address to
establish LDP sessions, The reachability to the LSR
ID must be ensured. Two ways exist to configure an
LSR ID.
BGP
z
Generally, the LSR ID is the address of the
loopback interface.
z
If the mpls ldp transport-address command is
configured on the interface that connects to the
public network, LDP uses the address specified by
this command to establish an LDP session.
MPLS
Enable MPLS in the system view and on the interface
that connects with the public network. You must
configure the policy to trigger the setup of LSPs in the
MPLS view.
LDP
Enable LDP in the system view and on the interface
that connects with the public network.
AS
-
IBGP
Specify the remote PE as the local IBGP peer in the
BGP view.
The interface used
by BGP connections
Specify the loopback interface (with a 32-bit mask) as
the egress interface of the session that is used to set up
an IBGP connection between PEs.
VPNv4 address
family
The IBGP peer must be enabled in VPNv4 address
family.
VPN instances of
IPv4 address family
Specify the directly connected CE as the EBGP peer.
Import the routes of the network segment between PE
and CE to BGP.
Use PE1 as an example to explain configuration notes for MPLS L3VPN.
The following section covers only the commands related to MPLS L3VPN. For details about the
configuration, see Nortel Secure Router 8000 Series Configuration Guide - VPN (NN46240-507).
1.
Configuration concerning VPN instances
# Create a VPN instance:
[PE1] ip vpn-instance vpna
# Specify an RD:
[PE1-vpn-instance-vpna] route-distinguisher 100:101
# Specify the export VPN target, which must be consistent with the import VPN target of the
peer PE:
[PE1-vpn-instance-vpna] vpn-target 100:1 export-extcommunity
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
3-7
Nortel Secure Router 8000 Series
Troubleshooting - VPN
3 BGP/MPLS IP VPN troubleshooting
# Specify the import VPN target, which must be consistent with the export VPN target of the
peer PE:
[PE1-vpn-instance-vpna] vpn-target 100:1 import-extcommunity
# Bind the CE-bound interface with the VPN instance. After the binding, the interface belongs
to this VPN, and its address is visible only in this VPN and in its interactive VPNs:
[PE1] interface gigabitethernet 2/0/0
[PE1-GigabitEthernet2/0/0] ip binding vpn-instance vpna
# Assign a private IP address for the interface:
[PE1-GigabitEthernet2/0/0] ip address 10.1.1.101 255.255.255.0
2.
MPLS capability configuration
# Configure an LSR ID:
[PE1] mpls lsr-id 1.1.1.1
# Globally enable MPLS:
[PE1] mpls
# Configure a policy for triggering the setup of LSPs. You can specify ACL or other parameters
to restrict the triggering. In this scenario, you can use the parameter all for the sake of
simplicity:
[PE1-mpls] lsp-trigger all
# Globally enable MPLS LDP:
[PE1] mpls ldp
# Enable MPLS on the interface that connects with the public network:
[PE1] interface gigabitethernet 1/0/0
[PE1-GigabitEthernet1/0/0] mpls
# Enable MPLS LDP on the interface that connects with the public network:
[PE1-GigabitEthernet1/0/0] mpls ldp
3.
Configuration concerning BGP
# Add PE to AS 100. Specify the same AS for PE1, P, and PE2:
[PE1] bgp 100
# Configure a BGP peer for PE:
[PE1-bgp] peer 3.3.3.3 as-number 100
# Specify the loopback interface as the interface used to set up BGP Peer (TCP) connections
with the peer PE:
[PE1-bgp] peer 3.3.3.3 connect-interface loopback 0
# Receive VPNv4 routes according to the VPN target policy. This is a default setting:
[PE1-bgp] ipv4-family vpnv4
[PE1-bgp-af-vpnv4] policy vpn-target
# Enable EBGP peer in VPNv4 address family:
3-8
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
3 BGP/MPLS IP VPN troubleshooting
[PE1-bgp-af-vpnv4] peer 3.3.3.3 enable
VPNv4 routes can transport only after an EBGP peer is established in VPNv4 address family. You can
view all VPNv4 BGP peers by using the display bgp vpnv4 all peer command.
# Import routes of the directly connected network segment between PE and CE to vpna:
[PE1-bgp] ipv4-family vpn-instance vpna
[PE1-bgp-vpna] import-route direct
3.2.3 Troubleshooting flowchart
After configuration on respective routers shown in Figure 3-3, VPN users PC1 and PC2 cannot
exchange information with each other.
Troubleshoot the network according to the flowchart shown in Figure 3-4.
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
3-9
Nortel Secure Router 8000 Series
Troubleshooting - VPN
3 BGP/MPLS IP VPN troubleshooting
Figure 3-4 MPLS VPN troubleshooting flowchart
Configure the
route between the
user PC and CE
VPN users
fail to
communicate
Ask for
technical help
No
Ping remote CE
successfully on
CE?
Yes
Route available
betwen user PC
and CE ?
Yes
End
No
Yes
VPN routes
distributed to PE
by CE?
No
Check the route
between CE and
PE
Fault removed?
No
Yes
VPN routes
distributed to the
remote PE by
PE?
No
IBGP peer
relationship set up
beteen PEs?
No
Check route
configuration
between PEs
No
Ask for
technical help
Yes
Yes
Check MPLS
configuration
between PEs. An
LSP set up?
Fault removed?
Yes
End
3.2.4 Troubleshooting procedure
The steps of troubleshooting are as follows:
Step 1 Check that reachable routes exist between CEs.
On the local CE, ping the remote CE.
z
3-10
If the ping is successful, it indicates that reachable routes exist between CEs and rules out
the route problem between CEs. The section between VPN user PCs and CE can be faulty.
Check for reachable routes between them. If no reachable route is available, add the route.
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
3 BGP/MPLS IP VPN troubleshooting
If reachable routes exist between them, and the ping fails, contact Nortel technical support
engineers for technical assistance.
z
If the ping fails, use the display ip routing-table command on the local CE to view
whether routes to the remote CE exist in the local routing table. Use the display ip
routing-table command on the remote CE to view whether routes to the local CE exist. If
the two CEs have no routes to each other, or only the local CE has routes to the remote CE
but the remote CE has no routes to the local CE, it indicates a route problem between CEs.
Go to Step 2.
After you check that CE and its directly connected PE can ping each other successfully, use the
ping-vpn-instance vpn-instance-name -a source-ip-address dest-ip-address command on this PE to
check for reachable routes to the remote CE. vpn-instance-name is the name of the VPN to which CE
belongs. source-ip-address is the IP address of the interface through which PE connects CE directly.
dest-ip-address is the IP address of a specific interface on the remote CE.
Step 2 Check routes of various network segments between CEs.
Three network segments exist between CEs.
z
From local CE to local PE
z
From local PE to remote PE
z
From remote PE to remote CE
For a route problem between the local CE and the local PE, and that between the remote PE and
the remote CE, you can remove the fault according to the following step.
1.
Check whether CE distributes the routing information to the directly connected PE.
On PE, use the display ip routing-table vpn-instance vpn-instance-name command to
view whether the VPN routing table holds the routing entries advertised from the directly
connected CE.
In this command, you must specify the parameter vpn-instance vpn-instance-name to display the routes
within a specified VPN. If you do not specify the parameter, the command displays public network routes
of PE.
If the VPN routing table on PE has no routes to CE, use the display bgp vpnv4 all peer
command to check whether EBGP peers establish between PE and CE.
−
If EBGP peers establish, check whether direct routes and inter-autonomous system (AS)
routes import to the BGP routing table of CE. Check whether direct routes are imported
in the VPN instance view of BGP IPv4 address family on PE.
−
If no BGP peers are set up between PE and CE, check for a consistent AS number in
BGP configuration on PE and CE. For details about troubleshooting, see Nortel Secure
Router 8000 Series Troubleshooting - IP Routing (NN46240-706).
For a route problem between the local PE and the remote PE, perform the following step to
isolate the fault.
2.
Check whether private network routes on the local PE are distributed to the remote PE.
On the remote PE, use the display ip routing-table vpn-instance vpn-instance-name
command to check for routes to the local CE.
−
If routes to the local CE exist, use the display ip routing-table vpn-instance
vpn-instance-name command on the local PE. If routes to the remote CE exist, it
indicates that there is no route problem between PEs.
−
If no routes to the local CE exist in the VPN routing table, use the display bgp vpnv4
all peer command to check whether BGP VPNv4 peers establish between PEs.
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
3-11
Nortel Secure Router 8000 Series
Troubleshooting - VPN
3 BGP/MPLS IP VPN troubleshooting
−
If BGP VPNv4 peers establish between PEs, check whether VPN targets of the two
PEs match. The export VPN target of the local PE must be consistent with the import
VPN target of the remote PE. The import VPN target of local PE must be consistent
with the export VPN target. If not, modify the configuration.
−
If BGP VPNv4 peers do not establish between PEs, the possible cause can be failure to
establish BGP peers between PEs. Use the display bgp peer command to view public
network BGP peers of PE. For information about the public network route problem
between PEs, see Nortel Secure Router 8000 Series Troubleshooting - IP Routing
(NN46240-706).
The VPNv4 routes between PEs are transferred by peers in the VPNv4 address family. The establishment
of BGP VPNv4 peers depends on BGP peers in the public network.
Specify the loopback interface used for BGP connection when you configure IGBP neighbors.
Use the peer peer-ip-address connect-interface loopback interface-number command to
specify IBGP peers.
On PE, check VPN routes of the remote CE. If you specify the next hop, but not the loopback
interface of the remote PE, the public network route cannot be associated with the LSP of the
public network.
If BGP configuration is correct and all BGP peers establish correctly, but no routes to the
remote CE are found by using the display ip routing-table vpn-instance command, the reason
is that no LSP is established between PE and the next hop of the routes to the remote CE. This
situation restricts the route from finding the associated LSP.
Use the display ip routing-table vpn-instance vpn-name ip-address [ mask | mask-length ]
verbose command, and you can find that the value of the tunnel ID is 0x0. The following is an
example:
<PE1> display ip routing-table vpn-instance vpna 10.2.1.202 32 verbose
Destination: 10.1.1.202/32
Protocol: BGP
Preference: 255
NextHop: 3.3.3.3
RelayNextHop: 0.0.0.0
Label: 15360
Process ID: 0
Cost: 0
Interface: NULL0
Neighbour: 3.3.3.3
Tunnel ID: 0x0
SecTunnel ID: 0x0
BkNextHop: 0.0.0.0
BkLabel: NULL
BkInterface:
Tunnel ID: 0x0
SecTunnel ID: 0x0
State: Inactive Adv WaitQ
Age: 00h01m05s
Tag: 0
Use the display bgp vpnv4 all routing-table label command on both the local PE and the
remote PE to check whether the labels at both the ends match. The private network label
assigned by the local PE is referred to as an incoming label for the local PE, and an outgoing
label for the remote PE.
If they match, go to Step 3.
3-12
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
3 BGP/MPLS IP VPN troubleshooting
Step 3 Check that an LSP is established between PEs.
Network traffic on the MPLS VPN is transferred to the remote through LSPs on the public
network. In actual configuration, the next hop of the private network route must be bound with
the LSP.
z
In case the LSPs are generated first, the binding can be queried against the tunnel
management (TNLM) by the Routing Management (RM) according to the IP address of
the next hop of the private network route.
z
In the case that routes are learned first and then LSPs are generated, the TNLM notifies the
RM of the destination IP address of the LSP. According to the IP address, the RM finds the
associated private network route, and performs iteration.
z
Therefore, check if an LSP establishes between PEs.
z
Use the display mpls lsp include ip-address mask command on PE. In this command,
ip-address is the IP address of the next hop of the private network route. If you find that the
LSP that uses the next hop of the private network route as the destination is not set up,
follow these steps.
z
Verify that an LDP session establishes.
Use the display mpls ldp session command to check whether an LDP session establishes.
Common causes of failure to set up LDPs are as follows:
z
−
LSR ID configuration error: Remote PE cannot find the route to the LSR ID, leading to
setup failure. Nortel recommends that you set the IP address of the loopback interface
as the LSR ID. The IP address is advertised through the routing protocol and static
route.
−
LSR ID configuration error and no mpls ldp transport-address configuration: If the
mpls ldp transport-address command is not configured on the interface, PE will use
the LSR ID to set up an LDP session with the remote PE. If the LSR ID is incorrect, the
LDP session cannot establish successfully. To avoid this problem, run the mpls ldp
transport-address command on the interface.
Check that a TCP connection establishes for LDP sessions.
Use the display tcp status command to view the TCP connection.
If the routing information is correct, you can find that the TCP connection is already set up.
The State in the output must be Established. If the TCP connection is not established,
check for IP connectivity.
z
Check that LDP parameters are consistent on both the ends of an LSP.
LDP parameters must be consistent on both the ends of an LSP.
If parameters are not consistent, for example, the label distribution mode is DOD on one
end and DU on the other end, an LDP session fails to establish.
z
Check that the policy to set up the LSP is configured.
By default, a policy is adopted by which only the host address is triggered to set up LSP.
To trigger all the routes to set up LSP, configure the lsp-trigger all command in MPLS.
z
Check the status of interfaces enabled with MPLS LDP.
Use the display mpls interface command and the display mpls ldp interface command
to check whether the interfaces are Up or Active.
If the status of the interface is Down or Inactive, use the shutdown command, and the
undo shutdown command in the interface view. If the interface remains Down, check the
physical link.
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
3-13
Nortel Secure Router 8000 Series
Troubleshooting - VPN
3 BGP/MPLS IP VPN troubleshooting
Check if the forwarding entry is correct on PE. Use the display fib vpn-instance
vpn-instance-name command to view the forwarding information base (FIB) of the VPN on the
Main Processing Unit (MPU).
For example:
<Nortel> display fib vpn-instance vpna
Destination/Mask
Nexthop
202.2.4.1/32
127.0.0.1
Flag TimeStamp
HU
t[172572]
Interface
InLoop0
TunnelID
0x6002000
202.2.4.0/24
202.2.4.1
U
t[172572]
GE4/0/0
0x6002000
You can view the Tunnel ID by using the display tunnel-info command.
If the FIB entry exists only on the main control board but not the interface board, it indicates
that IPC messages may be lost. In such scenarios, contact Nortel technical personnel.
----End
3.3 Troubleshooting cases
This section covers the following topics:
z
PE fails to send private network routes to the remote CE
z
CEs cannot communicate
z
Failure to ping large packets of the private network
z
PE cannot ping through the remote CE network segment
z
Failure to establish the MP-EBGP peer in inter-AS VPN-OptionC
3.3.1 PE fails to send private network routes to the remote CE
Fault symptom
Figure 3-5 Networking diagram
Loopack 0
2.2.2.2/32
Loopack 0
1.1.1.1/32
GbE1/0/0
102.1.1.2/24
GbE2/0/0
10.1.1.102/24
GbE1/0/0
10.1.1.101/24
PE1
GbE1/0/0
102.1.1.1/24
Loopack 0
3.3.3.3/32
GbE1/0/0
203.1.1.2 /24
P
CE1
GbE2/0/0
203.1.1.1 /24
GbE2/0/0
10.2.1.202/24
GbE1/0/0
10.2.1.201/24
PE2
CE2
vpna
Site1
vpna
Site2
In Figure 3-5, the following solution is adopted:
3-14
z
EBGP runs between PE and CE.
z
An IBGP adjacency establishes between PE1 and PE2 to transfer VPNv4 routing
information that contains inner labels.
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
3 BGP/MPLS IP VPN troubleshooting
z
An arbitrary IGP runs between PE1, P, and PE2 to transfer routing information of the
public network.
z
Both MPLS and MPLS LDP are enabled on PE1, P, and PE2 individually.
Fault symptoms: PE1 has the private network route sent from CE1 while PE2 and CE2 do not
have this route.
Fault analysis
A public network tunnel is a necessity when private network traffic traverses the public network
to the remote. Therefore, you must bind the next hop of the private network route with the LSP
between PEs.
z
In the case that LSPs are generated first, the binding between the routes and tunnels exists
in TNLM. According to the IP address of the next hop of the private network route, RM
can search TNLM for the binding.
z
When routes are learned first and then LSP tunnels are generated, the TNLM notifies the
RM related information such as the destination IP address of the LSP. According to the
information, the RM finds the associated private network route and performs iteration.
z
Use the display ip routing-table vpn-instance command on PE2. If no VPN routes
appear, but the configuration is correct and BGP peers are set up correctly, the possible
cause is that the LSP tunnel is not set up successfully.
z
Use the display ip routing-table vpn-instance vpn-instance-name ip-address [ mask |
mask-length ] verbose command on PE1 to view the tunnel ID of the LSP.
If the tunnel ID is 0x0, it indicates that the route to ip-address does not find the associated
tunnel. The reason is often that the setup of LSP for the next hop of the route fails.
<PE1> display ip routing-table vpn-instance vpna 10.2.1.202 32 verbose
Destination: 10.2.1.202/32
Protocol: BGP
Process ID: 0
Preference: 255
NextHop: 3.3.3.3
Cost: 0
Interface: NULL0
RelayNextHop: 0.0.0.0
Label: 15360
Neighbour: 3.3.3.3
Tunnel ID: 0x0
SecTunnel ID: 0x0
BkNextHop: 0.0.0.0
BkInterface:
BkLabel: NULL
Tunnel ID: 0x0
SecTunnel ID: 0x0
State: Inactive Adv WaitQ
Age: 00h01m05s
Tag: 0
Check the LSP to the next hop (3.3.3.3):
<PE1> display mpls lsp include 3.3.3.3 32
If the display is blank, it indicates that no LSP to 3.3.3.3 exists. The LSP is not set up
successfully.
Check whether MPLS LDP is enabled on the interface that connects PE1 and P, and on the
interface that connects P and PE2:
[PE1] interface giggabitethernet 1/0/0
[PE1-Gigabitethernet1/0/0] display this
#
interface Gigabitethernet1/0/0
link-protocol ppp
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
3-15
Nortel Secure Router 8000 Series
Troubleshooting - VPN
3 BGP/MPLS IP VPN troubleshooting
ip address 192.168.1.2 255.255.255.0
mpls
#
The preceding display shows that MPLS LDP is not enabled in the interface view.
Troubleshooting procedure
Step 1 Use the display ip routing-table vpn-instance command on the remote PE to view whether
there are local VPN routes in the VPN routing table. If local VPN routes exist, it implies that the
routes in the RM are active; otherwise, the routes are inactive.
Step 2 If the remote PE has no local VPN routes, use the display ip routing-table vpn-instance
vpn-instance-name ip-address [ mask | mask-length ] verbose command on the remote PE to
view the Tunnel ID, State, and the next hop of the route. If the local PE does not have the
detailed information about the route, use the display bgp vpnv4 all peer [ ipv4-address ]
verbose command to check whether the BGP VPNv4 peer is set up successfully.
Step 3 If the Tunnel ID is 0x0 and the State is Inactive Adv WaitQ, use the display mpls lsp include
nexthop-address 32 command to check for the LSP to the next hop of the route.
Step 4 If no LSP exists, check whether MPLS LDP is enabled on the interface that connects PE1 and P,
and on the interface that connects P and PE2.
Step 5 If MPLS LDP is not enabled on the interface, configure MPLS LDP in the interface view.
----End
Summary
To transfer the traffic of a private network across the public network, you need a public network
tunnel.
If the setup of a public network tunnel fails, the reason can be that MPLS LDP is not enabled on
the interface, or that an LDP session is not established. This leads to the PE failure to send
private network routes to CE.
3-16
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
3 BGP/MPLS IP VPN troubleshooting
3.3.2 CEs cannot communicate
Fault symptom
Figure 3-6 BGP/MPLS VPN networking diagram
Loopback 1
Loopback 1
PE1
PE2
P1
P2
CE1
CE2
The BGP/MPLS VPN service is configured in the network as shown in Figure 3-6. CE1 and
CE2 belong to the same VPN. After the configuration, CE1 cannot successfully ping CE2.
Fault analysis
Consider the configuration of PE2 as an example. The configuration of PE1 is similar to that of PE2, and is
not covered in this chapter.
Use the display bgp peer command on PE2 to check the IBGP peer relationship between PE2
and PE1. The IBGP peer relationship is not set up successfully.
Query the distribution of labels, and find that P2 distributes a label of 3 to the previous hop P1.
In normal cases, PE2 distributes a label less than 16 to the previous hop P2, and P2 distributes a
label larger than 16 to the previous hop P1. Then it can be determined that the error lies in
incorrect judgment of hops.
A router judges whether it is the egress node of the LSP because a direct route exists to the
outbound interface of the IBGP session. Check the routing table on P2. Find that a direct route
to PE2 exists, the endpoint of IBGP.
Check the configuration and find that the loopback interface is not specified by using the peer
peer-ip-address connect-interface loopback interface-number command as the outbound
interface of the local IBGP peer session.
If the outbound interface is not specified for the local IBGP session, the default is the outbound
interface of data streams. Because the outbound interface of data streams connects P2 directly;
P2 considers itself as the egress node of the LSP. The P2 mistakenly distributes a label with a
value less than 16 to P1, which causes the label at the stack bottom to pop up ahead of schedule
and results in interworking failure.
Currently, the Secure Router 8000 Series, by default, distributes labels only for the route with a
32-bit mask. This type of configuration error can cause another phenomenon where the public
network route or private network route has no corresponding LSPs.
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
3-17
Nortel Secure Router 8000 Series
Troubleshooting - VPN
3 BGP/MPLS IP VPN troubleshooting
Troubleshooting procedure
z
Do as follows on the two PEs.
Step 1 Use the interface loopback interface-number command in the system view.
Step 2 Use the ip address ip-address 32 command to configure an IP address for the loopback
interface.
Step 3 Use the quit command to return to the system view.
Step 4 Use the bgp as-number command to enter the BGP view.
Step 5 Use the peer peer-address connect-interface loopback interface-number command to specify
the loopback interface as the outbound interface of the IBGP peer session.
Step 6 Save the configuration.
z
On CE, ping the remote CE. If the ping succeeds, it indicates that the fault is isolated.
----End
Summary
When you configure PE peers, specify the local loopback interface as the outbound interface of
the local IBGP session.
3.3.3 Failure to ping large packets of the private network
Fault symptom
If the Nortel Secure Router 8000 Series router networks with a device from another vendor to
deploy Layer 3 MPLS VPN service by using the Ethernet interface, the packet larger than 1492
bytes cannot be transmitted between private network users. Users cannot access part of
websites or download files through the File Transfer Protocol (FTP).
Use the ping command, and find that the IGMP payload larger than 1464 bytes cannot be
pinged successfully.
Fault analysis
The default maximum transmission unit (MTU) of an Ethernet interface is 1500 bytes. When
forwarding data, Layer 3 MPLS VPN adds a 4-byte or 8-byte MPLS packet header between the
IP header and the Layer 2 frame header. A 4-byte label is added during the forwarding between
the penultimate hop and the tail-end hop; an 8-byte label is added in other cases.
Because MPLS processing is unknown to the link layer, it still receives a maximum of
1500-byte data packet by default. The packet is longer than 1500 bytes after adding an MPLS
packet header to a packet of 1492 to 1500 bytes. Consequently the link layer cannot receive the
packet, affecting the forwarding.
Troubleshooting procedure
Step 1 Change the MTU of the device from the other vendor. The MTU must be at least 1508 bytes.
Step 2 By default, an Ethernet interface on the Nortel Secure Router 8000 Series router can send and
receive jumbo frames. No change is needed on the Nortel Secure Router 8000 Series router.
3-18
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
3 BGP/MPLS IP VPN troubleshooting
----End
Summary
When jumbo packets cannot be received, check whether the MTU is too small.
3.3.4 PE cannot ping through the remote CE network segment
Fault symptom
Figure 3-7 PE cannot ping through the remote CE network segment
vpn1
Site1
CE1
vpn1
Backbone
Site3
GbE1/0/0
10.1.1.1/24
GbE1/0/0
10.3.1.1/24
PE1
GbE2/0/0
10.2.1.1/24
P
CE3
PE2
CE2
Site2
vpn1
As shown in Figure 3-7, after binding multiple private network interfaces with the same VPN
instance, use the ping 10.3.1.1 command on CE1 and CE2 to ping the remote CE3 segment of
PE1 successfully. The ping -vpn-instance vpn1 10.3.1.1 command on PE1 cannot ping
through the CE3 segment.
Fault analysis
After binding multiple private network interfaces on the ingress (PE) with the same VPN
instance, if you ping or tracert the remote CE segment from PE, the source address of the
Internet Control Message Protocol (ICMP) packet is a private network address that is Up on the
local PE. If the remote CE does not import the address, no response packet returns.
Therefore, to use the ping -vpn-instance vpn-instance-name dest-ip-address command to ping
the remote CE segment successfully, ensure the remote CE uses the Up private network
addresses of the local PE.
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
3-19
Nortel Secure Router 8000 Series
Troubleshooting - VPN
3 BGP/MPLS IP VPN troubleshooting
Troubleshooting procedure
Step 1 Ensure the remote CE uses the Up private network addresses of the local PE. Using the
import-route direct command in the BGP VPN instance view on the local PE can ensure that
all the private network routes of the local PE can be advertised through MP-BGP. Replace the
ping -vpn-instance vpn-instance-name dest-ip-address command with the ping -vpn-instance
vpn-instance-name –a source-ip-address dest-ip-address command.
----End
Summary
If you ping the remote CE network segment from PE, Nortel recommends that you specify the
source address of the ping packet.
3.3.5 Failure to establish the MP-EBGP peer in inter-AS
VPN-OptionC
Fault Symptom
Figure 3-8 Networking diagram of the inter-AS VPN-OptionC troubleshooting
Backbone
PE1
ASBR-PE1
ASBR-PE2
AS100
Backbone
AS200
PE2
As shown in Figure 3-8, when you configure the inter-AS VPN-OptionC, establishing the
MP-EBGP peer relationship between PE1 and PE2 fails. The PE1 and PE2 cannot ping through
the loopback address of each other.
After checking the routing table or the forwarding table, you find that multiple load-balancing
paths exist between PE2 and ASBR-PE2.
Fault analysis
In the inter-AS VPN-OptionC, PE learns the route of the peer PE through the Autonomous
System Boundary Router (ASBR) within the local AS.
After receiving the BGP public labeled route sent by the ASBR in the local AS, PE performs the
following action:
z
The BGP module fills out the label and tunnel ID (Token in the routing table and FIB).
z
The RM fills out the egress and iterative next hop of the route and FIB.
The BGP periodically searches if the LDP LSP to the local AS exists. If so, a new Next Hop
Label Forwarding Entry (NHLFE) is created and its Outgoing Token denotes the LDP LSP. The
tunnel ID of the new NHLFE is stored in the Token field of the routing table and FIB.
3-20
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
3 BGP/MPLS IP VPN troubleshooting
The route is conveyed to the RM. According to the BGP next hop, the RM fixes on the iterative
next hop and the egress. If there are multiple load-balancing paths between the PE and ASBR,
BGP chooses only one path while the RM iterates multiple IGP paths. From the multiple
Interior Gateway Protocol (IGP) paths, the RM selects one path to fill out the iterative next hop
and egress.
Therefore, the BGP peer relationship cannot establish between PEs.
Troubleshooting procedure
Step 1 Use the display fib command on PE2 to check the next hop, egress, and token of the LSP tunnel
from PE2 to PE1.
Step 2 Use the display tunnel-info tunnel-id command on PE2 to check the egress and next hop of the
tunnel with an ID equal to Token, are consistent with that in the FIB.
Step 3 If the egress and next hop are not consistent, check whether load-balancing exists between the
ASBR-PE1 and the ASBR-PE2. If yes, cancel the load balancing.
Step 4 If the egress and next hop are not consistent and no load balancing occurs between the
ASBR-PE1 and the ASBR-PE2, the cause can be that the next hop of the IBGP peer
corresponds to multiple equal-cost IGP routes. Nortel recommends that you delete some links
to ensure IBGP has no equal-cost IGP routes.
----End
Summary
The BGP searching for the LDP LSP and the route iteration are two separate processes.
It is possible that the egress and the next hop of the iteration are not those of the found LDP LSP.
3.4 FAQs
Q: A BGP adjacency establishes between PEs, but private network packets cannot
forward normally. What is the problem?
A: Possible causes are:
z
The loopback interface is not used to establish the BGP adjacency.
z
The loopback interface is used, but its address mask is not 32-bits, and its address is not
unique in the network.
z
An LSP is not set up properly between PEs.
Q: In the BGP/MPLS VPN networking of the inter-AS Option B, proper
adjacencies establish between ASBRs, but private network packets cannot
forward. What are the causes?
A: Possible causes are:
z
The EBGP peer relationship between ASBRs is not set up by using the directly connected
interface.
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
3-21
Nortel Secure Router 8000 Series
Troubleshooting - VPN
3 BGP/MPLS IP VPN troubleshooting
z
The undo policy vpn-target command is not configured for BGP on ASBR.
Q: LDP configuration between routers is correct, and the route is correct but the
establishment of LSP fails. What is the reason?
A: The reason can be that the next hop of the route mismatches with the next hop of the LSP.
To validate the LSP, the next hop of the LSP must exactly match with the next hop of the route.
Q: In Inter-AS VPN Option B, the ASBR does not forward the VPNv4 route
forwarded by another ASBR. What is the reason?
A: The reason can be that the interface that connects with the ASBR is not enabled with MPLS.
As a result, the label does not apply successfully and the LSP cannot establish, thereby causing
failure to distribute VPNv4 routes.
Q: Why do I fail to find the route after running the display ip routing-table
vpn-instance command?
A: This command does not display the route in an inactive state. Routes in an inactive state can
occur if no tunnel exists. You can run the display ip routing-table vpn-instance
vpn-instance-name ip-address [ mask | mask-length ] verbose command to view detailed
information on routes.
Q: Why can the route reflector not forward private network routes after the
VPNv4 adjacency establishes between two customers?
A: You must run the undo policy vpn-target command in VPNv4 address family on the route
reflector. The route reflector can receive and forward the private network routes even when no
VPN configuration exists.
Q: Both the LDP LSP and the GRE LSP exist. Why can the router not choose the
GRE LSP automatically after the LDP LSP is down?
A: The problem can be that no tunnel policy configuration exists in the VPN view.
Q: The peer peer-ip-address next-hop-local command has been configured for the
reflector. Why does the forwarded route not change the next hop?
A: In the Secure Router 8000 Series implementation, after the next hop changes, labels are
reallocated for routes, but the reflector does not change the route label. After the peer
peer-ip-address next-hop-local is configured, the next hop of the route cannot change even if
the peer peer-ip-address next-hop-local is configured.
3-22
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
3 BGP/MPLS IP VPN troubleshooting
3.5 Diagnostic tools
3.5.1 display commands
Command
Description
display interface Ethernet
Displays detailed information about the Ethernet
interface.
display interface
Displays detailed information about all interfaces.
display ip routing-table
vpn-instance vpn-instance-name
Displays information about the routes in the active
state in the routing table.
display ip routing-table
vpn-instance vpn-instance-name
verbose
Displays detailed information about a specified VPN
route in the RM routing table, including inactive
routes.
display bgp vpnv4 all routing-table
Displays information about all BGP routes,
including the routes of the VPNv4 address family
and those of the VPN-instance address family.
display bgp vpnv4 all routing-table
label
Displays information about all labeled BGP routes,
including the routes of the VPNv4 address family
and those of VPN-instance address family.
display bgp vpnv4 all peer
Displays information about all BGP VPNv4 peers
and VPN-instance peers.
display bgp vpnv4 vpn-instance
vpn-instance-name routing-table
Displays information about the route of a specified
instance of BGP.
display mpls lsp
Displays information about all LSPs, including the
information on the LSP created through BGP, LDP,
and other signaling protocols.
display fib vpn-instance
vpn-instance-name
Displays information about the forwarding entry of a
specified VPN instance in the FIB.
display bgp vpnv4 all routing-table
ip-address
Displays detailed information about a specified
route of BGP.
3.5.2 debugging commands
Command
Description
debugging ethernet
Debugs an Ethernet interface.
debugging bgp all
Enables all BGP debugging.
debugging bgp update
Debugs BGP update packets.
debugging bgp verbose
Enables detailed BGP debugging.
debugging rm ipv4 urt
Debugs RM IPv4 routes.
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
3-23
Nortel Secure Router 8000 Series
Troubleshooting - VPN
3 BGP/MPLS IP VPN troubleshooting
Command
Description
debugging mpls management
Debugs MPLS BGP/LDP messages.
debugging mpls packet
Debugs MPLS packets.
debugging bgp graceful-restart
Enables BGP Graceful Restart debugging.
debugging bgp event
Debugs BGP Finite State Machine (FSM) events.
debugging bgp peer-ip-address all
Enables all debugging of a specified BGP peer.
3.5.3 Alarms
3-24
Item
Description
Alarm message
Warning: VPN-Instance is in stale state
Meaning
The VPN-instance is in the stale state. It is not allowed to configure a VPN
with this name.
Possible cause
Nortel recommends that you do not delete a VPN and reconfigure it
immediately because it takes time to delete the routes of a VPN after you
delete the VPN.
Solution
Wait for the VPN routes are deleted.
Item
Description
Alarm message
Warning: RD is not configured
Meaning
Configuration of the Import route target (IRT) and Export route target
(ERT) commands in the VPN view fails.
Possible cause
The RD is not configured first.
Solution
Configure the rout distinguisher.
Item
Description
Alarm message
Error: RD is not unique
Meaning
You cannot specify this RD value.
Possible cause
Another VPN is configured to use this RD value.
Solution
Delete the VPN with the same RD value or specify another RD.
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
3 BGP/MPLS IP VPN troubleshooting
Item
Description
Alarm message
Error: VPN-Target list is full
Meaning
Targets are full and you cannot configure more.
Possible cause
You can configure up to 16 targets only.
Solution
Delete one or more existing VPN targets.
Item
Description
Alarm message
Warning - Maximum Route Limit xxx Reached - Allowing Route to be
added
Meaning
In the VPN1 routing table, the number of routes reaches the limit. Routes
can be added until the limit defined in the paf file is reached.
Possible cause
The value of number specified in the routing-table limit number
simply-alert command in the VPN view is too small.
Solution
Increase the number in the routing-table limit number simply-alert
command.
Item
Description
Alarm message
Warning - Threshold level xx Percent reached - Route addition denied
Meaning
In the VPN1 routing table, the number of routes reaches the limit. Routes
can be added until the threshold defined by the routing-table limit
command is reached.
Possible cause
The value of alert-percent set in the routing-table limit number
alert-percent command in the VPN view is too small.
Solution
Increase the alert-percent in the routing-table limit number alert-percent
command.
Item
Description
Alarm message
Label allocation : label is used out
Meaning
No more labels can be allocated.
Possible cause
The number of applied labels reaches the maximum threshold defined in
the paf file.
Solution
Increase the number of allowed labels in the paf file.
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
3-25
Nortel Secure Router 8000 Series
Troubleshooting - VPN
3 BGP/MPLS IP VPN troubleshooting
Item
Description
Alarm message
BGP ILM Creation Failed
Meaning
No more LSPs can be created.
Possible cause
The number of created LSPs reaches the maximum limit defined in the paf
file.
Solution
Increase the number of allowed LSPs defined in the paf file.
Item
Description
Log message
BGP_L3VPN: Allocate token failed
Meaning
Applying for tokens from LSPM fails.
Possible cause
The number of tokens reaches the limit of the license.
Solution
Purchase a new license.
Item
Description
Log message
BGP_L3VPN (Id = xx) : VPN has no ERT, withdraw default-route to peer
x.x.x.x
Meaning
Service provider PE withdraws the sent routes.
Possible cause
ERT is not configured for the VPN.
Solution
Configure ERT.
Item
Description
Log message
BGP_L3VPN(Id = xx): RM cross route x.x.x.x failed.RMErrorNum = xx
Meaning
Creating cross routes in the routing table fails.
Possible cause
Cross routes fail in the RM policy filtering, or RM is abnormal.
Solution
Check the RM policy or contact a Nortel engineer for technical assistance.
Item
Description
Log message
BGP: Maximum IPv4 Routes License Value xxx is Exceeded
Meaning
The number of BGP routes reaches the threshold.
3.5.4 Logs
3-26
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
3 BGP/MPLS IP VPN troubleshooting
Item
Description
Possible cause
The number of routes reaches the limit defined in the permit file.
Solution
Purchase a new permit file.
Item
Description
Log message
BGP xxx: Receiving unsupported capability xxx.
Identified in OPEN MSG from x.x.x.x
Meaning
Open packets with the unsupported capability are received.
Possible cause
Inconsistent capability is configured at the two peer routers.
Solution
Configure the peer with the same capability on the two peer routers.
Item
Description
Log message
VPN is stale, don’t send default -route to peer x.x.x.x
Meaning
Do not send the default route of the VPN.
Possible cause
The VPN is in the stale state; therefore, relevant routes do not need to be
processed.
Solution
This state is normal and no treatment is needed.
Item
Description
Log message
RM VOS_TASK Memory Shortage Callback notified
Meaning
RM notifies BGP of failure to apply for memory.
Possible cause
Insufficient memory.
Solution
Wait for system processing or reduce the configuration and the amount of
routes to reduce the utilization of memory.
Item
Description
Log message
BGP: Wrong ASPATH Message Type xxx
Meaning
Analyze the wrong AS-Path message type.
Possible cause
The AS-path attribute of the received route is incorrect.
Solution
Check whether the origin of the route is correct.
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
3-27
Nortel Secure Router 8000 Series
Troubleshooting - VPN
Contents
4 MPLS L2VPN troubleshooting................................................................................................4-1
4.1 MPLS Layer 2 VPN overview ......................................................................................................................4-2
4.1.1 Introduction to MPLS Layer 2 VPN ....................................................................................................4-2
4.1.2 CCC MPLS Layer 2 VPN ....................................................................................................................4-3
4.1.3 SVC MPLS Layer 2 VPN ....................................................................................................................4-4
4.1.4 Martini MPLS Layer 2 VPN ................................................................................................................4-4
4.1.5 PWE3 MPLS Layer 2 VPN..................................................................................................................4-5
4.1.6 Kompella MPLS Layer 2 VPN ............................................................................................................4-6
4.1.7 MPLS Layer 2 VPN IP-interworking...................................................................................................4-6
4.2 Layer 2 VPN troubleshooting........................................................................................................................4-7
4.2.1 Typical networking ..............................................................................................................................4-8
4.2.2 Configuration notes............................................................................................................................4-10
4.2.3 Troubleshooting flowchart .................................................................................................................4-13
4.2.4 Troubleshooting procedure ................................................................................................................4-14
4.3 Troubleshooting cases .................................................................................................................................4-17
4.3.1 VC type is not supported when setting up a PW on an ATM subinterface.........................................4-17
4.3.2 A static PW cannot be switched with other PWs................................................................................4-19
4.3.3 Switch-L2VC is down after PW switching configuration..................................................................4-21
4.3.4 PW attributes cannot be changed by using the reset pw command....................................................4-22
4.3.5 VC is up but the PPP session cannot establish ...................................................................................4-26
4.3.6 VC under the interface is missing after the link protocol changes.....................................................4-27
4.3.7 Both the session and the AC are up, but the VC cannot be up ...........................................................4-29
4.3.8 Ethernet interconnects with ATM, the VC is up, but the ping between CEs fails ..............................4-33
4.3.9 CEs cannot communicate by using the accessing mode of VLAN ....................................................4-35
4.3.10 CEs cannot access each other though the static VC is up ................................................................4-35
4.3.11 VC is down though AC is up............................................................................................................4-37
4.3.12 Large-sized packets are lost between CEs on two ends of Layer 2 VPN.........................................4-38
4.3.13 Failure to establish the MPLS LDP session between PEs when RIP-1 is used in the Layer 2 VPN
backbone .....................................................................................................................................................4-39
4.4 FAQs ...........................................................................................................................................................4-40
4.5 Diagnostic tools...........................................................................................................................................4-44
4.5.1 display commands..............................................................................................................................4-44
4.5.2 debugging commands ........................................................................................................................4-45
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
i
Nortel Secure Router 8000 Series
Troubleshooting - VPN
Figures
Figure 4-1 MPLS LAYER 2 VPN networking ...................................................................................................4-2
Figure 4-2 MPLS Layer 2 VPN label stack processing......................................................................................4-3
Figure 4-3 Martini signaling process..................................................................................................................4-5
Figure 4-4 PWE3 signaling process ...................................................................................................................4-5
Figure 4-5 Local cross-connection networking ..................................................................................................4-8
Figure 4-6 Remote connection networking ........................................................................................................4-8
Figure 4-7 Multihop connection networking......................................................................................................4-9
Figure 4-8 Inter-AS networking .......................................................................................................................4-10
Figure 4-9 Troubleshooting flowchart of the MPLS Layer 2 VPN remote connection fault............................4-13
Figure 4-10 Troubleshooting flowchart of the MPLS Layer 2 VPN local connection fault.............................4-14
Figure 4-11 Sketch map of the SVC remote connection label..........................................................................4-15
Figure 4-12 Sketch map of the CCC remote connection label .........................................................................4-16
Figure 4-13 Networking diagram of the switching between the static PW and dynamic PW ..........................4-19
Figure 4-14 Networking diagram of Switch-L2VC troubleshooting................................................................4-21
Figure 4-15 Networking diagram .....................................................................................................................4-26
Figure 4-16 Networking diagram .....................................................................................................................4-29
Figure 4-17 Networking diagram .....................................................................................................................4-33
Figure 4-18 IP address configuration diagram .................................................................................................4-34
Figure 4-19 Networking diagram of the Layer 2 VPN backbone adopting RIP...............................................4-39
Figure 4-20 Networking scheme using DCE and DTE as the interface types..................................................4-41
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
iii
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4
4 MPLS L2VPN troubleshooting
MPLS L2VPN troubleshooting
About this chapter
The following table describes the contents of this chapter.
Section
Describes
4.1 MPLS Layer 2 VPN
overview
This section describes the knowledge you need before you
troubleshoot a Multiprotocol Label Switching (MPLS)
Layer 2 virtual private network (VPN).
4.2 Layer 2 VPN
troubleshooting
This section provides notes about configuring MPLS
Layer 2 VPN, the MPLS Layer 2VPN troubleshooting
flowchart, and the troubleshooting procedure in a typical
MPLS Layer 2 VPN Network.
4.3 Troubleshooting cases
This section presents several troubleshooting cases.
4.4 FAQs
This section lists frequently asked questions and their
answers.
4.5 Diagnostic tools
This section describes common diagnostic tools: display
commands and debugging commands.
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
4-1
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
4.1 MPLS Layer 2 VPN overview
This section covers the following topics:
z
Introduction to MPLS Layer 2 VPN
z
CCC MPLS Layer 2 VPN
z
SVC MPLS Layer 2 VPN
z
Martini MPLS Layer 2 VPN
z
PWE3 MPLS Layer 2 VPN
z
Kompella MPLS Layer 2 VPN
z
MPLS Layer 2 VPN IP-interworking
4.1.1 Introduction to MPLS Layer 2 VPN
MPLS Layer 2 VPN
MPLS Layer 2 VPN allows operators to provide Layer 2 VPNs of different media over a unified
MPLS network. The MPLS network can also provide traditional IP, MPLS Layer 3 VPN, traffic
engineering, and Quality of Service (QoS) services.
From the users point of view, the MPLS network is a Layer 2 switching network that can
establish a Layer 2 connection between nodes.
Use Asynchronous Transfer Mode (ATM) as an example. Every customer edge (CE) is
equipped with an ATM virtual circuit (VC), and connects the remote CE through the MPLS
network.
Figure 4-1 MPLS LAYER 2 VPN networking
VPN A
VPN A
CE
VC
VC
CE
LSP
PE
PE
P
PE
VC
CE
VC
VPN B
CE
VPN B
Basic concepts of MPLS Layer 2 VPN
The CE, provider edger (PE), and provider router (P) defined in the MPLS Layer 2 VPN have
the same meaning and mechanism as those in the BGP/MPLS Layer 3 VPN.
4-2
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
The MPLS Layer 2 VPN also uses a label stack to implement transparent transmission of
packets across the MPLS network.
z
The outer label, called the tunnel label, is used to transport packets from one PE to another
PE.
z
The inner label, called the VC label, is used to distinguish connections in different VPNs.
According to the VC label, the receiving PE determines the CE where the packet is
forwarded.
Figure 4-2 shows the change of label stack in the process of forwarding packets across the
MPLS Layer 2 VPN.
Figure 4-2 MPLS Layer 2 VPN label stack processing
CE 1
PE 1
L2PDU
T V
PE 2
P
L2PDU
T' V
L2PDU
CE 2
L2PDU
In Figure 4-2, L2PDU represents the link layer packet; T represents the tunnel label; V
represents the VC label; and, T' represents a modified outer label.
Implementation of MPLS Layer 2 VPN
The Provider-Provisioned Virtual Private Network (PPVPN) workshop of the Internet
Engineering Task Force (IETF) creates multiple MPLS Layer 2 VPN framework drafts.
Martini and Kompella are the major drafts.
z
draft-martini-l2circuit-trans-mpls: uses the Label Distribution Protocol (LDP) as the
signaling protocol to transfer Layer 2 information and VC labels.
z
draft-kompella-ppvpn-Layer 2 VPN: uses the Border Gateway Protocol (BGP) as the
signaling protocol to transport Layer 2 information and VC labels.
You can also use static VC label configuration, such as Circuit Cross Connect (CCC) and Static
Virtual Circuit (SVC) to implement MPLS Layer 2 VPN.
The process of implementation is described as follows.
4.1.2 CCC MPLS Layer 2 VPN
CCC implements MPLS Layer 2 VPN by means of static configuration.
Unlike common MPLS Layer 2 VPNs, CCC uses a one-level label to transport user data and it
occupies a static LSP exclusively.
There are two types of CCC connection.
z
Local connection: refers to the connection between two local CEs. The two CEs connect
to the same PE. The PE functions as a Layer 2 switch that can carry out switching without
a static LSP.
z
Remote connection: refers to the connection between a local CE and a remote CE. The two
CEs connect to different PEs, and a static LSP is required to transmit packets from one PE
to another PE. Static LSPs and CCC connections can be associated by using a CLI
command on the PE.
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
4-3
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
4.1.3 SVC MPLS Layer 2 VPN
SVC is another type of static MPLS Layer 2 VPN. The SVC transfers Layer 2 VPN information
without using the signaling protocol but it requires manual configuration of VC label
information.
When creating a static SVC Layer 2 VPN connection, you can use a tunnel policy to specify the
tunnel type, which can be an LDP Label Switched Path (LSP), Constraint-Based Routing using
LDP (CR-LDP) or Generic Routing Encapsulation (GRE) tunnel. Load balancing is also
supported.
The SVC supports multihop inter-AS Layer 2 VPN but does not support local connection.
CCC, SVC, and static LSP use the same label range of 16 to 1023.
4.1.4 Martini MPLS Layer 2 VPN
Martini mode is simple. It implements Layer 2 VPN by setting up a point-to-point link and
transports Layer 2 information and VC labels using LDP.
In Martini mode, you can identify a VC between two CEs by using the VC type together with
the VC ID.
z
VC type: represents the encapsulation type of a VC, which can be ATM (atm-aal5-sdu),
VLAN, or Point-to-Point Protocol (PPP).
z
VC ID: is used to flag a VC. For VCs of the same type, the VC ID must be unique on the
same PE.
PEs exchange VC labels using LDP and associate CEs using the VC ID. After a tunnel is set up
successfully between PEs and label exchange, and bindings are complete, a VC is established.
For the remote connection, you must establish a remote LDP session to transport VC FECs and
VC labels. This is because, the two PEs that exchange VC labels may not directly connect.
The Martini mode supports multihop inter-AS Layer 2 VPN but does not support local
connection.
Martini MPLS Layer 2 VPN supports Graceful Restart (GR) . After router switchover, the VC
label remains unchanged. During the switchover, the VC remains up.
After the switchover, the original label saved at the local end is deleted if found different from
the one learned from the LDP peer. The VC that uses this label then becomes down.
Figure 4-3 shows the Martini signaling process.
4-4
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
Figure 4-3 Martini signaling process
Create PW
Mapping
Create PW
Mapping
AC/TNL
Down
Withdraw
Release
4.1.5 PWE3 MPLS Layer 2 VPN
Pseudo-Wire Emulation Edge-to-Edge (PWE3) is an extension of Martini mode.
The PWE3 sets up a PW on the control plane by using LDP. On the basis of the Martini mode,
PWE3 adds a notification mechanism and reduces the interaction of control packets when the
attachment circuit (AC) or the tunnel flaps. The PWE3 can also use Layer 2 TP version 3 as the
signaling. The Reservation Protocol (RSVP) can be used as a signaling protocol to set up a PW
with bandwidth guarantee, that is, RSVP-Traffic Engineering (RSVP-TE) PW. PWE3 mode is
compatible with Martini mode.
Figure 4-4 shows the PWE3 signaling process.
Figure 4-4 PWE3 signaling process
Create PW
Mapping
Create PW
Mapping
AC/TNL
Notification
Delete PW
Withdraw
Release
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
4-5
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
4.1.6 Kompella MPLS Layer 2 VPN
Overview
Kompella mode implements Layer 2 VPN in an end-to-end fashion and uses BGP to transport
Layer 2 information and VC labels.
Unlike Martini mode, Kompella MPLS Layer 2 VPN requires dividing the entire operator
network into many VPNs, and globally numbering CEs within these VPNs instead of
processing the connection between CEs directly.
Similar to BGP/MPLS VPN, Kompella mode also uses the VPN target to control the sending
and receiving of VPN routes. This adds more flexibility to networking.
To set up a connection between two CEs, you must specify a separate CE ID for both the local
CE and the remote CE on the PE.
The Kompella mode supports local connection and remote connection. The Kompella mode
supports the following two types of inter-AS Layer 2 VPN.
z
Multihop mode: adopts BGP label routes.
z
Multiprotocol – Exterior BGP (MP-EBGP) mode: stores the label block on the ASBR.
Label block
In Kompella mode a label block is used to distribute labels. Labels can be allocated for multiple
connections at a time.
You can specify a local CE range that shows the number of CEs to which a local CE can connect.
The system allocates one label block to this local CE at a time, with the block size equal to the
CE range. This mode allows users to distribute extra labels for VPNs. This causes a waste of
labels in a short term but reduces the workload of future VPN expansion.
4.1.7 MPLS Layer 2 VPN IP-interworking
Two CEs of the same Layer 2 VPN can use different Layer 2 media to access the SP. To allow
them to communicate, you must configure Layer 2 VPN IP-interworking.
Configuration notes vary with the Layer 2 medium through which the CE connects to the SP.
The PE mentioned in the following section refers to a local PE unless otherwise stated.
Ethernet and VLAN
An interface or subinterface of an Ethernet type supports IP-interworking encapsulation. Note
the following points:
4-6
z
It is not required to assign an IP address for the Ethernet interface on PE. Even if an IP
address is assigned, no routes generate.
z
After the encapsulation, the Ethernet interface of PE processes only Address Resolution
Protocol (ARP) packets and IP packets. Other types of packets are discarded.
z
After receiving IP packets from CE, PE will not update dynamic MAC addresses.
z
If you configure IP-interworking encapsulation on an ATM interface or subinterface, you
cannot configure this encapsulation on the VE interface that is associated with the
Permanent VC (PVC).
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
z
4 MPLS L2VPN troubleshooting
The minimum VLAN IDs of the neighboring PE and CE must be the same; while that of
the CEs on two ends of the tunnel can be different.
The processing of ARP packets:
z
After IP-interworking encapsulation, the Ethernet interface will have ARP entries that are
different from ordinary entries.
z
On receiving an ARP request from CE, the IP interworking-encapsulated Layer 2 VPN
incoming interface of PE will respond with its own MAC address regardless of the
destination.
z
An Ethernet interface or subinterface of PE can connect only one CE, it cannot connect
multiple CEs by using a hub or LAN switch. Otherwise, PE can learn useless MAC
addresses, leading to forwarding failure.
z
PPP supports the Password Authentication Protocol (PAP) and Challenge-Handshake
Authentication Protocol (CHAP) authentication. PPP supports local, Remote
Authentication Dial-In User Service (RADIUS), and HWTACACS authentication.
z
PPP supports STAC-LZS compression other than Internet Protocol Header Compression
(IPHC) and Van Jacobsen (VJ) compression.
z
PE can assign IP addresses for CEs; CE can also assign IP addresses for PEs. The
mechanism of address allocation is similar to the common case.
z
PPP supports transparent transmission of IP packets rather than MPLS, Intermediate
System-to-Intermediate System (IS-IS), and Internetwork Packet Exchange (IPX) packets
from a local CE to a remote CE. If any of these protocols is configured on the interface,
NCP will still be negotiated but the protocol packet will not be forwarded.
PPP
For PPP links, Nortel recommends that you select the way CE allocates IP addresses to PE. This can avoid
address conflict on PE and facilitate network deployment.
Frame Relay
z
Supports FRF.9 compression but does not support compression of the IP header in the
Frame Relay (FR) frame.
z
Supports the Local Management Interface (LMI) protocol.
z
Supports the Inverse Address Resolution Protocol (INARP).
z
Supports transparent transmission of IP packets from a local CE to a remote CE, but does
not support that of MPLS packets, IS-IS packets, and IPX packets.
When you configure FR, note the following points:
z
You must specify a VC number for an interface of data communications equipment (DCE)
or network-to-network interface (NNI) type, whether it is a main interface or a
subinterface.
z
For an interface of data terminal equipment (DTE) type, if it is a main interface, the system
can automatically determine the VC number based on the remote device; if it is a
subinterface, you must manually specify a VC number for it.
4.2 Layer 2 VPN troubleshooting
This section covers the following topics:
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
4-7
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
z
Typical networking
z
Configuration notes
z
Troubleshooting flowchart
z
Troubleshooting procedure
4.2.1 Typical networking
Local cross-connection networking
Figure 4-5 Local cross-connection networking
CE 2
POS1/0/0
100.1.1.2/24
local connection
CE 1
POS 1/0/0
100.1.1.1/24
POS 2/0/0
POS 1/0/0
PE
Only the CCC mode and the Kompella mode support local cross-connection. Both modes
support IP-interworking in the case of local cross-connection.
The label does not change during data forwarding on PE.
Remote connection networking
Figure 4-6 Remote connection networking
Loopback1
1.1.1.9/32
POS 2/0/0
168.1.1.1/24
POS 1/0/0
PE 1
POS 1/0/0
30.1.1.1/24
Loopback1
2.2.2.9/32
POS 2/0/0
169.1.1.1/24
POS 1/0/0
168.1.1.2/24
P
Remote Connection
CE 1
Loopback1
3.3.3.9/32
POS 1/0/0
169.1.1.2/24
PE 2 POS 2/0/0
POS 1/0/0
30.1.1.1/24
CE 2
The networking shown in Figure 4-6 applies to all Layer 2 VPN remote connections.
4-8
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
Multihop connection networking
Figure 4-7 Multihop connection networking
Loopback0
2.2.2.9/32
Loopback0
1.1.1.9/32
Loopback0
3.3.3.9/32
P1
S-PE
Loopback0
4.4.4.9/32
P2
Loopback0
5.5.5.9/32
Multi-Hop-PW
U-PE1
U-PE2
CE-B
CE-A
The networking shown in Figure 4-7 applies for multihop PWE3, including LDP-PW, and
static-PW.
A PW is configured on the interface of U-PE. The PW switching is configured in the system
view on S-PE.
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
4-9
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
Inter-AS networking
Figure 4-8 Inter-AS networking
AS 100
Loopback1
2.2.2.9/32
Loopback1
3.3.3.9/32
POS2/0/0
192.1.1.1/24
Loopback1
1.1.1.9/32
AS 200
POS2/0/0
192.1.1.2/24
ASBR -PE1
Loopback1
4.4.4.9/32
ASBR-PE2
PE1
PE2
GbE2/0/0
10.1.1.2/24
GbE2/0/0
10.2.1.2/24
GbE1/0/0
10.1.1.1/24
GbE1/0/0
10.2.1.1/24
CE1
AS 65001
AS 65002
CE2
Kompella supports three inter-AS implementations namely, virtual router and forwarder
(VRF)-to-VRF, multihop, and MP-EBGP. Martini and SVC support the inter-AS both in the
VRF-to-VRF mode and the Multihop mode.
4.2.2 Configuration notes
Item
Subitem
Notes
Configuring
MPLS
LSR-ID
An LSR ID is similar to the Router ID. An LSR ID
actually specifies an address. By default, LDP uses this
address to establish an LDP session, so ensure the
accessibility of the route to it. There are two methods to
set an LSR ID.
Establishing
the MPLS LDP
session
(dynamic VC
connection)
4-10
z
Ensure that the LSR-ID is unique in the backbone
network. The LSR ID is generally set to the address of
the loopback interface.
z
If the mpls ldp transport-address command is
configured on the interface that connects to the public
network, LDP will use the address specified by this
command to establish an LDP session.
MPLS
You need to enable MPLS in the system view
MPLS LDP or
remote MPLS
LDP
The dynamic VC connection uses the LDP as the
signaling.
If PEs do not connect directly, the remote MPLS LDP
session must be set up between PEs.
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
Item
Subitem
Notes
Configuring
BGP
AS
You must specify the same AS for all related PEs and
Ps.
(remote
connection
using BGP as
the signaling)
Interface used
for BGP
connection
You must specify the loopback interface (with a 32-bit
mask) as the egress interface of the session that is used
to establish an IBGP connection between PEs.
Enabling a
specified peer
In the Layer 2 VPN address family view, you need to
specify a peer or peer group between which the routing
information is exchanged.
Enabling
MPLS Layer 2
VPN
MPLS Layer 2
VPN
Whatever MPLS Layer 2 VPN mode you choose, you
must enable MPLS Layer 2 VPN globally.
Configuring
AC (Attached
Circuit)
Encapsulation
type, MTU and
interface
parameters of
the specific link
type
The Layer 2 VPN can be in the Up state only when the
status of AC is Up.
Creating a
connection
Configuring a
connection
z
If the AC type is VLAN, the subinterface can be
either the one based on the Ethernet or the VLANIF
interface based on the port.
z
If the AC type is ATM, configure the VC.
z
For the SVC mode, create the static Layer 2 VC in the
interface view.
z
For the Martini mode, create the Layer 2 VC in the
interface view.
z
For the CCC mode, create the CCC connection in the
system view.
z
For the Kompella mode, create the CE connection.
Specifying an
encapsulation
type for the
interface
For a Layer 2 VC connection the encapsulation type
must be consistent on the interface at both VC ends.
Configuring the
VC ID
The VC IDs of the SVC on S-PE can be the same.
However, the VC ID of the same encapsulation type on
U-PE must be unique. Changing the encapsulation type
on U-PE can lead to the collision of the VC ID.
For the static PW, the default VC ID is 0. If the static
PW is used in the switching, a non-zero VC ID must be
configured.
Specifying the
MTU size for
the interface
For an LDP VC, the MTU is one of the key parameters
to be negotiated. The MTU size must be the same on
both ends of a VC; otherwise, the VC will not go up.
For U-PE, the MTU is specified in the interface view.
For S-PE, the MTU is specified when switching VCs is
configured.
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
4-11
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
Item
Subitem
Notes
Configuring
switching VC
For the multi-hop PW, you need to configure switching
VCs.
Configuring
receiving and
sending labels
For the static remote connection, the receiving and
sending label need to be configured manually.
The configuration changes with MPLS Layer 2 VPN implementation mode. For details about the
configuration, see Nortel Secure Router 8000 Series Configuration Guide - VPN (NN46240-507).
4-12
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
4.2.3 Troubleshooting flowchart
Remote connection
Figure 4-9 Troubleshooting flowchart of the MPLS Layer 2 VPN remote connection fault
CEs cannot
access
each other
AC is Up?
No
Ensure that
AC is Up
Yes
CEs can
access each
other?
End
No
Yes
L2VPN
connection is
Up?
Ensure AC
interfaces of CE
on same segment
Yes
No
Tunnel
between PEs
is Up?
No
Ensure the
tunnel is Up
No
Set up
BGP/LDP
session
between PEs
L2VPN
connection is
Up?
No
Yes
L2VPN
connection is
Up?
No
Yes
L2VPN
connection is
Up?
Yes
Yes
BGP/LDP
session is set
up?
Yes
Parameters
are consistent?
Ensure
parameters
consistent
No
No
Seek
technical
support
Yes
No
Heteromedia
interconnect?
Yes
CEs can
access each
other?
Remove
AC link
negotiation
fault
Yes
No
Reconfigure
VC or seek
technical
support
Issue 5.3 (30 March 2009)
No
CEs can
access each
other?
Nortel Networks Inc.
Yes
End
4-13
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
Local connection
Figure 4-10 Troubleshooting flowchart of the MPLS Layer 2 VPN local connection fault
CEs cannot
access each
other
No
AC is Up?
Ensure AC
is Up
CEs can
access each
other?
Yes
No
Yes
Yes
L2VPN
connection
is Up?
Ensure AC
interfaces of CE
on same
segment
No
Encapsu
-lation
is correct?
No
Re-configure
the type
CEs can
access each
other?
Yes
No
Yes
Heteromedia Yes
interconnect?
Remove AC link
negotiation fault
CEs can
access each
other?
No
Yes
No
Reconfigure
connection or
seek technical
support
End
4.2.4 Troubleshooting procedure
The steps of troubleshooting are as follows:
Step 1 Check the AC status of the PE of both ends.
Before establishing the Layer 2 VPN connection, ensure the AC status is Up. If the status of AC
is Down, remove the fault on the AC link and ensure the AC status on PE is Up.
z
When the AC type is VLAN, configure the subinterface.
z
When the AC type is ATM, configure the VC.
Step 2 Check the status of the Layer 2 VPN connection.
On PE, use the following command in any view to check the AC status and the Layer 2 VPN
connection status:
4-14
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
z
In CCC mode, use the display ccc command or the display layer 2 vpn ccc-interface
vc-type command.
z
In SVC mode, use the display mpls static-l2vc command.
z
In Martini mode, use the display mpls l2vc command.
z
In Kompella mode, use the display mpls layer 2 vpn connection command.
If the status of the connection is Up, but the packet cannot forward normally, check that the AC
interfaces on CE are on the same network segment.
For the static VC, check that the in-label and the out-label, and that of the remote end are
consistent.
z
transmit-vpn-label on the local end and receive-vpn-label on the remote end are
consistent.
z
receive-vpn-label on the local end and transmit-vpn-label on the remote end are
consistent.
If the CEs still cannot communicate, use the display fib command and the display ip
routing-table command to view whether the forwarding table and the routing table are
consistent.
z
If the tables are not consistent, the forwarding entry may not be delivered. You must delete
the VC and reconfigure it.
z
If the tables are consistent, contact Nortel technical personnel.
If the status of the Layer 2 VPN is Down, do as follows.
Step 3 Do as follows in the case of remote connection.
1.
Check that the outer tunnel (public network tunnel) exists.
z
L2VC connection: Run the display mpls l2vc interface command. If VC tunnel/token
info does not appear in the output, check if the tunnel configuration is correct. If the text
does appear, but TNL ID is 0x0, check that routes are reachable to both ends of a tunnel. If
it is an SVC connection, check if the label at both ends match. For a same SVC connection,
the egress label of one end must be the ingress label of another end as shown in Figure
4-11.
Figure 4-11 Sketch map of the SVC remote connection label
PE 1
O-Label
PE 1 to PE 2
I-Label
200
200
I-Label
O-Label
100
z
PE 2
PE 2 to PE 1
100
Kompella mode: Run the display mpls Layer 2 VPN connection interface command. If
tunnel type does not appear in the output, or id that follows is 0x0, check that the routes are
reachable at both ends of a tunnel.
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
4-15
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
z
Remote CCC connection: Run the display ccc command to check that the label at both
ends match. For a same CCC connection, the egress label of one end must be the ingress
label of another end as shown in Figure 4-12.
Figure 4-12 Sketch map of the CCC remote connection label
CE 1 to CE 2
O-Label
I-Label
O-Label
I-Label
200
200
201
201
I-Label
O-Label
I-Label
O-Label
100
100
101
101
CE 2 to CE 1
2.
Check that the BGP connection or the MPLS LDP session establishes successfully.
z
If LDP is used as the signaling protocol, use the display mpls ldp session command to
check the establishment of a session. If PEs connect indirectly, the MPLS LDP remote
session needs to be set up between PEs.
z
If BGP is used as the signaling protocol, use the display bgp vpnv4 vpn-instance
vpn-instance-nam all peer command to check that the BGP session establishes
successfully.
For the diagnosis of MPLS LDP session faults, see 3 BGP/MPLS IP VPN troubleshooting.
For BGP troubleshooting, see Nortel Secure Router 8000 Series Troubleshooting - IP Routing
(NN46240-706).
If the BGP connection or the MPLS LDP session establishes successfully, but still the Layer 2
VPN cannot be set up, perform the following checks.
3.
Check that the negotiated parameters match.
Parameter mismatch can appear in various forms, as in the following examples:
z
The maximum transmission unit (MTU) of one end is 1500 bytes, but that of the other end
is 4470 bytes.
z
One end supports CW while the other end does not.
z
One end is encapsulated with PPP while the other end is encapsulated with Ethernet.
If the negotiated parameters mismatch, modify them to be consistent.
In the case of the heterogeneous-media interconnection, the encapsulation type of the
connection must be IP-interworking.
If the status of VC is Down even after the configuration, do as follows.
Step 4 Do as follows in the case of the local connection.
Check that the encapsulation types are consistent on both local and remote ends if the local
connection.
Step 5 Check whether the link negotiation between CE and PE succeeds when heterogeneous media
interconnect.
If the negotiated parameters of the link between CE and PE mismatch, modify them to be
consistent.
In the case of the Ethernet network, check that local ce-mac or local ce-ip is configured.
4-16
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
If the fault is still not rectified, check that the local PE is configured with the IP address of the
remote CE.
If the fault persists, contact Nortel technical personnel.
----End
4.3 Troubleshooting cases
This section provides the following troubleshooting cases:
z
VC type is not supported when setting up a PW on an ATM subinterface
z
A static PW cannot be switched with other PWs
z
Switch-L2VC is down after PW switching configuration
z
PW attributes cannot be changed by using the reset pw command
z
VC is up but the PPP session cannot establish
z
VC under the interface is missing after the link protocol changes
z
Both the session and the AC are up, but the VC cannot be up
z
Ethernet interconnects with ATM, the VC is up, but the ping between CEs fails
z
CEs cannot communicate by using the accessing mode of VLAN
z
CEs cannot access each other though the static VC is up
z
VC is down though AC is up
z
Large-sized packets are lost between CEs on two ends of Layer 2 VPN
z
Failure to establish the MPLS LDP session between PEs when RIP-1 is used in the Layer 2
VPN backbone
4.3.1 VC type is not supported when setting up a PW on an ATM
subinterface
Fault symptom
Configuration of PWE3 is required. After a PW establishes on the ATM subinterface of U-PE,
use the display mpls l2vc command to check it. In the output, VC Type is Unsupport. For
example:
[Nortel] interface atm 2/1/0.100
[Nortel-Atm2/1/0.100] mpls l2vc 3.3.3.8 33
[Nortel-Atm2/1/0.100] display mpls l2vc interface atm 2/1/0.100
*Client Interface : Atm2/1/0.100 is up
Session State
: down
AC State
: down
VC State
: down
VC ID
VC Type
: 33
: Unsupport
Destination
: 3.3.3.8
Local Group ID
: 0
Remote Group ID
: 0
Local VC Label
: 119809
Remote VC Label
: 0
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
4-17
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
Local VC MTU
: 1500
Remote VC MTU
: 0
Local VCCV
: Disable
Remote VCCV
: None
Local Frag
: Disable
Remote Frag
: None
Local Ctrl Word
: Disable
Remote Ctrl Word : None
Tunnel Policy
: --
Traffic Behavior : -PW Template Name : -VC tunnel/token info : 0 tunnels/tokens
Create time
: 0 days, 0 hours, 0 minutes, 9 seconds
UP time
: 0 days, 0 hours, 0 minutes, 0 seconds
Last change time : 0 days, 0 hours, 0 minutes, 9 seconds
Fault analysis
By default, an ATM subinterface uses the Point-to-Multipoint Protocol (P2MP) as the link layer
protocol. However, PWE3 does not support P2MP.
You must specify Point-to-Point (P2P) when you create an ATM subinterface.
After specifying P2P, you need to reconfigure the PW. The configuration is as follows:
[Nortel] interface atm 2/1/0.100 p2p
[Nortel-Atm2/1/0.100] mpls l2vc 3.3.3.8 33
Check the output and you can find that VC Type becomes atm aal5 sdu:
[Nortel-Atm2/1/0.100] display mpls l2vc interface atm 2/1/0.100
*Client Interface : Atm2/1/0.100 is up
Session State
: down
AC State
: up
VC State
: down
VC ID
VC Type
: 33
: atm aal5 sdu
Destination
: 3.3.3.8
Local Group ID
: 0
Remote Group ID
: 0
Local VC Label
: 119809
Remote VC Label
: 0
Local VC MTU
: 1500
Remote VC MTU
: 0
Local VCCV
: Disable
Remote VCCV
: None
Local Frag
: Disable
Remote Frag
: None
Local Ctrl Word
: Enable
Remote Ctrl Word : None
Tunnel Policy
: --
Traffic Behavior : -PW Template Name : -VC tunnel/token info : 0 tunnels/tokens
Create time
: 0 days, 0 hours, 0 minutes, 9 seconds
UP time
: 0 days, 0 hours, 0 minutes, 0 seconds
Last change time : 0 days, 0 hours, 0 minutes, 9 seconds
4-18
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
Troubleshooting procedure
Step 1 Specify P2P as the link layer protocol of an ATM subinterface.
Step 2 Reconfigure the PW.
----End
Summary
If you configure PWE3, you must specify P2P as the link layer protocol for the subinterface to
create a PW on an ATM subinterface.
4.3.2 A static PW cannot be switched with other PWs
Fault symptom
After you configure static PW, you find that the static PW cannot be switched with other PWs as
shown in Figure 4-13.
Figure 4-13 Networking diagram of the switching between the static PW and dynamic PW
MPLS Backbone
Loopback0
2.2.2.9/32
Loopback0
1.1.1.9/32
Loopback0
3.3.3.9/32
POS2/0/0
10.1.1.1/24
POS1/0/0
20.1.1.2/24
POS1/0/0
10.1.1.2/24
U-PE1 POS1/0/0
POS2/0/0
S-PE 20.1.1.1/24
Dynamic PW
POS2/0/0 U-PE2
Static PW
POS1/0/0
100.1.1.2/24
POS1/0/0
100.1.1.1/24
CE-A
CE-B
PW Switching
For example:
# Configure a static PW on U-PE1:
[U-PE1-Pos1/0/0] mpls static-l2vc destination 3.3.3.3 transmit-vpn-label 100
receive-vpn-label 100
# Configure a static PW on U-PE2:
[U-PE2-Pos1/0/0] mpls static-l2vc destination 1.1.1.1 transmit-vpn-label 100
receive-vpn-label 100
# Configure static PW switching on S-PE:
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
4-19
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
[S-PE] mpls switch-l2vc 3.3.3.3 100 trans 100 recv 100 between 1.1.1.1 100 trans 100
recv 100 encapsulation ppp
Fault analysis
The VC ID is optional for the static PWE3. The static PW without a VC ID cannot be switched
with the dynamic PW.
If you configure the mixed PW switching, specify a non-zero VC ID for the static PW.
Otherwise, the multihop PW (MH-PW) cannot be located. Normally, the VC ID for the static
PW is the same as that of the dynamic PW.
In this case, the possible cause is that the PW ID of the static PW is 0. You can use the following
method to solve it.
# Configure U-PE1:
[U-PE1] pw-template pwt1
[U-PE1] peer-address 3.3.3.3
[U-PE1-Pos1/0/0] mpls static-l2vc pw-template pwt1 1 transmit-vpn-label 100
receive-vpn-label 100
# Configure U-PE2:
[U-PE1] pw-template pwt1
[U-PE1] peer-address 1.1.1.1
[U-PE1-Pos1/0/0] mpls static-l2vc pw-template pwt1 1 transmit-vpn-label 100
receive-vpn-label 100
# Configure static PW switching on S-PE:
[S-PE] mpls switch-l2vc 3.3.3.3 100 trans 100 recv 100 between 1.1.1.1 100 trans 100
recv 100 encapsulation ppp
Establishment of the static PW does not involve the signaling. As long as the label is correct,
VC IDs can be different.
Troubleshooting procedure
Step 1 Create a PW template in the system view.
Step 2 Specify a peer for the PW in the PW template.
Step 3 Create a PW by using the PW template and specify a non-zero PW ID (also called VC ID) for it.
Or specify a non-zero VC ID for the static PW.
----End
Summary
The PW ID for the static PW is optional.
Static PWs to be switched must be configured with a PW ID.
4-20
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
4.3.3 Switch-L2VC is down after PW switching configuration
Fault symptom
Figure 4-14 Networking diagram of Switch-L2VC troubleshooting
MPLS Backbone
Loopback0
2.2.2.9/32
Loopback0
1.1.1.9/32
Loopback0
3.3.3.9/32
POS2/0/0
10.1.1.1/24
POS1/0/0
20.1.1.2/24
POS1/0/0
10.1.1.2/24
U-PE1 POS1/0/0
POS2/0/0
S-PE 20.1.1.1/24
POS2/0/0 U-PE2
PW
PW
POS1/0/0
100.1.1.2/24
POS1/0/0
100.1.1.1/24
CE-A
CE-B
PW Switching
The configuration is as follows.
# Configure S-PE:
[S-PE] mpls switch-l2vc 1.1.1.9 45 between 2.2.2.9 34 encapsulation vlan
# Display the configuration and find that the status of the switch-L2VC is Down:
[S-PE] display mpls switch-l2vc
*Switch-l2vc type
: LDP<---->LDP
Peer IP Address
: 2.2.2.9, 1.1.1.9
VC ID
: 45, 34
VC Type
VC State
: vlan
: down
Local/Remote Label
: 119812/0, 119813/0
Local/Remote Control Word
: Disable/None, Disable/None
Local/Remote VCCV Capality
: Disable/None, Disable/None
Local/Remote Frag Capability : Disable/None, Disable/None
Switch-l2vc tunnel info
0 tunnels for peer 2.2.2.9
:
1 tunnels for peer 1.1.1.9
NO.0
TNL Type : lsp
, TNL ID : 0x8b010000
Create time
: 0 days, 0 hours, 0 minutes, 9 seconds
UP time
: 0 days, 0 hours, 0 minutes, 0 seconds
Last change time
: 0 days, 0 hours, 0 minutes, 9 seconds
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
4-21
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
Fault analysis
The Secure Router 8000 Series does not necessarily require a VC peer to use the remote MPLS
LSR ID. When using the MPLS LDP, you must use the LSR-ID specified in the MPLS LDP
view as the LSR-ID. Therefore, the VC peer can be the remote MPLS LSR ID or the 32-bit
mask address of a loopback interface. Establish the session between the two ends by using the
remote peer command.
An LSR cannot establish a session or LSP with itself. If a VC between an LSR and its remote is
configured on S-PE where PW switching is performed, then, this VC cannot be Up. The remote
address used for PW switching cannot be the address of the local router.
Troubleshooting procedure
Step 1 Check the peer IP address of the VC on S-PE.
Step 2 Modify the peer IP address used in the PW switching to the nonlocal S-PE router address.
----End
Summary
When you configure a multihop PW, note that a VC cannot establish between S-PE and U-PE.
4.3.4 PW attributes cannot be changed by using the reset pw
command
Fault symptom
After PW configuration on PE, you change PW attributes.
Use the reset pw template command and the reset pw vc-id command. Find that PW attributes
are unchanged.
# Check the configuration of the PW template on PE:
[PE] display pw-template pwt1
PW Template Name : pwt1
PeerIP
: 1.1.1.1
Tnl Policy Name
: --
PW Type
: Unknown
CtrlWord
: Disable
MTU
: 1500
MaxAtmCells
: 1
VCCV Capability
: Disable
Fragmentation
: Disable
Behavior Name
: --
Total PW
: 1, Static PW : 1, LDP PW : 0
# Configure a PW by applying the PW template:
[PE-Atm2/1/0.100] mpls l2vc pw-template pwt1 2.2.2.2 100
# View the PW configuration:
[PE-Atm2/1/0.100] display mpls l2vc 100
Total ldp vc : 1
4-22
0 up
1 down
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
*Client Interface
4 MPLS L2VPN troubleshooting
: Atm2/1/0.100
Session State
: down
AC Status
: up
VC State
: down
VC ID
VC Type
: 100
: atm aal5 sdu
Destination
: 2.2.2.2
Local VC Label
: 119811
Remote VC Label
: 0
Control Word
: Disable
Local VC MTU
: 1500
Remote VC MTU
: 0
Tunnel Policy Name
: --
Traffic Behavior Name: -PW Template Name
: pwt1
Create time
: 0 days, 0 hours, 0 minutes, 6 seconds
UP time
: 0 days, 0 hours, 0 minutes, 0 seconds
Last change time
: 0 days, 0 hours, 0 minutes, 6 seconds
# Specify a new peer address for the PW in the PW template:
[PE-Atm2/1/0.100] pw-template pwt1
[PE-pw-template-pwt1] peer-address 3.3.3.3
Info: The attribute of this PW template has been modified, please use PW restart command
to update PW's attribute
According to the prompt, do as follows:
[PE-pw-template-pwt1] return
# Reset the PW:
<PE> reset pw 100 atm-aal5-sdu
# Display the configuration and find that the peer IP address of the PW is unchanged:
<PE> display mpls l2vc 100
Total ldp vc : 1
*Client Interface
0 up
1 down
: Atm2/1/0.100
Session State
: down
AC Status
: up
VC State
: down
VC ID
: 1
VC Type
Destination
: atm aal5 sdu
: 2.2.2.2
Local VC Label
: 119811
Remote VC Label
: 0
Control Word
: Disable
Local VC MTU
: 1500
Remote VC MTU
: 0
Tunnel Policy Name
: --
Traffic Behavior Name: -PW Template Name
: pwt1
Create time
: 0 days, 0 hours, 0 minutes, 45 seconds
UP time
: 0 days, 0 hours, 0 minutes, 0 seconds
Last change time
: 0 days, 0 hours, 0 minutes, 45 seconds
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
4-23
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
# Reset the PW template:
<PE> reset pw pw-template pwt1
# Display the configuration and find that the peer IP address of the PW does not change:
<PE> display mpls l2vc 100
Total ldp vc : 1
*Client Interface
0 up
1 down
: Atm2/1/0.100
Session State
: down
AC Status
: up
VC State
: down
VC ID
: 1
VC Type
Destination
: atm aal5 sdu
: 2.2.2.2
Local VC Label
: 119811
Remote VC Label
: 0
Control Word
: Disable
Local VC MTU
: 1500
Remote VC MTU
: 0
Tunnel Policy Name
: --
Traffic Behavior Name: -PW Template Name
: pwt1
Create time
: 0 days, 0 hours, 1 minutes, 7 seconds
UP time
: 0 days, 0 hours, 0 minutes, 0 seconds
Last change time
: 0 days, 0 hours, 1 minutes, 7 seconds
Fault analysis
Some PW attributes can be configured by using the PW template or by using the CLI command.
However, the latter method has the highest priority.
If PW attributes are specified in the CLI, then those specified in the PW template lose effect.
The PW attributes do not change if the reset pw template and the reset pw vc-id commands are
run.
In this case, you can use the PW template to set PW attributes that need changes. To set this,
perform the following actions:
# Specify the peer IP address in the PW template:
[PE-Atm2/1/0.100] pw-template pwt1
[PE-pw-template-pwt1] peer-address 3.3.3.3
# Apply the template to the PW:
[PE-pw-template-pwt1] int atm 2/1/0.100
[PE-Atm2/1/0.100] mpls l2vc pw-template pwt1 100
# Display the configuration and find that the IP address of the PW peer is unchanged:
[PE-Atm2/1/0.100] display mpls l2vc 100
Total ldp vc : 1
*Client Interface
4-24
0 up
1 down
: Atm2/1/0.100
Session State
: down
AC Status
: up
VC State
: down
VC ID
: 100
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
VC Type
Destination
: atm aal5 sdu
: 2.2.2.2
Local VC Label
: 119811
Remote VC Label
: 0
Control Word
: Disable
Local VC MTU
: 1500
Remote VC MTU
: 0
Tunnel Policy Name
: --
Traffic Behavior Name: -PW Template Name
: pwt1
Create time
: 0 days, 0 hours, 0 minutes, 4 seconds
UP time
: 0 days, 0 hours, 0 minutes, 0 seconds
Last change time
: 0 days, 0 hours, 0 minutes, 4 seconds
[PE-Atm2/1/0.100] return
<PE> reset pw 100 atm-aal5-sdu
# Display the configuration and find that the IP address of the PW peer changes:
<PE> display mpls l2vc 100
Total ldp vc : 1
*Client Interface
0 up
1 down
: Atm2/1/0.100
Session State
: down
AC Status
: up
VC State
: down
VC ID
: 100
VC Type
Destination
: atm aal5 sdu
: 3.3.3.3
Local VC Label
: 119811
Remote VC Label
: 0
Control Word
: Disable
Local VC MTU
: 1500
Remote VC MTU
: 0
Tunnel Policy Name
: --
Traffic Behavior Name: -PW Template Name
: pwt1
Create time
: 0 days, 0 hours, 0 minutes, 53 seconds
UP time
: 0 days, 0 hours, 0 minutes, 0 seconds
Last change time
: 0 days, 0 hours, 0 minutes, 53 seconds
Troubleshooting procedure
Step 1 Create a PW template and set PW attributes (especially those that need change) on it.
Step 2 Apply the PW template to the PW.
Step 3 Run the reset pw template command or the reset pw vc-id command in the user view to
modify PW attributes.
----End
Summary
The reset pw template command or the reset pw vc-id command can only change the
attributes that are set by using the PW template.
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
4-25
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
4.3.5 VC is up but the PPP session cannot establish
Fault symptom
Figure 4-15 Networking diagram
PE1
PE2
GbE2/0/0
POS1/0/0
POS1/0/0
GbE2/0/0
POS1/0/0
POS1/0/0
CE1
CE2
The CE and PE connect through a POS interface. The PE and PE connect through a GbE
interface.
The VC is Up, but the PPP session cannot be Up. If a POS interface connects PEs, the PPP
session between CE and PE goes Up.
Fault analysis
The VC on PE is Up because a tunnel exists between PEs and the CE-bound PE interface is Up
administratively.
To enable a PPP session to be Up, PPP negotiation must succeed.
The PPP negotiation occurs between two CE interfaces. The PE connects to the public network
through an Ethernet-type interface whose minimum packet is defined to be 64 bytes long. The
PPP control packet, LCP packet, is very small and is less than 64 bytes even after two layers of
labels are added. Consequently, the GbE interface on PE discards this negotiation packet. This
causes the failure in transmitting the negotiation packet to the remote CE over the VC.
Troubleshooting procedure
Step 1 Connect PEs by using the POS interface. Alternatively, run the mpls l2vc peer-ip-address
[ vc-id ] control-word command on the two PEs to configure a control word for Layer 2 VPN.
Padding is automatically added to Layer 2 VPN packets.
----End
Summary
When the type of the link between CE and PE is different from that between PEs, check the
minimum MTU value.
4-26
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
4.3.6 VC under the interface is missing after the link protocol
changes
Fault symptom
The configuration is as follows.
# Configure MPLS Layer 2 VC on an interface on PE that connects the AC. Set the VC ID to
100:
[PE-Pos4/0/0] mpls l2vc 1.1.1.8 100
# View the configuration of the interface:
[PE-Pos4/0/0] display this
#
interface Pos4/0/0
link-protocol fr
mpls l2vc 1.1.1.8 100
#
return
# This interface has a VC with the VC ID of 100:
[PE-Pos4/0/0] display mpls l2vc interface pos 4/0/0
*Client Interface : Pos4/0/0 is down
Session State
: down
AC State
: down
VC State
VC ID
: down
: 100
VC Type
: fr
Destination
: 1.1.1.8
Local Group ID
: 0
Remote Group ID
: 0
Local VC Label
: 119808
Remote VC Label
: 0
Local VC MTU
: 4470
Remote VC MTU
: 0
Local VCCV
: Disable
Remote VCCV
: None
Local Frag
: Disable
Remote Frag
: None
Local Ctrl Word
: Enable
Remote Ctrl Word : None
Tunnel Policy
: --
Traffic Behavior : -PW Template Name : -VC tunnel/token info : 0 tunnels/tokens
Create time
: 0 days, 0 hours, 0 minutes, 19 seconds
UP time
: 0 days, 0 hours, 0 minutes, 0 seconds
Last change time : 0 days, 0 hours, 0 minutes, 19 seconds
# Another interface on PE also has a VC with the ID as 100, and the link layer protocol is
High-Level Data Link Control (HDLC):
[PE-Pos4/1/0] display mpls l2vc interface pos 4/1/0
*Client Interface : Pos4/1/0 is down
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
4-27
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
Session State
: down
AC State
: down
VC State
VC ID
: down
: 100
VC Type
: hdlc
Destination
: 2.2.2.8
Local Group ID
: 0
Remote Group ID
: 0
Local VC Label
: 119809
Remote VC Label
: 0
Local VC MTU
: 4470
Remote VC MTU
: 0
Local VCCV
: Disable
Remote VCCV
: None
Local Frag
: Disable
Remote Frag
: None
Local Ctrl Word
: Disable
Remote Ctrl Word : None
Tunnel Policy
: --
Traffic Behavior : -PW Template Name : -VC tunnel/token info : 0 tunnels/tokens
Create time
UP time
: 0 days, 0 hours, 6 minutes, 14 seconds
: 0 days, 0 hours, 0 minutes, 0 seconds
Last change time : 0 days, 0 hours, 6 minutes, 14 seconds
# Change the link layer protocol of POS 4/0/0 to HDLC:
[PE-Pos4/0/0] link-protocol hdlc
# Recheck POS 4/0/0 and find that no VC exists:
[PE-Pos4/0/0] display mpls l2vc interface pos 4/0/0
# Check PE and find that only one VC is left. This VC is on POS 4/1/0 whose link layer
protocol is HDLC:
[PE] display mpls l2vc
Total ldp vc : 1
*Client Interface
0 up
1 down
: Pos4/1/0
Session State
: down
AC Status
: down
VC State
VC ID
: down
: 100
VC Type
: hdlc
Destination
: 2.2.2.8
Local VC Label
: 119809
Remote VC Label
: 0
Control Word
: Disable
Local VC MTU
: 4470
Remote VC MTU
: 0
Tunnel Policy Name
: --
Traffic Behavior Name: --
4-28
PW Template Name
: --
Create time
: 0 days, 0 hours, 8 minutes, 26 seconds
UP time
: 0 days, 0 hours, 0 minutes, 0 seconds
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
Last change time
: 0 days, 0 hours, 8 minutes, 26 seconds
Fault analysis
If an interface (POS 4/1/0 for example) on PE has an HDLC-type PW with the ID of 1, and you
change the link layer protocol of another interface (POS 4/0/0 for example) to HDLC, the
system deletes the PW under POS 4/0/0 automatically. The reason is that the two PWs have the
same VC ID and the same VC type.
Troubleshooting procedure
Step 1 If you need to change the link layer protocol of a VC, ensure that no identical PW ID and VC
type are configured on other interfaces of the same router.
----End
Summary
The combination of VC ID and VC type must be unique on the same router.
If a VC changes its link protocol type and this causes a conflict with the other VCs, the VC is
automatically deleted.
4.3.7 Both the session and the AC are up, but the VC cannot be up
Fault symptom
Figure 4-16 Networking diagram
PE1
Ethernet1/0/0
10.1.1.2/24
Ethernet2/0/0
100.1.1.2/24
PE2
Ethernet2/0/0
100.1.1.1/24
Ethernet1/0/0
10.1.1.1/24
Ethernet1/0/0
10.1.1.1/24
GbE1/0/0
10.1.1.2/24
CE1
CE2
As shown in Figure 4-16, the VC is not Up after you configure the Martini MPLS Layer 2 VPN.
Check the session and the AC, and find both of them are Up.
Fault analysis
Use the display mpls l2vc vc-id command on PE to check the MTU value for consistency. For
example:
# Check the MTU value of the Ethernet interface on PE1:
[PE1-Ethernet1/0/0] display mpls l2vc 100
Total ldp vc : 1
*Client Interface
Issue 5.3 (30 March 2009)
0 up
1 down
: Ethernet1/0/0
Nortel Networks Inc.
4-29
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
Session State
: up
AC Status
: up
VC State
: down
VC ID
: 100
VC Type
: ethernet
Destination
: 2.2.2.2
Local VC Label
: 119808
Remote VC Label
: 25600
Control Word
Local VC MTU
: Disable
: 80
Remote VC MTU
: 120
Tunnel Policy Name
: --
Traffic Behavior Name: -PW Template Name
: --
Create time
: 0 days, 0 hours, 0 minutes, 4 seconds
UP time
: 0 days, 0 hours, 0 minutes, 0 seconds
Last change time
: 0 days, 0 hours, 0 minutes, 4 seconds
# View the MTU value of the Ethernet interface on PE2:
[PE2-Ethernet1/0/0] display mpls l2vc 100
Total ldp vc : 1
*Client Interface
0 up
1 down
: Ethernet1/0/0
Session State
: up
AC Status
: up
VC State
: down
VC ID
: 100
VC Type
: ethernet
Destination
: 1.1.1.1
Local VC Label
: 25600
Remote VC Label
: 119808
Control Word
Local VC MTU
: Disable
: 120
Remote VC MTU
: 80
Tunnel Policy Name
: --
Traffic Behavior Name: -PW Template Name
: --
Create time
: 0 days, 0 hours, 0 minutes, 14 seconds
UP time
: 0 days, 0 hours, 0 minutes, 0 seconds
Last change time
: 0 days, 0 hours, 0 minutes, 14 seconds
The display shows that the MTU value of the local end is not consistent with that of the remote
end, which leads to parameter negotiation failure.
Modify the interface MTU value on either PE to make the MTU value consistent at both ends.
For example, change the MTU value of the interface on PE2 to make it consistent with that on
PE1:
[PE2-Ethernet1/0/0] mtu 80
[PE2-Ethernet1/0/0] shutdown
[PE2-Ethernet1/0/0] undo shutdown
After modification, the VC becomes Up:
[PE2-Ethernet1/0/0] display mpls l2vc 100
Total ldp vc : 1
*Client Interface
4-30
1 up
0 down
: Ethernet1/0/0
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
Session State
: up
AC Status
: up
VC State
: up
VC ID
: 100
VC Type
: ethernet
Destination
: 1.1.1.1
Local VC Label
: 25600
Remote VC Label
: 119808
Control Word
Local VC MTU
: Disable
: 80
Remote VC MTU
: 80
Tunnel Policy Name
: --
Traffic Behavior Name: -PW Template Name
: --
Create time
: 0 days, 0 hours, 0 minutes, 14 seconds
UP time
: 0 days, 0 hours, 0 minutes, 0 seconds
Last change time
: 0 days, 0 hours, 0 minutes, 14 seconds
Troubleshooting procedure
Step 1 Check that the MTU value is consistent at both ends.
Step 2 If inconsistency occurs, modify the MTU value on either end to ensure consistency.
Step 3 Use the shutdown command and then the undo shutdown command on the modified
interface.
----End
Summary
PWE3 has extended Martini interface parameters. Some of the parameters must be supported,
and some of them do not. Some of the parameters must match while some of them need not
match during the negotiation.
The following lists the Martini interface parameters.
Code
Length
Description
0x01
4
Interface MTU in octets
0x02
4
Maximum number of concatenated ATM cells
0x03
up to 82
Optional Interface Description string
0x04
4
CEM [8] payload bytes
0x05
4
CEM options
The following shows the PWE3 interface parameters.
Code
Length
Description
0x01
4
Interface MTU in octets
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
4-31
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
Code
Length
Description
0x02
4
Maximum number of concatenated ATM cells
0x03
Up to 82
Optional Interface Description string
0x04
4
CEP/TDM payload bytes
0x05
4
CEP options
0x06
4
Requested VLAN ID
0x07
6
CEP/TDM bit-rate
0x08
4
Frame-Relay DLCI Length
0x09
4
Fragmentation indicator
0x0A
4
FCS retention indicator
0x0B
4/8/12
TDM options
0x0C
4
Virtual Circuit Connectivity Verification (VCCV)
parameter
Items from 0x06 to 0x0C are extended in PWE3.
Currently, the Secure Router 8000 Series supports the MTU, Maximum ATM cell number,
Fragmentation and VCCV, but does not support the Request VLAN ID. You can set the same
VLAN ID for the AC interface at both ends to rectify the problem of not supporting the Request
VLAN ID.
When configuring interface parameters, note the following:
4-32
z
You must specify the same MTU for the Ethernet-type interface; otherwise, the PW cannot
be Up.
z
In ATM cell (0x0003 ATM transparent cell transport, 0x0009 ATM n-to-one VCC cell
transport and 0x000A ATM n-to-one VPC cell transport) mode, the maximum ATM cell
number must be sent to the peer in order to inform the peer how many cells it can handle at
a time. When the remote end encapsulates packets, this number must not increase.
Inconsistency of the cell number at both ends does not affect the status of a PW.
z
Fragmentation and ATM cell handling mode are consistent at both ends. The configuration
of fragmentation and ATM cell handling mode is optional. The local end only informs the
remote end whether it can perform reassembly; whether the remote fragments packets
depends on the packet size and its fragmentation capability. The fragmentation capability
does not affect the status of a PW, and it is not necessary to be the same.
z
VCCV processing is similar to ATM cell and fragmentation capability in terms of function.
The VCCV configuration is optional. VCCV informs the remote of its VCCV capability.
When performing VCCV, the peer chooses a path (CC) and a method (CV) according to
the configuration at both ends. VCCV does not affect the status of a PW, and does not need
to be consistent at both ends.
z
The Request VLAN ID informs the peer of its capability. During forwarding, the remote is
required to push a VLAN ID on its Layer 2 frame header. This configuration is optional. If
you use the Request VLAN ID, the VLAN ID can be different at both ends.
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
4.3.8 Ethernet interconnects with ATM, the VC is up, but the ping
between CEs fails
Scenario
Figure 4-17 Networking diagram
PE1
PE2
Backbone
GbE1/0/0
ATM1/0/0
GbE1/0/0
ATM1/0/0
CE1
CE2
As shown in Figure 4-17, Ethernet interconnects ATM. After Layer 2 VPN IP-interworking is
configured, the VC at both ends is Up, but the ping between CEs fails.
Fault analysis
Check whether the IP address of the two CEs is on the same network segment. The address of
the two ends must be on the same network segment.
Use the display local-ce mac command on PE, and use the display arp command on CE to
check the establishment of ARP entries of the Ethernet link.
If ARP entries are not set up successfully, configure the IP address and the MAC address for the
Ethernet interface of CE on PE and also enable MAC broadcasting on PE. That is, run the
local-ce ip command, the local-ce mac command and the local-ce mac broadcast command
on PE.
For detailed configuration, see Nortel Secure Router 8000 Series Configuration Guide - VPN
(NN46240-507).
The IP address configured on PE is that of the corresponding interface on the remote CE.
For ARP entries of the ATM link, you can use one of the two methods:
z
Use INARP to generate MAP dynamically. Figure 4-18 shows an example to configure IP
addresses. The configuration is as follows:
[PE2] interface atm1/0/0
[PE2-Atm1/0/0] pvc 100/200
[PE2-atm-pvc-Atm1/0/0-100/200] map ip inarp broadcast
[PE2-atm-pvc-Atm1/0/0-100/200] ip address 10.1.1.1 255.255.255.0
[CE2] interface atm1/0/0
[CE2-Atm1/0/0] pvc 100/200
[CE2-atm-pvc-Atm1/0/0-100/200] map ip inarp broadcast
[CE2-atm-pvc-Atm1/0/0-100/200] ip address 10.1.1.2 255.255.255.0
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
4-33
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
Figure 4-18 IP address configuration diagram
PE1
GbE1/0/0
10.1.1.2/24
PE2
Backbone
GbE1/0/0
10.1.1.1/24
ATM1/0/0
10.1.1.1/24
ATM1/0/0
10.1.1.2/24
CE1
z
CE2
Use static MAP. Configure the map ip peer-ce-address broadcast command or the map
ip default broadcast command in the PVC view of the ATM interface at both ends of the
AC.
For example:
[PE2] interface atm1/0/0
[PE2-Atm1/0/0] pvc 100/200
[PE2-atm-pvc-Atm1/0/0-100/200] map ip 10.1.1.2 broadcast
[PE2-atm-pvc-Atm1/0/0-100/200] ip address 10.1.1.1 255.255.255.0
[CE2] interface atm1/0/0
[CE2-Atm1/0/0] pvc 100/200
[CE2-atm-pvc-Atm1/0/0-100/200] map ip 10.1.1.1 broadcast
[CE2-atm-pvc-Atm1/0/0-100/200] ip address 10.1.1.2 255.255.255.0
Troubleshooting procedure
Step 1 Check that the IP address of CE at both ends is on the same network segment.
Step 2 Run the display local-ce mac command on PE and run the display arp command on CE to
check whether ARP entries of the Ethernet link establish successfully.
Step 3 If ARP entries are not set up successfully, configure an IP address and MAC address for the AC
interface of Ethernet type and enable MAC broadcasting on PE. For the ATM link, use INARP
to generate MAP dynamically or use static MAP.
----End
Summary
In IP-interworking applications, if the VC is Up but the ping between CEs fails, the cause is
often configuration error.
You must perform configuration according to the link type, so that ARP entries can generate
correctly.
4-34
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
4.3.9 CEs cannot communicate by using the accessing mode of
VLAN
Fault symptom
CEs adopt the accessing mode of VLAN. After the VLAN ID is changed, CEs on two ends
cannot communicate.
Fault analysis
To modify the VLAN ID, you need to modify VC IDs of the AC interfaces along the
packet-sending direction in turn. To make sure the modification takes effect, run the shutdown
command and then the undo shutdown command on each VLAN interface.
Troubleshooting procedure
Step 1 Use the vlan-type command on the AC interfaces along CE to PE and PE to CE direction to
modify the VLAN ID.
Step 2 Use the shutdown command on the AC interfaces to disable the interfaces.
Step 3 Use the undo shutdown command on the interfaces to enable them.
----End
Summary
When the VLAN access is adopted between CE and PE, the minimum VLAN ID of interfaces
on both ends of the AC that the packet passes by must be consistent. Otherwise, the packet
cannot be forwarded normally.
The minimum VLAN IDs of the CE interfaces on both ends of the tunnel can be different.
4.3.10 CEs cannot access each other though the static VC is up
Fault symptom
After the static VC is configured, the static VC is Up. CEs, however, cannot access each other.
For example:
[PE1] display mpls static-l2vc
Total svc connections:
*Client Interface
1,
1 up,
: Ethernet2/0/1 is up
AC Status
VC State
: up
: up
VC ID
: 0
VC Type
: ethernet
Destination
: 2.2.2.2
Transmit VC Label
: 200
Receive VC Label
: 100
Control Word
: Disable
VCCV Capability
: Disable
Issue 5.3 (30 March 2009)
0 down
Nortel Networks Inc.
4-35
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
Tunnel Policy Name
: --
Traffic Behavior
: --
PW Template Name
: --
Create time
: 0 days, 0 hours, 0 minutes, 17 seconds
UP time
: 0 days, 0 hours, 0 minutes, 17 seconds
Last change time
: 0 days, 0 hours, 0 minutes, 17 seconds
Fault analysis
Check the label of the static VC on the PE of the opposite end:
[PE2] display mpls static-l2vc
Total svc connections:
*Client Interface
1,
1 up,
0 down
: Ethernet1/0/1 is up
AC Status
: up
VC State
: up
VC ID
: 0
VC Type
: ethernet
Destination
Transmit VC Label
: 1.1.1.1
: 200
Receive VC Label
: 100
Control Word
: Disable
VCCV Capability
: Disable
Tunnel Policy Name
: --
Traffic Behavior
: --
PW Template Name
: --
Create time
: 0 days, 0 hours, 0 minutes, 17 seconds
UP time
: 0 days, 0 hours, 0 minutes, 17 seconds
Last change time
: 0 days, 0 hours, 0 minutes, 17 seconds
You can see that the label configuration on the local PE is different from that of the peer.
CEs can communicate after the following configuration:
[PE1-Ethernet2/0/1] mpls static-l2vc destination 2.2.2.2 transmit-vpn-label 100
receive-vpn-label 200
Troubleshooting procedure
Step 1 Delete the static VC on one end and reconfigure it.
----End
Summary
When the label of the static VC is incorrect, the data cannot forward normally even though the
VC is Up.
When you configure the static VC, note the following:
4-36
z
The local transmit-vpn-label and the remote receive-vpn-label are consistent.
z
The local receive-vpn-label and the remote transmit-vpn-label are consistent.
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
4.3.11 VC is down though AC is up
Fault symptom
After the configuration of Layer 2 VC, the AC is Up. However, the ping of the peer fails. After
using the display mpls l2vc command, you will find the status of the VC is Down and all the
remote VC label and the remote VC MTU are zeros, which are invalid.
[PE] display mpls l2vc
Total ldp vc : 1
*Client Interface
0 up
1 down
: Atm5/0/0
Session State
: up
AC Status
: up
VC State
: down
VC ID
: 100
VC Type
: ppp
Destination
: 3.3.3.3
Local VC Label
: 119809
Remote VC Label
: 0
Control Word
: Disable
Local VC MTU
: 1500
Remote VC MTU
: 0
Tunnel Policy Name
: --
Traffic Behavior Name: -PW Template Name
: --
Create time
: 0 days, 0 hours, 20 minutes, 16 seconds
UP time
: 0 days, 0 hours, 0 minutes, 0 seconds
Last change time
: 0 days, 0 hours, 4 minutes, 9 seconds
Fault analysis
Possible causes are:
z
The encapsulation types on two ends are different.
z
The peer is not configured with VC.
Troubleshooting procedure
Step 1 Check that the correct peer addresses are configured on PEs of two ends.
Step 2 Check that the VC IDs on two ends are consistent.
Step 3 Check that the encapsulation types on two ends are consistent.
Step 4 Check that the local VC MTU and the remote VC MTU are consistent.
Step 5 Check that the control word is enabled or disabled on both ends.
----End
Summary
VC uses LDP as the signaling. The negotiation of following parameters is required:
z
VC type
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
4-37
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
z
Control word
z
MTU
Thus, the VC status can be Up only when those parameters are consistent on both ends.
4.3.12 Large-sized packets are lost between CEs on two ends of
Layer 2 VPN
Fault symptom
After the Layer 2 VPN is set up between CEs, some large-sized packets are lost.
Fault analysis
The cause can be due to the fragmentation of the large-sized packets. The fragmentation can be
caused by the MTU on the AC interfaces or the receiving interface is smaller than the MTU of
the source interface.
Troubleshooting procedure
Step 1 Use the display interface command on the source interface to check the MTU.
Step 2 Use the display interface command on the PEs that the packet passes by to check whether AC
interfaces exist with MTU values smaller than the MTU of the source interface.
Step 3 Use the mtu command in the AC interface view on CE or PE to increase the MTU value and
ensure the packet sent by CE is not fragmented.
----End
Summary
When CEs connect through the Layer 2 VPN, the sent packet passing through PEs cannot
fragment. Otherwise, the packet cannot be received normally.
4-38
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
4.3.13 Failure to establish the MPLS LDP session between PEs
when RIP-1 is used in the Layer 2 VPN backbone
Fault symptom
Figure 4-19 Networking diagram of the Layer 2 VPN backbone adopting RIP
Loopback0
1.1.1.1/32
Loopback0
2.2.2.2/32
POS2/0/0
100.1.1.1/24
PE-A
POS3/0/0
1.1.2.3/16
POS2/0/0
100.1.1.2/24
POS1/0/0
POS1/0/0
POS1/0/0
10.1.1.1/24
POS3/0/0
1.1.2.4/16
PE-B
P
POS1/0/0
10.1.1.2/24
CE-B
CE-A
After the Layer 2 VPN backbone network that runs RIP-1 advertises the local loopback0
address and the interface IP address, the MPLS LDP session between PEs cannot be set up.
The prompt on PE-A is as follows:
Del Session : EncdecEncode ldp notify msg failure.
Check the MPLS LDP session on PE-A. The display is as follows:
[PE-A] display mpls ldp session
LDP Session(s) in Public Network
--------------------------------------------------------------------------
Peer-ID
Status
LAM SsnRole SsnAge
KA-Sent/Rcv
-------------------------------------------------------------------------
2.2.2.2:0
NonExistent
Passive
0/0
-------------------------------------------------------------------------
LAM : Label Advertisement Mode
SsnAge Unit : DDD:HH:MM
The prompt on PE-B is as follows:
Del Session : Tcp connection down
Check the MPLS LDP session on PE-B. The display is as follows:
[PE-A] display mpls ldp session
LDP Session(s) in Public Network
--------------------------------------------------------------------------
Peer-ID
Status
LAM SsnRole SsnAge
KA-Sent/Rcv
------------------------------------------------------------------------1.1.1.1:0
Initialized
Active
0/0
-------------------------------------------------------------------------
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
4-39
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
LAM : Label Advertisement Mode
SsnAge Unit : DDD:HH:MM
Fault analysis
Check the routing table on PE-B. The display is as follows:
[PE-B] display ip routing-table
Routing Tables: Public
Destinations : 10
Destination/Mask
Routes : 10
Proto
Pre
Cost
NextHop
Interface
1.0.0.0/8
RIP
100
1
100.1.1.1
Pos2/0/0
1.1.0.0/16
Direct 0
0
1.1.2.3
Pos3/0/0
1.1.2.3/32
Direct 0
0
127.0.0.1
InLoopBack0
1.1.2.4/32
Direct 0
0
1.1.2.4
Pos3/0/0
2.2.2.2/32
Direct 0
0
127.0.0.1
InLoopBack0
100.1.1.0/24
Direct 0
0
100.1.1.2
Pos2/0/0
100.1.1.1/32
Direct 0
0
100.1.1.1
Pos2/0/0
100.1.1.2/32
Direct 0
0
127.0.0.1
InLoopBack0
127.0.0.0/8
Direct 0
0
127.0.0.1
InLoopBack0
127.0.0.1/32
Direct 0
0
127.0.0.1
InLoopBack0
RIP-1 can identify only the route of the natural segment such as Class A, B, and C.
In the routing table of PE-B, two routes to peer 1.1.1.1 exist:
z
The IP address 1.0.0.0/8 learned by RIP-1.
z
The IP address 1.1.0.0/16 that directly connects with PE-B.
According to the longest matching rule, the packet is sent to POS 3/0/0 whose IP address is
1.1.0.0/16. In the network segment connected with POS 3/0/0, the loopback address 1.1.1.1/32
does not exist. Therefore, the MPLS LDP session cannot be set up.
Troubleshooting procedure
Step 1 Replace RIP-1 with RIP-2 to advertise the 32-bit loopback address. This address serves as the
MPLS LDP session address, on the PE.
----End
Summary
RIP-1 can identify only the route of the natural segment such as Class A, B and C. Use RIP-2 to
advertise the 32-bit loopback address of PE.
4.4 FAQs
Q: How can I run Martini mode on the existent version?
A: The Secure Router 8000 Series defaults to run PWE3 and also supports compatibility with
Martini mode. If the router is required to work only in Martini mode, use the mpls l2vpn
default martini command in the system view.
4-40
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
You can use the undo mpls Layer 2 VPN default martini command to restore PWE3 mode.
If a VC has been configured, such a type of switching cannot be done.
Q: In what cases do I configure local-ce and local-mac in different media
interworking?
A: You must configure the local-ce and local-mac when you configure IP-interworking
encapsulation on an Layer 2 VPN Ethernet interface or subinterface on PE. After a Layer 2
VPN Ethernet interface is IP-interworking encapsulated, it learns MAC addresses in a new way.
Accordingly, its ARP entries are different from ordinary ARP entries.
When PE receives an ARP request from CE through an IP-interworking encapsulated Layer 2
VPN ingress interface, PE responds with its own MAC address regardless of the destination. At
this time, an Ethernet interface or subinterface of PE can connect only one CE, but cannot
connect multiple CEs through a hub or LAN switch. When an Ethernet interface or subinterface
of PE connects multiple CEs, PE can learn unhelpful MAC addresses, which can cause
forwarding failure.
Q: What special configuration should be done on an FR interface? What is the
configuration guideline when CE acts as DCE and PE functions as DTE?
A: When you configure FR, note that:
z
You must configure a VC ID for a DCE or NNI interface regardless of whether it is a main
interface or a subinterface.
z
For a DTE interface, if it is a main interface, the system automatically determines its VC
ID based on the remote device; if it is a subinterface, you must manually specify a VC ID
for it.
When CE adopts FR to access PE, there is no special requirement on the interface that connects
with CE on the PE.
In the two CEs setting up the connection, the interface that connects with PE on one CE is
specified as DCE while that of another CE is specified as DTE.
Refer to Figure 4-20.
Figure 4-20 Networking scheme using DCE and DTE as the interface types
PE1
PE2
VPN
Backbone
DCE
CE1
DTE
CE2
If you configure LSP, configure link mapping to permit the broadcast packets if PEs are
connected through Non Broadcast Multiple Access (NBMA) network such as FR, ATM, and
X.25.
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
4-41
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
Q: What is the function of the control word in Layer 2 VPN?
A: The control word on the PWE3 control plane is represented by a bit. The VC can be Up only
when the control word at both ends is the same.
If the forwarding plane supports the control word, a 32-bit field is added to the data packet to
show the packet order. Generally, disorder can occur in the case of load balancing.
When PEs connect through the Ethernet, and PE and CE connect in a PPP fashion, PPP
negotiation fails because the control packet of PPP is too small, less than the minimum MTU
supported by the Ethernet. In this case, the control word is used as padding to avoid this
problem.
Q: Can I specify multihop VCs with the same peer and different encapsulation
types when I configure switch-Layer 2 VC on SPE?
A: Yes, you can. A VC is determined by the combination of the VC ID and the VC type.
Q: Can I set the PW ID to 0 or ignore the configuration?
A: Yes, you can. You can set a PW ID for a static PW or choose not to set it. A static PW with a
PW ID of 0 cannot switch with other PWs.
Q: How can I configure Layer 2 VPN load balancing?
A: Load balancing uses multiple tunnels to carry a PW. Data payload is divided among these
tunnels and forwarded by them. The number of load balancing tunnels is determined by the
permit file.
When you configure load balancing, you need to specify a tunnel selection policy, that is,
specify a policy name when you configure VCs.
Q: What does the multihop mean in Layer 2 VPN? In what cases is multihop used?
How can I configure multihop?
A: Layer 2 VPN multihop is a type of technology used to implement interworking between CEs,
which connect multiple VCs.
When a VC must cross an AS, or no direct tunnel exists but multiple tunnel segments between
two UPEs exist, configure multihop. With multihop, the network operation has lower
requirement on the performance of the access device.
UPE cannot judge whether the remote is a UPE or SPE, so the configuration on UPE is the same
as that in single-hop case. Regard the SPE as the remote. Configuration on SPE involves three
scenarios:
z
Dynamic to dynamic: Both sides are dynamic.
z
Static to static: Both sides are static.
z
Mixed: One side is dynamic and the other is static.
Q: Why can the same Layer 2 VC be configured with two types of encapsulation
when MPLS switch-Layer 2 VC is configured on SPE?
A: In the following example, the same Layer 2 VC is configured with two types of
encapsulation when MPLS switch-Layer 2 VC is configured on SPE:
4-42
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
[Nortel] mpls switch-l2vc 1.1.1.1 2345 between 2.2.2.2 1234 encapsulation
ip-interworking
[Nortel] mpls switch-l2vc 1.1.140.3 2345 between 1.1.140.2 1234 encapsulation hdlc
A combination of VC ID and VC type identifies a VC uniquely in PWE3. When the VC ID is
the same, but the VC type differs, two VCs are determined.
Q: What are the conditions for a PW being up?
A: In a SVC, if a PW is to be Up the conditions are: the local AC is Up and the tunnel is Up. You
can use the display mpls static-l2vc interface command to check the PW status.
In LDP, the conditions for a PW status of Up are:
z
The local AC is Up.
z
The tunnel is Up.
z
The LDP session is Up.
z
The MTUs, VC types, and control words are consistent on both ends.
You can use the display mpls l2vc interface command to check the PW status.
Q: What are the differences between tag or untagged configuration in the
Ethernet interface view and tagged or raw configuration in the PWE3 view?
A: The tag or untagged mode of an Ethernet interface has no direct relation with the tagged or
raw mode of a PWE3 tunnel.
z
The tag or untagged mode of an Ethernet interface identifies a VLAN and a subinterface
that receives packets sent from AC. By default, Ethernet packets are untagged and VLAN
packets are tagged.
z
The tagged or raw mode of PWE3 sets the PWE3 payload to carry a VLAN tag. A PWE3
packet coming out of a tunnel finds its egress based on the tagged or raw configuration.
The fact that the PWE3 packet carries the VLAN tag does not imply that the Ethernet interface
bound with the PWE3 tunnel is configured with the VLAN tag.
Specifying the PWE3 with the Raw mode, you can realize the switching function of the VLAN
tag. For example, the local AC interface is the Ethernet main interface while the remote is the
Ethernet subinterface:
z
The packet is received on the Ethernet main interface and the packet is untagged. The
VLAN tag is not added to the packet because the mode of PWE3 is Raw. When the PWE3
tunnel sends the packet to the remote end, the VLAN tag is added to the packet because the
egress is an Ethernet subinterface.
z
After the remote Ethernet subinterface receives the packet with the VLAN tag, according
to the Raw mode, the interface removes the VLAN tag and sends out the packet from the
Ethernet main interface.
If both ends of a PW are a VLAN subinterface in tag mode, they must use the same VLAN tag.
Otherwise, the packet is discarded.
In Q-in-Q mode, packets entering a tunnel carry multiple layers of tags. If the mode of PW is
Raw, the outer tag of the packet is removed before the packet is forwarded to the remote tunnel
end.
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
4-43
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
For a VLANIF interface, the VLAN packet does not carry a VLAN tag by default. If PWE3 is
configured in tag mode, the forwarding engine adds a default VLAN tag to packets. The main
Ethernet interface can emulate the default VLAN and make packets be in default VLAN mode.
Therefore, when you configure PWE3 on the interface of Ethernet type, you can configure the
packet to be tagged or untagged manually instead of judging from the interface type.
Q: After CEs adopt the ATM to access PEs, all the CE interfaces and PE interfaces
are up. Why can the CEs on two ends not ping through each other?
A: Check and ensure the PVC of the interface that connects with CE on the PE, and that of the
interface that connects with PE on the CE are consistent.
4.5 Diagnostic tools
4.5.1 display commands
Command
Description
display mpls l2vc
Displays information about Layer 2 VC.
display tunnel-info
Displays information about tunnels.
display mpls lsp
Displays information about LSPs.
display mpls ldp
Displays information about LDP.
display mpls Layer 2 VPN
connection
Displays information about the Layer 2 VPN using
BGP as the signaling.
display mpls Layer 2 VPN
Displays the MPLS Layer 2 VPN information.
display mpls l2vc
# View information on the bound Layer 2 VC of a specified interface:
<Nortel> display mpls l2vc interface ethernet1/0/0
*Client Interface : Ethernet1/0/0 is up
4-44
Session State
: up
AC State
: up
VC State
: up
VC ID
: 10
VC Type
Destination
: ethernet
: 2.2.2.2
Local Group ID
: 0
Remote Group ID
Local VC Label
: 0
: 17408
Remote VC Label
: 17408
Local VC MTU
: 1500
Remote VC MTU
: 1500
Local VCCV
: Disable
Remote VCCV
: Disable
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
4 MPLS L2VPN troubleshooting
Local Frag
: Disable
Remote Frag
: Disable
Local Ctrl Word
: Disable
Remote Ctrl Word : Disable
Tunnel Policy
: --
Traffic Behavior : -PW Template Name : -VC tunnel/token info : 1 tunnels/tokens
NO.0 TNL Type : lsp
, TNL ID : 0x1002000
Create time
: 0 days, 0 hours, 2 minutes, 13 seconds
UP time
: 0 days, 0 hours, 0 minutes, 39 seconds
Last change time : 0 days, 0 hours, 0 minutes, 39 seconds
display tunnel-info
# View information on all tunnels:
<Nortel> display tunnel-info all
* -> Allocated VC Token
Tunnel ID
Type
Destination
Token
---------------------------------------------------------------------0x1002000
lsp
2.2.2.2
0
0x51002001
local ifnet
--
1
4.5.2 debugging commands
Command
Description
debugging mpls Layer 2 VPN
Debugs Layer 2 VPN.
debugging mpls packet
Debugs MPLS packets.
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
4-45
Nortel Secure Router 8000 Series
Troubleshooting - VPN
Contents
5 VPLS troubleshooting...............................................................................................................5-1
5.1 VPLS overview .............................................................................................................................................5-2
5.1.1 Related concepts of VPLS ...................................................................................................................5-2
5.1.2 Encapsulation type ...............................................................................................................................5-3
5.1.3 MTU.....................................................................................................................................................5-4
5.2 VPLS troubleshooting ...................................................................................................................................5-4
5.2.1 Typical networking ..............................................................................................................................5-4
5.2.2 Configuration notes..............................................................................................................................5-6
5.2.3 Troubleshooting flowchart .................................................................................................................5-10
5.2.4 Troubleshooting procedures...............................................................................................................5-10
5.3 Troubleshooting cases .................................................................................................................................5-11
5.3.1 A VSI cannot be up in LDP signaling mode.......................................................................................5-12
5.3.2 Packets cannot forward successfully between two PEs though VSI is up .........................................5-14
5.3.3 A VSI cannot be up in BGP signaling mode ......................................................................................5-15
5.4 FAQs ...........................................................................................................................................................5-17
5.5 Diagnostic tools...........................................................................................................................................5-20
5.5.1 display commands..............................................................................................................................5-20
5.5.2 debugging command ..........................................................................................................................5-20
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
i
Nortel Secure Router 8000 Series
Troubleshooting - VPN
Figures
Figure 5-1 Basic VPLS networking....................................................................................................................5-4
Figure 5-2 Hierarchical VPLS Networking........................................................................................................5-5
Figure 5-3 VPLS troubleshooting flowchart ....................................................................................................5-10
Figure 5-4 VPLS networking diagram .............................................................................................................5-12
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
iii
Nortel Secure Router 8000 Series
Troubleshooting - VPN
5 VPLS troubleshooting
5
VPLS troubleshooting
About this chapter
The following table describes the contents of this chapter.
Section
Describes
5.1 VPLS overview
This section describes the knowledge you need before you
troubleshoot VPLS.
5.2 VPLS troubleshooting
This section provides notes about configuring VPLS, the
VPLS troubleshooting flowchart, and the troubleshooting
procedure in a typical VPLS network.
5.3 Troubleshooting cases
This section presents several troubleshooting cases.
5.4 FAQs
This section lists frequently asked questions and their
answers.
5.5 Diagnostic tools
This section describes common diagnostic tools: display
commands and debugging commands.
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
5-1
Nortel Secure Router 8000 Series
Troubleshooting - VPN
5 VPLS troubleshooting
5.1 VPLS overview
This section covers the following topics:
z
Related concepts of VPLS
z
Encapsulation type
z
MTU
The development of Ethernet has made it a dominant LAN technology and it is increasingly
applied as an access solution in the Metropolitan Area Network (MAN) and in the Wide Area
Network (WAN).
Virtual Private LAN Service (VPLS) connects more than one Ethernet LAN segment through
the Packet Switched Network (PSN), to enable them to operate as if in a LAN.
VPLS is also called Transparent LAN Service (TLS) or Virtual Private Switched Network
service (VPSN). Unlike the common Layer 2 VPN point-to-point service, service providers use
VPLS to offer Ethernet-based multi-point service over the MPLS backbone network.
5.1.1 Related concepts of VPLS
PW
A Pseudo Wire (PW) is a virtual connection that transmits frames between two provider edges
(PE). In the VPLS packet, PW corresponds to the inner label.
The PE sets up and maintains a PW, at both ends.
The setup of a PW is a process of generating local and remote labels by using signaling.
Currently, the Secure Router 8000 Series supports Label Distribution Protocol (LDP) signaling
and Border Gateway Protocol (BGP) signaling.
The following conditions must be met before the PW status is Up:
z
At least one AC is Up at the local end.
z
At least one Virtual Switch Instance (VSI) is Up at the remote end, and the negotiation
parameters are consistent at both ends of the PW.
Tunnel
A tunnel is a direct virtual path, that transparently transmits data.
The VPLS tunnel carries PWs. Multiple PWs can be delivered on a single tunnel. To set up a
PW to the remote end, a tunnel to the remote end must be available first.
The tunnel is set up by the tunnel management module. VPLS queries the tunnel against the
tunnel management module according to the remote destination address of a PW. If no tunnel to
the remote destination address exists, the PW cannot be set up.
VPLS supports using the tunnel policy to choose a tunnel.
AC
The customer edge (CE) connects the PE through the Attachment Circuit (AC) in a Layer 2
VPN.
5-2
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
5 VPLS troubleshooting
An AC can be either a physical link or a logical link. AC transfers frames between CE and PE.
You can specify a remote PE as the AC side of the local VPLS (upe often used). The specified
PE need not fully connect with other PEs or perform split horizon.
Similar to that in the distance vector (DV) routing protocol, the split horizon in VPLS can
reduce the bandwidth consumption and prevent the loop.
VSI
VSI implements the bridging function.
In VPLS, a VSI on the PE represents a VPN. A PE can have multiple VPNs. Therefore, a PE
can be configured with multiple VSIs. Each VSI provides separate VPLS service.
5.1.2 Encapsulation type
Packet encapsulation on the AC
Packet encapsulation on the AC is determined by the user access mode. Two user access modes
are available:
z
VLAN access: In this mode, the Ethernet frame sent upstream from the CE or sent
downstream from the PE contains a VLAN tag in the frame header. This tag is a service
delimiter used by the Internet Service Provider (ISP) to differentiate users. This type of tag
is a P-tag.
z
Ethernet access: In this mode, the Ethernet frame sent upstream by CE or sent
downstream by PE does not contain a P-tag. If the frame contains a VLAN tag in its header,
this tag is an internal VLAN tag and is of no significance for PE. This type of internal
VLAN tag is a U-tag.
You can specify the access mode of the user on the device.
Packet Encapsulation on the PW
Two types of packet encapsulation exist on the PW.
z
Raw mode: In this mode, the P-tag is not transmitted over the PW.
If the upstream packets on CE contain the service delimiter, their service delimiter is
removed before they are sent upstream; two layers of MPLS labels are added before they
are forwarded. If the upstream packets on CE do not contain a service delimiter, they are
sent upstream directly; two layers of MPLS labels are added before they are forwarded.
For downstream packets on PE, the service delimiter is added as needed before they are
forwarded to CE. It is not allowed to rewrite or remove an existent tag.
z
Tagged mode: In this mode the frame sent to the PW must contain a P-tag.
If the upstream packets on CE contain the service delimiter, they are sent upstream directly
without the P-tag removed; two layers of MPLS labels are added before they are
forwarded. If the upstream packets on CE do not contain the service delimiter, a null tag is
added and then sent upstream; two layers of MPLS labels are added before they are
forwarded.
For downstream packets on PE, their service delimiter is rewritten, removed, or retained as
needed before they are forwarded to CE.
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
5-3
Nortel Secure Router 8000 Series
Troubleshooting - VPN
5 VPLS troubleshooting
5.1.3 MTU
In VPLS, the maximum transmission unit (MTU) refers to the maximum transmission unit of
the link layer. The encapsulation type and the MTU are both regarded as the Layer 2
information and are processed.
The MTU of respective VPLS must be consistent in a same VPN. If inconsistency occurs, the
PW cannot be set up successfully.
5.2 VPLS troubleshooting
This section covers the following topics:
z
Typical networking
z
Configuration notes
z
Troubleshooting flowchart
z
Troubleshooting procedures
5.2.1 Typical networking
Basic topology
Figure 5-1 Basic VPLS networking
Loopback1
1.1.1.9/32
Loopback1
2.2.2.9/32
POS2/0/0
168.1.1.1/24
PE1
Ethernet1/0/0
POS1/0/0
168.1.1.2/24
Loopback1
3.3.3.9/32
POS2/0/0
169.1.1.1/24
P
CE1
POS1/0/0
169.1.1.2/24
PE2
Ethernet2/0/0
CE2
Figure 5-1 shows a basic VPLS topology and adopts the following solutions:
z
CE1 and CE2 belong to the same VPN.
z
The Interior BGP (IBGP) neighbor is set up between PE1 and PE2 to transmit VPN
routing information carrying the inner label
The PE1 and PE2 are user access devices on the public network, functioning like a Layer 2
device. For a packet sent from CE1, two layers (inner and outer) of MPLS labels are added
before being forwarded. The packet is forwarded on the public network by using the outer label
(that is, public network tunnel label). The corresponding VSI is found according to the inner
label (that is, PW label) and the Layer 2 forwarding is performed and the packet is forwarded to
CE2.
5-4
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
5 VPLS troubleshooting
This networking simulates the three constitutional parts of a VPLS networking: PE, provider
router (P), and CE.
This solution also meets the conditions of making a VPLS VSI Up: tunnel, AC access, and PW.
Hierarchical VPLS
Figure 5-2 Hierarchical VPLS Networking
PE1
Core layer
PE2
PE3
UPE1
UPE2
Convergence
layer
Convergence
layer
CE1
CE2
The traditional LDP signaling requires that:
z
PEs fully connect in a VPLS.
z
Each PE is specified with a peer.
The configuration is quite arduous, and requires higher performance of individual PEs.
To rectify this problem, you can use hierarchical VPLS. The PEs in the network core still fully
connect. A PE, as the user convergence device, only needs to be specified as a Underlayer PE
(UPE) on its directly connected Superstratum PE (SPE).
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
5-5
Nortel Secure Router 8000 Series
Troubleshooting - VPN
5 VPLS troubleshooting
5.2.2 Configuration notes
Item
Subitem
Notes
VSI
VSI creation
When you create a VSI, you need to specify a name for
it.
If you use BGP as the signaling protocol, choose the
keyword auto; if you use LDP, choose the keyword
static.
VPLS
encapsulation
type and MTU
of the VSI
By default, the encapsulation type is VLAN and the
MTU is 1500 bytes.
For the Virtual Leased Line (VLL) interworking, the
encapsulation type is determined by the private network
interface type of PE.
z
For the Ethernet subinterface, the encapsulation type is
VLAN.
z
For the main interface of Ethernet, the encapsulation
type is Ethernet.
z
For the VLAN interface, the encapsulation type is
VLAN.
The private network interface type and the MTU must be
consistent on the PE at both ends.
When you configure the encapsulation type and the
MTU:
pwsignal
(PW signaling
protocol)
MAC
address
learning
Static MAC
address entries
If you use BGP, you must configure them after router
distinguisher (RD) configuration; otherwise, the
system prompts that basic configuration must be
performed first.
z
If you use LDP, you must configure a VSI ID first.
After you create a VSI, you must specify a signaling
protocol, which can be LDP or BGP.
Each VSI has a MAC table. You can configure MAC
entries in system view.
Blackhole MAC
address entries
MAC address
learning
capability
5-6
z
You need to configure MAC address learning in VSI
view.
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
Item
5 VPLS troubleshooting
Subitem
Notes
MAC address
learning mode
There are two VPLS MAC address learning modes:
z
qualified: In this mode, the MAC address learning is
based on the VLAN. Different VLANs in a same VSI
instance can have different MAC address tables.
z
unqualified: In this mode, the MAC address learning is
based on the VSI. It is the default mode.
MAC address learning mode does not affect
interworking.
Handling of
unknown
frames
received
Unknown-frame
You can specify the handling of unknown frames by
using the unknown-frame { unicast | multicast }
{ drop | local-handle | broadcast } command in the VSI
view.
VSI (in LDP
signaling
mode)
VSI peer
To establish a VPN in LDP signaling mode, you need to
specify a peer by using the peer peer-address
[ negotiation-vc-id vc-id ] [ tunnel-policy policy-name ]
[ upe ] command. You must specify a VSI ID before you
configure a peer.
peer-address is often set to the loopback interface
address of the peer.
negotiation-vc-id refers to the VSI ID used for
negotiation with the peer. This value is often used when
the VSI ID is different at both ends but interworking is
needed. vc-id cannot be the same as that of the other local
VSIs and as that of the other local negotiation-vc-id.
tunnel-policy specifies a tunnel policy used for
communicating with the peer. This value should be an
existent tunnel policy. upe indicates that the peer access
mode is UPE.
VSI-ID
Issue 5.3 (30 March 2009)
You must specify a VSI ID in VSI LDP view. If
negotiation-vc-id is not specified, this VSI ID is used to
negotiate when you configure a peer. In this case, the
VSI ID must be consistent with the remote VSI ID, and
negotiation-vc-id must not be specified on the peer.
Nortel Networks Inc.
5-7
Nortel Secure Router 8000 Series
Troubleshooting - VPN
5 VPLS troubleshooting
Item
Subitem
Notes
VSI (in BGP
signaling
mode)
VPN-Target
The VPN target is a label filtering policy used by VPLS
in BGP signaling mode. Two VPN-target formats exist:
AS:nn and IP:nn. AS represents the autonomous system
number; nn is the user-defined figure; IP represents a
local IP address.
Ensure the association between the local VPN target
attribute and the remote VPN target attribute:
z
The local export-extcommunity attribute and the
remote import-extcommunity attribute are consistent.
z
The local import-extcommunity attribute and the
remote export-extcommunity attribute are consistent.
The traffic can flow in two-way only when the preceding
two requirements are satisfied.
The traffic can flow only in one-way if one of the two
requirements is met.
In general, the four values are configured consistent for
convenience.
You must specify an RD before you configure the VPN
target.
RD
RDs on a same router cannot be set to the same value.
Site ID
Site ID is used to specify a VSI site, ranging from
0–65534. A site ID must be unique in a VPLS.
The local site ID must not be larger than the sum of
range and default-offset of the peer. The local site ID
must be larger than default-offset of the peer.
range shows the number of sites in a VSI, with the
maximum range of 1–65534. default-offset is 0 or 1.
Tunnel
policy
tnl-policy
A tunnel policy is configured in the system view. VPLS
specifies the policy to be used. Besides the VPLS tunnel
policy you can specify a policy for a certain peer. By
default, the LSP tunnel is chosen. You need to complete
basic VPLS configuration before you configure a tunnel
policy.
In LDP mode, you need to configure a VSI ID first. In
BGP mode, you need to specify an RD first.
5-8
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
5 VPLS troubleshooting
Item
Subitem
Notes
AC
Binding of VSI
and AC
Use the l2 binding vsi vsi-name command to bind the
CE-bound interface with a VSI.
Ensure that the AC interface is physically Up. (A logical
interface is also required to be Up.)
If the AC access mode is VLAN, you must configure a
subinterface. If the mode is ATM, you need to configure
a virtual circuit.
When binding an Ethernet subinterface or an Ethernet
trunk, you must configure a VLAN on the Ethernet
subinterface.
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
5-9
Nortel Secure Router 8000 Series
Troubleshooting - VPN
5 VPLS troubleshooting
5.2.3 Troubleshooting flowchart
Figure 5-3 VPLS troubleshooting flowchart
VSI cannot
Up
No
Bind VSI
and the
AC interface
Does AC
exist?
Yes
Fault removed?
No
Yes
AC is Up?
Bound
interface is
a logical
one?
No
No
Yes
Yes
Specify a
physical
interface
It is
associated with
physical
one
Yes
No
Yes
Fault removed?
No
No
Ensure session
is Up or
Established
Session is
Up?
No
Yes
Does PW
exist?
Yes
Fault removed?
No
Set up the
tunnel to
remote end
Yes
Fault removed?
No
Yes
No
PW is Up?
Ensure
parameters
are consistent
Yes
Seek
technical
support
Yes
Fault removed?
No
End
5.2.4 Troubleshooting procedures
The steps of troubleshooting are as follows:
Step 1 Check the status of the AC.
Run the display vsi vsi-name verbose command.
5-10
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
5 VPLS troubleshooting
If the output does not include the Interface Name, it indicates that the VSI is not bound with the
AC. You need to bind the CE-bound interface with the VSI.
For details, see 5.2.2 Configuration notes.
Step 2 Check the status of the session.
If the session is not set up, use the display ip routing-table command to check the route to the
remote peer. If no route exists, configure a dynamic routing protocol or static route.
Step 3 Check the status of the PW or tunnel.
If the session is Up, check the status of the PW.
If no PW is available, the cause can be the absence of a tunnel to the peer. You can use the
display tunnel-info all command to check the following:
z
If the tunnel does not exist, configure the proper tunnel.
z
If the tunnel exists, check if the peer of the VSI is specified and the peer is consistent with
the peer that corresponds to the session.
Step 4 Check that parameters are consistent on both ends.
If the tunnel is normal, and the PW still cannot be set up, check that the encapsulation type,
MTU, and VSI ID are consistent on both ends.
Ensure the local VPN target satisfies the following conditions:
z
The local export-extcommunity and the peer import-extcommunity are consistent.
z
The local import-extcommunity and the peer export-extcommunity are consistent.
The traffic can flow in the two-way mode only when the preceding two requirements are
satisfied.
The traffic can flow only in the one-way mode if only one of the two requirements is met.
If the fault persists, use the display current-configuration | begin vsi vsi-name command to
check the MAC address learning mode or contact the Nortel technical personnel.
To make the configuration of the MAC address learning effective, run the shutdown command on the
interface and then use the undo shutdown command.
----End
5.3 Troubleshooting cases
This section provides the following troubleshooting cases:
z
A VSI cannot be up in LDP signaling mode
z
Packets cannot forward successfully between two PEs though VSI is up
z
A VSI cannot be up in BGP signaling mode
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
5-11
Nortel Secure Router 8000 Series
Troubleshooting - VPN
5 VPLS troubleshooting
5.3.1 A VSI cannot be up in LDP signaling mode
Fault symptom
Figure 5-4 VPLS networking diagram
Loopback1
1.1.1.9/32
Loopback1
2.2.2.9/32
POS2/0/0
168.1.1.1/24
PE1
POS2/0/0
169.1.1.1/24
POS1/0/0
168.1.1.2/24
Ethernet1/0/0
Loopback1
3.3.3.9/32
P
CE1
POS1/0/0
169.1.1.2/24
PE2
Ethernet2/0/0
CE2
VPLS in LDP signaling mode is configured on both PE1 and PE2. After the configuration, the
VSI cannot be Up.
Fault analysis
Step 1 Check the status of the VSI on PE1 and that on PE2.
Use the display vsi verbose command.
The display on PE1 is as follows:
VSI Name
: v1
VSI Index
: 0
PW Signaling
: ldp
Member Discovery Style
: static
PW MAC Learn Style
: unqualify
Encapsulation Type
: vlan
MTU
VSI State
: 1500
: down
VSI ID
: 1
*Peer Router ID
: 3.3.3.9
VC Label
: 17409
Session
: up
Tunnel ID
: 0x6002002,
Interface Name
State
: Ethernet1/0/0
: up
The display on PE2 is as follows:
VSI Name
5-12
: v1
VSI Index
: 0
PW Signaling
: ldp
Member Discovery Style
: static
PW MAC Learn Style
: unqualify
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
5 VPLS troubleshooting
Encapsulation Type
: vlan
MTU
VSI State
: 1500
: down
VSI ID
: 1
*peer Router ID
: 2.2.2.9
VC Label
: 17408
Session
: up
Tunnel ID
: 0x6002001,
Interface Name
State
: Ethernet2/0/0
: up
The AC at both ends is Up. The tunnel at both ends of a PW is existent, and the tunnel ID is not
0x0.
Step 2 Run the display vsi remote ldp command on PE2.
The display is as follows:
Vsi
Peer
VC
Group
Vsi
MTU
Vsi
ID
RouterID
Label
ID
Type
Value
Index
1
1.1.1.1
17409
0
vlan
1000
-
The preceding display shows that PE2 has a label to the remote.
Use the display vsi remote ldp command on PE1 and find that PE1 cannot receive the label of
PE2.
It indicates that PE2 has problem.
Step 3 Check whether PE2 sends labels to PE1.
First, check that a remote peer is specified for PE2.
Find that the specified peer is not correct; it should be 1.1.1.9 rather than 2.2.2.9. Modify the
peer.
----End
Troubleshooting procedure
Step 1 Run the display vsi verbose command on PE.
Step 2 Check the status of the VSI and that of the AC. Find that the VSI is Down but the AC is Up.
Step 3 Check the status of the PW. Find that the PW cannot be set up.
Step 4 Check whether the tunnel is existent. Find that the tunnel exists.
Step 5 Use the display vsi remote ldp command to check whether the remote label is received.
Step 6 If one end cannot receive the label from the remote end, check that the configuration of the
remote peer is correct.
----End
Summary
If the signaling protocol is LDP and the VSI cannot be Up, the errors related to the peer are as
follows:
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
5-13
Nortel Secure Router 8000 Series
Troubleshooting - VPN
5 VPLS troubleshooting
z
The IP address of the specified peer is incorrect.
z
The address of the peer is not the peer LSR-ID. The LDP session cannot establish.
z
The LSR-ID of the peer is redefined. Then the LDP session cannot be set up.
To enable the VSI status to be Up, at least two ACs must be Up, or at least one AC Up and one
PW Up.
To locate this type of problem, begin by checking the status of the AC and that of the PW.
To enable an AC to be Up, you must bind the AC with an interface, and the current state of the
interface must be Up.
The problem often occurs on the PW. To let a PW go Up, ensure that the MTU, encapsulation
type, VSI ID, and remote peer configuration are correct. The key is that the local and remote
ends can receive labels from each other.
You can use the display vsi remote { ldp | bgp } command to check them. You can judge which
router has a configuration error based on whether it receives the label.
5.3.2 Packets cannot forward successfully between two PEs
though VSI is up
Fault symptom
After the configuration of the VPLS, check the status of the VSI on PE. You will find the VSI is
Up but the packets cannot forward successfully between two PEs.
Fault analysis
Step 1 Check whether the PW exists.
Use the display vsi verbose command to check whether the PW exists.
If the PW does not exist, it indicates the PW information is not delivered to the interface board.
If the PW exists, check whether the delivering status of the PW is OK.
z
If not, it means the forwarding information is not delivered to the interface board, which
leads to the failure of the forwarding.
z
If the status is OK, check the operating status of the interface board.
Step 2 Check the MAC limit.
If the PW exists, packets cannot forward between PEs. Use the display current-configuration
| begin vsi vsi-name command to check the MAC limit. If the MAC address entries exceed the
MAC limit, reconfigure the MAC limit.
Step 3 Check whether the BGP peer is being re-established.
If the MAC address entries do not exceed the MAC limit, use the display bgp peer
peer-address command to check whether the BGP peer is set up. When the BGP peer is being
re-established, the VSI state remains Up for a very short period.
Step 4 Check the encapsulation modes of PEs on both ends.
5-14
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
5 VPLS troubleshooting
If the BGP peer is set up, use the display current-configuration | begin vsi vsi-name
command to check the encapsulation modes of PEs on both ends. If the modes are different,
reconfigure them to be consistent.
----End
If the fault persists, contact the Nortel technical personnel.
Troubleshooting procedure
Step 1 Use the display vsi command to check that the status of the PW is Up.
Step 2 Use the display vpls connection command to check that the PW exists.
Step 3 Use the display vpls fib command to check that the delivering status of the PW is OK.
Step 4 If the status is OK, check that the operating status of the interface board is normal.
----End
Summary
In this case, the causes are as follows:
z
The PW information is not delivered to the interface board.
z
The MAC address entries exceed the MAC limit.
z
When the BGP peer is being re-established, the VSI state remains Up for a very short
period.
z
The encapsulation modes on PEs of both ends are different.
5.3.3 A VSI cannot be up in BGP signaling mode
Fault symptom
See Figure 5-4.
IBGP runs between PE1 and PE2. A VSI is configured on them. After the configuration, you
find that both the VSI on PE1 and that on PE2 cannot be Up.
Fault analysis
Step 1 Check the status of the VSI on PE1 and that on PE2.
Run the display vsi verbose command.
The display of PE1 is as follows:
***VSI Name
: bgp1
VSI Index
: 0
PW Signaling
: bgp
Member Discovery Style : auto
PW MAC Learn Style
: unqualify
Encapsulation Type
: vlan
MTU
VSI State
: 1500
: down
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
5-15
Nortel Secure Router 8000 Series
Troubleshooting - VPN
5 VPLS troubleshooting
BGP RD
: 1:1
SiteID/Range/Offset
: 1/10/0
Import vpn target
: 2:2,
Export vpn target
: 2:2,
Local Label Block
: 19456/10/0,
Interface Name
State
: Ethernet6/0/1
: up
The display of PE2 is as follows:
***VSI Name
: bgp1
VSI Index
: 0
PW Signaling
: bgp
Member Discovery Style : auto
PW MAC Learn Style
: unqualify
Encapsulation Type
: vlan
MTU
VSI State
: 1500
: down
BGP RD
: 1:2
SiteID/Range/Offset
: 2/10/0
Import vpn target
: 2:2,
Export vpn target
: 2:2,
Local Label Block
: 19456/10/0,
Interface Name
State
: Ethernet6/0/1
: up
Step 2 Check whether the remote label has been received.
Use the display vsi remote bgp command on PE1 and on PE2. No information appears, which
indicates that the remote label is not received.
It can be judged that BGP configuration has an error.
----End
Troubleshooting procedure
Step 1 Check the status of the AC. Find that the AC is Up at both ends.
Step 2 Run the display vsi remote bgp command. No output appears, which indicates that the label is
not received.
Step 3 Check whether the VPN target matches.
Step 4 If the VPN target matches, ensure that the tunnel exists.
Step 5 If the tunnel exists, use the display bgp peer all command to check the setup of BGP
adjacency.
Step 6 If the BGP adjacency is set up, use the display bgp vpls all command to check whether the
remote label block is received.
Step 7 If the remote label block is not received, check BGP configuration. Find that the VPLS address
family is not configured. Configure the VPLS address family to solve the problem.
----End
5-16
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
5 VPLS troubleshooting
Summary
The differences between VPLS configuration in BGP signaling mode and that in LDP signaling
mode are: the BGP mode requires that the VPLS address family be configured and the remote
peer be enabled in the address family.
When you use BGP signaling, check that the BGP VPLS peer is specified and the remote label
block is received. Whether a VSI can be Up is also affected by the status of the AC and that of
PW as well as the encapsulation type and the MTU.
5.4 FAQs
Q: Why can the VSI not be up after a tunnel and an AC are established in VPLS
configuration?
A: When you configure VPLS, note that:
z
The VSI ID is consistent at both ends in LDP mode.
z
The AC interface is bound with the VSI and the AC is in Up state.
z
A tunnel to the remote end is available.
z
The MTU and the encapsulation type are consistent at both ends.
z
The status of the VSI peer is normal.
z
In BGP mode, the VPN target matches at both ends.
z
The ID of the local site falls in the range of the remote label block.
z
Enable the remote peer in the BGP VPLS address family view.
Q: Why can the VPLS not be configured successfully on the VLAN interface?
A: Possible causes are:
z
Other services are configured on the VLAN interface, such as MPLS/BGP VPN, multicast,
or Virtual Leased Line (VLL).
z
The status of the VLAN is Down.
z
The Ethernet subinterface connects PE and P. (The Ethernet subinterface cannot be used to
connect PE and P.)
z
The site IDs of the VSI instances conflict with each other. For the same VPLS, site IDs of
different sites must be different.
z
No corresponding VSI instance is bound with PE.
Q: What are the requirements for the PW to be up in the configuration of VPLS?
A: The requirements are as follows:
z
The parameters such as the encapsulation mode and MTU must be consistent on both
ends.
z
The status of AC is Up.
z
The status of the tunnel is Up.
z
The LDP session or the BGP remote peer exists between PEs.
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
5-17
Nortel Secure Router 8000 Series
Troubleshooting - VPN
5 VPLS troubleshooting
Q: Different types of AC interfaces are bound at both ends. Does this affect the
status of a VSI?
A: No, it will not. At present, the Secure Router 8000 Series supports only two types of AC
interfaces:
z
Ethernet
z
VLAN
Q: Different types of AC interfaces are bound at both ends. Does this affect the
interworking?
A: No, it will not.
Q: Different MAC address learning modes are configured at both ends. Does this
affect the status of the VSI?
A: No, it will not. The status of the VSI is affected only when the MTU and the encapsulation
type are not consistent at both ends. The MAC address learning mode, however, affects the
packet forwarding.
Q: Should the status of a VIS be Up only after an AC is bound on the PE at both
ends?
A: No, this condition is not necessary.
When you configure Hierarchical VPLS (HVPLS), you need to add the keyword upe to specify
a peer. Then, the peer can be regarded as an AC. When a peer is specified as a UPE, as long as
the corresponding VSI of the peer is Up, the PW can be Up even if the corresponding interface
of the SPE is not bound with the VSI.
Q: Is it possible that only the same VSI on a peer PE is Up but it is Down on the
other peer PEs?
A: Yes, this situation is possible. If two or more peer PEs of a VSI are specified as UPEs, and if
the same VSI on one of the UPEs is Up, the VSI on other peer PEs can be Down.
Q: Should PEs fully connect in LDP mode?
A: As SPE, PEs must fully connect. As UPE, PEs do not necessarily fully connect.
Q: Should a VSI be UP only when the VSI IDs are consistent at both ends?
A: No, not always. When you configure a peer, you can use the negotiation-vc-id command to
configure the negotiation VSI ID. If both ends use it, interworking can also be implemented.
Q: Does negotiation-vc-id have a connection with UPE?
A: No, it does not. negotiation is used only as a parameter.
5-18
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
5 VPLS troubleshooting
Q: The LSP token is inconsistent with the token of the current tunnel in the VPLS
MID table. Why does this happen?
A: The LSP token refers to the token value of the PW in the multicast mnformation description
(MID) table, and cannot be compared with the tunnel value.
Q: What is the relationship between the site, range, and offset in BGP mode?
A: Site refers to the label block sent to a certain peer. The remote label of the local peer must fall
in this label block. For example, the label block received from the remote is 1000/10/0. If the
value of the local site is 5, the remote label of the local is 1005 for the remote.
Range is the sum of VPN sites connected by a VPLS.
Offset defines whether the label block base is counted as a label. Continue to use the previous
example. If the label block is 1000/10/1, the remote label is calculated on the base of 1000.
Therefore, the remote label of the local is 1001.
Q: What is the prerequisite for VPLS configuration?
A: Enable MPLS Layer 2 VPN before you configure VPLS.
Q: The display vsi remote bgp command can display the remote label. The
display bgp vpls all command can also display the remote label. The display bgp
vpls al command displays more information. What is the difference between
these two commands?
A: The display vsi remote bgp command displays the labels that you select. The display
contains both the local label information and the remote label information.
The display bgp vpls all command displays all the labels received by BGP from the remote.
The display contains only the remote label information.
Therefore, the latter displays more information. After receiving labels from the remote, BGP
chooses the best label and sends it to the VPLS module.
Q: When do I need to configure the mpls ldp remote peer command?
A: Generally, it is not necessary to configure the LDP remote peer. When PEs connect indirectly,
you must configure the mpls ldp remote peer command.
In the case of interoperating with the device from another vendor, configure the LDP remote
peer to accept the difference in the implementation mechanism.
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
5-19
Nortel Secure Router 8000 Series
Troubleshooting - VPN
5 VPLS troubleshooting
5.5 Diagnostic tools
5.5.1 display commands
Command
Description
display vsi vsi-name verbose
Displays current VSI configuration.
If you do not specify a vsi-name, information on all
VSIs appears.
display vsi remote [ ldp | bgp ]
Displays the labels received by the remote.
You can choose LDP or BGP.
display vpls fib verbose
Displays the detailed information about the
VPLS_FIB.
display vpls mid interface vsi
vsi-name
Displays information about the VPLS_MID.
display vpls connection
Displays information about VPLS connections.
display tunnel-info all
Displays information about this tunnel.
When you use the display vpls mid token vsi
vsi-name command, the token value of the PW in the
MID table appears.
Tunnel information includes information about the
PW.
display bgp vpls all
Displays the remote label block of BGP VPLS.
display mpls l2vc
Displays the status of this VLL.
display vpls statistics
Displays VPLS statistics.
display mpls ldp session
Displays information about LDP sessions.
display mpls lsp
Displays information about MPLS LDP.
5.5.2 debugging command
5-20
Command
Description
debugging mpls l2vpn event
Debugs VPLS events.
debugging mpls l2vpn timer
Debugs the VPLS timer.
debugging mpls l2vpn vpls_fib
Debugs information on the VPLS_FIB.
debugging mpls l2vpn vpls_mid
Debugs information on the VPLS_MID
debugging mpls l2vpn
advertisement
Debugs Layer 2 VPN BGP or LDP message
advertisement.
debugging mpls packet
Debugs the MPLS packet forwarding.
Nortel Networks Inc.
Issue 5.3 (30 March2009)
Nortel Secure Router 8000 Series
Troubleshooting - VPN
5 VPLS troubleshooting
VPLS belongs to the Layer 2 VPN. Therefore, the debugging commands of the Layer 2 VPN also apply to
VPLS.
Issue 5.3 (30 March 2009)
Nortel Networks Inc.
5-21
Nortel Secure Router 8000 Series
Troubleshooting - VPN
Copyright © 2009 Nortel Networks
All Rights Reserved.
Printed in Canada, India, and the United States of America
Release: 5.3
Publication: NN46240-710
Document Revision: 01.01
Document status: Standard
Document release date: 30 March 2009
To provide feedback or to report a problem in this document, go to www.nortel.com/documentfeedback.
www.nortel.com
LEGAL NOTICE
While the information in this document is believed to be accurate and reliable, except as otherwise expressly
agreed to in writing NORTEL PROVIDES THIS DOCUMENT "AS IS" WITHOUT WARRANTY OR CONDITION OF
ANY KIND, EITHER EXPRESS OR IMPLIED. The information and/or products described in this document are
subject to change without notice.
Nortel, the Nortel logo, and the Globemark are trademarks of Nortel Networks.
All other trademarks are the property of their respective owners.
ATTENTION
For information about the safety precautions, read "Safety messages" in this guide.
For information about the software license, read "Software license" in this guide.
Was this manual useful for you? yes no
