Before Operation

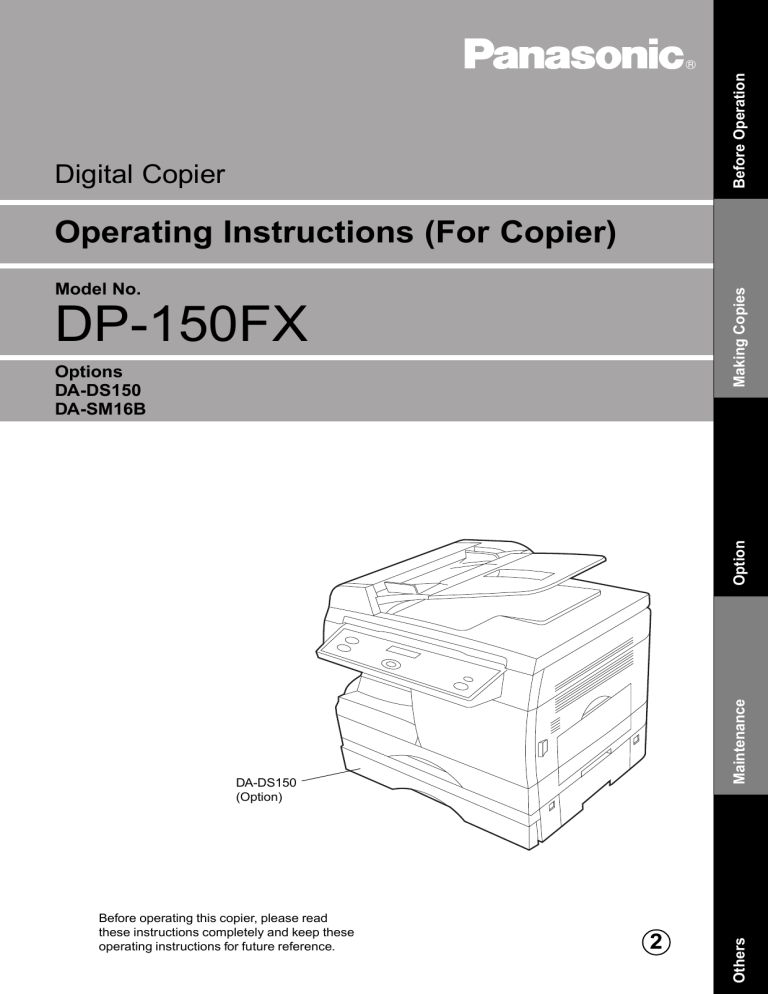

Digital Copier
Operating Instructions (For Copier)
Making Copies
Model No.
DP-150FX
DA-DS150
(Option)
Before operating this copier, please read
these instructions completely and keep these
operating instructions for future reference.
2
Others
Maintenance
Option
Options
DA-DS150
DA-SM16B
Operation Chart
Common Features
■ Full Size Copying
100%
Automatic Document Feeder
Control Panel
2SIDED
2 SIDED
REDIAL/
PAUSE
SORT
ENERGY
SAVER
RESET
COPY
1
2 in 1
FAX
FLASH/
SUB-ADDR
DATA
AUTO
DARKER
SELECT
PAPER TRAY
ON LINE
ZOOM
(50~200%)
abc..
DIRECTORY
SEARCH
-
+
2 ABC
3 DEF
CLEAR/STOP
4 GHI
5 JKL
6 MNO
7 PQRS
8 TUV
9 WXYZ
FUNCTION
SET
START
MONITOR
TONE
0
-/()
LIGHTER
1 2 (3)
Place the
Press the
Original
Copy Key
C Face-Up
C Up to 30 originals
(20 lbs.), size:
Invoice - Legal
Turn the Power
Switch On
(See page 9)
Load the paper
(See page 23)
Select paper
tray
4
Number of
Copies
(Up to 99)
5
Press Start
■ How to copy without using ADF (Automatic Document Feeder).
Position of the original
LGL
■ Original Guide
Place original against guide.
LEGAL
INV
LTR
LETTER R
INVOICE
INV
C
Face DOWN on platen.
C
If the original is not positioned properly, a portion of the
original may not be copied.
LTR
LGL
■ When manually selecting exposure control
C
The copier has auto exposure control and adjustments
are rarely required.
AUTO
Select Photo to copy photos and halftones.
Select Auto to copy with Auto exposure control.
DARKER
LIGHTER
Select Dark to copy light image originals.
Select Light to copy colored background originals.
Normal Position
NOTE
Innappropriate originals for use with the ADF
C
C
C
C
C
C
C
C
C
2
Paper with a smooth surface such as glossy and coated papers
Transparencies
Paste-ups
Originals with a lead edge that is “creased”, “folded”, “punched” or “glued”
Pressure sensitive or carbon backed papers
Paper with excessive curl
Stapled originals
Originals with oil on them
Remove stacked copies from the exit tray every 200 sheets.
Operation Chart
Overview
Overview
Useful for office, more than 4 functions
1
Copier
2
Facsimile
3
Printer
4
Scanner
5
Application Software
C Document Manager
C Document Viewer
C Document Scanner
C Utilities (Status Monitor, Phone
Book Editor, Device Configuration
Editor)
C Can copy up to Legal size.
C Available to copy text/photos/
halftones originals.
C Plain paper Super G3 compatible Fax.
C Can be used as a regular
telephone with optional handset.
C Digital printer controller standard,
printer resolution 300 or 600 dpi.
C Black & White original scanner
standard, scan resolution at up to
400 dpi.
DP-150FX Operating Instructions (Manual Overview)
This copier includes 3 operating instruction manuals, please use the correct manual when operator
intervention is necessary.
<Copier>
Use the information provided in this manual whenever a copier function
requires intervention. For example: how to make copies, add paper,
replace the toner cartridge, etc..
<Facsimile>
Use the information provided in the DP-150FX Facsimile Operating
Instructions manual whenever a fax function requires intervention. For
example: how to send/receive a fax, or when a trouble message appears,
etc..
<Printer>
Use the information provided on the enclosed CD for an explanation of
&
how to use as a Printer, Scanner, Phone Book Editor, Device Settings,
<Other Advanced Functions> Status Monitor, and/or Document Management System.
3
Energy Star
The DP-150FX copier complies with Tier 2 of the Environmental Protection Agency’s Energy Star
Program. This voluntary program specifies certain energy consumption and usage standards for
copiers. These copiers will automatically “power down” after a specified period of non-use.
The use of these Energy Star compliant copiers will reduce energy consumption and ultimately
benefit the environment.
The default functions can be adjusted depending on your office requirements. Please see your
authorized Panasonic copier dealer for more details.
4
Energy Star
Table of Contents
Table of Contents
Before Operation
Overview ........................................................................................................................................ 3
Precautions .................................................................................................................................... 6
■ External/Internal ................................................................................... 9
Components
■ Control Panel ...................................................................................... 10
Mode Functions ........................................................................................................................... 12
Features ....................................................................................................................................... 13
Making Copies
Common Features
Creative Features
■ Full Size Copying .................................................................................. 2
■ Reduction or Enlargement Copying .................................................... 14
■ Zoom Copying .................................................................................... 15
■ Digital Skyshot Copy .......................................................................... 16
■ 2 Sided Copy ...................................................................................... 17
■ 2 in 1 Copy ......................................................................................... 18
■ 2 in 1 Copy (2 Sided mode) ................................................................ 19
■ Sorting ................................................................................................ 20
■ Using the Sheet Bypass ..................................................................... 21
Option
Option ........................................................................................................................................... 22
Maintenance
Handling
Checking
■ Adding Paper ...................................................................................... 23
■ Changing Paper Size .......................................................................... 24
■ Changing Toner Cartridge ................................................................... 25
■ Changing Drum Unit ........................................................................... 26
■ Removing a Paper Misfeed (Main Unit) .............................................. 27
■ Removing a Paper Misfeed (ADF) ...................................................... 29
■ Removing an original Misfeed (Automatic Duplex Unit) ...................... 30
■ Removing a Paper Misfeed (2nd Paper Feed Module) ........................ 31
■ Troubleshooting .................................................................................. 32
Others
Specifications .............................................................................................................................. 35
Consumable List .......................................................................................................................... 36
5
Precautions
For your safety
■ Laser Safety
Caution
This product utilizes a laser.
Use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.
■ Caution Labels
DANGER-Invisible laser
radiation when open and
interlock defeated.
AVOID DIRECT EXPOSURE
TO BEAM.
FFPTE2479
Product complies with DHHS Rules 21
CFR Subchapter J in effect at date
of manufacture.
Utsunomiya, Tochigi, Japan
Label when manufactured in Japan.
Product complies with DHHS Rules 21
CFR Subchapter J in effect at date
of manufacture.
Matsushita Business Machine Corporation of the Philippines
Taytay, Rizal, Philippines
Label when manufactured in Philippines.
6
Precautions
Precautions
Handling
■ Do not look directly at exposure lamp when copying.
■ Do not turn the power switch off or open the front
panel during copying. (See page 9)
C
Do not drop paper clips or other metal objects into
the copier.
Toner and Paper
■ Store toner cartridge and paper in cool areas with
low humidity.
C
High quality paper of 16 lbs. - 24 lbs. (15 – 34 lbs.
via sheet bypass) may be used.
C
For optimum performance, it is recommended that
only Panasonic Brand supplies are used in the
copier.
Ventilation
■ The copier should be installed in a well-ventilated
area to minimize the ozone density in the air.
7
Precautions
Installation
■ The copier should not be installed in areas with the
following conditions:
C
Extremely high or low temperature and humidity.
Proper ambient conditions
Temperature:
50°F – 90°F
Relative humidity: 30% – 80%
C
Where temperature and humidity can change
rapidly, causing condensation.
C
Direct exposure to sunlight.
C
Directly in air conditioning flow.
C
In areas of high dust concentration.
C
In areas of poor ventilation.
C
In areas with chemical fume concentration.
C
In areas with extreme vibration.
C
With unstable or uneven conditions (floors, etc.).
■ The power consumption is 1.0 kW.
A properly wired (with ground), dedicated, 15A, 120V AC outlet is required. Do not use an
extension cord.
The main plug on this equipment must be used to disconnect main power. Please ensure that the
socket outlet is installed near the equipment and shall be easily accessible.
For U.S.A.
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference
at his/her own expense.
Any unauthorized changes or modifications to this equipment would void the users authority to
operate this device.
8
Precautions
Components
Components
Using the Sheet Bypass
External/Internal
■ External
Exit Tray
Pull out the tray
when copying.
Control Panel
ADF (Automatic Document Feeder)
Right Cover
Sheet Bypass
Button
Power Switch
2nd Paper
Feed Module
(Option)
On
Off
Push here when closing
Right Cover.
Paper Tray
Front Panel
(See page 23, 24)
■ Internal
Knob
(See page 28)
Fuser Cover
(See page 27)
Duplex Unit
(See page 30)
Toner Cartridge
(See page 25)
Drum Unit
(See page 26)
Drum Surface
C Do not touch it!
Transfer Roller
C Do not touch it!
9
Components
Control Panel
■ Function keys for making copies.
(Function keys for fax, please see fax instruction.)
Sort Key
Auto/Photo Select Key
(See page 20) (See page 2)
2SIDED
2 SIDED
SORT
COPY
2 in 1
FAX
ZOOM
SELECT
AUTO
DATA
DARKER
(50~200%)
PAPER TRAY
ON LINE
-
LIGHTER
Copy Key
Exposure Control
Key
Paper Tray Key
% Select Key
Scroll Key
Note: Please check any pages referring to this
key that key is called Scroll Key; and just
explain function of top, bottom, left, and/
or right button.
Communications Monitor
2 Sided Copy Mode
Indicator (See page 17)
2SIDED
2 SIDED
SORT
COPY
Sort Mode Indicator
(See page 20)
2 in 1 Copy Mode
Indicator (See page 18)
2 in 1
FAX
Data Indicator
DATA
AUTO
Auto/Photo Mode
Indicator (See page 2)
DARKER
ON LINE Indicator
ON LINE
Paper Misfeed Indicator
(See page 27-31)
10
LIGHTER
Add Paper Indicator
(See page 23)
Exposure Indicator
(See page 2)
Components
Message Display
Energy Saver Key
REDIAL/
PAUSE
FLASH/
SUB-ADDR
abc..
DIRECTORY
SEARCH
+
ENERGY
SAVER
1
2 ABC
3 DEF
4 GHI
5 JKL
6 MNO
7 PQRS
8 TUV
9 WXYZ
Reset Key
C Press to reset all features to
initial power-on state.
RESET
CLEAR/STOP
FUNCTION
SET
START
MONITOR
TONE
Set Key
0
-/()
Keypad
Start Key
Clear/Stop Key
Press to stop copy run or clear
copy count in display.
C
By pressing Exposure Control key, the Exposure Indicator will be indicated as
follows.
Darker
Lighter
Normal
Position
Dark
Darker
Lighter
Light
11
Mode Functions
■ Energy Saver Mode/Sleep Mode
Energy Saver Mode
# To enter this mode
Press Energy Saver key. The indicator will flash.
Automatically enters after 15 minutes from the last copy.
$ To cancel this mode
Press Energy Saver key again.
Sleep Mode
# Automatically enters after 30 minutes from the last copy.
Power consumption will drop and the Energy Saver key indicator will light.
$ To cancel this mode.
Press Energy Saver key.
If you wish to change the above settings or if you need more information, call your Panasonic
authorized dealer.
Normal Operation
Energy Saver Mode
Sleep Mode
Power Consumption
Approximately 60 Wh
Approximately
35 W
Approximately 1.5 W
Warm Up Time
None
5 seconds
25 seconds
■ Toner Saver Mode
1) This only works when using copy mode. When printing out by Printer or Fax function, this
mode does not work.
2) This Toner Saver Mode is to save toner consumption by copying dark originals lighter.
The exposure indicator “LIGHTER” flashes when Toner Saver Mode is on.
3) To enter this mode:
To cancel this mode:
# Press COPY key.
$ Press FUNCTION key.
% Press “4” key of Keypad
& Press SET key.
( Select “TONER SAVER 2:VALID”.
Press “2” key of Keypad
) Press SET key.
# Press COPY key.
$ Press FUNCTION key.
% Press “4” key of Keypad
& Press SET key.
( Select “TONER SAVER 1:INVALID”.
Press “1” key of Keypad
) Press SET key.
■ Auto Start Function
While the copier is warming up, you may position your original on the copier, enter your
copy job selections and press the Start key. The Wait indicator (Start key) will flash until the
warm up cycle is completed and the copy job will automatically start.
Note: Please enter your copy job, when “WARM UP, PLEASE WAIT SELECT COPY JOB”
appears in message display.
12
Mode Functions
Features
Features
■ Features List
Reduction or Enlargement Copying (See page 14)
Copying with preset ratios.
Zoom Copying
(See page 15)
Copying with variable zoom ratios.
Digital Skyshot copy
(See page 16)
Copying from small originals without
dark areas around the image.
2 Sided Copy
(See page 17)
Copying 2-sided from 1-sided originals.
2 in 1 copy
(See page 18)
Copying from two 1-sided originals, side
by side, to 1-sided copies.
2 in 1 copy (2 Sided mode)
(See page 19)
Copying from four 1-sided originals,
side by side, to 2-sided copies.
Sorting
(See page 20)
Multiple copies to be sorted
automatically.
13
Common Features
Reduction or Enlargement Copying
■ There are 3 preset reduction and 1 preset enlargement modes.
2SIDED
2 SIDED
REDIAL/
PAUSE
SORT
ENERGY
SAVER
RESET
COPY
Message Display
2 in 1
FAX
FLASH/
SUB-ADDR
DATA
AUTO
DARKER
ZOOM
SELECT
(50~200%)
PAPER TRAY
ON LINE
abc..
-
DIRECTORY
SEARCH
+
1
2 ABC
3 DEF
4 GHI
5 JKL
6 MNO
7 PQRS
8 TUV
9 WXYZ
CLEAR/STOP
FUNCTION
START
MONITOR
SET
TONE
0
-/()
LIGHTER
1
2
Place the
Original
Press Copy
Key
3
Select paper tray
or sheet bypass*
4 5
Number of
Copies
Select the copy
ratio/size
Press Start
Select the copy ratio/size by pressing
% Select Key
SELECT
% Select Key
100%
Example: Reduction
Original size
LEGAL
100%
79%
Legal→Letter
65%
Letter→Invoice
61%
Legal→Invoice
129%
Invoice→Letter
Copy size
LETTER
The correct ratio is automatically selected.
To cancel reduction or enlargement copy, press RESET
Key.
NOTE
∗ When copy size is different from paper size of paper tray, select sheet bypass by
C
14
pressing Paper Tray key and place the paper into the sheet bypass. (See page 21)
To change the paper size of the paper tray, see page 24.
Common Features
Zoom Copying
■ A zoom ratio can be selected from 50% to 200% in 1% increments.
2SIDED
2 SIDED
REDIAL/
PAUSE
SORT
ENERGY
SAVER
RESET
COPY
Message Display
2 in 1
FAX
FLASH/
SUB-ADDR
DATA
AUTO
DARKER
SELECT
PAPER TRAY
ON LINE
ZOOM
(50~200%)
abc..
DIRECTORY
SEARCH
-
+
1
2 ABC
3 DEF
4 GHI
5 JKL
6 MNO
7 PQRS
8 TUV
9 WXYZ
CLEAR/STOP
FUNCTION
SET
START
MONITOR
TONE
0
-/()
1
Paper Tray Key*
2
Place the
Original
Press Copy
Key
3
Select zoom ratio.
Common Features
LIGHTER
4 5
Number of
Copies
Press Start
Zoom Ratio: 50% – 200%
Press and hold the F key or G key.
ZOOM
abc..
(50~200%)
DIRECTORY
SEARCH
For enlargement
For reduction
(Increase/decrease in 1% increments.)
To cancel Zoom Copying, press RESET
Key.
NOTE
∗
C
When copy size is different from paper size of paper tray, select sheet bypass
by pressing Paper Tray key and place the paper into the sheet bypass. (See
page 21)
To change the paper size of the paper tray, see page 24.
15
Creative Features
Digital Skyshot Copy
■ To copy from the platen with ADF open. Making copies from small
originals without dark areas around the image.
The Digital Skyshot mode is normally set on. If the mode is not set, please
use the following procedure.
2SIDED
2 SIDED
REDIAL/
PAUSE
SORT
ENERGY
SAVER
RESET
COPY
Message Display
2 in 1
FAX
FLASH/
SUB-ADDR
DATA
AUTO
SELECT
DARKER
PAPER TRAY
ON LINE
ZOOM
(50~200%)
abc..
DIRECTORY
SEARCH
-
+
1
2 ABC
3 DEF
4 GHI
5 JKL
6 MNO
7 PQRS
8 TUV
9 WXYZ
CLEAR/STOP
FUNCTION
SET
START
MONITOR
TONE
0
-/()
LIGHTER
1
Set original
to the platen
2
Press Copy
Key
DIGITAL SKYSHOT
1: INVALID
3
Press
Function Key
5A7
Press Set Key
6 4 8
Select Skyshot Press “5”
Key
Mode
Press
Start
If this message appears.
(Message Display)
Press “2” Key
NOTE
C
C
C
16
DIGITAL SKYSHOT
2: VALID
Incorrect erasure may occur if there is not a blank line at the edge of the colored paper or
halftone image original which the copier is not detected as a blank pattern in the Digital
Skyshot mode.
Incorrect original position detection may occur if any strong light shines onto the glass
during Digital Skyshot mode.
If the ADF(Automatic Document Feeder) is closed, the Digital Skyshot mode will be
invalid.
To cancel this mode completely, select “Skyshot 1: INVALID” in above procedure No 6.
Creative Features
2 Sided Copy
■ For 2-sided copying.
2SIDED
2 SIDED
REDIAL/
PAUSE
SORT
ENERGY
SAVER
RESET
COPY
Message Display
2 in 1
FAX
FLASH/
SUB-ADDR
DATA
AUTO
ZOOM
SELECT
DARKER
abc..
(50~200%)
PAPER TRAY
ON LINE
-
DIRECTORY
SEARCH
+
1
2 ABC
3 DEF
4 GHI
5 JKL
6 MNO
7 PQRS
8 TUV
9 WXYZ
CLEAR/STOP
FUNCTION
START
MONITOR
SET
TONE
0
-/()
1
Set originals
in ADF tray
2
Press Copy
Key
Press I key to
select the 2
Sided Copy mode
3
4 5
Number of
copies
Select 2 Sided
Copy mode
2SIDED
2 SIDED
2 SIDED
Creative Features
LIGHTER
Press
Start
SORT
2 in 1
1 time: Long Edge
SELECT
AUTO
DATA
DARKER
2 times: Short Edge
PAPER TRAY
ZOOM
(50~200%)
abc..
DIRECTORY
SEARCH
-
+
S
LIGHTER
2 in 1
3 times: Combined
I key
with 2 in 1
mode
(See page 19)
If mode is changing from Short Edge to Long Edge, press the H key.
H key
Long Edge and Short Edge are as follows
Original
Long Edge
A B
Short Edge
A B
ATTENTION
C
C
Copy
A
B
Original
Long Edge
A
B
Short Edge
A
B
Copy
A
B
2 sided will not work off the platen glass.
Only Legal and Letter size is available for 2-Sided copy. For Legal size,
please set the paper into the paper tray.
Do not use the sheet bypass.
17
Creative Features
2 in 1 Copy
■ For 2 in 1 copying.
2SIDED
2 SIDED
REDIAL/
PAUSE
SORT
ENERGY
SAVER
RESET
COPY
Message Display
2 in 1
FAX
FLASH/
SUB-ADDR
DATA
SELECT
AUTO
DARKER
PAPER TRAY
ON LINE
ZOOM
(50~200%)
-
abc..
DIRECTORY
SEARCH
+
1
2 ABC
3 DEF
4 GHI
5 JKL
6 MNO
7 PQRS
8 TUV
9 WXYZ
CLEAR/STOP
FUNCTION
START
MONITOR
SET
TONE
0
-/()
LIGHTER
Paper Tray Key*
1
Set originals
in ADF tray
2
3
Press Copy
Key
4 5
Number
of copies
Select 2 in 1
Mode
Press
Start
How to set original to ADF
Face-Up
Press H key to
select the 2 in 1
mode
2SIDED
2 SIDED
2 SIDED
2/3 times:
Combined with
2 Sided Copy
(See P. 19)
1 time: 2 in 1
SORT
2 in 1
DATA
AUTO
ZOOM
SELECT
DARKER
(50~200%)
PAPER TRAY
abc..
DIRECTORY
SEARCH
-
+
LIGHTER
2 in 1
% Select key
I key
H key
To cancel combining with 2 Sided Copy mode, press the I key.
C
When copying the 2 in 1 mode from Invoice to Letter or from Legal to Letter, select the
preset copy ratio with the % Select Key.
ATTENTION ∗ When copy size is different from paper size of paper tray, select sheet bypass by
C
C
C
18
pressing Paper Tray key and place the paper into the sheet bypass. (See page 21)
To change the paper size of the paper tray, see page 24.
2 in 1 will not work off the platen glass.
When copying the 2 in 1 mode with Invoice size, copy image will be missing.
S
Creative Features
■ For 2 in 1 copying. (2 Sided mode)
2SIDED
2 SIDED
REDIAL/
PAUSE
SORT
ENERGY
SAVER
RESET
COPY
Message Display
2 in 1
FAX
DATA
ZOOM
SELECT
AUTO
DARKER
(50~200%)
PAPER TRAY
ON LINE
-
abc..
DIRECTORY
SEARCH
+
2 ABC
3 DEF
4 GHI
5 JKL
6 MNO
7 PQRS
8 TUV
9 WXYZ
CLEAR/STOP
FLASH/
SUB-ADDR
1
FUNCTION
START
MONITOR
SET
TONE
0
-/()
1
Set originals
in ADF tray
Paper Tray Key*
2
Press Copy
Key
3
Creative Features
LIGHTER
4 5
Number
of copies
Select 2 in 1
Mode
How to set original to ADF
1
2
3
4
Press
Start
1
2
4
3
Face-Up
Press H key to
select the 2 in 1
mode
2SIDED
2 SIDED
2 SIDED
3 times: Combined
with 2 Sided
Copy
(Long Edge)
2 times:
Combined with
2 Sided Copy
(Short Edge)
SORT
2 in 1
DATA
AUTO
ZOOM
SELECT
DARKER
abc..
(50~200%)
PAPER TRAY
-
DIRECTORY
SEARCH
+
S
LIGHTER
2 in 1
% Select key
I key
H key
To change the Long Edge to Short Edge mode of 2 Sided Copy, press the I key.
NOTE
∗
C
C
When copy size is different from paper size of paper tray, select sheet bypass by
pressing Paper Tray key and place the paper into the sheet bypass. (See page
21)
To change the paper size of the paper tray, see page 24.
2 in 1 (2 sided mode) will not work off the platen glass.
19
Creative Features
Sorting
■ Multiple copies to be sorted automatically.
2SIDED
2 SIDED
REDIAL/
PAUSE
SORT
ENERGY
SAVER
RESET
COPY
Message Display
2 in 1
FAX
FLASH/
SUB-ADDR
DATA
ZOOM
SELECT
AUTO
DARKER
(50~200%)
PAPER TRAY
ON LINE
-
abc..
DIRECTORY
SEARCH
+
1
2 ABC
3 DEF
4 GHI
5 JKL
6 MNO
7 PQRS
8 TUV
9 WXYZ
CLEAR/STOP
FUNCTION
SET
START
MONITOR
0
TONE
-/()
LIGHTER
When using ADF
1
2 3
Set originals
in ADF tray
Press Copy
Key
4 5
Press Sort Key
C The indicator flashes
Number of
Copies
Press Start
When setting original to the platen
1
2 3
Set original
to the platen
Press Copy
Key
6
When the copy of the first
original is finished, set the
next original
4 5
Press Sort Key
C The indicator flashes
7
Number of
Copies
8
Press
Start
Continue procedure 6 and 7 until
the last original copying is
finished.Then press Sort key.
C The indicator lights up
Press Start
9
Press Start
Copying from
the 2nd set
will start.
■ Sorting is:
Example: Copying 3 set from 3 originals.
Without Sort mode
Original
2
1
3
2
1
3
2
1
1
3
2
3
1
1
1
2
2
3
2
3
3
With Sort mode
With Sort mode, copies will be sorted as the same order
of the original.
ATTENTION
20
C
C
Do not press Sort key when number of copy is one.
ADF’s(Automatic Document Feeder) scanning may stop in some cases when the
memory capacity has overflowed. This may occur especially when scanning halftone
originals. In this case, return from the original which did not scan and re-start scanning.
Detail procedure will be indicated in the message display.
Creative Features
Using the Sheet Bypass
■ To copy on printed paper, letterhead, mailing labels, transparencies and oddsize paper, etc., or to use the bypass as an additional paper source.
1
2
Position original.
Select copy ratio/size.
(See page 14)
3
Creative Features
Open the sheet bypass.
Open the tray.
Tray
# Place paper into the tray. (Up to
50 sheets)
Insert the paper until it stops.
4
Do not fill above.
Copy side down for copying
on letterhead paper and
mailing labels.
Side Guides
$ Adjust the side guides to paper
width.
Incorrect adjustment may cause paper
to wrinkle, misfeed or skew.
5
NOTE
Select sheet bypass with Paper
Tray key.
C
C
When using printed paper, do not set more than 25 (20 lbs.) sheets in bypass.
Some types of mailing labels and transparency film may damage your machine.
Contact your service provider for advice regarding non-standard paper types.
21
Option
Option
■ 2nd Paper Feed Module (DA-DS150)
Available to add 250-sheet paper tray.
C
C
For installation, see the Installation Instructions provided.
For setting and changing paper size, see page 24.
The illustration is the
main unit with optional
2nd Paper Feed Module.
2nd Paper Feed Module
(DA-DS150)
22
Handling
Adding Paper
■ Use the following steps to add paper.
1
Lift paper tray and pull out of the
copier until it stops.
2
Push the bottom plate down until it
locks.
3
Place paper into paper tray.
How to place paper:
Place the paper copy side up.
4
Option
Do not fill above.
Make sure paper is not loaded
above overfill indicator located in
the paper tray.
Overfill Indicator
1-sided copy
5
NOTE
Handling
Push paper tray back into copier.
C
C
C
Special papers, like glossy paper, mailing labels and transparencies cannot be
used in the paper tray. Use bypass for special paper.
When using copied paper, use the sheet bypass.
If the paper tray is not closed completely, the Add Paper Indicator in the
control panel will light up. In that case, please close the paper tray completely.
23
Handling
Changing Paper Size
■ Following is the procedure to change paper size of paper tray from the control
panel. This procedure is also same for optional 2nd Paper Feed Module.
2SIDED
2 SIDED
REDIAL/
PAUSE
SORT
ENERGY
SAVER
RESET
COPY
Message Display
2 in 1
FAX
FLASH/
SUB-ADDR
DATA
AUTO
DARKER
ZOOM
SELECT
(50~200%)
PAPER TRAY
ON LINE
-
DIRECTORY
abc..
SEARCH
+
SET
1
2 ABC
3 DEF
4 GHI
5 JKL
6 MNO
7 PQRS
8 TUV
9 WXYZ
CLEAR/STOP
FUNCTION
START
MONITOR
TONE
0
-/()
LIGHTER
1 2 4A6A8 3A5A7 9A10
Press Copy
Key
3
5
7
Press
Function Key
Press Set Key
Press “3” Key
3: PAPER SIZE ?
PRESS SET TO SELECT
Press “1” or “2” Key
Press “1” to select standard 250-sheet paper tray
Press “2” to select optional 2nd Paper Feed Module*1
Select paper size by
Keypad
1: LETTER 4: A4 7: FLS (8″ × 13″)
2: LEGAL
5: B5 8: FLS (8.5″ × 13″)
3: INVOICE 6: A5 0: NOT INSTALLED*2
appears in the message
display.
■ After changing paper size from the control panel, change the paper size of
paper tray by following procedure.
# Lift paper tray and pull out of
the copier until it stops.
9
$ Move the paper guide a to the
paper length required.
Paper Guide a
# Move the paper guide b to the
paper width required.
10
Squeeze the stopper to move the paper
guide b to the desired paper size.
Stopper
ATTENTION
24
Paper Guide b
$ Push paper tray back into copier.
Please change the paper size of 2nd Paper Feed Module by same procedure.
When the optional 2nd Paper Feed Module is not installed, set to “TRAY 2 0: NOT
INSTALLED”.
∗2 “TRAY 2 0: NOT INSTALLED” is available to select only when optional 2nd Paper Feed
Module is selected at the procedure 5.
C
∗1
Handling
Changing Toner Cartridge
■ Message will appear in the message display when needs to add toner.
1
Right Cover
Button
# Open the sheet bypass.
$ Push the button.
% Open the right cover.
Sheet Bypass
2
3
4
# Open the front panel.
Hook
Do not open the front panel first. It can
not be opened unless you open the
covers shown in procedure 1.
$ Pull the green hook of toner
cartridge.
Remove the toner cartridge.
# Shake the new toner cartridge
several times.
$ Take off the new toner cartridge
cover (white plastic) and discard.
5
ATTENTION
Handle
C
Do not touch the magnetic roller!
# Install new toner cartridge.
$ Push the green handle until it locks.
% Close the front panel.
& Close the right cover. (See page 9)
( Close the sheet bypass.
To maintain optimum performance, we recommend only using genuine
Panasonic supplies and parts.
Store toner cartridge in a cool dark place. Install toner cartridge immediately
after unsealing.
25
Handling
Do not stand the toner cartridge on end!
Handling
Changing Drum Unit
■ Message will appear in the message display when needs to change drum
unit.
1
# Open the sheet bypass.
$ Push the button and open the
right cover.
% Open the front panel.
& Remove the toner cartridge.
For detail procedure, see page 25.
(Procedure 1 to 3)
2
Remove the drum unit by pulling
the handle with green label.
3
4
Take out the new drum unit from
the plastic bag.
5
# Replace the toner cartridge.
(See page 25)
$ Close the front panel.
% Close the right cover.
(See page 9)
& Close the sheet bypass.
ATTENTION
Replace new drum unit by aligning
the arrows on the drum unit with
those of the copier.
C
C
26
To maintain optimum performance, we recommend only using genuine
Panasonic supplies and parts.
Store drum unit in a cool dark place. Do not unseal drum unit before use.
Use it as fast as possible after unsealing.
Do not touch or scratch the surface of the drum.
Handling
Removing a Paper Misfeed (Main Unit)
■ Paper transport and paper entry areas
2SIDED
2 SIDED
SORT
2 in 1
DATA
I
AUTO
DARKER
ZOOM
SELECT
(50~20
PAPER TRAY
-
LIGHTER
1
2
Button
Right Cover
# Open the sheet bypass.
$ Push the button.
% Open the right cover.
Sheet Bypass
Remove the misfed paper.
Caution
heated
surface
3
4
ATTENTION
When a paper misfeed has
occurred
# Paper Misfeed Indicator will
light.
$ Paper misfeed message will
appear in the message display.
In case the jam is in fuser unit:
# Open the fuser cover.
$ Remove misfed paper.
Caution: this fuser area will be
hot.
Close the right cover.
Handling
Close the sheet bypass.
C
C
Make sure that the misfeed indicator goes off after removing a paper misfeed.
The misfeed indicator will not go off if the paper is still jammed in the copier.
Check again and remove all misfed paper.
Do not touch or scratch the surface of the drum.
27
Handling
Removing a Paper Misfeed (Main Unit)
■ Paper exit area
2SIDED
2 SIDED
SORT
2 in 1
DATA
I
AUTO
DARKER
ZOOM
SELECT
(50~20
PAPER TRAY
When a paper misfeed has
occurred
# Paper Misfeed Indicator will light.
$ Paper misfeed message will
appear in the message display.
-
LIGHTER
1
Right Cover
# Open the sheet bypass.
$ Push the button.
% Open the right cover.
Button
Sheet Bypass
2
Open the front panel.
3
# Turn the knob.
$ Remove the misfed paper.
Do not open the front panel first. It can
not be opened unless you open the
covers shown at procedure 1.
Knob
# Close the front panel.
$ Close the right cover. (See page 9)
% Close the sheet bypass.
4
ATTENTION
28
C
Make sure that the misfeed indicator goes off after removing a paper
misfeed. The misfeed indicator will not go off if the paper is still jammed in
the copier. Check again and remove all misfed paper.
Handling
Removing an Original Misfeed (ADF)
■ ADF (Automatic Document Feeder) area
2SIDED
2 SIDED
SORT
2 in 1
AUTO
DATA
I
DARKER
SELECT
PAPER TRAY
ZOOM
(50~20
-
When an original misfeed has
occurred
# Paper Misfeed Indicator will
light.
$ Paper misfeed message will
appear in the message display.
LIGHTER
1
Paper Feed area:
Open paper feed cover of ADF.
Paper Feed Cover
Remove misfed paper and close
paper feed cover.
2
Paper Exit Area:
Open paper feed cover of ADF.
Paper Feed Cover
Handling
Remove misfed paper and close
paper feed cover.
ATTENTION
C
Make sure that the misfeed indicator goes off after removing the misfed paper.
The misfeed indicator will not go off if an original is still jammed in the ADF.
Check again and remove the misfed original.
29
Handling
Removing a Paper Misfeed (Automatic Duplex Unit)
■ Automatic Duplex Unit area
2SIDED
2 SIDED
SORT
2 in 1
DATA
I
AUTO
DARKER
ZOOM
SELECT
(50~20
PAPER TRAY
-
When a paper misfeed has
occurred
# Paper Misfeed Indicator will
light.
$ Paper misfeed message will
appear in the message display.
LIGHTER
1
Right Cover
# Open the sheet bypass.
$ Push the button.
% Open the right cover.
Button
Sheet Bypass
2
Caution
heated
surface
Caution: this fuser area will be
hot.
3
Close the right cover.
4
Close the sheet bypass.
ATTENTION
30
Remove the misfed paper.
C
Make sure that the misfeed indicator goes off after removing a paper misfeed.
The misfeed indicator will not go off if the paper is still jammed in the copier.
Check again and remove all misfed paper.
Handling
Removing a Paper Misfeed (2nd Paper Feed Module)
■ 2nd Paper Feed Module area
2SIDED
2 SIDED
SORT
2 in 1
AUTO
DATA
I
DARKER
SELECT
PAPER TRAY
ZOOM
(50~20
-
When a paper misfeed has
occurred
# Paper Misfeed Indicator will
light.
$ Paper misfeed message will
appear in the message display.
LIGHTER
1
Open paper feed cover.
2
Remove the misfed paper.
3
Close paper feed cover.
Button
Sheet Bypass
ATTENTION
C
C
To clear the paper misfeed
indicator.
# Open the sheet bypass.
$ Push the button.
% Open the right cover.
& Close the right cover.
( Close the sheet bypass.
Handling
4
Right Cover
Make sure that the misfeed indicator goes off
after removing the misfed paper.
The misfeed indicator will not go off if the paper
is still jammed in the copier. Check again and
remove all misfed paper.
Do not open the rear cover of the 2nd Paper
Feed module. And do not touch to the gear area.
Fingers might be wedged between gears.
31
Checking
Troubleshooting
Check
Action
Unit does not operate
Does the display light up?
Check if the Power Switch is turned on and
if the power plug is inserted into the outlet.
Is Energy Saver key flashing?
Press Energy Saver key on control panel.
Does the Add Paper Indicator appear on
display? (J)
Does the Paper Misfeed Indicator appear
on display? (I)
Add paper. (See page 23) or check if the
paper tray is closed completely.
When the 2nd paper feed module is not
installed, the paper size should be selected
“0: Not installed”. (See page 24)
Remove misfed paper.
(See page 27-31)
Does “CLOSE RIGHT COVER” appear on
message display?
Right cover is open. Please close it.
Does U19 appear on message display?
Check if toner cartridge is installed
completely. (See page 25)
Does “CLOSE ADF” appear on message
display?
Close ADF (Automatic Document Feeder)
Does U40 appear on message display?
Add paper to the sheet bypass and press
Start.
Does any of the E#-## appear on display?
Turn copier power switch off, then back on.
If error code comes back again, call your
Panasonic authorized dealer.
Does “INFO. CODE=###” message appear
on display?
Refer to the Information Codes of the
Operating Instructions (For Facsimile) on
page 89.
Does “JAN-01-1999” appear on message
display?
Replace the Litium Battery,
refer to operating instructions (For Facsimile).
Copies are marked
32
Is the copier platen glass or platen cover
dirty?
Clean the glass or platen cover.
(See page 33)
Is the corona dirty?
Need to clean corona. (See page 34)
Is the back side of copies dirty?
Clean the roller. refer to operating
instructions (For Facsimile).
Checking
Copies are light
Does the exposure indicator say “light”?
Press Auto/Photo Select Key to choose
the auto mode. (See page 2)
Does the add toner message appear on
the message display?
Change toner cartridge. (See page 25)
Light image on the front side of copier
Copy Image Sample
Image towards
the front side
of copier is light.
Push the green handle of the toner cartridge
to right.
Direction of paper exit
■ If the measures outlined above do not solve the problem, call your Service provider.
Care of Copier
■ As a rule, clean weekly.
White Miller
Platen Cover
# Wipe marks off with cloth and a neutral
detergent.
$ Wipe again with a dry cloth.
Platen
Scanning Area
■ As a rule, clean monthly.
Checking
<Paper Feed Roller>
# Open the Paper Feed cover.
$ Wipe paper feed roller with cloth and neutral
detergent.
% Wipe again with a dry cloth.
Paper Feed Cover
Paper Feed Roller
ATTENTION
C
Do not use benzine, thinners or other volatile cleaners.
33
Checking
■ When copies become unclear, clean the corona by following procedure.
Line images in the copy.
ABCDEF
(Sample)
1
Right Cover
Button
Sheet Bypass
# Open the sheet bypass.
$ Push the button.
% Open the right cover.
& Open the front panel.
( Pull the green hook of toner
cartridge.
2
# Remove the toner cartridge.
$ Remove the drum unit by pulling
the handle with green label.
3
# Slide corona cleaner (green)
back and forth one or two times.
$ Put the corona cleaner to
original position.
Corona Cleaner
(Original Position)
Correct
Wrong
34
4
Reinstall the drum unit.
5
# Reinstall the toner cartridge.
$ Push the green handle until it locks.
% Close the front panel.
& Close the right cover. (See page 9)
( Close the sheet bypass.
Handle
Specifications
Copier Functions
■ Main unit
Type:
Desk Top
Copy/Print Process:
Laser/Electrostatic photographic method
Process:
Mono-component Ultra Magnefine™ Toner
Resolution:
Max. 600 dpi
Multi-Copy Speed:
15 letter size copies per minute
Maximum Original Size:
8.5″ × 14″ (Legal size)
Void area: max. 5.0 mm
Copy Size:
Legal - Invoice via paper tray
Legal - Invoice via sheet bypass
Reduction Ratios:
Preset: 79%, 65%, 61%
Variable: from 99% to 50% in 1% increments
Enlargement Ratios:
Preset: 129%
Variable: from 101% to 200% in 1% increments
Paper Feed:
250 sheet paper tray plus 50 sheet bypass
Quantity Selector:
1 - 99, Automatic Repeat, Automatic Reset to 1
Paper Weight:
16 - 24 lbs. (Paper tray)
15 - 34 lbs. (Sheet bypass)
Exposure Control:
Automatic/Manual plus Photo Mode
Dimensions (W)(D)(H):
19.5″ (W) × 19.2″ (D) × 15.1″ (H) (with ADF)
Weight:
50 lbs (including ADF)
Electrical Requirement:
AC 120V, 50/60Hz, 8A
30 sheets (20 lbs.)
Paper Size:
Invoice R, Letter R, Legal
Paper Weight:
13-28 lbs.
Electrical Requirements:
Supplied from the copier
Dimensions (W)(D)(H):
19.5″ (W) × 17.2″ (D) × 4.3″ (H)
■ 2nd Paper Feed Module (DA-DS150) (Option)
Paper Size:
Invoice R, Letter R, Legal
Paper Weight:
16-24 lbs.
Paper Capacity:
250 sheets
Electrical Requirements:
Supplied from the copier
Dimensions (W)(D)(H):
19.5″ (W) × 17.2″ (D) × 3.5″ (H)
Weight:
7 lbs.
Note: To see total count of copies, press and hold % Select key, then press CLEAR/STOP key.
35
Others
Original Capacity:
Checking
■ ADF (Automatic Document Feeder)
Consumables List
■ Consumables List
When ordering consumables, please use the correct part number as listed below.
Consumable Name
Part Number
Yield
Toner Cartridge
DQ-UG15A
Approx. 5,000 sheets*
Drum Unit
DQ-UH32A
Approx. 30,000 sheets
∗ Based on copying onto letter-size 6% image original.
Note: To see total count of copies, press and hold % Select key, then press CLEAR/STOP key.
To print total count of copies, press and hold % Select key, then press START key.
36
NOTE
37
NOTE
38
39
U.S.A. only
WARRANTY
“PANASONIC DOCUMENT IMAGING COMPANY MAKES NO WARRANTIES, GUARANTEES OR
REPRESENTATIONS, EXPRESSED OR IMPLIED, TO CUSTOMER WITH RESPECT TO THIS
PANASONIC COPIER, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
PANASONIC DOCUMENT IMAGING COMPANY ASSUMES NO RISK AND SHALL NOT BE SUBJECT
TO LIABILITY FOR ANY DAMAGE, INCLUDING, BUT NOT LIMITED TO DIRECT, INDIRECT, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSS OF PROFITS SUSTAINED BY THE
CUSTOMER IN CONNECTION WITH THE USE OR APPLICATION OF THIS PANASONIC COPIER. SEE
YOUR DEALER FOR DETAILS OF DEALER’S WARRANTY.”
IMPORTANT INFORMATION
When requesting information, supplies or service always refer to the model and serial number of your
machine. The model and serial number plate (Main Name Plate) is located on the rear side of machine.
For your convenience, space is provided below to record information you may need in the future.
Model No.
Serial No.
Date of Purchase
Dealer
Address
Telephone Number
(
)
Supplies Telephone Number
(
)
Service Telephone Number
(
)
Panasonic Document Imaging Company
A Division of Matsushita Electric Corporation of America
Two Panasonic Way
Secaucus, New Jersey 07094
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga,
Ontario L4W 2T3
FFPTD10241 S1000-1
October 2000
Printed in Japan
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
