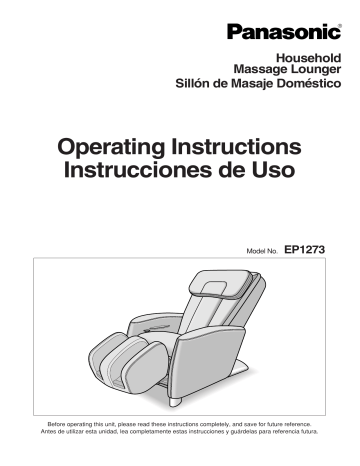

Panasonic Patio Furniture EP1273 User manual
®
Household
Massage Lounger
Sillón de Masaje Doméstico
Operating Instructions
Instrucciones de Uso
EP1273
EP1273
Model No.
Before operating this unit, please read these instructions completely, and save for future reference.
Antes de utilizar esta unidad, lea completamente estas instrucciones y guárdelas para referencia futura.
INDEX
English
See pages 1-24
INDICE
Español
Ver página S1-S24
IMPORTANT SAFETY INSTRUCTIONS
Basic precautions should always be followed when using an electrical unit, including the following.
Please ensure that you read all instructions before using the Household Massage Lounger.
DANGER – To reduce the risk of electric shock:
1. Always unplug the unit immediately after use.
2. Always unplug the unit before cleaning.
WARNING – To reduce the risk of burns, fire, electric shock, or injury to persons:
1. Always insert the power plug all the way into the outlet to reduce the risk of short-circuit and fire.
2. The unit should never be left unattended when plugged in. Always unplug the unit when not in use.
3. Close and continuous supervision is necessary when the unit is used by people who are limited in their ability to
move or communicate.
4. Only use the unit for the purpose described in these instructions.
5. Do not stand on the unit.
6. Do not use any accessories other than those recommended by the manufacturer.
7. This unit should not be used by children. Keep children away from the unit. Always return the seat to the upright
position and retract the legrest completely to avoid possible injury. Make sure that nothing is in the way when
retracting the legrest. Remove key when not in use and store out of reach of children.
8. Never operate the unit if it has a damaged power cord or plug. Return the unit to the nearest authorized service
center if it is not working properly, if it has been dropped or damaged, or if it has been immersed in water.
9. Always raise the back cushion to check that the fabric of the unit itself has not been ripped before using the
unit. Please also check other areas to ensure that the fabric has not been ripped. No matter how small the rip,
if you find one then immediately stop using the unit, unplug the power cord and have the unit repaired at an
authorized service center.
10. Keep power cords away from heated surfaces. Do not carry the unit by the power cord. Do not allow pins,
rubbish or moisture to come into contact with the plug.
11. Do not use the unit on top of heating appliances, such as electric carpets, etc. Do not operate under blanket or
pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.
12. Never block the air openings during operation and make sure that all air openings are kept free of lint and hair, etc.
Do not drop or insert anything into any of the openings of the unit.
13. Do not use the unit in bathrooms or other damp or humid places as this may cause electric shock or cause the
unit to malfunction. Do not spill water, etc. onto the controller.
14. Do not use the unit outdoors.
15. Do not use the unit in places where aerosol spray products are in use or where oxygen is being used.
16. When unplugging the unit, turn off all controls before removing the plug from power outlet. Do not use the unit
with a transformer as this may lead to malfunction or electric shock.
17. Connect this unit to a properly grounded outlet only. See Grounding Instructions.
18. To avoid electric shock or injury, do not attempt to open or disassemble any part of the unit as it contains no
user-serviceable parts.
SAVE THESE INSTRUCTIONS
1
SAFETY PRECAUTIONS
WARNING: To avoid the risk of injury:
1. Pregnant women, people who are ill, in poor physical shape or undergoing medical treatment, and people
suffering from back, neck, shoulder or hip pain should consult their doctor before using the unit. If you have a
pacemaker, defibrillator, or other personal medical device, consult with the manufacturer of your device before
using the unit. Your physician may be able to assist you in obtaining this information.
2. Sit down slowly after checking the position of the massage heads. Never put any part of your body between the
massage heads as the squeezing action of the massage heads may cause injury. Never put your fingers or feet
in the gap between the backrest and seat, the backrest and the armrest, the seat and cover under the armrest,
or the gap between the legrest and the footrest. Do not place your fingers or any part of your body in the
mechanism below the legrest, or between the legrest and footrest.
3. Do not allow the massage heads to be used on the head, abdomen or bare skin. Do not allow knees to come in
contact with or become caught in the legrest. Protect the neck area by covering it with a towel, etc.
When raising the backrest, do not allow hands or feet to become caught between the backrest and the backrest
stopper or the backrest and the armrests.
4. Do not allow the unit to be used on bare skin. Do not use excessively strong massage action on the back of the
neck.
5. When using the massager, use the Neck Roller Position button to adjust the massage heads to the correct
shoulder position. You can adjust the shoulder position in this way in the pre-programs and Rolling in the
manual operation.
Failure to align the shoulder position correctly can lead to injury.
6. Do not stretch the back muscles for more than approximately 15 minutes at a time. To avoid overstretching the
muscles which may result in discomfort, do not use the unit for more than 5 minutes when first using it. You can
gradually increase the duration and strength of the massage as you become used to it.
Do not massage any one point for more than 5 minutes at a time.
Excessive massaging can overstimulate the muscles and nerves and result in an adverse effect.
To prevent excessive massaging, do not use the massager for more than a total of 15 minutes each session.
After approximately 15 minutes, the massage heads will be retracted and stop moving.
The back cushion can be removed if you want to experience a stronger back massage. Exercise extreme care
when you use this mode in order to avoid back pain or injury. Use only for short periods of time (no more than
15 minutes). Reinstall the back cushion if you want to restore to normal massage intensity.
7. While using the massager, if you start feeling sick or if the massage seems painful, stop using it immediately.
While using the massager, if the pressure seems too strong, the movement of the massage heads can be
stopped at any time by pressing the Quick Stop button.
8. Do not go to sleep while using the unit. Do not use the unit after drinking alcohol.
9. When the seat back is in a reclined position, do not sit on it or sit with your legs resting on the headrest.
Do not sit on the legrest as the unit may fall over.
10. Do not allow children or pets to play on or around the unit, especially during operation.
11. Do not unplug the unit or turn it off during operation. Unplug the unit immediately if there is a power outage.
12. If using the massager for the first time, it is recommended to start on the swedish massage program. The
shiatsu massage is stronger and should be enjoyed after one has gotten accustomed to the chair.
13. Do not allow children to play on this mechanized furniture or operate the mechanism. Legrest folds down on
closing so that a child could possibly be injured. Always leave in an upright and closed position. Keep hands
and feet clear of mechanism. Only the occupant should operate it.
2
OPERATING PRECAUTIONS
WARNING: To avoid damaging the chair, follow these precautions:
1. The chair is designed for a maximum user weight of 265 lbs (120 kg). Exceeding the maximum weight may
cause permanent damage to the massage mechanism and/or other components of the unit. Any such damage
is deemed to be user abuse and is not covered under the Limited Warranty.
2. Do not sit on or drop the controller. Do not pull the controller cord or the power cord. Be careful not to catch the
cord of the controller between the armrest and the chair back.
3. Do not treat the chair roughly, such as turning the chair on its side, turning the chair over or standing on it.
4. Do not treat the covering roughly.
• Keep sharp or pointed objects away from the covering of the chair. Be careful not to drop lit ashes, lit
cigarettes or matches on the chair.
• Exposure to direct sunlight can cause fading or a change in color of the covering.
5. If the massager functions abnormally, immediately turn off the power and have the massager checked by an
authorized service center.
6. Do not attempt to repair the massager yourself.
7. Do not repeatedly operate any switch at short intervals. Such action may cause the switch to malfunction.
8. Some noise may be heard coming from the massager while in use. This is due to the structure of the massager
and is normal.
9. Make sure there are no obstacles behind the chair before reclining it. The chair can be reclined to a maximum
angle of 170°. If the back hits a wall or pillar, the chair may malfunction. Be sure to have ample space behind
the chair. Recline the chair slowly in order to avoid contact with an obstacle.
10. When excessive pressure is applied to the massage heads, they may stop moving for safety. When moving the
heads up from the lowered position, one’s body weight may stop the heads’ movement. In such case, slightly
raise your body and allow the massage heads to move up.
11. After each massage, slide the power switch, which is located on the right side of the chair, to the “off” position
and turn its lock switch to the “lock” position.
12. Do not sit on the chair with wet body or hair.
13. The unit must not be used in “wet rooms” (sauna, swimming pool) or outdoors.
3
GROUNDING INSTRUCTIONS
The product must be grounded. If it should malfunction or break down, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an
equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is
properly installed and grounded in accordance with all local codes and ordinances.
DANGER
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a
qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify
the plug provided with the product — if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
This product is for use on a nominal 120-volt circuit and has a grounding plug that looks like the plug illustrated in
Figure A. Make sure that the product is connected to an outlet having the same configuration as the plug.
No adaptor should be used with this product.
Figure A
GROUNDED
OUTLET
GROUNDING PIN
4
GROUNDED
OUTLET BOX
PART NAMES AND FUNCTIONS
MASSAGE LOUNGER
Front
Pillow
Armrest
• For use when watching TV
or just relaxing.
• The pillow has a height
adjustment. (See Page 10)
• The pillow is detachable,
and can also be flipped
over.
Controller Holder
Legrest Slide Lever
• Pull this lever when you
want to extend the length
of the legrest.
Pillow Fasteners
Legrest
Back Cushion
• Includes an air massage
function.
Retracted Position of
Massage Heads
* The massage heads are
normally retracted to the left
and right in the upper part
of the backrest. (However, if
the Quick Stop button is
pushed to stop the
massage then the massage
heads will not return to the
retracted position.)
Legrest Slide Projections
• Use these to extend the
legrest length by pushing
with your heels.
Back
Back Cushion Zipper
• The back cushion is
detachable.
Back Cover
Handle
Safety Precaution Label
Power Switch
Backrest Stopper
Power Cord
Lock Switch Key
Rear Leg Cover
5
CONTROLLER
Cover Closed
OFF/ON button
Quick Stop button
• Switches the controller
on and off.
• Used to stop the
massage immediately.
Time Indicator
Reclining button
• Displays time remaining
before end of massage.
• Use this button to
adjust the angle of the
backrest and legrest.
Ottoman button
• Use this button to
adjust the angle of the
legrest.
Pre-Programs buttons
Massage Focus buttons
• Used to select focus of
massage.
Tapping OFF/ON button
• For use during
pre-programs.
Neck Roller Position
button
• Used for positioning
massage heads at
shoulder level.
Neck Roller Position
Indicator
Leg Massage
Intensity Indicator
Leg Stretch button
• Used for turning leg
stretch on and off.
6
Cover Opened
Operation Indicator
• Displays operational
status.
Cover
Manual Operation buttons
• This allows you to
select the massage
action you desire.
(See Page 14)
Speed Adjustment button
• Adjusts speed of upper
body massage in 5
steps during manual
operation.
Speed Indicator
Massage Position
Adjustment button
• Adjusts position of
massage heads during
manual operation.
(See Page 15)
Leg Massage button
• Turns airbags on and off
and adjusts intensity of
leg massage in 3 steps.
SETTING UP THE UNIT
UNPACK THE UNIT AND RAISE THE BACKREST
CAUTION
• When raising the backrest, do not allow hands or feet to
become caught between the backrest and the backrest
stopper or the backrest and the armrests. Failure to follow
this precaution may result in pinching, which may lead to
injury.
1. Remove the top of the shipping container.
• When packed for shipping the backrest is folded forward.
2. Remove the packing and cushioning materials
and take out the accessories.
3. Raise the backrest.
Backrest Stopper
• Do not connect the power cord to an electrical outlet during
setup.
• Hold the backrest with both hands and lift in the direction of
the arrow until it comes to a stop.
Keep hands, feet,
children and objects
clear of area.
INSPECT CONTENTS OF SHIPPING CONTAINER
Massage Lounger
Accessories
Back Cushion
Pillow
Rear Leg Cover
WHERE TO USE THE UNIT
Select a place where the unit can be reclined.
At Least
15.7"
(40 cm)
CAUTION
• Do not use the unit in areas with high humidity,
such as the bathroom, etc. as this can lead to
electric shock or other accidents.
• Place the unit on a totally flat surface. Failure to
do so may result in the seat tipping over.
At Least
15.7"
(40 cm)
Mat
• Avoid places where the unit will be exposed to direct
sunlight for long periods of time or places where it will
be exposed to high temperatures, such as in front of a
heater, etc., as this can cause discoloration or
hardening of the synthetic leather.
• Placing a mat or cloth under the unit is recommended to
prevent floor damage.
7
HOW TO MOVE THE UNIT
CAUTION
• Do not move the unit while someone is seated on it.
Failure to do so may cause the unit to tip over, which may lead
to damage or injury.
Move it slowly
Using the wheels to move the unit
Wheels
Hold
the legrest.
• Grasp the legrest to move the unit when using the wheels.
• It is easier to move the unit with the massage heads retracted and
the backrest in the upright position.
* Place a mat or cloth on the floor and move the unit slowly to
prevent floor damage.
Lifting the Unit
• Move the chair by having one person hold the legrest and another
person use the handles on the back.
* Please hold the handles and legrest securely to avoid dropping
the unit as it may damage your floor.
POWERING UP THE UNIT
1. Plug the power plug into an electrical outlet.
1
2. Verify that the lock switch key is turned to the
“open” position.
• If in “lock” position, turn the lock switch key to “open”.
3. Slide the power switch to the “on” position.
2
3
ATTACHING THE BACK CUSHION, PILLOW AND REAR LEG COVER
1. Attach the back cushion using the
3. Attach the rear leg cover.
zipper.
• Place cover against
4" (10cm)
2. Attach the pillow using the fasteners.
chair approx. 4 in.
(10 cm) above pipe
section.
• Slide cover down to
position shown by
broken line.
* Do not step on the attached rear leg cover.
8
BEFORE USING THE UNIT
CHECK THE SURROUNDING AREA
Check that there is nothing around the unit.
Keep hands,
feet, children and
objects clear
of area.
Keep hands,
feet, children and
objects clear
of area.
CHECK THE UNIT
1. Make sure the covering is free of rips or tears.
2. Make sure the power plug is functional.
1 Check covering.
2 Check
• Make sure the power plug is undamaged.
• Make sure the power plug is free of foreign matter and
debris.
3. Make sure the massage heads are in the
retracted position, i.e. they are parked to the
left and right in the upper part of the backrest.
If not retracted, press
twice to return the massage heads
to the retracted position.
4. Make sure the legrest is lowered.
3 Check retracted
position.
• Do not sit on the legrest when it is raised. Doing so may
cause it to collapse down or bend the legrest. The legrest is
not meant to support full body weight.
Lowering the Legrest
Pull the legrest slide lever, make sure the legrest is fully
retracted, then press
twice to return the legrest to its lowest
position.
4 Check the legrest.
9
ADJUSTING THE SEAT
ADJUSTING THE RECLINING ANGLE
Press
and
to adjust the angle of the backrest and legrest.
• With either button held down, movement will continue until a “beep-beep-beep” sound indicates the legrest or
backrest has been raised or lowered as far as possible.
• The legrest will start to move shortly after the backrest.
Approx. 120°
Approx.
85°
Approx. 170°
Approx.
85°
EXTENDING THE LEGREST LENGTH
1. Pull on the legrest slide lever and
extend the legrest to desired length.
Legrest Slide Lever
Pull back.
(maximum approx. 6 in. (15 cm)).
Release
the lever.
2. Release the legrest slide lever.
• Extend legrest length by pushing legrest slide projection with heel.
• Raise legs slightly and legrest returns.
• Extend until the end of the legrest is lower than the knees to avoid discomfort.
ADJUSTING FOR CORRECT PILLOW HEIGHT
Adjust the pillow height so that the
bottom edge of the pillow is at ear level.
• If positioned too low, the pillow can lessen the effect
of massage around the neck area.
Fasteners
10
USING PRE-PROGRAMS AND QUICK MASSAGE
1. Press the OFF/ON button.
1
Press
• The OFF/ON indicator will come on.
• You can now select one of the pre-programs or one of
the manual settings.
2. Select the pre-program you want.
2
5
• Please press one of the flashing buttons.
• For a general explanation of pre-program characteristics, please
refer to the bottom of this page.
• For an outline of each pre-program, please refer to the information
on page 18.
• If you press another Pre-Program button during your selected preprogram massage, the massage will switch to the newly selected
pre-program.
The Selected Program will Start
• It is possible to change the pre-program selected or to change to
manual operation mid-way through a massage.
• In pre-programs, the leg massage begins at the same time.
It is possible to stop or change the intensity of the leg massage
during the program. (See Page 17)
4
3. Sit as far back in the seat as possible with your
head on the pillow.
Head rests
on pillow.
• Pressing a Pre-Program button
automatically moves the backrest and
legrest into massage position.
• If the massage lounger is reclined
further than this angle then it will not
automatically recline.
• Do not place leg between armrest and
legrest.
Doing so may result in pinching of leg
when legrest rises.
About the Time Indicator
Time Remaining
Approx. 15 min.
Approx. 9 min.
Approx. 3 min.
• Displays remaining massage time via flashing
LED.
• Starts counting down from 15 minutes in
increments of approximately 3 minutes.
• Flashing speeds up one minute before end of
massage.
11
Pre-Program and Quick Massage Characteristics
Shiatsu: Uses mainly Soft Shiatsu, Tap and Knead actions to comfortably loosen and provide relief from
tension held at pressure points. Recommended for those with severe stiffness or who prefer a stimulating
massage.
Swedish: Uses mainly Swedish, Hawaiian and Knead actions to evenly apply muscle-relaxing strokes all
over. Recommended for those who are just starting out or prefer a gentle massage.
Stretch: Uses mainly Full Roll, Soft Shiatsu, Compression, Knead and Leg Stretch actions to stretch out and
loosen up back and leg muscles. Recommended for those who are physically inactive or troubled by tired legs.
Quick: Covers all areas using a variety of massage actions, all in a span of just five minutes.
Recommended for those who want to relax quickly.
4. Adjusting shoulder position
• When a pre-program begins, the backrest and legrest automatically move the massage position where the
massage heads carry out a Soft Shiatsu massage in the area around the shoulders. During the time that the
shoulder position indicator is flashing (approx. 7 seconds), use the Neck Roller Position button to align the
position of the massage heads to your shoulder height.
Approximate positions for adjusting the position of the heads are shown below.
Up
Down
Press
Approximate Height
• It is possible to change the position of
the massage heads during the massage.
6'1" (185 cm)
Press 5'2" (160 cm)
4'6" (140 cm)
• 5-stage adjustment
Helpful Tips
Too high
Correct position
• Lightly touching
the shoulder.
• When the shoulder position indicator is flashing, adjust the position of
the massage heads (upper heads) so that they lightly touch the
shoulders.
• The shoulder position can be adjusted up and down 4 in. (10 cm).
• When it is not possible to correctly adjust the shoulder position, you
may have to slide your body and adjust it again.
Too low
• Persons whose height is less than 4.6 ft. (140 cm) or more than 6.1 ft. (185 cm) are recommended to use the
chair in the manner described below when the massage heads do not touch their shoulders.
When height is around 4.6 ft. (140 cm) or less
Use by placing a cushion on the seat and
sitting as far back as possible.
12
When height is around 6.1 ft. (185 cm) or more
Use by reclining the backrest and
sliding your body downward.
5. Selecting an area for a focused massage
• Please see pages 14–17 for details regarding manual operation.
Massaging the Neck and Shoulders
Press
Massaging the Lower Back
Press
• Press this button to focus the massage on the neck
and shoulders. (The upper and lower back will also
be massaged slightly.)
• Press the button again to toggle it off.
• Press this button to focus the program on the lower
back. (The neck and shoulders will also be
massaged slightly.)
• Press the button again to toggle it off.
6. Removing tapping from pre-programs
Removing Tapping Action
• Press this button to remove tapping in pre-programs. (The tapping will change to a
kneading massage.)
* Press the button again to restore tapping to the program.
Press
7. Auto shut-off in pre-programs
• The massage will end after approximately 15 minutes and the unit will automatically shut off.
• The massage heads will move to the retracted position and stop.
• The OFF/ON indicator will flash until the heads have stopped moving.
• If you want to continue using the massage lounger, press the OFF/ON button. Please rest at least 10 minutes
between massages.
Stopping a pre-program
Press
• Press the OFF/ON button.
• The OFF/ON indicator will continue to flash until the massage heads have returned to the
retracted position and the unit shuts off.
Immediately stopping the massage
Press
• Press the Quick Stop button.
• All movement will stop immediately.
• The massage heads will not return to the retracted position, which may make sitting in
the seat somewhat uncomfortable.
• Please press the OFF/ON button twice to return the massage heads to the retracted
position.
13
USING MANUAL SETTINGS
MANUAL OPERATION FOR THE UPPER BODY
1. Press the OFF/ON button.
1
Press
• The OFF/ON indicator will come on.
• You can now select one of the pre-programs or
one of the manual settings.
2. Open the cover of the controller.
• All of the Manual Operation buttons will start
to flash.
3. Select the massage type you want.
3
• Press the button of the massage you require.
The button will light up and the massage will begin.
• The unit will automatically recline to the massage position.
E.g. Selecting Knead
Press
4
Combining Massages
• It is possible to combine massage types.
• It is not possible to combine massage types in the same category.
E.g. 1 Adding Tap when Knead is selected.
E.g. 2 Adding Full Roll to the selection.
Press
Press
E.g. 3 Deselecting Full Roll.
Press
Changing Massage Types
E.g. 1 Changing massage types in the same category.
(Changing to Hawaiian when Knead is selected.)
Press
14
E.g. 2 Changing to a massage type outside the category.
(Changing to Tap when Knead is selected.)
• When Knead is combined with Tap, deselecting Knead will leave only Tap.
Press
Press
4. Adjusting manual massage settings
Adjusting the Vertical Position of the Massage Heads
Massage heads up
Massage heads down
• The massage heads will move a little each time the button is
pressed. If you hold down the button, the massage heads will
continue to move until you release the button. When the
massage heads reach their limit you will hear a “beep-beepbeep” sound.
Adjusting the Width between Massage Heads
Increasing the width
Decreasing the width
• Tap, Soft Shiatsu, Full Roll, and Regional Roll can be
adjusted in 3 steps.
• The massage heads will move a little each time the button is
pressed. If you hold down the button, the massage heads will
continue to move until you release the button.
• When the massage heads reach their limit you will hear a
“beep-beep-beep” sound.
Adjusting Massage Speed
Increasing
massage speed
Decreasing
massage speed
• Massage speed is adjustable in 5 steps.
• When the massage speed reaches its maximum or minimum
limit you will hear a “beep-beep-beep” sound.
5. Auto shut-off in manual operation
• The massage will end after approximately 15 minutes and the unit will automatically shut off.
• The massage heads will move to the retracted position and stop.
• The OFF/ON indicator will flash until the heads have stopped moving.
• If you want to continue using the massage lounger, please press the OFF/ON button. Please rest at least 10
minutes between massages.
NOTE:
• A built-in timer prevents overuse of the unit.
• When using manual operation, the timer automatically stops operation after 15 minutes.
* If you want to continue to use the unit, we recommend that you have a break of at least 10 minutes between
massages to allow your body to rest.
Stopping mid-way through a massage
Press
Press
• Press the OFF/ON button.
• The massage heads will return to the retracted position and stop.
15
MASSAGE ACTIONS
Knead
Feels like the fingers and thumbs of two
hands squeezing in unison as they
carefully work their way upwards to loosen
stiffness.
Recommended for the area of the neck
and shoulders.
Swedish
Feels like a two palms gliding over the
skin as they rhythmically knead the
muscles beneath.
Recommended for loosening up large
areas of the back.
Soft Shiatsu
Feels a pair of thumbs carefully alternating
between the right and left sides as they
zero in on their target.
Recommended for loosening up knots of
tension.
Full Roll
From lower back to neck, you can feel it
move 27 in. (67.5 cm) up and down the
whole of the upper body.
Recommended for overall stretching of the
back muscles.
16
Compression
Applies fluent alternating strokes to the
left and right sides as if drawing
stiffness to the outside.
Recommended for relaxation of the
whole body.
Hawaiian
Feels like two hands moving rhythmically in
a circular pattern to relax and refresh the
back.
Recommended for relieving tension in the
lower back.
Tap
Feels like the edges of two hands
rhythmically tapping to penetrate into the
body and relax muscles. Recommended
for use on the fine muscles of the neck or
as a finishing massage.
Regional Roll
You can feel it travel up and down working
on 4 in. (10 cm) localized areas of the
back.
Recommended for focused rolling out of
back muscles.
MANUAL OPERATION FOR THE LOWER BODY
Adjust the angle and length of the legrest before starting a massage.
(See Page 10)
Using the leg air massage
1. Press the OFF/ON button.
• The Pre-Programs and Leg Massage buttons will begin to flash.
Press
2. Press the Leg Massage button.
• The air massage will begin.
• Leg massage intensity is displayed by the indicator.
• The reclining angle can be adjusted during the massage. The airbags will
deflate while the Reclining button is held down so that you can reposition
your legs.
Press
3. Adjusting the massage intensity
Press
1 2 3 off
weak medium strong
• The intensity is adjustable in 3 steps.
• The intensity will move 1 step each time the button is pushed, moving in
order of medium, strong, off and weak.
• Default is level 2.
4. Auto shut-off in leg massage/stretch
• The massage will end after approximately 15 minutes and the unit will automatically shut off.
• If you want to continue using the massage lounger press the OFF/ON button.
Using the leg stretch
1. Press the OFF/ON button.
Press
• The Pre-Program and Leg Massage buttons will begin to flash.
2. Press the Leg Stretch button.
• Press again to stop the leg stretch.
Press
3. Auto shut-off in leg massage/stretch
• The massage will end after approximately 15 minutes and the unit will automatically shut off.
• If you want to continue using the massage lounger press the OFF/ON button.
Description of Leg Massage/Stretch
Leg massage
A hand-like grasping action loosens calf muscles in three stages while a bottom-to-top squeezing action slowly relaxes and
softens to comfortably alleviate tired, swollen legs.
Leg stretch
Lowered to
approx. 15°
After the legs have been grasped by
the airbags, they are slowly stretched
as the legrest lowers to a 15° angle.
Lowered to
approx. 20°
The legrest then rises to an 70° angle,
after which it lowers once again to a
20° angle for a deep stretch.
Raised to
approx. 70°
The legrest rises again and
returns to its original angle.
17
Stopping mid-way through a massage
Press
Press
• Press the OFF/ON button.
• It will take some time before the air is completely evacuated.
(The sound of air escaping may be audible after pressing the OFF/ON button.)
Additional Information
Overview of Pre-Program and Quick Massages
Shiatsu
Overall
stimulation with
soft shiatsu
from neck to
lower back.
Carefully
stimulates area
of neck and
shoulders with
soft shiatsu.
Focuses on
area of lower
back using a
deep rubbingtype action.
Carefully
stimulates with
tapping at
points from neck
to lower back.
Carefully
stimulates using
soft shiatsu on
area at base of
neck.
Relaxes by
carefully
kneading and
tapping from neck
to lower back.
Percussively
strokes at points
on shoulders,
shoulder blades
and spine.
Finishes with
overall massage
to loosen and
relax.
Rhythmically
massages with
squeezing
action on upper
and lower back.
Thoroughly
massages to
gradually loosen
area of neck
and shoulders.
Finishes with
broad strokes
for overall
massage.
Uses shiatsu on
back muscles
working up from
lower back to
neck.
Applies
meticulous
kneading action
up and down
back muscles.
Uses alternating
compression and
shiatsu moving
from neck to
lower back.
Loosens
shoulders,
shoulder blades
and spine with
tapping action.
Loosening over
wide area along
length of body
with rhythmical
tapping.
Carefully
loosens area at
base of neck.
Swedish
Overall loosening
with wide
rubbing strokes
from neck to
lower back.
Thoroughly
massages to
gradually loosen
area of neck
and shoulders.
Focuses on area
of lower back
with rubbing
action in circular
pattern.
Loosens in
stages with
massage from
neck to lower
back.
Thoroughly
massages with
rhythmic action
on neck and
shoulders.
Stretch
Stretches back
muscles by
gradually moving
from neck to
lower back.
Gradual
pressing action
that works on
area at base of
neck.
Uses shiatsu on
back muscles
working from
neck to lower
back.
Pressing-type
action alternates
as it moves from
neck to lower
back.
Kneads area of
back working
upwards from
lower back to
neck.
Quick
Gradually
loosens area of
neck and
shoulders.
18
Rhythmical
loosening action
works along
length of body.
Rhythmical
action thoroughly
loosens area of
neck and
shoulders.
Focuses on area
of lower back
with rubbing
action in circular
pattern.
Focuses on
lower back with
squeezing-type
massage action.
AFTER COMPLETING THE MASSAGE
RETURN THE SEAT TO THE ORIGINAL POSITION
1. Check that there is nothing in the vicinity of
the backrest or the legrest.
Keep hands,
feet, children
and objects
clear of area.
Keep hands,
feet, children and
objects clear
of area.
Legrest
Slide Lever
Pull back.
2. Always retract the legrest after use if you
have extended it.
• Raise legs slightly and legrest returns.
Press
3. Press the OFF/ON button twice.
• The backrest and legrest will automatically return to their
original positions.
4. Place the controller in its holder.
5. Return the pillow and the back cushion to
their original positions.
19
DISCONNECT THE POWER
1. Slide the power switch to the “off” position.
2. Turn the lock switch key to the “lock” position.
* Remove key and store out of reach of children.
2
3
20
1
3. Unplug the power cord.
CLEANING AND MAINTENANCE
LEATHER COVERING ON THE PILLOW, THE BACK CUSHION AND THE UNIT
• Wipe these areas with a soft, dry cloth.
(Do NOT use cloths containing any kind of chemical, etc.)
• If the leather is particularly dirty, dampen with liquid soap
and brush the surface. Wipe with a cloth dampened with
water. Allow to dry naturally.
(Do NOT use a hair dryer to try to dry the surfaces more
quickly.)
• Do not allow these areas to come in contact with plastic for
extended periods of time as this may lead to discoloration.
Water
Mild Detergent
• Please do NOT use thinners, benzine or alcohol.
PIPE AND PLASTIC AREAS
z Wipe the unit with a cloth that has been soaked
in a mild detergent and then thoroughly wrung
out.
Mild Detergent
x Next wipe the unit with a cloth that has been
moistened with just water and thoroughly wrung
out.
* Make sure you thoroughly wring out the cloth
first when cleaning the controller.
Water
Alcohol
Benzine
• Please do NOT use thinners, benzine or alcohol.
Thinners
c Allow the unit to dry naturally.
COATED FABRIC ON THE BACK CUSHION
z Wipe the seat fabric with a cloth that has been soaked in a
mild detergent solution and then thoroughly wrung out.
x Use a brush to apply a mild detergent to areas where the
coated fabric has become particularly soiled. Be careful not
to brush the fabric too much as this may damage it.
c Next wipe the fabric with a cloth that has moistened with
just water and then thoroughly wrung out.
v Allow the fabric to dry naturally.
• Please do NOT use thinners, benzine or alcohol.
Water
CAUTION
• Always unplug the unit before cleaning it. Never touch a power plug with wet hands.
Failure to follow these instructions may lead to electrocution or burns.
21
TROUBLESHOOTING
PROBLEM
Problem
Cause and Remedy
Motor Noises
• It sounds and feels like the massage heads are
straining to get over wrinkles in the cloth.
• The motor groans when it comes under load.
• There is excessive noise during Tapping. (The noise
is greater at the top of the massage lounger.)
• There is a creaking noise when the massage heads
are in operation.
• There is a rattling sound when the massage heads
move up or down.
• The belt can be heard rotating.
• There is a rubbing sound produced by the massage
heads rubbing on the seat fabric.
• There is a noise when the backrest cushion moves
over the armrest when the seat is reclining.
• There is a noise when I sit down.
• There is a strange sound when the massage heads
move in and out.
• When the power switch is turned on there is a
humming sound.
• Air massage-related sounds.
There is a hissing sound of air escaping.
There is a humming sound from the pump.
• The legrest rattles.
• There is an unstable sound when air escapes during
the leg stretch.
22
H
These sounds are perfectly normal and will not have
any effect on the operation of the unit.
The massage heads stop during operation.
H
When excessive force is applied to the massage
heads during operation, in the interests of safety the
massage heads may stop moving.
If all markings and buttons on the controller start to
flash, which is extremely unusual, turn off the power
switch, wait for approximately 10 seconds and then
turn the power switch on again. If the massage
heads stop again, position yourself so that your back
is not completely in contact with the backrest.
The massage heads do not come up to the
shoulder or neck.
H
The position of the massage heads is incorrect.
(See Page 12)
The height of the left and right massage
heads is different.
H
An alternating tapping method is employed, which
means that this phenomenon will naturally occur.
There is nothing wrong with the unit.
It is not possible to recline the unit.
The legrest cannot be raised or lowered.
H
If the unit encounters an obstacle or if excessive
force is exerted on it during operation, in the interests
of safety the unit will come to a stop.
If all markings and buttons on the controller start to
flash, which is extremely unusual, turn off the power
switch, wait for approximately 10 seconds and then
turn the power switch on again.
Problem
Cause and Remedy
Reclining does not take place even though a
massage is started in pre-programs.
(The seat does not automatically recline.)
H
In some cases the seat may not automatically recline
depending on the position (angle) of the backrest or
the legrest.
(See Page 11)
The backrest does not return to the upright
position.
H
The backrest will not return to the upright position if
the timer is activated or the
button is pressed.
(Pressing
twice will return the backrest to its
original position.)
(See Page 19)
It is not possible to switch from Swedish and
Knead to Hawaiian and Compression.
H
Switching can be hindered when the user’s body
weight is not resting on the massage heads. Shift
your weight so that your body is contact with the
massage heads.
The legrest will not return to its original
position.
H
If the length of the legrest has been extended, the
legrest will strike the floor, preventing from returning
to its original position. Try again after retracting it to
its original length.
The unit will not operate at all.
H
• The power cord has been disconnected.
(See Page 8)
• The power switch on the unit has not been turned on.
(See Page 8)
• A Pre-Program button or Manual Operation button
hasn’t been pressed after pressing
.
(See Pages 11, 14)
The unit has been damaged.
H
Stop using the unit immediately.
The power cord or power plug is abnormally
hot.
H
Stop using the unit immediately.
23
SPECIFICATIONS
Power Supply:
Power Consumption:
Upper Body Massage
Massage Area (Up-Down):
Massage Area (Left-Right):
AC120V 60 Hz
220 W
Approx. 27 in. (67.5 cm)
Distance between Massage Heads during Operation
Approx. 2 – 7 in. (6.0 – 18.0 cm)
Maximum Total Massage Surface: 135 sq. in. (810 cm2)
Up-Down Movement Speed:
Approx. 20 – 35 sec. return.
Massage Speed:
Knead:
Approx. 20 – 30 cycles/min.
Swedish:
Approx. 30 – 50 cycles/min.
Compression: Approx. 20 – 30 cycles/min.
Hawaiian:
Approx. 30 – 50 cycles/min.
Soft Shiatsu: Approx. 120 – 200 cycles/min.
Tap:
Approx. 300 – 700 cycles/min.
Full Roll:
Approx. 20 – 35 sec./cycle
(Movement range: Approx. 21.1 in. (53.5 cm))
Regional Roll: Approx. 7 – 9 sec./cycle
(Movement range: Approx. 4.7 in. (12 cm))
Lower Body Massage
Air Pressure
Strong:
Approx. 24.0 kPa
Medium:
Approx. 14.5 kPa
Weak:
Approx. 8.0 kPa
Reclining Angle:
Backrest:
Approx. 120° – 170°
Legrest:
Approx. 0° – 85°
Automatic Shut-Off:
Approx. 15 min. for both upper and lower body
Dimensions:
When not reclined. (H#W#D)
42.9#30.3#47.2 in. (109#77#120 cm)
When reclined. (H#W#D)
24.0#30.3#66.1 in. (61#77#168 cm)
Weight of Unit:
Approx. 155 lbs (70 kg)
Dimensions of Box (H#W#D):
30.7#32.7#52.0 in. (78#83#132 cm)
Weight in Box:
Approx. 183 lbs (83 kg)
Maximum User Weight:
Approx. 265 lbs (120 kg)
Minimum Distance from Wall:
15.7 in. (40 cm)
24
Panasonic Consumer
Electronics Company
One Panasonic Way 4A-3
Secaucus, New Jersey 07094
1-800-338-0552 for questions and comments.
www.panasonic.com/massage
No.1 EN, SP
P93101273231
Printed in China
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
