Before operating this equipment, please read
these instructions completely and keep these
operating instructions for future reference.
English
APPENDIX
PROBLEM
SOLVING
PRINTOUT
JOURNALS AND
LISTS
NETWORK
FEATURES
ADVANCED
FEATURES
Options
DA-AR250/AS200/DS200/DS210/FG230/FG231/FK200/FK210/FS200/MD200
DA-NE200/PC200/PC210/SM08B/SM16B/SM28B/UC200/XN200/XT200; UE-410047/410048/403171
INSTALLING
YOUR MACHINE
GETTING TO
KNOW YOUR
MACHINE
DP-2000
PROGRAMMING
YOUR MACHINE

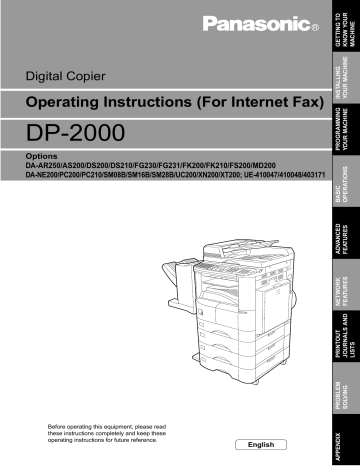

Operating Instructions (For Internet Fax)
BASIC
OPERATIONS
Digital Copier
IMPORTANT INFORMATION
When requesting information, supplies or service, always refer to the model and serial number of your
machine. The model and serial number plate (Main Name Plate) is located on the machine as shown
below. For your convenience, space is provided below to record information you may need in the future for
reference or troubleshooting.
Model No.
Serial
Date of Purchase
Dealer
Address
Telephone Number
(
)
–
Supplies Telephone Number
(
)
–
Service Telephone Number
(
)
–
For the total system to work properly via LAN, certain information and additional parameters must be set. Please
contact your network administrator for the required information and connection to the LAN.
User Information
Company Name:
Address:
Dept.:
City:
State:
Tel. No.:
Fax No.:
Zip Code:
Internet Parameters (See page 26)
IP Address:
Subnet Mask:
SMTP Server Name:
or
SMTP Server IP Address:
or
POP Server IP Address:
Default Router IP Address:
Email Address:
DNS Server IP Address:
POP Server Name:
POP User Name:
POP Password: (for security, do not write it in - but keep it in a safe place)
Host Name:
Model and Serial Number
Copyright © 2000 by Matsushita Graphic Communication Systems, Inc.
All rights reserved. Unauthorized copying and distribution is a violation
of law. Printed in Japan.
The contents of these Operating Instructions are subject to change
without notice.
Table of Contents
Getting to Know Your Machine
Safety Information .....................................................................................................................................
Function Key ..............................................................................................................................................
Control Panel .............................................................................................................................................
Pre Installation Information ......................................................................................................................
■ Setup as SMTP mail server ...........................................................................
■ Setup as POP3 Client ....................................................................................
Internet Communication Features ...........................................................................................................
■ Internet Fax Transmission .............................................................................
■ Internet Mail Reception ..................................................................................
■ Inbound Routing ............................................................................................
■ Fax Forward ...................................................................................................
■ Network Scanner ...........................................................................................
■ Network Printer ..............................................................................................
■ Relayed Transmission ...................................................................................
Important Information ...............................................................................................................................
■ Differences between Internet Fax and Regular Fax ......................................
■ Transmitted Document Confirmation .............................................................
■ DP-2000 Cannot Make a Phone Call via LAN ...............................................
■ Dual Port Communication ..............................................................................
■ Transmission Resolution ...............................................................................
■ Internet Mail Reception ..................................................................................
■ Sending Document Size via LAN ...................................................................
■ Sending a Document to a PC via LAN ...........................................................
■ Internet Relayed Transmission ......................................................................
Connecting the LAN Cables .....................................................................................................................
6
9
10
12
13
14
17
17
17
18
19
19
20
21
22
22
22
22
22
22
22
23
23
23
24
Installing Your Machine
User Parameters ........................................................................................................................................
■ Setting the User (Internet) Parameters ..........................................................
Setting the Internet Parameters ...............................................................................................................
■ Setting the User Parameters for the LAN Interface .......................................
Programming or Retrieving Parameters via Email .................................................................................
■ Using Email to Program or Retrieve Parameters ...........................................
■ Using a PC to Input the Internet Parameters Remotely .................................
■ To Input the Internet Parameters for the First Time .......................................
■ To Retrieve the Internet Parameters for Backup ...........................................
■ To Edit the Retrieved or Backup Internet Parameters File ............................
■ Using a PC to Update the Auto Dialer Remotely ...........................................
■ Deleting the Entire Auto Dialer ......................................................................
■ To Program One-Touch/ABBR. No. for the First Time ..................................
■ To Retrieve One-Touch/ABBR. No. Data for Backup ....................................
■ To Edit the Retrieved or Backup One-Touch/ABBR. No. Data File ...............
■ Using Email to Retrieve the Journal ..............................................................
25
25
26
26
27
27
27
28
30
32
35
36
37
39
41
43
Programming Your Machine
Programming Email Address and Telephone Numbers .........................................................................
■ Programming the Auto Dialer ........................................................................
■ Editing or Erasing the Auto Dialing Number / Email Address ........................
Programming Email Address and Telephone Numbers .........................................................................
■ Printing a Directory Sheet ..............................................................................
Customizing Your Machine .......................................................................................................................
■ Setting the Fax Parameters ...........................................................................
■ Fax Parameter Table ....................................................................................
45
45
49
52
52
53
53
54
3
Table of Contents
Basic Operations
Sending Documents via LAN ...................................................................................................................
■ Manual Email Addressing ..............................................................................
■ One-Touch Email Addressing .......................................................................
■ Abbreviated Email Addressing .....................................................................
■ Directory Search Dialing ...............................................................................
■ Multi-Station Transmission (Broadcasting) ...................................................
■ Selectable Domains ......................................................................................
■ Internet Fax Ledger Size Document Transmission .......................................
■ Returned Email .............................................................................................
■ Using a Mailing List .......................................................................................
Receiving Documents via LAN ................................................................................................................
■ Internet Fax Received on a PC .....................................................................
■ Receiving Email from a POP Server .............................................................
■ Setting the POP Parameters .........................................................................
■ Unattended Reception from the POP Server ................................................
■ Manual Reception from the POP Server .......................................................
61
62
64
65
66
68
70
72
74
75
76
76
78
78
81
81
Advanced Features
Program Keys ............................................................................................................................................
■ Entering an Email Address ............................................................................
■ Entering a Telephone Number ......................................................................
■ Setting for Group Dialing ...............................................................................
■ Setting the POP Access Key .........................................................................
■ Using the POP Access Key ...........................................................................
■ Changing or Erasing the Program Key Settings ...........................................
Sender Selection .......................................................................................................................................
■ General Description ......................................................................................
■ Setting the Sender Selection .........................................................................
■ Sending Document with Sender Selection ....................................................
■ Printing the Sender Selection List .................................................................
Subject Line Entry ....................................................................................................................................
■ General Description ......................................................................................
■ Sending Email with Subject Line Entry .........................................................
Inbound Routing .......................................................................................................................................
■ Setting the Routing Parameters ....................................................................
■ Entering One-Touch/Abbreviated Dialing Numbers for Inbound Routing .....
Fax Forward ...............................................................................................................................................
■ Setting Fax Forward ......................................................................................
83
83
84
85
86
87
88
89
89
89
91
92
93
93
93
95
95
97
99
99
Ifax Return Receipt ................................................................................................................................... 100
Network Features
Network Scanner .......................................................................................................................................
Network Printer .........................................................................................................................................
Relayed Transmission ..............................................................................................................................
■ General Description ......................................................................................
■ Relay Network ...............................................................................................
■ Setting up your DP-2000 as an Internet Relay Station .................................
■ Setting Up Your Machine for Relayed Transmission ....................................
■ Programming the End Receiving Station into your Auto Dialer .....................
■ Sending Documents via Internet Relay .........................................................
■ To a Location That Has a Pre-programmed Relay Station ...........................
■ To a Location That Does Not Have a Pre-programmed Relay Station .........
■ Sending Document(s) from a PC to a G3 Fax Machine ................................
■ Printouts and Reports ...................................................................................
4
101
102
103
103
104
106
107
107
109
109
111
113
115
Table of Contents
Printout Journals and Lists
Journals and Lists ....................................................................................................................................
■ Transaction Journal .......................................................................................
■ Communication Journal (COMM. JOURNAL) ...............................................
■ One-Touch/Abbreviated and Directory Search List .......................................
■ Program List ..................................................................................................
■ FAX Parameter List .......................................................................................
117
117
121
124
127
128
Problem Solving
Troubleshooting ........................................................................................................................................
■ Information Codes .........................................................................................
■ Email ABBR Programming Errors .................................................................
■ Error Message Sent to the Sender ................................................................
■ Internet FAX Return Receipt Errors Messages .............................................
131
131
132
132
132
Appendix
Specifications ............................................................................................................................................ 133
Glossary ..................................................................................................................................................... 134
Index ........................................................................................................................................................... 138
5
Getting to Know Your Machine
Safety Information
!
WARNING
denotes a potential hazard that could result in serious injury or death.
• TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR ANY TYPE OF
MOISTURE.
• TO MINIMIZE THE POSSIBILITY OF SHOCK OR DAMAGE TO THE MACHINE, IT MUST BE PROPERLY
GROUNDED.
• THIS PRODUCT COMPLIES WITH FDA RADIATION PERFORMANCE STANDARDS, 21 CFR SUB-CHAPTER J.
CAUTION: USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
• WHEN YOU OPERATE THIS EQUIPMENT, THE SOCKET-OUTLET SHOULD BE NEAR THE EQUIPMENT
AND BE EASILY ACCESSIBLE.
• MAKE SURE THAT THE MACHINE IS INSTALLED IN A SPACIOUS OR WELL VENTILATED ROOM SO AS
NOT TO INCREASE THE AMOUNT OF OZONE IN THE AIR. SINCE OZONE IS HEAVIER THAN AIR, IT IS
RECOMMENDED THAT AIR AT FLOOR LEVEL BE VENTILATED.
DANGER-Invisible and hazardous laser
radiation when open and interlocks defeated.
AVOID DIRECT EXPOSURE TO BEAM.
ATTENTION-Rayonnement laser invisible
dangereux en cas d'ouverture et
lorsque la sécurité est neutralisée.
EXPOSITION DANGEREUSE AU FAISCEAU.
VORSICHT-Unsichtbare Laserstrahlung.
wenn Abdeckung geöffnet und
Sicherheitsverriegelung überbrückt.
NICHT DEM STRAHL AUSSETZEN.
FBE8998A
6
Safety Information
!
CAUTION
denotes hazards that could result in minor injury or damage to the machine.
• THIS PRODUCT CONTAINS A LITHIUM BATTERY. DANGER OF EXPLOSION IF BATTERY IS
INCORRECTLY REPLACED.
REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE. DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS OF YOUR LOCAL SOLID WASTE OFFICIALS.
• TO REDUCE THE RISK OF SHOCK OR FIRE, USE ONLY NO. 26 AWG OR LARGER TELEPHONE LINE
CABLE.
• DISCONNECT ALL POWER TO THE MACHINE BEFORE COVER(S) ARE REMOVED. REPLACE THE
COVER(S) BEFORE THE UNIT IS RE-ENERGIZED.
!
IMPORTANT SAFETY INSTRUCTIONS
When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of
fire, electric shock and injury to persons, including the following:
• DO NOT USE THIS PRODUCT NEAR WATER, FOR EXAMPLE, NEAR A BATH TUB, WASH BOWL, KITCHEN
SINK OR LAUNDRY TUB, IN A WET BASEMENT OR NEAR A SWIMMING POOL.
• AVOID USING A TELEPHONE (OTHER THAN A CORDLESS TYPE) DURING AN ELECTRICAL STORM.
THERE MAY BE A REMOTE RISK OF ELECTRIC SHOCK FROM LIGHTNING.
• DO NOT USE THE TELEPHONE TO REPORT A GAS LEAK IN THE VICINITY OF THE LEAK.
• USE ONLY THE POWER CORD AND BATTERIES INDICATED IN THIS MANUAL. DO NOT DISPOSE OF
BATTERIES IN A FIRE, THEY MAY EXPLODE. CHECK WITH LOCAL CODES FOR POSSIBLE SPECIAL
DISPOSAL INSTRUCTIONS.
7
GETTING TO
KNOW YOUR
MACHINE
GETTING TO KNOW YOUR MACHINE
GETTING TO KNOW YOUR MACHINE
Safety Information
!
CAUTION
denotes hazards that could result in minor injury or damage to the machine.
Do not install the machine near heating or an air conditioning unit.
Avoid exposure to direct sunlight.
Install the machine on a flat surface, leave at least 4 inches (10 cm) of
space between the machine and other objects.
Do not block the ventilation openings.
Do not place heavy objects or spill liquids on the machine.
8
Function Key
Any function can be started by first pressing FUNCTION and then enter the function number, or by pressing
or
scroll key repeatedly until the desired function appears on the display.
1
Deferred Communication
1 = XMT
2 = Polling
3 = Advanced Communication
2
Advanced Communication
2 = Confidential Communication
4 = Sub-Address XMT
5 = LAN Relay XMT
3
Polling
6
Printout
7
Set Mode
1 = User Parameters
• Date & Time
• Logo
• Character ID
• ID Number (Fax Telephone Number)
2 = One-Touch/Abbreviated Numbers
3 = Program Keys
4 = Fax Parameters
8
Select Mode
1 = Communication Journal = OFF/ON/INC
2 = Duplex Scan = OFF/ON
3 = Cover Sheet = OFF/ON
4 = Password-XMT = OFF/ON (See Note 1)
5 = RCV to Memory = OFF/ON/PRINT
8 = LEDGER EMAIL XMT
(LEDGER ➝ B4 Reduction)
1 = Polling
2 = Polled
1 = Journal (Print/View)
2 = One-Touch/Abbreviated/
Directory Search List
3 = Program List
4 = Fax Parameter List
5 = Not used
6 = Individual XMT Journal
7 = Directory Sheet
9
Edit File Mode
1 = File List (Print/View)
2 = Change Time/Station
3 = Delete File
4 = Print File
5 = Add Document
6 = Retry Incomplete File
(see Note 1)
NOTE
1. If Fax Parameter is not preset to a Valid position, which enables you to use the function, the display will not show
the function.
9
GETTING TO
KNOW YOUR
MACHINE
GETTING TO KNOW YOUR MACHINE
GETTING TO KNOW YOUR MACHINE
Control Panel
• Used to store a job in memory (See Operating Instructions For Copier, page 25).
Also used to enter “.” (period) while entering LOGO, character ID, station name and
network settings such as email address, IP address, etc...
• Used to turn the verification
stamp ON or OFF.
Also used to enter “-” (dash)
while entering LOGO,
character ID, station name,
etc...
• Used to select either memory or direct
communication.
Regardless of setting, Internet Fax jobs are
always stored into memory first.
Also used to enter “_” (underscore) while entering
LOGO, character ID, station name, etc...
2SIDED
COPY
MULTI-SIZE FEED
1SIDED
COPY
• Used to select the
INTERNET mode.
ON LINE Indicator
Blinks : When sending or
receiving faxes.
LCD Display
Indicates date and time, or
the current operation.
E
SORT
STAPLE
DP-2000
SHIFT
COPIED
BLANK
STAMP
MEMORY IN
2 in 1
a
01
f
MEM XMT
M1
OHP
2PAGE
COPY
b
BOOK
c
EDGE
M2
d
g 03
h 04
i
06
k 07
l
m 09
n 10
o
11
p 12
q 13
r
14
s 15
t
16
u 17
v 18
w 19
x 20
y
P1
z P2
@ P3
02
08
COPY
MARGIN e
j
05
FAX
TEXT/
ON LINE
OUTPUT
TRAY
DIRECTORY
SEARCH
TEXT
INTERNET
FINE
SPACE
S-FINE
P4
SYMBOLS P5
CAPS
PRINTER
ON LINE
PAPER
TRAY
LIGHTER
DARKER
DATA
RESOLUTION
LINE SELECT
ZOOM/VOL
One-Touch Keys (01-20)
• Used for One-Touch Dialing.
(See page 64)
Program Keys (P1-P5)
• Used to record long dialing
procedures or Group Dialing
Number keys.
(See page 83 to 88)
Character Keys
• One-Touch Keys and
Program Keys also serve as
character and symbol input
keys which are used to
record your LOGO, character
ID and station name. The
character key template is
printed on the panel under
the directory sheet cover.
• Used to set Standard,
Fine, Super-Fine.
• Used to insert a space while
entering LOGO, character ID and
station name.
• Used to enter a symbol (, ’ & ( ) : + /
% Å å Ä ä Ö ö Ü ü È è É é Æ æ Ñ)
for LOGO, character ID and station
name. Use
or
to select the
symbols.
• Used to switch between upper and
lower character set.
10
• Used to search for
a station name.
(See page 66)
Used for the following:
• Adjust the CONTRAST.
• Adjust the monitor and ringer volume.
• Move the cursor while entering numbers and
characters.
• Search the station name for Directory
Search Dialing.
• Confirm the entered station for multi-station
communication.
• Select functions.
• Confirm the current communication modes
(e.g. Page number, ID, Dialed Telephone
number or Email address, File number)
when the unit is ON LINE.
Control Panel
[8]
Power save
• Used to switch the
machine into energy
saving mode.
For more details, see
page 24 of the Operating
Instructions (For Copier.)
ENERGY SAVER INTERRUPT
ORIGINAL
SIZE
COPY
SIZE
FUNCTION
• Used to start or select
the function and subfunctions. These
functions are
explained in detail on
page 9.
• Used to select the
original size
manually.
• Use this button when
resetting all the
previously set functions.
• Use this button when
correcting entered
numbers or
characters.
RESET
CLEAR
REDIAL/
PAUSE
LEDGER
FLASH/
ABC
DEF
1
2
3
GHI
JKL
MNO
4
5
6
PQRS
TUV
WXYZ
7
8
9
SUB-ADDR
LEGAL
ABBR
LETTER
MONITOR
LETTER
STOP
• Press this button when
you want to stop the
communication,
registration operation, or
audible tone.
START
0
SET
INVOICE
TONE
ALARM
ACTIVE
• Press this button to start
fax transmission or
Internet communication
and manual fax reception.
• Used to enter a pause when recording or dialing a telephone
number, or to redial the last dialed number.
• Used to separate the Sub-Address from the telephone number
when dialing, or to access some features of your PBX.
• Used to start Abbreviated Dialing. (See page 65)
Keypad
• Used for manual number dialing,
recording phone numbers, and
numerical entries.
Tone key
• Used to temporarily change the Fax
dialing method to Tone when Pulse
mode is set.
• Also can be used to enter a period
"." during IP Address programming.
• Used to start On-Hook Dialing.
• Used to set operations.
11
GETTING TO
KNOW YOUR
MACHINE
GETTING TO KNOW YOUR MACHINE
GETTING TO KNOW YOUR MACHINE
Pre Installation Information
Before setting up the DP-2000 on your network, please read this entire section to be familiar with its functions.
The DP-2000 is able to perform the following when connected to a 10Base-T/100Base-TX Ethernet LAN (local
area network):
• Send paper-based information as an Internet Email.
• Receive and print an Internet Email automatically.
• Forward received G3 fax message or Email automatically to the preprogrammed Email address or regular G3
fax machine (see "Fax Forward" on pages 99).
• Route received G3 fax message automatically to the sender-specified Email address or G3 fax machine using
ITU-T SUB-Address (see "Inbound Routing" on pages 95 to 98).
• Route received G3 fax messages automatically to the preprogrammed Email address or G3 fax machine using
the sender’s fax ID code (see "Inbound Routing" on pages 95 to 98).
• Relay an Internet Email to a G3 fax machine via regular fax transmission (see "Relayed Transmission" on
pages 103 to 116).
• Network scanning and printing.
To utilize the above functions, the DP-2000 needs to be set up properly on your network. Please contact your
network administrator for actual network setup.
Copy the Pre-installation Information form found at the end of this section on page 15, record the MAC
Address on the form and ask your network administrator to complete the remaining information on the form.
The MAC Address of your DP-2000 can be found on the 2nd page of the Fax Parameter List printout (press
SET ). (see Note 1) (see Note 2) (see Note 3) (see Note 4)
FUNCTION 6 4
The DP-2000 can be set up as either SMTP mail server or POP3 client. Dependent on the type of setup,
different functions are available as follows.
Function
SMTP Server Setup
POP3 Client Setup
Sending paper-based information as an Internet Email
Yes
Yes
Receive and print an Internet Email automatically
Yes
Yes
Receive and print an Internet Email manually
No
Yes
Forward received G3 fax message or Email automatically
Yes
Yes
Route received G3 fax message automatically
Yes
Yes
Relay an Internet Email to G3 fax machine
Yes
No
NOTE
1. To function as SMTP mail server, the DP-2000’s email address must include its unique Host name within your
company domain. This unique Host name must be registered within your network’s DNS (Domain Name System)
server. Example: [email protected]
2. Automatically refers to immediate SMTP transfer or immediate POP3 retrieval. Manually refers to manual
retrieval of mail when configured as POP3 client.
3. The DP-2000 will receive, print, forward or relay emails in text message format and TIFF-F image file attachment
only.
4. Dynamic Host Configuration Protocol (DHCP) is not supported.
12
Pre Installation Information
Setup as SMTP mail server
To install the DP-2000 as SMTP mail server, the following network parameters need to be programmed on your
network and on the DP-2000.
• IP Address of the DNS Server (if not available, see Note)
• IP Address of the DP-2000
• Subnet Mask of the DP-2000
• Name or IP Address of the Default SMTP mail server
• IP Address of the Default Router
• Email Address of the DP-2000 (see Note)
• Host Name
Email Transmission (from the DP-2000 to a PC) (see Note 1) (see Note 2) (see Note 3)
[email protected]
SMTP01.panasonic.com
(SMTP Mail Server)
(Router)
SMTP
POP3
POP02.panasonic.com
(POP Server)
[email protected]
Email reception (from a PC to the DP-2000)
[email protected]
SMTP01.panasonic.com
(SMTP Mail Server)
(Router)
SMTP
[email protected]
NOTE
1. To function as SMTP mail server, the DP-2000’s email address must include its unique Host name within your
company domain. This unique Host name must be registered within your network’s DNS (Domain Name System)
server. Example: [email protected]
2. By default the machine requires the IP Address of the DNS Server and prompts you to enter the SMTP Server
Name. If the DNS Server is not available, change the Fax Parameter No. 161 (DNS SERVER) to "1:Invalid".
Then the machine will prompt you to enter the IP Address of the SMTP Server.
3. Dynamic Host Configuration Protocol (DHCP) is not supported.
13
GETTING TO
KNOW YOUR
MACHINE
GETTING TO KNOW YOUR MACHINE
GETTING TO KNOW YOUR MACHINE
Pre Installation Information
Setup as POP3 Client
To install the DP-2000 as POP3 Client, the following network parameters need to be programmed on your
network.
• IP Address of the DNS Server (if not available, see Note 2)
• IP Address of the DP-2000
• Subnet Mask of the DP-2000
• Name or IP Address of the Default SMTP mail server
• IP Address of the Default Router
• POP Server Name or IP Address
• POP User Account Name
• POP Password
• Email Address of the DP-2000 (see Note 1)
(see Note 1) (see Note 2)
Email transmission (from the DP-2000 to a PC)
[email protected]
SMTP01.panasonic.com
(SMTP Mail Server)
(Router)
SMTP
POP3
POP02.panasonic.com
(POP Server)
[email protected]
Email reception (from a PC to the DP-2000)
[email protected]
SMTP01.panasonic.com
(SMTP Mail Server)
(Router)
SMTP
POP3
POP02.panasonic.com
(POP Server)
[email protected]
NOTE
1. The email address format can be the same as your regular email address. If your email address is
[email protected], the DP-2000’s email address can be [email protected]
2. By default the machine requires the IP Address of the DNS Server and prompts you to enter the SMTP and POP
Server Names. If the DNS Server is not available, change the Fax Parameter No. 161 (DNS SERVER) to
"1:Invalid". Then the machine will prompt you to enter the IP Address of the SMTP and POP Servers.
14
Pre Installation Information
For the total system to work properly via LAN, certain information and additional parameters must be set. Please
contact your network administrator for the required information and connection to the LAN.
Important: Make a copy of this page and ask the Network Administrator to complete the required information. After its
returned, transfer the information to the back side of the front cover for future reference and troubleshooting.
User Information
Company Name
Address
Dept.
City
Tel. No.
State
Fax No.
Zip Code
(see Note 1) (see Note 2) (see Note 3) (see Note 4)
Internet Parameters (See page 26)
(1) IP Address:
(2) Subnet Mask:
(3) *SMTP Server Name:
or
*SMTP Server IP Address:
or
*POP Server IP Address:
(4) Default Router IP Address:
(5) Email Address:
(6) DNS Server IP Address:
(7) POP Server Name:
(8) POP User Name:
(9) POP Password:
(10) Host Name:
(11) Default Subject:
(12) Default Domain:
(13) Selectable Domains:
1.
2.
6.
7.
3.
4.
8.
9.
5.
(14) Remote Password:
10.
(15) Relay XMT Password:
(16) Manager’s Email Address:
(17) Relay Domains (Domains Authorized for Relay Transmission):
6.
1.
2.
3.
7.
8.
4.
5.
9.
10.
NOTE
1. Items in Bold, depict information obtained from you Network Administrator.
2. By default the machine requires the IP Address of the DNS Server and prompts you to enter the SMTP and POP
Server Names (items 3 and 7 above). If the DNS Server is not available, change the Fax Parameter No. 161 (DNS
SERVER) to "1:Invalid". Then the machine will prompt you to enter the IP Address of the SMTP and POP Servers.
3. If required, the MAC Address of the DP-2000 can be obtained from the 2nd page of the Fax Parameter List
printout, by pressing FUNCTION 6 4
SET .
4. Dynamic Host Configuration Protocol (DHCP) is not supported.
Continued on the next page...
15
GETTING TO
KNOW YOUR
MACHINE
GETTING TO KNOW YOUR MACHINE
GETTING TO KNOW YOUR MACHINE
Pre Installation Information
Explanation of Contents
MAC Address
: MAC Address from the 2nd page of the Fax Parameter List printout (press
FUNCTION
6
4
SET
).
(1)
IP Address
: The Internet Protocol (IP) address assigned to your machine.
(2)
Subnet Mask
: The Subnet Mask number.
(3)
SMTP Server Name or SMTP
Server IP Address
: The SMTP Server Name (up to 60 characters). The SMTP Server IP Address.
(4)
Default Router IP Address
: The Default Router’s IP Address.
(5)
Email Address
: The email address assigned to your machine. (Up to 60 characters)
(6)
DNS Server IP Address
: The IP address of the DNS Server.
(7)
POP Server Name or POP
Server IP Address
: The POP Server Name. (Up to 60 characters) The POP Server IP Address.
(8)
POP User Name
: POP User Name. (Up to 40 characters)
(9)
POP Password
: POP Password. (Up to 10 characters)
(10) Host Name
: The name assigned to your DP-2000. (Up to 60 characters)
(11) Default Subject
: The information to be added to the Subject Line for all outgoing emails. (Up to
40 characters)
(12) Default Domain
: Specify the Domain Name (up to 50 characters) to be added to frequently used
or incomplete outgoing email addresses (i.e. @yourcompany.com).
(13) Selectable Domains
: Enter up to 10 Domain Names that can be selected during manual email
addressing. (Up to 30 characters)
(14) Remote Password
: Enter a security password (up to 10 characters) to allow Remote Programming
of the Internet Parameters and Auto Dialer or the retrieval of the Journal via
email.
(15) Relay XMT Password
: Enter a password to provide network security to your Relay Station (for G3 relay
purposes). (Up to 10 characters)
(16) Manager’s Email Address
: Enter you Department Manager’s email address for notification of all Internet
relayed transmissions for supervision and cost control purposes. (Up to 60
characters)
(17) Relay Domain (01 to 10)
: Enter up to 10 Domain Names that are authorized to access your Internet Fax
for Relayed Transmission Request. (Up to 30 characters)
Relay Domain, a.k.a. Domain Name in the DX-1000/2000.
(see Note 1)
NOTE
1. All IP Addresses consist of 4 parts separated by dots (i.e. 165.113.245.2).
16
Internet Communication Features
Internet Fax Transmission
The DP-2000 allows you to transmit documents over the Internet to another Internet Fax or a PC. The
document is first scanned and converted into a TIFF-F formatted image file, and then transmitted to the remote
location as an attachment file to an email using MIME encoding.
The email system at the receiving end must support MIME. Otherwise, the attachment file will be detached
and lost.
When you send an email message to someone, the DP-2000 uses Simple Mail Transfer Protocol (SMTP) to
transfer your outgoing mail to your SMTP mail server, which in turn uses SMTP to send your mail to the
Internet.
Internet Mail Reception
The DP-2000 allows you to receive and print a PC transmitted email automatically or manually, depending on
its setup configuration. However, if the received email includes file attachment in a format other than TIFF-F,
such as Word, Excel, Power Point, the DP-2000 prints an error message instead.
Internet Fax
LAN
LAN
Internet Fax
Internet Fax
Transmission
Internet
Internet Mail
Reception
PC
PC
17
GETTING TO
KNOW YOUR
MACHINE
GETTING TO KNOW YOUR MACHINE
GETTING TO KNOW YOUR MACHINE
Internet Communication Features
Inbound Routing
Using the Inbound Routing feature, the DP-2000 can route documents received from a G3 fax machine to
email address(s) or to Internet Fax machine(s) connected to a LAN as an email, as well as to other G3 fax
machine(s) over the telephone line.
When an incoming Internet Fax, email or a regular fax document is received, the DP-2000, checks for the
following:
1. First, the DP-2000 checks whether a sub-address is included. If it is, it will look for a sub-address match
within its auto dialer and will route the documents to the corresponding stations email address(s) and/or
telephone number(s).
2. If no sub-address is specified, then the DP-2000 tries to match the originating fax machine’s Numeric ID
(TSI) with the TSI routing within its auto dialer and will route the documents to the corresponding stations
email address(s) and/or telephone number(s).
Internet Fax
LAN
Email
Internet Fax
Fax Reception
G3 Fax
Transfer to
a G3 Fax
PC
G3 Fax
(see Note 1) (see Note 2)
NOTE
1. If the originating fax machine does not support the above sub-address function, sub-address destination(s)
cannot be selected.
2. The DP-2000 will allow you to register the same sub-address number for an email address and a telephone
number.
18
Internet Communication Features
Fax Forward
The DP-2000 is capable of transferring all received Internet email or regular G3 fax documents to a preprogrammed G3 fax or a PC destination.
Internet Fax
LAN
Transfer to a G3 Fax
G3 Fax
or
Email
Transfer to a PC
PC
G3 Fax
Network Scanner
The DP-2000 can be utilized as a network scanner by simply transmitting an image to a PC as TIFF-F
attachment to an email.
This feature was enhanced with an addition of a new Fax Parameter No. 164 (IFAX XMT HEADER), giving you
a selection of whether to include the header when sending a document to an addressee in the same Domain
as specified in the Default Domain parameter. (See Note 1)
LAN
Internet Fax
PC
PC
(see Note 1)
NOTE
1. When sending to a Domain other than as specified in the Default Domain parameter, the header will be included
regardless of the selection.
19
GETTING TO
KNOW YOUR
MACHINE
GETTING TO KNOW YOUR MACHINE
GETTING TO KNOW YOUR MACHINE
Internet Communication Features
Network Printer
The DP-2000 can be utilized as a network printer by simply sending the documents created on your PC using
various software applications to the DP-2000 via TCP/IP protocol.
There a two parts to setting up the DP-2000 as a network printer. Part 1 requires you to download the software
(printer driver and LPR) from the web site listed below.
The second part requires you to install and configure the software on your PC to work with the DP-2000. (See
the web site for details about the printer driver installation and operation.)
You can download the Panasonic’s printer driver and LPR monitor from any of the following URL addresses:
http://www.panasonic.co.jp/mgcs/internetfax/
http://www.panasonic.com/internetfax
LAN
Internet Fax
Print
PC
(see Note 1)
NOTE
1. The IP Address, Subnet Mask and Default Router IP Address (TCP/IP Gateway Address) must be programmed
on the DP-2000 to use as a Network Printer.
20
Internet Communication Features
Relayed Transmission
The DP-2000 allows you to transmit an email received from an Internet Fax or PC connected to the LAN to
multiple fax machines via a telephone line. You can attach files with the TIFF-F format to this email.
Using the Sub-address specified by the originating fax machine, the DP-2000 can then route the received
documents to the remote DP-2000 via an email, which can then relay these documents to final destinations
where the final recipient is a regular G3 fax machine.
The DP-2000 also allows you to convert a data file from various application programs such as spreadsheet into
a TIFF-F format file and then transmit this file attached to an email.
To convert applications into a TIFF-F formatted file, however, requires you to first download the software
(printer driver) from the web site listed below. The second part requires you to install the software on your PC.
(See the web site for details about the printer driver installation and operation.)
You can download the Panasonic’s printer driver from any of the following URL addresses:
http://www.panasonic.co.jp/mgcs/internetfax/
http://www.panasonic.com/internetfax
Internet Fax
Transfer to a G3 Fax
LAN
Internet Fax
G3 Fax
Transfer to a G3 Fax
G3 Fax
Email
Transfer to
a G3 Fax
PC
G3 Fax
21
GETTING TO
KNOW YOUR
MACHINE
GETTING TO KNOW YOUR MACHINE
GETTING TO KNOW YOUR MACHINE
Important Information
The DP-2000 uses the same communication protocols as email: the Simple Mail Transfer Protocol (SMTP). The
differences from a standard G3 fax communication using the Public Telephone Network (PSTN) are as follows.
Differences between Internet Fax and Regular Fax
A regular Fax machine goes off-hook, dials, and the phone network completes a circuit over phone lines to the
receiving fax. You pay for the circuit. The two faxes negotiate a connection, synchronize and exchange image
data.
The Internet Fax works like an email, the image data is broken down into packets and transmitted through your
Local Area Network (LAN) to the Internet or Intranet instead of using a telephone company’s network, thus
saving you long distance costs.
Transmitted Document Confirmation
1. The DP-2000 does not directly connect to the final destination, but rather connects to a Mail Server via LAN.
Therefore, if a document cannot be correctly transmitted due to an error, the erroneous mail may be
returned from the Mail Server to the DP-2000.
2. The erroneous mail may take a long time to return (20 to 30 minutes) depending on the destination location,
traffic on the network or LAN system configuration.
3. Depending on the Mail Server, it is also possible that erroneous mail is not returned at all. Therefore, when
transmitting important or time sensitive documents, it is recommended that you follow up with a telephone
call to confirm reception.
4. Documents cannot be transmitted correctly if the destination Mail Server does not conform to the MIME
protocol. Erroneous mail may not be returned depending on the Mail Server.
DP-2000 Cannot Make a Phone Call via LAN
The DP-2000 can only make a phone call using a regular telephone line (PSTN).
Dual Port Communication
The DP-2000’s dual port capability, allows simultaneous G3 Fax Communication over regular telephone line
(PSTN) and LAN Communication.
Transmission Resolution
In view of PC transmission, the factory default setting for the resolution is set to FINE mode. If required, this
setting can be changed to Normal.
Internet Mail Reception
1. The DP-2000 can receive text email from a PC and print ANSI characters. It will print a "" symbol if an
unrecognized character is received.
2. Received email font and character size are fixed and cannot be changed.
3. Text email will be printed at about 72 lines per page. It is recommended that you use A4/Letter size
recording paper.
4. If the received text email includes a file attachment in a format other than TIFF-F, such as Word, Excel,
Power Point, the DP-2000 prints an error message instead.
5. If the received email includes attached TIFF-F formatted image files, the text and TIFF-F formatted image
file will be printed on separate pages.
22
Important Information
Sending Document Size via LAN
When transmitting via LAN, the transmitter is incapable of identifying the receiver’s recording paper size
capability, and thus it will not reduce the document size. Therefore, when transmitting via LAN, it is
recommended that you use only A4/Letter size documents. If a Ledger/B4 size document is transmitted and
the receiver is only able to print A4/Letter size, the communication will fail when the Fax Parameter No. 141
(LAN XMT REDUCTION) is set to "1:Invalid" or the Select Mode "LEDGER EMAIL XMT" is set to "On".
Sending a Document to a PC via LAN
When transmitting a document to an email address, the following instructions are sent as text message in
addition to the TIFF-F formatted image file.
An Image data in TIFF-F format has been attached to this email. You can download the TIFF-F Image Viewer
from the following URL addresses:
http://www.panasonic.co.jp/mgcs/internetfax/
http://www.panasonic.com/internetfax/
Internet Relayed Transmission
To prevent unauthorized stations from accessing your Relay Station for Internet Relayed Transmission, you
must set up your Network security. Enter a Relay Station Name, which is concealed from the final destinations
and a Manager’s Email Address for notification of all Internet Relayed Transmissions.
23
GETTING TO
KNOW YOUR
MACHINE
GETTING TO KNOW YOUR MACHINE
GETTING TO KNOW YOUR MACHINE
Connecting the LAN Cables
ACTIVITY Lamp
Blinks when there is data traffic on the LAN.
LINK Lamp
Illuminates when connected to the LAN. Lamp will
not turn ON if LAN cable is defective (contains
breaks).
LAN Connection Jack
(10Base-T/100Base-TX)
LAN Cable
(10Base-T/100Base-TX Cable)
Insert the plug until a click is heard.
(LAN cable is not included with the product.)
Purchase a Category 5 Cable, compliant with
EIA/TIA 568-A-5 standard.
Ethernet LAN
(10Base-T/100Base-TX)
Cable (Not included)
Ethernet-Token-Ring
Bridge
(Optional Order
No. UE-204006)
10Base-T/100Base-TX Ethernet Hub
24
User Parameters
Setting the User (Internet) Parameters
See Operating Instructions (For Facsimile) if you wish to set the basic settings (User Parameters).
Before starting, you will need a completed copy of page 15 (Pre Installation Information). For your machine to
be able to operate on the Network properly, the following five (5) Basic Parameters must be pre-programmed
into the machine.
• IP Address
• Subnet Mask
• SMTP Server Name or IP Address
• Default Router IP Address
• Email Address
Make sure that the Internet lamp is ON. If not, press
to select the "INTERNET MODE".
1
SET MODE
(1-4)
ENTER NO. OR ∨ ∧
2
1:USER PARAMETERS?
PRESS SET TO SELECT
3
4
IP ADDRESS
❚
repeatedly until display shows;
Enter the IP Address using the keypad. Press
to enter the period ".". (See Note 4)
Ex: 1 2 3
1 7 8
or
IP ADDRESS
123.178.240.3❚
2 4 0
3
5
SUBNET MASK
❚
To continue setting other parameters, or press
return to standby.
(see Note 1)
(see Note 2)
(see Note 3)
STOP to
(see Note 4)
NOTE
1. To scroll the display to desired User Parameter in Step 3, press
or
.
2. The above IP Address fields require an entry to continue. If you wish to erase any of the above IP Addresses
(leave it Blank) and continue to the next step, press CLEAR , then enter "0.0.0.0" and press
SET . Other
IP Addresses do not require an entry to continue, just press CLEAR and press
SET to proceed.
3. If the DNS Server is not available, change the setting of the Fax Parameter No. 161 (DNS Server) to "Invalid",
then enter the IP Address instead.
4. For convenience, you can use
to enter a period "." while programming IP Addresses only. Otherwise
is
used to enter an asterisk in other condition.
25
INSTALLING
YOUR MACHINE
Installing Your Machine
INSTALLING YOUR MACHINE
Setting the Internet Parameters
Setting the User Parameters for the LAN Interface
Depending on how the DP-2000 will be configured to communicate on the LAN, the appropriate parameters
listed in the table below must be stored first. (See pages 12 to 16)
1
2
3
4
5
Parameter
DATE & TIME
LOGO
CHARACTER ID
ID NO.
TIME ZONE
6
(MAC ADDRESS)
7*
8*
9*
10*
11*
12*
IP ADDRESS
SUBNET MASK
SMTP SERVER NAME
SMTP SERVER IP ADDR
DEF. ROUTER IP ADDR
EMAIL ADDRESS
13*
DNS SERVER IP ADDRESS
14*
15*
16*
17*
18*
19
POP SERVER NAME
POP SERVER IP ADDR
POP USER NAME
POP PASSWORD
HOST NAME
DEFAULT SUBJECT
20
DEFAULT DOMAIN
21
SELECTABLE DOMAINS (01) ~
(10)
22
REMOTE PASSWORD
23
RELAY XMT PASSWORD
24
MANAGER’S EMAIL ADDR
25
RELAY DOMAIN (01) ~ (10)
Comments
Current Date and Time.
Up to 25 characters & digits.
Up to 16 characters & digits.
Your Fax Telephone Number. (Up to 20 digits)
The Time Zone is required as part of the Email header information when
sending Internet faxes.
Hardware Address hard-coded into the DP-2000. (If required, can be obtained
from the 2nd page of the Fax Parameter List printout, by pressing.
[FUNCTION] [6] [4] [SET])
IP Address assigned to your DP-2000.
Subnet Mask assigned by the Network Administrator.
The name of the SMTP Mail Server. (Up to 60 characters)
IP Address of the SMTP Mail Server.
IP Address of your Default Router.
The Email Address assigned to your DP-2000 for sending and receiving. (Up
to 60 characters)
IP Address of the DNS Server. If the DNS Server is not available, change the
setting of the Fax Parameter No. 161 (DNS Server) to "Invalid", then enter the
IP Address instead.
Name of the POP Mail Server.
IP Address of the POP Mail Server.
User Name assigned to your DP-2000. (Up to 40 characters)
Password assigned to your DP-2000. (Up to 10 characters)
The Host Name assigned to your DP-2000. (Up to 60 characters)
The default information to be added to the Subject Line for all outgoing Email
(up to 40 characters). To manually input this information before transmission,
change the Fax Parameter No. 159 (SUBJECT LINE ENTRY) to "2:Valid".
When the outgoing email address is incomplete by SMTP standards, the
Frequently Sent Domain specified here will be automatically added to the
email address. This feature is also useful as a shortcut when manually
entering email addresses to a frequently used Domain. (Up to 50 characters)
Enter up to 10 Domain Names that can be selected after the Domain "@" key
is pressed using the "\/ or /\" key during Manual email addressing. (Up to 30
characters)
This is a security password that allows Remote Programming of the Internet
Parameters and Auto Dialer or the retrieval of the Journal via an Email. (Up to
10 characters)
A password that provides Network security for your Relay Station (used
exclusively for G3 relay purposes). (Up to 10 characters)
Department Manager’s Email Address for notification of all Internet relayed
transmissions for supervision and cost control purposes. (Up to 60 characters)
Enter up to 10 Domain Name(s) that have been authorized to access your
Internet Fax for Relayed XMT Request. (Up to 30 characters)
Relay Domain, a.k.a. Domain Name in the DX-1000/2000.
* Contact your Network Administrator for this Information.
26
Programming or Retrieving Parameters via Email
Using Email to Program or Retrieve Parameters
This feature is a powerful tool, which provides a convenient and easy way of retrieving or programming Internet
Parameters, One-Touch, ABBR Dialing Numbers, Program keys and Journal retrieval from your PC by sending
a text email message to the DP-2000.
Using your email application’s "Subject:" line as a command-input field, you can request the DP-2000 to
perform the following commands:
1
2
3
4
5
"Subject:" Line Command
#set parameters(password)#
#get parameters(password)#
#set abbr(password)#
#get abbr(password)#
#get jnl(password)#
Where:
Function
Programs the Internet Parameters
Retrieves the Internet Parameters
Programs the Auto Dialer
Retrieves the Auto Dialer Data
Retrieves the current Journal data
"set" is used to program the data
"get" is used to retrieve the data
"parameters" represents Internet Parameters
"abbr" represents Auto Dialer
"jnl" represents Journal
"password" is the Remote Password programmed in the DP-2000’s User Parameters
(i.e. 123456789). Must be enclosed within the parenthesis "( )".
The command must be enclosed within the hash (#) signs.
Using a PC to Input the Internet Parameters Remotely
This feature provides a convenient and an easy way to input the Internet Parameters right from your PC by
sending a text email message to the DP-2000.
The following parameters can be input remotely via a PC. The other parameters must be entered from the
machine in the User Parameters. (See page 26).
-
Sender Selection (up to 24 User Names, see page 89)
Default Domain
Selectable Domains (up to 10 additional Domain Names)
Remote Password
Manager’s Email Address
Relay XMT Password
Relay Domain (up to 10 Domain Names authorized for Relay XMT Request)
The DP-2000 interprets the command that you enter in the "Subject" line of your email message and performs
one of the following functions, it Retrieves or Stores data into the Internet Parameters (User Parameters).
The two types of commands that can be entered in the "Subject" line of your email:
1) To Store data, type : #set parameters(password)# : where the "password" is the Remote Password
programmed in the DP-2000’s User Parameters (i.e.
123456789).
You can enter the Internet Parameters shown above
with this command the first time. However, if these
fields already contain data, do not use this command
as the existing information will be deleted and
overwritten.
Use the Retrieve command below
instead, refer to pages 30 to 34.
2) To Retrieve data, type : #get parameters(123456789)# (see Note 1)
NOTE
1. To activate this feature, change the Fax Parameter No. 158 (PC REMOTE UPDATE) to "Valid". (See page 58)
27
INSTALLING
YOUR MACHINE
INSTALLING YOUR MACHINE
INSTALLING YOUR MACHINE
Programming or Retrieving Parameters via Email
To Input the Internet Parameters for the First Time
Create a script in the message body of a plain text email and send it to the DP-2000’s email address. The
"Subject" line of the email must be as follows:
#set parameters(password)#: where the "password" is the Remote Password programmed in the DP-2000’s
User Parameters. For security, always input a Remote Password in the User
Parameters. [If it was not programmed, signify with "()" (i.e. #set parameters()#)
and assign one now].
Important:
Do not use the above command if these fields already contain data, the
existing information will be deleted and overwritten. Retrieve and backup the
existing data onto your PC first by following the procedures for Retrieving and
Editing the Internet Parameters on pages 30 to 34.
The script sample to input the Internet Parameters is shown below.
(1)
(2)
(3)
(4)
(a)
(b)
(5)
(c)
(d)
28
INSTALLING YOUR MACHINE
INSTALLING
YOUR MACHINE
Programming or Retrieving Parameters via Email
Explanation of Contents (see Note 1) (see Note 2)
(1) To
: The DP-2000’s email address
From
: This field is normally not visible when creating new email message(s). It is your default
email address (email application), for retrieving the Internet Parameters and for error
message notification.
(Can be programmed with the configuration tool of your email program.)
Subject
: To Store data, type: #set parameters(password)#
(2) @sender to @end
: Defines the Sender information to be set in section (2) between @sender to @end block.
Register up to 24 User Names and their Email Addresses for the Sender Selection feature
(See page 89).
Separate each data field with a semicolon (;). (If the remaining fields are to remain blank,
insert a semicolon (;) for each blank field)
The data string for each Sender Selection should be defined within a single line.
The syntax is: <Sender Selection Number>;<User Name>;<Email Address>
(a) 01 to 24: Indicates the Sender Selection Numbers
(b) User Name (25-characters maximum)
(c) Email Address (60-characters maximum)
(3) @select-domain to @end
: Defines the Selectable Domains to be set in section (3) between @select-domain to
@end block. Register up to 10 Domain Names that can be selected during manual email
addressing. (30-characters maximum)
The syntax is: <Number>;<Domain>
(4) @relay-domain to @end
: Defines the Domain Names to be set in section (4) between @relay-domain to @end
block. Register up to 10 Domain Names that have been authorized to access your
Internet Fax for Relayed XMT Request. (30-characters maximum)
(5) @system to @end
: Defines the Internet Parameters to be set in section (5) between @system to @end block.
Register the following Internet Parameters.
(a) Default Domain (30-characters maximum).
The syntax is: domain; <Default domain name>
(b) Manager’s Email Address (60-characters maximum).
The syntax is: manager; <Manager’s Email Address>
(c) Relay XMT Password (10-characters maximum).
The syntax is: relay; <Relay XMT Password>. Quotation marks " " enclosing the
password, are required, as shown in the example above.
(d) Remote Password (10-characters maximum).
The syntax is: remote; <Remote Password>. Quotation marks " " enclosing the
password, are required, as shown in the example above.
NOTE
1. The machine cannot be programmed via email while it is communicating or printing.
2. Some email applications automatically insert a line feed in the middle of a line when the number of characters in
a line exceed a specific number. Turn "Off" the automatic line feed, or define the number of characters per line
to prevent a line feed, or the data will be ignored.
29
INSTALLING YOUR MACHINE
Programming or Retrieving Parameters via Email
To Retrieve the Internet Parameters for Backup
To retrieve the existing Internet Parameters, send a plain text email to the DP-2000’s email address with the
following command in the "Subject" line:
#get parameters(password)# : where the "password" is the Remote Password programmed in the DP-2000’s
User Parameters (i.e. 123456789). For security, always input a Remote
Password in the User Parameters. If it was not programmed, signify with "()"
(i.e. #get parameters()#).
Make sure that the CC..., Bcc... lines and the body of the email message is
Blank.
Retrieving the Internet Parameters Sample
(1)
(1) To
30
: The DP-2000’s email address.
From
: This field is normally not visible when creating new email message(s). It is your default
email address (email application), for retrieving the Internet Parameters and for error
message notification.
(Can be programmed with the configuration tool of your email program.)
Subject
: To Retrieve data, type: #get parameters(password)#
Programming or Retrieving Parameters via Email
After receiving the email message requesting the Internet Parameters, the DP-2000 sends back an email to the
address specified in the "From:" line with the Internet Parameters in the body of the email.
DP-2000 Internet Parameters Email Sample
(1)
(2)
(3)
(4)
(5)
(1) To
From
Subject
(2) @sender to @end
(3) @select-domain to @end
(4) @relay-domain to @end
(5) @system to @end
:
:
:
:
Your email address that was used to retrieve the Internet Parameters.
The DP-2000’s email address.
DP-2000 System Parameter List
Defines up to 24 User Names and their Email Addresses programmed in the DP-2000 for
the Sender Selection in section (2) between @sender to @end block.
: Defines up to 10 alternate Domain Names programmed in the DP-2000 for the Selectable
Domains in section (3) between @select-domain to @end block.
: Defines up to 10 Domain Names programmed in the DP-2000 that have been authorized
to access your Internet Fax for Relayed XMT Request in section (4) between @relaydomain to @end block.
: Defines the following Internet Parameters programmed in the DP-2000 in section (5)
between @system to @end block.
(a) Default Domain
(b) Manager’s Email Address
(c) Relay XMT Password
(d) Remote Password
31
INSTALLING
YOUR MACHINE
INSTALLING YOUR MACHINE
INSTALLING YOUR MACHINE
Programming or Retrieving Parameters via Email
To Edit the Retrieved or Backup Internet Parameters File
After receiving the DP-2000 email with the Internet Parameters, store the email file as text (.txt) on your PC for
backup purposes.
To change or update the Internet Parameters, follow the steps below:
1. Create a New Email Message, fill out the "To" and "From" Address line and the Subject line information for
section (1) below:
To :
The DP-2000’s email address.
From : This field is normally not visible when creating new email message(s). It is your default email
address, for retrieving the Internet Parameters and for error message notification.
Subject : To Store data, type: #set parameters(password)#
2. Open the backup, Internet Parameter text file. Copy the body text and paste it on the body of the newly
created email message.
3. Delete any headers that may be present in the body of the email, as unsupported data will be rejected. The
information following the "#" sign is ignored by the DP-2000.
4. Edit a parameter and/or add additional Sender Name(s) or Domain Name(s).
5. When finished, use the "File/Save as..." command and save the updated file with ".txt" extension as a
backup.
6. Send the email message to the DP-2000 to update the Internet Parameters.
32
INSTALLING YOUR MACHINE
INSTALLING
YOUR MACHINE
Programming or Retrieving Parameters via Email
DP-2000 Internet Parameters Email Sample
(1)
(6)
[Delete this header before sending email.]
(2)
(3)
(4)
(5)
Continued on the next page...
33
INSTALLING YOUR MACHINE
Programming or Retrieving Parameters via Email
Explanation of Contents
(1) To
: The DP-2000’s email address
From
: This field is normally not visible when creating new email message(s). It is your default
email address (email application), for retrieving the Internet Parameters and for error
message notification.
(Can be programmed with the configuration tool of your email program.)
Subject
: To Store data, type: #set parameters(password)#
(2) @sender to @end
: Defines the Sender information to be set in section (2) between @sender to @end block.
Edit, Delete or Register up to 24 User Names and their Email Addresses for the Sender
Selection feature. (See page 89)
Separate each data field with a semicolon (;). (If the remaining fields are to remain blank,
insert a semicolon (;) for each blank field)
The data string for each Sender Selection should be defined within a single line. The
syntax is:
<Sender Selection Number>;<User Name>;<Email Address>
(a) 01 to 24: Indicates the Sender Selection Numbers
(b) User Name (25-characters maximum)
(c) Email Address (60-characters maximum)
(3) @select-domain to @end
: Defines the Selectable Domains to be set in section (3) between @select-domain to
@end block. Register up to 10 alternate Domain Names that can be selected during
manual email addressing. (30-characters maximum)
The syntax is: <Number>;<Domain>
(4) @relay-domain to @end
: Defines the Domain Names to be set in section (4) between @domain to @end block.
Register up to 10 the Domain Names that have been authorized to access your Internet
Fax for Relayed XMT Request. (30-characters maximum)
(5) @system to @end
: Defines the Internet Parameters to be set in section (5) between @system to @end block.
Register the following Internet Parameters.
(a) Default Domain (30-characters maximum).
The syntax is: domain; <Default domain name>
(b) Manager’s Email Address (60-characters maximum).
The syntax is: manager; <Manager’s Email Address>
(c) Relay XMT Password (10-characters maximum. The syntax is: relay; <Relay XMT
Password>. Quotation marks " " enclosing the password, are required, as shown in
the example above)
(d) Remote Password (10-characters maximum. The syntax is: remote; <Remote
Password>. Quotation marks " " enclosing the password, are required, as shown in
the example above)
(Notice that for the above example, we have changed the Manager’s Email Address,
Relay XMT Password and the Remote Password)
(6)
34
: This header must be deleted before the email is sent to the DP-2000 for reprogramming
of Internet Parameters.
The information following the "#" sign is ignored by the DP-2000, therefore, you can leave
it as is or delete it if you wish.
Programming or Retrieving Parameters via Email
Using a PC to Update the Auto Dialer Remotely
This feature provides a convenient and an easy way to Update, Backup or Restore the Phone Book dialing
numbers right from your PC by sending a text email message to the DP-2000.
The DP-2000 interprets the command that you enter in the "Subject" line of your email message and performs
one of the following functions, it Retrieves or Stores data into the Auto Dialer (Phone Book).
The two types of commands that can be entered in the "Subject" line of your email:
1) To Store data, type :#set abbr(password)# : where the password is the Remote Password programmed in
the DP-2000’s User Parameters (i.e. 123456789). You can
program any known unused Auto Dialer location(s) with this
command for the first time, without having to Retrieve the
Phone Book data first. If the desired Auto Dialer location
already contains data, the DP-2000 will overwrite the
existing data, therefore, we recommend that you use the
Retrieve command below instead. To edit existing Auto
Dialer locations, refer to pages 41 to 42.
2) To Retrieve data, type :#get abbr(123456789)#
(see Note 1)
NOTE
1. To activate this feature, change the Fax Parameter No. 158 (PC REMOTE UPDATE) to "Valid".
(See page 58).
35
INSTALLING
YOUR MACHINE
INSTALLING YOUR MACHINE
INSTALLING YOUR MACHINE
Programming or Retrieving Parameters via Email
Deleting the Entire Auto Dialer
If you wish to delete the entire Auto Dialer data in the DP-2000, type the following command in the body of the
email message:
@command
delete
@end
This command can also be inserted before the @begin to @end block, to erase the entire Auto Dialer data
first, then reprogramming it with new data.
This method will also prevent the "Overwrite Warning Message" that is sent back from the DP-2000, when the
current Auto Dialer station is overwritten.
To erase the entire Auto Dialer data, type the following command in the "Subject" line of your email:
#set abbr(password)# :
36
where the password is the Remote Password programmed in the DP-2000’s User
Parameters. Retrieve and backup the existing data onto your PC first by following
the procedures for Retrieving and Editing on pages 39 to 42.
Programming or Retrieving Parameters via Email
To Program One-Touch/ABBR. No. for the First Time
Create a script in the message body of a plain text email and send it to the DP-2000’s email address.The
"Subject" line of the email must be as follows:
#set abbr(password)#:
where the "password" is the Remote Password programmed in the DP-2000’s User
Parameters.
The script sample to program the One-Touch/ABBR. No. for the first time is shown in the illustration below:
First Time Remote Programming of One-Touch/ABBR. No. Sample
(1)
(a)
(b)
(c)
(d)
(e)
(2)
(a)
(b)
(c)
(f)
(d)
(e)
(3)
(f)
(g)
(h)
Continued on the next page...
37
INSTALLING
YOUR MACHINE
INSTALLING YOUR MACHINE
INSTALLING YOUR MACHINE
Programming or Retrieving Parameters via Email
Explanation of Contents (see Note 1) (see Note 2) (see Note 3) (see Note 4)
(1) To
: The DP-2000’s email address.
From
: This field is normally not visible when creating new email message(s). It is your default email address
(email application), for retrieving the Phone Book data and for error message notification.
(It can be programmed with the configuration tool of your email program)
Subject
: To Store data, type: #set abbr(password)#
: To Retrieve data, type: #get abbr(password)#
(2) @begin to @end block
: Defines the data to be set into Phone Book between @begin to @end block.
Separate each data field with a semicolon (;). (If the remaining fields are to remain blank, insert a
semicolon (;) for each blank field)
The data string for each station should be defined within a single line.
(a) Entry-number: One-Touch, ABBR. No. or Program Keys to be programmed
001 to 175: indicates ABBR. No.s 001 to 175 (175 stations maximum)
1001 to 1020: indicates One-Touch numbers from 01 to 20
2001 to 2005: indicates Program Keys (P1 to P5 programmed as One-Touch dialing number)
(b) Station-name: Name of the station being programmed (15 alpha-numeric characters maximum)
(c) Station-address: email address or telephone number of the station being programmed
(d) Routing-subaddress: sub-address to be used for routing (20-digit maximum)
(e) Routing-id-number: TSI to be used for routing (20-digit maximum)
(f) The End Receiving Station’s telephone number is entered after the hash sign (#)
(3) @program to @end
: Defines the data to be set into Program Keys as a Group Key or POP Access Key between @program to
@end block.
(a) Program Key: P01 - P05
(b) Station-name as a Group Key: Name of the station being programmed (15 alpha-numeric characters
maximum)
(c) GROUP: The syntax used to set the Program Key as a Group Key
(d) Entry-number: One-Touch, ABBR. No. or Program Keys to be programmed
001 to 175: indicates ABBR. No.s 001 to 175 (175 stations maximum)
1001 to 1020: indicates One-Touch numbers from 01 to 20
2001 to 2005: indicates Program Keys (P1 to P5 programmed as One-Touch dialing number)
(e) POP: The syntax used to set the Program Key as a POP Access Key
(f) POP User-name: Name of the station being programmed (40 alpha-numeric characters maximum)
(g) POP Password: POP Password (10 alpha-numeric characters maximum)
(h) Set whether the emails on the POP Server are deleted after retrieving the emails.
NOTE
1. If a POP user account is programmed into the P1 to P5 program keys, the data programmed for this key cannot
be deleted, even when the delete command is specified.
2. The email address and the telephone number cannot be programmed via email when:
• One-Touch Number has been used for communication reservation.
• Received documents are stored in the image data memory of the machine.
• While the machine is communicating or printing.
3. When the email address and telephone number are programmed via email, a program result email is sent back.
4. Some email applications automatically insert a line feed in the middle of a line when a number of characters in a
line exceed a specific number. Turn Off the automatic line feed, or define a number of characters per line to
prevent a line feed, or the data will be ignored.
38
Programming or Retrieving Parameters via Email
To Retrieve One-Touch/ABBR. No. Data for Backup
To retrieve the existing auto dialer data, send a plain text email to the DP-2000’s email address with the
following command in the "Subject" line:
#get abbr(password)#
: where the "password" is the Remote Password programmed in the DP-2000’s
User Parameters (i.e. 123456789)
Make sure that the Cc, Bcc lines and the body of the email message is Blank.
Retrieving One-Touch/ABBR. No. Data Sample
(1)
To
: The DP-2000’s email address.
From
: This field is normally not visible when creating new email message(s). It is your default email address (email
application), for retrieving the One-Touch/ABBR. No. data and for error message notification.
(It can be programmed with the configuration tool of your email program.)
Subject
: To Retrieve data, type: #get abbr(password)#
39
INSTALLING
YOUR MACHINE
INSTALLING YOUR MACHINE
INSTALLING YOUR MACHINE
Programming or Retrieving Parameters via Email
After receiving the email message requesting the existing auto dialer data, the DP-2000 sends back an email
to the address specified in the "From:" line with the auto dialer information in the body of the email.
DP-2000 Auto Dialer Email Sample
(1)
(2)
(3)
(1) To
40
: Your email address that was used to retrieve the Auto Dialer data.
From
: The DP-2000’s email address.
Subject
: ONE-TOUCH ABBR. List
(2) @begin to @end block
: Defines One-Touch Keys, Abbreviated Dialing Numbers and Program Keys stored as a One-Touch Key
programmed in the DP-2000 in section (2) between @begin to @end block.
(3) @program to @end
: Defines Program Keys stored as a Group Key or POP Access Key programmed in the DP-2000 in section
(3) between @program to @end block.
Programming or Retrieving Parameters via Email
To Edit the Retrieved or Backup One-Touch/ABBR. No. Data File
After receiving the DP-2000 email with the auto dialer data, store the email file as text (.txt) on your PC for
backup purposes.
To change or update the auto dialer, follow the steps below:
1. Create a New Email Message, fill out the "To" and "From" Address line and the Subject line information for
section (1) below:
To :
The DP-2000’s email address.
From :
This field is normally not visible when creating new email message(s). It is your default email
address, for retrieving the One-Touch/ABBR. No. data and for error message notification.
Subject :
To Store data, type: #set abbr(password)#
2. Open the backup, auto dialer text file. Copy the body text and paste it on the body of the newly created
email message.
3. Delete any headers that may be present in the body of the email, as unsupported data will be rejected.
The information following the "#" sign is ignored by the DP-2000.
4. Edit and/or add additional One-Touch/ABBR. No. stations.
5. When finished, use the "File/Save as..." command and save the updated file with ".txt" extension as a
backup.
6. Send the email message to the DP-2000 to update the auto dialer.
DP-2000 Auto Dialer Email Sample
(1)
(5)
[Delete this header before sending email]
(a)
(d)
(c)
(b)
(e)
(2)
(f)
(4)
(a)
(b)
(c)
(d)
(e)
(f)
(h)
(3)
(g)
Continued on the next page...
41
INSTALLING
YOUR MACHINE
INSTALLING YOUR MACHINE
INSTALLING YOUR MACHINE
Programming or Retrieving Parameters via Email
Explanation of Contents
(1) To
: The DP-2000’s email address.
From
: This field is normally not visible when creating new email message(s). It is your default email
address, for retrieving the One-Touch ABBR. No. data and for error message notification.
(Can be programmed with the configuration tool of your email program.)
Subject
: To Store data, type: #set abbr(password)#
(2) @begin to @end block:
: Defines the One-Touch Keys, Abbreviated Dialing Numbers and Program Keys stored as a OneTouch Key to be set in section (3) between @begin to @end block. Edit, Delete or Register the
information.
Separate each data field with a semicolon (;). (If the remaining fields are to remain blank, insert
a semicolon (;) for each blank field)
The data string for each station should be defined within a single line. The syntax is:
<Entry-number>;<Station-name>;<Station-address>;<Routing-subaddress>;<Routing-idnumber>
(a)Entry-number: One-Touch, ABBR. No. or Program Keys to be programmed
001 to 175: indicates ABBR. No.s 001 to 175 (175 stations maximum)
1001 to 1020: indicates One-Touch numbers from 01 to 20
2001 to 2005: indicates Program Keys (P1 to P5 programmed as One-Touch dialing number)
(b)Station-name: Name of the station being programmed (15 alpha-numeric characters
maximum)
(c)Station-address: email address or telephone number of the station being programmed
(d)Routing-subaddress: sub-address to be used for routing (20-digit maximum)
(e)Routing-id-number: TSI to be used for routing (20-digit maximum)
(f) The End Receiving Station’s telephone number is entered after the hash sign (#)
(3) @program to @end block:
: Defines the Program Keys stored as a Group Key or POP Access Key to be set in section (4)
between @program to @end block.
Edit, Delete or Register the information.
(a)Program Key: P01 - P05
(b)Station-name as a Group Key: Name of the station being programmed (15 alphanumeric characters maximum)
(c)GROUP: The syntax used to set the Program Key as a Group Key
(d)Entry-number: One-Touch, ABBR. No. to be programmed
001 to 175: indicates ABBR. No.s 001 to 175 (175 stations maximum)
1001 to 1020: indicates One-Touch numbers from 01 to 20
2001 to 2005: indicates Program Keys (P1 to P5 programmed as One-Touch dialing number)
(e)POP: The syntax used to set the Program Key as a POP Access Key
(f) POP User-name: Name of the POP user account (40 alpha-numeric characters maximum)
(g)POP Password: POP Password (10 alpha-numeric characters maximum)
(h)Set whether the emails on the POP Server are deleted after retrieving the emails.
(4) These 2 One-Touch/ABBR. No. stations were added to the list.
(5) This header must be deleted before the email is sent to the DP-2000 for reprogramming of One-Touch/ABBR. No..
The information following the "#" sign is ignored by the DP-2000, therefore, you can leave it as is or delete it if you wish.
42
Programming or Retrieving Parameters via Email
Using Email to Retrieve the Journal
To retrieve the existing Journal data, send an email to the DP-2000’s email address with the following
command in the "Subject" line:
#get jnl(password)#: where the password is, the Remote Password programmed in the DP-2000’s User
Parameters (i.e. 123456789).
The Journal will be send back to the originating station’s email address.
After receiving the journal, use a fixed width font (i.e. Courier), in order to align the received journal’s contents
on the PC.
A separate email message is sent by the DP-2000, an "Internet Fax Return Receipt" to the Manager’s email
address programmed in the User Parameters, informing of the Journal transfer.
(see Note 1)
NOTE
1. To activate this feature, change the Fax Parameter No. 158 (PC REMOTE UPDATE) to "Valid". (See page 58)
43
INSTALLING
YOUR MACHINE
INSTALLING YOUR MACHINE
INSTALLING YOUR MACHINE
This page is intentionally left blank.
44
Programming Your Machine
Programming Email Address and Telephone Numbers
Programming the Auto Dialer
To program the One-Touch key, follow the steps below
Make sure that the INTERNET lamp is ON. If not, press
to select the "INTERNET MODE".
1
SET MODE
(1-4)
ENTER NO. OR ∨ ∧
2
1:ONE-TOUCH
2:ABBR NO.
3
ONE-TOUCH< >
PRESS ONE-TOUCH
4
<01>
ENTER EMAIL ADDRESS
Ex:
To change the input mode (between "ENTER EMAIL
ADDRESS" and "ENTER TEL. NO."), press
or
.
or
<01>
ENTER TEL. NO.
5
Enter the email address using character keys (up to 60
characters).
p a n a s o n
Ex: a b c
i
c
<01>
[email protected]❚
c o m
or
or
Enter the telephone number
(up to 36 digits including pauses and spaces).
Ex: 9 PAUSE 5 5 5 SPACE 1 2 3 4
<01>
9-555 1234❚
Continued on the next page...
45
PROGRAMMING
YOUR MACHINE
One-Touch and Abbreviated dialing / email addressing are two fast ways of dialing full telephone numbers or
email addresses. To use these dialing or addressing methods, you must first store the telephone numbers or
email addresses into the Auto Dialer.
PROGRAMMING YOUR MACHINE
Programming Email Address and Telephone Numbers
6
<01> ENTER NAME
[email protected]
or
<01> ENTER NAME
9-555 1234
7
Enter the station name using character keys
(up to 15 characters).
Ex: S A L E S SPACE D E P T
8
or
<01> SALES DEPT❚
9-555 1234
ONE-TOUCH< >
PRESS ONE-TOUCH
To record another number, repeat step 4 to 8.
To return to standby, press STOP .
46
<01> SALES DEPT❚
[email protected]
PROGRAMMING YOUR MACHINE
Programming Email Address and Telephone Numbers
Make sure that the INTERNET lamp is ON. If not, press
to select the "INTERNET MODE".
1
SET MODE
(1-4)
ENTER NO. OR ∨ ∧
2
1:ONE-TOUCH
2:ABBR NO.
3
ABBR[❚ ]
ENTER ABBR NO.
4
[022]
ENTER EMAIL ADDRESS
Ex: 0 2 2 (001 to 175, up to 175 stations)
To change the input mode (between "ENTER EMAIL
ADDRESS" and "ENTER TEL. NO."), press
or
5
Enter the email address using character keys (up to 60
characters).
p a n a s o n
Ex: a b c
i
c
or
.
[022]
ENTER TEL. NO.
[022]
[email protected]❚
c o m
or
Enter the telephone number
(up to 36 digits including pauses and spaces).
Ex: 9 PAUSE 5 5 5 SPACE 1 2 3 4
or
[022]
9-555 2345❚
Continued on the next page...
47
PROGRAMMING
YOUR MACHINE
To program the ABBR. dialing number or email address
PROGRAMMING YOUR MACHINE
Programming Email Address and Telephone Numbers
6
[022]ENTER NAME
[email protected]
or
[022]ENTER NAME
9-555 2345
7
Enter the station name using character keys
(up to 15 characters).
Ex: A C C O U N T I N G
[022]ACCOUNTING❚
[email protected]
or
[022]ACCOUNTING❚
9-555 2345
8
ABBR[❚ ]
ENTER ABBR NO.
To record another number, repeat step 4 to 8.
To return to standby, press STOP .
(see Note 1) (see Note 2) (see Note 3)
NOTE
1. If you require a special access number to get an outside line, enter it first and then press PAUSE .
A hyphen "-" is displayed for pause.
2. Use SPACE or MONITOR to enter a space between the numbers to make it easier to read.
3. If you are using Pulse dialing and you wish to change to Tone dialing in the middle of dialing, press TONE
(represented by a "/"). The dialing method will be changed from Pulse to Tone after dialing the digit "/".
Ex : 9 PAUSE TONE 5551234
48
PROGRAMMING YOUR MACHINE
Programming Email Address and Telephone Numbers
Editing or Erasing the Auto Dialing Number / Email Address
To edit One-Touch/ABBR dialing number or email address
Make sure that the INTERNET lamp is ON. If not, press
to select the "INTERNET MODE".
1
2
1:ONE-TOUCH
2:ABBR NO.
Select 1 for One-Touch dialing number / email address.
Select 2 for ABBR dialing number / email address.
ONE-TOUCH< >
PRESS ONE-TOUCH
Ex: 1
3
Enter the station you wish to change.
<01> SALES DEPT
[email protected]
Ex:
or
<01> SALES DEPT
9-555 1234
4
<01> SALES DEPT
ENTER EMAIL ADDRESS
or
<01> SALES DEPT
ENTER TEL. NO.
5
To change the input mode (between "ENTER EMAIL
ADDRESS" and "ENTER TEL. NO."), press
or
.
Continued on the next page...
49
PROGRAMMING
YOUR MACHINE
If you have to change or erase any of the One-Touch/Abbreviated dialing numbers or email addresses, follow
the steps below.
PROGRAMMING YOUR MACHINE
Programming Email Address and Telephone Numbers
6
Enter a new email address. (See Note 1 and 2.)
p a n a s o n
Ex: x y z
i
c
c o m
<01> SALES DEPT
[email protected]❚
or
or
<01> SALES DEPT
9-555 3456❚
Enter a new telephone number. (See Note 1 and 2.)
Ex: 9 PAUSE 5 5 5 SPACE 1 2 3 4
7
<01> SALES DEPT
[email protected]
8
<01> ENTER NAME
[email protected]
or
<01> ENTER NAME
9-555 3456
Enter a new station name. (See Note 1).
<01> PANAFAX❚
[email protected]
Ex: P A N A F A X
or
<01> PANAFAX❚
9-555 3456
9
ONE-TOUCH< >
PRESS ONE-TOUCH
To return to standby, press
STOP .
(see Note 1)
(see Note 2)
NOTE
1. If you make a mistake, use
or
to move the cursor beyond the incorrect number/character, press
CLEAR then re-enter the new number/character.
2. If the One-Touch/Abbreviated dialing number / email address has been used for a communication reservation,
the settings cannot be changed or erased until the communication has finished.
50
PROGRAMMING YOUR MACHINE
Programming Email Address and Telephone Numbers
To erase the One-Touch/ABBR. dialing number or email address
1
2
PROGRAMMING
YOUR MACHINE
1:ONE-TOUCH
2:ABBR NO.
Select 1 for One-Touch dialing number / email address.
Select 2 for ABBR. dialing number / email address.
ONE-TOUCH< >
PRESS ONE-TCH OR ∨ ∧
Ex: 1
3
Enter the station you wish to erase.
Ex:
<01> SALES DEPT
[email protected]
or
<01> SALES DEPT
9-555 1234
4
<01> SALES DEPT
ENTER EMAIL ADDRESS
or
<01> SALES DEPT
ENTER TEL. NO.
5
ONE-TOUCH< >
PRESS ONE-TCH OR ∨ ∧
To return to standby, press
STOP .
(see Note 1)
NOTE
1. If the One-Touch/Abbreviated dialing number / email address has been used for a communication reservation,
the settings cannot be changed or erased until the communication has finished.
51
PROGRAMMING YOUR MACHINE
Programming Email Address and Telephone Numbers
Printing a Directory Sheet
After programming the Auto Dialer, you can print out the directory sheet which includes the first 12 characters
of each station name. Cut along the dotted line and place it over the One-Touch keys under the Directory
Sheet Cover. To print a directory sheet, follow the steps below.
Make sure that the INTERNET lamp is ON. If not, press
to select the "INTERNET MODE".
1
2
PRINT OUT
(1-7)
ENTER NO. OR ∨ ∧
* PRINTING *
DIRECTORY SHEET
Your machine prints the directory sheet.
****************** -DIRECTORY SHEET- ******************* DATE
JAN-12-2001 ***** TIME 15:00 *****
dotted line
01 (Email)
SALES DEPT
06
02 (Email)
ENG. DEPT
07
03
ACCT. DEPT
08
04 (Email)
EXPORT DEPT
09
05
10
11
12
13
14
15
16
17
18
19
20
P1 (POP)
dspd-pop
P2
P3
P4
P5
*
*
*
*
*
********************************************* -HEAD OFFICE
Directory Sheet Cover
52
PANASONIC
- ****** -
201 555 1212- *******
PROGRAMMING YOUR MACHINE
Your facsimile machine has a variety of adjustable Fax Parameters. These parameters, listed in the Parameter
Table, are preset for you and do not need to be changed. If you do want to make a change, read the table
carefully. Some parameters, such as the Resolution, Contrast, and Verification Stamp parameters, can be
temporarily changed by simple key operation just before a transmission is made. When the transmission ends,
however, these parameters return to their preset values (Home position). Other parameters can only be changed
by the procedure described below.
Setting the Fax Parameters
Make sure that the INTERNET lamp is ON. If not, press
to select the "INTERNET MODE".
1
SET MODE
(1-4)
ENTER NO. OR ∨ ∧
2
FAX PARAMETER(1-164)
NO.=❚
3
Enter Fax Parameter number from the Parameter Table.
(See page 54 to 59)
FAX PARAMETER(1-164)
NO.=004
Ex: 0 0 4 for STAMP
4
5
04 STAMP(HOME)
1:OFF
Enter the new setting value.
04 STAMP(HOME)
2:ON
Ex: 2 for ON
6
05 MEMORY(HOME)
2:ON
To set another parameter, press CLEAR to return to step 3
or press
STOP to return to standby.
(see Note 1) (see Note 2)
NOTE
1. To scroll the Fax Parameters in Step 2 or 4, press
2. To print a Fax Parameter List, see page 128.
or
.
53
PROGRAMMING
YOUR MACHINE
Customizing Your Machine
PROGRAMMING YOUR MACHINE
Customizing Your Machine
Fax Parameter Table
No.
Parameter
Setting
Number
Setting
001
CONTRAST
1
Lightest
2
Lighter
3
Normal
4
Darker
5
Darkest
*1
Standard
2
Fine
3
S-Fine
*1
Text
2
Text/Photo
3
*1
Off
2
On
Setting the home position of the STAMP.
To select the stamp function when the document is stored in
memory, see Fax Parameter No. 28.
1
Off
Setting the home position for the MEMORY.
*2
On
1
Pulse
*2
Tone
Selecting the dialing method.
(Select Line-1 or Line-2 first, if you have the 2nd G3 Fax
Communication Port Kit installed)
*1
Inside
Selecting the printing position of the header.
2
Outside
3
No Print
*1
Logo, ID No.
2
From To
*1
Invalid
2
Valid
1
Off
*2
Soft
3
Medium
4
Loud
1
Off
2
Always
*3
Inc. Only
002
003
004
005
006
007
008
009
010
012
54
RESOLUTION
ORIGINAL
STAMP
MEMORY
DIALING METHOD
HEADER PRINT
HEADER FORMAT
RCV'D TIME PRINT
KEY/BUZZER VOLUME
COMM. JOURNAL
Comments
Setting the home position for the CONTRAST.
Setting the home position for the RESOLUTION.
Setting the home position for the ORIGINAL.
Inside : Inside TX copy area.
Outside : Outside TX copy area.
No Print : Header does not printed.
Selecting the header format.
Selecting whether the machine prints the received date & time,
remote ID, percentage of reduction and page number on the
bottom of each received page.
Selecting the volume of the Key/Buzzer tone.
Selecting the home position for the printing mode of the COMM.
Journal Off/Always/INC.
: Does not print
Off
Always : Always prints
Inc. Only: Prints only when communication has failed.
PROGRAMMING YOUR MACHINE
No.
Parameter
Setting
Number
Setting
Comments
013
AUTO JOURNAL PRINT
1
Invalid
*2
Valid
Selecting whether the machine prints the journal automatically
after every 100 transactions.
FILE ACCEPTANCE
REPORT
*1
Invalid
2
Valid
RECEIVE MODE
1
Manual
*2
Auto
1
Invalid
*2
Valid
Selecting whether the machine receives to memory when the
recording paper runs out, toner runs out or the recording paper is
jammed.
1
Fixed
Selecting the print reduction mode.
*2
Auto
Fixed : Reduce received document according to setting of
Parameter No. 25.
Auto : Reduce received document according to the length of
received originals.
70
70%
----
----
100
100%
014
017
022
024
025
SUBSTITUTE RCV
PRINT REDUCTION
REDUCTION RATIO
026
POLLING PASSWORD
027
POLLED FILE SAVE
028
031
STAMP AT MEM. XMT
INCOMPLETE FILE
SAVE
033
036
XMT REDUCTION
RING PATTERN
DETECT (DRD)
(See Note 2)
(----)
*1
Invalid
2
Valid
1
Invalid
*2
Valid
*1
Invalid
2
Valid
1
Invalid
*2
Valid
*1
Invalid
2
Valid
Selecting whether the machine prints the file acceptance journal.
If you set this parameter to valid, a report will print after the
document is stored into memory.
Setting the reception mode to automatic or manual.
Selecting the fixed print reduction ratio from 70% to 100%. This
parameter functions only when the fixed print reduction is selected
on Fax Parameter No. 24.
Setting a 4-digit password for secured polling.
Selecting whether the machine retains the polled document(s) in
memory even after the document(s) is polled once.
Selecting whether the machine stamps the originals when storing
into memory.
(depending on the Stamp setting on the Control Panel)
Selecting whether the machine retains the document in memory if
it is not successfully transmitted.
Selecting whether the machine performs reduction when the
transmitting original is wider than the recording paper used at the
receiving machine.
All ring patterns.
Select a ring pattern for automatic answering.
(Select Line-1 or Line-2 first, if you have the 2nd G3 Fax
Communication Port Kit installed)
1: A
2: B
3: C
4: D
037
038
RCV TO MEMORY
ACCESS CODE
Standard ring pattern.
Double ring pattern.
Triple ring pattern (Short-Short-Long).
All other triple ring patterns, except the type C
described above.
(----)
Enter a 4-digit password for printing the received document(s) in
memory by using F8-5 (RCV TO MEMORY).
When F8-5 (RCV TO MEMORY) is set to ON, this parameter is not
selectable on the LCD display.
(----)
Enter a 4-digit Access Code to secure the machine from
unauthorized use.
Continued on the next page...
55
PROGRAMMING
YOUR MACHINE
Customizing Your Machine
PROGRAMMING YOUR MACHINE
Customizing Your Machine
No.
Parameter
Setting
Number
Setting
Comments
039
PIN CODE ACCESS
*1
None
2
Suffix
Selecting the access method (Prefix or Suffix) to dial a number
with PIN Code.
3
Prefix
CONF. POLLED FILE
SAVE
*1
Invalid
2
Valid
PASSWORD-XMT
*1
Off
2
On
*1
Off
2
On
*1
Invalid
2
Valid
042
043
044
046
SELECT RCV
Setting a 4-digit XMT-Password and selecting whether the
machine performs and checks the XMT-Password of the receiving
station when transmitting.
Setting a 4-digit RCV-Password and selecting whether the
machine performs and checks the RCV-Password of the
transmitting station when receiving.
Selecting whether the machine performs selective reception.
052
DIAGNOSTIC
PASSWORD
(----)
Setting the password for Remote Diagnostic Mode. Please ask
your Panasonic Authorized Dealer for details.
053
SUB-ADDRESS
PASSWORD
(----)
Setting a 20-digit password for secured sub-address
communication.
054
FAX FORWARD
056
063
077
078
082
085
56
PASSWORD-RCV
Selecting whether the machine saves the confidential polled file
even after the file is polled once.
COVER SHEET
PC-FAX RCV MODE
[See Note 3]
DEPARTMENT CODE
ROTATION XMT
QUICK MEMORY XMT
FAX OUTPUT TRAY
*1
Invalid
Selecting whether the machine performs FAX Forwarding to the
specified destination.
2
Valid
*1
Off
2
On
*1
Print
2
Upload & Print
3
Upload
*1
Invalid
2
Valid
1
Invalid
*2
Valid
1
Invalid
*2
Valid
Invalid: Stores all documents into memory first before dialing the
telephone number.
Valid : Starts dialing the telephone number immediately after
storing the first page.
*1
Inner 1
Selecting the Output Tray home position for received document(s).
2
Inner 2
3
Outer
Inner 1 : Received document(s) exit to the Bottom Output Tray.
Inner 2 : Received document(s) exit to the Upper Output Tray
(Blue).
Setting the home position for the Cover Sheet parameter in the
Select Mode.
Selecting how the machine will execute the receiving Fax
document(s).
: Print the received document(s).
Print
Upload & Print : Print the received document(s) and upload it’s
file.
: Upload the received document file.
Upload
Selecting whether the machine performs the Department Code
operation.
Selecting whether the machine performs rotation transmission.
Selecting whether
Transmission.
the
machine
performs
Quick
Memory
PROGRAMMING YOUR MACHINE
Customizing Your Machine
Parameter
088
LINE SELECTION
[See Note 4]
089
095
097
LIST OUTPUT TRAY
DUPLEX PRINT
SPECIAL TRAY
No.1 - 3
Setting
Number
Setting
*1
Auto
2
Line-1
3
Line-2
*1
Inner 1
Selecting the Output Tray home position for List printout.
2
Inner 2
Inner 1 : The List printout exits to the Bottom Output Tray.
Inner 2 : The List printout exits to the Upper Output Tray (Blue).
3
Outer
*1
Invalid
2
Valid
*1
None
2
Tray 1
3
Tray 2
4
Tray 3
5
Tray 4
099
MEMORY SIZE
(Flash Memory)
-
-
140
LAN RELAY XMT
REQUEST
*1
Invalid
2
Valid
LAN XMT REDUCTION
*1
Invalid
2
Valid
141
142
143
144
145
146
147
RELAY XMT
(a.k.a. LAN RELAY
STATION on UF-770i)
1
Invalid
*2
Valid
RELAY XMT REPORT
1
Off
*2
Always
3
Inc. Only
1
Japanese
*2
English
*1
Invalid
2
Valid
--
0 to 60 min.
3
*3 min.
1
Invalid
*2
Valid
EMAIL CHARACTER
SET
SENDER SELECTION
POP TIMER
AUTO POP RCV
(See Note 3)
Comments
Setting the home position for the Telephone Line selection.
Auto :Selects the available telephone line for transmission
automatically.
Line-1:Selects this as the default telephone line, unless manually
selecting an alternate phone line.
Line-2:Selects this as the default telephone line, unless manually
selecting an alternate phone line.
Selecting whether the machine performs duplex print.
Select up to 3 Special Trays that will not be used for printing
received faxes (4-Tray configuration). One Tray must always be
available for receiving Faxes.
(You can specify one Tray (1 ~ 4) for each selection No. 1, No. 2
and/or No. 3)
Displays the amount of base and optional memory installed.
(Base Memory + Optional Memory)
Selecting whether the machine performs LAN Relay XMT
Request.
Selecting whether to automatically reduce from LEDGER / B4 to
A4, when LEDGER / B4 documents are transmitted via LAN.
Invalid : No reduction
Valid : Automatic reduction from LEDGER / B4 to A4
Selecting whether the machine accepts and performs G3 relayed
transmission. (Relay Station Functions)
Setting how the COMM. Journal for relayed transmission is sent to
the originator.
: Don’t send.
Off
Always : Always send.
Inc.Only: Send only if communication has failed.
Selecting the Character Set when receiving or sending email text.
Selecting a pre-programmed sender’s name and email address
before each transmission.
Setting the time interval for the machine to check for email on the
POP Server.
(0 = Does not check the POP Server for email. )
Selecting whether the machine automatically downloads an email
from the POP Server.
Continued on the next page...
57
PROGRAMMING
YOUR MACHINE
No.
PROGRAMMING YOUR MACHINE
Customizing Your Machine
Setting
Number
Setting
1
Invalid
No.
Parameter
148
DELETE POP RCV
EMAIL
*2
Valid
149
DELETE POP ERR
EMAIL
*1
Invalid
2
Valid
150
IFAX RETURN RECEIPT
1
Invalid
*2
Valid
151
EMAIL HEADER
FORMAT
1
*2
152
153
154
Selecting whether the email will be deleted automatically after
retrieval from the POP Server.
Selecting whether to delete the email that includes an
incompatible file attachment from the POP Server.
Selecting whether to send a return receipt when receiving from
another Panafax Internet Fax.
Selecting the header information to print when an email is
received. (Normally used for Troubleshooting. It shows the path of
Subject/From/ the email transmission before arriving at the DP-2000.)
To
All
3
Off
SUB-ADDRESS
ROUTING
*1
Invalid
2
Valid
TSI ROUTING
*1
Invalid
2
Valid
*1
Originator
ROUTING HEADER
FORMAT
Comments
Selecting whether to automatically route a received fax or email
using ITU-T sub-address.
Selecting whether to route a received fax to a telephone number or
an email address preprogrammed in Phone Book using the
originating fax’s Numeric ID (TSI frame information).
Selecting the type of email header to be included in the "From"
field of each routed faxes.
: The originating fax machine’s TSI will appear in
the "From" field of the routed email.
Relay Station Relay Station: The routing station’s email address will appear in
the "From" field of the routed email.
Originator
2
155
156
157
158
159
160
161
58
PRINT ROUTED
DOCUMENT
*1
Inc. only
2
Always
PRINT FORWARDED
DOCUMENT
*1
Inc. only
2
Always
TRANSACTION
JOURNAL
*1
Invalid
2
Valid
*1
Invalid
PC REMOTE
UPDATE
SUBJECT LINE ENTRY
DEFAULT DOMAIN
DNS SERVER
2
Valid
*1
Invalid
2
Valid
1
Invalid
*2
Valid
1
Invalid
*2
Valid
Selecting whether a received fax to be routed is always printed or
only when the routing operation fails.
Selecting whether a memory received fax or email to be forwarded
is always printed or only when forwarding is incomplete.
Selecting whether the machine sends a transaction journal to the
pre-programmed email address.
Selecting whether the machine will accept commands from an
email application, to:
(a) Program the Internet Parameters
(b) Program the Auto Dialer
(c) Allow retrieval of the Journal
Selecting whether the "Subject" line can be programmed during
each transmission.
Selecting whether the machine accepts to insert the Default
Domain when entering Manual Number Dialing.
Selecting whether to use the DNS Server for the Internet
communication.
PROGRAMMING YOUR MACHINE
Customizing Your Machine
Parameter
Setting
Number
Setting
162
TIFF VIEWER URL
1
None
*2
English
3
English
+Japanese
*1
Invalid
2
Valid
*1
Included
2
Not included
163
ROUTING HEADER
164
IFAX XMT HEADER
(Email only)
(see Note 1)
(see Note 2)
(see Note 3)
Comments
Selecting whether to include the URL address in the email
message body.
PROGRAMMING
YOUR MACHINE
No.
Selecting whether to add the Header Print information of the
Routing Station on the top edge of each routed pages.
Selecting whether to include the header when sending a document
to an addressee in the same Domain as specified in the Default
Domain parameter. (This is useful when using the machine to scan
documents back to your PC)
Note: When sending to a Domain other than as specified in the
Default Domain parameter, the header will be included
regardless of the selection.
(see Note 4)
NOTE
1. Setting number marked with an asterisk (*) indicates the factory standard setting.
2. This parameter supports an optional telephone service "Distinctive Ring Service" provided by your local
telephone company. It allows up to 4 different telephone numbers to be assigned on a single telephone line with
a distinctive ring for each telephone number. By selecting the appropriate ring pattern associated with the
telephone number assigned for your fax machine. It can differentiate and answer the incoming call on the fax
number. All other calls on the other telephone numbers will not be answered. This optional service from your
local phone company is also called Custom Ringing, Distinctive Ringing, Ident-a-call, Ident-a-ring, Personalized
Ringing, RingMaster, RingMate, Selective Ringing, Smart Ring or something similar. Check with your local
telephone company on the availability of this service in your area.
3. This parameter is available only when the Parallel Port Interface Kit is installed.
4. This parameter is available only when the G3 Communication Port Option is installed.
59
PROGRAMMING YOUR MACHINE
This page is intentionally left blank.
60
Basic Operations
Sending Documents via LAN
Document(s) can be sent via LAN to a single or multiple email addresses. The following Email Addressing
methods can be selected:
• Manual Email Addressing
• One-Touch Email Addressing
• Abbreviated Email Addressing
• Directory Search Email Addressing
• Multiple Station Email Addressing
The Memory Transmission mode is automatically selected by your machine if an email address is registered into
the chosen One-Touch key(s), Program key(s), or Abbreviated Number key(s).
Direct Transmission, Voice Mode Transmission, and Redialing features are not available for sending documents
via LAN.
61
BASIC
OPERATIONS
The document is always stored into memory first, then the machine starts to send the email message.
BASIC OPERATIONS
Sending Documents via LAN
Manual Email Addressing
Make sure that the INTERNET lamp is ON. If not, press
to select the "INTERNET MODE".
1a
ENTER STATION(S)
THEN PRESS START 00%
Place original(s) face up on the ADF.
or
1b
Place a book or an original face down on the
Platen Glass.
2
❚
ENTER EMAIL ADDRESS
To choose Manual Email Addressing mode.
3a
Enter the full email address using the Character keys (up to
60 characters).
Ex: a b c
p a n a s o n
i
[email protected]
c
c o m
If you make a mistake, press CLEAR to erase the
character then reenter the correct character.
3b
Enter the User portion of the email address and press
3c
If you want to send to a different Domain, enter the first part
of an email address, press
and use the
or
key to display domain names in the Selectable Domains List.
Choose the desired domain and press START . (See Note
3 and page 70)
62
abc
SET . The machine will complete the email address with
the Default Domain preprogrammed in the User (Internet)
Parameters. (i.e. will add "panasonic.com" to the email
address)
[email protected]
BASIC OPERATIONS
Sending Documents via LAN
4
* STORE *
NO.001
PAGES=001 01%
* STORE * COMPLETED
TOTAL PAGES=005 25%
The document(s) is stored into memory with a file
number.Then connects to the LAN and starts sending the
email message.
ON LINE * MEM.MXT *
ID:[email protected]
BASIC
OPERATIONS
(see Note 1) (see Note 2) (see Note 3)
NOTE
1. If your machine sounds an alarm (pi-pi-pi) in Step 2 above, this indicates that the Dialer is Full (more than 70 full
email addresses are entered or 70 transmission reservations including G3 communication have been already
reserved).
2. If the transmission cannot be completed for any reason, the email may be returned undelivered; otherwise no
reply will be printed.
3. For the machine to perform the email address completion the Fax Parameter No. 160 (DEFAULT DOMAIN) must
be set to "Valid" and the DEFAULT DOMAIN must be preprogrammed in the User (Internet) Parameters. (See
page 26.)
63
BASIC OPERATIONS
Sending Documents via LAN
One-Touch Email Addressing
One-Touch dialing / addressing is a fast way of dialing full telephone numbers or email addresses. To use
these dialing or addressing methods, you must first store the telephone numbers or email addresses into OneTouch keys. (See page 45)
Make sure that the INTERNET lamp is ON. If not, press
to select the "INTERNET MODE".
1a
ENTER STATION(S)
THEN PRESS START 00%
Place original(s) face up on the ADF.
or
1b
Place a book or an original face down on the
Platen Glass.
2
Press a One-Touch key (01-20).
<01>(Station name)
[email protected]❚
Ex:
If a telephone number is stored into the One-Touch key,
the display shows:
3
<01>(Station name)
5551234
* STORE *
NO.001
PAGES=001 01%
* STORE * COMPLETED
TOTAL PAGES=005 25%
The document(s) is stored into memory with a file number.
Then connects to the LAN and starts sending the email
message.
ON LINE * MEM.XMT *
ID:(Station name)
(see Note 1) (see Note 2)
NOTE
1. If your machine sounds an alarm (pi-pi-pi) in Step 2 above, this indicates that the Dialer is Full (more than 70
transmission reservations including G3 communication have been already reserved).
2. If the transmission cannot be completed for any reason, the email may be returned undeliveredl; otherwise no
reply will be printed.
64
BASIC OPERATIONS
Sending Documents via LAN
Abbreviated Email Addressing
Abbreviated dialing / addressing is a fast way of dialing full telephone numbers or email addresses. To use
these dialing or addressing methods, you must first store the telephone numbers or email addresses into the
Auto Dialer with a 3-digit abbreviated code. (See page 48)
Make sure that the INTERNET lamp is ON. If not, press
to select the "INTERNET MODE".
1a
BASIC
OPERATIONS
ENTER STATION(S)
THEN PRESS START 00%
Place original(s) face up on the ADF.
or
1b
Place a book or an original face down on the
Platen Glass.
2
Press ABBR and then enter a 3-digit code (001 to 175).
[100](Station name)
[email protected]❚
Ex:
If a telephone number is stored into the ABBR station, the
display shows:
3
[100](Station name)
5553456
* STORE *
NO.001
PAGES=001 01%
* STORE * COMPLETED
TOTAL PAGES=005 25%
The document(s) is stored into memory with a file number.
Then connects to the LAN and starts sending the email
message.
ON LINE * MEM.XMT *
ID:(Station name)
(see Note 1) (see Note 2)
NOTE
1. If your machine sounds an alarm (pi-pi-pi) in Step 2 above, this indicates that the Dialer is Full (more than 70
transmission reservations including G3 communication have been already reserved).
2. If the transmission cannot be completed for any reason, the email may be returned undelivered; otherwise no
reply will be printed.
65
BASIC OPERATIONS
Sending Documents via LAN
Directory Search Dialing
When sending via LAN, the Directory Search function allows you to dial a full email address or telephone
number by searching for the station name or email address entered in the Auto Dialer.
Make sure that the INTERNET lamp is ON. If not, press
to select the "INTERNET MODE".
1a
ENTER STATION(S)
THEN PRESS START 00%
Place original(s) face up on the ADF.
or
1b
Place a book or an original face down on the
Platen Glass.
2a
To search for the station name.
ENTER LETTER(S)
❚
or
2b
3a
to search for email address.
Enter the full or part of a station name using the Character
keys. (See page 10)
Ex: P A N A
SET
❚
ENTER EMAIL ADDRESS
ENTER LETTER(S)
PANA❚
to search for PANASONIC
If you make a mistake, press CLEAR to erase the
character and then re-enter the correct character.
or
3b
4
Enter the full or part of an email address using the Character
keys.
Ex: X to search for [email protected]
[100] PANASONIC
[email protected]
or
repeatedly until display shows the station name and
telephone number / email address you want to send to.
66
X
[email protected]
or
X
[email protected]
BASIC OPERATIONS
Sending Documents via LAN
5
* STORE *
NO.001
PAGES=001 01%
* STORE * COMPLETED
TOTAL PAGES=005 25%
The document(s) is stored into memory with a file number.
Then connects to the LAN and starts sending the email
message.
ON LINE * MEM.XMT *
ID:PANASONIC
BASIC
OPERATIONS
(see Note 1) (see Note 2)
NOTE
1. If your machine sounds an alarm (pi-pi-pi) in Step 2 above, this indicates that the Dialer is Full (more than 70
transmission reservations including G3 communication have been already reserved).
2. If the transmission cannot be completed for any reason, the email may be returned undelivered; otherwise no
reply will be printed.
67
BASIC OPERATIONS
Sending Documents via LAN
Multi-Station Transmission (Broadcasting)
You can store the document(s) into memory and then send to multiple stations (up to 270 addresses) via LAN.
Make sure that the INTERNET lamp is ON. If not, press
to select the "INTERNET MODE".
1a
ENTER STATION(S)
THEN PRESS START 00%
Place original(s) face up on the ADF.
or
1b
Place a book or an original face down on the
Platen Glass.
2
Enter the email addresses by any combination of the
following methods:
• One-Touch Dialing
• Abbreviated Dialing
• Directory Search Dialing, press SET after each
email address is entered.
• Manual Number Dialing, press SET after each
station is entered (up to 70 addresses).
Ex:
<01>(Station name)
[email protected]❚
[100](Station name)
[email protected]❚
If you want to confirm the number of stations you have
entered, press SET .
68
2 STN(S) ARE SET
ADD MORE OR START
BASIC OPERATIONS
Sending Documents via LAN
3
* STORE *
NO.001
PAGES=001 01%
The document(s) is stored into memory with a file number.
Then connects to the LAN and starts sending the email
message.
* STORE * COMPLETED
TOTAL PAGE=005
25%
ON LINE * MEM.XMT *
ID:[email protected]
BASIC
OPERATIONS
(see Note 1) (see Note 2) (see Note 3)
NOTE
1. If your machine sounds an alarm (pi-pi-pi) in Step 2 above, this indicates that the Dialer is Full (more than 70 full
email addresses are entered or 70 transmission reservations including G3 communication have been already
reserved).
2. If the transmission cannot be completed for any reason, the email may be returned undelivered; otherwise no
reply will be printed.
3. The unit will accept a combination of email addresses and PSTN dialing numbers.
69
BASIC OPERATIONS
Sending Documents via LAN
Selectable Domains
Using the Selectable Domains feature speeds the process of completing the email address by attaching often
used Domain Names.
• Advance registration of up to 10 often used, domain names into the "Selectable Domains" list is required.
(See page 26)
Ex:To send an email to the Sales Department of Panasonic "[email protected]" using the
"panasonic.com" domain that has been pre-registered in the Selectable Domains list, follow the steps
below:
Make sure that the INTERNET lamp is ON. If not, press
to select the "INTERNET MODE".
1a
ENTER STATION(S)
THEN PRESS START 00%
Place original(s) face up on the ADF.
or
1b
Place a book or an original face down on the
Platen Glass.
2
3
To choose Manual Email Addressing mode.
Enter the User portion of the email address using the
Character keys.
❚
ENTER EMAIL ADDRESS
[email protected]
Ex: S A L E S
(Note: The "@" symbol indicates to the machine that a
Domain Name will follow)
4
or
key repeatedly until the desired Selectable Domain
Name is displayed on the LCD.
panasonic.com
Ex: panasonic.com
5
Press SET to add the displayed Domain Name to the User
[email protected]❚
portion of the email address. (If you make a mistake selecting
the Domain Name, simply press the
or
key followed by
SET
70
to replace the selected Domain Name)
BASIC OPERATIONS
Receiving Documents via LAN
6
Press
SET
to specify other destinations.
or
1 STN(S) ARE SET
ADD MORE OR START
7
(see Note 1)
BASIC
OPERATIONS
The document(s) is stored into memory with a file number.
(See Note 2)
Then connects to the LAN and starts sending the email
message.
(see Note 2)
NOTE
1. If the desired Domain Name is not found, press CLEAR to exit the Selectable Domains List.
2. If the Fax Parameter No. 145 (SENDER SELECTION) setting is on "Valid", the Sender Selection screen appears
after pressing START in step 7 above. Select the sender to be added to the "From:" field on the email and
press START to start storing the document(s). The factory default setting for this parameter is on "Invalid".
71
BASIC OPERATIONS
Receiving Documents via LAN
Internet Fax Ledger Size Document Transmission
When transmitting via LAN, the transmitter is incapable of identifying the receiver's recording paper size
capability, and thus it will not reduce the document size during transmission. Therefore, it is recommended
that you send only A4/Letter size documents for LAN transmission. If a Ledger size document is transmitted
and the receiver is only able to print A4/Letter size documents, the communication will fail when the temporary
setting "07 LEDGER EMAIL XMT" of the Select Mode is set to its default position (ON).
To send without reduction, follow the steps below.
Make sure that the INTERNET lamp is ON. If not, press
to select the "INTERNET MODE".
1a
Place original(s) face up on the ADF.
or
1b
Place a book or an original face down on the Platen
Glass.
72
2
SELECT MODE
(1-8)
ENTER NO. OR ∨ ∧
3
LEDGER EMAIL XMT=OFF
1:OFF 2:ON
4
LEDGER EMAIL XMT=ON
1:OFF 2:ON
BASIC OPERATIONS
Receiving Documents via LAN
5
Dial by any combination of the following methods:
• One-Touch Dialing
• Abbreviated Dialing
• Directory Search Dialing, press SET after each
email address is entered.
• Manual Number Dialing, press SET after each
station is entered (up to 70 addresses).
<01> (Station name)
[email protected]
Ex:
BASIC
OPERATIONS
6
The document(s) is stored into memory with a file number.
The machine then connects to the LAN and transmits the Ledger
size document(s).
(After the document(s) are sent, the "LEDGER EMAIL XMT"
Select Mode will automatically return to the preset position (ON)).
To send with reduction, follow the steps below.
Repeat steps 1 to 6, except in step 4, set the "LEDGER EMAIL XMT" setting to "OFF" position.
When the Select Mode "LEDGER EMAIL XMT" setting is set to the "OFF" position, the transmission reduction
is according to the setting of Fax Parameter No. 141 (LAN XMT REDUCTION). (See the Table below)
(see Note 1)
LEDGER EMAIL XMT = ON : Transmits actual document size (without reduction).
LEDGER EMAIL XMT = OFF : Reduces LEDGER size document to B4 size or to A4/Letter before
transmission. (According to the Fax Parameter No. 141 (LAN XMT
REDUCTION) setting, see Table below)
Document Size Transmission
LEDGER EMAIL XMT = OFF
Document Size
LEDGER EMAIL XMT = ON Fax Parameter No. 141
(LAN XMT REDUCTION)
set to "Invalid"
Fax Parameter No. 141
(LAN XMT REDUCTION)
set to "Valid"
LEDGER
LEDGER
B4
A4/Letter
B4
B4
B4
A4/Letter
A4/Letter
A4/Letter
A4/Letter
A4/Letter
NOTE
1. Factory default setting for Fax Parameter No. 141 (LAN XMT REDUCTION) is "Invalid".
73
BASIC OPERATIONS
Receiving Documents via LAN
Returned Email
When using the Internet communication mode, a failure report will print automatically for each transaction if the
email is returned undelivered by the mail server. The printout will consist of the undelivered message contents
supplied by the mail server and a portion of the first page’s image for that particular transaction.
Failure Report Sample (User unknown)
74
BASIC OPERATIONS
Receiving Documents via LAN
Using a Mailing List
Using a Mailing List stored in the mail server simplifies the process of entering multiple locations and allows
you to send to an unlimited number of email addresses with one easy operation.
BASIC
OPERATIONS
Ask your Network System administrator for information on how to utilize the Mailing List.
75
BASIC OPERATIONS
Receiving Documents via LAN
The DP-2000 offers you a choice to receive Fax documents unattended (by default) or manually over regular
telephone lines.
The DP-2000 also offers the same choice to receive and print Internet email messages via LAN unattended or
manually when subscribing to a POP mail server. However, when the DP-2000 is configured to receive email
using SMTP protocol, the email can only be received and printed unattended.
Internet Fax Received on a PC
Figure 1: Outlook Express Inbox Sample
The "Subject" column in the above example shows samples of email messages received on a PC from the
DP-2000, and Internet FAX.
For your reference, the above example is from Outlook Express Inbox running under Microsoft® Windows
95®. If you are using a different email application software, please refer to your application’s User Manual.
76
BASIC OPERATIONS
Receiving Documents via LAN
BASIC
OPERATIONS
Figure 2: Internet Fax Received on a PC
For your reference, the above example is from Windows Messaging running under Microsoft® Windows 95®.
To run the Viewer, please refer to your application’s User Manual.
The attached file is composed of TIFF-F
(Tagged Image File Format with Modified Hoffman coded image). TIFF Viewers come in many flavors, a
majority of TIFF Viewers will open and view this file, however, a handful of Viewers may not support this
format.
You can download the TIFF-F Image Viewer into your PC from the following URL addresses:
http://www.panasonic.co.jp/mgcs/internetfax/
http://www.panasonic.com/internetfax/
License agreement of Panasonic’s TIFF-F Image Viewer application
You must carefully read the license agreement before installing the TIFF-F Image Viewer application on your
PC. If you do not agree to all the terms of this agreement, do not use the software and destroy all of the
copies thereof.
You must assume full responsibility for selection of the software and its operation/non-operation and results
obtained therefrom.
77
BASIC OPERATIONS
Receiving Documents via LAN
Receiving Email from a POP Server
The DP-2000 offers a choice to receive and print Internet email messages via LAN unattended or manually when
subscribing to a POP mail server.
Setting the POP Parameters
Set the parameters pertinent to the POP server (Fax Parameters Nos. 146 to 149).
No. 146 (POP TIMER): Enter the interval to check and retrieve email from the POP server (0 to 60 minutes).
If "0 minutes" is entered, the POP server is not checked for mail.
No. 147 (AUTO POP RCV): When there is mail to be retrieved from the POP server, the DP-2000 will retrieve it
and print the email unattended. If this parameter is set to "1:Invalid", the machine will not retrieve it, but
displays the number of mails on the POP server.
No. 148 (DEL POP RCV MAIL): Select whether the email is deleted from the POP server after it is retrieved by
the DP-2000.
No. 149 (DEL POP ERR MAIL): Select whether to delete the email from the POP server when the file
attachment format is not supported.
To set the above POP parameters, follow the steps below.
Make sure that the INTERNET lamp is ON. If not, press
to select the "INTERNET MODE".
1
SET MODE
(1-4)
ENTER NO. OR ∨ ∧
2
FAX PARAMETER(1-164)
2:ABBR NO.
3
146 POP TIMER
3 MIN.
(0-60)
4
Enter the desired download interval (0 to 60 minutes).
Ex: 0 5 for 5 minutes.
If you make a mistake, press CLEAR to erase the digit
and then re-enter the correct value.
78
146 POP TIMER
5 MIN.
(0-60)
BASIC OPERATIONS
Receiving Documents via LAN
5
6
147 AUTO POP RCV
2:VALID
1 for "INVALID"
147 AUTO POP RCV
2:VALID
or
2 for "VALID"
7
1 for "INVALID"
BASIC
OPERATIONS
8
148 DEL POP RCV MAIL
2:VALID
148 DEL POP RCV MAIL
2:VALID
or
2 for "VALID"
9
10
149 DEL POP ERR MAIL
1:INVALID
1 for "INVALID"
149 DEL POP ERR MAIL
1:INVALID
or
2 for "VALID"
11
150 IFAX RET RECEIPT
1:INVALID
Continued on the next page...
79
BASIC OPERATIONS
Receiving Documents via LAN
12
(see Note 1) (see Note 2)
NOTE
1. When an unsupported file attachment is received, an error message is printed to inform you that the file
attachment could not be printed.
2. When Fax Parameter No. 148 (DEL POP RCV MAIL) and/or Fax Parameter No. 149 (DEL POP ERR MAIL) are
set to 1:Invalid, email with errors will not be erased. This will allow you to retrieve this email from your PC later.
Furthermore, if these Fax Parameters are set to "1:Invalid", you will need to delete mails from the POP server
periodically. POP servers allocate a certain amount of space per account and if mail is not deleted regularly, your
mail box will overflow and new incoming mail will be rejected.
Either retrieve these mails from your PC or set the Fax Parameters to "2:Valid" triggering your DP-2000 to
receive, print and delete all the mails from the POP server. This procedure, however, might cause mail that had
been printed before to print again.
80
BASIC OPERATIONS
Receiving Documents via LAN
Unattended Reception from the POP Server
When the Fax Parameter No. 146 (POP TIMER) is set to a value between 1 and 60 minutes, and Fax
Parameter No. 147 (AUTO POP RCV) is set to "2:Valid", the machine will query the POP server at the
specified interval for new mail.
Any mail on the POP server is retrieved and printed unattended.
1 NEW MAIL(S)
When the Fax Parameter No. 146 (POP TIMER) is set to "0", the machine will not query the POP server and
the mail is not retrieved automatically. With this setting, mail must be retrieved manually from the POP server.
When the Fax Parameter No. 147 (AUTO POP RCV) is set to "1:Invalid", the machine will query the POP
server for new mail at the interval specified by Fax Parameter No. 146. If new mail has arrived at POP server,
the machine will not retrieve it, but displays the number of mails on the POP server. (see Note 1) (see Note 2)
Manual Reception from the POP Server
To receive manually from the POP server, follow the steps below:
Make sure that the INTERNET lamp is ON. If not, press
to select the "INTERNET MODE".
1
JAN-12-2001 17:15
00%
or
JAN-12-2001 17:15
< NEW MAIL(S)>
2
If the POP server has not received any new mail, the
following message is displayed.
3
If POP server received new mail, the machine will display
the number of mails on the server, then receive and print
the email.
NO NEW MAIL
1 NEW MAIL(S)
ON LINE *RCV*
ID:[email protected]
NOTE
1. If you program a user name and password in the Program key, you can receive mail from the POP server using
a user name other than the name set as the user parameter.
2. The number of emails that can be retrieved during a single operation is 20. Even if POP server has more than
20 emails, only 20 will be displayed on the machine. After retrieving the first 20 emails, repeat the procedure from
beginning to ensure all emails were retrieved from the POP server.
81
BASIC
OPERATIONS
JAN-12-2001 17:15
< NEW MAIL(S)>
BASIC OPERATIONS
This page is intentionally left blank.
82
Advanced Features
Program Keys
Your fax machine has special Program Keys (P1 to P5). These keys are useful if you frequently need to send to
the same group of stations. You can use these keys to store an additional One-Touch key or a One-Touch group
key.
Entering an Email Address
Once you program an email address in the Program Keys (P1 to P5), you can specify the station simply by
pressing the associated Program Key.
to select the "INTERNET MODE".
1
PROGRAM
(1-5)
ENTER NO. OR ∨ ∧
2
PROGRAM[P ]
PRESS PROGRAM KEY
3
Ex:
4
Enter the station name (up to 15 characters) by using the
Character keys. (See page 10)
PROGRAM[P1]
ENTER NAME
Ex: PROG.A and
5
SET
p a n a s o n
NAME
[P1]PROG.A
ENTER EMAIL ADDRESS
Enter the email address using the Character keys (up to
60 characters).
Ex: a b c
ADVANCED
FEATURES
Make sure that the INTERNET lamp is ON. If not, press
i
[P1]PROG.A
[email protected]❚
c
c o m
6
PROGRAM[P ]
PRESS PROGRAM KEY
You can now set other Program Keys by repeating the
procedures from Step 3, or return to standby by pressing
STOP .
83
ADVANCED FEATURES
Program Keys
Entering a Telephone Number
Once you program a telephone number in the Program Keys (P1 to P5), you can specify the station simply by
pressing the associated Program Key.
Make sure that the FAX lamp is ON. If not, press
to select the "FAX MODE".
1
PROGRAM
(1-5)
ENTER NO. OR ∨ ∧
2
PROGRAM[P ]
PRESS PROGRAM KEY
3
Ex:
PROGRAM[P1]
ENTER NAME
4
Enter the station name (up to 15 characters) by using the
Character keys. (See page 10)
[P1]PROG.A
ENTER TEL. NO.
Ex: PROG.A and
5
SET
Enter a telephone number (up to 36 digits including
pauses and spaces).
Ex: 9 PAUSE 5 5 5 SPACE 1 2 3 4
6
[P1]PROG.A
9-555 1234❚
PROGRAM[P ]
PRESS PROGRAM KEY
You can now set other Program Keys by repeating the
procedures from Step 3, or return to standby by pressing
STOP .
84
NAME
ADVANCED FEATURES
Program Keys
Setting for Group Dialing
Once you program group dialing stations into the Program Keys (P1 to P5), you can specify multi-station
transmission (broadcasting) to multiple locations (mixed, G3 Fax and Email Address) simply by pressing the
associated Program Key.
to select the "INTERNET MODE".
1
PROGRAM
(1-5)
ENTER NO. OR ∨ ∧
2
PROGRAM[P ]
PRESS PROGRAM KEY
3
Ex:
4
Enter the station name (up to 15 characters) by using the
Character keys. (See page 10)
PROGRAM[P1]
ENTER NAME
Ex: PROG.A and
5
ENTER STATION(S)
THEN PRESS START
SET
Enter the station numbers by using One-Touch Key or
ABBR and 3-digit code.
Ex:
NAME
ADVANCED
FEATURES
Make sure that the INTERNET lamp is ON. If not, press
<05> (Station name)
[email protected]
and
[100](Station name)
5553456
You may use the
or
keys to review the entered
station(s) before going to next step. If you find an error,
press CLEAR to erase the displayed station.
6
PROGRAM[P ]
PRESS PROGRAM KEY
You can now set other Program Keys by repeating the
procedures from Step 3, or return to standby by pressing
STOP .
85
ADVANCED FEATURES
Program Keys
Setting the POP Access Key
This function allows others to share the DP-2000 to retrieve their emails from the POP server by
preprogramming their POP User Names and POP Passwords into the Program Keys (P1 to P5). They will be
able to retrieve their emails by simply pressing the associated Program Key. (See Note 1)
Make sure that the INTERNET lamp is ON. If not, press
to select the "INTERNET MODE".
1
PROGRAM
(1-5)
ENTER NO. OR ∨ ∧
2
PROGRAM[P ]
PRESS PROGRAM KEY
3
POP USER NAME
❚
Ex:
4
Enter a POP User Name (up to 40 characters) using the
Character keys and press
Ex: k a t
5
e and
SET
.
POP PASSWORD
❚
SET
Enter a POP Password (up to 10 characters) using the
Character keys and press
SET
Ex: p a n a 1 2 3 and
6
POP USER NAME
kate❚
.
POP PASSWORD
pana123❚
SET
1 to leave messages on server after retrieval
or
2 to delete messages on server after retrieval
You can now set other Program Keys by repeating the
procedures from Step 3, or return to standby by pressing
DELETE EMAIL
1:NO 2:YES
NO.=1
PROGRAM[P ]
PRESS PROGRAM KEY
STOP .
(see Note 1)
NOTE
1. If security is a concern and to prevent unauthorized personnel from retrieving your email from the POP server,
when programming the Program Key, leave the POP Password field "Blank". By leaving it "Blank", the machine
will prompt you to enter the POP Password when the Program Key is pressed to retrieve mail.
86
ADVANCED FEATURES
Program Keys
Using the POP Access Key (see Note 1)
To retrieve your Email from the POP Server by using the Program Key, follow the procedure below.
Make sure that the INTERNET lamp is ON. If not, press
1
to select the "INTERNET MODE".
Press the Program key programmed for POP Access Key.
POP RCV USER NAME
kate
Ex:
If the POP User Name is not entered in the Program Key,
enter the POP User Name (up to 40 characters).
2
ADVANCED
FEATURES
If the POP Password is not entered in the Program Key,
enter the POP Password (up to 10 characters) and press
START .
3
If the POP server has not received any new mail, the
following message is displayed.
4
If POP server received new mail, the machine will display
the number of mails on the server, then receive and print
the email.
NO NEW MAIL
1 NEW MAIL(S)
ON LINE *RCV*
ID:[email protected]
NOTE
1. The number of emails that can be retrieved during a single operation is 20. Even if the POP server has more than
20 emails, only 20 will be displayed on the machine. After retrieving the first 20 emails, repeat the procedure from
the beginning to ensure all emails were retrieved from the POP server.
87
ADVANCED FEATURES
Program Keys
Changing or Erasing the Program Key Settings
To change the settings in a Program Key, follow the procedure on setting a Program Key on pages 83 to 87.
• Start time or station(s) for deferred transmission
• Station(s) for normal polling
• Start time or station(s) for deferred polling
• Station(s) for group dialing
• Telephone number / email address and station name for One-Touch key
To erase the settings in a Program Key
Make sure that the INTERNET lamp is ON. If not, press
to select the "INTERNET MODE".
1
PROGRAM
(1-5)
ENTER NO. OR ∨ ∧
2
PROGRAM[P ]
PRESS PROGRAM KEY
3
Press the Program key you want to erase.
Ex:
4
5
88
PROGRAM[P1]
DELETE? 1:YES 2:NO.
* DELETING *
PROGRAM[P1]
You can now erase other Program Keys by repeating the
procedures from Step 3, or return to standby by pressing
STOP .
PROGRAM[P ]
PRESS PROGRAM KEY
ADVANCED FEATURES
Sender Selection
General Description
This operation allows the user to select one of the 25 preset User Names and Email Addresses before a
transmission. The selected User Names is printed on the Header of each page sent and on the COMM. Journal.
When sending email, the selected user name and/or email address appears in the "From:" field of the email
message.
Setting the Sender Selection
to select the "INTERNET MODE".
1
SET MODE
(1-4)
ENTER NO. OR ∨ ∧
2
FAX PARAMETER(1-164)
NO.=❚
3
ADVANCED
FEATURES
Make sure that the INTERNET lamp is ON. If not, press
145 SENDER SELECTION
1:INVALID
4
145 SENDER SELECTION
2:VALID
5
SENDER SELECTION
ENTER NO. OR ∨ ∧
6
Enter the Sender Selection number.
7
Enter your User Name (max. 25 characters and digits) by
using character keys. (See page 10)
ENTER USER NAME
12 ❚
Ex: 1 2 (01 to 24)
ENTER USER NAME
12 PANASONIC SALES❚
Ex: P A N A S O N I C SPACE
S A L E S and
SET
(See Note 1)
Continued on the next page...
89
ADVANCED FEATURES
Sender Selection
8
Enter an email address to be printed on the "From" field of
the email message (max. 60 characters).
p a n a s o n
Ex: a b c
i
c
ENTER EMAIL ADDRESS
12 ❚
ENTER EMAIL ADDRESS
12 [email protected]
c o m
9
ENTER USER NAME
13 ❚
To record another User Name, repeat step 6 to 9. To
return to standby, press
STOP .
(see Note 1)
NOTE
1. Use COPY to copy the default User Name that was programmed in the User Parameters. You can add the
department name following the default User Name.
90
ADVANCED FEATURES
Sender Selection
Sending Document with Sender Selection
Make sure that the INTERNET lamp is ON. If not, press
to select the "INTERNET MODE".
1a
ENTER STATION(S)
THEN PRESS START 00%
Place original(s) face up on the ADF.
or
1b
Place a book or an original face down on the
Platen Glass.
2
3
ADVANCED
FEATURES
Enter email address or telephone number.
SELECT SENDER(00-24)
ENTER NO. OR ∨ ∧
4
Enter a number or use
or
to select the User Name
that you want to use. (See Note 2)
12 PANASONIC SALES
[email protected]
Ex: 1 2
5
The document is sent as an email message with the
selected user name and/or email address appearing in
the "From" field of the email message.
(see Note 1) (see Note 2)
NOTE
1. The Sender Selection function cannot be used in the Voice Dialing Mode for ordinary transmission.
2. If you do no select a User Name in the step 4, the unit selects the default User Name (00) that was programmed
in the User Parameters for ordinary transmission.
91
ADVANCED FEATURES
Sender Selection
Printing the Sender Selection List
The Sender Selection List can be printed out following the Fax Parameter List.
To enable the printing of the Sender Selection List, change the setting of Fax Parameter No. 145 (SENDER
SELECTION) to "Valid". (See page 89)
Make sure that the INTERNET lamp is ON. If not, press
to select the "INTERNET MODE".
1
PRINT OUT
(1-7)
ENTER NO. OR ∨ ∧
2
* PRINTING *
FAX PARAMETER LIST
Sample Sender Selection List (Prints following the Fax Parameter List)
*************** -FAX PARAMETER LIST- ***************** DATE JAN-12-2001 ***** TIME 15:00 ***P.02
SENDER SELECTION LIST
(1)
(2)
NO.
USER NAME
01
02
03
Panafax Sales
Panafax Service
Panafax Accounting
[email protected]
[email protected]
[email protected]
24
Panafax Engineering
[email protected]
************************************ -HEAD OFFICE
Explanation of Contents
92
(3)
EMAIL ADDRESS
(1) Sender Selection Number
: 01-24
(2) User Name
: Up to 25 characters
(3) Email Address
: Up to 60 characters
-PANASONIC
- ***** -
201 555 1212- *********
ADVANCED FEATURES
Subject Line Entry
General Description
The DP-2000 will automatically add the Default Subject information that was entered during the User Parameter
setup, to the Subject Line of all outgoing emails.
If you would like for the machine to prompt you for the Subject before each email transmission, change the Fax
Parameter No. 159 (SUBJECT LINE ENTRY) to "2:Valid".
Sending Email with Subject Line Entry
Make sure that the INTERNET lamp is ON. If not, press
to select the "INTERNET MODE".
1a
ENTER STATION(S)
THEN PRESS START 00%
Place original(s) face up on the ADF.
ADVANCED
FEATURES
or
1b
Place a book or an original face down on the Platen
Glass.
2
Enter email addresses by any combination of the following
methods:
• One-Touch Dialing
• Abbreviated Dialing
• Directory Search Dialing, press SET after each
email address is entered.
• Manual Number Dialing, press SET after each
station is entered (up to 70 addresses).
Ex:
3
<01>(Station name)
[email protected]❚
ENTER SUBJECT OR
PRESS START TO SEND
Continued on the next page...
93
ADVANCED FEATURES
Subject Line Entry
4
Enter the Subject (max. 40 characters and digits) by using
the Character keys. (See page 10) To use the Default
Subject pre-programmed in the User Parameter, just press
START .
Ex: F A X P3 SPACE P5 CAPS
f r o m P3 SPACE P5 CAPS
M P5 CAPS r MEMORY IN P3 SPACE
P5 CAPS J P5 CAPS o n e s
5
SUBJECT
FAX from Mr. Jones
* STORE *
NO.001
PAGES=001 01%
* STORE * COMPLETED
PAGES=001 10%
The document(s) is stored into memory with a file number.
Then connects to the LAN and starts sending the email
message.
ON LINE * MEM.XMT *
ID:(Station name)
(see Note 1)
NOTE
1. If no default subject is programmed, the message is shown as "IMAGE from Internet FAX" for the subject.
94
ADVANCED FEATURES
Inbound Routing
Setting the Routing Parameters
The DP-2000 can route documents received from a G3 fax machine to email address(s) or to Internet Fax
machine(s) connected to a LAN as an email, as well as to other G3 fax machine(s) over the telephone line.
To use this feature, the Fax Parameter No. 152 "SUB-ADDRESS ROUTING" and/or No. 153 "TSI ROUTING"
must be set to "2:Valid".
No. 152 SUB-ADDRESS ROUTING: Set this parameter to perform an ITU-T sub-address query within its auto
dialer and to route the received document(s) to the corresponding stations email address(s) or telephone
number(s).
No. 153 TSI ROUTING: Set this parameter to perform a Numeric ID (TSI frame information) query within its
auto dialer and to route the received document(s) to the corresponding stations email address(s) or telephone
number(s).
No. 155 PRINT ROUTED DOCUMENT : Set this parameter to select whether a received fax to be routed is
always printed on the DP-2000 or only when the routing operation fails.
To set the above Inbound Routing parameters, follow the steps below.
Make sure that the INTERNET lamp is ON. If not, press
to select the "INTERNET MODE".
1
SET MODE
(1-4)
ENTER NO. OR ∨ ∧
2
FAX PARAMETER(1-164)
NO.=❚
3
152 SUB-ADDR ROUTING
1:INVALID
4
1 for "INVALID"
152 SUB-ADDR ROUTING
1:INVALID
or
2 for "VALID"
5
152 SUB-ADDR ROUTING
2:VALID
153 TSI ROUTING
1:INVALID
Continued on the next page...
95
ADVANCED
FEATURES
No. 154 ROUTING HEADER FORMAT: Use this parameter to select the type of email header to be included in
the "From" field of each routed faxes. (Default setting is "1:Originator")
Originator : The originating fax machine’s TSI will appear in the "From" field of the routed email.
Relay Station : The routing station’s email address will appear in the "From" field of the routed email.
ADVANCED FEATURES
Inbound Routing
6
1 for "INVALID"
153 TSI ROUTING
1:INVALID
or
2 for "VALID"
7
8
153 TSI ROUTING
2:VALID
154 ROUTE HEADER FMT
1:ORIGINATOR
1 for "ORIGINATOR"
154 ROUTE HEADER FMT
1:ORIGINATOR
or
2 for "RELAY STATION"
9
10
154 ROUTE HEADER FMT
2:RELAY STATION
155 PRINT ROUTED DOC
1:INC. ONLY
1 for "INC. ONLY"
155 PRINT ROUTED DOC
1:INC. ONLY
or
2 for "ALWAYS"
11
12
155 PRINT ROUTED DOC
2:ALWAYS
156 PRT FORWARD DOC
1:INC. ONLY
1 for "INC. ONLY"
156 PRT FORWARD DOC
1:INC. ONLY
or
2 for "ALWAYS"
13
96
156 PRT FORWARD DOC
2:ALWAYS
ADVANCED FEATURES
Inbound Routing
Entering One-Touch/Abbreviated Dialing Numbers for Inbound Routing
If the Inbound Routing parameters are set, an ITU-T sub-address and/or originator’s Numeric ID (TSI frame
information) can be programmed with each email address in One-Touch, Abbreviated numbers or Program
Keys. (See page 18)
Make sure that the INTERNET lamp is ON. If not, press
to select the "INTERNET MODE".
1
3
Select 1 for One-Touch dialing number / email address.
Select 2 for ABBR dialing number / email address.
ONE-TOUCH< >
PRESS ONE-TOUCH
Ex: 1
Ex:
To change the input mode (between "ENTER EMAIL
ADDRESS" and "ENTER TEL. NO."), press
or
<01>
ENTER EMAIL ADDRESS
.
ADVANCED
FEATURES
2
1:ONE-TOUCH
2:ABBR NO.
or
<01>
ENTER TEL. NO.
4
Enter an email address (up to 60 characters) or a
telephone number (up to 36 digits).
<01>
[email protected]❚
or
<01>
55512342762❚
5
<01> ENTER NAME
[email protected]
or
<01> ENTER NAME
55512342762
6
Enter the station name using the Character keys
(up to 15 characters).
Ex: S A L E S SPACE D E P T
<01> SALES DEPT❚
[email protected]
or
<01> SALES DEPT❚
55512342762
Continued on the next page...
97
ADVANCED FEATURES
Inbound Routing
7
ROUTING: SUB-ADDRESS
❚
8
Enter the sub-address (up to 20 characters) and press
SET
.
ROUTING: SUB-ADDRESS
1234567
ROUTING: TSI
❚
9
Enter a Numeric ID (TSI) (up to 20 characters) and press
SET
To return to stanby, press
ROUTING: TSI
1234567
.
STOP .
ONE-TOUCH< >
PRESS ONE-TOUCH
(see Note 1)
NOTE
1. "+" and "SPACE" entries in the "ROUTING: TSI" field are ignored by the receiving machine.
98
ADVANCED FEATURES
Fax Forward
Setting Fax Forward
This feature allows all incoming faxes or emails to be forwarded to the station registered in the one-touch or
abbreviated dialing number. Once the faxes or emails are received in the memory, the machine will forward the
received document(s) to the telephone number or the email address registered in the one-touch or abbreviated
dialing number.
This function is convenient when you would like to receive faxes or emails in another place (i. e. your home) at
night or during a holiday.
Make sure that the INTERNET lamp is ON. If not, press
1
2
3
4
5
6
7
to select the "INTERNET MODE".
First register the destination telephone number or email
address into the one-touch or abbreviated dialing number.
(See pages 45 to 48)
SET MODE
(1-4)
ENTER NO. OR ∨ ∧
FAX PARAMETER(1-164)
NO.=❚
ADVANCED
FEATURES
54 FAX FORWARD
1:INVALID
54 FAX FORWARD
2:VALID
54 FAX FORWARD
ENTER STATION
Enter the station to forward the received faxes or emails to,
by assigning a one-touch key or an abbreviated dialing
number.
<01> (Station name)
5551234
Ex:
ABBR 1 0 0
8
[100] (Station name)
[email protected]
SEP-12-1999
15:00
< FAX FORWARD >
(see Note 1) (see Note 2) (see Note 3):
NOTE
1. When the Fax Forward feature is set, the assigned one-touch or the abbreviated dialing number will be restricted
from editing. Please change this function to "Invalid" when you would like to edit the telephone number or email
address.
2. If the communication to transfer a received fax or email fails, the received fax or email will print out and then is
erased from memory. If the Fax Parameter No. 156 (PRT FORWARD. DOC) is set to "Always", the received fax
or email will print even when the transmission is successful.
3. It is not possible to receive a document if the memory of your machine overflows or is about 95% used.
99
ADVANCED FEATURES
Ifax Return Receipt
The DP-2000 automatically sends an Ifax Return Receipt to the sender confirming email reception from another
Panasonic Internet Fax.
To disable this feature, follow the steps below.
Make sure that the INTERNET lamp is ON. If not, press
to select the "INTERNET MODE".
1
SET MODE
(1-4)
ENTER NO. OR ∨ ∧
2
FAX PARAMETER(1-164)
NO.=❚
3
150 IFAX RET RECEIPT
2:VALID
4
150 IFAX RET RECEIPT
1:INVALID
for "INVALID"
5
(see Note 1)
NOTE
1. The DP-2000 sends the Ifax Return Receipt only when receiving from another Panasonic brand Internet Fax. It
will not confirm email sent from a PC. (The default setting for this parameter is "2:VALID".)
100
Network Features
Network Scanner
You can import Fax images by using the DP-2000 transmission function.
Storing a specific email address into a One-Touch Key/Program Key allows you to import picture images by
pressing a single key.
LAN
PC
Internet Fax
DP-2000
Images
Images
PC
1a
Place original(s) face up on the ADF.
or
NETWORK
FEATURE
1b
Place a book or an original face down on the Platen
Glass.
2
To improve the scanning quality, you can
temporarily change the Resolution to "S-FINE" and
if you are scanning color photographs or
illustrations with gray tones, change the Halftone
setting to "PHOTO".
3
Dial by any combination of the following methods:
• One-Touch Dialing
• Abbreviated Dialing
• Directory Search Dialing
• Manual Number Dialing
4
101
NETWORK FEATURE
Network Printer
The DP-2000 allows you to print documents created on your PC using various software applications.
To be able to use this function, install the Printer Driver and LPR software downloaded from the web site first.
(See page 20)
LAN
Internet Fax
DP-2000
PC
1
Select the "DP-2000" as your default printer on the PC.
2
From any software application, instruct your PC to print to
the DP-2000.
3
The DP-2000 receives and prints the document.
(see Note 1)
(see Note 2)
NOTE
1. The DP-2000 is unable to receive print jobs while it is engaged in a communication task. After the communication
job is completed, the PC will transfer the print job to the DP-2000 for printing
2. The IP Address, Subnet Mask and Default Router IP Address (TCP/IP Gateway Address) must be programmed
on the DP-2000 to use as a Network Printer.
102
NETWORK FEATURE
Relayed Transmission
General Description
The Internet Relayed Transmission feature can save you time and transmission costs if you need to send the
same documents to multiple G3 fax machines.
This is especially true if the transmissions are long distance.
You can send documents to any G3 fax machine by using the Internet via a LAN from your DP-2000 to another
Relay Station (DP-2000).
You can also send an email with attached TIFF-F file(s) to any G3 fax machine from your PC using your current
email application through a Relay Station (DP-2000).
To use the Internet Relayed Transmission, the Relay Station must be set up properly.
Example 1: Internet Relay Transmission
End Receiving
Station
Relay
Station
Internet
Initial Sending Station
G3 Fax
E-Mail
Internet Fax or PC
Internet Fax
Stockholm
New York
COMM.
Journal
London
G3 Fax
Local Telephone Call
Berlin
G3 Fax
Rome
After the Relay Station completes its transmission to the End Receiving Station, your PC or the DP-2000
receives a COMM. Journal from the Relay Station. This COMM. Journal confirms whether the Internet Relayed
Transmission was successful.
Example 2: Fax Server (Intranet Relay Transmission)
Mail Server
PC
PC
G3
(1)
(3)
(2)
(3)
PC
P
S
T
N
G3
PC
DP-2000
G3
(1) Initiate a Relay Transmission via email to the Mail Server
(2) Mail Server transfers the email to the DP-2000 with relay instructions to transmit to a G3 machine
(3) DP-2000 initiates a telephone call to a G3 machine and transmits the document
103
NETWORK
FEATURE
From your PC or DP-2000 you can send documents to a Relay Station with the telephone number of the End
Receiving Station(s).
NETWORK FEATURE
Relayed Transmission
Relay Network
This Feature saves you time and long distance phone line costs when sending an Internet Fax directly from
your machine to the end receiving station(s).
A Relay Network is basically composed of an Originating Station, which can be an Internet Fax Machine (DP2000) or a PC, a Relaying Internet Fax Machine (another DP-2000), and End-receiving station(s), which can
be regular G3 Fax machines.
By simply sending a Document(s) from your DP-2000 or an email message from a PC, to the DP-2000 (Relay
machine), which is then transmitted by the DP-2000 to the end receiving station(s) using regular phone lines
as a normal G3 Fax message. (PC can have TIFF-F or text (.txt) file attachment)
The end receiving station(s) are usually local in relation to the Relay Station, which incurs a local telephone
charge for the Fax Transmission.
After the Relay Station completes its transmission to the end receiving station(s), a Communication Journal is
sent back to the originator from the Relaying Internet Fax (DP-2000) confirming whether the Internet Relayed
Transmission was successful. Any Relay activity information is sent by email from the Relaying Internet Fax to
its Manager’s Email Address, which is programmed in the Relaying Internet Fax machine’s User Parameters.
(See page 26)
To use the Internet Relayed Transmission, just follow the set up procedure described on pages 106 to 116 and
obtain certain information provided by the Relaying machine (DP-2000) operator. A sample network is shown
in Figure 1.
Figure 1 shows a sample network as seen from New York (Initiating Station), London and Singapore are
(Relay Stations) connected to New York, and the (End Receiving Stations) are Stockholm, Rome, Tokyo,
Hong Kong, and Sydney.
With this simple network using two Relay Stations, you can send a document with one operation to any
combination of stations in the network via the London Relay Station and/or Singapore Relay Station.
New York
Email Address: [email protected]
Host Name:
newyork
Relay XMT Password: usa-rly
London
Email Address: [email protected]
Host Name:
london
Relay XMT Password: uk-rly
London
New York
Stockholm
Tel. No.: 46 8 111 1234
Berlin
Tel. No.: 46 611 111 1234
Rome
Tel. No.: 39 6 111 1234
Singapore
Tokyo
Tel. No.: 81 33 111 1234
Hong Kong
Tel.
No.: 852 23123456
(3002)
Sydney
Tel. No.: 61 2 111 1234
Wellington
Tel. No.: 64 4 111 1234
Singapore
Email Address: [email protected]
Host Name:
singapore
Relay XMT Password: sg-rly
Figure 1 : Sample Network
104
NETWORK FEATURE
Relayed Transmission
Table 2, 3 and 4 are sample settings for the Sample Network shown in Figure 1. (see Note 1) (see Note 2)
Table 2 : Sample Parameter and Phone Book Dialing Number Table for New York (Originating Station)
Telephone Number
: 212 111 1234
Email Address(SMTP)
: [email protected]
Host Name
: newyork
Relay XMT Password
: usa-rly
Station Name
London
Email Address / Telephone Number
[email protected]
Relay Station Address
---
Stockholm
46 8 111 1234
Singapore
[email protected]
[London Relay]
Tokyo
81 33 111 1234
London Relay
[email protected]
Singapore Relay
[email protected]
Rome
39 6 111 1234
[London Relay]
Hong Kong
852 23123456
[Singapore Relay]
Sydney
61 2 111 1234
[Singapore Relay]
--[Singapore Relay]
-----
Table 3 : Sample Parameter and Phone Book Dialing Number Table for London (Relaying Station)
: 71 111 1234
Email Address (SMTP)
: [email protected]
Host Name
: london
Relay XMT Password
: uk-rly
Telephone Number
Email Address / Telephone Number
[email protected]
Stockholm
46 8 111 1234
Singapore
[email protected]
Relay Station Address
--[London Relay]
---
Tokyo
81 33 111 1234
Singapore Relay
[email protected]
[Singapore Relay]
Rome
39 6 111 1234
[London Relay]
Hong Kong
852 23123456
[Singapore Relay]
Sydney
61 2 111 1234
[Singapore Relay]
London Relay
[email protected]
---
---
Table 4 : Sample Parameter and Phone Book Dialing Number Table for Singapore (Relaying Station)
Telephone Number
: 65 111 1234
Email Address (SMTP)
: [email protected]
Host Name
: singapore
Relay XMT Password
: sg-rly
Station Name
Email Address / Telephone Number
London
[email protected]
Stockholm
46 8 111 1234
New York
[email protected]
Tokyo
81 33 111 1234
London Relay
[email protected]
Relay Station Address
--[London Relay]
--[Singapore Relay]
---
Rome
39 6 111 1234
[London Relay]
Hong Kong
852 23123456
[Singapore Relay]
Sydney
61 2 111 1234
[Singapore Relay]
Singapore Relay
[email protected]
---
NOTE
1. The Relay XMT Password must be registered for the DP-2000 to work as a Relay Station. (See page 107)
2. To prevent unauthorized stations from accessing your Relay Station for Internet Relayed Transmissions, you
must setup your network security. Enter acceptable Domain Name(s) and the Manager’s Email Address for
notification of all Internet Relayed Transmissions. (See page 106)
105
NETWORK
FEATURE
Station Name
New York
NETWORK FEATURE
Relayed Transmission
Setting up your DP-2000 as an Internet Relay Station
To set up your machine as a Relay Station, the following parameters must be set properly.
1. Relay XMT (Fax Parameter No. 142)
Selecting whether the machine will accept and performs G3 relayed transmission. (See page 57)
1:Invalid
2:Valid
- Machine will not accept a Relay XMT request.
- Machine will accept a Relay XMT request.
2. Relay XMT Report (Fax Parameter No. 143)
Selecting how the COMM. Journal for relayed transmission is sent to the originator.
1:Off
2:Always
3:Inc. Only
- Do not send
- The COMM. Journal is always sent after a Relay Communication is completed or has failed.
- The COMM. Journal is sent if the Relay Communication to the destination has failed.
3. Relay XMT Password (User’s Parameter) (See Note 1)
Enter a Relay XMT Password (up to 10 characters) to be used for protection against unauthorized (outside)
stations from accessing your machine to relay messages to a G3 fax machine via PSTN. This password
should be given out to authorized people only.
4. Relay Address (Auto Dialer)
Enter a 3-digit Abbreviated Number which will assign the Relay Email Address of the Relay Station your
machine will use.
5. Manager’s Email Address (User’s Parameter)
Register the Department Manager’s Email Address for supervision and cost control purposes. Once
registered, the machine will send an email notification to this email address for each Relayed XMT Request
received from a remote station. The following information is sent.
(From : The email address of the originating station.)
(To
: The telephone number of the destination G3 fax machine.)
6. Domain Names (User’s Parameter) (See Note 2)
Register up to 10 Domain Names (up to 30 characters) that your machine will accept Relayed Transmission
Requests to relay a message to another G3 fax machine via PSTN.
Ex: Registered Domain Names
(01):
rdnn.mgcs.co.jp
(02):
rdmg.mgcs.co.jp
(03):
panasonic.com
In the example above, the Relayed XMT Request will be accepted only from the email addresses that
include the Domain Name of rdnn.mgcs.co.jp, rdmg.mgcs.co.jp or panasonic.com. (see Note 1) (see Note 2)
NOTE
1. This should be different than the DP-2000’s Email Address used to receive regular email / Internet Fax, as DP2000’s Email Address is always included in the header of all email messages sent. So, anyone receiving an
Internet Fax from the machine will easily know the Relay XMT Password if it is the same as the Email Address.
2. If all the Domain Names are left blank, the Internet Fax will accept Relayed XMT Requests from any domain.
106
NETWORK FEATURE
Relayed Transmission
Setting Up Your Machine for Relayed Transmission
Programming the End Receiving Station into your Auto Dialer
If the Fax Parameter No. 140 (LAN RELAY XMT REQUEST) is set to "Valid", you can enter the Relay Address
(ABBR No.) by the following procedure.
To set a One-Touch/ABBR for Relayed Transmission Request
to select the "INTERNET MODE".
1
1:ONE-TOUCH
2:ABBR NO.
2
ONE-TOUCH< >
PRESS ONE-TOUCH
Ex:
3
Press a One-Touch key (01-20).
4
To change the input mode (between "ENTER EMAIL
ADDRESS" and "ENTER TEL. NO."), press
or
5
Enter the telephone number (up to 36 digits).
If the Relay and the End Receiving Stations are both in the
same area, omit the Country Code and the Area Code from
the End Receiving Station. The End Receiving Station is a
local telephone number as viewed from the Relay Station.
6
7
<01>
ENTER EMAIL ADDRESS
Ex:
.
<01>
ENTER TEL. NO.
NETWORK
FEATURE
Make sure that the INTERNET lamp is ON. If not, press
<01>
3961111234❚
<01> ENTER NAME
3961111234
Enter the station name by using the character keys (up to 15
characters).
Ex: R O M E
8
<01> ROME❚
3961111234
<01> RELAY ADDRESS
❚❚❚
Continued on the next page...
107
NETWORK FEATURE
Relayed Transmission
9
Enter the 3-digit Abbreviated number of the Relay Station
that you want to assign to this End Receiving Station.
The Abbreviated number must contain the Relay XMT
Password of the Relay Station.
<01> RELAY ADDRESS
001
Ex:
10
ONE-TOUCH< >
PRESS ONE-TOUCH
You can now set an additional One-Touch/Abbreviated
numbers for Relayed Transmission Request by repeating the
procedures from Step 3 to 8, or return to standby by
pressing STOP .
108
NETWORK FEATURE
Relayed Transmission
Sending Documents via Internet Relay
Once you have recorded all the necessary parameters in your machine, you can send a document to one or
multiple G3 fax machines automatically through the Internet Relay Station by using the procedure described
below. The Internet Relay Station must have all the necessary parameters setup.
To a Location That Has a Pre-programmed Relay Station
1a
ENTER STATION(S)
THEN PRESS START 00%
Place original(s) face up on the ADF.
or
1b
Place a book or an original face down on the Platen
Glass.
Enter only the telephone number(s) of the End Receiving
Station(s) using any combination of the following methods:
• One-Touch Dialing
• Abbreviated Dialing
• Manual Number Dialing (up to 70 stations), press
SET after each station is entered. (see Note)
• Directory Search Dialing, press SET after each
station is entered (For details, see pages 62 to 66.)
<02> STOCKHOLM
4681111234
NETWORK
FEATURE
2
Ex:
Continued on the next page...
109
NETWORK FEATURE
Relayed Transmission
3
* STORE *
NO.002
PAGES=001
05%
The document(s) is stored into memory and your machine
starts sending the document(s) to the Relay email
address of the Relay Station with the telephone number
for the End Receiving Station.
Ex: End Receiving Station : 4681111234
(Telephone number)
[see Note 1]
Relay Station
: [email protected]
After the Relay Station completes its transmission to the
End Receiving Station(s), your machine receives a
COMM. Journal from the Relay Station. This Journal
confirms whether the Internet Relayed Transmission was
successful.
* STORE * COMPLETED
TOTAL PAGES=005 25%
ON LINE *MEM.XMT*
ID:uk-rly#4681111234
(see Note 1)
NOTE
1. If the Relay Station requires a special access number to get an outside line, enter that access number first then
press PAUSE to enter a pause (represented by a "-") before entering the full number.
110
NETWORK FEATURE
Relayed Transmission
To a Location That Does Not Have a Pre-programmed Relay Station
1a
ENTER STATION(S)
THEN PRESS START 00%
Place original(s) face up on the ADF.
or
1b
Place a book or an original face down on the Platen
Glass.
2
Assign a Relay Station by either one of the following
methods.
• Manual Dialing (press the INTERNET key first, then
enter the email address for the Relay Station)
• One-Touch Dialing
• Abbreviated Dialing
• Directory Search Dialing (For details, see pages 62 to
66.)
Ex: ABBR 0 0 1
4
Enter only the telephone number(s) of the End Receiving
Station(s) using any combination of the following
methods.
• One-Touch Dialing
• Abbreviated Dialing
• Manual Number Dialing, press SET after
eachstation is entered (up to 70 stations).
• Directory Search Dialing, press SET after each
station is entered.
(For details, see pages 62 to 66.)
Ex:
[001]LONDON RELAY
[email protected]
RELAY XMT
ENTER STATION(S)
NETWORK
FEATURE
3
RELAY XMT
ENTER RELAY STATION
<02> STOCKHOLM
4681111234
Continued on the next page...
111
NETWORK FEATURE
Relayed Transmission
5
* STORE *
NO.002
PAGES=001
05%
The document(s) is stored into memory and your machine
starts sending the document(s) to the Relay email
address of the Relay Station with the telephone number
for the End Receiving Station.
Ex: End Receiving Station : 4681111234 (Telephone number)
[see Note 1]
Relay Station
: [email protected]
* STORE * COMPLETED
TOTAL PAGES=005 25%
ON LINE *MEM.XMT*
ID:uk-rly#4681111234
After the Relay Station completes its transmission to the
End Receiving Station(s), your machine receives a
COMM. Journal from the Relay Station. This Journal
confirms whether the Internet Relayed Transmission was
successful.
(see Note 1) (see Note 2)
NOTE
1. If the Relay Station requires a special access number to get an outside line, enter that access number first then
press PAUSE to enter a pause (represented by a "-") before entering the full number.
2. The "#" character is not available for the email address of the relay station.
112
NETWORK FEATURE
Relayed Transmission
Sending Document(s) from a PC to a G3 Fax Machine
Using your email application, you can send any document(s) from your PC as a TIFF-F attachment to one or
multiple G3 fax machines automatically through the Internet Relay Station.
The Internet Relay Station (DP-2000) must be properly setup with all the required parameters.
To send a Relayed Transmission from your PC using your email application, follow the example below.
Ex: In the "To:" box of your email application, type the following:
sg-rly#[email protected]
or
sg-rly#*[email protected]
• Relay XMT Password:
• # + End Receiving Station (with Phone Number):
• # *+ End Receiving Station (with Abbreviated Dialing Number):
• # *+ End Receiving Station (with One-Touch Number):
• # *+ End Receiving Station (with Program Key as a Group Dialing):
• @ + Relay Station’s Domain Name:
sg-rly
#81331111234 (see Note 1)
#*001 - #*175 (see Note 1)
#*1001 - #*1020 (see Note 1)
#*2001 - #*2005 (see Note 1)
@singapore.panasonic.co.sg
Your PC sends the text document(s) to the Relay email address of the Relay Station with the telephone
number of the End Receiving Station.
After the Relay Station completes its transmission to the End Receiving Station(s), your PC receives a COMM.
Journal from the Relay Station. This Journal confirms whether the Internet Relayed Transmission was
successful.
NETWORK
FEATURE
(see Note 1) (see Note 2)
NOTE
1. The "#" and "*" symbol must be entered after the Relay XMT Password as it indicates to the DP-2000 that a phone
number for the End Receiving Station will follow.
2. If the Relay Station requires a special access number to get an outside line, enter that access number first then
enter a hyphen (represented by a "-") before entering the full number.
113
NETWORK FEATURE
Relayed Transmission
A TIFF Converter software is used on your PC to convert document(s) into a "TIFF" file format, which allows
the Internet FAX to receive the document as an attachment to an email. When you are sending a detailed
graphic document(s) to a DP-2000, DP-2500, DX-2000 or a DX-1000, you can specify 400 dpi resolution for
better clarity.
Ifax Mailer software is an add-in program for the TIFF Converter that links the email client for MAPI to the TIFF
converter for the Internet FAX.
To send a printing image as email from the application to the Internet FAX, you have to convert the file into the
format that the Internet FAX is allowed to receive and print as an email using the TIFF file creation function.
You also have to send that file to the Internet FAX as an attached document.
Ifax Mailer, allows you to automatically create TIFF files by pressing one button form the TIFF Converter for the
Internet FAX.
You can download the Panasonic's TIFF Converter and ifax Mailer software and their respective User's Guides
from any of the following URL addresses:
http://www.panasonic.co.jp/mgcs/internetfax/
http://www.panasonic.com/internetfax
To simplify the Relay Transmission operation, Panasonic has an Optional Panafax Fax Gateway software.
Please visit the following URL address for more details:
http://www.panasonic.com/office
114
NETWORK FEATURE
Relayed Transmission
Printouts and Reports
When you use Relayed Transmission, relay station will send the following two reports to help you check and
keep track of your faxes.
1. Relay XMT Report (COMM. JOURNAL)
When the relay station finishes transmitting to the End Receiving Station, it will send a COMM. Journal to
you when the Fax Parameter No. 143 is set to "Always" or "Inc. Only", this tells you whether the transmission
was successful or not.
2. Transmission Journal
When the Relay Station receives instructions for a relayed transmission, a notification is emailed to the
registered manager (see "Setting up your DP-2000 as an Internet Relay Station" on page 106).
Sample Relay XMT Report (COMM. JOURNAL)
************** -COMM. JOURNAL - ***************** DATE JAN-12-2001 **** TIME 15:00 ********
(1)
MODE = RELAYED TRANSMISSION
(2)
START= JAN-12 15:00
(3)
END= JAN-12 15:00
FILE NO.= 050 (4)
(5)
STN
NO.
001
002
(6)
COMM.
ONE-TOUCH
ABBR NO.
R-OK
R-OK
(7)
STATION NAME/EMAIL ADDRESS/TELEPHONE NO.
(8)
PAGES
(9)
DURATION
STOCKHOLM
ROMA
001/001
001/001
00:00:15
00:00:15
- PANASONIC - ****** - 201 555 1212 - *******
NETWORK
FEATURE
*************************************** - HEAD OFFICE
(1) Indicates the communication
mode
(2) Start time of communication
(3) End time of communication
(4) File number
: 001 to 999
(5) Sequential number of the stations
(6) Communication result
: "R-OK" indicates that the Relayed XMT Request was successful.
3-digit Info Code (see page 131) indicates that the communication has failed.
(7) Telephone Number, Email
Address or Station Name of the
end receiving station
(8) Number of pages transmitted
: 3-digit number represents the number of pages successfully transmitted.
(9) Duration of communication
(see Note 1)
NOTE
1. If you transmit through more than one Relay Station, you will receive a separate Result Report.
115
NETWORK FEATURE
Relayed Transmission
Sample Relayed Transmission Notification Email to a Manager
(1)
(2)
Explanation of Contents
(1) Email address of the sender’s Internet Fax (DP-2000) or PC
(2) End Receiving Station’s G3 fax telephone number(s)
116
Printout Journals and Lists
Journals and Lists
To help you maintain records of the documents you sent and received, as well as lists of the numbers you record,
your facsimile machine is equipped to print the following journals and lists: Transaction Journal, Communication
Journal, One-Touch/Abbreviated/Directory Search No. List, Program List, Fax Parameter List, Directory Sheet and
File List.
Transaction Journal
The "Journal" is a record of the last 100 transactions (a transaction is recorded each time you send or receive
a document). It is printed out automatically after every 100 transactions (see Note 1), or you can print or view
it manually by using the following procedure:
Make sure that the INTERNET lamp is ON. If not, press
to select the "INTERNET MODE".
1
PRINT OUT
(1-7)
ENTER NO. OR ∨ ∧
2
JOURNAL
1:PRINT 2:VIEW
3a
* PRINTING *
JOURNAL
4b
JOURNAL VIEW
1:XMT ONLY 2:ALL
for viewing a Journal
PRINTOUT
JOURNALS AND
LISTS
3b
for printing a Journal
Select the viewing mode.
1 to view transmission transactions only
2 to view all transactions
USE THE ∨ ∧ KEYS TO
SCROLL EACH RECORD
Ex: 2
You can view the transactions in the journal by pressing
or
. Press STOP to return to standby.
Continued on the next page...
117
PRINTOUT JOURNALS AND LISTS
Journals and Lists
Communication Result
OK:
BUSY:
STOP:
P-OK:
Date & Time
01/12 10:00
OK P01
XMT ☎ 5551234
Communication was successful.
Line busy
STOP was pressed.
Reserved transmission was successful under
memory full condition.
R-OK: Relayed transmission was successful.
--:
LAN transmission
3-digit Info Code: Communication has failed
(Refer to page 121 for details.)
Number of pages successfully transmitted or received.
Type of Communication
XMT: Transmission
RCV: Reception
POL: Polling
FWD: Fax Forward
Scroll Marker
Received ID,
recorded name,
dialed telephone number,
or email address
: Latest transaction
: Oldest transaction
: Only 1 transaction
(see Note 1)
NOTE
1. If you wish to disable the automatic printing of the Transaction Journal, change the setting of Fax Parameter No.
013 to "Invalid". (See page 55)
118
PRINTOUT JOURNALS AND LISTS
Journals and Lists
Sample Transaction Journal
(1)
(2)
***************** -JOURNAL- ************************* DATE JAN-12-2001 ***** TIME 15:00 ***** P.01
(3)
NO.
(4)
(5)
COMM. PAGES
01
02
03
04
05
06
07
OK
--OK
OK
634
408 *
49
50
OK
OK
(6)
FILE
(7)
DURATION
(8)
X/R
(9)
IDENTIFICATION
(10)
DATE
(11)
TIME
001/001
001/001
003/003
003
001
000/003
003
149
151
153
154
155
156
00:00:52
00:00:02
00:00:20
00:00:21
00:00:19
00:00:00
00:02:14
XMT
XMT
XMT
RCV
RCV
XMT
XMT
☎215
JAN-12
JAN-12
JAN-12
JAN-12
JAN-12
JAN-12
JAN-12
20:04
20:07
20:09
20:10
20:11
20:14
21:17
C8444B0577000
01 STN(S) LAN
01 STN(S) LAN
LAN
C0542B0577000
0800420000000
0040440A30080
000/001
001/001
159
160
00:00:07
00:00:16
XMT
XMT
TEL XMT
TEL XMT
<< CONTINUE
(13)
JAN-12
JAN-12
20:18
20:19
CA40462000000
C8444B0577000
TEST
[email protected]
[email protected]
215
☎216
☎217
>>
-PANASONIC
************************************ -HEAD OFFICE
(15)
(12)
DIAGNOSTIC
-
- ***** -
201 555 1212- *********
(14)
(1)
(2)
***************** -JOURNAL- ************************* DATE JAN-12-2001 ***** TIME 15:00 ***** P.01
(4)
(5)
COMM. PAGES
(6)
FILE
(7)
DURATION
(8)
X/R
(9)
IDENTIFICATION
(10)
DATE
(11)
TIME
(12)
DIAGNOSTIC
51
52
53
54
OK
--OK
001/001
001/001
003/003
003
229
230
231
231
00:00:48
00:00:01
00:00:12
00:00:14
XMT
XMT
XMT
RCV
PANAFAX
PANASONIC
[email protected]
[email protected]
JAN-12
JAN-12
JAN-12
JAN-12
22:04
23:07
23:09
24:10
C8444B0577000
01 STN(S) LAN
01 STN(S) LAN
LAN
00
OK
001/001
332
00:01:10
XMT
AAAAAA
JAN-12
23:19
C8444B0577000
(13)
PANASONIC ************************************ -HEAD OFFICE
(15)
- ***** -
201 555 1212- *********
(14)
(see Note 1)
Continued on the next page...
NOTE
1. Email transmission sent to multiple locations is recorded as a single transaction on the Journal.
119
PRINTOUT
JOURNALS AND
LISTS
(3)
NO.
PRINTOUT JOURNALS AND LISTS
Journals and Lists
Explanation of contents
(1) Printout date
(2) Printout time
(3) Journal number
(4) Communication result
: "OK" indicates that the communication was successful.
"BUSY" indicates that the communication has failed because of busy line.
"STOP" indicates that STOP was pressed during communication.
"P-OK" indicates that memory overflow occurred while storing the documents
into memory for transmission but successfully stored document(s) was sent.
"R-OK" indicates that the Relayed XMT was successful.
"- -" indicates LAN transmission.
"3-digit Info Code" (see page 131) indicates that the communication has failed.
(5) Number of pages transmitted or
received
: The 3-digit number is the number of pages successfully transmitted or received.
When the documents are stored into memory, two 3-digit numbers will appear.
The first 3-digit number represents the number of pages successfully
transmitted. The second 3-digit number represents the total number of pages
that were attempted to be transmitted. Asterisk "*" indicates that the quality of
some received copies was poor.
(6) File number
: 001 to 999 (If the communication is stored into memory, a file number is
assigned for each communication.)
(7) Duration of communication
(8) Type of communication
: "XMT" means Transmission
"RCV" means Reception
"POL" means Polling
"FWD" means Fax Forward
(9) Remote station identification
: Name : Recorded name in the Phone Book or remote station’s Character ID.
☎ number : Dialed telephone number (PIN code will not be shown)
Number : Remote station’s ID number.
Email address
(10) Communication date
(11) Communication Start time
(12) Diagnostic
: For service personnel only
(13) Own LOGO
: Up to 25 characters
(14) Own ID number
: Up to 20 digits
(15) Own Character ID
: Up to 16 characters
120
PRINTOUT JOURNALS AND LISTS
Journals and Lists
Communication Journal (COMM. JOURNAL)
The Communication Journal (COMM. JOURNAL) lets you verify whether the transmission or polling was
successful. You may select the printout condition (Off/Always/Inc. only) in Fax Parameter No. 012.
Sample COMM. JOURNAL
************** - COMM. JOURNAL - ***************** DATE JAN-12-2001 **** TIME 15:00 **** P.01
(1)
MODE = MEMORY TRANSMISSION
(2)
START=JAN-12 14:50
(3)
END=JAN-12 15:00
FILE NO.= 050 (4)
(5)
STN
NO.
(6)
COMM.
(7)
ONE-TOUCH
ABBR NO.
(8)
STATION NAME/EMAIL ADDRESS/TELEPHONE NO.
(9)
PAGES
(10)
DURATION
001
002
003
004
OK
OK
407
BUSY
<01>
<02>
<03>
SERVICE DEPT.
SALES DEPT.
ACCOUNTING DEPT.
021 111 1234
001/001
001/001
000/001
000/001
00:01:30
00:01:25
00:01:45
00:00:00
☎
- PANASONIC - ****** - 201 555 1212 - *******
PRINTOUT
JOURNALS AND
LISTS
************************************* - HEAD OFFICE
Continued on the next page...
121
PRINTOUT JOURNALS AND LISTS
Journals and Lists
Explanation of contents
(1)
(2)
(3)
(4)
Indication of communication mode
Start time of communication
End time of communication
File number
: 001 to 999 (When the communication is stored into memory, a file number is
assigned for each communication.)
(5) Station number
: Sequential number of the Stations.
(6) Communication result
: "OK" indicates that the communication was successful.
"BUSY" indicates that the communication has failed because of busy line.
"STOP" indicates that STOP was pressed during communication.
"P-OK" indicates that memory overflow occurred while storing the documents
into memory for transmission but successfully stored document(s) was sent.
"R-OK" indicates that the Relayed XMT was successful.
"- -" indicates LAN transmission.
"3-digit Info Code" (see page 131) indicates that the communication has failed.
In this case, the machine will print out the attached report with first page of your
document as shown on the previous page.
(7) One-Touch/Abbreviated number
: ☎ mark indicates dialed by direct number dial.
or ☎ mark
(8) Recorded name in the Phone
Book, direct dialing number, or
email address
(9) Number of pages transmitted or
: The 3-digit number is the number of pages successfully transmitted or received.
received
When the documents are stored into memory, two 3-digit numbers will appear.
The first 3-digit number represents the number of pages successfully
transmitted. The second 3-digit number represents the total number of pages
that were attempted to be transmitted.
(10)Duration of Communication
122
PRINTOUT JOURNALS AND LISTS
Journals and Lists
Sample Internet Parameter List
*************** -FAX PARAMETER LIST- ************** DATE JAN-12-2001 ***** TIME 11:11 *** P.02
*** INTERNET PARAMETERS ***
TIME ZONE
:
GMT-5:00 Eastern Time (US & Canada)
MAC ADDRESS
:
080023000FF9
IP ADDRESS
SUBNET MASK
SMTP SERVER NAME
DEF. ROUTER IP ADDR
EMAIL ADDRESS
DNS SERVER IP ADDRESS
:
:
:
:
:
:
140.212.123.125
255.255.255.255
ifeif1.mgcs.mei.co.jp
172.21.22.1
[email protected]
133.185.247.45 (See Note 1)
POP SERVER NAME
POP USER NAME
POP PASSWORD
:
:
:
ifeif1.mgcs.mei.co.jp
Panasonic
*****
HOST NAME
DEFAULT SUBJECT
DEFAULT DOMAIN
SELECTABLE DOMAINS
(01)
(02)
(03)
(04)
(05)
(06)
(07)
(08)
(09)
(10)
REMOTE PASSWORD
:
:
:
nwfax1
xyz
ifeif1
:
:
:
:
:
:
:
:
:
:
:
jp
com
RELAY XMT PASSWORD
MANAGER’S EMAIL ADDR
RELAY DOMAINS
(01)
(02)
(03)
(04)
(05)
(06)
(07)
(08)
(09)
(10)
:
:
*****
[email protected]
:
:
:
:
:
:
:
:
:
:
PANASONIC
SALES DEPT
PRINTOUT
JOURNALS AND
LISTS
*****
-PANASONIC
-
************************************************-HEAD OFFICE - ***** - 201 555 1212- *********
(see Note 1)
NOTE
1. By default the machine will prompt you to enter the SMTP and POP Server Names. To change the prompt to IP
Address, change the Fax Parameter No. 161 (DNS SERVER) to "Invalid".
123
PRINTOUT JOURNALS AND LISTS
Journals and Lists
One-Touch/Abbreviated and Directory Search List
To print a One-Touch/Abbreviated Number and Directory Search List of the telephone numbers you have
stored.
Make sure that the INTERNET lamp is ON. If not, press
1
PRINT OUT
(1-7)
ENTER NO. OR ∨ ∧
2
2:ONE-TCH/ABBR LIST?
PRESS SET TO PRINT
3
1:ONE-TOUCH/ABBR NO.
2:DIR. SEARCH
4
* PRINTING *
ONE-TOUCH/ABBR LIST
for One-Touch/ABBR List
or
or
for Directory Search List
124
to select the "INTERNET MODE".
* PRINTING *
DIR. SEARCH LIST
PRINTOUT JOURNALS AND LISTS
Journals and Lists
Sample One-Touch List
*************** -ONE-TOUCH LIST- ****************** DATE JAN-12-2001 ***** TIME 11:11 *** P.01
(1)
(2)
(3)
(7)
ONE- STATION NAME
EMAIL ADDRESS / TELEPHONE NO.
TOUCH
ROUTING SUB-ADDR (5) ROUTING TSI (6)
RELAY ADDR (ABBR NO.)
<01>
John Smith
<02>
Jane Smith
<03>
Bob Jones
<04>
Panafax1
<05>
Panafax2
☎201
555 3456
4452
+1 201 123 4567
☎201 555 1212
1212
212 555 1234
[email protected]
123456
201 555 1212
[email protected]
4827
+81 03 5251 1234
[email protected]
1773
+81 0467 5251 1234
[001]
[002]
NO. OF STATION = 05
-PANASONIC
-
************************************************-HEAD OFFICE - ***** - 201 555 1212- *********
Sample ABBR Number List
*************** -ABBR NO. LIST- ******************* DATE JAN-12-2001 ***** TIME 11:11 *** P.01
(1)
ABBR STATION NAME
EMAIL ADDRESS / TELEPHONE NO.
NO.
ROUTING SUB-ADDR
ROUTING TSI
RELAY ADDR (ABBR NO.)
John Smith
☎201
555 3456
4452
[002]
[003]
Jane Smith
Bob Jones
+1 201 123 4567
[009]
1212
212 555 1234
[010]
[email protected]
123456
201 555 1212
☎201
555 1212
[004]
Panafax1
[email protected]
4827
+81 03 5251 1234
[005]
Panafax2
[email protected]
1773
+81 0467 5251 1234
PRINTOUT
JOURNALS AND
LISTS
[001]
NO. OF STATION = 005
-PANASONIC
-
************************************************-HEAD OFFICE - ***** - 201 555 1212- *********
125
PRINTOUT JOURNALS AND LISTS
Journals and Lists
Sample Directory Search List
*************** -DIR. SEARCH LIST- ******************* DATE JAN-12-2001 ***** TIME 11:11 *** P.01
(8)
(2)
(1)
(3)
(7)
STATION NAME
ONE-TOUCH/ EMAIL ADDRESS / TELEPHONE NO.
ABBR NO.
ROUTING SUB-ADDR (5) ROUTING TSI (6)
RELAY ADDR (ABBR NO.)
[B]
[J]
Bob Jones
John Smith
[003]
[001]
[email protected]
123456
☎201
555 3456
4452
Jane Smith
[002]
☎201
201 555 1212
+1 201 123 4567
[009]
212 555 1234
[010]
555 1212
1212
[K]
Panafax1
[004]
[email protected]
4827
+81 03 5251 1234
[M]
PAnafax2
[005]
[email protected]
1773
+81 0467 5251 1234
NO. OF STATIONS = 005 (4)
-PANASONIC
-
************************************************-HEAD OFFICE - ***** - 201 555 1212- *********
Explanation of contents
(1) One-Touch or Abbreviated number
: <nn> = One-Touch number,
[nnn] = Abbreviated number
(2) Station name recorded in the machine
: Up to 15 characters
(3) Telephone number recorded in the machine
Email address recorded in the machine
☎number
: Up to 36 digits (Telephone number)
: Up to 60 characters (Email address)
: Telephone Number programmed into One-Touch / ABBR NO.
(4) Number of recorded One-Touch and ABBR numbers
(5) Routing Sub-address
: Up to 20 digits
(6) Routing TSI
: Up to 20 digits
(7) Relay Address
: 3-digit
(8) The first letter of station name recorded in your machine
126
PRINTOUT JOURNALS AND LISTS
Journals and Lists
Program List
To print a Program List of the Dialing Patterns that you have previously entered into the Program Keys.
Make sure that the INTERNET lamp is ON. If not, press
to select the "INTERNET MODE".
1
PRINT OUT
(1-7)
ENTER NO. OR ∨ ∧
2
3:PROGRAM LIST?
PRESS SET TO PRINT
3
* PRINTING *
PROGRAM LIST
Sample Program List
(1)
PROGRAM
[P1]
[P2]
[P3]
[P4]
LIST- ******************** DATE JAN-12-2001 ***** TIME 15:00 *** P.01
(2)
PROGRAM/USER NAME
TEST
ACCOUNT
ACC
PROG. B
(3)
TYPE
ONE-TOUCH
POP
POP
ABBR/GRP
(4)
ONE-TOUCH/ABBR NO./PASSWORD
☎5551234
*****
Invalid
Invalid
<01> <03>
-PANASONIC
************************************ -HEAD OFFICE
(5)
DELETE E-MAIL
- ***** -
201 555 1212- *********
Explanation of contents
(1) Program key
(2) Program name
: Up to 15 characters
(3) Type of communication
: "ABBR/GRP" indicates that the Program key is programmed as a group key.
"ONE-TOUCH" indicates that the Program key is programmed as a One-Touch
key.
"POP" indicates that the Program key is programmed as a POP access key.
(4) Numbers recorded in the program
key
☎number
: One-Touch / ABBR numbers or password.
Email address programmed into Program Key.
: Telephone Number programmed into Program Key.
(5) Deletion of received Email
: "Valid" means that the received email will be deleted. "Invalid" means that the
received email will be retained.
127
PRINTOUT
JOURNALS AND
LISTS
*************** -PROGRAM
PRINTOUT JOURNALS AND LISTS
Journals and Lists
FAX Parameter List
To print out a FAX Parameter List:
Make sure that the INTERNET lamp is ON. If not, press
to select the "INTERNET MODE".
1
PRINT OUT
(1-7)
ENTER NO. OR ∨ ∧
2
4:FAX PARAM. LIST ?
PRESS SET TO PRINT
3
* PRINTING *
FAX PARAMETER LIST
Sample FAX Parameter List
*************** -FAX PARAMETER LIST- ************** DATE JAN-12-2001 ***** TIME 15:00 ***** P.01
(1)
PARAMETER
NUMBER
(2)
DESCRIPTION
(3)
SELECTION
(4)
CURRENT
SETTING
001
002
003
CONTRAST
(HOME)
RESOLUTION (HOME)
ORIGINAL
(HOME)
(1::Lightest..............5:Darkest)
(1:Standard 2:Fine
3:400dpi)
(1:Text
2:Text/Photo 3:Photo)
164
IFAX XMT HEADER
(1:Included
2:Not included)
-PANASONIC
************************************ -HEAD OFFICE
- ***** -
(5)
STANDARD
SETTING
3
2
1
3
2
1
1
1
201 555 1212- *********
Explanation of contents
(1) Parameter
number
(2) Description
(3) Selection
128
: "(HOME)" means home position
setting.
(4) Current setting
: "----" indicates code or password is not
set. When the code or password is set,
it is represented by asterisk(*).
(5) Standard setting
: Factory preset standard setting
PRINTOUT JOURNALS AND LISTS
Journals and Lists
Sample Internet Parameter List
*************** -FAX PARAMETER LIST- ************** DATE JAN-12-2001 ***** TIME 15:00 *** P.04
*** INTERNET PARAMETERS ***
TIME ZONE
:
GMT-5:00 Eastern Time (US & Canada)
MAC ADDRESS
:
080023000FF9
IP ADDRESS
SUBNET MASK
SMTP SERVER NAME
DEF. ROUTER IP ADDR
EMAIL ADDRESS
DNS SERVER IP ADDRESS
:
:
:
:
:
:
140.212.123.125
255.255.255.255
ifeif1.mgcs.mei.co.jp
172.21.22.1
[email protected]
133.185.247.45 (See Note 1)
POP SERVER NAME
POP USER NAME
POP PASSWORD
:
:
:
ifeif1.mgcs.mei.co.jp
Panasonic
*****
HOST NAME
DEFAULT SUBJECT
DEFAULT DOMAIN
SELECTABLE DOMAINS
(01)
(02)
(03)
(04)
(05)
(06)
(07)
(08)
(09)
(10)
REMOTE PASSWORD
:
:
:
nwfax1
xyz
ifeif1
:
:
:
:
:
:
:
:
:
:
:
jp
com
RELAY XMT PASSWORD
MANAGER’S EMAIL ADDR
RELAY DOMAINS
(01)
(02)
(03)
(04)
(05)
(06)
(07)
(08)
(09)
(10)
:
:
*****
[email protected]
:
:
:
:
:
:
:
:
:
:
PANASONIC
SALES DEPT
PRINTOUT
JOURNALS AND
LISTS
*****
-PANASONIC
-
************************************************-HEAD OFFICE - ***** - 201 555 1212- *********
(see Note 1)
NOTE
1. By default the machine will prompt you to enter the SMTP and POP Server Names. To change the prompt to IP
Address, change the Fax Parameter No. 161 (DNS SERVER) to "Invalid".
129
PRINTOUT JOURNALS AND LISTS
This page is intentionally left blank.
130
Problem
Solving
Troubleshooting
Information Codes (see Note 1)
When something unusual occurs, the display may show one of the Information Codes listed below. These will
help you to identify and correct the problem.
Info.
Code
Meaning
Action
Page
Incorrect email address.
Check the registered email address. Check the
IP Address of the SMTP Server with the
Network Administrator.
--
713
Memory overflow in the LAN Interface.
The document data exceeded 1.6 MB/page
and cannot be sent.
--
714
Cannot logon to the LAN.
Check the 10Base-T/100Base-TX cable
connection. An unexpected LAN problem
occurred. Contact the Network Administrator.
--
715
TCP/IP connection timed out.
Check the Internet Fax parameter settings.
Verify the IP Address, Default Router IP
Address, SMTP Server IP Address.
--
716
Cannot logon to the designated SMTP Server.
Check the SMTP Server IP Address setting.
Contact the Network Administrator.
--
717
Incomplete SMTP Protocol transmission. SMTP
Server’s hard disk may be full.
SMTP Server is defective. Contact the Network
Administrator.
--
718
Page Memory Overflow occurred while receiving
Check the document size and resolution. Ask
printing data. The paper size selected within your
originator to re-send in a supported size and
application to print is larger than the paper size loaded resolution.
in the cassette(s).
--
719
Received data via LAN is in a format that is not
supported.
Ask the originator to re-send with a supported
file attachment format: * In a TIFF-F format.
* Image data conforming to recording paper size.
--
720
Cannot connect to the POP Server. (Incorrect POP
Server IP Address) POP Server is down.
Check the POP Server IP Address. Contact
the Network Administrator.
--
721
Cannot connect to the POP Server. (User Name or
Password error)
Check the POP User Name and Password.
Contact the Network Administrator.
--
725
DNS Server connection timed out. DNS Server is
down.
Check the DNS Server IP Address. Contact
the Network Administrator.
--
726
Received an error response from the DNS Server.
Check the POP Server Name. Check the
SMTP Server Name.
--
730
Cannot retrieve the Journal nor program the Internet
Parameters and the Auto Dialer remotely via email
from a PC.
Check that the Fax Parameter No. 158 (PC
REMOTE UPDATE) is set to "2:Valid".
58
731
The dialer buffer for manual dialing was full (70
stations) when the Relay Transmission Request was
received.
Request the originator to re-send the Relay
Transmission Request after the reserved
communication is finished.
--
PROBLEM
SOLVING
712
NOTE
1. After identifying the problem and verifying the recommended action, if the Information Codes keep re-occurring
or for help on Information Codes that appear on your machine but are not listed above, please contact your local
Panasonic Authorized Dealer.
131
PROBLEM SOLVING
Troubleshooting
Email ABBR Programming Errors
Error Message Sent to the Sender
Error messages that are emailed from the DP-2000 to the original sender during remote programming of the
Auto Dialer via email.
1
Error message
554 Data transfer error (broken header)
2
554 Data transfer error (broken data)
3
554 Data transfer error (FAX module)
4
5
554 MIME attachment not supported
(message/file)
554 MIME format not supported
6
7
554 G3 relay permission denied
554 Relay address unknown
8
9
554 Memory full (FAX module)
554 Data transfer error
Possible cause
The header or sub header decoding is being processed while
the message finished, try again.
Multiple contents are present and being processed while the
message finished, try again.
Data transfer error occurred in the FAX module while
communicating with the LAN module, try again.
MIME attachment is not supported during this operation, resend using plain text in the message body only.
MIME file type is not supported, re-send using plain text in the
message body only.
The requested domain for Relayed XMT is not registered.
The telephone number of end receiving station for the Relayed
XMT is unknown.
FAX Memory is full, try again later.
Other errors not listed above, try again later.
Internet FAX Return Receipt Errors Messages
Error messages that are printed on the Internet Fax Return Receipt when remote programming of the Auto
Dialer via email fails.
14
Error message
Format Error : <@command block, the "@end"
command is missing.>
Format Error : <@begin block, the "@begin"
command is missing.>
Format Error : <@begin block, the "@end"
command is missing.>
Format Error : <@system block, the "@end"
command is missing.>
Format Error : <@sender block, the "@end"
command is missing.>
Format Error:<@domain block, the "@end"
command is missing.>
Format Error : <@program block, the "@end"
command is missing.>
Format Error:<@system block, the "@system"
command is missing.>
Permission denied : <Fax Forward parameter is
set to "Valid".>
Permission denied : <Fax machine is busy
performing a task.>
Error : <Programmed ABBR overwrite prohibited.
Use open ABBR only.>
Permission denied : <Password is incorrect.>
Permission denied : <Remote Dialer Update
parameter is set to "Invalid".>
Format Error : <error line>
15
Warning : <error line>
16
Warning : Field limit exceeded<error line>
1
2
3
4
5
6
7
8
9
10
11
12
13
132
Possible cause
The block termination command "@end" is missing in the
"@command" block, add the "@end" command and try again.
The block start command "@begin" is missing in the "@begin"
block, add the "@begin" command and try again.
The block termination command "@end" is missing in the
"@begin" block, add the "@end" command and try again.
The block termination command "@end" is missing in the
"@system" block, add the "@end" command and try again.
The block termination command "@end" is missing in the
"@sender" block, add the "@end" command and try again.
The block termination command "@end" is missing in the
"@domain" block, add the "@end" command and try again.
The block termination command "@end" is missing in the
"@program" block, add the "@end" command and try again.
The system block start command "@system" is missing in the
"@system" block, add the "@system" command and try again.
Change the Fax Forward parameter to "Invalid" and try again.
Try again later when the machine is not busy.
Can not overwrite existing programmed data, use the "Delete"
command to erase the existing data first.
Correct the password and try again.
Set the Remote Dialer Update parameter to "Valid".
The format of the Entry is incorrect / incomplete or the data string
for each station is not defined within a single line.
The format of the Entry is incorrect or the number of characters
entered, exceed the maximum allowed in the field. Correct it and
try again.
The maximum number of Station Name, Domain Name, Sender
Name, Program Name, etc were exceeded.
Appendix
Standard Compliance
10Base-T Ethernet (IEEE 802.3), 100Base-TX Fast Ethernet (IEEE802.3u)
Connector Interfaces
10/100 Base-TX port: RJ-45
Compatibility
IETF RFC 2305, ITU-T T.37
Communication Protocol
TCP/IP, SMTP, POP3. MIME
File Format
TIFF MH [IETF RFC 2301 Profile S], MMR (400 dpi only)
Email Receiving Width
Maximum LEDGER size
133
APPENDIX
Specifications
APPENDIX
Glossary
134
10Base-T/100Base-TX
An Ethernet standard for cable. The 10/100 refers to its 10/100 Mbps
bandwidth, the base to single channel baseband, and the T to the Twisted
pair. The cable uses two pairs of unshielded twisted wires.
Client
Clients are computers that run software programs used to contact and
obtain data from Server software program on another computer, often
across a great distance.
Default Router IP Address
This is your Router’s Address, it is used by other Networks to determine
which route to take when communicating with your Internet Fax.
Direct Dialing
The method of dialing where you enter the entire telephone number or
email address through the keypad.
Directory Search Dialing
Allows you to dial a full telephone number or email address by searching
the station’s name or email address entered in the One-Touch keys or
Abbreviated dialing numbers.
DNS (Domain Name Server)
The purpose of the DNS is to store records containing domain information,
such as Fully Qualified Domain Names (FQDN) and translate them to
TCP/IP addresses.
Domain Name
A unique name that identifies an Internet site. Domain Names always have
2 or more parts, separated by dots. The part on the left is the most
specific, and the part on the right is the most general.
Email Address
The address for sending and receiving data by email. It consists of User
name, Sub-domain name and Domain name.
End Receiving Station
In a relay network, the final station designated to receive the document.
Ethernet
A very common method of networking computers and equipment in a LAN.
Ethernet can handle up to 100 Mbps and can be used with almost any kind
of computer.
G3 Mode (Group 3)
Refers to the standards and transmission capabilities of the current
generation of facsimile machines.
Group Dialing
The ability to program many telephone numbers and/or email addresses
into a single station so that many locations can be dialed in sequence
utilizing a single keystroke.
Halftone
A scanning technique to distinguish levels of gray from black and white.
Your machine can detect up to 64 levels of gray in halftone mode.
Header
A row of information that is transmitted by the sending machine and printed
on the top of each page by the receiving unit. This identifies the
transmitting unit and information about the transmission, such as time and
date.
Home Page
The page that your Browser displays when it starts up or the main web
page for a business, organization, etc.
APPENDIX
Glossary
Host
Any computer on a network that is a repository for services available to
other computers on the network. A Host must have a unique Host name
within a domain. The host is the first (left most) section of the Fully
Qualified Domain Name (FQDN). The remainder of the FQDN is the
domain and often tells you something about where the DP-2000 is located
(i.e., at Panasonic).
ID
A programmable address of up to 20 digits identifying your machine.
Information Code
A code that is internally generated by your Fax stating a specific
operational error or machine failure.
Initial Sending Station
In a relay network, the station that is originating the document
transmission.
Internet
The vast collection of inter-connected networks that all use the TCP/IP
protocols. The Internet connects independent networks into a vast global
internet.
Intranet
A private network inside a company or organization that uses the same
kinds of software that you would find on the public Internet, but that is only
for internal use.
IP Address
A unique number used to identify equipment or host computers on the
Internet.
ISP
(Internet Service Provider)
An institution that provides access to the Internet in some form, usually for
money.
Journal
A report that is printed by your unit listing the last 100 transactions.
Keypad
A group of numeric keys located on your control panel.
LAN (Local Area Network)
A computer network system and printer limited to an immediate area, such
as an Office, Factory, and University used to integrate and exchange data.
LCD
Liquid Crystal Display. The display area of your machine.
LOGO
Your programmed company name or identification up to 25 alphanumeric
characters.
MAC Address
Its the hardware address, often referred to as MAC (Media Access Control)
address that is assigned to the equipment. MAC address is hard-coded
and is not configurable. The MAC address consists of 6 hexadecimal
numbers separated by colons. Example: 00:00:c0:34:f1:50
Mail Gateway IP Address
The Address of the Mail Server. The Internet Fax communicates with your
existing Mail Server for all communication traffic.
Mailing List
A system that allows people to send an email to one address, whereupon
their message is conveyed to multiple subscribers on the Mailing List.
MAPI
Acronym for Message Application Programming Interface. A standard
Windows interface for messaging that enables different mail programs and
other mail-aware applications like word processors and spreadsheets to
exchange messages and attachments with each other.
135
APPENDIX
Example:
Your DP-2000’s email address is: [email protected]
In the example above "fax01" is the host and "panasonic.com" is the
domain.
APPENDIX
Glossary
MIME (Multipurpose Internet A standard used for attaching non-text (image) files to Internet email
Mail Extension)
messages.
136
Multi-Station Transmission
The ability to broadcast the same set of documents to a programmed
number of locations.
Network
Any time you connect 2 or more computers together so that they can share
resources, you have a computer network. Connect 2 or more networks
together and you have an internet.
POP (Post Office Protocol)
POP refers to the way email software such as Eudora or the DP-2000 gets
email from a mail server. You must always have a POP account that you
tell your email software to use to retrieve your mail.
Program Keys
Keys that are defined for storing a sequence of stations to be dialed.
Protocol
A protocol is the special set of rules for communicating that the end points
in a telecommunication connection use when they send signals back and
forth. Both end points must recognize and observe the protocol.
Relay Address
A 2-digit code that identifies your machine is programmed in a relay
network.
Relay Network
A group of facsimile machines that communicate via a relay station.
Relay Station
A certain type of facsimile machine that can store and forward documents
to an end receiving station and/or a relay station in another relay network.
Your machine can not be used as a relay station.
Relayed Transmission
Sending a document to a relay station, which in turn, sends the document
to the end receiving station.
Relayed Transmission
Report
A report that contains information regarding the last document
transmission to a relay station.
Resolution
Relates to the number of dots scanned or printed per certain square. The
quality of the image increases as the number of dots per certain square
increases.
Router
A special purpose computer (or software package) that handles the
connection between 2 or more networks. Routers act like traffic cops, they
spend their time looking at the destination addresses of the packets
passing through them and deciding which route to send them on.
Sender Selection
The user can select one of 24 pre-programmed sender’s name and email
address/telephone number before each transmission.
Server
A computer, or a software package, that provides a specific kind of service
to client software running on other computers. A single server machine
could have several different server software packages running on it, thus
providing many different servers to clients on the network.
SMTP (Simple Mail Transfer
Protocol)
This is the main communication protocol used to send and receive email
on the Internet.
Station Name
Alphanumeric ID which can be programmed for each One-Touch dialing
and Abbreviated dialing number.
Sub-Address
ITU-T recommendation for further routing, forwarding or relaying of
incoming faxes.
Sub-Address Password
ITU-T recommendation for additional security that corresponds to the Subaddress.
APPENDIX
Glossary
Subnet Mask
A mask bit used to manage sub-segments of the network which is defined
with network IDs.
TIFF Image Viewer
An application software to view the contents of TIFF-F File. Some TIFF
Image Viewers may not display the data properly.
TIFF-F (Tagged Image File
Format)
An image file format for attachments of graphic data for smooth
transmission between different units. The coding method of this format
supports the same coding as Modified Huffman (MH) and multiple-page
image data.
User Parameter
Programmed parameters that provide information to other stations.
Examples are logo, character ID, date and time.
View Mode - File List
Allows you to view the brief contents of the memory files through the LCD
display without having to print the Memory File List.
View Mode - Journal
Allows you to view the brief contents of the journal through the LCD display
without having to print the journal.
137
APPENDIX
TCP/IP (Transmission Control TCP/IP is a suite of protocols used to connect to the Internet and wideProtocol/Internet Protocol)
area networks.
Index
C
Communication Journal (COMM. JOURNAL)....121
Customizing Your Machine ..................................53
E
Email Address ......................................................26
F
FAX Parameter List............................................128
Fax Parameter Table ...........................................54
Function Key ..........................................................9
H
Host Name ...........................................................26
I
Ifax Return Receipt ............................................100
Important Information ...........................................22
Inbound Routing...................................................95
Information Codes..............................................131
Internet Communication Features........................17
J
Journals and Lists ..............................................117
M
Mailing List ...........................................................75
Manual Email Addressing ....................................62
Multi-Station Transmission (Broadcasting) ..........68
N
Network Printer ..................................................102
Network Scanner................................................101
P
POP Server ..........................................................78
POP Server Name ...............................................26
POP User Name ..................................................26
Pre Installation Information ..................................12
Program Keys ......................................................83
Program List.......................................................127
Programming or Retrieving Parameters
via Email...............................................................27
Programming the Auto Dialer...............................45
R
Relay XMT Report (COMM. JOURNAL) ............115
Relayed Transmission..................................21, 103
138
S
Selectable Domains ............................................ 70
Sender Selection ................................................. 89
Subject Line Entry ............................................... 93
T
Transaction Journal........................................... 119
U
User Parameters ................................................. 25
Facsimile Number Directory
Name
Number / Email Address
U.S.A. Only
WARRANTY
“PANASONIC DOCUMENT IMAGING COMPANY MAKES NO WARRANTIES, GUARANTEES OR
REPRESENTATIONS, EXPRESSED OR IMPLIED, TO CUSTOMER WITH RESPECT TO THIS
PANASONIC COPIER, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
PANASONIC DOCUMENT IMAGING COMPANY ASSUMES NO RISK AND SHALL NOT BE SUBJECT
TO LIABILITY FOR ANY DAMAGE, INCLUDING, BUT NOT LIMITED TO DIRECT, INDIRECT, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSS OF PROFITS SUSTAINED BY THE
CUSTOMER IN CONNECTION WITH THE USE OR APPLICATION OF THIS PANASONIC COPIER. SEE
YOUR DEALER FOR DETAILS OF DEALER'S WARRANTY.”
For Service, Call:
Panasonic Document Imaging Company
A Division of Matsushita Electric Corporation of America
Two Panasonic Way
Secaucus, New Jersey 07094
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga,
Ontario L4W 2T3
T0101-0
DZSD001222-0
January 2001
Printed in Japan
