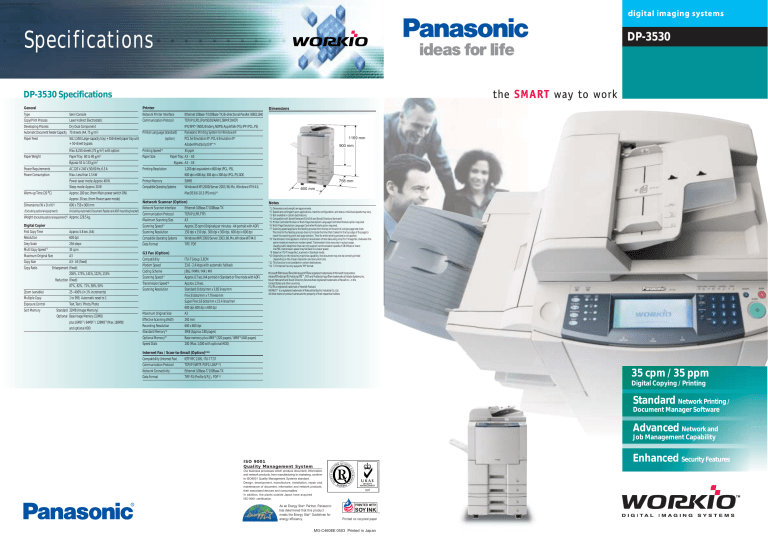

Specifications
DP-3530
DP-3530 Specifications
General
Printer
Dimensions
Type
Semi Console
Network Printer Interface
Ethernet 10Base-T/100Base-TX, Bi-directional Parallel (IEEE1284)
Copy/Print Process
Laser Indirect Electrostatic
Communication Protocol
TCP/IP (LPD, [Port9100/RAW], SNMP, DHCP)
Developing Process
Dry Dual Component
Printer Language (standard)
Panasonic Printing System for Windows®
Automatic Document Feeder Capacity 70 sheets (A4, 75 g/m2)
IPX/SPX*4 (NDS, Bindery, NDPS) AppleTalk (PS), IPP (PCL, PS)
Std. 1,550 (Large-capacity tray) + 550-sheet paper tray unit
+ 50-sheet bypass
Paper Feed
Paper Weight
(option)
1169 mm
PCL 5e Emulation®*5, PCL 6 Emulation®*5
Adobe® PostScript3®™*6
Max. 6,250 sheets (75 g/m2) with option
Printing Speed*2
Paper Tray: 60 to 90 g/m2
Paper Size
900 mm
35 ppm
Paper Tray: A3 – A5
Bypass: 55 to 133 g/m2
Bypass: A3 – A5
Power Requirements
AC 220 V-240 V, 50/60 Hz, 6.5 A
Power Consumption
Max.: Less than 1.5 kW
Power saver mode: Approx. 40 W
Printer Memory
50MB
Sleep mode: Approx. 20 W
Compatible Operating Systems
Windows® XP/2000/Server 2003, 98, Me, Windows NT® 4.0,
Warm-up Time (20 ºC)
Approx. 180 sec. (from Main power switch ON)
Approx. 30 sec. (from Power saver mode)
Dimensions (W x D x H)*1
600 x 758 x 900 mm
(Excluding optional equipment)
(Including Automatic Document Feeder and ADF mounting bracket)
Weight (Excluding optional equipment)*1Approx. 128.5 kg
Digital Copier
Printing Resolution
1,200 dpi equivalent x 600 dpi (PCL, PS),
600 dpi x 600 dpi, 300 dpi x 300 dpi (PCL, PS, GDI)
758 mm
MacOS 8.6-10.3 (PS only)*6
Network Scanner (Option)
Notes
Network Scanner Interface
Ethernet 10Base-T/100Base-TX
Communication Protocol
TCP/IP (LPR, FTP)
Maximum Scanning Size
A3
Scanning Speed*7
Approx. 35 opm (Originals per minutes - A4 portrait with ADF)
*1
*2
*3
*4
*5
*6
*7
First Copy Time
Approx. 5.8 sec. (A4)
Scanning Resolution
150 dpi x 150 dpi, 300 dpi x 300 dpi, 600 dpi x 600 dpi
Resolution
600 dpi
Compatible Operating Systems
Windows®XP/2000/Server 2003, 98, Me, WindowsNT®4.0
Grey Scale
256 steps
Data Format
TIFF, PDF
Multi Copy Speed*2
35 cpm
Maximum Original Size
A3
Copy Size
A3– A5 (fixed)
Copy Ratio
Enlargement(fixed)
200%, 173%, 141%, 122%, 115%
Reduction(fixed)
87%, 82%, 71%, 58%, 50%
Zoom (variable)
25~400% (in 1% increments)
Multiple Copy
1 to 999, Automatic reset to 1
Exposure Control
Text, Text / Photo, Photo
Sort Memory
Standard 32MB (Image Memory)
Optional Base Image Memory (32MB)
plus 16MB*3 / 64MB*3 / 128MB*3 (Max. 160MB)
and optional HDD
600 mm
G3 Fax (Option)
Compatibility
ITU-T Group 3, ECM
Modem Speed
33.6 - 2.4 kbps with automatic fallback
Coding Scheme
JBIG / MMR / MR / MH
Scanning Speed*7
Approx. 0.7 sec. (A4 portrait in Standard or Fine mode with ADF)
Transmission Speed*8
Approx. 2.9 sec.
Scanning Resolution
Standard: 8 dots/mm x 3.85 lines/mm
Fine: 8 dots/mm x 7.7lines/mm
Dimensions and weight are approximate.
Speeds are contingent upon applications, machine configuration, and status. Individual speeds may vary.
Not available in certain destinations.
Compatible with Novell Netware® 3/4/5/6 and Novell Directory Services®.
Printer Controller Module or Multi-Page Description Language Controller Module option required.
Multi-Page Description Language Controller Module option required.
Scanning speed applies to the feeding process from the top to the end of a single page test chart.
The time for the feeding process does not include the time that it takes for the top edge of the page to
reach the scanning point and page ejection. Time for entire storing process is not applied.
*8 Transmission time applies to memory transmission of text data using only ITU-T Image No.1 between the
same models at maximum modem speed. Transmission time may vary in actual usage.
Usually public telephone lines can only support communication speeds of 28.8 Kbps or lower.
Via PBX, transmission speed may fall back to a lower speed.
*9 Based on ITU-T Image No.1 scanned in Standard mode.
*10 Depending on the receiving machines capability, the document may not be correctly printed
depending on the chosen resolution and document size.
*11 This function is not available in certain destinations.
*12 T.37 Internet Fax only supports TIFF format.
Microsoft® Windows® and Windows NT® are registered trademarks of Microsoft Corporation.
Adobe®, PostScript®, PostScript®3™, PDF and PostScript logo® are trademarks of Adobe Systems, Inc.
Novell Netware® and Novell Directory Services® are registered trademarks of Novell Inc., in the
United States and other countries.
PCL® is a registered trademark of Hewlett-Packard.
WORKiO™ is a registered trademark of Matsushita Electric Industrial Co., Ltd.
All other brand or product names are the property of their respective holders.
Super Fine: 16 dots/mm x 15.4 lines/mm
600 dpi: 600 dpi x 600 dpi
Maximum Original Size
A3
Effective Scanning Width
292 mm
Recording Resolution
600 x 600 dpi
Standard Memory*9
3MB (Approx. 180 pages)
Optional Memory*9
Base memory plus 4MB*3 (320 pages) / 8MB*3 (640 pages)
Speed Dials
200 (Max. 1,000 with optional HDD)
Internet Fax / Scan-to-Email (Option)*10
Compatibility (Internet Fax)
IETF RFC 2305, ITU-T T.37
Communication Protocol
TCP/IP (SMTP, POP3, LDAP*11)
Network Connectivity
Ethernet 10Base-T/100Base-TX
Data Format
TIFF-FX (Profile S/F/J), PDF*12
35 cpm / 35 ppm
Digital Copying / Printing
Standard Network Printing /
Document Manager Software
Advanced Network and
Job Management Capability
Enhanced Security Features
ISO 9001
Quality Management System
Our business processes which produce document, information
and network products, from manufacturing to marketing, conform
to ISO9001 Quality Management Systems standard.
Design, development, manufacture, installation, repair and
maintenance of document, information and network products,
their associated devices and consumables.
In addition, the plants outside Japan have acquired
ISO 9001 certification.
As an Energy Star® Partner, Panasonic
has determined that this product
meets the Energy Star® Guidelines for
energy efficiency.
Printed on recycled paper
MG-C460EE 0503 Printed in Japan
WORKiO Keystone of Your Document Infrastructure
Featuring incredible networking capabilities and ease of operation, this high-performance platform
offers versatile copying, network printing, and network scanning and distribution solutions for total document processing and management needs. With enhanced security functions, the DP-3530 gives you
even more reasons to choose WORKiO.
