COPIER FEATURES
•
•
•
•
•
•
Auto
Auto
Auto
Auto
Auto
Auto
Drawer Change
Duplex Mode
Energy Saver
Job Start
Off Mode
Sort Mode
•
•
•
•
•
•
Copy on Tab Paper
Cover Sheet
Date/Time Indication
Department Codes
Dual Page
Edge Erase
DP-8130
Options
•
•
•
•
•
•
Help Function
Image Shift
Interrupt
Job Memory
Job Reservation
2-in-1/4-in-1 Copying
• Job Status
• Magazine Sort
• Mixed Sized Originals on
Auto Document Feeder
• Original Counter
• Overlay
•
•
•
•
•
Page Numbering
Paper Volume Indication
Sheet Insertion Mode
Tab Paper Mode
100-Sheet Stack
Feed Bypass
• Trimming/Masking
• Weekly Timer
Controller
DA1GL1020
Hole Punch Unit
DA-SP81
DP- 8130
2-Bin Finisher
DA-FS810
Large Capacity Feeder
(LCF)
DA-MA810
Productivity,
Durability &
Reliability
You Can
Count On.
Built to handle the biggest, most
demanding document processing tasks,
the Panasonic WORKiO® DP-8130 is one
of the most powerful digital copier/printers
you’ll find anywhere. Featuring exceptional
image reproduction quality, a large paper
capacity and custom document finishing
capabilities, this versatile system is perfect
for high-volume environments that share
network printers. Ideal for point-for-pay
facilities, school systems, heathcare
facilities and any type of large corporation,
the DP-8130 is the ultimate powerhouse
for productivity, durability and reliability.
2-Bin Saddle-Stitch
Finisher
DA-FS815
powerhouse
DP-8130 Specifications
STANDARD CONFIGURATION
Copying Process
Developing System
Paper Exit
Multi Copy Speed*1
Original Scanner Speed*1
First Copy Out Time
Warm-Up Time (20˚C)
Photoconductor
Hard Disk Drive
Memory
Document Storage
Maximum Original Size
Maximum Copy Size
Paper Weight
Specialty Paper
Paper Feed
Zoom
Resolution
Multiple copy
Exposure Control
Dimensions (W x D x H)*2
(Excluding optional equipment)
Weight*2
Power Consumption
DA1GL1020 CONTROLLER
Indirect Electrostatic Photographic Method
2-component Magnetic Brush Developing
Face Down
Up to 81 cpm (Letter)
65 OPM (Letter)
Approximately 3.2 seconds
Approximately 160 seconds
OPC Drum
10 GB
32 MB
24 Locations
Ledger
Ledger
17 — 110 lb Index (Drawer and Bypass feeding)
Tab Paper from Bypass and Lower Drawer
Tandem LCF: Letter 2,500 Sheets, Drawers: 500 Sheets x 2,
Bypass: 100 Sheets
Maximum 7,600 Sheets with optional DA-MA810
25 — 400 % (in 1 % increments)
600 x 2400 dpi with smoothing
Up to 9,999 copies
Automatic, plus manual selection from 11 exposure steps
27.5" x 30.6" x 47.8"
Processor
Memory
Hard Disk Drive
Scanning
Interfaces
Languages
Network Support
Peer-to-Peer
Network Protocols
IP Addressing
SNMP/MIB Access
Printing Protocols
Windows® Drivers
Macintosh® Driver
UNIX® Filter
Intel® Celeron˛ 566 MHz
256 MB Standard/Maximum
20 GB HDD
Standard Scan-to-File, Scan-to-Email, Scan-to-TWAIN, Scan-to-Internet Fax
USB, 10/100BaseT Ethernet
PCL6 Emulation, PostScript 3 Emulation Standard
NetWare® 4.x (Bindery), NetWare® 4.x (NDS) including NDPS,
NetWare® 5.x (Bindery) including NDPS, Windows® NT 3.51/4.0 Domain Server,
4.0 Terminal Server, Windows® 2000 Server, Advanced Server, Windows Server 2003
Windows® 98SE, Me, 2000 Professional, XP Home/Professional, Server 2003,
Windows® NT 4.0 Workstation
IPX/SPX, TCP/IP, EtherTalk®
Static IP, Auto IP (DHCP)
MIB-2 (RFC1213), Host Resource MIB (RFC1514), Printer MIB (RFC1759),
SNMPv2 traps Printer MIB (RFC1759), SNMPv2 traps
Windows® Printing (SMB), LPR/LPD, IPP (v1.1), NetWare® P-Server with NDS and
with Binary, EtherTalk®, Port 9100 RAW
Windows® 98SE, Me, 2000 Professional, Server 2003, XP Home/Professional,
Windows® NT 4.0
Mac® OS 8.5 — 10.3 via Mac® PPD for LaserWriter®
Sun® Solaris (v2.5x/2.6/7.0), HP-UX, AIX (IBM) 4.3x, Linux Redhat 7.x
Notes
*1 Speeds are contingent upon applications, machine configuration and status. Individual speeds may vary.
*2 Dimensions and weight are approximate.
Design and specification are subject to change without notice. Not all options may be available at the time of notification.
Approximately 472 lbs.
Maximum 2.0 kW (115V) 20A
Dimensions
47.8 "
Microsoft® Windows® and Windows NT® are registered trademarks of Microsoft Corporation.
Adobe, PostScript and PostScript 3 are registered trademarks of Adobe Systems Incorporated in the United States and/or
other countries.
PCL is a registered trademark of Hewlett-Packard.
UNIX is a registered trademark in the United States and other countries, licensed exclusively through X/Open Company Ltd.
Macintosh®, Mac®, EtherTalk® and LaserWriter are trademarks of Apple Computer, Inc., registered in the U.S. and other countries.
Novell Netware® and Novell Directory Services® are registered trademarks of Novell Inc. in the United States and other countries.
Sun, Sun Microsystems, the Sun Logo are trademarks or registered trademarks of Sun Microsystems, Inc. in the United
States and other countries.
WORKiO® is a registered trademark of Matsushita Electric Industrial Co., Ltd.
All other brand or product name are the property of their respective holders.
ISO 9001 Quality
Management System
30.6"
24.2 "
3.0 "
27.5 "
Our business processes which produce document,
information and network products, from
manufacturing to marketing, conform to ISO9001
Quality Management Systems standard. Design,
development, manufacture, installation, repair and
maintenance of document, information and network
products, their associated devices and
consumables.In addition, the plants outside Japan
have acquired ISO 9001 certification.
As an Energy Star® partner, Panasonic has
determined that this product meets the
Energy Star® guidelines for energy efficiency.
12.8 "
Panasonic Digital Document Company
Unit Company of Panasonic Corporation of North America
Two Panasonic Way, Secaucus, NJ 07094
For a local dealer, please call 1-800-742-8086
panasonic.com/office
PPC-DP-8130-BR
•
•
•
•
High Speed up to 81 cpm/ppm Digital Copier/Printer
Large Paper Capacity of up to 7,600 Sheets
Versatile Network Printing Capability (option)
Scan-to-PC/Scan-to-Email/Scan-to-Internet Fax (option)
COPIER FEATURES
•
•
•
•
•
•
Auto
Auto
Auto
Auto
Auto
Auto
Drawer Change
Duplex Mode
Energy Saver
Job Start
Off Mode
Sort Mode
•
•
•
•
•
•
Copy on Tab Paper
Cover Sheet
Date/Time Indication
Department Codes
Dual Page
Edge Erase
DP-8130
Options
•
•
•
•
•
•
Help Function
Image Shift
Interrupt
Job Memory
Job Reservation
2-in-1/4-in-1 Copying
• Job Status
• Magazine Sort
• Mixed Sized Originals on
Auto Document Feeder
• Original Counter
• Overlay
•
•
•
•
•
Page Numbering
Paper Volume Indication
Sheet Insertion Mode
Tab Paper Mode
100-Sheet Stack
Feed Bypass
• Trimming/Masking
• Weekly Timer
Controller
DA1GL1020
Hole Punch Unit
DA-SP81
DP- 8130
2-Bin Finisher
DA-FS810
Large Capacity Feeder
(LCF)
DA-MA810
Productivity,
Durability &
Reliability
You Can
Count On.
Built to handle the biggest, most
demanding document processing tasks,
the Panasonic WORKiO® DP-8130 is one
of the most powerful digital copier/printers
you’ll find anywhere. Featuring exceptional
image reproduction quality, a large paper
capacity and custom document finishing
capabilities, this versatile system is perfect
for high-volume environments that share
network printers. Ideal for point-for-pay
facilities, school systems, heathcare
facilities and any type of large corporation,
the DP-8130 is the ultimate powerhouse
for productivity, durability and reliability.
2-Bin Saddle-Stitch
Finisher
DA-FS815
powerhouse
DP-8130 Specifications
STANDARD CONFIGURATION
Copying Process
Developing System
Paper Exit
Multi Copy Speed*1
Original Scanner Speed*1
First Copy Out Time
Warm-Up Time (20˚C)
Photoconductor
Hard Disk Drive
Memory
Document Storage
Maximum Original Size
Maximum Copy Size
Paper Weight
Specialty Paper
Paper Feed
Zoom
Resolution
Multiple copy
Exposure Control
Dimensions (W x D x H)*2
(Excluding optional equipment)
Weight*2
Power Consumption
DA1GL1020 CONTROLLER
Indirect Electrostatic Photographic Method
2-component Magnetic Brush Developing
Face Down
Up to 81 cpm (Letter)
65 OPM (Letter)
Approximately 3.2 seconds
Approximately 160 seconds
OPC Drum
10 GB
32 MB
24 Locations
Ledger
Ledger
17 — 110 lb Index (Drawer and Bypass feeding)
Tab Paper from Bypass and Lower Drawer
Tandem LCF: Letter 2,500 Sheets, Drawers: 500 Sheets x 2,
Bypass: 100 Sheets
Maximum 7,600 Sheets with optional DA-MA810
25 — 400 % (in 1 % increments)
600 x 2400 dpi with smoothing
Up to 9,999 copies
Automatic, plus manual selection from 11 exposure steps
27.5" x 30.6" x 47.8"
Processor
Memory
Hard Disk Drive
Scanning
Interfaces
Languages
Network Support
Peer-to-Peer
Network Protocols
IP Addressing
SNMP/MIB Access
Printing Protocols
Windows® Drivers
Macintosh® Driver
UNIX® Filter
Intel® Celeron˛ 566 MHz
256 MB Standard/Maximum
20 GB HDD
Standard Scan-to-File, Scan-to-Email, Scan-to-TWAIN, Scan-to-Internet Fax
USB, 10/100BaseT Ethernet
PCL6 Emulation, PostScript 3 Emulation Standard
NetWare® 4.x (Bindery), NetWare® 4.x (NDS) including NDPS,
NetWare® 5.x (Bindery) including NDPS, Windows® NT 3.51/4.0 Domain Server,
4.0 Terminal Server, Windows® 2000 Server, Advanced Server, Windows Server 2003
Windows® 98SE, Me, 2000 Professional, XP Home/Professional, Server 2003,
Windows® NT 4.0 Workstation
IPX/SPX, TCP/IP, EtherTalk®
Static IP, Auto IP (DHCP)
MIB-2 (RFC1213), Host Resource MIB (RFC1514), Printer MIB (RFC1759),
SNMPv2 traps Printer MIB (RFC1759), SNMPv2 traps
Windows® Printing (SMB), LPR/LPD, IPP (v1.1), NetWare® P-Server with NDS and
with Binary, EtherTalk®, Port 9100 RAW
Windows® 98SE, Me, 2000 Professional, Server 2003, XP Home/Professional,
Windows® NT 4.0
Mac® OS 8.5 — 10.3 via Mac® PPD for LaserWriter®
Sun® Solaris (v2.5x/2.6/7.0), HP-UX, AIX (IBM) 4.3x, Linux Redhat 7.x
Notes
*1 Speeds are contingent upon applications, machine configuration and status. Individual speeds may vary.
*2 Dimensions and weight are approximate.
Design and specification are subject to change without notice. Not all options may be available at the time of notification.
Approximately 472 lbs.
Maximum 2.0 kW (115V) 20A
Dimensions
47.8 "
Microsoft® Windows® and Windows NT® are registered trademarks of Microsoft Corporation.
Adobe, PostScript and PostScript 3 are registered trademarks of Adobe Systems Incorporated in the United States and/or
other countries.
PCL is a registered trademark of Hewlett-Packard.
UNIX is a registered trademark in the United States and other countries, licensed exclusively through X/Open Company Ltd.
Macintosh®, Mac®, EtherTalk® and LaserWriter are trademarks of Apple Computer, Inc., registered in the U.S. and other countries.
Novell Netware® and Novell Directory Services® are registered trademarks of Novell Inc. in the United States and other countries.
Sun, Sun Microsystems, the Sun Logo are trademarks or registered trademarks of Sun Microsystems, Inc. in the United
States and other countries.
WORKiO® is a registered trademark of Matsushita Electric Industrial Co., Ltd.
All other brand or product name are the property of their respective holders.
ISO 9001 Quality
Management System
30.6"
24.2 "
3.0 "
27.5 "
Our business processes which produce document,
information and network products, from
manufacturing to marketing, conform to ISO9001
Quality Management Systems standard. Design,
development, manufacture, installation, repair and
maintenance of document, information and network
products, their associated devices and
consumables.In addition, the plants outside Japan
have acquired ISO 9001 certification.
As an Energy Star® partner, Panasonic has
determined that this product meets the
Energy Star® guidelines for energy efficiency.
12.8 "
Panasonic Digital Document Company
Unit Company of Panasonic Corporation of North America
Two Panasonic Way, Secaucus, NJ 07094
For a local dealer, please call 1-800-742-8086
panasonic.com/office
PPC-DP-8130-BR
•
•
•
•

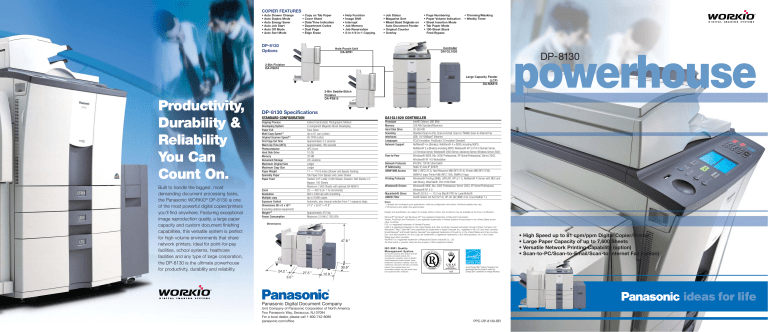

High Speed up to 81 cpm/ppm Digital Copier/Printer
Large Paper Capacity of up to 7,600 Sheets
Versatile Network Printing Capability (option)
Scan-to-PC/Scan-to-Email/Scan-to-Internet Fax (option)
DP- 8130
Super-fast Printing & Copying
Outstanding Image Quality
The DP-8130 is fast. With print speeds up to 81 pages
a minute — nearly a page and a half every second — the
DP-8130 makes short work of even the biggest copy and
print jobs. This ultimate high-speed, high quality
copying/printing solution has a fast warm-up time of
approximately 160 seconds and a first-copy-out time of
approximately 3.2 seconds.
Documents are scanned at 600 dpi to produce the
highest image resolution possible in Text, Photo, and
Text/Photo modes. The system’s Advanced Image
Processing Technology sharpens text and line-art, while
the Image Stabilization Technology accurately
reproduces halftones and grayscales.
Impressive 7,600 sheet
Paper Capacity
The DP-8130’s impressive maximum paper capacity of
7,600 sheets easily manages long paper runs and was
designed to handle heavy workload volumes. Standard
equipment includes two 500 sheet cassettes, two tandem
1,250 sheet lower cassettes that hold a maximum of 2,500
sheets, and a 100 sheet Stack Feed Bypass. An optional
front-loading Large Capacity Feeder offers an additional
capacity of 4,000 sheets, for a total of 7,600 sheets.
Original Text
Advanced Image
Processing Technology
User-friendly Operation
The DP-8130’s user-friendly design incorporates a
streamlined, touch-screen control panel with easy-touse buttons. A convenient graphical guidance system
takes users step-by-step through more complex
copying tasks, while the oversized operation buttons
ensure that users can easily operate all functions.
Hollowed keys in the numeric keypad make it easy for
anyone to recognize each number key.
Enhanced
Network
Connectivity
Versatile connectivity options
transform the DP-8130 from a
standalone digital copier to a
fully networked document
processing system with
advanced functionality and high
volume printing performance.
The dedicated printer controller
provides PCL6 Emulation and
PostScript Emulation printing
capabilities, along with the ability
to scan-to-file, scan-to-email,
scan-to-TWAIN and scan-toInternet Fax. The DP-8130 also
features concurrent scan and
print capabilities, enabling users
to scan documents without
interrupting print jobs. A 20GB
hard disk drive minimizes
network traffic and improves
printing performance by
temporarily storing jobs while
they await processing.
Document Finishing Solutions
Energy-Efficient Design
The DP-8130 offers an extensive array of professional
document processing features and finishing options
that can produce the types of documents typically
produced by media centers. Trayless Duplexing is
provided as standard for two-sided copying and
printing tasks, while a Multi-Position Stapling Finisher
option offers four different stapling positions. Other
finishing options include saddle stitch capabilities to
create center-stapled and folded booklets on either
Letter or Ledger-size paper, as well as an optional Hole
Punch unit that creates two or three-hole documents
for binding or tablets.
The system’s Energy Saving Mode is
automatically activated when the unit is left
inactive for a certain period of time, or
manually activated by simply pressing the
Energy Save button. This cost saving feature
minimizes energy consumption by maintaining a low
fuser temperature when the unit is in standby mode. The
DP-8130 also has an Auto Shut Off/Sleep Mode, which
automatically shuts off power when the unit has not been
used for a specific period of time. Users can also program
the unit to automatically start up or shut down at specific
times each day by activating the Weekly Timer feature.
DP- 8130
Super-fast Printing & Copying
Outstanding Image Quality
The DP-8130 is fast. With print speeds up to 81 pages
a minute — nearly a page and a half every second — the
DP-8130 makes short work of even the biggest copy and
print jobs. This ultimate high-speed, high quality
copying/printing solution has a fast warm-up time of
approximately 160 seconds and a first-copy-out time of
approximately 3.2 seconds.
Documents are scanned at 600 dpi to produce the
highest image resolution possible in Text, Photo, and
Text/Photo modes. The system’s Advanced Image
Processing Technology sharpens text and line-art, while
the Image Stabilization Technology accurately
reproduces halftones and grayscales.
Impressive 7,600 sheet
Paper Capacity
The DP-8130’s impressive maximum paper capacity of
7,600 sheets easily manages long paper runs and was
designed to handle heavy workload volumes. Standard
equipment includes two 500 sheet cassettes, two tandem
1,250 sheet lower cassettes that hold a maximum of 2,500
sheets, and a 100 sheet Stack Feed Bypass. An optional
front-loading Large Capacity Feeder offers an additional
capacity of 4,000 sheets, for a total of 7,600 sheets.
Original Text
Advanced Image
Processing Technology
User-friendly Operation
The DP-8130’s user-friendly design incorporates a
streamlined, touch-screen control panel with easy-touse buttons. A convenient graphical guidance system
takes users step-by-step through more complex
copying tasks, while the oversized operation buttons
ensure that users can easily operate all functions.
Hollowed keys in the numeric keypad make it easy for
anyone to recognize each number key.
Enhanced
Network
Connectivity
Versatile connectivity options
transform the DP-8130 from a
standalone digital copier to a
fully networked document
processing system with
advanced functionality and high
volume printing performance.
The dedicated printer controller
provides PCL6 Emulation and
PostScript Emulation printing
capabilities, along with the ability
to scan-to-file, scan-to-email,
scan-to-TWAIN and scan-toInternet Fax. The DP-8130 also
features concurrent scan and
print capabilities, enabling users
to scan documents without
interrupting print jobs. A 20GB
hard disk drive minimizes
network traffic and improves
printing performance by
temporarily storing jobs while
they await processing.
Document Finishing Solutions
Energy-Efficient Design
The DP-8130 offers an extensive array of professional
document processing features and finishing options
that can produce the types of documents typically
produced by media centers. Trayless Duplexing is
provided as standard for two-sided copying and
printing tasks, while a Multi-Position Stapling Finisher
option offers four different stapling positions. Other
finishing options include saddle stitch capabilities to
create center-stapled and folded booklets on either
Letter or Ledger-size paper, as well as an optional Hole
Punch unit that creates two or three-hole documents
for binding or tablets.
The system’s Energy Saving Mode is
automatically activated when the unit is left
inactive for a certain period of time, or
manually activated by simply pressing the
Energy Save button. This cost saving feature
minimizes energy consumption by maintaining a low
fuser temperature when the unit is in standby mode. The
DP-8130 also has an Auto Shut Off/Sleep Mode, which
automatically shuts off power when the unit has not been
used for a specific period of time. Users can also program
the unit to automatically start up or shut down at specific
times each day by activating the Weekly Timer feature.
DP- 8130
Super-fast Printing & Copying
Outstanding Image Quality
The DP-8130 is fast. With print speeds up to 81 pages
a minute — nearly a page and a half every second — the
DP-8130 makes short work of even the biggest copy and
print jobs. This ultimate high-speed, high quality
copying/printing solution has a fast warm-up time of
approximately 160 seconds and a first-copy-out time of
approximately 3.2 seconds.
Documents are scanned at 600 dpi to produce the
highest image resolution possible in Text, Photo, and
Text/Photo modes. The system’s Advanced Image
Processing Technology sharpens text and line-art, while
the Image Stabilization Technology accurately
reproduces halftones and grayscales.
Impressive 7,600 sheet
Paper Capacity
The DP-8130’s impressive maximum paper capacity of
7,600 sheets easily manages long paper runs and was
designed to handle heavy workload volumes. Standard
equipment includes two 500 sheet cassettes, two tandem
1,250 sheet lower cassettes that hold a maximum of 2,500
sheets, and a 100 sheet Stack Feed Bypass. An optional
front-loading Large Capacity Feeder offers an additional
capacity of 4,000 sheets, for a total of 7,600 sheets.
Original Text
Advanced Image
Processing Technology
User-friendly Operation
The DP-8130’s user-friendly design incorporates a
streamlined, touch-screen control panel with easy-touse buttons. A convenient graphical guidance system
takes users step-by-step through more complex
copying tasks, while the oversized operation buttons
ensure that users can easily operate all functions.
Hollowed keys in the numeric keypad make it easy for
anyone to recognize each number key.
Enhanced
Network
Connectivity
Versatile connectivity options
transform the DP-8130 from a
standalone digital copier to a
fully networked document
processing system with
advanced functionality and high
volume printing performance.
The dedicated printer controller
provides PCL6 Emulation and
PostScript Emulation printing
capabilities, along with the ability
to scan-to-file, scan-to-email,
scan-to-TWAIN and scan-toInternet Fax. The DP-8130 also
features concurrent scan and
print capabilities, enabling users
to scan documents without
interrupting print jobs. A 20GB
hard disk drive minimizes
network traffic and improves
printing performance by
temporarily storing jobs while
they await processing.
Document Finishing Solutions
Energy-Efficient Design
The DP-8130 offers an extensive array of professional
document processing features and finishing options
that can produce the types of documents typically
produced by media centers. Trayless Duplexing is
provided as standard for two-sided copying and
printing tasks, while a Multi-Position Stapling Finisher
option offers four different stapling positions. Other
finishing options include saddle stitch capabilities to
create center-stapled and folded booklets on either
Letter or Ledger-size paper, as well as an optional Hole
Punch unit that creates two or three-hole documents
for binding or tablets.
The system’s Energy Saving Mode is
automatically activated when the unit is left
inactive for a certain period of time, or
manually activated by simply pressing the
Energy Save button. This cost saving feature
minimizes energy consumption by maintaining a low
fuser temperature when the unit is in standby mode. The
DP-8130 also has an Auto Shut Off/Sleep Mode, which
automatically shuts off power when the unit has not been
used for a specific period of time. Users can also program
the unit to automatically start up or shut down at specific
times each day by activating the Weekly Timer feature.
COPIER FEATURES
•
•
•
•
•
•
Auto
Auto
Auto
Auto
Auto
Auto
Drawer Change
Duplex Mode
Energy Saver
Job Start
Off Mode
Sort Mode
•
•
•
•
•
•
Copy on Tab Paper
Cover Sheet
Date/Time Indication
Department Codes
Dual Page
Edge Erase
DP-8130
Options
•
•
•
•
•
•
Help Function
Image Shift
Interrupt
Job Memory
Job Reservation
2-in-1/4-in-1 Copying
• Job Status
• Magazine Sort
• Mixed Sized Originals on
Auto Document Feeder
• Original Counter
• Overlay
•
•
•
•
•
Page Numbering
Paper Volume Indication
Sheet Insertion Mode
Tab Paper Mode
100-Sheet Stack
Feed Bypass
• Trimming/Masking
• Weekly Timer
Controller
DA1GL1020
Hole Punch Unit
DA-SP81
DP- 8130
2-Bin Finisher
DA-FS810
Large Capacity Feeder
(LCF)
DA-MA810
Productivity,
Durability &
Reliability
You Can
Count On.
Built to handle the biggest, most
demanding document processing tasks,
the Panasonic WORKiO® DP-8130 is one
of the most powerful digital copier/printers
you’ll find anywhere. Featuring exceptional
image reproduction quality, a large paper
capacity and custom document finishing
capabilities, this versatile system is perfect
for high-volume environments that share
network printers. Ideal for point-for-pay
facilities, school systems, heathcare
facilities and any type of large corporation,
the DP-8130 is the ultimate powerhouse
for productivity, durability and reliability.
2-Bin Saddle-Stitch
Finisher
DA-FS815
powerhouse
DP-8130 Specifications
STANDARD CONFIGURATION
Copying Process
Developing System
Paper Exit
Multi Copy Speed*1
Original Scanner Speed*1
First Copy Out Time
Warm-Up Time (20˚C)
Photoconductor
Hard Disk Drive
Memory
Document Storage
Maximum Original Size
Maximum Copy Size
Paper Weight
Specialty Paper
Paper Feed
Zoom
Resolution
Multiple copy
Exposure Control
Dimensions (W x D x H)*2
(Excluding optional equipment)
Weight*2
Power Consumption
DA1GL1020 CONTROLLER
Indirect Electrostatic Photographic Method
2-component Magnetic Brush Developing
Face Down
Up to 81 cpm (Letter)
65 OPM (Letter)
Approximately 3.2 seconds
Approximately 160 seconds
OPC Drum
10 GB
32 MB
24 Locations
Ledger
Ledger
17 — 110 lb Index (Drawer and Bypass feeding)
Tab Paper from Bypass and Lower Drawer
Tandem LCF: Letter 2,500 Sheets, Drawers: 500 Sheets x 2,
Bypass: 100 Sheets
Maximum 7,600 Sheets with optional DA-MA810
25 — 400 % (in 1 % increments)
600 x 2400 dpi with smoothing
Up to 9,999 copies
Automatic, plus manual selection from 11 exposure steps
27.5" x 30.6" x 47.8"
Processor
Memory
Hard Disk Drive
Scanning
Interfaces
Languages
Network Support
Peer-to-Peer
Network Protocols
IP Addressing
SNMP/MIB Access
Printing Protocols
Windows® Drivers
Macintosh® Driver
UNIX® Filter
Intel® Celeron˛ 566 MHz
256 MB Standard/Maximum
20 GB HDD
Standard Scan-to-File, Scan-to-Email, Scan-to-TWAIN, Scan-to-Internet Fax
USB, 10/100BaseT Ethernet
PCL6 Emulation, PostScript 3 Emulation Standard
NetWare® 4.x (Bindery), NetWare® 4.x (NDS) including NDPS,
NetWare® 5.x (Bindery) including NDPS, Windows® NT 3.51/4.0 Domain Server,
4.0 Terminal Server, Windows® 2000 Server, Advanced Server, Windows Server 2003
Windows® 98SE, Me, 2000 Professional, XP Home/Professional, Server 2003,
Windows® NT 4.0 Workstation
IPX/SPX, TCP/IP, EtherTalk®
Static IP, Auto IP (DHCP)
MIB-2 (RFC1213), Host Resource MIB (RFC1514), Printer MIB (RFC1759),
SNMPv2 traps Printer MIB (RFC1759), SNMPv2 traps
Windows® Printing (SMB), LPR/LPD, IPP (v1.1), NetWare® P-Server with NDS and
with Binary, EtherTalk®, Port 9100 RAW
Windows® 98SE, Me, 2000 Professional, Server 2003, XP Home/Professional,
Windows® NT 4.0
Mac® OS 8.5 — 10.3 via Mac® PPD for LaserWriter®
Sun® Solaris (v2.5x/2.6/7.0), HP-UX, AIX (IBM) 4.3x, Linux Redhat 7.x
Notes
*1 Speeds are contingent upon applications, machine configuration and status. Individual speeds may vary.
*2 Dimensions and weight are approximate.
Design and specification are subject to change without notice. Not all options may be available at the time of notification.
Approximately 472 lbs.
Maximum 2.0 kW (115V) 20A
Dimensions
47.8 "
Microsoft® Windows® and Windows NT® are registered trademarks of Microsoft Corporation.
Adobe, PostScript and PostScript 3 are registered trademarks of Adobe Systems Incorporated in the United States and/or
other countries.
PCL is a registered trademark of Hewlett-Packard.
UNIX is a registered trademark in the United States and other countries, licensed exclusively through X/Open Company Ltd.
Macintosh®, Mac®, EtherTalk® and LaserWriter are trademarks of Apple Computer, Inc., registered in the U.S. and other countries.
Novell Netware® and Novell Directory Services® are registered trademarks of Novell Inc. in the United States and other countries.
Sun, Sun Microsystems, the Sun Logo are trademarks or registered trademarks of Sun Microsystems, Inc. in the United
States and other countries.
WORKiO® is a registered trademark of Matsushita Electric Industrial Co., Ltd.
All other brand or product name are the property of their respective holders.
ISO 9001 Quality
Management System
30.6"
24.2 "
3.0 "
27.5 "
Our business processes which produce document,
information and network products, from
manufacturing to marketing, conform to ISO9001
Quality Management Systems standard. Design,
development, manufacture, installation, repair and
maintenance of document, information and network
products, their associated devices and
consumables.In addition, the plants outside Japan
have acquired ISO 9001 certification.
As an Energy Star® partner, Panasonic has
determined that this product meets the
Energy Star® guidelines for energy efficiency.
12.8 "
Panasonic Digital Document Company
Unit Company of Panasonic Corporation of North America
Two Panasonic Way, Secaucus, NJ 07094
For a local dealer, please call 1-800-742-8086
panasonic.com/office
PPC-DP-8130-BR
•
•
•
•
High Speed up to 81 cpm/ppm Digital Copier/Printer
Large Paper Capacity of up to 7,600 Sheets
Versatile Network Printing Capability (option)
Scan-to-PC/Scan-to-Email/Scan-to-Internet Fax (option)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
