Panasonic Universal Remote AJ- G User manual
午前9時25分

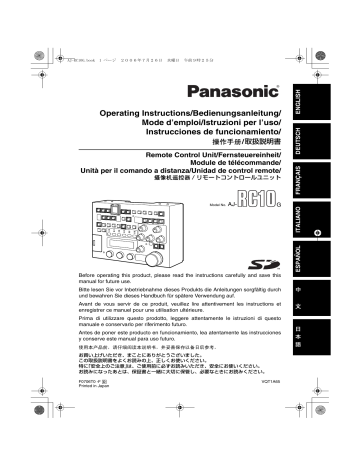

Operating Instructions/Bedienungsanleitung/
Mode d’emploi/Istruzioni per l’uso/
Instrucciones de funcionamiento/
操作手册/ 取扱説明書
Remote Control Unit/Fernsteuereinheit/
Module de télécommande/
Unità per il comando a distanza/Unidad de control remote/
摄像机遥控器 / リモートコントロールユニット
AJ-
G
ESPAÑOL
Model No.
ENGLISH
水曜日
DEUTSCH
2006年7月26日
FRANÇAIS
1 ページ
ITALIANO
AJ-RC10G.book
Before operating this product, please read the instructions carefully and save this
manual for future use.
Bitte lesen Sie vor Inbetriebnahme dieses Produkts die Anleitungen sorgfältig durch
und bewahren Sie dieses Handbuch für spätere Verwendung auf.
中
Avant de vous servir de ce produit, veuillez lire attentivement les instructions et
enregistrer ce manuel pour une utilisation ultérieure.
文
Prima di utilizzare questo prodotto, leggere attentamente le istruzioni di questo
manuale e conservarlo per riferimento futuro.
Antes de poner este producto en funcionamiento, lea atentamente las instrucciones
y conserve este manual para uso futuro.
本
語
使用本产品前,请仔细阅读本说明书,并妥善保存以备日后参考。
お買い上げいただき、まことにありがとうございました。
この取扱説明書をよくお読みの上、正しくお使いください。
特に「安全上のご注意」は、ご使用前に必ずお読みいただき、安全にお使いください。
お読みになったあとは、保証書と一緒に大切に保管し、必要なときにお読みください。
F0706T0 -F @
Printed in Japan
日
VQT1A65
AJ-RC10G.book
1 ページ
2006年7月26日
水曜日
午前9時25分
Read this first!
For General
„ DO NOT REMOVE PANEL COVERS
BY UNSCREWING THEM.
To reduce the risk of electric shock, do
not remove the covers. No user
serviceable parts inside.
Refer servicing to qualified service
personnel.
WARNING:
z TO REDUCE THE RISK OF FIRE OR
SHOCK HAZARD, DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR
MOISTURE.
z TO REDUCE THE RISK OF FIRE OR
SHOCK
HAZARD,
KEEP
THIS
EQUIPMENT
AWAY
FROM
ALL
LIQUIDS. USE AND STORE ONLY IN
LOCATIONS
WHICH
ARE
NOT
EXPOSED TO THE RISK OF DRIPPING
OR SPLASHING LIQUIDS, AND DO
NOT PLACE ANY LIQUID CONTAINERS
ON TOP OF THE EQUIPMENT.
indicates safety information.
E-1
CAUTION:
TO REDUCE THE RISK OF FIRE OR
SHOCK HAZARD AND ANNOYING
INTERFERENCE,
USE
THE
RECOMMENDED ACCESSORIES ONLY.
CAUTION:
In order to maintain adequate ventilation,
do not install or place this unit in a
bookcase, built-in cabinet or any other
confined space. To prevent risk of
electric shock or fire hazard due to
overheating, ensure that curtains and any
other materials do not obstruct the
ventilation.
Note:
The rating plate is on the underside of the
unit.
AJ-RC10G.book
2 ページ
2006年7月26日
水曜日
午前9時25分
ENGLISH
Read this first! (Continued)
For USA
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE COVER
(OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER TO SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead
symbol,
within
an
equilateral
triangle, is intended to alert the user
to the presence of uninsulated
“dangerous voltage” within the
product’s enclosure that may be of
sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important
operating
and
maintenance (service) instructions in
the literature accompanying the
appliance.
FCC Note:
This equipment has been tested and found
to comply with the limits for a class A digital
device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference when the equipment is operated
in a commercial environment.
This
equipment generates, uses, and can radiate
radio frequency energy, and if not installed
and used in accordance with the instruction
manual, may cause harmful interference to
radio communications. Operation of this
equipment in a residential area is likely to
cause harmful interference in which case the
user will be required to correct the
interference at his own expense.
Warning:
To assure continued FCC emission limit
compliance, the user must use only shielded
interface cables when connecting to external
units. Also, any unauthorized changes or
modifications to this equipment could void
the user’s authority to operate it.
indicates safety information.
E-2
AJ-RC10G.book
3 ページ
2006年7月26日
水曜日
午前9時25分
Table of Contents
Read this first! ................................ 1
General ............................................ 4
Features .......................................... 4
Accessories .................................... 4
Connection...................................... 5
System configuration..................... 5
Parts and functions........................ 6
Menu item ..................................... 24
Front panel ........................................6
SHUTTER .......................................27
Menu ...............................................24
BLACK.............................................24
FLARE .............................................25
GAMMA ...........................................25
WHITE .............................................25
KNEE...............................................27
Rear panel .......................................15
SHAD ..............................................28
Basic operations .......................... 16
MATRIX ...........................................28
When the power is on......................16
DTL..................................................29
To enable the buttons/volumes .......16
SKIN DTL ........................................29
To disable buttons/volumes.............16
FUNC ..............................................30
Operation of the camera recorder ...17
SYSTEM..........................................31
Operation of the camera
using the unit volume ......................18
Operation of the scene file ..............19
Operation for recording ...................20
Saving/Loading of scene files onto
the SD memory card .................... 21
Handling methods
for the SD memory card ..................21
To load data from the card ..............21
To write data on the card.................22
To delete files from the card ............22
Initialization of the card....................22
Menu operation.............................23
Operations using the LCD panel .....23
Operation of the camera recorder
menu ...............................................23
Adjustment of functions
on the unit........................................23
E-3
Connection cable ......................... 32
Confirmation of software
version .......................................... 32
Specifications............................... 33
4 ページ
2006年7月26日
水曜日
午前9時25分
General
The AJ-RC10G (hereinafter called “the unit”) is a remote control unit connected to the camera recorder.
The unit controls the camera recorder from the controller and is capable of changing numerical values
in the menu. Coverage can be extended by 50m by using the dedicated cable.
Features
z For some frequently functions on the camera unit, dedicated switches are provided for direct
operation.
z By switching to the recorder mode, the camera recorder can be controlled directly through the VTR
operation switch. In addition, recording can be disabled using a switch.
z Frequently used menus can be set by accessing the menus on the LCD panel of the unit. It is also
possible to display the time code on the LCD panel.
z Down-converted images with characters are output from the VIDEO OUT connector. The menus can
be operated on the main unit of the camera recorder by connecting the external monitor.
z By switching to the scene file mode, it is possible to operate the scene file. Data of revised scene files
can be stored on an SD memory card.
Accessories
Connection cable (10 m)
E-4
ENGLISH
AJ-RC10G.book
AJ-RC10G.book
5 ページ
2006年7月26日
水曜日
午前9時25分
Connection
<Notes>
1 While the power supply of the camera
z The frame frequency of the camera recorder
must be switched before connecting the unit to
the camera recorder.
At VIDEO output, NTSC signals are output for
60 Hz operation, while PAL signals are output
for 50 Hz operation.
z The settings for FUNC on the menu determine
whether the camera recorder’s settings, which
are adjusted when the unit is connected, are
returned to the settings before connecting the
unit or to the state after adjustment, when the
unit is disconnected from the camera recorder.
z Do not forcefully pull the connected cable.
When the camera recorder is used while it is
being moved, the cable must be fixed to the
tripod or the handle of the camera recorder so
that no force is applied directly to the
connector.
recorder is turned off, connect the RCU 10pin connector of the camera recorder to the
unit with the connection cable.
If settings are made from the camera menu,
set the frequency to the frame frequency of
the camera recorder and connect an NTSC
or PAL monitor.
2 After turning on the camera recorder power,
turn the unit power on.
System configuration
Monitor
Camera recorder
Dedicated 10-pin cable
Camera connection connector
Video cable
VIDEO OUT connector
AJ-RC10G
<Note>
To determine whether the camera recorder supports the use of the unit, consult our sales dealers or the
operation manual of the camera recorder.
E-5
AJ-RC10G.book
6 ページ
2006年7月26日
水曜日
午前9時25分
ENGLISH
Parts and functions
Front panel
!3" SW ACTIVE button
Panel part
!2" !3"
For enabling button/switch operations
!1"
!1" POWER button
ON/OFF switch of the main power supply of
the main unit
!2" PANEL ACTIVE button
For controlling which panel operations are
available
When the lamp is on:
The button/switch operations are
enabled.
When the lamp is off:
Only the POWER button, PANEL
ACTIVE button, SW ACTIVE button, VR
ACTICVE button, AUTO IRIS button,
M.PED volume, and IRIS volume are
available; all other operations are
disabled.
Turning on the self-lighting SW and the LED
display, which indicate the operating
conditions of the camera recorder, follow the
operating conditions of the camera recorder.
When the lamp is on:
The panel operations are available.
When the power is on, the unit is on.
When the lamp is off:
Only the POWER button and the PANEL
ACTIVE button are available; all other
button operations are disabled.
Turning on the self-lighting buttons and the
LED display, which indicate the operating
conditions of the camera recorder, follow the
operating conditions of the camera recorder.
E-6
AJ-RC10G.book
7 ページ
2006年7月26日
水曜日
午前9時25分
Parts and functions (Continued)
Camera recorder/Scene file operation
!1" !2" !3" !4" !5" !6" !7" !8"
H
!9"
!1" RECORDER ENABLE button
For switching between the recorder mode
and the scene file mode
When the lamp is on:
Recorder mode
Buttons from !3" to !8" are operated as
control buttons for the recording.
When the lamp is off:
Scene file mode
Buttons from !3" to !8" are operated as the
buttons for reading and storing scene
files. When the power is turned on, the
unit is in this state.
!2" REC.INH/LOAD button
In recorder mode:
When the lamp is on, the REC S/S button !8"
is inhibited.
However, even if the unit is in the recording
inhibition state, operation of the USER
button assigned REC function and operation
of the REC button on the camera recorder
are enabled.
The lamp is off when the power is on.
In scene file mode:
The button is operated as the LOAD switch
of the scene file. Data are retrieved from the
file on the remote controller.
E-7
!3" REW/1 button
In recorder mode:
This button is operated in the same way as
the REW button on the camera recorder,
and the lamp is on when a tape is rewinding.
In the scene file mode:
1 is selected as the number for the scene
file to be saved or loaded.
!4" FF/2 button
In recorder mode:
This button is operated in the same way as
the FF button on the camera recorder, and
the lamp is on when a tape is fastforwarding.
In scene file mode:
2 is selected as the number for the scene
file to be saved or loaded.
!5" STOP/3-button
In recorder mode:
This button is operated in the same way as
the STOP button on the camera recorder,
and the lamp is on when a tape stops.
In scene file mode:
3 is selected as the number for the scene
file to be saved or loaded.
!6" PLAY/4-button
In recorder mode:
This button is operated in the same way as
the PLAY button on the camera recorder,
and the lamp is on when a tape is replayed.
If the button is pressed again during tape
replay, it changes to replay/pause, and the
lamp flashes.
If the button is pressed one more time, the
unit returns to replaying, and the lamp is on
continuously.
In scene file mode:
4 is selected as the number for the scene
file to be saved or loaded.
AJ-RC10G.book
8 ページ
2006年7月26日
水曜日
午前9時25分
ENGLISH
Parts and functions (Continued)
!7" CHECK/5-button
In recorder mode:
This is the recording confirmation button. If
the button is pressed when recording is
paused, the recording can be checked.
The lamp flashes when the tape is rewound
and is turned on when the tape is replayed.
In scene file mode:
5 is selected as the number for the scene
file to be saved or loaded.
!8" REC S/S / SAVE button
In recorder mode:
This is the start/stop button for recording.
This button is operated in the same way as
the REC START button on the camera
recorder, and the lamp is on during
recording.
In scene file mode:
This button is operated in the same way as
the SAVE button for scene data.
The current data are stored in the file on the
remote controller, which is selected by using
the buttons from !3" to !7".
!9" RECORDER WARNING lamp
This lamp flashes or is turned on when an
error occurs on the camera recorder, just
like the WARNING lamp on the camera
recorder. For details, refer to the operation
manual of the camera recorder.
E-8
AJ-RC10G.book
9 ページ
2006年7月26日
水曜日
午前9時25分
Parts and functions (Continued)
!4" PRE/A/B button
Basic camera operations
!1"
H
Operations of this button are the same as
for the WHITE BAL switch on the camera
recorder to select PRE, A or B.
The state will switch to “PRE” # “A” # “B”
# “PRE” step by step every time the button
is pressed.
When the power is turned on, the unit is in
the state it was before turning off the power.
!5" PRE/A/B display
!5" !4" !2" !3" !7" !6" !8"
This displays the WHITE BAL selection on
the camera recorder using P/A/b
!1" USER MAIN button
This button has the same function as the
USER MAIN switch on the camera recorder.
The lamp is on only when the button is
pressed.
<Note>
Functions assigned to the USER MAIN
button are selected in the menu of the
camera recorder or the unit.
!2" USER1 button
This button has the same function as the
USER1 switch on the camera recorder. The
lamp is on only when the button is pressed.
<Note>
Functions assigned to the USER1 button
are selected in the menu of the camera
recorder or the unit.
!3" USER2 button
This button has the same function as the
USER2 switch on the camera recorder. The
lamp is on only when the button is pressed.
<Note>
Functions assigned to the USER2 button
are selected in the menu of the camera
recorder or the unit.
E-9
!6" FILTER ND/CC button
This switches the FILTER display on the CC/
ND display !7" between ND filter and the CC
filter alternately.
!7" CC/ND Display
This displays the ND or CC selection using
the FILTER ND/CC !6" button.
For the ND filter display, the filter position is
indicated with 1/2/3/4.
For the CC filter display, the filter position is
indicated with A/b/C/d.
For the single filter, filter switching is
disabled. 1/2/3/4 is displayed depending on
the filter position.
When the power is on, the ND filter position
is displayed.
!8" BAR ON/OFF button
This button switches the output from the
camera recorder between the color bar and
the camera signals.
When the output from the camera recorder
is the color bar, the lamp is on; otherwise, it
is off.
When the power is turned on, the unit is in
the state it was before turning off the power.
10 ページ 2006年7月26日
水曜日
午前9時25分
Parts and functions (Continued)
Basic camera operations (Continued)
!9" !10" !11" !12" !13"
H
!9" GAIN display
This displays the image gain of the camera
recorder. The initial value is the gain value
at the time when the GAIN switch on the
camera recorder was set to “L”.
!10" M.GAIN 3 button
When this button is pressed, the image gain
of the camera recorder is increased.
The lamp is on only when this button is
pressed.
!11" M.GAIN 4 button
!12" AWB button
When this button is pressed, the camera
recorder starts the AWB (Auto White
Balance) operation.
When this button is pressed during AWB
operation, the AWB operation will forcibly
terminate.
The lamp is on during AWB operation and
off when the operation is completed
correctly. If AWB operation finishes
incorrectly, the lamp will flash for 5 seconds
and then turn off.
!13" ABB button
When this button is pressed, the camera
recorder starts the ABB (Auto Black
Balance) operation.
When this button is pressed during the ABB
operation, the ABB operation will forcibly
terminate.
The lamp is on during ABB operation and off
when the operation is completed correctly. If
the ABB operation finishes incorrectly, the
lamp will flash for 5 seconds and then turn
off.
When this button is pressed, the image gain
of the camera recorder is reduced.
The lamp is on only when this button is
pressed.
E-10
ENGLISH
AJ-RC10G.book
AJ-RC10G.book
11 ページ 2006年7月26日
水曜日
午前9時25分
Parts and functions (Continued)
Basic camera operations (Continued)
!14" !15" !16" !17" !18"
!14" MATRIX ON button
This button switches the matrix function ON/
OFF. Even if the MATRIX is set to “OFF” in
the menu of the camera recorder, it switches
to “ON” when this button is pressed. “A” and
“B” of the MATRIX TABLE and the settings
for the table can be set with the menu on the
unit.
The lamp is on when the MATRIX is ON;
otherwise, the lamp is off.
!15" DTL OFF button
This button switches the DETAIL function of
the camera recorder ON/OFF. Even if the
DTL item in the menu of the camera
recorder is set to “OFF,” it will turn on when
this button is pressed.
When the unit is connected to the camera
recorder, this becomes the menu value for
the camera recorder.
The lamp is on when the DETAIL is set to
OFF; otherwise, the lamp is off.
E-11
!16" A.KNEE ON button
This button switches the AUTO KNEE
function ON/OFF. If the AUTO KNEE SW is
set to “OFF” in the menu of the camera
recorder, it is impossible to turn it ON using
this button.
When the power is turned on, the unit is in
the state it was before turning off the power.
The lamp is on when the AUTO KNEE
function is ON; otherwise, the lamp is off.
!17" HIGH COLOR ON button
This button switches the HIGH COLOR
function ON/OFF. Even if the HIGH COLOR
is set to “OFF” in the menu of the camera
recorder, it will turn on when this button is
pressed.
When the unit is connected to the camera
recorder, this becomes the menu value of
the camera recorder.
The lamp is on when the HIGH COLOR
function is on; otherwise, the lamp is off.
!18" SHT ON button
This button switches the shutter function
ON/OFF.
The shutter speed, when this function is on,
is selected in the menu of the unit.
The lamp is on when the shutter function is
on; otherwise, the lamp is off.
When the power is turned on, the unit is in
the state it was before turning off the power.
12 ページ 2006年7月26日
水曜日
午前9時25分
Parts and functions (Continued)
!4" R BLACK volume
Volume settings
!2"
!3"
!4"
!5"
!6"
!11"
!7"
!9"
!1"
!10"
!8"
This adjusts the Rch black level.
Switching between the relative value mode
and the absolute value mode is executed in
the menu BLACK-VR-MODE of the unit.
When reading card data and scene file data,
this will be in the relative value mode.
It is possible to select either Flare or
Pedestal for item adjustment in the Menu
BLACK-VR-CONTROL item on the unit. The
operations for the G BLACK volume and B
BLACK volume are the same.
!5" G BLACK volume
This adjusts the Gch black level.
!1" VR ACTIVE button
This is a button to approve/inhibit operations
of the GAIN volumes from !2" to !3" and the
BLACK volumes from !4" to !6".
When the power of the unit is on, it inhibits
operations.
The lamp is on when the approving/
operations are activated; otherwise, the
lamp is off.
!2" R GAIN volume
This adjusts the Rch gain.
The absolute value/relative value mode can
be switched in the GAIN-VR-MODE item of
the WHITE menu of the unit. When reading
card data and scene file data, this will be in
the relative value mode. The operations for
the B GAIN volume are the same.
!3" B GAIN volume
This adjusts the Bch gain.
!6" B BLACK volume
This adjusts the Bch black level.
!7" M.PED volume
This adjusts the master pedestal level. The
adjustment range is between the minimum
value of –200 and the maximum value of
+200 with a center value of 0.
!8" IRIS display
This displays the iris of the camera.
!9" AUTO IRIS button
This turns on the auto iris function.
When the power is turned on, the unit is in
the state it was before turning off the power.
The lamp is on when the unit commands the
auto iris operation in the camera; otherwise,
the lamp is off.
!10" IRIS volume
This adjusts the iris of the camera.
When the AUTO IRIS button !9" is set to
OFF, it is possible to move the iris from
CLOSE to OPEN by turning this to the right.
!11" EXT alarm lamp
This lamp is on when the lens extender is
inserted.
E-12
ENGLISH
AJ-RC10G.book
AJ-RC10G.book
13 ページ 2006年7月26日
水曜日
午前9時25分
Parts and functions (Continued)
Menu operation of the unit
!3" !6" !9" !12" !15" !18"
!4" !7" !10" !13" !16" !19"
!6" FLARE lamp
This lamp is on when FLARE is selected on
the LCD panel.
!7" MATRIX lamp
!20"
This lamp is on when MATRIX is selected on
the LCD panel.
!21"
!8" GAMMA/DTL button
!2" !5" !8"
!1" !11" !14" !17"
!1" LCD panel
This displays the menus for items selected
with the menu operation buttons !2", !5", !8",
!11", !14" and !17".
This is also capable of displaying the time
code.
!2" BLACK/SHAD button
This selects the large item displayed on the
LCD panel. The display will switch to
BLACK # SHAD # before entering into the
menu mode # BLACK step by step every
time the button is pressed.
!3" BLACK lamp
This lamp is on when BLACK is selected on
the LCD panel.
!4" SHAD lamp
This lamp is on when SHAD is selected on
the LCD panel.
!5" FLARE/MATRIX button
This button selects the large item displayed
on the LCD panel.
The display will switch to FLARE # MATRIX
# before entering into the menu mode #
FLARE step by step every time the button is
pressed.
E-13
This selects the large item displayed on the
LCD panel. The display will switch to
GAMMA # DTL # before entering the
menu mode # GAMMA step by step every
time the button is pressed.
!9" GAMMA lamp
This lamp is on when GAMMA is selected
on the LCD panel.
!10" DTL lamp
This lamp is on when DTL is selected on the
LCD panel.
!11" WHITE/SKIN DTL button
This selects the large item displayed on the
LCD panel. The display will switch to WHITE
# SKIN DTL # before entering the menu
mode # WHITE step by step every time the
button is pressed.
!12" WHITE lamp
This lamp is on when WHITE is selected on
the LCD panel.
!13" SKIN DTL lamp
This lamp is on when SKIN DTL is selected
in on the LCD panel.
AJ-RC10G.book
14 ページ 2006年7月26日
水曜日
午前9時25分
ENGLISH
Parts and functions (Continued)
!14" KNEE/FUNC button
This selects the large item displayed on the
LCD panel. The display will switch to KNEE
# FUNC # before entering the menu mode
# KNEE step by step every time the button
is pressed.
!22"
!23"
!27"
!15" KNEE lamp
This lamp is on when the KNEE is selected
on the LCD panel.
!16" FUNC lamp
This lamp is on when the FUNC is selected
on the LCD panel.
!17" SHUTTER/SYSTEM button
This selects the large item displayed on the
LCD panel. The display will switch to
SHUTTER # SYSTEM # before entering
the menu mode # SHUTTER step by step
every time the button is pressed.
!18" SHUTTER lamp
This lamp is on when the SHUTTER is
selected on the LCD panel.
!19" SYSTEM lamp
This lamp is on when the SYSTEM is
selected on the LCD panel.
!20" 3 button
!21" 4 button
This button switches the display on the LCD
panel and selects a medium item from the
menu of the unit.
The lamp is on when the button is pressed
and off when the button is released.
!24"
!25"
!26"
!22" MENU ON button
To open the menu on the camera recorder,
press this button continuously for 3 seconds.
In this case, a message “CAMERA MENU
OPEN” is displayed on the LCD panel. The
lamp is on at this time, and operations of the
menu and the scene file on the unit are not
available.
If this button is pressed when the menu of
the camera recorder is open, the menu will
close.
!23" CHARA ON button
This selects whether any characters are
overlaid on the video signals output from the
VIDEO OUT connector of the unit.
When the power is on, the unit is in the state it
was before turning off the power.
The lamp is on when characters are loaded
onto the signals, while it is off when
characters are not loaded.
!24" Rotary encoder 1
!25" Rotary encoder 2
!26" Rotary encoder 3
This is used for operating the menu on the
LCD panel or the camera menu.
The camera menu is operated by using the
right rotary encoder.
The operation of the rotary encoder is the
same as the JOG switch on the camera (+,
–, PUSH)
!27" Vacant button
This is a vacant button for which no function
is assigned.
E-14
AJ-RC10G.book
15 ページ 2006年7月26日
水曜日
午前9時25分
Parts and functions (Continued)
!6" Covering screw
Rear panel
!6"
The unit can be used when the four screws
are removed. However, do not leave the unit
without these screws for long periods of
time. When the screws are not in use, they
must be stored safely.
!2" !1"
VIDEO OUT
CABLE
50m
10m
<Note>
Do not remove the four screws on the back
panel.
CAM RCU
FREQUENCY
LEVEL
!3" !4" !5"
!1" Camera connection connector
To connect the 10-pin camera control cable.
1 8
2
7
9 10
3
6
4 5
Pin No.
Signal
1
CAM DATA (H)
2
CAM DATA (C)
3
CAM CONT (H)
4
CAM CONT (L)
5
ECU_ON
6
Video input
7
GND (Video)
8
Standby
9
+12 V (IN)
10
GND
!2" VIDEO OUT connector
An NTSC or PAL monitor is connected for
operating the menu on the main unit of the
camera recorder.
!3" Cable length selector switch
This switch is on for a 50 m cable.
!4" Frequency characteristics
adjustment volume
This adjusts the frequency characteristics of
the VIDEO signals.
!5" Level adjustment volume
This adjusts the level of the VIDEO signals.
E-15
16 ページ 2006年7月26日
水曜日
午前9時25分
Basic operations
When the power is on
When the POWER button is pressed, the lamp
for the PANEL ACTIVE button is on, and the
settings of the camera recorder are read into the
unit.
The respective numerical values are displayed
on the PRE/A/B display, CC/ND display, GAIN
display, and the IRIS display, while R GAIN and B
GAIN are displayed on the LCD panel.
In this case, only the PANEL ACTIVE button, the
SW ACTIVE button, the VR ACTIVE button, the
AUTO IRIS button, M.PED volume and the IRIS
volume can be operated from the unit, while
other buttons and volumes are not operative.
However, the settings on the A.KNEE ON button,
the SHT ON button ,the AUTO IRIS button, the
BAR ON/OFF button and the CHARA ON button
will be in the states that had been set on the unit
at the last time.
3) To display numerical values on the
LCD panel
The GAIN volume is displayed when the
power is on.
If the button operations are enabled, it is
possible to switch the displayed GAIN volume
# BLACK volume # a numerical value for M/
PED # TC step-by-step by using the 3button
and the 4button.
When volume operation is enabled, the
volume level is forcibly displayed if the GAIN
volume or the BLACK volume is operated.
However, it is possible to return the screen to
the state before operating the GAIN volume
or the BLACK volume by pressing the Rotary
Encoder 3.
<Note>
It is impossible to switch the display when the
unit menu or the camera menu is operating.
The volume level is not displayed even if the
volume is operated.
To enable the buttons/volumes
To disable buttons/volumes
When the SW ACTIVE button is pressed and the
lamp is on, button operations are enabled.
If the lamp of the PANEL ACTIVE button is
turned off, operations using the buttons and the
volume on the panel are inhibited.
If the lamp of the VR ACTIVE button is turned off
by pressing the button, setting the GAIN and
BLACK using the volume controls is inhibited.
Use this feature if you intend to retain the
settings. However, note that if the volume is
moved when inhibited, the volume level change
will be reflected immediately after turning on the
lamp of the PANEL ACTIVE button and/or the VR
ACTICE button by pressing the button again.
1) Operations of the camera part
When the SW ACTIVE button is pressed,
operations of the USER MAIN button, GAIN
and the camera recorder such as storing
scene files in the built-in memory or reading
them out, are enabled.
When the SW ACTIVE button is pressed
again, the lamp is tuned off and button
operations are inhibited, while the state of
settings that have already been set previously
is remained as it is.
2) Operation of the recording part
When the lamp of the RECORDER ENABLE
button is turned off, operations of the
recording part are disabled. Turn on the lamp
of the RECORDER ENABLE button by
pressing the button, and then operate the
buttons of “PLAY”, “FF” or “REW”.
To record signals, operate the REC S/S
button.
<Note>
It is possible for the GAIN and the BLACK to
avoid changes in the volume position during the
inhibition by setting the volume mode on the unit
menu to a relative value (REL).
E-16
ENGLISH
AJ-RC10G.book
AJ-RC10G.book
17 ページ 2006年7月26日
水曜日
午前9時25分
Basic operations (Continued)
Operation of the camera recorder
1) Operation of the display interlocking
switch
Select the white balance settings by using the
PRE/A/B button and monitoring the PRE/A/B
display.
The state of the camera recorder filter is
displayed on the CC/ND display.
If two filters are installed on the camera
recorder, it is impossible to switch the filters
from the unit but it is possible to switch the
display by using the FILTER ND/CC button.
The ND filter is indicated with numerical
values while the CC filter is indicated with
letters of the alphabet.
The gain will change when using the two
buttons of the M.GAIN3 button and M.GAIN4
button and monitoring the GAIN display.
However, if super gain is set to ON in the
USER switch, operations of the MGAIN
button are disabled.
2) Operation of the USER switch
The USER MAIN/USER1/USER2 switch
functions the same as the USER switch on
the camera recorder. Functions of the USER
switch can be set and confirmed on the
camera menu or the USER-SW item on the
unit menu.
3) Operation of the ABB/AWB/BAR
switch
The ABB button and the AWB button function
the same as the switch for the white balance/
black balance of the camera recorder.
The lamp is on when the unit is operated.
If the button is pressed again during
operation, the lamp will flash for 5 seconds to
indicate an interruption of the operation.
If “PRE” is selected in the PRE/A/B selection
of the white balance, it is impossible to
change the setting, and the lamp will flash for
5 seconds.
The BAR button switches the camera output
to the color bar. The lamp is on when the
camera output outputs the color bar.
E-17
4) Operation of other switches
For the MATRIX ON button, the DTL OFF
button, A.KNEE ON button, HIGH COLOR
ON button, and the SHT ON button, the ON
and OFF states switch every time the button
is pressed. The lamp for the DTL OFF button
is on when the button is OFF. The lamps for
the other buttons are on when the button is
on.
AJ-RC10G.book
18 ページ 2006年7月26日
水曜日
午前9時25分
ENGLISH
Basic operation (Continued)
Operation of the camera using the unit volume
When the lamp of the PANEL ACTIVE button is
on, operations of the M.PED volume and the
IRIS volume are enabled. When the lamp of the
AUTO IRIS button is on, the IRIS volume
functions as the volume for setting the target
value of the auto iris. When the lamp of the VR
ACTIVE button is on, operations of the GAIN
volume and the BLACK volume are enabled.
In the unit menu, it is possible to select whether
the GAIN volume and the BLACK volume are
operated in the absolute value mode or the
relative value mode.
<Notes>
z In the relative value mode, the value will not
change when the volume operation is enabled,
but it will change by the amount that the
volume turned from the position when the
volume operation was enabled.
In the absolute value mode, the value will be
fixed according to the position of the volume
when the volume operation was enabled, and
the value for the center click is 0.
z A variable range for the volume can be
selected as follows.
However, the GAIN setting range covers
variations within n200, and the BLACK setting
range covers variations within n100,
respectively.
Volume variable range
MIN
NORMAL
MAX
GAIN
100
200
400
BLACK
50
100
200
1) GAIN volume
When the white balance is set using the PRE/
A/B button and the auto white balance (AWB)
executes, the lamp of the VR ACTIVE button
turns off, and the volume operation is
disabled.
When executing the AWB, the GAIN set value
will be “0” if the AWB OFFSET is set to OFF,
while the GAIN set value is retained if the
AWB OFFSET is set to ON.
When the relative value mode and the
absolute value mode are switched, the lamp
of the VR ACTIVE button turns off and the
volume operation is disabled. (The GAIN
value is unchanged.)
2) BLACK volume
This functions as an adjustment volume for
the flare (FLR) or the pedestal (PED) selected
in the BLACK-VR-CONTROL on the unit
menu.
If the auto black balance (ABB) is executed
while the pedestal is selected, the lamp of the
VR ACTIVE button turns off, and the volume
operation is disabled.
In this case, if the PEDESTAL OFFSET of the
camera recorder is set to OFF, the set value
will be cleared to 0.
Changes in the VR ACTIVE button when the ABB is executed
VR
setting
BLACK-VRCONTROL
PEDESTAL OFFSET
OFF
ON
REL
PED
Turned off
(disabled)
Turned off
(disabled)
(relative
value)
FLR
Retains
state
Retains
state
ABS
PED
Turned off
(disabled)
Turned off
(disabled)
(absolute
value)
FLR
Retains
state
Retains
state
Changes in the volume set value when the ABB is executed
VR
setting
BLACK-VRCONTROL
PEDESTAL OFFSET
OFF
ON
REL
PED
Cleared to 0 Retains
(relative
value)
FLR
Retains
ABS
PED
Cleared to 0 Retains
(absolute
value)
FLR
Retains
Retains
Retains
When the BLACK-VR-CONTROL item in the
unit menu changes, the lamp of the VR
ACTIVE button turns off, and the volume
operation is disabled.
If the BLACK-VR-CONTROL is set to “PED”,
the flare value can be changed in the unit
menu but it is impossible to change the
pedestal value.
E-18
AJ-RC10G.book
19 ページ 2006年7月26日
水曜日
午前9時25分
Basic operation (Continued)
3) M.PED volume
When the volume operation is enabled, the
unit operates in the absolute value mode
where the value is fixed in accordance with
the position of the volume. The value will be
“0” by clicking the center.
The variable amount is within a range
between the minimum value of –200 and the
maximum value of +200 with the center value
of 0.
Operation of the scene file
The unit has five sets of scene files and is
capable to storing the current settings as a scene
file or loading the stored settings.
It is also possible to store/call scene files using
the SD memory card. For details, refer to
“Saving/Loading of scene files onto the SD
memory card” (page 21).
1) Operation of the scene file
When the lamp of the RECORDER ENABLE
button is off, the scene files are operated
using the seven buttons on the top right side
of the unit.
Storing: Select a file number to store using
buttons 1 to 5 (blue letters). When
the button is pressed, the button
lamp will flash. If the SAVE (blue
letters) button is pressed in this
state, the SAVE button lamp will
also flash. To store the file, press
the SAVE button again. When the
store operation is finished, the
lamp of the button for the stored file
number turns on.
When the lamps for buttons 1 to 5
are flashing, press the button or
leave for 10 seconds or more to
release the selection.
Loading: Select a file number to load using
buttons 1 to 5 (blue letters). When
the button is pressed, the button
lamp will flash. If the LOAD button
is pressed in this state, the
selected file will load. At this time,
the lamp of the VR ACTIVE button
flashes, the operation mode of the
volume set in the unit menu is
ignored, and the unit is in the
relative value mode.
E-19
20 ページ 2006年7月26日
水曜日
午前9時25分
Basic operation (Continued)
<Notes>
z If a scene file is loaded while the volume
operation mode is set to the absolute value
mode, and then the VR ACTIVE button is
operated, the set value will correspond to
the volume angle and the loaded value will
be lost.
If you want to operate the volume from the
value loaded in the scene file, operate the
unit while the VR ACTIVE button lamp is
flashing or the operation modes of the
volumes for WHITE and BLACK are set to
the relative value mode before operating
the VR ACTIVE button.
z When a scene file is stored or loaded, the
button lamps for the file numbers of the files
stored or loaded and the LOAD button is
turned on. Press the LOAD button to turn
the button lamp off. When the camera
menu is opened or the scene file data is
loaded from the SD memory card, the
lamps for both of the File No. button and
the LOAD button turn off.
z When the camera menu is open,
operations of the scene file are disabled.
2) Items stored in the scene file
Refer to the Menu item Files for storing are
checked with a “Yes” Since the same operation
applies to storing on the SD memory card, when
a scene file stored in a specific unit of the remote
controller is used for another unit of the remote
controller, load data from the scene file from the
specific unit and store on an SD memory card,
and then read them out from the card and store
them in the scene file of the other unit.
<Note>
Do not turn off the power when a scene file is
being stored. Otherwise, data in the scene file
may be corupted.
<Reference>
It is possible to adjust the scene file setting of the
unit to the same state as the factory setting for
the camera recorder using the following
procedure.
However, the settings that cannot be set with the
unit cannot be set to the same state.
1 Set the settings for the camera recorder to
the factory settings. For details, refer to the
operation manual of the camera recorder.
2 Connect the unit to the camera recorder.
Settings for the unit will be imported from the
camera recorder.
3 Execute RCU-FACTORY on the SYSTEM
menu of the unit.
4 Store the settings on the unit to scene files 1
to 5 of the unit or an SD memory card.
Operation for recording
If the RECORDER ENABLE button is pressed to
switch to the recorder mode, operations of the
camera recorder are enabled.
If the REC INH button lamp is on, the REC S/S
button on the unit will be inhibited. To start and
stop recording, turn off the lamp of the REC INH
button by pressing the button, and start and stop
recording using the REC S/S button.
<Notes>
z While the REC INH button lamp is on, REC S/
S button operations are inhibited.
z If the RECORDER ENABLE button lamp turns
off by pressing the button while the recording
part is operated, the state of the recording
before turning off the lamp is retained and it is
possible to operate the scene file built into the
unit.
z It is possible to set whether the value adjusted
on the unit is retained on the camera recorder
or not, by using RC-DATA-SAVE in the FUNC
menu of the unit.
E-20
ENGLISH
AJ-RC10G.book
AJ-RC10G.book
21 ページ 2006年7月26日
水曜日
午前9時25分
Saving/Loading of scene files onto the SD memory card
It is possible to store up to 8 sets of settings for
the unit.
While data on the card are read or written, any
operation of the unit panel is inhibited. Insert the
SD memory card into the SD memory card slot
on the unit and operate the unit menu.
To load data from the card
1 When “SYSTEM” is selected using the
SHUTTER/SYSTEM button, the indication
“CARD-RD” is displayed on the LCD panel
together with the value displayed under the
indication and the title next to the indication.
<Notes>
z Use an SD memory card with a capacity of 8
MB or more. The maximum capacity of an SD
card that can be used on the unit is 2 GB.
z The SD memory card must be formatted on
the unit.
Handling methods for the SD
memory card
Ensure that the SD memory card is inserted or
ejected in the proper direction.
2 Select the file to read out by changing the
numerical value in the Rotary Encoder 1.
If there is no applicable file, the indication
“NO FILE” is displayed on the LCD panel.
3 Press the Rotary Encoder 3.
When the indication “READ NO?” is
displayed on the LCD panel, turn the Rotary
Encoder 3 to select “YES?” and press the
Rotary Encoder 3 again to start reading out
the data.
4 The read operation starts and the indication
SD memory card
slot
When the SD memory card is used for the first
time, execute CARD CONFIG in SYSTEM on the
unit menu.
“ACTIVE” is displayed on the LCD panel.
While the data are loaded, the SD memory
card access lamp is on.
SD memory card
access lamp
<Note>
While data are being stored on the SD memory
card or data are being loaded from the SD
memory card, do not remove the SD memory
card. Otherwise, data on the SD memory card
may be damaged.
5 When the reading the data is finished, the
SD memory card access lamp turns off and
the indication “OK” is displayed on the LCD
panel.
<Note>
If the data cannot be read properly, the
indication “READ NG” is displayed on the
LCD panel. Execute the load operation
again. If the load operation is not executed
properly, replace the SD memory card with a
new one.
E-21
22 ページ 2006年7月26日
水曜日
午前9時25分
Saving/Loading of scene files onto the SD memory card (Continued)
To write data on the card
To delete files from the card
1 Select “SYSTEM” using the SHUTTER/
1 Select “SYSTEM” using the SHUTTER/
SYSTEM button, and display the menu on
the second layer using the 4button.
2 When the indication “CARD-WR” is
displayed on the LCD panel together with the
file number displayed under the indication,
turn the Rotary Encoder 1 to select the file.
<Note>
If the file already exists, the title is displayed
under the TITLE indication. Be careful and
do not overwrite the file.
3 When the cursor for entering the title is
displayed on the LCD panel, turn the Rotary
Encoder 3 to select the letters and turn the
Rotary Encoder 2 to move the cursor.
Up to eight letters can be entered. Once the
eighth letter is entered, the last letter will
flash.
4 When the Rotary Encoder 3 is pressed, the
indication “NO?” is displayed on the LCD
panel. Turn the Rotary Encoder to select the
indication “YES?” and start writing data by
pressing the Rotary Encoder 3 again.
5 When the writing operation starts, the SD
card access lamp is on and the indication
“ACTIVE” is displayed on the LCD panel.
6 When the writing of the data is finished, the
SD memory card access lamp turns off, and
the indication “OK” is displayed on the LCD
panel.
SYSTEM button, and display the menu on
the third layer using the 4button.
2 When the indication “CARD-DEL” is
displayed on the LCD panel together with the
file number displayed under the indication,
turn the Rotary Encoder 1 to select the file to
be deleted.
3 When the Rotary Encoder 3 is pressed, the
indication “NO?” is displayed on the LCD
panel. Turn the Rotary Encoder 3 to select
the indication “YES?” and start deleting data
by pressing the Rotary Encoder 3 again.
4 When the deleting operation starts, the SD
card access lamp is on, and the indication
“ACTIVE” is displayed on the LCD panel.
5 When the deletion of the data is finished, the
SD memory card access lamp turns off, and
the indication “OK” is displayed on the LCD
panel.
Initialization of the card
1 Select “SYSTEM” using the SHUTTER/
SYSTEM button, and display the menu on
the fourth layer using the 4button.
The indication “EXEC” is displayed.
2 When the Rotary Encoder 3 is pressed, the
indication “NO?” is displayed on the LCD
panel. Turn the Rotary Encoder 3 to select
the indication “YES?” and start the
initialization by pressing the Rotary Encoder
3 again.
The following procedures are the same as
procedures 4 and 5 for deleting files from the
card.
E-22
ENGLISH
AJ-RC10G.book
AJ-RC10G.book
23 ページ 2006年7月26日
水曜日
午前9時25分
Menu operation
Operations using the LCD panel
The menu can be adjusted using the Rotary
Encoders (1 to 3) after displaying the menu on
the LCD panel.
1 Press one of the following buttons: BLACK/
SHAD button, FLARE/MATRIX button,
GAMMA/DTL button, WHITE/SKINDTL
button, or KNEE/FUNC button to select an
item on the menu.
2 The indication will switch to the item under
the panel # the item on the panel # the
state before entering the menu mode # the
item under the panel step by step every time
the button is pressed.
The LED indicating the selected item is on
and the first layer of the menu for the
selected item is displayed on the LCD panel.
3 Move the layer on the menu using the 4
button or 3 button. (Indications are not
looped.)
4 Adjust the value of the sub-items on the
menu using the rotary encoder. The
numerical values are increased by turning
the rotary encoder clockwise and reduced by
turning it counterclockwise.
Depending on the layers, 1 to 3 sub-items
are displayed on the LCD panel.
(In some layers, it is necessary to press the
rotary encoder3)
5 When the camera menu is open, the menu
displayed on the LCD panel of the unit is
closed, “CAMERA MENU OPEN” is
displayed.
E-23
Operation of the camera recorder
menu
With the unit, it is possible to set the menu of the
camera recorder by checking the monitor.
Use this feature to set any items that are not
included in the unit menu.
1 Connect the VIDEO OUT connector of the
unit to the monitor.
2 Press the MENU ON button for 3 seconds or
longer.
The menu of the camera recorder is
displayed on the monitor.
<Note>
When the lamp of the CHARA ON button is
off, the menu is not displayed on the monitor.
3 Operate the menu by operating the Rotary
Encoder 3 in the same way as the JOG dial
on the main unit of the camera recorder.
<Note>
Significant items such as frame frequency etc.,
cannot be changed from the unit. In this case,
these items can be changed from the camera
recorder.
For details such as menu items and setting
methods, refer to the operation manual of the
camera recorder.
Adjustment of functions on the unit
It is possible to adjust the sound heard when a
button on the unit is pressed and the brightness
of the LCD panel button by using the menu of the
unit. For details, refer to “SYSTEM” (page 31).
AJ-RC10G.book
24 ページ 2006年7月26日
水曜日
午前9時25分
Menu
BLACK
The menu items on the unit may vary with the
camera recorder connected to the unit.
Layer
For the following menu items, the factory settings
for the unit only are set separately from the
camera recorder.
Š BLACK-VR-CONTROL, BLACK-VRMODE, and BLACK-VR-RANGE in
“BLACK”
Š GAIN-VR-MODE and GAIN-VR-RANGE in
“WHITE”
Š BUZZER, LCD CONTRAST, and SW
BRIGHT in “SYSTEM”
When the column of “Storage” in the menu table
is answered with “Yes”, the settings for the
relevant items can be stored on the unit or the
SD memory card as a scene file. For details,
refer to “Operation of the scene file” (page 19)
and “Saving/Loading of scene files onto the SD
memory card” (page 21).
1
Item
RPED
GPED
BPED
ENGLISH
Menu item
Variable
Contents description Storage
range
–100
:
+100
To set the pedestal for
Rch
Yes
–100
:
+100
To set the pedestal for
Gch
Yes
–100
:
+100
To set the pedestal for
Bch
Yes
2
BLACK-VR- FLR
CONTROL PED
To select the items to be
adjusted using the
BLACK volume
Yes
FLR: FLARE
PED: PEDESTAL
3
BLACK-VR- ABS
MODE
REL
To select whether the
BLACK volume of the
RGB is operated using
the absolute value or
the relative value
ABS: Absolute value
REL: Relative value
Yes
To switch the variable
range of the BLACK
volume of RGB
n25
MIN:
NORM: n50
n100
MAX:
Yes
4
BLACK-VR- MIN
RANGE
NORM
MAX
<Note>
When “PED” is selected in the BLACK-VR-CONTROL
and the lamp of the VR ACTIVE button is on or “ABS”
(absolute value) is selected in the BLACK-VR-MODE
item, it is impossible to adjust the PRED/GPEG/BPEG
items using the rotary encoder. Adjust these items using
the BLACK volume.
is the factory setting mode.
E-24
AJ-RC10G.book
25 ページ 2006年7月26日
水曜日
午前9時25分
Menu item (Continued)
FLARE
Layer
1
Item
RFLAR
GFLAR
BFLAR
2
WHITE
Variable
Contents description Storage
range
–100
:
+100
To set the flare for Rch
–100
:
+100
To set the flare for Gch
–100
:
+100
To set the flare for Bch
FLARON
CORRECT OFF
1
1
RGAM
MGAM
BGAM
2
3
BGAIN
2
Yes
To set ON/OFF of the
flare correction
Variable
Contents description Storage
range
–200
:
+200
To set the Rch gain
–200
:
+200
To set the Bch gain
FILTER-INH ON
OFF
Yes
3
4
–15
:
+15
To set the gamma for
Rch
Yes
0.30
:
0.75
To set the master
gamma
Yes
–15
:
+15
To set the gamma for
Bch
5
Yes
Yes
GAMMAON
CORRECT OFF
Yes
To set ON/OFF of the
gamma correction
Yes
Yes
To select whether the
filter has data for the
AWB memory (Ach,
Bch) or not, for the
respective filters
independently
ON: Data are held in
two memory
locations (Ach,
Bch) regardless
of the filter.
OFF: The respective
filters hold data.
Yes
SKLS-AWB OFF
FAST
NORMAL
SLOW1
SLOW2
SLOW3
To turn on the shockless AWB (FAST/
NORMAL/SLOW1/
SLOW2/SLOW3)
AWBAREA 25%
50%
90%
To switch the AWB
detection area
GAIN-VRMODE
To select whether the
GAIN volumes for R
and B are operated
using the absolute
value or the relative
value
ABS: Absolute value
REL: Relative value
Yes
To switch the variable
range of the GAIN
volumes for R and B
n50
MIN:
NORM: n100
n200
MAX:
Yes
ABS
REL
Variable
Contents description Storage
range
GAMMAHD
To select the gamma
MODE-SEL SD
F-LIKE1
F-LIKE2
F-LIKE3
E-25
RGAIN
Yes
GAMMA
Item
Item
Yes
<Note>
When the BLACK volume is assigned for flare
adjustment, it must be set in BLACK-VR-CONTROL,
BLACK-VR-MODE, and BLACK-VR-RANGE. When
“FLR” is selected in the BLACK-VR-CONTROL item, the
flare can be adjusted by using the BLACK volume.
Switching between the absolute value mode and the
relative value mode of the volume can be set in the
BLACK-VR-MODE item, while switching of the variable
range can be set in the BLACK-VR-RANGE item. When
the absolute value is selected in the BLACK-VR-MODE
item or the lamp of the VR-ACTIVE button is turned on,
R FLAR/G FLAR/B FLAR items cannot be adjusted
using the rotary encoder. They must be adjusted with
the BLACK volume.
Layer
Layer
GAIN-VRRANGE
MIN
NORM
MAX
Yes
Yes
<Note>
When the absolute value is selected in the GAIN-VRMODE item, or the lamp of the VR ACTIVE button is
turned on, the R GAIN/G GAIN items cannot be
adjusted using the rotary encoder. They must be
adjusted using the GAIN volume.
is the factory setting mode.
26 ページ 2006年7月26日
水曜日
午前9時25分
Menu item (Continued)
WHITE (Continued)
Layer
6
7
Item
COLR2300k
TEMP-PRE
:
8000k
To set the color
temperature in the AWB
PRE
No
AWB-A
To set the position of
the WHITE BAL switch
and the assignment of
Ach
MEM: This assigns the
memory value
when the AWB is
executed.
Yes
TEMP-A
8
Variable
Contents description Storage
range
MEM
2300k
:
8000k
AWB-AON
GAIN-OFST OFF
To set the position of
the WHITE BAL switch
and the color
temperature in case of
Ach
The step varies with the
camera conditions.
ON:
Layer
9
Item
Variable
Contents description Storage
range
AWB-B
MEM
To set the position of
the WHITE BAL switch
and the assignment of
Bch
Yes
MEM: This assigns the
memory value
when the AWB is
executed.
TEMP-B
2300k
:
8000k
To set the position of
the WHITE BAL switch
and the color
temperature in case of
Bch
The step varies with the
camera conditions.
No
Even if the AWB is
executed, the set
value for the GAIN
OFFSET of the
AWB-A will not be
reset.
Yes
OFF: When the AWB is
executed, the set
value for the GAIN
OFFSET of the
AWB-A will be
reset.
ON
10 AWB-BGAIN-OFST OFF
No
ON:
Even if the AWB is
executed, the set
value for the GAIN
OFFSET of the
AWB-B will not be
reset.
Yes
OFF: When the AWB is
executed, the set
value for the GAIN
OFFSET of the
AWB-B will be
reset.
E-26
ENGLISH
AJ-RC10G.book
AJ-RC10G.book
27 ページ 2006年7月26日
水曜日
午前9時25分
Menu item (Continued)
KNEE
Layer
1
2
Item
M-KNEE
MKNPNT
MKNSLP
3
4
WCLIP
SHUTTER
Variable
Contents description Storage
range
ON
OFF
To set the mode when
the AUTO KNEE switch
is off
Yes
ON: MANUAL KNEE
OFF: KNEE OFF
70.0%
:
107.0%
To set the position of
the MANUAL KNEE
POINT by 0.5% step
00
:
99
To set the tilt angle of
the MANUAL KNEE
ON
OFF
To set ON/OFF of the
WHITE CLIP function
WCLIPLVL 90%
:
109%
To set the WHITE CLIP
LEVEL
AKNP
80%
:
107%
To set the position of
the AUTO KNEE POINT
by 1% step
AKLV
100
:
109
To set the AUTO KNEE
LEVEL
1
:
8
To set the AUTO KNEE
response speed
AKRESP
E-27
Layer
1
Item
MODE
Variable
Contents description Storage
range
FIX
S.S
Yes
Yes
Yes
SPED
1/60
1/100
1/120
1/250
1/1000
1/2000
HALF
To select the shutter
speed
The selected speed
type (for the fixed
Yes
shutter, for the synchroscan) varies with the
mode.
ACTION
ON
OFF
To display conditions of
the shutter
(Display only)
Yes
Yes
To select whether the
shutter setting for
SHUTTER ON is set to
the fixed mode or the
synchro-scan mode
FIX: Fixed shutter
S.S: Syncro-scan
No
28 ページ 2006年7月26日
水曜日
午前9時25分
Menu item (Continued)
MATRIX
SHAD
Layer
1
Item
Variable
Contents description Storage
range
B-SHD
ON
OFF
To select the black
shading ON/OFF
Yes
DETECT
EXEC
To activate the auto
black shading
adjustment
No
Yes
2
W-SHD
ON
OFF
To select the white
shading ON/OFF
3
HSAW
(W-R)
–255
:
+255
To adjust the R-H-SAW
white shading
Every NORM and
EXTENDER has
respective values.
4
5
6
7
8
HPAR
(W-R)
–255
:
+255
To adjust the R-H-PARA
white shading
VSAW
(W-R)
–255
:
+255
To adjust the R-V-SAW
white shading
VPAR
(W-R)
–255
:
+255
To adjust the R-V-PARA
white shading
HSAW
(W-G)
–255
:
+255
To adjust the G-H-SAW
white shading
HPAR
(W-G)
–255
:
+255
To adjust the G-H-PARA
white shading
VSAW
(W-G)
–255
:
+255
To adjust the G-V-SAW
white shading
VPAR
(W-G)
–255
:
+255
To adjust the G-V-PARA
white shading
HSAW
(W-B)
–255
:
+255
To adjust the B-H-SAW
white shading
HPAR
(W-B)
–255
:
+255
To adjust the B-H-PARA
white shading
VSAW
(W-B)
–255
:
+255
To adjust the B-V-SAW
white shading
VPAR
(W-B)
–255
:
+255
To adjust the B-V-PARA
white shading
Layer
1
2
Item
Variable
Contents description Storage
range
TABL
A
B
To select the table for
the matrix color
correction in case of the
MATRIX ON and one to
Yes
be set on the unit.
C-CORCT
ON
OFF
To select ON/OFF for
the 12-axis color
correction
R-G
–63
:
+63
R-B
–63
:
+63
To adjust the matrix
color of R-G
It will be switched using
the TABL A/B.
Yes
To adjust the matrix
color of R-B
G-R
–63
:
+63
To adjust the matrix
color of G-R
G-B
–63
:
+63
To adjust the matrix
color of G-B
B-R
–63
:
+63
To adjust the matrix
color of B-R
B-G
–63
:
+63
To adjust the matrix
color of B-G
C-COR
R
R-Mg
Mg
Mg-B
B
B-Cy
Cy
Cy-G
G
G-YI
YI
YI-R
To select the color
correction axis to be
adjusted in the 12-axis
color correction
SATU
–63
:
+63
To adjust the saturation
of the color correction
axis selected in the CCOR.
PHASE
–63
:
+63
To adjust the color
phase of the color
correction axis selected
in the C-COR.
Yes
3
Yes
4
Yes
5
Yes
Yes
Yes
Yes
Yes
Yes
<Note>
For the adjustment of the shading, the adjusted setting
on the unit will be retained in the main unit of the camera
recorder regardless of the ON/OFF setting on the RCDATA-SAVE item.
E-28
ENGLISH
AJ-RC10G.book
AJ-RC10G.book
29 ページ 2006年7月26日
水曜日
午前9時25分
Menu item (Continued)
DTL
Layer
1
2
3
4
SKIN DTL
Item
Variable
Contents description Storage
range
MDTL
–31
:
+31
To set the level of the
master detail (H and V)
HDTL
0
:
63
To set the H.DTL
LEVEL
VDTL
0
:
31
To set the V.DTL LEVEL
CORG
OFF
0
:
5
To set detailed noise
elimination level
FREQ
0
:
31
To set the H.DTL FREQ
LDP
0
:
5
To set the LEVEL
DEPEND
K-AP
OFF
0
:
5
To set the details of the
high brightness part
+GAIN
–31
:
+31
To change the level in
the + direction of the
H.DTL
–GAIN
–31
:
+31
To change the level in
the – (down) direction of
the H.DTL
CLIP
0
:
63
To change the clip in the
+ direction of the DTL
signals
SOURCE
E-29
Layer
1
Item
Variable
Contents description Storage
range
S DTL
OFF
A
B
AB
To select the skin tone
table that enables skin
tone details
OFF: To select OFF of
the skin color
DTL
A:
To put DTL in the
SKINTONE
setting set in
Table A
B:
To put DTL in the
SKINTONE
setting set in
Table B
AB: To put DTL in the Yes
SKINTONE
setting set in
Tables A and B
OUTPUT
MONI
VIDEO
To select the output that
adds SKINZEBRA
SZEB
ON
OFF
To select ON/OFF for
SKIN ZEBRA against
the output selected in
OUTPUT
The ZEBRA will be
attached to the color of
the table set in
DETECT.
TABL
A
B
To select the table for
setting SKIN TONE to
be adjusted using the
unit
Yes
0
:
7
To set the effects of
SKIN TONE DTL
scoring
Yes
YMAX
0
:
255
To set the maximum
value of the brightness
signals enabling SKIN
TONE
YMIN
0
:
255
To set the minimum
value of the brightness
signals enabling SKIN
TONE
Yes
Yes
Yes
R+G
To set the signal source
Yes
G+B
of the DTL signal
2G+R+B components
3G+R
R
G
2
3
4
SCORG
Yes
30 ページ 2006年7月26日
水曜日
午前9時25分
Menu item (Continued)
SKIN DTL (Continued)
Layer
5
6
Item
Variable
Contents description Storage
range
ICENT
0
:
255
To set the center
position on the I-axis (to
set the area where
SKIN TONE is effective)
IWIDTH
0
:
255
Yes
To set the width of the
area where SKIN TONE
on the I-axis with the
center position at I
CENT is effective
QWIDTH
QPHASE
7
FUNC
SKIN-GET
0
:
255
–128
:
+127
EXEC
1
To set the width of the
area where SKIN TONE
on the Q-axis with the
center position at I
CENT is effective
Yes
To set the phase of the
area where SKIN TONE
having a standard on
the Q-axis is effective
This will be used for
obtaining the color
phase as the target for
SKIN TONE DTL
Layer
Item
IRISLVL
Variable
Contents description Storage
range
0
:
100
PEAK/AVE 0
:
100
2
3
No
4
IRISWINDOW
To set the target value
of the auto iris
Yes
To determine the
accounting ratio of the
peak against the
standard of the auto iris
NORM1 To select the auto iris
NORM2 detection window
CENTER NORM1: Center of the
screen
NORM2: Bottom side of
the screen
CENTR: Spots at the
center of the
screen
Yes
IRISGAIN
CAM
LENS
To select whether the
iris gain is adjusted on
the camera recorder or
the lens
GAINVAL
1
:
20
To set the IRIS GAIN
adjustment value on the
camera recorder
USER-SW
USW-M
USW-1
USW-2
To select the USER
switch where functions
will be changed
SELECT
INH
To select the function to
S/GAIN be assigned to the
DS.GAIN USER button selected
LINE MIX in the USER-SW item
S.IRIS
<Note>
I.OVR
When the unit is
Yes
S.BLK
connected to the
B.GAMMA camera recorder, the
AUDIO CH1 “I.OVR” operation is
AUDIO CH2 disabled.
REC SW
Y GET
RET SW
PRE REC
DRS
Yes
E-30
ENGLISH
AJ-RC10G.book
AJ-RC10G.book
31 ページ 2006年7月26日
水曜日
午前9時25分
Menu item (Continued)
FUNC (Continued)
Layer
5
6
Item
BLKGAMMA
RC-DATASAVE
SYSTEM
Variable
Contents description Storage
range
–3
–2
–1
OFF
1
2
3
To set the gamma curve
for dark portions
ON
OFF
To select whether the
value adjusted in the
unit will be retained in
the main unit of the
camera recorder or not,
when the unit is
removed from the
camera recorder
Yes
When this is set to OFF
and the unit is removed,
the settings for the
camera recorder will
return to the state
before connecting the
unit.
Layer
1
Yes
2
3
Item
CARDREAD
1
:
8
TITLE
¢¢¢¢¢ To read out the title
¢¢¢
applied to the data of
the file to be read out,
and display it
CARDWRITE
1
:
8
TITLE
¢¢¢¢¢ To enter the title applied
¢¢¢
to the data of the file to
be written
CARDDELETE
1
:
8
TITLE
¢¢¢¢¢ To read the title applied
¢¢¢
to the data of the file to
be deleted, and display
it
4
CARDCONFIG
5
BUZZER
6
7
8
9
Variable
Contents description Storage
range
To select the file
number to be read out
To select the file
number to be written
To select whether the
buzzer is turned on
when the switch for the
lamp to turn on is
pressed
No
No
No
LCD
0
CONTRAST :
10
:
15
To adjust the contrast of
the LCD panel
SW BRIGHT 0
:
10
:
15
To adjust the brightness
of the lamp for the
switch
RCUFACTRY
To return the volume
variable range of the
unit to the factory
settings
No
VERSION
To display the version of
the software for the unit
No
No
is the factory setting
E-31
No
To select the file
number to be deleted
To configure the card
ON
OFF
No
No
32 ページ 2006年7月26日
水曜日
午前9時25分
Connection cable
A 10 m connection cable is attached to the unit. To extend the cable, use the optional dedicated cable.
If several 10 m cables are connected in tandem, the power supply may be unstable due to voltage
drops etc.
In an emergency, apply a higher voltage within a range from 11 V to 17 V for the power supply of DC 12
V to the camera recorder. If the input voltage to the unit is 8 V or less, operation becomes unstable.
Refer to the following. A twisted-pair cable must be used for the control line of the 10-pin cable.
Attenuation of the coaxial cable must be set to around –6 dB at maximum in 10 MHz.
Camera recorder side
HR10A-10P-10P (Hirose Electric)
CAM DATA (H)
CAM DATA (C)
CAM CONT (H)
CAM CONT (L)
ECU_ON
Video output
GND (Video)
Standby
+12 V (IN)
GND
Connector GND
1
2
3
4
5
6
7
8
9
10
Controller side
HR10A-10P10S (Hirose Electric)
Twisted pair
Twisted pair
1.5C - 2V
3 h or less
3 h or less
1
2
3
4
5
6
7
8
9
10
CAM DATA (H)
CAM DATA (C)
CAM CONT (H)
CAM CONT (L)
ECU_ON
Video input
GND (Video)
Standby
+12 V (IN)
GND
Connector GND
Confirmation of software version
The software version for this unit can be confirmed in “VERSION” under SYSTEM in the unit menu.
Confirm for questions.
E-32
ENGLISH
AJ-RC10G.book
AJ-RC10G.book
33 ページ 2006年7月26日
水曜日
Specifications
Power supply: DC 12 V
Power consumption: 6 W
indicates safety items.
External dimensions (W a H a D)
185 mm a 131 mm a 60 mm
(7-5/16 inches a 5-3/16 inches a
2-5/8 inches)
Weight
1.3 kg (2.87 lb)
Operating temperature
0 °C to +40 °C (32 °F to 104 °F)
Storage temperature
–20 °C to +60 °C (–4 °F to 140 °F)
Maximum cable length
50 m
[Input/Output]
CAMERA
10-pin multi-connector a 1
MONITOR
BNC a 1, 1 VP-P (for menu setting)
Please note that specifications and appearance are
subject to change, for improvement purpose,
without notice.
E-33
午前9時25分
34 ページ 2006年7月26日
水曜日
午前9時25分
Information on Disposal for Users of Waste Electrical & Electronic Equipment (private
households)
This symbol on the products and/or accompanying documents means that used electrical
and electronic products should not be mixed with general household waste.
For proper treatment, recovery and recycling, please take these products to designated
collection points,where they will be accepted on a free of charge basis. Alternatively, in
some countries you may be able to return your products to your local retailer upon the
purchase of an equivalent new product.
Disposing of this product correctly will help to save valuable resources and prevent any
potential negative effects on human health and the environment which could otherwise
arise from inappropriate waste handling. Please contact your local authority for further
details of your nearest designated collection point.
Penalties may be applicable for incorrect disposal of this waste, in accordance with
national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for
further information.
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the correct
method of disposal.
E-34
ENGLISH
AJ-RC10G.book
AJ-RC10G.book
35 ページ 2006年7月26日
水曜日
午前9時25分
PANASONIC BROADCAST & TELEVISION SYSTEMS COMPANY
UNIT COMPANY OF PANASONIC CORPORATION OF NORTH AMERICA
Executive Office:
One Panasonic Way 4E-7, Secaucus, NJ 07094 (201) 348-7000
EASTERN ZONE:
One Panasonic Way 4E-7, Secaucus, NJ 07094 (201) 348-7196
Southeast Region: (201) 348-7162
WESTERN ZONE:
3330 Cahuenga Blvd W., Los Angeles, CA 90068 (323) 436-3500
Government Marketing Department:
One Panasonic Way 2E-10, Secaucus, NJ 07094 (201) 348-7587
Broadcast PARTS INFORMATION & ORDERING:
9:00 a.m. – 5:00 p.m. (EST) (800) 334-4881/24 Hr. Fax (800) 334-4880
Emergency after hour parts orders (800) 334-4881
TECHNICAL SUPPORT:
Emergency 24 Hour Service (800) 222-0741
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3 (905) 624-5010
Panasonic de Mexico S.A. de C.V.
Av angel Urraza Num. 1209 Col. de Valle 03100 Mexico, D.F. (52) 1 951 2127
Panasonic Puerto Rico Inc.
San Gabriel Industrial Park, 65th Infantry Ave., Km. 9.5, Carolina, Puerto Rico 00630 (787) 750-4300
Professional & Broadcast IT Systems Business Unit Europe
Panasonic Marketing Europe GmbH
Hagenauer Str. 43, 65203 Wiesbaden-Biebrich Deutschland Tel: 49-611-235-481
松下电器产业株式会社
Web Site: http://panasonic.net
松下電器産業株式会社
システム事業グループ
〒 571-8503 大阪府門真市松葉町 2 番 15 号
i (06) 6901ー 1161
C 2006 Matsushita Electric Industrial Co., Ltd All Rights Reserved
G
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
