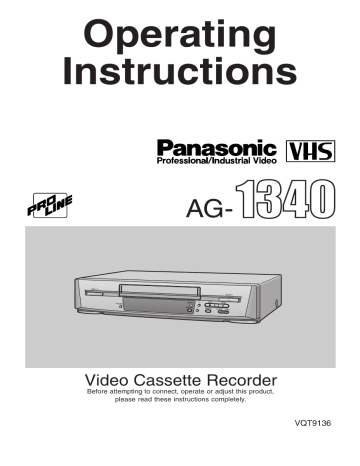

Operating
Instructions
/
AG-
POWER Í/ I
<EJECT
PICTURE MODE
TIMER RECÁ
W
STOP
PLAY
∫
¥REC/OTR
X
SEARCH
1
V/
REW
6
FF/W
5
Video Cassette Recorder
Before attempting to connect, operate or adjust this product,
please read these instructions completely.
VQT9136
AUTO CHANNEL SET
PROCEEDING
END
2
: MENU
2
WARNING
TO REDUCE THE RISK OF FIRE OR
SHOCK HAZARD, DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR
MOISTURE.
CAUTION:
TO REDUCE THE RISK OF FIRE,
SHOCK HAZARD AND ANNOYING
INTERFERENCE, USE THE
RECOMMENDED ACCESSORIES ONLY.
DO NOT BLOCK ANY OF THE
VENTILATION OPENINGS. INSTALL IN
ACCORDANCE WITH THE
MANUFACTURER’S INSTRUCTIONS.
DO NOT PLACE THIS APPARATUS
INTO AN AUDIO RACK, BOOK SHELF
OR SIMILAR LOCATION BECAUSE OF
HEAT FROM THIS APPARATUS.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
This symbol alerts the user that
important literature concerning
the operation and maintenance of
this unit has been included.
Therefore, it should be read
carefully in order to avoid any
problems.
This symbol warns the user that
uninsulated voltages within the
unit may have sufficient
magnitude to cause electric
shock. Therefore, it is dangerous
to make any kind of contact with
any inside part of this unit.
Note to CATV system installer:
This reminder is provided to call the CATV
system installer’s attention to Article 82040 of the NEC that provides guidelines for
proper grounding and, in particular,
specifies that the cable ground shall be
connected to the grounding system of the
building; as close to the point of cable
entry as practical.
Contents
Before Use
Controls and Connection Sockets .......... 04
Infrared Remote Controller ....................... 06
Remote Controller Setup .......................... 08
Setting Up
Connections .................................................
Tuning the TV to your VCR ........................
– Plug in Auto Tuning .................................
Storing TV Broadcasts in your VCR ..........
Language Setting of the On Screen
Display ......................................................
Setting the Clock of your VCR ...................
Settings Using the On Screen Display ......
09
12
12
14
16
17
18
Basic Operations
Playback .......................................................
– Jet Search ...............................................
– Other Playback Functions .......................
Manual Recording .......................................
– One-Touch Recording (OTR) ..................
21
22
22
24
26
Advanced Operations
Timer Recording .......................................... 27
– 4-Key Programming ................................ 27
Search Functions ........................................ 30
–Jet Navigator ............................................ 30
– Time Stamp Function .............................. 32
– VHS Index Search System ..................... 33
– Intro-Jet Scan ......................................... 33
Editing .......................................................... 34
– Assembly Editing..................................... 34
Other Functions ......................................... 35
– Other Automatic Functions ..................... 35
Helpful Hints
Before Requesting Service ....................... 36
Usage Precautions ..................................... 38
Specifications ............................................. 40
3
Controls and Connection Sockets
This section describes in detail the function of each button, switch and connection socket.
1
2
3
7
5 6
4
EJECT
STOP
PLAY
TIMER REC
CVC
PICTURE MODE
8
21
AC IN
SECTEUR
9
10
6
SEARCH
REC/OTR
11
12
15
/ REW
13 14
16 17
IN
IN (AV1) OUT
RF
VIDEO
OUT
AUDIO
18
To mains supply
4
FF / 5
19 20
REAR
01 POWER Í/I (VCR Í) (‘ 12)
15 VIDEO IN (AV1) (‘ 34)
02 Cassette Compartment (‘ 21)
16 VIDEO OUT (‘ 10)
03 TIMER REC Á (TIMER Á) (‘ 28)0
17 RF IN (‘ 9)
04 I J (‘ 13, 35)
18 AUDIO IN (AV1) (‘34)
05 STOP ∫ (‘ 21, 24)
19 AUDIO OUT (‘10)
06 PLAY 1 (‘ 21)
20 RF OUT (‘ 9)
07 < EJECT (‘ 13)
21 AC Input Socket (‘ 9)
Before Use
FRONT
08 PICTURE MODE (‘ 19, 23)
09 Infrared Remote Control Receiver
Window
VOLUME
TV
10 Display
Í
r
W
s
X
AV
VCR
11 ¥ REC/OTR (‘ 24, 26)
W
OSD/DISPLAY RESET
AUDIO
X
12 SEARCH (‘ 33)
1
PICTURE MODE
INDEX
:
13 REW (REWIND) 6 (‘ 21)
MENU
6
14
REC
9
¥
5
NAVI
3
8
14 FF (FAST FORWARD) 5 (‘ 21)
4
INPUT SELECT VCR/TV
Í
1
2
OK
6
1
5
SEARCH
;/D
∫
PROG/CHECK CANCEL 4 SPEED
13
TIMER
Á
1
2
3
4
W
r
r
r
DATE
ON
OFF
s
s
s
X
12
3
5
Infrared Remote Controller
The remote control unit for this VCR is a
universal remote controller. As such, some of
its buttons are not used to operate this VCR.
01 Infrared Transmitter
VCR OPERATION
03 OSD/DISPLAY (‘ 18, 25)
02 INPUT SELECT (‘ 34)
14 RESET (‘ 18)
1
05 On Screen Display Menu Operation
Buttons (‘ 14)
MENU
VOLUME
TV
Í
r
W
s
X
AV
VCR
Í
W
AUDIO
X
PICTURE MODE
INDEX
:
MENU
REC
9
3421
06 ;/D (PAUSE/SLOW) (‘ 21)
07 Timer Recording Operation Buttons
(‘ 27–29)
I J, DATE, ON, OFF
OK
6
11
12
¥
NAVI
3
1
2
OK
INPUT SELECT VCR/TV
OSD/DISPLAY RESET
2
3
4
8
9
10
1
5
SEARCH
;/D
PROG./CHECK
∫
5
6
7
PROG/CHECK CANCEL 4 SPEED
1
W
X
2
3
TIMER
Á
4
r
r
r
DATE
ON
OFF
s
s
s
CANCEL
SPEED
TIMER Á
08 VCR/TV (‘ 12)
09 AUDIO
This button is not used to operate this
VCR.
10 INDEX :, 9 (‘ 33)
11 REC ¥ (‘ 24)
12 NAVI (‘ 30)
6
Before Use
13 TV Í
Press to switch the TV from on to standby
mode or vice versa. In standby mode, the
TV is still connected to the mains.
– With some TV models, it may only be
possible to switch the TV to the standby
mode using this button.
In this case, use [AV] or the I and J
buttons to switch the TV on.
– Ensure that [VCR/TV] switch is set to
[TV].
14 AV
Selects TV input or AV input.
VOLUME
TV
15 VOLUME sNr
Adjusts the volume of the TV.
AV
VCR
INPUT SELECT VCR/TV
OSD/DISPLAY RESET
PICTURE MODE
REC
NAVI
16 I J
Selects the required program position (TV
station) of the TV.
– Ensure that [VCR/TV] switch is set to
[TV].
TIMER
Á
7
Remote Controller Setup
Installing the Batteries
Insert the batteries with the polarity (+ and -)
correctly aligned.
Power Source for the Remote Controller:
The remote controller is powered by 2 AA, UM3
or R6 size batteries. The life of the batteries is
about one year, although this depends on the
frequency of use.
Precautions for Battery Replacement:
– Load the new batteries with their polarity (+
and -) aligned correctly.
– Do not apply heat to the batteries, or an
internal short circuit may occur.
– If you do not intend to use the remote
controller for a long period of time, remove
the batteries and store them in a cool and dry
place.
– Remove spent batteries immediately and
dispose of them.
– Do not use an old and a new battery together,
and never use an alkaline battery with a
manganese battery.
– Do not use rechargeable batteries.
8
Connections
This section shows you how to connect the
VCR to an antenna, TV, etc.
When the VCR is turned on after connecting
the antenna cable and the AC power cord,
Plug in Auto Tuning starts automatically.
Basic Connections
TV Set (Not supplied)
The following connections are required to
record and play back the video cassette
through the TV.
1
2
Setting Up
Antenna (Not supplied)
Antenna Input Connector
IN
AC IN
SECTEUR
IN (AV1) OUT
RF
VIDEO
OUT
AUDIO
3
To mains supply
9
1
2
3
IN
IN (AV1) OUT
RF
VIDEO
OUT
AUDIO
4
10
Cable Connection
The VCR has an extended range, and can tune
the Low-Band, Mid-Band, Super-Band, HyperBand, Ultra-Band, and Special cable channels
(Channels A-5–A-1, A–W, AA–FFF, GGG–
WWW, WWWr1–WWWr12, 100–125, 5A).
Also, the VCR can tune to any of the 56 UHF
channels (14–69). Refer to Storing TV
Broadcasts in your VCR on page 15.
BASIC Hook-Up
The cable hook-up shown at the bottom left
allows VCR-TV functions except for viewing
one channel while recording another.
75 ohm Cables System
IN
2-WAY
SPLITTER
IN
Cable TV
Converter Box
OUT2
Cable TV
Converter Box
IN
Switch Box°
Since the VCR can tune Mid
and Super Bands, this
connection will provide the
reception of all cable channels
except those which are
intentionally scrambled.
OUT1
OUT
OUT
75 ohm Coaxial
Cables
°Not available from
our company.
Please contact your
cable company.
Setting Up
Cable-VCR-TV (For CATV/PAY
Channels Recording/Playback)
To the 75 ohm VHF
Input on the TV set
75 ohm Coaxial Cable
However, if you subscribe to a special channel
which is scrambled you will probably have a
descrambler box for proper reception. The VCR
by itself cannot properly receive a scrambled
program since it does not contain a
descrambler. In order for the VCR to properly
receive a scrambled program, your existing
descrambler must be used. There are two
commonly used methods of connection in this
case.
Typical Cable System Hook Ups
with Cable Converter/Descrambler
Boxes
75 ohm Cable System
IN
75 ohm Coaxial
Cables
Cable TV
Converter
Box
The above cable hook-up allows VCR
functions, including viewing one channel while
recording another, but it requires two cable TV
Converter/Descrambler Boxes, one Switch Box
and one 2-Way Splitter.
Since the VCR has an extended range of
tuning, tuning-programing of non-scrambled
Mid-Band and Super-Band TV programs is
possible. When a cable converter or
descrambler box is connected to the VCR,
all timer-controlled recording functions will
continue to operate with the exception of
charging channels automatically. CATV
Channel selection will have to be performed
with the cable converter. Timer-controlled
recording from CATV Channels is therefore
limited to one channel at any given time.
OUT
To the 75 ohm VHF
Input on the TV set
11
Tuning the TV to your VCR
The VCR is fitted with its own tuner (just like a
normal TV) and can be preset to receive up to
181 TV broadcast stations.
IN
N (AV1) OUT
RF
VIDEO
1
OUT
AUDIO
Auto Tuning searches for TV stations from VHF
minimum to UHF maximum and memorizes
every tuned program position.
3
VOLUME
TV
Í
r
W
s
X
AV
1
VCR
INPUT SELECT VCR/TV
Í
W
OSD/DISPLAY RESET
AUDIO
2
X
PICTURE MODE
INDEX
:
MENU
¥
NAVI
OK
6
Notes:
– If the VCR is turned on with the antenna not
connected, all channels are skipped.
– When Auto Tuning is canceled halfway, Auto
Tuning is not executed even if the VCR is
turned off and then turned on again. In this
case, see page 13 “To Restart Plug in Auto
Tuning”.
REC
9
3
1
2
Plug in Auto Tuning
1
5
SEARCH
;/D
1 Press [POWER Í/I (VCR Í)] to turn on the
TV and VCR after connecting the antenna
cable and the AC power cord, Auto Tuning
starts.
∫
PROG/CHECK CANCEL
1
W
X
2
4
SPEED
TIMER
Á
3
4
r
r
r
DATE
ON
OFF
s
s
s
AUTO CHANNEL SET
12
When the VCR is turned on after unpacking
and connecting the antenna cable and the
AC power cord, Plug in Auto Tuning starts
automatically.
Channel being
searched
PROCEEDING
END
The VCR supplies a signal to the TV via the RF
coaxial cable on channel US3 or 4.
It is possible to view the video picture on your
TV in the same way that you watch TV
broadcasts.
If you have connected the VCR to the TV
through the video and audio input sockets, then
you do not need to follow the procedure below.
2
: MENU
– Auto Tuning will stop halfway by turning
the VCR off, pressing [MENU], playback
or a power failure during Auto Tuning.
– When there are 5 more CATV channels,
the antenna system CATV is automatically
selected; when there are 4 or fewer CATV
channels, the TV is selected. If a change is
required, conduct the resetting procedure
described in step 4 on page 14.
2 Press [VCR/TV] to select the VCR mode.
AUTO CHANNEL SET
2 Turn off the VCR and then turn it on.
– Auto Tuning commences.
To Change the RF Output
Channel
2
AUTO TUNING IS
COMPLETED.
PROCEEDING
END
If Auto Tuning stops halfway by turning the
VCR off, playback or a power failure:
1 Disconnect the mains lead and then
reconnect it.
: MENU
END: MENU
To Cancel Auto Tuning MidOperation
Press [MENU] during Auto Tuning. Auto Tuning
is cancelled.
To Restart Plug in Auto Tuning
In some rare cases after tuning the TV to your
VCR, interference may be visible on the
picture. To get rid of this interference, you can
manually adjust the RF output channel a few
channels up and down from the current setting.
The procedure is described below.
Setting Up
3 Select a program number on the TV which
you wish to use as the video viewing
channel. Then tune in the TV to the picture
from the screen being auto tuned or the
screen selected with the I and J buttons
of the VCR.
– During Auto Tuning, the TV program
screen does not appear, and the Auto
Tuning screen appears instead.
1 Hold down [MENU] for 5 seconds or more.
– The VCR display changes as shown below
and the VCR picture on the TV displays
this pattern.
1 Press [EJECT] and remove the video
cassette.
Panasonic VCR
2 Keep the I and J buttons on the VCR
pressed simultaneously for 3 seconds or
more during the VCR on.
– The channel displayed on the VCR display
disappears for a moment then changes to
2.
END: MENU
2 Enter the desired channel number (US3 or
US4) by the I and J buttons.
3()4
3 Press [MENU] to finish the setting mode.
Disappears
2
3 Disconnect the mains lead and then
reconnect it.
4 Turn off the VCR and then turn it on.
Press [VCR/TV] to select the VCR mode.
– Auto Tuning commences.
4 Retune your TV to the new RF channel for
the VCR.
Note:
– Even if the RF output channel has been
changed, it is not necessary to perform Auto
Tuning.
13
Storing TV Broadcasts in your VCR
Auto Tuning Using the On
Screen Display
The VCR is tuned automatically by Plug in Auto
Tuning. However, Auto Tuning using the On
Screen Display should be performed according
to the following method if necessary.
Preparations
– Confirm that the TV is on and the VCR
viewing channel is selected.
– Turn on the VCR and select any program
position except AV input.
– Press [VCR/TV] to select the VCR mode.
Operations
1 Press [MENU].
SELECT
END
VOLUME
TV
Í
OSD MENU
≥LANGUAGE
CLOCK SET
CHANNEL SET
OPTION
r
W
s
X
: , OK
:MENU
AV
VCR
INPUT SELECT VCR/TV
Í
W
OSD/DISPLAY RESET
AUDIO
X
PICTURE MODE
INDEX
:
MENU
REC
9
OK
6
SELECT
END
¥
1
5
SEARCH
;/D
∫
PROG/CHECK CANCEL
1
W
X
2
4
SPEED
TIMER
Á
3
4
r
r
r
DATE
ON
OFF
s
s
s
Notes:
– Auto Tuning searches for TV stations from
VHF minimum to UHF maximum and
memorizes every tuned program position.
Other program positions are skipped.
– Auto Tuning takes three or more minutes to
complete its search.
– If the VCR is not correctly tuned by Auto
Tuning, follow the procedure on the next
page.
14
OSD MENU
LANGUAGE
CLOCK SET
≥CHANNEL SET
OPTION
: , OK
:MENU
NAVI
3
1
2
2 Select [CHANNEL SET]
by pressing 3 or 4 and
then press [OK].
3 Select [ANTENNA
SYSTEM] by pressing
3 or 4 and then press
[OK].
4 Select the desired
system by pressing 3 or
4 and then press
[MENU].
5 Select [AUTO] by
pressing 3 or 4 and
then press [OK].
– When Auto Tuning is
completed, the on
screen display
disappears and the
lowest channel position
at which a broadcast
can be tuned in is
received.
CHANNEL SET
≥ANTENNA SYSTEM
AUTO
MANUAL
SELECT
END
: , OK
:MENU
ANTENNA SYSTEM
≥TV
CATV
SELECT
END
:
:MENU
CHANNEL SET
ANTENNA SYSTEM
≥AUTO
MANUAL
SELECT
END
: , OK
:MENU
AUTO CHANNEL SET
PROCEEDING
END
:MENU
2
Manual System Setting
Procedure
Channel Plan
TV mode
5 Select [MANUAL] by pressing 3 or 4 and
then press [OK].
CHANNEL SET
ANTENNA SYSTEM
AUTO
≥MANUAL
SELECT
END
CHANNEL
CHANNEL
RECEIVED OF
DESIGNATIONS
THE AIR
CHANNEL
SELECTION &
INDICATION
ON VCR
VHF
2–13
2–13
UHF
14–69
14–69
: , OK
:MENU
6 Select [CH] by pressing 3 or 4 and then
select the program position by pressing 2 or
1.
Setting Up
Follow steps 1 to 4 on page 14.
CATV mode
MANUAL CHANNEL SET
CH 2
BLANK ON ≥OFF
SELECT
:
∂/µ:
END
:MENU
7 Select [BLANK] by pressing 3 or 4 and
then select [ON] or [OFF].
MANUAL CHANNEL SET
CH 2
BLANK ON ≥OFF
SELECT
:
∂/µ:
END
:MENU
– To select the blanking of a program
position, select [ON].
– Repeat steps 6 and 7 for another
unoccupied program positions to skip
during the selection of the program
positions.
8 Press [MENU] three times.
CHANNEL
DESIGNATIONS
CHANNEL
CHANNEL
SELECTION &
RECEIVED
INDICATION
FROM CABLE
ON VCR
BROADCAST
VHF
2–13
2–13
CATV LOW
BAND
A-5–A-1
95–99
CATV MID/
SUPER
BANDS
A–W
14–36
CATV HYPER
BAND
AA–FFF
37–65
GGG– WWW
WWWi1–
WWWi12
66–94
100–125
100–125
5A
1
ULTRA
BAND
SPECIAL
CATV
CHANNEL
15
Language Setting of the On Screen
Display
Preparations
– Confirm that the TV is on and the VCR
viewing channel is selected.
– Turn on the VCR.
– Press [VCR/TV] to select the VCR mode.
To Select the Desired Language
Select one of the four languages displayed:
English, Spanish, Portuguese and French.
1 Press [MENU].
OSD MENU
≥LANGUAGE
CLOCK SET
CHANNEL SET
OPTION
SELECT
END
VOLUME
TV
Í
r
W
s
X
AV
VCR
2 Select [LANGUAGE] by
pressing 3 or 4 and
then press [OK].
OSD MENU
≥LANGUAGE
CLOCK SET
CHANNEL SET
OPTION
SELECT
END
INPUT SELECT VCR/TV
Í
: , OK
:MENU
: , OK
:MENU
W
OSD/DISPLAY RESET
AUDIO
X
PICTURE MODE
INDEX
:
MENU
3 Select the desired
language by pressing 3
or 4.
REC
9
¥
NAVI
3
1
2
OK
6
1
5
SEARCH
;/D
∫
PROG/CHECK CANCEL
1
W
X
16
2
4
SPEED
TIMER
Á
3
4
r
r
r
DATE
ON
OFF
s
s
s
4 Press [MENU] twice.
LANGUAGE
≥ENGLISH
ESPAÑOL
PORTUGUÊS
FRANÇAIS
SELECT
END
:
:MENU
Setting the Clock of your VCR
Preparations
– Confirm that the TV is on and the VCR
viewing channel is selected.
– Turn on the VCR.
– Press [VCR/TV] to select the VCR mode.
4 Set each item by pressing 3 or 4 and 1.
Press 2 to return to the previous item.
Set [Year] to [2005].
CLOCK SET
Y
2005
Set [Month] to [10].
s
X
D
1
H:M
0:00
: YES ≥NO
s/r:
W
OSD/DISPLAY RESET
Set [Date] to [16].
AUDIO
X
INDEX
:
MENU
CLOCK SET
REC
9
Y
2005
¥
NAVI
3
OK
PROG/CHECK CANCEL
4
SELECT:
START :MENU
SEARCH
∫
SPEED
TIMER
Á
3
4
Example:
Date; 16 October (During daylight saving
time), 2005
Time; 20:15
Operations
OSD MENU
1 Press [MENU].
≥LANGUAGE
CLOCK SET
CHANNEL SET
OPTION
SELECT
END
2 Select [CLOCK SET] by
pressing 3 or 4 and
then press [OK].
: , OK
:MENU
OSD MENU
LANGUAGE
≥CLOCK SET
CHANNEL SET
OPTION
SELECT
END
3 Set [D.S.T.] (Daylight
Saving Time) by
pressing 3 or 4.
D
16
H:M
0:00
: YES ≥NO
s/r:
1
5
;/D
2
M
10
D. S. T.
1
6
1
M
10
SELECT:
START :MENU
INPUT SELECT VCR/TV
PICTURE MODE
2
s/r:
CLOCK SET
D. S. T.
Í
H:M
0:00
W
AV
VCR
D
1
: YES ¡NO
SELECT:
START :MENU
Y
2005
r
Í
M
1
D. S. T.
Setting Up
The built-in digital clock is used to activate the
timer for automatic recording and must be set
to the correct time. It employs the 24-hour
system.
M
1
D. S. T.
D
1
M
10
D. S. T.
D
16
H:M
20:15
: YES ≥NO
SELECT:
START :MENU
s/r:
5 Press [MENU].
– The clock starts.
Note:
– The clock operates for at least 5 years on its
backup system in the event of a power
failure.
If the clock is less than two minutes slow or
fast, it can easily be reset to the proper time.
Example: Resetting the clock to 12:00.00
H:M
0:00
: YES ¡NO
SELECT:
START :MENU
CLOCK SET
Y
2005
Time Reset Function
: , OK
:MENU
CLOCK SET
Y
2005
Set [Time] to [20:15].
– When it is kept
pressed, the indication
changes in 30-minute
steps.
– There is no need to
press 1.
∂/µ:
– Select [YES] to set daylight saving time.
The time on the clock is advanced by
1 hour.
– Select [NO] to return to standard time. The
time on the clock is set back by 1 hour.
– Press 1 to set each time.
– Press [MENU] when not setting each time.
1 Select [CLOCK SET] from the OSD menu
and press [OK].
2 When the current clock display on the VCR
is between 11:58.00 and 12:01.59, press
[MENU] as soon as you hear the 12:00.00
signal. This resets the time to 12:00.00.
17
Settings Using the On Screen
Display
Preparations
– Confirm that the TV is on and the VCR
viewing channel is selected.
– Turn on the VCR.
– Press [VCR/TV] to select the VCR mode.
To Use the On Screen Display
Press [OSD/DISPLAY].
1
2
CH 1
3
0:00.22
SP
On Screen Display
4
5
1 Press [MENU].
STANDARD
2 Select [OPTION] by
pressing 3 or 4 and
then press [OK].
6
OSD MENU
LANGUAGE
CLOCK SET
OCHANNEL SET
¡OPTION
1
Program position
SELECT
END
2
Tape running display
: , OK
:MENU
Stop, Eject
OPTION
3 Select [OSD] by
pressing 3 or 4.
OSD
≥ON OFF
TAPE SELECT
≥T120
T160
T180
BLUE BACK
≥ON OFF
JET NAVIGATOR
≥ON ≥OFF
DELETE NAVIDATA ≥NO YES
JET SEARCH
x27 ≥x35
SELECT
END
:
s/r:
:MENU
OPTION
4 Select [ON] or [OFF] by
pressing 2 or 1.
OSD
≥ON OFF
TAPE SELECT
≥T120
T160
T180
BLUE BACK
≥ON OFF
JET NAVIGATOR
≥ON ≥OFF
DELETE NAVIDATA ≥NO YES
JET SEARCH
x27 ≥x35
SELECT
END
:
s/r:
:MENU
ON:
The on screen display will appear on
the TV screen for 5 seconds.
– The on screen display will always appear
on the TV screen during rewind and fast
forward.
OFF: The on screen display will not appear.
3
r
W
s
X
Fast forward, Cue,
Index Search,
JET SEARCH (forward)
5
Playback
1
Recording
¥
Recording pause
M
Repeat playback
R1
Present time/Tape counter/Remaining
tape time/Index search
Display
Present time
17:24
Tape counter
j2:35.47
Remaining tape time
Index search
VOLUME
Í
6
Information
5 Press [MENU] twice to make the on screen
display disappear.
TV
Rewind, Review,
Index Search,
JET SEARCH (backward)
REMAIN 2:34
S 01
AV
VCR
Press [RESET] to reset the tape counter
(elapsed time) to [0:00.00].
– The tape counter is automatically reset to
[0:00.00] when a video cassette is
inserted.
INPUT SELECT VCR/TV
Í
W
OSD/DISPLAY RESET
AUDIO
X
PICTURE MODE
INDEX
:
MENU
REC
9
¥
NAVI
3
1
2
OK
6
1
5
4
Cassette-in indicator
5
Tape speed indicator
SEARCH
;/D
∫
PROG/CHECK CANCEL
18
1
2
4
SPEED
TIMER
Á
3
4
Picture mode indicator
At each press [PICTURE MODE], the
selected picture mode is set and following
picture mode indicators appear.
STANDARD:
DYNAMIC:
SOFT:
CARTOON:
For TV program recorded
For Scenery, Sports
For Rental soft tape
For Cartoon
Notes:
– The on screen display may be disturbed
depending on the playback tape or the input
signal.
– The on screen display does not appear when
the [OSD] is set to [OFF]. Set the [OSD] to
[OFF] for dubbing.
For the Blue Background
Function
When [BLUE BACK] is [ON], the screen will
always have a blue background when you play
back the unrecorded portions.
Follow steps 1 to 2 on page 18.
3 Select [BLUE BACK] by
pressing 3 or 4.
OPTION
OSD
≥ON OFF
TAPE SELECT
≥T120
T160
T180
BLUE BACK
≥ON OFF
JET NAVIGATOR
≥ON ≥OFF
DELETE NAVIDATA ≥NO YES
JET SEARCH
x27 ≥x35
SELECT
END
4 Select [ON] or [OFF] by
pressing 2 or 1.
OPTION
OSD
≥ON OFF
TAPE SELECT
≥T120
T160
T180
BLUE BACK
≥ON OFF
JET NAVIGATOR
≥ON ≥OFF
DELETE NAVIDATA ≥NO YES
JET SEARCH
x27 ≥x35
SELECT
END
To Select the Corresponding
Video Cassette Tape Length to
Display the Approximate
Remaining Tape Time
Follow steps 1 to 2 on page 18.
3 Select [TAPE SELECT]
by pressing 3 or 4.
:
s/r:
:MENU
– When [BLUE BACK] is [OFF], the blue
background function is deactivated.
– It is not possible to record the blue picture
of the blue background function.
5 Press [MENU] twice to make the on screen
display disappear.
OPTION
OSD
≥ON OFF
TAPE SELECT
≥T120
T160
T180
BLUE BACK
≥ON OFF
JET NAVIGATOR
≥ON ≥OFF
DELETE NAVIDATA ≥NO YES
JET SEARCH
x27 ≥x35
SELECT
END
4 Select the corresponding
video cassette tape
length by pressing 2 or
1.
:
s/r:
:MENU
Setting Up
6
Follow steps 1 to 2 on page 18.
:
s/r:
:MENU
OPTION
OSD
≥ON OFF
TAPE SELECT
T120
≥T160
T180
BLUE BACK
≥ON OFF
JET NAVIGATOR
≥ON ≥OFF
DELETE NAVIDATA ≥NO YES
JET SEARCH
x27 ≥x35
SELECT
END
For the Jet Navigator Function
3 Select
[JET NAVIGATOR] by
pressing 3 or 4.
OPTION
OSD
≥ON OFF
TAPE SELECT
≥T120
T160
T180
BLUE BACK
≥ON OFF
JET NAVIGATOR
≥ON ≥OFF
DELETE NAVIDATA ≥NO YES
JET SEARCH
x27 ≥x35
SELECT
END
:
s/r:
:MENU
:
s/r:
:MENU
T120: For T30, -60, -90 and -120 tapes.
T160: For T140 and -160 tapes.
T180: For T180 tape.
5 Press [MENU] twice to make the on screen
display disappear.
4 Select [ON] or [OFF] by
pressing 2 or 1.
OPTION
OSD
≥ON OFF
TAPE SELECT
≥T120
T160
T180
BLUE BACK
≥ON OFF
JET NAVIGATOR
≥ON OFF
DELETE NAVIDATA ≥NO YES
JET SEARCH
x27 ≥x35
SELECT
END
:
s/r:
:MENU
– When [JET NAVIGATOR] is [ON],
appears on the VCR display and Jet
Navigator function works.
5 Press [MENU] twice to make the on screen
display disappear.
– See pages 30–32 for details on the Jet
Navigator function.
19
To Delete All the Jet Navigator
Data Stored in the VCR’s
Memory
Follow steps 1 to 2 on page 18.
3 Select [DELETE
NAVIDATA] by pressing
3 or 4.
OPTION
OSD
≥ON OFF
TAPE SELECT
≥T120
T160
T180
BLUE BACK
≥ON OFF
JET NAVIGATOR
≥ON ≥OFF
DELETE NAVIDATA ≥NO YES
JET SEARCH
x27 ≥x35
SELECT
END
4 Select [YES] by pressing
2 or 1 then press [OK]
when you want to delete
all the Jet Navigator
data.
:
s/r:
:MENU
OPTION
OSD
≥ON OFF
TAPE SELECT
≥T120
T160
T180
BLUE BACK
≥ON OFF
JET NAVIGATOR
≥ON ≥OFF
DELETE NAVIDATA
[ OK ]
JET SEARCH
x27 ≥x35
SELECT
END
:
s/r:
:MENU
5 Press [MENU] twice to make the on screen
display disappear.
– See page 31 on the way to delete the Jet
Navigator data of a single video cassette
tape.
To Select the Jet Search Speed
in the EP mode
Follow steps 1 to 2 on page 18.
3 Select [JET SEARCH] by
pressing 3 or 4.
OPTION
OSD
≥ON OFF
TAPE SELECT
≥T120
T160
T180
BLUE BACK
≥ON OFF
JET NAVIGATOR
≥ON ≥OFF
DELETE NAVIDATA ≥NO YES
JET SEARCH
x27 ≥x35
SELECT
END
4 Select [x27] or [x35] by
pressing 2 or 1.
:
s/r:
:MENU
OPTION
OSD
≥ON OFF
TAPE SELECT
≥T120
T160
T180
BLUE BACK
≥ON OFF
JET NAVIGATOR
≥ON ≥OFF
DELETE NAVIDATA ≥NO YES
JET SEARCH
x27 ≥x35
SELECT
END
:
s/r:
:MENU
– It is possible to view the picture recorded in
the EP mode at approx. 27 or 35 times
speed.
5 Press [MENU] twice to make the on screen
display disappear.
– See page 22 for details on the Jet Search
function.
20
EJECT
TIMER REC
REC/OTR
6
5
Basic Operations
PICTURE MODE
21
To Obtain a Higher Speed
Picture than Cue, Review
(Jet Search)
Press [FF] or [REW] twice to search forward
or backward during playback.
– Select search speed to view the picture
recorded. (See page 20.)
– The picture that appears in the EP mode at
approx. 35 times speed may be disturbed.
A vertical scroll may happen due to
combination with the TV monitor.
It is not a malfunction but if it happens,
change to approx. 27 times speed.
– Jet Search function also works during fast
forward or rewind.
– The picture may not be in color or be
distorted depending on TV.
– Press [PLAY] to cancel the Jet Search.
EJECT
STOP
PLAY
TIMER REC
REC/OTR
SEARCH
6
/ REW
FF / 5
Other Playback Functions
To Stop Playback Automatically
(Playback Off Timer Function)
Whenever you are playing back and wish to
stop the tape automatically, simply set the
playback duration by pressing [PLAY] on the
VCR repeatedly.
The duration indicated on the VCR display
changes by pressing [PLAY] as follows.
Counter display (normal playback mode)
>30 (min.)>60 (min.)>120 (min.)>
180 (min.)>240 (min.)>
Counter display (normal playback mode)
Press [PLAY] on the VCR for 2 seconds or
more during playback.
VOLUME
TV
Í
r
W
s
X
AV
VCR
INPUT SELECT VCR/TV
Í
W
OSD/DISPLAY RESET
AUDIO
X
PICTURE MODE
INDEX
:
MENU
REC
9
¥
NAVI
3
1
2
OK
6
1
5
SEARCH
;/D
∫
PROG/CHECK CANCEL
1
W
X
22
2
4
– The VCR will automatically switch off when
Playback Off Timer is completed. To turn the
VCR on again, press [POWER Í/I
(VCR Í)].
SPEED
3
TIMER
Á
4
r
r
r
DATE
ON
OFF
s
s
s
Notes:
– The Playback Off Timer function works
during normal playback.
– When the tape reaches its end during
Playback Off Timer, the tape will be rewound
to the start and the VCR will turn itself off.
– Repeat Playback function does not work
during Playback Off Timer.
– Press [STOP] to stop midway.
Keep [PLAY] pressed on the remote controller
for 5 seconds or more.
The [R 1] indication appears on the TV
screen.
Beginning
of Tape
End of
Recorded Part
Repeat Playback Control signal
Interruption
PLAY
(at least 5 sec.)
REW
Notes:
– Repeat Playback function does not work
during Playback Off Timer.
– Press [STOP] to release the VCR from the
Repeat Playback mode.
– Pressing [PICTURE MODE] once makes the
On Screen Display appear; after that,
pressing it repeatedly changes the indication
in the following order:
STANDARD (Initial Setting)>DYNAMIC>
SOFT>CARTOON>
STANDARD (Initial Setting)
To Eject the Video Cassette
Using the Remote Controller
Keep pressing [STOP] for at least 3 seconds.
Notes:
– Jet Search, cue, review or slow playback will
be automatically released after 10 minutes,
and still playback, after 5 minutes.
– In the EP mode only:
When playing back a tape which was
recorded on another VCR, it may be
necessary to adjust tracking control using the
I and J buttons. (See page 35.) In some
cases the picture quality may still be inferior.
This is due to format constraints.
To Playback in the Desired
Picture Quality (Picture Mode)
Basic Operations
To Play back the Recorded Part
Repeatedly
This function reproduces optimum playback
picture from various kind of recorded tapes and
contents.
VOLUME
TV
Press [PICTURE MODE] and select the
corresponding Picture Mode as follows.
Í
r
W
s
X
AV
VCR
INPUT SELECT VCR/TV
Í
Mode
STANDARD
DYNAMIC
SOFT
CARTOON
Characteristic
Normal
Example for
Purpose
TV program
recorded
Clear & Vivid Scenery, Sports
Mild
Delicate
Rental soft tape
Cartoon
W
OSD/DISPLAY RESET
AUDIO
X
PICTURE MODE
INDEX
:
MENU
REC
9
¥
NAVI
3
1
2
OK
6
1
5
SEARCH
;/D
∫
PROG/CHECK CANCEL
1
W
X
2
4
SPEED
3
TIMER
Á
4
r
r
r
DATE
ON
OFF
s
s
s
23
24
To Select the Desired Tape
Speed
Press [SPEED] before
recording.
SP
To Interrupt Recording
VOLUME
TV
Í
r
W
s
X
AV
Press [PAUSE/SLOW]
during recording.
Press it again to continue
recording.
VCR
INPUT SELECT VCR/TV
Í
REC
W
OSD/DISPLAY RESET
AUDIO
X
PICTURE MODE
INDEX
:
1 Refer to steps 1–4 of the manual recording
operation.
2 Press [VCR/TV] to select the TV mode.
3 Select the TV program on your TV that you
wish to view now.
REC
9
¥
NAVI
3
1
2
OK
6
1
5
SEARCH
;/D
∫
PROG/CHECK CANCEL
1
W
X
2
4
SPEED
3
TIMER
Á
4
r
r
r
DATE
ON
OFF
s
s
s
To Display the Approximate
Remaining Tape Time
1 Select [TAPE SELECT]
from the on screen
display and select the
corresponding video
cassette tape length.
See page 19.
Basic Operations
To View One TV Program while
Recording Another One
MENU
OPTION
OSD
≥ON OFF
TAPE SELECT
≥T120
T160
T180
BLUE BACK
≥ON OFF
JET NAVIGATOR
≥ON ≥OFF
DELETE NAVIDATA ≥NO YES
JET SEARCH
x27 ≥x35
SELECT
END
:
s/r:
:MENU
T120: For T30, -60, -90 and -120 tapes.
T160: For T140 and -160 tapes.
T180: For T180 tape.
2 Press [OSD/DISPLAY].
REMAIN
The display changes as follows each time
[OSD/DISPLAY] is pressed.
Clock>Counter>
Remaining Tape Time>Clock
– The remaining tape time may not be
displayed correctly depending on the tape
used.
Notes:
– When a video cassette with a broken off
erasure prevention tab is inserted, the 1
indication will flash to indicate that recording
is not possible even if [REC (REC/OTR)] is
pressed.
– The recording pause mode will be
automatically released after 5 minutes, and
the VCR will return to the stop mode.
25
EJECT
STOP
PLAY
TIMER REC
REC/OTR
SEARCH
6
/ REW
FF / 5
One-Touch Recording
(OTR)
Whenever you are in a hurry to start a timer
recording with automatic stop in your absence,
simply set the recording duration by pressing
[REC/OTR] repeatedly.
The duration indicated on the VCR display
changes by pressing [REC/OTR] as follows:
Counter display (normal recording mode)
>30 (min.)>60 (min.)>120 (min.)>
180 (min.)>240 (min.)>
Counter display (normal recording mode)
Preparation
– Insert a video cassette with an intact erasure
prevention tab.
Operations
1 Ready the video source which is to be
recorded, and start recording.
2 Press [REC/OTR] on the VCR main unit
repeatedly to select the desired recording
duration.
– The VCR will automatically switch off when
OTR is completed. To turn the VCR on
again, press [POWER Í/I (VCR Í)].
Notes:
– The OTR function works during normal
recording.
– When the tape reaches its end during OTR,
the VCR will turn itself off.
– To stop OTR at any time, press [STOP] or
[POWER Í/I (VCR Í)].
26
CH DATE ON
OFF
– – – – – – – – : – – – – : – – SP
CH DATE ON
OFF
2 – – – – – – : – – – – : – – SP
CH DATE ON
OFF
2 – – – – – – : – – – – : – – SP
CATEGORY : 1
CATEGORY : 1
CH DATE ON
OFF
2 27TH – – : – – – – : – – SP
CH DATE ON
OFF
2 27TH – – : – – – – : – – SP
CATEGORY : 1
CATEGORY : 1
CH DATE ON
OFF
2 27TH 2 0 : 0 2 – – : – – SP
CH DATE ON
OFF
2 27TH 2 0 : 0 2 – – : – – SP
CATEGORY : 1
CATEGORY : 1
VOLUME
TV
Í
r
W
s
X
AV
VCR
INPUT SELECT VCR/TV
Í
W
OSD/DISPLAY RESET
AUDIO
X
PICTURE MODE
INDEX
:
MENU
REC
9
¥
NAVI
3
1
2
OK
6
1
5
CH DATE ON
OFF
2 27TH 2 0 : 0 2 2 1 : 3 0 SP
SEARCH
;/D
∫
PROG/CHECK CANCEL
1
W
X
2
4
SPEED
TIMER
Á
3
4
r
r
r
DATE
ON
OFF
s
s
s
CATEGORY : 1
Advanced Operations
CATEGORY : 1
27
– Alternatively, you can set the category on
the Navigator list. (See page 31 for details.)
– This function is activated when [JET
NAVIGATOR] is set to [ON]. (See page
19.) When [JET NAVIGATOR] is set to
[OFF], proceed to the step 8.
7 Press [MENU] to make
the previous display
appear.
CH DATE ON
OFF
2 27TH 2 0 : 0 2 2 1 : 3 0 SP
CHECK
: PROG/CHECK
8 To activate timer
recording, press [TIMER].
– When [JET NAVIGATOR] is set to [ON],
the [PROGRAM IS COMPLETED
REMAINING PROGRAM 49] message
appears. (See page 19.)
– When [JET NAVIGATOR] is set to [OFF],
the [PROGRAM IS COMPLETED]
message appears. (See page 19.)
– The VCR will be set to the timer recording
standby mode after about 1 minute if
[TIMER] is not pressed.
Weekly Timer Recording
In step 3, select the desired day by pressing
[DATE s].
For example, SU (Sunday)
CH DATE ON
OFF
2 SU
– – : – – – – : – – SP
In step 3, select the desired days by pressing
[DATE s].
For example, C
CH DATE ON
OFF
2 SU-SA – – : – – – – : – – SP
CATEGORY : 1
Timer Recording from an
External Signal Source
If timer recording is performed by a unit
connected to the audio/video input sockets,
select the AV input indicator in step 2 for the
program position.
CH DATE ON
OFF
AV – – – – – – : – – – – : – – SP
CATEGORY : 1
Setting other Programs in
Succession
Repeat steps 1–8.
Selecting the Desired Tape
Speed
Press [SPEED] to make the selection in any of
steps 1–5.
CH DATE ON
OFF
2 27TH 2 0 : 0 2 2 1 : 3 0 EP
CATEGORY : 1
CATEGORY : 1
(SUuSunday, MOuMonday, TUuTuesday,
WEuWednesday, THuThursday, FRuFriday,
SAuSaturday)
Daily Timer Recording
For this timer function, several groups of days
can be selected.
A Daily recording from Monday to Friday
(MO–FR)
B Daily recording from Monday to Saturday
(MO–SA)
C Daily recording from Sunday to Saturday
(SU–SA)
28
Programming a Timer
Recording of a TV Program Until
its End
(Auto SP/EP Change Function )
If, during a timer recording performed in the SP
mode, the VCR determines that the remaining
tape time is insufficient to record the program
to its end, the Auto SP/EP Change function
automatically changes the tape speed to EP to
ensure that the whole program will be recorded.
Depending on the remaining tape length,
recording may be performed in the EP mode
from the start. However, if the remaining tape
time is still not sufficient in this case, the
program cannot be recorded to the end.
Example for T120 tape:
15 min. Recording
by SP mode
90 min.
Video
Tape
Timer
Programming
30 min.
90 min. Recording
by SP mode
45 min.
Recording
by EP
mode
1st Program
(90 min.)
3 Press 1 to display the
Category. (When [JET
NAVIGATOR] is set to
[ON].) Press 1 again to
make the previous
display appear.
CH DATE ON
OFF 1/2
2 2 7 T H 2 0 :0 2 2 1 :3 0
1
2 125 SU- SA 1 0 :3 0 1 1 :0 0
3 14 SU
1 5 :0 0 1 6 :0 0
4
5 1 9 W E 2 2 :1 5 2 3 :3 0
5 AV 2 8 F R 2 0 :0 2 2 1 :3 0
6
4 3 0 SU 1 9 :1 0 1 9 :5 5
7 – – – – – – – –:– – – –:– –
8 – – – – – – – –:– – – –:– –
SELECT: 1
END:MENU
Cancelling a Timer Program
– The VCR must be turned on, or in timer
recording standby mode.
– Confirm that the TV is on and the VCR
viewing channel is selected.
2nd Program
1 Press [PROG./CHECK] twice.
3rd Program will
not be recorded.
– The tape length must be set correctly.
(See page 19.)
– Tapes except T30, -60, -90, -120, -140, -160,
-180 tapes may not work correctly.
To Activate the Auto SP/EP Change
Function:
Press [SPEED] to select [A].
CH DATE ON
OFF
2 27TH 2 0 : 0 2 2 1 : 3 0 A
CATEGORY : 1
– Every time you press [SPEED], the indication
changes in the following order:
SP>EP>A>SP
Checking a Timer Program
– The VCR must be turned on, or the timer
recording indicator “Á” lit.
– Confirm that the TV is on and the VCR
viewing channel is selected.
1 Press [PROG./CHECK]
twice.
– Every time you press
[PROG./CHECK], the
program shifts below.
CH DATE ON
OFF 1/2
2 2 7 TH 2 0 :0 2 2 1 :3 0 SP
1
2 125 S U - S A 1 0 :3 0 1 1 :0 0 A
3 14 S U
1 5 :0 0 1 6 :0 0 SP
4
5 1 9 WE 2 2 :1 5 2 3 :3 0 EP
5 AV 2 8 FR 2 0 :0 2 2 1 :3 0 SP
6
4 3 0 S U 1 9 :1 0 1 9 :5 5 EP
7 – – – – – – – –:– – – –:– –
8 – – – – – – – –:– – – –:– –
SELECT: 1
END:MENU
2 Press [VCR/TV] to
select the VCR mode.
CH DATE ON
OFF 1/2
2 2 7 T H 2 0 :0 2 2 1 :3 0 SP
1
2 125 SU- SA 1 0 :3 0 1 1 :0 0 A
3 14 SU
1 5 :0 0 1 6 :0 0 SP
4
5 1 9 W E 2 2 :1 5 2 3 :3 0 EP
5 AV 2 8 F R 2 0 :0 2 2 1 :3 0 SP
6
4 3 0 SU 1 9 :1 0 1 9 :5 5 EP
7 – – – – – – – –:– – – –:– –
8 – – – – – – – –:– – – –:– –
SELECT: 1
END:MENU
3 Press [PROG./CHECK]
repeatedly.
CH DATE ON
OFF 1/2
2 2 7 T H 2 0 :0 2 2 1 :3 0 SP
1
2 125 SU- SA 1 0 :3 0 1 1 :0 0 A
3 14 SU
1 5 :0 0 1 6 :0 0 SP
4
5 1 9 W E 2 2 :1 5 2 3 :3 0 EP
5 AV 2 8 F R 2 0 :0 2 2 1 :3 0 SP
6
4 3 0 SU 1 9 :1 0 1 9 :5 5 EP
7 – – – – – – – –:– – – –:– –
8 – – – – – – – –:– – – –:– –
SELECT: 1
END:MENU
4 Press [CANCEL].
1
2
3
4
5
6
7
8
CH DATE ON
OFF 1/2
2 2 7 T H 2 0 :0 2 2 1 :3 0 SP
125 SU- SA 1 0 :3 0 1 1 :0 0 A
14 SU
1 5 :0 0 1 6 :0 0 SP
– – – – – – – –:– – – –:– – EP
AV 2 8 F R 2 0 :0 2 2 1 :3 0 SP
4 3 0 SU 1 9 :1 0 1 9 :5 5 EP
– – – – – – – –:– – – –:– –
– – – – – – – –:– – – –:– –
SELECT: 1
END:MENU
Note:
– If timer recording is not completed (due to
insufficient tape or cancellation by the user),
the programed timer recording data will be
cancelled from the memory by 4 A.M. two
days later.
However, if the timer recording function is
activated at that time, the programed timer
recording data will not be cancelled.
Advanced Operations
(60 min.)
2 Press [VCR/TV] to
select the VCR mode.
29
VOLUME
TV
Í
r
W
s
X
AV
VCR
INPUT SELECT VCR/TV
Í
W
OSD/DISPLAY RESET
AUDIO
X
PICTURE MODE
INDEX
:
MENU
REC
9
¥
NAVI
3
1
2
OK
6
1
5
SEARCH
;/D
∫
PROG/CHECK CANCEL
W
X
30
4
SPEED
TIMER
Á
r
r
r
DATE
ON
OFF
s
s
s
The category setting allows you to find what
kind of programs are recorded by the character
and the icon indications.
CATEGORY SETTING
Press 1 while the Jet
Navigator list appears.
≥MOVIE
≥MUSIC
≥DRAMA
≥EDUCA
≥DOCUM
≥SPORT
≥CHILD
≥NEWS
≥OTHER
≥– – – – –
SELECT: 3421
Category
Indication
MOVIE
MOVIE
MUSIC
MUSIC
DRAMA
DRAMA
EDUCATION
EDUCA
DOCUMENTARY
DOCUM
SPORTS
SPORT
CHILDREN
CHILD
NEWS
NEWS
OTHERS
OTHER
END : MENU
Icon
To Delete the Jet Navigator Data of a Single
Video Cassette Tape:
Keep [CANCEL] pressed for more than
5 seconds while the Jet Navigator list appears.
“– –” appears on the list.
– See page 20 on the way to delete all the Jet
Navigator data stored in the VCR’s memory.
Notes:
– The Jet Navigator list is stored in each
cassette.
– Signals approximately 10 seconds before and
after the current tape position are checked.
(During this checking, [CHECKING JET
NAVIGATOR DATA] is displayed on the TV
screen.)
– Checking cannot be performed properly when
signals are attempted to be checked at
portions of the tape where there are no
signals such as at unrecorded portions of the
tape. In this case, press [NAVI] at a portion of
the tape where a program has been recorded
of this VCR. This will allow signal checking to
be performed more reliably. When a signal
can still not be found, [CAN NOT FIND JET
NAVIGATOR DATA] is displayed on the TV
and you cannot find the beginning of the
program.
– Up to 20 cassettes and 50 programs can be
registered.
– If 50 recorded programs data is already
stored in memory and you attempt to store
timer recording data for another program, the
message [REMAINING PROGRAM “0”
DELETE JET NAVIGATOR DATA] appears. If
you attempt to make a new recording, this
same message also appears after you insert
the cassette and the Jet Navigator data is
checked. As each timer recording or manual
recording is finished, the program data is
deleted, starting from the oldest data.
– When a new program is attempted to be
recorded if programs equivalent to
20 cassettes are already stored in memory,
[REMAINING CASSETTE “0” FOR JET
NAVIGATOR DELETE JET NAVIGATOR
DATA] is displayed. Programs recorded
without deleting data as instructed are not
registered in the list.
Advanced Operations
To Set the Category
31
When Recording Over the Same Location
on a Tape:
– The originally recorded program is deleted
from the list.
– Program contents starting near the start and
end of the newly recorded program (within
10 minutes before the start and after the end
of the newly recorded program in the EP
mode) are also erased.
(Although old program contents are also
similarly erased in the case of ordinary
recording, the newly recorded program is not
registered in the list.)
Program 1
Program 2
Erased
Program 3
New program
To Check the Recorded
Programming Data
(Time Stamp Function)
When playback starts after searching with Jet
Navigator function or index search function,
recorded programming data (called Time
Stamp) appears on the TV screen for approx.
5 seconds.
Preparations
– Display the VCR picture on the TV.
– Be sure to set [OSD] to [ON]. (See page 18.)
– Press [VCR/TV] to select the VCR mode.
CH 2
10/27. TH
ON 20:02
Within 10 minutes in the EP mode
Program 1
Program 2
Erased
Program 3
New program
Within 10 minutes in the EP mode
Program 1
Program 2
Not erased
Program 3
New program
10 minutes or more in the EP mode
To Demonstrate the Jet
Navigator Function
Keep [NAVI] pressed for more than 5 seconds
without inserting a cassette tape.
32
Note:
– Time Stamp does not appear if the beginning
of the Jet Navigator data are not recorded
10 minutes before and after the current tape
position in the EP mode even when index
signals are recorded.
To Find the Beginning of
Each Recording
(VHS Index Search System)
Searching while checking
the video cassette
contents (Intro-Jet Scan)
Example:
Searching for the 2nd recorded segment in the
forward direction.
Press [INDEX 9] twice.
(This operation is performed
while the VCR is in the stop
mode or normal playback
mode.)
– After finding the specific recorded segment,
playback starts automatically.
– If you press [INDEX 9] too many times,
simply press [INDEX :] to correct it. In this
way, you can reduce the displayed figure
down to 1.
– Up to 20 index signals can be searched for in
both directions.
– The figure on the display decreases by
1 each time an index signal is located.
The approximate beginnings of each recorded
program are played in succession at the high
speed so that the program to be viewed can be
located easily.
Note:
– The index search function can only work
correctly if the index signals are spaced at
least 3 minutes apart in the SP mode and
5 minutes apart in the EP mode.
Operations
1 Press [SEARCH].
(This operation is performed while the VCR
is in the stop mode or normal playback mode
with the VCR on.)
– The tape is rewound to
the beginning, and
INTRO-JET SCAN
played for about
10 seconds at the high
speed. It is then fast
forwarded, the VISS
(VHS Index Search
System) signals are
INTRO-JET SCAN
searched in
succession, and each
time the signals are
found, the tape is
played for about
10 seconds at the high
speed.
55
5
INTRO-JET SCAN
55
VOLUME
TV
Í
r
W
s
X
AV
VCR
INPUT SELECT VCR/TV
Í
W
OSD/DISPLAY RESET
AUDIO
X
PICTURE MODE
INDEX
:
MENU
REC
9
¥
OK
6
2 When the program to be viewed is reached,
press [PLAY].
– Normal playback now commences.
NAVI
3
1
2
Advanced Operations
Recording Index Signals
Index signals are recorded in the following
cases.
– When a recording is started by pressing
[REC(REC/OTR)].
– When [REC] on the remote controller is
pressed during recording.
– When timer recording is activated.
Preparations
– Confirm that the TV is on and the VCR
viewing channel is selected.
– Press [VCR/TV] to select the VCR mode.
– Load the pre-recorded video cassette.
1
5
SEARCH
;/D
To stop the operation at any time:
Press [STOP].
∫
PROG/CHECK CANCEL
1
W
2
4
SPEED
TIMER
Á
3
4
r
r
r
DATE
ON
OFF
Note:
– This function may not work properly when
recorded programs run for 15 minutes or less.
33
Editing
Assembly Editing
This function can be used to make up an edited
tape from other recordings or video sources.
A new scene can be added to the end of
previous one.
Preparations
– Connect a movie camera or another VCR to
this VCR as shown.
– Insert a recorded cassette tape with an intact
erasure prevention tab.
– Select the audio source required by pressing
[INPUT SELECT] to set AV input.
VOLUME
TV
Í
r
W
s
X
AV
VCR
INPUT SELECT VCR/TV
Í
W
OSD/DISPLAY RESET
AUDIO
X
PICTURE MODE
INDEX
:
MENU
REC
9
¥
NAVI
3
1
2
2,4
OK
6
1
5
SEARCH
;/D
∫
PROG/CHECK CANCEL
1
W
X
2
4
SPEED
3
3
1
5
TIMER
Á
4
r
r
r
DATE
ON
OFF
s
s
s
AV1
(AUDIO IN/VIDEO IN)
Recording VCR
Other VCR
Video movie camera
34
Operations
1 Search for the end of the previous recording
by pressing [PLAY].
2 Press [PAUSE/SLOW].
3 Press [REC] to switch the VCR from the
pause mode to the recording standby mode.
4 Start the new recording by pressing
[PAUSE/SLOW] again.
5 Press [STOP] to stop recording.
EJECT
STOP
PLAY
TIMER REC
REC/OTR
SEARCH
6
/ REW
FF / 5
Advanced Operations
PICTURE MODE
35
Before Requesting Service
Before requesting service, check the following
points again.
Message of On Screen Display
On screen display
messages are displayed.
The error message is indicated in brackets
[ ].
[PLEASE PUT IN A VIDEO CASSETTE.]
– [REC (REC/OTR)] or [TIMER (TIMER
REC)] has been pressed without a video
cassette inserted.
Insert a video cassette with an intact
erasure prevention tab.
[PLEASE STOP THE TAPE.]
– [CHANNEL SET] has been selected
during playback. Stop the tape.
[PLEASE SET THE CLOCK.]
– [TIMER (TIMER REC)] or [PROG./
CHECK] has been pressed when the
clock is not set.
Set the clock.
[PLEASE USE A CASSETTE WITH TAB.]
– [REC (REC/OTR)] or [TIMER (TIMER
REC)] has been pressed without a video
cassette with an intact erasure
prevention tab.
Use a video cassette with an intact
erasure prevention tab.
[NO TIMER RECORDING HAS BEEN SET.]
– [TIMER (TIMER REC)] has been
pressed with no timer programs.
Set timer recording.
[VCR IS IN THE TIMER STANDBY MODE.]
– [POWER Í/I (VCR Í)] has been
pressed during the timer standby mode.
Press [TIMER (TIMER REC)] to release
the VCR from the timer standby mode.
36
Self-diagnostic Indications
This VCR has a self-diagnosis and display
function. If the VCR detects trouble during
installation or during use, the following
indications automatically appear in the VCR
display. Indications are in the form of a single
English letter plus two numbers, such as [H01].
INDICATION: H∑∑, F∑∑
CAUSE:
Some trouble has occurred.
(Numbers after H and F
differ according to the status
of the VCR.)
REMEDY:
Consult your dealer for
further advice.
The VCR will not operate correctly
The symptom description is indicated in
brackets [ ].
[The VCR display is not illuminated.]
– The AC power cord has not been
connected.
Connect the AC power cord to the main
AC power.
[The VCR display is illuminated but the VCR
will not operate.]
– The VCR is in the timer mode.
Press [TIMER (TIMER REC)] to operate
the VCR manually.
– Safety devices are operating.
Disconnect the AC power cord and wait
for 1 minute. Reconnect the mains
supply and check functions.
[An unknown language appears on the TV
screen.]
– The language setting has been set to an
unknown language.
Select the desired language.
See page 16.
–
The symptom description is indicated in
brackets [ ].
–
[The picture is noisy or is not in color.
Horizontal bars or lines run down the screen.]
– Tracking is not correct.
Adjust the tracking. See page 35.
– The TV has not been tuned to the VCR.
Tune the TV to the VCR. See page 12.
– The video heads are clogged or worn.
Consult your dealer for further advice.
Recording will not operate correctly
The symptom description is indicated in
brackets [ ].
[The 1 indication flashes whenever recording
is attempted.]
– The erasure prevention tab on the video
cassette has been broken off.
Use a tape with an intact erasure
prevention tab, or cover the tab hole with
adhesive tape, if the original recording is
no longer required.
[The picture is recorded with noise or a blank
screen.]
– The antenna or antenna cable is
defective.
Check the antenna connection to the
VCR. See pages 9–10.
Check your normal TV picture. If there is
no picture, check your antenna.
– The VCR is not correctly tuned.
Retune the VCR. See pages 12–15.
– AV input has been selected.
Select the required TV program.
[Timer recording cannot be performed.]
– The clock or calendar has been
incorrectly set.
Check the clock and calendar. Set them
to the present time. (Note that this is a
24-hour clock.) See page 17.
The recording starting or ending time
setting is incorrect.
Set the recording starting and ending
time correctly.
The VCR has not been set for timer
recording.
Press [TIMER (TIMER REC)] after
programming for timer recording.
[AV external recordings cannot be made.]
– AV input has not been selected.
Select AV input by pressing [INPUT
SELECT].
– External AV connections are incorrect.
Check that the connections for external
video and audio sources are correct.
See page 34.
The remote controller will not operate
correctly
The symptom description is indicated in
brackets [ ].
[The remote controller does not operate
correctly.]
– The remote controller transmitter beam
is not reaching the VCR.
Ensure that the remote controller is
being pointed at the VCR and that the
transmitter beam is not obstructed.
– The distance is too far.
Use the remote controller within 7 m of
the VCR.
If this range is not possible, replace the
batterries.
– The batteries are exhausted.
Replace the batteries. Note the
precautions for replacement on page 8.
– The batteries are incorrectly fitted with
(+/-) reversed.
Fit the batteries correctly as shown on
page 8.
Helpful Hints
Playback will not operate correctly
37
Usage Precautions
Please read these precautions before you
operate this VCR.
Avoid Sudden Changes in
Temperature
If the VCR is suddenly moved from a cold to
a warm place, dew may form on the tape
and inside the VCR.
Humidity and Dust
Avoid places where there is high humidity
or much dust, which may cause damage to
internal parts.
Do Not Obstruct the Ventilation Holes
The ventilation holes prevent abnormal
increases in temperature. Do not block or cover
these holes. Avoid covering the holes with soft
materials such as cloth or paper.
Avoid Water
Keep the VCR away from flower vases, tubs,
sinks, etc. If liquids are spilled into the VCR,
serious damage could occur. If you spill any
liquid into the VCR, consult qualified service
personnel.
Lightning
To avoid damage by lightning, disconnect the
aerial plug from the VCR.
Cleaning the VCR
Wipe the VCR with a clean, dry cloth. Never
use cleaning fluid or other chemicals. Do not
use compressed air to remove any dust.
Stacking
Place the VCR in a horizontal position, and do
not place anything heavy on it.
Avoid High Temperature
Keep the VCR away from extreme heat
sources such as direct sunlight, heating
radiators, or closed automobiles.
Avoid Magnets or Magnetized objects
Never bring a magnet or magnetized object
near the VCR as it will adversely affect its
performance of the VCR.
Keep the VCR away from other equipments as
much as possible when using it, to avoid any
adverse effect on performance for both the
VCR and the equipment.
Do Not Place Fingers or Other Objects
Inside
Do not attempt to disassemble the VCR.
Touching internal parts of this VCR is
dangerous, and may cause it serious damage.
There are no user serviceable parts inside.
38
If Dew Forms in the VCR
Dew may form in the VCR if:
– The VCR is in a room where the heater has
just been turned on.
– The VCR is in a room with steam or high
humidity.
– The VCR is brought from cold surroundings
into a well-heated room.
– The VCR is suddenly brought from cool
surroundings, such as an air-conditioned
room or car, to a place which is hot and
humid.
Note:
– Do not operate the VCR for at least 1 hour if
any of the above conditions occur.
This VCR does not incorporate a dew sensor.
Dirt on the video heads
If the video heads get dirty, pictures will not be
recorded or played back clearly.
(See the following conditions.)
Normal
Small
amount
of dirt
Large
amount
of dirt
If this happens, insert and eject a cassette
5–10 times successively to remove the dirt
from the video heads.
If a clear picture is not produced, insert a
commercially available cleaning cassette.
Then, press [REC (REC/OTR)] and keep it
running for approximate 10 seconds to clean
the video heads.
If the problem still persists after performing all
of the measures listed above, contact a service
personnel to request assistance.
Never use tapes on which juice has been spilt
or those that are extremely damaged since this
will not only cause the heads to become dirty,
but will also make the unit malfunction.
Helpful Hints
Heads mainly become dirty because of
scratched or dirty tapes, use of the unit in
places where temperature and humidity are
high, dust in the air and other reasons.
Surge Absorber
For added protection for this product, these
models are equipped with new surge absorbing
circuit which prevents damage due to power
surges caused by induced lightning.
– This function may not be effective for surges
by direct lightning.
39
Specifications
AG-1340P
Power Source:
Power Consumption:
Video Recording System:
Video Heads:
Tape Speed:
Tape Format:
Record/Playback Time:
FF/REW Time:
VIDEO
Television System:
Modulation System:
Input Level:
Output Level:
AUDIO
Input Level:
Output Level:
Audio Track:
Video Horizontal Resolution:
Signal-to-Noise Ratio:
Audio Frequency Response:
Operating Temperature:
Operating Humidity:
Weight:
Dimensions:
120 V AC 50/60Hz
22 W
2 rotary heads, helical scanning system
4 heads
SP; 33.3 mm/s EP; 11.1 mm/s
VHS tape
SP; 210 min with NV-T210
EP; 630 min with NV-T210
Approx. 60 s with NV-T120
EIA; Standard (525 lines, 60 fields), NTSC color signal
Luminance; FM azimuth recording
Color signal; converted subcarrier phase shift recording
VIDEO IN (PHONO);
1.0 Vp-p,
75 ohm
VIDEO OUT (PHONO);
1.0 Vp-p,
75 ohm
RF modulated;
VHF channel US3 or 4, 75 ohm, terminated
AUDIO IN (PHONO);
AUDIO OUT (PHONO);
1 track (normal-mono only)
Color; more than 200 lines
Video; more than 40 dB/SP
Audio; more than 40 dB/SP
60 Hz–12 kHz/SP
5oC–40oC (41oF–104oF)
35%–80%
3.3 kg (7.26 lbs.)
430 (W)k87 (H)k282 (D) mm
[1615/ 16" (W)k37 /16" (H)k111/ 8" (D)]
Weight and dimensions shown are approximate.
Specifications are subject to change without notice.
40
j10 dBV,
j8 dBV,
47 kohm
1 kohm
41
