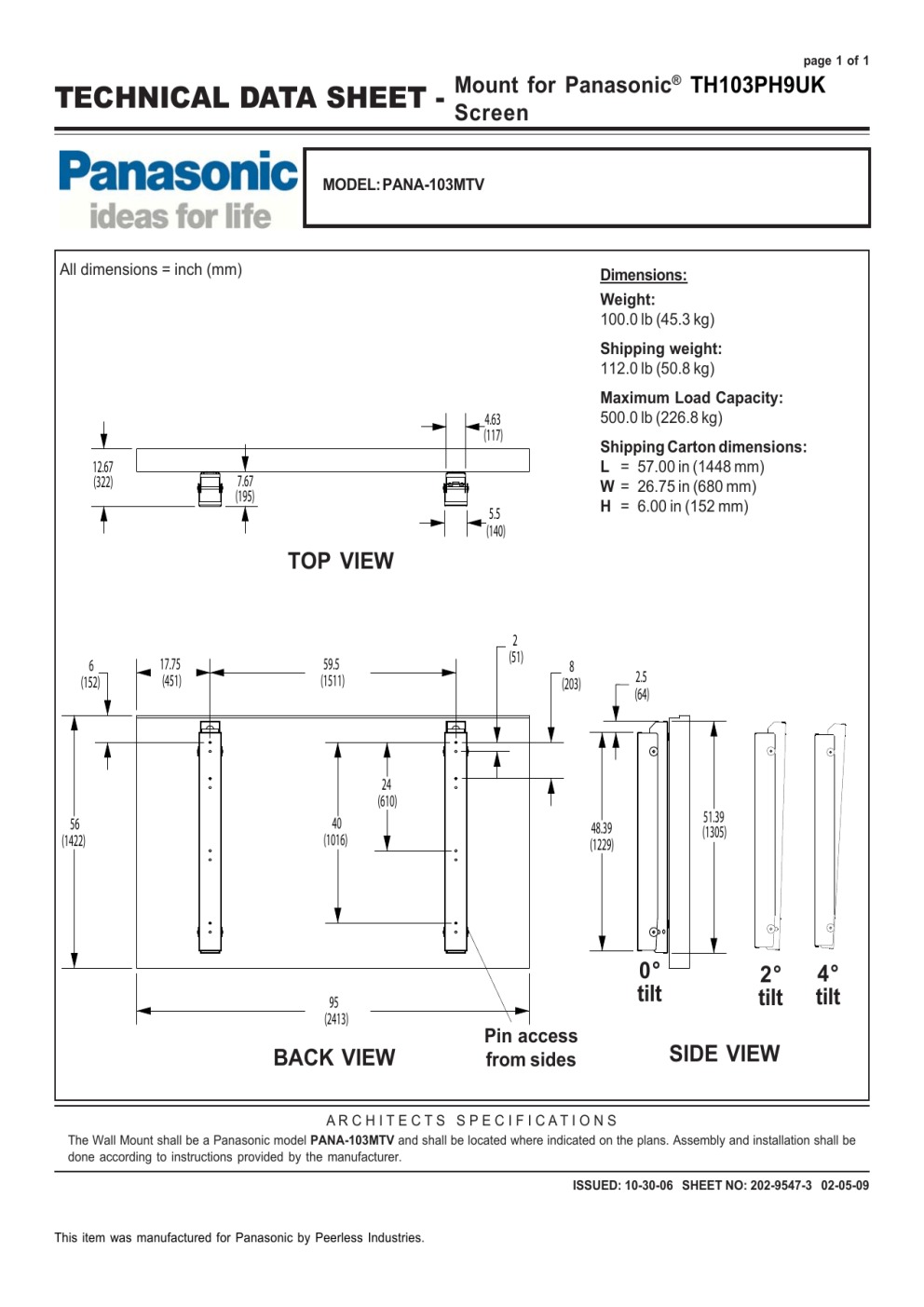

TECHNICAL DATA SHEET -
®
Mount for Panasonic TH103PH9UK
Screen
MODEL: PANA-103MTV
All dimensions = inch (mm)
Dimensions:
Weight:
100.0 lb (45.3 kg)
Shipping weight:
112.0 lb (50.8 kg)
Maximum Load Capacity:
500.0 lb (226.8 kg)
4.63
(117)
12.67
(322)
7.67
(195)
Shipping Carton dimensions:
L = 57.00 in (1448 mm)
W = 26.75 in (680 mm)
H = 6.00 in (152 mm)
5.5
(140)
TOP VIEW
6
(152)
17.75
(451)
2
(51)
59.5
(1511)
8
(203)
2.5
(64)
24
(610)
56
(1422)
40
(1016)
95
(2413)
BACK VIEW
51.39
(1305)
48.39
(1229)
0°
tilt
Pin access
from sides
2°
tilt
4°
tilt
SIDE VIEW
AR C H I T E C TS S P E C I F I CAT I O N S
The Wall Mount shall be a Panasonic model PANA-103MTV and shall be located where indicated on the plans. Assembly and installation shall be
done according to instructions provided by the manufacturer.
ISSUED: 10-30-06 SHEET NO: 202-9547-3 02-05-09
This item was manufactured for Panasonic by Peerless Industries.
