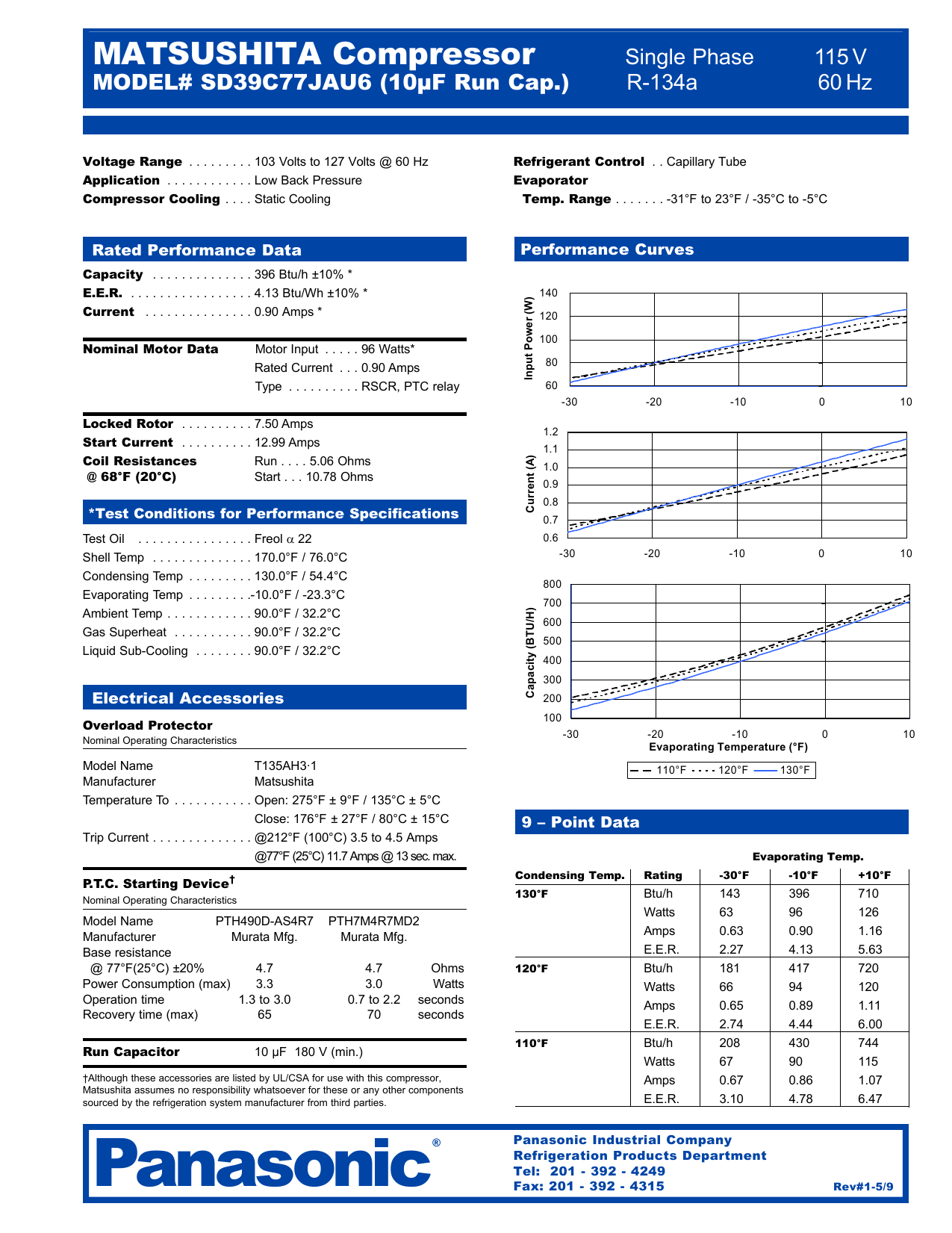

MATSUSHITA Compressor
MODEL# SD39C77JAU6 (10µF Run Cap.)
Motor Input . . . . . 96 Watts*
Rated Current . . . 0.90 Amps
Type . . . . . . . . . . RSCR, PTC relay
Locked Rotor . . . . . . . . . . 7.50 Amps
Start Current . . . . . . . . . . 12.99 Amps
Coil Resistances
Run . . . . 5.06 Ohms
@ 68°F (20°C)
Start . . . 10.78 Ohms
140
120
100
80
60
. Freol α 22
. 170.0°F / 76.0°C
. 130.0°F / 54.4°C
.-10.0°F / -23.3°C
. 90.0°F / 32.2°C
. 90.0°F / 32.2°C
. 90.0°F / 32.2°C
-20
-10
0
10
-30
-20
-10
0
10
Current (A)
1.1
1.0
0.9
0.8
0.7
0.6
Capacity (BTU/H)
800
Electrical Accessories
700
600
500
400
300
200
100
Overload Protector
-30
Nominal Operating Characteristics
Model Name
T135AH3.1
Manufacturer
Matsushita
Temperature To . . . . . . . . . . . Open: 275°F ± 9°F / 135°C ± 5°C
Close: 176°F ± 27°F / 80°C ± 15°C
Trip Current . . . . . . . . . . . . . . @212°F (100°C) 3.5 to 4.5 Amps
@77°F (25°C) 11.7 Amps @ 13 sec. max.
†
P.T.C. Starting Device
Nominal Operating Characteristics
Model Name
PTH490D-AS4R7
Manufacturer
Murata Mfg.
Base resistance
@ 77°F(25°C) ±20%
4.7
Power Consumption (max)
3.3
Operation time
1.3 to 3.0
Recovery time (max)
65
Run Capacitor
-30
1.2
*Test Conditions for Performance Specifications
.
.
.
.
.
.
.
Input Power (W)
Performance Curves
Rated Performance Data
Capacity . . . . . . . . . . . . . . 396 Btu/h ±10% *
E.E.R. . . . . . . . . . . . . . . . . . 4.13 Btu/Wh ±10% *
Current . . . . . . . . . . . . . . . 0.90 Amps *
Test Oil . . . . . . . . . . . . . .
Shell Temp . . . . . . . . . . . .
Condensing Temp . . . . . . .
Evaporating Temp . . . . . . .
Ambient Temp . . . . . . . . . .
Gas Superheat . . . . . . . . .
Liquid Sub-Cooling . . . . . .
115 V
60 Hz
Refrigerant Control . . Capillary Tube
Evaporator
Temp. Range . . . . . . . -31°F to 23°F / -35°C to -5°C
Voltage Range . . . . . . . . . 103 Volts to 127 Volts @ 60 Hz
Application . . . . . . . . . . . . Low Back Pressure
Compressor Cooling . . . . Static Cooling
Nominal Motor Data
Single Phase
R-134a
110°F
Ohms
Watts
seconds
seconds
†Although these accessories are listed by UL/CSA for use with this compressor,
Matsushita assumes no responsibility whatsoever for these or any other components
sourced by the refrigeration system manufacturer from third parties.
Panasonic
®
10
130°F
Evaporating Temp.
Condensing Temp.
Rating
-30°F
-10°F
+10°F
130°F
Btu/h
Watts
Amps
E.E.R.
Btu/h
Watts
Amps
E.E.R.
Btu/h
Watts
Amps
E.E.R.
143
63
0.63
2.27
181
66
0.65
2.74
208
67
0.67
3.10
396
96
0.90
4.13
417
94
0.89
4.44
430
90
0.86
4.78
710
126
1.16
5.63
720
120
1.11
6.00
744
115
1.07
6.47
120°F
110°F
10 µF 180 V (min.)
120°F
0
9 – Point Data
PTH7M4R7MD2
Murata Mfg.
4.7
3.0
0.7 to 2.2
70
-20
-10
Evaporating Temperature (°F)
Panasonic Industrial Company
Refrigeration Products Department
Tel: 201 - 392 - 4249
Fax: 201 - 392 - 4315
Rev#1-5/9
MATSUSHITA Compressor
MODEL# SD39C77JAU6 (10µF Run Cap.)
Single Phase
R-134a
115 V
60 Hz
207.1mm (8.15")
170mm (6.69")
165.1mm (6.50")
19mm (.75") DIA
4 Holes
16mm (.63") DIA
4 Holes
~
R.S.C.R.
150.4mm
(5.92")
70mm
Discharge
Tube
130.6mm
(2.76")
(5.14")
101.6mm
(4.00") 82mm
(2.44")
7
41mm
Internal Motor Protector
C
8
(1.61")
Compressor
Motor
76mm
(2.99")
Suction
Tube
87mm (3.43")
Process
Tube
78mm (3.07")
104mm (4.09")
164.4mm (6.47") DIA
S
M
6
5
3
B
2
PTC Relay
Running Capacitor
A
D
E
D
C
2.5mm (.10")
Dimensions*
mm
inches
A . . . . . . . . . . . . . . . . . . . . . 172.1 . . . . . . . . . . . . . . . . . . . 6.78
B . . . . . . . . . . . . . . . . . . . . . 60.9 . . . . . . . . . . . . . . . . . . . . 2.40
C
111.2
4.38
D
102.0
4.02
E
85.0
3.35
* All dimensions are for reference only
This document sets forth certain operational parameters and conditions for
operation of this product. If this product is operated outside of the parameters
and conditions stated herein, buyer assumes sole and full responsibility and
shall indemnify seller with respect to all product failures and all consequences
thereof. Operation of the product outside of the parameters and conditions
specified herein shall serve to invalidate all seller warranties, if any, with respect
to the product. This document is for reference only. For specifications, please
contact Panasonic’s engineering department.
Panasonic
®
Tubes
Tube O.D.
Wall
Suction . . . . . . . 0.33 in. / 8.3 mm
0.035 in. / 0.9 mm
Process . . . . . . 0.3125 in / 7.94 mm 0.028 in. / 0.7 mm
Discharge . . . . . 0.28 in. / 7.0 mm
0.041 in. / 1.05 mm
Material
Copper
Copper
Copper
U.L. File # . . . . . . . . . SA 4615
C.S.A. File #’s . . . . . . LR - 36593
General Data Oil Charge . . 195 cc ± 5 cc / 11.9 cu.in.± 0.3 cu.in.
Net Weight With Oil . . . . . . . . . . . . 16.3 lbs, 7.4 kg
Approved Oils . . . . . . FREOL α 22, FREOL α 22E
Residual Moisture . . . . . . . . . . . . . . . 120 mg max.
Impurities . . . . . . . . . . . . . . . . . . . . . . . 7 mg max.
Displacement . . . . . . . . . . . 3.90 cc. / 0.238 cu. in.
Panasonic Industrial Company
Refrigeration Products Department
Tel: 201 - 392 - 4249
Fax: 201 - 392 - 4315
Rev#1-5/9
