■ This product is eligible for the P2HD 5 Year
Warranty Repair Program. For details,
see page 12.

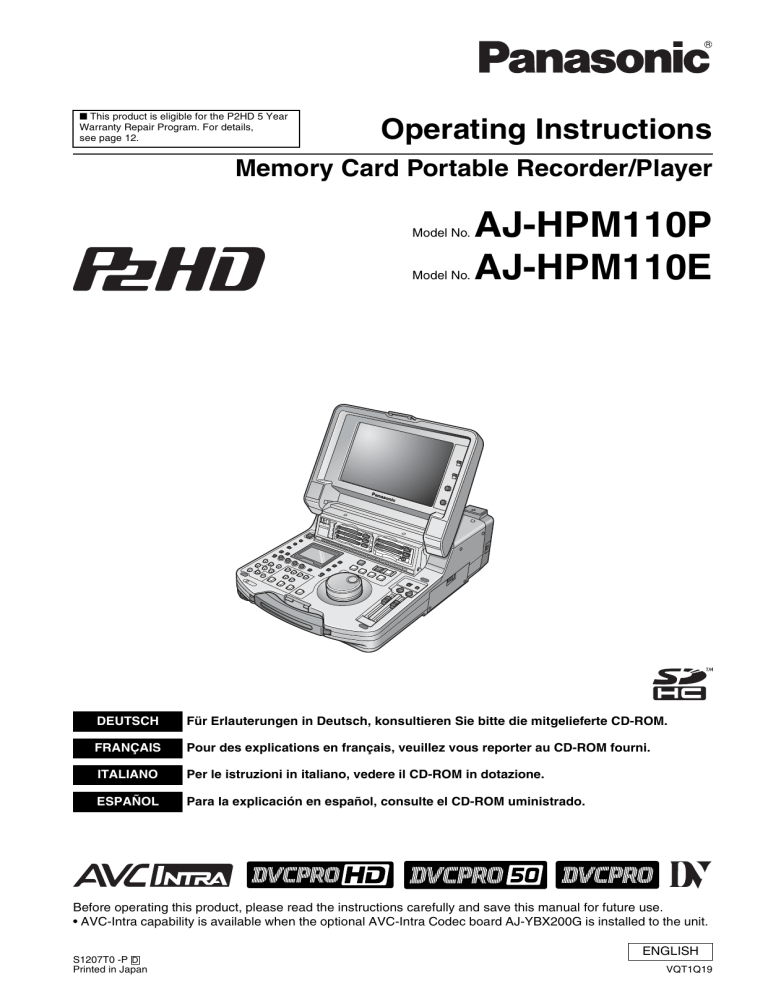

Operating Instructions
Memory Card Portable Recorder/Player
Model No.
Model No.
AJ-HPM110P
AJ-HPM110E
DEUTSCH
Für Erlauterungen in Deutsch, konsultieren Sie bitte die mitgelieferte CD-ROM.
FRANÇAIS
Pour des explications en français, veuillez vous reporter au CD-ROM fourni.
ITALIANO
Per le istruzioni in italiano, vedere il CD-ROM in dotazione.
ESPAÑOL
Para la explicación en español, consulte el CD-ROM uministrado.
Before operating this product, please read the instructions carefully and save this manual for future use.
• AVC-Intra capability is available when the optional AVC-Intra Codec board AJ-YBX200G is installed to the unit.
S1207T0 -P D
Printed in Japan
ENGLISH
VQT1Q19
Read this first!
For AJ-HPM110P
■ THIS EQUIPMENT MUST BE GROUNDED
To ensure safe operation, the three-pin plug must be
inserted only into a standard three-pin power outlet which is
effectively grounded through normal household wiring.
Extension cords used with the equipment must have three
cores and be correctly wired to provide connection to the
ground. Wrongly wired extension cords are a major cause
of fatalities.
The fact that the equipment operates satisfactorily does not
imply that the power outlet is grounded or that the
installation is completely safe. For your safety, if you are in
any doubt about the effective grounding of the power outlet,
please consult a qualified electrician.
CAUTION:
CAUTION:
THE MAINS PLUG OF THE POWER SUPPLY
CORD SHALL REMAIN READILY OPERABLE.
THE AC RECEPTACLE (MAINS SOCKET
OUTLET) SHALL BE INSTALLED NEAR THE
EQUIPMENT AND SHALL BE EASILY
ACCESSIBLE.
TO COMPLETELY DISCONNECT THIS
EQUIPMENT FROM THE AC MAINS,
DISCONNECT THE MAINS PLUG FROM THE AC
RECEPTACLE.
TO REDUCE THE RISK OF FIRE OR SHOCK
HAZARD AND ANNOYING INTERFERENCE,
USE THE RECOMMENDED ACCESSORIES
ONLY.
WARNING:
CAUTION:
• TO REDUCE THE RISK OF FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE.
• TO REDUCE THE RISK OF FIRE OR SHOCK
HAZARD, KEEP THIS EQUIPMENT AWAY
FROM ALL LIQUIDS. USE AND STORE ONLY
IN LOCATIONS WHICH ARE NOT EXPOSED TO
THE RISK OF DRIPPING OR SPLASHING
LIQUIDS, AND DO NOT PLACE ANY LIQUID
CONTAINERS ON TOP OF THE EQUIPMENT.
This apparatus can be operated at a voltage in
the range of 100 – 240 V AC.
Voltages other than 120 V are not intended for
U.S.A. and Canada.
Operation at a voltage other than 120 V AC may
require the use of a different AC plug. Please
contact either a local or foreign Panasonic
authorized service center for assistance in
selecting an alternate AC plug.
CAUTION:
The rating plate is on the underside of this
equipment.
In order to maintain adequate ventilation, do not
install or place this unit in a bookcase, built-in
cabinet or any other confined space. To prevent
risk of electric shock or fire hazard due to
overheating, ensure that curtains and any other
materials do not obstruct the ventilation.
indicates safety information.
2
CAUTION:
TO REDUCE THE RISK OF FIRE OR SHOCK
HAZARD, REFER MOUNTING OF THE
OPTIONAL INTERFACE BOARDS TO
QUALIFIED SERVICE PERSONNEL.
Read this first! (continued)
For AJ-HPM110P
IMPORTANT SAFETY INSTRUCTIONS
1)
2)
3)
4)
5)
6)
7)
8)
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider
than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are
provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
S3125A
Notice (U.S.A. only):
This product has a fluorescent lamp that contains mercury. Disposal may be regulated in your community
due to environmental considerations. For disposal or recycling information, please contact your local
authorities, or the Electronic Industries Alliance:
http://www.eiae.org.
IMPORTANT
Unauthorized recording of copyrighted television programmes, video tapes and other materials may
infringe the rights of copyright holders and contravene copyright laws.
<For USA-California Only>
This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material - special
handling may apply.
See www.dtsc.ca/gov/hazardouswaste.perchlorate.
3
Read this first! (continued)
For AJ-HPM110P
FCC NOTICE (U.S.A.)
Declaration of Conformity
Model Number:
AJ-HPM110P
Trade Name:
PANASONIC
Responsible Party:
Panasonic Corporation of North America
One Panasonic Way, Secaucus, NJ07094
Support contact:
Panasonic Broadcast & Television Systems Company
1-800-524-1448
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
To assure continued compliance, follow the attached installation instructions and do not make any unauthorized
modifications.
Note:
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by
one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
The user may find the booklet “Something About Interference” available from FCC local regional offices helpful.
Warning:
To assure continued FCC emission limit compliance, the user must use only shielded interface cables when connecting to
host computer or peripheral devices. Also, any unauthorized changes or modifications to this equipment could void the
user’s authority to operate this device.
4
Read this first! (continued)
For AJ-HPM110E
Caution for AC Mains Lead
FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This product is equipped with 2 types of AC mains cable. One is for continental Europe, etc. and the other one is only for
U.K.
Appropriate mains cable must be used in each local area, since the other type of mains cable is not suitable.
FOR CONTINENTAL EUROPE, ETC.
Not to be used in the U.K.
FOR U.K. ONLY
FOR U.K. ONLY
How to replace the fuse
This appliance is supplied with a moulded three pin mains
1.Open the fuse compartment with a screwdriver.
plug for your safety and convenience.
A 13 amp fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that the
replacement fuse has a rating of 13 amps and that it is
approved by ASTA or BSI to BS1362.
Check for the ASTA mark
or the BSI mark
on the body
of the fuse.
2.Replace the fuse.
If the plug contains a removable fuse cover you must ensure
that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a
Fuse
replacement cover is obtained.
A replacement fuse cover can be purchased from your local
Panasonic Dealer.
indicates safety information.
5
Read this first! (continued)
For AJ-HPM110E
■ THIS EQUIPMENT MUST BE EARTHED
To ensure safe operation, the three-pin plug must be
inserted only into a standard three-pin power point which is
effectively earthed through normal household wiring.
Extension cords used with the equipment must have three
CAUTION:
TO REDUCE THE RISK OF FIRE OR SHOCK
HAZARD AND ANNOYING INTERFERENCE,
USE THE RECOMMENDED ACCESSORIES
ONLY.
cores and be correctly wired to provide connection to the
earth. Wrongly wired extension cords are a major cause of
fatalities.
The fact that the equipment operates satisfactorily does not
imply that the power point is earthed or that the installation
is completely safe. For your safety, if you are in any doubt
CAUTION:
TO REDUCE THE RISK OF FIRE OR SHOCK
HAZARD, REFER MOUNTING OF THE
OPTIONAL INTERFACE BOARDS TO
QUALIFIED SERVICE PERSONNEL.
about the effective earthing of the power point, please
consult a qualified electrician.
■ DO NOT REMOVE PANEL COVERS BY
UNSCREWING THEM.
To reduce the risk of electric shock, do not remove the
covers. No user serviceable parts inside.
Refer servicing to qualified service personnel.
WARNING:
• TO REDUCE THE RISK OF FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE.
• TO REDUCE THE RISK OF FIRE OR SHOCK
HAZARD, KEEP THIS EQUIPMENT AWAY
FROM ALL LIQUIDS. USE AND STORE ONLY
IN LOCATIONS WHICH ARE NOT EXPOSED TO
THE RISK OF DRIPPING OR SPLASHING
LIQUIDS, AND DO NOT PLACE ANY LIQUID
CONTAINERS ON TOP OF THE EQUIPMENT.
CAUTION:
In order to maintain adequate ventilation, do not
install or place this unit in a bookcase, built-in
cabinet or any other confined space. To prevent
risk of electric shock or fire hazard due to
overheating, ensure that curtains and any other
materials do not obstruct the ventilation.
CAUTION:
THE MAINS PLUG OF THE POWER SUPPLY
CORD SHALL REMAIN READILY OPERABLE.
THE AC RECEPTACLE (MAINS SOCKET
OUTLET) SHALL BE INSTALLED NEAR THE
EQUIPMENT AND SHALL BE EASILY
ACCESSIBLE.
TO COMPLETELY DISCONNECT THIS
EQUIPMENT FROM THE AC MAINS,
DISCONNECT THE MAINS PLUG FROM THE AC
RECEPTACLE.
The rating plate is on the underside of this
equipment.
IMPORTANT
Unauthorized recording of copyrighted television programmes, video tapes and other materials may
infringe the rights of copyright holders and contravene copyright laws.
Operating precaution
Operation near any appliance which generates strong magnetic fields may give rise to noise in the video and audio signals.
If this should be the case, deal with the situation by, for instance, moving the source of the magnetic fields away from the unit
before operation.
Attention
Attentie
Battery is used for the memory back-up in the
product.
At the end of its useful life, you should not throw it
away.
Instead, hand it in as small chemical waste.
Voor het reservegeheugen van het apparaat
wordt gebruik gemaakt van een batterij.
Wanneer de batterij uitgeput is, mag u deze niet
gewoon weggooien, maar dient u hem als klein
chemisch afval weg te doen.
indicates safety information.
6
Contents
Accessories ...............................................................................................12
Included Accessories ................................................................................. 12
Optional Accessories .................................................................................. 12
Opening and Closing the Top Panel ..........................................................13
Introduction
Features .....................................................................................................14
Control Reference Guide ...........................................................................17
Audio and Video Controller ......................................................................... 17
GUI Operations ........................................................................................... 21
Panel Control Unit and Card Slots .............................................................. 24
LCD Panel ................................................................................................... 25
Rear Panel ................................................................................................... 26
Side Panel ................................................................................................... 30
Moving Between Screens and Menu Operations .......................................31
Operating Modes ........................................................................................ 31
Menu Operations ......................................................................................... 32
Using the On-screen Keyboard ..................................................................33
Using the Full Keyboard .............................................................................. 33
Using the Ten Keypad ................................................................................ 33
Recording, Playback and P2 Card Handling ..............................................34
Insert a P2 Card .......................................................................................... 34
Recording and Playback ............................................................................. 34
LOOP REC Function .................................................................................... 35
Removing P2 Cards .................................................................................... 36
Preventing Accidental Deletion ................................................................... 37
Connections ...............................................................................................38
Example of connections in 23.98/24/29.97/25 Hz mode ............................ 38
Example of connections for remote control ................................................ 38
Recording From a Variable Frame-Rate Camera ......................................39
Recording HD SDI output signals from a variable frame-rate camera as
720/23.98p ............................................................................................. 39
Recording HD SDI signals output by an HD camera as 1080/23.98p
(requires optional accessories) ............................................................. 40
Jog and Shuttle Operations Using the Search Dial ....................................41
Jog Mode .................................................................................................... 41
Shuttle Mode (SHTL Mode) ......................................................................... 41
Clip Management
Thumbnail and Clip Management ..............................................................42
Thumbnail Screen Names and Functions ................................................... 43
Changing Thumbnail Display ...................................................................... 45
Thumbnail editing ........................................................................................ 47
Selecting Clips ...........................................................................................48
Playing Back Clips .....................................................................................49
Playing Back Single Clips ........................................................................... 49
Attaching Text Memos and Shot Marks .....................................................50
Attaching Text Memos ................................................................................ 50
7
Attaching Shot Marks .................................................................................. 51
Copying Clips ............................................................................................ 52
Deleting Clips ............................................................................................ 53
Repairing and Reconnecting Clips ............................................................ 54
Repairing Bad Clips .................................................................................... 54
Reconnecting Incomplete Clips .................................................................. 54
Viewing and Revising Clip Information ..................................................... 55
Viewing Clip Information ............................................................................. 55
Revising Clip Metadata ............................................................................... 56
Attaching Metadata to Clips ...................................................................... 58
Preparing a Metadata Upload File .............................................................. 58
Setup to Attach Metadata ........................................................................... 58
Loading Set Metadata Values ..................................................................... 60
Recording Clips Containing Metadata ........................................................ 61
Formatting P2 Cards ................................................................................. 63
Checking Card Status ............................................................................... 64
Selecting Information to Display ................................................................. 64
Displaying Card Status Information ............................................................. 65
Using Play List
Play List Function ...................................................................................... 67
Play List Screen Names and Functions ...................................................... 68
Buttons Used in Play List Operations .......................................................... 70
Stop Mode Setup ........................................................................................ 73
Creating Play Lists .................................................................................... 74
Preparing New Play Lists ............................................................................ 74
Audio Channel Replacement During Editing .............................................. 75
Registering Events for Selected Clips ......................................................... 75
Registering Events From Video ................................................................... 76
Importing and Adding to Existing Play List Files ......................................... 77
Saving Play Lists ....................................................................................... 78
Naming Play Lists ........................................................................................ 78
Saving a Play List to a P2 Card ................................................................... 78
Editing Play Lists ....................................................................................... 80
Opening an Existing Play List File ............................................................... 80
Changing Event IN and OUT Points ............................................................ 81
Trimming Events .......................................................................................... 81
Changing Event Order ................................................................................ 82
Deleting Events ........................................................................................... 83
Saving Events .............................................................................................. 84
Deleting Play Lists .................................................................................... 85
Overwrite Editing of Play Lists .................................................................. 86
Preparing for Event Overwriting .................................................................. 86
Copying Event Audio to EXTRA track ......................................................... 87
Selecting Write Location and Audio/Video to Import .................................. 87
Temporary Registration and Revision of Events ......................................... 88
Previewing and Adjusting Sound Volume ................................................... 89
Finalizing Overwrite Editing ......................................................................... 89
Recalling Events .......................................................................................... 90
8
Audio Split Editing ......................................................................................91
Registering From Video ............................................................................... 92
Adding and Registering Audio Split Point (Changing Registered Point) .... 93
Trimming the Audio Split Point .................................................................... 93
Cancelling an Audio Split Setting ................................................................ 94
Simplified Voice-Over ................................................................................95
Preparing for Voice-Over ............................................................................ 95
Voice-Over From Still Image Status ............................................................ 96
Voice-Over From Playback Status .............................................................. 96
Displaying Voice-Over Events ..................................................................... 97
Changing the Trimming of Audio Recording Location ................................ 97
Viewing Event Information .........................................................................98
Indicating Event Property ............................................................................ 98
Event Review ............................................................................................... 99
Playing Back Play Lists ............................................................................100
Setting the Playback Time Code (TC) ....................................................... 100
Playing Back the Play List ......................................................................... 101
Creating New Clips From the Play List (Edit Copy) .................................102
Using USB Connectors and
SD/SDHC Memory Cards
Using USB Connectors ............................................................................103
Using the Unit as a USB Host ................................................................... 103
Using the Unit as a USB Device ............................................................... 103
Connecting a PC to This Unit ...................................................................104
Switching to USB Device Mode ................................................................ 104
Using This Unit With a Hard Disk .............................................................105
Supported Hard Disks ............................................................................... 105
Switching to USB Host Mode .................................................................... 106
Formatting Hard Disks .............................................................................. 106
Exporting to a Hard Disk in Card Units ..................................................... 107
Displaying Hard Disk Information (Explorer Screen) ................................ 108
Displaying Clip Thumbnails on a Hard Disk ............................................. 109
Importing Data from the Hard Disk to a P2 Card ...................................... 110
Using SD/SDHC Memory Cards ..............................................................111
Displaying Miscellaneous SD Memory Card Information .......................... 111
Formatting SD Memory Cards ................................................................... 111
External Remote Control ..........................................................................113
Remote operation of external devices ...................................................... 113
Automatic Recording of Cards .................................................................. 114
Setup
Unit Setup ................................................................................................115
Changing Settings ...................................................................................116
Change Operations ................................................................................... 116
Using a Lock to Protect the User Setting File ........................................... 117
Returning to Factory Defaults (Initial Settings) .......................................... 117
Item Settings ............................................................................................118
SYSTEM ..................................................................................................... 118
BASIC ........................................................................................................ 120
9
OPERATION .............................................................................................. 125
INTERFACE ............................................................................................... 127
TIME CODE ............................................................................................... 128
VIDEO ........................................................................................................ 130
AUDIO ....................................................................................................... 135
DIF ............................................................................................................. 138
MENU ........................................................................................................ 139
Saving Menu Settings to SD Memory Cards ............................................. 140
Time Code, User Bit and CTL ................................................................. 142
Superimpose Screen .............................................................................. 146
List of Compatible Input and Output Formats ......................................... 147
Audio V Fade Function ........................................................................... 149
Audio Recording Channels Selection ..................................................... 150
Audio Recording Channels ....................................................................... 150
For Long and Trouble-Free
Operation
Condensation .......................................................................................... 151
Maintenance ........................................................................................... 151
Error Messages ....................................................................................... 152
WARNING information display .................................................................. 153
“HOURS METER” information display ....................................................... 159
List of Shortcuts ......................................................................................... 160
Updating the Firmware in This Unit ......................................................... 162
Handling P2 Card Recording .................................................................. 163
Specifications ....................................................................................................................................................... 164
Menu index ........................................................................................................................................................... 167
10
■ Information on software for this product
1. Included with this product is software licensed under the GNU General Public License (GPL) and GNU Lesser General Public License (LGPL), and users are hereby informed that they have the right to obtain, change and redistribute the source
codes of this software.
Details on GPL and LGPL can be found on the installation CD provided with the unit. Refer to the folder called “LDOC”.
(Details are given in the original (English-language) text.)
To obtain the source codes, go to the following home page:
https://eww.pavc.panasonic.co.jp/pro-av/
The manufacturer asks users to refrain from directing inquiries concerning the source codes they have obtained and other
details to its representatives.
2. Included with this product is software which is licensed under MIT-License.
Details on MIT-License can be found on the installation CD provided with the unit. Refer to the folder called “LDOC”.
(Details are given in the original (English-language) text.)
■ Panasonic makes no guarantees for your recordings
Please understand that Panasonic makes no guarantees for your recordings in cases where images and/or sound were not recorded as you intended due to problems with this unit or P2 cards.
■ What to remember when throwing memory cards away or transferring them to others
Formatting memory cards or deleting data using the functions of the unit or a computer will merely change the file management
information: it will not completely erase the data on the cards. When throwing these cards away or transferring them to others,
either physically destroy them or use a data deletion program for computers (commercially available) to completely erase the
data. Users are responsible for managing the data on their memory cards.
■ Place of Installation
Do not install this unit in a location exposed to direct sunlight as this may deform the cabinet or damage the LCD screen.
■ Liquid crystal displays
• While 99.99% or more of the pixels on an LCD screen will function normally, 0.01% may either be dead or constantly lit (seen
as red, blue or green dots). This is not a malfunction.
• There may be some unevenness on the screen depending on the image displayed.
• Wiping or rubbing the LCD screen with a rough cloth may damage it.
• Leaving an unchanging image on the screen for a long period of time may create a temporary afterimage (burn-in).
• LCD response and brightness vary with ambient temperature.
• In a high-temperature and high-humidity location, the LCD panel characteristics may change and result in uneven image quality.
*SDHC logo is a trademark.
11
Accessories
Included Accessories
Power cord ................................................... 1 (AJ-HPM110P)
2 (AJ-HPM110E)
CD-ROM ................................................................................ 1
Ferrite core* ........................................................................... 4
* Attach a ferrite core at each cable end when making cable connections to the USB2.0 connector.
Optional Accessories
• AVC-Intra Codec board
AJ-YBX200G
◆ NOTE:
• Do not use optional boards other than the above product.
P2HD 5 Year Warranty Repair Program*1
Thank you for purchasing this Panasonic P2HD device.
Register as a user for this device to receive a special service warranty up to five years of free warranty repairs.
Customers who register as users on the website will receive a extended warranty repair valid for
up to five years.
1st year
P2HD device*2
Basic warranty*3
2nd year
3rd year
4th year
5th year*5
Extended warranty repair*4
*1: Please note that this extended warranty is not available in some countries/regions see web site below for details. *2: Not all models eligible
for extended warranty coverage. *3: The basic warranty period may vary depending on the country/region see enclosed warranty for warranty
coverage. *4: Not all repair work is covered by this extended warranty see enclosed warranty card for warranty coverage. *5: The maximum
warranty period may be adjusted depending on the number of hours the device has been used.
Free 5 years of Warranty Repairs
Purchase
P2 product
Register online
within 1 month
“Registration Notice”
e-mail sent
Details about user registration and the extended warranty:
Make sure to save the “Registration Notice” e-mail
during the warranty period.
http://panasonic.biz/sav/pass_e
Please note, this is a site that is not maintained by Panasonic Canada Inc. The Panasonic Canada Inc. privacy policy does not apply and is not applicable in relation
to any information submitted. This link is provided to you for convenience.
12
Accessories
Opening and Closing the Top Panel
◆NOTE
• Take care to avoid pinching your fingers when opening and
closing the top panel.
• Check that the card lock is set to on before closing the top
panel. Be sure to set the card lock to on before closing the
top panel. Never use force to close it when the lock is not
Closing the Top Panel
1 Make sure the EJECT button is folded downwards.
If not folded, fold the EJECT button to the right and set the
card lock to on.
set to on as this will damage the unit.
Opening the Top Panel
1 Pull out the handle, then pull the top of the lever towards you to release the lock.
2 Close the top panel and engage the bottom of the lever with the receptacle in the lower portion of the panel assembly.
2 Free the bottom of the lever. Then hold the top panel
and raise it to open.
3 While making sure that the bottom of the lever has
been properly seated, press the top of the lever towards the rear to lock it.
◆NOTE
• Do not expose the lever to excessive force.
Opening and Closing the Top Panel
13
Introduction
Features
The AJ-HPM110 is a portable memory card recorder/player equipped with six P2 card (*) slots and a 9-inch color LCD monitor.
Capability to record and play back audio and video in the compressed DVCPRO HD, DVCPRO50, DVCPRO/DV and AVC-Intra
(option) formats on six P2 cards (*) allows you to use the unit like a conventional editing VTR player. The AJ-HPM110 comes
with the following features.
MEMO: A memory card with the “P2” logo (for example, the separately sold AJ-P2C032RG) is referred to as a “P2 card” in this
manual.
T C R 0 0 :0 1 :2 3 :0 1
P ST O P
14
Introduction: Features
EV 9 9
■ Connecting a P2 Card Camera
■ Frame rate conversion
A P2 card recorded in a P2 camera recorder plugs directly
Recording input from variable frame-rate cameras at 24PN
into a PC card slot in this unit for immediate access. The P2
(Native), the unit is also capable of playing back cards
card is a semiconductor memory card that Panasonic
recorded at 24 fps and converting the output to 1080/24 PsF.
developed for professional AV use.
It can also record input from a variable frame-rate camera at
● P2 card and recording times
25PN (Native).
Recording time on a single 32 GB P2 card
◆ NOTE:
Video format
1080-59.94/
50i
*2
1080-30PN/
DVCPRO HD AVC-Intra100*1 AVC-Intra50*1
different formats as the loss of management data may prevent
normal playback.
Approx.
Approx.
Approx.
32 min.
32 min.
64 min.
----
Approx.
Approx.
32 min.
64 min.
Approx.
Approx.
connected to the HD-SDI IN connector. Variable frame rate
40 min.
80 min.
(VFR) recording becomes possible by connecting a VariCam.
25PN (Native)
1080-24PN
• Do not use cards that have been edited or contain clips shot in
Recording format and recording times
----
(Native)
■ Native recording
The unit provides support for native recording, a mode that
records only active frames. This provides longer recording
time when a VariCam, AJ-HPX2000/2100 or AJ-HPX3000 is
720-59.94P/
Approx.
Approx.
Approx.
50P*2
● Native recording defined
32 min.
32 min.
64 min.
Native recording extracts only the active frames during 1080i
720-30PN/
Approx.
Approx.
Approx.
AVC-Intra (requires optional board) recording as well as 720P
25PN (Native)
64 min.
64 min.
128 min.
DVCPRO HD and AVC-Intra (requires optional board)
720-24PN
Approx.
Approx.
Approx.
recording. At 720P, this lengthens the recording time 2 to 2.5
(Native)
80 min.
80 min.
160 min.
times over pull-down recording.
*1 Assumes installation of an AJ-YBX200G AVC-Intra Codec board.
Even during native recording at a system frequency of 59.94
*2 Includes recording of DVCPRO HD with pull-down at 30P, 24P and
Hz or 50 Hz, the unit will still produce pull-down output.
25P.
Introduction
HD mode
Example of 1080-24PN (Native)
SD mode
Video format
Recording format and recording times
DVCPRO 50
DVCPRO*3
DV*3
480-59.94i/
Approx.
Approx.
Approx.
576-50i*4
64 min.
128 min.
128 min.
A
Camera video
2:3 pull-down
B
C
D
Ao Ae Bo Be Bo Ce Co De Do De
A
Recording
C
B
D
*3 For 2-channel audio recording
*4 Includes recording at 30P, 24P and 25P with pull-down.
◆ NOTE:
• This unit supports the following P2 cards.
Example of 720-24PN (Native)
Camera video
D
C
B
A
·AJ-P2C004HG(4GB)
·AJ-P2C016RG(16GB)
2:3 pull-down
Active frames
·AJ-P2C032RG(32GB)
Recording
·AJ-P2C008HG(8GB)
B
A
A
C D
B
B
C
D
D
D
(These are the card types that will available in January 2008. This
is subject to change with the introduction of cards of higher
capacity.)
■ Film-style cine-like gamma correction
This unit cannot use AJ-P2C002SG (2 GB) cards.
The unit is capable of correcting video shot using the film-style
• The recording time of 16 GB, 8 GB and 4 GB P2 cards are 1/2, 1/4
and 1/8, respectively of that provided by a 32 GB P2 card.
● Visit the web site below and go to P2 support desk page for the
cine-like gamma mode provided by variable frame rate
cameras to create film-quality video.
■ 9-inch Wide LCD Monitor
latest information on P2 card and SD/SDHC memory cards.
A 9-inch wide LCD monitor is provided for ease of viewing HD
English: https://eww.pavc.panasonic.co.jp/pro-av/
video.
Introduction: Features
15
■ Dial Jog/Dial Shuttle
*1
The jog provides slow playback
at rates between -1.0 to
■ Support for 59.94 Hz, 50 Hz, 23.98 Hz, 24 Hz and
25 Hz HD/SD
+1.0.
This unit can record and play back 59.94 Hz, 50 Hz, 23.98 Hz,
The shuttle allows high-speed forward and reverse playback
24 Hz and 25 Hz HD and SD video.
up to 100 times normal speed. At speeds up to 10x, the sound
It can also handle analog video, SDI as well as IEEE1394 input
is also audible.
and output.
*1 When 59.94, 50, 29.97, 25 or 60-25 is selected in setup menu No.
■ High-quality 8-channel digital audio
25 SYSTEM FREQ.
8-channel PCM audio where each channel (HD SDI has 8
■ Thumbnails for Managing Clips Visually
independent channels while the analog interface has 4
The 9-inch color LCD monitor on the front panel displays clips
independent channels) can be recorded separately or mixed.
(thumbnails) that represent P2 card content. Settings can be
made to show only specific clips in the thumbnail screen.
Clips selected from the thumbnail list can be played back
immediately, shot marks can be added, file data regarding the
■ Built-in up and down cross conversion
Built-in up and down cross conversion playback function is
provided as standard.
clips can be confirmed and added and other clip
■ Menu-based Setup
management operations are also available.
Perform setup while viewing the setup menus on the 9-inch
color LCD monitor of this unit or a monitor TV display.
<About clips>
metadata and other additional information. Normally, a clip is
■ Hard Disk connection permits saving card data
to disk
one shot generated from the start of recording until recording
Card data can be saved onto a hard disk that is equipped with
stops. However, when a shot spans multiple P2 cards, the
a USB 2.0 interface. Data stored on HDD can be written back
video on each card is handled as an independent clip. The
to a card. A USB 2.0 connection with a PC allows you to use
image at the start of recording appears in the thumbnail
P2 cards inserted in the slots on this unit as mass storage.
screen as a representative image of that clip.
This setup provides direct nonlinear editing.
■ Control of external devices
■ AVC-Intra Codec Option Supported
The RS-422A and IEEE1394 interfaces enable control of a
The addition of an optional AVC-Intra Codec board AJ-
connected device. RS-422A enables automatic capture of
YBX200G will enable use of the AVC-Intra Codec.
A clip is a single data item that contains video, audio,
audio and video by specifying IN/OUT on an external device.
■ Creating Play Lists and the Playback Function
You can select video and audio recorded on the P2 cards
installed in the unit for playback in the desired order.
● A wealth of play list editing functions
• Audio IN point split: The play list makes it possible to move
the audio IN point forward or backward relative to the video
IN point.
• Voice-over: Separately recorded audio data can replace an
audio segment on one or two channels during playback.
• AV overwrite editing: This feature allows you to overwrite
edit and play back any audio and video segment (for 2
channels) on the play list.
■ Time code/Player function for editing provided
This unit has a built-in TCG (time code generator) and TCR
(time code reader). In addition to the internal time code,
external time code input or a VITC input signal can be
recorded as the time code.
The unit can also be used as a player for an editing system
using RS-422A.
16
Introduction: Features
Control Reference Guide
Audio and Video Controller
22
23
20
21
16
18
19
17
Introduction
24
14
15
13
12 11
1
2
3
CONTROL
PC
REMOTE
LOCAL
3
13
4
4
24
1
10
2
UNITY
UNITY
5
10
6
0
10
20
30
CH
2/4
CH
1/3
PB
Headphones connector
7
1. POWER switch
2. METER (FULL/FINE) selector button
Switches the scale of the audio level meter.
Selects the standard scale
(– ∞ to 0 dB range)
FINE mode:
9
3. AUDIO MONITOR SELECT button
Turns the power on and off.
FULL mode:
8
Selects a scale divided into 0.5 dB
Switches the audio signals to be output to the MONITOR L/R
connectors and the headphones jack. Each press of the
button switches the output signals to the MONITOR L/R
connectors and the headphones jack as described below.
When the METER
SELECT switch is set to [CH1 / 1]➝[CH2 / 2]➝
CH 1 to 4:
[CH3 / 3]➝[CH4 / 4]➝
increments.
“
[CH1+2 / 1+2]➝
” indicates reference level (as
set in setup menu) on a scale
divided into 0.5 dB increments.
[CH1 / 2]➝[CH3 / 4]➝
[CH3+4 / 3+4]
When the METER
[CH5 / 6]➝[CH7 / 8]➝
SELECT switch is set to [CH5 / 5]➝[CH6 / 6]➝
CH 5 to 8:
[CH7 / 7]➝[CH8 / 8]➝
(selectable only with HD [CH5+6 / 5+6]➝
format)
[CH7+8 / 7+8]
The L/R lamps in the audio level meter indicate which
signal is selected.
Introduction: Control Reference Guide
17
4. METER SELECT switch
9. Audio playback level controls
Switches to CH1-4 or CH5-8 in the audio meter and the
Adjust the playback level of audio signals (of channels
monitor.
selected using the UNITY/VAR channel select switch).
However, they cannot adjust the playback level of
5. INPUT SELECT buttons
Switch between video and audio input signals. You
can also switch the input signals to internal signals
selected in setup menu No. 601 (VIDEO INT SG).
VIDEO:
1394 output signals. CH5 to 8 are at all times played
back at a fixed level.
10.UNITY/VAR channel select switches
UNITY:
level controls.
the input video signal in the following
order: [CMPST] ➝ [SDI] ➝ [1394] ➝ [SG].
AUDIO:
Plays back audio signals at a fixed level
regardless of the positions of the audio
Each press of the VIDEO button switches
1(2):
Plays back and outputs audio CH1(2) at
When SG is selected, the signal switches
the level adjusted using the audio level
to the internal signal selected in setup
controls to CH1(2) and at a fixed level to
menu No. 601 (VIDEO INT SG).
CH3(4).
Each press of the AUDIO button switches
1+3
Plays back and outputs audio CH1(2) and
the input audio signal in the following
(2+4):
CH3(4) at the level adjusted using the
order: [ANALOG] ➝ [SDI] ➝ [SG]. When
VIDEO is set to 1394, AUDIO is forcibly set
audio level controls to CH1(2) and CH3(4).
3(4):
to 1394.
Plays back and outputs audio CH3(4) at
the level adjusted using the audio level
controls to CH3(4) and at a fixed level to
◆ NOTE:
CH1(2).
• Switching of input signals is not available when the
THUMBNAIL and PLAY LIST buttons are on.
• The INPUT TRACK setting is available in overwrite mode
when the PLAY LIST button is on.
➝For details, refer to “Setting Tracks for Overwriting”
(page 87).
11.PC button
Switches between the USB host mode for connecting
to a hard disk drive and the USB device mode for
connecting to a personal computer.
Press this button to open the mode selection screen on
6. AUDIO REC VOL SEL switch
UNITY/VAR switch
the LCD monitor and select the desired mode.
➝For details, refer to “Using USB Connectors” (page
103).
UNITY:
Records the audio signals at a fixed level
regardless of the positions of the audio
level controls.
VAR:
12.CONTROL switch
Records audio signals at the level set with
Use this switch to enable remote control of this unit via
the audio level controls.
the 9-pin REMOTE.
Audio level controls
Use these controls to adjust the recording levels of the
audio signals (CH1/CH2/CH3/CH4). However, the
recording level cannot be adjusted during 1394 input.
13.FF/NEXT buttons
Press to fast forward. Select the speed in setup menu
No. 102 (FF. REW MAX). In the playback mode, hold
down the SHIFT button and press the FF button to
move to the beginning of the next clip.
7. POWER indicator
Lights when the power is on.
During GUI display (thumbnail display and play list
display), hold down the SHIFT button and press the FF
button to move to the last thumbnail or event.
8. Search dial
Use to search and check video. Each press of the dial
alternates it between SHTL (shuttle) mode and JOG
Press this button to make a voice over recording in the
mode. When the power is turned on, the search dial will
play list mode, or to overwrite copy an event audio to
not operate unless it is first returned to the STILL
an EXTRA track.
position.
18
14.A. DUB button
Introduction: Control Reference Guide
➝For details, refer to “Simplified Voice-Over” (page
95), and “Copying Event Audio to EXTRA track”
(page 87).
20.TCG switch
INT REGEN:
The internal time code generator
synchronizes with the time code
read by the time code reader from
15.REC button
the P2 card. Select whether to make
Press this button and the PLAY button simultaneously
TC or UB the REGEN in setup menu
to start recording. Press this button during playback
No. 505 (TCG REGEN).
INT PRESET:
Uses the internal time code
monitor (EE mode is not available during IEEE1394
generator of this unit. Settings can
input). Press the STOP button to return to the original
be preset on the operation panel
video and audio.
and the remote control panel.
To start AUTO CAPTURE when the unit is controlled
➝Refer to “Time Code, User Bit and
from an external device, hold down the SHIFT button
and press the REC button.
CTL” (page 142).
EXT:
Uses the external time code input
➝Refer to “External Remote Control” (page 113).
from the TIME CODE IN connector
or video signal VITC, SLTC, SVITC
16.REW/PREV button
and IEEE1394 digital input
Press to rewind. Select the speed in setup menu No.
connectors. Select in setup menu
102 (FF. REW MAX).
No. 507 (EXT TC SEL).
During playback, hold down the SHIFT button and
press the REW button to move to the beginning of the
21.COUNTER button
current or previous clip.
Press to switch the counter display of the LCD panel.
During GUI display (thumbnail display and event list
Each press of this button changes the counter display
display), hold down the SHIFT button and press the
as follows: [CTL (relative position from the beginning)]
REW button to move to the first thumbnail or event.
Introduction
mode to check EE mode video and audio on the
➝ [TC (read time code)] ➝ [UB (user bit of the read
time code)].
17.STILL/PAUSE button
Press this button to engage the search mode and
22.RESET button
display a still picture. In the search mode, you can use
Press this button when the LCD panel counter is in the
the search dial for JOG and SHTL (shuttle) operations.
CTL mode to reset the counter display to [0:00:00:00].
Hold down the TC PRESET button and press this
18.STOP button
Press this button to stop. When the setting in setup
menu No. 122 (STOP EE SEL) is PB, you can monitor
still pictures and when set to EE, you can monitor input
video.
19.PLAY/REVIEW button
Press to start playback.
Press this button and the REC button simultaneously to
start recording.
When the play list is displayed, hold down the SHIFT
button and press this button to review (playback
starting 3 seconds before the IN point continuing to 1
button when the LCD panel counter is in the TC mode
(read time code) or UB mode (user bit of the read time
code) to reset the time code generator.
When using the on-screen keyboard, use this button to
delete all text, IN points in play lists, etc.
23.TC PRESET button
Set the TC (read time code) or UB (user bit of read time
code) value.
To make a setting, first press this button to change the
flashing digits. However, this function is not available
while in thumbnail mode, play list mode, and USB host
mode.
second beyond the OUT point) an event at the pointer
position. The overwrite edit mode permits preview of
unfinalized events.
To play back the clip at the cursor location in the
thumbnail screen, hold down the SHIFT button and
press this button.
Introduction: Control Reference Guide
19
24.TEXT MEMO/MARKER button
TEXT MEMO:
Press this button during recording
and playback where you wish to
enter a text memo. In the thumbnail
screen, press this button to add a
text memo at the start of a clip.
➝For details, refer to “Attaching
Text Memos” (page 50).
MARKER:
In the thumbnail screen, while
pressing the SHIFT button, press
this button to turn marker display of
the clip at the pointer position on
and off.
➝For details, refer to “Attaching
Shot Marks” (page 51).
20
Introduction: Control Reference Guide
GUI Operations
16 15 14 13 12
CONTROL
PC
3
13
Introduction
REMOTE
LOCAL
4
24
1
2
UNITY
UNITY
10
0
1
2
10
20
30
3
4
CH
2/4
CH
1/3
PB
5 6 7 8 9 10 11
1. PLAY LIST button
Press to create play lists or to play a created play list.
The PLAY LIST button lights and the play list screen
appears on LCD panel or on a monitor output image.
4. EXIT/CANCEL/PF button
When the PLAY LIST/
Press to return to the
THUMBNAIL buttons
thumbnail display from
are lit:
property. Selecting [EXIT]
Press again to exit the play list screen. The PLAY LIST
in a menu has the same
button goes off.
effect as pressing the SET
A play list menu setting makes it possible to select
button.
whether ending playback in the play list screen should
Hold down the SHIFT
return you to the play list screen or show a still image.
button and this button
simultaneously to cancel
2. THUMBNAIL button
an action (for example,
Press this button and the THUMBNAIL button lights
canceling the selection of
and the thumbnail screen appears on LCD panel or on
an item).
a monitor output image. Press again to exit the
When the PLAY LIST/
Press this button and
thumbnail screen and return to the previous screen.
THUMBNAIL buttons
buttons 6, 8 and 10 will
The THUMBNAIL button goes out.
are off:
function as the PF1, PF2
and PF3 keys. Press this
3. Cursor buttons
The four outer buttons are cursor buttons and the
button again before
pressing another button to
exit this mode.
center button is the SET button. Use them to move the
cursor in menus, thumbnails, events, etc. to select
items.
Introduction: Control Reference Guide
21
5. MENU/DIAG button
7. TRIM–/SLOT SELECT– button
MENU button
Hold down the IN, OUT or SPLIT button and press this
Press this button to open the MENU. Press again to
button in play list mode to shift the IN, OUT and SPLIT
return to the previous screen.
points 1 frame backward (4 frames at 24PN).
DIAG (SHIFT+MENU) button
Hold down the SHIFT button and this button
Press to show information about this unit. Press again
simultaneously when the PLAY LIST button is off to
to return to the previous screen. However, this function
move to the previous recording slot position.Pressing
is not available while thumbnails or play lists are
this button when the unit is in slot 1 results in a move to
displayed.
slot 6.
Information about this unit includes [VIDEO SYSTEM],
[HOURSMETER], [WARNING], [UMID] and [DIF]. Use
the SET button or cross cursor buttons to switch
among them.
8. ENTRY/CLIP (LIST/PF2 button)
Use these functions to create play lists.
Pressing the IN, OUT or SPLIT button simultaneous
[VIDEO SYSTEM]
Shows current system
with this button while registering an event (the PLAY
screen:
frequency, recording
LIST and EVENT buttons are on), allows you to set the
format, input and output
IN, OUT and SPLIT points.
formats and other
• Pressing the SHIFT button simultaneous with this
information.
[WARNING] screen:
Shows warning
information.
button in the play list mode allows you to add a clip
selected from a thumbnail display to the play list.
• Press this button after the PF button when the
[HOURS METER]
Shows the unit serial
THUMBNAIL and PLAY LIST buttons are off to obtain
screen:
number, the number of
access to the setup menu registered using the PF2
hours it has been on, and
button.
the number of times it has
been switched on and off.
[UMID] screen:
Shows UMID information
for the current video.
[DIF] screen:
Shows various information
on the current DIF (the
IEEE 1394 interface).
9. TRIM+/SLOT SELECT+ button
Hold down the IN, OUT or SPLIT button and press this
button in play list mode to shift the IN, OUT and SPLIT
points 1 frame forward (4 frames at 24PN).
While the PLAY LIST button is off, hold down the SHIFT
button and this button simultaneously to move to the
previous recording slot position. Pressing this button
6. IN/SLOT CLIP/PF1 button
when the unit is in slot 6 results in a move to slot 1.
Use these functions to create play lists. Press the
ENTRY button and this button simultaneously when
registering an event (when the PLAY LIST button and
the EVENT button are both on) to set an event IN point.
Hold down this button and press the RESET button to
cancel the IN point of the selected event.
➝Refer to the Section “Using Play List” (page 67).
• Press the SHIFT button and this button
simultaneously while thumbnails are displayed to
switch the clip display between SELECTED and
specific SLOT.
• Press the ENTRY button and this button
simultaneously when the PLAY LIST button is off to
register a cue-up point.
• Press this button after the PF button when the
THUMBNAIL and PLAY LIST buttons are off to obtain
access to the setup menu registered using the PF1
button.
22
Introduction: Control Reference Guide
10.OUT/ALL CLIP/PF3 button
Use these functions to create play lists. Press the
ENTRY button and this button simultaneously when
registering an event (when the PLAY LIST button and
the ENTRY button are both on) to set an event OUT
point.
Hold down this button and press the RESET button to
cancel the OUT point of the selected event.
➝For details, refer to “Using Play List” (page 67).
• Press the SHIFT button and this button
simultaneously while thumbnails are displayed to
return the clip display to ALL.
• Press the ENTRY button and this button
simultaneously when the PLAY LIST button is off to
register a cue-up point.
• Press this button after the PF button when the
Use the EVENT button to enable control of an external
THUMBNAIL and PLAY LIST buttons are off to obtain
device connected to the unit via the RS-422A or
access to the setup menu registered using the PF3
IEEE1394 interface when the THUMBNAIL and PLAY
button.
LIST buttons are off.
➝Refer to “External Remote Control” (page 113).
11.SHIFT button
Use this button together with the FF, REW and SET
➝For details, refer to “LCD Panel” (page 25).
12.GO TO/MOVE button
Use this button to move the IN, OUT, or SPLIT point of
Introduction
buttons.
16.LCD panel
events registered in a play list. It can also be used for
CUE UP when the THUMBNAIL and PLAY LIST buttons
are off. Hold down the IN/OUT button and press the
GO TO button to move and cue up to the IN and OUT
points. Hold down the SHIFT button and press this
button in the play list mode to move events.
➝For details, refer to “Using Play List” (page 67).
13.INSERT/DELETE button
Use this button to insert a new event between events in
the play list (when set to the insert edit mode).
Also use to select audio and video to overwrite event
audio and video (when set to the overwrite edit mode).
Hold down the SHIFT button and press this button
(DELETE) when thumbnails are displayed to delete a
selected clip.
In the play list, hold down the SHIFT button and press
this button to delete a selected event.
➝For details, refer to “Using Play List” (page 67).
The DELETE button allows you to perform on-screen
keyboard and file delete operations.
14.SPLIT/PROP button
Press the ENTRY button and this button simultaneously
in the play list register mode to register an event after
shifting the audio IN point relative to the video IN point.
Press the SHIFT button and this button simultaneously
during thumbnail, or play list display (when no menu is
displayed) to show the property of a clip or an event.
15.EVENT button
Press this button when the PLAY LIST button is on to
light the EVENT button. This engages the play list event
register/edit modes and allows you to set the IN, OUT,
and SPLIT points.
Press again to exit the event register/edit mode and
return to the previous screen. The EVENT button goes
out.
Introduction: Control Reference Guide
23
Panel Control Unit and Card Slots
10
9
1
8
7
6
6
OFF ON
CARD LOCK
2
1. 9-inch Color LCD Monitor
Thumbnail screens facilitate video searches and
checks.
2. Card Lock
This lever locks the cards in place when the top panel
is closed. Set the lever to ON before closing the top
panel.
3. P2 Card Access LEDs
These LEDs indicate P2 card status.
➝For details, refer to “P2 Card Access LEDs and P2
Card Status” (page 35).
4. P2 Card Slots
Insert P2 cards into these slots.
Firmly insert the card until the EJECT button pops out.
After inserting a card, fold the EJECT button
downward.
5. EJECT button
Use this button to remove a P2 card inserted in a P2
card slot. Raise the button and press it in firmly. Do not
3
4
5
6. Stereo speakers
Outputs the audio monitor sound.
7. LEVEL control
Adjusts the sound volume of the internal speaker and
headphones.
8. BRIGHTNESS control
Adjusts the brightness of the LCD monitor.
However, it cannot adjust the brightness of time codes
and other superimposed indications.
9. BACKLIGHT switch
Switches the brightness of the LCD panel backlight as
shown below.
LIGHT:
Bright
DARK:
Dark
OFF:
Turns the LCD off
10.SUPER switch
Switches the super output as follows.
ON:
use the EJECT button when a P2 card access LED
superimposed information to the LCD
flashes orange.
➝For details, refer to “P2 Card Access LEDs and P2
Card Status” (page 35).
24
Introduction: Control Reference Guide
Outputs the time code and other
monitor and monitor output image.
OFF:
Does not output any superimposed
information.
LCD Panel
6
dB
1
dB
dB
0
4
3
2
1
0
-1
-2
-3
-4
-12
-20
-30
-40
L R
-∞
L R
dB
VIDEO
AUDIO
CMPST ANALOG
SDI
SDI
1394SG 1394SG
SYSTEM
U
59.9450
1080i720p
DVCPRO AVC-I
0
-12
-20
-30
-40
L R
-∞
CTL
TC
UB
L R
HD
50
5
4
3
2
4. TV system display
1. Level meter
Indicates the level of audio signals for CH1, CH2, CH3
Indicates the selected TV system. Use the SYSTEM
and CH4.
setting in setup menu No. 25 SYSTEM FREQ to switch
The input signal level of audio signals is indicated
between 59.94 Hz, 50 Hz or other settings.
during recording and when EE is selected. During
playback the meter indicates output signal levels.
Use the METER selector button to switch the audio
59.94: Lights when a 59.94 Hz system frequency is selected.
50:
Lights when a 50 Hz system frequency is selected.
level display to FULL mode or FINE mode. Use the
◆ NOTE:
setup menu to change the reference level.
• When a frequency other than 59.94 Hz and 50 Hz is
FINE mode
dB
4
3
2
1
0
-1
-2
-3
-4
Introduction
4
3
2
1
0
-1
-2
-3
-4
FULL mode
selected, also the SYSTEM indicator goes off.
dB
0
Reference level
5. INPUT SELECT display
-12
Indicates selected VIDEO and AUDIO status. Except
-20
for analog audio signals, the indicator flashes when
there is no input for the selected signal.
-30
-40
L R
When SDI input is selected, this display flashes if the
L R
input signal is not compatible with the system format.
VIDEO
CMPST:
Analog composite video input signals
This function shows the counter and time codes.
SDI:
Serial digital video input signals
It displays CTL (relative position from the beginning),
1394:
IEEE1394 input signals
TC (read time code) and UB (user bit of the read time
SG:
Internal reference signals
2. Counter display
code).
AUDIO
ANALOG:
3. Format display
Analog audio input signals
SDI:
Serial digital audio input signals
Indicates the set record format and the format of video
1394:
IEEE1394 input signals
recorded on an inserted P2 card.
SG:
Internal reference signals
6. U lamp
In the EE mode, this lamp lights when an input signal
contains UMID information.
Lights during playback when the recording contains
UMID information.
Introduction: Control Reference Guide
25
Rear Panel
9
15 14
13 12
8
11 10
5
1
7
2
6
3
1. SERIAL DIGITAL COMPONENT AUDIO and VIDEO
IN/OUT connectors
4
5
4. ANALOG AUDIO IN connectors/impedance
switches/CH2 input switches
These connectors enable input and output of serial
Analog audio input connectors
digital component audio and video signals.
The input impedance of CH1-2 to CH3-4 can be
switched. The LINE, MIC and 48V switches make it
◆ NOTE:
possible to use CH2 as a microphone input.
• The input digital audio signals must be synchronized with
the video input signals. Otherwise, the audio signals will be
LINE:
audio device
affected by noise.
• Use a 5C-FB or equivalent double-shielded cable to make
Line input for audio input signals from
MIC:
Audio input signal from microphone with
internal power supply (this unit does not
connections to the SERIAL DIGITAL COMPONENT
provide phantom microphone power).
connector.
+48 V:
Audio input signal from microphone with
external power supply (this unit provides
2. IEEE 1394 digital input/output
phantom microphone power).
This is an IEEE1394 digital interface. It inputs/outputs
IEEE1394 compressed digital signals that comply with
the IEC61883-1, IEC61883-2 and SMPTE396M
5. Fan
standards. Use 6-pin connectors. This connector does
Cools this unit. Install the unit making sure that the air
not support bus power.
vents are not blocked. If the fan stops due to a
◆ NOTE:
• Use a double-shielded cable to make connections to the
breakdown, “E-10” will appear on the counter display.
While the unit will operate even when the fan has
stopped, it should be shut down immediately.
IEEE1394 digital input/output connector.
• AVC-Intra 50 and AVC-Intra 100 (optional) recording and
playback do not support input/output via the IEEE 1394
connector.
• No input or output is available via the IEEE1394 connector
when something other than 59.94 or 50 is selected in setup
menu No. 25 SYSTEM FREQ.
3. ANALOG AUDIO OUT connectors
Output analog audio signals.
26
Introduction: Control Reference Guide
6. AC IN socket
Connect the supplied power cord to a power outlet.
7. DC IN socket
8. Remote control connector
Connect a 12 V DC power supply here. Use an external
This unit can be connected to an external controller to
12 V DC, 4.8 A (15 A peak or more) DC power supply.
enable remote operation of the unit.
When the voltage goes below approx. 10.6 V, the
RS422A REMOTE IN/OUT (9P)
power supply of this unit shuts down (when menu No.
180 BATTERY SEL is not “TYPE-A” or “TYPE-B”). The
unit does not automatically recover when the power
comes back on. First turn the POWER switch off, wait a
Pin No.
Signal
1
Ground
2
—
3
—
4
+12V
1
2
3
4
Signal
1
FRAME GROUND
2
TRANSMIT A
3
RECEIVE B
4
RECEIVE COMMON
5
—
6
TRANSMIT COMMON
7
TRANSMIT B
8
RECEIVE A
9
FRAME GROUND
1
2
3
4
5
6
7
8
9
9. TIME CODE OUT connector
Be sure to check the rating of any external DC power
Outputs the playback time code during playback.
supply you intend to use to confirm that it is
Outputs the time code generated by the internal time
compatible with this unit. Also check the pin
code generator during recording.
arrangement of the DC OUT socket of an external DC
power supply with the DC IN socket of this unit to
make sure the polarity is right.
Erroneously applying +12 V to the GND terminal
could cause a fire or lead to injuries.
Introduction
few seconds before turning the switch back on.
Pin No.
◆ NOTE:
The TIMECODE OUT connector does not output a time
code when 23.98, 24, 29.97, 59-23, 60-24, 25 or 60-25
is set in setup menu No. 25 SYSTEM FREQ.
Connecting a cord with incorrect polarity to the DC IN
connector of another device that is also connected to
this unit could lead to fire or injury.
10.TIME CODE IN connector
Use to record an external time code onto P2 cards.
◆ NOTE:
◆ NOTE:
• When using an external DC power supply, be sure to first
The time code from the TIMECODE IN connector
turn on the power to the DC power supply and then turn on
cannot be input when 23.98, 24, 29.97, 59-23, 60-24,
the POWER switch on this unit. If the order of the above
25 or 60-25 is set in setup menu No. 25 SYSTEM FREQ.
procedure is reversed, this unit will malfunction since the
voltage of an external DC power supply rises slowly.
• Inadvertently connecting an input of 18 V or more triggers
an internal protection circuit that shuts down the unit. The
11.REF VIDEO IN connectors
Input connectors for HD and SD reference video signals.
unit will operate normally once the power voltage returns to
normal levels. Be sure not to connect an AC power supply
◆ NOTE:
to this socket.
• It is recommended that this unit be used with a system that
• When the external DC power supply is connected and set
to on, a minute amount of current will still flow even if the
POWER switch on this unit is set to OFF.
inputs a reference video signal since video and audio
output signals may otherwise deteriorate.
• Input tri-level sync signals with both positive and negative
polarities as HD reference video signals. Input signals that
meet the input signal and data format.
➝For information on the reference signal, refer to
“Example of connections in 23.98/24/29.97/25 Hz
mode” (page 38).
• Input a black burst signal that complies with SMPTE170M
and ITU624-4 to use for SD reference video signals.
Introduction: Control Reference Guide
27
• When no cable is connected to REF VIDEO OUT connector,
• AV signals may be disrupted when connected devices are
the REF VIDEO IN connector is automatically terminated at
turned on and off or when the interface cable is connected
75 Ω. Connecting a cable to this connector releases
or disconnected.
75 Ω termination.
• When 59-23, 60-24 or 60-25 is selected in setup menu
No. 25 SYSTEM FREQ, synchronization is provided only for
playback HD reference signals.
12.AUDIO MONITOR OUT connector
This connector outputs the audio signal (CH1, CH2,
• It may take the system a few seconds to stabilize after
switching input signals or changing modes. Start recording
after the system has stabilized.
• The following applies to recordings made via the IEEE 1394
digital interface as well as to the signals it outputs.
- The audio level control knobs on the front panel do
not work.
CH3 and CH4) that is selected with the MONITOR
SELECT button.
- The settings in menu No. 680 and 681 regarding
blanking periods are ignored.
13.ANALOG COMPOSITE MONITOR OUT connector
- Video and audio recording and EE type video and
audio of signal inputs other than 1x speed playback
Outputs analog composite monitor video signals.
signals are not guaranteed.
• The following applies to video input via the IEEE 1394 digital
14.ANALOG COMPOSITE VIDEO IN connector
Inputs analog composite video signals.
interface.
- In the EE mode, SDI, analog video output signals
and time codes become irregular. Do not use these
15.ANALOG COMPONENT VIDEO OUT connectors
signals for recording.
• Unprocessed video and audio signals are output via the
Inputs analog composite video signals during output
IEEE 1394 digital interface during SLOW and STILL
of HD signals. When SD is selected as the output
playback. When monitored on another device, these video
signal, three composite signals are output.
and audio signals may sound different than when played
Setup menu 643 OUT MODE SEL determines the
back on this unit. Do not start up any other application
signals that are output.
program when this unit is connected to other devices during
◆ NOTE:
nonlinear editing. Such applications could adversely affect
the video output by such a device during nonlinear editing.
• Use only shielded cable for cables (except the AC cable)
that are connected to the rear panel. Cables connected to
serial digital signal connectors (SDI IN/OUT connectors)
should be double shielded cables.
IEEE 1394 Digital Interface
■ Basic Setup
Make sure that setup menu No. 882 DIF IN CH and No. 883
DIF OUT CH on this unit are set to “AUTO.”
◆ NOTE:
• Only signals that comply with the format selected in setup menu No.
020 SYS FORMAT can be input. When the SYS FORMAT is 480i
(576i at 50 Hz), operations are limited to setup menu No. 024 REC
FMT (SD) settings.
• The selected recording format and the format of a recording on an
inserted P2 card determine the output format.
* Select CH1/CH2 or CH3/CH4 as the output audio channels (in
DVCPRO/DV).
■ Precautions
• Connect this unit to only one other device.
• If the E-92 warning (1394 INITIAL ERROR) appears,
reconnect the connecting cable or turn the power off and
back on again.
28
Introduction: Control Reference Guide
◆ NOTE:
Observe the following when connecting an IEEE 1394 cable
(separately sold). (An incorrect connection may damage this
unit or external devices.)
• Turn off all connected devices before connecting or disconnecting
IEEE1394 cables.
Connect all devices provided with a ground connector to ground (or
to a common ground).
• When connecting the unit to a device with a 4-pin connector,
connect the cable to the 6-pin connector on this unit first.
• Be sure to correctly connect an IEEE1394 cable to a connector.
• When connecting a cable to a 6-pin IEEE1394 connector, make sure
that it mates properly with the connector.
(This way)
IEEE1394
connector
IEEE1394
cable plug
Introduction
(Not this way)
IEEE1394
connector
IEEE1394
cable plug
• When connecting this unit to an external device, first connect the
IEEE1394 cable to the external unit and then to this unit.
Connecting the cable to this unit first may damage it by the static
electricity generated.
• AVC-Intra 50 and AVC-Intra 100 (optional) recording and playback
do not support input/output via the IEEE 1394 connector.
• No input or output is available via the IEEE1394 connector when
something other than 59.94 or 50 is selected in setup menu No. 25
SYSTEM FREQ.
Introduction: Control Reference Guide
29
Side Panel
1
1. SD/SDHC Memory Card Slot
3
2. USB 2.0 connector (Type A)
Insert an SD/SDHC memory card.
Connect P2 store and USB 2.0 compliant hard disk
Insert the card with the label side facing up and the
drives for use in the USB host mode.
end with the corner cut off facing in. Push in the card
➝Refer to “Using USB Connectors” (page 103).
until it locks into place. To remove the card, first make
sure that the lamp is not on, then push it in the direction
of insertion to release the lock.
◆ NOTE:
<Precautions in using SD/SDHC memory cards>
• Do not insert any cards other than SD/SDHC memory
cards.
• This unit uses only SD/SDHC memory cards that comply
with the SD/SDHC specifications. Other memory cards
such as MultiMediaCard cannot be used. When using a
miniSD card, be sure to use an adaptor dedicated for use
with the miniSD card to insert the card into the SD Memory
Card Slot.
* MultiMediaCard (MMC) is a registered trademark of
Infineon Technologies AG.
* The SDHC (SD High Capacity) card is a new standard,
established by the SD Card Association in 2006, for
large-scale memory cards with capacities above 2 GB.
• To format an SD card on a PC, use the following software
that can be downloaded from the support sites listed
below.
• This unit supports the following SD and SDHC memory
card capacities.
SD (8 MB to 2 GB): 8 MB, 16 MB, 32 MB, 64 MB, 128 MB,
256 MB, 512 MB, 1 GB, 2 GB
SDHC (4 GB to 16 GB): 4 GB, 8 GB, 16 GB
• For the latest information not available in the Operating
Instructions, visit the P2 support desk at the following Web
sites.
For English: https://eww.pavc.panasonic.co.jp/pro-av/
• The term “SD memory card” will be used below as a
generic for SD and SDHC memory cards.
30
2
Introduction: Control Reference Guide
3. USB 2.0 connector (Type B)
Connect personal computers and other devices for
use in the USB device mode.
➝Refer to “Using USB Connectors” (page 103).
◆ NOTE:
• Use double shielded cable for making connections to USB
2.0 connectors.
• Attach the supplied ferrite cores near the cable connector
at each cable end when making cable connections to the
USB 2.0 connector.
Moving Between Screens and Menu Operations
Operating Modes
Recording and
Use the THUMBNAIL and PLAY LIST buttons to select these
Displays video and performs
playback modes recording or playback.
modes. Lamps indicate which mode is currently engaged.
Thumbnail mode Shows thumbnails of clips and
Introduction
This unit provide the three operating modes described below.
manages clips.
Play list mode
Creates play lists. The play list
mode also provides the event
register mode screen (the PLAY
LIST and EVENT lamps light).
PLAY LIST
THUMBNAIL
EVENT
Off
On
Blinking
Thumbnail mode
Recording and playback modes
Stop
(STOP)
THUMBNAIL
PLAY LIST
Playback (PB)
(PLAY, STILL,
FF, REW)
TCR 00 : 00 : 20 : 29
PLAY LIST
Event register/edit modes
THUMBNAIL
Play list
mode
Register the selected clip to an event
by pressing SHIFT + ENTRY.
Overwrite edit mode
INSERT, EVENT
T C R 0 0 :0 0 :0 0 :0 0
P ST O P
EV 0 1
INSERT
(upon OVERWRITE)
Press IN/OUT/
SPLIT + ENTRY
to register or edit
an event.
EVENT
T C R 0 0 :0 0 :0 0 :0 0
P ST O P
Press STOP in STOP MODE =
RETURN to return to the play list
STOP MODE
= upon RETURN: STOP
STOP MODE
= upon STAY: EXIT or
PLAYLIST
T C R 0 0 :0 0 :2 0 :2 9
R P L AY
R0 :0001: :0203: :2001: 2E9V 9 9
T CT
RC 0
ST P
OL
PA Y
EV 0 1
Zoom in and zoom
out the timeline
Playback(PB)
(PLAY, STILL, FF, REW)
When STOP MODE = STAY,
Press the EXIT or PLAYLIST button in the STOP mode to return to the play list.
Introduction: Moving Between Screens and Menu Operations
31
Menu Operations
Press the MENU button in each mode to open the menu.
1 Press the MENU button to open the menu.
Perform menu operations as described below.
2 Use the cursor buttons to place the cursor on menu
items.
3
2
1,4
◆ NOTE:
• Press the ▲ and ▼ buttons to move the cursor up and down.
• Press a to open a submenu.
• Press b or the EXIT button to return to a higher level.
3 Press the SET button.
◆ NOTE:
• Some menu items may display a confirmation screen.
• Use the cursor buttons to select a process and press the
SET button.
4 Press the MENU button to end processing.
◆ NOTE:
• Some menu items, when selected, will automatically return you
to the previous screen.
32
Introduction: Moving Between Screens and Menu Operations
Using the On-screen Keyboard
Using the Full Keyboard
Using the Ten Keypad
The ten keypad appears when necessary.
Move the cursor to the character you want to enter and press
Move the cursor to the character you want to enter and press
the SET button.
the SET button.
Use the cursor buttons to move the cursor.
Use the cursor buttons to move the cursor.
The keyboard keys have the functions listed below.
Key
Function
The keypad keys have the functions listed below.
Shortcut keys
Key
Function
Shortcut keys
BS
Deletes one character
SHIFT+INS
BS
Deletes one character
SHIFT+INS
Caps
Toggles between upper and lower
GO TO
OK
Saves made entries and closes the
ENTRY
case
OK
Saves made entries and closes the
soft keyboard
ENTRY
EXIT
<Decimal entries>
Moves the cursor 1 character space
▲
▲
EXIT
on-screen keyboard
Moves the cursor to the first character SHIFT+REW
back
▲
Cancels made entries and closes the
Cancels made entries and closes the
EXIT
soft keyboard
▲
on-screen keyboard
EXIT
Introduction
The full keyboard appears when necessary.
Moves the cursor 1 character space
–
<Time code entries>
–
Moves the cursor 2 character spaces
back
back
+
forward
▲
▲
Moves the cursor to the location
after the last character
▲
▲
Moves the cursor 1 character space
<Decimal entries>
+
Moves the cursor 1 character space
SHIFT+FF
forward
<Time code entries>
Moves the cursor 2 character spaces
◆ NOTE:
forward
• RESET deletes all entered characters.
• When you press the shortcut EXIT button, a confirmation message
appears. Select [YES] and press the SET button to close the onscreen keyboard.
Introduction: Using the On-screen Keyboard
33
Recording, Playback and P2 Card Handling
Insert a P2 Card
3 Bend the protruding EJECT button downwards to the
◆ NOTE:
• When you use this unit for the first time, be sure to set the internal
right and set the card lock to ON.
clock in setup menu No. 069 (CLOCK SET).
1 Turn on the POWER switch of this unit.
2 Insert a P2 card in a P2 card slot, and push it in until
the EJECT button pops out.
• The P2 card access LEDs on this unit show P2 card status
when a P2 card is inserted.
➝For details on P2 card status, refer to “P2 Card Access
LEDs and P2 Card Status” (page 35).
Recording and Playback
To start recording after a stop in the recording mode, press
the REC
button and the PLAY
button simultaneously.
Recording starts on the P2 card whose access LED lights
orange. Press the STOP
Press PLAY
button to stop recording.
to start playback.
Recording cannot be started from the thumbnail/play list
mode.
➝For details, refer to “Control Reference Guide” (page 17).
1➝2➝3➝4➝5➝6➝1
• When the power is turned on and the slot selected for recording at
the last power off contains the same P2 card, that slot will again be
selected for recording. If the slot does not contain a P2 card or
contains another P2 card, a card in a slot with the lowest number will
be selected for recording.
• When a P2 card becomes full during recording, a slot with a higher
number that contains a card with free space will be selected for
recording.
◆ NOTE:
<Precaution in using P2 cards>
• The P2 card access LED for a slot where a P2 card is inserted during
• Format P2 cards only on a P2 card device.
playback of a previously inserted card will remain off and the
second P2 card is not recognized. The second P2 card is
recognized when playback ends.
• A P2 card inserted in another slot during recording of a previously
inserted card will cause the P2 card access LED to flash and the
card will be recognized. Do not remove the P2 card from the slot
while it is being recognized.
34
• P2 cards are played back and recorded in the following slot order:
Introduction: Recording, Playback and P2 Card Handling
P2 Card Access LEDs and P2 Card Status
P2 card access LED
P2 card status
Green light
Reading and writing are possible.
Orange light
Reading and writing are possible.
• Detailed check of P2 card status is possible. Refer to “Checking
Card Status” on page 64.
Dividing clips over 4 GB in length
The card is selected for recording
A continuous recording that is longer than the durations given
(including loop recording).
below when an 8 GB P2 card is used in this unit will result in
Reading and writing are possible.
the automatic division of the recording into different clips.
Even so, the recordings on the two clips can be handled as a
Flashes rapidly in
◆ NOTE:
single clip in thumbnail operations (display, delete, repair,
• Do not turn the unit off or remove a
copy, etc.) on a P2 device.
P2 card during recording or when
Such a recording may be handled as separate clips in
the LED flashes orange.
nonlinear editing software or on PCs.
P2 card is being recognized.
Recording format
orange
Flashes green
Recording duration
DVCPRO HD
Approx. 5 min.
memory capacity. Available only
DVCPRO50
Approx. 10 min.
for reading.
DVCPRO/DV
Approx. 20 min.
The write-protection switch on the
AVC-Intra50*
Approx. 10 min.
P2 card is set to [PROTECT].
AVC-Intra100*
Approx. 5 min.
The P2 card has no remaining
Available only for reading.
Off
Introduction
Flashes orange
◆ NOTE:
The P2 card is not properly
* Available when the optional AVC-Intra Codec board AJYBX200G is installed
formatted. Reformat the card on
this unit.
This card cannot be used in this
unit. Replace the card.
No P2 card has been inserted.
The unit is in the USB DEVICE
mode and is not accessing the P2
card.
LOOP REC Function
When two or more P2 card slots contain cards, the unit
records continuously by switching cards. When available
space on the P2 cards has been used up, recording
State of
cards prior
to loop
recording
continues from the first card overwriting previously recorded
Card 2
Card 3
Unrecorded area Recorded area
Recording starts
loop recording.
To use this function, set LOOP REC in the setup menu to “ON”.
Card 1
Recording
cycle 1
A
B
C
B
C
➝For details, refer to “Setup Menu No. 041 (LOOP REC)”
(page 123).
Recording
cycle 2
D
Loop recording records the unrecorded areas (A B C
order) on the P2 cards. When all unrecorded areas on the
cards have been recorded, recording continues by overwriting
previous loop recording in area A (D).
Introduction: Recording, Playback and P2 Card Handling
35
• When LOOP REC MODE is set to ON, P2 card remaining free space
◆ NOTE:
• Turning the POWER switch OFF turns off the LOOP REC function
and it will remain off when the unit is powered up next time.
• Loop recording requires P2 cards with at least one minute of free
indicates the minimum guaranteed recording time. Minimum
guaranteed recording time is the estimated time of a recording in a
clip when loop recording stops immediately after deleting old data.
• Shot marks cannot be added or deleted during loop recording.
space each.
• During loop recording, the access LEDs for all P2 cards used in the
recording light orange. Note that removing any of the P2 cards will
• Text memos cannot be added during loop recording.
• LOOP REC is not available during AUTO CAPTURE when an
external device is remote controlled.
terminate loop recording.
• When the menu option LOOP REC MODE is set to ON, the text
“LOOP” is superimposed on the first line of the display. Loop
recording is not available even if LOOP REC MODE is set to ON
• LOOP REC is not available in VFR mode.
Terminating Loop Recording Mode
when only one P2 card is inserted or when there is less than one
Use one of the following two methods.
minute of free space on the cards. The text “LOOP” superimposed
• Set the unit POWER switch to OFF.
on the screen flashes when loop recording is attempted under such
• Set the menu option LOOP REC MODE to OFF.
conditions. However, this text does not appear when the
THUMBNAIL and PLAY LIST buttons are on.
Removing P2 Cards
3 Press the EJECT button to eject the P2 card.
◆ NOTE:
• Do not remove P2 cards during access or during recognition
directly after insertion (when the P2 card access LED flashes
orange).
1 Press the STOP
button.
When the P2 card access LED of a card to be removed
flashes orange, press the STOP
button to stop the
flashing.
2 Set the card lock to OFF and raise the EJECT button.
◆ NOTE:
• Removing a P2 card in the thumbnail screen automatically closes
the thumbnail screen.
• Do not remove P2 cards during access or during recognition
directly after insertion (when the P2 card access LED flashes
orange); otherwise the P2 cards may be damaged. If a P2 card by
any chance is removed during access, [E-30] appears on the LCD
monitor and the LCD panel displays the [AUTO OFF] warning. All P2
card access LEDs will flash rapidly in orange. Turn off the power,
and then turn it back on.
• The clips on a P2 card that was removed during access may no
longer be in the right order. Check the clips and perform the
necessary repair operation.
➝ For details, refer to “Repairing Bad Clips” (page 54).
• Removing a P2 card during formatting will in most cases destroy the
formatting. Reformat the card after restarting the PC.
36
Introduction: Recording, Playback and P2 Card Handling
Preventing Accidental Deletion
Set the write-protection switch to [PROTECT] to prevent
accidental deletion of data recorded on a P2 card.
Introduction
Write-protection
switch
PROTECT
◆ NOTE:
• Switching the write-protection switch during recording, playback or
other access operation will not take effect until after these access
operations (playback, recording, etc.) complete.
For the latest information on P2 cards and
SD memory cards
For the latest information not available in the Operating
Instructions of P2 cards and SD memory cards, visit the P2
support desk at the following Web sites.
For English: https://eww.pavc.panasonic.co.jp/pro-av/
Introduction: Recording, Playback and P2 Card Handling
37
Connections
Example of connections in 23.98/24/
29.97/25 Hz mode
When playing back a card recorded at a frame rate of 24 fps
(25 fps), the unit is capable of converting the output to 1080/
24 PsF (1080/25 PsF or 1080/50i) for recording on an AJHD3700 series.
Shown in the figure below is an example of deck-to-deck
connections. Input the following reference signals as REF input.
AJ-HPM110
(source rear panel)
Example of connections for remote
control
Reference signal
23.98 Hz mode: HD REF 47.95 Hz (interlace)
24 Hz mode: HD REF 48 Hz (interlace)
25 Hz (HD)/50 Hz (HD) mode: HD REF 50 Hz (interlace) or SD REF 50 Hz (interlace)
29.97 Hz mode: HD REF 59.94 Hz (interlace) or SD REF 59.94 Hz (interlace)
75 Ω
REMOTE IN/OUT
termination OFF
HD SDI OUT
• In 23.98 Hz mode, the composite monitor video signal output by the
ANALOG COMPOSITE MONITOR OUT connector does not include
VITC signals.
• For details on compatible input and output formats, refer to “List of
Compatible Input and Output Formats” (page 147).
• In 23.98/24/29.97/25 Hz mode, the TIME CODE OUT connector
does not output a time code and a time code cannot be input to the
TIME CODE IN connector.
• In 23.98/24 Hz mode, HD SDI output is delayed by approximately 2
frames relative to analog VIDEO output.
• In 23.98/24 Hz mode, the analog video signals are not output.
• Composite monitor video is not output in 24 Hz mode.
These connections make it possible to send commands via
the remote control connector to enable remote control of
external devices.
Shown in the figure below is an example of deck-to-deck
connections.
Set the CONTROL switch on the front panel of the external
device to REMOTE.
Set the CONTROL switch on the front panel of this unit to LOCAL.
AJ-HD1400, etc.
(source rear panel)
TC
HD SDI signal
VIDEO OUT
Y
HD/SD REF IN
1
IN
PB
HD/SDI
IN
PR
Remote
signal (9P)
AJ-HD3700B
(recorder rear HD
REF
panel)
signal
OUT1
AUDIO OUT
CH1
PUSH
OUT
PUSH
CH2
AUDIO IN
CH1
OUT2
2
(SUPER)
CH2 AUDIO
MON
OUT
L
SD/SDI
REMOTE
IN/OUT
HD SDI IN
R
PUSH
PUSH
DVCPRO
/DV
ENCODER
REMOTE
L
R
E FUSE 250V T2.5AH
M
O F1
T
E
R
MONITOR
REF IN
VIDEO OUT
SD 1
HD
ON
2
WFM
3
SD SDI
IN
OUT1
OUT
1
OUT
3
ON
75
(SUPER)
75
OFF
CH
CH
INPUT
CH
CH
CH
CH
OUTPUT
CH
CH
OFF
ACTIVE
THROUGH
ACTIVE
THROUGH
OUT2
OUT
2
SD
MONITOR
(SUPER)
HD
SD
R EF O UT
SPARE
MONITOR
(SUPER)
DIGITAL AUDIO
REMOTE
OUT
REMOTE
IN
REMOTE
IN/OUT
V/A
CONTROL
CONTROL
PANEL
AUDIO IN
CH 1
CH 2
PUSHCH 1
PUSHCH 2
CH 3
PUSHCH 3
RS-232C
PARALLEL
IN/OUT
(50P)
TIME CODE
CH 4
CH 5
PUSHCH 4
PUSHCUE
AUDIO OUT
SIGNAL
GND
IN
PUSHOUT
MONITOR
PUSHL
PUSHR
75 Ω
75 Ω
termination ON termination
ON
HD REF IN
SD REF IN
Video monitor
◆ NOTE:
• Synchronization with REF input at start of playback in 23.98/24 Hz
mode may distort the first number of frames and mute sound output.
Note that movement in HD SD video output at speeds other than 1x
may look unnatural.
38
DC IN
HD SDI
IN
Introduction: Connections
AJ-HPM110
(recorder rear
panel)
Remote
FUSE
125V 5A
Audio and video input signals
~AC IN
AC IN
DC OUT
12V 250mA
SD
REF
signal
SIGNAL
GND
Recording From a Variable Frame-Rate Camera
Combined with a variable frame-rate camera (VariCam: AJHDC27 series), the unit makes it possible to record HD SDI (720/
23.98p over 59.94p) output from the camera as DVCPRO HD or
AVC-Intra (requires optional board) 720/23.98p native recording.
Recording HD SDI signals from camera
output
1 Connect the camera HD SDI (720/23.98p over
59.94p) output to the SDI IN connector and press the
INPUT SELECT button to select SDI.
2 Make the following setup menu settings.
Item
Introduction
Recording HD SDI output signals from a variable frame-rate camera as 720/
23.98p
Setting
No.25
SYSTEM FREQ
59-23
No.020
SYS FORMAT
720p
No.040
VFR REC
OFF
◆ NOTE:
• To record 720/24p over 60p output from a variable frame-rate
camera, set menu No. 25 SYSTEM FREQ to 60-24. No output is
made to a monitor video in this mode.
3 Hold down the REC button and the STILL/PAUSE
button simultaneously to set the unit to REC PAUSE
mode.
4 To start recording, press the STILL/PAUSE button
HD SDI (720/23.98p over 59.94p) output
while viewing the video output from the camera HD
SDI output.
◆ NOTE:
SDI IN connector
• Set setup menu No. 155 AUTO REC to TYPE1 and set the CONTROL
switch to REMOTE. The unit will then automatically start and stop
recording as the REC and STOP buttons are pressed on the
camera.
• SDI is output in the 1080/23.98 PsF video format. Analog video and
IEEE1394 are not output.
• The TIME CODE OUT connector does not output a time code and
1
3
4
no time code can be input to the TIME CODE IN connector.
• The SDI output is delayed relative to LCD monitor and monitor video
output. Analog audio, speaker and headphone output is
synchronized to the LCD monitor and monitor video output. To
synchronize these outputs to SDI output, set setup menu No. 778
AUD OUT DLY to ON.
• Set camera TCG to FREE RUN/NDF (non drop frame) mode. A TC/
UB of an SDI input that cannot be properly read cannot be normally
recorded.
Introduction: Recording From a Variable Frame-Rate Camera
39
◆ NOTE:
Variable Frame Rate-Recording
• Audio and external time codes cannot be recorded in this mode.
To record active frames from the output of a variable framerate camera, set setup menu No. 040 VFR REC to ON. This
enables instant viewing of slow-motion and fast-motion speed
• In this mode, the remaining P2 card capacity at 60p (50p), the
slowest slow-speed effect, is indicated.
• When 59-23 or 60-24 is set in setup menu No. 25 SYSTEM FREQ,
movement in HD SDI video output may look unnatural when the
effects during shooting.
input frame rate is something other than 24p.
Recording HD SDI signals output by an HD camera as 1080/23.98p (requires
optional accessories)
The unit is capable of AVC-Intra 1080/23.98p native recording
of HD SDI (1080/23.98p over 59.94i) output from an HD camera.
Recording HD SDI signals from camera
output
1 Connect the HD SDI (1080/23.98p over 59.94i)
output from an HD camera recorder to the SDI IN
connector and press the INPUT SELECT button to
2 Make the following setup menu settings.
Item
Setting
No.25
SYSTEM FREQ
59-23
No.020
SYS FORMAT
1080p
3 Hold down the REC button and the STILL/PAUSE
button simultaneously to set the unit to REC PAUSE
mode.
4 To start recording, press the STILL/PAUSE button
select SDI.
while viewing the video output from the camera HD
SDI output.
◆ NOTE:
HD SDI (1080/23.98p over 59.94i) output
• Setup menu No. 155 AUTO REC to TYPE2 and set the CONTROL
switch to REMOTE. The unit will then automatically start and stop
recording as the REC and STOP buttons are pressed on the
camera.
• SDI is output in the 1080/23.98 PsF video format. Analog video and
SDI IN connector
IEEE1394 are not output.
• The TIME CODE OUT connector does not output a time code and
no time code can be input to the TIME CODE IN connector.
• The SDI output is delayed relative to LCD monitor and monitor video
output. Analog audio, speaker and headphone output is
synchronized to the LCD monitor and monitor video output. To
synchronize these outputs to SDI output, set setup menu No. 778
1
3
4
AUD OUT DLY to ON.
• Set camera TCG to FREE RUN. A TC/UB of an SDI input that cannot
be properly read cannot be normally recorded.
40
Introduction: Recording From a Variable Frame-Rate Camera
Jog and Shuttle Operations Using the Search Dial
The search dial is used to search and check video.
When the power is turned on, the search dial will not operate
Each press of the dial alternates it between SHTL mode and
unless it is first returned to the STILL position.
Introduction
JOG mode.
Jog Mode
2 Turn the search dial.
The dial’s click stops are released and playback is
performed at the speed the dial (–1 to +1×) is turned.
When the dial stops turning, the video becomes a still
picture.
3 To go to another mode from the jog mode, press the
button of the desired mode.
◆ NOTE:
• In the factory default setting, turning the search dial engages
the direct search mode for immediate access to a search mode
(jog mode or shuttle mode).
• You can select [KEY] in setup menu No. 100 (SEARCH ENA) so
1 Press the search dial so that it remains pressed in.
that the unit will not engage the search mode unless you press
the STILL/PAUSE button.
The jog mode is now engaged.
Shuttle Mode (SHTL Mode)
3 Turn the search dial.
The playback picture speed changes from 0 to ±16×
depending on dial position.
Use setup menu No. 101 (SHTL MAX) to set maximum
speed to ±8, ±16, ±32, ±60 or ±100×. The dial has a clickstop at the center for viewing still pictures.
4 To go to another mode from the shuttle mode, press
the STOP
button or other button.
◆ NOTE:
• The playback audio is audible at speeds in the range –10 to
+10× from the audio monitor output.
1 Press the search dial to release it.
This engages the shuttle mode.
When the power has just been turned on, turn the search
dial to its center position.
• The playback audio in the search mode contains noise.
• Playing back a clip that spans a multiple of P2 cards at speeds
faster than ±1× may break up the sound in the transition to
another card; this is normal and not indicative of a malfunction.
• Playing back a clip at speeds faster than –10× may break up the
sound; this is normal and not indicative of a malfunction.
2 Press the STILL/PAUSE button.
Introduction: Jog and Shuttle Operations Using the Search Dial
41
Clip Management
Thumbnail and Clip Management
1
17
16
8
011
7
15 14
X !
7
MP T EW
6
2
3
4
This unit provides a thumbnail screen for managing clips. A
clip is a single data item that contains video, audio, metadata
and other additional information. Normally, a clip is one shot
generated from the start of recording until recording stops. A
shot that spans multiple P2 cards is handled as a single clip.
The thumbnail screen shows a list of thumbnails. Each
thumbnail, which is the first frame of each clip, represents that
clip. These thumbnails allow you check and also perform the
following clip management operations.
• Play back, copy, delete and repair clips
• Insert text memos in clips
• Check and delete text memos
• Display and delete markers
• Format P2 cards
• Show clip property
• Show P2 card status
◆ NOTE:
• Thumbnails are generated from part of the captured video and
therefore appear rougher than the actual video.
• Thumbnail screens are output also via the VIDEO MONITOR
connector but may run off the screen depending on the type of
monitor that is connected.
42
Clip Management: Thumbnail and Clip Management
5
9 10 11 12 13
Thumbnail Screen Names and Functions
1. Display status
7. Thumbnail
Display status indicates the type of thumbnails
Indicates the initial frame of the clip that represents it.
displayed on the screen.
ALL:
SAME FORMAT:
Clips with the same format
Indicates the numbers assigned to P2 card clips.
as the system
Numbers are assigned starting in order from the
Clips selected with the SET
earliest shooting date. Numbers of clips that cannot be
button
played back are shown in red.
MARKER:
Clips with shot markers
TEXT MEMO:
Clips with text memo data
SLOTn:
Clips on P2 card in slot No.
n
PROPERTY:
P2/REMAIN:
Media information (amount
Media information (amount
of space used)
META DATA:
9. M Shot mark indicator
Indicates that a shot mark has been attached to a clip.
Detailed clip information
of remaining space)
P2/USED:
8. Clip no.
Clip Management
SELECT:
All clips
Set meta data
10. P Proxy indicator
Indicates that a clip contains a proxy attached using
the AJ-SPX800, AJ-HPX2000/2100, AJ-HPX3000 or
other camera.
This unit cannot record proxies.
➝For details on how to change display, refer to
“Switching the Type of Information That is
Displayed” (page 45).
2. Record mode
Indicates the record mode of the clip at the cursor
position.
3. System format
11. T Text memo indicator
Indicates a clip that contains text memo data.
12. E Edit copy indicator
Indicates an edit-copied clip.
13. W Wide indicator
Indicates the recording format of the clip at the cursor
Indicates a clip recorded in the 16:9 aspect ratio. This
position.
is not indicated for an HD format clip.
4. Duration
Indicates the duration of the clip at the cursor position.
14. ! Incomplete clip indicator
Indicates a clip spanning multiple P2 cards where one
of the cards that contain part of the clip has not been
5. USB host mode indicator
inserted.
Appears in the USB host mode.
6. Time display
15. X Bad clip ? Unknown clip indicator
Indicates a clip that became defective because the
Indicates the TC (time code) at the start of clip
power was shut down during recording or was
recording, UB (user bit at the start of clip recording),
damaged for some other reason. Clips with the yellow
time of shooting, day of shooting, date and time of
bad clip indicator can sometimes be repaired.
shooting or the user clip name.
➝Refer to “Repairing Bad Clips” (page 54).
➝Refer to “Setting Items to Display” (page 46).
Clips with the red bad clip indicator cannot be repaired
and should be deleted. If deleting is not possible,
format the P2 card.
Clip Management: Thumbnail and Clip Management
43
Instead of X , ? appears to indicate that a clip is not
in the P2 standard format.
16. P2 card slot number and hard disk drive status
P2 1 2 3 4 5 6
HDD
P2 card and USB hard disk drive status is indicated as
described below.
1 - 6
1
(white)
1 - 6
1
(yellow)
The number of the P2 card slot that
contains a P2 card is indicated in white.
The number of the P2 card slot of the P2
card that contains the clip at the cursor
position is indicated in yellow. When a
clip spans multiple P2 cards, the
numbers of all the slots housing cards
that contain the clip are indicated.
◆ NOTE:
The pink frame indicates either of the following
conditions for an inserted P2 card.
• [RUN DOWN CARD]
The card has been overwritten the maximum
number of times.
• [DIR ENTRY NG CARD]
Directory structure does not conform to
standard specifications.
Gray indicates that the USB host mode is
(gray)
not engaged or that it is but no hard disk
drive is connected.
White indicates that the USB host mode is
(white)
engaged and that the hard disk drive is
available.
Yellow indicates that the USB host mode
(yellow)
is engaged and that clips on the hard
disk drive appears as thumbnails.
Red indicates that the USB host mode is
(red)
engaged and that the hard disk drive
does not permit copying.
17. Status message
Shows messages indicating processing status. For
example, screen updating shows an [UPDATING] text
message and a rotating W icon.
44
Clip Management: Thumbnail and Clip Management
Changing Thumbnail Display
The thumbnail screen can be customized to suit operating
conditions and improve efficiency.
3 Use the cursor buttons to select the clip type that
should appear under [THUMBNAIL].
Switching the Type of Information That is
Displayed
Clip Management
1
4
ALL CLIP:
Show all clips
SAME FORMAT
Show clips in the same format as
CLIPS:
the system
◆ NOTE:
• When 23.98, 24, 29.97, 59-23, 60-24,
3
25 or 60-25 is selected in setup
2
menu No. 25 SYSTEM FREQ, only
clips in a format that can be
1 Open the thumbnail screen.
2 Press the MENU button.
recorded appear.
SELECTED
Show clips selected using the SET
CLIPS:
button
MARKED CLIPS: Show clips to which shot marks
have been attached
TEXT MEMO
Show clips that contain text memo
CLIPS:
data
◆ NOTE:
In the following instances, the
thumbnail in the row below at the text
memo location may be grayed out
when a text memo clip appears.
• An AVC-Intra clip when an optional
AVC-Intra codec board has not been
installed.
• An AVC-Intra clip with a different
SYSTEM FREQ. setting
SLOT CLIPS:
Show clips on P2 card in slot No. n
4 Press the SET button.
◆ NOTE:
(These operations can also be performed using buttons.)
• Press SHIFT + IN and the indication changes in the following
order each time these buttons are pressed: SELECTED ➝ SLOT
1 ➝ SLOT 2 … SLOT 6 ➝ SELECTED. (Only slots with cards will
appear.)
• Press SHIFT + OUT to switch to ALL CLIP.
Clip Management: Thumbnail and Clip Management
45
Setting Items to Display
TEXT MEMO IND.:
ON
indicator
OFF
The thumbnail display can be customized to suit different
WIDE IND.:
PROXY IND.:
DATA DISPLAY:
1
Hides the text memo
indicator
operating needs. The following describes procedures for
changing thumbnail display indicators and data settings.
Shows the text memo
ON
Shows the wide indicator
OFF
Hides the wide indicator
ON
Shows the proxy indicator
OFF
Hides the proxy indicator
Select items to appear in the time
display (➝ refer to 6 of the
4
“Thumbnail Screen Names and
Functions” (page 43)).
3
2,5
1 Open the thumbnail screen.
DATE FORMAT:
TC
Time code
UB
User bit
TIME
Time of recording
DATE
Date of recording
DATE
Date and time of
TIME
recording
USER
The first fifteen characters
CLIP
(English display mode) in
NAME
the user clip name
Select the format for indicating the
2 Press the MENU button.
time
3 Use the cursor buttons to select the item that should
M-D-Y* Month, day, year
Y-M-D
Year, month, day
D-M-Y* Day, month, year
appear under [THUMBNAIL] – [SETUP].
◆ NOTE:
• This setting is reflected in the date of
recording shown in the clip property,
the date and time of recording
indicated when selecting DATE in the
DATE DISPLAY, the date of recording
that appears in the clip information in
the event property screen of a play list
and also in the created date indicated
when loading metadata or in other file
indications.
* The initial value for the AJ-HPM110P is
“M-D-Y”, and for the AJ-HPM110E is
* An underlined setting indicates an initial value.
ALL HIDE:
ON
Hides all indicators
OFF
Indicators are displayed
“D-M-Y”.
THUMBNAIL SIZE: The size of thumbnails that appears
in one LCD monitor screen
LARGE Large
according to the settings
NORMAL Normal
made below
MARKER IND.:
ON
OFF
Shows the shot mark
PLAYBACK
Select whether or not to resume
indicator
RESUME:
playback from the last playback
location after a stoppage when the
Hides the shot mark
cursor has not been moved.
indicator
THUMBNAIL INIT:
ON
Store stop position
OFF
Play back from start
Returns above settings to their
factory defaults (initial values).
46
Clip Management: Thumbnail and Clip Management
4 Press the SET button.
• Playback starts from the beginning of the clip regardless of a
change in thumbnail location.
◆ NOTE:
• Selecting [THUMBNAIL INIT] opens a confirmation screen.
Select [YES].
5 Press the MENU button to end processing.
Thumbnail editing
Clip Management
1 Attach a text memo to video you want to edit.
➝For details, refer to “Attaching Text Memos” (page 50).
2 Change thumbnail display to text memo display.
3 Move to the row below the text memo and move the
cursor to the thumbnail you want to edit.
4 Press the MENU button.
5 Use the cursor buttons to choose [OPERATION] –
[EXCH. THUMBNAIL] and press the SET button.
6 Select [YES] and press the SET button
The Menu closes and the thumbnail reflects the changes
that have been made.
◆ NOTE:
• The Thumbnail field in the clip information display shows the
change in thumbnail location (number of frames from the start).
The number for a normal first thumbnail is 0.
Clip Management: Thumbnail and Clip Management
47
Selecting Clips
Select clips for processing in the thumbnail screen as
Canceling a Selection
described below.
1 Place the cursor on a selected clip and press the SET
button again.
This cancels the selection.
◆ NOTE:
1
• Holding down the SHIFT button while pressing the EXIT button
cancels made selections.
2
1 Use the cursor buttons to place the yellow frame
(cursor) on the desired clip.
◆ NOTE:
• Hold down the SHIFT button and press the REW/FF button or the
4/5 buttons to move the cursor to the first or last clip.
2 Press the SET button.
A blue frame appears on the clip selected with the cursor
to indicate that it is selected.
◆ NOTE:
• Repeat steps 1 and 2 to select multiple clips.
• After selecting a clip, move the cursor to another clip, hold down
the SHIFT button and press the SET button to select another
clip. This method allows you to select both clips.
48
Clip Management: Selecting Clips
Playing Back Clips
3 Press the PLAY
button
Playback starts from the clip the cursor is on.
After the clip at the cursor location has been played,
CONTROL
PC
REMOTE
LOCAL
1
subsequent clips are played back in order. When the last
clip has been played, the thumbnail screen appears.
4
24
2
UNITY
UNITY
◆ NOTE:
10
0
• There is no need to select (that is when the thumbnail appears
10
1
20
inside a blue frame) a clip to play it back.
30
• The thumbnail display settings can be changed to play back
CH
2/4
CH
1/3
PB
Clip Management
3
13
only selected clips or play back only clips that contain text
memos.
• Pressing the STILL
button instead of the PLAY button shows
a still of the first frame in the clip.
2
3
• A clip whose clip number is red cannot be played back.
• Pressing the REW
1 Open the thumbnail screen.
2 Use the cursor buttons to select the clip you want to
play back.
button instead of the PLAY button results
in rewind playback, while pressing the FF
results in fast
forward playback.
• Pressing the STOP
button during clip playback, stops
playback and the thumbnail screen appears.
• When playback stops, the cursor moves to the clip played prior
to stopping.
• Video and audio playback may be disrupted between clips of
different formats (DVCPRO HD, DVCPRO50, DVCPRO/DV,
AVC-Intra50*, AVC-Intra100*). This is normal and not indicative
of a malfunction.
• Pressing the THUMBNAIL button to close the thumbnail screen
will in most cases change the playback start position back to the
clip with the oldest recording time (clip number 1).
• Changing the thumbnail screen to text memo display makes it
possible to start play back from text memo location.
➝ For details, refer to “Attaching Text Memos” (page 50).
* Available when the optional AVC-Intra Codec board AJYBX200G is installed
◆ NOTE:
• The search dial can also move the cursor.
Playing Back Single Clips
• Hold down the SHIFT button and press the REW/FF button or the
4/5 buttons to move the cursor to the first or last clip.
To play back the clip at the cursor location, hold down the
SHIFT button and press the PLAY
button.
◆ NOTE:
• The play list screen appears when playback stops at the
end of the clip or when the STOP
button is pressed. The
cursor then moves to the next clip.
• All buttons other than the STOP
button are not available
during single clip playback.
• Single clip playback starts from the beginning of the clip.
Clip Management: Playing Back Clips
49
Attaching Text Memos and Shot Marks
A text memo can be attached in a clip to mark a specific
2 Press the thumbnail menu button and choose
location. The user can attach shot marks to distinguish clips
[THUMBNAIL] – [TEXT MEMO CLIPS] from the
from each other. This function is not available on cards where
thumbnail menu.
the write protect switch has been set to PROTECT.
The thumbnails of clips with text memos appear at the top
of the LCD monitor. Information on the selected clip text
Attaching Text Memos
memo appears in the lower half of the LCD monitor.
Use the NEXT and PREV buttons to locate attached text
memos during video playback.
Thumbnail Indicates the total
display
number of text memos
attached to clips
Indicates still images
included with the text
memos
◆ NOTE:
• In the following instances, the thumbnail in the row below at the text
memo location may be grayed out when a text memo clip appears.
1
• An AVC-Intra clip when an optional AVC-Intra Codec board has
not been installed.
1 Press the TEXT MEMO button during recording,
playback or when thumbnails are displayed.
• Press this button during recording and playback where
you want to attach a text memo.
• An AVC-Intra clip with a different SYSTEM FREQ. setting.
3 Place the cursor on the clip (with a text memo) you
want play back and press the SET button.
The cursor moves to the lower half of the LCD monitor.
• Pressing this button in the thumbnail screen adds a text
memo at the thumbnail clip location (normally at the
beginning).
◆ NOTE:
• Up to 100 text memos can be attached in one clip.
• Pressing the TEXT MEMO button during playback may
temporarily halt playback. This is normal and not a malfunction.
• Text memos are not recorded during LOOP REC or VFR ON
recording.
Playing Back From Text Memo Location
1 Press the THUMBNAIL button.
The Thumbnail Screen appears on the LCD monitor.
50
Clip Management: Attaching Text Memos and Shot Marks
The cursor moves
4 When the cursor is in the lower half of the LCD
monitor, use the right and left (b a) cursor buttons
Attaching Shot Marks
to go to the thumbnail text memo you want to play
back and press the PLAY button.
Attach shot marks to distinguish clips from each other.
The clip is played back from the text memo time code
3
location selected with the cursor.
When you press the STOP button to interrupt ongoing
playback, or when playback stops upon reaching the end
of the clip, the thumbnail screen reappears and the cursor
Clip Management
returns to the thumbnail text memo location where
playback was started.
Press the thumbnail menu button to select EXIT or press
the EXIT button and the cursor returns to the upper half of
1
the thumbnail screen.
◆ NOTE:
• During playback all buttons other than the STOP button are not
available.
Deleting Text Memos
2
Opening the text memo display from the thumbnail screen
allows you to delete text memos.
1 Open the text memo display from the thumbnail
screen.
1 Open the thumbnail screen.
2 Use the cursor buttons to place the cursor on the
desired clip.
2 Use the cursor buttons to move to the thumbnail for 3 Hold down the SHIFT button and press the TEXT
which you want to delete the text memo and press
the SET button.
The cursor moves to the row below.
3 Select the thumbnail for witch you want to delete the
text memo and select [DELETE] from the menu.
MEMO button.
Each press of this button turns the shot mark indicator on
and off.
◆ NOTE:
• When attaching or deleting shot marks for clips that span
multiple P2 cards, be sure to load all the P2 cards that the clip
4 Select [YES] in the confirmation screen that appears.
is recorded on.
• Shot marks cannot be added or deleted during loop recording.
The text memo is deleted.
Clip Management: Attaching Text Memos and Shot Marks
51
Copying Clips
Clips can be copied to a P2 card in any slot.
◆ NOTE:
• Take care not to turn off the power or remove a card during copying.
Otherwise the copied clip may become bad.
If the copied clip is bad, delete it and make a new copy.
• Reconnect incomplete clips before copying them.
◆ NOTE:
• To interrupt copying, press the SHIFT and EXIT buttons or the
SET button to cancel the job.
The incomplete copy at the destination is deleted.
• [OVER WRITE] appears when an attempt is made to place a
copy (having the same GLOBAL CLIP ID) at a destination
already containing an identical item. Select [YES] to overwrite or
[NO] to cancel copying and then press the SET button.
1 Open the thumbnail screen.
2 Select a clip to copy.
6 Press the SET button when the completion message
appears.
3 Press the MENU button.
4 Use the cross cursor buttons to choose
[OPERATION] – [COPY] – [SLOTn] (the number of
the P2 card slot where the copy will be placed) and
press the SET button.
When multiple clips are selected, the number of selected
clips appear after pressing the SET button.
7 Press the MENU button to end processing.
◆ NOTE:
• No copying is performed when any of the following error
messages appear.
• [LACK OF REC CAPACITY]
Copy failed because there is not enough space at the copy
destination.
• [UNKNOWN CONTENTS FORMAT!]
Copy failed because the selected clip was bad.
5 Select [YES] and press the SET button.
This starts copying.
• [NO COPY TO SAME CARD!]
Copy failed because an attempt was made to place the copy
on the same disk.
• [TOO MANY CLIPS!]
Copy failed because too many clips were selected.
• Copying performed at the bottom row of a text memo when the
text memo is selected copies the selected text memo and the
next text memo. When there is no text memo beyond the
selected text memo, all data to the end of the clip is copied.
52
Clip Management: Copying Clips
Deleting Clips
Use the following procedure to delete a defective clip from a
P2 card.
1 Open the thumbnail screen.
Clip Management
2 Select the clip to delete.
3 Press the MENU button.
4 Use the cursor buttons to choose [OPERATION] –
[DELETE].
5 Select [YES] and press the SET button.
This deletes all selected clips.
6 Press the MENU button to end processing.
◆ NOTE:
• Instead of steps 3 to 4, you can also hold down SHIFT and press
the INSERT button to delete a clip.
• To interrupt deleting, press the SHIFT and EXIT buttons or the
SET button to cancel the operation.
Partially deleted clips cannot be restored by canceling.
Clip Management: Deleting Clips
53
Repairing and Reconnecting Clips
◆ NOTE:
Repairing Bad Clips
Incomplete clips occur under the following conditions.
• When the individual clip segments on each P2 card that make up the
This section describes how to restore bad clips that have
been damaged due sudden power outages during recording
clip are copied separately.
• When the clip segments on each card that make up a clip recorded
or for other reasons. Such clips are marked by the bad clip
on multiple cards are separately copied to a hard disk drive and
indicator (yellow X ). Use the following procedure to repair
bad clips.
then copied back to a P2 card.
• When a 5-minute or longer DVCPRO HD clip (10-minute or longer
DVCPRO50 and 20-minute or longer DVCPRO/DV clip) is copied to
1 Open the thumbnail screen.
a hard disk drive and later written back to a P2 card.
2 Select the bad clip to repair.
1 Open the thumbnail screen.
3 Press the MENU button.
2 Select the incomplete clips to reconnect.
4 Use the cursor buttons to choose [OPERATION] –
[REPAIR CLIP].
◆ NOTE:
• Normally, thumbnails with the incomplete clip mark are usually
grouped together.
3 Press the MENU button.
4 Use the cursor buttons to choose [OPERATION] –
[RE-CONNECTION].
5 Select [YES] and press the SET button.
6 Press the MENU button to end processing.
◆ NOTE:
• Some clips are so badly damaged they cannot be repaired.
Such clips are indicated by a red
X
.
Reconnecting Incomplete Clips
5 Select [YES] and press the SET button.
6 Press the MENU button to end processing.
◆ NOTE:
A clip spanning multiple P2 cards that cannot be recognized
• When some but not all the clip segments in a clip that consists
as a complete clip is marked by the incomplete clip ( !
indicator). The reconnection function allows you to reconnect
of three or more clip segments are reconnected, the incomplete
related clips and restore the original clip.
54
Clip Management: Repairing and Reconnecting Clips
clip mark will remain.
Viewing and Revising Clip Information
1) Clip no.
Viewing Clip Information
2) Thumbnail
Detailed clip information can be displayed on the screen.
1 Open the thumbnail screen.
Indicates the number of indicators, inserted text memos
2 Place the cursor on the desired clip
the P2 card where the clip resides is write-protected.
and voice memos in a clip. The
!
mark appears when
◆ NOTE:
3 Press the MENU button.
•
V
Clip Management
3) Clip information
Voice memo/Indicator
Indicates that a voice memo has been attached to a clip. This
Or with the menu closed, hold down the SHIFT
indicator appears only in the clip property mode.
button and press the SPLIT button.
• This unit cannot record and play back voice memos.
4 Use the cursor buttons to choose [PROPERTY] –
[CLIP PROPERTY] and press the SET button
4) Clip information
The following information appears.
CLIP NAME:
CLIP NAME
START TC:
Time code at start of recording
START UB:
User bit value at start of recording
DATE:
Date recorded
TIME:
Time at start of recording
DURATION:
Clip length
V_FORMAT:
Clip recording format
FRAME RATE:
Playback frame rate
REC RATE:
Recording frame rate
5) Clip metadata
This displays information on the selected clip.
This area shows more detailed information on a clip.
3)
5 Browse the clip metadata as necessary.
1)
2)
5)
4)
Use the cursor buttons to select a metadata item and
press the SET button to view the information.
Clip Management: Viewing and Revising Clip Information
55
GLOBAL CLIP ID:
Global CLIP ID
Frame location and size (frame
offset, height, width) of video that
no clip anywhere in the world with
makes up the thumbnail
the same number.)
USER CLIP NAME:
THUMBNAIL:
(This is a unique number. There is
The name a user assigns to a clip.
This normally includes a GLOBAL
6 Press the MENU button or the EXIT button to end
processing.
CLIP ID.
VIDEO:
Video signal system
Revising Clip Metadata
(FRAME RATE, PULL DOWN,
ASPECT RATIO)
AUDIO:
Audio channel system and other
information
(SAMPLING RATE,
BITS PER SAMPLE)
ACCESS:
Use the steps below to revise clip metadata.
1 Display clip metadata.
2 Use the cursor buttons to select the metadata you
The date of the last update and
want to revise and press the SET button.
other information
Data that can be revised is indicated as “TEXT”, like in the
(CREATOR, CREATION DATE,
illustration below.
LAST UPDATE DATE,
LAST UPDATE PERSON)
DEVICE:
Serial number of recording
equipment and other information
(MANUFACTURER,
SERIAL NUMBER, MODEL NAME)
SHOOT:
Date when recording started and
ended, etc.
(SHOOTER, START DATE,
END DATE, LOCATION,
ALTITUDE, LONGITUDE,
LATITUDE, SOURCE,
PLACE NAME)
SCENARIO:
PROGRAM NAME, SCENE NO.,
etc. (program name,
scene number, take number)
NEWS:
REPORTER, OBJECT and other
3 Use the cursor buttons to move to the item you want
to revise and press the SET button.
• The metadata revise screen (on-screen keyboard)
appears.
• Use the on-screen keyboard to revise metadata.
information (reporter, purpose,
object)
MEMO:
TEXT MEMO number, location,
name and text content
(NO., RECORDING LOCATION,
person, text)
◆ NOTE:
• Offset is indicated in frame numbers
from the start. During text memo
display of thumbnails, the offset is
converted to TC.
• While up to 1000 characters of text
can be added only the first 100
characters will appear.
• Use the right and left cursor buttons
to move text numbers.
56
Clip Management: Viewing and Revising Clip Information
◆ NOTE:
• Use the cursor buttons to move keyboard location, then press
the SET button at the BS location.
• Use b a to move the insertion point one character to the right or
left and d c to move it to the beginning or end.
4 Select [OK] after revising (or press the ENTRY
button).
• This saves the revised metadata to the clip and the
metadata display reappears.
• Select [EXIT] to cancel the entry and return to the
previous display.
◆ NOTE:
• To delete latitude and longitude, enter a blank for altitude. They
cannot be deleted separately.
!
cannot be revised.
Clip Management
• Note that the metadata of a clip marked
Insert the P2 card with the remainder of the clip.
• Metadata to which a 100 character or larger memo has been
attached cannot be revised.
Clip Management: Viewing and Revising Clip Information
57
Attaching Metadata to Clips
A metadata upload file containing the name of the person who shot the video, the reporter, the shooting location or a text memo
and other information can be saved to an SD memory card. This data file can be read and recorded as clip metadata.
Create a metadata upload file on a Windows PC
↓
Save the file to an SD memory card
↓
Read the metadata upload file to this unit
↓
When video is recorded the metadata will be added to the resulting clip
Preparing a Metadata Upload File
Setup to Attach Metadata
Use P2 viewer to create meta data upload files on a PC.
Make the required settings to enable this unit to read the
P2 viewer allows you to use a PC for processing clips
metadata upload file.
recorded on a P2 card. Download the latest version of P2
viewer from the URL given below.
English: https://eww.pavc.panasonic.co.jp/pro-av/
Select Method for Recording the USER
CLIP NAME
Install P2 viewer on a PC, create a metadata upload file and
write it to an SD memory card.
Set the method for recording the USER CLIP NAME.
◆ NOTE:
1 Open the thumbnail screen.
• Use the latest version of the P2 viewer.
• For details on how to create a metadata upload file, refer to the help
function in P2 viewer.
• For details on SD memory cards, refer to the NOTE on page 162.
2 Press the MENU button.
3 Use the cursor buttons to choose [META DATA] –
[USER CLIP NAME].
58
Clip Management: Attaching Metadata to Clips
4 Select [TYPE 1] or [TYPE 2] and press the SET
button.
Recording method
Use clip metadata
COUNT Value
USER CLIP NAME to be
The count value is indicated as a four-digit number. When
recorded
recording method “TYPE 2” is selected for the USER CLIP
TYPE 1
Read metadata settings
TYPE 2
Read metadata settings
+ COUNT value
NAME in the clip metadata that is loaded, the COUNT value is
incremented by 1 for each new recording and a new clip is
generated.
Same as GLOBAL CLIP
■ To reset the COUNT value
data *
ID
Use the following procedure to reset the COUNT value.
Same as CLIP NAME
1. Open the thumbnail screen.
TYPE 2
* The metadata upload file has been read, but [META
DATA] – [RECORD] is set to [OFF]
5 Press the MENU button to end processing.
2. Press the MENU button.
3. Use the cursor buttons to choose [META DATA] –
[PROPERTY] – [USER CLIP NAME] and press the
SET button.
Clip Management
Do not use clip meta TYPE 1
4. Use the cursor buttons to select [COUNT RESET]
and press the SET button.
The COUNT value is reset to 1.
5. Press the MENU or EXIT button to end processing.
Clip Management: Attaching Metadata to Clips
59
■ Incrementing the COUNT value of the USER
CLIP NAME for clips exceeding 4 GB
In the following case, one shot is recorded as multiple clips
and the COUNT value is automatically incremented and
recorded for each shot.
• When an 8 GB or larger P2 card is used in this unit and each
continuous recording exceeds a preset time.
➝For details, refer to “Dividing clips over 4 GB in length”
(page 35)
• When one recording spans multiple cards.
Example of a recording on one P2 card (DVCPRO HD):
REC start
Stop
(start of recording)
(recording stop)
Recording duration = 6 minutes
◆ NOTE:
• When the file name is displayed, use the right cursor button to
show the metadata name. Use the left cursor button to show the
Clip 2
Clip 1
COUNT value = A COUNT value = A + 1
Approx. 5 min.
Approx. 1 min.
Example of recording a clip on two P2 cards:
REC start
(start of recording)
Stop
(recording stop)
Clip 1
Clip 2
COUNT value = A COUNT value = A + 1
1st card
2nd card
A P2 device will indicate the thumbnail and COUNT value of
clip 1 when thumbnails and property of the clip are displayed.
file name.
5 Use the cursor buttons to select the file to load and
press the SET button.
6 Select [YES] and press the SET button.
The file is now loaded.
7 Press the MENU button to end processing.
Checking and Revising Loaded Metadata
Use the following steps to check metadata loaded from an SD
Loading Set Metadata Values
Use the following procedure to load metadata from an SD
memory card.
1 Insert the SD memory card storing the metadata
upload file.
memory card.
1 Press the THUMBNAIL button.
The thumbnail screen appears on the LCD monitor.
2 Press the thumbnail menu button and select [META
DATA] – [PROPERTY] from the Thumbnail menu.
The screen shown below appears.
2 Open the thumbnail screen.
3 Press the MENU button.
4 Use the cursor buttons to select [META DATA] –
[LOAD] and press the SET button.
The filename of the metadata upload file on the SD
memory card appears.
60
Clip Management: Attaching Metadata to Clips
3 Use the cursor buttons to move the pointer and press 5 Press EXIT to exit the metadata confirmation screen.
the SET button.
Use this function to check loaded metadata settings.
Deleting Metadata
Use the following procedure to delete metadata stored in this unit.
1 Open the thumbnail screen.
2 Press the MENU button.
[INITIALIZE] and press the SET button.
4 While viewing metadata settings, use the cursor
Clip Management
3 Use the cursor buttons to select [META DATA] –
buttons to move the cursor to the setting you want to
change and press the SET button.
The on-screen keyboard appears. Make the required
changes.
➝For details, refer to “Using the On-screen Keyboard”
(page 33).
4 Select [YES] in the confirmation screen and press
the SET button.
This deletes the metadata.
5 Press the MENU button to end processing.
Recording Clips Containing
Metadata
◆ NOTE:
This procedure attaches the loaded metadata to clip that is
<Metadata types that can be set>
recorded.
• Use the cursor buttons to select a metadata item and press the
SET button to view the information.
USER CLIP NAME: Name of user clip
CREATOR:
Creator
LAST UPDATE
The person who last updated the
PERSON:
data
SHOOT:
The person who shot
PLACE NAME:
Shooting location
SCENARIO:
PROGRAM NAME, SCENE NO.,
1 Open the thumbnail screen.
2 Press the MENU button.
3 Use the cursor buttons to choose [META DATA] –
[RECORD].
TAKE NO.
NEWS:
Name of the reporter, purpose of
data collection, target of data
collection
MEMO:
Name of the person who recorded
the text memo and text memo data
• Press the EXIT or SET button after confirming to close the window.
• Select [OK] after completing all changes.
Clip Management: Attaching Metadata to Clips
61
4 Select [ON] and press the SET button.
This setting records the loaded metadata simultaneous
with video recording. The USER CLIP NAME is attached to
metadata as specified by the recording method.
5 Press the MENU button to end setup.
6 Record video on this unit.
◆ NOTE:
• When [OFF] is selected in step 4, no metadata is attached to the
clip.
62
Clip Management: Attaching Metadata to Clips
Formatting P2 Cards
1 Open the thumbnail screen.
2 Press the MENU button.
Clip Management
3 Use the cursor buttons to choose [OPERATION] –
[FORMAT] – [SLOTn] (the number of the P2 card slot
containing the card to format) and press the SET
button.
4 Select [YES] and press the SET button.
The card is now formatted.
◆ NOTE:
• To cancel formatting, select [NO] and press the SET button.
5 Press the SET button when the completion message
appears.
◆ NOTE:
• Repeat the procedures in steps 3 to 5 to format P2 cards in other
P2 card slots or SD memory cards.
6 Press the MENU button to end processing.
Clip Management: Formatting P2 Cards
63
Checking Card Status
Use the following procedure to display P2 card slot status and P2 card usage and other card information on the screen for
checking.
Selecting Information to Display
Select whether remaining capacity or used capacity should
appear in the P2 card information.
1 Open the thumbnail screen.
2 Press the MENU button.
3 Use the cursor buttons to choose [PROPERTY] –
[PROPERTY SETUP] – [P2 CARD CAP].
4 Use the cursor buttons to select an item and press
the SET button.
REMAIN:
Remaining capacity indication (initial value)
USED:
Used capacity indication
MEMO: An underlined setting indicates a factory preset
value.
5 Press the MENU button to end processing.
64
Clip Management: Checking Card Status
Displaying Card Status Information
After completing the settings described on the previous page,
you can use the procedure described below to check the
status of P2 cards in P2 card slots.
1) Write protect mark
A write-protected P2 card is indicated by the
1 Open the thumbnail screen.
mark
displayed here.
2 Press the MENU button.
2) P2 card status
3 Use the cursor buttons to choose [PROPERTY] –
[CARD STATUS] and press the SET button to
displayed here in the form of a bar meter and a
percentage value.
Memory used on the P2 card is also displayed in the
display P2 card status.
form of a bar meter and a percentage value.
The following status information may also appear
Clip Management
The remaining free memory on the P2 card is
depending on card status.
FORMAT ERROR:
An unformatted P2 card is
inserted.
NOT SUPPORTED:
This unit does not support the
inserted card.
NO CARD:
1)
2)
No P2 card has been inserted.
3) P2 card remaining memory (or memory used)/total
memory
3)
Indicates P2 card remaining free memory (or memory
used)/total memory in time left in minutes. Fractions of
a minute are rounded off on the display so that the sum
total of the remaining memory available for recording
on each P2 card may not tally with the figure for the
total memory.
or
4) Slot remaining memory (or memory used) total
The figure obtained by totaling the remaining free
memory on the six P2 slots is shown here.
◆ NOTE:
• Free space of write-protected P2 cards is not included in
the free space total.
4)
5) Detailed P2 card status
Select the slot of the P2 card whose status you want to
check and press the SET button to view the P2 card
model number and other detailed information.
Press the SET or EXIT button again to close the
detailed information screen.
5)
6)
Clip Management: Checking Card Status
65
6) Card warning messages
This warning appears when the following P2 cards are
inserted.
[RUN DOWN CARD]
The card has been overwritten the maximum number
of times.
[DIR ENTRY NG CARD]
Directory structure does not conform to standard
specifications.
Use Detailed P2 Card Status for more information.
4 Press the EXIT button to end processing.
66
Clip Management: Checking Card Status
Using Play List
Play List Function
The play list function allows you to create lists (play lists) that
register clip sections recorded on P2 cards to continuously
• Do not use and register multiple copies of a clip at the same time
since that may result in incorrect recognition.
play them back in list order. List editing is fast and efficient
since no actual data is involved.
In normal playback, playback starts from the starting point
Using Play List
and goes on until the last clip.
Clip 1
P2
card 1
Clip 2
Clip 3-1
Current position
P2
card 2
Clip 3-2
Continuous playback
Clip 4
Clip 5
Continuous playback
In a play list playback, the user first creates a play list that
defines the IN points (start position) and OUT points (end
position) of the clip segments that should be played. The
subsequent play list playback will play only the sections
specified on the play list as a single continuous section.
Clip 1
P2
card 1
IN
P2
card 2
Clip 2
Clip 3-1
Event A
Event B
OUT
Clip 3-2
IN
OUT
Clip 4
Clip 5
Event C
IN
Event A
OUT
Event C
Play list playback
Continuously played as specified
by the play list (When started from event A)
Event B
◆ NOTE:
• The play list function is accessed by opening the play list screen
(press the PLAY LIST button to turn it on).
• The play list is stored in the play list area of memory in this unit and
can always be accessed from the play list screen. Play list can also
be stored on a P2 card. To save the voice-over audio data to the
same P2 card as the play list, first save the play list to a P2 card.
• The processing activities entered on each line in the play list screen
to run the play list are called events.
• During play list playback, only formats set as edit formats can be
played and registered.
• Do not add a 24PN clip created in non-linear editing to a play list.
Editing points may not be registered correctly.
• The play list stores the playback volume set during audio overwriting
and uses this volume setting during playback. For this reason, the
sound volume cannot be adjusted during play list playback.
Using Play List: Play List Function
67
Play List Screen Names and Functions
11
10
1
19
2
18
3
12
17
4
9
13
14
5
6
15
1. Display status
7
16
8
SLOT:
The following type of event screens are displayed.
PLAYLIST:
Event list
EVENT PROPERTY: Detailed event information
P2 / USED:
Media information (amount of
space used)
P2 / REMAIN:
Number of P2 card slot with card
storing event clip
The number of the first and subsequent events that
cannot be played back are indicated in red.
Play lists created on the AJ-SPD850 can be loaded but
not edited. The file name is indicated in gray.
Media information (amount of
free space)
3. Total play list time
Indicates the total play time of all events.
2. Play list
The play list shows a list of events. Up to 100 events
4. Time line display
(up to 100 audio events can also be added). The
The events appear in the time line around the event at
current cursor position is shown by a yellow frame.
the cursor position. Use the TRIM+/– button to zoom in
The selected event is shown by blue characters.
(right) and to zoom out (left).
The overwrite edit mode uses orange to indicate
unfinalized status.
VIDEO:
Video time line
AUDIO:
Audio time line
1 2 3 4:
Channel numbers for
NO:
Event serial number
TOTAL:
Total time from event 01
channels other than EXTRA
TC IN:
Time code at IN point
audio
TC OUT:
Time code at OUT point
EXTRA
EXTRA audio time line
DURATION:
Event length
1 2 3 4:
Channel numbers set using
A SPLIT:
Split amount at audio IN point
setup menu No.792 (A DUB
A CH:
Indicates channel status after editing
CH) in the SETUP menu.
channels using the EDIT AUDIO CH
menu.
5. Record mode
–
No change
EDITED:
Channels have been
edited
NONE:
No corresponding
channels
68
Using Play List: Play List Function
6. System format
➝Refer to “Thumbnail Screen Names and Functions”
(page 43).
7. Filename
INSERT:
Shows the number of the P2 card slot where the
current play list is stored and its filename.
Insert edit mode
Adds and edits events.
OVERWRITE: Overwrite mode
P2 card slot number:
Filename
Overwrites the track set by the INPUT
P2 cards slot and file name
Normal
TRACK menu at the designated
position in the play list.
are displayed in white:
Filename is gray:
The file can be loaded
but not edited. To edit
such a file, store it on a
P2 card to enable
editing.
The card storing the
saved file is not
Indicates INPUT menu settings in overwrite edit mode.
V:
Overwrites VIDEO and AUDIO.
EX:
Overwrites EXTRA
V EX:
Overwrites VIDEO, AUDIO and
EXTRA.
inserted.
The file stored on a P2
card cannot be found.
15. Source IN/OUT points
Using Play List
P2 card slot number is red:
14. Overwrite track indication
Indicates source (player) IN point, OUT point, TC and
8. Start TC
Displays the start time code value for changing the
thumbnails. Items that are not registered are hidden.
time code during playback.
16. Duration indication
9. REMAIN(EXTRA)
Indicates the remaining time available for voice-over
Shows the length of events for which overwrite edit is
in unfinalized status.
recording.
A play list not saved to a P2 card is indicated in gray
and has no time indication.
17. Playback location
Indicates the current playback location by
(yellow).
Next playback starts from this location.
10. P2 card slot status
Displays P2 card and USB hard disk status.
➝Refer to “Thumbnail Screen Names and Functions”
(page 43).
Indicates the timeline scale. The time for one
graduation is indicated on the left.
11. Play list IN and OUT point indication
Indicates the IN and OUT points of the play list
(recorder) in
18. Scale indication
(green) and 5 (pink), respectively
19. PLAYLIST NAME
Names can be attached and to play lists and the name
can be displayed.
during overwrite mode. The indicators do not appear if
no IN/OUT points is registered. When the IN and OUT
points of the play list is not registered (not yet finalized,
for example), 5 (gray) is used.
12. Event IN/OUT point thumbnail
Indicates the thumbnails at the event IN/OUT points.
This indication appears only when there is enough
space in the timeline.
13. INSERT mode
Indicates currently set insert mode (selected by the
[SETTING] – [INSERT MODE] menu).
Using Play List: Play List Function
69
Buttons Used in Play List Operations
18,19
22
23 20,21
17 16 15 24 14
CONTROL
PC
REMOTE
LOCAL
3
13
4
24
1
2
UNITY
UNITY
10
1
0
10
20
2
30
∞
CH
1/3
3
CH
2/4
PB
4
5
6
7,8
9
1. PLAY LIST button
10 11,12
13
• CANCEL button
Press to switch to play list mode. This button lights in
To cancel all selected events and release items in
the play list mode.
unfinalized status in the overwrite edit mode, hold
In the stop mode or when thumbnails are displayed,
down the SHIFT button and press the EXIT button.
press this button to open the play list screen.
To exit the play list mode, press this button (which is
lit), the light goes out and the stop mode reappears.
You cannot switch to the PLAY LIST mode from the
USB mode.
4. ▲▼ b a Cursor buttons
In the play list, press this button to move the play list
and time line pointer location.
Use the right and left buttons to move the timeline
horizontally. Use the up and down buttons to move the
2. SET/MULTI SEL button
event list up and down.
Use to make single or multiple selections. First press
Hold down the SHIFT button and press the 4/5
the SET button to select an event. Then move the
buttons to move the cursor to the beginning or end of
cursor and hold down the SHIFT button while pressing
an EVENT.
this button to select all events from the first selected
event to the event at the cursor position.
Characters for the selected event are highlighted in
blue.
3. EXIT/CANCEL button
• EXIT button
This button performs the same function as EXIT in a
menu display.
70
Using Play List: Play List Function
5. MENU/DIAG button
Press to open the MENU, press again to close it and
return to the previous screen.
6. IN button
Pressing the IN button will show the time code value for
the IN point currently set. (In the playback screen)
10.SHIFT + 6.IN buttons
button and press the ENTRY button and the beginning
In the overwrite edit mode, hold down the SHIFT button
of the clip at the cursor position in the play list
and press the IN button to change the P IN (player)
becomes the IN point and its end point becomes the
and R IN (recorder) points. Each press of the button
OUT point.
changes the indication between P IN ➝ R IN ➝ OFF.
Use the 12.TRIM +/– button to change the time code as
necessary. Press 7. [ENTRY] (or SET) button to finalize
all changes. (When the play list is displayed in
overwrite edit mode.)
6.IN + 9.OUT buttons
Pressing the IN and OUT buttons simultaneously will
show the duration between the IN and OUT points. If
duration up to the current location. (In the playback
screen)
10.SHIFT + 6.IN + 9.OUT buttons
Holding down the SHIFT button and pressing the IN
and OUT buttons will show the total time (TOTAL
DURATION) for all events. (In the playback screen)
For details on other operations, refer to the
descriptions of 7. ENTRY button, 12. TRIM+ / – button,
Pressing the OUT button will show the time code value
for the registered point. (In the playback screen)
10.SHIFT + 9.OUT buttons
In the overwrite edit mode, hold down the SHIFT button
and press the OUT button to change the P OUT
(player) and R OUT (recorder) points. Each press of
the button changes the indication between P OUT ➝ R
OUT ➝ OFF. Use the 12. TRIM +/– button to change
the time code as necessary. Press 2.SET or 7.ENTRY
after completing all changes. (When the play list is
displayed in overwrite edit mode)
Using Play List
an OUT point has not been registered, it will show the
9. OUT button
For details on other operations, refer to the
descriptions of 7. ENTRY button, 12. TRIM+ / – button,
17. RESET button and 19. GO TO button.
17. RESET button and 19. GO TO button.
10. SHIFT button
7. ENTRY button
7.ENTRY + 6.IN / 9.OUT buttons
11. + / – button
During insert editing in the insert mode, hold down the
In the play list, press this button to zoom in (+) or zoom
ENTRY button and press the IN or OUT button where you
out (–) the time line.
want to register an IN or OUT point in the event
registration/revision mode (and the EVENT button is on or
flashes). When an OUT point has been registered in a
12. TRIM + / – buttons
new event, it automatically becomes possible to register
Use these functions to change play list events. Select
a new event (auto event increment function).
the event you want to change in the play list, hold down
Registering an OUT point but no IN point in a clip
the IN, OUT and SPLIT buttons and press the TRIM+/–
automatically makes the beginning of that clip the IN
button to change the color of the IN, OUT and SPLIT
point.
points. Use this button to increment (+) and decrement
In overwrite editing, selecting three of the four IN and OUT
(–) the IN, OUT or SPLIT point one frame at a time. Then
points in a play list and in an overwriting video will register
press ENTRY to return to the original color and apply
the event as an unfinalized event.
the change.
The playback location can be registered as an IN or OUT
point also in the play list.
7.ENTRY + 22.SPLIT buttons
◆ NOTE:
• At a 24PN frame rate, the frame rate can be changed in
multiples of 4 frames.
Use these buttons for splitting audio. In the event
register/edit mode (when the EVENT button is on), hold
down the SPLIT button and press the ENTRY button.
The location where the button was pressed will
become the audio split IN point.
13. UNITY/VAR/channel select switches and audio
playback level controls
• Use to select playback signal channels and perform level
control during audio level adjustment and voice-overs.
8. CLIP ➝ LIST button
Use this button to import a clip selected in the
◆ NOTE:
• Levels are not adjusted during play list playback.
thumbnail screen into the play list. Select a clip in a
thumbnail display (multiple clips can be selected) and
switch to the play list display. Hold down the SHIFT
Using Play List: Play List Function
71
14. A. DUB button
In the overwrite edit mode, the playback location (▼ in
Use to make voice-overs and to copy to EXTRA.
yellow) can be moved to the IN or OUT point of an
➝For details, refer to “Simplified Voice-Over” (page
event at the cursor location in the play list.
95).
20. DELETE button
15. STILL/PAUSE button
Use this button to delete events when the play list is
displayed. Place the cursor on the event you want to
16. REVIEW button
To review all events at the cursor position, hold down
delete and press the SET button to select it. Then hold
down the SHIFT button and press the INSERT button to
delete the selected event.
the SHIFT button and press the PLAY button. Playback
starts 3 s before the IN point and stops 1 s after the
OUT point.
21. INSERT button
Any unfinalized events are also previewed in the
Insert editing in the insert mode allows you to enter
overwrite edit mode regardless of cursor location.
new events between existing play list events. Place the
Thus all unfinalized events are played back.
cursor on the event you want to insert and press this
button to engage the event register mode and insert
17. RESET button
the event while viewing the video of the event. During
overwrite editing in the insert mode, you can select the
17.RESET + 6.IN / 9.OUT / 22.SPLIT buttons
overwriting segment while viewing the video of
In the event register/edit screen or in the overwrite edit
overwriting event (player side).
player/recorder screen, hold down the IN, OUT or
Press this button again or the EVENT button to return to
SPLIT button and press the RESET button to delete the
the play list screen.
IN, OUT or SPLIT point of the selected event. (The
SPLIT point is available also in the play list.) Pressing
the RESET button when trimming R IN/OUT or P IN/
22. SPLIT button
OUT point (SHIFT + IN/OUT) deletes the registered
10.SHIFT + 22.SPLIT buttons
points.
Holding down the SHIFT button and pressing the
10.SHIFT + 17.RESET buttons
SPLIT button in the play list displays detailed event
In the play list screen, hold down the SHIFT button and
information at the cursor.
press the RESET button to create a new play list file
For details on other operations, refer to the description
(fulfils the same function as [FILE] – [NEW]).
of 7. ENTRY button, 12. TRIM+ / – button and 17.
RESET button.
18. MOVE button
Use this function to move an event to another line while
23. EVENT button
the play list is displayed. Use the SET button to select
Use to open the event register/edit mode when the
an event you want to move when the play list is
play list is displayed. At this time the screen shows
displayed. Then move the cursor to the line you want to
video.
move the event to and press this button to move the
selected event to the location right before the cursor.
24. REC button
Use the REC button in the overwrite edit mode to
19. GO TO button
19.GO TO + 6.IN / 9.OUT / 22.SPLIT buttons
overwritten unfinalized events, the event at the cursor
Use these buttons in the event register/edit screen and
can be turned into an overwritten unfinalized event
in the overwrite edit player/recorder screen (the
(recalled).
EVENT button blinks) to locate the IN, OUT and SPLIT
points. During normal playback, still playback and
other playback operations, hold down the IN (OUT or
SPLIT) button and press the GO TO button to move to
the IN (OUT or SPLIT) point and resume playback from
there.
72
finalize any unfinalized events. When there are no
Using Play List: Play List Function
Stop Mode Setup
You can set whether pressing the STOP
button during
play list playback should return you to the play list after
playback or not. Use the following procedure to make the
desired setting.
1 Open the play list screen.
2 Press the MENU button.
Using Play List
3 Use the cursor buttons to choose [SETTING] –
[STOP MODE].
4 Select [RETURN] or [STAY] and press the SET
button.
RETURN:
A return is made to the play list screen
when the STOP
is pressed (or when
an automatic stop occurs at the start or
end of all events). The cursor position
moves to the event where the button was
pressed.
STAY:
A return to the play list screen is not
made and a still picture is output when
the STOP
button is pressed (or when
an automatic stop occurs at the start or
end of all events).
To return to the event list after making
this setting, press the PLAY LIST button
or the EXIT button.
5 Press the MENU button to end setup.
◆ NOTE:
• STAY is the recommended setting during playback of a
play list from an external controller or other device
connected to the remote control connector.
Using Play List: Play List Function
73
Creating Play Lists
The workflow for creating a play list is given below. A play list can be up to 24 hours long.
Preparing new play lists
↓
Registering events and adding existing play lists
↓
Saving play lists
Preparing New Play Lists
This section describes how to delete a play list stored in the
2 Open the play list screen.
play list area of this unit and how to prepare a new play list.
3 Press the MENU button.
4 Use the cursor buttons to choose [SETTING] –
2
[INSERT MODE] and press the SET button.
5
This selects INSERT and engages the insert edit mode.
5 Use the cursor buttons to choose [FILE] – [NEW].
4
3
1 Select an edit format in the setup menu.
• Select an edit format. The unit will then be able to play
back only the selected format.
• Select playback channels for added audio.
◆ NOTE:
Holding down the SHIFT button and pressing the RESET button
◆ NOTE:
The settings in the following setup menus and play list menu
determine the edit format.
performs the same function as [FILE] – [NEW].
6 Select [YES] and press the SET button.
• 25 SYSTEM FREQ (➝Refer to page 119.)
This deletes the open play list and displays a new play list
• 020 SYS FORMAT (➝Refer to page 121.)
without any events.
• 024 REC FMT(SD) (➝Refer to page 121.)
• 025 REC FMT (HD) (➝Refer to page 121.) *1
• 026 PLY LST FMT (➝Refer to page 122.)
*1 The following setup menu determines voice over settings only
when an AJ-YBX200G AVC-Intra codec board (optional
board) is installed.
• 792 A DUB CH (➝Refer to page 137.)
• 793 A DUB PB MIX (➝Refer to page 137.)
74
Using Play List: Creating Play Lists
◆ NOTE:
• Be sure to choose [FILE] – [NEW] after changing the edit format
in the setup menu. Otherwise the edit format does not change.
Audio Channel Replacement During
Editing
Registering Events for Selected
Clips
Follow the steps below to replace audio channels after event
Use the following procedure to add selected clips to the play
registration.
list. This operation registers the start of a clip as the IN point
1 Select one or multiple events whose channels you
want to replace in the play list screen.
2 Press the MENU button, use the cursor buttons to
and its end as the OUT point.
1 Select the clip you want to register in the play list from
the thumbnail screen.
Using Play List
choose [SETTING] – [AUDIO CH] and press the SET
button.
3 Select the channels that will be replaced.
Example: Make the following registration to switch CH1
and CH2 locations.
[AUDIO CH]- [CH1]=CH2
[CH2]=CH1
[CH3]=CH3
[CH4]=CH4
◆ NOTE:
2 Open the play list screen.
• Select [SETTING] – [AUDIO CH] – [RESET] to return channel
settings to their factory defaults.
4 Press the MENU button, use the cursor buttons to
choose [OPERATION] – [EDIT AUDIO CH] and
press the SET button.
Then select [YES] to switch channel locations.
3 Use the cursor buttons to select the location where
you want to add the clip.
4 Press the MENU button.
5 Use the cursor buttons to choose [OPERATION] –
[APPEND SELECTED CLIP].
◆ NOTE:
• A channel switch is indicated by “EDITED” in the A CH field. The
status after the switch also shows up in the event property.
➝ For details, refer to “Viewing Event Information” (page 98).
Using Play List: Creating Play Lists
75
6 Press the SET button.
➝For details, refer to “Changing Event IN and OUT Points”
This registers an event where the start of the clip is the IN
point and its end is the OUT point.
(page 81).
5 Register an IN point.
◆ NOTE:
Use the operation buttons or search dial to look for a
• When the selected clip has a different format from that of the
current play list, an error occurs and the clip cannot be
registered.
• In the play list screen, you can also hold down the SHIFT button
and press the ENTRY button to add a clip as an event.
• When added events exceed 100, no more events can be
added.
location to start an event. Then hold down the IN button
and press the ENTRY button.
6 Register an OUT point.
Use the operation buttons or search dial to look for a
location to end an event. Then hold down the OUT button
and press the ENTRY button.
Registering Events From Video
You can specify an IN point and OUT point while playing back
a video and register this as an event.
7 Repeat steps 5 and 6 as necessary to register other
events.
8 Press the EVENT button to end registration.
The INSERT button will also terminate registration.
◆ NOTE:
• Set the IN point and OUT point so that the resulting event has a
8
duration of at least 10 frames. If a shorter events are registered
in succession, playback may not be made correctly.
1
• If the event following the event where the cursor is located has
not been registered, the auto event increment function will
increment the event number by one.
• If a registered event spans multiple clips, the events are
registered separately.
00:00:01:15
2,3
5
6
4
5,6
1 Open the play list screen.
IN
00:00:01:00
CLIP1
CLIP2
EVENT
2 Enter the insert edit mode.
Press the MENU button, use the cursor buttons to select
OUT
00:00:03:29
EVENT1
EVENT2
[SETTING] – [INSERT MODE], and press the SET button.
Move the cursor to [INSERT] and then press the SET
button.
• The registered content will be neglected if the unit is turned off
during registration of an event from video.
3 Use the cursor buttons to place the cursor where you
want to insert an event or in a line where no event is
registered.
4 Press the INSERT button.
This activates the event register mode.
On the line with no event registered, the EVENT button can
be used to enter the event register mode, regardless of the
insert mode setting. On the line with an event registered,
pressing the EVENT button engages the event edit mode,
regardless of the insert mode setting.
76
Using Play List: Creating Play Lists
• If the IN and OUT points become reversed, the beginning of the
clip is registered as the IN point.
Importing and Adding to Existing
Play List Files
◆ NOTE:
• You cannot import a play list file whose format differs from the
format of the current play list.
• If the number of selected events exceeds 100, the events that
This section describes how to import play lists stored on a P2
card and how to add an event at the cursor location.
1 Open the play list screen.
exceed the limit will not be imported.
• Press the right cursor button (a) in the file import screen to view
the playlist name. Press the left cursor button (b) to view file
names.
2 Use the cursor buttons to choose the location where
you want to insert the event.
Using Play List
3 Press the MENU button.
4 Use the cursor buttons to choose [FILE] –
[APPEND].
5 Use the cursor buttons to select the number of the P2
card slot containing the play list you want to import
and press the SET button.
6 Select a file in the file import screen and press the
SET button.
The specified play list event is added at the cursor
location.
Using Play List: Creating Play Lists
77
Saving Play Lists
Naming Play Lists
Saving a Play List to a P2 Card
Use the steps below to name play lists.
Use the steps below to save a play list stored by the unit in the
1 Open the play list screen.
play list area of memory to a P2 card.
2 Press the MENU button.
3 Use the cursor buttons to choose [OPERATION] –
[CHANGE PLAYLIST NAME] and press the SET
button.
4 Use the on-screen keyboard to enter a name and
press OK.
1 Open the play list screen.
2 Press the MENU button.
3 Use the cursor buttons to choose [FILE] – [SAVE
AS].
4 Use the cursor buttons to select the number of the P2
card slot that will store the file and press the SET
button
5 Check the file name in the save file screen, choose
[YES] and press the SET button.
5 Close the menu and register the name in PLAYLIST
NAME.
◆ NOTE:
• The file name must be saved using [FILE] – [SAVE] or [FILE] –
[SAVE AS].
78
Using Play List: Saving Play Lists
This saves the play list.
◆ NOTE:
• The filename is automatically generated and cannot be
changed. Changing the filename on a PC will make it impossible
to load.
• Updated play list files cannot be loaded by older versions or
devices. Store old versions of the play list in the unit before using
them. They cannot be edited in the form they are loaded.
Using Play List
Using Play List: Saving Play Lists
79
Editing Play Lists
Play lists can be edited in a number of different ways.
Opening an Existing Play List File
Open the play list screen to view the play list in the play list
area of memory in this unit.
6 Select [YES] in the confirmation screen and press
the SET button
The procedure below describes how to load a play list stored
on a P2 card or SD memory card to replace the play list in the
play list area of memory in this unit.
1 Open the play list screen.
2 Press the MENU button.
3 Use the cursor buttons to choose [FILE] – [OPEN].
The play list is now loaded.
◆ NOTE:
• If a play list file that contains more than 100 events is opened,
the event data exceeding 100 is not imported and the play list
becomed a read-only file.
• Play lists created on the AJ-SPD850 cannot be directly edited
on this unit and open as read-only files. To edit such play lists,
save them on this unit.
• In the file import screen, press the right cursor button (a) to view
4 Use the cursor buttons to select the number of the P2
card slot or [SD CARD] containing the play list you
want to import and press the SET button.
5 Select the file to import in the file import screen and
press the SET button.
80
Using Play List: Editing Play Lists
the play list name. Press the left cursor button (b) to view file
names.
Changing Event IN and OUT Points
You can change the IN and OUT points for a play list event
during video playback.
4 Register a new IN point.
Use the operation buttons or search dial to look for a
location to start an event. Then hold down the IN button
and press the ENTRY button.
5 Register a new OUT point.
3,6
Use the operation buttons or search dial to look for a
location to end an event. Then hold down the OUT button
1
and press the ENTRY button.
◆ NOTE:
• Steps 4 and 5 can be handled as alternatives, you do not have
Using Play List
6 Press the EVENT button to end the change operation.
to carry out both steps.
2
4
5
4,5
• If the new IN point comes after an already registered OUT point,
the existing OUT point will be reset. A return to the play list
screen will show that the OUT point has automatically been
1 Open the play list screen.
changed to the end of the clip.
• If the new OUT point comes before an already registered IN
point, a return to the play list will show that the IN point of that
2 Select the event you want to change.
clip has automatically been changed and registered at the
beginning of the clip.
3 Press the EVENT button.
• An event with a voice-over cannot be modified. Delete the voiceover before modifying the event.
This activates the event edit mode.
• The changed content will be neglected if the unit is turned off
during change of an event from video.
Trimming Events
You can change IN and OUT points for events in frame
increments (in 4-frame increments at 24PN).
3 Use the cursor buttons to change the IN point.
Hold down the IN button and press the TRIM+ button or
the TRIM– button. The IN point is incremented or
decremented in frame increments (in 4-frame increments
at 24PN).
1
Press the ENTRY button to finalize.
4 Change the OUT point.
Hold down the OUT button and press the TRIM+ button or
the TRIM– button. The OUT point is incremented or
decremented in frame increments (in 4-frame increments
at 24PN).
Press the ENTRY button to finalize.
5 Change the SPLIT point
2
3 3,4,5 4
5
Hold down the SPLIT button and press the TRIM+ or the
TRIM– button. The split point is incremented or
1 Open the play list screen.
decremented in frame increments (in 4-frame increments
2 Select the event you want to change.
Press the ENTRY button to finalize.
at 24PN).
Using Play List: Editing Play Lists
81
• You cannot make changes that go beyond the start and end
◆ NOTE:
• Pressing the following buttons will also finalize a change.
- Pressing the cursor buttons.
points of a clip.
• You cannot make changes that reverse the IN and OUT point
locations.
- Pressing the SET button.
• Performing any of the following operations will discard the
changes and make you return to the play list screen.
- Pressing the EXIT button.
- Holding down the SHIFT button and pressing the EXIT button.
- Pressing the PLAY LIST button.
• An event with an EXTRA track cannot be modified. Delete the
EXTRA track before modifying the event.
• The IN, OUT and SPLIT buttons allow you to use the TRIM+/–
button for trimming in the event register screen when the time
code is displayed.
Changing Event Order
You can move and change the order of play list events.
◆ NOTE:
• To quickly select successive lines
Hold down the SHIFT button and press the SET button (MULTI
SEL) to select all events from the previous time the SET button
was pressed and up to the cursor location where the MULTI SEL
1
button was pressed.
• To cancel a selection
Place the cursor on a selected event and press the SET button
to cancel the selection.
• To cancel all selections
Hold down the SHIFT button and press the EXIT button
(CANCEL) to cancel all selected lines.
3 Use the cursor buttons to select a destination.
2,3
4
4 Hold down the SHIFT button and press the GO TO
button.
1 Open the play list screen.
2 Select the event you want to move and press the
SET button.
The selected event moves to the location right before the
cursor and the events at the cursor location move
downwards.
◆ NOTE:
• It is not possible to move only the event if that event contains an
The event is selected and appears in blue. This procedure
can be repeated as necessary to select multiple events.
82
Using Play List: Editing Play Lists
EXTRA track. Move the event and the EXTRA track.
Deleting Events
You can use the following procedure to delete events in the
• It is not possible to delete only the event if that event contains an
EXTRA track. Delete the EXTRA track before deleting the event,
play list.
or delete the event and the EXTRA track.
• If there is an EXTRA event that span multiple events, and when
events beyond a certain event in a play list are no longer
needed, use the following steps to delete such events.
1
1. Move to the events you want to delete.
2. Press the A. DUB button to copy audio to the EXTRA track.
3. Since the events become separated from the copied portion,
select the latter part of the EXTRA event and delete it.
To Delete All Events
The OPERATION menu allows you to delete all events.
1 Open the play list screen.
2,4,5,6 3
1 Open the play list screen.
2 Select the event to delete and press the SET button.
The event is selected and appears in blue. This procedure
Using Play List
4. Select the events and delete them.
2 Press the MENU button.
3 Use the cursor buttons to choose [OPERATION] –
[DELETE ALL EVENT].
4 Press the SET button.
can be repeated as necessary to select multiple events.
◆ NOTE:
• To quickly select successive lines, hold down the SHIFT button
and press the SET button (MULTI SEL) to select all events from
5 Select [YES] in the delete confirmation screen and
press the SET button.
This deletes all play list events.
the previous time the SET button was pressed and up to the
cursor location where the MULTI SEL button was pressed.
• To cancel a selection
Place the cursor on a selected event and press the SET button
to cancel the selection.
• To cancel all selections
Hold down the SHIFT button and press the EXIT button
(CANCEL) to cancel all selected lines.
3 Press the MENU button.
4 Use the cursor buttons to choose [OPERATION] –
[DELETE SELECTED EVENT].
5 Press the SET button.
6 Select [YES] in the delete confirmation screen and
press the SET button.
This deletes all selected events.
◆ NOTE:
• You can also delete a selected event in step 3 by holding down
the SHIFT button and pressing the INSERT button (DELETE).
Using Play List: Editing Play Lists
83
Saving Events
While editing a loaded play list file or the play list file has been
saved using [FILE] – [SAVE AS], the file can subsequently be
saved using the following procedure.
Use [SAVE AS] for the first save operation.
1 Open the play list screen.
2 Press the MENU button.
3 Use the cursor buttons to choose [FILE] – [SAVE].
4 Press the SET button.
5 Select [YES] in the confirmation screen and press
the SET button.
This saves the play list.
84
Using Play List: Editing Play Lists
Deleting Play Lists
Use the following procedure to delete a play list stored on a
P2 card.
1 Open the play list screen.
Using Play List
2 Press the MENU button.
3 Use the cross cursor buttons to choose [FILE] [DELETE].
4 Use the cross cursor buttons to select the number of
the P2 card slot that stores the play list to be deleted
and press the SET button.
5 Select the play list to be deleted and press the SET
button.
The selected play list appears in yellow. This procedure
can be repeated as necessary to select multiple play lists.
6 Press the SHIFT and INSERT buttons
simultaneously, select [YES] and press the SET
button.
This deletes the play list.
◆ NOTE:
• To quickly select successive files
Hold down the SHIFT button and press the SET button (MULTI SEL)
to select all files from the first file selected with the SET button to the
file at the cursor location selected with the MULTI SEL button.
• To cancel a selection
Place the cursor on a selected file and press the SET button to
cancel the selection.
• To cancel all selections
Hold down the SHIFT button and press the EXIT button (CANCEL)
to cancel all selected files.
Using Play List: Deleting Play Lists
85
Overwrite Editing of Play Lists
When an event is registered, an event can be overwritten on video and audio, or on EXTRA track. Overwrite editing is performed
by specifying the IN and OUT points of the event that will be overwritten (recorder side) and the event that will overwrite it (player
side). Switching channels and audio level adjustments are available in an overwrite edit.
R IN
P IN
2
VIDEO
AUDIO
1234
EXTRA
1234
R IN
R OUT
2
2
1
1
VIDEO
AUDIO
1234
EXTRA
1234
Source
R IN
R OUT
1
1
Video of event 2 overwrites
video of event 1
R IN
R OUT
1
1
VIDEO
AUDIO
1234
EXTRA
1234
Events that are overwritten (recorder)
IN point: R IN
OUT point: R OUT
Overwrite events (source/player)
IN point: P IN
OUT point: P OUT
2
Audio of event 2 overwrites
audio of event 1
VIDEO
AUDIO
1234
EXTRA
1234
R OUT
2
2
1
1
2
Audio and video of event 2 overwrites
audio and video of event 1
◆ NOTE:
This edit function uses the play list as a recorder. In the overwrite mode, press the INSERT button and locate video and audio for overwriting
from clips that match the play list format. Using selected audio and video as a source/player, register IN and OUT points on both the recorder
and source/player.
Preparing for Event Overwriting
• Use the overwrite edit mode with REPLACE TC enabled.
Engaging Overwrite Mode
If REPLACE TC is disabled, the time code value of the play list will
take on the value of the time code of the overwriting event with the
Set the overwrite mode from the menu.
1 Press the MENU button and use the cursor buttons
to choose [SETTING] – [INSERT MODE].
2 Press the SET button, choose [OVERWRITE] and
press the SET button.
◆ NOTE:
• The insert edit mode is the default setting.
• Activating auto entry will automatically register the OUT point (R
OUT) registered in the play list as the IN point (R IN) of the next
event.
1. Press the MENU button and use the cursor buttons to choose
[SETTING] – [AUTO ENTRY].
2. Press the SET button, choose [ON] and press the SET button.
86
Using Play List: Overwrite Editing of Play Lists
result that the registered time code will differ from time code after
registration.
AUDIO], and select desired tracks. Then press the
Setting Tracks for Overwriting
SET button.
Select tracks to overwrite. When V is selected, audio on the
channel other than that selected by video and EXTRA is
overwritten. When VIDEO and EXTRA TRACK are selected, all
◆ NOTE:
• You can also use the INPUT SELECT AUDIO and VIDEO buttons to
select INPUT TRACKS.
audio and video tracks are overwritten.
• Overwriting takes place only when VIDEO or EXTRA AUDIO is
1 Press the MENU button and use the cursor buttons
to choose [SETTING] – [INPUT TRACK].
2 Press the SET button, choose [VIDEO], [EXTRA
selected.
• In overwriting, you can use the AUDIO CH menu to switch audio
channel location in overwriting.
➝For details, refer to “Audio Channel Replacement During
Editing” (page 75).
Using Play List
Copying Event Audio to EXTRA track
Use the steps below to copy audio registered to an event to
an EXTRA track.
1 Move the cursor to the event you want to copy.
2 Press the A.DUB button to copy event audio on the
EXTRA track.
◆ NOTE:
• Pressing the A-DUB button after selecting multiple events
simultaneously copies the events on the EXTRA track.
Selecting Write Location and Audio/Video to Import
Use the IN and OUT buttons to select the location (R IN/R
OUT) for inserting video from the play list and the location (P
IN/P OUT) for inserting the source video. As soon as three IN
and OUT points are defined the remaining point is
automatically determined and completes registration. When
both IN points are defined, the end of the source clip
Registering the Overwrite Location
1 Open the play list screen.
2 Play back video to locate the overwrite location.
Use the operation buttons or search dial to play back
automatically becomes the OUT point.
video.
3 Register an IN point.
Use the PLAY or STILL button to find a location to insert
audio and video. Then hold down the IN button and press
the ENTRY button.
1
4 Register an OUT point.
Use the operation buttons or search dial to locate the end
of audio and video. Then hold down the OUT button and
press the ENTRY button.
3
4
5
2,3,4
Using Play List: Overwrite Editing of Play Lists
87
5 Press STOP to return to the play list screen.
4 Press the EVENT button to return to the play list.
The registered IN and OUT points appear as R IN ▼
The registered IN and OUT point thumbnails and time
(green) and R OUT ▼ (pink) at the top of the timeline.
code appear as P IN and P OUT points below the timeline.
Registering Audio and Video for Importing
◆ NOTE:
• Pressing the INSERT button will also return you to the play list
1 Find audio and video to import.
Press the INSERT button to find audio and video to import.
Find audio and video to import in all clips in the matching
format that will be played back.
screen.
• The IN and OUT buttons light when an event is registered and
pressing the IN and OUT buttons display the time code of the IN
and OUT points.
• Pressing the IN and OUT button simultaneously shows the
interval between the two points. If an OUT point is not
2 Register an IN point.
Use the operation buttons or search dial to find the start
location for audio and video insertion. Then hold down the
IN button and press the ENTRY button.
registered, it shows the duration from the IN point to the current
location.
• Holding down the SHIFT button and pressing the IN and OUT
buttons simultaneously will show the total time (TOTAL
DURATION) for all events.
• Holding down the IN (OUT) button and pressing the RESET
3 Register an OUT point.
button will clear the registered point.
• Pressing the IN (OUT) + ENTRY buttons in the play list will
Use the operation buttons or search dial to locate the end
register the current playback location (yellow
of audio and video. Then hold down the OUT button and
OUT).
press the ENTRY button.
) to R IN (R
• Pressing the IN (OUT) + GOTO buttons in the play list will move
the playback location to the IN (OUT) point of the event at the
cursor.
• The time code of the IN and OUT points of an EXTRA event
becomes the time code of the video at that location after
finalizing.
Temporary Registration and Revision of Events
When three IN and OUT points of the four IN and OUT points
of the player and recorder are specified, or both IN points are
specified, an event is created in unfinalized status. The event
is shown in orange.
Overwrite edited events in unfinalized status can be revised.
◆ NOTE:
• When only the two IN points are registered, the end of the clip
automatically becomes the P OUT point.
• When the fourth point is specified after specifying three points, the
Revising P IN/P OUT while Viewing Video
1 Press the INSERT button in the play list screen to
display video.
2 Press the IN (OUT) + GOTO buttons or operation
buttons and press the IN (OUT) + ENTRY buttons
where the revision will be made to reregister.
registration point corresponding to the fourth point is automatically
You can perform fine adjustment (trimming) by hold down
cleared.
the IN (OUT) button and pressing the TRIM (+/–) button.
◆ NOTE:
• Holding down the IN (OUT) button and pressing the RESET
button will clear the registered point.
88
Using Play List: Overwrite Editing of Play Lists
Revising R IN/R OUT while Viewing Video
2 The screen for revising IN/OUT points appears in P
IN (P OUT) ➝ R IN (R OUT) ➝ OFF order.
1 Press the PLAY button in the play list screen to
display video.
2 Press the IN (OUT) + GOTO buttons or operation
buttons and press the IN (OUT) + ENTRY buttons
where the revision will be made to reregister.
You can perform fine adjustment (trimming) by hold down
the IN (OUT) button and pressing the TRIM (+/–) button.
3 Press the TRIM+/– button to trim.
1 Hold down the SHIFT button in the play list screen
◆ NOTE:
and press the IN (OUT) button.
• The RESET button clears registered points.
Using Play List
Revising in the Play List Screen
• Holding down the button enables fast-forwarding.
4 Press the ENTRY button to finalize the change.
Or press the SET button to finalize.
Previewing and Adjusting Sound Volume
Use the following steps to preview overwritten area (in orange)
2 Use the playback volume to adjust playback level
to check audio and video.
during preview.
1 Hold down the SHIFT button and press the PLAY
• The playback level is fixed at the level set during
button
Playback starts 3 seconds prior to the overwritten area
preview.
• Review and play list playback plays back events at the
imported sound volume.
and 1 second after the area.
◆ NOTE:
◆ NOTE:
• Press the STOP button to stop previewing.
• Overwrite edited events in unfinalized status (all events if more
than one) are played back regardless of pointer location.
• When there are multiple events, all events are played back at
the same sound volume.
• The same sound volume is used in an event and cannot be
changed.
• The sound can be adjusted only during a preview.
Finalizing Overwrite Editing
Use the steps below to finalize overwrite edited events in
button) to clear all IN and OUT points.
unfinalized status and return to normal event operation.
• Exiting the play list by pressing the PLAYLIST button clears all
1 When there are any unfinalized events, press the
• Use the following steps to change channel settings after
unfinalized events and all IN and OUT points.
REC button.
finalizing an event.
1. Select an event or multiple events to edit.
2. Choose [SETTING] – [AUDIO CH] from the menu to change
2 This finalizes the event and changes the orange of
the unfinalized event to white.
the channel setting.
3. Choose [OPERATION] – [EDIT AUDIO CH] from the menu.
4. Select YES.
The recalling method can also be used.
◆ NOTE:
➝Refer to “Recalling Events” (page 90).
• When an event is not to be registered, clear the IN or OUT point
or use CANCEL (hold down the SHIFT button and press the EXIT
Using Play List: Overwrite Editing of Play Lists
89
Recalling Events
The IN and OUT points of a finalized event can be registered
again to allow editing at the same location. (Recall function)
1 Move the cursor to the event you want to recall.
2 Press the REC button.
3 Register the time code at the R IN/R OUT and P IN
points of the selected event to clear the finalized
status.
4 Revise the IN and OUT points as necessary, adjust
recording level, and set audio channels.
5 After revising, press the REC button to register the
event.
90
Using Play List: Overwrite Editing of Play Lists
Audio Split Editing
Use audio split to shift the audio IN point relative to the video IN point (audio IN point split). Note that audio channels cannot be
selected in this procedure. This function is performed on all channels together.
Play list example 1
Play list example 2
4
4
5
5
4
4
5
5
6
6
6
6/A-
6
New play list event
Delayed audio
6
7
7
4
4
5
5
7
7
4
4
5
5
6
7
7
6
6
6/A+
Using Play List
New play list event
Preceding audio
7
7
Silent segment
Using Play List: Audio Split Editing
91
Registering From Video
Use the following procedure to newly register an event
containing an audio split.
◆ NOTE:
• In the split display, “–” indicates forward while “+” indicates
reverse direction.
◆ NOTE:
• A split can be registered from the start of the original clip to the
• Refer to the “Adding and Registering Audio Split Point (Changing
event OUT point.
Registered Point)” section to add an audio split to a registered
Clip A
event.
IN
• First set the insert mode to INSERT.
OUT
Play list
Video
7
Event 01
Event 02
Audio
1
Possible audio split range
• Set the IN point before the split point.
• A SPLIT where the audio precedes the video cannot be made
for an event whose IN point is at the start of the clip.
• When using the INSERT button to register a new event or using
the EVENT button in a final event to register an event, register a
2
4
6 5 3
4,5,6
1 Open the play list screen.
2 Use the cursor buttons to choose the location where
you want to add the event.
3 Press the INSERT button.
This activates the event register mode.
4 Register an IN point.
Use the operation buttons or search dial to look for a
location to start an event. Then hold down the IN button
and press the ENTRY button.
5 Register the audio split point.
Use the operation buttons or search dial to look for a
location for an audio SPLIT point. Then hold down the
SPLIT button and press the ENTRY button.
6 Register an OUT point
Use the operation buttons or search dial to look for a
location to end an event. Then hold down the OUT button
and press the ENTRY button.
7 Press the EVENT button to end registration.
The INSERT button will also terminate registration.
92
Using Play List: Audio Split Editing
SPLIT point before registering an OUT point as a new event will
otherwise be registered.
Adding and Registering Audio Split Point (Changing Registered Point)
You can add an audio split to an event registered in the play
1 Open the play list screen.
list and change the audio split point.
2 Use the cursor buttons to select the event where you
want to add (or change) an audio split point.
3 Press the EVENT button.
This activates the event edit mode.
1
Use the operation buttons or search dial to look for a
location for an audio split point. Then hold down the SPLIT
button and press the ENTRY button.
5 Press the EVENT button to end registration.
2
3,5
4
Using Play List
4 Register the audio split point.
◆ NOTE:
• Addition can take place even when the IN point is changed
before step 4 or the OUT point is changed after step 4.
Trimming the Audio Split Point
You can change audio split points in frame increments (in 4-
3 Change the audio split point.
frame increments at 24PN).
3
1
Hold down the SPLIT button and press the TRIM+ button
or the TRIM– button. The IN point is incremented or
decremented in frame increments (in 4-frame increments
at 24PN).
2
4
1 Open the play list screen.
◆ NOTE:
• During trimming the split point is indicated in black numerals
against a yellow background in the event list display of the event
list split screen.
2 Use the cursor buttons to select the event where you
want to change an audio split point.
Using Play List: Audio Split Editing
93
4 Press the ENTRY button to finalize the change.
◆ NOTE:
• Trimming cannot be performed beyond the start point of an
original clip.
• The IN, OUT and SPLIT buttons allow you to use the TRIM+/–
button for trimming in the event register screen when the time
code is displayed.
Cancelling an Audio Split Setting
Use the following procedure to cancel an audio split setting.
1
2
3
1 Open the play list screen.
2 Use the cursor buttons to select the event where you
want to cancel the split setting.
3 Hold down the SHIFT button and press the RESET
button.
This cancels the audio split setting.
◆ NOTE:
• Use the play list screen or the event register mode to cancel a
split setting.
• An audio split point is also cancelled by deleting the event IN
point or by moving to a different clip.
94
Using Play List: Audio Split Editing
Simplified Voice-Over
This function allows you to make voice-overs and give priority to the voice-over during playback. Recording is performed on
one or two channels. The channel input during recording can be mixed with the playback sound.
◆ NOTE:
• The voice-over data is written to the same card storing the play list.
• Check the remaining time on the P2 card before saving the play list.
Otherwise there may not be enough time for the voice-over
will be generated and recording cannot be performed.
recording. When the P2 becomes FULL, an error occurs and
• The maximum recording time is 720 minutes.
• The maximum number of voice-overs is 99.
recording cannot be started.
• Simplified voice over is not available when 24 or 60-24 is selected in
setup menu No. 25 SYSTEM FREQ.
Using Play List
Thus the play list must be saved before audio recording or an error
Preparing for Voice-Over
Make the required settings in the related setup menu prior to
a voice over recording.
➝For details on settings, refer to “Setup” (page 115).
Selecting a Track for Recording
Selecting Method for Connecting Audio IN
and OUT Points
In setup menu No. 796 (A DUB FADE), select whether the
voice-over should be blended with the original audio using cut
Select the voice-over track from one of the following tracks in
or V-fade.
setup menu No. 792 (A DUB CH):
This setting is reflected to play list playback and edit copy.
CH1, CH2, CH3, CH4, CH1+2, CH3+4
◆ NOTE:
➝Refer to “Playing Back the Play List” (page 101).
➝Refer to “Creating New Clips From the Play List (Edit Copy)”
(page 102).
• Recording tracks can be selected when the play list does not
contain any voice-overs. When it does contain a voice-over,
◆ NOTE:
subsequent voice-overs use the same recording track.
• When an audio is overwritten and added using cut to an audio
added by V-fade, V-fade will be applied to the connecting point.
Mixing Playback Sound
You can select whether to mix the playback sound during a
voice-over in setup menu No. 793 (A DUB PB MIX).
When mixing is selected, select the channels to mix in setup
subscreen.
The playback sound of the selected channels is mixed with A
Setting Output Voice During A DUB
In setup menu No. 797 (A DUB MONI), select whether the
audio being recorded should be output during the voice-over.
Setup Example
DUB CH and recorded.
Connect a microphone to analog CH2 and mix the
When there are multiple A DUB CH, make separate settings
microphone input with CH2 playback audio and use cut
for each.
processing to record on CH2. Use headphones to listen to the
◆ NOTE:
• In play list playback, playback level is set to UNITY fixed, or
playback audio during recording.
Selecting recording tracks
A DUB CH = CH2
registered recording level and cannot be changed. However, EE
Selecting mixing with playback A DUB PB MIX = ON
audio while the A.DUB button is pressed and during A.DUB can be
sound
adjusted.
Selecting audio connection
A DUB FADE = CUT
During simultaneous A DUB
A DUB MONI = OFF
• The playback level of short playback of voice-overs from still status
cannot be changed.
CH2 MIX = CH2
setting
Using Play List: Simplified Voice-Over
95
◆ NOTE:
• Input a reference signal when mixing SDI input audio.
• IEEE1394 input audio cannot be used for voice-overs.
Voice-Over From Still Image Status
6
4
3 Find the location for the voice-over.
Use the operation buttons or the search dial to find a
location for a voice-over and press STILL
.
4 Press the A.DUB button.
This generates an A DUB PAUSE state while a still image
is output at the still location.
1
5 Press the STILL
button.
Press the STILL
button again. After a 2-second auto
reverse and a 2-second playback interval, sound
recording starts.
Use the VR (audio volume) controls as necessary to adjust
the playback sound level.
2
3,5
6 Press the STOP
1 Open the play list screen.
button to end the voice-over.
◆ NOTE:
• When the 24PN play list format is set in setup menu No. 026
2 Use the cursor buttons to select the event where you
want to perform a voice-over.
(PLY LST FMT), the audio IN and OUT points are set in 4-frame
increments. If the recording starts or stops at some other points,
the IN and OUT points are automatically corrected within the
recording range.
Voice-Over From Playback Status
5
4
2 Use the cursor buttons to select the event where you
want to perform a voice-over.
3 Press the PLAY
button to start playback at a
location before the voice-over.
4 Hold down the A.DUB button and press the PLAY
1
button at the voice-over location.
This starts the audio recording.
Use the VR (audio volume) controls as necessary to adjust
the playback sound level.
5 Press STOP
2
1 Open the play list screen.
3
button to end the voice-over.
◆ NOTE:
• When the 24PN play list format is set in setup menu No. 026
(PLY LST FMT), the audio IN and OUT points are set in 4-frame
increments. If the recording starts or stops at some other points,
the IN and OUT points are automatically corrected to fall within
the recording range.
96
Using Play List: Simplified Voice-Over
Displaying Voice-Over Events
2 Select the event you want to change.
The voice-over appears in the play list screen as shown below.
1)
2)
• The voice-over is added to the line after an event with an
3 Use the following procedure to change offset and
duration.
audio start point.
• The “No.” column shows “EX*,” not an event number.
• The “SLOT” column shows P2 card slot numbers storing
A normal event
Using Play List
1) Play List
audio data (same as P2 card slots storing the play list).
2) Timeline
EXTRA
audio track
• Extended tracks are indicated in the “EXTRA” part.
• Recorded channel numbers are also shown.
EXTRA
audio track
Change of OUT+ TRIM duration
◆ NOTE:
• Use the TRIM button to zoom in (+) and zoom out (–).
EXTRA
audio track
• When a card with a voice-over is not inserted (and NONE is
Change of IN + TRIM audio start location
indicated), play list files cannot be saved and EXTRA audio
event cannot be deleted.
Changing the Trimming of Audio
Recording Location
Change of
Hold down the IN button and press the
start
TRIM+ button or the TRIM– button. The
location:
start location is incremented or
decremented in frame increments (in 4-
This function allows you to adjust the location of a voice-over
in frame increments (at 24PN in 4-frame increments).
frame increments at 24PN).
Change of
Hold down the OUT button and press the
end
TRIM+ button or the TRIM– button. The
location:
OUT point is incremented or decremented
in frame increments (in 4-frame
1
increments at 24PN).
4
4 Press the ENTRY button to finalize the change.
◆ NOTE:
• Except for the ENTRY button, you can also use the SET button
or move the cursor with the cursor buttons to finalize a change.
2
3
1 Open the play list screen.
Using Play List: Simplified Voice-Over
97
Viewing Event Information
Indicating Event Property
You can use this function to view and confirm miscellaneous
event information.
◆ NOTE:
• Holding down the SHIFT button in step 2 while pressing the
SPLIT button will also open the event information screen.
• You can use the cross cursor buttons to move to the previous or
next event while viewing event information.
1
1) Event information
Event number
IN point and OUT point thumbnails and TC value
TOTAL (length from the beginning of the 1st event to
the end of the current event)
DURATION (event length)
A SPLIT (audio split length)
TRACK / A CH
(Track status and audio channel status: AV = audio
2,4
and video/FADE (CUT) = EXTRA audio splicing,
3
indication of channels inserted in channels 1 - 4.)
1 Open the play list screen.
2) Original clip information for an event
2 Use the cursor buttons to select the event that you
want information about.
Clip number (same as thumbnail display number)
Clip thumbnail
Various indicators and write protect status
CLIP NAME (name of clip)
3 Press the MENU button.
START TC (start value of time code)
START UB (user bit start value)
4 Use the cursor buttons to choose [PROPERTY] –
[EVENT PROPERTY] and press the SET button.
DATE (record date)
TIME (recording time)
USER CLIPNAME (clip name assigned by the user)
3) Timeline
5 Press the EXIT button to end information display.
1)
2)
3)
Information on the event appears.
98
Using Play List: Viewing Event Information
Event Review
You can use this function to check the content of an event by
playing if from its IN point to its OUT point.
1
Using Play List
2
3
1 Open the play list screen.
2 Use the cursor buttons to select the clip you want to
review.
3 Hold down the SHIFT button and press the PLAY
button.
This plays back the clip from before the IN point (preroll
time is 3 s) to beyond its OUT point (postroll time is 1 s).
◆ NOTE:
• The preroll time and postroll time for the first and last clip are
both 0 s.
• When review stops or you press the STOP
button, playback
stops and you return to the play list screen.
During review all buttons other than the STOP
button are not
available.
• A review operation can be re-started during the review currently
in progress.
Using Play List: Viewing Event Information
99
Playing Back Play Lists
Setting the Playback Time Code (TC)
During play list playback, you can select whether the time
5 Use the cursor buttons to choose [SETTING] –
code should be replaced and output as a continuous value or
[REPLACE TC] – [START TC] and press the SET
the time code of each clip should be output. You can set the
button to enter the start time code.
time code start value when it is replaced at output.
1 Open the play list screen.
2 Press the MENU button.
3 Use the cursor buttons to choose [SETTING] –
[REPLACE TC] – [REPLACE].
The initial value of the start time code is 00:00:00:00 when
replaced.
6 Use the cursor buttons to choose [SETTING] –
[REPLACE TC] – [DROP FRAME]. Then press the
SET button and select [DF] (drop frame) or [NDF]
(non drop frame).
4 Select [ON] and press the SET button.
This replaces the playback time code.
◆ NOTE:
• When [OFF] is set, the time code is not replaced, instead the
time code of each clip is output.
• When [OFF] is set, go to step 7 and end setup.
◆ NOTE:
• A [DF] setting cannot be made at 24PN.
• [DROP FRAME] does not appear when 50, 25 or 60-25 is
selected in setup menu No. 25 SYSTEM FREQ.
7 Press the MENU button to end setup.
100
Using Play List: Playing Back Play Lists
Playing Back the Play List
Use the following procedure to play back the play list.
4 Press the PLAY
button.
Playback starts from the cursor location and continues
until the end of the play list or until all playable events have
been played.
◆ NOTE:
• During play list playback, insert all the P2 cards that contain
1
events that belong to the play list or normal playback will not be
possible. The number of the first and subsequent events that
button to stop ongoing playback.
• The default stop mode setting of this unit is RETURN. Thus you
return to the play list screen when playback is stopped by
button or the automatic stop function
pressing the STOP
stops playback upon reaching the beginning or end of all
events. The cursor position then moves to the event where the
2
4
Using Play List
cannot be played back are indicated in red.
• Use the STOP
STOP button was pressed.
• If the menu stop mode is set to STAY, stopping playback does
not return you to the play list screen but a still image is
1 Open the play list screen.
2 Use the cursor buttons to select the event you want
to start playback.
continuously displayed.
• If the menu stop mode is STAY, press the PLAY LIST button or
the EXIT button after playback stops to return to the play list.
• Remote switching is available also during play list playback. The
STAY stop mode is a convenient setting in remote control using
RS-422A.
3 Set the playback time code as necessary.
➝ For details, refer to “Setting the Playback Time Code
(TC)” (page 100).
Using Play List: Playing Back Play Lists
101
Creating New Clips From the Play List (Edit Copy)
You can use the play list to create a new clip.
This function is called edit copy.
◆ NOTE:
• The playback time code setting allows you to start the time code
from a set value after edit copy. Set the playback time code as
necessary.
➝ For details, refer to “Setting the Playback Time Code (TC)” (page
100).
• Play list files created on the AJ-SPD850 can be loaded but not
edited. However, edit copy becomes available after saving the file
under another name using SAVE AS.
1 Open the play list screen.
◆ NOTE:
• If total free space on an inserted P2 card is not sufficient to store
edit copy data, the message “WARNING: LACK OF REC
CAPACITY!” appears and edit copy does not start.
• Edit copying indicates its approximate progress during
operation.
• Use the SET button or the CANCEL button to cancel an ongoing
edit copy operation.
• Text memos are automatically inserted at the edit points (the
start of each event) of edit-copied clips.
• Edit copying does not copy any information other than the user
clip name.
• The presence of different aspect ratios in the data will generate
an error.
• Edit copy will copy only events that can be played back.
• Do not remove a P2 card that is being accessed (the LED of the
2 Press the MENU button.
3 Use the cursor buttons to choose [OPERATION] –
[EDIT COPY].
related P2 card slot flashes).
• When the specified card does not have enough space to store
all the data, the remaining data is automatically copied to a P2
card in the next number slot. The number of the slots where the
data is copied is displayed during copying or when copying
ends.
4 Select the number of the P2 card slot that will store
the edit copy data and press the SET button.
5 Select [YES] and press the SET button.
This starts edit copy.
102
Using Play List: Creating New Clips From the Play List (Edit Copy)
Using USB Connectors and SD/SDHC Memory Cards
Using USB Connectors
You can use the USB 2.0 connector on this unit to connect a hard disk or a PC to save and manage clips efficiently.
Using the Unit as a USB Host
Connect a USB 2.0 hard disk to save P2 card data, view
saved data and import data to P2 cards.
USB2.0
P2 store
Using the Unit as a USB Device
A USB 2.0 connection with a PC allows you to use P2 cards
inserted in the slots on this unit as mass storage. The PC then
requires that a USB (USB 2.0) driver be installed.
Use of P2 viewer, which can be downloaded from the
following site, allows you to manipulate clips stored on a P2
card on a Windows PC.
https://eww.pavc.panasonic.co.jp/pro-av/
USB2.0
Using USB Connectors and SD/SDHC Memory Cards
Portable hard disk drive
◆ NOTE:
• For details regarding connections, refer to the Operating
Instructions supplied with the PC and the application software.
Using USB Connectors and SD/SDHC Memory Cards: Using USB Connectors
103
Connecting a PC to This Unit
Switching to USB Device Mode
2 Select [USB DEVICE] in the confirmation screen and
1,4
CONTROL
press the SET button.
PC
REMOTE
LOCAL
3
13
4
24
1
2
UNITY
UNITY
USB HOST
㧖USB DEVICE
CANCEL
10
0
10
20
30
CH
2/4
CH
1/3
PB
“USB DEVICE” flashes on the LCD monitor to indicate that
the unit is entering the USB host mode. After the mode
2
switch, “USB DEVICE DISCONNECT” appears on the LCD
screen. This message is replaced by a “USB DEVICE
1 Press the PC button when this unit is idle.
CONNECT” message when the connection with the PC is
completed.
3 Use USB device mode operations.
4 Press the PC button to return to regular mode.
◆ NOTE:
• Recording and playback are not available in the USB device
mode.
• In the play list mode, the PC button is not available during
remote operation.
• In the USB device mode, USB is displayed on the panel and the
VIDEO and AUDIO INPUT SELECT indications disappear.
104
Using USB Connectors and SD/SDHC Memory Cards: Connecting a PC to This Unit
Using This Unit With a Hard Disk
Supported Hard Disks
This unit supports the following hard disks types.
• Panasonic portable hard disk unit P2 store (AJ-PCS060G)
• A hard disk that supports the USB 2.0 interface
◆ NOTE:
• This unit supports USB bus power (5 V, 0.5 A) but some hard disks
may not be able to use USB bus power. Use a separate power
supply with hard disks that do not support USB bus power.
Hard Disk Types and Available Functions
• This unit does not support hard disks that are 2 TB (2048 GB) or
the host mode, “PARTITION:” in the left half of the Explorer
screen provides information on the hard disk that is
connected to the unit.
Hard disk type
TYPE S
Features
available functions
A special format that permits high-speed loading of
Loading and writing in card units, thumbnail display,
and writing in card units. This unit uses this format for
loading and formatting in clop units.
formatting.
P2STORE
FAT
This is a P2 store (AJ-PCS060G). It cannot be written
Loading in card units, thumbnail display, loading in
to.
clip units.
The basic primary partition on a PC is FAT 16 or FAT
Thumbnail display, loading in clip units, formatting
32 that require a CONTENTS directory created in its
* After formatting on this unit, the card is handled as a
foot directory.
OTHER
“TYPE S” hard disk.
Hard disk other than those above
Formatting
* If root does not contain a directory called
* After formatting on this unit, the card is handled as a
“CONTENTS” or if a file system other than NTFS,
“TYPE S” hard disk.
FAT16 or FAT32 is used.
Using USB Connectors and SD/SDHC Memory Cards
larger.
Available functions depend on the type of hard disk used. In
• When data from this unit is copied to a hard disk and is managed on
◆ NOTE:
• Use hard disks under the following conditions.
1) Operate hard disks within its operating specifications
another PC, the data can no longer be guaranteed to work in this unit
and the integrity of the hard disk data cannot be guaranteed, either.
• Repair bad clips on P2 cards before copying them to a hard disk.
(temperature, etc.).
2) Do not use hard disks in locations that are unstable or exposed to
• Clips on hard disks cannot be played back.
• SATA (serial ATA) or PATA (parallel ATA) interface hard disks
vibration.
• Some hard disks may not operate normally.
connected using a USB cable may not be recognized.
• Use a hard disk with sufficient space for copying.
• Do not connect a hard disk to hubs or other connections that involve
multiple units even if it is not powered on. Do not use other devices
that are connected via hubs with a hard disk.
• During formatting and copying, do not disconnect cables, do not
remove a P2 card that is involved in any of these activities and do
not power off this unit and the hard disk. Otherwise this unit and the
hard disk must be rebooted.
• A hard disk is a precision instrument whose read and write functions
may fail in some operating environments.
Please note that Panasonic accepts no liability whatsoever for data
loss or other losses either direct or indirect arising from hard disk
damage or other defects.
Using USB Connectors and SD/SDHC Memory Cards: Using This Unit With a Hard Disk
105
Switching to USB Host Mode
3 Use USB host mode operations.
1,4
◆ NOTE:
• While P2 cards played back in USB host mode will appear on
the LCD monitor, the inputs and output on the rear panel will not
CONTROL
PC
REMOTE
LOCAL
3
13
work.
• Recording on P2 cards is not available, either.
4
24
1
2
UNITY
UNITY
4 Press the PC button to return to regular mode.
10
0
10
The PC button will not work during card access.
20
30
CH
2/4
CH
1/3
PB
◆ NOTE:
<When switching to the USB host mode>
• You cannot switch to the play list mode from the USB mode.
• In USB host mode, the VIDEO and AUDIO INPUT SELECT
indications in the display panel disappear.
2
Formatting Hard Disks
1 Press the PC button when this unit is idle.
Initialize the hard disk in a TYPE S format.
◆ NOTE:
• In the play list mode, the PC button is not available during
◆ NOTE:
• Formatting a hard disk deletes all data on the disk.
remote operation.
2 Select [USB HOST] in the confirmation screen and
press the SET button.
1 Switch to the USB host mode.
2 Connect a USB hard disk.
3 Press the MENU button.
USB HOST
USB DEVICE
CANCEL
4 Use the cursor buttons to choose [HDD] –
[EXPLORE] and press the SET button.
This opens Explorer.
5 Press the MENU button and use the cross cursor
buttons to choose [OPERATION] – [FORMAT
(HDD)] and press the SET button.
“USB HOST” flashes on the LCD monitor to indicate that
the unit is entering the USB host mode. After the mode
switch, the thumbnail screen appears and “USB HOST” is
indicated in the lower right corner.
6 Select [YES] and press the SET button.
106
Using USB Connectors and SD/SDHC Memory Cards: Using This Unit With a Hard Disk
7 When the confirmation message appears again,
select [YES] and press the SET button.
This starts hard disk formatting.
Exporting to a Hard Disk in Card Units
A TYPE S hard disk allows you to export data to a hard disk
(by writing data from a P2 card to a hard disk) in P2 card units.
8 Select [YES] and press the SET button.
This starts exporting.
First use this unit to format the hard disk. Up to 23 cards can
be exported to a hard disk.
◆ NOTE:
The exported data from a P2 card is recognized as a separate
• A progress bar appears during exporting.
drive on a computer.
• To interrupt exporting, press the SET button, select [YES] in the
1 Switch to the USB host mode.
• The export operation will end earlier if the verify setting is not
cancel confirmation screen and press the SET button again.
To turn off this setting, choose [HDD] – [SETUP] – [VERIFY] –
2 Connect a USB hard disk.
[OFF].
If the hard disk has not been formatted by this unit, use this
unit to format it.
➝For details, refer to “Formatting Hard Disks” (page 106).
• Copying of a P2 card that is interrupted during verification will
still be successful.
• To export data to the specified folder when the hard disk is
connected to a PC running under Windows, use the drive mount
converter that you can download freely from the following web
3 Insert a P2 card
site. You may use the drive mount converter when there is un
invisible partition because the drive overlaps an already
4 Open the thumbnail screen.
assinged network.
https://eww.pavc.panasonic.co.jp/pro-av/
5 Press the MENU button.
When the export operation ends, “COPY COMPLETED!”
6 Use the cursor buttons to choose [HDD] –
appears.
[EXPORT].
Using USB Connectors and SD/SDHC Memory Cards
engaged.
7 Select the number of the source P2 card slot and
press the SET button.
Selecting ALL SLOT will result in a batch export of all
cards.
Using USB Connectors and SD/SDHC Memory Cards: Using This Unit With a Hard Disk
107
Displaying Hard Disk Information (Explorer Screen)
2) Disk information
Use this function to view hard disk information.
The following information appears.
1 Switch to the USB host mode.
Hard disk that
PARTITION:
TYPE S/
2 Connect a USB hard disk.
makes it possible
to read and write
P2STORE
VENDOR:
Name of vendor
3 Open the thumbnail screen.
data by the card.
MODEL:
Model name
SIZE:
Size (unit: GB)
USED:
4 Press the MENU button.
Memory used
(unit: GB)
5 Use the cursor buttons to choose [HDD] –
Used P2 card
[EXPLORE] and press the SET button.
up to 23 cards
area (unit: cards)
REMAIN:
3)
1)
Remaining
memory
5)
(unit GB)
Regular hard disk PARTITION:
2)
FAT/OTHER
VENDOR:
Name of vendor
MODEL:
Model name
SIZE:
Memory used
(unit: GB)
3) Partition information
4)
◆ NOTE:
• Use the right and left cursor buttons to switch between date lists
and partition names.
➝Details are provided on the next page.
◆ NOTE:
• The partition information for an invalid partition on a P2
store is indicated in gray.
• Only information for the primary partition is displayed for a
hard disk that is formatted using FAT.
1) Display status
The name of the screen (HDD-EXPLORE)
4) USB HOST
The USB host mode indicator
5) Hard disk drive status
Indicates whether or not a hard disk is connected and
hard disk type.
◆ NOTE:
• To name a partition (up to 20 characters), choose
[CHANGE PARTITION NAME] in the [OPERATION] menu
in hard disk thumbnail screen.
108
Using USB Connectors and SD/SDHC Memory Cards: Using This Unit With a Hard Disk
Displaying Clip Thumbnails on a Hard Disk
You can display thumbnails and manage clips stored on the
VERIFY:
Verify setting and result at time of
hard disk in the same way as clips on P2 cards.
recording
1 Open the explorer screen.
ON: FINISHED
2 Use the cursor buttons to select the partition where
ON: FAILED
Verification failed
OFF
No verification
Verification was
successful
you want to view thumbnails and press the SET
button.
* “--” is displayed on P2 store.
NAME:
User assigned partition names
A thumbnail of the clip on the partition now appears.
3) Record mode and system format
clip at the cursor location.
4) Disk information
➝Details are provided on the previous page.
◆ NOTE:
• Press the EXIT button to return to the explorer screen.
• Change the thumbnail screen display as necessary. These
changes are performed in the same way as when using P2
SET
cards.
EXIT
➝For details, refer to “Changing Thumbnail Display” (page 45).
• Hard disks formatted using FAT can handle up to 1000 clips.
1)
Any clips beyond that limit cannot be opened.
• Use the TRIM+ / – buttons to move to thumbnail displays on
previous and subsequent partitions.
Viewing Hard Disk Clip Information
2)
4)
You can view a variety of metadata on clips stored on a hard
Using USB Connectors and SD/SDHC Memory Cards
Indicates the record mode and system format of the
disk. The content is the same as that displayed by a P2 card
clip property.
1 Select a clip in the hard disk thumbnail screen.
3)
1) Display status
Detailed clip information is displayed on the screen.
Indicates the status of thumbnails of hard disk clips.
2 Press the MENU button.
2) Partition information
The following information appears.
SERIAL:
P2 card serial number
MODEL:
P2 card model name
NUMBER Partition number (1 -)
(No.):
DATE/
3 Use the cursor buttons to select [PROPERTY] –
[CLIP PROPERTY] and press the SET button.
➝For details, refer to “Viewing and Revising Clip
Information” (page 55).
Date and time of partition recording
TIME:
Using USB Connectors and SD/SDHC Memory Cards: Using This Unit With a Hard Disk
109
Importing Data from the Hard Disk to a P2 Card
Importing Data in Partition units from TYPE
S Hard Disks and P2 Store
You can import (loading data from a hard disk to a P2 card)
data in partition units (card units) at high-speed to a P2 card
that has the same capacity as the source card.
1 Insert the P2 card to which the data will be imported.
2 Open the P2 thumbnail screen.
Importing Data to a P2 Card in Clip Units
You can select a hard disk clip and import it to a P2 card.
1 Insert the P2 card where the data will be imported to.
2 Open the hard disk thumbnail screen.
3 Press the MENU button.
4 Use the cursor buttons to select [HDD] – [EXPLORE]
3 Press the MENU button.
and press the SET button.
4 Use the cursor buttons to select [HDD] – [EXPLORE] 5 Select the partition that will be copied and press the
and press the SET button.
SET button.
5 Select the partition that will be copied and press the 6 Select a clip to copy.
SET button.
7 Press the MENU button.
6 Press the MENU button.
7 Use the cursor buttons to choose [OPERATION] –
8 Use the cursor buttons to choose [OPERATION] –
[IMPORT] – [SELECTED CLIPS].
[IMPORT] – [ALL CLIP] and press the SET button.
9 Select the number of the P2 card slot that will import
the data and press the SET button.
10 Select [YES] and press the SET button.
This starts importing.
When the import operation ends, the message “COPY
COMPLETED!” appears.
8 Select the number of the P2 card slot where the
formatted P2 card resides to which the data will be
◆ NOTE:
• Verification is not performed when an entire clip is imported.
• The operation of “importing data in clip units” is almost the same
as that of “copying clips.”
imported and press the SET button.
➝ For cautions to be observed when importing data in clip units,
refer to “Copying Clips” (page 52).
9 Select [YES] and press the SET button.
This starts importing. When the import operation ends,
“COPY COMPLETED!” appears.
◆ NOTE:
• When data is imported to a P2 card that differs from the original
P2 card, some clips may become incomplete (
!
indicator).
Then use the reconnection function to rebuild the clip. Refer to
“Reconnecting Incomplete Clips” (page 54).
• A menu setting allows you to turn verification during copying on
or off.
110
Using USB Connectors and SD/SDHC Memory Cards: Using This Unit With a Hard Disk
Using SD/SDHC Memory Cards
This unit supports SD/SDHC memory cards.
◆ NOTE:
• Current SETUP menu settings can be saved to and loaded from an
SD memory card. For details, refer to page 140.
USED:
Used capacity (bytes)
BLANK:
Free space (bytes)
TOTAL:
Total capacity (bytes)
NUMBER OF CLIPS:
The number of clips on an SD
memory card when clips have
been copied to an SD memory
Displaying Miscellaneous SD
Memory Card Information
card using a proxy or a P2
PROTECT:
Use the following procedure to display SD memory card
status on screen for checking.
Write protected
• This unit cannot record proxies.
4 Press the SET button and the MENU button to end
1 Open the thumbnail screen.
processing.
2 Press the MENU button.
Formatting SD Memory Cards
3 Use the cursor buttons to choose [PROPERTY] –
[DEVICE] – [SD CARD] and press the SET button.
Use the following procedure to format an SD memory card
inserted in an SD memory card slot.
1 Open the thumbnail screen.
2 Press the MENU button.
3 Use the cursor buttons to select [OPERATION] –
Using USB Connectors and SD/SDHC Memory Cards
camera recorder.
[FORMAT] – [SD CARD].
The following information may also appear depending on
card status.
4 Select [YES] and press the SET button.
The card is now formatted.
SD STANDARD:
Indicates that an SD memory
card is formatted according to
◆ NOTE:
the SD/SDHC standard.
• To cancel formatting, select [NO] and press the SET button.
SUPPORTED: Complies with SD/
SDHC
NOT SUPPORTED: Does not
5 Press the SET button (check) when the completion
message appears.
comply with SD/SDHC
Using USB Connectors and SD/SDHC Memory Cards: Using SD/SDHC Memory Cards
111
◆ NOTE:
• Repeat the procedures in steps 2 to 4 to format P2 cards in other
P2 card slots.
6 Press the MENU button to end processing.
112
Using USB Connectors and SD/SDHC Memory Cards: Using SD/SDHC Memory Cards
External Remote Control
Remote operation of external devices
Use the RS-422A or IEEE1394 interface to send commands to
Indications during control of external
devices
an external device to control it.
The following functions permit remote control.
• PLAY, STOP, STILL, FF, REW, SHTL, JOG
In external control mode, the EVENT lamp goes on and the
• Counter and status LED indication
• The LED goes on to indicate external device status.
Setup Procedure
• Indicates the external device counter
1 Perform either of the following steps when the
THUMBNAIL and PLAY LIST buttons are off.
• In the RS-422 interface, press the EVENT button.
• The unit is forcibly set to EE to enable reception of audio
and video from the external device
• Counter, status and P mark indications for the external
device are superimposed on the screen.
• In the IEEE1394 interface, hold down the SHIFT button
◆ NOTE:
and press the EVENT button.
When 1394 input is selected and the unit is in STILL mode, it goes into
EE mode after engaging STOP mode.
Remote operation procedure
The control buttons listed below enable remote control of an
external device.
STOP
Sends the STOP command.
PLAY
Sends the PLAY command.
STILL
Sends the STILL +0.0 command
REW
Sends the REW command.
FF
Sends the FF command.
Dial
Sends the SHTL or JOG command.
Using USB Connectors and SD/SDHC Memory Cards
unit provides the following indications.
COUNTER*1 Sends the switch COUNTER command
(CTL/TC only).
1
RESET*1
• This allows the unit to perform remote control of external
devices.
Sends the 0 reset command in CTL mode.
*1 Available only when using RS-422A
◆ NOTE:
• Select 59.94, 50, 23.98, 24, 29.97 or 25 in setup menu No. 25
SYSTEM FREQ when using RS-422A.
• Select 59.94 or 50 in setup menu No. 25 SYSTEM FREQ when using
IEEE1394.
• In AVC-Intra50*1 and AVC-Intra100*1 formats, IEEE1394 input and
output are not available.
• Complete any settings required for controlling a remotely connected
device before pressing the EVENT button.
*1 Available when the optional AVC-Intra Codec board AJ-YBX200G
is installed
Using USB Connectors and SD/SDHC Memory Cards: External Remote Control
113
Automatic Recording of Cards
Using the RS-422A interface
Using the IEEE1394 interface
Registering IN and OUT points makes possible automatic
Audio and video played back from the current location can be
recording (AUTO CAPTURE) between those two points.
recorded to a card.
1 Enter the mode that permits control of external
1 Enter the mode that permits control of external
devices.
devices.
Press the EVENT button when the THUMBNAIL and PLAY
Hold down the SHIFT button and press the EVENT button
LIST buttons are off.
when the THUMBNAIL and PLAY LIST buttons are off.
2 Select an area for capture.
• Use the following buttons to select an area for capture.
IN+ENTRY
Registers IN points
IN+RESET
Deletes IN points
OUT+ENTRY Registers OUT points
OUT+RESET Deletes OUT points
IN+GOTO
Sends a CUE-UP command to move to an
IN point
OUT+GOTO
Sends a CUE-UP command to move to an
OUT point
IN
Checks an IN point (counter indication)
OUT
Checks an OUT point (counter indication)
IN+OUT
Checks a DUR (counter indication)
2 Select the start of a section you want to capture.
• Use the PLAY, STILL or other buttons to locate the start
of the section you want to capture.
3 Hold down the SHIFT button and press the REC
button.
• Start playback on the external device to start recording.
• To end recording, press the STOP button.
◆ NOTE:
• The accuracy of recording start varies with the connected external
device.
3 Hold down the SHIFT button and press the REC
button.
• The specified area is automatically registered on the
card.
• The EVENT button flashes during operation.
• The current point is registered as an IN point if an IN point
has not been registered.
• Recording stops automatically when the OUT point is
reached.
If an OUT point has not been registered, recording
continues until the STOP button is pressed.
114
Using USB Connectors and SD/SDHC Memory Cards: External Remote Control
Setup
Unit Setup
The settings for this unit consist of SYSTEM, BASIC, OPERATION, INTERFACE, TIME CODE, VIDEO, AUDIO, DIF and MENU.
The SYSTEM setting values are stored in the SYSTEM file. The other setting values are stored in the user setting file. Up to five
user files (USER1 to USER5) can be saved. These settings (up to 4 files) can be written to and loaded from SD memory cards.
System
Basic
Operation
Interface
System
TimeCode
Video
Audio
DIF
Menu
User settings file
file
USER2
SHIFT+REW
SHIFT+FF
USER3
SHIFT+REW
SHIFT+FF
USER4
SHIFT+REW
Setup
SHIFT+FF
SHIFT+FF
USER1
USER5
USER5
SHIFT+REW
SHIFT+REW
SHIFT+FF
A10 CARD READ
A11 CARD WRITE
SD
memory
card
This unit can possess up to five user files, each of which can
be selected from a menu setting.
Setting values can be changed as necessary.
➝For details on change operations, refer to “Changing
Settings” (page 116).
After a change, the content of USER1 can be saved (copied)
to USER2 to USER5.
Automatic Loading of User Setting File at
Power up
You can specify the user setting files that will be loaded in
USER1 at power up. You can also decide to use the same
settings as last time.
➝For details, refer to “Setup menu No. A02 (P.ON LOAD)”
(page 139).
➝For details, refer to “Setup menu No. A01 (SAVE)” (page
139).
SETUP menu settings can be saved to and loaded from an SD
memory card.
➝For details, refer to “Setup menu No. A10 (CARD READ)
(page 139), A11 (CARD WRITE) (page 140)”.
Setup: Unit Setup
115
Changing Settings
The menus on the LCD monitor or a monitor (when the SUPER switch on the right side of the LCD monitor is set to “ON”)
connected to the ANALOG COMPOSITE MONITOR OUT connector make it possible to change settings.
Change Operations
Select the item to change, hold down the STILL/PAUSE
button and turn the search dial or press the left (b) or
4
right (a) button to change the setting.
• Turn the dial clockwise (or press the right (a) button) to
increment the set number and turn it counterclockwise
(or press the left (b) button) to decrement it.
• Release the STILL/PAUSE button after making the
change.
• In the SHTL mode, set the search dial to the center
5
position or items will move.
• Repeat the operations described in steps 3 and 4 when
5
there are more items to change.
5 Finalize the change.
Press the MENU button.
3,4
2
1,5
In the confirmation message that appears, press the SET
3,4
button to accept the change or press the EXIT button to
cancel it. The menu closes after this operation.
1 Press the MENU button.
The setup menu screen appears on the LCD monitor and
Making changes using the PF buttons
the counter display indicates the setup menu number.
2 Select the file to change.
Hold down the SHIFT button and press the FF
or the REW
button
button to switch to the next or previous file.
3 Select items to change.
Turn the search dial or press the up (▲) or down (▼)
buttons to move the cursor (*) to the item you want to
change.
• Use the search dial in JOG mode.
• Turn the dial clockwise to increment item numbers
(001➝002➝003➝004➝) and counterclockwise to
decrement them.
1,3
• To switch to the next item, hold down the PLAY
button and press the FF
button or the + button. To
switch to a previous item, hold down the PLAY
and press the REW
4 Change set values.
116
Setup: Changing Settings
2
button or the – button.
button
You can assign three of the items that are most often changed
to the PF buttons to enable quick changes of the setting
values.
Assign a setting item to the PF button and perform the
2 Press the PF button (1 to 3) required to bring up the
following operation to change setting values.
item to change.
➝For details on how to assign items to the PF button, refer to
Each press of the button updates the setting value.
“Setup menu No. A04 to A06 (PF1 ASSIGN to PF3 ASSIGN)”
3 Press the PF (EXIT) button to end changing settings.
(page 139).
1 Press the PF (EXIT) button.
◆ NOTE:
Registered items appear on the LCD monitor.
• The change process is automatically disengaged if left idle for
5 seconds.
• The PF button is not available in the thumbnail and play list
modes.
Using a Lock to Protect the User Setting File
You can lock the system files and user setting files (USER2 to
USER5) to prevent inadvertent changes.
◆ NOTE:
“Setup menu No. 30 (MENU LOCK)” (page 119).
locked. The status after load operation depends on the setting
defined by the loaded data.
Setup
• Files can be loaded from the SD memory card even if they are
➝For details on releasing the system file lock setting, refer to
➝For details on releasing the user file lock setting, refer to
“Setup menu No. A03 (MENU LOCK)” (page 139).
Returning to Factory Defaults (Initial Settings)
When the menu is open, you can return the content of the user
2 Press the SET button.
setting file that appear on the screen to its factory defaults.
◆ NOTE:
• This operation returns the content of the user setting file displayed
on the screen to its factory defaults. The setting files of other users
are not affected.
• System settings cannot be returned to their factory defaults when a
system file is open. Other settings are returned to their factory
defaults.
• Settings cannot be returned to their factory defaults when MENU
LOCK is engaged. Set MENU LOCK to OFF.
1
CONTROL
PC
REMOTE
LOCAL
3
13
4
24
1
2
UNITY
UNITY
10
0
10
20
30
CH
2/4
CH
1/3
PB
2
1 Press the RESET button when the menu is open.
Setup: Changing Settings
117
Item Settings
SYSTEM
The system menu specifies analog component (HD) output, analog composite output, phase adjustment of audio output,
system frequency, phase of SD REF input of HD output, and system file lock.
* An underlined setting indicates an initial value.
Item
Setting
Settings and brief function description
FR
SUPER
FR
SUPER
No.
DISP.
No.
DISP.
0000
–1375
|
|
steps).
1375
0
–: Advances the phase.
|
|
+: Delays the phase.
2750
1375
12
SYS H(HD)
Adjusts system phase of analog component (HD) output and HD SDI output (in 13.5 ns
NOTE:
A reset does not return this setting to its factory default.
An item that flashes can be returned to its factory default by pressing the RESET button.
14
SYS SC(SD)
0000
–128
|
|
Adjusts the system phase of the analog composite output and SD SDI output (total
0128
0
variable range: ±180°).
|
|
0255
127
0000
–864
|
|
Adjusts system phase of analog composite output and SD SDI output (in 37 ns steps).
0864
0
–: Advances the phase.
|
|
+: Delays the phase.
1728
864
59.94Hz
50Hz
29.97Hz
25Hz
60-25Hz
only
NOTE:
A reset does not return this setting to its factory default.
An item that flashes can be returned to its factory default by pressing the RESET button.
15
SYS H(SD)
59.94Hz
50Hz
29.97Hz
25Hz
60-25Hz
only
NOTE:
A reset does not return this setting to its factory default.
An item that flashes can be returned to its factory default by pressing the RESET button.
18
19
20
118
SCH COAR(SD)
SCH FINE(SD)
AV PHASE
Setup: Item Settings
0000
0
0001
90
Adjusts the SCH phase of analog composite output (four 90° positions).
0002
180
Changes the SC phase but not the H phase.
0003
270
0000
–32
|
|
Adjusts the SCH phase of analog composite output (total variable range ±45° or more).
0032
0
Changes the SC phase but not the H phase.
|
|
Covers ±180° in combination with No. 18 SCH COAR(SD).
0064
32
0000
–128
|
|
–: Advances audio output phase relative to video output.
0128
0
+: Delays audio output phase relative to video output.
|
|
0255
127
59.94Hz
59.94Hz
50Hz
50Hz
29.97Hz
29.97Hz
25Hz
25Hz
60-25Hz
60-25Hz
only
only
Adjusts audio output phase relative to video output (in 20.8 µs steps).
Item
Setting
FR
SUPER
FR
SUPER
No.
DISP.
No.
DISP.
For AJ-HPM110P
Sets system frequency.
0000
59.94
0: 59.94Hz
0001
50
0002
23.98
0003
24
0004
29.97
4: 29.97 Hz
0005
59-23
5: 23.98 Hz
0006
60-24
0007
25
0008
60-25
For AJ-HPM110E
25
SYSTEM FREQ
Settings and brief function description
59.94
0001
50
0002
23.98
0003
24
0004
29.97
0005
59-23
0006
60-24
0007
25
0008
60-25
2: 23.98 Hz
3: 24 Hz
Receives 59.94 Hz input. Select this frequency to record 2:3 pull-down converted
(24-frame signal) output from VariCam: AJ-HDC27 series camera, AJ-HPX2000/2100,
AJ-HPX3000 or other camera.
6: 24Hz
Receives 60Hz input. Select this frequency to record 2:3 pull-down converted
(24-frame signal) output from VariCam: AJ-HDC27 series camera.
7: 25Hz
8: 25Hz
Receives 60Hz input. Select this frequency to record a variable frame rate set to 25p
from VariCam: AJ-HDC27 series camera.
NOTE:
Setup
0000
1: 50Hz
• Changing this item will only cause the menu item to flash but the setting is not actually
reflected to this unit. For the changes to take effect, turn the power off and turn it back
on again.
• 2: 23.98 Hz and 3: 24 Hz are available only when the AJ-YBX200G AVC-Intra codec
board (optional board) is installed.
0000
0H
0001
90H
59.94Hz
29.97Hz
only
Specifies whether or not HD output should advance 90H phase relative to SD REF input
during SD REF input.
26
0: Outputs HD at the same phase as SD REF.
HD SYS H ADV
1: HD output is output at a phase that is 90H advanced relative to SD REF.
NOTE:
• The audio output and TC output are output in the same phase as HD output.
• At 720p, the phase difference is 120H.
30
MENU LOCK
0000
OFF
0001
ON
Sets/releases the system file lock mode.
0: Releases the lock (file data can be changed)
1: Lock is engaged (file data cannot be changed)
Setup: Item Settings
119
BASIC
This menu sets buttons available on the key panel in REMOTE mode, switches display of the CTL counter display between 12
and 24-hour clock display, sets superimposed display, character displays in superimposed display, SETUP-MENU and other
displays, sets recording formats, sets the formats that can be added to the play list and sets the time of the internal clock.
* An underlined setting indicates an initial value.
Item
Setting
FR
SUPER
FR
SUPER
No.
DISP.
No.
DISP.
001
LOCAL ENA
0000
DIS
0001
STOP
0002
ENA
Settings and brief function description
Restricts the number of buttons on the key panel that are available when the REMOTE/
LOCAL switch is set to REMOTE.
0: No buttons are available.
1: Only the STOP button is available.
2: All buttons are available.
002
CTL DISP
0000
±12h
0001
24h
Switches the CTL counter display between 12 and 24-hour clock display.
0: 12-hour clock display
1: 24-hour clock display
0000
OFF
0001
2L
Specifies whether to display the remaining time or total time via the VIDEO MON
connector and via superimposed display of the LCD panel.
0002
1L
0: No display.
0003
R/TTL
1: Displays remaining media time on the second line.
2: Displays remaining media time on the first line.
3: Displays the remaining media time on the first line and total media time on the second
line.
NOTE:
003
• These functions are not displayed when “2L” is selected and “TIME” is set in setup
REMAIN SEL
menu No. 006 DISPLAY SEL.
• Total tape time is not displayed when “R/TTL” is selected and “TIME” is set in setup
menu No. 006 DISPLAY SEL.
• When setup menu No. 041 LOOP REC is set to ON, the remaining time is indicated
on the second line when a setting other than OFF is selected.
• When setup menu No. 040 VFR REC is set to ON, the remaining time is indicated on
the second line when a setting other than OFF is selected.
• When setup menu No.693 GAMMA SEL is set to a value other than OFF, the remaining
time is indicated on the second line when a setting other than OFF is selected.
006
DISPLAY SEL
0000
TIME
0001
T&STA
superimposed display of the LCD panel.
0002
T&S&M
Here, “data” indicates the CTL/TC/UB value selected with the COUNTER button.
0003
T&RT
0004
T&YMD
1: Data and operating status
0005
T&MDY
2: Data, operating status and mode
0006
T&DMY
3: Data and REC TIME
0007
T&UB
4: Data and REC DATE (year/ month/day)
0008
T&CTL
5: Data and REC DATE (month/day/year)
0009
T&T
6: Data and REC DATE (day/month/year)
Specifies the output of the VIDEO MON connector or what is displayed in the
0: Data only
7: Data and user bit
However, when UB is selected with the COUNTER button, the time code is indicated after
the user bit.
8: Data and CTL
However, when CTL is selected with the COUNTER button, the time code is indicated
after CTL data.
9: Data and time code
NOTE:
An error message appears in the superimposed display if a warning or error occurs
when T&S&M is selected.
120
Setup: Item Settings
Item
Setting
Settings and brief function description
FR
SUPER
FR
SUPER
No.
DISP.
No.
DISP.
0000
0
Specifies the horizontal character position output via the VIDEO MON connector or
|
|
displayed in the superimposed display of the LCD panel.
0004
4
007
CHARA H-POS
|
|
0016
16
When set to 59.94 Hz,
23.98 Hz, 24 Hz,
Specifies the vertical character position output via the VIDEO MON connector or
displayed in the superimposed display of the LCD panel.
29.97 Hz, 59-23 Hz,
60-24 Hz
0000
008
CHARA V-POS
0
|
|
0020
20
|
|
0022
22
Setup
When set to 50 Hz,
25 Hz, 60-25 Hz
0000
009
CHARA TYPE
0
|
|
0022
22
|
|
0028
28
0000
WHITE
Specifies the display type output via the VIDEO MON connector or in the superimposed
0001
W/OUT
display, SETUP-MENU and other LCD panel displays.
0: White characters against a solid black background
1: White characters with a black border
When set to 59.94 Hz
020
SYS FORMAT
29.97Hz
59-23Hz
Specifies the recording format used by this unit.
0001
720p
0: 1080i mode
0002
480i
1: 720p mode
25Hz only
When set to 50 Hz
2: 480i mode (when set to 59.94 Hz)/576i mode (when set to 50 Hz)
0000
1080i
NOTE:
0001
720p
• Not indicated when the AJ-YBX200G AVC-Intra codec board (optional board) is not
0002
576i
installed and 29.97, 59-23 or 25 is selected in setup menu No. 25 SYSTEM FREQ. The
25 Hz, 59-23Hz
REC FMT(SD)
50Hz
1080i
When set to 29.97 Hz,
024
59.94Hz
0000
0000
1080p
0001
720p
0000
50M
0001
25M
0002
DV
720p recording format is used.
• Not indicated when 23.98 or 24 is selected in setup menu No. 25 SYSTEM FREQ. The
1080i recording format is used.
• Not indicated when 60-24 or 60-25 is selected in setup menu No. 25 SYSTEM FREQ.
The 720p recording format is used.
59.94Hz
50Hz only
Specifies the recording format when setup menu No. 020 SYS FORMAT is set to 480i or
576i.
0: DVCPRO50 (50 Mbps)
1: DVCPRO (25 Mbps)
2: DV (25 Mbps)
0000
DVCPRO Specifies the recording format when 1080i or 720p is selected in setup menu No. 020 SYS
0001
AVC50
FORMAT.
0002
AVC100
0: DVCPRO HD(100Mbps)
1: AVC-Intra50
2: AVC-Intra100
025
REC FMT (HD)
NOTE:
• Appears only when an optional AJ-YBX200G AVC-Intra Codec board is installed.
• DVCPRO is not available when 23.98 or 24 is selected in setup menu No. 25 SYSTEM
FREQ. DVCPRO HD recording is not available even when DVCPRO is selected if
29.97, 25, or 59-23 is selected in setup menu No.25 SYSTEM FREQ and 1080p is
selected in setup menu No.020 SYS FORMAT. AVC-Intra is used for recording.
Setup: Item Settings
121
■ Recording Format Comparison Table
The table below shows the relationship between setup menu No. 25 SYSTEM FREQ, No. 020 SYS FORMAT and No. 025 REC
FMT settings and recording formats.
Setup menu setting
No.25: SYSTEM FREQ
Recording format
No.025: REC FMT(HD)
No.020: SYS FORMAT
DVCPRO
AVC-Intra50/100
1080i
1080/59.94i
1080/59.94i
720p
720/59.94p
720/59.94p
480i
480/59.94i
---
1080i
1080/50i
1080/50i
720p
720/50p
720/50p
576i
576/50i
---
---
---
1080/23.98p
59.94
50
23.98
24
29.97
25
59-23
---
---
1080/23.98p
1080p
---
1080/29.97p
720p
720/29.97p
720/29.97p
1080p
---
1080/25p
720p
720/25p
720/25p
1080p
---
1080/23.98p
720p
720/23.98p
720/23.98p
60-24
---
720/23.98p
720/23.98p
60-25
---
720/25p
720/25p
Item
Setting
FR
SUPER
FR
SUPER
No.
DISP.
No.
DISP.
Settings and brief function description
When set to 59.94 Hz
0000
59.94Hz 50Hz only
SYSFMT Specifies the format used by the play list.
0001
30PN
<In the DVCPRO HD format>
0002
24PN
0: Format set in setup menu No. 020 SYS FORMAT and No. 025 REC FMT (HD).
When set to 50 Hz
0000
0001
1: 720/30PN (when set to 59.94 Hz)/720/25PN (when set to 50 Hz)
SYSFMT 2: 720/24PN
25PN
<In the AVC-Intra format>
0: Format set in setup menu No. 020 SYS FORMAT and No. 025 REC FMT (HD).
1: 1080/30PN (when set to 59.94 Hz)/1080/25PN (when set to 50 Hz) or 720/30PN (when
026
PLY LST FMT
set to 59.94 Hz)/720/25PN (when set to 50 Hz)
2: 1080/24PN or 720/24PN
NOTE:
• When 480i or 576i is selected in setup menu No. 020 SYS FORMAT, a 30PN and 24PN
selection is handled as a SYSFMT setting.
• The number of lines in the AVC-Intra format depends on the setting in the No. 020
SYSFORMAT menu.
• When a selection other than 59.94 or 50 is made in setup menu No. 25 SYSTEM
FREQ, the format selected in menu No. 020 SYS FORMAT and No. 025 REC FMT (HD)
is used.
122
Setup: Item Settings
Item
Setting
FR
SUPER
FR
SUPER
No.
DISP.
No.
DISP.
0000
NORMAL
0001
SLTC
Settings and brief function description
59.94Hz
only
Specifies the reference to synchronize the frames for recording.
0: The input video signal is automatically identified and serves as reference.
1: The time code which is input to the SD I IN connector is identified and serves as
reference.
032
REC REF
NOTE:
When the SLTC is selected, the following settings are necessary to validate the settings
for this item:
• Setup menu No. 25 SYSTEM FREQ: 59.94
• Setup menu No. 020 SYS FORMAT: 720p
• VIDEO INPUT SELECT: SDI
040
VFR REC
0000
OFF
0001
ON
59-23Hz
60-24Hz
29.97Hz
60-25Hz
only
Specifies whether or not to make a VFR recording when the recording format is 720p.
0: Does not make VFR recording
OFF
Specifies whether or not to make loop recording.
0001
ON
➝For details, refer to “LOOP REC Function” (page 35)..
Setup
1: Makes VFR recording
0000
0: Does not make loop recording
041
1: Makes loop recording
LOOP REC
NOTE:
Turning the power off cancels this setting. The unit will then start up using the default
value (OFF) next time it is powered up.
050
P.ON GUI
0000
0001
OFF
Specifies whether or not the thumbnail screen appears when the power is turned on.
THUMB 0: Thumbnail screen does not appear.
1: Thumbnail screen appears.
Sets the internal clock.
NOTE:
069
CLOCK SET
Press the STOP or SET button to open the subscreen for setting the time. Change the
date in the subscreen and press the SET button to set the clock date. To exit the
subscreen without setting a date, press the STOP or EXIT button again.
Subscreen
00
01
YEAR
MONTH
0000
2000
|
|
0030
2030
0001
JAN
|
|
0012
DEC
0001
1
Sets the day.
NOTE:
Sets the year.
Sets the month.
NOTE:
Setting a nonexistent day for February, April, June, September and November will
automatically set the equivalent day in the following month.
02
DAY
|
|
0031
31
0000
0
Sets the hour.
Set the hour according to the 24-hour clock.
Setting a nonexistent day for February, April, June, September and November will
automatically set the first day in the following month.
03
04
HOUR
MINUTE
|
|
0023
23
0000
0
|
|
0059
59
Sets the minute.
Setup: Item Settings
123
05
0000
00:00
Sets the time difference from the world standard time. Use the table below for reference
0001
+00:30
in setting the time.
|
|
0018
+09:00
TIME ZONE
|
|
0027
–12:00
|
|
0050
–00:30
Time difference
City/Region
Time difference
00:00
Greenwich
–03:30
Newfoundland
–03:00
Buenos Aires
+00:30
+01:00
Central Europe
+02:00
Eastern Europe
Moscow
+03:30
Teheran
+04:00
Abu Dhabi
+04:30
Kabul
+05:00
Islamabad
+05:30
Bombay
+06:00
Dacca
+06:30
Rangoon
+07:00
Bangkok
+07:30
+08:00
Beijing
+08:30
+09:00
Tokyo
+09:30
Darwin Islands
+10:00
Guam
+10:30
Lord Howe Island
+11:00
Solomon Islands
+11:30
Norfolk Islands
+12:00
New Zealand
+12:45
Chatham Islands
+13:00
–12:00
Kwajalein Atoll
–11:30
–11:00
Midway Islands
–10:30
–10:00
Hawaii
–09:30
Marquesas Islands
–09:00
Alaska
–08:30
–08:00
Los Angeles
–07:30
–07:00
Denver
–06:30
–06:00
Chicago
–05:30
–05:00
New York
–04:30
–04:00
124
Setup: Item Settings
Halifax
Central Atlantic time
–01:30
–01:00
+02:30
+03:00
–02:30
–02:00
+01:30
City/Region
Azores
–00:30
◆ NOTE:
• The clock is accurate to within about ±30 seconds a month with the
power off.
• When the precise time is required, check and reset the time while
the power is on.
OPERATION
This menu allows you to set method for engaging search dial operations, maximum shuttle speed operation, maximum speed
of FF and REW operation, NEXT and PREV seek operations, display of warning messages when REF.VIDEO is not connected,
PLAY delay time, battery type, display of warnings when power is too low, voltage when the power supply is turned off.
* An underlined setting indicates an initial value.
Item
Setting
Settings and brief function description
FR
SUPER
FR
SUPER
No.
DISP.
No.
DISP.
0000
DIAL
100
SEARCH ENA
0001
KEY
0000
×8
0001
×16
0: 8× normal speed
0002
×32
1: 16× normal speed
0003
×60
2: 32× normal speed
0004
×100
3: 60× normal speed
Specifies method for transferring to the search mode (search dial operation).
0: Press the STILL button or turn the search dial to engage search dial operation.
1: Press the STILL button to engage search dial operation.
101
SHTL MAX
Sets the maximum shuttle speed operation.
Setup
4: 100× normal speed
102
0000
×32
Sets the maximum speed of FF and REW operation.
0001
×60
0: 32× normal speed
0002
×100
1: 60× normal speed
0003
SEEK
2: 100× normal speed
3: Seek operation to start of clip
FF.REW MAX
NOTE:
• When SEEK is selected, FF and REW operations for FF and REW commands
transferred via 9P and 1394 are performed at 100× normal speed.
• The seek operation is available in playback mode.
103
0000
CLIP
0001
CLIP&T
Specifies where a NEXT (SHIFT+FF) and PREV (SHIFT+REW) seek operation moves to.
0: The start of the clip
1: The start of the clip or video text memo
SEEK SEL
NOTE:
This setting is not available during FF and REW operation.
104
REF ALARM
0000
OFF
0001
ON
0000
0
|
|
0015
15
0000
EE
Specifies whether to invoke the EE mode or playback mode when STOP is pressed.
0001
PB
0: EE mode
Selects whether or not a warning should appear when REF.VIDEO is not connected.
0: Displays no warning
1: Flashes the STOP lamp to warn
108
122
PLAY DELAY
STOP EE SEL
Sets PLAY delay time in frame increments.
1: Playback mode
NOTE:
During IEEE1394 signal input, the EE mode is invoked regardless of this menu setting.
Setup: Item Settings
125
Item
Setting
FR
SUPER
FR
SUPER
No.
DISP.
No.
DISP.
Settings and brief function description
0000
OFF
0001
TYPE1
the Recording Marks in the HD SDI input signals from Panasonic camera-recorders.
0002
TYPE2
0: No automatic recording/stopping
Select whether recording and stopping should be performed automatically according to
1: Recording and stopping is performed automatically according to the Recording Marks
in the LTC information attached to HD SDI signals.
2: Recording and stopping is performed automatically according to the Recording Marks
in the SVITC information attached to HD SDI signals.
155
NOTE:
AUTO REC
• Set the CONTROL switch to REMOTE. Refer to “Panasonic camera-recorders,
recording formats and Recording Mark” on the next page before selecting TYPE1 or
TYPE2.
• Select TYPE1 or TYPE2. To start automatic recording, simultaneously press the REC
button and the STILL button to place this unit in the REC PAUSE mode. This function
will not work in any mode other than REC PAUSE. The unit returns to REC PAUSE
mode when automatic stop is activated.
• In normal recording mode, this setting is not available and auto stop is not activated.
0000
OFF
0001
ON
Determines whether or not to engage repeat play during playback.
0: Does not engage repeat play. Stops playback at the end of the last clip.
1: Engages repeat play. Continues playback from the beginning when reaching the end
of the last clip.
NOTE:
160
REPEAT PLAY
• Repeat play is not available when the PLAYLIST button is on and during TEXT MEMO
playback.
• If the P2 card is removed during repeat play, playback is suspended when playback
reaches the clip that is no longer exists.
• Even if you insert a P2 card during repeat play, additional clips are not played back
until you once stop repeat play and resume it.
180
BATTERY SEL
0000
NiCd12
Sets the battery type.
0001
NiCd13
0: Settings for 1 pc. 12 V battery (NEAR: 11.2 V, END: 10.6 V)
0002
NiCd14
1: Settings for 1 pc. 13 V battery (NEAR: 12.0 V, END: 10.6 V)
0003
S-LION
2: Settings for 1 pc. 14 V battery (NEAR: 13.6 V, END: 10.6 V)
0004
I-LION
3: Settings for 1 pc. lithium-ion battery (BP-L90A) (NEAR: 11.0 V, END: 10.6 V)
0005
TYPE-A
4: Settings for 1 pc. lithium-ion battery (ENDURA80) (NEAR: 13.4 V, END: 10.6 V)
0006
TYPE-B
5: Battery specified by menu No. 181 TYPE-A NEAR item and No. 182 TYPE-A END item
0000
10.6
Specifies the voltage (in 0.1 V steps) when the counter display will flash to warn that the
voltage of a TYPE-A battery selected in menu No. 180 BATTERY SEL item has dropped.
6: Battery specified by menu No. 183 TYPE-B NEAR item and No. 184 TYPE-B END item
181
TYPE-A NEAR
|
|
0023
12.9
|
|
0044
15.0
NOTE:
• When a setting is made in the vicinity of 15.0 V, the counter display may flash also
when AC power is used.
• A setting that is smaller than END cannot be made.
182
183
TYPE-A END
TYPE-B NEAR
0000
10.6
|
|
0018
12.4
Specifies the voltage (in 0.1 V steps) when this unit will automatically power off because
the voltage of a TYPE-A battery selected in menu No. 180 BATTERY SEL item has
dropped.
|
|
0034
14.0
0000
10.6
Specifies the voltage (in 0.1 V steps) when the counter display will flash to warn that the
voltage of a TYPE-B battery selected in menu No. 180 BATTERY SEL item has dropped.
|
|
0023
12.9
|
|
0044
15.0
NOTE:
A setting that is larger than NEAR cannot be made.
NOTE:
• When a setting is made in the vicinity of 15.0 V, the counter display may flash also
when AC power is used.
• A setting that is smaller than END cannot be made.
126
Setup: Item Settings
Item
Setting
FR
SUPER
FR
SUPER
No.
DISP.
No.
DISP.
0000
10.6
|
|
0018
12.4
|
|
0034
14.0
184
TYPE-B END
Settings and brief function description
Specifies the voltage (in 0.1 V steps) when this unit will automatically power off because
the voltage of a TYPE-B battery selected in menu No. 180 BATTERY SEL item has
dropped.
NOTE:
A setting that is larger than NEAR cannot be made.
Panasonic camera-recorders, recording formats and Recording Mark
Model
Recording format
Recording Mark TYPE
AJ-HDC27F,H
720/**p over 60p
TYPE1
AJ-HDX400P
1080/59.94i
–––– *1
AJ-HDX400E
1080/25p over 50i
––––
For operating details, see respective operating
––––
*1
instructions.
720/59.94p
TYPE1
720/23.98p over 59.94p
TYPE1
720/29.97p over 59.94p
TYPE1
1080/59.94i
–––– *1
1080/23.98p over 59.94i
TYPE2
1080/29.97p over 59.94i
–––– *1
1080/50i
–––– *1
1080/25p over 50i
–––– *1
720/50p
TYPE1
720/50p over 50p
TYPE1
720/**p
TYPE1, 2
1080/**i
TYPE 2
AG-HPX500
AJ-HPX2000/2100
AJ-HPX3000
Provides switching between TYPE1 and TYPE2.
*1
Setup
AJ-HDX900
1080/50i
Remarks
*1: Recording Marks are not added to the HD SDI signal in default mode.
INTERFACE
This menu specifies the ID data that will be returned to the controller.
* An underlined setting indicates an initial value.
Item
Setting
FR
SUPER
FR
SUPER
No.
DISP.
No.
DISP.
0000
0001
0002
202
ID SEL
OTHER
Settings and brief function description
Specifies the ID data that will be returned to the controller.
DVCPRO 0: OTHER
ORIG
1: DVCPRO
2: ORIG
NOTE:
• Select [OTHER] for ID data for a VTR other than a DVCPRO.
• Select [ORIG] only when specific Panasonic controllers (such as AJ-A850, separately
sold accessory) are connected.
Setup: Item Settings
127
TIME CODE
This menu sets the time code.
* An underlined setting indicates an initial value.
Item
Setting
FR
SUPER
FR
SUPER
No.
DISP.
No.
DISP.
0000
BLANK
0001
THRU
Settings and brief function description
59.94Hz
50Hz
29.97Hz
25Hz only
Specifies whether or not a VITC signal will be output at the positions selected in menu No.
501 VITC POS-1 and No. 502 VITC POS-2 during playback.
500
0: VITC signals are not output.
VITC BLANK
1: VITC signals are output.
NOTE:
• This setting is available only during analog composite output and SD SDI output.
• In EE mode, the input signal is output with the VITC signal.
When set to 59.94 Hz,
29.97 Hz
501
VITC POS-1
59.94Hz
50Hz
29.97Hz
25Hz only
Specifies the position where the VITC signal will be inserted.
0000
10L
|
|
0006
16L
|
|
0010
20L
NOTE:
• You cannot select the same line as in menu No. 502 VITC POS-2.
• This setting is available only during analog composite output and SD SDI output.
When set to 50 Hz,
25 Hz
7L
0000
|
|
0004
11L
|
|
0015
22L
When set to 59.94 Hz,
29.97 Hz
502
VITC POS-2
59.94Hz
50Hz
29.97Hz
25Hz only
Specifies the position where the VITC signal will be inserted.
0000
10L
|
|
0008
18L
|
|
0010
20L
NOTE:
• You cannot select the same line as in menu No. 501 VITC POS-1.
• This setting is available only during analog composite output and SD SDI output.
When set to 50 Hz,
25 Hz
0000
7L
|
|
0006
13L
|
|
0015
22L
0000
REC
Specifies an operating mode that advances the internal time code generator.
0001
FREE
0: The internal time code generator is advanced only during recording.
1: When the power is on, the internal time code generator is advanced regardless of
504
operating mode.
RUN MODE
NOTE:
• When menu No. 040 VFR REC is set to ON, the time code advances only during
recording even when FREE is selected.
505
TCG REGEN
0000
TC&UB
0001
TC
mode.
0002
UB
0: Regenerates both the time code and the user bit
Specifies the signal to regenerate when the time code generator (TCG) is in the REGEN
1: Regenerates only the time code
2: Regenerates only the user bit
128
Setup: Item Settings
Item
Setting
Settings and brief function description
FR
SUPER
FR
SUPER
No.
DISP.
No.
DISP.
0000
EXT_L
0001
SLTC
Specifies the time code used when an external time code is used.
0002
SVITC
0: LTC of the TIME CODE IN connector
59.94Hz
50Hz only
1: LTC data attached to serial signal input to HD SDI IN
507
2: VITC data attached to serial signal input to HD SDI IN
EXT TC SEL
NOTE:
When SLTC and SVITC are set, the VITC in the input video signal is used when an
analog composite or SD SDI input signal is selected. When 1394 is selected as the
input signal, the IEEE 1394 digital input signal time code is used regardless of this
setting.
BINARY GP
000
Specifies user bit usage in time code generated by the TCG.
0001
001
0: NOT SPECIFIED (character set not specified)
0002
010
1: ISO CHARACTER (8-bit character set complying with ISO646 and ISO2022)
0003
011
2: UNASSIGNED 1 (undefined)
0004
100
3: UNASSIGNED 2 (undefined)
0005
101
4: UNASSIGNED 3 (undefined)
0006
110
5: PAGE/LINE
0007
111
6: UNASSIGNED 4 (undefined)
0000
OFF
0001
ON
Setup
508
0000
7: UNASSIGNED 5 (undefined)
509
PHASE CORR
59.94Hz
50Hz only
Specifies whether or not LTC output from the TIME CODE OUT connector should be
phase controlled.
0: No phase control
1: Phase controlled
510
TCG CF FLAG
0000
OFF
0001
ON
59.94Hz
50Hz
29.97Hz
25Hz
60-25Hz
only
Sets the TCG CF flag.
0: OFF
1: ON
511
DF MODE
0000
DF
0001
NDF
59.94Hz
29.97Hz
only
Sets the DF or NDF mode for CTL and TCG.
0: Uses drop frame mode.
1: Uses non-drop frame mode.
512
0000
VOUT
0001
TC_IN
59.94Hz
50Hz only
Specifies how the phase is switched for the time code output by the TIME CODE OUT
connector for the external LTC input when the TC INT/EXT switch is set to EXT. (only in EE
TC OUT REF
mode)
0: Synchronized with output video signal.
1: Synchronized with the external time code input.
513
0000
SBC
Specifies how to output VITC that will be superimposed on the SD output video signal.
0001
VAUX
0: Outputs the time code recorded in the SBC area as VITC
1: Outputs the time code recorded in the VAUX area as VITC
VITC OUT
NOTE:
• VITC data detected in the input video signal is automatically recorded in the VAUX
area during video recording.
514
HD EMBD VITC
0000
OFF
Specifies whether or not VITC data will be superimposed on HD SDI output.
0001
ON
0: Not superimposed
1: Superimposed
515
HD EMBD LTC
0000
OFF
Specifies whether or not LTC data will be superimposed on HD SDI output.
0001
ON
0: Not superimposed
1: Superimposed
Setup: Item Settings
129
Item
Setting
FR
SUPER
FR
SUPER
No.
DISP.
No.
DISP.
0000
OFF
0001
ON
Settings and brief function description
50Hz only
59.94Hz
Specifies whether or not the internal time code generator value should be recorded in the
VAUX area.
0: The internal time code generator value is not recorded.
Record the time code value when it is superimposed on input video signals.
518
1: The internal time code generator value is recorded.
VITC GEN
NOTE:
• When 1394 is selected as the input signal, the time code signal superimposed on the
compressed input signal is recorded regardless of settings in this menu.
• When 23.98, 24, 29.97, 59-23, 60-24, 25, 60-25 is selected in menu No. 25 SYSTEM
FREQ, the internal time code generator value is recorded as the time code in the
VAUX area.
0000
0001
SBC
59.94Hz 50Hz only
F_RATE Selects user bits in the LTC data output by the TIME CODE OUT and HD SDI connectors
or user bits in the SBC area (DVCPRO HD only) output via the IEEE 1394 terminal during
519
UB OUT SEL
playback of clips in 720/24PN, 720/30PN and 720/25PN formats as well as optional AVCIntra 1080/24PN, 30PN and 25PN clip formats.
0: Outputs the user bits recorded in the SBC area.
1: Outputs the frame rate information recorded in the VAVX area.
Definition of terms:
SBC (Sub Code Data) area:
This area, which is separate from video and audio data area on a P2 card, stores SMPTE/
EBU compliant time code, recording dates and other information.
VAUX (Video Auxiliary Data) area:
An area in the video data on a P2 card that stores additional information on video data.
VIDEO
This menu is used for video settings.
* An underlined setting indicates an initial value.
Item
Setting
FR
SUPER
FR
SUPER
No.
DISP.
No.
DISP.
0000
601
VIDEO INT SG
Settings and brief function description
100%CB Sets the internal signal type. SMPTE and ARIB signals are available in HD mode only
0001
75%CB
(black in SD mode).
0002
SMPTE
0: 100% color bar
0003
ARIB
1: 75% color bar
0004
BLACK
2: SMPTE color bar
3: ARIB color bar
4: Black
0000
DR OFF
0001
DR ON
59.94Hz
60-25Hz
50Hz
29.97Hz
59-23Hz
60-24Hz
25Hz
only
Specifies the method for processing HD SDI input. (Available only for DVCPRO HD)
602
SDI IN MODE
0: Records the 8 higher bits after rounding up the two lowest bits.
1: Records the signal with 8 higher bits, obtained by dynamic rounding.
NOTE:
Records 8 high-order bit signals after rounding off the 2 low-order bits during SD SDI
input.
130
Setup: Item Settings
Item
Setting
FR
SUPER
FR
SUPER
No.
DISP.
No.
DISP.
0000
FIT_V
0001
FIT_H
0002
FIT_HV
620
Settings and brief function description
59.94Hz
60-25Hz
50Hz
23.98Hz
29.97Hz
59-23Hz
25Hz
only
Specifies the aspect ratio during down conversion.
0: Changes the ratio to adjust input size to output size as required by vertical axis. (The
DOWNCON
aspect ratio stays the same.)
MODE
1: Changes the ratio to adjust input size to output size as required by horizontal axis. (The
aspect ratio stays the same.)
2: Changes the ratio to adjust input size to output size as required by horizontal and
vertical axis. (The aspect ratio may be distorted.)
0000
FIT_V
0001
FIT_H
0002
FIT_HV
59.94Hz
60-25Hz
50Hz
23.98Hz
29.97Hz
59-23Hz
25Hz
only
Specifies the aspect ratio during up conversion.
0: Changes the ratio to adjust input size to output size as required by vertical axis. (The
621
UPCONV MODE
aspect ratio stays the same.)
Setup
aspect ratio stays the same.)
1: Changes the ratio to adjust input size to output size as required by horizontal axis. (The
2: Changes the ratio to adjust input size to output size as required by horizontal and
vertical axis. (The aspect ratio may be distorted.)
626
D/C ENH H
0000
0dB
0001
+1dB
59.94Hz
50Hz
29.97Hz
25Hz
60-25Hz
only
Specifies whether or not horizontal outlines be emphasized in down-conversion.
0: 0dB
1: +1dB
627
D/C ENH V
0000
0dB
0001
+1dB
59.94Hz
50Hz
29.97Hz
25Hz
60-25Hz
only
Specifies whether or not vertical outlines be emphasized in down-conversion.
0: 0dB
1: +1dB
When set to 59.94 Hz,
29.97 Hz
643
OUT MODE SEL
59.94Hz
50Hz
29.97Hz
60-25Hz
only
Specifies the video signal output from the video output connector.
0000
AUTO
0001
1080i
1: 1080/59.94i or 1080/50i
0002
720p
2: 720/59.94p or 720/50p
0003
480i
3: 480/59.94i or 576/50i
When set to 50 Hz,
25Hz
0: Switches output automatically depending on current recording and playback format.
NOTE:
25 Hz, 60-25 Hz
When something other than AUTO is selected, a signal that differs from the recording
0000
AUTO
and playback format is automatically converted before output.
0001
1080i
0002
720p
0003
576i
0001
WIDE
0002
59.94Hz 50Hz only
NORMAL Specifies whether or not WIDE data be recorded when 480i or 576i is selected in menu
No. 020 SYS FORMAT.
645
WIDE SELECT
1: Recorded
2: Not recorded
NOTE:
When 1394 is selected as the input signal, input data is recorded in its original form.
650
STYLE
0000
CMPNT
0001
CMPST 0: Level adjustment mode for the component style
Sets the level adjustment mode.
1: Level adjustment mode for the composite style
Setup: Item Settings
131
Item
Setting
FR
SUPER
FR
SUPER
No.
DISP.
No.
DISP.
0000
Pb-Pr
0001
U-V
Settings and brief function description
59.94Hz
23.98Hz
24Hz
29.97Hz
59-23Hz
60-24Hz
only
Specifies the rotational axis of chroma phase adjustment.
651
HUE STYLE(SD)
0: Rotates in a perfect circle in an SDI (component style) vectorscope.
1: Rotates in a perfect circle in an analog (composite style) vectorscope.
NOTE:
This menu is not displayed when 50 is selected in menu No. 25 SYSTEM FREQ.
653
654
655
656
658
659
660
661
662
132
Y LVL (HD)
Pb LVL (HD)
Pr LVL (HD)
BK LVL (HD)
Y LVL(SD)
Pb LVL(SD)
Pr LVL(SD)
BK LVL(SD)
V LEVEL
Setup: Item Settings
0000
0.0%
|
|
1000
100.0%
|
|
1413
141.3%
0000
0.0%
|
|
1000
100.0%
|
|
1413
141.3%
0000
0.0%
|
|
1000
100.0%
|
|
1413
141.3%
0050
–10.0%
|
|
0150
0.0%
|
|
0250
+10.0%
0000
0.00%
|
|
1000
100.00%
|
|
1413
141.30%
0000
0.0%
|
|
1000
100.0%
|
|
1413
141.3%
0000
0.0%
|
|
1000
100.0%
|
|
1413
141.3%
0050
–10.0%
|
|
0150
0.0%
|
|
0250
+10.0%
0000
0.0%
|
|
1000
100.0%
|
|
2000
200.0%
Adjusts the Y level of HD SDI and HD analog component output (– ∞ to 0 dB to +3 dB).
NOTE:
This setting is available when CMPNT is set in menu No. 650 STYLE.
Adjusts the PB level of HD SDI and HD analog component output (– ∞ to 0 dB to +3 dB).
NOTE:
This setting is available when CMPNT is set in menu No. 650 STYLE.
Adjusts the PR level of HD SDI and HD analog component output (– ∞ to 0 dB to +3 dB).
NOTE:
This setting is available when CMPNT is set in menu No. 650 STYLE.
Adjusts the black level of HD SDI and HD analog component output.
NOTE:
This setting is available when CMPNT is set in menu No. 650 STYLE.
59.94Hz
50Hz
29.97Hz
25Hz
60-25Hz
only
Adjusts the Y level of SD SDI and analog composite output (– ∞ to 0 dB to +3 dB).
NOTE:
This setting is available when CMPNT is set in menu No. 650 STYLE.
59.94Hz
50Hz
29.97Hz
25Hz
60-25Hz
only
Adjusts the PB level of SD SDI and analog composite output (– ∞ to 0 dB to +3 dB).
NOTE:
This setting is available when CMPNT is set in menu No. 650 STYLE.
59.94Hz
50Hz
29.97Hz
25Hz
60-25Hz
only
Adjusts the PR level of SD SDI and analog composite output (– ∞ to 0 dB to +3 dB).
NOTE:
This setting is available when CMPNT is set in menu No. 650 STYLE.
59.94Hz
50Hz
29.97Hz
25Hz
60-25Hz
only
Adjusts the black level of SD SDI and analog composite output.
NOTE:
This setting is available when CMPNT is set in menu No. 650 STYLE.
Adjusts the video level (– ∞ to 0 dB to +6 dB).
NOTE:
• This setting is available when CMPST is set in menu No. 650 STYLE.
• Video output level adjustment is available only for output.
Item
Setting
SUPER
FR
SUPER
No.
DISP.
No.
DISP.
0000
0.0%
|
|
1000
100.0%
|
|
1413
141.3%
0000
–31.0
|
|
0062
0.0
|
|
0124
31.0
0050
–10.0%
|
|
0150
0.0%
|
|
0250
+10.0%
663
664
665
C LEVEL
HUE/C PHASE
SETUP/BK LVL
0000
0001
669
Settings and brief function description
Adjusts the chroma level (– ∞ to 0 dB to +3 dB).
NOTE:
• This setting is available when CMPST is set in menu No. 650 STYLE.
• Chroma level adjustment is available only for output.
Adjusts chroma phase (approximately –30 to +30°)
NOTE:
• This setting is available when CMPST is set in menu No. 650 STYLE.
• Chroma phase level adjustment is available only for output.
Adjusts setup level.
NOTE:
• This setting is available when CMPST is set in menu No. 650 STYLE.
• Setup level adjustment is available only for output.
Setup
FR
THRU
59.94Hz 29.97Hz only
CUT&AD Specifies recording and output method for analog composite signals.
SETUP
0: Records the input signal in its original form and outputs it without setup.
1: Records the signal with the 7.5% setup processing removed and outputs it with the
7.5% setup added.
673
676
CONTRAST
0000
–30
|
|
0030
0
|
|
0060
30
0000
OFF
0001
ON
Adjusts LCD monitor contrast.
59.94Hz
60-25Hz
50Hz
23.98Hz
29.97Hz
59-23Hz
25Hz
only
Specifies whether or not to clip signals below pedestal level for SD SDI and analog
BLK CLIP
composite output Y (luminance) signals.
0: Does not clip the signal
1: Clips the signal
677
0000
AUTO
0001
4:3
0: Switches aspect ratio automatically.
0002
16:9
1: Displays 480i or 576i images in the 4:3 aspect ratio.
0003
15:9
Specifies the aspect ratio of image displayed on the LCD panel.
(Displays 1080i or 720p video in the 16:9 aspect ratio.)
2: Displays images in the 16:9 aspect ratio.
LCD ASPECT
3: Displays images in the 15:9 aspect ratio.
NOTE:
Since the LCD monitor on this unit has an aspect ratio of 15:9, a black border may
appear above and below the picture in AUTO or 16:9 mode.
0000
BLANK
0001
THRU
59.94Hz
only
Turns on and off closed caption signals in the first field output from the SD SDI and analog
composite output.
680
CC (F1) BLANK
0: Signals are forcibly blanked.
1: Signals are not blanked.
NOTE:
• In EE mode, the closed captions are output superimposed on the input signal.
0000
BLANK
0001
THRU
59.94Hz
only
Turns on and off closed caption signals in the second field output from the SD SDI and
analog composite output during playback.
681
CC (F2) BLANK
0: Signals are forcibly blanked.
1: Signals are not blanked.
NOTE:
• In EE mode, the closed captions are output superimposed on the input signal.
Setup: Item Settings
133
Item
Setting
FR
SUPER
FR
SUPER
No.
DISP.
No.
DISP.
0000
OFF
0001
ON
684
EDH(SD)
Settings and brief function description
59.94Hz
50Hz
29.97Hz
25Hz
60-25Hz
only
Specifies whether or not EDH is superimposed on SDI OUT signals.
0: Signals are not superimposed.
1: Signals are superimposed.
685
ESR MODE(SD)
0000
OFF
0001
AUTO
59.94Hz
29.97Hz
only
Specifies the operating mode for edge subcarrier reduction (ESR) in the playback circuit.
0: ESR is forcibly set to off.
1: ESR is automatically turned on and off depending on operating mode.
0000
OFF
0001
ON
59.94Hz
only
Specifies whether or not the closed caption signal that is superimposed on the SD SDI
and analog composite input signals will be recorded.
0: Not recorded.
688
The EE output is also blanked.
CC REC
1: A closed caption signal that is superimposed on an input signal is recorded.
NOTE:
• When 1394 is selected as the input signal, the closed caption signal superimposed
on the compressed input signal is recorded in its original form regardless of settings
in this menu.
0000
NORMAL
0001
DARK
59.94Hz
60-25Hz
50Hz
29.97Hz
59-23Hz
60-24Hz
25Hz
only
Selects the compression method used during video recording.
689
0: Records using normal compression processing.
COMP MODE
1: Records video suppressing compression video distortion that is generated by dark
areas that are about 10 IRE (70 mV) or less.
NOTE:
This setting is available in DVCPRO HD 720p mode recording.
690
UMID REC
0000
OFF
Specifies whether or not UMID data should be recorded.
0001
ON
0: UMID data is not recorded.
0000
INT
0001
EXT
1: Recorded.
691
Specifies the generation method of UMID information that is recorded when menu No.
690 UMID REC is set to on.
0: Newly created UMID information is always recorded.
UMID GEN
1: Records UMID data superimposed on the input signal.
Newly created UMID information is recorded when not superimposed on an input
signal.
692
UMID POS
0000
BLANK
0001
12L
:
:
0006
17L
:
:
0008
19L
Specifies the line that superimposes UMID data.
NOTE:
• You cannot select the same line as in menu No. 501 VITC POS-1 and No. 502
VITCPOS-2.
• Holding down the SHIFT button and pressing the RESET button will not restore the
factory defaults.
• UMID data is output before recorded VANC data. To output VANC data, set UMID
POS to a line other than that which superimposed the data or select “BLANK.”
• During playback of DVCPRO HD native clip, UMID becomes NO-INFO.
134
Setup: Item Settings
Item
Setting
FR
SUPER
FR
SUPER
No.
DISP.
No.
DISP.
0000
OFF
Settings and brief function description
Selects gamma correction.
0003
GAMMA3
FILM REC mode on an AJ-HPX3000 to filmquality video. (Equivalent to TELECINE 5 on
the AJ-GBX27HD Gamma Corrector)
2: Corrects video shot by Varicam or in the
1023
768
VIDEO LEVEL
0002
GAMMA1 0: No gamma correction
GAMMA2 1: Corrects video shot by Varicam or in the
0001
TELECINE5
512
TELECINE6
256
Cineon
FILM REC mode on an AJ-HPX3000 to film693
quality video. (Equivalent to TELECINE 6 on
GAMMA SEL
the AJ-GBX27HD Gamma Corrector)
256
512
768
LUMINANCE
1023
3: Converts video shot by Varicam or in the
FILM REC mode on an AJ-HPX3000 by
applying a Cineon curve to produce video appropriate for film recording.
NOTE:
• This setting is available during playback.
• Turning the power off cancels the GAMMA setting.
• This item has no effect during 1394 output.
Setup
• Selecting something other than OFF superimposes the text GAMMA on the screen.
AUDIO
This menu is used for audio settings.
* An underlined setting indicates an initial value.
Item
Setting
FR
SUPER
FR
SUPER
No.
DISP.
No.
DISP.
701
702
703
704
706
707
CH1 IN LV
CH2 IN LV
CH3 IN LV
CH4 IN LV
CH1 OUT LV
CH2 OUT LV
0000
4dB
0001
0dB
0002
–3dB
0003
–20dB
0000
4dB
0001
0dB
0002
–3dB
0003
–20dB
0000
4dB
0001
0dB
0002
–3dB
0003
–20dB
0000
4dB
0001
0dB
0002
–3dB
0003
–20dB
0000
4dB
0001
0dB
0002
–3dB
0003
–20dB
0000
4dB
0001
0dB
0002
–3dB
0003
–20dB
Settings and brief function description
Specifies the standard level for audio input (CH1).
Specifies the standard level for audio input (CH2).
Specifies the standard level for audio input (CH3).
Specifies the standard level for audio input (CH4).
Specifies the standard level for audio output (CH1).
Specifies the standard level for audio output (CH2).
Setup: Item Settings
135
Item
Setting
FR
SUPER
FR
SUPER
No.
DISP.
No.
DISP.
708
709
725
CH3 OUT LV
CH4 OUT LV
REC CH1
0000
4dB
0001
0dB
0002
–3dB
0003
–20dB
0000
4dB
0001
0dB
Settings and brief function description
Specifies the standard level for audio output (CH3).
Specifies the standard level for audio output (CH4).
0002
–3dB
0003
–20dB
0000
CH1
Specifies the input signal to be recorded on the audio CH1.
0001
CH2
0: Audio input CH1 signal
0002
CH3
1: Audio input CH2 signal
0003
CH4
2: Audio input CH3 signal
0004
CH1+2
3: Audio input CH4 signal
0005
CH3+4
4: Mixed audio input CH1 and CH2 signal
5: Mixed audio input CH3 and CH4 signal
726
REC CH2
0000
CH1
Specifies the input signal to be recorded on the audio CH2.
0001
CH2
0: Audio input CH1 signal
0002
CH3
1: Audio input CH2 signal
0003
CH4
2: Audio input CH3 signal
0004
CH1+2
3: Audio input CH4 signal
0005
CH3+4
4: Mixed audio input CH1 and CH2 signal
0000
CH1
Specifies the input signal to be recorded on the audio CH3.
0001
CH2
0: Audio input CH1 signal
0002
CH3
1: Audio input CH2 signal
0003
CH4
2: Audio input CH3 signal
0004
CH1+2
3: Audio input CH4 signal
0005
CH3+4
4: Mixed audio input CH1 and CH2 signal
5: Mixed audio input CH3 and CH4 signal
727
REC CH3
5: Mixed audio input CH3 and CH4 signal
728
REC CH4
0000
CH1
Specifies the input signal to be recorded on the audio CH4.
0001
CH2
0: Audio input CH1 signal
0002
CH3
1: Audio input CH2 signal
0003
CH4
2: Audio input CH3 signal
0004
CH1+2
3: Audio input CH4 signal
0005
CH3+4
4: Mixed audio input CH1 and CH2 signal
0000
AUTO
0001
CUT
5: Mixed audio input CH3 and CH4 signal
Specifies audio processing to be performed between clips and edit points created using
play list or edit copy.
0: Depends on recording status. (Refer to the section “Audio V Fade Function” (page
731
149).)
PB FADE
1: Forcible cut.
NOTE:
The IEEE1394 connector output is forcibly cut also in the AUTO setting.
732
EMBEDDED AUD
0000
OFF
Specifies whether or not audio data will be superimposed on HD SDI output and SD SDI
0001
ON
output.
0: Audio data is not superimposed.
1: Audio data is superimposed.
0000
2CH
0001
4CH
59.94Hz
50Hz only
Specifies the number of audio channels that will be used for DVCPRO (25 Mbps) or DV
(25 Mbps) recording.
775
25M REC CH
0: Does not supply microphone current.
1: Records on four channels.
NOTE:
DVCPRO HD, AVC-Intra50 (option) and AVC-Intra100 (option) always record on 8
channels, and DVCPRO50 always records on 4 channels.
136
Setup: Item Settings
Item
Setting
FR
SUPER
FR
SUPER
No.
DISP.
No.
DISP.
776
777
REF LEVEL
CH2 MIC PWR
Settings and brief function description
For AJ-HPM110P
Specifies the standard level.
0000
FS-20
0: 20 dB
0001
FS-18
1: 18 dB
0002
FS-12
2: 12 dB
For AJ-HPM110E
0000
FS-20
0001
FS-18
0002
FS-12
0000
OFF
Turns on and off the CH2 microphone power supply.
0001
ON
0: Does not use the microphone power supply.
1: Uses the jack switch to turn the microphone power supply on and off.
0000
OFF
0001
ON
23.98Hz
24Hz
59-23Hz
60-24Hz
only
Determines whether or not the output timing of analog audio output (including
headphones and monitor output) is delayed to synchronize it with SDI output.
Setup
0: Not delayed
778
AUD OUT DLY
The output is synchronized with LCD panel and monitor output.
1: Delayed
The output is synchronized with SDI output.
NOTE:
LCD panel and video monitor output is output about 66 msec earlier than SDI output.
785
PB MIX
0000
OFF
0001
ON
Sets a mix of analog and SDI audio output.
NOTE:
Press the STOP or SET button to open a subscreen and select the channels used in
mixing audio output. To exit the subscreen, press the STOP or SET button again.
Subscreen
01
02
03
04
790
PB CH1
PB CH2
PB CH3
PB CH4
VOL SEL
0000
CH1
0001
CH1+2
0002
CH1+3
0000
CH2
0001
CH1+2
0002
CH2+4
0000
CH3
0001
CH3+4
0002
CH1+3
0000
CH4
0001
CH3+4
Specifies the playback channels that will be output via CH1.
Specifies the playback channels that will be output via CH2
Specifies the playback channels that will be output via CH3.
Specifies the playback channels that will be output via CH4.
0002
CH2+4
0000
CH1-4
Specifies operation of the recording level controls.
0001
CH1-8
0: CH1 to CH4 only are variable, CH5 to CH8 are UNITY level.
1: In addition to CH1 to CH4, which are variable, CH5 to CH8 also become variable,
being linked to CH1 to CH4 operation.
792
793
A DUB CH
A DUB PB MIX
0000
CH1
0001
CH2
0002
CH3
0003
CH4
0004
CH1+2
0005
CH3+4
0000
OFF
0001
ON
Specifies tracks to be used for voice-overs.
Specifies whether or not the playback sound be mixed in the voice-over.
0: Playback sound is not mixed.
1: The input and playback sound are mixed in the recording.
NOTE:
Press the STOP or SET button to open the subscreen to select the channels that will be
mixed. To exit the subscreen, press the STOP or SET button again.
Setup: Item Settings
137
Item
Setting
FR
SUPER
FR
SUPER
No.
DISP.
No.
DISP.
0000
CH1
0001
CH2
0002
CH3
Settings and brief function description
Subscreen
01
02
03
04
796
CH1 MIX
CH2 MIX
CH3 MIX
CH4 MIX
A DUB FADE
0003
CH4
0000
CH1
0001
CH2
0002
CH3
0003
CH4
0000
CH1
0001
CH2
0002
CH3
0003
CH4
0000
CH1
0001
CH2
0002
CH3
0003
CH4
0000
CUT
0001
FADE
Specifies the playback channels that will be mixed and recorded on CH1.
Specifies the playback channels that will be mixed and recorded on CH2.
Specifies the playback channels that will be mixed and recorded on CH3.
Specifies the playback channels that will be mixed and recorded on CH4.
Specifies audio processing for the IN and OUT points during voice-overs.
0: Cut processing
1: V fade processing
797
A DUB MONI
0000
OFF
Specifies whether or not the recorded sound be output during a voice-over.
0001
ON
0: Recorded sound is not output
1: Recorded sound is output
DIF
This menu is used for setting up the digital video interface.
* An underlined setting indicates an initial value.
Item
FR
SUPER
No.
DISP.
880
Setting
FR
SUPER
Settings and brief function description
No.
DISP.
0000
S100
0001
S200
Specifies the transfer speed of digital video interface output.
0002
S400
0:100 Mbps
DIF SPEED
59.94Hz
50Hz only
1:200 Mbps
2:400 Mbps
NOTE:
A DVCPRO HD format signal cannot be output when S100 is selected.
882
DIF IN CH
0000
0
|
|
0063
63
0064
AUTO
59.94Hz
50Hz only
Specifies input channels.
0 - 63: These channels are fixed to assigned values.
64:
This channel is not fixed to assigned values.
When the power is on, the input channel is initialized to 63.
883
DIF OUT CH
0000
0
|
|
0063
63
0064
AUTO
0000
DFLT
0001
1
Specifies the extension menu.
|
|
Normally, DFLT is used.
0255
255
59.94Hz
50Hz only
Specifies output channels.
0 - 63: These channels are fixed to assigned values.
64:
This channel is not fixed to assigned values.
When the power is on, the output channel is initialized to 63.
886
138
DIF CONFIG
Setup: Item Settings
59.94Hz
50Hz only
Item
Setting
FR
SUPER
FR
SUPER
No.
DISP.
No.
DISP.
0000
CH1+2
0001
CH3+4
890
DIF AUD OUT
Settings and brief function description
59.94Hz
50Hz only
Specifies the output channels when the audio signals are in 4-channel mode and output
in the DVCPRO (25 Mbps) format and a DV clip is played back.
0: CH1 and CH2
1: CH3 and CH4
MENU
This menu is used for menu settings.
* An underlined setting indicates an initial value.
Item
SUPER
No.
DISP.
A00
FR
Settings and brief function description
SUPER
Remarks
No.
DISP.
0000
USER2
Specifies user files loaded in USER 1.
Setting available
0001
USER3
0: Loads the contents of USER 2
for USER1 only
0002
USER4
1: Loads the contents of USER 3
0003
USER5
2: Loads the contents of USER 4
Setup
FR
Setting
3: Loads the contents of USER 5
LOAD
NOTE:
Pressing the MENU button when loading completes opens a
confirmation screen. Press the SET button to store the setting. Press
the EXIT button to discard the change and retain the setting.
A01
SAVE
0000
USER2
Specifies the user file that saves USER 1 settings.
Setting available
0001
USER3
0: Saved to USER 2
for USER1 only
0002
USER4
1: Saved to USER 3
0003
USER5
2: Saved to USER 4
0004
LOCKED
3: Saved to USER 5
4: Appears when all user files are write protected.
NOTE:
• A user file in change prohibit status cannot be selected.
• When all user files are in the change prohibit status, “LOCKED”
appears and data cannot be saved.
A02
P.ON LOAD
0000
OFF
Specifies which user files will be loaded into USER 1 and whether or
Setting available
0001
USER2
not the USER 1 settings should be used in startup when the power is
for USER1 only
0002
USER3
turned on.
0003
USER4
0: Operation is started with the settings of the previously set user file.
0004
USER5
1: The content of USER 2 is loaded into USER 1.
2: The content of USER 3 is loaded into USER 1.
3: The content of USER 4 is loaded into USER 1.
4: The content of USER 5 is loaded into USER 1.
A03
MENU LOCK
0000
OFF
0001
ON
Sets/releases the user file (USER2 - USER 5) lock mode.
Setting available
0: Releases the lock. (File data can be changed.)
for USER2 to
1: Lock is engaged. (File data cannot be changed.)
USER5 only
NOTE:
• USER 1 cannot be locked.
• Files can be loaded from the SD memory card even if they are
locked. The status after load operation depends on the setting
defined by the loaded data.
A04
PF1 ASSIGN
Registers a setup menu item in the PF1 button.
A05
PF2 ASSIGN
Registers a setup menu item in the PF2 button.
A06
PF3 ASSIGN
A10
CARD READ
Registers a setup menu item in the PF3 button.
Select files from the four SD memory card files to load into the menu.
Setting available
This function is available only to USER 1-5 (SYSTEM) and USER 1-5.
for USER1 only
Setup: Item Settings
139
Item
Setting
FR
SUPER
FR
SUPER
No.
DISP.
No.
DISP.
A11
CARD WRITE
Settings and brief function description
Remarks
Select one of the four files on an SD memory card to write a menu
Setting available
setting.
for USER1 only
The write function is available only to USER 1-5 (SYSTEM).
Titles can be added to the files and the files can be edited.
A12
CARD FORMAT
Formats SD memory cards.
Setting available
for USER1 only
Saving Menu Settings to SD Memory Cards
Use the steps below to write SETUP menu settings to or load
from SD memory cards. The unit can handle up to four files
and enables the input of titles.
3 Press the button with the desired function (see
below) in the load confirmation screen that appears.
SET button:
Loads all SYSTEM settings and USER 1-5
data
SHIFT + SET Loads USER 1-5 data only
buttons:
EXIT:
Cancels loading and returns to the
previous screen
4 A completion message appears when the load
progress bar closes.
SETUP-MENU
SD CARD READ
FILE3 480_50I
READ OK
2,3
3
1
3
CARD READ
1 Press the MENU button, select A10 CARD READ
1 Press the MENU button, select A11 CARD WRITE
from USER1 in the SETUP menu and press the SET
from USER1 in the SETUP menu and press the SET
button.
button.
2 Select the files to be read in the file menu that
2 Select the files to be written in the file menu that
appears and press the SET button.
appears and press the SET button.
• Files that are not written are indicated as [NO FILE].
• Files that are not written are indicated as [NO FILE].
• “NO CARD” is indicated when no SD memory card is
• “NO CARD” is indicated when no SD memory card is
inserted.
inserted.
SETUP-MENU
SD CARD READ
01 FILE1 1080_60I
02 FILE2 720_60P
* 03 FILE3 480_50I
04 NO FILE
END
140
CARD WRITE
Setup: Item Settings
3 In the write confirmation screen that appears, select
SET to write or EXIT to cancel writing and return to
the previous screen.
• You can edit the title before writing the file. Enter text at
the flashing cursor that indicates the title.
▲▼ (Up/Down cursors):
Select text
b a (Right and left cursors): Move cursor location
RESET button:
Clears all text
• A completion message appears when the write progress
bar closes.
SETUP-MENU MENU
SD CARD WRITE
FILE4 TITLE4
SYSTEM+USER
FILE4 OK?
YES<SET>/NO<EXIT>
Setup
FORMAT
1 Press the MENU button, select A12 CARD FORMAT
from USER1 in the SETUP menu and press the SET
button.
2 The format confirmation screen appears.
• Press the SET button to start formatting.
• To cancel formatting and return to the previous screen,
press the EXIT button.
3 A completion message appears when the format
progress bar closes.
Setup: Item Settings
141
Time Code, User Bit and CTL
3 Use the setup menu No. 504 (RUN MODE) to set the
Time code
run mode for the time code generator.
The time code is used when the time code signal generated
REC:
by the time code generator is to be recorded. The time code
values are indicated on the display and in the superimpose
The internal time code generator advances
during recording.
FREE:
display.
The internal time code generator advances
regardless of operating mode when the
TCR
00:
07:
04:
24
power is on.
4 Set the TCG switch to PRESET mode.
Hours Minutes Seconds Frames
INT-REGEN:
This mode maintains the continuity with
the time code last recorded on a P2 card.
User bit
INT-PRESET:
Starts recording from the value set with
EXT:
Records according to external TC input.
the TC PRESET button.
User bit refers to the 32-bit (8 digits) data frame of the time
code signal made available to users. It allows you to record
operator numbers and other values. The alphanumeric
characters that can be used in the user bit are the figures from
0 - 9 and the letters A to F.
5 Use the TC PRESET button to set the start number
of the time code or user bit.
Setting the internal time code
1. Press the TC PRESET button.
The left-most digit starts flashing.
4 5
2
1
2. Press the UP (▲) or DOWN (▼) button or hold down
the STILL
button and turn the search dial to
change the value.
3. Press the LEFT (b) or RIGHT (a) button or turn the
search dial to select digit to set.
The selected digits start flashing.
The setting ranges are as follows:
Time code:
[59.94 Hz] [29.97 Hz]
00:00:00:00-23:59:59:29
[50 Hz] [25 Hz] [60-25 Hz]
00:00:00:00-23:59:59:24
[23.98Hz] [24Hz] [59-23Hz]
[60-24Hz]
1 Engage the stop mode.
2 Use the COUNTER button to select [TC].
00:00:00:00-23:59:59:23
User bit
00000000-FF FF FF FF
4. Repeat steps 2 - 3 to change other values.
Pressing the RESET button resets the preset value to 0.
5. When the start number is set, press the SET button.
The time code starts to advance when [FREE] is set in
step 3.
142
Setup: Time Code, User Bit and CTL
Setting the external time code
4 Make the following settings in setup menu No. 507
2
1
(EXT TC SEL).
EXT_L:
The LTC signal input to the TIME CODE IN
connector (BNC) on the rear panel is
recorded as TC.
SVITC:
The VITC signal attached to the serial signal
input to the SDI IN (HD) connector is
recorded as a time code.
SLTC:
The LTC signal attached to the serial signal
input to the SDI IN (HD) connector is
recorded as a time code.
◆ NOTE:
3
SDI input signal is selected, the VITC on the input video signal
1 Engage the stop mode.
is recorded. When 1394 is selected as the input signal, the IEEE
Setup
• When SLTC and SVITC is set and an analog composite or SD
1394 digital input signal time code is recorded.
2 Use the COUNTER button to select [TC].
• Setup menu No. 507 EXT TC SEL does not appear in modes
other than 59.94 Hz and 50 Hz. Locked in SLTC in this mode.
• When setup menu No. 040 VFR REC is set to ON, REC RUN is
3 Set the TCG switch to [EXT].
selected regardless of the TCG switch setting.
(External time code selection)
Reproducing the time code and user bit
2
1
When the time code
signal cannot be
read, an asterisk (*)
is displayed.
“ ” : Field 1, field 3
“*” : Field 2, field 4
The colon between the seconds and the frames
changes to a period (.) in drop frame mode.
■ Time code when no power is supplied
Also when no power is supplied, the backup function works
enabling the time code generator to provide long-term (about
3
1 Engage the stop mode.
one year) operation. Accuracy when no power is supplied is
about ±30 s per month.
◆ NOTE:
• Under the conditions listed below when the time code generator
advances regardless of operation mode, the backup function is
2 Use the COUNTER button to select [TC] or [UB].
enabled
- When the TCG switch on the front panel is set to “PRESET” and
3 Press the PLAY
button.
Playback starts and the time code appears on the display.
When the SUPER switch is set to [ON], the time code is
superimposed on the monitor.
setup menu No. 504 RUN MODE is set to “FREE.”
- When the TCG switch on the front panel is set to “EXT” and the
external time code set in setup menu No. 507 EXT TC SEL is
disconnected from connector on the rear panel.
• When settings in setup menu No. 25 SYSTEM FREQ are revised,
advance data is cleared.
Setup: Time Code, User Bit and CTL
143
TCG
switch *5
Menu *4
Menu
No. 507 EXT
No. 518 VITC
TC SEL
GEN
Recorded time code
Selected video
input signal
SBC area
VAUX area
Time code on IEEE1394 digital input
1394
OFF
INT
(REGEN /
HD SDI
CMPST / SD SDI
---
PRESET)
Internal TCG value
VITC on input video signal *3
Time code on IEEE1394 digital input
1394
ON
HD SDI
CMPST / SD SDI
OFF
EXT_L
Time code on IEEE1394 digital input
(VAUX area)
HD SDI
Time code on TIME CODE IN
SVITC on input video signal *3
CMPST / SD SDI
connector input *1
VITC on input video signal *3
Time code on IEEE1394 digital input
Time code on IEEE1394 digital input
(SBC area)
(VAUX area)
HD SDI
CMPST / SD SDI
SLTC
Time code on IEEE1394 digital input
(SBC area)
(VAUX area)
HD SDI
SLTC on input video signal *2
SVITC on input video signal *3
CMPST / SD SDI
VITC on input video signal *2
VITC on input video signal *3
Time code on IEEE1394 digital input
Time code on IEEE1394 digital input
(SBC area)
(VAUX area)
1394
ON
SVITC
SLTC on input video signal
CMPST / SD SDI
VITC on input video signal *2
Time code on IEEE1394 digital input
Time code on IEEE1394 digital input
(SBC area)
(VAUX area)
HD SDI
SVITC on input video signal *2
SVITC on input video signal *3
CMPST / SD SDI
VITC on input video signal *2
VITC on input video signal *3
Time code on IEEE1394 digital input
Time code on IEEE1394 digital input
(SBC area)
(VAUX area)
1394
ON
*2
HD SDI
1394
OFF
Time code on TIME CODE IN connector input *1
Time code on IEEE1394 digital input
1394
OFF
Internal TCG value
(SBC area)
1394
ON
(VAUX area)
Time code on IEEE1394 digital input
1394
EXT
(VAUX area)
SVITC on input video signal *3
*2
HD SDI
SVITC on input video signal
CMPST / SD SDI
VITC on input video signal *2
*1: The internal TCG value is used when a signal cannot be detected from the TIME CODE IN connector input.
*2: The internal TCG value is used when the SLTC, SVITC and VITC cannot be detected on the input video signal.
*3: Nothing is recorded if the SVITC and VITC cannot be detected on the input video signal.
*4: In modes other than 59.94 Hz and 50 Hz, setup menu No. 507 EXT TC SEL does not appear. The unit is locked in SLTC in this mode.
*5: When setup menu No. 040 VFR REC is set to ON, REC RUN is selected regardless of the TCG switch setting.
144
Setup: Time Code, User Bit and CTL
CTL Mode
2
1
Setup
1 Engage the stop mode.
2 Use the COUNTER button to select [CTL].
During playback, the counter displays the play position
relative to the start position.
Recording starts from the counter value [0:00:00:00].
When recording stops, the counter shows the position
relative to the start position.
◆ NOTE:
When 23.98, 24, 59-23 or 60-24 is selected in setup menu
No. 25 SYSTEM FREQ, there is a 1-frame delay between
playback video and CTL.
Setup: Time Code, User Bit and CTL
145
Superimpose Screen
Control signals, time code and other information are indicated
Display Position
by abbreviations.
Display monitor
Use setup menu No. 007 (CHARA H-POS) and No. 008
(CHARA V-POS) to change the position of characters in the
superimposed display.
TCR
TCR
Abbreviation
TCR
Display monitor
Abbreviations:
CTL
Relative location from the beginning
TCR
Recorded time code data
TCR.
Time code data recorded in the VAUX area
UBR
Recorded user bit data
UBR.
User bit data recorded in the VAUX area
TCG
Time code data of the time code generator
UBG
User bit data of the time code generator
◆ NOTE:
• [T*R] or [U*R] appears when card data could not be properly read.
Operating Mode
Use setup menu No. 006 (DISPLAY SEL) to indicate deck
operating mode.
TCR
STOP
Display monitor
Display Characters
Use setup menu No. 009 (CHARA TYPE) to change the
background of display characters in the superimposed
display.
TCR
TCR
Display monitor
Display monitor
◆ NOTE:
• During play list playback, black text appears on a white background
regardless of menu setting.
146
Setup: Superimpose Screen
Display monitor
Deck operating mode
List of Compatible Input and Output Formats
■ System Frequency Settings
Use setup menu No. 25 SYSTEM FREQ to select the following input and output formats.
Recording format
System
Input signal
frequency
SDI output *4
1080/59.94i
1080/59.94i
59.94
1080/50i
50
720/59.94P
480/59.94i
1080/50i
1080/50i
720/50P
720/50P
576/50i
576/50i
480/59.94i
*1
*1
---
c
---
c
---
---
1080/59.94i *1
720/59.94P *1
480/59.94i
*1
59-23
1080/23.98PsF
---
---
---
1080/23.98PsF
23.98
1080/23.98PsF
---
---
---
---
---
---
---
---
---
c
---
c
---
---
24
1080/25PsF
25
1080/24PsF
1080/25PsF
1080/50i *1
720/50P *1
720/50P *1
576/50i
AVC-Intra 50/100
codec board is installed)
output
1080/23.98P over 59.94i *5
1080/24PsF
(when an AJ-YBX200G
Time code
1080/59.94i
480/59.94i
720/59.94P
IEEE1394 output
720/59.94P
59.94
720/50P
50
720/29.97P over 59.94P
*6
29.97
*1
576/50i *1
720/59.94P
720/59.94P
1080/59.94i
1080/59.94i
480/59.94i
480/59.94i
720/50P
720/50P
1080/50i
1080/50i
576/50i
576/50i
720/59.94P *1
720/59.94P *1
1080/29.97PsF
1080/59.94i *1
480/59.94i
*1
480/59.94i *1
720/23.98P over 59.94P *6
59-23
1080/23.98PsF
---
---
---
720/24P over 60P *6
60-24
1080/24PsF
---
---
---
---
---
---
---
720/25P over 50P *7
25
720/50P *1
720/50P *1
1080/25PsF
1080/50i *1
576/50i
720/25P over 60P
*6
60-25
*1
720/50P *1
1080/25PsF
1080/50i *1
*1
1080/59.94i
1080/59.94i
59.94
DVCPRO HD
1080/50i
50
576/50i *1
720/50P *1
576/50i
Setup
29.97
output *4
720/59.94P
1080/29.97PsF
1080/29.97PsF
Analog video
576/50i *1
1080/59.94i
720/59.94P
720/59.94P
480/59.94i
480/59.94i
1080/50i
1080/50i
720/50P
720/50P
576/50i
576/50i
1080/59.94i
c
1080/50i
c
*1: 2:2 pull-down
*4: Select SDI output in setup menu No. 643 OUT MODE SEL. SDI output alternates with analog output.
*5: AJ-HPX2000/2100/3000 HD-SDI (1080/23.98P over 59.94i) output
*6: AJ-HDC27 series HD-SDI (variable frame-rate signal) output
*7: AJ-HPX2000/2100 HD-SDI (720/25P over 50P) output
Setup: List of Compatible Input and Output Formats
147
Recording format
System
Input signal
frequency
1080/29.97PsF
59.94
SDI output *4
Analog video
output *4
1080/23.98P over 59.94i *5
59.94
1080/59.94i
720/59.94P *1
720/59.94P *1
480/59.94i *1
480/59.94i *1
720/59.94P *2
720/59.94P *2
480/59.94i
1080/59.94i *2
c
--c
*2
---
---
---
---
---
1080/24PsF
---
---
---
---
---
1080/25PsF
---
---
---
---
---
720/59.94P
59.94
DVCPRO HD
720/50P
50
720/29.97P over 59.94P
*6
29.97
720/59.94P
1080/59.94i
1080/59.94i
480/59.94i
480/59.94i
720/50P
720/50P
1080/50i
1080/50i
576/50i
576/50i
720/59.94P *1
720/59.94P *1
1080/29.97PsF
1080/59.94i *1
480/59.94i *1
480/59.94i *1
720/59.94P
c
720/50P
c
---
---
720/23.98P over 59.94P *6
59-23
1080/23.98PsF
---
---
---
720/24P over 60P *6
60-24
1080/24PsF
---
---
---
---
---
---
---
480/59.94i
c
480/59.94i *1
c
720/50P
720/25P over 50P *7
25
720/25P over 60P
*6
480/59.94i
480/29.97P over 59.94i
60-25
59.94
59.94
*1
720/50P
*1
576/50i *1
720/50P *1
720/50P *1
1080/25PsF
1080/50i *1
576/50i *1
576/50i *1
480/59.94i
480/59.94i
1080/59.94i
1080/59.94i
720/59.94P
720/59.94P
480/59.94i *1
480/59.94i *1
1080/29.97PsF
1080/59.94i *1
720/59.94P
*1
720/59.94P
1080/23.98PsF *3
480/23.98P over 59.94i
59.94
576/25P over 50i
50
50
*1
---
---
480/59.94i *2
480/59.94i *2
1080/59.94i *2
1080/59.94i *2
*2
*2
720/59.94P
576/50i
*1
1080/50i *1
1080/25PsF
576/50i
720/59.94P
576/50i
576/50i
1080/50i
1080/50i
720/50P
720/50P
576/50i *1
576/50i *1
1080/25PsF
1080/50i *1
720/50P *1
720/50P *1
*1: 2:2 pull-down
*2: 2:3 pull-down
*3: Playback only when “2:23.98” or “5: 59-23” is selected in system menu No. 25 SYSTEM FREQ.
*4: Select SDI output in setup menu No. 643 OUT MODE SEL. SDI output alternates with analog output.
*5: AJ-HPX2000/2100/3000 HD-SDI (1080/23.98P over 59.94i) output
*6: AJ-HDC27 series HD-SDI (variable frame-rate signal) output
*7: AJ-HPX2000/2100 HD-SDI (720/25P over 50P) output
148
output
1080/23.98PsF
720/59.94P
DVCPRO 50DVCPRO DV
---
1080/59.94i *2
480/59.94i
1080/59.94i *1
---
1080/59.94i *2
*2
Time code
*1
1080/29.97PsF
1080/23.98PsF *3
IEEE1394 output
Setup: List of Compatible Input and Output Formats
---
480/59.94i *2
c
576/50i
c
576/50i *1
c
Audio V Fade Function
This section describes the differences between audio processing provided by setup menu No. 731 (PB FADE) settings. Setup
menu No. 731 (PB FADE) settings make it possible to perform audio V fade or cut processing between clips and events during
clip selection and playback or play list playback.
Described below are examples that illustrate the differences in processing.
These examples involve a clip that spans multiple P2 cards and a second clip generated by edit copy.
•
A clip that spans multiple P2 cards or a clip that has
Setup
been automatically divided and recorded on an 8 GB
P2 card
Clip 1-1
Clip 1-2
Clip 1
•
A clip created using the edit copy function on an
AJ-SPD850
Event A
Event B
Clip 2
Settings in setup menu No.731 allow you to play back the
above two clips and do the following.
•
When CUT is selected
Clip 1-2
Clip 1-1
Event A
Clip 1
Event B
Clip 2
Noise appears at the edit points.
•
When AUTO is selected
Clip 1-1
Clip 1-2
Event A
Clip 1
Event B
Clip 2
V fade is performed instantaneously to remove noise.
V fade processing is performed automatically between clips
and events.
The following items are not V fade processed.
• Clips that span multiple P2 cards
• Clips that have been automatically divided when using 8 GB
or larger P2 cards
• 1394 digital output signals are not fade processed.
Setup: Audio V Fade Function
149
Audio Recording Channels Selection
Audio Recording Channels
Depending on setup menu 725 - 728 (REC CH1 to 4) settings,
the INPUT SELECT button on the front panel allows you to
select the following input signals. When 1394 is selected, the
input signal is recorded in its original form regardless of
setting.
Analog input
Recorded track
Recorded signal
CH1
CH1 input/CH2 input/CH1 + CH2 inputs
CH2
CH1 input/CH2 input/CH1 + CH2 inputs
CH3
CH3 input/CH4 input/CH3 + CH4 inputs
CH4
CH3 input/CH4 input/CH3 + CH4 inputs
CH5
No
CH6
No
CH7
No
CH8
No
SDI input
150
Recorded track
Recorded signal
CH1
CH1 input/CH2 input/CH1 + CH2 inputs
CH2
CH1 input/CH2 input/CH1 + CH2 inputs
CH3
CH3 input/CH4 input/CH3 + CH4 inputs
CH4
CH3 input/CH4 input/CH3 + CH4 inputs
CH5
No (SD)/CH5 (HD)
CH6
No (SD)/CH6 (HD)
CH7
No (SD)/CH7 (HD)
CH8
No (SD)/CH8 (HD)
Setup: Audio Recording Channels Selection
For Long and Trouble-Free Operation
Condensation
Condensation occurs due to the same principle involved when droplets of water form on a window pane of a heated room. It
occurs when this unit or a card is moved between places where the temperature or humidity varies greatly or when, for instance:
• It is moved to a very humid place full of steam or a room immediately after it has been heated up.
• It is suddenly moved from a cold location to a hot or humid location.
• When moving the unit to locations such as these, leave it standing for about 10 minutes rather than switching on the power
immediately.
Maintenance
• Use a soft cloth to clean the outside of this unit.
• For stubborn dirt or stains, wipe the unit with a cloth that has been lightly dampened in well-diluted kitchen detergent and
wrung out thoroughly. After wiping off the dirt with the damp cloth, finish it off with a dry cloth.
◆ NOTE:
• Do not use alcohol, benzene, thinner or any other solvents as they
may discolor or damage the coating of the unit.
For Long and Trouble-Free Operation: Condensation
For Long and Trouble-Free Operation
• Before starting any maintenance work, switch the power to off and, holding the plug, unplug the cord from the socket.
151
Error Messages
When a warning occurs in this unit, the error number is
indicated on the counter display. Open the DIAG menu to
view a description of the error on the counter display or a LCD
monitor. When an operational malfunction occurs in the unit,
an error number will flash on the counter display.
Superimposed display
DIAG menu
This menu shows deck information. Deck information includes
“WARNING” information, serial No., “HOURS METER” (usage
time) information and “UMID” (Unique Material Identifier)
information. A DIAG menu appears on the display monitor
when the LCD monitor is connected to the ANALOG
COMPOSITE MONITOR OUT connector on the LCD monitor
and rear panel of the unit.
Normal screen
Opening the DIAG menu
Front
display
Shows video system information
DIF data indication 2
2
Warning information display
1,3
DIF data indication 1
1 Press the DIAG button (hold down the SHIFT button
and press the MENU button).
The DIAG menu appears on the monitor screen and the
message appears on the counter display.
2 Press the SET button or the right or left cursor button.
Each press of the button changes the display between
UMID information display
Hours meter information display
“WARNING”, “HOURS METER” and “UMID INFO”, etc.
3 Press the DIAG button.
Press DIAG button(SHIFT+MENU)
Press the SET button or the right cursor button
Press the left cursor button
152
For Long and Trouble-Free Operation: Error Messages
You return to the original display.
WARNING information display
• A warning message is displayed whenever a warning occurs.
When no warnings have been detected, “NO WARNING” is displayed.
• When multiple warnings occur, turn the search dial to check the descriptions of each warning.
If “T&S&M” is selected in setup menu No. 006 (DISPLAY SEL), a message appears in the mode display whenever a warning
or error occurs.
Monitor display
Description
Deck operation
Counter display
Displayed when audio voice-over cannot be recorded on a P2 card.
CANNOT A.DUB
[Meaning]
• An attempt was made to record on a card that could not be used.
STOP
CANTADUB
STOP
CANTADUB
STOP
CANTADUB
STOP
CANTADUB
STOP
CANTADUB
STOP
CANT REC
STOP
CANTLREC
STOP
CANTPLAY
• An attempt was made to record when no card was inserted
PLEASE SAVE
Displayed when A. DUB is started without saving the play list.
PLAYLIST
WRITE
Appears when a voice-over recording is attempted on a write-protected P2 card.
PROTECTED
LACK OF REC
Appears when a voice-over recording is attempted on a P2 card without enough
capacity.
MAX A.DUB
Appears when a voice-over recording is attempted on a P2 card where the
EVENTS
number of voice-over audio recordings has already reached the upper limit.
Displayed when data cannot be recorded on a P2 card.
[Meaning]
• An attempt was made to record to a write protected disk.
• An attempt was made to record data on a card with no more free memory space
CANNOT REC
on it.
• An attempt was made to record on a card with no free space available.
• Card status changed during recording.
• Recording was attempted when the unit was BUSY.
• VFR recording started but no active frame data was input.
Appears in LOOP REC mode when P2 card recording is not available.
For Long and Trouble-Free Operation
CAP.
[Meaning]
CANNOT LOOP
REC
• An attempt was made to record to a write protected disk.
• An attempt was made to record on a card with no free space available.
• An attempt was made to record on a card that could not be used.
• Card status changed during recording.
• Recording was attempted when the unit was BUSY.
Displayed when playback was interrupted due to a clip error or other factor.
[Meaning]
CANNOT PLAY
• An attempt was made to play a clip when no clips were present.
• An attempt was made to play back a card that cannot be used
• The card could not be played back or playback stopped for some other reason
• Playback was attempted when the unit was BUSY.
CANNOT ENTRY
CHECK A.SPLIT
POINT
OVER DUR TIME
CHECK
Displayed when an attempt was made to register an IN, OUT or SPLIT point in a
Operation
location where such points cannot be registered.
continues
Displayed when an audio split setting prevents the registration of an IN, OUT and Operation
SPLIT points.
continues
Displayed when an attempt was made to register a duration exceeding 24 hours. Operation
continues
Recorder range not large enough for registered player IN and OUT points.
RECORDER
continues
RANGE
CHECK PLAYER
Player range not large enough for registered recorder IN and OUT points.
RANGE
MAX EVENTS
Operation
Operation
continues
The number of events that can be registered on the play list has been reached.
Operation
continues
CANT ENT
CANT ENT
CANT ENT
CANT ENT
CANT ENT
CANT ENT
For Long and Trouble-Free Operation: Error Messages
153
Monitor display
INVALID
Description
Deck operation
Appears when there are already 100 text memos and no more memos can be
Operation
added.
continues
Counter display
INVALID
Displayed while clip information is being read or when clip configuration has
changed. No operations can be performed while this display is on the screen.
[Meaning]
BUSY
Operation
• A card has been inserted or removed.
continues
• Updating is in progress
BUSY
• Recording post processing is in progress
• Other causes
Displayed for the first two seconds when the REC button is pressed to enter the
INT SG
EE mode and the INPUT SELECT VIDEO button or the INPUT SELECT AUDIO
button is set to SG.
Displayed for the first two seconds when the REC button is pressed to enter the
NO INPUT
EE mode and the INPUT SELECT button is set to a connector with no output
except for analog audio signals.
Displayed for two seconds when a text memo is added.
TEXT MEMO
Operation
continues
Operation
continues
Operation
continues
MARK ON/OFF
Displayed for two seconds when a shot mark is added or deleted.
INT SG
NO INPUT
TEXT MEMO
Operation
MARK ON /
continues
MARK OFF
WARNING information
If “E- * * ” Iights in the monitor display, hold down the SHIFT button and press the MENU button to open the DIAG-MENU and
read the warning information.
Display
No
Character code
04
UNKNOWN SIG
10
FAN STOP
11
NOT 1× 25M SIG
12
NOT 1× 50M SIG
14
NO MATCH SIG
15
NOT 1× DV SIG
16
INVALID VIDEO SIG
17
INVALID AUDIO SIG
18
INVALID TC SIG
21
REC WARNING
Description
Displayed when a signal input from the 1394 interface is not a DVCPRO or DV format
Recording is
signal.
disabled
Displayed when the fan motor stops.
CARD
ERROR<******>
Displayed when a signal input from the 1394 interface is not a DVCPRO (25 Mbps) 1×
Recording is
normal speed transfer signal.
disabled
Displayed when a signal input from the 1394 interface is not a DVCPRO50 (50 Mbps) 1×
Recording is
normal speed transfer signal.
disabled
Displayed when signal input via the 1394 interface differs from the system format set on
Recording is
this unit.
disabled
Displayed when a signal input from the 1394 interface is not a DV (25 Mbps) 1× normal
Recording is
speed transfer signal.
disabled
Displayed when the compressed video data of a signal input from the 1394 interface is
Recording is
irregular.
disabled
Displayed when the audio data of a signal input from the 1394 interface is irregular.
Operation
continues *1
Displayed when the time code data of a signal input from the 1394 interface is irregular.
Operation
continues *2
Displayed when a video or audio error occurs during recording.
STOP
To continue operation, turn the power off and then back on again.
This error is displayed after recording ends and until the start of the next operation. This
error is not displayed during playback. (* indicates the slot number where the error
occurred.)
Replace the P2 card in the slot where the error occurred.
◆ NOTE:
*1 This warning appears only during recording. Then the audio is recorded mute.
*2 This warning appears only during recording. The internally generated time code is recorded.
154
Operation
continues
Displayed when data was corrupted due to a P2 card error during recording.
26
Deck operation
For Long and Trouble-Free Operation: Error Messages
STOP
Display
No
Character code
50
BATTERY EMPTY
DIR NG
70
CARD<******>
RUNDOWN
71
CARD<******>
90
91
92
NOT 1× 100M SIG
COPY PROTECTED
Description
Deck operation
Displayed when a drop in the backup battery voltage for the internal clock is detected at
Operation
power on. Replace the internal battery. *4
continues
Directory structure does not comply with the P2 card standard.(* indicates the slot
Operation
number where the error occurred.) Make a quick backup of card data and format the
continues
card.
The P2 card has been rewritten the maximum number of times.(* indicates the slot
Operation
number where the error occurred.) You are recommended to replace the card with a new continues
card.
Displayed when a signal input from the 1394 interface is not a DVCPRO HD (100 Mbps)
Recording is
1× normal speed transfer signal.
disabled
Displayed when DV format recording is available and the copy guard signal input via the
Recording is
1394 interface is in the copy inhibit mode.
disabled
1394 INITIAL ERROR Displayed when the 1394 interface connection is irregular.
Appears during playback when the time code has been recorded in drop frame mode.
*3
Operation
The video output is distorted and audio output is muted at the drop point of the time code. continues
Check the playback clip. Playing back a 24p frame-rate clip requires that the time code
93
INVALID TC MODE
be recorded in non-drop frame mode. Appears when the time code in an HD SDI input is
under these conditions. Check signal input to the unit. Set the input time code to non-drop
frame mode. (Appears when 23.98, 24, 59-23, 60-24 or 60-25 is set in setup menu No. 25
SYSTEM FREQ.)
Displayed while synchronizing recorded video frames to the time code of a signal input
95
Operation
INVALID EMBEDDED to the HD SDI connector when that time code is not advancing at 1× normal speed. (When continues
TC
“SLTC” is selected in setup menu No. 032 REC REF or 29.97, 59-23, 60-24, 25 or 60-25
is selected in setup menu No. 25 SYSTEM FREQ.)
Appears during playback when frame rate data in user bit cannot be detected or when
Operation
the playback time code is not continuous. The video output is distorted and audio output continues
is muted in sections where the time code is not continuous. Check the playback clip.
96
INVALID TC
Appears during EE or recording when frame rate data cannot be detected in the user bit
SEQUENCE
data in an HD SDI input or when the input time code is not continuous. Normal recording
will not be possible under these conditions. Check signal input to the unit. Input signals
For Long and Trouble-Free Operation
in the drop frame mode during EE or recording. Normal recording will not be possible
with a matching time code and pull-down sequence (Appears when 23.98, 24, 59-23, 6024 or 60-25 is set in setup menu No. 25 SYSTEM FREQ.)
97
NO ACTIVE FRAME
Appears when active frame data cannot be detected in the user bits in the HD SDI input
Recording is
during EE or recording. Normal recording will not be possible under these conditions.
disabled *5
Check signal input to the unit. The input signal must contain the active frame data from a
Operation
variable frame-rate camera. (Appears when 29.97, 59-23, 60-24 or 60-25 is set in menu
continues during
No. 25 SYSTEM FREQ and menu No. 040 VFR REC is set to ON.)
recording
Appears when active frame data detected from the user bit in the HD SDI input during EE Operation
98
INVALID FRAME
RATE
and recording exceeds 50p. Normal recording is not possible under these conditions.
continues
When SYSTEM FREQ is set to 60-25, set the frame rate on a variable frame-rate camera
to 50p or less. Appears when SYSTEM FREQ is set to 60-25 and VFR REC is set to ON.
◆ NOTE:
*3 This warning appears at any time. This error disables input to the digital video interface.
*4 “E-50” appears when the backup battery is depleted. Consult your supplier for information on a store that can provide you with a new battery
(CR2032 or the equivalent). Be sure to use setup menu No. 069 (CLOCK SET) to set the clock after battery replacement.
*5 An attempt to start recording causes the button to temporarily light. It goes out a few seconds later and no recording is made.
For Long and Trouble-Free Operation: Error Messages
155
The following warning messages appear when an incorrect operation is attempted in the thumbnail play list screen.
Item
Message
CANNOT ACCESS!
Description
Measure
Data cannot be accessed because it is corrupted Restore media and clips to normal state before
or for other reasons.
access.
WRITE PROTECTED! The P2 or SD memory card is write protected.
Insert write-enabled media.
CARD FULL!
Insert media with sufficient capacity.
The P2 or SD memory card is full.
NO CARD!
No P2 or SD memory card is inserted.
Insert compatible media.
CANNOT DELETE!
Contents version mismatch prevents deletion.
Match devices and contents version.
UNKNOWN
Warning displayed to indicate contents version
Match devices and contents version.
CONTENTS
mismatch.
FORMAT!
CANNOT FORMAT!
P2 card problem prevents formatting.
Check P2 card.
CANNOT REPAIR!
Selected content cannot be repaired.
Check selected content.
CANNOT
A clip that does not span multiple cannot be
Check selected content.
RE-CONNECT!
reconnected.
NO INPUT!
No data is input.
Set after making input.
INVALID VALUE!
Entered data was invalid.
Enter data in a valid range.
UNKNOWN DATA!
The metadata character code is invalid.
Use UTF-8 for the metadata character code. Use the
viewer to enter correct characters.
CANNOT REPAIR IN
Some of the selected clip could not be repaired.
SELECTION!
Thumbnails
NO SD CARD!
No SD memory card is inserted.
Insert an SD memory card.
NO COPY TO SAME
A clip cannot be copied to the card storing the
Copy the selected clip to a card that does not
CARD!
original clip.
contain the original clip.
SAME CLIP IS
The selected clips contain multiple copies of the
Multiple copies of the same clip (duplicated using
SELECTED!
same clip (duplicated using COPY).
COPY) cannot be simultaneously copied. Deselect
USER CLIP NAME
Characters in the clip name had to be deleted in
The user clip name plus the counter value can only
MODIFIED!
adding the counter value.
contain up to 100 bytes. Characters in the clip name
all identical copies from the selected clips.
are automatically deleted when the total exceeds
100 bytes.
TOO MANY CLIPS!
Too many clips are selected.
LACK OF REC
There is not enough recording capacity left on the Insert a card with sufficient recording capacity.
Reduce the number of selected clips.
CAPACITY!
card.
CANNOT CHANGE!
A thumbnail containing a grayed out text memo
Edit settings or content to enable thumbnail display.
that cannot be generated is not available for
editing.
NOT SELECTED!
An attempt was made to delete an unselected
Select the clip you want to delete.
clip.
MISSING CLIP!
All cards that contain the clip must be inserted to
allow attachment of markers.
156
For Long and Trouble-Free Operation: Error Messages
Insert all cards that contain the clip.
Item
Message
HDD CAPACITY
Description
Measure
Not enough space left on the hard disk.
There is not enough space on the connected hard
FULL!
TOO MANY
disk. Use a new hard disk or formatted hard disk.
There are too many partitions.
Hard disks can handle up to 23 partitions. Use a new
PARTITIONS!
HDD
hard disk or formatted hard disk.
The unit is not connected to a hard disk.
Reconnect the USB cable. If the hard disk does not
DISCONNECTED!
operate normally, turn it off and turn it back on again.
CANNOT FORMAT!
The hard disk cannot be initialized.
Connect another hard disk drive.
TOO MANY
Multiple devices are connected.
Disconnect devices, turn off the unit and turn it back
TARGETS!
UNKNOWN DEVICE
on again.
The connected DVD drive is not compatible.
CONNECTED!
CANNOT ACCESS
Disconnect devices, turn off the unit and turn it back
on again.
An error occurred during hard disk access.
Check hard disk status and connection.
CANNOT
The destination target cannot be properly
Reboot the hard disk or connect a different hard
RECOGNIZE HDD!
recognized.
disk.
CANNOT ACCESS
An error occurred during P2 card access.
Check P2 card.
MISMATCH
Copying cannot be made because the
Use a P2 card with appropriate capacity.
COMPONENT!
destination card is in the wrong format.
P2 CARD IS
The P2 card is not formatted.
Use a formatted P2 card.
The P2 selected for copying is empty.
Copying is not performed since the card is empty.
The compare check after copying failed.
Copy the data again.
PLEASE FORMAT P2
This warning indicates that data could not be
You cannot copy to a P2 card that contains data.
CARD!
imported from a hard disk to a P2 card because
Format the card on a P2 device and copy again.
TARGET!
HDD
CARD!
CARD IS EMPTY!
CANNOT COPY!
VERIFICATION
FAILED!
the P2 card contained recorded data.
CANNOT CHANGE!
On-screen
keyboard
An attempt was made to change PERSON when
First enter a text memo.
no text memo had been entered.
CANNOT SET!
The entered value is invalid.
Enter a valid value.
The specified file does not exist.
Use SAVE AS to save or insert a normally operating
For Long and Trouble-Free Operation
UNFORMATTED!
INVALID VALUE!
NO FILE!
card.
READ ONLY
The play list file is opened as read only because
Play lists created on the AJ-SPD850 can only be
PLAYLIST VERSION!
it is in a different version.
opened as read only files. To edit such files on this
unit save them out.
Play list
CANNOT FIND CLIP! Specified clip could not be found.
Insert the card with the clip.
INCLUDE MULTI
The files are not in the same format.
Play list files in different formats cannot be loaded.
READ ONLY 100
The play list file exceeds the upper limit on
The upper limit on events is 100 events. Files are
EVENTS!
events.
opened as read only.
FORMAT!
For Long and Trouble-Free Operation: Error Messages
157
Item
Message
DIFFERENT
Description
The play list contains files in different versions.
PLAYLIST VERSION!
INCLUDE ILLEGAL
Measure
Play list files in a different version cannot be
imported.
The play list contains illegal events.
Repair or delete as necessary.
EVENT!
WRITE PROTECTED! The specified card is write protected.
NO SPACE!
There is not enough space on the card.
ILLEGAL FILE!
The file selected for importing is in an unknown
Insert write-enabled media.
Use clips in a matching format.
format.
DIFFERENT
The play list being edited and the event and clip
FORMAT!
selected for importing are in a different edit
NUMBER OF FILE
The number of play list files has reached the
One card can store up to 999 play list files. Delete
LIMITATION!
upper limit.
files no longer needed or use a new card.
NUMBER OF EVENT
The number of events has reached the upper
The upper limit is 100 events. Operate within this
LIMITATION!
limit.
limit.
NUMBEER OF
The number of EXTRA audio events has reached
The upper limit for EXTRA audio events is 100
EXTRA EVENT
the upper limit.
events. Operate within this limit.
CANNOT OPERATE
This operation is not available in an EXTRA audio
An illegal operation was attempted in an EXTRA
AT A.DUB EVENT!
segment.
audio segment. Perform the operation elsewhere or
CANNOT OPERATE
Not allowed in a playback disable (marked red)
An illegal operation was attempted in a disabled
AT “RED” EVENT!
event.
event. Use a playback enable event or insert a card
Use clips in a matching edit format.
format (codec or frame rate).
LIMITATION!
first delete the EXTRA audio event.
Play list
with suitable clips.
DURATION
The selected process cannot be performed
Delete data to reduce the duration to less than 24
LIMITATION
because play list duration exceeds 24 hours.
hours to process.
DIFFERENT SYSTEM
Some files have a different system frequency.
Use only files with the same system frequency.
FREQUENCY!
NOT SELECTED!
No clip is selected.
Select the clip in the thumbnail screen.
INCLUDE
Some of the clips are abnormal.
Use normal clips only.
COLLAPSE CLIP!
CANNOT FIND SAME There are no clips in a matching edit format.
Use clips that match the edit format.
FORMAT!
NO CARD!
The specified card does not exist.
Insert the card before attempting to process it.
INCLUDE
There are clips with different aspect ratios.
Aspect ratios cannot be mixed. Use only clips with
DIFFERENT ASPECT
the same aspect ratio.
RATIO!
LACK OF REC
The card selected for edit copying does not have Insert a card with sufficient capacity.
CAPACITY!
enough capacity.
NOT AVAILABLE
Cannot edit data in the current format.
FORMAT!
CANNOT OPERATE
Install an AVC-Intra Codec board AJ-YBX200G to
enable editing of this format.
Recorded EXTRA audio cannot be edited.
Delete EXTRA audio or use another event.
DIFFERENT EXTRA
Play list files using channels that differ from the
Import play list files that use the same channels as
AUDIO CH!
current EXTRA audio cannot be imported.
the current EXTRA audio.
AT RECORDED
EXTRA AUDIO!
158
For Long and Trouble-Free Operation: Error Messages
Error information
Error
Description
No.
Message
E-30
TURN POWER OFF
E-37
COMM ERROR
E-38
SYSTEM ERROR
E-39
CONFIG ERROR
E-BA
BATTERY
Displayed when an error occurs in reading and writing card data.
Operation
STOP
To continue operation, turn the power off and then back on again.
Displayed when a system controller command was not complied to.
STOP
To continue operation, turn the power off and then back on again.
Displayed when the fan motor stops.
STOP
To continue operation, turn the power off and then back on again.
Appears when an optional AVC-Intra Codec board (AJ-YBX200G) cannot be
STOP
initialized. This may be caused by a board malfunction. Consult your supplier.
Appears when the input DC voltage is below the undercut voltage.
STOP
“HOURS METER” information display
Use the 4/5 buttons to move the cursor (*) and the item at the cursor appears on the counter display.
Item
Description
Counter display
Ser
********
H00
OPERATION
Displays the deck’s serial number.
Indicates the number of hours that the unit has been on.
0H~99999H
H30
POWER ON
Indicates the number of times the power has been turned on.
0T~99999T
◆ NOTE:
• The HOURS METER does not appear on the counter display when an error is indicated.
For Long and Trouble-Free Operation: Error Messages
For Long and Trouble-Free Operation
No.
159
List of Shortcuts
Thumbnail GUI
Shortcut keys
Name
Play list GUI
Description
Name
Description
Finalizes overwrite edited unfinalized
REC
---
---
FINALIZE/
event / Turns the overwrite edited
RECALL
event at the cursor position into
unfinalized status.
SHIFT+FF/UP
TOP
Moves to first thumbnail
TOP
Moves to first event
SHIFT+REW/DOWN
BOTTOM
Moves to last thumbnail
BOTTOM
Moves to last event
IN + GOTO
---
---
GOTO IN
OUT + GOTO
---
---
GOTO OUT
SHIFT+RESET
---
---
NEW
Locates the IN point of event at the
current location.
Locates the OUT point of event at the
current location.
Clears a new list
INPUT SELECT VIDEO
---
---
INPUT VIDEO
INPUT SELECT AUDIO
---
---
INPUT EXTRA
IN+ENTRY
---
---
R IN
Sets and releases overwrite to video
track
Sets and releases overwrite to
EXTRA audio
Registers the current playback
location as a recorder IN point for
overwrite editing
Registers the current playback
OUT+ENTRY
---
---
R OUT
location as a recorder OUT point for
overwrite editing
A DUB
---
---
COPY TO EXTRA
Plays back only the clip at the cursor
SHIFT+PLAY
1 CLIP PLAY
location (from the beginning to the
end of the clip).
SHIFT+ENTRY
SHIFT+IN
---
---
DISP.SLOT
CLIPS
DISP.ALL CLIP
SHIFT+INSERT
DELETE
SHIFT+SPLIT
CLIP PROPERTY
RESET
KB CLEAR
Plays back the event at current
PREVIEW/
location or 3 seconds prior to the
REVIEW
overwrite area to 1 second after the
area
CLIP➝EVENT
MULTI SELECT
CANCEL
each individual slot and selected clip
IN+OUT
IN+RESET
OUT+RESET
160
event.
IN TRIM
Selects trimming of R IN/P IN.
Changes thumbnail display to all clip
display.
OUT TRIM
Selects trimming of R OUT/P OUT.
Deletes all selected clips.
Shows properties of the clip at cursor
DELETE
Deletes all selected events.
location.
EVENT PROPERTY
Clears on-screen keyboard text.
Selects multiple thumbnails.
Releases selected item and interrupts
copying procedure.
IN/OUT CLEAR
MULTI SELECT
Name
---
Description
---
Shows properties of the event at
cursor location.
Clears on-screen keyboard text.
Clears P IN/OUT and R IN/OUT
points.
Selects multiple events.
Releases selected item and
CANCEL
Thumbnail off and playback from thumbnail
Shortcut keys
Imports the selected clip as an
Toggles between thumbnail display of
KB CLEAR
SHIFT+EXIT
location as EXTRA audio
display.
SHIFT+OUT
SHIFT+SET
Copies the audio of event at current
interrupts copying procedure.
Play list event/INSERT registration
Name
DURATION
Description
Shows duration between IN and
OUT points
IN POINT RESET Clears IN points
IN POINT RESET Clears IN points
OUT POINT
OUT POINT
RESET
Clears OUT points
For Long and Trouble-Free Operation: Error Messages
RESET
Clears OUT points
Thumbnail off and playback from thumbnail
Shortcut keys
Name
Play list event/INSERT registration
Description
Name
SPLIT POINT
SPLIT+RESET
---
IN+ENTRY
ENTRY IN POINT Registers CUEUP point to IN button
ENTRY IN POINT Registers event IN point
ENTRY OUT
ENTRY OUT
OUT+ENTRY
---
Description
Registers CUEUP point to OUT button
POINT
IN+GOTO
OUT+GOTO
RESET
POINT
CUEUP TO IN
Cues up to point for IN button
SEEK TO IN
POINT
registration
POINT
GUEUP TO OUT
Cues up to point for OUT button
SEEK TO OUT
POINT
registration
POINT
Clears SPLIT points
Registers event OUT point
Locates the IN point
Locates the OUT point
Thumbnail On/Off
Shortcut keys
Name
Description
SHIFT+ +
SLOT SELECT(+)
SHIFT+ –
SLOT SELECT(–)
direction.
Moves to recording slot in reverse
direction.
Name
Description
File name display
PAGE JUMP
Jumps/returns to page
Hard disk EXPLORE display
PARTITION
TRIM +/–
JUMP
Jump/return to partition
Play list display
TL ZOOM
Zoom in and zoom out the timeline
R IN/OUT, P IN/OUT trim selected
TRIM
Trims each registered point
For Long and Trouble-Free Operation
Shortcut keys
Moves to recording slot in forward
On-screen keyboard operation
Shortcut keys
Description
DELETE
BACKSPACE
GOTO
CAPS LOCK
ENTRY
OK
EXIT
EXIT
SHIFT+REW
Moves to beginning of text.
–
Moves 1 character to the left
+
Moves 1 character to the right
SHIFT+FF
Moves to end of text.
RESET
Deletes al text
For Long and Trouble-Free Operation: Error Messages
161
Updating the Firmware in This Unit
The firmware can be updated using either of the following two methods.
(1) Customers who have registered for our P2 HD 5-year warranty program
Such customers can access a special web site to check for updates and download required firmware. Further details on this
program are provided by web site listed below, which also handles customer registration.
http://panasonic.biz/sav/pass_e/
(2) Customers not registered for a P2 HD 5-year warranty program
Check firmware version of the unit in the [PROPERTY-SYSTEM INFO] in the thumbnail menu. Then access the site listed below
to check the most recent firmware information and download any firmware you require.
Download the update file to the unit by placing it on an SD memory card. For detailed information on the update procedure, visit
the below site.
http://eww.pavc.panasonic.co.jp/pro-av/
◆ NOTE:
• This unit uses only SD memory cards that comply with the SD or SDHC specifications.
Be sure to format SD memory cards on this unit. To format an SD card on a PC, use the following software that can be downloaded from the
site listed above.
162
For Long and Trouble-Free Operation: Updating the Firmware in This Unit
Handling P2 Card Recording
The P2 card is a semiconductor memory card designed for the DVCPRO P2 series, Panasonic’s line of professional video and
broadcast equipment.
■ Since the DVCPRO P2 format records data as files, it is
Drive: \
ideally suited for computer processing. Video and audio
CONTENTS
are recorded in the MXF file format while the metadata
(XML) is stored in the folders with the configuration shown
AUDIO
at right.
CLIP
ICON
If any of this data is changed or lost, it will not be
PROXY
recognized as P2 data or the P2 card may no longer be
VIDEO
possible to use in a P2 device.
VOICE
or write back PC data on a P2 card, use P2Viewer, which
can be downloaded from the Web site listed below.
(Supported operating systems: Windows 2000, Windows
LASTCLIP.TXT*
All these folders are required.
* This file contains the data for the last clip
XP, Windows Vista)
recorded on a P2 device.
https://eww.pavc.panasonic.co.jp/pro-av/
■ Follow the steps below to use general IT tools such as Microsoft Windows Explorer or Apple Finder to transfer the data to a
PC. Be sure to use P2 Viewer to write data back to a P2 card.
• Process the CONTENTS folder and the LASTCLIP.TXT file together.
Do not modify the data below the CONTENTS folder.
In copying, be sure to copy both the CONTENTS folder and the LASTCLIP.TXT file together.
For Long and Trouble-Free Operation
■ To prevent data loss in transferring P2 card data to a PC
• When transferring data from multiple P2 cards, create separate folders for each P2 card to prevent overwriting clips with
identical names.
• Do not delete data on a P2 card.
• Be sure to use a P2 device or the P2 Viewer to format P2 cards.
• Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or other countries.
• Apple and Macintosh are registered trademarks or trademarks of Apple, Inc. in the United States and/or other countries.
For Long and Trouble-Free Operation: Handling P2 Card Recording
163
Specifications
GENERAL
Recording times:
Power supply:
100-240 V AC, 50/60 Hz, 60 W
12 V DC, 4.8 A (full options)
Card
Number
model
of
Cards
indicates safety information.
Operating ambient temperature:
0 °C to 40 °C (32 °F to 104 °F)
Operating ambient humidity:
10 % to 80 % (no condensation)
Ambient storage temperature:
–20 °C to 50 °C (–4 °F to 122 °F)
Mass:
6.5 kg (14.33 lb)
Dimensions (W × H × D):
301 mm × 120 mm × 412 mm
(117/8 inches × 43/4 inches × 161/4 inches)
(not including the support legs)
Recording format: AVC-Intra100*/AVC-Intra50*/DVCPRO HD/
DVCPRO50/DVCPRO/DV selectable
Recording video signal:
1080/59.94i, 1080/23.98p*, 1080/24p*,
1080/29.97p*, 1080/25p*, 1080/50i, 720/
59.94p, 720/50p, 480/59.94i, 576/50i
Recording audio signal:
AVC-Intra100*/AVC-Intra50*/
DVCPRO HD: 48 kHz 16bits 8CH
DVCPRO50: 48 kHz 16bits 4CH
DVCPRO/DV: 48 kHz 16-bits 2/4 channels
selectable
* Assumes installation of an optional AVC-Intra Codec board AJYBX200G.
AJ-
1
P2C004
HG
6
AJ-
1
P2C008
HG
6
AJ-
1
P2C016
RG
6
AJ-
1
P2C032
RG
6
Recording format
DVCPRO
DVCPRO 50
DVCPRO HD
(2-channel
(4-channel
(8-channel
audio)
audio)
audio)
AVC-Intra50
AVC-Intra100
(8-channel
(8-channel
audio)*
audio)*
approx. 16
approx. 8
approx. 4
minutes
minutes
minutes
approx. 96
approx. 48
approx. 24
minutes
minutes
minutes
approx. 32
approx. 16
approx. 8
minutes
minutes
minutes
approx. 3 hour
approx. 96
approx. 48
12 minutes
minutes
minutes
approx. 64
approx. 32
approx. 16
minutes
minutes
minutes
approx. 6 hour
approx. 3 hour
approx. 96
24 minutes
12 minutes
minutes
approx. 2 hour 8 approx. 64
approx.32
minutes
minutes
minutes
approx. 12 hour
approx. 6 hour
approx. 3 hour
48 minutes
24 minutes
12 minutes
* Assumes installation of an optional AVC-Intra Codec board AJYBX200G.
◆ NOTE:
• All of the above times apply when single clips are recorded
continuously one after the other on the P2 card.
• Depending on the number of the clips to be recorded, the
recordable time may be shorter than the times given above.
Digital slow:
–1.0× to +1.0× speed*
* Excluded when setup menu No. 25 SYSTEM FREQ is set
to 23.98, 24, 59-23 or 60-24.
VIDEO
DIGITAL VIDEO
Sampling frequencies:
AVC-Intra100/AVC-Intra50/DVCPRO HD:
Y:
74.176 MHz
(1080/59.94i, 1080/23.98p, 1080/29.97p, 720/59.94p)
74.25 MHz (1080/24p, 1080/25p, 1080/50i, 720/50p)
164
Specifications
PB/PR: 37.088 MHz
(1080/59.94i, 1080/23.98p, 1080/29.97p, 720/59.94p)
37.125 MHz
(1080/24p, 1080/25p, 1080/50i, 720/50p)
DVCPRO50:
Y:
13.5 MHz
PB/PR: 6.75 MHz
DVCPRO:
Y:
13.5 MHz
PB/PR: 3.375 MHz
AVC-Intra100/AVC-Intra50: 10bits
DVCPRO HD/DVCPRO50/DVCPRO/DV: 8bits
Video compression method:
AVC-Intra100/AVC-Intra50: H.264/AVC-Intra
Profile
DVCPRO HD: DV base (SMPTE370M)
DVCPRO50/DVCPRO/DV:
DV base (SMPTE314M)
Bit rate:
AVC-Intra100/DVCPRO HD: 100Mbps
AVC-Intra50/DVCPRO50: 50 Mbps
DVCPRO: 25 Mbps
Quantizing:
VIDEO INPUT
Analog composite input:
BNC × 1 (VIDEO IN), 1.0 V[p-p] (75 Ω)
Reference input: Automatic switching of black burst/HD 3
value SYNC, BNC × 1 (loop through × 1),
automatic 75 Ω termination provided
SDI input:
BNC × 1, complies with SMPTE 292M/
296M/299M during HD SDI input, complies
with SMPTE 259M-C/272M-A, ITU-R BT.6564 during SD SDI input
VIDEO OUTPUT
Analog component (switchable):
BNC × 3 (Y, PB, PR)
Y: 1.0 V[p-p], 75 Ω during HD output mode
Analog composite output (switchable):
BNC × 3, video 1, video 2, video 3,
1.0 V[p-p], 75 Ω during SD output mode
HD SDI/SD SDI output (switchable):
BNC×1, complies with SMPTE 292M/296M/
299M during HD serial digital output, complies
with SMPTE 259M-C/272M-A, ITU-R BT.656-4
during SD serial digital output
Monitor output:
BNC × 1, 1.0 V[p-p], 75 Ω
VIDEO ADJUSTMENT RANGES
AUDIO
DIGITAL AUDIO
AUDIO OUTPUT
Sampling frequencies:
48 kHz (synchronous with video)
Quantizing:
16 bits
Frequency response:
20 Hz to 20 kHz ±1.0 dB
(at the reference level)
Dynamic range:
Better than 85 dB
(1 kHz emphasis off, “A” weighted)
Distortion:
Less than 0.1 %
(1 kHz, emphasis off, reference level)
Crosstalk:
Less than –80 dB
(1 kHz, between 2 channels)
Headroom:
18/20 dB selectable
De-emphasis:
T1 = 50 µs, T2 = 15 µs (auto on/off)
Analog output (CH1, CH2, CH3, CH4):
XLR × 4, low impedance,
+4/0/–3/–20 dBu selectable
SDI output:
BNC × 1, complies with SMPTE 292M/296M/
299M during HD SDI input, complies with
SMPTE 259M-C/272M-A (480/59.94i), ITU-R
BT.656-4 (576/50i) during SD SDI input
Monitor output:
Pin jacks × 2, –8 dBV, 600 Ω
Headphones:
Stereo mini jack (3.5 mm diameter), 8 Ω,
variable level
Specifications
Video output gain: Can be set to -∞ to +3 dB or -∞ to 6 dB
depending on menu
Video output chroma gain:
±3 dB
Video output HUE (chroma phase):
±30°
Video output setup level:
±14 IRE
Video output sync phase:
±15 µs
Video output SC phase:
±180°
AUDIO INPUT
Analog input (CH1, CH2, CH3, CH4):
XLR × 4, 600 Ω/high impedance selectable
(factory setting: high impedance)
+4/0/–3/–20 dBu selectable
Only CH2 input can be switched between
LINE/MIC/MIC +48 V
MIC:
–60 dBu
MIC+48V:
Phantom +48V supported, –60 dBu
SDI input:
BNC × 1, complies with SMPTE 292M/296M/
299M during HD SDI input, complies with
SMPTE 259M-C/272M-A (480/59.94i), ITU-R
BT.656-4 (576/50i) during SD SDI input
Specifications
165
Other input/output
Time code input: BNC × 1, 0.5 V[p-p] to 8.0 V[p-p], 10 kΩ
Time code output: BNC × 1, 2.0 V[p-p] ±0.5 V[p-p],
low impedance
RS-422A input/output:
D-sub 9pin, RS-422A interface
IEEE1394 input/output:
IEEE1394 6pin × 1
400/200/100 Mbps selectable
Complies with IEEE1394-1995
Complies with IEC61883-Part1,Part2
Complies with SMPTE 396M
AV/C Command Set supported
USB 2.0:
Host × 1, Device × 1
Inrush current, measured according to European standard
EN55103-1: 20.5 A
166
Specifications
Mass and dimensions are approximate values.
Specifications are subject to change without notice.
Menu index
Thumbnail menu
CHANGE PARTITION NAME ............................................. 108
THUMBNAIL ........................................................................ 45
CLIP PROPERTY................................................................ 109
ALL CLIP .......................................................................... 45
SAME FORMAT CLIPS ..................................................... 45
SELECTED CLIPS ............................................................ 45
Play list menu
FILE
MARKED CLIPS ............................................................... 45
NEW.................................................................................. 74
TEXT MEMO CLIPS .......................................................... 45
OPEN ................................................................................ 80
SLOT CLIPS ..................................................................... 45
APPEND ........................................................................... 77
SETUP .............................................................................. 46
SAVE................................................................................. 84
ALL HIDE ...................................................................... 46
SAVE AS ........................................................................... 78
MARKER IND. ............................................................... 46
DELETE ............................................................................ 85
TEXT MEMO.IND. ......................................................... 46
OPERATION
DELETE ALL EVENT ......................................................... 83
PROXY IND. .................................................................. 46
DELETE SELECTED EVENT ............................................. 83
DATA DISPLAY ............................................................. 46
APPEND SELECTED CLIP................................................ 75
DATE FORMAT ............................................................. 46
EDIT COPY ..................................................................... 102
THUMBNAIL SIZE......................................................... 46
CHANGE PLAYLIST NAME .............................................. 78
PLAYBACK RESUME.................................................... 46
THUMBNAIL INIT.......................................................... 46
EDIT AUDIO CH ............................................................... 75
PROPERTY
OPERATION ........................................................................ 52
EVENT PROPERTY ........................................................... 98
DELETE ............................................................................ 53
CARD STATUS ................................................................. 65
FORMAT................................................................... 63, 106
SETTING
REPAIR CLIP .................................................................... 54
REPLACE TC .................................................................. 100
RE-CONNECTION............................................................ 54
STOP MODE..................................................................... 73
COPY................................................................................ 52
AUDIO CH ........................................................................ 75
EXCH. THUMBNAIL ......................................................... 47
INSERT MODE.................................................................. 74
PROPERTY
CLIP PROPERTY .............................................................. 55
Menu index
WIDE IND...................................................................... 46
INPUT TRACK .................................................................. 87
AUTO ENTRY ................................................................... 86
CARD STATUS ................................................................. 65
DEVICES ........................................................................ 111
PROPERTY SETUP........................................................... 64
META DATA
LOAD................................................................................ 60
RECORD .......................................................................... 61
USER CLIP NAME ............................................................ 58
INITIALIZE ........................................................................ 61
PROPERTY ....................................................................... 60
HDD
EXPORT.......................................................................... 107
EXPLORE ....................................................................... 108
SETUP ............................................................................ 107
Hard disk drive menu
THUMBNAIL ........................................................................ 45
IMPORT ............................................................................. 110
FORMAT (HDD) ................................................................. 106
Menu index
167
Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)
This symbol on the products and/or accompanying documents means that used electrical and electronic products
should not be mixed with general household waste.
For proper treatment, recovery and recycling, please take these products to designated collection points, where they
will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to
your local retailer upon the purchase of an equivalent new product.
Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on
human health and the environment which could otherwise arise from inappropriate waste handling. Please contact
your local authority for further details of your nearest designated collection point.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.
Panasonic Broadcast & Television Systems Company
Unit Company of Panasonic Corporation of North America
Executive Office:
One Panasonic Way 4E-7, Secaucus, NJ 07094 (201) 348-7000
EASTERN ZONE:
One Panasonic Way 4E-7, Secaucus, NJ 07094 (201) 348-7196
Southeast Region: (201) 348-7162
WESTERN ZONE:
3330 Cahuenga Blvd W., Los Angeles, CA 90068 (323) 436-3500
Government Marketing Department:
One Panasonic Way 2E-10, Secaucus, NJ 07094 (201) 348-7587
Broadcast PARTS INFORMATION & ORDERING:
9:00 a.m. - 5:00 p.m. (EST) (800) 334-4881/24 Hr. Fax (800) 334-4880
Emergency after hour parts orders (800) 334-4881
TECHNICAL SUPPORT:
Emergency 24 Hour Service (800) 222-0741
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3 (905) 624-5010
Panasonic de Mexico S.A. de C.V.
Av angel Urraza Num. 1209 Col. de Valle 03100 Mexico, D.F. (52) 1 951 2127
Panasonic Puerto Rico Inc.
San Gabriel Industrial Park, 65th Infantry Ave., Km. 9.5, Carolina, Puerto Rico 00630 (787) 750-4300
Professional & Broadcast IT Systems Business Unit Europe
Panasonic AVC Systems Europe a Division of Panasonic Marketing Europe GmbH
Hagenauer Str. 43, 65203 Wiesbaden-Biebrich Deutschland Tel: 49-611-235-481
© 2007 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.
PE
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
