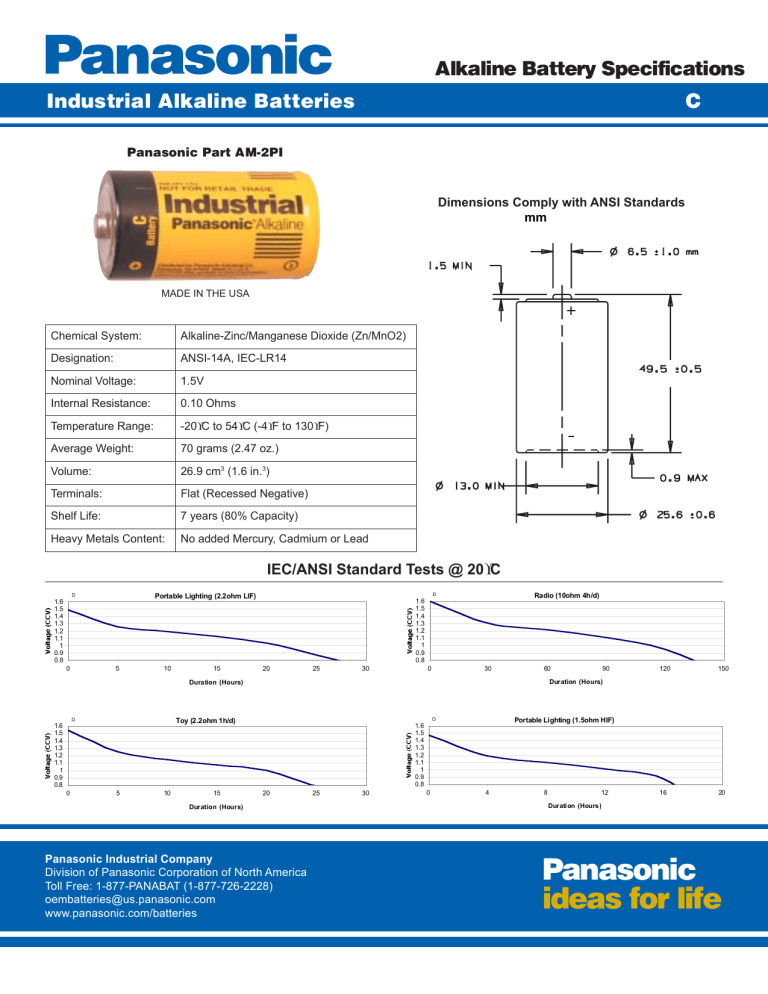

Alkaline Battery Specifications
Industrial Alkaline Batteries
C
Panasonic Part AM-2PI
Dimensions Comply with ANSI Standards
mm (inches)
MADE IN THE USA
Chemical System:
Alkaline-Zinc/Manganese Dioxide (Zn/MnO2)
Designation:
ANSI-14A, IEC-LR14
Nominal Voltage:
1.5V
Internal Resistance:
0.10 Ohms
Temperature Range:
-20°C to 54°C (-4°F to 130°F)
Average Weight:
70 grams (2.47 oz.)
Volume:
26.9 cm3 (1.6 in.3)
Terminals:
Flat (Recessed Negative)
Shelf Life:
7 years (80% Capacity)
Heavy Metals Content:
No added Mercury, Cadmium or Lead
IEC/ANSI Standard Tests @ 20°C
D
0
D
Portable Lighting (2.2ohm LIF)
1.6
1.5
1.4
1.3
1.2
1.1
1
0.9
0.8
5
10
15
Radio (10ohm 4h/d)
1.6
1.5
1.4
1.3
1.2
1.1
1
0.9
0.8
20
25
30
0
30
60
D
0
D
Toy (2.2ohm 1h/d)
1.6
1.5
1.4
1.3
1.2
1.1
1
0.9
0.8
5
10
15
90
120
150
16
20
Duration (Hours)
Duration (Hours)
Portable Lighting (1.5ohm HIF)
1.6
1.5
1.4
1.3
1.2
1.1
1
0.9
0.8
20
Duration (Hours)
Panasonic Industrial Company
Division of Panasonic Corporation of North America
Toll Free: 1-877-PANABAT (1-877-726-2228)
[email protected]
www.panasonic.com/batteries
25
30
0
4
8
12
Duration (Hours)
Panasonic
ideas for life
Alkaline Battery Specifications
C
C
C
C
This information is generally typical and is not intended to make or imply any representation, guarantee or warranty with respect to any cells and batteries. Cell and
battery designs/specifications are subject to modification without notice. Cell/battery performance and service life depends on the operating temperature, cut-off voltage
and load applied to cell/battery in a specific application. It is the responsibility of each user to ensure that each cell/battery application is adequately designed safe and
compatible with all conditions encountered during use and in conformance with existing standards and requirements. Contact Panasonic for the latest information.
Panasonic
ideas for life
© Panasonic Industrial Company, 2005
Form: PIC-C
Print Date: 9/2005
