Page 1
Thursday, December 20, 2012
11:34 AM

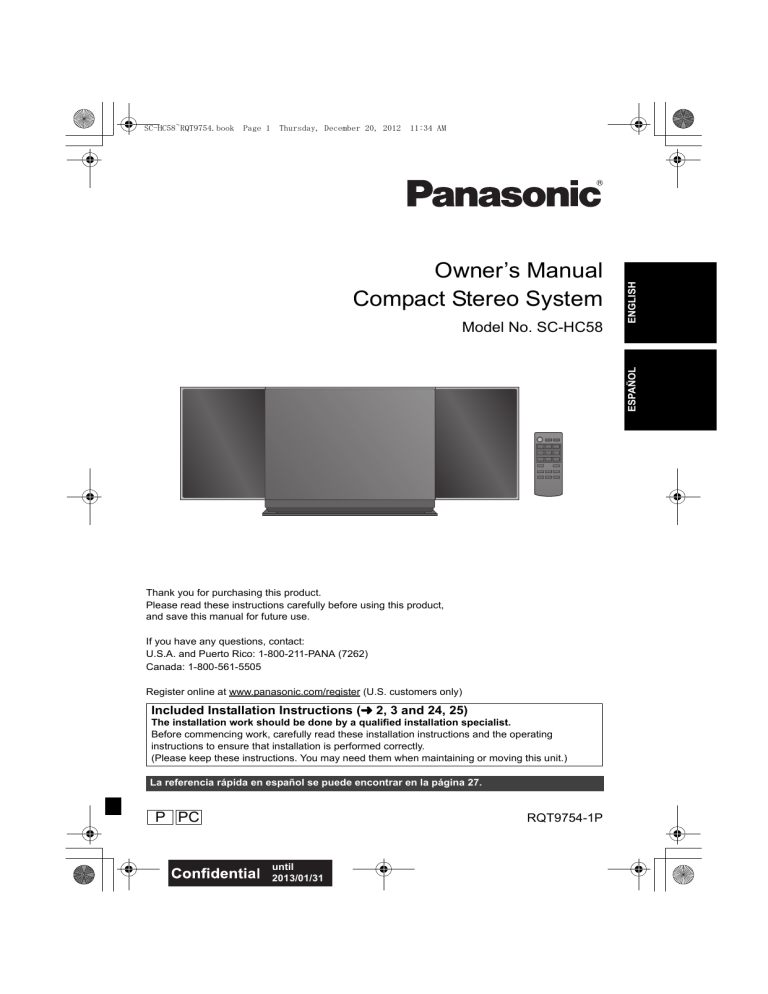

Owner’s Manual
Compact Stereo System
ESPAÑOL
Model No. SC-HC58
ENGLISH
SC-HC58~RQT9754.book
Thank you for purchasing this product.
Please read these instructions carefully before using this product,
and save this manual for future use.
If you have any questions, contact:
U.S.A. and Puerto Rico: 1-800-211-PANA (7262)
Canada: 1-800-561-5505
Register online at www.panasonic.com/register (U.S. customers only)
Included Installation Instructions (l 2, 3 and 24, 25)
The installation work should be done by a qualified installation specialist.
Before commencing work, carefully read these installation instructions and the operating
instructions to ensure that installation is performed correctly.
(Please keep these instructions. You may need them when maintaining or moving this unit.)
La referencia rápida en español se puede encontrar en la página 27.
P PC
RQT9754-1P
until
2013/01/31
SC-HC58~RQT9754.book
Page 2
Tuesday, December 18, 2012
4:40 PM
IMPORTANT SAFETY INSTRUCTIONS
Read these operating instructions carefully before using the
unit. Follow the safety instructions on the unit and the
applicable safety instructions listed below. Keep these
operating instructions handy for future reference.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding-type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
Only use attachments/accessories specified by the
manufacturer.
Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from
tip-over.
Unplug this apparatus during lightning storms or when
unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
-If you see this symbolInformation on Disposal in other Countries
outside the European Union
This symbol is only valid in the
European Union.
If you wish to discard this
product, please contact your local
authorities or dealer and ask for
the correct method of disposal.
2
RQT9754
WARNING
Unit
≥ To reduce the risk of fire, electric shock or product damage,
– Do not expose this unit to rain, moisture, dripping or
splashing.
– Do not place objects filled with liquids, such as vases, on
this unit.
– Use only the recommended accessories.
– Do not remove covers.
– Do not repair this unit by yourself. Refer servicing to
qualified service personnel.
AC power supply cord
≥ The power plug is the disconnecting device.
Install this unit so that the power plug can be unplugged from
the socket outlet immediately.
Button-type battery (Lithium battery)
≥ Risk of fire, explosion and burns. Do not disassemble, heat
above 60 oC (140 oF) or incinerate.
DO NOT INGEST BATTERY,
CHEMICAL BURN HAZARD
This product contains a coin/button cell battery. If the
coin/button cell battery is swallowed, it can cause
severe internal burns in just 2 hours and can lead to
death. Keep new and used batteries away from
children. If the battery compartment does not close
securely, stop using the product and keep it away from
children. If you think batteries might have been
swallowed or placed inside any part of the body, seek
immediate medical attention.
If any electrolyte should come into contact with your
hands or clothes, wash it off thoroughly with water.
If any electrolyte should come into contact with your
eyes, never rub the eyes. Rinse eyes thoroughly with
water, and then consult a doctor.
<For USA-California only>
This product contains a CR Coin Cell Lithium Battery
which contains Perchlorate Material s special handling
may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Except for Canada
(Inside of product)
Page 3
Tuesday, December 18, 2012
CAUTION
Unit
≥ This unit utilizes a laser. Use of controls or adjustments or
performance of procedures other than those specified herein
may result in hazardous radiation exposure.
≥ Do not place sources of naked flames, such as lighted
candles, on this unit.
4:40 PM
About Bluetooth®
Panasonic bears no responsibility for data
and/or information that is compromised
during a wireless transmission.
∫ Frequency band used
Placement
This unit uses the 2.4 GHz frequency band.
≥ To reduce the risk of fire, electric shock or product damage,
– Do not install or place this unit in a bookcase, built-in
cabinet or in another confined space. Ensure this unit is
well ventilated.
– Do not obstruct this unit’s ventilation openings with
newspapers, tablecloths, curtains, and similar items.
∫ Certification of this device
Button-type battery (Lithium battery)
≥ Danger of explosion if battery is incorrectly replaced.
Replace only with the type recommended by the
manufacturer.
≥ Keep out of reach of children.
≥ Insert with poles aligned.
≥ Mishandling of batteries can cause electrolyte leakage and
may cause a fire.
– Remove batteries if you do not intend to use the remote
control for a long period of time. Store in a cool, dark
place.
– Do not heat or expose to flame.
– Do not leave the battery(ies) in a car exposed to direct
sunlight for a long period of time with doors and windows
closed.
– Do not touch the terminals (i and j) with metal objects.
– Do not recharge, disassemble, remodel, heat or throw into
fire.
≥ When disposing the batteries, please contact your local
authorities or dealer and ask for the correct method of
disposal.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
≥ This system conforms to frequency restrictions and has
received certification based on frequency laws. Thus, a
wireless permit is not necessary.
≥ The actions below are punishable by law in some
countries:
j Taking apart or modifying the unit.
j Removing specification indications.
ENGLISH
SC-HC58~RQT9754.book
∫ Restrictions of use
≥ Wireless transmission and/or usage with all Bluetooth®
equipped devices is not guaranteed.
≥ All devices must conform to standards set by Bluetooth
SIG, Inc.
≥ Depending on the specifications and settings of a
device, it can fail to connect or some operations can be
different.
≥ This system supports Bluetooth® security features. But
depending on the operating environment and/or settings,
this security is possibly not sufficient. Transmit data
wirelessly to this system with caution.
≥ This system cannot transmit data to a Bluetooth® device.
∫ Range of use
Use this device at a maximum range of 10 m (33 ft).
The range can decrease depending on the environment,
obstacles or interference.
∫ Interference from other devices
≥ This unit may not function properly and troubles such as
noise and sound jumps may arise due to radio wave
interference if this unit is located too close to other
Bluetooth® devices or the devices that use the 2.4 GHz
band.
≥ This unit may not function properly if radio waves from a
nearby broadcasting station, etc. is too strong.
∫ Intended usage
≥ This unit is for normal, general use only.
≥ Do not use this system near an equipment or in an
environment that is sensitive to radio frequency
interference (example: airports, hospitals, laboratories,
etc).
Product Identification Marking is located on the bottom
of the unit.
3
RQT9754
SC-HC58~RQT9754.book
Page 4
Tuesday, December 18, 2012
4:40 PM
Table of contents
Accessories
IMPORTANT SAFETY INSTRUCTIONS ... 2
About Bluetooth® ..................................... 3
Accessories .............................................. 4
Control reference guide........................... 5
Connections ............................................. 6
Unit and media care ................................. 6
Inserting media......................................... 7
Network settings ...................................... 8
Using AirPlay with
this unit’s speakers ............................. 11
Bluetooth® operations ........................... 13
Media playback operations ................... 14
Listening to the radio............................. 15
Sound adjustment.................................. 16
Clock and Timer ..................................... 16
Others...................................................... 17
Troubleshooting ..................................... 19
Specifications......................................... 22
Playable media ....................................... 23
Attaching the unit to a wall
(optional) .............................................. 24
Licenses.................................................. 26
Spanish Quick Reference /
Referencia rápida en español ............ 27
Limited Warranty (ONLY FOR
U.S.A. AND PUERTO RICO)................ 30
Limited Warranty
(ONLY FOR CANADA) ......................... 31
Check the supplied accessories before using this unit.
About descriptions in this Owner’s Manual
≥ Pages to be referred to are indicated as “l ±±”
≥ Unless otherwise indicated, operations are
described using the remote control.
4
RQT9754
∏ 1 Remote control (with a battery)
(N2QAYC000082)
∏ 1 AC power supply cord
(K2CB2CB00022)
∏ 1 FM indoor antenna
(RSAX0002)
Wall mounting accessories
∏ 1 Safety holder
(RGQ0660-K)
∏ 2 Wall mount brackets
(RMQX1082-S)
∏ 1 Screw
(XTB3i8JFJK)
(ONLY FOR CANADA)
The enclosed Canadian French label sheet corresponds to
the English display on the top of the unit.
≥ Do not use AC power supply cord with other equipment.
≥ Product numbers provided in this Owner’s Manual are
correct as of December 2012. These may be subject to
change.
SC-HC58~RQT9754.book
Page 5
Tuesday, December 18, 2012
4:40 PM
Control reference guide
1 Standby/on switch [Í/I] (Í)
Press to switch the unit from on to standby mode or
vice versa.
In standby mode, the unit is still consuming a small
amount of power.
CD/
2 Select the audio source
RADIO
On the remote control
ENGLISH
[iPod] : “IPOD_DOCK” ,. “IPOD_PORT”
[CD/RADIO] : “CD” ,. “FM”
[ ] : “BLUETOOTH”
On this unit:
“CD” -. “FM” -. “BLUETOOTH” -. “IPOD_DOCK”
^------------------- “IPOD_PORT” (-------------------b
3 Basic playback control buttons
4 Enter setup menu
5 Enter the iPod/iPhone menu /
Change displayed information
6 Open or close the sliding door
7 Adjust the volume (0 (min) to 50 (max))
8 Mute the sound
Top view
12 13
Mutes the sound. Press again to cancel.
“MUTE” is also canceled when the volume is adjusted
or the unit is turned off.
9
10
11
12
13
Enter playback menu
Enter sound menu
Selection/OK
“IPOD_PORT” for iPod/iPhone/iPad (l 7)
Headphone jack
iPad
SELECTOR
1 6
Plug type: ‰3.5 mm (1/8q) stereo
Recommended plug type: Straight Plug
≥ Listening at full volume for long periods may
damage the user’s ears.
≥ Excessive sound pressure from earphones and
headphones can cause hearing loss.
14
15
16
17
18
19
2
3
7 6 14
15
16
Network setting button (l 8)
Power on indicator
Wi-Fi® status indicator
Display
Sliding door
Remote control signal sensor
19
Distance:
Within approx. 7 m (23 ft) directly in front.
≥ To avoid interference, please do not put any objects
in front of signal sensor.
17 18
∫ Before using for the first time
∫ To replace a button-type battery
Remove the insulation sheet A.
Battery type: CR2025 (Lithium battery)


≥ Set the button-type battery with its (i) mark facing upward.
≥ Keep the button-type battery out of reach of children to prevent swallowing.

5
RQT9754
SC-HC58~RQT9754.book
Page 6
Tuesday, December 18, 2012
4:40 PM
Connections
1
Adhesive tape
(not supplied)
FM indoor antenna
(supplied)
ョヮチモワヵ
ヘブ„
モヤチリワ 」
2
Connect the AC power supply cord after all other connections are completed.
This unit consumes a small amount of AC power (l 22) even when turned off.
≥ In the interest of power conservation, if you will not be using this unit for an extended
period of time, unplug it from the household AC outlet.
To a household AC outlet
AC Power supply cord (supplied)
≥ These speakers do not have magnetic shielding. Do not place them near a television, personal computer or other
devices easily influenced by magnetism.
≥ Tape the antenna to a wall or column in a position with the least amount of interference.
(Use an FM outdoor antenna if radio reception is poor.)
Unit and media care
Pull out the AC power plug from the outlet before
maintenance.
∫ Clean this unit with a soft, dry cloth
≥ When dirt is heavy, wring a cloth moistened in water
tightly to wipe the dirt, and then wipe it with a dry cloth.
≥ When cleaning the speaker covers, use a fine cloth.
Do not use tissues or other materials (towels, etc.) that
can fall apart. Small grains may get stuck inside the
speaker cover.
≥ Never use alcohol, paint thinner or benzine to clean this
unit.
≥ Before using chemically treated cloth, carefully read the
instructions that came with the cloth.
∫ Maintenance of the lens
≥ Clean the lens regularly to prevent malfunctions. Use
a blower to remove dust and a cotton swab if it is
extremely dirty.
≥ You cannot use a CD type lens cleaner.
≥ Do not leave the sliding door open for prolonged
periods of time. This will cause the lens to get dirty.
≥ Be careful not to touch the lens with your fingers.
Lens
6
RQT9754
∫ Clean discs
DO
DO NOT
Wipe with a damp cloth and then wipe dry.
∫ Disc handling precautions
≥ Handle discs by the edges to avoid inadvertent
scratches or fingerprints on the disc.
≥ Do not attach labels or stickers to discs.
≥ Do not use record cleaning sprays, benzine, thinner,
static electricity prevention liquids or any other solvent.
≥ Do not use the following discs:
– Discs with exposed adhesive from removed stickers or
labels (rented discs etc.).
– Discs that are badly warped or cracked.
– Irregularly shaped discs, such as heart shapes.
∫ To dispose or transfer this unit
The unit may keep the user settings information in the unit.
If you discard this unit either by disposal or transfer, then
follow the procedure to return all the settings to the factory
presets to delete the user settings. (l 19, “To return all
settings to the factory preset”)
≥ The operation history may be recorded in the memory of
this unit.
SC-HC58~RQT9754.book
Page 7
Tuesday, December 18, 2012
4:40 PM
Inserting media
Select “IPOD_PORT” as the source
Select “CD” as the source
4
ENGLISH
Connect using the dedicated
USB cable (not supplied) *1, 2
iPad
Select “IPOD_DOCK” as the source
Connect using the Lightning connector *1
3
*1: Refer to “Playable media” for compatible models.
(l 23)
*2: When using the “IPOD_PORT” connection, do not
connect the following models to this unit:
– iPod classic, iPod [4th (color display), and
5th (video) generation]
Unexpected behavior may occur.
*3: When using the “IPOD_DOCK” connection:
≥ Be sure to remove the iPod/iPhone from its case.
≥ Do not push or pull the dock manually.
≥ Make sure that the iPod/iPhone is fully inserted and
its back is resting against the cushion pad.
≥ Make sure to hold the dock when removing the iPod/
iPhone.
*4: Make sure to tilt the disc so as not to touch the sliding
door.
≥ Do not open the sliding door manually.
≥ Make sure that the unit does not fall when inserting or
removing media.
≥ When moving this unit, be sure to remove all media and
turn this unit to standby mode.
Charging an iPod/iPhone/iPad
Charging starts when an iPod*2/iPhone/iPad is
connected to this unit.
≥ During standby mode, charging will not start from the
“IPOD_PORT” connection, however it will start as usual
from the “IPOD_DOCK” connection.
– To charge from the “IPOD_PORT” connection, start
the charging before turning this unit to standby mode.
≥ Check the iPod/iPhone/iPad to see if the battery is fully
charged. (Once fully recharged, additional recharging
will not occur.)
≥ If this unit is switched to standby mode
“IPOD CHARGING” is shown on the unit’s display.
7
RQT9754
SC-HC58~RQT9754.book
Page 8
Tuesday, December 18, 2012
Network settings
With this feature you can wirelessly stream music
from an iOS device (iPhone, iPod, iPad) or a Mac/
PC to this unit’s speakers.
To use this feature (AirPlay), this unit must join the
same 2.4 GHz wireless network as the AirPlay
compatible device (l 23).
≥ It is also possible to use AirPlay without a wireless
network router. (l 12, “Directly streaming to this unit”)
4:40 PM
Method 1
If you're using an iPod touch/iPhone/iPad.
(iOS version 5.0 or later.)
With this method you will share the wireless
network settings of your iPod touch/iPhone/iPad
with this unit.
≥ The following explanations are based on an
iPhone.
1
Connect the iPhone to your home wireless
network.
2
Connect the iPhone to this unit.
Choose one of the following connections.
“IPOD_DOCK” connection compatible iPod touch/iPhone
Preparation
≥ Place this unit close to the wireless network
router.
1
2
Turn this unit on.
iPod touch/iPhone/iPad with iOS 5.0 or later
Follow the chart below to choose the network
setting method.
iPad
Are you using an
iPod touch/iPhone/iPad?
Is the iOS version 5.0 or later?
Yes
3
Unlock your iPhone and then press and hold
[– NETWORK SETUP] on this unit for more
No
than 3 seconds.
l right,
“Method 1”
4
Does your wireless network
router support WPS?
5
Yes
No / Do not know
≥ If “NOT SUPPORTED” or “SET WI-FI” is displayed,
check that the iPhone is connected to the wireless
network and try again from step 1.
A message will pop-up on your iPhone.
Allow the iPhone to share the wireless network
settings.*1
{. The Wi-Fi status indicator blinks.
The unit’s settings are completed when
“SUCCESS” is displayed and the Wi-Fi status
indicator stops blinking and lights in blue.
l 9,
“Method 2”
l 9,
“Method 3”
If “FAIL” is displayed press [OK] and try the
setting again. If “FAIL” is still displayed, try
“Method 2” or “Method 3”.
≥ If the iPhone was disconnected midway through, try
again without disconnecting it.
8
≥ To cancel this setting in the middle, press [Í] to turn off
the unit.
6
*1: Depending on the network environment or the wireless
network router settings, it may take more than 10 mins.
to complete the settings.
7
RQT9754
Press [OK] on the remote control to exit the
settings.
To use AirPlay, turn to page 11.
Page 9
Tuesday, December 18, 2012
4:40 PM
Method 2
Method 3
If your wireless network router supports WPS*1.
Setting the network connection from an Internet
browser.
∫ Using the WPS Push Button
Configuration (PBC)
The WPS identifier mark
WPS Push Button
Configuration (PBC)
compatible wireless network
router may have this mark.
With this method, you will access this unit’s
wireless network settings from the Internet browser
of your compatible device.
≥ The following explanations are based on an
iPhone.
1
ENGLISH
SC-HC58~RQT9754.book
Press [SETUP] on the remote control
repeatedly to select “NET SETUP” and then
press [OK].
Blinks purple
1
2
Disconnect any devices connected to this unit.
Press and hold [– NETWORK SETUP] on the
unit.
Blinks blue
Blinks purple
2
After “SETTING” is indicated, connect your
iPhone to this unit’s wireless network called
“00 Setup _ _ _ _ _ _”*2, 3.
Blinks purple
≥ Complete step 3 within 2 mins.
3
4
After “WPS” is indicated, press the WPS button
on the wireless network router.
“SUCCESS” is displayed and the Wi-Fi status
indicator stops blinking and lights in blue.
“FAIL” may be displayed if the connection was not
made within the set time limit. Try the setting
again. If “FAIL” is still displayed, try “Method 3”.
5
6
̲̲̲̲̲̲
The unit’s settings are completed when
3
Start “Safari” on your iPhone and type
“http://192.168.1.12/” into the URL address
field and display the page.
Press [OK] on the remote control to exit the
setting.
To use AirPlay, turn to page 11.
{. This unit’s setup window is displayed.
≥ To use the WPS PIN code, refer to the notes on page 10.
*1: WPS stands for “Wi-Fi Protected SetupTM”.
*2: “ _ ” stands for a digit that is unique to each set.
*3: Make sure that DHCP is enabled for the network
setting on the iPhone.
(Continued on the next page)
9
RQT9754
SC-HC58~RQT9754.book
4
Page 10
Tuesday, December 18, 2012
4:40 PM
Advanced network settings
Select “Search wireless network”.
≥ The below settings are the alternative or additional
settings for “Method 3”. (l 9)
Alternative settings
Instead of steps 4 and 5
Select “Manual settings”.
1 Type your home wireless network name
into the “Network name (SSID)” field.
5
Select and input the details.
≥ Check your home wireless network name
(Network name (SSID)) and password for
this network. This can often be found on the
wireless network router itself.
2
Select the encryption method from the
“Security system” drop down list.
3
Type the password into the “Password” field
and then select “JOIN”.
Additional settings
If your home wireless network has been
configured to use specific IP Addresses, Subnet
Mask, Default Gateway, Primary DNS, etc.
Before step 6
Select “Advanced network settings”.
{. Input the required addresses into each field and select
[1] Select your home wireless network
name*1.
[2] Type the password.
6
Select “JOIN” to apply the settings.
≥ In the pop-up screen, select “OK” to continue.
– Select “Cancel” to return to the setup window.
7
The unit’s settings are completed when
“JOIN”.
≥ To change the settings back to DHCP, select “ON”
from the “DHCP” drop down list.
If you want to change the name of this unit that is
displayed as the AirPlay speakers.
Before step 4
Select “Additional settings”.
1 Select “Edit STEREO SYSTEM name”.
2
Type a new name into the
“STEREO SYSTEM name” field.
3
Select “OK”.
4
If this unit is already connected to your home
wireless network:
jSelect “Additional settings” and then
select “Exit”.
If this unit is not connected to your home
wireless network:
jContinue to step 4 of “Method 3”.
“SUCCESS” is displayed and the Wi-Fi status
indicator stops blinking and lights in blue.
If “FAIL” is displayed press [OK], check the
wireless network password and other settings
and start again from step 1.
8
Make sure to connect your iPhone back to your
home wireless network*2.
9
To use AirPlay, turn to page 11.
*1: If you have set your wireless network to be invisible,
select “BACK” and refer to “Alternative settings”.
*2: To use the AirPlay function, connect the iPhone to the
wireless network selected in step 5. (l above)
10
RQT9754
{. Only ASCII characters can be used.
≥ Enable Java and Cookies in your browser settings.
≥ This unit can also be set using the WPS PIN code.
Replace step 3 of “Method 2” with the following steps.
(Before starting, refer to the wireless network router’s
operating instructions for details on how to enter the PIN
code.)
1 While “WPS” is flashing press and hold
[– NETWORK SETUP] again to display the 8 digit
PIN code.
{. Wi-Fi status indicator blinks purple.
2 Enter the PIN code into the wireless network router.
SC-HC58~RQT9754.book
Page 11
Tuesday, December 18, 2012
4:40 PM
Using AirPlay with this unit’s speakers
≥ Complete the network settings. (l 8)
≥ Connect the iOS device or Mac/PC to the same
home wireless network as this unit.
1
Turn the unit on.
≥ Check that the Wi-Fi status indicator lights in
blue.
Lights in blue
3
Select “Panasonic HC58 _ _ _ _ _ _”*1, 2 from
the AirPlay
icon.
{. Check the volume settings before starting the
playback. (When AirPlay is used for the first time,
the volume may be output at the maximum setting.)
e.g.,
iPhone iOS 6.0.1
ENGLISH
Preparation
e.g.,
iTunes 11.0
≥ If it doesn’t light in blue, check the wireless
network settings. (l 8)
2
iOS device:
Start the “Music” (or iPod) app.
Mac/PC:
Start “iTunes”.
≥ If the Music app on your iOS device is used, select
the audio file you want to play.
4
Start play.
≥ The playback will start with a slight delay.
≥ This unit can be set to turn on automatically when this unit is selected as the output speakers. (l 18)
≥ Playback of other audio sources will stop and AirPlay output will have priority.
≥ Volume changes on the iOS device or iTunes will be applied to this unit.
(Refer to the iTunes Help for the required settings in iTunes.)
≥ With some iOS and iTunes versions, it may not be possible to restart the AirPlay playback if the selector is changed
(e.g., “CD”) or the unit is turned off, during the AirPlay playback.
In this case, select a different device from the AirPlay icon of the Music App or iTunes and then re-select this unit as the
output speakers.
≥ AirPlay will not work when playing back videos on iTunes.
*1: “ _ ” stands for a digit that is unique to each set.
*2: The name that is displayed for this unit can be changed from the “Edit STEREO SYSTEM name” settings.
(l 10, “Advanced network settings”)
11
RQT9754
SC-HC58~RQT9754.book
Page 12
Tuesday, December 18, 2012
Directly streaming to this unit
With this function set to “ON”, you can stream
music from the iOS device or
Mac / PC (iTunes 10.2.2 or later) to this unit without
the need of a wireless network router.
≥ Previous network settings will be deleted when
this function is set to “ON”.
≥ The following explanations are based on an
iPhone.
1
Press [SETUP] repeatedly to select
“D.CONNECT”.
2
Display the password
The first time “D.CONNECT” is set to “ON”, a
password for this unit’s wireless network is
randomly created and memorized in this unit.
≥ This password is memorized until it is changed.
1 While “D.CONNECT” is set to “ON”:
Press [SETUP] repeatedly to select
“D.CONNECT”.
2
Press [3, 4] to select “ON” and then press
[OK].
3
The current password is displayed.
Press [3, 4] to select “ON” and then press
≥ The 5 digits after "PW" is the password for
this network.
[OK].
3
Press [3, 4] to select “OK? YES” and then
4
press [OK].
Press any button to exit.
Change the password
“PW _ _ _ _ _”* is displayed.
The 5 digits after "PW" is the password for this
network.
1
4
4:40 PM
Connect your iPhone to this unit’s wireless
network named “HC58 _ _ _ _ _ _”* .
1
While “D.CONNECT” is set to “OFF”:
Press [SETUP] repeatedly to select
“D.CONNECT”.
2
Press [3, 4] to select “CHANGE PW” and
then press [OK].
3
Press [3, 4] to select “OK? YES” and then
press [OK].
4
The new password is displayed.
2
≥ The 5 digits after "PW" is the new password
for this network.
̲̲̲̲̲̲
5
Enter the password that is indicated on this
unit’s display.
6
Once the iPhone is connected to this unit’s
wireless network, the setup is competed.
̲̲̲̲̲̲
7
Continue to step 2 of “Using AirPlay with this
unit’s speakers” (l 11).
12
≥ This setting is reset to “OFF” when other network
settings are performed. (l 8)
≥ When “D.CONNECT” is set to “ON”, this unit will not be
connected to the Internet. It is not possible to update the
software or check the Wi-Fi signal strength.
≥ When AirPlay is not being used, disconnect the AirPlay
compatible device from this network.
≥ When using a computer on this network, make sure that
all the shared files are encrypted.
≥ This feature is only compatible with the “Open System”
authentication method. It is not compatible with “Shared
Key” authentication method.
RQT9754
5
Press any button to exit.
∫ Note about changing the password
After changing this unit’s wireless network
password, if you are not prompted to change the
password on the other devices, the following
changes are required.
iOS device (iPod touch/iPhone/iPad)*3:
≥ Before choosing this unit’s network,
1 Select [ ] located beside this unit’s wireless
network name.
2
Select “Forget this Network” and then select
“Forget”.
3
Select this unit’s wireless network and enter the
new password.
Mac/PC:
≥ If the computer has memorized the old password,
be sure to change the memorized password for
this unit’s wireless network to the new one.
≥ Refer to the devices’s operating instructions for details.
*1: “ _ ” stands for a digit
*2: “ _ ” stands for a digit that is unique to each set.
*3: Steps are based on iOS 6.0.1.
SC-HC58~RQT9754.book
Page 13
Tuesday, December 18, 2012
4:40 PM
Bluetooth® operations
By using the Bluetooth® connection, you can listen to the sound from the Bluetooth® audio device from this
unit wirelessly.
Preparation
≥ Turn on the Bluetooth® feature of the device and
place the device near this unit.
≥ If this unit is already connected to a Bluetooth®
device, disconnect it.
1
Press [
] to select “BLUETOOTH”.
≥ If “PAIRING” is indicated on the display, go to step 3.
2
3
4
Press [PLAY MENU] to select “NEW DEV.” and
then press [OK].
Bluetooth® transmission mode
You can change the transmission speed to prioritize
transmission quality or sound quality.
Preparation
≥ Press [ ] to select “BLUETOOTH”.
≥ If a Bluetooth® device is already connected,
disconnect it.
1
Press [PLAY MENU] repeatedly to select
ENGLISH
Pairing Bluetooth® devices
“LINK MODE”.
2
Press [3, 4] to select the mode and then
press [OK].
{. “PAIRING” is indicated on the display.
MODE 1: Emphasis on connectivity
MODE 2: Emphasis on sound quality
Select “SC-HC58” from the Bluetooth® device’s
Bluetooth® menu.
Start play on the Bluetooth® device.
≥ The default setting is “MODE 1”.
≥ Refer to the operating instructions of the Bluetooth®
device for details.
If prompted for the passkey, input “0000”.
≥ You can register up to 8 devices with this unit. If a 9th
device is paired, the device that has not been used for
the longest time will be replaced.
Connecting a paired Bluetooth®
device
Preparation
≥ Turn on the Bluetooth® feature of the device and
place the device near this unit.
≥ If this unit is already connected to a Bluetooth®
device, disconnect it.
1
2
Press [
] to select “BLUETOOTH”.
{. “READY” is indicated on the display.
Bluetooth® input level
If the sound input level of the Bluetooth®
transmission is too low, change the input level
setting.
Preparation
≥ Connect a Bluetooth® device.
1
2
3
≥ Select “LEVEL 0” if the sound is distorted.
≥ The default setting is “LEVEL 0”.
Disconnecting a Bluetooth® device
1
While a Bluetooth® device is connected:
Press [PLAY MENU] to select
Start play on the Bluetooth® device.
≥ This unit can only be connected to one device at a time.
≥ When “BLUETOOTH” is selected as the source, this unit
will automatically try and connect to the last connected
Bluetooth® device. The Bluetooth® device will be
disconnected if a different audio source (e.g., [CD]) is
selected.
Press [3, 4] to select the level and then press
“LEVEL 0” ,. “LEVEL i1” ,. “LEVEL i2”
^---------------------------------------------------------------J
Bluetooth® menu.
the display for 2 seconds.
“INPUT LEVEL”.
[OK].
Select “SC-HC58” from the Bluetooth® device’s
{. The name of the connected device is indicated on
Press [PLAY MENU] repeatedly to select
“DISCONNECT?”.
2
Press [3, 4] to select “OK? YES” and then
press [OK].
13
RQT9754
SC-HC58~RQT9754.book
Page 14
Tuesday, December 18, 2012
4:40 PM
Media playback operations
The following marks indicate the availability of the
feature.
[CD] :
CD audio in CD-DA format
[iPod] :
Compatible iPod/iPhone/iPad (l 23)
[AirPlay] :
When connected to an AirPlay
compatible device. (l 11)
[Bluetooth] : Connected Bluetooth® device (l 13)
Preparation
≥ Turn the unit on.
≥ Insert the media (l 7) or connect the Bluetooth®
(l 13) / AirPlay (l 11) compatible device.
≥ Press [CD], [iPod] or [ ] to select the audio
source.
Basic play
([CD], [iPod], [AirPlay], [Bluetooth])
Playback modes ([CD], [AirPlay] *1)
Select the playback mode.
1
Press [PLAY MENU] to select “REPEAT” or
“RANDOM” / “SHUFFLE”.
2
Press [3, 4] to select the setting and then
press [OK].
REPEAT
[CD]
OFF:
1-TRACK:
Select to cancel repeat
playback.
Only plays the selected track.
≥ “1,
”, “`” is displayed.
(Skip to the desired track)
Play
Press [1/;].
Stop
Press [∫].
Pause
Press [1/;].
Press again to restart play.
[AirPlay]
Skip
Press [:/6] or [5/9]
to skip track.
Refer to the connected device to verify the
selected setting.
Search
During play or pause
Press and hold [:/6] or
[5/9].
[CD] RANDOM
(Except [AirPlay])
ALL:
≥ “`” is displayed.
ON:
≥ To use this unit’s remote control with a Bluetooth®
device, the Bluetooth® device must support AVRCP
(Audio Video Remote Control Profile).
Depending on the device or the status of the device,
some operations may not work.
[iPod] To navigate through the iPod/iPhone
menu
≥ Open the Music App to use this feature with iPod touch/
iPhone.
– [3, 4] : To navigate menu items.
– [OK] : To go to the next menu.
– [iPod MENU] : To return to the previous menu.
Plays the contents randomly.
≥ “RND” is displayed.
≥ “RND” will not be displayed when
“1-TRACK” is selected.
≥ [iPod] : Backwards search is only
within the current track.
[CD] [Bluetooth] To display information
Press [DISPLAY] repeatedly.
All tracks are repeated.
OFF:
Random playback is turned off.
[AirPlay] SHUFFLE
Refer to the connected device to verify the
selected setting.
≥ When using an iPod/iPhone/iPad or Bluetooth® device,
use the setting on the device, if available.
≥ During random/shuffle play, you cannot skip to the
previous track.
≥ [CD] :The mode is canceled when you open the sliding
door for discs.
[AirPlay] : The applied settings will remain until it is
changed.
*1: [AirPlay] Perform the settings during playback.
14
≥ To view the operation, open the sliding door.
≥ The operation may vary among iPod/iPhone/iPad
models.
≥ Depending on the model (e.g., iPod nano 7th
generation, etc.) it may be necessary to select the
album, artist, etc. on the iPod/iPhone/iPad.
RQT9754
SC-HC58~RQT9754.book
Page 15
Tuesday, December 18, 2012
4:40 PM
Listening to the radio
You can preset up to 30 channels.
Preparation
≥ Make sure that the FM antenna is connected.
(l 6)
≥ Turn the unit on.
≥ Press [RADIO] to select “FM”.
∫ Manual tuning and presetting
Select a radio broadcast.
1 Press [PLAY MENU] repeatedly to select
“TUNEMODE”.
2 Press [3, 4] to select “MANUAL” and then
A station previously stored is overwritten when another
station is stored in the same channel preset.
Presetting stations automatically
1
2
Press [PLAY MENU] to select “A.PRESET”.
Press [3, 4] to select “LOWEST” or
“CURRENT” and then press [OK].
LOWEST:
To begin auto preset with the lowest frequency
(FM 87.9 or FM 87.5).
CURRENT:
To begin auto preset with the current
frequency.*
* To change the frequency, refer to “Manual tuning and
presetting”.
The tuner starts to preset all the stations it can
receive into the channels in ascending order.
Listening to a preset channel
Preparation
1 Press [PLAY MENU] repeatedly to select
“TUNEMODE”.
2 Press [3, 4] to select “PRESET” and then
press [OK].
Press [:/6] or [5/9] to select the
channel.
required station.
≥ To start automatic tuning, press and hold
[:/6], [5/9] until the frequency starts
scrolling. Tuning stops when a station is found.
ENGLISH
press [OK].
3 Press [:/6] or [5/9] to tune to the
To preset the channel
4 While listening to the radio broadcast
Press [OK].
5 Press [3, 4] to select the channel and then
press [OK].
∫ To improve FM sound quality
1 While receiving FM broadcasts, press
[PLAY MENU] repeatedly to select “FM
MODE”.
2 Press [3, 4] to select “MONO” and then press
[OK].
≥ This setting can be preset and memorized. To do
so, continue to step 4 of “Manual tuning and
presetting”.
≥ Select “STEREO” in step 2 to return to stereo
broadcasts.
≥ “MONO” is canceled if the frequency is changed.
≥ If “MONO” is selected, regardless of the type of signal
this unit is receiving, “FM MONO” is displayed when
[DISPLAY] is pressed. (l below)
∫ To display the current signal status
Press [DISPLAY].
“FM ST”:
The FM signal is in stereo.
“FM”:
The FM signal is in monaural.
≥ “FM” is also displayed even if this unit is not
tuned to a station.
≥ “STEREO” is displayed when this unit tunes to a stereo
broadcast.
15
RQT9754
SC-HC58~RQT9754.book
Page 16
Tuesday, December 18, 2012
Sound adjustment
The following sound effects can be added to the
audio output.
1
2
4:40 PM
Play timer
Press [SOUND] repeatedly to select the effect.
You can set the timer so this unit turns on at a
certain time every day.
Preparation
Set the clock (l left).
Press [3, 4] to select the setting and then
∫ Setting the timer
press [OK].
1
Direct-Vocal
Surround
(D.SURROUND)
“LEVEL 1”, “LEVEL 2” or
“OFF”.
Preset EQ
(PRESET EQ)
“HEAVY” (heavy), “SOFT”
(soft), “CLEAR” (clear),
“VOCAL” (vocal) or “FLAT”
(flat/off).
≥ The factory preset is “OFF”.
≥ The factory preset is “HEAVY”.
Bass (BASS) or
Treble (TREBLE)
Adjust the level (j4 to i4).
Dynamic Bass
(D.BASS)
“ON D.BASS” or
“OFF D.BASS”.
≥ The factory preset is
“ON D.BASS”.
≥ You may experience a reduction in sound quality when
these effects are used with some sources. If this occurs,
turn the sound effects off.
2
Press [SETUP] repeatedly to select
“TIMER ADJ”.
Press [3, 4] to set the starting time
(“ON TIME”) and then press [OK].
3
Press [3, 4] to set the finishing time
(“OFF TIME”) and then press [OK].
∫ Turn the timer on
1
2
3
Select the music source*1 and set the desired
volume.
Press [SETUP] repeatedly to select
“TIMER SET”.
Press [3, 4] to select “SET” and then press
[OK].
4
≥ “F” is displayed.
≥ To turn the timer off, select “OFF”.
Press [Í] to turn the unit off.
Clock and Timer
Setting the clock
This is a 12-hour clock.
1
2
Press [SETUP] repeatedly to select “CLOCK”.
Press [3, 4] to set the time and then press
[OK].
≥ To display the clock, press [SETUP] to select “CLOCK”
and then press [OK] once. The time is displayed for 10
seconds.
(During standby, press [DISPLAY] once.)
≥ The clock is reset when there is a power failure or when
the AC power supply cord is removed.
≥ Reset the clock regularly to maintain accuracy.
≥ To display the timer settings, press [SETUP] repeatedly
to select “TIMER ADJ” and then press [OK] once.
The music source and volume will also be displayed if
the timer is turned on.
≥ During standby, if the timer is turned on, press
[DISPLAY] twice to display the settings.
≥ This unit can be used as normal after the timer is set,
however:
– Turn the unit to standby mode before the timer start
time.
– Even if the audio source or the volume is changed, the
timer will still use the audio source and volume that
was set when the timer was turned on.
Sleep timer
The sleep timer can turn the unit off after a set time.
1
2
Press [SETUP] to select “SLEEP”.
Press [3, 4] to set the time (in minutes) and
then press [OK].
16
*1: “CD”, “IPOD_DOCK”, “IPOD_PORT” and “FM” can be
set as the music source.
RQT9754
“SLEEP 30” ,. “SLEEP 60” ,. “SLEEP 90” ,. “SLEEP 120”
^----------------------. OFF (Cancel) (----------------------J
≥ The remaining time is indicated on the unit’s display
except when other operations are performed.
≥ The play timer and sleep timer can be used together.
The sleep timer always has priority.
SC-HC58~RQT9754.book
Page 17
Tuesday, December 18, 2012
4:40 PM
Others
1
Press [SETUP] repeatedly to select
“AUTO OFF”.
2
Press [3, 4] to select “OFF” and then press
[OK].
≥ To turn automatic standby on, select “ON” in step 2.
≥ This setting cannot be selected when “FM” is the source.
Display brightness
The brightness of this unit’s display can be
changed.
1
2
Software update
Occasionally, Panasonic may release updated
software for this unit that may add or improve the
way a feature operates. These updates are
available free of charge.
Preparation
≥ Turn the unit on.
≥ Connect this unit to the wireless network. (l 8)
jMake sure that the wireless network is
connected to the Internet.
jIf “D.CONNECT” is set to “ON”, change the
setting to “OFF” and connect this unit to a
wireless network that is connected to the
Internet.
1
[OK].
To cancel the dimmer, select “OFF” in step 2.
Changing the unit and remote
control code
Press [SETUP] repeatedly to select
“SW UPDATE” and then press [OK].
2
Press [3, 4] to select “UPDATE? Y” and then
press [OK] to start the update.
Press [SETUP] repeatedly to select “DIMMER”.
Press [3, 4] to select “ON” and then press
DO NOT DISCONNECT the AC power supply
cord while one of the following messages is
displayed.
– “LINKING”, “UPDATING” or “
%”
(“ ” stands for a number.)
≥ During the update process, no other operations can be
performed.
3
When the update has finished successfully,
“SUCCESS” is displayed.
When other Panasonic equipment responds to the
supplied remote control, change the remote control
code.
4
1
2
≥ Downloading will require several minutes. It may
take longer or may not work properly depending on
the connection environment.
Press [CD] to select “CD”.
While pressing and holding [SELECTOR] on
ENGLISH
Automatic standby
As a factory preset, this unit will always turn off
automatically if there is no sound output and no
operation for approx. 30 minutes.
To cancel this function
Disconnect the AC power supply cord and
reconnect it after 3 minutes.
the unit, press and hold [CD/RADIO] on the
remote control until the unit's display shows
“REMOTE 2”.
3
Press and hold [OK] and [CD/RADIO] on the
remote control for at least 4 seconds.
≥ To change the mode back to “REMOTE 1”, repeat the
steps above but replace the button pressed on the
remote control from [CD/RADIO] to [ ].
≥ If you do not want to update the unit, select
“UPDATE? N” and then press [OK] in step 2.
≥ If there are no updates, “NO NEED” is displayed after
step 2.
∫ Checking the software version
1
Press [SETUP] repeatedly to select “SW VER.”
and then press [OK].
2
Press [OK] to exit.
{. The version of the installed software is displayed.
17
RQT9754
SC-HC58~RQT9754.book
Page 18
Tuesday, December 18, 2012
Wi-Fi signal strength
Wireless network name (SSID)
To check the Wi-Fi signal strength where the unit is
located.
Preparation
Connect this unit to the wireless network. (l 8)
1
1
”.
Press [OK] to exit this display mode.
≥ It is recommended to have a signal strength of “3”.
Change the position or angle of your wireless network
router or the unit if the indication is “2” or “1” and see if
the connection improves.
≥ If “LEVEL 0” is displayed, this unit cannot establish a link
with the wireless network router. (l 21)
≥ This function does not work when “D.CONNECT” is set
to “ON”.
unit and [OK] on the remote control until the
2
This unit can turn on automatically from standby
mode when this unit is selected as the AirPlay
speakers.
Preparation
Connect this unit to the wireless network. (l 8)
IP/MAC Address
To check the unit’s IP address or the Wi-Fi MAC
address.
1
Press [3, 4] to select “ON” and then press
[OK].
≥ To cancel this function, select “OFF” in step 2.
≥ The factory preset is “OFF”. If this function is set to “ON”
the standby power consumption will increase.
18
RQT9754
Press and hold [– NETWORK SETUP] on the
unit and [4] on the remote control until the
unit’s display shows the IP address.
{. The IP address is partially displayed.
2
≥ To display the MAC address on the unit, repeat the
steps above by replacing [4] with [3].
Press [3, 4] on the remote control to show the
rest of the IP address.
Press [SETUP] repeatedly to select
“NET STNBY” and then press [OK].
2
Press [OK] to exit.
≥ If “NOCONNECT” is displayed this unit is not connected
to a wireless network.
≥ All letters are displayed as capital letters, and characters
that cannot be displayed are replaced with “¢”.
Network standby
1
Press and hold [– NETWORK SETUP] on the
unit's display shows the SSID.
“SIG.LEVEL” and then press [OK].
2
Display the name for the connected wireless
network (SSID).
Press [SETUP] repeatedly to select
≥ The unit’s display shows “LEVEL
(“ ” stands for a number.)
4:40 PM
≥ To exit the setting, wait 20 sec.
≥ The “ – ” displayed on the top or bottom left of the display
indicate the first and last units respectively.
SC-HC58~RQT9754.book
Page 19
Tuesday, December 18, 2012
4:40 PM
Troubleshooting
To return all settings to the factory preset
When the following situations occur, reset the
memory:
≥ There is no response when buttons are pressed.
≥ You want to clear and reset the memory contents.
1 Disconnect the AC power supply cord. (Wait
for at least 3 minutes before proceeding to
step 2.)
2 While pressing and holding down [Í/I] on the
unit, reconnect the AC power supply cord.
≥ “--------” appears on the display.
3 Release [Í/I].
All the settings are returned to the factory preset. You will
need to reset the memory items.
Do you have the latest software installed?
≥ Occasionally, Panasonic may release updated software
for this unit that may add or improve the way a feature
operates. (l 17)
Common problems
Humming heard during play.
≥ An AC power supply cord or fluorescent light is near the
cords. Keep other appliances and cords away from this
unit’s cables.
Disc operations
Incorrect display or play will not start.
≥ Make sure that the disc is compatible with this unit.
(l 23)
≥ There is moisture on the lens. Wait for about an hour
and then try again.
Radio
A beat sound or noise is heard while receiving
radio broadcast.
≥ Confirm the FM antenna is properly connected. (l 6)
≥ Adjust the position of the antenna.
≥ Try to keep a certain amount of distance between the
antenna and AC power supply cord.
ENGLISH
Before requesting service, make the following
checks. If you are in doubt about some of the check
points, or if the solutions indicated in the following
guide do not solve the problem, refer to “Customer
Services Directory (United States and Puerto Rico)”
on page 30 if you reside in the U.S.A. or Puerto
Rico, or refer to “Limited Warranty (ONLY FOR
CANADA)” on page 31 if you reside in Canada.
≥ Try using an outdoor antenna if there are buildings or
mountains nearby.
≥ Switch the television or other audio players off or
separate it from this unit.
≥ Keep this unit away from mobile phones if the
interference is apparent.
Stations cannot be selected.
Change the FM frequency step.
1 Press [RADIO] to select “FM”.
2 Press and hold [SELECTOR] on the unit.
After a few seconds the display changes to show the
current lowest frequency. Continue to hold the button
down. The lowest frequency changes and the step is
changed.
iPod/iPhone/iPad operations
Cannot charge or operate.
≥ Have you selected the appropriate selector?
Press [iPod] to select either “IPOD_DOCK” or
“IPOD_PORT”.
≥ Check that the iPod/iPhone/iPad is connected properly.
(l 7)
≥ The battery of the iPod/iPhone/iPad is depleted. Charge
the iPod/iPhone/iPad, and then operate again.
≥ Connect the iPod/iPhone/iPad again or try to restart the
iPod/iPhone/iPad.
≥ When this unit is in standby mode, charging will not start
when using the “IPOD_PORT” connection. Turn this unit
on and make sure the charging has started before
switching this unit to standby mode.
AirPlay operations
Cannot connect to the network.
≥ Confirm the network connection and settings. (l 8)
≥ Your wireless network might be set to be invisible. In this
case select “Manual settings” in “Method 3”. (l 10)
≥ This unit cannot join a wireless network using WEP
security settings with the WPS methods (“Method 2”).
Use “Method 3” to join the wireless network. (l 9)
≥ Make sure that the multicast function on the wireless
network router is set to on (enabled).
≥ When “D.CONNECT” is used, if the password for
"D.CONNECT" has been changed connect the other
device to this unit using the new password. (l 12)
19
RQT9754
SC-HC58~RQT9754.book
Page 20
Tuesday, December 18, 2012
Cannot connect to the unit
≥ Display the wireless network name that this unit is
connected to and make sure that the device is
connected to the same network. (l 8)
≥ If “NET STNBY” is set to “OFF”, the AirPlay compatible
device cannot be connected when this unit is off.
≥ Turn off the Wi-Fi setting on the AirPlay compatible
device, set “NET STNBY” to “OFF” (l 18) and then turn
this unit off and on. Reconnect the compatible device to
the Wi-Fi network and then select this unit as the AirPlay
speakers again.
My wireless network router is WPS PBC
compatible, but the pairing does not work.
≥ If the network is set to be invisible, the push button
configuration does not work. In this case, either make
the wireless network visible while you set up the network
for this unit or use “Method 1” or “Method 3”. (l 8, 9)
Playback does not start
The sound is interrupted
≥ Simultaneous use with other 2.4 GHz devices, such as
microwaves, cordless telephones, etc., may result in
connection interruptions.
Increase the distance between this unit and these
devices.
≥ Do not place this unit inside a metal cabinet, for it might
block the Wi-Fi signal.
≥ Place this unit closer to the wireless network router.
≥ If “D.CONNECT” is set to “ON”, place the AirPlay
compatible device closer to this unit.
≥ If several wireless devices are simultaneously using the
same wireless network as this unit, try turning off the
other devices or reducing their wireless network usage.
≥ If the playback stops, check the playback status on the
iOS device or iTunes.
≥ If play does not start (even though the Wi-Fi status
indicator lights in blue and the AirPlay
icon is
displayed), restart the wireless network router, turn the
Wi-Fi connection on the iOS device or Mac/PC off and
on, and then make sure that your home wireless network
is selected.
≥ If the AirPlay
icon is not displayed even if Wi-Fi
status indicator lights in blue, try restarting the wireless
network router.
≥ With some iOS and iTunes versions, it may not be
possible to restart the AirPlay playback if the selector is
changed (e.g., “CD”) or the unit is turned off, during the
AirPlay playback.
In this case, select a different device from the AirPlay
icon of the Music App or iTunes and then re-select this
unit as the output speakers. (l 11)
4:40 PM
Bluetooth®
Pairing cannot be done.
≥ Check the Bluetooth® device condition.
The device cannot be connected.
≥ The pairing of the device was unsuccessful or the
registration has been replaced. Try pairing the device
again. (l 13)
≥ This unit might be connected to a different device.
Disconnect the other device and try pairing the device
again. (l 13)
The device is connected but audio cannot be
heard through this unit.
≥ For some built-in Bluetooth® devices, you have to set the
audio output to “SC-HC58” manually. Read the operating
instructions for the device for details.
The sound is interrupted.
≥ The device is out of the 10 m (33 ft) communication
range. Bring the Bluetooth® device closer to this unit.
≥ Remove any obstacle between this unit and the device.
≥ Other devices that use the 2.4 GHz frequency band
(wireless router, microwaves, cordless phones, etc.) are
interfering. Bring the Bluetooth® device closer to this unit
and distance it from the other devices.
≥ Select “MODE1” for stable communication. (l 13)
Remote control
The remote control doesn't work properly.
≥ The remote control and this unit are using a different
code. (l 21, “REMOTE ”)
≥ Is the battery depleted or is the battery inserted
incorrectly? (l 5)
Messages
The following messages or service numbers
may appear on the unit's display.
“--:--”
≥ You plugged the AC power supply cord in for the first
time or there was a power failure recently. Set the time
(l 16).
“ADJUST CLOCK”
≥ Clock is not set. Adjust the clock accordingly.
“ADJUST TIMER”
≥ Play timer is not set. Adjust the play timer accordingly.
“AUTO OFF”
20
RQT9754
≥ The unit has been left unused for about 30 minutes and
will shut down within a minute. Press any button to
cancel it.
Page 21
Tuesday, December 18, 2012
4:40 PM
“CANNOT SET”
“LEVEL j”
≥ Select an audio source other than “AIRPLAY” or
“BLUETOOTH”.
≥ When “D.CONNECT” is set to “ON” the Wi-Fi signal
strength cannot be checked. To check the Wi-Fi signal
strength from the wireless network router, set
“D.CONNECT” to “OFF”. (l 12)
“CHECKING CONNECTION”
≥ The unit is checking the connected iPod/iPhone/iPad.
≥ If this display keeps appearing, make sure that the
battery of the iPod/iPhone/iPad is not depleted and that
the iPod/iPhone/iPad is turned on and connected
correctly (l 7).
“DIMMER”
“LINKING”
≥ This unit is communicating with the wireless network
router to complete the network settings.
Depending on the wireless network router this process
may take a few minutes. Try moving this unit closer to
the wireless network router.
≥ Appears 10 seconds after the volume is turned to “0”.
“NOCONNECT”
“DL ERROR”
≥ This unit is not connected to the network.
Check the network connection. (l 8)
≥ The software download has failed. Press any button to
exit. Please try again later.
≥ The server cannot be found. Press any button to exit.
Make sure that the wireless network is connected to the
Internet.
“ERROR”
≥ Incorrect operation is performed. Read the instructions
and try again.
“F
” (“
” stands for a number.)
≥ There is a problem with this unit.
Note down the displayed number, disconnect the
AC power supply cord and consult your dealer.
“NODEVICE”
≥ The iPod/iPhone/iPad device is not inserted correctly.
Read the instructions and try again (l 7).
≥ The battery of the iPod/iPhone/iPad is depleted. Charge
the iPod/iPhone/iPad and turn it on before connecting.
“NO DISC”
≥ Insert a disc to be played (l 7).
“NO PLAY”
≥ A CD that is not in CD-DA format is inserted. It cannot be
played.
“FAIL”
“NOT SUPPORTED”
≥ Updating or setting has failed. Read the instructions and
try again.
≥ You have connected an iPod/iPhone/iPad that cannot be
played (l 23).
≥ If the iPod/iPhone/iPad is compatible, turn it on and
connect it correctly.
≥ The connected iPod touch/iPhone/iPad is not connected
to a wireless network. Connect it to a wireless network
and try again. (l 8)
“ILLEGAL OPEN”
≥ Sliding door is not in correct position. Turn the unit off
and on again. If this display appears again, consult the
dealer.
“IPOD_DOCK OVER CURRENT ERROR”
“IPOD_PORT OVER CURRENT ERROR”
≥ The iPod/iPhone/iPad is drawing too much power.
Disconnect the iPod/iPhone/iPad and turn the unit off
and on again.
“LEVEL 0”
≥ There is no link between this unit and the wireless
network router.
Try the following operations:
– Check that the wireless network router is turned on.
– Turn this unit off and on again.
– Reset the wireless network settings. (l 8)
If the problem persists, consult your dealer.
ENGLISH
SC-HC58~RQT9754.book
“READING”
≥ The unit is checking the CD information. After this
display has disappeared, start operating.
“REMOTE
” (“
” stands for a number.)
≥ The remote control and this unit are using different
codes. Change the code on the remote control.
– When “REMOTE 1” is displayed, press and hold [OK]
and [ ] for more than 4 seconds.
– When “REMOTE 2” is displayed, press and hold [OK]
and [CD/RADIO] for more than 4 seconds.
“SET WI-FI”
≥ The connected iPod touch/iPhone/iPad is not connected
to a wireless network. Connect it to a wireless network
and try again. (l 8)
21
RQT9754
SC-HC58~RQT9754.book
Page 22
Tuesday, December 18, 2012
4:40 PM
Specifications
∫ GENERAL
∫ DISC SECTION
Power consumption
38 W
Power consumption in standby mode*1
Pick up
Approx. 0.1 W
(With “NET STNBY” set to “ON”)
Approx. 6.3 W
AC 120 V, 60 Hz
Dimensions (WkHkD)
500 mmk204 mmk84 mm
(19 11/16qk8 1/32qk3 5/16q)
(Depth without stand: 75 mm (3q))
2 ch (FL, FR)
∫ SPEAKER SYSTEM SECTION
Type
1 way, 1 speaker system (Passive Radiator)
Speaker unit(s)
Full range
6.5 cm (2 1/2q) Cone typek1 per channel
Passive Radiator
8 cm (3 1/8q)k2 per channel
Impedance
Mass (Weight)
Approx. 2.6 kg (5.7 lbs)
Operating temperature range
0 oC to r40 oC (r32 oF to r104 oF)
Operating humidity range
35 % to 80 % RH (no condensation)
∫ AMPLIFIER SECTION
Output power:
RMS Output Power Stereo mode
Front Ch (both ch driven)
20 W per channel (6 ≠), 1 kHz, 10 % THD
Total RMS Stereo mode power
40 W
FTC Output Power Stereo mode
Front Ch (both ch driven)
15 W per channel (6 ≠),
20 Hz to 20 kHz, 1 % THD
Total FTC Stereo mode power
30 W
∫ TUNER SECTION
Preset Memory
FM 30 stations
Frequency Modulation (FM)
Frequency range
87.9 MHz to 107.9 MHz (200 kHz step)
87.5 MHz to 108.0 MHz (100 kHz step)
Antenna terminals
75 ≠ (unbalanced)
RQT9754
790 nm (CD)
Number of channels
Approx. 0.4 W
22
Wavelength
Audio output (Disc)
Power consumption in standby mode
(With the iPod dock open)
Power supply
Disc played [8 cm (3q) or 12 cm (5q)]
CD, CD-R/RW (CD-DA)
6≠
∫ TERMINAL SECTION
“IPOD_DOCK” connection
DC OUT 5 V, 1.0 A MAX
“IPOD_PORT” connection
DC OUT 5 V, 2.1 A MAX
Phone jack
Terminal
Stereo, ‰3.5 mm (1/8q) jack
∫ Wi-Fi / AirPlay SECTION
Wi-Fi
WLAN Standards
Frequency range
Security
WPS version
IEEE802.11b/g
2.4 GHz band
WEP, WPATM, WPA2TM
Version 2.0 (WEP not support)
∫ BLUETOOTH SECTION
Bluetooth® system specification
V 3.0
Wireless equipment classification
Class 2
Supported profiles
A2DP, AVRCP, GAVDP
Frequency band
2402 MHz to 2480 MHz
(Adaptive Frequency Hopping)
Driving distance
10 m (33 ft) Line of sight
≥ Specifications are subject to change without notice.
Mass and dimensions are approximate.
≥ Total harmonic distortion is measured by a digital
spectrum analyzer.
*1: When the iPod/iPhone/iPad is not charging and the
dock is closed.
SC-HC58~RQT9754.book
Page 23
Tuesday, December 18, 2012
4:40 PM
Playable media
Compatible AirPlay devices
iOS 4.3.3 or later
iPod touch (5th generation)
iPod touch
3rd, 4th, and 5th generation
iPod nano (7th generation)
iPhone 5 / iPhone 4S / iPhone 4 / iPhone 3GS
iPhone 5
iPad (3rd, and 4th generation) / iPad 2 / iPad
Compatible with “IPOD_PORT” connection
[Using dedicated USB cable (not supplied)]
iPad mini
iTunes 10.2.2 or later (Mac / PC)
iPod touch
1st, 2nd, 3rd, 4th, and 5th generation
iPod nano
2nd, 3rd, 4th, 5th, 6th, and 7th generation
iPhone 5 / iPhone 4S / iPhone 4 /
iPhone 3GS / iPhone 3G / iPhone
iPad (3rd, and 4th generation) / iPad 2 / iPad
iPad mini
ENGLISH
Compatible iPod/iPhone/iPad
Compatible with “IPOD_DOCK” connection
(Using Lightning connector)
(as of December 2012)
Note about using AirPlay
≥ Simultaneous use with other 2.4 GHz devices, such as
microwaves, cordless telephones, etc., may result in
connection interruptions.
≥ For up to date compatibility information on your wireless
network router refer to
http://panasonic.jp/support/global/cs/
(This site is in English only.)
(as of December 2012)
≥ Compatibility depends on the software version. Update
your iPod/iPhone/iPad to the latest software before
using it with this unit.
≥ Please be aware that Panasonic accepts no
responsibility for the loss of data and/or information.
Compatible CD
≥ A disc with the CD Logo.
≥ This unit can play back discs that conform to the CD-DA
format.
≥ The unit may not be able to play some discs due to the
condition of the recording.
≥ This unit cannot play back MP3 files.
Note about using a DualDisc
≥ The digital audio content side of a DualDisc does not
meet the technical specifications of the Compact Disc
Digital Audio (CD-DA) format so play may not be
possible.
≥ Do not use a DualDisc in this unit as it may not be
possible to insert it correctly and it may get scratched or
scraped.
23
RQT9754
SC-HC58~RQT9754.book
Page 24
Thursday, December 20, 2012
11:34 AM
Attaching the unit to a wall (optional)
This unit can be wall mounted using the supplied wall mount brackets, etc. Make sure that the screw used
and the wall are strong enough to support the weight of at least 33 kg (72.8 lbs).
The screws and other items are not supplied as the type and size will vary with each installation.
≥Refer to step 3 of “Wall mount instructions” for details about the required screws.
≥Be sure to attach the fall prevention cord as a secondary safety measure.
Installation accessories
∫ Supplied accessories
≥ 1 Safety holder
≥ 1 Screw
≥ 2 Wall mount brackets
Wall mount instructions
Before installation, turn the unit off and disconnect
the AC power supply cord from the AC outlet.
1
{. Unscrew the fixing screw (2 pieces) at the bottom of
∫ Additionally required accessories
(commercially available)
≥ 4 Wall mount bracket fixing screws
≥ 1 Safety holder fixing screw
≥ 1 Fall prevention cord*
≥ 1 Screw eye
Detach the stand from the unit.
the unit.
{. Gently pull the stand off the unit as illustrated.
≥ Keep the removed screws and stand in a safe
place.
Bottom of the unit
Stand
* Use a cord that is capable of supporting over 33 kg
(72.8 lbs) (with a diameter of about 1.5 mm (1/16q)).
≥ Keep the safety holder out of reach of children to
prevent swallowing.
≥ Keep the screws out of reach of children to
prevent swallowing.
≥ Keep the wall mount brackets out of reach of
children to prevent swallowing.
Fixing screw
Soft blanket or cloth
Safety precautions
Professional installation is required.
The installation should never be done by any
other than a qualified installation specialist.
PANASONIC DISCLAIMS ANY PROPERTY
DAMAGE AND/OR SERIOUS INJURY,
INCLUDING DEATH RESULTING FROM
IMPROPER INSTALLATION OR INCORRECT
HANDLING.
≥ Be sure to install this unit as indicated
within this Owner’s Manual.
2
Measure and mark the position of the wall
mount brackets (Both sides).
{. Use figures below to identify the screwing positions.
Before deciding the location to place the unit, be
sure to check that the Wi-Fi signal strength is
sufficient. (l 8, 18)
The position to attach the wall mount brackets
12.5 mm (1/2q)
202 mm (8q)
24
RQT9754
Page 25
Thursday, December 20, 2012
6
Space required
300 mm (11 /16q)
13
66 mm
(2 5/8q)
143 mm
(5 5/8q)
Hook the unit securely onto the wall mount
brackets with both hands.
125 mm (4 /8q)
7
≥ Connect the FM antenna and the AC power supply
cord to the unit before hanging the unit onto the
wall. (l 6)
≥ After hanging the unit, release your hands carefully
to confirm the unit sits securely on the wall.
118 mm
(4 5/8q)
30 mm
(1 1/8q)
11:52 AM
ENGLISH
RQT9754~body1_mst.fm
Wall
202 mm (8q)
232 mm (9 7/8q)
500 mm (19 5/8q)
700 mm (27 1/2q)
3
Attach the wall mount bracket to the wall with
2 screws (not supplied). (Both sides)
≥ Use a level to ensure both wall mount brackets are
level.
7
(not supplied) to secure the safety holder onto
the wall.
At least 30 mm (1 3/16q)
‰4 mm
(5/32q)
4
Drive the safety holder fixing screw
≥ Refer to step 3 for requirements before screwing.
‰7.5 mm (19/64q)
to
‰9.4 mm (3/8q)
Safety holder
Wall mount bracket
Fixed to the
wall
Fix the safety holder onto the unit with the
screw (supplied).
{. Screw tightening torque: 50 N0cm (0.4 lbf0ft) to
Safety holder fixing screw
(not supplied)
70 N0cm (0.5 lbf0ft).
8
Attach the fall prevention cord (not supplied) to
the wall.
≥ Make sure that the slack of the cord is minimal.
Screw
(supplied)
Screw eye (not supplied)
Cord (not supplied)
Wall
5
Attach the fall prevention cord (not supplied) to
this unit.
Cord (not supplied)
25
RQT9754
SC-HC58~RQT9754.book
Page 26
Tuesday, December 18, 2012
4:40 PM
Licenses
“Made for iPod”, “Made for iPhone”, and “Made for iPad” mean that an electronic accessory has been designed to
connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple
performance standards.
Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance.
AirPlay, the AirPlay logo, iPad, iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc.,
registered in the U.S. and other countries.
The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance.
The Wi-Fi Protected Setup Mark is a mark of the Wi-Fi Alliance.
“Wi-Fi”, “Wi-Fi Protected Setup”, “WPA” and “WPA2” are marks or registered marks of the Wi-Fi Alliance.
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Panasonic
Corporation is under license. Other trademarks and trade names are those of their respective owners.
26
RQT9754
SC-HC58~RQT9754.book
Page 27
Tuesday, December 18, 2012
4:40 PM
Spanish Quick Reference / Referencia rápida en español
Conexiones
Cinta adhesiva
(no suministrado)
Antena interior
FM
(suministrado)
Conecte el cable de
alimentación AC después de
que todas las demás
conexiones estén completas.
ESPAÑOL
2
iPad
ENGLISH
1
Insertar o sacar los medios
Hacia el tomacorriente AC
Cable de alimentación AC (suministrado)
≥ Consumo de energía en Standby
(modo de espera): Aprox. 0,1 W
Operaciones de
reproducción de medios
Preparación
≥ Encienda la unidad.
≥ Inserte el medio. (l arriba)
≥ Presione [CD] o [iPod] para seleccionar la fuente de
audio.
Reproducción básica
Reloj y temporizador
Ajuste del reloj
Éste es un reloj de 12 horas.
1
Presione [SETUP] repetidamente para
seleccionar “CLOCK”.
2
Presione [3, 4] para seleccionar la hora y
luego presione [OK].
Reproducir
Presione [1/;].
Detención
Presione [∫].
Pausa
Presione [1/;].
Presione nuevamente para reiniciar la
reproducción.
Saltear
Presione [:/6] o [5/9] para
saltear una pista.
Búsqueda
Durante la reproducir o pausa
Mantenga presionado [:/6] o
[5/9].
27
RQT9754
SC-HC58~RQT9754.book
28
RQT9754
Page 28
Tuesday, December 18, 2012
4:40 PM
SC-HC58~RQT9754.book
Page 29
Tuesday, December 18, 2012
4:40 PM
29
RQT9754
SC-HC58~RQT9754.book
Page 30
Tuesday, December 18, 2012
4:40 PM
Limited Warranty
(ONLY FOR U.S.A. AND PUERTO RICO)
Panasonic Consumer Marketing Company of North America,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094
Panasonic Products Limited Warranty
Limited Warranty Coverage
(For USA and Puerto Rico Only)
If your product does not work properly because of a defect in materials or
workmanship, Panasonic Consumer Marketing Company of North America
(referred to as “the warrantor”) will, for the length of the period indicated on
the chart below, which starts with the date of original purchase (“warranty
period”), at its option either (a) repair your product with new or refurbished
parts, (b) replace it with a new or a refurbished equivalent value product, or (c)
refund your purchase price. The decision to repair, replace or refund will be
made by the warrantor.
Product or Part Name
Parts
Labor
Compact Stereo System
1 Year
1 Year
All included Accessories
(Except Non-Rechargeable Batteries)
90 Days
Not Applicable
Only Non-Rechargeable Batteries
10 Days
Not Applicable
During the “Labor” warranty period there will be no charge for labor. During
the “Parts” warranty period, there will be no charge for parts. This Limited
Warranty excludes both parts and labor for non-rechargeable batteries,
antennas, and cosmetic parts (cabinet). This warranty only applies to products
purchased and serviced in the United States or Puerto Rico. This warranty is
extended only to the original purchaser of a new product which was not sold
“as is”.
Mail-In Service
For assistance in the U.S.A. and Puerto Rico in obtaining repairs, please ship
the product prepaid to:
Panasonic Exchange Center
4900 George McVay Drive
Suite B
McAllen, TX 78503
[email protected]
Online Repair Request
To submit a new repair request and for quick repair status visit our Web Site at
www.panasonic.com/repair.
When shipping the unit, carefully pack, include all supplied accessories listed
in the Owner’s Manual, and send it prepaid, adequately insured and packed
well in a carton box. When shipping Lithium Ion batteries please visit our Web
Site at www.panasonic.com/BatteryHandling as Panasonic is committed to
providing the most up to date information. Include a letter detailing the
complaint, a return address and provide a daytime phone number where you
can be reached. A valid registered receipt is required under the Limited
Warranty.
IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE
PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/
PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT
PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED
FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF
OF PURCHASE.
Limited Warranty Limits And Exclusions
This warranty ONLY COVERS failures due to defects in materials or
workmanship, and DOES NOT COVER normal wear and tear or cosmetic
damage. The warranty ALSO DOES NOT COVER damages which occurred
in shipment, or failures which are caused by products not supplied by the
warrantor, or failures which result from accidents, misuse, abuse, neglect,
mishandling, misapplication, alteration, faulty installation,
set-up adjustments, misadjustment of consumer controls, improper
maintenance, power line surge, lightning damage, modification, introduction
of sand, humidity or liquids, commercial use such as hotel, office, restaurant,
or other business or rental use of the product, or service by anyone other than
a Factory Service Center or other Authorized Servicer, or damage that is
attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER
“LIMITED WARRANTY COVERAGE”.
THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS
PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY.
(As examples, this excludes damages for lost time, travel to and from the
servicer, loss of or damage to media or images, data or other memory or
recorded content. The items listed are not exclusive, but for illustration only.)
ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE
WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD
OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or
consequential damages, or limitations on how long an implied warranty lasts,
so the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have other
rights which vary from state to state. If a problem with this product develops
during or after the warranty period, you may contact your dealer or Service
Center. If the problem is not handled to your satisfaction, then write to the
warrantor’s Consumer Affairs Department at the addresses listed for the
warrantor.
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED
WARRANTY, ARE YOUR RESPONSIBILITY.
Customer Services Directory (United States and Puerto Rico)
Obtain Product Information and Operating Assistance; locate your
nearest Dealer or Service Center; purchase Parts and
Accessories; or make Customer Service and Literature requests
by visiting our Web Site at:
http://www.panasonic.com/help
or, contact us via the web at:
http://www.panasonic.com/contactinfo
You may also contact us directly at:
1-800-211-PANA (7262)
Monday-Friday 9am-9pm,
Saturday-Sunday 10am-7pm EST
For hearing or speech impaired TTY users, TTY: 1-877-833-8855
Accessory Purchases (United States and Puerto Rico)
Purchase Parts, Accessories and Instruction Books online for all
Panasonic Products by visiting our Web Site at:
http://www.pstc.panasonic.com
Or, send your request by E-mail to:
[email protected]
You may also contact us directly at:
1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only)
(Monday-Friday 9am-9pm EST)
Panasonic National Parts Center
20421 84th Ave S., Kent, WA 98032
(We accept Visa, MasterCard, Discover Card, American Express)
For hearing or speech impaired TTY users, TTY: 1-866-605-1277
As of October 2012
The model number and serial number of this product can be found
on either the back or the bottom of the unit.
Please note them in the space provided below and keep for future
reference.
MODEL NUMBER
30
SERIAL NUMBER
RQT9754
SC-HC58
User memo:
DATE OF PURCHASE
DEALER NAME
DEALER ADDRESS
TELEPHONE NUMBER
SC-HC58~RQT9754.book
Page 31
Tuesday, December 18, 2012
4:40 PM
Limited Warranty (ONLY FOR CANADA)
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
PANASONIC PRODUCT - LIMITED WARRANTY
EXCHANGE PROGRAM
Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and
for a period as stated below from the date of original purchase agrees to, at its option either (a) repair your product with
new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase
price. The decision to repair, replace or refund will be made by Panasonic Canada Inc.
Panasonic Portable / Clock Radio (without Tape, CD, MD)
Panasonic Audio Product
Panasonic DVD Product
Accessories including rechargeable batteries
One (1) year
One (1) year
One (1) year
Ninety (90) days
This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic
brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in Canada,
which product was not sold “as is”, and which product was delivered to you in new condition in the original packaging.
IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR
OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS
REQUIRED
LIMITATIONS AND EXCLUSIONS
This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear
and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures
which are caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents, misuse,
abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer
controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or
liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by
anyone other than an Authorized Servicer, or damage that is attributable to acts of God.
Dry cell batteries are also excluded from coverage under this warranty.
THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN
NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY
EXPRESS OR IMPLIED WARRANTY. (As examples, this warranty excludes damages for lost time, travel to and from the
Authorized Servicer, loss of or damage to media or images, data or other memory or recorded content. This list of items is
not exhaustive, but for illustration only.)
In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or
the exclusion of implied warranties, so the above limitations and exclusions may not be applicable. This warranty gives
you specific legal rights and you may have other rights which vary depending on your province or territory.
CONTACT INFORMATION
For product information and operation assistance, please contact:
Our Customer Care Centre:
Telephone #:
Fax #:
Email link:
1-800-561-5505
(905) 238-2360
“Support # contact us # email” on www.panasonic.ca
For defective product exchange within the warranty period, please contact the original dealer or our Customer Care
Centre.
31
RQT9754
SC-HC58~RQT9754.book
Page 29
Thursday, December 20, 2012
11:34 AM
THE FOLLOWING APPLIES ONLY IN THE U.S.A.
FCC Note:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
≥ Reorient or relocate the receiving antenna.
≥ Increase the separation between the equipment and receiver.
≥ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
≥ Consult the dealer or an experienced radio/TV technician for help.
Any unauthorized changes or modifications to this equipment would void the user’s authority to operate this device.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Responsible Party:
Panasonic Corporation of North America
One Panasonic Way
Secaucus, NJ 07094
Support Contact:
Panasonic Consumer Marketing Company of North America
Telephone No.: 1-800-211-PANA (7262)
THE FOLLOWING APPLIES IN THE U.S.A. AND CANADA
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the
FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF)
Exposure rules. This equipment has very low levels of RF energy that is deemed to comply without maximum permissive
exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least
20 cm (7 7/8q) or more away from person’s body (excluding extremities: hands, wrists, feet and ankles).
THE FOLLOWING APPLIES ONLY IN CANADA.
This device complies with RSS-GEN, RSS-210 of the IC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
(2) This device must accept any interference received, including interference that may cause undesired operation of this
device.
Panasonic Consumer Marketing
Company of North America,
Division of Panasonic Corporation of
North America
One Panasonic Way, Secaucus,
New Jersey 07094
http://www.panasonic.com
C Panasonic Corporation 2012
Printed in Malaysia
Panasonic Canada Inc.
pr
5770 Ambler Drive
Mississauga, Ontario
L4W 2T3
www.panasonic.ca
RQT9754-1P
F1212KW1122
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
