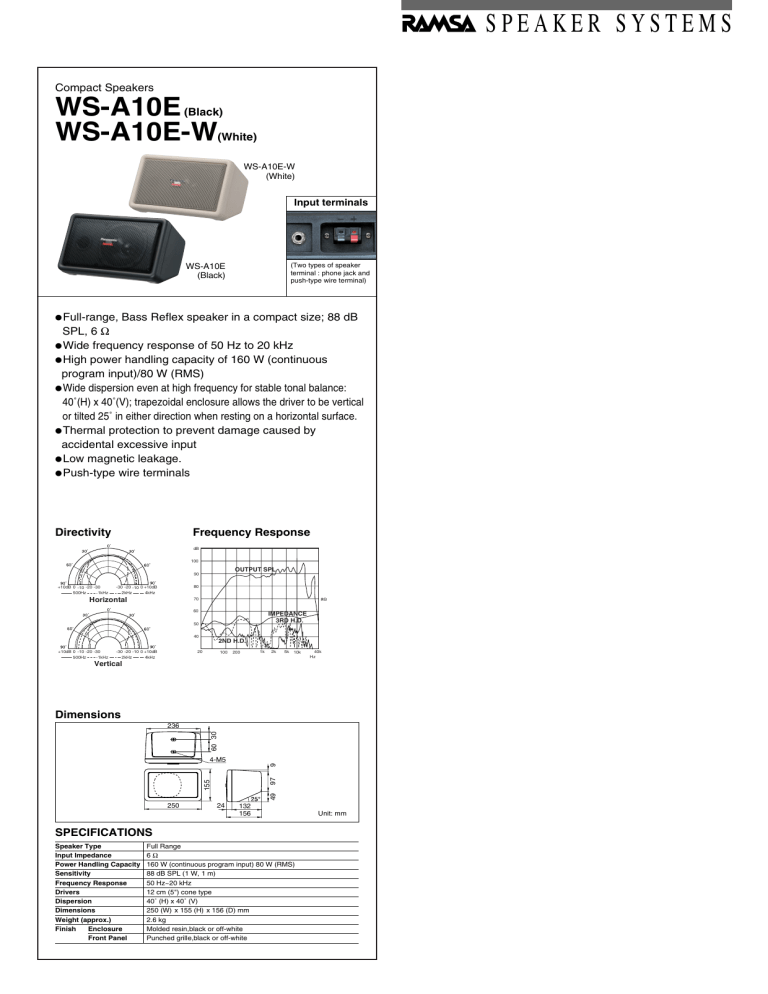

SPEAKER SYSTEMS
Compact Speakers
WS-A10E (Black)
WS-A10E-W(White)
WS-A10E-W
(White)
Input terminals
(Two types of speaker
terminal : phone jack and
push-type wire terminal)
WS-A10E
(Black)
• Full-range, Bass Reflex speaker in a compact size; 88 dB
SPL, 6 Ω
Wide frequency response of 50 Hz to 20 kHz
High power handling capacity of 160 W (continuous
program input)/80 W (RMS)
Wide dispersion even at high frequency for stable tonal balance:
40˚(H) x 40˚(V); trapezoidal enclosure allows the driver to be vertical
or tilted 25˚ in either direction when resting on a horizontal surface.
Thermal protection to prevent damage caused by
accidental excessive input
Low magnetic leakage.
Push-type wire terminals
•
•
•
•
•
•
Directivity
Frequency Response
dB
100
OUTPUT SPL
90
+10dB 0 -10 -20 -30
500Hz
1kHz
80
-30 -20 -10 0 +10dB
2kHz
4kHz
Horizontal
70
60
IMPEDANCE
3RD H.D.
50
40
+10dB 0 -10 -20 -30
500Hz
1kHz
-30 -20 -10 0 +10dB
2kHz
4kHz
2ND H.D.
20
100
200
1k
2k
5k 10k
40k
Hz
Vertical
Dimensions
60 30
236
49
155
97
9
4-M5
250
24
132
156
SPECIFICATIONS
Speaker Type
Input Impedance
Power Handling Capacity
Sensitivity
Frequency Response
Drivers
Dispersion
Dimensions
Weight (approx.)
Finish
Enclosure
Front Panel
Full Range
6Ω
160 W (continuous program input) 80 W (RMS)
88 dB SPL (1 W, 1 m)
50 Hz~20 kHz
12 cm (5") cone type
40˚ (H) x 40˚ (V)
250 (W) x 155 (H) x 156 (D) mm
2.6 kg
Molded resin,black or off-white
Punched grille,black or off-white
Unit: mm
