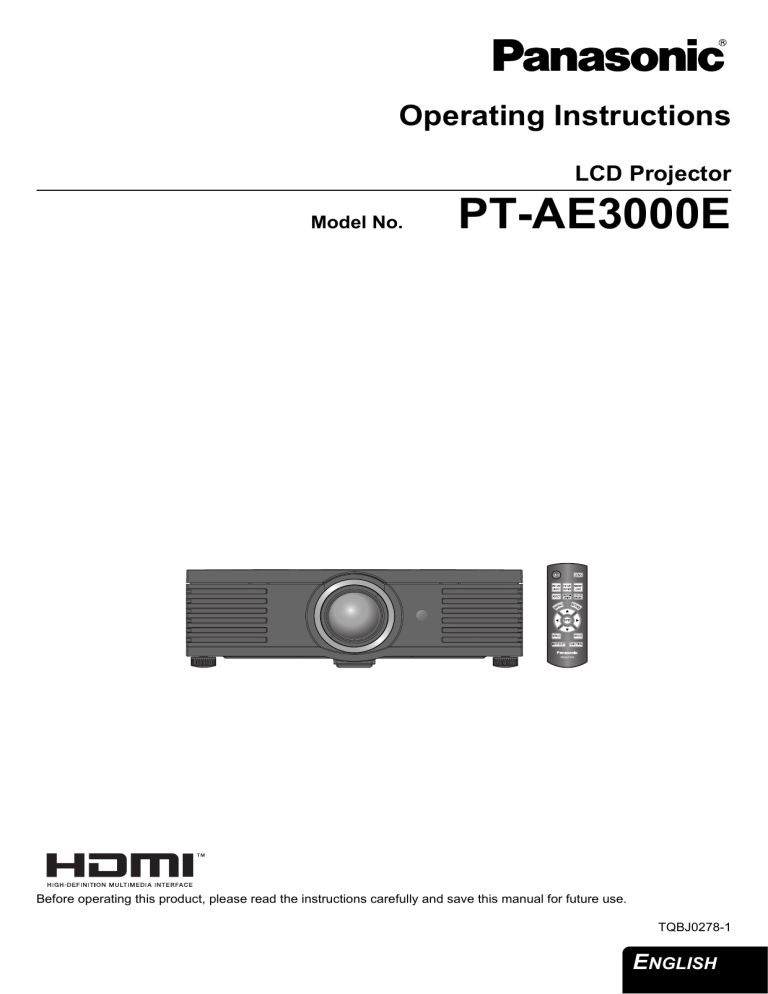

Operating Instructions
LCD Projector
Model No.
PT-AE3000E
Before operating this product, please read the instructions carefully and save this manual for future use.
TQBJ0278-1
ENGLISH
Important
Information
Important Safety Notice
Dear Panasonic Customer:
This instruction booklet provides all the necessary operating information that you might require. We hope it will help
you to get the most out of your new product, and that you will be pleased with your Panasonic LCD projector. The
serial number of your product may be found on its bottom. You should note it in the space provided below and retain
this booklet in case service is required.
Model number:
PT-AE3000E
Serial number:
WARNING:
THIS APPARATUS MUST BE EARTHED.
WARNING:
To prevent damage which may result in fire or shock hazard, do not expose this appliance
to rain or moisture.
Machine Noise Information Ordinance 3. GSGV, January 18, 1991: The sound pressure level at the operator
position is equal or less than 70 dB (A) according to ISO 7779.
WARNING:
1. Remove the plug from the mains socket when this unit is not in use for a prolonged period of time.
2. To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified
service personnel.
3. Do not remove the earthing pin on the mains plug. This apparatus is equipped with a three prong earthingtype mains plug. This plug will only fit an earthing-type mains socket. This is a safety feature. If you are unable
to insert the plug into the mains socket, contact an electrician. Do not defeat the purpose of the earthing plug.
Information for Users on Collection and Disposal of Old Equipment and used
Batteries
These symbols on the products, packaging, and/or accompanying documents mean that used electrical
and electronic products and batteries should not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries, please take them to
applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC
and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save valuable resources and
prevent any potential negative effects on human health and the environment which could otherwise
arise from inappropriate waste handling.
For more information about collection and recycling of old products and batteries, please contact your
local municipality, your waste disposal service or the point of sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for
further information.
Information on Disposal in other Countries outside the European Union
These symbols are only valid in the European Union. If you wish to discard these items, please contact
your local authorities or dealer and ask for the correct method of disposal.
Note for the battery symbol (bottom two symbol examples):
This symbol might be used in combination with a chemical symbol. In this case it complies with the
requirement set by the Directive for the chemical involved.
CAUTION:
2 - ENGLISH
To assure continued compliance, follow the attached installation instructions, which includes using
the provided power cord and shielded interface cables when connecting to computer or peripheral
device. If you use serial port to connect PC for external control of projector, you must use optional
RS-232C serial interface cable with ferrite core. Any unauthorized changes or modifications to this
equipment will void the user’s authority to operate.
Pursuant to at the directive 2004/108/EC, article 9(2)
Panasonic Testing Centre
Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, F.R. Germany
Important
Information
Important Safety Notice
IMPORTANT: THE MOULDED PLUG (U.K. only)
FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 13 amp fuse is
fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating
of13 amps and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark a or the BSI mark ` on the body of the fuse.
If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose
the fuse cover, the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be
purchased from an Authorised Service Centre.
If the fitted moulded plug is unsuitable for the mains socket in your home, then the fuse should be removed
and the plug cut off and disposed of safely. There is a danger of severe electrical shock if the cut off plug is
inserted into any 13 amp socket.
If a new plug is to be fitted, please observe the wiring code as shown below.
If in any doubt, please consult a qualified electrician.
WARNING:
THIS APPLIANCE MUST BE EARTHED.
IMPORTANT:
The wires in this mains lead are coloured in accordance with the following code:
Green - and - Yellow:
Blue:
Brown:
Earth
Neutral
Live
As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows.
The wire which is coloured GREEN - AND - YELLOW must be connected to the terminal in the plug
which is marked with the letter E or by the Earth symbol W or coloured GREEN or GREEN - AND YELLOW.
The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with
the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with
the letter L or coloured RED.
ASA
L
HE
-8
13
A2
50
V
N
BS
13
63
/A
How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse.
ENGLISH - 3
Contents
J Quick steps
1. Set up your projector
See “Setting up” on page 14.
2. Connect with other devices
See “Connections” on page 18.
Important Information
Important Safety Notice........................................ 2
Precautions with regard to safety ....................... 6
WARNINGS................................................................. 6
CAUTIONS .................................................................. 7
Cautions when transporting......................................... 8
Cautions when installing.............................................. 9
Cautions on use .......................................................... 9
Accessories ............................................................... 10
Preparation
About Your Projector.......................................... 11
Remote control .......................................................... 11
Projector body ........................................................... 12
Getting Started
Setting up............................................................. 14
3. Prepare the remote control
See “Remote control” on page 11.
Screen size and throw distance................................. 14
Projection method...................................................... 15
Front leg adjusters and throwing angle ..................... 15
Lens shift and positioning .......................................... 16
Connections ........................................................ 18
Before connecting to the projector............................. 18
Connecting example: COMPONENT IN/S-VIDEO IN/
VIDEO IN................................................................... 18
Connecting example: HDMI IN/COMPUTER IN........ 18
4. Start projecting
See “Switching the projector on/off” on
page 19.
Basic Operation
Switching the projector on/off ........................... 19
Mains lead ................................................................. 19
Power indicator.......................................................... 20
Switching on the projector ......................................... 21
Switching off the projector ......................................... 21
Projecting an image ............................................ 22
5. Adjust the image
See “Menu Navigation” on page 29.
Selecting the input signal........................................... 22
Positioning the image ................................................ 22
Remote control operation .................................. 23
Operating range ........................................................ 23
Managing the lens control settings ............................ 23
Switching the picture mode ....................................... 23
Adjusting the image ................................................... 23
Loading a saved setting ............................................ 24
Switching the aspect ratio.......................................... 24
Adjusting the signal condition with a waveform ......... 24
Setting your own colour profile .................................. 26
Resetting to the factory default settings .................... 28
Capturing an image ................................................... 28
Switching the input signal .......................................... 28
Using the assigned function as shortcut.................... 28
4 - ENGLISH
Maintenance
Menu Navigation ..................................................29
TEMP and LAMP Indicators ............................... 45
Navigating through the MENU .................................. 29
Main menu and sub-menu ........................................ 30
Care and Replacement ....................................... 46
POSITION menu ...................................................37
H-POSITION ............................................................. 37
V-POSITION ............................................................. 37
DOT CLOCK ............................................................. 37
CLOCK PHASE......................................................... 37
ASPECT .................................................................... 37
WSS .......................................................................... 39
OVER SCAN ............................................................. 39
KEYSTONE............................................................... 39
AUTO SETUP ........................................................... 39
LENS CONTROL...................................................40
ZOOM/FOCUS .......................................................... 40
LENS MEMORY LOAD ............................................. 40
LENS MEMORY SAVE ............................................. 40
LENS MEMORY EDIT .............................................. 41
H-AREA POSITION .................................................. 41
V-AREA POSITION................................................... 41
Cleaning the projector............................................... 46
Replacing the lamp unit ............................................ 47
Troubleshooting .................................................. 49
Appendix
Technical Information ......................................... 50
List of compatible signals.......................................... 50
Serial terminal ........................................................... 51
Specifications............................................................ 54
Ceiling mount bracket safeguards ............................ 56
Dimensions ............................................................... 57
Trademark acknowledgements................................. 57
Index ..................................................................... 58
Preparation
PICTURE MODE....................................................... 32
CONTRAST .............................................................. 32
BRIGHTNESS........................................................... 32
COLOUR ................................................................... 32
TINT .......................................................................... 32
SHARPNESS ............................................................ 32
COLOUR TEMPERATURE....................................... 33
DYNAMIC IRIS.......................................................... 33
WAVEFORM MONITOR ........................................... 33
SPLIT ADJUST ......................................................... 33
ADVANCED MENU................................................... 34
MEMORY SAVE ....................................................... 36
MEMORY LOAD ....................................................... 36
MEMORY EDIT ......................................................... 36
SIGNAL MODE ......................................................... 36
Basic Operation
PICTURE menu.....................................................32
Managing the indicated problems ............................. 45
Getting Started
Settings
Important
Information
Contents
FUNCTION BUTTON.............................................42
Maintenance
Appendix
INPUT GUIDE ........................................................... 43
OSD DESIGN............................................................ 43
OSD POSITION ........................................................ 43
BACK COLOUR ........................................................ 43
STARTUP LOGO ...................................................... 43
AUTO SEARCH ........................................................ 43
HDMI SIGNAL LEVEL............................................... 43
FRAME RESPONSE................................................. 43
INSTALLATION......................................................... 44
SLEEP....................................................................... 44
HIGH ALTITUDE MODE ........................................... 44
LAMP POWER .......................................................... 44
LAMP RUNTIME ....................................................... 44
Settings
BUTTON ................................................................... 42
OPTION menu.......................................................43
ENGLISH - 5
Important
Information
Precautions with regard to safety
WARNINGS
If you notice smoke, strange smells or noise coming
from the projector, disconnect the mains plug from
the mains socket.
Do not continue to use the projector in such cases,
otherwise fire or electric shocks could result.
Check that no more smoke is coming out, and then
contact an Authorised Service Centre for repairs.
Do not attempt to repair the projector yourself, as this
can be dangerous.
Do not install this projector in a place which is not
strong enough to take the full weight of the
projector.
If the installation location is not strong enough, it may
fall down or tip over, and severe injury or damage
could result.
Installation work (such as ceiling suspension)
should only be carried out by a qualified technician.
If installation is not carried out correctly, there is the
danger that injury or electric shocks may occur.
Do not use other than an authorised ceiling mount
bracket.
If foreign objects or water get inside the projector, or
if the projector is dropped or the cabinet is broken,
disconnect the mains plug from the mains socket.
Continued use of the projector in this condition may
result in fire or electric shocks.
Contact an Authorised Service Centre for repairs.
The mains socket shall be installed near the
equipment and shall be easily accessible.
Unplug the mains plug from the mains socket
immediately when problem occurred.
Do not overload the mains socket.
If the power supply is overloaded (for example, by
using too many adapters), overheating may occur
and fire may result.
Never attempt to modify or disassemble the
projector.
High voltages can cause fire or electric shocks.
For any inspection, adjustment and repair work,
please contact an Authorised Service Centre.
Clean the mains plug regularly to prevent it from
becoming covered in dust.
If dust builds up on the mains plug, the resulting
humidity can damage the insulation, which could
result in fire. Pull the mains plug out from the mains
socket and wipe it with a dry cloth.
If not using the projector for an extended period of
time, pull the mains plug out from the mains socket.
Do not handle the mains plug with wet hands.
Failure to observe this may result in electric shocks.
6 - ENGLISH
Insert the mains plug securely into the mains socket.
If the plug is not inserted correctly, electric shocks or
overheating could result.
Do not use damaged plugs or loose mains socket.
Do not place the projector on top of surfaces which
are unstable.
If the projector is placed on top of a surface which is
sloped or unstable, it may fall down or tip over, and
injury or damage could result.
Do not place the projector into water or let it become
wet.
Failure to observe this may result in fire or electric
shocks.
Do not do anything that might damage the mains
lead or the mains plug.
Do not damage the mains lead, make any
modifications to it, place it near any hot objects, bend
it excessively, twist it, pull it, place heavy objects on
top of it or wrap it into a bundle.
If the mains lead is used while damaged, electric
shocks, short-circuits or fire may result.
Ask an Authorised Service Centre to carry out any
repairs to the mains lead that might be necessary.
Do not place the projector on soft materials such as
carpets or sponge mats.
Doing so may cause the projector to overheat, which
can cause burns, fire or damage to the projector.
Do not place liquid containers on top of the
projector.
If water spills onto the projector or gets inside it, fire
or electric shocks could result.
If any water gets inside the projector, contact an
Authorised Service Centre.
Do not insert any foreign objects into the projector.
Do not insert any metal objects or flammable objects
into the projector or drop them onto the projector, as
doing so can result in fire or electric shocks.
Do not allow the + and - terminals of the batteries to
come into contact with metallic objects such as
necklaces or hairpins.
Failure to observe this may cause the batteries to
leak, overheat, explode or catch fire.
Store the batteries in a plastic bag and keep them
away from metallic objects.
Do not touch the leaked liquid from the batteries.
If you touch the leaked liquid, it may hurt your skin.
Immediately wash away the liquid with water and
seek medical advice.
If you get the leaked liquid in your eye, it may cause
blindness or damage. Never rub your eye, and
immediately wash away the liquid with water and
seek medical advice.
During a thunderstorm, do not touch the projector or
the cable.
Electric shocks can result.
Do not use the projector in a bath or shower.
Fire or electric shocks can result.
Do not place your skin into the light beam while the
projector is being used.
Strong light is emitted from the projector’s lens. If you
place directly into this light, it can hurt or damage
your skin.
Do not look into the lens while the projector is being
used.
Strong light is emitted from the projector’s lens. If you
look directly into this light, it can hurt and damage
your eyes.
Be especially careful not to let young children look
into the lens. In addition, turn off the power and
disconnect the mains plug when you are away from
the projector.
Do not place your hands or other objects close to the
air exhaust port.
Heated air comes out of the air exhaust port. Do not
place your hands or face, or objects which cannot
withstand heat close to this port [allow at least
50 cm (20") of space], otherwise burns or damage
could result.
Important
Information
Precautions with regard to safety
Replacement of the lamp is recommended to be
carried out by a qualified technician.
The lamp has high internal pressure. If improperly
handled, explosion might result.
The lamp can easily become damaged if struck
against hard objects or dropped, and injury or
malfunctions may result.
When replacing the lamp, allow it to cool for at least
one hour before handling it.
The lamp cover gets very hot, and touching it can
cause burns.
Before replacing the lamp, be sure to disconnect the
mains plug from the mains socket.
Electric shocks or explosions can result if this is not
done.
Do not allow infants or pets to touch the remote
control unit.
Keep the remote control unit out of the reach of
infants and pets after using it.
CAUTIONS
Do not cover the air intake port or the air exhaust
port.
Doing so may cause the projector to overheat, which
can cause fire or damage to the projector.
Do not place the projector in narrow, badly ventilated
places such as closets or bookshelves.
Do not place the projector on cloth or papers, as
these materials could be drawn into the air intake
port.
Do not set up the projector in humid or dusty places
or in places where the projector may come into
contact with oily smoke or steam.
Using the projector under such conditions may result
in fire, electric shocks or plastic deterioration. The
plastic deterioration may cause the falling down of
the projector which is mounted on the ceiling.
Do not set up the projector in a high temperature
environment, such as near a heater or in direct
sunlight.
Failure to observe this may result in fire, malfunction
or plastic deterioration.
Do not set up the projector outdoors.
The projector is designed for indoor use only.
When disconnecting the mains lead, hold the plug,
not the lead.
If the mains lead itself is pulled, the lead will become
damaged, and fire, short-circuits or serious electric
shocks may result.
Always disconnect all cables before moving the
projector.
Moving the projector with cables still attached can
damage the cables, which could cause fire or electric
shocks to occur.
Do not place any heavy objects on top of the
projector.
Failure to observe this may cause the projector to
become unbalanced and fall, which could result in
damage or injury.
ENGLISH - 7
Important
Information
Precautions with regard to safety
Do not short-circuit, heat or disassemble the
batteries or place them into water or fire.
Failure to observe this may cause the batteries to
overheat, leak, explode or catch fire, and burns or
other injury may result.
Do not put your weight on this projector.
You could fall or the projector could break, and injury
may result.
Be especially careful not to let young children stand
or sit on the projector.
When inserting the batteries, make sure the
polarities (+ and -) are correct.
If the batteries are inserted incorrectly, they may
explode or leak, and fire, injury or contamination of
the battery compartment and surrounding area may
result.
Disconnect the mains plug from the mains socket as
a safety precaution before carrying out any cleaning.
Electric shocks can result if this is not done.
Use only the specified batteries.
If incorrect or different kinds of batteries are used,
they may explode or leak, and fire, injury or
contamination of the battery compartment and
surrounding area may result.
Do not mix old and new batteries.
If the batteries are used mixing old and new, they
may explode or leak, and fire, injury or contamination
of the battery compartment and surrounding area
may result.
Remove the used batteries from the remote control
promptly.
If you leave used batteries in the remote control for
an extended period of time, it may cause liquid
leaking, abnormal internal temperature rising or
explosion.
If not using the projector for an extended period of
time, disconnect the mains plug from the mains
socket and remove the batteries from the remote
control.
If dust builds up on the mains plug, the resulting
humidity may damage the insulation, which could
result in fire.
Keeping or leaving the remote control with batteries
inside may cause insulation deterioration, electrical
leakage or explosion which could result in fire.
If the lamp has broken, ventilate the room
immediately. Do not touch or bring your face close
to the broken pieces.
Failure to observe this may cause the user to absorb
the gas which was released when the lamp broke and
which contains nearly the same amount of mercury
as fluorescent lamps, and the broken pieces may
cause injury.
If you believe that you have absorbed the gas or that
the gas has got into your eyes or mouth, seek
medical advice immediately.
Ask your dealer about the replacement of the lamp
unit and check the inside of the projector.
Ask an Authorised Service Centre to clean inside the
projector at least once a year.
If dust is left to build up inside the projector without
being cleaned out, it can result in fire or problems
with operation.
It is a good idea to clean the inside of the projector
before the season for humid weather arrives. Ask
your nearest Authorised Service Centre to clean the
projector when required. Please discuss with the
Authorised Service Centre regarding cleaning costs.
We are constantly making efforts to preserve and maintain a clean environment. Please take non repairable
units back to your dealer or a recycling company.
Cautions when transporting
Do not subject the projector to excessive vibration
or shocks.
The projector lens needs to be handled with care.
Cover the lens with the lens cover when transporting
the projector.
8 - ENGLISH
When transporting the projector, hold the body at
the bottom securely.
Do not hold the front leg adjusters or the top cover to
move the projector, as this may damage the
projector.
Cautions when installing
Avoid setting up in places which are subject to
vibration or shocks.
The internal parts can be damaged, which may cause
malfunctions or accidents.
Avoid setting up in places which are subject to
sudden temperature changes, such as near an air
conditioner or lighting equipment.
The life of the lamp may be shortened or the projector
may be turned off. See “TEMP indicator” on page 45.
Do not set up the projector near high-voltage power
lines or near motors.
The projector may be subject to electromagnetic
interference.
If installing the projector to the ceiling, ask a
qualified technician or an Authorised Service Centre
to carry out all installation work.
You will need to purchase the separate installation kit
(Model No. ET-PKE2000, ET-PKE1000S).
Furthermore, all installation work should only be
carried out by a qualified technician.
See “Ceiling mount bracket safeguards” on page 56
for the safety cable installation.
Important
Information
Precautions with regard to safety
If using this projector at high elevations 1 400 2 700 m (4 593 - 8 858 ft) sea level, set the HIGH
ALTITUDE MODE to ON. See “HIGH ALTITUDE
MODE” on page 44.
Failure to observe this may result in malfunctions or
the life of the lamp or the other components may be
shortened.
Cautions on use
In order to get the best picture quality
Draw curtains or blinds over any windows and turn off
any lights near the screen to prevent outside light or
light from indoor lamps from shining onto the screen.
Do not touch the surfaces of the lens with your bare
hands.
If the surface of the lens becomes dirty from
fingerprints or anything else, this will be magnified
and projected onto the screen. Moreover, when not
using the projector, attach the lens cover.
Liquid crystal panel
Do not project the same image for long periods of
time, as this may remain as an afterimage on the
liquid crystal panel. Display the white screen test
pattern for more than an hour to remove it. See
“ZOOM/FOCUS” on page 40.
The liquid crystal panel of the projector is built with
very high precision technology to provide fine picture
details. Occasionally, a few stuck pixels may appear
on the screen as fixed points of blue, green or red. It
is recommended to switch off the projector once and
try after 1 hour later again. Please note that this does
not affect the performance of your LCD.
The projector has a high pressure mercury lamp and
that is characterised as follows.
The brightness of the lamp depends on the duration
of use.
The lamp may explode or shorten the lamp life by
shocks or chipping damage.
The lamp may explode only occasionally after using
the projector.
The lamp may explode if using the projector after the
instructed lamp replacement timing.
When the lamp exploded, it emits the internal smokelike gas.
The lamp life depends on individual lamp
characteristics, usage condition and the installation
environment. Especially the consecutive use of the
projector for more than 10 hours, or the frequent
switching on or off may greatly affect on the lamp life.
Optical components
If you use the projector consecutively 6 hours every
day, the optical components may need to be replaced
in less than 1 year.
ENGLISH - 9
Important
Information
Precautions with regard to safety
Accessories
Make sure the following accessories are provided with your projector.
Remote control for
PT-AE3000E (x1)
N2QAYB000316
Safety cable
TTRA0141
Attachment screw (x1)
Safety cable (x1)
Lens cover (x1)
TXFKK01VKF5
(Attached to the projector by default.)
Mains lead for continental Europe (x1)
K2CM3FH00001
3 m (9'10")
Mains lead for UK (x1)
K2CT3FH00003
3 m (9'10")
AA batteries for remote control (x2)
Power cord secure lock (x1)
TTRA0184
* The protectors for enclosed products, such as a plug
cover or foam cartons, must be treated properly.
10 - ENGLISH
* Contact to an Authorised Service Centre for lost
accessories.
About Your Projector
Power button
While the MAIN POWER
button is on, switch between
standby mode and projection
mode. (page 21)
Remote control signal emitter
Emit remote control signal. (page 23)
Display the PICTURE menu
or ADVANCED MENU.
(page 23)
Switch to cycle through the
PICTURE MODE. (page 23)
Switch to cycle through the
aspect ratio. (page 24)
Display the main menu or
return to the previous menu.
(page 29)
Navigate through the
menus with FGIH,
and activate the menu
item with the ENTER
button. (page 29)
Reset some of the settings to
the factory default. (page 28)
Switch to cycle through
the input method.
(page 28)
Button backlight
When any button is pressed, the button
backlight is lit. Without any operation, it
gets darker after 5 seconds and goes off
after next 5 seconds.
Display the LENS CONTROL
menu. (page 23)
Preparation
Remote control
Display the MEMORY LOAD
menu. (page 24)
Display the COLOUR
MANAGEMENT menu.
(page 26)
Display the input waveform.
(page 24)
Return to the previous
menu. (page 29)
Capture the projected image
as a still image. (page 28)
Activate the assigned
function from the menu
options for shortcut.
(page 42)
Battery compartment
1. Press the tab and lift up the cover.
2. Insert the batteries according to the polarity diagram indicated
inside.
NOTE:
•
•
•
•
•
•
Do not drop the remote control.
Avoid contact with liquids or moisture.
Use manganese batteries or alkaline batteries with the remote control.
Do not attempt to modify or disassemble the remote control. Contact an Authorised Service Centre for repairs.
Do not keep pressing the remote control buttons as this may shorten battery life.
See “Remote control operation” on page 23.
ENGLISH - 11
About Your Projector
Projector body
J Top and front view
Preparation
Air exhaust port
Heated air comes out of
this opening.
Lens shift dial • Vertical
(page 16)
Lens shift dial • Horizontal
(page 16)
Power/LAMP/TEMP
indicators
(page 20/page 45)
Air filter
(page 46)
MAIN POWER
Switch the projector on/off.
(page 21)
Projection lens
Lens cover
Protects the projection lens
from dust or dirt.
Remote control signal
receptor
(page 23)
Air exhaust port
Heated air comes
out of this opening.
INPUT SELECT
Switch to cycle through the
input method. (page 22)
Navigate through the menus with F G H I,
and activate the menu item with the ENTER
button. (page 29)
(Push to open/close the cover.)
Power
While the MAIN POWER is on, switch between
standby mode and projection mode. (page 21)
MENU
Display the main menu.
Return to the previous menu. (page 29)
RETURN
Return to the previous menu.
(page 29)
FOCUS and ZOOM
Adjust the focus and size of the
image. (page 22)
NOTE:
• Do not cover the ventilation openings or place anything within 50 cm (20") of them as this may cause damage or injury.
• While the projector is not in use, keep the lens cover attached to protect the lens.
12 - ENGLISH
About Your Projector
Air intake port
Security lock
Attach the commercial shackle lock
which is provided with the projector.
Compatible with the Kensington
MicroSaver Security System.
Top cover
Hold the top cover at the back corner
and slightly push up to open.
(page 47)
Preparation
J Back and bottom view
Air intake port
AC IN
Connect the mains lead to
supply electronic power to the
projector. (page 19)
Safety cable attachment point
Attach the safety cable when
mounted on the ceiling.
(page 56)
Front leg adjusters
Screw up/down to adjust the
projection angle. (page 15)
Lens cover attachment hole
COMPUTER IN
Connect an RGB signal cable
from your PC.
Front leg adjusters
Screw up/down to adjust the
projection angle. (page 15)
COMPONENT IN
Connect YPBPR signal cables.
S-VIDEO IN
Connect a S-VIDEO
signal cable.
VIDEO IN
Connect an RCA
composite video cable.
Connecting
terminals
(page 18)
HDMI IN
Connect HDMI signal cables.
SERIAL
Connect a compatible cable for
controlling the projector
remotely via your computer.
(page 51)
NOTE:
• Do not cover the ventilation openings or place anything within 50 cm (20") of them as this may cause damage or injury.
• The projector should only be used with the attached mains lead to ensure optimum performance and avoid damage to the
projector.
• Do not open the top cover other than replacing the lamp unit.
ENGLISH - 13
Setting up
Screen size and throw distance
You can adjust the projection size with 2.0x zoom lens. Calculate and define the throw distance as follows.
SH
SD
SW
Projected image
(Shown as 16:9 size)
Screen
Getting Started
All measurements and the calculation results bellow are approximate and may differ from the actual measurements.
Throw distance (16 : 9)
Screen Diagonal
(SD)
1.02 m
1.27 m
1.52 m
1.78 m
2.03 m
2.29 m
2.54 m
3.05 m
3.81 m
5.08 m
(40")
(50")
(60")
(70")
(80")
(90")
(100")
(120")
(150")
(200")
Minimum distance
(LW)
1.2 m
1.5 m
1.8 m
2.1 m
2.4 m
2.7 m
3.0 m
3.6 m
4.5 m
6.0 m
(3'11'')
(4'11'')
(5'10'')
(6'10'')
(7'10'')
(8'10'')
(9'10'')
(11'9'')
(14'9'')
(19'8'')
Throw distance (2.35 : 1)
Maximum distance
(LT)
2.3 m
2.9 m
3.5 m
4.1 m
4.7 m
5.3 m
5.9 m
7.2 m
9.0 m
12.0 m
Minimum distance
(LW)
(7'6'')
(9'6'')
(11'5'')
(13'5'')
(15'5'')
(17'4'')
(19'4'')
(23'7'')
(29'6'')
(39'4'')
1.3 m
1.6 m
1.9 m
2.2 m
2.6 m
2.9 m
3.2 m
3.8 m
4.8 m
6.4 m
(4'3'')
(5'2'')
(6'2'')
(7'2'')
(8'6'')
(9'6'')
(10'5'')
(12'5'')
(15'8'')
(20'11'')
J Calculation methods for screen dimensions
You can calculate more detailed screen dimension from the screen diagonal.
16 : 9 size
Screen width (SW) and screen height (SH)
SW (m)= SD (m) x 0.872
SH (m) = SD (m) x 0.490
Minimum distance (LW) and maximum distance (LT)
LW (m) = SD (m) x 1.189 - 0.04
LT (m) = SD (m) x 2.378 - 0.05
2.35 : 1 size
Screen width (SW) and screen height (SH)
SW (m)= SD (m) x 0.920
SH (m) = SD (m) x 0.392
Minimum distance (LW) and maximum distance (LT)
LW (m) = SD (m) x 1.256 - 0.04
LT (m) = SD (m) x 1.899 - 0.05
NOTE:
• Do not use the projector at a raised or a horizontally tilted position as it may cause
+30°
malfunction of the projector.
• Make sure the projector lens surface is parallel with the screen. You can tilt the projector -30°
body less than approximately ± 30° vertically. Overtilting may result in shortening the
component’s life.
• For the best quality of the projection image, install a screen where sun light or room light
does not shine directly onto the screen. Close window shades or curtains to block the lights.
14 - ENGLISH
Maximum distance
(LT)
2.3 m
2.8 m
3.3 m
3.8 m
4.2 m
4.7 m
5.7 m
7.1 m
9.6 m
(7'6'')
(9'2'')
(10'9'')
(12'5'')
(13'9'')
(15'5'')
(18'8'')
(23'3'')
(31'5'')
Setting up
Projection method
You can use the projector with any of the following 4 projection methods. To set the desired method in the projector,
See “INSTALLATION” on page 44.
INSTALLATION: FRONT/DESK
J Mounting on the ceiling and
projecting from front
INSTALLATION: FRONT/CEILING
J Setting on a desk/floor and
projecting from rear
INSTALLATION: REAR/DESK
J Mounting on the ceiling and
projecting from rear
Getting Started
J Setting on a desk/floor and
projecting from front
INSTALLATION: REAR/CEILING
NOTE:
• A translucent screen is required for rear projection.
• When mounting the projector on the ceiling, the optional ceiling mount bracket (ET-PKE2000, ET-PKE1000S) is required.
• See “Ceiling mount bracket safeguards” on page 56.
Front leg adjusters and throwing angle
You can screw up/down the front leg adjusters to control the angle of the projector for adjusting the throwing angle.
See “Positioning the image” on page 22.
NOTE:
• Heated air comes out of the air exhaust port. Do not touch the air exhaust port directly.
• If keystone distortion occurs, see “KEYSTONE” on page 39.
• Screw up the front leg adjusters, and an audible click will be heard as the limit.
ENGLISH - 15
Setting up
Lens shift and positioning
If the projector is not positioned right in front of the centre of the screen, you can adjust the projected image position
by moving the lens shift dials within the shift range of the lens.
J Adjusting the lens shift dials
Q Horizontal shift
You can place the projector where the projector lens is up to 40% horizontally off-centre from the screen and
then adjust the image position with the Lens shift dial • Horizontal.
Up to about 40 %
of the projection
Up to about 40 %
of the projection
Getting Started
Turning the dial clockwise:
Image moves to the right
Turning the dial counterclockwise:
Image moves to the left
Q Vertical shift
You can place the projector where the projector lens is up to 100% vertically off-centre from the screen and
then adjust the image position with the Lens shift dial • Vertical.
Turning the dial counterclockwise:
Image moves to the bottom
Up to about 100 %
of the projection
Up to about 100 %
of the projection
Turning the dial clockwise:
Image moves to the top
16 - ENGLISH
Setting up
J Projector location range
You can determine where to locate the screen and the projector by considering the lens shift possibilities.
Q When the screen position is fixed
H
Projector
Placement
V
Vertical centre of
screen
Centre of lens
Screen
Getting Started
SH
SW
Q When the projector position is fixed
100%
Shift range
SH
100%
40%
SW
40%
Projector
NOTE:
• When the projector is located right in front of the centre of the screen and the lens shift dials is centred, you will get the
best quality of the projection image.
• When the Lens shift dial • Vertical is at the vertical limit of the shift range, you cannot turn the dial to the horizontal limit,
likewise when the Lens shift dial • Horizontal is at the horizontal limit of the shift range, you cannot turn the dial to the
vertical limit.
• When the projector is tilted and adjusting KEYSTONE, the centre of the screen and the lens need to be realigned.
• Do not force the lens shift dials to turn as this may damage the projector. Turning the dials maximum limit is 4 or 5 times
from the default position.
ENGLISH - 17
Connections
Before connecting to the projector
Read and follow the operating and connecting instructions of each peripheral device.
The peripheral devices must be turned off.
Use cables that match each peripheral device to be connected.
Confirm the type of video signals. See “List of compatible signals” on page 50.
Audio cables must be connected from each peripheral device directly to the audio reproduction system.
Connecting example: COMPONENT IN/S-VIDEO IN/
VIDEO IN
\
Getting Started
To COMPONENT
video output
To VIDEO output
DVD player
To S-VIDEO output
Video player
DVD player
Connecting example: HDMI IN/COMPUTER IN
RGB signal cable
(Commercial item)
HDMI cable
(RP-CDHG100: Optional))
To HDMI output
DVD player
Computer
NOTE:
• Make sure the HDMI cable is adapted to your HDMI device for proper performance.
• A compatible cable is required for an HDMI 1 080p signal.
• It is possible to connect with DVI devices via a HDMI/DVI conversion adapter, but some equipment may not project the
image properly or other problems could be encountered. See “Serial terminal” on page 51.
18 - ENGLISH
Switching the projector on/off
Mains lead
J Connecting
J Disconnecting
1. Make sure the shape of the mains plug and the
AC IN terminal on the back of the projector match,
then push the plug all the way in.
1. Unplug the mains lead from the mains socket.
2. Depress the latch and slide the cover off.
Latch
3. Slide the power cord secure lock up along the side
guide rail and remove.
Rail guide
Rail guide
3. Place the latch to the latch catcher and press until
it clicks.
4. Hold the plug and unplug the mains lead from the
AC IN terminal on the back of the projector.
Latch
4. Connect the mains lead to a mains socket.
NOTE:
•
•
•
•
•
Basic Operation
2. Align the side of the power cord secure lock with
the side guide rail of the AC IN terminal of the
projector and slide it in.
Do not use other than the provided mains lead.
Ensure all the input devices are connected and turned off before connecting the mains lead.
Do not force the connector as this may damage the projector and/or the mains lead.
Dirt or dust build-up around plugs may cause fire or electrical hazards.
Switch off the power to the projector when not in use.
ENGLISH - 19
Switching the projector on/off
Power indicator
Power indicator informs you the status of the power.
When the TEMP indicator is flashing, the power
indicator will not light.
Power indicator
Indicator status
Status
No illumination or flashing
Red
Green
Orange
Lit
Flashing
The MAIN POWER button is switched off.
The MAIN POWER button is switched on and the projector is in standby mode.
The power button is switched on and the projector is getting ready to project.
Lit
Projecting.
Lit
The power button is switched off and the projector is cooling the lamp.
Flashing
The power button is switched on again when cooling the lamp and recovering to
projection mode. Recovery may take a while.
Basic Operation
NOTE:
• See “TEMP indicator” on page 45.
• While the projector is cooling the lamp, do not switch the MAIN POWER button off or unplug the mains lead.
• The electric consumption in standby mode is 0.08 W.
20 - ENGLISH
Switching the projector on/off
Switching on the projector
Power indicator
(1)
(3)
(2)
1. Remove the lens cover from the lens.
2. Switch the MAIN POWER button on.
3. Press the power button.
The power indicator lights up in green after flashing
for a while.
The STARTUP LOGO is displayed on the screen.
See “STARTUP LOGO” on page 43.
The power indicator lights up in red.
• When the internal cooling fan is operating, some operational sound may be heard. The loudness of the operational sound
depends on the external temperature.
• You can reduce the operational sound by setting the LAMP POWER in OPTION menu to the ECO-MODE. See “LAMP
POWER” on page 44.
• When starting up the projector, some small rattling or tinkling sound may be heard, or the display may flicker for the
characteristics of the lamp. Those are normal and will not affect the performance of the projector.
• Do not attempt to modify the lens cover which may cause burns, fire or damage to the projector.
Switching off the projector
Power indicator
Basic Operation
NOTE:
(3)
(1)
(2)
1. Press the power button.
The confirmation screen is displayed.
To return to the projection, press any button except
the power button.
2. Press the power or ENTER button.
The power indicator lights up in orange while cooling
the lamp, then illuminates red when it is ready to
switch off the MAIN POWER button.
3. Switch off the MAIN POWER button on the left
side of the projector.
4. Attach the lens cover.
NOTE:
• Press the power button twice or for a long duration to switch the power off.
ENGLISH - 21
Projecting an image
Selecting the input signal
1. Switch on the connected devices.
Press the play button of the required device.
2. Press the INPUT SELECT button to select the
required input method if needed. See “Switching
the input signal” on page 28.
NOTE:
• AUTO SEARCH is ON as default and the signal from
the connected devices is detected automatically. See
“AUTO SEARCH” on page 43.
The image will be projected on the screen.
Positioning the image
1. Press the ASPECT button to select the required
aspect mode. See “Switching the aspect ratio” on
page 24.
2. Adjust the projected image with the lens shift dials.
See “Lens shift and positioning” on page 16.
4. Adjust the focus and the projected image size.
Press +/- of the FOCUS and ZOOM buttons to
adjust.
Press the LENS button to adjust the focus and zoom
by the remote control. See “LENS CONTROL” on
page 40.
Basic Operation
3. Adjust the angle of the projector.
Screw down the front leg adjusters and adjust the
angle vertically.
See “Front leg adjusters and throwing angle” on
page 15.
22 - ENGLISH
NOTE:
• Do not touch the air exhaust port as this may cause
burns or injury.
• If keystone distortion occurs, see “KEYSTONE” on
page 39.
• If you adjust the focus, you may need to adjust the size
of the image by pressing the ZOOM button again.
Remote control operation
Operating range
You can operate the projector with the remote control
within the remote range 7 m (22'11").
Q Facing to the projector
Ensure the remote control emitter is facing to the
remote control signal receptor on front/back of the
projector and press the required buttons to
operate.
Q Facing to the screen
Ensure the remote control emitter is facing to the
screen and press the required buttons to operate
the projector. The signal will be reflected off the
screen. The operating range may differ due to the
screen material. This function may not be effective
with a translucent screen.
• Do not let strong light shine onto the signal receptor.
The remote control may malfunction under strong light
such as fluorescent.
• If there are any obstacles between the remote control
and the remote control signal receptor, the remote
control may not operate correctly.
Managing the lens control settings
You can adjust the focus and zoom of the
projected image, and save the settings. Press
the LENS button to display the LENS CONTROL menu.
See “LENS CONTROL” on page 40.
Switching the picture mode
You can switch the preset picture mode
settings by pressing the PICTURE MODE
button. Press the button until the required
setting is selected. See “PICTURE MODE” on
page 32.
NORMAL
Basic Operation
NOTE:
CINEMA3
DYNAMIC
CINEMA2
COLOUR1
COLOUR2
CINEMA1
Adjusting the image
You can display the PICTURE and
ADVANCED MENU menu items in called up
style by pressing the PICTURE ADJUSTMENT
button. Press the button to switch between
PICTURE and ADVANCED MENU menu.
Press F G to select the required menu item
and I H to adjust.
Q PICTURE menu items
PICTURE MODE, CONTRAST, BRIGHTNESS,
COLOUR, TINT, SHARPNESS, COLOUR
TEMPERATURE and DYNAMIC IRIS
Q ADVANCED MENU items
GAMMA, CONTRAST, BRIGHTNESS, COLOUR
MANAGEMENT, x.v.Colour, FRAME
CREATION, DETAIL CLARITY, NR, MPEG NR,
CINEMA REALITY and TV-SYSTEM
NOTE:
• For each menu item description, see “PICTURE
menu” on page 32.
• The screen will be cleared after 7 seconds without
any operation.
ENGLISH - 23
Remote control operation
Loading a saved setting
You can access saved settings instantly. See
“MEMORY LOAD” on page 36.
1. Select the required setting from MEMORY1 - 16.
Undefined setting will not be displayed.
2. Press the ENTER button to activate the selected
setting.
NOTE:
• If you have not saved any settings, MEMORY1 - 16 will
not be displayed.
Switching the aspect ratio
The aspect ratio will be selected automatically,
or you can switch it manually by pressing the
ASPECT button. Press the button several
times to cycle through the different aspect type.
See “ASPECT” on page 37.
NOTE:
Basic Operation
• If you project an image with an unmatched aspect ratio,
the image may distort or some portions may be
cropped. Select an aspect ratio which preserves the
intention of the image creator.
• The order of aspect type is defined not only by the input
method but also by the input signals. See “List of
compatible signals” on page 50.
• If you project a copyrighted image enlarged or distorted
by using ASPECT function in commercial use in a
public place, such as a restaurant or hotel, you might
infringe on the copyright of the creator which is
protected by copyright law.
Adjusting the signal condition with a waveform
You can display the image brightness and
contrast level of the input signal with a
waveform. See “WAVEFORM MONITOR” on
page 33.
Monitoring the waveform of
brightness and contrast of the whole
image.
Monitoring the waveform of
SINGLE LINE SCAN brightness and contrast in each
horizontal line of the image.
2. Press ENTER button until the required waveform
option is displayed.
In FULL SCAN mode, press F G I H to change
the waveform position.
In SINGLE LINE SCAN mode, press F G to select
the required line position.
FULL SCAN
J Displaying the waveform
1. Press the WAVEFORM button and display the
waveform monitor.
Press the WAVEFORM button again to escape from
the waveform mode.
FULL SCAN(Y)
SINGLE LINE SCAN(B)
FULL SCAN(R)
SINGLE LINE SCAN(G)
FULL SCAN(G)
SINGLE LINE SCAN(R)
FULL SCAN(B)
SINGLE LINE SCAN(Y)
NOTE:
•
•
•
•
•
•
•
In SINGLE LINE SCAN mode, the position of the waveform monitor depends on the position of the selected line.
You can display the main menu by pressing the MENU button and adjust the menu items.
The called up menu items displayed position depends on the position of the waveform monitor.
You can activate AUTO ADJUST of the WAVEFORM menu by pressing the DEFAULT button.
The signal which is lower than 0% in the waveform will be displayed as same as 0% on the projected image.
While the waveform is displayed, the image is displayed without the COLOUR MANAGEMENT adjustment.
When adjusting the KEYSTONE of the POSITION menu while the waveform is displayed, x.v.Colour will be deactivated.
24 - ENGLISH
Remote control operation
J Adjustment example
Project a commercial test signal for picture
adjustment on the screen and press the
WAVEFORM button.
3. Adjust by pressing I H.
Adjust the bottom line of the waveform to 0 % (0 or
7.5 IRE).
Setting range: -32 to +32
4. Press F G to display the CONTRAST.
5. Adjust by pressing I H.
Adjust the up line of the waveform to 100 %
(100 IRE).
Setting range: -64 to +64
100%
50%
0%
ENTER
ENTER
FULL SCAN(Y)/SINGLE LINE SCAN(Y)
Adjust the bottom line of the
BRIGHTNESS
waveform to 0 % (0 or 7.5 IRE)
Adjust the top line of the waveform to
CONTRAST
100 % (100 IRE)
Q Adjusting with RGB options
Adjust to 100%
In SINGLE LINE SCAN mode, select the required
adjusting point by pressing F G.
50%
displayable area
0%
Adjust to 0%
Monitor position
With COMPUTER (except 1080) or
HDMI (Expand)
Adjust to 100%
Signal level
100%
50%
displayable area
0%
Adjust to 0%
Monitor position
Q Adjusting with luminance options
1. Press the ENTER button several times to display
FULL SCAN(Y)/SINGLE LINE SCAN(Y).
In SINGLE LINE SCAN mode, select the required
adjusting point by pressing F G.
2. Press the PICTURE ADJUSTMENT button and
display the BRIGHTNESS by pressing F G.
When ADVANCED MENU is displayed, press the
button again to switch to the PICTURE menu.
2. Press the PICTURE ADJUSTMENT button and
display the BRIGHTNESS R/BRIGHTNESS G/
BRIGHTNESS B by pressing F G.
When PICTURE menu is displayed, press the button
again to switch to the ADVANCED MENU.
3. Adjust by pressing I H.
Adjust the bottom line of the waveform to 0 % (0 or
7.5 IRE).
Setting range: -16 to +16
4. Press F G to display the CONTRAST R/
CONTRAST G/CONTRAST B.
5. Adjust by pressing I H.
Adjust the up line of the waveform to 100 %
(100 IRE).
Setting range: -32 to +32
Basic Operation
Signal level
100%
1. Press the ENTER button several times to display
the required R/G/B waveform option.
FULL SCAN(R)/SINGLE LINE SCAN(R)
Adjust the bottom line of the
BRIGHTNESS R
waveform to 0 % (0 or 7.5 IRE)
Adjust the top line of the waveform to
CONTRAST R
100 % (100 IRE)
FULL SCAN(G)/SINGLE LINE SCAN(G)
Adjust the bottom line of the
BRIGHTNESS G
waveform to 0 % (0 or 7.5 IRE)
Adjust the top line of the waveform to
CONTRAST G
100 % (100 IRE)
FULL SCAN(B)/SINGLE LINE SCAN(B)
Adjust the bottom line of the
BRIGHTNESS B
waveform to 0 % (0 or 7.5 IRE)
Adjust the top line of the waveform to
CONTRAST B
100 % (100 IRE)
ENGLISH - 25
Remote control operation
Setting your own colour profile
You can adjust a selected colour individually
and save and retrieve under the PICTURE
MODE setting. Press the
COLOUR MANAGEMENT button to open the
menu. See “COLOUR MANAGEMENT” on
page 35.
3. Select a menu item and the I H to adjust each
item level.
The result box is displayed on the right of the cursor
and shows the adjusted colour.
CURSOR
RETURN
SELECT
ENTER
DEFAULT
COLOUR
TINT
BRIGHTNESS
PROFILE
NORMAL
CURSOR
LOG
PROFILE SAVE
PROFILE DELETE
PROFILE NAME CHANGE
J Create a new profile
Q Adjusting the selected colour
Select a colour and adjust COLOUR, TINT and
BRIGHTNESS.
1. Select the CURSOR menu and press ENTER.
Basic Operation
The projected image is captured, and the target
cursor is displayed.
When the LOG is fully stored, the target cursor will
not be displayed.
Target cursor
Adjusted colour
Adjust the vividness of the colour.
Setting range: -30 to +30
Adjust the colour tone.
TINT
Setting range: -30 to +30
Adjust the brightness of the colour.
BRIGHTNESS
Setting range: -20 to +20
COLOUR
4. Press ENTER to store the adjusted result.
“PROCESSING” is displayed for a few seconds and
the result is stored in LOG.
You can store up to 8 logs under LOG for each
PICTURE MODE setting.
5. Press MENU or RETURN to return to the previous
menu.
Repeat the steps above to store more adjustment.
Q Managing stored logs
You can edit or delete the stored logs of the
selected PICTURE MODE.
1. Select LOG and press ENTER.
The LOG menu is displayed.
2. Move the cursor with F G I H to the required
place to select a colour and press ENTER.
The colour at the centre of the target cursor is
sampled and the sample box is displayed on the left
of the cursor. The menu items are displayed on the
upper part of the screen.
You may fail to adjust when the very edge point of
the projection area is selected as sample.
PICTURE MODE : CINEMA1
POINT1
POINT2
POINT3
POINT4
POINT5
POINT6
POINT7
POINT8
ALL DELETE
CURSOR
RETURN
SELECT
ENTER
DEFAULT
Sampled colour
26 - ENGLISH
COLOUR
TINT
BRIGHTNESS
Sampled colour
Adjusted colour
2. Select the required log from 1 - 8 or ALL DELETE,
and press ENTER.
Select CHANGE to edit the log.
The cursor menu is displayed and you can readjust
the colour.
Select DELETE to delete the log.
The confirmation screen will be displayed. Select OK
to delete.
When you select ALL DELETE, the "DELETE ALL
LOG." screen is displayed. Select OK to delete all
logs. The PROFILE setting will be set to NORMAL.
Remote control operation
Q Saving a log setting as a profile
Return to the COLOUR MANAGEMENT menu
and save the stored log as a profile. Make sure
that the PICTURE MODE is not switched.
1. Select the PROFILE SAVE menu and press the
ENTER button.
The PROFILE SAVE menu is displayed. You can
save the profile as USER1, USER2 and USER3.
USER1
USER2
USER3
Q Deleting the saved profiles
You can delete the profiles from PROFILE
DELETE menu.
1. Select PROFILE DELETE and press the ENTER
button.
2. Select the required profile or ALL DELETE and
press the ENTER button.
The confirmation screen will be displayed and select
OK.
3. Press the ENTER button.
Q Changing the profile names
2. Press the ENTER button to save the profile.
The confirmation screen is displayed. Press ENTER
again to save.
3. Name the profile.
Use F G I H to specify the location of the required
character to enter and press the ENTER button.
You can enter up to 14 characters.
PROFILE NAME INPUT
ALL DELETE
You can change the name of the profiles from the
PROFILE NAME CHANGE menu.
1. Select PROFILE NAME CHANGE and press the
ENTER button.
2. Select the required profile and press the ENTER
button.
3. Rename the profile.
Use F G I H to specify the location of the required
character to enter and press the ENTER button.
4. Select OK and press the ENTER button to set the
entered text as a name.
OK
CANCEL
4. Repeat step 3 until you finish the text line.
Move cursor to ALL DELETE and press the ENTER
button to delete all the entered text line.
Press the DEFAULT button to delete the last entered
character or indicated with cursor in the text box.
To insert a character in the entered text line, move
the cursor to the text box to select the required place
and press G then perform step 3.
When profiles are loaded under the PICTURE
MODE setting, you can keep them as you defined
until the PROFILE is set to NORMAL.
1. Select the required PICTURE MODE and press
the ENTER button.
2. Press the COLOUR MANAGEMENT button and
select the PROFILE menu.
The profile settings of the selected PICTURE MODE
will be displayed.
Basic Operation
Q Loading saved profiles
3. Select the required profile and press the ENTER
button.
NORMAL
5. Select OK and press the ENTER button to set the
entered text as a name.
USER1
Press the ENTER button without entering any text to
keep the default name.
USER2
Return to the default setting of the
PICTURE MODE menu.
Defined profile settings.
USER3
NOTE:
• LOG and PROFILE SAVE are not displayed before you apply COLOUR MANAGEMENT.
• When the LOG is fully stored, the CURSOR will not be displayed.
• If you load a profile with a different attribute mode of the profile, the CURSOR and PROFILE SAVE menus will not be
displayed.
• The approximate colours will be adjusted at the same time. If you adjust the exact same colour differently, both colours
will affect each other and you might get unexpected results.
• White, Black and Grey are not adjustable.
• If you escape the COLOUR MANAGEMENT menu or attempt to perform another menu action before you save the
adjusted profile, the confirmation screen will be displayed.
• If you switch the input signal before you save the profile, the setting will be cancelled without notice.
• When HDMI signal is selected, COLOUR MANAGEMENT is not available with the COLOUR1 setting of the PICTURE
MODE.
ENGLISH - 27
Remote control operation
Resetting to the factory default settings
You can reset most of the customised settings
to the factory defaults by pressing DEFAULT
button of the remote control. Display the
required sub-menu or the menu items and
press the button again.
NOTE:
• Some menu items are not available to reset by pressing
the DEFAULT button. Adjust each menu item manually.
Capturing an image
Press the FREEZE button to capture the
image, and you can see it as a still picture while
the AV equipment are continuing. Press the
FREEZE button again to escape and return to
the continuing image.
While displaying the frozen image, you can enter the
AREA SELECT mode of the SPLIT ADJUST menu by
pressing the ENTER button. See “SPLIT ADJUST” on
page 33.
Switching the input signal
You can switch the input method manually
by pressing the INPUT SELECT button.
Press the button several times or press I
H to cycle through the input methods as
follows. The actual projected image will be
changed in a while.
Basic Operation
The graphical guidance will be displayed on the upper
right of the projected image and you can confirm the
selected input method which is highlighted in yellow. See
“INPUT GUIDE” on page 43.
COMPONENT 1 IN
COMPONENT 2 IN
COMPUTER IN
S-VIDEO IN
HDMI 3 IN
VIDEO IN
HDMI 2 IN
HDMI 1 IN
COMPONENT 1 IN
COMPONENT 2 IN
S-VIDEO IN
VIDEO IN
HDMI 1 IN
HDMI 2 IN
HDMI 3 IN
COMPUTER IN
COMPONENT (YPBPR) signals
from the equipment connected to
COMPONENT IN 1/
COMPONENT IN 2.
S-VIDEO signal from the equipment
connected to S-VIDEO IN.
VIDEO signal from the equipment
connected to VIDEO IN.
HDMI signal from the equipment
connected to HDMI IN 1/HDMI IN 2/
HDMI IN 3.
COMPUTER (RGB) signal from the
equipment connected to
COMPUTER IN.
NOTE:
• If you select an unplugged input method, the guidance
will blink on and off several times.
• See “List of compatible signals” on page 50.
• See “Connections” on page 18.
Using the assigned function as shortcut
You can access the assigned function in FUNCTION BUTTON menu as shortcut. See “FUNCTION BUTTON” on
page 42.
HDMI 1 IN
HDMI 2 IN
HDMI 3 IN
COMPUTER IN
COMPONENT 1 IN
COMPONENT 2 IN
S-VIDEO IN
VIDEO IN
BLANK
AUTO SETUP
CONTRAST
CONTRAST R
CONTRAST G
CONTRAST B
28 - ENGLISH
page 28
page 42
page 39
page 32
page 34
NORMAL
DYNAMIC
COLOUR1
COLOUR2
CINEMA1
CINEMA2
CINEMA3
SPLIT ADJUST
WAVEFORM AUTO ADJUST
LENS MEMORY LOAD
BRIGHTNESS
BRIGHTNESS R
BRIGHTNESS G
BRIGHTNESS B
page 32
page 33
page 40
page 32
page 34
Menu Navigation
Navigating through the MENU
J Displaying the main menu
J Operating procedure
Press the MENU button to display the main
menu and the operating guidance.
Main menu
Current
settings
Sub-menu
1. Press F G to scroll to the required main menu
item and press the ENTER button to select.
The selected item is highlighted in orange and the
sub-menu is displayed on the right.
See “Main menu and sub-menu” on page 30.
POSITION
POSITION
LANGUAGE
LENS CONTROL
FUNCTION BUTTON
OPTION
RETURN
SELECT
ENTER
PICTURE MODE
CONTRAST
BRIGHTNESS
COLOUR
TINT
SHARPNESS
COLOUR TEMPERATURE
DYNAMIC IRIS
WAVEFORM MONITOR
SPLIT ADJUST
ADVANCED MENU
MEMORY SAVE
MEMORY LOAD
MEMORY EDIT
NORMAL
LANGUAGE
LENS CONTROL
FUNCTION BUTTON
H-POSITION
V-POSITION
ASPECT
WSS
OVER SCAN
KEYSTONE
ON
OPTION
RETURN
ON
OFF
Operating guidance
Contains the required buttons to adjust the settings.
J Adjusting with the bar scale
items
The triangle mark under the bar indicates factory
default setting and the square indicates the current
setting.
Current setting
SELECT
ENTER
2. Press F G to scroll to the required sub-menu item
and press I H or the ENTER button to adjust.
The selected item is called up and the other menu
items disappear from the screen. The Called up item
will disappear after 5 seconds without any operation
and return to the menu mode.
If there is a lower level, the next level will be
displayed.
POSITION
LANGUAGE
LENS CONTROL
FUNCTION BUTTON
H-POSITION
V-POSITION
ASPECT
WSS
OVER SCAN
KEYSTONE
ON
OPTION
BRIGHTNESS
SELECT
ENTER
J Returning to the previous menu
Press the MENU or RETURN button to return
to the previous menu. Press repeatedly to
escape from the menu mode and return to the
projection.
3. Press I H to adjust or set the selected item.
For items using a bar scale, the current settings are
displayed on the left of the bar scale.
You can cycle through the options of an item by
pressing I H.
Settings
RETURN
Default
BRIGHTNESS
4. Press the MENU or RETURN button to return to
the previous menu.
NOTE:
• See “Resetting to the factory default settings” on page 28 to reset each menu item.
ENGLISH - 29
Menu Navigation
Main menu and sub-menu
The menu options are structured and categorised. You can navigate through the menu with F G H I buttons. See
“Menu Navigation” on page 29.
NOTE:
•
•
•
•
The underlined items are factory default settings.
Some default settings vary by the selected input signal.
Sub-menu items vary according to the selected input signal.
Some settings are adjustable without any signals.
F
PICTURE MODE
NORMAL
COLOUR1
CINEMA1
CINEMA3
page 32
DYNAMIC
COLOUR2
CINEMA2
CONTRAST
page 32
(Default: 0)
BRIGHTNESS
NR (Noise Reduction)
(Default: 0)
MPEG NR
(Default: 0)
FRAME CREATION
OFF
PROFILE
LOG
PROFILE DELETE
page 32
(Default: 0)
COLOUR
page 32
(Default: 0)
MODE2
CURSOR
PROFILE SAVE
PROFILE NAME CHANGE
x.v.Colour
ON
OFF
DETAIL CLARITY
TINT
page 32
(Default: 0)
SHARPNESS
page 32
(Default: 0)
COLOUR TEMPERATURE
ON
ON
OFF
Settings
WAVEFORM MONITOR
page 33
OFF
FULL SCAN(Y)
FULL SCAN(R)
FULL SCAN(G)
FULL SCAN(B)
SINGLE LINE SCAN(Y)
SINGLE LINE SCAN(R)
SINGLE LINE SCAN(G)
SINGLE LINE SCAN(B)
MONITOR POSITION
AUTO ADJUST
SPLIT ADJUST
AUTO
NTSC
PAL
PAL-N
GAMMA HIGH
GAMMA MID
GAMMA LOW
(Default: 0)
(Default: 0)
(Default: 0)
CONTRAST
CONTRAST R
CONTRAST G
CONTRAST B
(Default: 0)
(Default: 0)
(Default: 0)
MEMORY LOAD
G
(Default: 0)
(Default: 0)
(Default: 0)
page 36
page 36
MEMORY NAME CHANGE
SIGNAL MODE
page 36
POSITION
H - POSITION
page 37
(Default: 0)
V - POSITION
page 37
(Default: 0)
DOT CLOCK
page 37
(Default: 0)
CLOCK PHASE
page 37
(Default: 0)
ASPECT
BRIGHTNESS
BRIGHTNESS R
BRIGHTNESS G
BRIGHTNESS B
page 36
MEMORY1 - 16
MEMORY DELETE
page 34
GAMMA
MEMORY SAVE
MEMORY EDIT
SPLIT ADJUST MODE
REVERSE
ADVANCED MENU
NTSC 4.43
PAL-M
SECAM
MEMORY1 - 16
page 33
AREA SELECT
NORMAL
OFF
TV-SYSTEM
page 33
page 33
ON
OFF
CINEMA REALITY
(Default: 0)
DYNAMIC IRIS
30 - ENGLISH
MODE1
COLOUR MANAGEMENT
4:3
ZOOM
AUTO
page 37
16:9
ZOOM1
WSS
s16:9
ZOOM2
14:9
JUST
page 39
G
Menu Navigation
OVER SCAN
KEYSTONE
page 39
page 39
(Default: 0)
AUTO SETUP
page 39
OPTION
INPUT GUIDE
DETAILED
OFF
OSD DESIGN
page 43
TYPE1
TYPE3
LANGUAGE
page 43
SIMPLE
TYPE2
OSD POSITION
UPPER LEFT
UPPER RIGHT
LOWER LEFT
LOWER RIGHT
page 43
UPPER CENTRE
CENTRE
LOWER CENTRE
BACK COLOUR
BLUE
page 43
BLACK
STARTUP LOGO
ON
page 43
OFF
AUTO SEARCH
ON
page 43
OFF
HDMI SIGNAL LEVEL
NORMAL
FRAME RESPONSE
LENS CONTROL
ZOOM/FOCUS
LENS MEMORY LOAD
NORMAL
page 40
page 40
LENS MEMORY 1 - 3
LENS MEMORY SAVE
page 40
LENS MEMORY 1 - 3
LENS MEMORY EDIT
page 41
LENS MEMORY DELETE
LENS MEMORY NAME CHANGE
H-AREA POSITION
page 43
FAST
INSTALLATION
FRONT/DESK
REAR/DESK
page 44
FRONT/CEILING
REAR/CEILING
SLEEP
OFF
15 MIN.
35 MIN.
55 MIN.
page 44
20 MIN.
40 MIN.
60 MIN.
25 MIN.
45 MIN.
HIGH ALTITUDE MODE
page 41
(Default: 0)
V-AREA POSITION
page 43
EXPAND
OFF
page 41
(Default: 0)
page 44
ON
LAMP POWER
NORMAL
LAMP RUNTIME
30 MIN.
50 MIN.
page 44
ECO-MODE
page 44
Settings
F
FUNCTION BUTTON
BUTTON
page 42
HDMI 1 IN
HDMI 2 IN
HDMI 3 IN
COMPUTER IN
COMPONENT 1 IN
COMPONENT 2 IN
S-VIDEO IN
VIDEO IN
BLANK
AUTO SETUP
CONTRAST
CONTRAST R
CONTRAST G
CONTRAST B
NORMAL
DYNAMIC
COLOUR1
COLOUR2
CINEMA1
CINEMA2
CINEMA3
SPLIT ADJUST
WAVEFORM AUTO ADJUST
LENS MEMORY LOAD
BRIGHTNESS
BRIGHTNESS R
BRIGHTNESS G
BRIGHTNESS B
ENGLISH - 31
PICTURE menu
Remote control
Control panel
CONTRAST
You can adjust the contrast of the projected image.
Adjust the BRIGHTNESS in advance if necessary.
Lower
See “Navigating through the MENU” on page 29.
See “Main menu and sub-menu” on page 30.
Setting range: -64 to +64
BRIGHTNESS
PICTURE MODE
Depending on the projection environment, you can use
these preset parameter settings to optimise image
projection. Press I H to cycle through the options.
NORMAL
Higher
You can adjust the brightness of the projected image.
Darker
Brighter
CINEMA3
Setting range: -32 to +32
DYNAMIC
CINEMA2
COLOUR1
COLOUR2
CINEMA1
Settings
NORMAL
Setting for a general image, such
as sports programme or TV
games
DYNAMIC
Bright and sharp setting
COLOUR1
Setting for HDTV standard in ITUR BT. 709 and colour temperature
6 500 K at the default setting of
the PICTURE menu items.
COLOUR2
Setting for DCDM standard
(SMPTE431-2) and colour
temperature 6 300 K at the
default setting of the PICTURE
menu items.
CINEMA1
Setting tuned by top Hollywood
colourists
CINEMA2
Deeper and more rich colour
setting
CINEMA3
Vivid and crisp colour setting
NOTE:
• It may take for a while until the selected mode is
stabilised.
COLOUR
You can adjust the colour saturation of the projected
image.
Lighter
Darker
Setting range: -32 to +32
When COMPUTER signal is connected, only available
with the following signals.
1 125 (1 080)/60i
1 125 (1 080)/50i
1 125 (1 080)/60p
1 125 (1 080)/50p
TINT
You can adjust the skin tone in the projected image.
More
reddish
More
greenish
Setting range: -32 to +32
When COMPUTER signal is connected, only available
with the following signals.
1 125 (1 080)/60i
1 125 (1 080)/50i
1 125 (1 080)/60p
1 125 (1 080)/50p
SHARPNESS
You can adjust the sharpness of the projected image.
Less
sharp
More
sharp
Setting range will vary according to the selected input
signal.
32 - ENGLISH
PICTURE menu
COLOUR TEMPERATURE
You can adjust the white balance of the projected image.
More
bluish
DYNAMIC IRIS
You can switch automatic adjustment of the lamp and
the lens iris on/off.
Automatic adjustment
No adjustment
WAVEFORM MONITOR
You can monitor whether or not the luminance level of
the input signal is in the recommended range by
displaying it in the waveform monitor. If the waveform is
not in the range, adjust it for the best quality. See
“Adjusting the signal condition with a waveform” on
page 24.
OFF
J AUTO ADJUST
BLACK LEVEL ADJUST
Adjust the black level of luminance (Y) to 0%.
WHITE LEVEL ADJUST
Adjust the white level of luminance (Y) to
100%.
RGB ADJUST (BLACK)
Adjust the black level of colours (R/G/B) to 0%.
RGB ADJUST (WHITE)
Adjust the white level of colours (R/G/B) to
100%.
ON
ON
OFF
OFF
1. Press F G and select the required item.
2. Press I H and switch on/off.
3. Press F G and select START AUTO ADJUST
and press the ENTER button.
The confirmation screen will be displayed.
4. Press I H and select OK.
5. Press the ENTER button.
SPLIT ADJUST
FULL SCAN(Y)
FULL SCAN(R)
You can perform image adjustment for some PICTURE
menu items while displaying a certain area of the frozen
image in a split window.
FULL SCAN(G)
FULL SCAN(B)
SINGLE LINE SCAN(Y)
Q SPLIT ADJUST MODE
SINGLE LINE SCAN(R)
Select the required split style from NORMAL and
REVERSE in the SPLIT ADJUST MODE menu.
SINGLE LINE SCAN(G)
SINGLE LINE SCAN(B)
MONITOR POSITION
See “Adjusting the signal condition with a waveform”
on page 24.
You can switch on/off the automatic adjustment
system in each items.
Setting range: -6 to +6
ON:
OFF:
When the FULL SCAN is selected, press F G I
H to adjust the position of the monitor.
NORMAL
UPPER LEFT
AUTO ADJUST
1. Press F G to move to the required waveform
style.
2. Press ENTER to select.
Settings
Less
bluish
J MONITOR POSITION
The WAVEFORM MONITOR will be displayed.
See “Adjusting the signal condition with a waveform”
on page 24.
NOTE:
• When the WAVEFORM MONITOR is set to OFF, the
AUTO ADJUST is not displayed.
• The waveform of the WAVEFORM MONITOR will not
be displayed correctly with a noisy equipment or
source.
• The WAVEFORM MONITOR adjusts the signal level
based on the reference signal which consists of 0% and
100%. The over scanned reference signal which runs
off the edge of the screen, below 0% or over 100%
signal level will not be adjusted correctly.
REVERSE
ENGLISH - 33
PICTURE menu
Q Adjusting the image in a split window
1. Select AREA SELECT and press the ENTER
button.
The image will be frozen and the area cursor will be
displayed.
ADVANCED MENU
You can perform more detailed image adjustment
manually.
J GAMMA
You can adjust linear intensity at 3 levels. Press
I H to increase/decrease 1 point.
MOVE AREA
ENTER
GO TO SPLIT ADJUST
RETURN GO TO FREEZE SCREEN
2. Press I H to move the area cursor to select the
area of interest and press the ENTER button.
The selected frozen image will be displayed in a split
window.
3. Press the MENU to display the PICTURE menu on
the right.
POSITION
LANGUAGE
LENS CONTROL
FUNCTION BUTTON
OPTION
RETURN
SELECT
ENTER
PICTURE MODE
CONTRAST
BRIGHTNESS
COLOUR
TINT
SHARPNESS
COLOUR TEMPERATURE
DYNAMIC IRIS
WAVEFORM MONITOR
SPLIT ADJUST
ADVANCED MENU
MEMORY SAVE
MEMORY LOAD
MEMORY EDIT
NORMAL
ON
OFF
Levels
Default setting
GAMMA HIGH
0
GAMMA MID
0
GAMMA LOW
0
Setting range: -8 to +8
J CONTRAST
You can adjust the amount of contrast of individual
RGB colours. Press I H to increase/decrease
1 point.
RGB
Default setting
CONTRAST R
0
CONTRAST G
0
CONTRAST B
0
Setting range: -32 to +32
J BRIGHTNESS
You can adjust the brightness of individual RGB
colours. Press I H to increase/decrease 1 point.
RGB
Default setting
BRIGHTNESS R
0
Only the highlighted menu items are adjustable.
Sub-menu items vary according to the selected input
signal. See “Main menu and sub-menu” on page 30.
BRIGHTNESS G
0
BRIGHTNESS B
0
5. Press the MENU/RETURN button several times to
escape from the menu.
6. Press the ENTER button.
Setting range: -16 to +16
4. Adjust the required PICTURE menu items.
Settings
The confirmation screen will be displayed. Select OK
to finish the adjustment.
7. Press the ENTER button.
Press the ENTER button again to return to the AREA
SELECT.
Press the RETURN button to escape from the SPLIT
ADJUST mode.
34 - ENGLISH
J NR (Noise Reduction)
You can adjust the automatic noise reduction
system level. Press I H to change the level.
Setting range: 0 to +3
PICTURE menu
J DETAIL CLARITY
You can adjust the automatic noise reduction
system level for MPEG format images. The system
minimise block noise and mosquito noise to
eliminate jagged edges, providing an overall
smoother image. Press I H to change the level.
Setting range: 0 to +3
NOTE:
• MPEG NR system is not available with COMPUTER/
HDMI (VGA60) signals.
J FRAME CREATION
You can activate the rendering system for fast
motion frames with fewer afterimage. Press I H
to select the required option.
OFF
MODE1
MODE2
Deactivate
Setting for a standard image
Setting for a moving image
NOTE:
• With some of the images, it might be difficult to see a
difference in result.
• The image might look slower with the MODE2 setting.
When the result does not meet your requirement, select
MODE1 or deactivate the system.
J COLOUR MANAGEMENT
You can switch the automatic detail clarity system
on/off.
ON:
OFF:
J CINEMA REALITY
You can switch the automatic image synchroniser
on/off for 24 frames a second images, such as
movies. Press I H to select the required setting.
ON:
OFF:
• CINEMA REALITY is effective only with interlace
signals.
J TV-SYSTEM
When the video signal is changed, the setting
switches automatically.
You can switch the setting manually to match the
video data. Press I H to cycle through the
options.
AUTO
NTSC 4.43
PAL-N
PAL-M
Active
Deactive
NOTE:
• x.v.Colour adjustment system is available only with
HDMI signals in COLOUR1 of PICTURE MODE menu.
NTSC
SECAM
J x.v.Colour
ON:
OFF:
Active
Deactive
NOTE:
You can manage your own defined colour settings.
See “Setting your own colour profile” on page 26.
You can switch on/off the automatic adjustment
system for signals which comply with International
Standard xvYCC.
Active
Deactive
PAL
NOTE:
• AUTO setting will select from NTSC/NTSC 4.43/PAL/
PAL60/PAL-M/PAL-N/SECAM.
Settings
J MPEG NR
ENGLISH - 35
PICTURE menu
MEMORY SAVE
MEMORY EDIT
You can save and name the adjusted PICTURE menu
settings for instant access from MEMORY LOAD menu.
1. Adjust the items in PICTURE menu.
2. Select MEMORY SAVE and press the ENTER
button.
3. Select the required memory setting and press the
ENTER button.
The confirmation screen will be displayed. Select OK
and press the ENTER button.
Indicated with ★ is in use, and ✩ is empty.
4. Name the memory setting.
Use F G I H to specify the location of the required
character to enter and press the ENTER button.
You can enter up to 16 characters.
MEMORY NAME INPUT
ALL DELETE
You can edit the named memory settings.
Q Deleting a memory setting
1. Select MEMORY DELETE and press the ENTER
button.
2. Select the required memory setting and press the
ENTER button.
If you select ALL DELETE, you can delete all of the
saved memory settings.
3. Select OK in the confirmation screen and press the
ENTER button.
Q Changing the name of the memory
setting
1. Select MEMORY NAME CHANGE and press the
ENTER button.
2. Select the required memory setting and press the
ENTER button.
3. Rename the memory setting.
Use F G I H to specify the location of the required
character to enter and press the ENTER button.
You can enter up to 16 characters.
MEMORY NAME INPUT
OK
CANCEL
ALL DELETE
5. Repeat step 4 until you finish the text line.
Move the cursor to ALL DELETE and press the
ENTER button to delete all the entered text line.
Press the DEFAULT button to delete the last entered
character or indicated with cursor in the text box.
To insert a character in the entered text line, move
the cursor to the text box to select the required place
and press G then perform step 4.
Settings
6. Select OK and press the ENTER button to set the
entered text as a name.
NOTE:
• If you leave the text box empty and save, the default
memory number will stay as a name.
MEMORY LOAD
You can access the saved settings instantly. See
“Loading a saved setting” on page 24.
1. Select a setting from MEMORY1 - 16.
Undefined settings will not be selectable.
2. Press ENTER to activate.
NOTE:
• If you have not saved any settings, MEMORY1 - 16 will
not be displayed.
OK
CANCEL
4. Repeat step 2 until you finish the text line.
Move the cursor to ALL DELETE and press the
ENTER button to delete all the entered text line.
Press the DEFAULT button to delete the last entered
character or indicated with cursor in the text box.
To insert a character in the entered text line, move
the cursor to the text box to select the required place
and press G then perform step 2.
5. Select OK and press the ENTER button to set the
entered text as a name.
NOTE:
• If you have not saved any settings, MEMORY1 - 16 will
not be displayed.
SIGNAL MODE
The current selected signal will be displayed. This is
available with signals from COMPUTER IN/
COMPONENT IN/HDMI IN only.
NOTE:
• See “List of compatible signals” on page 50.
36 - ENGLISH
POSITION menu
Remote control
Control panel
CLOCK PHASE
If you require further adjustment for the same reason as
the DOT CLOCK adjustment, you can fine adjust the
timing of the clock. Press I H to adjust. (Available with
signals from COMPUTER IN/COMPONENT IN only)
See “Navigating through the MENU” on page 29.
See “Main menu and sub-menu” on page 30.
H-POSITION
You can move the projected image horizontally for fine
adjustment.
Move
right
ASPECT
You can switch the aspect ratio manually when needed.
J Aspect ratio depend on signals
V-POSITION
You can move the projected image vertically for fine
adjustment.
Move
down
• If the projecting signal’s dot clock frequency is higher
than 150 MHz, the adjustment may not make a
difference.
• Available signals from COMPONENT IN:
1 125 (1 080)/60i, 1 125 (1 080)/50i, 1 125 (1 080)/60p,
1 125 (1 080)/50p, 1 125 (1 080)/24p, 750 (720)/60p,
750 (720)/50p.
Press I H to cycle through the aspect ratio
options. The cycle pattern depends on the
connected signals.
Move up
VIDEO/
S-VIDEO
DOT CLOCK
If you have interference patterns of the projected image,
which is sometimes referred to as moire or noise, you
can minimize it by pressing I H to adjust the clock
frequency. (Available with signals from COMPUTER IN
only)
COMPUTER
(RGB)
HDMI
4:3 \ 16:9 \ s16:9 \ JUST \ ZOOM
\ AUTO
NTSC, NTSC 4.43, PAL-M, PAL60
signals
4:3 \ 16:9 \ s16:9 \ 14:9 \ ZOOM1
\ ZOOM2 \ JUST
PAL, PAL-N, SECAM signals
4:3 \ 16:9
VGA, SVGA, XGA, SXGA, MXGA signals
Not switchable with WIDE480/600/720/
768/768-2/800/900 signals
4:3 \ 16:9 \ s16:9 \ H - FIT \ V - FIT
\ ZOOM
1 125 (1 080)/50i, 1 125 (1 080)/60i,
1 125 (1 080)/50p, 1 125 (1 080)/60p,
1 125 (1 080)/24p, 750 (720)/50p and
750 (720)/60p signals
Settings
Move left
NOTE:
4:3 \ 16:9 \ s16:9 \ JUST \ ZOOM
525i (480i), 625i (576i), 525p (480p) and
625p (576p) signals
NOTE:
• If the projecting signal’s dot clock frequency is higher
than 150 MHz, the adjustment may not make a
difference.
• DOT CLOCK needs to be adjusted before adjusting the
CLOCK PHASE.
4:3 \ 16:9 \ s16:9 \ 14:9 \ ZOOM1
\ ZOOM2 \ JUST
625i (576i), 625p (576p) signals
COMPONENT
(YPBPR)
AUTO \ 4:3 \ 16:9 \ s16:9 \ JUST
\ ZOOM
525i (480i), 525p (480p) signals
4:3 \ 16:9 \ s16:9 \ H - FIT \
V - FIT \ ZOOM
1 125 (1 080)/50i, 1 125 (1 080)/60i,
1 125 (1 080)/50p, 1 125 (1 080)/60p,
1 125 (1 080)/24p, 750 (720)/50p,
750 (720)/60p signals
ENGLISH - 37
POSITION menu
J Aspect ratio options and projection example
If you apply the aspect ratio options to the projected image, the result will be as follows. The result may differ
due to the input signals. See “Switching the aspect ratio” on page 24.
Q VIDEO/S-VIDEO/COMPONENT
Not available with 1 125 (1 080)/50i, 1 125 (1 080)/60i, 1 125 (1 080)/50p, 1 125 (1 080)/60p, 1 125 (1 080)/
24p, 750 (720)/50p and 750 (720)/60p signals.
4:3
Squeeze
signal
16:9
Letter box
14:9
Letter Box
2.35:1
Cinescope
Original size
4:3
Projects at 4:3.
16:9
Adjusts horizontally to 16:9.
JUST
ZOOM/
ZOOM1
ZOOM2
14:9
Adjusts horizontally to fit 16:9. Closer
to edge, more enlarged. Not available
with COMPUTER signals.
Adjusts to 16:9 size while preserving
original ratio. Escape the menu mode
and press FG to adjust vertically.
Adjusts to cinescope size not
including letter box. Escape the menu
mode and press FG to adjust
vertically.
Adjusts to 14:9.
Q COMPONENT signals
Available with 1 125 (1 080)/50i, 1 125 (1 080)/60i, 1 125 (1 080)/50p, 1 125 (1 080)/60p, 1 125 (1 080)/24p,
750 (720)/50p and 750 (720)/60p signals
Settings
4:3
Original Size
H - FIT
Adjusts horizontally to 16:9.
V - FIT
Adjusts to 16:9 vertically. Escape and press F G to scroll
the image to adjust the edge vertically.
ZOOM
Adjusts to 16:9 size with preserving original ratio. Escape
the menu mode and press FG to adjust vertically.
38 - ENGLISH
16:9
Cinescope
POSITION menu
WSS
KEYSTONE
WSS (Wide Screen Signalling) detects if a PAL/
625p (576p)/625i (576i) signal is input and that signal
has an identification signal, and switch the aspect ratio
to required setting automatically. You can switch the
system off manually.
If the projector is aligned non-perpendicularly to the
screen, or if the projection screen has an angled surface,
you can correct the keystone vertically.
Operation
OVER SCAN
If the 4 edges of an image is partly dropped, you can use
this function to adjust and project it properly.
Setting range: 0 to +10
OVER SCAN is not available with COMPUTER
signals.
Enlarge
Setting range: -32 to 32
NOTE:
• You can correct the distortion ± 30 degrees from the
vertical plane. For a better quality image, installing the
projector with minimum distortion is recommended.
• Some distortion may be retained for the lens shift
adjustment.
• The distortion of the main menu screen is not
correctable.
• The result of the keystone correction will affect the
aspect ratio and the size of the image.
AUTO SETUP
You can adjust V - POSITION, H - POSITION, DOT
CLOCK and CLOCK PHASE automatically when
connecting via COMPUTER IN. Press ENTER to adjust
these at the same time.
Settings
Shrink
ENGLISH - 39
LENS CONTROL
Remote control
Control panel
LENS MEMORY LOAD
You can access the saved lens control settings instantly.
1. Select a setting from LENS MEMORY 1 - 3.
2. Press the ENTER button to activate.
NOTE:
See “Navigating through the MENU” on page 29.
See “Main menu and sub-menu” on page 30.
NOTE:
• The saved lens memory adjustment accuracy is not
guaranteed.
• If the memorised ZOOM/FOCUS adjustment is not
accurate enough, adjust the ZOOM/FOCUS menu
again.
• If the power supply is stopped while loading or saving
the lens memory, saved adjusted settings may differ
from the original after restart the projector. Adjust the
ZOOM/FOCUS menu again.
ZOOM/FOCUS
You can use the 2 different test patterns to adjust the
focus and zoom of the image. See “Lens shift and
positioning” on page 16.
1. Press ENTER to display test pattern 1.
Press F G to adjust the focus and I H to adjust
the zoom.
• The option that contains no saved adjustment will not
be displayed.
• If there is no saved setting, the LENS MEMORY LOAD
menu will not be selectable.
LENS MEMORY SAVE
You can save and name the adjusted ZOOM/FOCUS,
H-AREA POSITION and V-AREA POSITION settings in
memory.
1. Adjust ZOOM/FOCUS, H-AREA POSITION and
V-AREA POSITION.
2. Select the LENS MEMORY SAVE and press the
ENTER button.
3. Select the required memory setting and press the
ENTER button.
4. The confirmation screen will be displayed. Select
OK and press the ENTER button.
Indicated with ★ is in use, and ✩ is empty.
5. Name the lens memory setting.
Use F G I H to specify the location of the required
character to enter and press the ENTER button.
LENS MEMORY NAME INPUT
ALL DELETE
RETURN
ENTER
FOCUS
ZOOM
Settings
2. Press ENTER to display test pattern 2.
Press F G to adjust the focus and I H to adjust
the zoom.
OK
CANCEL
6. Repeat step 5 until you finish the text line.
RETURN
ENTER
FOCUS
ZOOM
3. Press ENTER to display the projected image.
You can confirm the adjustment is fit to the projected
image.
4. Press MENU or RETURN to return to the previous
menu, or press repeatedly to escape the menu
mode.
NOTE:
• When the projector and/or the screen is tilted, adjust
the focus at the centre of the image. The upper and
lower edge might be out of focus.
• When the image is distorted in keystone, adjust the
KEYSTONE in POSITION menu. See “KEYSTONE” on
page 39.
40 - ENGLISH
You can enter up to 16 characters.
Move the cursor to ALL DELETE and press the
ENTER button to delete all the entered text line.
Press the DEFAULT button to delete the last entered
character or indicted with the cursor in the text box.
To insert a character in the entered text line, move
the cursor to the text box to select the required place
and press G then perform step 5.
7. Select OK and press the ENTER button to set the
entered text as a name.
NOTE:
• If you leave the text box empty and save, the
default memory number will stay as a name.
LENS CONTROL
LENS MEMORY EDIT
You can edit named lens memory settings.
Q Deleting a memory setting
1. Select LENS MEMORY DELETE and press the
ENTER button.
2. Select the required lens memory setting and press
the ENTER button.
3. If you select ALL DELETE, you can delete all of
the saved lens memory settings.
4. Select OK in the confirmation screen and press the
ENTER button.
Q Changing the name of the memory
setting
1. Select LENS MEMORY NAME CHANGE and
press the ENTER button.
2. Select the required lens memory setting and press
the ENTER button.
3. Rename the lens memory setting.
H-AREA POSITION
You can move the frame area horizontally, such as
aligning the right or left frame edge to the screen edge.
Press I H to move the frame.
V-AREA POSITION
You can move the frame area vertically, such as aligning
the up or bottom frame edge to the screen edge. Press
I H to move the frame.
Use F G I H to specify the location of the required
character to enter and press the ENTER button.
4. Repeat step 2 until you finish the text line.
You can enter up to 16 characters.
Move the cursor to ALL DELETE and press the
ENTER button to delete all the entered text line.
Press the DEFAULT button to delete the last entered
character or indicted with the cursor in the text box.
To insert a character in the entered text line, move
the cursor to the text box to select the required place
and press G then perform step 2.
5. Select OK and press the ENTER button to set the
entered text as a name.
• The option that contains no saved adjustment will not
be displayed
• If you leave the text box empty and save, the default
memory name will stay as a name.
Settings
NOTE:
ENGLISH - 41
FUNCTION BUTTON
Remote control
Control panel
Q Assignable functions
Functions
Refer
IN*1
See “Navigating through the MENU” on page 29.
See “Main menu and sub-menu” on page 30.
BUTTON
You can assign certain menu option to the FUNCTION
button as shortcut. Press F G I H to select the
required menu options and press the ENTER button.
Q BLANK function
You can stop the projection temporarily for
electrical power save while the input source is
stopped. Press any button to escape from the
blank mode.
HDMI 1
HDMI 2 IN
HDMI 3 IN
COMPUTER IN
COMPONENT 1 IN
COMPONENT 2 IN
S-VIDEO IN
VIDEO IN
BLANK
AUTO SETUP
CONTRAST
CONTRAST R
CONTRAST G
CONTRAST B
NORMAL
DYNAMIC
COLOUR1
COLOUR2
CINEMA1
CINEMA2
CINEMA3
SPLIT ADJUST
WAVEFORM AUTO ADJUST
LENS MEMORY LOAD
BRIGHTNESS
BRIGHTNESS R
BRIGHTNESS G
BRIGHTNESS B
page 28
page 39
page 32
page 34
page 32
page 33
page 40
page 32
page 34
*1.The underlined item is factory default setting.
Settings
42 - ENGLISH
OPTION menu
Remote control
Control panel
BACK COLOUR
You can choose a screen colour from BLUE or BLACK
for when the projector is in idle. Press I H to select.
STARTUP LOGO
See “Navigating through the MENU” on page 29.
See “Main menu and sub-menu” on page 30.
INPUT GUIDE
ON
OFF
When you change the input method, the guidance
appears in the upper right corner of the screen. The
following display methods are available. Press I H to
cycle through the options.
Function
DETAILED
Display the input method graphically.
The INPUT GUIDE will go out after
3 seconds without any operation.
SIMPLE
Display the input method by text. The
INPUT GUIDE will disappear after
3 seconds without any operation.
OFF
Turn off the guidance.
You can change the background colour of the menu.
Press I H to cycle through the options.
Semi transparent black
Solid blue
Semi transparent dark blue
OSD POSITION
UPPER
CENTRE
UPPER
RIGHT
LOWER
CENTRE
ON
OFF
Active
Deactive
NOTE:
• When no signal is detected, the last used input will be
selected.
When an HDMI IN is selected, you can switch the HDMI
signal NORMAL or EXPAND to display the image. Press
I H to select an option.
NORMAL
EXPAND
For general HDMI equipment
For HDMI equipment with expanded
signals.
• HDMI SIGNAL LEVEL is not available with some
equipment.
FRAME RESPONSE
You can minimise the time delay of image displayed for
the progressive signals.
NORMAL
FAST
CENTRE
LOWER
LEFT
When the projector is turned on, the input terminals are
detected and an input signal is selected automatically.
You can switch the system on/off. Press I H to cycle
through the options.
NOTE:
You can change the displaying position of the menu.
Press I H to cycle through the options.
UPPER
LEFT
AUTO SEARCH
HDMI SIGNAL LEVEL
OSD DESIGN
TYPE1
TYPE2
TYPE3
Active
Deactive
Settings
Options
You can switch the logo on/off that is displayed when
starting up the projector. Press I H to select the
required option. STARTUP LOGO will be displayed for
15 seconds.
Prioritise the image quality
Prioritise the frame response
LOWER
RIGHT
ENGLISH - 43
OPTION menu
INSTALLATION
HIGH ALTITUDE MODE
When installing the projector, select the projection
method according to the projector position. Press I H
to cycle through the options. See “Projection method” on
page 15.
FRONT/DESK
Setting on a desk/floor and
projecting from front
FRONT/CEILING
Mounting on the ceiling and
projecting from front
REAR/DESK
Setting on a desk/floor and
projecting from rear
REAR/CEILING
Mounting on the ceiling and
projecting from rear
If you use the projector at high elevation, the HIGH
ALTITUDE MODE setting need to be ON to set the fan
speed high. Press I H to select the required option.
OFF
ON
The fan speed is low.
The fan speed is high.
NOTE:
• At 1 400 - 2 700 m (4 593 - 8 858 ft) above sea level,
the setting must be ON.
• The loudness of fan noise depends on the HIGH
ALTITUDE MODE setting.
LAMP POWER
You can adjust the power of the lamp to save on
electricity, prolong the lamp life and reduce the noise.
SLEEP
You can select the required duration of time and set the
off timer to turn off the power of the projector
automatically. 3 minutes before turn-off, the countdown
of minutes will be displayed in the lower right corner.
Press I H to cycle through the options.
OFF
240MIN.
60MIN.
210MIN.
90MIN.
180MIN.
120MIN.
150MIN.
Options
Function
NORMAL
When higher luminance is
required.
ECO-MODE
When lower luminance is
sufficient.
NOTE:
• When no input signal is detected, the function is
disabled.
LAMP RUNTIME
You can check how long the lamp has been used.
NOTE:
Settings
44 - ENGLISH
• LAMP RUNTIME is a relevant matter for lamp
replacement timing. See “Replacing the lamp unit” on
page 47.
TEMP and LAMP Indicators
Managing the indicated problems
If a problem should occur with the projector, the LAMP and/or TEMP
indicators will inform you. Manage the indicated problems as follows.
1. Confirm the status of all indicators and projector, and switch off
the projector in proper way.
2. Find out the cause of the problem by status of the LAMP and/or
TEMP indicators.
3. Follow the following instruction for each indication and solve the
problem.
4. Turn on the projector in the correct way and confirm the
indicator is not indicating a problem any longer.
Power
LAMP TEMP
J LAMP indicator
Indicator
Illuminating red
Flashing red
Problem
LAMP RUNTIME has
reached 1 800 hours.
Lamp circuit failure, abnormal function or lamp unit is damaged.
Cause
The lamp unit will run out
soon and needs to be
replaced.
The MAIN POWER is
switched on again before
the lamp unit is cooled
enough.
Lamp circuit failure,
abnormal function.
The lamp unit is
damaged.
Remedy
See “Replacing the lamp
unit” on page 47.
Let the lamp unit cool
down and turn on the
MAIN POWER after
90 seconds.
Contact an Authorised
Service Centre.
See “Replacing the lamp
unit” on page 47.
J TEMP indicator
Indicator
Problem
Illuminating red while projecting and the alert will be displayed.
Flashing red and the power button is turned off.
The temperature inside and/or outside the projector is abnormally high.
The air filter is excessively The projector is located at
dirty and the ventilation is high elevations (above
poor.
1 400 - 2 700 m).
Cause
The ventilation openings
are covered.
The room temperature is
too high.
Remedy
Remove the object(s)
from the ventilation
openings or clear around
the projector.
Turn on the projector and
Reinstall the projector in a Replace the air filter in the
set the HIGH ALTITUDE
temperature controlled
proper method. See
MODE to ON.
place. See page 54.
page 46.
See page 44.
NOTE:
Maintenance
• If no problem is found or the problem remains, do not turn on the projector. Instead contact an Authorised Service Centre.
ENGLISH - 45
Care and Replacement
Cleaning the projector
J Before cleaning the projector
Switch off the MAIN POWER switch in proper way and disconnect the mains plug from the mains socket.
Unplug all the cables from the projector.
J Cleaning the outer surface of the projector
Wipe off dirt and dust gently with a soft cloth.
If it is difficult to remove the dirt, soak a cloth in water, wring the cloth well and then wipe the projector. Dry off the
projector with dry cloth.
Do not use petroleum benzine, thinner, any alcoholic solvent, kitchen detergents or chemical clothes. Failure to observe
these may result in altered or damaged surface of the projector.
J Cleaning the lens surface
Wipe off dirt and dust gently with a lint-free cloth.
Make sure no dirt or dust remains on the surface of the lens. It will be enlarged and projected onto a screen.
J Cleaning the air filter
If the air filter is excessively dirty, the internal temperature of the projector increases and may cause
malfunction. Clean the air filter regularly every 100 hours of usage.
1. Place a finger at the bottom of the air filter.
2. Slightly push up and pull out the air filter to remove.
3. Vacuum dirt and dust from the air filter.
Do not wash the air filter.
4. Place and slightly slide in the air filter in the air intake port to attach.
Make sure the air filter clicks into the place.
NOTE:
• Do not use the projector without attaching the air filter.
Maintenance
J Replacing the air filter
The air filter should be replaced when cleaning is ineffective and when replacing the lamp unit. A replacement
air filter (TXFKN01VKF5) is provided with a replacement lamp unit, ET-LAE1000. Contact an Authorised
Service Centre for the optional air filter.
46 - ENGLISH
Care and Replacement
Replacing the lamp unit
J Before replacing the lamp unit
Switch off the MAIN POWER button in proper way and disconnect the mains plug from the mains socket.
Wait for more than 1 hour and make sure the lamp unit and the surroundings are cooled enough.
Unplug all the cables from the projector.
Prepare a Phillips-head screwdriver.
Contact an Authorised Service Centre to purchase a replacement lamp unit (ET-LAE1000).
When the projector is mounted on the ceiling, do not work directly under the projector or put your face closer to the
projector.
NOTE:
• Prior to replacing the lamp unit, allow it to cool down to prevent the risk of burns, damage and other hazards.
• Do not attempt replacement with an unauthorised lamp unit.
J When to replace the lamp unit
The lamp unit is consumable and the brightness decreases by duration of usage. The LAMP indicator will
inform you of the replacement timing at 1 800 hours, and at 2 000 hours, the projector will be turned off. Those
figures are rough guidance and might be shortened by the usage conditions, characteristics of the lamp unit,
environmental conditions, and so on. You can check the duration of usage time using LAMP RUNTIME in the
OPTION menu.
On screen
Indication
Over 1 800 hours
Over 2 000 hours
LAMP indicator
REPLACE LAMP
“REPLACE LAMP” is displayed on the upper left
of the screen for 30 seconds.
To clear the screen immediately, press any
button.
Illuminates red.
“REPLACE LAMP” is displayed on the upper left
of the screen, and it will stay until you respond.
To clear the screen, press any button.
NOTE:
• The guide times, 1 800 and 2 000 hours, are rough estimates based on certain conditions and are not guaranteed time.
The estimated condition is: LAMP POWER in OPTION menu set to NORMAL.
• To prolong the lamp life, set the LAMP POWER in OPTION menu to ECO-MODE. See “LAMP POWER” on page 44.
• For more information about the lamp unit, such as guaranteed time, see the instructions which is provided with the lamp
unit.
Maintenance
J Opening the top cover
1. Hold at the back corner of the top cover and
slightly push up to open.
2. Unhook the top cover safety hook from the
projector.
3. Hold the top cover up and press the sides of each
hinge parts to remove.
When the projector is mounted on the ceiling,
removing the hinge parts is not required.
4. Remove the top cover aside.
NOTE: When the projector is mounted on
the ceiling:
Press here
Top cover safety hook
Hinge parts
• Place yourself at back side of the projector, then open
and close the top cover.
• Do not work directly under the projector or put your face
closer to the projector.
ENGLISH - 47
Care and Replacement
J Removing and replacing the lamp unit
1. Use a Phillips screwdriver to loosen the 3 lamp unit
fixing screws until the screws turn freely.
4. Replace the new lamp unit while making sure that
the direction of insertion is correct.
Press the top of the lamp unit and make sure the unit
is installed securely.
Lamp unit
fixing screws
Press here
Press here
Lamp unit lock
2. Hold the handle of the lamp unit and release the
lamp unit lock.
3. Pull out the lamp unit gently from the projector.
5. Tighten the lamp unit fixing screws securely with a
Phillips screwdriver.
J Attaching the top cover
1. Attach the hinge parts of the top cover to the
projector and press slightly until it clicks.
When the projector is mounted on the ceiling,
attaching the hinge parts is not required.
2. Hook the top cover safety hook to the projector.
3. Hooking the tabs of the top cover to the front of the
projector and lift down slowly.
4. Press the back corner of the top cover gently until
it clicks.
Make sure to hook the top cover safety hook to the
body.
Top cover safety hook Hinge part
NOTE:
• Be sure to install the lamp unit and the top cover of the projector securely. If they are not
securely installed, it may cause the protection circuit to operate so that the power cannot be
turned on.
• Grip the handle and keep the lamp unit paralleled when you remove the lamp unit.
• Do not switch the power on while the top cover is opened.
• When the projector is mounted on the ceiling, keep the lamp unit paralleled up and remove.
J Resetting the LAMP RUNTIME
1.
Maintenance
2.
3.
4.
5.
If the lamp usage time has passed 2 000 hours (when LAMP POWER has been set to NORMAL), the
projector will switch to standby mode after approximately 10 minutes of operation. The resetting procedure
should thus be completed within 10 minutes.
6. Press and hold the ENTER button for
Connect the mains lead to the projector and a
approximately 3 seconds.
mains socket, and switch the MAIN POWER on.
7. The confirmation screen will be displayed and
Switch the power button.
select OK.
Press the MENU button to display the menu.
8. Switch off the power button to reset the duration of
Press F G to select OPTION and press ENTER.
the LAMP RUNTIME.
Press F G to select LAMP RUNTIME.
9. Confirm the duration of time in LAMP RUNTIME is
reset to "0".
STANDARD
LAMP POWER
LAMP RUNTIME
48 - ENGLISH
1820H
Troubleshooting
Should any problem persist, contact your dealer.
Problem
Reference
page
Cause
Power does not turn on.
The mains lead may not be connected.
The MAIN POWER switch is turned off.
No electric supply is at the mains socket.
TEMP indicator is lit or flashes.
LAMP indicator is lit or flashes.
The lamp unit cover has not been securely installed.
The circuit breakers have tripped.
19
21
19
45
45
47
18
No picture appears.
The video signal input source may not be connected to a terminal
properly.
The input selection setting may not be correct.
The BRIGHTNESS adjustment setting may be at the minimum setting.
The SHUTTER function may be in use.
The lens cover may still be attached to the lens.
The picture is fuzzy.
The lens focus may not have been set correctly.
The projector may not be at the correct distance from the screen.
The lens may be dirty.
The projector may be tilted too much.
22
14
46
16
The colour is pale or
greyish.
COLOUR or TINT adjustment may be incorrect.
The equipment which is connected to the projector may not be
adjusted correctly.
32
-
The Remote control does
not operate.
The batteries may be weak.
The batteries may not have been inserted correctly.
The remote control signal receptor on the projector may be
obstructed.
The remote control unit may be out of the operation range.
11
23
The picture does not
display correctly.
The signal format (TV-SYSTEM) may not have been set correctly.
There may be a problem with the VCR or other signal source.
A signal which is not compatible with the projector is being input.
35
50
Picture from a computer
does not appear.
The cable may be longer than the optional cable.
The external video output from a laptop computer may not be correct.
(You may be able to change the external output settings by pressing
the [Fn] + [F3] or [Fn] + [F10] keys simultaneously. The actual method
varies depending on the type of computer; refer to the documentation
provided with your computer for further details.)
28
32
42
12
23
Maintenance
-
ENGLISH - 49
Technical Information
List of compatible signals
Mode
NTSC/NTSC 4.43/
PAL-M/PAL60
PAL/PAL-N/SECAM
525i (480i)
625i (576i)
525p (480p)
625p (576p)
1 125 (1 080)/60i
1 125 (1 080)/50i
1 125 (1 080)/24p
1 125 (1 080)/60p
1 125 (1 080)/50p
750 (720)/60p
750 (720)/50p
VGA480
SVGA
WIDE720
XGA
WIDE768
MXGA
SXGA
SXGA60+
WIDE768-2
WIDE800
WIDE900
WIDE1080/60
WIDE1080/50
Display
Display
resolution
(dots)*1
Scanning
frequency
H
(kHz)
V (Hz)
Dot clock
frequency
(MHz)
-
720 x 480i
15.7
59.9
-
A
525i
625i
525p
625p
1 125/60i
1 125/50i
1 125/24p
1 125/60p
1 125/50p
750/60p
750/50p
VGA60
VGA75
VGA85
VGA138
SVGA55
SVGA60
SVGA70
SVGA75
SVGA85
WIDE720
XGA60
XGA70
XGA75
XGA85
XGA89
WIDE768
MXGA70
MXGA75
SXGA60
SXGA60+
WIDE768-2
WIDE800
WIDE900
WIDE1080/60
WIDE1080/50
720 x 576i
720 x 480i
720 x 576i
720 x 483
720 x 576
1 920 x 1 080i
1 920 x 1 080i
1 920 x 1 080
1 920 x 1 080
1 920 x 1 080
1 280 x 720
1 280 x 720
640 x 480
640 x 480
640 x 480
640 x 480
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
1 280 x 720
1 024 x 768
1 024 x 768
1 024 x 768
1 024 x 768
1 024 x 768
1 280 x 768
1 152 x 864
1 152 x 864
1 280 x 1 024
1 400 x 1 050
1 360 x 768
1 280 x 800
1 440 x 900
1 920 x 1 080
1 920 x 1 080
15.6
15.7
15.6
31.5
31.3
33.8
28.1
27.0
67.5
56.3
45.0
37.5
31.5
37.5
43.3
72.1
35.2
37.9
48.1
46.9
53.7
45.1
48.4
56.5
60.0
68.7
72.1
45.3
64.0
67.5
64.0
65.1
48.8
49.7
55.9
66.5
55.6
50.0
59.9
50.0
59.9
50.0
60.0
50.0
24.0
60.0
50.0
60.0
50.0
59.9
75.0
85.0
138.0
56.3
60.3
72.2
75.0
85.1
60.1
60.0
70.1
75.0
85.0
89.0
56.5
71.2
74.9
60.0
59.9
59.8
59.8
59.8
59.9
49.9
13.5
13.5
27.0
27.0
74.3
74.3
74.3
148.5
148.5
74.3
74.3
25.2
31.5
36.0
62.3
36.0
40.0
50.0
49.5
56.3
76.5
65.0
75.0
78.8
94.5
99.2
76.2
94.2
108.0
108.0
122.4
74.3
83.5
106.5
138.5
141.5
A
A
A
A
A
AA
AA
AA
AA
AA
AA
AA
A
A
A
A
A
A
A
A
A
AA
A
A
A
A
A
A
A
A
A
A
A
A
A
AA
AA
*1. The “i” appearing after the resolution indicates an interlaced signal.
*2. The following symbols are used to indicate picture quality.
AA Maximum picture quality can be obtained.
A
Signals are converted by the image processing circuit before picture is projected.
Appendix
50 - ENGLISH
quality*2
Terminals
VIDEO/S-VIDEO
COMPONENT
COMPONENT/HDMI
COMPONENT/
HDMI/COMPUTER
COMPONENT/HDMI
COMPONENT/
HDMI/COMPUTER
COMPONENT/HDMI
COMPUTER
Technical Information
Serial terminal
The serial connector which is on the connector panel of the projector conforms to the RS-232C interface
specification, so that the projector can be controlled by a personal computer which is connected to this connecter.
J Connection
D-sub 9 pin (male)
Serial terminal (female)
Computer
NOTE:
• You must use only an RS-232C Serial Interface Cable with a ferrite core, type ET-ADSER.
J Pin assignments and signal names
Pin No.
Signal name
Contents
NC
A
B
TXD
Transmitted data
C
RXD
Received data
NC
D
GND
E
Earth
NC
F
G
RTS
H
CTS
Connected internally
NC
I
J Cable specifications
NC
NC
NC
NC
NC
NC
NC
NC
(When connected to a personal computer)
Projector
PC (DTE)
J Basic format
Command
Start byte
(02h)
3 bytes
:
1 byte
Parameter
1 byte 4 bytes
ETX
End
(03h)
The data streaming from the computer will
start with STX, and proceed to Command,
Parameter and end with ETX. You can
add the required parameter.
The projector can not receive any command for 10 seconds after the lamp is switched on. Wait 10 seconds
before sending the command.
If sending multiple commands, check that a response has been received from the projector for one
command before sending the next command.
When a command which does not require parameters to be sent, the colon (:) is not required.
If an incorrect command is sent from the personal computer, the ER401 command will be sent from the
projector to the personal computer.
Appendix
STX
ENGLISH - 51
Technical Information
J Communication settings
Signal level
RS-232C
Sync. method
Baud rate
Parity
Character length
8 bits
Stop bit
1 bit
9 600 bps
X parameter
None
None
S parameter
None
Asynchronous
J Control commands
Command
Control contents
Remarks
PON
POWER ON
In standby mode, all commands other than the PON command are ignored.
The PON command is ignored during lamp ON control.
POF
POWER OFF
If a PON command is received while the cooling fan is operating after the lamp has switched
off, the lamp is not turned back on again straight away in order to protect the lamp.
IIS
INPUT
Parameter:
CP1 = COMPONENT1 IN
SVD = S-VIDEO IN
HD1 = HDMI1 IN
HD3 = HDMI3 IN
OMN
MAIN
Displaying the main menu.
OEN
ENTER
OBK
RETURN
OCU/OCD/
OCL/OCR
Navigation buttons
OLE
LENS
OST
DEFAULT
Resetting to the factory default setting. (page 28)
OFZ
FREEZE
Freezing the projected screen.
Parameter:
0 = OFF
CP2 = COMPONENT2 IN
VID = VIDEO IN
HD2 = HDMI2 IN
RG1 = COMPUTER IN
Activating the selected items in the menu mode.
Returning to the previous menu or escaping from the menu mode.
OCU = F button
OCD = G button
OCL = I button
OCR = H button
Activating the LENS CONTROL menu.
1 = ON
FC1
FUNCTION BUTTON
OOT
SLEEP
Setting the duration of time to turn off the power automatically. (See “SLEEP” on page 44.)
0 = OFF
1 = 60min.
2 = 90min.
3 = 120min.
4 = 150min.
5 = 180min.
6 = 210min.
7 = 240min.
OSH
BLANK
Turning off the projection temporarily.
Send the command to switch between ON and OFF.
Do not send the command consecutively.
OVM
OWM
WAVEFORM
VS1
ASPECT
VPM
Appendix
52 - ENGLISH
PICTURE MODE
Activates the function that is assigned to the FUNCTION button of the remote control.
Activating the PICTURE menu. Send the command to switch menu items. (page 23)
Activating the WAVEFORM.
Parameter:
0 = OFF
1 = FULL SCAN (Y)
2 = FULL SCAN (R)
3 = FULL SCAN (G)
4 = FULL SCAN (B)
(page 24)
5 = SINGLE LINE SCAN (Y)
6 = SINGLE LINE SCAN (R)
7 = SINGLE LINE SCAN (G)
8 = SINGLE LINE SCAN (B)
Switching the aspect ratio. (page 24)
Switching the PICTURE MODE. (page 23)
Parameter:
NOR = NORMAL DYN = DYNAMIC CL1 = COLOUR1 CL2 = COLOUR2
CN1 = CINEMA1 CN2 = CINEMA2 CN3 = CINEMA3
Technical Information
J Inquiry commands
Control contents
QPW
Power status
QFZ
FREEZE status
Parameter
000 = OFF
001 = ON
0 = OFF
1 = ON
CP2 = COMPONENT2 IN
VID = VIDEO IN
HD2 = HDMI2 IN
RG1 = COMPUTER IN
QIN
INPUT signal status
CP1 = COMPONENT1 IN
SVD = S-VIDEO IN
HD1 = HDMI1 IN
HD3 = HDMI3 IN
QOT
OFF TIMER status
0 = OFF
5 = 180min.
QPM
PICTURE MODE status
QSH
BLANK status
QWM
WAVEFORM status
1 = 60min.
6 = 210min.
2 = 90min.
7 = 240min.
3 = 120min.
4 = 150min.
NOR = NORMAL DYN = DYNAMIC CL1 = COLOUR1 CL2 = COLOUR2
CN1 = CINEMA1 CN2 = CINEMA2 CN3 = CINEMA3
0 = OFF
1 = ON
Parameter:
0 = OFF
1 = FULL SCAN (Y)
2 = FULL SCAN (R)
3 = FULL SCAN (G)
4 = FULL SCAN (B)
5 = SINGLE LINE SCAN (Y)
6 = SINGLE LINE SCAN (R)
7 = SINGLE LINE SCAN (G)
8 = SINGLE LINE SCAN (B)
Appendix
Command
ENGLISH - 53
Technical Information
Specifications
Power supply
AC 100 - 240 V 50 Hz/60 Hz
Power consumption
Less than 240 W
During standby (when fan is stopped): 0.08 W (at 220 V)
Amps
3.0 A - 1.6 A
LCD panel
Panel size (diagonal)
0.74 type (17.78 mm)
Aspect ratio
16 : 9
Display method
3 transparent LCD panels (RGB)
Drive method
Active matrix method
Pixels
2 073 600 (1 920 x 1 080) x 3 panels
Lens
Motorised zoom (2x)/Motorised focus
F 1.9 - 3.1, f 22.4 mm - 44.8 mm
Lamp
UHM lamp (165 W)]
Luminosity*1
1 600 lm
Operating environment
Horizontal scanning
frequency
Scanning
Vertical scanning
frequency*2
(for RGB signal) frequency
Dot clock frequency
Temperature
0 °C - 40 °C (32 °F - 104 °F)
When the HIGH ALTITUDE
MODE (page 44) is set to ON:
0 °C - 35 °C (32 °F - 95 °F)
Humidity
20% - 80% (no condensation)
30 kHz - 70 kHz
50 Hz - 87 Hz
Less than 150 MHz
COMPONENT (YPBPR) signals
525i (480i), 525p (480p), 625i (576i), 625p (576p), 750 (720)/60p,
750 (720)/50p, 1 125 (1 080)/60i, 1 125 (1 080)/50i,
1 125 (1 080)/60p, 1 125 (1 080)/50p, 1 125 (1 080)/24p
Colour system
7 (NTSC/NTSC 4.43/PAL/PAL-M/PAL-N/PAL60/SECAM)
Projection size
40" - 200" (1 016 mm - 5 080 mm)
Throw distance
1.2 m - 12 m (3'11" - 39'4")
Screen aspect ratio
16 : 9
Installation
FRONT/DESK, FRONT/CEILING, REAR/DESK, REAR/CEILING
(Menu selection method)
*1. Measurement, measuring conditions and method of notation all comply with ISO 21118 international standards.
*2. See “List of compatible signals” on page 50 for available signals.
Appendix
54 - ENGLISH
Technical Information
S-VIDEO IN
Single - line, Mini DIN 4p Y: 1.0 V [p-p], C: 0.286 V [p-p], 75 Ω
VIDEO IN
Single - line, RCA pin jack1.0 V [p-p], 75Ω
Single - line, D - sub HD 15-pin (female)
Selectable for input and output by menu operation.
COMPUTER IN
R.G.B.
0.7 V [p-p], 75 Ω
G.SYNC
1.0 V [p-p], 75 Ω
HD/SYNC
TTL high impedance, automatic
positive/negative polarity
compatible
VD
TTL high impedance, automatic
positive/negative polarity
compatible
Y, PB/CB, PR/CR
Dual - line, RCA pin jack x 3
Y:
1.0 V [p-p] (including sync), 75 Ω
PB/CB, PR/CR
0.7 V [p-p], 75 Ω
Terminals
COMPONENT IN
HDMI IN
Triple - line, 19-pin HDMI connector (HDCP compliant)
SERIAL
D-sub 9-pin RS-232C compatible
Cabinet
Moulded plastic (PC+ABS)
Width
Dimensions
460 mm (18 -3/32")
Height
130 mm (5 -3/32")
Length
300 mm (11 -25/32")
Weight
Approx. 7.3 kg (16.09 lbs.)*1
Certifications
EN60950-1, EN55022, EN61000-3-2, EN61000-3-3, EN55024
Power supply
3 V DC (AA battery x 2)
Operating range
Approx. 7 m (23') (when operated directly in front of signal receptor)
Weight
125 g (4.4 ozs.) (including batteries)
Remote control
Width
48 mm (1 -7/8")
Length
138 mm (5 -13/32")
Height
28.35 mm (1 -3/32") (not
including surface projection
parts)
Dimensions
Options
Cable cover
ET-PCE2000
Ceiling bracket
ET-PKE2000/ET-PKE1000S
Appendix
*1. Average value. Each product has an individual variability in weight.
ENGLISH - 55
Technical Information
Ceiling mount bracket safeguards
The projector and the ceiling mount bracket are designed for sufficiently safety however, make sure the safety cable
provided with the projector is installed and attached to the bottom of the projector when mounting on the ceiling for
safety and security.
NOTE:
• Even if it is during guarantee period, the manufacturer is not responsible for any hazard or damage caused by using a
ceiling mount bracket which is not purchased from an authorised distributors, or environmental conditions.
• Make sure to use a torque driver and do not use an electrical screwdriver or an impact screwdriver.
• Installation work of the ceiling mount bracket should only be carried by a qualified technician.
• Remove an unused ceiling mount bracket promptly.
J Installing the safety cable
1. Install the ceiling mount bracket according to the Installation Instructions.
2. Loop the security cable around the ceiling mount bracket with less slack.
Lace the cable of the end with a latch through the loop on the other end of the cable.
Loop twice
Loop once
* Indicated above is ET-PKE1000S.
* Indicated above is ET-PKE2000
3. Attach the latch on to the bottom of the projector with a provided screw.
Torque: 1.25±0.2 N·m
Appendix
56 - ENGLISH
Technical Information
Dimensions
Unit: mm
300 (11-23/32)
230 (9 -1/32)
130
147 (5 -25/32)
60 (2 -5/16)
116
(4 -9/16)
15 (19/6)
17 (-21/32)
460 (18 -3/32)
Trademark acknowledgements
Appendix
VGA and XGA are trademarks of International Business Machines Corporation.
S-VGA is a registered trademark of the Video Electronics Standards Association.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of
HDMI Licensing LLC.
The font used in the on-screen displays is a Ricoh bitmap font, which is manufactured and sold by Ricoh
Company, Ltd.
All other trademarks are the property of the various trademark owners.
ENGLISH - 57
Index
Front leg adjusters ............................................. 13, 15
FUNCTION
Remote control button ........................................ 11
Remote control function ...................................... 28
FUNCTION BUTTON
Main menu ........................................................ 42
Remote control buttons ....................................... 11
Remote control function ...................................... 28
A
AC IN ......................................................................13
Accessories ..............................................................10
ADVANCED MENU ...................................................34
Air exhaust port ........................................................12
Air filter ....................................................................12
Replacing ...........................................................46
Air intake port ...........................................................13
ASPECT ..................................................................37
Remote control button .........................................11
Remote control function .......................................24
AUTO SEARCH ........................................................43
AUTO SETUP ..........................................................39
G
GAMMA .................................................................. 34
H
H-AREA POSITION .................................................. 41
HDMI IN
Connection ........................................................ 18
Terminal ............................................................ 13
HDMI SIGNAL LEVEL .............................................. 43
HIGH ALTITUDE MODE ........................................... 44
H-FIT ...................................................................... 38
H-POSITION ........................................................... 37
B
BACK COLOUR ........................................................43
Batteries
Accessory ..........................................................10
Compartment .....................................................11
BLANK ....................................................................42
BRIGHTNESS
ADVANCED MENU .............................................34
PICTURE menu ..................................................32
BUTTON ..................................................................42
I
INPUT GUIDE ......................................................... 43
INPUT SELECT
Control panel button ........................................... 12
Remote control button ........................................ 11
Remote control function ...................................... 28
INSTALLATION
POSITION menu ................................................ 44
Projection method .............................................. 15
C
Ceiling mount bracket ................................................56
CINEMA REALITY ....................................................35
Cleaning ..................................................................46
CLOCK PHASE ........................................................37
COLOUR .................................................................32
COLOUR MANAGEMENT .........................................35
Remote control button .........................................11
Remote control function .......................................26
COLOUR TEMPERATURE ........................................33
COMPONENT IN
Connection .........................................................18
Terminal ............................................................13
COMPUTER IN
Connection .........................................................18
Terminal ............................................................13
Connections .............................................................18
CONTRAST
ADVANCED MENU .............................................34
PICTURE menu ..................................................32
J
JUST ...................................................................... 38
K
KEYSTONE ............................................................. 39
L
LAMP
Indicator ............................................................ 12
Indicator status .................................................. 45
LAMP POWER ........................................................ 44
LAMP RUNTIME ................................................ 44, 48
Lamp unit
Replacing .......................................................... 47
LENS
Remote control button ........................................ 11
Remote control function ...................................... 23
LENS CONTROL
Main menu ........................................................ 40
Remote control button ........................................ 11
Lens cover .............................................................. 12
Accessory ......................................................... 10
Attachment hole ................................................. 13
LENS MEMORY
EDIT ................................................................. 41
LOAD ............................................................... 40
SAVE ............................................................... 40
Lens shift
Lens shift dial • Horizontal ................................... 12
Lens shift dial • Vertical ....................................... 12
D
DEFAULT
Remote control button .........................................11
Remote control function .......................................28
DETAIL CLARITY .....................................................35
Dimensions ..............................................................57
DOT CLOCK ............................................................37
DYNAMIC IRIS .........................................................33
E
ENTER
Control panel button ............................................12
Remote control button .........................................11
F
Appendix
FOCUS
Control panel button ............................................12
LENS CONTROL menu .......................................40
FRAME CREATION ..................................................35
FRAME RESPONSE .................................................43
FREEZE
Remote control button .........................................11
Remote control function .......................................28
58 - ENGLISH
M
MAIN POWER ......................................................... 12
Mains lead
Accessory ......................................................... 10
Connecting ........................................................ 19
MEMORY EDIT ....................................................... 36
Index
MEMORY LOAD .......................................................36
Remote control button .........................................11
Remote control function .......................................24
MEMORY SAVE .......................................................36
MENU
Control panel button ............................................12
Remote control button .........................................11
Remote control function .......................................29
Menu
Main menu .........................................................30
Navigation ..........................................................29
Sub-menu ..........................................................30
MPEG NR ................................................................35
SERIAL
Basic format ...................................................... 51
Cable specifications ........................................... 51
Communication settings ...................................... 52
Connection ........................................................ 51
Control commands ............................................. 52
Inquiry commands .............................................. 53
Pin assignments ................................................ 51
Terminal ............................................................ 13
SHARPNESS .......................................................... 32
SLEEP .................................................................... 44
Specifications .......................................................... 54
SPLIT ADJUST ........................................................ 33
STARTUP LOGO ..................................................... 43
S-VIDEO IN
Connection ........................................................ 18
Terminal ............................................................ 13
N
Navigation buttons
Control panel button ............................................12
Remote control button .........................................11
NR (Noise Reduction) ................................................34
T
Technical Information ............................................... 50
TEMP
Indicator ............................................................ 12
Indicator status .................................................. 45
Throw distance ........................................................ 14
Throwing angle ........................................................ 15
TINT ....................................................................... 32
Top cover .......................................................... 13, 47
Troubleshooting ....................................................... 49
TV-SYSTEM ............................................................ 35
O
OPTION menu ..........................................................43
OSD DESIGN ...........................................................43
OSD POSITION ........................................................43
OVER SCAN ............................................................39
P
PICTURE .................................................................32
Remote control button .........................................11
Remote control function .......................................23
PICTURE ADJUST
Remote control button .........................................11
Remote control function .......................................23
PICTURE MODE ......................................................32
Remote control button .........................................11
Remote control function .......................................23
POSITION ................................................................37
Power
Control panel button ............................................12
Indicator .............................................................12
Indicator status ...................................................20
Remote control button .........................................11
Power cord secure lock ........................................10, 19
R
V
V-AREA POSITION .................................................. 41
VIDEO IN
Connection ........................................................ 18
Terminal ............................................................ 13
V-FIT ...................................................................... 38
V-POSITION ............................................................ 37
W
WAVEFORM MONITOR ........................................... 33
Remote control button ........................................ 11
Remote control function ...................................... 24
WSS ....................................................................... 39
X
Remote control .........................................................11
Accessory ..........................................................10
Operating range ..................................................23
Operation ...........................................................23
Signal emitter .....................................................11
Signal receptor ...................................................12
RETURN
Control panel button ............................................12
Remote control button .........................................11
Remote control function .......................................29
xvColour .................................................................. 35
Z
ZOOM
ASPECT menu .................................................. 38
Control panel button ........................................... 12
LENS CONTROL menu ...................................... 40
ZOOM/FOCUS ........................................................ 40
ZOOM1 ................................................................... 38
ZOOM2 ................................................................... 38
Safety cable .............................................................56
Accessory ..........................................................10
Attachment point .................................................13
Screen size ..............................................................14
Calculation methods ............................................14
Security lock .............................................................13
Appendix
S
ENGLISH - 59
Printed in Japan
S0908-2108C
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
