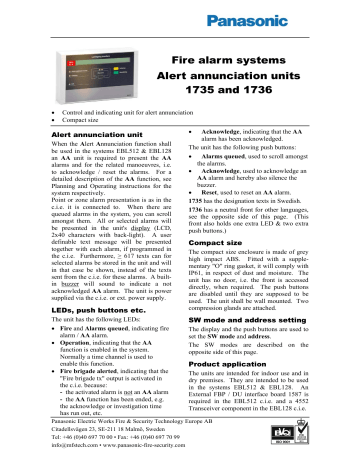

Fire alarm systems
Alert annunciation units
1735 and 1736
•
•
Control and indicating unit for alert annunciation
Compact size
Alert annunciation unit
When the Alert Annunciation function shall
be used in the systems EBL512 & EBL128
an AA unit is required to present the AA
alarms and for the related manoeuvres, i.e.
to acknowledge / reset the alarms. For a
detailed description of the AA function, see
Planning and Operating instructions for the
system respectively.
Point or zone alarm presentation is as in the
c.i.e. it is connected to. When there are
queued alarms in the system, you can scroll
amongst them. All or selected alarms will
be presented in the unit's display (LCD,
2x40 characters with back-light). A user
definable text message will be presented
together with each alarm, if programmed in
the c.i.e. Furthermore, > 617 texts can for
selected alarms be stored in the unit and will
in that case be shown, instead of the texts
sent from the c.i.e. for these alarms. A builtin buzzer will sound to indicate a not
acknowledged AA alarm. The unit is power
supplied via the c.i.e. or ext. power supply.
LEDs, push buttons etc.
The unit has the following LEDs:
• Fire and Alarms queued, indicating fire
alarm / AA alarm.
• Operation, indicating that the AA
function is enabled in the system.
Normally a time channel is used to
enable this function.
• Fire brigade alerted, indicating that the
"Fire brigade tx" output is activated in
the c.i.e. because:
- the activated alarm is not an AA alarm
- the AA function has been ended, e.g.
the acknowledge or investigation time
has run out, etc.
•
Acknowledge, indicating that the AA
alarm has been acknowledged.
The unit has the following push buttons:
• Alarms queued, used to scroll amongst
the alarms.
• Acknowledge, used to acknowledge an
AA alarm and hereby also silence the
buzzer.
• Reset, used to reset an AA alarm.
1735 has the designation texts in Swedish.
1736 has a neutral front for other languages,
see the opposite side of this page. (This
front also holds one extra LED & two extra
push buttons.)
Compact size
The compact size enclosure is made of grey
high impact ABS. Fitted with a supplementary "O" ring gasket, it will comply with
IP61, in respect of dust and moisture. The
unit has no door, i.e. the front is accessed
directly, when required. The push buttons
are disabled until they are supposed to be
used. The unit shall be wall mounted. Two
compression glands are attached.
SW mode and address setting
The display and the push buttons are used to
set the SW mode and address.
The SW modes are described on the
opposite side of this page.
Product application
The units are intended for indoor use and in
dry premises. They are intended to be used
in the systems EBL512 & EBL128. An
External FBP / DU interface board 1587 is
required in the EBL512 c.i.e. and a 4552
Transceiver component in the EBL128 c.i.e.
Panasonic Electric Works Fire & Security Technology Europe AB
Citadellsvägen 23, SE-211 18 Malmö, Sweden
Tel: +46 (0)40 697 70 00 • Fax: +46 (0)40 697 70 99
info@mfstech.com • www.panasonic-fire-security.com
Type numbers
1735
1736
1587
Alert annunciation unit. Swedish designation texts.
Alert annunciation unit. Designation texts in any language.
External FBP / DU interface board in EBL512, for connection of the 1735 and
1736 units in system EBL512. (Software version > 2.2 is required.)
RS485 transceiver component, for connection of up to four display units, e.g.
Alert Annunciation Units 1735 / 1736 in system EBL128.
4552
NOTE! The number of units that can be power supplied via the c.i.e. (or an external power
supply) is depending on all other units connected to the same c.i.e. / external power supply. Up
to 1200 m cable can be used.
The 1736 unit has a neutral front where the designation texts, by production, are made
separately and put into a transparent "text slot" for the LED and push button respectively.
1735 succeeds the Display unit (with alert annunciation) 2235SE but not as a spare part, since
2235SE is connected to a COM loop and 1735 requires an Ext. FBP / DU interface board 1587
in the c.i.e.
(2235SE = Swedish designation texts.)
1736 succeeds the Display unit (with alert annunciation) 2235xx but not as a spare part, since
2235xx is connected to a COM loop and 1736 requires an Ext. FBP / DU interface board 1587
in the c.i.e.
(2235xx = Designation texts in another language than Swedish.)
The AA unit 1735 and AA unit 1736 shall run in SW mode 1735 – 1587 and SW mode 1736 –
1587 respectively.
Technical data
Voltage (V DC)
rated
allowed
normal (in the system)
normal (in the system by battery back-up)
24
12-30
24
21-27
Current consumption at norm. volt. (mA)
AA unit 1735 / 1736
quiescent / active
26 (at 24 V), 48 (at 12 V) / 42 (at 24 V), 79 (at 12 V)
Ambient temperature (°C)
operating
storage
0 to +40
-40 to +70
Ambient humidity (% RH)
max. 90, non condensing
Ingress Protection rating (estimated)
IP61 (with the "O" ring gasket)
Size W x H x D (mm)
220 x 145 x 50
Weight (g)
1735
1736
687
691
Colour (high impact ABS)
Grey (RAL 7035)
Approvals
CE; Conforms with EN54-2 and –4 whenever applicable.
Conforms with SBF 110:6.
All technical features and data are subject to changes without notice, resulting from continuous development and improvement.
Product Leaflet
Date of issue
Revision / Date of revision
MEW00278
2003-04-16
3 / 2006-08-31
