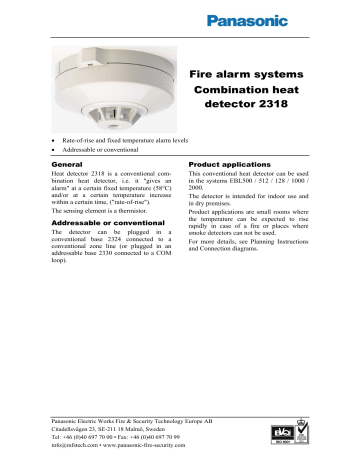

Fire alarm systems
Combination heat
detector 2318
•
Rate-of-rise and fixed temperature alarm levels
•
Addressable or conventional
General
Product applications
Heat detector 2318 is a conventional combination heat detector, i.e. it "gives an
alarm" at a certain fixed temperature (58°C)
and/or at a certain temperature increase
within a certain time, ("rate-of-rise").
The sensing element is a thermistor.
This conventional heat detector can be used
in the systems EBL500 / 512 / 128 / 1000 /
2000.
The detector is intended for indoor use and
in dry premises.
Product applications are small rooms where
the temperature can be expected to rise
rapidly in case of a fire or places where
smoke detectors can not be used.
For more details, see Planning Instructions
and Connection diagrams.
Addressable or conventional
The detector can be plugged
conventional base 2324 connected
conventional zone line (or plugged
addressable base 2330 connected to a
loop).
in a
to a
in an
COM
Panasonic Electric Works Fire & Security Technology Europe AB
Citadellsvägen 23, SE-211 18 Malmö, Sweden
Tel: +46 (0)40 697 70 00 • Fax: +46 (0)40 697 70 99
info@mfstech.com • www.panasonic-fire-security.com
Type number
2318
Combination heat detector
Technical data
Voltage (V DC)
rated
allowed
normal
24
15-30
24
Current consumption at nom. volt.
(mA)
quiescent (detector only)
active (detector only)
Depending on the type of base it is plugged into. For more details see
EBL512 Planning Instructions.
0.03
min. 3
Ambient temperature (°C)
operating
storage
-10 to +50
-25 to +70
Ambient humidity (% RH)
max. 95, non condensing
Ingress Protection rating (estimated)
IP51
Alarm temp. (fixed temp. part)
58°C
Weight (g)
85
Colour
grey (N8, Muncell colour code)
Approvals
CE; EN54/5, response grade 1.
All technical features and data are subject to changes without notice, resulting from continuous development and improvement.
Product Leaflet
Date of issue
Revision / Date of revision
MEW00449
2003-09-17
2 / 2006-08-31
