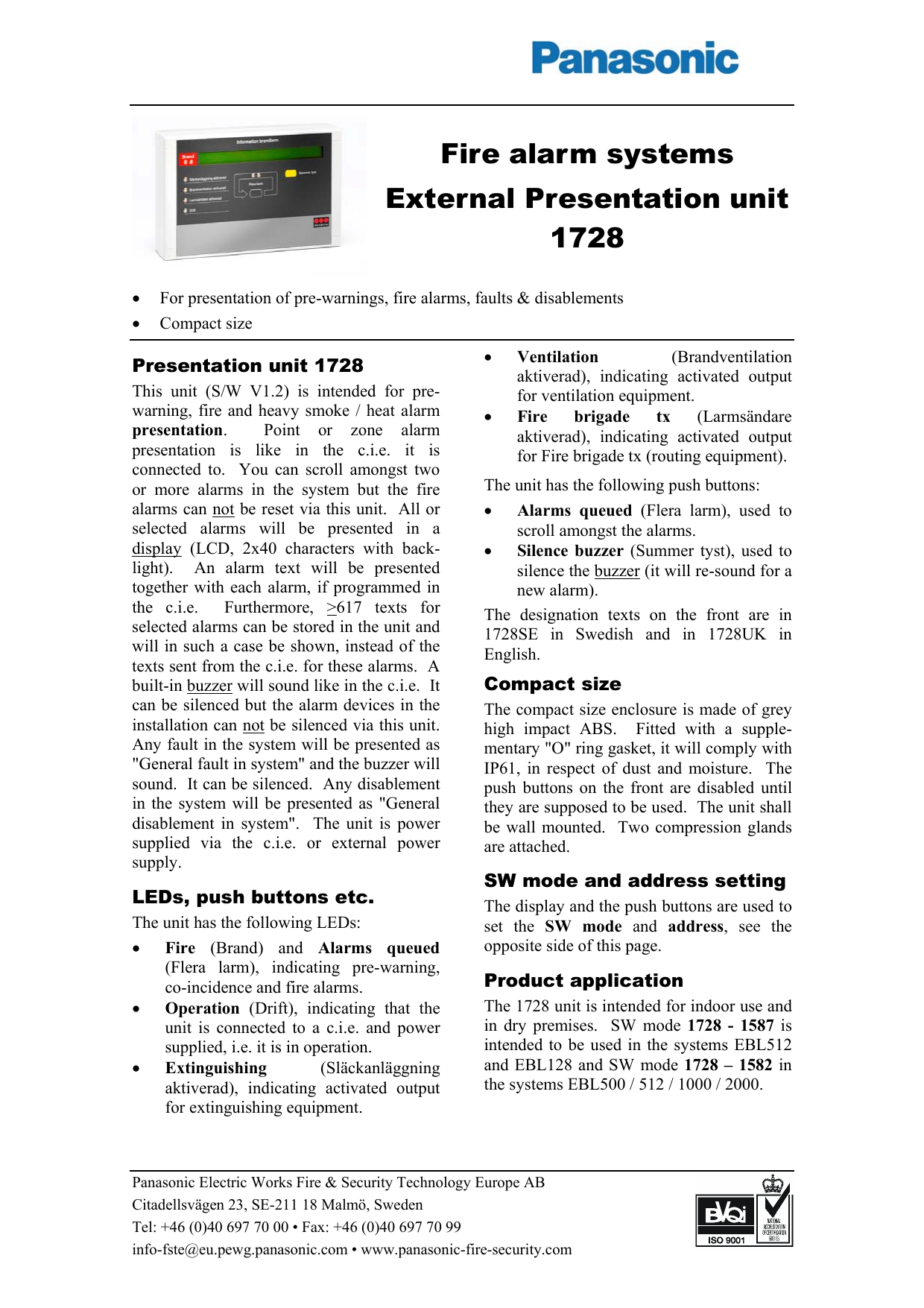

Fire alarm systems
External Presentation unit
1728
•
For presentation of pre-warnings, fire alarms, faults & disablements
•
Compact size
Presentation unit 1728
This unit (S/W V1.2) is intended for prewarning, fire and heavy smoke / heat alarm
presentation.
Point or zone alarm
presentation is like in the c.i.e. it is
connected to. You can scroll amongst two
or more alarms in the system but the fire
alarms can not be reset via this unit. All or
selected alarms will be presented in a
display (LCD, 2x40 characters with backlight). An alarm text will be presented
together with each alarm, if programmed in
the c.i.e.
Furthermore, >617 texts for
selected alarms can be stored in the unit and
will in such a case be shown, instead of the
texts sent from the c.i.e. for these alarms. A
built-in buzzer will sound like in the c.i.e. It
can be silenced but the alarm devices in the
installation can not be silenced via this unit.
Any fault in the system will be presented as
"General fault in system" and the buzzer will
sound. It can be silenced. Any disablement
in the system will be presented as "General
disablement in system". The unit is power
supplied via the c.i.e. or external power
supply.
LEDs, push buttons etc.
The unit has the following LEDs:
• Fire (Brand) and Alarms queued
(Flera larm), indicating pre-warning,
co-incidence and fire alarms.
• Operation (Drift), indicating that the
unit is connected to a c.i.e. and power
supplied, i.e. it is in operation.
• Extinguishing
(Släckanläggning
aktiverad), indicating activated output
for extinguishing equipment.
•
•
Ventilation
(Brandventilation
aktiverad), indicating activated output
for ventilation equipment.
Fire
brigade
tx
(Larmsändare
aktiverad), indicating activated output
for Fire brigade tx (routing equipment).
The unit has the following push buttons:
• Alarms queued (Flera larm), used to
scroll amongst the alarms.
• Silence buzzer (Summer tyst), used to
silence the buzzer (it will re-sound for a
new alarm).
The designation texts on the front are in
1728SE in Swedish and in 1728UK in
English.
Compact size
The compact size enclosure is made of grey
high impact ABS. Fitted with a supplementary "O" ring gasket, it will comply with
IP61, in respect of dust and moisture. The
push buttons on the front are disabled until
they are supposed to be used. The unit shall
be wall mounted. Two compression glands
are attached.
SW mode and address setting
The display and the push buttons are used to
set the SW mode and address, see the
opposite side of this page.
Product application
The 1728 unit is intended for indoor use and
in dry premises. SW mode 1728 - 1587 is
intended to be used in the systems EBL512
and EBL128 and SW mode 1728 – 1582 in
the systems EBL500 / 512 / 1000 / 2000.
Panasonic Electric Works Fire & Security Technology Europe AB
Citadellsvägen 23, SE-211 18 Malmö, Sweden
Tel: +46 (0)40 697 70 00 • Fax: +46 (0)40 697 70 99
info-fste@eu.pewg.panasonic.com • www.panasonic-fire-security.com
Type numbers
1728
External Presentation unit (S/W V1.2). 1728SE / 1728UK: Designation texts on
the front in Swedish / English. NOTE! In Swedish convention (SBF): "General
fault" presentation but no buzzer and no "General disablement" presentation.
External FBP interface board. (Required in EBL512 / 500 when SW mode 1826/28
– 1582 shall be used.)
External FBP / DU interface board. (Required in EBL512 when SW mode 1826/28
– 1587 shall be used. EBL512 software V>2.3.2 1 required.)
RS485 Transceiver component / comm. module. (Required in EBL128. SW mode
1826/28 – 1587 only. EBL128 software V>1.0.5 1 required.)
1582
1587
4552
1
Only required if the new functions (buzzer for fault and "General disablement" presentation)
shall be used.
NOTE! The number of units that can be power supplied via the c.i.e. / board / external power
supply is also depending on all other units connected to the same c.i.e. / board / external power
supply.2 Up to 1200 m cable can be used.
The 1728 unit can run in one of two different SW modes:
a) 1728 in SW mode 1728 – 1587 has the highest performance with regard to functionality,
response time, ability to store fire alarms, etc. In this mode it is intended to succeed the Display
unit 2236SE but not as a spare part, since 2236SE is connected to a COM loop and 1728
requires an Ext. FBP / DU interface board 1587 in the EBL512 c.i.e. It is also intended to
succeed the Ext. presentation display 2428SE but not as a spare part, since 2428SE requires an
Ext. FBP interface board 1582 in the c.i.e. and 1728 requires an Ext. FBP / DU interface board
1587 in the EBL512 c.i.e.
b) 1728 in SW mode 1728 – 1582. In this mode it has the same functionality as the ext.
Presentation display 2428SE and can be used as a spare part, i.e. the performance is the same
but the look, dimensions, etc. are not the same. In this mode 1728 requires an Ext. FBP
interface board 1582 in the c.i.e.
Regarding 2236SE / 2428SE: These units have designation texts in Swedish (SE).
Technical data
Voltage (V DC)
rated
allowed
normal (in the system)
normal (in the system by battery back-up)
24
12-30
24
21-27
Current consumption at norm. volt. (mA)
quiescent / active
26 (at 24 V), 48 (at 12 V) / 49 (at 24 V), 88 (at 12 V)
Ambient temperature (°C)
operating
storage
0 to +40
-40 to +70
Ambient humidity (% RH)
max. 90, non condensing
Ingress Protection rating (estimated)
IP61 (with the "O" ring gasket)
Size W x H x D (mm)
220 x 145 x 50
Weight (g)
687
Colour (high impact ABS)
Grey (RAL 7035)
Approvals
CE; Compliant with EN 54-2 whenever applicable.
2
On each 1582 board are up to eight addresses available and on each 1587 board up to sixteen addresses. In EBL128
are up to four addresses available.
All technical features and data are subject to changes without notice, resulting from continuous development and improvement.
Product Leaflet
Date of issue
Revision / Date of revision
MEW00280
2005-03-31
3 / 2007-01-29
