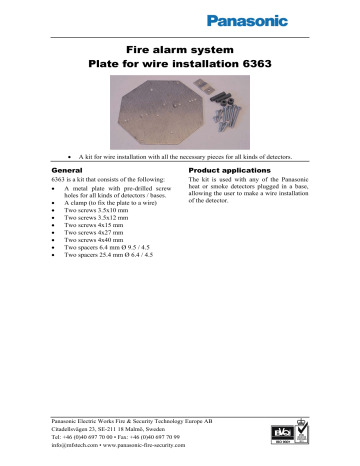

Fire alarm system
Plate for wire installation 6363
•
A kit for wire installation with all the necessary pieces for all kinds of detectors.
General
Product applications
6363 is a kit that consists of the following:
• A metal plate with pre-drilled screw
holes for all kinds of detectors / bases.
• A clamp (to fix the plate to a wire)
• Two screws 3.5x10 mm
• Two screws 3.5x12 mm
• Two screws 4x15 mm
• Two screws 4x27 mm
• Two screws 4x40 mm
• Two spacers 6.4 mm Ø 9.5 / 4.5
• Two spacers 25.4 mm Ø 6.4 / 4.5
The kit is used with any of the Panasonic
heat or smoke detectors plugged in a base,
allowing the user to make a wire installation
of the detector.
Panasonic Electric Works Fire & Security Technology Europe AB
Citadellsvägen 23, SE-211 18 Malmö, Sweden
Tel: +46 (0)40 697 70 00 • Fax: +46 (0)40 697 70 99
info@mfstech.com • www.panasonic-fire-security.com
Type number
6363
Plate for wire installation. (Detector and base are not included.)
Dimensions:
Technical data
Weight (g)
~160
Material
Aluzink ®
All technical features and data are subject to changes without notice, resulting from continuous development and improvement.
Product Leaflet
Date of issue
Revision / Date of revision
MEW00350
2003-03-04
2 / 2006-08-31
