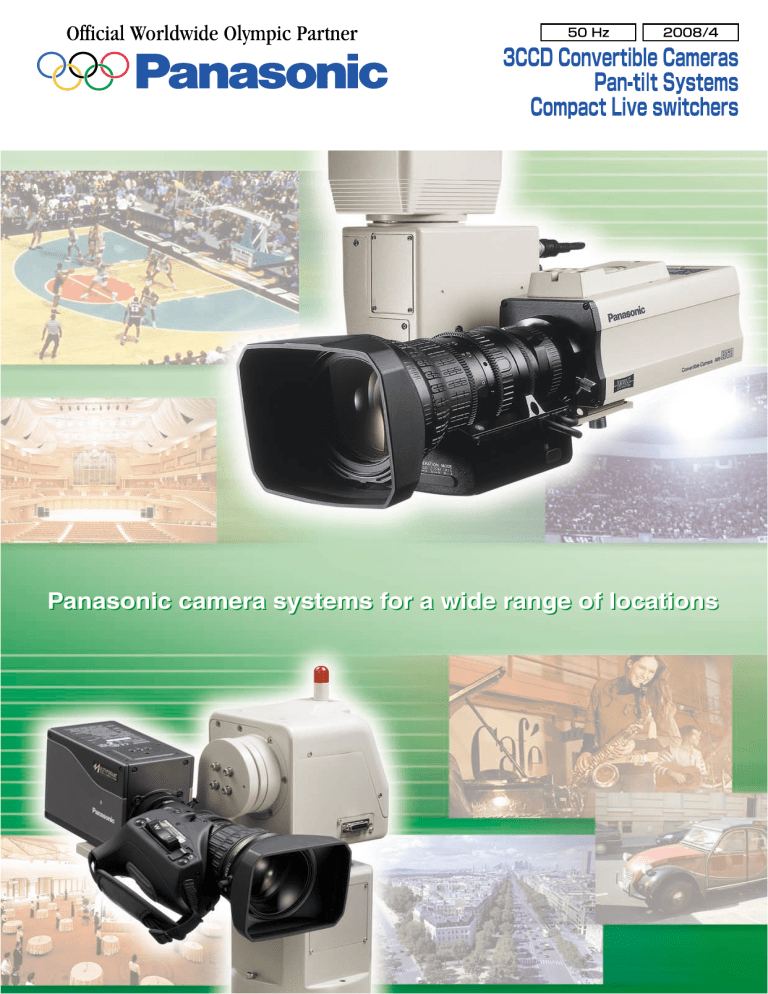

Panasonic camera systems for a wide range of locations
Panasonic's extensive lineup enables configuration of the
You can configure peripheral components around a high image quality 3CCD convertible camera to
achieve the ideal system for any application.
High resolution, high image quality
Original key benefits such as the 12-bit A/D converter enable sophisticated image processing.
Flexible system configuration
Panasonic's extensive lineup lets you create a system boasting
Broad selection of peripherals
3CCD Convertible Cameras
Panasonic's cameras offer high quality images by advanced
2/3-inch Bayonet Mount
1/2-inch Bayonet Mount
AW-E655
16:9/4:3 Switchable Wide Image
Shooting Camera
High Sensitivity, Wide Dynamic
Range Camera
Camera Equipped with
Motor-driven Optical Filter
• 2/3” 3CCD high image quality
• Switchable 16:9/4:3 aspect ratios
• Horizontal resolution: 850 lines
• Signal to noise ratio: 65 dB (NTSC)/
63 dB (PAL) (DNR on)
• High sensitivity: 2 000 lx, F11
• Minimum illumination: 0.4 lx, (F1.7, Night Eye H)
• Wide dynamic range: 600 %
• Compact size, light weight and
low power consumption
• 2/3” 3CCD high image quality
• Horizontal resolution: 850 lines
• Signal to noise ratio: 67 dB (NTSC)/
65 dB (PAL) (DNR on)
• High sensitivity: 2 000 lx, F14
• Minimum illumination: 0.005 lx, 0.00005 lx
(2-second CCD charge accumulation)
• Wide dynamic range: 600 %
• Compact size, light weight and
low power consumption
• 1/2” 3CCD high sensitivity
• Horizontal resolution: 850 lines
• Signal to noise ratio: 67 dB (NTSC)/
65 dB (PAL) (DNR on)
• High sensitivity: 2 000 lx, F14
• Minimum illumination: 0.005 lx, 0.00005 lx
(2-second CCD charge accumulation)
• Motor-driven optical filter
(Normal, 1/16ND, 1/64ND, IR through)
The AW-E655's optical filter rotates to facilitate
its use as an infrared camera capable of shooting
completely dark scenes from a distance.
Power supply
Power consumption
Dimensions
(W x H x D)
Weight
77 mm 18 mm
96 mm
MIC
12 mm
170 mm
10 mm
for
84 mm
10 mm
Convertible Camera AW-
DC12 V
Approx. 15.4 W
84 mm x 95 mm x 192 mm
(3-5/16 " x 3-3/4 " x 7-9/16 ")
Approx. 1.15 kg (2.5 lbs)
2/3" Lenses
18 mm
AW-E750
10 mm 77 mm 18 mm
AW-E860
84 mm
2
Enables optimum system configuration
Power supply
Power consumption
Dimensions
(W x H x D)
Weight
12 mm
170 mm
DC12 V
Approx. 12.6 W
84 mm x 95 mm x 192 mm
(3-5/16 " x 3-3/4 " x 7-9/16 ")
Approx. 1.1 kg (2.4 lbs)
Convertible Camera
10 mm
84 mm
Power supply
Power consumption
Dimensions
(W x H x D)
Weight
12 mm
10 mm
DC12 V
Approx. 12 W
84 mm x 114 mm x 182 mm
(3-5/16 " x 4-1/2 " x 7-3/16 ")
Approx. 1.2 kg (2.6 lbs)
1/2" Lenses
AW-E860/E750
160 mm
for
AW-E655/E650
AW-LZ17MD9A
AW-LZ17ST9A
AW-LZ16MD73
• 17x MD zoom lens
• Focal length: 9 mm-153 mm (F1.9-2.6)
• 17x studio zoom lens
• Focal length: 9 mm-153 mm (F1.9-2.6)
• 16x MD zoom lens
• Focal length: 7.3 mm-117 mm (F1.9-2.3)
optimum system for your needs.
Panasonic's exceptional reliability throughout.
for a wide range of applications including program production.
Digital Signal Processor (DSP) with clean Digital Noise Reduction (DNR) and 12 vector matrix masking.
Feature Cards
1/3-inch C-Mount
AW-E650
SDI Card
AW-E350
AW-PB504
Digital connecting card for video equipment with
SDI input jack
• Output: Serial digital interface
(SMPTE259M [4:2:2 SDI])
• Zoom/focus of the MD lens can be
controlled by contact closure type
pan-tilt head control or a controller
without a pan-tilt head.
* Lens control is not servo type control.
High Sensitivity, High Image
Quality Camera
Cost Effective C-Mount
Lens Camera
Studio Card
• 1/2” 3CCD high image quality
• Horizontal resolution: 850 lines
• Signal to noise ratio: 67 dB (NTSC)/
65 dB (PAL) (DNR on)
• High sensitivity: 2 000 lx, F14
• Minimum illumination: 0.005 lx, 0.00005 lx
(2-second CCD charge accumulation)
• Compact size, light weight and
low power consumption
• 1/3" 3CCD C-mount lens camera
• Horizontal resolution: 850 lines
• Signal to noise ratio: 66 dB (NTSC)/
63 dB (PAL) (DNR on)
• High sensitivity: 2 000 lx, F9.5
• Minimum illumination: 0.015 lx, 0.00015 lx
(2-second CCD charge accumulation)
• Compact size, light weight and
low power consumption
Studio camera system card
• Output: RGB, Y/Pr/Pb, Y/C, VBS
• 4-inch EVF (Zebra, safety zone,
and center marker are included),
and intercom input and output,
and tally output compatible
• EVF interface bracket is included
AW-PB305A
SDI Studio Card
Convertible Camera AW-
12 mm
155 mm
DC12 V
Approx. 11.8 W
84 mm x 77 mm x177 mm
(3-5/16 " x 3-1/32 " x 7 ")
Approx. 0.92 kg (2.02 lbs)
10 mm
84 mm
Power supply
Power consumption
Dimensions
(W x H x D)
Weight
10 mm 77 mm
84 mm
Power supply
Power consumption
Dimensions
(W x H x D)
Weight
10 mm 77 mm
AW-PB506A
FOCUS
LOCK
Convertible Camera AW-
1 mm
145 mm
10 mm
DC12 V
Approx. 11.3 W
84 mm x 77 mm x 156 mm
(3-5/16 " x 3-1/32 " x 6-1/8 ")
Approx. 0.8 kg (1.8 lbs)
1/3" Lenses
for
AW-E350
AW-LZ17ST66
AW-LZ16MD55
• 17x studio zoom lens
• Focal length: 6.6 mm-114 mm (F1.5-1.9)
• 16x MD zoom lens
• Focal length:
5.5 mm-88 mm (F1.4-1.8)
AW-LZ16ST55
• 16x studio zoom lens
• Focal length:
5.5 mm-88 mm (F1.4-1.8)
Studio and SDI Cards are
integrated into one.
• SDI Output: SMPTE259M
compatible
• View finder connector is mounted
• Intercom jack and intercom
audio volume mounted on the
EVF interface bracket
• EVF interface bracket is included
Lens Control kit
AW-LK30
• For MD (Motor Drive) Lenses
• Cable Length: 190 cm
WV-LK36
• For Studio Zoom Lens
AW-LZ17ST9A
AW-LZ17ST66
WV-LK35
• For Canon Zoom Lens
AW-LK50
• For Studio Zoom Lens
AW-LZ16ST55
3
Pan-tilt Heads
Multiple types of pan-tilt heads are available
for professional camera applications both indoors and outdoors.
Indoor
High Performance Pan-tilt Head
AW-PH400
A high performance, high speed, quiet pan-tilt head
• Pan range: 400 ° Tilt range: 300 °
• Maximum pan/tilt speed: 90 ° /sec (variable speed)
• Stop accuracy (+
- 30 seconds) (0.008 ° )
• Noise: Under NC30 (at 30 ° /sec)
• Maximum load: 8 kg (17.6 lbs)
• 10 tracing memories (Maximum time: 600 seconds)
• RS-232C controllable (Through AW-RP400)
• Tally lights are available
Camera Rolling Unit
AW-RL400
• Power is supplied from AW-PH400.
• Convertible cameras are mountable
• Controlled by AW-RP400.
With Camera
Rolling Unit
• Maximum control distance: 500 m (1 640 ft.)
from AW-RP400 (Maximum 1 000 m (3 280 ft.)
using protocol converter AW-IF400)
• Last position can be stored.
• Diagonal motion is possible.
• Optional camera rolling unit (AW-RL400) is available
• Teleprompter output
• Both broadcast and industrial motor driven lenses are acceptable.
• Power Supply (standard accessory) can be installed in pan-tilt head.
Power supply
Power consumption
Maximum load
Rotation range
Maximum speed
Weight
Dimensions(W x H x D)
DC24 V
Approx. 24 W
4 kg (8.8 lbs)
380 ° (+
-190 ° )
60 ° /s
Approx. 3.9 kg (8.8 lbs)
205 mm x 198 mm x 260 mm (8-1/16 " x 7-13/16 " x 10-1/4 ")
Indoor Pan-tilt Head
AW-PH405
A compact pan-tilt head for heavy load
• High pan-tilt speed: 45 ° /sec
• Quiet motion: Noise level under NC35 (at 30 ° /sec)
• Stop accuracy (+
- 3 minutes) (0.05 ° )
• Maximum load: 15 kg (33.1 lbs) (using with a camera,
a lens and a teleprompter)
• Pan range: 300 ° Tilt range: 300 °
• 50 preset positions and 10 tracing memories
(Maximum time: 300 sec) are available when using
the pan-tilt head controller AW-RP655.*
• Up to five camera systems can be controlled using
Panasonic controllers (AW-RP655/RP555/RP400**)
• Maximum control distance:
1 500 m (4 920 ft.)...AW-RP400 + AW-IF400 (optional protocol converter)
1 000 m (3 280 ft.)...AW-RP655/RP555
• A removable tally light is available on the pan-tilt head.
• RS-232C controllable (through Panasonic controllers)
• Professional motor drive lenses and broadcast ENG lenses*** can be
connected.
* You can't use tracing memories if you use the AW-RP400 in combination
with the AW-IF400.
** Use together with the AW-IF400 if you use the AW-RP400.
*** Use an optional cable if you use a broadcast ENG lens.
Indoor Pan-tilt Head
With AK-HC1500 and
AK-LZ20M85
AW-PH360
A compact pan-tilt head with a wide pan-tilt range
• Pan angle: 300 ° Tilt angle: 190 °
• High performance: Quiet (Under NC30)
Pan speed (30 ° /sec) / Tilt speed (25 ° /sec)
• Stop accuracy (+
- 3 minutes) (0.05 ° )
• Smooth starts and stops with soft landing function
Power Supply
AW-PS300A
Outdoor
• 50 preset memories
• Maximum load: 4 kg (8.8 lbs)
• Maximum control distance 500 m (1 640 ft.) from AW-RP400*
1 000 m (3 280 ft.) from AW-RP655/RP555
• RS-232C interface
* AW-PH360 requires Power Supply AW-PS300A.
Power supply
AC120 V/4.9 A, AC220 V to 240 V*
Dimensions(W x H x D) 210 mm x 51 mm x 275 mm (8-1/4 " x 2 " x 10-13/16 ")
Weight
Approx. 2.2 kg (4.8 lbs)
* The values vary depending on the region.
Outdoor Pan-tilt Head
AW-PH650
Waterproof design for stable shooting despite the rain
Power Supply
4
• Pan angle: 320 ° (+
• Accessories: power cable (approx. 30 m (98 ft.), control cable
-160 ° ) Tilt angle: +50 ° -90 °
• High performance: Quiet (Under NC40)
(approx. 10 m (32.8 ft.), camera cable (approx. 0.4m (1.312 ft.)
Pan speed (20 ° /sec) Tilt speed (20 ° /sec)
for C-CAM/AK-HC910/HC1500)
• In addition to zooming, panning and tilting functions,
heater, wiper and defroster functions for the
Housing
housing can also be controlled by the controller.
Dimensions(W x H x D) 246 mm x 314 mm x 685 mm (9-11/16 " x 12-3/8 " x 26-15/16 ")
• 50 preset memories
Weight
Approx. 18 kg (39.7 lbs)
• Maximum load: 10 kg (22 lbs)
Power Supply
• Maximum control distance: 1 000 m (3 280 ft.)
Dimensions(W x H x D) 200 mm x 131 mm x 280 mm (7-7/8 " x 5-3/16 " x 11-1/16 ")
• Camera housing, power supply and cables are
Weight
Approx. 4.2 kg (9.3 lbs)
included with the AW-PH650.
Control Panels
Pan-tilt systems for multiple cameras ready
for a wide range of applications.
Multi-function Controller
High performance multi-function controller with
full camera control function
AW-RP655
• Controls maximum five cameras and five pan-tilt heads without hub unit.
• Full camera control by LCD menu
• Control speed can be adjusted by the angle of the operation lever and
high speed and low speed mode can be switched.
• 50 pre-set memories per camera
• Ergonomically designed joystick controller
• 10 tracing memories (Maximum time: 300 sec)
• Maximum control distance from controller to pan-tilt head: 1 000 m (3 280 ft.)
(AW-PH360,AW-PH650) This controller can control an AW-PH400 by using a
protocol converter (AW-IF400).
• The motion direction of the operation lever can be reversed.
• Two additional controllers can be connected.
• This controller can be placed on a desk or mounted in a rack.
• Power Supply AW-PS505A is required.
(Rear view)
Power supply
Power consumption
Dimensions(W x H x D)
Weight
Accessories
DC12 V
Approx. 9.0 W
420 mm x 52 mm x 220 mm (16-1/2 " x 2-1/16 " x 8-11/16 ")
Approx. 3.5 kg (7.7 lbs)
Rack mounting adapters (5U) x 2 Mounting screws (M4 x 8 mm) x 4
Compact Size Controller
Compact controller with
full camera control function
AW-RP555
• Controls up to five cameras and five pan-tilt heads.
• Full camera control by camera menu
• Speed of controls can be adjusted by the angle of the operation lever.
• 10 pre-set memories per camera
• Maximum control distance from pan-tilt head to controller:
1 000 m (3 280 ft.) (AW-PH360,AW-PH650)
• With a protocol converter (AW-IF400), this controller can control the AW-PH400.
• The motion direction of the operation lever can be reversed or changed.
• This controller can be placed on a desk or mounted in a rack.
(The position of input and output connectors can be changed by 90 degrees)
• Power Supply AW-PS505A is required.
(Rear view)
Power supply
Power consumption
Dimensions(W x H x D)
Weight
Accessories
DC12 V
Approx. 9.0 W
210 mm x 58 mm x 177 mm (8-1/4 " x 2-5/16 " x 7 ")
1.4 kg (3.08 lbs)
Rack mounting adapters (5U) x 2 Mounting screws (M4 x 8 mm) x 4
Pan-tilt Controller
High performance controller for
professional and broadcast use
AW-RP400
• Changeable zoom/focus controller (joystick/seesaw)
• Joystick with camera roll control
• 50 preset positions
• 5 pan-tilt heads control
• Zoom/Focus/Pan/Tilt speed control
• Tally/Intercom function
• 10 minutes tracing memory (60 seconds x 10 positions)*
• RS232C interface
• Maximum control distance:500 m (1 640 ft.)**
• Cross control by two controllers
• Camera control inputs (AW-CB400)
• +DC12 V operation (Power Supply AW-PS505A is required.)
* This function does not work for AW-PH405/PH650.
** Maximum 1 000 m (3 280 ft.) by using the Protocol Converter AW-IF400.
Joystick controller can be changed
for seesaw controller.
(Standard accessory)
Power supply
Power consumption
Weight
Dimensions(W x H x D)
Accessories
Seesaw controller
(Rear view)
Availability of the tracing
memory function
AW-RP655
AW-RP555
AW-RP400
AW-PH400
AW-PH405
AW-PH360
AW-PH650
-
-
*
-
•
•
•
•
•
•
DC12 V
Approx. 13 W
Approx. 3.8 kg (8.4 lbs)
320 mm x 85 mm x 266 mm (12-5/8 " x 3-3/8 " x 10-1/2 ")
Zoom switch x 1, Plug (D-SUB 15pin) for tally/INCOM system x 1 set,
Rack-mounting adapters x 2, Mounting screws (M4 x 8 mm) x 4
* When you use it with AW-IF400,
activating the extended distance
transmission function is required.
5
Camera Controller/Switcher
Remote Operation Panel
AW-CB400
Remote control panel enabling full control of
up to five cameras
• Controls five cameras
• Full camera control
• +DC12 V operation*
• Tally/Intercom function**
* Power is supplied from AW-RP400.
Power supply AW-PS505A is required for controlling cameras directly
(Maximum control distance: 1 000m (3 280 ft.)
** Intercom function is not available if the AW-CB400 is connected directly to the camera.
Power supply
Power consumption
Weight
Dimensions(W x H x D)
Accessories
(Rear view)
DC12 V
Approx. 3.8 W
Approx. 1.4 kg (3.08 lbs)
100 mm x 85 mm x 266 mm (4" x 3-3/8" x 10-7/16")
Pan-tilt controller connection cable (10 m (32.8 ft.))
Remote Control Unit (RCU)
AW-RC600
Basic camera controls on the front panel and
full camera control by camera menu
• Composite, Y/C and component (Y/Pb/Pr, R/G/B) outputs
• By using RCU cable (AW-CA50A26) and extension cables (WV-CA26T26,
WV-CA26U/15/30/100), this unit can control a camera at a maximum distance
of approx. 100 m (328 ft.) (with viewfinder AW-VF64)
• Camera power can be supplied by this RCU.
• Equipped with tally/intercom, AUX (for line view) inputs, and contact-closure
type pan-tilt head control input terminal (15-pin D-sub)
Power supply
Power consumption
Dimensions(W x H x D)
Weight
Accessory
(Rear view)
AC120 V/AC220 V to 240 V*
Approx. 67 W
420 mm x 88 mm x 250 mm (16-1/2 " x 3-7/16 " x 9-13/16 ")
Approx. 5.6 kg (13.2 lbs)
Power cable x 2, Rack angle handles x 2, Rack-mount angles x 2,
Rack angle handle fixing screws x 4, Mounting screws x 4
* The values vary depending on the region.
Cable Compensation Unit
AW-RC400
• Five channels compensation
• Composite, Y/C, Y/Pb/Pr, R/G/B (Composite, Y/C, Y/Pb/Pr, R/G/B video
signals can be compensated by maximum 500 m (1 640 ft.))
• +DC12 V operation (Power Supply AW-PS505A is required.)
(Rear view)
Power supply
Power consumption
Weight
Dimensions(W x H x D)
Accessories
DC12 V
Approx. 9 W
Approx. 3.7 kg (8.2 lbs)
420 mm x 88 mm x 250 mm (16-1/2 " x 3-7/16 " x 9-13/16 ")
Rack-mount angles x 2, Mounting screws (M4 x 8 mm) x 4
Compact Live Switcher
Compact Live Switcher
High quality five input live switcher for multi use
AW-SW350
• Five inputs (composite and Y/C) in compact body (half rack size)
• Three program outputs and one preview output
• Selectable bus switching system
• 10 bit, 5-channel frame synchronizer/genlock system are switchable
• Frame capture, soft wipe and linear key
• +DC12 V operation
• Tally and intercom function
• Power Supply AW-PS505A is required.
Power supply
Power consumption
Dimensions(W x H x D)
Weight
Accessories
(Rear view)
6
DC12 V
Approx. 16 W
210 mm x 86 mm x 176 mm (8-1/4 " x 3-3/8 " x 6-15/16 ")
Approx. 2.2 kg (4.8 lbs)
Tally/Intercom connector x 5, Rack mounting clamp x 2,
Connection bracket, Screw kit, Image transfer setup CD
Cable/Other Peripheral
Cables
Name
Number
Connection apparatus
Length
Note
Connects AW-CA50A26 to longer lengths
AW-E750 etc.
WV-CA26U15 etc.
WV-CA26U15 / 30 / 100
AW-E750 etc.
AW-RC600
AW-CA12T12A
AW-E750 etc.
RCU cable
AW-CA50A26
AW-E750 etc.
AW-RC600
15 m
RGB cable
AW-CA50T6
AW-E750 etc.
Moniotor, VTR etc.
5m
BNCx5 + S terminal
RS-232C pan-tilt cable
AW-CA28T9
AW-PH360
PC.
5m
A pan-tilt head is controlled by a PC.
RS-232C camera control cable
AW-CA50T9
AW-E750 etc.
PC.
10 m
A camera is controlled by a PC.
Camera control cable
AW-CA50T8
AW-E750 etc.
AW-CB400
10 m
Pan-tilt cable kit
AW-CAK4H1
AK-HC1500
AW-PH400/PH405
0.7 m/3 m
Pan-tilt cable
Cable joint adapter
Studio cable (26P-26P)
WV-CA26T26
Lens extension cable
15 m, 30 m, 100 m
12P-12P
0.15 m
Pan-tilt cable: 0.7 m, Control cable: 3 m
AW-CA15H29
AK-HC1500
AW-PH400/PH405
0.7 m
Lens cable for Fujinon ENG lens
AW-CA4FLZ
Fujinon ENG (RD) lens
AW-PH400/PH405
0.8 m
for AK-HC1500/AW-E860
Lens cable for Canon digital lens
AW-CA4DLZ
Canon ENG digital lens
AW-PH400/PH405
0.8 m
for AK-HC1500/AW-E860
Lens cable for Canon analog lens
AW-CA4ALZ
Canon ENG analog lens
AW-PH400/PH405
0.8 m
for AK-HC1500/AW-E860
Pan-tilt control extension cable
AW-CA24T24
AW-PH650
AW-RP655/RP555/RP400
20 m
Other Peripherals
Protocol Converter
Protocol Converter
• High performance pan-tilt head (AW-PH400) can be controlled by controllers
(AW-RP555, AW-RP655) by using this protocol converter (AW-IF400).
(Max.control distance: 1 500 m (4 920 ft.)
• Outdoor pan-tilt head (AW-PH650) can be controlled by a high performance
controller (AW-RP400) by using this protocol converter (AW-IF400).
(Max.control distance: 1 500 m (4 920 ft.)
• By using protocol converter AW-IF400, control distance between
AW-PH400 & AW-RP400 can be extended up to 1 000 m (3 280 ft.).
• Power Supply AW-PS505A is required.
AW-IF400
(Rear view)
Public Telephone Line
Connecting Adapter/
RS232C Distribution Adapter
AW-DU600
Enables remote control of camera and pan-tilt head
• Power Supply AW-PS505A is required.
• Using a public telephone line enables remote control
of camera and pan-tilt head through the AW-RP555/
RP655 series models and a PC.
• Up to five sets of camera and pan-tilt heads can be
controlled with the distribution function.
• Directly controllable pan-tilt and zoom/focus.
* The product is not available in some areas.
** A modem is required.
Power supply
Power consumption
Dimensions(W x H x D)
Weight
DC12 V
Approx. 1.5 W
145 mm x 30 mm x 85 mm (5-11/16 " x 1-3/16 " x 3-3/8 ")
Approx. 0.4 kg (0.88 lbs)
Power Supply
4" B/W Viewfinder
AW-PS505A
AW-VF64
The unit can supply power to Convertible cameras,
Live switchers, the AW-RP655, AW-RP555, AW-DU600
and other units.
Power supply
AC120 V/AC220 V to 240 V*
Power consumption Approx.76 W
132 mm x 51 mm x 275 mm
Dimensions
(W x H x D)
(5-3/16 " x 2 " x 10-13/16 ")
Weight
Approx. 1.6 kg (3.5 lbs)
DC cable with 4-pin Canon connector (for AW-RP400.etc.):
Accessories
Approx. 2 m (6.5 ft.)
DC cable with ø5.5 plug (for AW-RC400.etc.):
Approx. 3 m (9.8 ft.)
DC cable with ø6.5 plug (for convertible cameras):
Approx. 3 m (9.8 ft.)
* Aspect ratio: 4:3 only
Power supply
DC12 V (supplied from
camera head)
Power consumption Approx. 9 W
Dimensions
128 mm x 158 mm x
(W x H x D)
330 mm (5-1/16 " x
6-1/4 " x 12-15/16 ")
Weight
Approx. 1.6 kg (3.5 lbs)
Accessories
Mounting base x 1,
Mounting screw x 2
* The value vary depending on the region.
7
System Example
Indoor Event Shooting
Quiet, accurate and
high speed pan-tilt motion
for event shooting
Key points
• Compact size camera and pan-tilt head
• Quiet, accurate and high speed pan-tilt head
• Pre-set memory function
• Multi-function control
• Maximum control distance: 1 000 m (3 280 ft.)
Parliament/Hall
Many cameras and quiet pan/tilt-heads can be controlled from several control rooms.
System example
*
Indoor
Pan-tilt Head
AW-PH360
* Local procurement
** 10 BASE-T Straight cable x 1
*** Accessory Cable for AW-PS505A (2 m)
Power Supply
AW-PS300A
Video Output x 5
G/L IN
Accessory Cable
for AW-PH360
Camera head
No.1 Camera AW-E650
16 x Zoom Lens
AW-LZ16MD73
Cable
Compensation
Unit
AW-RC400
*
***
Power Supply
AW-PS505A
No.5 Camera
**
**
Power Supply
AW-PS505A
Convertible cameras (AW-E750/E655/E650) can
shoot in dark settings such as parliament,
halls or theaters thanks to high sensitivity
(Minimum illumination: 0.005 lx).
By using the Multi-function Controller AW-RP655 and
five cameras, a total of 250 pre-set memories
(50 presets per camera) can memorize 250 seats
in a conference hall.
Power Supply
AW-PS505A
***
***
Intercom
headset
Monitor
Intercom
headset
Monitor
Multi-Function Controller
AW-RP655
Control Room
Multi-Function Controller
AW-RP655
Control Room
Camera Head AW-E650 • • • • • • • • • • • • • • 5
16 x Zoom Lens AW-LZ16MD73 • • • • • • • 5
Pan-tilt Head AW-PH360 • • • • • • • • • • • • • 5
Power Supply AW-PS300A • • • • • • • • • • • 5
Multi-function Controller AW-RP655 • • • • 2
Power Supply AW-PS505A • • • • • • • • • • • 3
Cable Compensation Unit AW-RC400 • • 1
Address/Sports Relay
Compact size camera and pan-tilt head can be controlled in small event shooting spaces.
System example
* Local procurement
** Accessory Cable for AW-PS505A (3 m)
*** Accessory Cable for AW-PS505A (2 m)
Power Supply
AW-PS505A
Power Supply
AW-PS300A
*
***
Power Supply
AW-PS505A
***
Power Supply
AW-PS505A
Video Signal
Indoor
Pan-tilt Head
AW-PH360
16 x Zoom Lens
AW-LZ16MD73
**
Accessory Cable
for AW-PH360
Co-axial Cable
x3
Live Switcher
AW-SW350
No.1 Camera
Camera head
AW-E650
Quiet indoor pan-tilt system with no disturbing noise.
The pan-tilt head and camera are compact,
as well as extremely quiet.
The videographer does not need to move around
the hall, and is able to shoot without disturbing
the scene.
Ideal for wedding or religious ceremonies
where the atmosphere and mood are very important.
8
Cable Compensation Unit
AW-RC400
Compact Size Controller
AW-RP555
*
No.3 Camera
No.1 Camera No.2 Camera No.3 Camera
Monitor
Monitor
Monitor
Program
Monitor
DVCPRO VTR
AJ-SD755
Control Room
Camera Head AW-E650 • • • • • • • • • • • • • • 3
16 x Zoom Lens AW-LZ16MD73 • • • • • • • 3
Pan-tilt Head AW-PH360 • • • • • • • • • • • • • 3
Power Supply AW-PS300A • • • • • • • • • • • 3
Multi-function Controller AW-RP555 • • • • 1
Power Supply AW-PS505A • • • • • • • • • • • 3
Cable Compensation Unit AW-RC400 • • 1
Compact Live Switcher AW-SW350 • • • • 1
DVCPRO VTR AJ-SD755 • • • • • • • • • • • • 1
Remote Studios
Content production at small,
cost effective studios
Key points
• Many cameras can be used in a small studio.
• SDI video system by SDI card (AW-PB504)
• One operator can control many cameras and
pan-tilt heads.
• Quiet pan-tilt motion for shooting in a quiet studio
Remote Studio
A single camera operator can control three cameras in a quiet studio.
System example
Control Room
**
**
Power Supply
AW-PS300A
Indoor
Pan-tilt Head
AW-PH360
16 x Zoom Lens
AW-LZ16MD73
*
***
Accessory Cable
for AW-PH360
Power Supply
AW-PS505A
* Local procurement
** Accessory Cable for AW-PS505A (3 m)
*** Accessory Cable for AW-PS505A (2 m)
Power Supply
AW-PS505A
Power Supply
AW-PS505A
Live Switcher
AW-SW350
Co-axial Cable
x3
Video Output
No.1 Camera
Cable Compensation Unit
AW-RC400
Compact Size Controller
AW-RP555
Camera head AW-E650
Video Output
DVCPRO VTR
AJ-SD755
*
One control panel controls three cameras and pan-tilt
heads in the studio. By using compact pan-tilt heads,
many cameras can be controlled in a small studio.
Using the compact live AW-SW350 switcher
also enables an operator to produce independently
creative images with wipes and other special effects.
Camera Head AW-E650 • • • • • • • • • • • • • • 3
16 x Zoom Lens AW-LZ16MD73 • • • • • • • 3
Pan-tilt Head AW-PH360 • • • • • • • • • • • • • 3
Power Supply AW-PS300 • • • • • • • • • • • • 3
Multi-function Controller AW-RP555 • • • • 1
Power Supply AW-PS505A • • • • • • • • • • • 3
Cable Compensation Unit AW-RC400 • • 1
Compact Live Switcher AW-SW350 • • • • 1
DVCPRO VTR AJ-SD755 • • • • • • • • • • • • 1
No.3 Camera
No.1 Camera No.2 Camera No.3 Camera
Monitor
Monitor
Monitor
Microphone
Equalizer
Program
Monitor
Audio Amplifier
Speaker
Audio Mixer
CATV Studio
High quality image SDI recording system for minimizing deterioration of video images.
System example
Sync Generator
17 x Zoom Lens
AW-LZ17MD9A
*
* Camera Connection Cable included with the AW-PH405.
** Coaxial cable x 3, 10BASE-T Straight Cable x 1
*** Accessory Cable for AW-PS505A (3m)
Control Room
Camera Head
AW-E860
Insert
SDI Card
SDI Card
AW-PB504
Video Distribution Amp
For Cameras
VDA
For Digital Switcher
AJ-SD755
+
AJ-YA455P(SDI Input/Output Unit)
SDI
Output
SDI
Digital Switcher
SDI
DVCPRO VTR
SDI Monitor
SDI
Cable Compensation Unit
AW-RC400
Teleprompter Indoor
Pan-tilt Head
No.1 Camera AW-PH405
Power Supply
AW-PS505A
**
Monitor
Insert
SDI Card
When equipped with the AW-PB504 SDI card,
Panasonic convertible cameras can be easily
integrated into a SDI broadcast system to record
high quality video with little degradation.
Panasonic cameras are an ideal choice
for professional studio use.
*
Control Panel
AW-RP555
Teleprompter
No.2 Camera
***
***
Power Supply
AW-PS505A
Camera Head AW-E860 • • • • • • • • • • • • • • 2
SDI Card AW-PB504 • • • • • • • • • • • • • • • • 2
16 x Zoom Lens AW-LZ17MD9A • • • • • • • 2
Pan-tilt Head AW-PH405 • • • • • • • • • • • • • 2
Multi-function Controller AW-RP555 • • • • 2
Power Supply AW-PS505A • • • • • • • • • • • 3
Cable Compensation Unit AW-RC400 • • 1
SDI Input Unit for DVCPRO VTRAJ-YA455 • • 1
DVCPRO VTR AJ-SD755 • • • • • • • • • • • • 1
Teleprompter • • • • • • • • • • • • • • • • • • • • • • • 2
9
System Example
Production systems
Studio systems can be
configured using
optional studio cards.
Key points
• 3CCD (2/3", 1/2" or 1/3") high quality camera
Resolution: 850 lines, S/N 67 dB (NTSC)/
65 dB (PAL)(DNR ON)
: 860 lines, S/N 65 dB (NTSC)/
63 dB (PAL)(DNR ON)
• Two types of studio card: Analog (Composite,
Component) output card/SDI output card
• Intercom, viewfinder, lens control kit and RCU
(remote control kit) can be used for studio system.
Production Studio
A convertible camera can be used as a production studio camera by inserting an SDI studio card.
System example
Control Room
SDI Studio Card
4 " B/W Viewfinder
AW-PB506A
AW-VF64
Insert
SDI Card
No.1 Camera
VF Mounting Bracket
(included with the
AW-PB506A)
Camera Head
AW-E750
DVCPRO VTR
AJ-SD755+
AJ-YA455P
(SDI Input Unit)
Digital Switcher
17 x Studio Zoom
Lens
AW-LZ17ST9A
RCU Cable
AW-CA50A26 Remote Control Unit
AW-RC600
SDI
Output
D1
SDI
SDI
Zoom/Focus
Control Kit
WV-LK36
SDI Monitor
The 2/3" high quality camera AW-E860 or AW-E750
with the SDI studio card AW-PB506A
(with two SDI outputs) can be used as
high quality studio cameras in
production houses or community stations.
No.2 Camera
No.1 Camera
Camera Head AW-E750 • • • • • • • • • • • • • • 2
17 x Studio Zoom Lens AW-LZ17ST9A • • 2
Studio SDI Card AW-PB506A • • • • • • • • • 2
4 " B/W Viewfinder AW-VF64 • • • • • • • • • • 2
Lens Control Kit WV-LK36 • • • • • • • • • • • • 2
Remote Control Unit AW-RC600 • • • • • • • 2
RCU Cable AW-CA50A26 • • • • • • • • • • • • 2
DVCPRO VTR AJ-SD755 • • • • • • • • • • • • 1
SDI Input Unit for DVCPRO VTR • • • • • • • 1
Monitor
No.2 Camera
College Studio
A simple, cost effective studio system can be configured by inserting a studio card.
System example
* Accessory Cable for AW-PS505A (3 m)
Intercom
(Local
procurement)
Power Supply
AW-PS505A
4 " B/W Viewfinder
AW-VF64
*
Camera Head
AW-E350
RCU Cable
AW-CA50A26
Remote Control Unit
AW-RC600
G/L
Intercom
(Local
procurement)
Video Signal
Panasonic
16 x MD Lens
AW-LZ16MD55
VF Mounting
Bracket
(included with
the AW-PB305A)
A compact, easy to operate, low-cost system can be
set up by inserting a Studio card into the camera,
which is ideal for small size studios in schools,
companies, etc.
IN
No.1 Camera
Studio Card
AW-PB305A
Lens control kit
AW-LK30
LIve Switcher AW-SW350
G/L
No.2
Camera
Video Signal
Live Switcher
AW-SW350
No.1 Camera No.2 Camera Preview
Monitor
DVCPRO VTR
AJ-SD755
Control Room
10
Camera Head AW-E350 • • • • • • • • • • • • • • 2
16 x MD Zoom Lens AW-LZ16MD55 • • • • 2
Studio Card AW-PB305A • • • • • • • • • • • • • 2
4 " B/W Viewfinder AW-VF64 • • • • • • • • • • 2
Lens Control Kit AW-LK30 • • • • • • • • • • • • 2
Remote Control Unit AW-RC600 • • • • • • • 2
RCU Cable AW-CA50A26 • • • • • • • • • • • • 2
DVCPRO VTR AJ-SD755 • • • • • • • • • • • • 1
Live Switcher AW-SW350 • • • • • • • • • • • • 1
Power Supply AW-PS505A • • • • • • • • • • • 1
Multi-purpose systems
High quality images indoors and
out make them ideal for everything
from live sports coverage to use as
ceiling cameras.
High speed pan-tilt system
High speed and accurate camera operation can be achieved.
System example
Co-axial Cable x 2 (Max.1 000 m)
*
** 10BASE-T Cable (Max.1 000 m)
*** Accessory Cable for AW-PS505A (3 m)
**** Accessory Cable for AW-PS505A (2 m)
Camera Head
AW-E860
17 x MD Zoom Lens
AW-LZ17MD9A
Camera Connection Cable
(included with the AW-PH400)
Monitor 1
Monitor 2
Power Supply
AW-PS505A
No.1 Camera
***
*
Indoor
Pan-tilt Head
AW-PH400
Cable Compensation Unit
AW-RC400
By using the high speed (90 ° /s) pan-tilt head
AW-PH400 and high quality controller AW-RP400,
high-level camera operation for sports relays or
music video production can be achieved.
For switcher/
monitor
Monitor Selection Switch
(A control cable is included
with the AW-CB400.)
**
Intercom
(Local procurement)
Intercom
(Local
procurement)
No.5 Camera
****
Pan-tilt Controller
AW-RP400
Power Supply
AW-PS505A
Remote Operation
Panel
AW-CB400
Camera Head AW-E860 • • • • • • • • • • • • • • 5
17 x MD Zoom Lens AW-LZ17MD9A • • • • 5
Pan-tilt Head AW-PH400 • • • • • • • • • • • • • 5
Remote Control Unit AW-RP400 • • • • • • • 1
Remote Operation Panel AW-CB400 • • • 1
Power Supply AW-PS505A • • • • • • • • • • • 2
Cable Compensation Unit AW-RC400 • • 1
Weather/traffic information camera
High quality images can be supplied in any weather conditions.
System example
* Accessory Cable for AW-PS505A (3 m)
Camera Connection Cable
(included with the AW-PH650)
Camera Housing
(included with the AW-PH650)
Cable Compensation Unit
AW-RC400
Monitor
Video Signal
*
Camera/Pan-tilt
Control
Outdoor Pan-tilt
Head
AW-PH650
Weather/traffic camera system with a waterproof,
outdoor pan-tilt head.
The camera can be operated by remote control
via a PC connection to enable projection of
faraway situations on the monitor.
Power Supply
AW-PS505A
Note: Camera housing, power supply,
power cable, control cable and
camera connection cable are included
with the AW-PH650.
Control Panel
AW-RP555
*
Power Supply
AW-PS505A
Camera Head
AW-E650
16X MD Zoom Lens
AW-LZ16MD73
Inside of Camera Housing
Control Room
Camera Head AW-E650 • • • • • • • • • • • • • • 1
16 x MD Zoom Lens AW-LZ16MD73 • • • • 1
Outdoor Pan-tilt Head AW-PH650 • • • • • • 1
Remote Control Unit AW-RP555 • • • • • • • 1
Power Supply AW-PS505A • • • • • • • • • • • 2
Cable Compensation Unit AW-RC400 • • 1
11
Product configuration diagram
Shooting section
Lens
Controller
Lens
Viewfinder
4 " Electronic Viewfinder
AW-VF64
Camera/
Card
Pan-tilt
Head
Studio Card
AW-PB305A
*Studio Card includes a
Viewfinder Mounting Bracket.
(SDI)
SDI Studio Card
AW-PB506A
Outdoor Pan-tilt Head
AW-PH650
(Analog signal only)
*Studio Card includes a
Viewfinder Mounting Bracket.
17x Motor Drive Zoom Lens
AW-LZ17MD9A
SDI Card
AW-PB504
*Power Supply, control cables
and a camera housing
are included.
Indoor
Pan-tilt Head
17x Studio Zoom Lens
AW-PH405
AW-LZ17ST9A
Lens Control Kit
Slot In
2/3 " 3CCD
Convertible Camera
WV-LK36
AW-E860
16x Motor Drive Zoom Lens
AW-LZ16MD73
Indoor Pan-tilt Head
AW-PH360
AW-E750
*Power Supply AW-PS300A
is required.
Indoor Pan-tilt Head
AW-PH400
Camera Rolling Unit
AW-RL400
17x Studio Zoom Lens
AW-LZ17ST66
1/2 " 3CCD
Convertible Camera
AW-E655
*Power Supply is included.
Lens Control Kit
WV-LK35
Canon ENG/Studio Zoom Lens
For 1/2 "&2.3 "Lens
*Lens Extension
Cable AW-CA12T12A
is required.
AW-E650
(Composite,
Y/C, Component)
10 m (32.8 ft.)
16x Motor Drive Zoom Lens
AW-LZ16MD55
1/3 " 3CCD
Convertible Camera
AW-E350
Lens Control Kit
AW-LK50
16x Studio Zoom Lens
AW-LZ16ST55
10 m (32.8 ft.)
Lens Control Kit
AW-LK30
*Power Supply AW-PS505A is
required for stand-alone operation.
C-Mount Manual Lens
C-Mount Microscope
(Composite)
12
10 m (32.8 ft.)
Control section
Control Unit
Live Switcher
(Composite, Y/C)
RCU Cable
AW-CA50A26 (15 m (49 ft.))
Studio System
RCU Cable Joint Adapter
Live Switcher
Remote Control Unit
AW-SW350
AW-RC600
WV-CA26T26
(Composite, Y/C,
Component)
Studio Extension Cable
WV-CA26U15 (15 m (49 ft.))
WV-CA26U30 (30 m (98 ft.))
WV-CA26U100 (100 m (328 ft.))
Cable Compensation Unit
Video Cable
Coaxial Cable
AW-RC400
*Power Supply AW-PS505A is required.
(Composite, Y/C,
Component)
**
(Max. 500 m (1 640 ft.))
*Power Supply AW-PS505A is required.
Pan-tilt Control System
Max. 1 000 m (3 280 ft.)
Compact Size Control Panel
AW-RP555
Max. 1 000 m (3 280 ft.)
AW-IF400
Max. 500 m (1 640 ft.)
*Power Supply
AW-PS505A
is required.
Other Peripherals
Multi-Function Control Panel
AW-RP655
Max. 1 000 m (3 280 ft.)
*Power Supply
AW-PS505A
is required.
Max. 500 m (1 640 ft.)
AW-RP400
Power Supply
AW-PS505A
Pan-tilt Control Panel
Max. 500 m (1 640 ft.)
AW-IF400
*Power Supply
AW-PS505A
is required.
Max. 500 m (1 640 ft.)
*Power cables are included.
10 m (32.8 ft.)
Protocol Converter
AW-IF400
Max. 500 m (1 640 ft.)
AW-IF400
***
Max. 1 000 m (3 280 ft.)
Remote Operation Panel
Max. 500 m (1 640 ft.)
Max. 500 m (1 640 ft.)
PC Control Cable
AW-CA50T9
AW-CB400
AW-IF400
Compact Size Control Panel
AW-RP555
*Power Supply AW-PS505A is required.
*Power Supply
AW-PS505A
is required.
AW-RP655
Multi-Function Control Panel
Modem
*Use a factory-approved
modem.
AW-CA28T9
*Power Supply AW-PS505A is required.
Dial-up Adapter
Control
Dial-up Adapter
(Public Telephone Line Connecting
Box/RS232C Distribution Box)
(Telephone Line)
AW-DU600
Modem
*Power Supply
AW-PS505A
is required.
*Use a factory-approved
modem.
RS232C Cable
AW-DU600
RS232C Cable (For extension: RS-422 conversion)
(Direct Control)
Dial-up Adapter
(Public Telephone Line Connecting Box/
RS232C Distribution Box)
RS-232C Control Cable
*Power Supply AW-PS505A is required.
*Power Supply AW-PS505A
is required for connecting
cameras directly.
Max. 500 m (1 640 ft.)
RS232C Cable (For extension: RS-422 conversion)
RS232C Cable (For extension: RS-422 conversion)
RS-232C Camera Control Cable
Personal Conputer
AW-CA50T9 (D-Sub 9pin 10 m (32.8 ft.))
Camera Control System
Camera Control Cable
Remote Operation Panel
10BASE-T Cable (Max. 1 000 m (3 280 ft.))
AW-CA50T8 (10 m (32.8 ft.))
AW-CB400
*Power Supply AW-PS505A
is required for connecting
cameras directly.
(Composite, Y/C, Component)
** By turning on the compensation switch of pan-tilt head, it can be extended up to 1 000 m (3 280 ft.)
10BASE-T cable
Control cable etc.
Video cable
*** The control cable is included in the AW-CB400.
13
HD camera system
Panasonic also makes it easy to switch from conventional
As the demand for HD production systems continues to grow,
Panasonic is there to support you.
Panasonic's HD models offer the flexibility for use with
conventional SD systems, while making you more familiar
with the HD production environment.
2/3-inch Bayonet Mount
Multi-purpose HD Box Camera
AK-HC1500
Global multi-format HD/SD compatibility in a
compact unit designed for a wide range
of applications.
The camera is compatible with multiple formats at worldwide.
What's more, original Panasonic devices such as the 14-bit A/D converter,
newly developed DSP and 2/3-inch IT-3CCD assure exceptional image quality
and reliability. As well as being ideal for a wide range of applications,
this high cost performance HD camera helps assure an easy transition
from an SD system to an HD system.
117 mm
* This camera can be mounted with Fujinon HD 2/3" bayonet mount lenses or
Canon HD 2/3" bayonet mount lenses.
2/3-inch Lens
AK-LZ20M85
• 20x Zoom Lens
• Focal length:
8.5 mm-170 mm (F1.8-2.7)
90 mm
13.2 mm
160 mm
12 mm
For more details please consult a separate brochure.
Multi-format Live Switcher
HD/SD format compatible, compact live switcher
with a built-in multiviewer display function.
AV-HS400
Multi-format HD/SD compatibility lets you meet changing needs as production
switches to HD worldwide. It also helps assure a trouble-free transition from
conventional SD operation to HD operation. Better still, it comes standardly
equipped with a wide range of effect functions and a multiviewer display function
allowing you to output up to 10 images on to a single monitor.
It flexibly responds to a variety of environments from live operation to full-scale
studio production.
ANALOG OUTPUTS
AV-HS04M1
AV-HS04M4
• INPUTS:HD/SD-SDI x2
(BNC)(Built-in Up-converter)
• OUTPUTS:Analog Component x2
(Y/Pb/Pr)
ANALOG INPUTS
DVI/ANALOG OUTPUTS
AV-HS04M2
AV-HS04M5
• INPUTS:HD/SD Analog Component x2
(Y/Pb/Pr)(Built-in Up-converter)
• OUTPUTS:DVI-I x1, Analog x1
DVI INPUTS
AV-HS04M3
• INPUTS:DVI-I x2(Built-in Scaler)
14
132 mm
SDI INPUTS
408 mm
Option Boards
420 mm
For more details please consult a separate brochure.
SD systems to an HD production environment.
System example
HD camera ideal for live sports coverage and other broadcast applications.
System example
PC
Multi format
HD Multi-purpose Camera
AK-HC1500
Monitor
Multi-format
Live Switcher
AV-HS400
Pan-tilt Cable
AW-CAK4H1
Co-axial Cable(HD-SDI)
20x Zoom Lens
AK-LZ20M85
A control cable (3 m) is included with the AW-CAK4H1.
Pan-tilt Head
AW-PH400
Combining the AK-HC1500 HD Multi-Format Camera
with the high-speed, exceptionally quite AW-PH400
Pan-Tilt System lets you shoot and record
high-definition, broadcast-quality images.
And with the AV-HS400 Live Switcher,
you can use transitions and versatile titling effects
for results with incredible presence.
10BASE-T
Power Supply
AW-PS505A
Pan-tilt Control Panel
AW-RP400
AK-HC1500 specifications
Power Supply
AW-PS505A
Camera Control Panel
AK-HRP150
Camera Head AK-HC1500 • • • • • • • • • • • • 1
20x Zoom Lens AK-LZ20M85 • • • • • • • • • 1
Indoor Pan-tilt Head AW-PH400 • • • • • • • 1
Pan-tilt Control Unit AW-RP400 • • • • • • • • 1
Camera Control Unit AK-HRP150 • • • • • • 1
Power Supply AW-PS505A • • • • • • • • • • • 2
Pan-tilt control cable AW-CAK4H1 • • • • • 1
Multi-format Live Switcher AV-HS400 • • • 1
AV-HS400 specifications
CCD
2/3 " 1.0-megapixel IT-3CCD
Video format
SD (480/59.94i, 576/50i) HD (1080/59.94i, 1080/50i, 720/59.94p, 720/50p)
Image sensing method
GBR Image sensing method
Video processing
<Y:Cb:Cr>4:2:2 10 bit, <RGB>4:4:4 8 bit
Total number of pixels
1 370(H)x744(V)
Video
<Standard>4 inputs, <Option>A maximum of 4 inputs
Effective number of pixels
1 280(H)x720(V)
Key
Assign one out of video inputs
Optical prism
F1.4 Prism
DSK
Assign one out of video inputs
Optical filter
(ND) 100 %, 25 %, 6.3 %, 1.6 %
Reference
Black burst/TRI (loop through) x1
Lens mount
2/3" Bayonet type
Video
<Standard>4 outputs, <Option>A maximum of 4 outputs
Output format
1080: 60i/59.94i/50i/30psF/29.97psF/25psF/24psF/23.98psF
720: 60p/59.94p/50p
Reference
Loop through x1 (Genlock), or Black burst x2 (internal synchronization)
Pattern
WIPE x12, Squeeze x11, SLIDE x8, 3D DVE x12(3 directions)
Transition method
FADER, AUTO
Transition type
Cut, mix, wipe (including DVE), background and key can be selected.
Key source
BUS
Key fill
BUS, MATTE
Key mode
Linear key, Lum key, Chroma key (key only)
Transition method
AUTO (PIP only)
Transition type
MIX
Serial (EDITOR)
Dsub9pin x1:RS-422 (GVG protocol compatible)
Tally output
Dsub15pin x1, open collector output
GPI
ø 3.5 Stereo mini jack
LAN
10 Mbps x1 (Service purpose)
Video processing
Input
Output
WIPE/DVE
Sensitivity
F10.0 at 2 000 lx, 3 200 K, white reflection rate 89.9 %
Minimum Illumination
0.015 lx (F1.4 / 68 dB)
Gain
72 dB
S/N
54 dB
Smear
Less than -130 dB
M.T.F.
45 % (27.5 MHz, 720 p / 60 p)
Synchronize System
Internal and external synchronization (Tri-level SYNC/Black Burst)
Input
GENLOCK: BNC x 1, Interface: Mini D-sub 15pin terminal
Output
HD-SDI: BNC x 1
Input/output
Lens aperture connector, lens zoom focus connector
Storage temperature
-20 ˚C to 60 ˚C (-4 ˚F to 140 ˚F)
Operating temperature
0 ˚C to 40 ˚C (32 ˚F to 104 ˚F)
Removable media SD memory card slot
1 (for transferring still image files and providing an upgrade capability)
Power supply
DC12 V
Operating temperature / Humidity
0 ˚C to +40 ˚C (32 ˚F to 104 ˚F ) /10 % to 90 % (no condensation)
Power consumption
Approx. 17 W
Power / Power consumption
AC 120 V / Approx. 98 W
Dimensions(WxHxD)
Approx. 90 mm x 117 mm x 160 mm (3-9/16 " x 4-5/8 " x 6-5/16 ")
Dimensions(W x H x D)
420 mm (16-1/2") x 132 mm (5-3/16") x 408 mm (16-1/8") (*excluding protrusions)
Weight
Approx. 1.5 kg (3.3 lbs)
Weight
Approx. 6.4 Kg (14.1 lbs): without options Approx. 7.2 Kg (15.9 lbs): with options
Transition
KEYER
PIP
Interface
* Features and specifications in this document are subject to change without notice due to continual improvements.
15
Camera specifications (NTSC< PAL >)
AW-E860
Image elements
Pixels
Total elements
AW-E750
AW-E655
AW-E650
1/2 " IT-3CCD
2/3 " IT-3CCD
Effective elements Approx.460 000 <538 200>
9.6 mm x 5.4 mm (2/3" 16:9)
(16:9/4:3 switchable)
Scanning system
8.8 mm x 6.6 mm
6.4 mm x 4.8 mm (equivalent to 1/2 ")
(equivalent to 2/3 ")
2:1 interlaced NTSC system <2:1 interlaced PAL system>
2/3 " Bayonet Mount
Optical filter
None
1/2 " Bayonet Mount
1/16ND,1/64ND,Normal, IR Through
Internal/external synchronization
Synchronize system
Standard illumination
2 000 lx, F11
2 000 lx, F14
Minimum illumination
0.4 lx (F1.7, Night Eye H)
0.005 lx (F1.4) 0.00005 lx (F1.4) (2-sec. CCD accumulation)
Signal-to-noise ratio
65 dB (DNR on) <63 dB (DNR on)>
2 000 lx, F9.5
0.015 lx (F1.4)
0.00015 lx (F1.4) **
66 dB (DNR on) <63 dB (DNR on)>
67 dB (DNR on) <65 dB (DNR on)>
0.05 % (entire screen, excluding effects of lens)
Registration
Horizontal/vertical
Image enhancer
AWC A,AWC B(R/B gain,painting),AT W,3 200 K,5 600 K preset
White balance
Auto (R/B pedestal, painting function)
Black balance
SMPTE color bar (setup 0/7.5IRE) <full>
Color bar
OFF,1/100 <1/120>,1/250,1/500,1/1 000,1/2 000,1/4 000,1/10 000 Synchro-scan ELC
Shutter speed
Weight
Dimensions (W x H x D)
1/3 " C Mount *
None
850 lines (high-band DTL ON, centre area)
Horizontal resolution
Power supply
Power consumption
Operating temperature
4.8 mm x 3.6 mm
(equivalent to 1/3 ")
Horizontal=15.734 kHz,Vertical=59.94 Hz <Horizontal=15.625 kHz, Vertical=50 Hz>
Scanning frequency
Lens mount
Iris
Video output
1/3 " IT-3CCD
Approx.410 000 <470 000>
Approx.380 000 <440 000>
Approx.510 000 <595 728>
Imaging area (H x V)
Gain
AW-E350
Manual: max. 42 dB (0 to 30 dB
in steps, Night Eye H/L)
Auto: max. 42 dB
(AGC 0 to 30 dB, Night Eye/H)
Manual: max. 72 dB (0 to 30 dB in steps, Night Eye/H, Digital Gain 0 to 30 dB in 6 dB steps)
Auto: max. 42 dB (AGC 0 to 30 dB, Night Eye/H)
Auto (Manual by RCU control)
<Composite> 1.0 Vp-p/75 Ω (BNC,D-sub 50p), <Y/C> Y: 1.0 V p-p/75 Ω ; C: 0.286 Vp-p<0.3 Vp-p>/75 Ω (burst)(D-sub 50p),
<Y/Pr/Pb> Y: 1.0 Vp-p/75 Ω ; Pr,Pb: 0.7 Vp-p<0.525 Vp-p>/75 Ω (D-sub 50p), <RGB> G: 1.0 Vp-p/75 Ω ; RB: 0.7 Vp-p/75 Ω (D-sub 50p)
DC 12 V
Approx. 15.4 W
Approx. 12.6 W
Approx. 12 W
Approx. 11.8 W
-10 °C to 45 °C (14 °F to 113 °F)
Approx. 1.15 kg (2.5 lbs)
Approx. 1.1 kg (2.4 lbs)
Approx. 1.2 kg (2.6 lbs)
Approx. 0.92 kg (2.02 lbs)
84 mm x 95 mm x 192 mm
84 mm x 95 mm x 192 mm 84 mm x 114 mm x 182 mm 84 mm x 77 mm x 177 mm
(3-5/16 " x 3-3/4 " x 7-9/16 ") (3-5/16 " x 3-3/4 " x 7-9/16 ") (3-5/16 " x 4-1/2 " x 7-3/16 ")
(3-5/16 " x 3-1/32 " x 7 ")
Approx. 11.3 W
Approx. 0.8 kg (1.8 lbs)
84 mm x 77 mm x 156 mm
(3-5/16 " x 3-1/32 " x 6-1/8 ")
* The lens should be within 4.3 mm from the lens mount face. Otherwise, there is a risk of damaging the camera unit.
** 2-sec.CCD charge accumulation.
Pan-tilt head specifications
Indoor pan-tilt head
AW-PH400
Pan-tilt range/speed
Repeatability
Noise level
Maximum load
Maximum control
distance
Power supply
Power consumption
Operating temperature
Dimensions(W x H x D)
Weight
AW-PH405
Outdoor pan-tilt head
AW-PH360
AW-PH650
Pan: 400 °(90 °/s), Tilt: 300 °(90 °/s) Pan: 300 °(45 °/s), Tilt: 300 °(45 °/s) Pan: 300 °(30 °/s), Tilt: 190 °(25 °/s) Pan: 320 °(20 °/s), Tilt: 145 °(20 °/s)
+
+
+
Less than +
- 30 seconds (0.008 °)
- 3 minutes (0.05 °)
- 3 minutes (0.05 °)
-5 °
Under NC30 (at 30 °/s)
Under NC35 (at 30 °/s)
Under NC30
Less than NC40
8 kg (17.6 lbs)
15 kg (33.1 lbs)
4 kg (8.8 lbs)
10 kg (22 lbs)
1.5 km(AW-RP655/RP555 with AW-IF400), 1.5 km(AW-RP400 with AW-IF400),
1 km(AW-RP655/RP555),
1.5 km(AW-RP400 with AW-IF400),
1 km(AW-RP400 with AW-IF400),
500 m(AW-RP400),
1 km(AW-RP655/RP555)
1 km(AW-RP655/RP555)
500 m(AW-RP400)
1km(AW-RP400 with AW-IF400)
AC120 V/AC220 V to 240 V *
AC120 V/AC220 V to 240 V *
AC120 V/AC220 V to 240 V * (Power supply)
DC12 V
Approx. 120 W
Approx. 145 W
Approx. 120 W
1.3 A(pan-tilt head only)
0 °C to 45 °C (32 °F to 113 °F)
-5 °C to 45 °C (23 °F to 113 °F)
-10 °C to 45 °C (14 °F to 113 °F) -20 °C to 45 °C (-4 °F to 113 °F)
315 mm x 534 mm x 188 mm
(12-3/8 " x 21 " x 7-3/8 ")
10.2 kg (22.5 lbs)
319 mm x 416 mm x 168 mm
(12-9/16 " x 16-3/8 " x 6-5/8 ")
10.0 kg (20.0 lbs)
130 mm x 244 mm x 192 mm
(5-1/8 " x 9-5/8 " x 7-9/16 ")
3.5 kg (7.7 lbs)
Head: 237 mm x 511 mm x 213 mm
(9-5/16 " x 20-1/8 " x 8-3/8 ")
Head: 19 kg (41.9 lbs)
* The values vary depending on the region.
* Features and specifications are subject to change without notice due to continual improvements.
* Weight and dimensions shown are approximate.
Matsushita Electric Industrial Co., Ltd.
Panasonic System Solutions Company
Corporate Broadcast and Multimedia Business Unit
4-3-1 Tsunashima-Higashi,
Kohoku-ku, Yokohama City 223-8639, Japan
http://panasonic.biz/broad/
AW-JECCONSOL08
Printed in Japan
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
