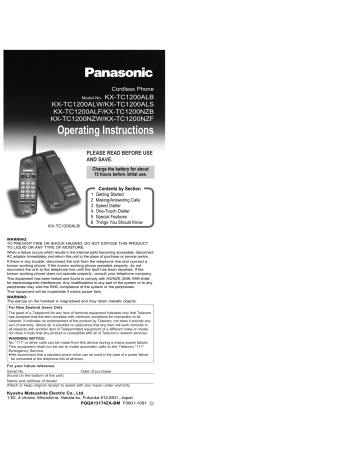

Cordless Phone
KX-TC1200ALB
KX-TC1200ALW/KX-TC1200ALS
KX-TC1200ALF/KX-TC1200NZB
KX-TC1200NZW/KX-TC1200NZF
Model No.
Operating Instructions
PLEASE READ BEFORE USE
AND SAVE.
Charge the battery for about
15 hours before initial use.
KX-TC1200ALB
1
2
3
4
5
6
Contents by Section
Getting Started
Making/Answering Calls
Speed Dialler
One-Touch Dialler
Special Features
Things You Should Know
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT
TO LIQUID OR ANY TYPE OF MOISTURE.
When a failure occurs which results in the internal parts becoming accessible, disconnect
AC adaptor immediately and return this unit to the place of purchase or service centre.
If there is any trouble, disconnect the unit from the telephone line and connect a
known working phone. If the known working phone operates properly, do not
reconnect the unit to the telephone line until the fault has been repaired. If the
known working phone does not operate properly, consult your telephone company.
This equipment has been tested and found to comply with AS/NZS 3548:1995 limits
for electromagnetic interference. Any modifications to any part of the system or to any
peripherals may void the EMC compliance of the system or the peripherals.
This equipment will be inoperable if mains power fails.
WARNING:
The earcap on the handset is magnetised and may retain metallic objects.
For New Zealand Users Only
The grant of a Telepermit for any item of terminal equipment indicates only that Telecom
has accepted that the item complies with minimum conditions for connection to its
network. It indicates no endorsement of the product by Telecom, nor does it provide any
sort of warranty. Above all, it provides no assurance that any item will work correctly in
all respects with another item of Telepermitted equipment of a different make or model,
nor does it imply that any product is compatible with all of Telecom’s network services.
WARNING NOTICE:
No “111” or other calls can be made from this device during a mains power failure.
This equipment shall not be set to make automatic calls to the Telecom “111”
Emergency Service.
≥We recommend that a standard phone which can be used in the case of a power failure
be connected to the telephone line at all times.
For your future reference
Serial No.
Date of purchase
(found on the bottom of the unit)
Name and address of dealer
Attach or keep original receipt to assist with any repair under warranty.
Kyushu Matsushita Electric Co., Ltd.
1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan
PQQX13174ZA-BM F0801-1091 D
1
Getting Started
1-A Accessories
∑ AC Adaptor
Section 1
Handset
M
2-
1-B Location of Controls
∑ Battery............one
2
Base unit
.......................one
Antenna
(TALK) Button and
Indicator (2-A)
∑ Telephone Line Cord ..........................one
For Australia
Antenna (1-C)
Handset Hook (6-D)
For New Zealand
(AUTO) Button
(3-A, 5-D)
DIRECT
AUTO
TALK
ON
OFF
ABC
2
1
GHI
(RINGER) Button
(2-B)
For Australia only
.......................one ∑ Telephone
∑ Handset Cover
(PROGRAM)
Button (3-A, 5-D)
Plug...............one
7
3
MNO
TUV
WXYZ
5
4
PQRS
DEF
JKL
8
6
9
0
RINGER
RECALL
PROGRAM
LOUD
REDIAL
PAUSE
(TA
Ind
(RECALL)
Button (5-D)
IN US
E/CHA
RGE
(REDIAL)
Button (2-A)
IN USE/CHARGE
Indicator
(1-C, 5-A)
HAND
EST LO
CATO
R
(PAUSE)
Button (5-C)
CH
RECHARGE
(LOUD)
Button (2-A)
RECHARGE
Indicator (6-A)
(DIRECT)
Button (4-A)
(CH) (Channel)
Button (2-A)
(LO
Charge
Contacts (6-A)
Charge Contacts (6-A)
(CH
(HANDSET\LOCATOR)
Button (5-A)
1-C Settings
1
(RE
2-
2
Connect as shown.
Fasten the cords.
Hooks
Install the battery in the handset, and close
the handset cover, locking it into place.
(RI
Black
Lead
LINE
Red
Lead
12V
For New Zealand
To Single-Line
Telephone Jack
OR
STOP
Telephone
Line Cord
For Australia
3
Charge the battery for
about 15 hours.
≥See section 6-A for more details.
≥The IN USE/CHARGE indicator lights.
To Socket
IN USE/CHARGE Indicator
Telephone
Line Cord
Extend the
antenna fully.
Telephone Plug
To Power Outlet
(AC 230 V–240 V,
50/60 Hz)
AC Adaptor
≥USE ONLY WITH Panasonic AC ADAPTOR PQLV16AL.
≥The AC adaptor must remain connected at all times.
(It is normal for the adaptor to feel warm during use.)
≥To connect a standard telephone on the same line, see section 6-F.
≥KX-TC1200AL and KX-TC1200NZ are not designed to be used with
rotary (pulse dialling) services.
2
Making/Answering Calls
Section 2
2-A Making Calls
(TALK) and
Indicator
(REDIAL)
(LOUD)
(CH)
1
Press (TALK).
≥The TALK indicator lights.
≥If an alarm tone sounds, see 6-E.
Press (TALK)
2
3
Dial a phone number.
To select the handset receiver
volume
To hang up,
press (TALK) or place the
handset on the base unit.
≥The indicator light goes out.
≥For best operating performance, see
section 6-C.
≥When dialling additional numbers after
speed dialling [eg, AUTO (3-B), DIRECT
(4-B) or REDIAL], make sure that speed
dialling is finished before entering
additional digits.
Otherwise, the unit may not dial correctly.
To redial the last number dialled
(REDIAL).
Press (LOUD) while talking.
≥Each time you press the button, the
volume level will change from LOW
(preset) to HIGH.
If noise interferes with the
conversation
Press (CH) to select a clearer channel or
move closer to the base unit.
Backlit handset keypad
The handset dialling buttons will light when
you press a button or lift the handset off the
base unit, or when a call is received. The
lights will go out a few seconds after
pressing a button, lifting the handset or
answering a call.
2-B Answering Calls
(TALK) and Indicator
(RINGER)
If the handset is off the base unit,
press (TALK).
Selecting the ringer volume
≥You can also answer a call by pressing
any dialling button (0) to (9), ($) or
(—Any Key Talk).
The TALK indicator light must be off.
OR
If on the base unit,
just lift up.
≥To select HIGH (preset) or LOW,
press (RINGER).
Each time you press the button, the
ringer volume will change and the
selected volume will ring.
≥To turn the ringer OFF,
press and hold (RINGER) until a beep
sounds.
≥To turn the ringer ON,
press (RINGER).
For New Zealand Users Only:Additional Security Feature
In the event that a call cannot be made from the handset following a power interruption,
disconnect the base unit from the line momentarily then reconnect it. Turn the handset off, and
replace it on the base unit.
This will re-establish the security system and the handset can be used as before.
3
Speed Dialler
“
Speed D
3-A Storing Phone Numbers in Memory
You can store up to 10 phone numbers. The dialling buttons ((0) to
(9)) function as memory stations.
The TALK indicator light must be off before programming.
(AUTO)
TALK Indicator
Memory Station
Numbers
1
2
3
4
4
Press (PROGRAM) to end storing.
Start again from step 1.
≥The TALK indicator flashes.
To erase a stored number
Enter a phone number up
to 16 digits.
Press (PROGRAM)
(AUTO)
the memory station number ((0) to (9))
for the phone number to be erased.
≥A beep sounds.
Press (AUTO).
Press a memory station
number ((0) to (9)).
≥A beep sounds.
≥To store other numbers, repeat
steps 1 through 4.
(PAUSE)
(PROGRAM)
Press (PROGRAM).
If you misdial
≥If a pause is required for dialling, press
(PAUSE) where needed. Pressing
(PAUSE) counts as one digit (5-C).
One-Touch Dialler
“
4-A Storing a Phone Number in the DIRECT Button
A stored number in the (DIRECT) button can be dialled with a
one-touch operation.
The TALK indicator light must be off before programming.
(DIRECT)
TALK Indicator
(PAUSE)
(PROGRAM)
If you misdial
Press (PROGRAM) to end storing.
Start again from step 1.
1
Press (PROGRAM).
To erase a stored number
≥The TALK indicator flashes.
Press (PROGRAM)
2
Enter a phone number up
to 16 digits.
3
Press (DIRECT).
≥A beep sounds.
≥A beep sounds.
≥If a pause is required for dialling, press
(PAUSE) where needed. Pressing
(PAUSE) counts as one digit (5-C).
(DIRECT).
One-Tou
Speed Dialler
Section 3/4
3-B Dialling a Stored Number
(TALK) and
Indicator
(AUTO)
1
Press (TALK).
2
Press (AUTO).
3
Press the memory
station number
((0) to (9)).
≥The TALK indicator lights.
≥The stored number is
dialled.
Memory Station
Numbers
One-Touch Dialler
4-B Dialling a Stored Number in the DIRECT Button
(DIRECT)
(TALK) and
Indicator
1
Press (TALK).
2
Press (DIRECT).
≥The TALK indicator lights.
≥The stored number is
dialled.
5
Special Features
Section 5
5-A Handset Locator
You can locate the handset or page the handset.
(HANDSET\LOCATOR) on the base unit.
1 Press
≥The IN USE/CHARGE indicator flashes and the handset beeps for 1 minute.
2 To stop paging, press (HANDSET\LOCATOR) again or press (TALK) twice on the handset.
5-B Automatic Security Code Setting
(TALK)
(AUTO)
Whenever you place the handset on the base unit, the unit automatically selects one of 65,000
security codes. These codes help prevent the unauthorized use of your telephone line by another
cordless telephone user.
5-C How to use the PAUSE Button
(For Analog PBX Line/Long Distance Service Users)
(RECALL)
We recommend you press (PAUSE) if a pause is required for dialling with a PBX or to access a long
distance service.
(PAUSE)
Ex: Line access number (9) (PBX)
(PROGRAM)
(9)
(PAUSE)
Phone number
≥Pressing (PAUSE) once creates a 3.5 second pause. This prevents misdialling when you redial or
dial a stored number.
≥Pressing (PAUSE) more than once increases the length of the pause between numbers.
5-D RECALL Button
Pressing (RECALL) allows you to use special features of your host PBX such as transferring an
extension call or accessing a special telephone services (optional), such as call waiting.
Selecting the recall time
The recall time depends on your telephone exchange or host PBX. You can select the following recall
times: “90, 100, 110, 250, 300, 400, 600 or 700 msec (milliseconds)”. KX-TC1200AL comes from the
factory set to “100 msec” and KX-TC1200NZ comes set to “600 msec”.
The TALK indicator light must be off before programming.
IN USE/CHARGE Indicator
Press (PROGRAM)
Dialing button ( 1 to 8 )
1 : 90 msec
5 : 300 msec
2 : 100 msec
6 : 400 msec
(AUTO)
(RECALL).
3 : 110 msec
7 : 600 msec
4 : 250 msec
8 : 700 msec
≥A beep sounds.
≥If 3 beeps sound after programming, a wrong key was pressed. Start again from the beginning.
≥Users in Australia can access Telstra’s “EASY CALL” service by having the recall time set at 100
msec (this is the factory default setting), and then follow Telstra’s “EASY CALL” instructions to
operate this service.
≥If you are connected via a PBX, a longer or shorter recall time may be necessary to use PBX
functions (transferring a call etc.). Consult your PBX supplier for the correct setting.
≥When you receive a second call during a conversation, you will hear a signal tone following the call
waiting tone and the conversation will be interrupted for approximately a second. The tones are
generated from the telephone company. This is not fault of the product as these events are normal.
For Call Waiting Service Users in New Zealand
(HANDSET\LOCATOR)
Make sure the recall time is set to 600 msec for use with Telecom’s Call Waiting Service. Press
(RECALL) if you hear a call-waiting tone while talking.
≥The first call is put on hold and you can answer the second call.
≥To return to the first caller, press (RECALL) again.
6
Things You Should Know
6-A Battery
“
6-B Battery Replacement
If the RECHARGE indicator flashes after being fully charged, replace the
battery with a new Panasonic P-P301 (KX-A36A) battery.
When replacing the battery, programmed information may be erased.
Reprogram if necessary.
Recharge
When the RECHARGE indicator flashes
or the unit beeps intermittently, place
the handset on the base unit for about
15 hours to recharge the battery.
RECHARGE
Indicator
1
Press the notch on the
handset cover firmly
and slide it as
indicated by the
arrow.
2
Replace the battery
and close the cover.
Battery information:
After your Panasonic battery is fully charged:
Operation
Operating time
While in use (TALK)
Up to about 5 hours
While not in use (Standby)
Up to about 14 days
≥The battery operating time may vary depending on usage
conditions and ambient temperature.
≥As preventative maintenance, clean the handset and the
base unit charge contacts with a soft, dry cloth once a
month. Clean more often if the unit is subject to grease, dust
or humidity. Otherwise the battery may not charge properly.
≥If the battery is fully charged, you do not have to place the
handset on the base unit until the RECHARGE indicator flashes.
This will maximize the battery life.
≥The battery cannot be overcharged.
6-C Base Unit Location
Calls are transmitted between the base unit and the handset
using wireless radio waves. For maximum distance and noisefree operation, the recommended base unit location is:
Away from electrical appliances
such as a TV, personal computer,
cellular phone charging units
or another cordless phone.
≥Insert the battery plug into
the connector as shown in
the picture.
≥Be sure wires are free from
being pressed by the battery
body or the handset cover.
Black
Lead
Red
Lead
3
Make sure to charge
the new battery for
about 15 hours.
1
Pull down the handset
hook until it locks, so
the tab holds the
handset.
2
Install screws using
the wall template
below. Connect the AC
adaptor and telephone
line cord.
3
Mount the unit, then
slide down.
6-D Wall Mounting
This unit can be mounted on a wall.
In a HIGH and CENTRAL
location with no obstructions
such as walls.
Screws
8.3 cm
For Australia
To Telephone Plug
and Socket
OR
Extend
fully.
To Power
Outlet
For New Zealand
To Single-Line
Telephone Jack
Wall Template
8.3 cm
≥Extend the antenna fully.
Things
Things You Should Know
Section 6
6-E Before Requesting Help
Problem
Cause and Remedy
The unit does not work.
≥Check the settings (1-C).
≥Charge the battery fully (6-A).
≥Clean the charge contacts and charge
again (6-A).
≥Install the battery properly (1-C, 6-B).
≥Place the handset on the base unit and
unplug the AC adaptor to reset. Plug in,
and try again.
≥Re-insert the handset battery and place
the handset on the base unit. Try again.
≥KX-TC1200AL and KX-TC1200NZ are not
designed to be used with rotary (pulse
dialling) services.
An alarm tone sounds
when you press (TALK).
≥You are too far from the base unit. Move
closer and try again.
≥Place the handset on the base unit and
try again.
≥Plug in the AC adaptor.
≥Extend the base unit antenna fully.
Static, sound cuts
in/out, fades.
Interference from other
electrical units.
≥Locate the handset and the base unit away
from other electrical appliances (6-C).
≥Move closer to the base unit.
≥Extend the base unit antenna fully.
≥Press (CH) to select a clearer channel.
The unit does not ring.
≥The ringer volume is set to OFF. Press
(RINGER) when the TALK indicator light
is off (2-B).
6-F Adding Another Phone
For Australia
Standard
Telephone
(Optional)
Telephone
Line Cord
Telephone
Double Adaptor
For New Zealand
To Single-Line
Telephone Jack
T-Adaptor
Standard
Telephone
Telephone Line Cord
Cause and Remedy
While storing a phone
number, the unit starts
to ring.
≥To answer the call, press (TALK).
The program will be cancelled. Store the
number again.
You cannot store a
phone number in
memory.
≥You cannot store a number while the unit
is in the talk mode.
≥Do not pause for over 60 seconds while
storing.
You cannot redial by
pressing (REDIAL).
≥If the last number dialled was more than
24 digits long, the number will not be
redialled.
(HANDSET\LOCATOR)
does not function.
≥The handset is too far from the base unit
or is engaged in an outside call.
The RECHARGE
indicator flashes or the
unit beeps intermittently.
≥Charge the battery fully (6-A).
You charged the battery
fully, but the RECHARGE
indicator flashes.
≥Clean the charge contacts and charge
again (6-A).
≥Install a new battery (6-B).
The IN USE/CHARGE
indicator light does not
go out while charging.
≥This is normal.
For New Zealand Customers
Panasonic New Zealand operates a toll free Customer Support Centre.
Please phone 0800 Panasonic (0800 726276) for assistance.
6-G Safety Instructions
This unit will not function during a power failure. To connect a standard
telephone on the same line, use a telephone double adaptor.
To Socket
Problem
Take special care to follow the safety suggestions listed below.
Safety
1) The unit should be connected to a power supply only of the type described in
the operating instructions or as marked on the unit.
2) When left unused for a long period of time, the base unit should be unplugged
from the household AC outlet.
3) To minimize the possibility of lighting damage when you know that a
thunderstorm is coming, we recommend that you:
a) Unplug the telephone line cord from the phone jack.
b) Unplug the power supply cord from the AC power outlet.
Installations
Environment
1) Do not use this unit near liquids—for example, near a bathtub, washbowl, sink,
etc. Damp environments should also be avoided.
2) The unit should be kept away from heat sources such as radiators, kitchen
range, etc. It also should not be placed in rooms where the temperature is less
than 5°C or greater than 40°C.
3) The AC adaptor is used as the main disconnect device, ensure that the AC
outlet is located/installed near the unit and is easily accessible.
Placement
1) Do not place heavy objects on top of this unit.
2) Care should be taken so that objects do not fall onto, and liquids are not spilled into, the
unit. Do not subject this unit to excessive smoke, dust, mechanical vibration, or shock.
3) Place the unit on a flat surface.
For best performance
1) If noise prevents the conversation from being understood at the handset,
approach the base unit to lessen the noise.
2) The handset should be used at the HIGH volume setting when the reception
audio is difficult to hear.
3) The handset should be fully recharged on the base unit when the RECHARGE
indicator flashes.
4) The handset antenna should not be touched during use because it can effect the
handset’s performance.
5) The maximum calling distance may be shortened when the unit is used in the
following places: Near obstacles such as hills, tunnels, undergrounds, near
metal objects such as wire fences, etc.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
