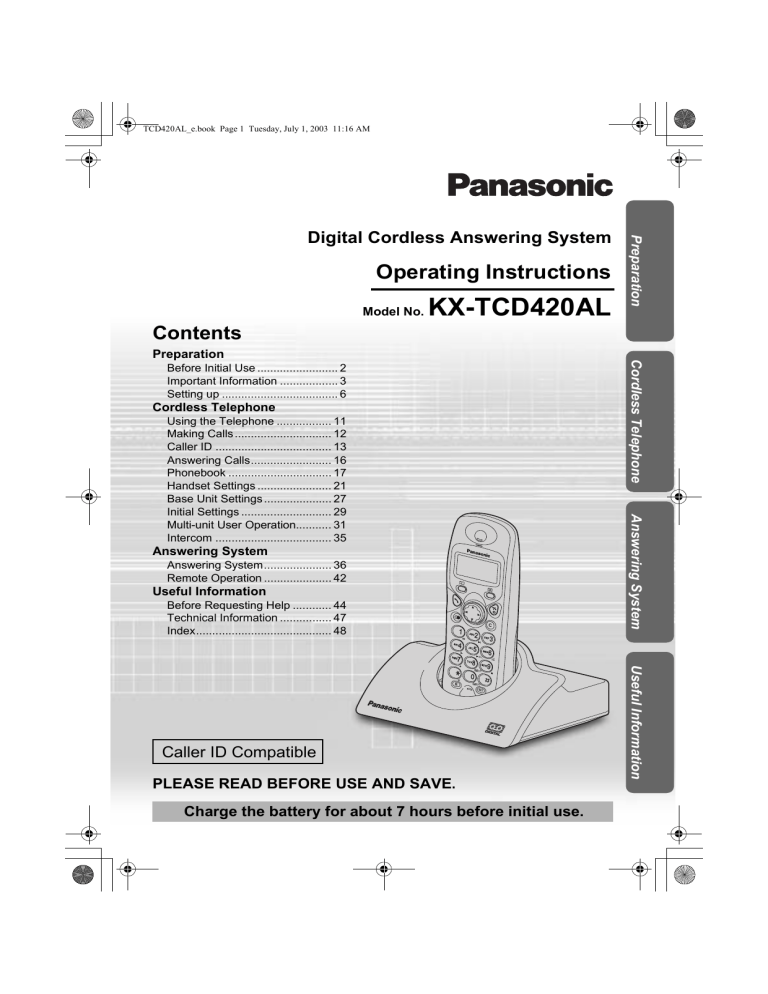

Operating Instructions
Model No.
KX-TCD420AL
Preparation
Digital Cordless Answering System
Contents
Cordless Telephone
Preparation
Before Initial Use ......................... 2
Important Information .................. 3
Setting up .................................... 6
Cordless Telephone
Answering System
Answering System..................... 36
Remote Operation ..................... 42
Useful Information
Before Requesting Help ............ 44
Technical Information ................ 47
Index.......................................... 48
C
1
4
7
2
3
5
ALL
6
9
0
OFF
INT
Caller ID Compatible
PLEASE READ BEFORE USE AND SAVE.
Charge the battery for about 7 hours before initial use.
Useful Information
8
ON
R
Answering System
Using the Telephone ................. 11
Making Calls .............................. 12
Caller ID .................................... 13
Answering Calls......................... 16
Phonebook ................................ 17
Handset Settings ....................... 21
Base Unit Settings ..................... 27
Initial Settings ............................ 29
Multi-unit User Operation........... 31
Intercom .................................... 35
420AL_e_02.fm Page 2 Monday, August 18, 2003 3:45 PM
Before Initial Use
Thank you for purchasing your new Panasonic digital cordless telephone.
Dear purchaser,
You have acquired a KX-TCD420AL, which is a product made in regard with
the Digital Enhanced Cordless Telecommunications (DECT). DECT technology is
characterized by high-security protection against interceptions as well as high-quality
digital transmission. This telephone was designed for a wide range of applications. For
example, this telephone can be used within a network of base units and handsets,
constituting a telephone system which:
• operates up to 6 handsets at one base unit.
• allows an intercom between 2 handsets.
• allows the operation of a handset at up to 4 base units, expanding the communication
radio area.
Caller ID Service, where available, is a telephone company service. After subscribing
to Caller ID, this phone will display the caller’s phone number.
Accessories (included)
AC Adaptor
PQLV19AL
Telephone Line Cord
Telephone Plug
Battery Cover
Rechargeable Batteries
(AAA size)
HHR-4EPT/BA2
Additional accessories are available for purchase. Contact your Panasonic Service
Centre for further details.
2
TCD420AL_e.book Page 3 Tuesday, July 1, 2003 11:16 AM
Important Information
Instructions to customer
You are authorised to install this Permitted Attachment yourself by plugging it into the
line socket of any regular telephone. You may connect it in place of your existing
telephone or to any spare telephone socket installed in your premises.
To disconnect your existing telephone you must first remove its plug from the line socket.
You can then insert the plug of your Permitted Attachment into the socket and use your
equipment.
If the plug of your existing telephone cannot be readily removed, you will have to remove
the screw securing it. To do this proceed as follows:
1. Loosen screw “A” sufficiently to remove the socket cover. (See Fig. 1.)
2. Remove screw “B” and withdraw the plug. (See Fig. 2.)
3. Replace screw “B”. (See Fig. 3.) Ensure that it screws completely into the socket recess.
(If the screw is too long, increase the hole depth or replace the screw with one 5 mm
shorter.)
4. Replace socket cover and tighten screw “A”. (See Fig. 4.)
SOCKET
PLUG
SCREW
“B”
SCREW “A”
Fig. 1
(
TELEPHONE CORD
Connect to the PLUG
as shown in Fig. 1.
)
Fig. 2
SCREW “A”
SCREW
“B”
Fig. 3
SOCKET
Fig. 4
3
Preparation
Installation
Attached to this apparatus is an approval label. This label is evidence that it is a
“Permitted Attachment” which has been authorised to be connected to your telephone
service.
Conditions relating to connection and operation of this Permitted Attachment are
contained in Telecommunications General By-Law 220 (5).
TCD420AL_e.book Page 4 Tuesday, July 1, 2003 11:16 AM
Important Information
If you are satisfied with the operation of your telephone service after plugging in your
Permitted Attachment, your installation is completed.
You will be unable to connect this Permitted Attachment if your telephone service
consists only of a wall phone or an old style telephone which is not connected by means
of a modern plug and socket. In such cases a new socket will need to be installed.
Should the Permitted Attachment not operate when plugged into a socket, it is either
faulty or unsuitable for operation with your telephone service. It should be returned to the
store where purchased or an Authorised Service Centre.
Service difficulties
If at any time a fault occurs on your telephone service, carry out the following checks
before you call for service:
• Disconnect the Permitted Attachment and try using the service with the normal
telephone.
• If the telephone service then operates satisfactorily, the fault is in your Permitted
Attachment. Leave the Permitted Attachment disconnected and report the fault to its
supplier or agent to arrange for repair.
• If when using the telephone the service is still faulty, report the fault to “Service
Difficulties and Faults” for attention.
You are required to keep this Permitted Attachment in good working order while it is
connected to your telephone service. Its construction or internal circuit must not be
modified in any way without permission.
WARNING
This cordless telephone system does not incorporate provision for secrecy of
conversations. Appropriately tuned radio equipment and other cordless telephone
systems in close proximity may be used by a third party to monitor and possibly interrupt
conversations in progress when this system is on radio operation.
4
420AL_e_02.fm Page 5 Tuesday, September 9, 2003 4:15 PM
Important Information
Environment
Do not use this unit near liquid—for
example, near a bath tub, washbowl, sink,
etc. Damp basements should also be
avoided. The unit should be kept away
from heat sources such as heaters,
kitchen stoves, etc. It also should not be
placed in rooms where the temperature is
less than 5 °C or greater than 40 °C.
The AC Adaptor is used as the main
disconnect device, ensure that the AC
outlet is located/installed near the unit and
is accessible.
WARNING:
TO PREVENT THE RISK OF FIRE OR
ELECTRICAL SHOCK, DO NOT
EXPOSE THIS PRODUCT TO RAIN
OR ANY TYPE OF MOISTURE.
THE CORDLESS HANDSET IS
MAGNETISED AND MAY RETAIN
SMALL METALLIC OBJECTS.
Preparation
Only use the power supply included with
the product.
Do not connect the AC Adaptor to any AC
outlet other than the standard AC230 V.
The apparatus is approved for use with
PQLV19AL power supply.
This apparatus is unable to make
emergency telephone calls under the
following conditions:
• The portable handset batteries need
recharging, or have failed.
• During a mains power failure.
• When the Key Lock is set to ON.
• When the unit is in Direct Call mode.
Do not open the base unit or handset
(other than to change the batteries).
This apparatus should not be used near
emergency/intensive care medical
equipment and should not be used by
people with pacemakers.
Care should be taken that objects do not
fall onto, and liquids are not spilled into
the unit. Do not subject this unit to
excessive smoke, dust, mechanical
vibration or shock.
Battery Caution
Use only specified batteries.
Only use rechargeable batteries.
Do not mix old and new batteries.
Do not dispose of batteries in a fire, they
may explode.
Check local waste management codes for
special disposal instructions.
Do not open or mutilate the batteries.
Released electrolyte is corrosive and may
cause burns or injury to the eyes or skin.
The electrolyte may be toxic if swallowed.
Exercise care in handling the batteries in
order not to short the batteries with
conductive materials such as rings,
bracelets and keys.
The batteries and/or conductor may
overheat and cause burns.
Charge the batteries provided in
accordance with the information given in
this operating guide.
Location
• For maximum distance noise-free
operation, place your base unit:
- Away from electrical appliances such
as TV, radio, personal computer or
another phone.
- In a convenient high and central
location.
5
TCD420AL_e.book Page 6 Tuesday, July 1, 2003 11:16 AM
Setting up
Connection
Plug in the AC adaptor and the telephone line cord in order 1, 2, 3, 4.
Hooks
LINE
1
2
4
Fasten the AC adaptor
cord to prevent it from
being disconnected.
3
The AC adaptor must remain connected at all times. (It is normal for the adaptor to
feel warm during use.)
• Never install telephone wiring during a lightning storm.
• KX-TCD420AL is not designed to be used with rotary (pulse dialling) services.
Battery Installation
Please ensure the batteries are inserted as shown.
part should be inserted first.
Close the cover as indicated by the arrow.
• When you replace the batteries,
part should be removed first.
To replace the battery:
Press the notch on the cover firmly
and slide it as indicated by the arrow.
Replace 2 batteries and close the
cover then charge the handset for
about 7 hours.
6
TCD420AL_e.book Page 7 Tuesday, July 1, 2003 11:16 AM
Setting up
Battery Charge
Fully charged
During charging
Battery Life
Battery life is dependent on use and
conditions but in general when using fully
charged Ni-MH batteries (700 mAh):
Talk time: 10hrs approx.
Standby time: 120hrs approx.
When using Ni-Cd batteries (250 mAh):
Talk time: 4hrs approx.
Standby time: 40hrs approx.
(Times indicated are for peak
performance.)
The batteries reach peak performance
after several full charge/discharge cycles.
The batteries cannot be overcharged
unless they are repeatedly removed and
replaced.
If battery life is shortened then please
check that battery and charge terminals
are clean.
For maximum battery life, it is
recommended that the handset not be
recharged until battery icon flashes
.
(Flashing)
Display icon
Battery strength
High
Medium
Low
Needs to be
charged
The handset which power is off will be
turned on automatically when it is placed
on the base unit.
In normal use, the handset and the base
unit should be powered on at all times.
7
Preparation
At the time of shipment, the batteries are
not charged. To charge, place the
handset on the base unit. Please charge
the batteries for about 7 hours before
initial use. During charging, the battery
icon is as shown below.
420AL_e_02.fm Page 8 Monday, August 25, 2003 8:25 PM
Setting up
Symbols Used in This Operating Instructions
Symbol
Meaning
To search the desired item, press UP or DOWN.
To select the desired item, press RIGHT.
To search and then to select the desired item, press UP or DOWN then
RIGHT.
To move the cursor to the right or to the left, press RIGHT or LEFT.
To go to the next step.
" "
The words in " " indicate the words in display.
Replacing the Batteries
If the
icon flashes after a few telephone calls even when the handset batteries have
been fully charged, 2 batteries must be replaced.
Charge new batteries for approximately 7 hours before initial use.
When replacing the batteries, ensure that the correct battery type is selected.
Selecting the Battery Type
1
5
Press MENU.
2
Search/Select
"SETTING HS".
3
Search/Select
"OTHER OPT".
4
Search/Select
"BATTERY TYPE".
Search/Select
"NI-CD" or "NI-MH".
• To exit the operation, press
any time.
• Do not use non-rechargeable batteries. If non-rechargeable batteries are fitted and
start charging, it may cause the leakage of the battery electrolyte.
Please use only Panasonic HHR-4EPT(Ni-MH) or P-4NPT(Ni-Cd) batteries.
8
TCD420AL_e.book Page 9 Tuesday, July 1, 2003 11:16 AM
Setting up
Location of Controls
Receiver
Display
1
6
7
2
3
4
C
1
4
5
7
Charge
Contact
2
5
ALL
8
ON
6
9
0
R
9
OFF
INT
Microphone
8
3
Charge
Contact
1-
:
2-
TALK Button
3-
Navigator Key
45-
Preparation
Handset
PHONEBOOK Button
REDIAL/PAUSE Button
RECALL Button
R
6-
:
7-
OFF/POWER Button
8-
C
9-
INT
MENU/OK Button
CLEAR Button
INTERCOM Button
Base unit
PAGE Button and Indicator
LINE
Handset Display
Within range of a base unit
Call BAR ON (p. 24)
Out of range/No registration/
No power on base unit
Paging
Direct Call ON (p. 25)
Making or answering calls
Phonebook Mode
In Setting Mode
Key Lock ON (p. 26)
Battery strength is low.
Battery strength is high.
Answering System ON
Ringer Volume OFF (p. 22)
9
TCD420AL_e.book Page 10 Tuesday, July 1, 2003 11:16 AM
Setting up
Wall Mounting
This unit can be mounted on a wall.
- Insert screws into the wall. The centre of the screw hole should be 8 cm horizontally
apart.
- Connect the AC adaptor and the telephone line cord.
- Arrange the wires as shown, then mount the unit.
8 cm
Screws
Hooks
Wall Template
8 cm
10
420AL_e_03.fm Page 11 Monday, August 25, 2003 8:25 PM
Using the Telephone
Power On/Off
Power on
Power off
Press for more than 2 seconds.*2
Press for more than 1 second.*1
*1 When
button is released, the display changes to the standby mode.
*2 The display goes blank.
Making a Call
Post-dialling
1 Phone Number*1 2
Press TALK.
1
Press TALK.
2 Phone Number
*1 If you need correction, press CLEAR. Digit is cleared to the left, then enter numbers.
Answering a Call
Terminating a Call
(During a call)
Press TALK.*1
Press OFF.
*1 You can also answer a call by pressing any dialling button, INTERCOM, t or x.
Setting the Clock/Date
After a mains power failure the clock needs to be reset. Ensure that
flashing.
1
4
Press MENU.
2
"INPUT CODE"
Press OK.
Time
Enter time.
4-digit
(24 hour clock)*1
3
Search/Select
"SETTING BS".
5
"INPUT CODE"
Press
RIGHT.
6
twice
icon is not
Date
Enter day,
month then
year.*2
7
Press OK.
• To exit the operation, press
any time.
*1 For example, to set 7:15, enter 0715.
*2 For example, to set the 16th of February, 2003, enter 160203.
11
Cordless Telephone
Pre-dialling
TCD420AL_e.book Page 12 Tuesday, July 1, 2003 11:16 AM
Making Calls
Redialling
The last 10 numbers dialled are stored in the redial list automatically.
Dialling with the Redial List
1
Dialling the Last Number Dialled
2
Press
REDIAL.*1
3
Search the desired
dialled item.
1
2
Press REDIAL.
Press TALK.
Press
TALK.
Editing the Dialled Number in the Redial List
1
2
Press REDIAL.*1
4
5
Move
cursor.
3
Search/Select the
desired dialled item.
AND/
OR
C
Press
CLEAR.*2
Number
The 1st digit of
the desired dialled
number blinks.
Search/Select
"EDIT CALL NO".
6
Edit the phone
number.*3
Press TALK.
OR
If you need to
store a name,
Press OK 3 times
go to Name
to store the number. on page 17 or
press OK.
Clearing One/All Dialled Item(s) in the Redial List
1
2
Press REDIAL.*1
3
Search/Select the
desired dialled item.
4
Search/Select
"CLEAR" or
"ALL CLEAR".
Search/Select
"YES".
• To exit the operation, press
any time.
*1 If there is no item stored in the redial list, the display shows "NO ITEM".
*2 Digits are cleared to the left of the flashing digit.
*3 Digits are added to the left of the flashing digit. If you need to clear and/or add more
than one number, repeat from step 4.
12
TCD420AL_e.book Page 13 Tuesday, July 1, 2003 11:16 AM
Caller ID
Caller ID Service
Caller ID is a service of your Network provider and will only operate if you have
subscribed to this feature.
After subscribing to Caller ID, this phone will display the caller information.
If your unit is connected to a PBX or a telephone line that does not support this service,
you will not be able to use it.
Caller ID does not display caller information while using the handset for an intercom call.
However, the caller information will be stored to the Caller ID List.
Call Waiting and Caller ID Compatible: If you subscribe to Caller ID service, your
handset displays the second caller’s information while talking. After you hear a callwaiting tone, the caller’s phone number will be displayed.
• If the phone number is stored in the phonebook with its name, the caller’s name will
also be displayed.
• The second caller’s information will not be displayed when the answering system is
recording someone’s message.
• Please contact Telstra or your service provider for details and availability in your area.
Using Caller ID Type II
When you receive a second call during a conversation, you will hear a signal tone
following the call waiting tone and the conversation will be interrupted or muted for
a short period of time. This is not the fault of the product as these events are normal.
Note: The tones are generated by the telephone company.
13
Cordless Telephone
You can answer the second call, keeping the first call on hold. Follow Telstra or your
service provider instructions using RECALL.
TCD420AL_e.book Page 14 Tuesday, July 1, 2003 11:16 AM
Caller ID
Caller ID Display
When receiving a call, the display shows its phone
number.
For example, a caller whose phone number is
01234567890 has been received.
If you store a phone number with a name in the
phonebook, the display shows caller’s name when
receiving a call.
If the caller has requested not to display his/her
information, the display shows "PRIVATE".
If the caller dialled from an area which does not provide
Caller ID service, the display shows "OUT OF AREA".
When new calls have been received, the display
shows the numbers of calls.
For example, 4 new calls have been received.
14
TCD420AL_e.book Page 15 Tuesday, July 1, 2003 11:16 AM
Caller ID
Caller ID List
Information up to 50 different callers is stored from the most recent call to the oldest call
in the caller list. When the 51st call is received, the oldest caller information is cleared.
If you receive a call from the same phone number you stored with a name in the
phonebook, the display will show the caller’s name.
Calling Back
1
2
Press TALK.
Cordless Telephone
Search the desired
received item.*1
Editing the Received Number in the Caller List
1
2
Search/Select the
desired received
item.*1
4
The 1st digit of the
desired received
number blinks.
Search/Select
"EDIT CALL NO".
AND/ Number
C
OR
Press
Edit the
CLEAR.*2
number.*3
5
3
Move
cursor.
Press TALK.
OR
Press OK 3 times
to store the number.
If you need to store
a name, go to
Name on page 17
or press OK.
Clearing One/All Received Item(s) in the Caller List
1
Search/Select the
desired received item.*1
2
Search/Select
"CLEAR" or
"ALL CLEAR".
3
Search/Select
"YES".
• To exit the operation, press
any time.
*1 If there is no item stored in the caller list, the display shows "NO ITEM".
on the
right edge of the display when searching the item in the caller list indicates that the
item has been already shown previously.
*2 Digits are cleared to the left of the flashing digit.
*3 Digits are added to the left of the flashing digit. If you need to clear and/or add more
than one number, repeat from step 3.
15
TCD420AL_e.book Page 16 Tuesday, July 1, 2003 11:16 AM
Answering Calls
Auto Talk
If you set Auto Talk to on, you can answer the phone by lifting the handset off the base
unit.
1
2
Press
MENU.
3
Search/Select
"SETTING HS".
4
Search/Select
"OTHER OPT".
• To exit the operation, press
5
Search/Select
"AUTO TALK".
Search/Select
"ON" or "OFF".
any time.
Temporary Bell Off
When an external call is incoming, you can temporarily turn off the handset ringer.
This function will not work when the handset is on the base unit or if an internal call is
incoming.
Press and hold
DOWN for
over 1 second.
Receiver Volume
During a call, press UP or DOWN to change the volume setting to LOW (0), MEDIUM
(00), HIGH (000).
(During a call)
Press UP or
DOWN.
Handset Locator/Paging
Using this feature, you can locate a misplaced handset by paging.
1 Press
on the base unit.
2 All registered handsets ring for 1 minute.
<To stop paging>
Press
on the base unit OR
3
*1
on one of the handsets.
*1 You can also stop paging by pressing any dialling buttons, INTERCOM, t or x.
16
TCD420AL_e.book Page 17 Tuesday, July 1, 2003 11:16 AM
Phonebook
You can store up to 20 caller information in the phonebook. If you received a call from
the same phone number you stored with a name in the phonebook, the display will show
the caller’s name.
Storing a Caller Information
1
2
4
Phone Number
Enter phone number.
(max. 24 digits)*1
Press OK.
6
Name
Enter name.
(max. 9 characters)*1
Press OK.*2
• To exit the operation, press
any time.
*1 If you need to make a correction, press RIGHT or LEFT to move cursor then clear
digit/character by pressing CLEAR, and/or enter digits/characters. Digits/characters
are cleared or added to the left of the flashing digit/character. To enter digits/
characters, see Character Selection below.
*2 To continue storing another caller information, repeat from step 3.
Character Selection
Keys
1
2
3
4
5
Number of times key is pressed
1
#
A
D
G
J
Keys
Number of times key is pressed
2
N
Q
U
3
O
R
V
4
6
S
8
5
8
1
M
P
T
4
9
W
Y
Z
9
5
0
Blank
X
0
2
[
B
E
3
]
C
F
4
*
2
3
H
I
K
L
5
,
6
-
7
/
8
1
6
7
7
Character Table
A B C D E FG H I JK LM N O P Q R S T U VW X Y
Z 1 2 3 4 5 6 7 8 9 * 0 # - / [ ] ,
17
Cordless Telephone
5
3
Select
"NEW PHONE".
Press MENU.
TCD420AL_e.book Page 18 Tuesday, July 1, 2003 11:16 AM
Phonebook
Editing a Caller Information
1
2
Press
PHONEBOOK.*1
3
Select "EDIT".
Search/Select
desired item.
The 1st digit of the
desired phone
number blinks.
<Phone Number>
4
5
Move cursor.
C
Press CLEAR.*2
AND/
OR
Number
6
Edit the phone
number.*3
Press OK.
<Name>
7
8
Move cursor.
C
Press CLEAR.*2
AND/
OR
Name
9
Edit the name.*4
Press OK.
Clearing a Caller Information
1
2
3
Search/Select
desired item.
Press
PHONEBOOK.*1
4
Search/Select
"CLEAR".
Search/Select
"YES".*5
Dialling with the Phonebook
1
2
Press
PHONEBOOK.*1
3
Search
desired item.
Press TALK.
• To exit the operation, press
any time.
*1 If there is no item stored in the phonebook, the display shows "NO ITEM".
*2 Digits are cleared to the left of the flashing digit.
*3 Digits are added to the left of the flashing digit. If you need to clear or add more than
one digit, repeat from step 4.
*4 Characters are added to the left of the flashing character. If you need to clear or add
more than one character, repeat from step 7.
*5 To continue clearing another caller information, repeat from step 2.
18
TCD420AL_e.book Page 19 Tuesday, July 1, 2003 11:16 AM
Phonebook
Storing the Phone Number into the Phonebook
When Pre-dialling
1 Phone Number*1 2
3
Press OK to
store the number.
4
Press OK twice.
Name
Enter name.*2
5
Press OK.
Storing the Number from the Redial/Caller List into
the Phonebook
Press REDIAL.*1
1
OR
Search/Select
the desired received
number.*1
Search/Select
the desired dialled
number.
2
3
Search/Select
"SAVE TEL NO".*2
Press OK.
If you need to store a name, go to Name on page 17.
4
OR
Press OK.
• To exit the operation, press
any time.
*1 If there is no item stored in the redial/caller list, the display shows "NO ITEM".
*2 If you need to make a correction, press RIGHT or LEFT to move cursor then clear a
digit by pressing CLEAR, and/or enter digits. Digits are cleared or added to the left of
the flashing digit.
19
Cordless Telephone
• To exit the operation, press
any time.
*1 If you need correction, press CLEAR. Digit is cleared to the left, then enter numbers.
*2 To enter characters, see Character Selection on page 17.
TCD420AL_e.book Page 20 Tuesday, July 1, 2003 11:16 AM
Phonebook
Hot Key
You can assign the dialling buttons 1 through 9 as hot keys. You can choose 9 phone
numbers from the phonebook.
Registering a Phone Number as a Hot Key
1
Press
PHONEBOOK.*1
2
3
Search/Select
desired item.
4
Search/Select
"HOT KEY REG".
Search/Select
desired dialling
button number.*2
5
Search/Select
"YES".
Dialling with Hot Key
1 Press and hold the dialling button registered as a hot key. 2
Press TALK.
Clearing the Hot Key Registration
and hold the dialling
1 Press
button registered as a hot
key.
2
3
Press RIGHT.
4
Select "CLEAR".
Search/Select
"YES".*3
• To exit the operation, press
any time.
*1 If there is no item stored in the phonebook, the display shows "NO ITEM".
*2 The number is flashing if the dialling button is already assigned as a hot key.
*3 Phonebook registration will be remained even hot key registration is cleared.
20
TCD420AL_e.book Page 21 Tuesday, July 1, 2003 11:16 AM
Handset Settings
: Time Alarm
Before programming, please follow steps 1 to 3.
You must set the clock before setting the time alarm.
1
2
Press MENU.
3
Search/Select
"SETTING HS".
Search/Select
"TIME ALARM".
Setting Alarm Time
5
Search/Select
"SET TIME".
6
Time
Enter time.
4-digit
(24 hour clock)
Cordless Telephone
4
7
Press OK.
Search/Select
"OFF",
"ONCE" or
"REPEAT DAILY".
Setting Time Alarm On/Off
4
5
Search/Select
"SET ALARM".
Search/Select
"OFF",
"ONCE" or
"REPEAT DAILY".
• To exit the operation, press
any time.
To stop time alarm: Time alarm will sound for 3 minutes. When the alarm sounds, press
any dialling buttons or key. Alarm stops and display returns to the standby mode.
If "ONCE" is selected, the setting is turned off. When in talk or intercom mode, the alarm
will not sound until the call is ended.
21
420AL_e_03.fm Page 22 Monday, August 25, 2003 8:25 PM
Handset Settings
: Ringer Option
Before programming, please follow steps 1 to 3.
1
Press MENU.
2
3
Search/Select
"SETTING HS".
Search/Select
"RINGER OPT".
Setting the Ringer Volume
The choices are 6 levels and off.
4
5
Search/Select
"RINGER VOL".
Search/Select
desired ringer volume.
• If "RINGER OFF" is selected,
is displayed.
Setting the Ringer Pattern for External Call/Internal Call/Paging/Alarm
There are 20 patterns available on each ringer.
4
5
Search/Select
"EXT RINGER",
"INT RINGER",
"PAGING" or
"ALARM".
Search/Select
desired ringer pattern.*1
• To exit the operation, press
any time.
*1 If you select one of the melody ringer patterns, it keeps ringing for 10 seconds even
if a caller hangs up a call. Therefore, you may hear dial tone or no one there after you
answer a call.
22
TCD420AL_e.book Page 23 Tuesday, July 1, 2003 11:16 AM
Handset Settings
: Tone Option
You can set the following sounds on or off.
Key Tone: Key tone will sound when you press any key, and a confirmation tone and
an error tone will be heard during operation.
Call Waiting Tone: Call waiting tone will sound when an incoming external call is
received during an intercom call.
Range Warning Alarm: Alarm will sound when you move out of range of a base unit.
Battery Low Alarm: Alarm will sound when the batteries need to be charged.
2
Press MENU.
3
Search/Select
"SETTING HS".
4
Search/Select
"TONE OPT".
Cordless Telephone
1
Search/Select
"KEY TONE",
"CALL WAITING",
"RANGE ALARM" or
"BATTERY LOW".
5
Search/Select
"ON" or "OFF".
• To exit the operation, press
any time.
: Display Option
Selecting the Standby Mode Display
1
2
Press MENU.
4
3
Search/Select
"SETTING HS".
Search/Select
"DISPLAY OPT".
Search/Select
"STANDBY MODE".
5
Search/Select
"CLOCK",*1
"OFF",
"BS NO"(Base unit number) or
"HS NO"(Handset number).
• To exit the operation, press
any time.
*1 Time will only be displayed if the clock has been set. When new calls have been
received, the display shows the number of new call.
23
420AL_e_03.fm Page 24 Monday, August 25, 2003 8:26 PM
Handset Settings
Before programming, please follow steps 1 to 3.
1
2
Press MENU.
3
Search/Select
"SETTING HS".
Search/Select
"DISPLAY OPT".
Selecting the Talk Mode Display
Even if you select "PHONE NO", the other party’s phone number will not appear on your
display when you receive calls without subscribing to a Caller ID service.
4
Search/Select
"TALK MODE".
5
Search/Select
"TALK TIME"(Length of the call) or
"PHONE NO"(Phone number).
Selecting the Display Language
4
Search/Select
"LANGUAGE".
5
Search/Select
desired language.*1
• To exit the operation, press
any time.
• If "F43 00" is selected, the Command Interface will be displayed instead of a
language. Each menu will be displayed as an alphanumeric code. The Command
Interface codes for each menu item are shown on page 4 of the Quick Guide.
*1 You can select one of 10 languages. If you set a language you cannot read, reset the
handset to its initial settings.
Press MENU DOWN RIGHT UP RIGHT 4-digit Handset PIN UP OK.
All handset setting will be reset to their initial settings (p. 29), however, the Phonebook
data will be saved.
: Call Option
Call BAR On/Off
This allows you to make an emergency and internal call.
1
2
Press MENU.
5
3
Search/Select
"SETTING HS".
4-digit
Handset PIN
6
Search/Select
"CALL OPT".
Search/Select
"ON" or "OFF".*1
Factory preset 0000
• To exit the operation, press
*1 If "ON" is selected,
24
any time.
is displayed.
4
Search/Select
"CALL BAR".
TCD420AL_e.book Page 25 Tuesday, July 1, 2003 11:16 AM
Handset Settings
Before programming, please follow steps 1 to 3.
1
2
3
Press MENU.
Search/Select
"SETTING HS".
Search/Select
"CALL OPT".
Setting the Direct Call Number
After a direct call number has been set and on, you can dial the direct call number only
by pressing TALK. Incoming calls are accepted.
5
Search/Select
"DIRECT NO".
Phone Number
Enter the direct
call number. (max. 24 digits)
6
Cordless Telephone
4
Press OK 3 times.*1
Setting the Direct Call On/Off
4
5
Search/Select
"SET DIRECT".
Search/Select
"ON" or "OFF".*1
• To exit the operation, press
*1 If "ON" is selected,
any time.
is displayed.
: Other Options
Changing Handset PIN
The factory preset is 0000. Once you have programmed the handset PIN, you
cannot confirm it. We recommend you write down the handset PIN. If you forget
it, please consult your nearest Panasonic Service Centre.
1
2
Press MENU.
3
Search/Select
"SETTING HS".
4
Search/Select
"OTHER OPT".
Search/Select
"HSPIN CHANGE".
5 Current 4-digit Handset PIN 6 New 4-digit Handset PIN
7 New 4-digit Handset PIN again to verify
• To exit the operation, press
any time.
25
420AL_e_03.fm Page 26 Thursday, July 10, 2003 7:01 PM
Handset Settings
Key Lock
You can lock the handset dialling buttons. Only incoming calls are accepted while the
key lock is on. The key lock is cancelled if the handset is turned off.
When the key lock is on, emergency calls cannot be made until key lock is
cancelled.
Key Lock On
Key Lock Off
Press OK for more
than 2 seconds.
•
Press OK for more
than 2 seconds.
is displayed and all dialling buttons are locked.
Recall Feature
RECALL is used to access special telephone services. Contact your Network provider
for details. If your unit is connected to a PBX, pressing RECALL allows you to access
some features of your host PBX such as transferring an extension call.
• Users in Australia can access Telstra’s “EASY CALL” service by having the recall time
set at 100 msec (this is the factory default setting), and then follow Telstra’s “EASY
CALL” instructions to operate this service.
Dialling Pause (for PBX line/long distance service
users)
A dialling pause is used when a pause in the dialling of the phone number is necessary
using a PBX or accessing a long distance service.
For example, when 0 (line access number) is dialled followed by a pause to access an
outside line through a PBX:
1
0
2
Press PAUSE.*1
3 Phone Number 4
Press TALK.
• Entering a pause prevents misdialling when you redial or dial a stored number.
• Pressing PAUSE once creates one pause. To extend the pause requirement time,
press PAUSE accordingly.
*1
26
is displayed on the LCD.
420AL_e_03.fm Page 27 Monday, August 25, 2003 8:26 PM
Base Unit Settings
Before programming, please follow steps 1 to 2.
1
2
Press MENU.
"INPUT CODE"
Search/Select
"SETTING BS".
3 5 4 Current 4-digit Base Unit PIN 5 New 4-digit Base Unit PIN
6 New 4-digit Base Unit PIN again to verify
Call Restriction
You can restrict selected handset(s) from dialling selected phone numbers. You can
assign up to 10 call restriction numbers (up to 8 digits). If you dial a restricted number,
the call does not connect and restricted number flashes.
3
6
Base
4 4-digit
Unit PIN
Factory preset 0000
5 Handset Number
7 Phone Number 8
Enter phone
number to be
restricted.
(up to 8 digits)
6
Select desired handset number.*1
9
Press RIGHT.
Press RIGHT.
Press OFF.
OR
To continue entering call
restriction numbers, repeat
the steps 7 to 8.
(up to 10 numbers)
Cancelling Call Restricted Handset(s)
3
6
Base Unit
4 4-digit
5 Handset
PIN
Number
Factory preset 0000
6
Select desired
handset number.*2
7
Press RIGHT.
Press OFF.
• To exit the operation, press
any time.
*1 The selected handset number flashes.
*2 The selected handset(s) number(s) will stop flashing.
27
Cordless Telephone
Changing Base Unit PIN
The factory preset is 0000. Once you have programmed the base unit PIN, you
cannot confirm it. We recommend you write down the base unit PIN. If you forget
it, please consult your nearest Panasonic Service Centre.
TCD420AL_e.book Page 28 Tuesday, July 1, 2003 11:16 AM
Base Unit Settings
Before programming, please follow steps 1 to 2.
1
2
Press MENU.
"INPUT CODE"
Search/Select
"SETTING BS".
Cancelling Call Restricted Number
3
Base
4 4-digit
Unit PIN
6
Press RIGHT repeatedly
until desired call restriction
number is displayed.
Factory preset 0000
7
8
Press RIGHT.
6
5
<to continue>
Repeat the
steps 5 to 7.
OR
C
Press CLEAR.
<to finish>
Press OFF.
Selecting the Recall Time
You can select the recall time, 700 msec (milliseconds), or 100 msec depending on your
PBX requirements.
3
3
4
4-digit Base Unit
PIN
Factory preset 0000
5
2
6
1
7
1 700 msec
OR
2 100 msec
8
Press OK.
Pause Timing
You can set the pause timing to 3 or 5 seconds, depending on your PBX requirements.
3
3
4
4-digit Base Unit
PIN
5
3
6
Factory preset 0000
• To exit the operation, press
any time.
• The factory preset is in shade.
28
1 3 Seconds
OR
2 5 Seconds
7
Press OK.
TCD420AL_e.book Page 29 Tuesday, July 1, 2003 11:16 AM
Initial Settings
: Reset Handset Settings
You can reset all of the handset settings to their initial settings.
1
2
Press MENU.
3
Search/Select
"SETTING HS".
4 4-digit Handset PIN
Search/Select
"RESET HS".
Factory preset 0000
5
• To exit the operation, press
Handset Initial Settings
Function
Time Alarm Mode
Alarm Time
Handset Ringer Volume
Handset External Ringer Pattern
Handset Internal Ringer Pattern
Handset Paging Tone Pattern
Handset Alarm Tone Pattern
Key Tone
Call Waiting Tone
Range Warning Alarm
Battery Low Alarm
Standby Mode Display
Talk Mode Display
Display Language
Call BAR
Direct Call Mode
Direct Call Number
4-Digit Handset PIN
Auto Talk
Base Unit Access
Redial Memory
Handset Receiver Volume
Cordless Telephone
Search/Select
"YES" or "NO".
any time.
Initial Setting
OFF
Clear
6
1
1
1
1
ON
ON
OFF
ON
Clock
Length of the Call
English
OFF
OFF
Clear
0000
OFF
Automatic Base Unit Access
All Clear
Medium
29
TCD420AL_e.book Page 30 Tuesday, July 1, 2003 11:16 AM
Initial Settings
Reset Base Unit Settings
If the base unit is reset, the Caller ID list will clear.
1
Press MENU.
2
"INPUT CODE"
Search/Select
"SETTING BS".
3
0
4 4-digit Base Unit PIN 5
Factory preset 0000
• To exit the operation, press
Base Unit Initial Settings
Function
Ringer Mode
Number of Rings
Recall Time
Pause Timing
Call Restricted Handsets
Call Restriction Numbers
4-Digit Base Unit PIN
30
Press OK.
any time.
Initial Setting
All Handsets
3
100 msec
3 seconds
All Clear
All Clear
0000
TCD420AL_e.book Page 31 Tuesday, July 1, 2003 11:16 AM
Multi-unit User Operation
: Handset Registration to a Base Unit
Handset Registration
The handset supplied with the base unit is already registered. If an optional handset is
purchased, it must be registered. Additional KX-A142AL handsets are available to
purchase separately. Up to 6 handsets can be registered to a single base unit. Using
additional handsets allows you to have an intercom call while simultaneously conducting
a call to an outside line.
Handset must be registered within 1 minute after pressing PAGE button. If over
1 minute, press
then start over again.
Charge the optional handset batteries for 7 hours before initial use.
2
Press MENU.
4
5
Press
RIGHT.*1
3
Search/Select
"SETTING HS".
Cordless Telephone
1
"REGISTER HS"
Search/Select
"REGISTRATION".
Press and hold
on the Base Unit
(for about 5 seconds) until the green indicator flashes.
If all registered handsets start ringing (Paging),
press
to stop paging then start over again.
7
6
Search/Select desired
base unit number
available to register
the handset.
4-digit Base
Unit PIN after
"BS PIN" is
displayed.
8
Factory preset 0000
Press OK.
When a handset is
registered successfully,
a confirmation tone
sounds and
icon
lights.
• To exit the operation, press
any time.
*1 If a handset has been already registered to 4 base units, "MEMORY FULL" is
displayed.
31
420AL_e_03.fm Page 32 Monday, August 25, 2003 8:26 PM
Multi-unit User Operation
Cancelling a Base Unit
You can cancel any base unit that your handset is registered to.
1
2
5 4-digit
4
3
Search/Select
"SETTING HS".
Press MENU.
6
Handset PIN
Factory preset 0000
Search/Select
"CANCEL BS".
Search/Select
"REGISTRATION".
8
7
Search/Select
desired base unit
number to cancel.*1
Press RIGHT.
Search/Select
"YES" or "NO".
Cancelling a Handset
Each handset can cancel itself or another handset.
1
Press MENU.
2
"INPUT CODE"
7
Search/Select
"SETTING BS".
4 4-digit Base
Unit PIN
Factory preset 0000
5
Handset Number
Select desired
handset number.*2
• To exit the operation, press
any time.
*1 The selected base unit number flashes.
*2 The selected handset number flashes.
32
3
6
Press OK.
Please wait until
"SETTING BS" is
displayed.
TCD420AL_e.book Page 33 Tuesday, July 1, 2003 11:16 AM
Multi-unit User Operation
Before programming, please follow steps 1 to 4.
1
Press
MENU.
2
"INPUT CODE"
3
Search/Select
"SETTING BS".
1
Base Unit
4 4-digit
PIN
Factory preset 0000
Ringer Mode Selection;
Setting the All Handsets Mode
6
1
All handsets mode.
Cordless Telephone
5
Press OK.
Setting the Selected Handsets Mode
5
6 Handset Numbers*1 7
2
Selected handsets
mode.
Press desired
handset numbers.
Press OK.
Setting the Selected then All Handsets Mode
The specific handset(s) will ring for a selected number of rings.
If not answered, all handsets will ring.
5
3
Selected then all
handsets mode.
6 Handset Numbers*1 7
Press desired
handset numbers.
8 Number of Rings*2
Select how many times
it rings. (up to 6 rings)
9
Press RIGHT.
Press OK.
• To exit the operation, press
any time.
• The factory preset is in shade.
*1 The selected handset number flashes.
*2 Press dialling button 1 through 6 to enter the number of rings.
33
TCD420AL_e.book Page 34 Tuesday, July 1, 2003 11:16 AM
Multi-unit User Operation
: Base Unit Selection
When Automatic Base Unit Access is selected, if you move outside of the radio range of
the current base unit the handset automatically searches for other registered bases.
When a specified base unit is selected, the handset will access that base unit only. Calls
(both incoming and outgoing) can be conducted only via the selected base unit, even if
the radio cells overlap with neighbouring base units.
1
2
Press MENU.
3
Search/Select
"SETTING HS".
4
Search/Select
"SELECT BS".
Search/Select
"AUTO" or specific
base unit number.
• To exit the operation, press
any time.
• Even if "AUTO" is selected, it is cancelled when the handset is registered to the other
base unit.
Operating Additional Base Units: You can register and operate your handset with up
to 4 base units. Each base unit forms 1 radio cell. If the individual bases are linked to the
same telephone line then you can extend the operating range of the system by
positioning the bases so that the two radio cells overlap. If the handset is set to AUTO
base selection, then in standby mode the handset will automatically swap to the second
base if the range on the first base is exceeded. It is not possible to transfer calls between
bases (only between handsets linked to the same base unit).
1
2
4
3
Radio Cell
5
E.g.
Additional
handsets
(KX-A142AL)
registered with
2 base units.
Note: Calls are disconnected when the handset moves from one radio cell to
another.
34
TCD420AL_e.book Page 35 Tuesday, July 1, 2003 11:16 AM
Intercom
Intercom between Handsets
You can use your handsets as a 2-way intercom.
For example, when Handset 1 calls Handset 2. To hang up, press
.
<Handset 1>
1
(
INT
on the display)
Press INTERCOM.
2
2
Press desired
Handset Number.
Press TALK.*1
• Intercom calls can be conducted within the radio cell of the current base unit, but not
with units in neighbouring radio areas.
Transferring a Call to Another Handset/Conference Call
Intercom can be used during a call to transfer an external call between handsets that are
registered to the same base unit. For example, when handset 1 transfers a call to
Handset 2. To hang up, press
.
<Handset 1>
(During a call)
1
INT
Press INTERCOM.
(
on the display)
2
4
2
3
*3
Press desired
Handset Number.*2
<Handset 2>
3
Press TALK.*1
*1 You can also press any dialling button, INTERCOM, t or x.
*2 If you press
after pressing desired handset number, a call can be transferred to
another handset without speaking to another handset.
If the transferred call is not answered within 30 seconds, Handset 1 will ring again.
*3 When Handset 2 answers a call transferred, press
to complete a call transfer or
press dialling button 3 to establish the conference call.
35
Cordless Telephone
3
<Handset 2>
TCD420AL_e.book Page 36 Tuesday, July 1, 2003 11:16 AM
Answering System
Summary of Answering System
Before programming, please follow steps 1 to 2.
1
INT
Press INTERCOM.
2
Press
1
To repeat an/a incoming/memo message during playback. (p. 38)
Press
2
To skip an/a incoming/memo message during playback. (p. 38)
Press
4
To playback new incoming/memo message(s). (p. 38)
Press
5
Press
6
Press
7
4
To record a memo message. (p. 38)
Press
7
6
To record a greeting message. (p. 37)
Press
8
To playback all incoming/memo message(s). (p. 38)
ALL
To playback a greeting message. (p. 37)
To set the answering system ON. (p. 39)
ON
Press
9
Press
0
To stop the answering system operation. (p. 38)
To set the answering system OFF. (p. 39)
OFF
Press
4
Press
5
Press
6
To erase one incoming/memo message.*1 (p. 38)
ALL
To erase all incoming/memo message(s). (p. 39)
To erase the recorded greeting message.*2 (p. 37)
*1 These functions are available only during incoming/memo message playback.
*2 This function is available only during your own greeting message playback.
36
TCD420AL_e.book Page 37 Tuesday, July 1, 2003 11:16 AM
Answering System
Greeting Messages
You can choose to use one of two pre-recorded greeting messages, or you can record
your own greeting message.
All messages (greeting, incoming & memo) are stored indefinitely on a “Flash memory”
IC chip - even if a power failure occurs.
Pre-Recorded Greeting Messages
You can choose to play either:
- A pre-recorded message which allows you to select a caller’s recording time of
“1 minute” or “unlimited” (up to 20 minutes).
When the recording time is set to “1 minute” or “unlimited”.
- “Hello, we are not available now. Please leave your name and phone number after
the beep. We will return your call.”
OR
- A “greeting only”. If you select “greeting only” (p. 39) and set the answering system
ON, the unit will answer a call with a greeting message, then hang up. It will not
record any incoming messages.
When the recording time is set to “greeting only”.
- “Hello, we are not available now. Please call again. Thank you for your call.”
To Playback Pre-Recorded/Your Own Greeting Message
1
INT
Press
INTERCOM.
2
3
The greeting message is played.
6
1
INT
Press
INTERCOM.
2
3
4
7
5
6
Talk clearly
to the
microphone.*1
6
9
*1 The display starts to show the length of the recording time.
Clearing a Greeting Message
1
INT
Press
INTERCOM.
2
3
6
4
5
6
37
Answering System
Recording Your Own Greeting Message
The total recording time is approximately 20 minutes. The greeting recording time is
limited to 2 minutes and 30 seconds.
We recommend you record a brief greeting message in order to leave more time for
recording new incoming/memo messages.
TCD420AL_e.book Page 38 Tuesday, July 1, 2003 11:16 AM
Answering System
Incoming/Memo Messages
Incoming messages and memo messages are stored in chronological order. New
messages cannot be recorded when “Memory full” is heard. We recommend you erase
unnecessary messages after each playback to leave more time for recording new
message(s).
If new message(s) is/are recorded,
icon on the handset display will flash. When the
memory is full, it will flash faster.
If you set the clock and current date then set the answering system ON, a synthesized
voice announces the day and time incoming/memo message was recorded after
playback.
Recording a Memo Message
1
INT
Press
INTERCOM.
2
3
7
4
clearly
5 Talk
to the
4
6
9
microphone.*1
Playback New/All Incoming/Memo Message(s)
1
INT
Press
INTERCOM.
4
3
2
Playback new
message(s).
OR
Playback all
5
ALL
messages.
(During
playback
a message)*2
4
1
Repeat*3
2
Skip*4
9
Stop
4
Clear one
message.*5
*1 The display starts to show the length of the recording time.
*2 If a call is received while you are listening to a message, call waiting tone sounds.
Press
to stop playback, then press TALK after ringing to answer the call.
*3 If you press within 5 seconds from the start of playback, the previous message will be
played. If you press after 5 seconds from the start of playback, the current message
will be played.
*4 The next message will be played if recorded.
*5 If you erase a message when there is more than one message in memory, the next
message will begin playback.
38
420AL_e_04.fm Page 39 Thursday, July 10, 2003 7:01 PM
Answering System
Clearing All Incoming/Memo Messages
1
3
2
INT
Press
INTERCOM.
4
5
ALL
Selecting the Caller’s Recording Time
You can select “1 minute”, “unlimited” or “greeting only” for the caller’s recording time.
1
3
Press
MENU.
2
"INPUT CODE"
Search/Select
"SETTING BS".
4
3
5
1
1 minute
2
Unlimited
3
Greeting only*1
6
Press OK.
• The factory preset is in shade.
*1 "
" is displayed.
(During
conversation)
1
2
Press
MENU.
"RECORDING"
is displayed.
3
Press OK then
to end recording.
Answering System On/Off
When you set the answering system ON, a caller can leave her/his messages.
1
INT
Press INTERCOM.
2
3
8
0
On
is displayed.
ON
Off
OFF
39
Answering System
Recording Your Telephone Conversation
When you record your 2-way telephone conversation, you should inform the other party
that the conversation is being recorded. During recording, a beep will sound
approximately every 15 seconds.
TCD420AL_e.book Page 40 Tuesday, July 1, 2003 11:16 AM
Answering System
Before programming, please follow steps 1 to 2.
1
2
Press MENU.
"INPUT CODE"
Search/Select
"SETTING BS".
Recording Quality
It is possible to select either high quality or normal quality recording of incoming
messages. Available recording time will vary as follows:
Quality
Recording Time
Normal :Approx. 20 minutes
High
:Approx. 10 minutes
1
3
4
8
ON
5
ON (High)
OR
2
OFF (Normal)
6
Press OK.
• The factory preset is in shade.
Selecting the Number of Rings
You can select the number of times the unit rings before the answering system answers
a call, from 2 to 7 or Auto (for Toll Saver*).
* Toll Saver (When set to “Auto”)
When you call the unit from a touch tone telephone:
If the unit answers on the 2nd ring, there is at least one new message.
If the unit answers on the 5th ring, there are no new messages.
Hang up when you hear the 3rd ring. This will save you the toll charge for the call.
0
3
4
2
5
OR
2
··
·
7
• The factory preset is in shade.
40
AUTO
OFF
The unit will answer
after the selected number of rings.
6
Press OK.
TCD420AL_e.book Page 41 Tuesday, July 1, 2003 11:16 AM
Answering System
Before programming, please follow steps 1 to 2.
1
2
Press MENU.
"INPUT CODE"
Search/Select
"SETTING BS".
Monitor Function On/Off
When your greeting message is being played to the caller and the caller’s message is
being recorded, you can listen to it through the handset.
1
3
4
4
5
Off
6
OR
2
On
Press OK.
• The factory preset is in shade.
Setting the Remote Code
The 3-digit remote code prevents unauthorised use of your unit for listening recorded
incoming/memo messages.
4
1
5
OR
Off
Answering System
3
Enter a 3-digit remote code
number to set on.
6
Press OK.
41
TCD420AL_e.book Page 42 Tuesday, July 1, 2003 11:16 AM
Remote Operation
Remote Operation from a Touch Tone Phone
You can operate the answering system from any touch tone phone.
Firstly you must store your remote code using the handset near the base unit.
The 3-digit remote code prevents unauthorised use of your answering system for listening to
recorded messages.
Turning ON the Answering System Remotely
1.
2.
3.
4.
5.
6.
7.
Call your unit from a touch tone phone and wait for 15 rings.
Enter the remote code within 10 seconds of hearing the long beep.
The unit answers and the greeting message is played.
Enter the remote code to access the voice menu.
A synthesized voice menu will guide you on how to operate the answering system.
Follow the menu or enter the direct remote commands.
To end the remote operation, hang up.
• If your remote code is not stored, you cannot turn on the answering system remotely.
Direct Remote Commands
After entering the remote code, you can choose to operate your answering system using
direct commands as below, in place of listening to the voice menu. Hang up to end the
remote operation at any time.
1
Repeat message
(during playback)*1
9
Stop operating
2
Skip message
(during playback)
0
Answering system off
4
New message playback
4
Erasing specific
message
(during playback)
5
All message playback
5
Erasing all messages
6
Greeting message
playback
6
Erasing greeting
messages
(during playback)
7
Greeting message
recording
Disconnect
Record
*1 If you press within 5 seconds from the start of playback, the previous message will be
played. If you press after 5 seconds from the start of playback, the current message
will be played.
42
TCD420AL_e.book Page 43 Tuesday, July 1, 2003 11:16 AM
Remote Operation
Voice Menu
The words in “ ” mean a voice guidance.
Press
1 .
“All message playback.”
“Press 1 to playback
all messages.
Press 2 for other functions.”
2 .
Press
2 .
Press
2 .
“Press 1 to record your
messages.
Press 2 for other functions.”
Press
2 .
“Press 1 to erase all messages.
Press 2 for other functions.”
Press
2 .
“Press 1 to playback
new messages.
Press 2 for other functions.”
“Press 1 to record
your greeting.
Press 2 for other functions.”
“New message playback.”
“Please leave your
message.”
Talk after you hear
this message.
Hang up
Answering System
Press
At the end of the last message,
“End of final message” and the
remaining recording time are
announced.
“No message.”
“Record greeting after
the beep.”
Talk after a long beep.
9
• After playback, the voice menu will start again from the beginning.
• If you hear “Memory full” after playback, erase some or all of the messages.
43
TCD420AL_e.book Page 44 Tuesday, July 1, 2003 11:16 AM
Before Requesting Help
If you experience any problems with the normal use of your apparatus, you should
unplug it from the telephone outlet and connect a known working telephone in its place.
If the known working telephone still has problems, then please contact the customer
service department of your Network provider.
If it operates correctly, then the problem is likely to be a fault in your apparatus.
In this case, contact your supplier for advice. Your Network provider may charge you if
they attend a service call that is not due to apparatus supplied by them.
Turn the power OFF then ON (Handset)/Disconnect then connect the AC adaptor
(Base unit).
Problem
Possible cause
Solution
NO LCD display in handset.
• Handset not turned on.
• Turn on power (p. 11).
Handset will not turn on.
• Batteries not inserted.
• Insert the 2 rechargeable
• Batteries not charged.
• Place handset in base and
• Dirty charge contact.
• Clean charge/battery
• Base not powered up.
• Connect AC adaptor to
• Handset not registered to
• Register handset to base.
Batteries charge icon not
counting up.
icon flashes.
Handset busy tone heard
when
is pressed.
No dial tone.
base.
• Handset out of range of
base.
• No power into base unit.
• Handset out of range of
base.
• Another handset in use.
• Telephone line not
connected.
Cannot dial out.
connect AC adaptor to base
and AC outlet (full charge
period 7 hrs).
contact and retry charge.
base unit and AC outlet.
• Move handset closer to
base.
• Connect AC adaptor to
base unit and AC outlet.
• Move handset closer to
base.
• Wait for the other user to
complete call.
• Insert telephone cord to
network.
• Turn power OFF then ON.
• Call BAR set.
• Turn feature off.
• Particular dialled number is • Remove number from call
restricted.
• Key lock mode ON.
44
batteries supplied (p. 6).
restricted list.
• Turn key lock OFF.
TCD420AL_e.book Page 45 Tuesday, July 1, 2003 11:16 AM
Before Requesting Help
Problem
Possible cause
Solution
Handset will not ring.
• Ringer switched off.
Last number redial does not
work.
• Number exceeded 24 digits. • Redial manually.
No Caller ID number
displayed.
• Service not supplied.
• Caller has withheld info.
• Caller ID service must be
icon flashes.
• Battery low.
• Recharge batteries.
icon is disappeared.
• Wrong battery type
• Set the correct battery type.
selected.
• Set ringer to one of
6 volume levels.
(see “Handset Settings”.)
arranged with Network
provider.
Cannot register handset to
base.
• Max. number of bases
• Delete unused base
already registered to
registrations from handset.
handset.
• Max. number of handsets • Delete unused handset
already registered to base
registrations from base.
unit.
• Wrong PIN number entered • If PIN number is lost,
(Default 0000).
contact the Panasonic
Service Centre.
• Electrical noise in local
• Move base/handset away
area.
from sources of electrical
noise (TVs, radios, etc.).
"CLOCK" is flashed.
• A mains power failure.
• Reset the clock/date.
• Answering system is trying • Set the clock/date.
to be set without clock/date
set.
Useful Information
45
TCD420AL_e.book Page 46 Tuesday, July 1, 2003 11:16 AM
Before Requesting Help
Answering System
Problem
Possible cause
Solution
The answering system is on, • The recording time is set to • Select “1 minute” or
but incoming messages are
“greeting only”.
“unlimited” (see “Answering
not recorded.
System”).
• Erase some or all of the
• Memory is full.
messages.
You cannot operate the
answering system from a
touch tone phone.
You cannot operate the
answering system with the
handset.
• Incorrect remote code
entered.
• Tone are too short to
activate the unit.
• The answering system is
off.
• Someone is operating the
answering system.
• You are too far from the
base unit.
• Enter the correct remote
code.
• Press each button firmly.
• Turn on the answering
system.
• Retry when other user has
finished operation.
• Move closer to the base
unit.
While recording a greeting
• A call is being received.
message, the unit starts to ring
and stops recording.
• To answer the call, press
• A call is being received.
• To answer the call, press
During playback, the unit
starts to ring and stops
playback.
TALK. The recording stops
halfway. Start from the
beginning after hanging up.
TALK.
Panasonic Australia operates a toll free Customer Support Centre.
Please phone Panasonic on 132600 for assistance.
46
420AL_e_04.fm Page 47 Thursday, July 10, 2003 7:02 PM
Technical Information
Specifications:
Standard:
Number of channels:
Frequency range:
Duplex procedure:
Channel spacing:
Bit rate:
Modulation:
RF Transmission Power:
Voice coding:
Power source:
Power consumption, base unit:
Operating conditions:
Dimensions, Base Unit:
Dimensions, Handset:
DECT=(Digital Enhanced Cordless
Telecommunications)
GAP=(Generic Access Profile)
120 Duplex Channels
1.88 GHz to 1.9 GHz
TDMA (Time Division Multiple Access)
1728 kHz
1152 kbit/s
GFSK
Approx. 250 mW
ADPCM 32 kbit/s
AC Adaptor 220 - 240 V, 50 Hz
Standby: Approx. 3.5 W
Maximum: Approx. 9.2 W
5 - 40 °C, 20 - 80 % relative air humidity (dry)
About (58 mm x 128 mm x 105 mm) x 170 g
About (143 mm x 48 mm x 32 mm) x 120 g
• Specifications are subject to change.
• The illustrations used in this manual may differ slightly from the original device.
Connections:
The unit will not work during a power failure. We recommend you connect a standard
telephone on the same line for power protection.
Useful Information
47
TCD420AL_e.book Page 48 Tuesday, July 1, 2003 11:16 AM
Index
AC Adaptor .......................................... 2, 6
Accessories.............................................. 2
Answering Calls ..................................... 16
Answering System
Answering System On/Off................. 39
Greeting Messages........................... 37
Incoming/Memo Messages ............... 38
Recording Your Telephone
Conversation..................................... 39
Auto Talk ................................................ 16
Base Unit
Initial Settings.................................... 30
PIN .................................................... 27
Reset................................................. 30
Selection ........................................... 34
Battery
Caution................................................ 5
Charge ................................................ 7
Installation........................................... 6
Life ...................................................... 7
Battery Low Alarm.................................. 23
Call Restriction
Cancelling Call Restricted
Handset(s) ........................................ 27
Cancelling Call Restricted Number ... 28
Call Waiting ............................................ 13
Caller ID List
Calling Back ...................................... 15
Clearing............................................. 15
Editing ............................................... 15
Storing............................................... 19
Calls
Answering ......................................... 11
Making ........................................ 11, 12
Redialling .......................................... 12
Terminating ....................................... 11
Cancelling a Base Unit........................... 32
Cancelling a Handset ............................. 32
Clock/Date.............................................. 11
Conference Call ..................................... 35
Dialling Pause ........................................
Direct Call Number.................................
Display
Standby Mode...................................
Talk Mode .........................................
48
26
25
23
24
Handset
Display ................................................ 9
Initial Settings ................................... 29
Locator.............................................. 16
Paging............................................... 16
PIN.................................................... 25
Registration....................................... 31
Reset ................................................ 29
Ringer ............................................... 22
Intercom................................................. 35
Key
Lock .................................................. 26
Tone.................................................. 23
Making Calls
Redialling .......................................... 12
with the Phonebook .......................... 18
Phonebook
Hot Key ............................................. 20
Storing .............................................. 17
Power On/Off ......................................... 11
Range Warning Alarm ...........................
Recall .....................................................
Recall Time ............................................
Receiver Volume ...................................
Remote Code.........................................
Ringer Pattern........................................
Ringer Volume .......................................
23
26
28
16
41
22
22
Setting up................................................. 6
Specifications......................................... 47
Time Alarm ............................................ 21
Tone Option ........................................... 23
Voice Menu ............................................ 43
Wall Mounting ........................................ 10
TCD420AL_e.book Page 49 Tuesday, July 1, 2003 11:16 AM
TCD420AL_e.book Page 50 Tuesday, July 1, 2003 11:16 AM
TCD420AL_e.book Page 51 Tuesday, July 1, 2003 11:16 AM
420AL_e_05.fm Page 52 Friday, September 5, 2003 7:26 PM
For your future reference
Serial No.
(found on the bottom of the unit)
Date of purchase
Name and address of dealer
Attach or keep original receipt to assist with any repair under warranty.
N52
Technical specifications are subject to change.
Panasonic Australia Pty. Limited
Austlink Corporate Park
1 Garigal Road
Belrose
NSW 2085
Australia
Panasonic Communications Co., Ltd.
1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan
PQQX13907ZA
F0803-1093
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
