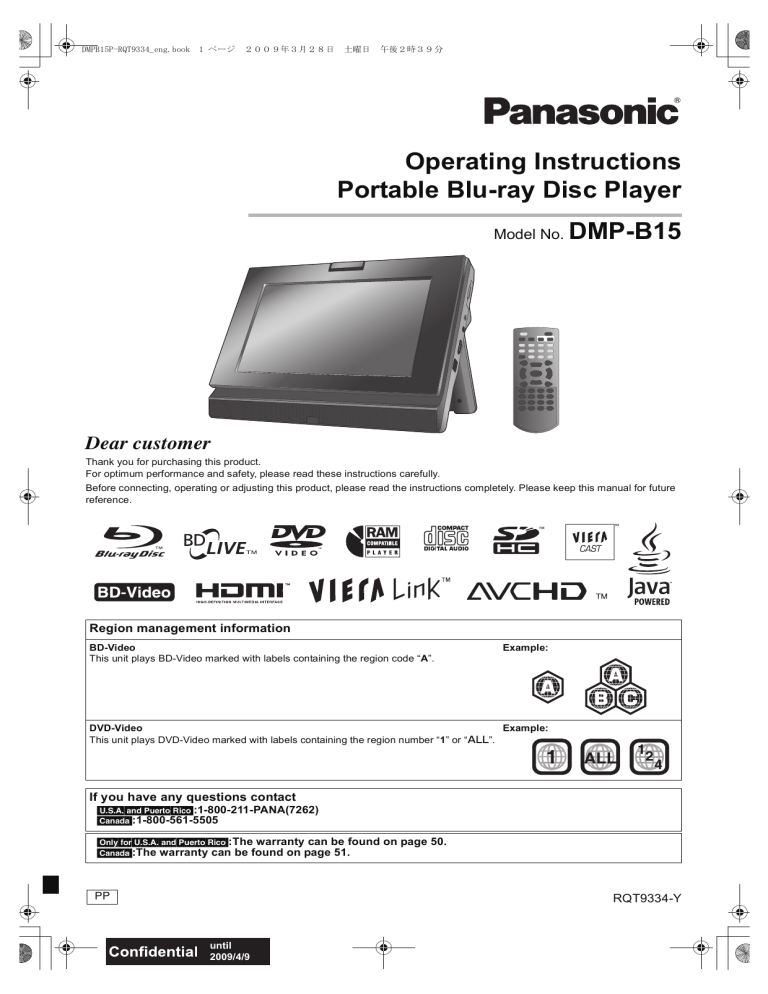

Operating Instructions
Portable Blu-ray Disc Player
Model No.
DMP-B15
Dear customer
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully.
Before connecting, operating or adjusting this product, please read the instructions completely. Please keep this manual for future
reference.
Region management information
BD-Video
This unit plays BD-Video marked with labels containing the region code “A”.
Example:
DVD-Video
Example:
This unit plays DVD-Video marked with labels containing the region number “1” or “ALL”.
1
ALL
1
2
4
If you have any questions contact
[U.S.A.[and[Puerto[Rico]:1-800-211-PANA(7262)
[Canada]:1-800-561-5505
[Only[for[U.S.A.[and[Puerto[Rico]:The warranty can be found on page 50.
[Canada]:The warranty can be found on page 51.
RQT9334-Y
PP
until
2009/4/9
DMPB15P-RQT9334_eng.book 2 ページ 2009年3月28日
土曜日
午後2時39分
IMPORTANT SAFETY
INSTRUCTIONS
Gettin g started
Read these operating instructions carefully before using the
unit. Follow the safety instructions on the unit and the
applicable safety instructions listed below. Keep these
operating instructions handy for future reference.
1)
2)
3)
4)
5)
6)
7)
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings.
Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers)
that produce heat.
9) Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding-type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10)Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11)Only use attachments/accessories specified by the
manufacturer.
12)Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13)Unplug this apparatus during lightning storms
or when unused for long periods of time.
14)Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
The following mark and symbols are located on rear of the unit.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the
user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
The socket outlet shall be installed near the equipment and
easily accessible. The mains plug of the power supply cord
shall remain readily operable.
To completely disconnect this apparatus from the AC Mains,
disconnect the power supply cord plug from AC receptacle.
RQT9334
(ENG)
2
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
PRODUCT DAMAGE,
≥ DO NOT EXPOSE THIS APPARATUS TO RAIN,
MOISTURE, DRIPPING OR SPLASHING AND THAT NO
OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES,
SHALL BE PLACED ON THE APPARATUS.
≥ USE ONLY THE RECOMMENDED ACCESSORIES.
≥ DO NOT REMOVE THE COVER (OR BACK); THERE
ARE NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION!
DO NOT INSTALL OR PLACE THIS UNIT IN A
BOOKCASE, BUILT-IN CABINET OR IN ANOTHER
CONFINED SPACE. ENSURE THE UNIT IS WELL
VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK
OR FIRE HAZARD DUE TO OVERHEATING, ENSURE
THAT CURTAINS AND ANY OTHER MATERIALS DO NOT
OBSTRUCT THE VENTILATION VENTS.
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR
YOURSELF. REFER SERVICING TO QUALIFIED
PERSONNEL.
(Rear of product)
THE FOLLOWING APPLIES ONLY IN THE U.S.A.
FCC Note:
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
≥Reorient or relocate the receiving antenna.
≥Increase the separation between the equipment and receiver.
≥Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
≥Consult the dealer or an experienced radio/TV technician
for help.
Any unauthorized changes or modifications to this equipment
would void the user’s authority to operate this device.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
Responsible Party:
Panasonic Corporation of North America
One Panasonic Way Secaucus, NJ 07094
Support Contact:
Panasonic Consumer Electronics Company
Telephone No.: 1-800-211-PANA (7262)
THE FOLLOWING APPLIES ONLY IN CANADA.
This Class B digital apparatus complies with Canadian ICES003.
Batteries
1 Battery pack (Lithium ion battery pack)
≥ Use the specified unit to recharge the battery pack.
≥ Do not use the battery pack with equipment other than
the specified unit.
≥ Do not use the player outside if it is snowing or raining.
(The battery pack is not waterproof.)
≥ Do not get dirt, sand, liquids, or other foreign matter on
the terminals.
≥ Do not touch the plug terminals (i and j) with metal
objects.
≥ Do not disassemble, remodel, heat or throw into fire.
≥ Do not heat or expose to flame.
≥ Do not leave the battery(ies) in an automobile exposed
to direct sunlight for a long period of time with doors and
windows closed.
2 Button-type battery (Lithium battery)
≥ Insert with poles aligned.
≥ Do not touch the terminals (i and j) with metal
objects.
≥ Do not recharge, disassemble, remodel, heat or throw
into fire.
≥ Keep out of reach of children
≥ Do not heat or expose to flame.
≥ Do not leave the battery(ies) in an automobile exposed
to direct sunlight for a long period of time with doors and
windows closed.
If any electrolyte should come into contact with your hands or
clothes, wash it off thoroughly with water.
If any electrolyte should come into contact with your eyes,
never rub the eyes.
Rinse eyes thoroughly with water, and then consult a doctor.
3 Disposing of the batteries
Check and follow your local regulations before disposal.
午後2時39分
AC adaptor
This AC adaptor operates on AC between 110 V and 240 V.
But
≥ In the U.S.A. and Canada, the AC adaptor must be
connected to a 120 V AC power supply only.
≥ When connecting to an AC supply outside of the U.S.A.
or Canada, use a plug adaptor to suit the AC outlet
configuration.
≥ When connecting to a supply of greater than AC 125 V,
ensure the cord you use is suited to the voltage of the AC
supply and the rated current of the AC adaptor.
≥ Contact an electrical parts distributor for assistance in
selecting a suitable AC plug adaptor or AC cord set.
WARNING
DRIVER MUST NOT OPERATE OR VIEW THIS UNIT
WHILE OPERATING THE VEHICLE.
Doing so will distract the driver and could cause a collision
resulting in serious injury or property damage.
Do not rest the unit on your lap for a long time while
using it. The unit can become hot and cause burns.
To prevent damage
Avoid the following:
≥ Spraying flammable insecticides near the unit.
≥ Pressing the LCD.
≥ Touching the lens and other parts of the laser pickup.
Do not use the unit in the following places:
≥ Sandy places such as beaches.
≥ On top of cushions, sofas, or hot equipment such as
amplifiers.
Do not leave in an unventilated automobile or exposed to
direct sunlight and high temperatures.
Listening caution
A lithium ion battery that is recyclable powers
the product you have purchased. Please call 1800-8-BATTERY for information on how to
recycle this battery.
RBRC
TM
Li-ion
For USA-California Only
This product contains a CR Coin Cell Lithium Battery which
contains Perchlorate Material – special handling may apply.
See
www.dtsc.ca.gov/hazardouswaste/perchlorate.
Product Identification Marking is located on the rear of unit.
ELECTR
C
IND
U
RIES
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used
batteries according to the manufacturer’s instructions.
•A
CAUTION
O
NI
ST
Warning
Risk of fire, explosion and burns. Do not disassemble.
Do not heat the batteries above the following temperatures
or incinerate.
Button-type battery 100 xC (212 xF)
Battery pack 60 xC (140 xF)
Getting started
土曜日
EST. 1924
SS
O C I AT I O
•
DMPB15P-RQT9334_eng.book 3 ページ 2009年3月28日
N
Do not play your headphones or earphones at a high volume.
Hearing experts advise against continuous extended play.
If you experience a ringing in your ears, reduce volume or
discontinue use.
Do not use while operating a motorized vehicle. It may create
a traffic hazard and is illegal in many areas.
You should use extreme caution or temporarily discontinue
use in potentially hazardous situations.
Even if your headphones or earphones are the open-air type
designed to let you hear outside sounds, don’t turn up the
volume so high that you can’t hear what’s around you.
Sound can be deceiving. Over time your hearing “comfort
level” adapts to higher volumes of sound. So what sounds
“normal” can actually be loud and harmful to your hearing.
Guard against this by setting your equipment at a safe level
BEFORE your hearing adapts.
To establish a safe level:
≥ Start your volume control at a low setting.
≥ Slowly increase the sound until you can hear it comfortably
and clearly, and without distortion.
Once you have established a comfortable sound level:
≥ Leave it there.
Product Identification Marking is located on the bottom of
AC adaptor.
RQT9334
(ENG)
3
DMPB15P-RQT9334_eng.book 4 ページ 2009年3月28日
土曜日
Table of contents
午後2時39分
Accessories
Please check and identify the supplied
accessories. Use numbers indicated in
parentheses when asking for replacement parts.
(Product numbers correct as of March 2009.
These may be subject to change.)
Getting started
IMPORTANT SAFETY INSTRUCTIONS ................... 2
Accessories .............................................................. 4
Unit and media care ................................................. 5
Media (Disc and card) information ......................... 6
Overview ................................................................... 8
Installation of the unit ............................................ 10
Preparing the Power Supply ................................. 11
Turning on/off the unit ........................................... 12
Showing FUNCTIONS menu ................................. 12
Adjusting the pictures on the LCD screen .......... 13
Loading the disc or SD card ................................. 13
Playback
Basic play (Playing video contents) ..................... 14
Enjoying BD-Live or BONUSVIEW in BD-Video ...... 17
Playing still pictures .............................................. 18
Playing DivX® videos ............................................. 20
Playing music ......................................................... 22
Changing settings with the on-screen menu ...... 23
Connection
Using this unit with other equipment ................... 25
Linked operations with the TV
(VIERA LinkTM “HDAVI ControlTM”)......................... 26
Network
Broadband network connection ........................... 28
Network settings .................................................... 28
Enjoying VIERA CASTTM ........................................ 30
Firmware updates .................................................. 31
Settings
Changing the unit’s settings ................................. 32
Reference
Audio and video information ................................ 37
About MP3/JPEG/DivX files .................................. 38
Indicators and screen messages ......................... 40
Troubleshooting guide .......................................... 42
Specifications ......................................................... 46
Licenses ................................................................. 47
Glossary ................................................................. 48
Limited Warranty
(For U.S.A. and Puerto Rico Only) ........................ 50
Limited Warranty (For Canada Only) ................... 51
Product Service ..................................................... 51
Index ........................................................Back cover
RQT9334
(ENG)
4
(For U.S.A. and Puerto Rico) To order accessories, refer to
“Accessory Purchases (United States and Puerto Rico)”
on page 50.
(For Canada) To order accessories, call the dealer from
whom you have made your purchase.
∑ 1 Remote control (N2QAJC000015)
∑ 1 Button-type battery for remote control
(for replacement D page 9)
∑ 1 Audio/Video cable (K2KC4CB00026)
∑ 1 AC adaptor (RFEA219W)
∑ 1 AC power supply cord (K2CB2CB00020)
≥For use with this unit only. Do not use it with other
equipment. Also, do not use cords for other equipment
with this unit.
∑ 1 Car DC Adaptor* (RFEC206P-Y)
∑ 1 Headrest Mounting Bracket* (RXQ1706)
∑ 1 Safety belt* (RFC0150-K)
∑ 1 Rechargeable battery pack (DY-DB15)
≥ DY-DB15 is available as option.
∑ 1 Cleaning cloth (RFE0215)
*
For installation and handling methods, refer to the operating
instructions “Enjoying in a car”.
(Only for U.S.A. and Puerto Rico)
Please register via the Internet at:
http://www.prodreg.com/panasonic/
(ONLY FOR CANADA)
The enclosed Canadian French label sheet corresponds to
the English display on the unit.
土曜日
Unit and media care
Rotating the screen
When rotating the screen, rotate it after opening it to 90°as
shown below. Rotating the screen without opening the angle
enough or opened to 180° may scratch the area around the
screen and the main unit so take care.
午後2時39分
Disc and card handling
∫Clean discs
DO
DO NOT
Getting started
DMPB15P-RQT9334_eng.book 5 ページ 2009年3月28日
Wipe with a damp cloth and then wipe dry.
1 Open the screen approximately 90°.
∫Disc and card handling precautions
∫Caution
≥Do not insert a finger between the screen and the main unit
when rotating the screen. Doing so may result in fingers
getting caught between the main unit and the screen and
cause injuries. Especially keep an eye on children.
DO NOT
Playback
Connection
Applying excessive force when rotating the screen, or rotating
the screen forcibly in the opposite direction to the rotating
direction may cause malfunction.
Maintenance
∫To clean this unit, wipe with a soft, dry cloth.
≥Wipe gently with the cleaning cloth (included).
≥To remove stubborn dirt, wet the cleaning cloth, wring well,
and then wipe. Afterwards, wipe gently with dry soft cloth.
≥Do not use a microfiber dust cloth on the LCD screen.
Follow the caution when wiping the outer casing.
≥Never use alcohol, paint thinner or benzine to clean this unit.
≥The LCD and around the LCD are specially-processed.
Wiping them with a hard cloth or rubbing them strongly may
scratch the surfaces.
Network
2 Rotate the screen slowly.
≥Handle discs by the edges to avoid inadvertent scratches or
fingerprints on the disc.
≥Do not attach labels or stickers to discs (This may cause disc
warping, rendering it unusable).
≥Do not write on the label side with a ball-point pen or other
writing instrument.
≥Do not use record cleaning sprays, benzine, thinner, static
electricity prevention liquids or any other solvent.
≥Do not use scratch-proof protectors or covers.
≥Clean any dust, water, or foreign matter from the terminals on
the rear side of the card.
≥Do not use the following discs:
j Discs with exposed adhesive from removed stickers or
labels (rented discs etc).
j Discs that are badly warped or cracked.
j Irregularly shaped discs, such as heart shapes.
∫Maintenance of the lens
Hold the unit with the stand closed.
Settings
Holding the unit
≥Remove dust carefully with an air blower for camera lenses
(optional).
≥Recommended product:
Lens cleaner kit (SZZP1038C) (Available from Panasonic
dealers.)
≥You cannot use a CD type lens cleaner.
≥Be careful not to touch the lens with your fingers.
To dispose or transfer this unit
≥Do not insert a finger between the main unit and the stand
when installing or moving this unit. Doing so may result in
fingers getting caught between the unit and the stand and
cause injuries. Especially keep an eye on children.
This unit may record information of your operating procedures.
If you discard this unit either by disposal or transfer, then follow
the procedures to return all the settings to the factory presets to
delete the recorded information. (> 42, “To return all settings
other than some settings to the factory preset.”)
≥When BD-Video is played back, the operation history may be
recorded in the memory of this unit. The recorded contents
differ depending on the disc.
Reference
∫Caution
DO NOT
RQT9334
(ENG)
5
DMPB15P-RQT9334_eng.book 6 ページ 2009年3月28日
土曜日
Media (Disc and card)
information
User recorded media
This chart shows the different type of discs recorded with other
devices that you can use.
Commercially sold discs
This chart shows the different type of retail/commercial discs
you can use, and also includes the industry-standard logos that
should appear on the discs and/or packaging.
Type of media
and logo
BD-Video
Features
This format supports High
Definition video and audio
content including:
≥BD-Live (BD-ROM Profile 2).
This format provides
interactive features when
this player is connected to
the Internet via a broadband
connection.
午後2時39分
Indicated
as
Finalized This mark means you must finalize the disc
with the DVD recorder, etc. before playback. For details about
finalizing, refer to the operating instructions for your equipment.
Type of media
and logo
BD-RE
BD-R
≥BONUSVIEW allows picturein-picture functions to be
viewed.
DVD-R/RW
Finalized
This format supports high
quality video and audio
playback.
[DVD-V]
CD
Compact Discs (CD’s) that
contain audio and music
≥Operation and sound quality
of CDs that do not conform
to CD-DA specifications
(copy control CDs, etc.)
cannot be guaranteed.
≥Version 3 of the BD-RE
Recording Format
≥JPEG format
≥Version 2 of the BD-R
Recording Format
Indicated
as
[BD-V]
[JPEG]
[BD-V]
[BD-V]
DVD-RAM
DVD-Video
Formats
DVD-R DL
[CD]
Finalized
Note about using a DualDisc
≥The digital audio content side of a DualDisc does not meet
the technical specifications of the Compact Disc Digital Audio
(CD-DA) format so play may not be possible.
≥Do not use a DualDisc in this unit as it may not be possible to
insert it correctly and it may get scratched or scraped.
≥Version 1.1 of the DVD
Video Recording Format
≥JPEG format
≥AVCHD format
]DVD-VR]
≥DVD-Video Format
≥Version 1.1 of the DVD
Video Recording Format
≥AVCHD format
≥DivX format
(DVD-RW is not supported)
≥MP3 format
(DVD-RW is not supported)
≥JPEG format
(DVD-RW is not supported)
[DVD-V]
]DVD-VR]
≥DVD-Video Format
≥Version 1.2 of the DVD
Video Recording Format
≥AVCHD format
≥DivX format
≥MP3 format
≥JPEG format
[DVD-V]
]DVD-VR]
rR/rRW/rR DL ≥+VR (+R/+RW Video
Recording) Format
Finalized ≥AVCHD format
CD-R/RW
Finalized
≥CD-DA format
≥MP3 format
≥JPEG format
≥DivX format
[JPEG]
[AVCHD]
[AVCHD]
[DivX]
[MP3]
[JPEG]
[AVCHD]
[DivX]
[MP3]
[JPEG]
[DVD-V]
[AVCHD]
[CD]
[MP3]
[JPEG]
[DivX]
≥It may not be possible to play the above discs in some cases
due to the type of discs, the condition of the recording, the
recording method and how the files were created.
≥When a disc recorded in the AVCHD format is being played,
the video may be paused for a few seconds at portions
spliced, due to deletion or editing.
RQT9334
(ENG)
6
DMPB15P-RQT9334_eng.book 7 ページ 2009年3月28日
土曜日
午後2時39分
SD cards
Type of media
Formats
≥JPEG format
SD Memory Card*
(from 8 MB to 2 GB) ≥AVCHD format
SDHC Memory Card ≥MPEG2 format
(from 4 GB to 32 GB)
Getting started
This chart shows the different type of cards recorded with other
devices that you can use.
Indicated as
[JPEG]
[AVCHD]
[MPEG2]
* Includes miniSD Card, microSD Card and microSDHC Card
The card types mentioned above will be referred to as “SD
card” in these operating instructions.
≥MiniSD Cards, microSD Cards and
microSDHC Cards can be used, but must
be used with an adaptor card. These are
usually supplied with such cards, or
otherwise customer provided.
≥We recommend using a Panasonic SD
card. Please confirm the latest information
on the following website.
http://panasonic.co.jp/pavc/global/cs
(This site is in English only.)
≥This unit is compatible with SD Memory Cards that meet SD
Card Specifications FAT12 and FAT16 formats, as well as
SDHC Memory Cards in FAT32 format.
≥When using cards from 4 GB to 32 GB, only SD cards using
the SDHC logo can be used.
≥Useable memory is slightly less than the card capacity.
≥If the SD card you are attempting to use was formatted on a
PC, it is possible that the card may not work properly.
≥Keep the Memory Card out of reach of children to prevent
swallowing.
≥When a card recorded in the AVCHD format is being played,
the video may momentarily pause, especially where one
recording ends and the next one begins. This is normal and
does not indicate a problem.
≥To protect the card’s contents, move the record prevention
tab (on the SD card) to “LOCK”.
ADAPTER
Discs that cannot be played in this
unit
≥BD-RE discs (with cartridge)
≥2.6 GB and 5.2 GB DVD-RAM
≥DVD-RAM that cannot be removed from cartridge
≥3.95 GB and 4.7 GB DVD-R (Authoring)
≥DVD-R, DVD-R DL, DVD-RW, +R, +R DL recorded on
another unit and not finalized
≥BD-Video with a region code other than “A”
≥DVD-Video with a region number other than “1” or “ALL”
≥Version 1.0 DVD-RW
≥DVD-ROM, CD-ROM, CDV, CD-G, CVD, SACD, Photo CD,
MV-Disc and PD
≥DVD-Audio
≥Video CD and SVCD
≥WMA discs
≥PAL Discs
≥HD DVD
≥BD-Video discs recorded at a rate of 50 fields/sec
≥Any other disc that is not specifically supported
RQT9334
(ENG)
7
DMPB15P-RQT9334_eng.book 8 ページ 2009年3月28日
土曜日
午後2時39分
Overview
The Unit
Instructions for operations are generally described using the
remote control in these operating instructions.
Top View
Front View
VOLUME
POWER
/I
SUB MENU RETURN
AV SELECT
PUSH:OK
14 15 16 17 18
1
1
19 20 21 22
LCD screen
When the screen is opened
Disc lid
2
3
4
5
[OPEN]
2
[CHARGE] indicator (> 11)
3
[Í] indicator (> 11)
While recharging the battery pack, this indicator lights up.
When the unit is connected to the AC mains supply, this
indicator lights up in standby mode and goes out when the
unit is turned on.
Rear View
4
5
6
7
8
6
7
8
9
10
9
10
11
12
13
14
15
11
Remote control signal sensor (> 9)
Speaker
SD card slot (> 13)
Audio/video input/output terminal (> 25)
Headphone terminal [Ë]
(3.5 mm stereo mini jack)
HDMI AV OUT terminal (> 25)
LAN terminal (> 28)
Stand (> 10)
Stopper wire (> 10)
DC IN terminal (> 11)
Turn the unit on and off (> 12)
Switch the media to playback
It will switch every time it is pressed.
DISC
Side View
16
17
18
19
20
21
22
12
Bottom View
Battery pack (included)
RQT9334
(ENG)
8
13
SD
NETWORK
AUX
Stop (> 15)
Playback (> 14)
Skip title numbers, etc. (> 15)
Adjust the volume (> 14)
Show the sub menu (> 18)
Return to previous screen
Selection/OK
To select:
Tilt up, down, left, or
right ([3, 4, 2, 1])
To enter:
Press straight in
Example:
To select left item
Example:
To enter the operation
DMPB15P-RQT9334_eng.book 9 ページ 2009年3月28日
土曜日
午後2時39分
Remote control
12
6
4
5
6
7
8
13
7
Turn the unit on and off (> 12)
Select audio (> 16)
Show the Home screen of the VIERA CAST
(> 30)
Use according to the instructions on the screen
Basic operations for playback (> 14–15)
Show Pop-up menu (> 14)
Show Top menu/Direct Navigator (> 14)
Selection/OK, Frame-by-frame
≥To select: Press up, down, left, or right
([3, 4, 2, 1])
≥To enter: Press [OK]
≥Frame forward / Frame backward:
Getting started
11
1
2
3
4
5
1
2
3
(While paused) press left or right ([2;][;1])
8
14
9
9 Show the sub menu (> 18)
10 Select title numbers, etc./Enter numbers (> 16)
or characters (> 30)
11 Switch the media to playback (> 14)
It will switch every time it is pressed.
15
16
10
17
18
∫Insert the button-type battery (included)
DISC
12
13
14
15
16
17
18
SD
NETWORK
AUX
Adjust the volume (> 14)
Show FUNCTIONS menu (> 12)
Return to previous screen
Show on-screen menu (> 23)
Show status messages (> 16)
Turn the unit off automatically (> 12)
Change the screen settings (> 13)
∫Range of use
1 Pull out the holder.
Bottom
Within 20 degrees angle
either up or down
Pull out while pressing here
2 Insert the battery and return the holder.
_ facing up
Lithium battery: CR2025
Remote control
signal sensor
Within 30 degrees angle
either left or right
Remote control transmitter
Within approx. 7 m (23 ft.) in front
≥Keep the button-type battery out of reach of children to
prevent swallowing.
RQT9334
(ENG)
9
DMPB15P-RQT9334_eng.book 10 ページ
2009年3月28日
土曜日
Installation of the unit
1 Open the screen.
2 Rotate the screen.
4 Open the stand and
set the unit vertically.
3 Turn the screen
outwards and close.
Open the stand and set the unit on a horizontal and stable level
surface.
≥Open the stand until the stopper wire is fully
stretched.
≥If the screen is rotated when the unit is
turned on, the display on the screen will
disappear and the unit will be automatically
turned off. (> 12)
≥The unit cannot be turned on in situations
other than 3 or 4 above or when the screen
is rotated. (> 12)
≥Rotating the screen without opening the angle enough
may scratch the area around the LCD etc. (> 5, “Rotating
the screen”)
≥The unit’s speakers do not have magnetic shielding. Do not
place the unit near televisions, personal computers or other
devices easily influenced by magnetism. Do not keep this unit
and magnetized cards (bank cards, commuter passes, etc.)
close together.
When moving the unit:
≥Turn the unit off.
≥Close the screen and the stand.
≥Do not hold onto the screen or the stand.
About the LCD screen
There may be 0.01% or less chance of missing or constantly
turned on pixels, but this is not a malfunction.
Attention
Do not place the unit with the LCD display-side down when the
screen is open.
Doing so may scratch the surface of the LCD as the display
and the area around the display are specially-processed.
RQT9334
(ENG)
10
午後2時39分
2009年3月28日
土曜日
Preparing the Power
Supply
午後2時39分
∫Detaching the battery pack
Bottom side of this unit
2 Slide.
Using the unit connected to the
AC adaptor
Getting started
DMPB15P-RQT9334_eng.book 11 ページ
RELEASE
DETACH
ATTACH
1 Press and hold.
When not using for long periods of time
1
2
AC adaptor
(included)
3
AC power supply cord To a household
AC outlet
(included)
The unit is in the standby condition (the [Í] indicator lights)
when the AC power supply cord is connected. The primary
circuit is always “live” as long as the AC adaptor is connected
to an electrical outlet.
≥When connecting the AC adaptor, use the unit after setting it
vertically. Placing the unit with the stand closed
(e.g.:D 10, 3 in “Installation of the unit”) may cause damage
to or malfunction with the AC adaptor.
≥Detach the battery pack (D above).
(Even when the unit is turned off, there is a small amount of
voltage running through the unit, and this may result in a
malfunction.)
≥Recharge the battery for re-use.
∫Recharging the battery pack
Attach the battery pack and connect the AC
adaptor (> left).
≥The [CHARGE] indicator lights while charging the battery, and
the [CHARGE] indicator turns off when battery charging is
finished.
To conserve power
This unit consumes 0.5 W (Approximately 5 W when Quick
Start is set to “On”) of power even when turned off. When the
unit is not going to be used for a long time, disconnect the AC
power supply cord from the household AC outlet.
Recharging*1
This unit can be used in places without an AC outlet, such as
outdoors, by attaching the included battery pack.
≥The battery is not charged at the time of purchase. Charge
before initial use.
≥The battery is designed only for use with this unit. It cannot be
used with other equipment.
∫Attaching the battery pack
Turn the unit off before attaching or detaching the battery pack.
≥Attach the battery after closing with the LCD screen facing
inwards and the stand open.
Bottom side of this unit
1 Bring in from the
left, aligning the
grooves.
DETACH
∫Approximate recharging and play times (Hours)
Play*2
Using the battery pack
Battery pack
(included)
RELEASE
[CHARGE] indicator
(Yellow light)
ATTACH
7
LCD brightness level
j5
0
+5
2.5
2.25
2
*1 When the unit is off [at 20 oC (68 oF)]
*2 At room temperature using headphones [at 20 oC (68 oF)]
≥The times indicated on the above may differ depending on use.
≥To change the LCD brightness (> 13, “Adjusting the pictures
on the LCD screen”).
∫Checking the remaining battery charge
When the unit is on (> 12, “Turning on/off the unit”) and
powered by the battery pack
Press [SUB MENU] to check on the LCD
(displays for a few seconds).
(screen)
2 Slide in to the right.
Recharge
Appears automatically when there is only
a few minutes of charge remaining.
RELEASE
DETACH
(flashing)
ATTACH
Clicks into place.
Check to make sure it is securely fastened.
RQT9334
(ENG)
11
RQT9334~Body1_eng.fm
12 ページ 2009年3月28日
土曜日
午後6時32分
Turning on/off the unit
Showing FUNCTIONS
menu
Press [POWER Í] (approx. 0.5 sec.).
The unit is turned off when [POWER Í] is pressed again.
≥If the screen is rotated when the unit is turned on, the display
on the screen will disappear and the unit will be automatically
turned off. (> 10)
≥The unit cannot be turned on in situations other than the
following or when the screen is rotated. (> 10)
≥When the “Auto Power Off” is set to “On” (initially set to “On”),
the unit will be turned off automatically after 15 minutes
(5 minutes when the battery pack is used) when it is in
stopped status (> 36).
≥The startup will take time. The operation related to startup of
the unit after turning on this unit can be quickened by setting
the initial setup “Quick Start” (> 36) to “On” (initially set to
“Off”). (The power consumption will increase)
≥You may hear operational sounds when the unit is turned on,
but this is due to the initialization of the pickup unit, and it is
not a malfunction.
Some functions of this unit can be operated from the
FUNCTIONS menu.
1
2
Press [FUNCTIONS].
≥Functions displayed depend on the media and operating
conditions.
≥The FUNCTIONS menu cannot be displayed on the unit
when selecting “AUX” with [AV SELECT].
When connecting to a TV (VIERA) with an HDMI cable,
the unit’s FUNCTIONS menu can be displayed on the
TV screen.
(> 27, “Using the FUNCTIONS menu to operate this
unit”)
Press [3, 4] to select the item and press
[OK].
e.g.,
Blu-ray Disc Player
DISC
Playback
Other Functions
SD card
Network
AUX
OK
RETURN
Easy Setting
After installation of the unit and pressing [POWER Í], a screen
for the basic settings will appear.
Follow the on-screen instructions and make
the settings with [3, 4] and [OK].
“On-screen Language” is set. (> 34)
≥You can perform this setup anytime by selecting “Easy
Setting” in the Setup menu. (> 36)
≥You can also change this setting individually. (> 34)
Turn the unit off automatically
The unit is turned off automatically after set time has passed.
Switch by pressing the [OFF TIMER].
e.g., 30 min.
0:30
Off Timer
It will switch every time it is pressed.
Off
RQT9334
(ENG)
12
0:30
1:00
2:00
3:00
6:00
12:00
≥Playback (> 14, 30)
Show the Home screen of the VIERA CAST when selecting
“NETWORK” with [AV SELECT].
≥Top Menu (> 14)
≥Menu (> 14, 18, 22)
≥Viewing Picture (> 18)
≥Other Functions
j “Playlists”:
You can play playlists created on DVD-VR.
Press [3, 4, 2, 1] to select the playlist and press [OK].
j “Setup” (> 32)
j “Card Management” (> 17)
≥Disc (> 14)
Switches to the disc drive.
≥SD card (> 14)
Switches to the SD drive.
≥Network (> 30)
Show the Home screen of the
VIERA CAST.
≥AUX (> 25)
2009年3月28日
土曜日
Adjusting the pictures on
the LCD screen
1 Press [LCD].
午後2時39分
Loading the disc or SD
card
Disc
Getting started
DMPB15P-RQT9334_eng.book 13 ページ
≥It is also possible to display with the following procedures.
1 Press [SUB MENU].
2 Select “Other Functions” with [3, 4], and select
[OK].
3 Select “LCD Menu” with [3, 4], and select [OK].
Clicks
into place.
Label side up
(Double-sided disc:
place the label side
up that you want to
play back)
LCD Menu
Dynamic
Brightness
Color
Monitor
On
OPEN
Lens (> below)
SUB
MENU
2
3
RETURN
Select the item with [3, 4].
Change the setting with [3, 4, 2, 1].
≥Underlined items are the factory presets.
∫ When selecting other settings than “AUX” with
[AV SELECT]
Picture:Adjusting image quality
≥Standard:
≥Dynamic:
≥Night:
≥User
Standard
Picture with high contrast
Picture suitable for viewing in dark places
j Brightness :j5 to +5
j Color :j5 to +5
Monitor:Displaying images
≥On:
≥Off:
Image display
No image
1
2
3
Open the screen and press [OPEN].
Set the disc holding the unit with your hand
and close the lid.
Close the screen.
≥Some discs may start playing when it is loaded with the unit
turned on.
≥About discs with a cartridge
j BD-RE with a cartridge: It cannot be used with this unit. (It
cannot be used even if the disc is taken out from the
cartridge.)
j DVD-RAM, 8 cm disc: Remove the disc from the cartridge
and set the disc in the tray
j Place the disc back into the cartridge for storage to prevent
dirt and scratches after use.
≥Do not touch the lens as it may
make it dirty.
Lens
∫ When selecting “AUX” with [AV SELECT] (> 25)
PICTURE:Adjusting image quality
≥STANDARD:
≥DYNAMIC:
≥NIGHT:
≥USER
Standard
Picture with high contrast
Picture suitable for viewing in dark places
j BRIGHTNESS :j5 to 5
j COLOR :j5 to 5
SD card
Insert the card with
the corner cut-side
up.
MONITOR:Displaying images
≥NORMAL:
≥FULL:
≥OFF:
When you want to view 4:3 images
When you want to view 16:9 images
No image
Label side
≥If you are not using the LCD on this unit, select “Off (OFF)” to
conserve power. (The [Í] indicator flashes.)
≥If the settings in “PICTURE” are changed when “AUX” is
selected, the settings in “Picture” will also change.
The settings will change in the same way even when
something other than “AUX” is selected.
To exit the screen
Press [LCD] or [RETURN].
To display images when the “Monitor (MONITOR)” is
set to “Off (OFF)”
Press [LCD] or [SUB MENU]
1
2
3
Open the cover at the side of the unit.
Insert the SD card into the SD card slot.
≥Press on the center of the card until it clicks into place.
Close the cover.
To remove the card
In step 2 above, press the center of the card until it “clicks”, and
pull the card out straight.
RQT9334
(ENG)
13
DMPB15P-RQT9334_eng.book 14 ページ
2009年3月28日
土曜日
Basic play (Playing video
contents)
午後2時39分
Playback
Instructions for operations are generally described using the
remote control in these operating instructions.
Preparation
Insert a disc or SD card (> 13).
Press [AV SELECT] to select “DISC” or “SD”.
Play starts.
≥If play does not start, press [1] (PLAY).
≥If a media with data in different file formats is inserted, the file
selection menu is displayed. Press [3, 4] to select the
desired file format and press [OK].
≥If the menu is displayed, press [3, 4, 2, 1] to select the
item and press [OK].
≥If the screen prompting you to use the color buttons appears,
continue to operate with the color buttons on the remote
control.
≥DISCS CONTINUE TO ROTATE WHILE MENUS ARE
DISPLAYED. Press [∫] when you finish to preserve the
unit’s motor.
≥The producers of the disc can control how discs are played.
So you may not always be able to control play as described in
these operating instructions. Read the disc’s instructions
carefully.
≥When playing a set of two or more BD-Video discs, the menu
screen may continue to display even if the disc has been
ejected.
≥The start of playback may take time depending on the disc or
SD card.
≥The sound of rotation may be audible during disc playback,
but this is not a malfunction.
Playing HD Video or SD Video
[AVCHD] [MPEG2]
It is possible to playback the HD (High Definition) video
recorded on the Panasonic High definition Video Camera on
the DVD-RAM/R/RW/R DL/+R/+RW/+R DL or SD card, and SD
(Standard Definition) Video recorded on the Panasonic SD
Video Camera on the SD card.
Preparation
Insert a disc or SD card (> 13).
1
Press [AV SELECT] to select “DISC” or
“SD”.
≥“Video (AVCHD)” or “Video (MPEG-2)” screen is
displayed.
≥If a media containing data in different file formats is
inserted, the file selection menu may be displayed.
Press [3, 4] to select “Play Video (AVCHD)” or “Play
Video (MPEG-2)” and press [OK].
e.g.,
SD Card
Play Pictures (JPEG)
Play Video (AVCHD)
Play Video (MPEG-2)
Select an action or press [RETURN].
2
≥Total title number may not be displayed properly on +R/
+RW.
e.g.,
To adjust the volume
0:15.47
Press [j VOL] or [i VOL].
[BD-V] [AVCHD] ]DVD-VR] [DVD-V] [DivX]
Press [TOP MENU/DIRECT NAVIGATOR].
≥Total title number may not be displayed properly on +R/+RW.
e.g., DVD-RAM
No.
01
02
03
04
05
06
07
08
09
10
0:15 (SP)
Date
9/ 5
9/ 5
9/ 5
9/ 6
9/ 6
9/ 6
9/ 7
9/ 7
9/ 7
9/ 7
Video Picture
Day Channel
Wed
Wed IN 2
Wed IN 2
Thu VHS
Thu VHS
Thu
Fri
Fri
IN 2
Fri
IN 2
Fri
Start
10:00AM
11:30AM
11:59PM
10:00AM
11:30AM
11:59PM
10:00AM
10:30AM
11:30AM
11:59PM
Title Name
Page 01/02
SUB
MENU
 Previous
Play
RETURN
R Video
 Next
G Picture
To show Pop-up menu
[BD-V]
The Pop-up menu is a special feature available with some BDVideo discs. This menu may vary with discs. For the operating
method, refer to the instructions for the disc.
RQT9334
(ENG)
14
Video
Date
9/ 5
9/ 5
9/ 5
9/ 6
9/ 6
9/ 6
9/ 7
9/ 7
9/ 7
9/ 7
Day
Start
Wed 10:00AM
Wed 11:30AM
Wed 11:59PM
Thu 10:00AM
Thu 11:30AM
Thu 11:59PM
Fri 10:00AM
Fri 10:30AM
Fri 11:30AM
Fri 11:59PM
Title Name
Page 01/02
SUB
MENU
Play
 Previous
 Next
RETURN
To return to the menu screen
To show menus
Rec. Length
Video (MPEG-2)
No.
001
002
003
004
005
006
007
008
009
010
Rec. Length
DIRECT NAVIGATOR Title View
DVD-RAM(VR)
RETURN
Press [3, 4, 2, 1] to select the title and
press [OK].
DIRECT NAVIGATOR
SD CARD
≥When using headphones, turn down the volume before
connection.
OK
SUB
MENU
1 Press [POP-UP MENU].
2 Press [3, 4, 2, 1] to select the item and press [OK].
≥Pop-up menu also appears by pressing [SUB MENU] and
selecting “Pop-up Menu”.
≥Press [POP-UP MENU] to exit the screen.
Press [DIRECT NAVIGATOR].
To exit the menu screen
Press [RETURN].
To switch from other menus to AVCHD or
MPEG2 menu
(If the media contains data in different file formats)
1 Press [FUNCTIONS].
2 Press [3, 4] to select “Menu” and press [OK].
3 Press [3, 4] to select “Play Video (AVCHD)” or “Play Video
(MPEG-2)” and press [OK].
≥It may pause for a few seconds on the break of images when
editing such as partial deletion is performed.
≥High definition video (transfer rate of 18 Mbps or faster)
cannot be played back correctly if it was recorded on a DVD
compatible to double speed or slower.
DMPB15P-RQT9334_eng.book 15 ページ
2009年3月28日
土曜日
Chapter playback
午後2時39分
Other operations during play
These functions may not work depending on the media.
]DVD-VR]
Preparation
Insert a disc (> 13).
2
3
Press [AV SELECT]
to select “DISC”.
≥“Title View” screen is
displayed.
DIRECT NAVIGATOR Title View
DVD-RAM(VR)
No.
01
02
03
04
05
06
07
08
09
10
Rec. Length
0:15 (SP)
Press [3, 4] to
select the title and
press [SUB MENU].
Date
9/ 5
9/ 5
9/ 5
9/ 6
9/ 6
9/ 6
9/ 7
9/ 7
9/ 7
9/ 7
Video Picture
Day Channel
Wed
Wed IN 2
Wed IN 2
Thu VHS
Thu VHS
Thu
Fri
Fri
IN 2
Fri
IN 2
Fri
Start
10:00AM
11:30AM
11:59PM
10:00AM
11:30AM
11:59PM
10:00AM
10:30AM
11:30AM
11:59PM
Resume play function
Page 01/02
SUB
MENU
 Previous
Play
RETURN
R Video
 Next
G Picture
View Chapters
To display the title properties
(recording date, etc.)
To select the chapter
To picture
Playing still pictures (> 18)
The stopped position is memorized.
Title Name
Press [3, 4] to select “View Chapters”
and press [OK].
Properties
4
e.g.,
Press [1] (PLAY) to restart from this position.
≥The memorized position is cleared in the following instances:
j [∫] is pressed several times.
j The disc or SD card is removed.
j The unit is turned off due to such occurrences as power
outage, the removal of the AC adaptor or waste of the
battery pack’s remaining power when the unit is turned on.
≥[BD-V]: On BD-Video discs including BD-J (> 48), the resume
play function does not work.
≥[CD] [MP3] [DivX] [MPEG2]: The position is cleared if the unit is
turned off.
Playback
1
Stop
Pause
Press [2, 1] to select the chapter and
press [OK].
≥Press [;] again or [1] (PLAY) to restart play.
e.g.,
DIRECT NAVIGATOR
Chapter View
DVD-RAM(VR)
01
Video
Play
Search/Slow-motion
You are now in ‘‘Chapter View.’’
Please select the chapter you
would like to start playback.
Press [RETURN] for ‘‘Title View.’’
0:00.20
001
002
003
---
---
---
0:00.00
Page 001/001
Play
RETURN
The speed increases up to 5 steps.
≥Press [1] (PLAY) to revert to normal playback speed.
≥For some discs, the speed may not change.
Search
While playing, press [6] or [5].
≥]DVD-VR] [DVD-V]:
Audio is heard during the first level of forward search.
≥[BD-V] [AVCHD] [DivX] [MPEG2]: Audio is not heard during all
levels of search.
≥[CD] [MP3]: The speed is fixed to a single step.
Slow-motion
While paused, press [6] or [5].
≥[BD-V] [AVCHD]: Forward direction [5] only.
≥]DVD-VR]: If continued for approx. 5 minutes, slow-motion play
pauses automatically.
Skip
Skip to the title, chapter or track you want to play.
≥Each press increases the number of skips.
≥[DivX]: Backward direction [:] only.
RQT9334
(ENG)
15
DMPB15P-RQT9334_eng.book 16 ページ
2009年3月28日
土曜日
午後2時39分
Basic play (Playing video contents)
Status messages
(continued)
Direct Play
During playback, you can access specific recordings or scenes
through direct entry of the numbered buttons.
Play starts from the selected title or chapter.
[BD-V] [AVCHD]
[DVD-V]
e.g., 5: [0] B [0] B [5] e.g., 5: [0] B [5]
15: [0] B [1] B [5]
15: [1] B [5]
≥While stopped (the image on the right is
displayed on the screen), the title is
designated. While playing, the chapter is
designated.
The status messages give you information about what is
currently being played. Each time you press [STATUS], the
information displayed will change.
≥It is also possible to display with the following procedures:
1 Press [SUB MENU].
2 Select “Status” with [3, 4], and select [OK].
e.g., [BD-V]
Type of disc
Play status
BD-Video
Play
No display
Frame-by-frame
T: Title
C: Chapter
Items change
depending on the
disc played.
PL: Playlist
Elapsed time in the title
 T1
While paused, press [2] (2;) or [1] (;1).
Each press shows the next frame.
≥Press and hold to change in forward or backward succession.
≥Press [1] (PLAY) to revert to normal playback speed.
≥[BD-V] [AVCHD] : Forward direction [1] (;1) only.
RQT9334
(ENG)
16
0:05.14
0:20.52
Total time
Current position
Depending on the kind of disc or the playback status, this
display may not appear.
Screen Aspect
When black bars are shown at the top, bottom, left, and right
sides of the screen, you can enlarge the image to fill the
screen.
1 Press [SUB MENU].
2 Press [3, 4] to select “Other Functions” and press [OK].
3 Press [3, 4] to select “Screen Aspect” and press [OK].
4 Press [2, 1] to select “Side cut” or “Zoom”.
Normal:
Normal output
Side cut:
The black bars on the right and left sides of the 16:9
image disappear and the image is enlarged. Please
note that the right and left sides of the image are cut
off when the black bar is not displayed.
Zoom:
The black bars on the top and bottom sides of the 4:3
image disappear and the image is enlarged. Please
note that the top and bottom sides of the image are
cut off when the black bar is not displayed.
≥Please note that the top, bottom and sides of the image will
be cut off in images with no black bars.
≥Screen aspect will return to “Normal” in the following instances:
j Playback of images starts/ends
j The unit is turned on/off
≥[BD-V] [DVD-V]: “Side cut” does not have any effect.
≥When “TV Aspect” (> 34) is set to “4:3 Pan & Scan” or “4:3
Letterbox”, the “Zoom” effect is disabled.
C1
Changing audio during play
≥It is also possible to display with the following procedures:
1 Press [SUB MENU].
2 Select “Other Functions” with [3, 4], and select [OK].
3 Select “Audio” with [3, 4], and select [OK].
[BD-V] [DVD-V]
e.g., [DVD-V]
Soundtrack
1 ENG
Digital 3/2.1ch
English is selected.
You can change the audio channel number each time you
press [AUDIO] or [3, 4]. This allows you to change the
soundtrack language (> 23, Soundtrack), etc.
]DVD-VR] [DivX] [MPEG2]
AudioLR>AudioL>Audio R
^---------------------------------}
e.g.,
DVD-RAM(VR)
Play
“AudioLR”
is selected
AudioLR
You can change soundtracks each time you press [AUDIO] or
[OK].
2009年3月28日
土曜日
Enjoying BD-Live or
BONUSVIEW in BD-Video
[BD-V]
What is BONUSVIEW?
BONUSVIEW allows you to enjoy functions such as picture-inpicture or secondary audio etc., with BD-Video supporting BDROM Profile 1 version 1.1/ Final Standard Profile.
What is BD-Live?
In addition to the BONUSVIEW function, BD-Video supporting
BD-ROM Profile 2 that has a network extension function allows
you to enjoy more functions such as subtitles, exclusive images
and online games by connecting this unit to the Internet. In
order to use the Internet feature, you must have this unit
connected to a broadband network (> 28).
≥These discs may not be on sale in certain regions.
≥The usable functions and the operating method may vary with
each disc, please refer to the instructions on the disc and/or
visit their website.
Playing secondary video (picturein-picture) and secondary audio
Secondary video
午後2時39分
Enjoying BD-Live discs with Internet
Many BD-Live compatible discs require content to be
downloaded onto an SD card (> 49, Local storage) in
order to access the available BD-Live features.
≥An SD card with 1 GB or more of free space (SD Speed Class
Rating 2 or higher) needs to be inserted prior to inserting the
BD-Live compatible disc.
Some BD-Live content available on the Blu-ray discs may
require an Internet account to be created in order to access
the BD-Live content. Follow the screen display or instruction
manual of the disc for information on acquiring an account.
Preparation
≥Connect to the network. (> 28)
1
2
3
Insert an SD card (> 13).
≥If the SD card menu screen is displayed,
press [RETURN] to clear the screen.
Insert the disc (> 13).
Press [AV SELECT] to select “DISC”.
≥For operation method, refer to the instructions on the disc.
To use the above functions, it is recommended that you format the
card on this unit. Format the card using the following procedures:
Formatting SD cards/Deleting data
≥If the SD card you use is formatted, all data on the card will be
erased. It cannot be recovered.
e.g.,
1 Insert an SD card (> 13).
2 Press [AV SELECT] to
select “SD”.
BD-Video Data Erase
3 Press [FUNCTIONS].
Format SD Card
4 Press [3, 4] to select
“Other Functions” and
press [OK].
Format this SD Card.
5 Press [3, 4] to select
“Card Management” and press [OK].
6 Press [3, 4] to select “BD-Video Data Erase” or “Format
SD Card” and press [OK].
7 Press [2, 1] to select “Yes” and press [OK].
8 Press [2, 1] to select “Start” and press [OK].
Card Management
SD card
Primary video
To turn on/off secondary video
Set “Video” in “Secondary Video” to “On” or
“Off” (> 23, Press [DISPLAY] > “Disc” >
“Signal Type”)
The secondary video is played.
To turn on/off secondary audio
Set “Soundtrack” in “Secondary Video” to
“On” or “Off” (> 23, Press [DISPLAY] >
“Disc” > “Signal Type”)
The secondary audio is played.
≥During search/slow-motion or frame-by-frame, only the
primary video is displayed.
≥When “BD-Video Secondary Audio” in “Digital Audio Output”
is set to “Off”, secondary audio will not be played even if you
set “Soundtrack” in “Secondary Video” to “On”. Please check
that “BD-Video Secondary Audio” is set to “On” (> 33).
≥The playback method determined by the disc will take priority,
so it may not play back in the manner specified with this unit.
≥When the secondary video is turned off, the secondary audio
will not be played.
Playback
DMPB15P-RQT9334_eng.book 17 ページ
No. of Files 6
Free space 300 MB
OK
RETURN
≥If you experience any problems, first, try formatting the SD
card in this unit.
≥A message may be displayed when the SD card doesn't have
enough storage capacity for BD-Live content.
Please make space available on the current SD card, or
insert another SD card.
≥While using this feature, do not open the cover at the side of
the unit or touch the SD card.
≥While using this feature, do not remove the SD card. Doing so
will cause playback to stop.
≥The unit must be connected to the Internet and set up (> 28)
to use the BD-Live functions. “BD-Live Internet Access” may
need to be changed for certain discs (> 32).
≥When discs supporting BD-Live are played back, the player
or disc IDs may be sent to the content provider via the
Internet. You can restrict Internet access (> 32).
≥The playback may be paused depending on the
communication environment. Some functions may be
disabled to prevent skipping to sections that have not been
downloaded, etc.
RQT9334
(ENG)
17
DMPB15P-RQT9334_eng.book 18 ページ
2009年3月28日
土曜日
Playing still pictures
[JPEG]
Playback of the BD-RE, DVD-RAM/R/R DL or CD-R/RW with
still pictures recorded. This unit can also play still pictures
recorded on the SD card.
(About structure of folders D 39, “Structure of folders that can
be played in this unit”)
Preparation
Insert a disc or SD card (> 13).
1
Press [AV SELECT] to select “DISC” or “SD”.
∫BD-RE, DVD-RAM
“Album View” screen is displayed.
≥When the “Title View” screen is displayed, press the [G]
button to switch to the “Album View” screen.
≥If the DVD-RAM containing both JPEG and AVCHD format
is inserted, the file selection menu may be displayed.
∫DVD-R/R DL, CD-R/RW, SD card
午後2時39分
To switch from other menus to JPEG menu
(If the media contains data in different file formats)
1 Press [FUNCTIONS].
2 Press [3, 4] to select “Menu” and press [OK].
3 Press [3, 4] to select “Play Pictures (JPEG)” and press
[OK].
Useful functions during still
picture play
Start Slideshow
You can display still pictures one by one at a constant interval.
∫ BD-RE, DVD-RAM
1
≥If the media containing data in different file formats is
inserted, the file selection menu may be displayed.
Press [3, 4] to select “Play Pictures (JPEG)” and press
[OK].
e.g.,
While the “Album View” screen is displayed
Press [3, 4, 2, 1] to select the album
and press [SUB MENU].
≥You can also start slideshow by pressing [1] (PLAY)
after selecting the album.
2
SD Card
Press [3, 4] to select “Start Slideshow”
and press [OK].
Play Pictures (JPEG)
Play Video (AVCHD)
Play Video (MPEG-2)
Select an action or press [RETURN].
OK
SUB
MENU
2
1
RETURN
“Picture View” screen is displayed.
B Go to step 3
2
Press [3, 4, 2, 1] to select the album
and press [OK].
Press [SUB MENU].
Press [3, 4] to select “Start Slideshow”
and press [OK].
Press [∫].
Album View
DIRECT NAVIGATOR
DVD-RAM(VR)
Video
Slideshow settings
ᧂ
106_DVD
Total 8
12/9/2006
Total 13
In step 2 in Start Slideshow (D above)
Page 02/02
SUB
MENU
While the “Picture View” screen is displayed
To stop slideshow
e.g.,
3
∫ DVD-R/R DL, CD-R/RW, SD card
 Previous
OK
RETURN
R Video
G Picture
 Next
 Slideshow
Press [OK] to go to Picture View.
Press [3, 4, 2, 1] to select the still
picture and press [OK].
e.g.,
DIRECT NAVIGATOR
Picture View
DVD-RAM(VR)
Vidéo
2006 9 12
0001
0002
0003
0004
0005
0006
0007
0008
1
2
Press [3, 4] to select “Slideshow
Settings” and press [OK].
To change the display interval
Press [3, 4] to select “Display Interval” and press [2, 1]
to select the interval (“Long”, “Normal” or “Short”).
≥When a still picture with a large number of pixels is
played, the display interval may become longer. Even if
the setting is changed, the display interval may not
become shorter.
0009
Page 001/001
SUB
MENU
Play
RETURN
≥Press [2, 1] to display the previous or next still picture.
≥Press [:, 9] to show other pages.
≥Playback is not possible for pictures other than JPEGs.
≥Black bars may be displayed on the top, bottom or sides
depending on the picture aspect ratio.
To return to the previous screen
Press [RETURN].
RQT9334
(ENG)
18
To exit the screen
Press [DIRECT NAVIGATOR].
To set display method
Press [3, 4] to select “Transition Effect” and press
[2, 1] to select “Fade”, “Motion” and “Random”.
“Fade”:
“Motion”:
“Random”:
Pictures are changed by fading out and
fading in.
Pictures are changed by fading out and
fading in, while they are enlarged, reduced,
or moved up or down.
In addition to the “Motion”, pictures are
changed by various methods.
DMPB15P-RQT9334_eng.book 19 ページ
2009年3月28日
土曜日
To repeat slideshow
∫ DVD-R/R DL, CD-R/RW
Press [3, 4] to select “Repeat Play” and press [2, 1] to
select “On” or “Off”.
1
To listen to a Background Music (SD card only)
The music CD can be played back as Background Music
during the slideshow.
Press [3, 4] to select “Soundtrack” and press [2, 1] to
select “On” or “Off”.
≥You cannot search or skip the music.
≥When the slideshow stops, the playback of the music
also stops.
Press [3, 4, 2, 1] to select “Set” and
press [OK].
2
3
While the “Picture View” screen is displayed
Press [SUB MENU].
Press [3, 4] to select “Select Folder” and
press [OK].
Press [3, 4] to select a folder and press
[OK].
e.g.,
Folder selection
Pictures
CD(JPEG)
021216_0026
Rotate
1
2
OK
RETURN
Press [SUB MENU].
Press [3, 4] to select “Rotate Right” or
“Rotate Left” and press [OK].
Zoom out
This function is only available for small-sized still pictures.
2
103
104
105
While playing (except for slideshow)
≥The rotation information will be stored until the unit is turned
off or the media is removed.
1
F 2/25
001
002
003
004
005
006
007
008
009
010
Playback
3
午後2時39分
To show the picture properties
While playing
Press [STATUS] twice.
≥It is also possible to display with the following procedures:
1 Press [SUB MENU].
2 Select “Status” with [3, 4], and select [OK].
e.g., JPEG on DVD-RAM
While playing (except for slideshow)
Shooting date
Press [SUB MENU].
Press [3, 4] to select “Zoom out” and
press [OK].
≥To cancel “Zoom out”, press [3, 4] to select “Zoom in” in
step 2 and press [OK].
≥The zoom-out information will not be stored.
11/12/2009
Total
3/9
To exit, press [STATUS].
To select the still pictures in another folder
∫ BD-RE, DVD-RAM
To switch to another higher folder
(Only if there is a multiple number of higher folders
recognizable)
1
2
3
While the “Album View” screen is displayed
Press [SUB MENU].
Press [3, 4] to select “Select Root folder”
and press [OK].
Press [2, 1] to select the higher folder
and press [OK].
e.g.,
Select Root folder
Change the Album folder to be accessed.
\JPEG\DCIM001
Press [OK] to confirm
OK
RETURN
RQT9334
(ENG)
19
DMPB15P-RQT9334_eng.book 20 ページ
2009年3月28日
土曜日
Playing DivX® videos
[DivX]
ABOUT DIVX VIDEO:
DivX® is a digital video format created by DivX, Inc. This is an
official DivX Certified device that plays DivX video.
You can play DVD-R/R DL and CD-R/RW discs which contain
DivX video contents that have been recorded on a personal
computer.
(About structure of folders D 39, “Structure of folders that can
be played in this unit”)
≥Because DivX format can use many different codecs,
there is no guarantee that all DivX files will play. (> 38,
“About MP3/JPEG/DivX files”)
午後2時39分
Playing a title in another folder
1
2
3
While the “DIRECT NAVIGATOR” is displayed
Press [SUB MENU].
Press [3, 4] to select “Select Folder” and
press [OK].
Press [3, 4] to select a folder and press
[OK].
e.g.,
DIRECT NAVIGATOR
CD (DivX)
Preparation
Insert a disc (> 13).
1
Press [AV SELECT] to select “DISC”.
OK
Folder selection
Selected folder No. /
Total folders
If the folder has no
title,
“– –” is displayed as
folder number.
F 1/21
12_02_2004
RETURN
≥If the media containing data in different file formats is
inserted, the file selection menu may be displayed.
Press [3, 4] to select “Play Video (DivX)” and press
[OK].
≥You cannot select folders that contain no compatible files.
e.g.,
Press [RETURN].
Page 01/01
To return to the previous screen
CD
Play Video (DivX)
Regarding DivX VOD content
Play Pictures (JPEG)
Play Music (MP3)
Select an action or press [RETURN].
OK
SUB
MENU
2
RETURN
Press [3, 4] to select the title and press
[OK].
Play starts on the selected title.
e.g.,
DIRECT NAVIGATOR
CD (DivX)
DivX
Name of Title
No
001
ABC.divx
ABOUT DIVX VIDEO-ON-DEMAND:
This DivX ® Certified device must be registered in order to play
DivX Video-on-Demand (VOD) content.
First generate the DivX VOD registration code for your device
and submit it during the registration process.
[Important: DivX VOD content is protected by a DivX DRM
(Digital Rights Management) system that restricts playback to
registered DivX Certified devices. If you try to play DivX VOD
content not authorized for your device, the message
“Authorization Error.” will be displayed and your content will not
play.] Learn more at www.divx.com/vod.
Display the unit’s registration code.
(> 36, “DivX Registration” in “Others”)
Play
SUB
MENU
From SUB MENU you can select a folder.
Page 01/01
RETURN
≥The picture sizes set for recording may prevent the unit from
showing pictures in the proper aspect. You may be able to
adjust the aspect through the TV.
≥Successive play is not possible.
≥You can use search and skip functions. (> 15)
≥Press [:, 9] to show other pages.
DivX Registration
DivX® Video On Demand
Your registration code is : XXXXXXXX
8 alphanumeric
characters
To learn more visit www.divx.com/vod
To switch from other menus to DivX menu
(If the media contains data in different file formats)
1 Press [FUNCTIONS].
2 Press [3, 4] to select “Menu” and press [OK].
3 Press [3, 4] to select “Play Video (DivX)” and press [OK].
RQT9334
(ENG)
20
≥After playing DivX VOD content for the first time, another
registration code is then displayed in “DivX Registration”. Do
not use this registration code to purchase DivX VOD content.
If you use this code to purchase DivX VOD content, and then
play the content on this unit, you will no longer be able to play
any content that you purchased using the previous code.
≥If you purchase DivX VOD content using a registration code
different from this unit’s code, you will not be able to play this
content. (“Authorization Error.” is displayed.)
DMPB15P-RQT9334_eng.book 21 ページ
2009年3月28日
土曜日
午後2時39分
Regarding DivX VOD content that can only be
played a set number of times
Some DivX VOD content can only be played a set number of
times. When you play this content, the remaining number of
plays is displayed. You cannot play this content when the
number of remaining plays is zero. (“Rental Expired.” is
displayed.)
The remaining number of plays decreases each time a
program is played. However, when playing from the point
where play was previously stopped, the remaining number of
plays does not decrease due to the resume play function.
You can display subtitles text onto the DivX video disc on this
unit.
This function has no relation to the subtitles specified in DivX
standard specifications and has no clear standard. The
operation might be different or it may not operate properly
depending on the way the file was made or the state of this unit
(playing, stopped, etc.).
1
2
3
4
5
Playback
Displaying subtitles text
While playing
Press [DISPLAY].
Press [3, 4] to select “Disc” and press
[1].
Press [3, 4] to select “Subtitle” and press
[1].
Press [3, 4] to select “On” and press [1].
Press [3, 4] to select “Text”.
≥DivX video files that do not display “Text” do not contain
subtitles text.
Subtitles text cannot be displayed.
To exit the screen
Press [DISPLAY].
≥If the subtitles text are not displayed correctly, try changing
the language settings. (> 32)
RQT9334
(ENG)
21
DMPB15P-RQT9334_eng.book 22 ページ
2009年3月28日
土曜日
Playing music
午後2時39分
To switch from other menus to MP3 menu
[CD] [MP3]
You can play generally available music CDs or MP3 files
recorded onto a DVD-R/R DL and CD-R/RW.
(About structure of folders D 39, “Structure of folders that can
be played in this unit”)
(If the media contains data in different file formats)
1 Press [FUNCTIONS].
2 Press [3, 4] to select “Menu” and press [OK].
3 Press [3, 4] to select “Play Music (MP3)” and press [OK].
Preparation
Insert a disc (> 13).
1
Playing a track in another folder
Press [AV SELECT] to select “DISC”.
“Music list” screen is displayed.
≥If the media containing data in different file formats is
inserted, the file selection menu may be displayed.
Press [3, 4] to select “Play Music (MP3)” and press
[OK].
CD
Play Video (DivX)
Play Pictures (JPEG)
Press [3, 4] to select a folder and press
[OK].
Select Folder
MP3 music
RETURN
001 My favorite
002 Brazilian pops
003 Chinese pops
004 Czech pops
005 Hungarian pops
006 Liner notes
007 Japanese pops
008 Mexican pops
009 Philippine pops
010 Swedish pops
011 Momoko
012 Standard number
013 Piano solo
014Vocal
Press [3, 4] to select the track and press
[OK].
F 6/25
OK
RETURN
Selected folder No.
/Total folders
If the folder has no
track, “– –” is
displayed as folder
number.
≥You cannot select folders that contain no compatible tracks.
DIRECT NAVIGATOR
CD
Music list
0.09
4.30
Track1
5 Tracks / Total Play Time 20min54sec
No
Track Name
Play Time
4min30sec
Track1
01
3min41sec
02
Track2
Track3
4min30sec
03
Track4
04
3min11sec
05
5min 2sec
Track5
Play
RETURN
” indicates the track currently playing.
≥You can use search and skip functions. (> 15)
≥When the television is connected and the “Screen Saver
Function” is set to “On” (> 34), the screen switches to Screen
Saver mode if there is no operation for 10 minutes after
starting playback. (Playback continues.)
Playing music continuously even after turning off
power to the television
When the unit is connected to a Panasonic TV (VIERA) that
supports HDAVI Control 2 or later and other device supports
VIERA Link, the unit is turned off if the power to the television is
turned off, since “Power off link” (> 26) operates.
The following operations make it possible to keep the power of
the unit ON and to play music continuously.
1 While playing music
Press [SUB MENU].
2 Press [3, 4] to select “TV Power” and press [OK].
≥Sound may be discontinued for several seconds when the
power to the television is turned off.
≥If the operation mentioned above is executed while audio is
output from the television, the sound may not be output from
the device. It is recommended to set the device beforehand
so that audio will be output from the device.
22
Press [3, 4] to select “Select Folder” and
press [OK].
DIRECT NAVIGATOR
CD(MP3)
e.g., [CD]
RQT9334
(ENG)
Press [SUB MENU].
OK
Play starts on the selected track.
≥Playback for some discs may start automatically.
“
2
While the “Music list” is displayed
e.g.,
Play Music (MP3)
Select an action or press [RETURN].
2
1
3
e.g.,
SUB
MENU
[MP3]
To return to the previous screen
Press [RETURN].
2009年3月28日
土曜日
Changing settings with
the on-screen menu
On-screen menu operations
1
Press [DISPLAY].
≥It is also possible to display with the following procedures:
1 Press [SUB MENU].
2 Select “Other Functions” with [3, 4], and select [OK].
3 Select “Settings for Playback” with [3, 4], and select [OK].
e.g., BD-Video
Disc
Play
Video
Audio
2
3
4
Signal Type
Subtitle
Subtitle Style
Off
-
Main
1ENG
Angle
-
Menus
Items
Settings
≥Depending on the condition of the unit (playing, stopped,
etc.) and media contents, there may be some items that
you cannot select or change.
Press [3, 4] to select the menu and press
[1].
Press [3, 4] to select the item and press
[1].
Press [3, 4] to select the setting.
≥Some items can be changed by pressing [OK].
To exit the on-screen menu
Press [DISPLAY].
What you can change with the
on-screen menu
∫Disc menu
Signal Type
[BD-V]
≥ Primary Video
Video:
Soundtrack:
The original video recording method
appears. (D right, Video attribute)
Select the type of audio or language.
(D right, Language, Audio attribute)
≥ Secondary Video
Video:
Soundtrack:
Select on/off of images.
The original video recording method
appears. (D right, Video attribute)
Select on/off of audio and the language.
(D right, Language, Audio attribute)
Video
[AVCHD]
The original video recording method appears. (D right, Video
attribute)
午後2時39分
Soundtrack
[AVCHD] [DVD-V]
Select the type of audio or language. (D below, Language,
Audio attribute)
]DVD-VR] [MPEG2]
The audio attributes appear. (D below, Audio attribute)
[DivX]
Select the soundtrack number.
≥Soundtrack numbers are displayed even when there is only
one audio type.
Subtitle
[BD-V] [AVCHD] [DVD-V]
Turn the subtitle on/off and select the language. (D below,
Language)
]DVD-VR] (Only discs that contain subtitle on/off information)
Turn the subtitle on/off.
[DivX]
Turn the subtitle on/off and select “Text” or the subtitle
number.
≥Subtitle number is displayed even if there are not multiple
subtitles.
Playback
DMPB15P-RQT9334_eng.book 23 ページ
Subtitle Style
[BD-V]
Select the subtitle style.
Audio channel
]DVD-VR] [DivX] [MPEG2]
(> 16, Changing audio during play)
Angle
[BD-V] [DVD-V]
Select the number of the angle.
Some items may be changed only on the disc specific menu.
(> 14)
Language
ENG:
FRA:
DEU:
ITA:
ESP:
NLD:
SVE:
NOR:
DAN:
POR:
RUS:
JPN:
English
French
German
Italian
Spanish
Dutch
Swedish
Norwegian
Danish
Portuguese
Russian
Japanese
CHI:
KOR:
MAL:
VIE:
THA:
POL:
CES:
SLK:
HUN:
FIN:
¢:
Chinese
Korean
Malay
Vietnamese
Thai
Polish
Czech
Slovak
Hungarian
Finnish
Others
Audio attribute
Signal type
LPCM/
Digital/
Digital+/
TrueHD/DTS/DTS 96/DTS-HD
HI RES/DTS-HD MSTR/MPEG
ch (channel)
Number of channels
k (kHz)
Sampling frequency
b (bit)
Number of bits
bps (bit per second)
Transfer rate of bit
Video attribute
MPEG-2/MPEG-4 AVC/VC-1
Video recording method
480/576/720/1080
Video Format
24p/50i/60i/50p/60p
Video Frame rate
YCbCr4:2:2/YCbCr4:4:4/RGB
Color Space
bps (bit per second)
Transfer rate of bit
RQT9334
(ENG)
23
DMPB15P-RQT9334_eng.book 24 ページ
2009年3月28日
土曜日
Changing settings with the on-screen
menu (continued)
[DVD-V]
≥On
Repeat Play
Only when you have selected “On” in “24p Output” (> 34)
≥All tracks
≥Chapter
≥Playlists
≥Title
≥One track
≥Off
All tracks
Chapter
Playlist
Title
Track
Select “Off” to cancel.
Random
[CD] [MP3]
While playing, press [3, 4] to select “On”.
Random playback starts from the next track.
≥On
≥Off
∫Video menu
[BD-V] [AVCHD] ]DVD-VR] [DVD-V] [DivX] [MPEG2]
Select the picture quality mode during play.
≥Normal:
≥Soft:
≥Fine:
≥Cinema:
≥User:
Default setting
Soft picture with smoother video
Details are sharper
Mellows movies, enhances detail in dark
scenes.
You can make further adjustments.
(> below)
1 Press [1] to select “Picture Adjustment” and press [OK].
2 Select the item using [3, 4] and adjust it with [2, 1].
Contrast:
Brightness:
Sharpness:
Color:
Gamma:
3D NR:
Integrated NR:
Increases the contrast between light and
dark parts of the picture (j7 to i7).
Brightens the picture (0 to i15).
Adjusts the sharpness of the edges of
the horizontal lines (j6 to i6).
Adjusts the shade of the picture’s color
(j7 to i7).
Adjusts the brightness of dark portions of
the screen (0 to i5).
Reduces the rough noise in the
background to give a greater feeling of
depth (0 to i4).
When “24p Output” is set to “On”, this
function may not operate. (> 34)
Smooths block noise and reduces the
smudging that appears around
contrasting sections of the picture (0 to
i3).
Progressive
Select the method of conversion for progressive output to suit
the type of material being played (> 48, Film and video).
≥Auto:
≥Video:
24
24p
∫Play menu
(Only when the elapsed time is being displayed on the unit’s
display.)
Select the item which you want to repeat. The items
displayed differ depending on the type of media.
RQT9334
(ENG)
午後2時39分
Automatically detects the film and video
content, and appropriately converts it.
Select when using “Auto”, and the
content is distorted.
≥Off
∫Audio menu
Dialog Enhancer
[BD-V] [AVCHD] ]DVD-VR] [DVD-V] [DivX] [MPEG2] (3 channels or
more only, including a center channel)
The volume of the center channel is raised to make dialog
easier to hear.
≥On
≥Off
This function is effective for audio from the HDMI AV OUT
terminal only when “Dolby D/Dolby D +/Dolby TrueHD” or
“DTS/DTS-HD” is set to “PCM”.
DMPB15P-RQT9334_eng.book 25 ページ
2009年3月28日
土曜日
Using this unit with other
equipment
午後2時39分
Co nnection
It is possible to enjoy the video and audio of this unit on the TV
and amplifier, or to enjoy the video from other video devices on
the LCD screen of this unit.
≥Turn off all equipment before connecting and read the
appropriate operating instructions.
≥Do not connect video signals through a video recorder. Due
to copy guard protection the picture may not be displayed
properly.
Connection with the Audio/Video
cable
Enjoy video and audio on other devices
Preparation
Connect a TV or a projector to this unit.
AV
IN/OUT
Television or projector
VIDEO IN (Yellow)*
≥Linked operation is possible by connecting to a
Panasonic TV (VIERA) or amplifier that is compatible with
the VIERA Link (HDMI) function. (> 26)
≥Non-HDMI-compliant cables cannot be utilized.
≥Please use High Speed HDMI Cables that have the HDMI
logo (as shown on the cover). It is recommended that
you use Panasonic’s HDMI cable. When outputting
1080/24p signal (> 34, “HDMI Resolution”), please use
HDMI cables 5.0 meters (16.4 ft.) or less.
Recommended part number:
RP-CDHG10 (1.0 m/3.3 ft.), RP-CDHG15 (1.5 m/4.9 ft.),
RP-CDHG20 (2.0 m/6.6 ft.), RP-CDHG30 (3.0 m/9.8 ft.),
RP-CDHG50 (5.0 m/16.4 ft.), etc.
≥This unit incorporates HDMI (x.v.ColorTM, High Bit rate Audio)
technology. (> 49)
Preparation
Connect the devices to the unit.
Audio/Video cable
(included)
AUDIO IN
(White) L
(Red)
R
* The video input (yellow) plug on the Audio/Video cable (included)
is not used when connecting to an amplifier or similar.
1
2
Turn on the power of the connected device,
and switch the input.
Example: Set the input to “Video 2” or similar (the name of
input may be different depending on the connected device).
Connection
It is possible to enjoy the high quality video and audio of this
unit on the large screen by connecting this unit with the TV
using a single cable.
Playback
Connection with the HDMI cable
Start playback on this unit.
Enjoy video and audio from other devices on
this unit
Preparation
Connect the video device to this unit.
AV
OUT
AV出力
AV
IN/OUT
HDMI cable
(not included)
Television
HDMI IN
Audio/Video cable
(included)
e.g. VCR
VIDEO OUT (Yellow)
AUDIO OUT
You can enjoy the high quality surround audio in Dolby Digital
Plus, Dolby TrueHD, and DTS-HD by connecting this unit to the
HDMI compatible multi-channel amplifier. (> 37) (Only when
connected to an amplifier compatible with each audio)
1
2
Turn on the power of the connected device
(TV, etc.), and switch the input.
Example: Set the input to “HDMI” or similar (the name of
input may be different depending on the connected
device).
Start playback on this unit.
Video and audio are output from the connected device.
≥The quality of video will lower on the screen of this unit when
HDMI is connected, but it is not a malfunction.
(White) L
(Red)
R
Press [AV SELECT] to switch to “AUX”.
≥Operate playback using the connected equipment. (Please
read the operating instructions for the connected equipment)
≥The unit does not turn off automatically even when “Auto Power Off” is
set to “On” (> 36). Turn the unit off when you have finished using it.
≥To adjust the pictures on the LCD screen (> 13)
≥Audio/Video cable (included) is designed only for use with
this unit. Video and audio may not playback correctly if it is
used with other equipment.
≥If you raise the volume on the television while playing this
unit, the volume may abruptly become very loud when you
switch to a television broadcast. Return the volume to its
normal level before changing.
RQT9334
(ENG)
25
DMPB15P-RQT9334_eng.book 26 ページ
2009年3月28日
土曜日
Linked operations with
the TV
(VIERA LinkTM “HDAVI ControlTM”)
What is VIERA Link “HDAVI Control”?
VIERA LinkTM is a new name for EZ SyncTM.
VIERA Link “HDAVI Control” is a convenient function that
offers linked operations of this unit, and a Panasonic TV
(VIERA) or amplifier/receiver under “HDAVI Control”.
You can use this function by connecting the equipment
with an HDMI cable. See the operating instructions for
connected equipment for operational details.
≥VIERA Link “HDAVI Control”, based on the control functions
provided by HDMI which is an industry standard known as
HDMI CEC (Consumer Electronics Control), is a unique
function that we have developed and added. As such, its
operation with other manufacturers’ equipment that
supports HDMI CEC cannot be guaranteed.
≥This unit supports “HDAVI Control 4” function.
“HDAVI Control 4” is the newest standard (current as of
December, 2008) for Panasonic’s HDAVI Control compatible
equipment. This standard is compatible with Panasonic’s
conventional HDAVI equipment.
≥Please refer to individual manuals for other manufacturers’
equipment supporting VIERA Link function.
午後2時39分
Automatic input switching
When the following operations are performed, the television will
automatically switch the input channel and display the
corresponding action.
j When play starts on the unit
j When an action that uses the display screen is performed
(e.g., Direct Navigator screen)
j When the HDMI is connected, with the unit turned on (first
time only)
Power on link
When the television is off and the following operations are
performed, the television will automatically turn on and display
the corresponding action.
j When play starts on the unit
j When an action that uses the display screen is performed
(e.g., Direct Navigator screen)
Power off link
All connected equipment compatible with “HDAVI Control”,
including this unit, automatically turns off when you switch the
television off.
≥This unit automatically turns off even during playback or any
other operation.
Preparation
1 Connect this unit to your TV or amplifier/receiver with an
HDMI cable (> 25).
2 Set “VIERA Link” to “On” (> 34). (The default setting is
“On”.)
3 Set the “HDAVI Control” operations on the connected
equipment (e.g., TV).
4 Turn on all “HDAVI Control” compatible equipment and
select this unit’s input channel on the connected TV so that
the “HDAVI Control” function works properly.
Also when the connection or settings are changed,
repeat this procedure.
When you want to leave the TV on and set only this
unit to standby mode
Press [POWER Í] on this unit’s remote control and set to
standby mode.
RQT9334
(ENG)
26
≥When [1] (PLAY) is pressed on this unit for “Automatic input
switching” or “Power on link”, the playback image is not
immediately displayed on the screen and it may not be
possible to watch the contents from where playback started.
In this case, press [:] or [6] to go back to where
playback started.
Playing music continuously even after turning off
power to the television (> 22)
When not using “HDAVI Control”
Set “VIERA Link” in the Setup menu to “Off”. (> 34)
DMPB15P-RQT9334_eng.book 27 ページ
2009年3月28日
土曜日
Easy control only with VIERA
remote control
If you connect this unit to the TV that supports “HDAVI Control
2” or later with an HDMI cable, you can enjoy using more
convenient functions.
You can operate this unit using buttons on the TV remote
control.
The buttons that you can use for this unit vary depending on
the TV. For details, refer to the operating instructions of the TV.
Use the remote control supplied with this unit if you cannot
operate this unit using buttons on the TV remote control.
≥The operation of this unit may be interrupted when you press
incompatible buttons on the TV remote control.
午後2時39分
Using the sub menu to operate this unit
By using the TV remote control, you can play discs using the
“Control Panel” and display the Top Menu (for BD-Video and
DVD-Video) or Pop-up Menu (for BD-Video).
1
2
Press [SUB MENU].
≥This can also be displayed by using the VIERA menu screen.
≥You cannot use the sub menu while the Top Menu for
BD-Video or DVD-Video is displayed.
Select an item, then press [OK].
e.g.,
Using the FUNCTIONS menu to operate this
unit
1
2
Press the button for VIERA Link on the
remote control.
Control Panel
Control Panel is displayed. Follow
the indications on the screen.
Top Menu
[BD-V] [AVCHD] [DVD-V]
Top menu is displayed.
≥The FUNCTIONS menu is displayed.
e.g.,
Menu [DVD-V]
Menu is displayed.
Pop-up Menu [BD-V]
Pop-up menu is displayed.
Status
(> 16)
Rotate Right [JPEG]
Rotate the still picture.
Select the player.
Blu-ray Disc Player
DISC
Playback
Other Functions
SD card
Network
AUX
Connection
By using the TV remote control, you can play media using the
FUNCTIONS menu.
Rotate Left [JPEG]
Zoom in [JPEG]
OK
RETURN
When the AC adaptor is connected while the unit is turned off
and the unit is closed with the screen facing outward (> 10,
3 or 4 in “Installation of the unit”), the unit will automatically
turn on. For details, please refer to the TV user manual.
≥When the unit’s AC adaptor is connected, the unit will
turn on with the above operations.
Enlarge or reduce the still picture.
Zoom out [JPEG]
Other Functions
j LCD Menu (> 13)
j Audio (> 16)
j Settings for Playback (> 23)
j Screen Aspect (> 16)
j Setup (> 32)
Notice
≥Please leave the unit with the screen facing outward and
closed. (> 10, 3 or 4 in “Installation of the unit”)
The unit cannot be operated with the TV remote control in any
other condition.
≥When using only the battery pack, operate after turning the
unit on.
RQT9334
(ENG)
27
DMPB15P-RQT9334_eng.book 28 ページ
2009年3月28日
土曜日
Broadband network
connection
N etwor k
The following services can be used when this unit is connected
to the internet via a broadband connection.
≥Firmware can be updated (> 31)
≥You can enjoy the BD-Live (> 17)
≥You can enjoy the VIERA CAST (> 30)
Internet
The unit
LAN (10/100)
午後2時39分
Network settings
These settings are used if you connect this unit to the Internet.
≥The connection to the Internet may take time or the Internet
may not be connected depending on the connection
environment. (> 29)
It is required that you use a broadband connection.
Preparation
≥Connect to a broadband network. (D left)
Testing of “IP Address/DNS
Settings”
Always test the connection when a LAN cable is connected.
Straight LAN cable
(not included)
1
2
3
4
Telecommunications
equipment (modem, etc.)
Press [SETUP].
Press [3, 4] to select “Network” and
press [OK].
Press [3, 4] to select “IP Address/DNS
Settings” and press [OK].
Press [3, 4] to select “Connection Test”
and press [OK].
Broadband router, etc.
IP Address/DNS Settings
≥Use shielded LAN cables when connecting to peripheral
devices.
≥With installation where your broadband modem is connected
directly to your PC, a router must be installed.
≥Use a router that supports 10BASE-T/100BASE-TX.
≥In case all available connection on your router is being used,
a hub or switch can be installed to provide additional
connections.
≥When operating the VIERA CAST, use high-speed internet
service no less than 1.5 Mbps for SD (Standard Definition)
and 6 Mbps for HD (High Definition) picture quality by your
local broadband company.
j If using slow Internet connection, the video may not be
displayed correctly.
≥Depending on a contract with your local broadband company,
it may be generating communication charges.
≥After physically connecting this unit to your broadband
connection, some configuration is required. (D right)
≥Inserting any cable other than a LAN cable in the LAN
terminal can damage the unit.
Connection Test
IP Address Auto Configuration (DHCP)
On
IP Address
㪄㪄㪄㪅㩷㪄㪄㪄㪅㩷㪄㪄㪄㪅㩷㪄㪄㪄
Subnet Mask
㪄㪄㪄㪅㩷㪄㪄㪄㪅㩷㪄㪄㪄㪅㩷㪄㪄㪄
Default Gateway
㪄㪄㪄㪅㩷㪄㪄㪄㪅㩷㪄㪄㪄㪅㩷㪄㪄㪄
DNS Auto Configuration (DHCP)
㪄㪄㪄㪅㩷㪄㪄㪄㪅㩷㪄㪄㪄㪅㩷㪄㪄㪄
Secondary DNS
㪄㪄㪄㪅㩷㪄㪄㪄㪅㩷㪄㪄㪄㪅㩷㪄㪄㪄
Auto Detect Connection Speed
Connection Speed Setting
RETURN
“Testing”: The test is in progress.
“Pass”:
The connection is completed.
Press [RETURN] to exit.
“Fail”:
Please check the connection and settings.
(> 29)
≥Perform the “Connection Test” also when any change was
made to the “IP Address/DNS Settings”.
≥If the connection test fails, it may be necessary to set the
MAC address of this unit at the router side. The MAC address
can be displayed by pressing [SETUP] and selecting
“Network”.
IP Address/DNS Settings
Proxy Server Settings
Network Service
MAC Address: xx-xx-xx-xx-xx-xx
OK
RETURN
28
On
OK
Network
RQT9334
(ENG)
On
Primary DNS
2009年3月28日
土曜日
Setting the IP address
In most cases, default settings can normally be used
without making any changes.
Set the IP address only when the router has no DHCP
server functions or when the router’s DHCP server
function is disabled.
After performing steps 1 – 3 (> 28)
4
Press [3, 4] to select “IP Address Auto
Configuration (DHCP)” and press [2, 1] to
select “Off”.
≥Generally leave “On” selected.
≥When “Off” is selected, “DNS Auto Configuration
(DHCP)” (> below) is also automatically “Off”.
5
6
Press [3, 4] to select “IP Address”,
“Subnet Mask” or “Default Gateway” and
press [OK].
Enter numbers with the numbered buttons
and press [OK].
≥If a wrong number is entered, then press [CANCEL].
7
Press [2, 1] to select “Yes” and press [OK].
≥After checking the specifications for your broadband router,
enter each number. If the number is unknown, then check the
number of other devices such as personal computers connected
via a LAN cable. Assign a different number from those of other
devices for the “IP Address” and the same number for others.
≥The numeric input range is between 0 and 255.
Setting the DNS-IP
In most cases, default settings can normally be used
without making any changes.
When setting an assigned DNS server from your Internet
service provider, perform the following settings.
After performing steps 1 – 3 (> 28)
4
5
6
Press [3, 4] to select “DNS Auto
Configuration (DHCP)” and press [2, 1] to
select “Off”.
Press [3, 4] to select “Primary DNS” or
“Secondary DNS”and press [OK].
Enter numbers with the numbered buttons
and press [OK].
Primary DNS
Please input Primary DNS and press
[OK]. Press [CANCEL] to delete the selected
character. To clear this setting, delete all
characters and press [OK].
192
.
1
.
.
午後2時39分
≥Follow the instructions given by your Internet service provider
and enter the numbers. If the number is unknown, then check
the number of other devices such as personal computers
connected via a LAN cable and assign the same number.
≥The numeric input range is between 0 and 255.
Setting the connection speed
When the connection test results in “Fail” after the IP and DNSIP addresses are assigned, perform the following settings.
After performing steps 1 – 3 (> 28)
4
5
Press [3, 4] to select “Auto Detect
Connection Speed” and press [2, 1] to
select “Off”.
Press [3, 4] to select “Connection Speed
Setting” and press [2, 1] to select a
connection speed.
≥Select a connection speed in accordance with the
environment of the network connected.
≥When the settings are changed, the network connection may
be slower or disabled depending on the device.
Testing of “Proxy Server Settings”
Always test the connection when new “Proxy Server Settings”
have been made.
1
2
3
4
Press [SETUP].
Press [3, 4] to select “Network” and
press [OK].
Press [3, 4] to select “Proxy Server
Settings” and press [OK].
Press [3, 4] to select “Connection Test”
and press [OK].
“Testing”: The test is in progress.
“Pass”:
The connection is completed.
Press [RETURN] to exit.
“Fail”:
Please check the connection and settings.
Setting the proxy server
In most cases, default settings can normally be used
without making any changes.
Please use this setting when instructed to by your Internet
service provider.
After performing steps 1 – 3 (D above)
4
Press [3, 4] to select “Proxy Address”
and press [OK].
Proxy Server Settings
Reset to factory preset
Proxy Address
Proxy Port Number
Connection Test
0 - 9
7
Network
DMPB15P-RQT9334_eng.book 29 ページ
Number
0
≥If a wrong number is entered, then press [CANCEL].
Press [2, 1] to select “Yes” and press [OK].
OK
RETURN
(Continued on the next page)
RQT9334
(ENG)
29
DMPB15P-RQT9334_eng.book 30 ページ
2009年3月28日
土曜日
Network settings (continued)
5
Press [3, 4, 2, 1] to select a character
and press [OK].
Text field: shows the text you have entered
午後2時39分
Enjoying VIERA CASTTM
You can access a selection of Internet services from the Home
screen with VIERA CAST, for example YouTube, Picasa Web
Albums. (Current as of March 2009)
≥VIERA CAST requires a broadband Internet connection. Dialup Internet connections cannot be used.
Proxy Address
_
1
2
3
4
5
6
7
8
9
0
Delete
Finish
1 2 3 4 5
a
B C
d
E F
g
H I
j
K L
m
N O
Q R S p
A
D
G
J
M
P
T
6
b
e
h
k
n
q
7
c
f
i
l
o
r
8 9 0
+ - *
%
&
@
_
)
} ~
/
#
<
[
s
=
$
>
]
(
t u v {
U V
W X Y Z w x y z
. , ? ! “ ’ : ;
\
`
I
^
Preparation
≥Network connection (> 28)
≥Network setting (> 28)
1
RETURN
0 -- 9
Using the numbered buttons to enter characters
e.g., entering the letter “F”
Welcome to Network Service
Your Panasonic Network Service allows you to access web-based content on your Player/Recorder. Some
web content may be inappropriate for some viewers. You may disable the Network Service feature by
following the instructions found in your Operating Instructions.
1 1
2 3 4
2 A B C
3 D E F
4 G H I
1 Press [3] to move to the 3rd row.
2 Press [3] twice to highlight “F”.
3 Press [OK].
6
7
8
Repeat this step to enter other characters.
≥Press [;] to delete.
Press [∫] when you complete the entry.
Press [3, 4] to select “Proxy Port
Number” and press [OK].
Enter numbers with the numbered buttons
and press [OK].
Proxy Port Number
Please input Proxy Server Port Number and
press [OK]. Press [CANCEL] to delete the
selected character. The number will be set to
"0" if all characters are deleted and [OK] is
pressed.
Press [VIERA CAST].
≥Message is displayed. Please read these instructions
carefully and then press [OK] to start VIERA CAST function.
Space
OK
Some web content may only be available from within select countries and may be presented in languages
different than the one selected in your On-screen Language settings menu.
It's recommanded your player/recorder is connected to Full HD display with HDMI. The display of the
contents may be truncated, depending on your TV. You may reduce to screen size by following the
instructions found in your Operating Instructions.
Don’t show this message again
ENTER
2
Images are for illustration purposes, message may
change without notice.
Press [3, 4, 2, 1] to select the item and
press [OK].
≥You can operate VIERA CAST using the following
buttons on the unit’s remote control:
[3, 4, 2, 1], [OK], [RETURN], colored buttons and
numbered buttons
≥To access more features on YouTube or Picasa Web
Albums site, enter your user ID and password that you
have previously set up with these sites through the
Internet on your PC. However, not all features may be
accessible through VIERA CAST.
VIERA CAST Home screen;
After you access
YouTube or Picasa
Web Albums from the
VIERA CAST Home
screen and add your
favorite videos or
albums to VIERA
CAST, you can
choose them easily
from the Home
screen.
Images are for illustration purpose, contents may change
without notice.
New York, NY
Settings
0
Weather
28°
WNW7
mph
TM
Web Albums
0 - 9
9
Number
Panasonic Select
Featured Videos
Bloomberg
TELEVISION
Press [2, 1] to select “Yes” and press
[OK].
≥The specified ports may be blocked and not be able to be
used depending on the network environment.
In order to restore the default settings
After performing steps 1 – 3 (> 29)
1 Press [3, 4] to select “Reset to factory preset” and press
[OK].
2 Press [2, 1] to select “Yes” and press [OK].
XXX
XXX
XXX
7465.95
778.94
1442.82
15min. delay
-89.68
-9.47998
-25.15
Regarding “Settings”
Set VIERA CAST Home screen.
≥My Account: You can remove your account from the unit.
≥Lock:
Password can be used to lock YouTube and
Picasa Web Albums.
≥Notices
≥Depending on the usage conditions, it may take a while to
load the page.
≥The connection to the Internet may take time or the Internet
may not be connected depending on the connection
environment.
RQT9334
(ENG)
30
DMPB15P-RQT9334_eng.book 31 ページ
2009年3月28日
土曜日
To return to VIERA CAST Home screen
Press [VIERA CAST].
午後2時39分
After the firmware is updated and the system is restarted, the
following screen indicates that the firmware update has been
completed.
To exit from VIERA CAST
≥Press [FUNCTIONS], then press [RETURN] to cancel the
menu.
TM
≥VIERA CAST home screen is subject to change without
notice.
≥The services through VIERA CASTTM are operated by their
respective service providers, and service may be
discontinued either temporarily or permanently without notice.
Therefore, Panasonic will make no warranty for the content or
the continuity of the services.
≥All features of websites or content of the service may not be
available.
≥Some content may be inappropriate for some viewers.
≥Some content may only be available for specific countries
and may be presented in specific languages.
Firmware updates
Occasionally, Panasonic releases firmware updates for this
Portable BD player. Firmware is embedded software that
controls this unit’s microprocessor. These updates may add or
improve a feature of this unit. Firmware updates may also be
released to correct operating irregularities that are discovered
with certain movies. These updates are available at no charge.
Automatically check the firmware
≥Only when connecting the AC adaptor
This unit is capable of auto firmware check if it is connected to
the Internet via a broadband connection.
When latest firmware version is available, the following screen
is displayed:
OK
RETURN
≥Other operations are not possible during firmware updates.
Additionally, do not perform the following operations as they
may damage the unit:
j Turn the unit off
j Remove the AC power supply cord from the household AC
outlet
j Open the disc lid
≥Downloading will require several minutes. It may take longer
or the Internet may not be connected depending on the
connection environment. It is required that you use a
broadband connection.
≥When the unit is connected to the Internet, communication
charges may be generated.
≥If you do not want to check for the latest firmware version
when the unit is turned on, set “Automatic Update Check” to
“Off”. (> 36)
≥If downloading on this unit fails or this unit is not
connected to the Internet, then you can download the
latest firmware from the following website and burn it to
a CD-R to update the firmware.
http://panasonic.net/support/
(This site is in English only.)
Manually updating the firmware
If the firmware update is not carried out when the unit is turned
on, a message is displayed when displaying the FUNCTIONS
menu.
The latest firmware is available.
Please update firmware in Setup.
1
2
3
4
5
Press [SETUP].
Press [3, 4] to select “Others” and press [OK].
Press [3, 4] to select “Firmware Update” and press [OK].
Press [3, 4] to select “Update Now” and press [OK].
Press [2, 1] to select “Yes” and press [OK].
Network
≥Set the “Network Lock” to “On” to restrict using VIERA CAST.
(> 35)
≥If the audio is distorted while using the VIERA CAST feature
set the “Audio Auto Gain Control” to “Off” (> 35)
≥When the entire picture cannot be displayed on the screen,
set the “Reduce to Screen Size” to “On”. (> 35)
≥Set the “On-screen Language”, to switch the language for
Home screen. (> 34)
≥Set the “Time Zone” or “DST” when wrong time is displayed
on the screen. (> 35)
The firmware was updated.
Current Installed Version: x.x
Firmware Update
The latest firmware is available.
Latest Online Version: x.x
Current Installed Version: x.x
Do you want to start firmware update?
For the update information, please visit the
following website:
http://panasonic.net/support/
Yes
No
Press [2, 1] to select “Yes” and press [OK].
Follow the on-screen instructions to proceed.
After the latest firmware is downloaded, the firmware will be
updated.
≥If “No” is selected, then manually update the firmware later.
(D right)
RQT9334
(ENG)
31
DMPB15P-RQT9334_eng.book 32 ページ
2009年3月28日
土曜日
午後2時39分
Changing the unit’s settings
Settings
Change the unit’s settings if necessary. The settings remain intact even if you switch the unit to standby.
Setup menu operations
1
2
3
4
While stopped
Setup
Press [SETUP].
Disc
Press [3, 4] to select the menu and press [OK].
Audio
Video
Press [3, 4] to select the item and press [OK].
Display
TV Aspect/HDMI Function Settings
Network
Others
If there are any other items, repeat these steps.
OK
Press [3, 4, 2, 1] to select the option and press [OK].
RETURN
≥There may be differences in operation methods. If this happens, follow the on-screen instructions for the operation.
To return to the previous screen
Press [RETURN].
To exit the screen
Press [SETUP].
≥Setup menu is also possible to display with the following procedures.
1 While stopped, press [SUB MENU]
2 Select “Other Functions” with [3, 4], and select [OK]
3 Select “Setup” with [3, 4], and select [OK]
Summary of settings
Underlined items are the factory presets.
“Disc”
DVD-Video Ratings
Set a ratings level to
limit DVD-Video play.
BD-Video Ratings
Set an age limit of
BD-Video play.
Audio Language
All DVD-Video can be played.
Prohibits play of DVD-Video with
corresponding ratings recorded on them.
Follow the on-screen instructions. Enter a
≥0 Lock All:
Prohibits play of all DVD-Video.
4-digit password with the numbered
Changing settings (When level 0 to 7 is selected)
buttons when the password screen is
≥Unlock Player
≥Change Password
shown. It will be the common password for
≥Change Level
≥Temporary Unlock
“DVD-Video Ratings”, “BD-Video Ratings”
and “Network Lock”.
≥No Limit:
All BD-Video can be played.
≥Do not forget your password.
≥0 to 254 year(s): Prohibits play of BD-Video with
≥8 No Limit:
≥1 to 7:
corresponding ratings recorded on them.
Changing settings (When 0 to 254 year(s) is selected)
≥Unlock Player
≥Change Password
≥Change Level
≥Temporary Unlock
Choose the language for audio, subtitle
and disc menus.
[BD-V] [DVD-V]
≥English
≥French
≥Spanish
≥Original: The original language of each disc will be selected.
≥Other ¢¢¢¢
Subtitle Language ≥Some discs start in a certain language
Menu Language
≥Automatic:
despite any changes you make here.
If the language selected for “Audio Language” is not
≥When the selected language is not
available, subtitles of that language will automatically appear
if available on that disc.
available on the disc, the default
≥English
≥French
≥Spanish
≥Other ¢¢¢¢
language is played. There are discs
where you can only switch the language ≥English
≥French
≥Spanish
≥Other ¢¢¢¢
from the menu screen. (> 14)
≥Enter a code (> 36) with the numbered
buttons when you select “Other ¢¢¢¢”.
BD-Live Internet Access [BD-V] (> 17)
You can restrict Internet access when BD-Live functions are used.
≥Allow (ALL):
Internet access is permitted for all BD-Live
contents.
≥Allow (Limited): Internet access is permitted only for BD-Live
contents which have content owner
certificates.
Internet access is prohibited for all BD-Live
contents without a certificate.
≥Prohibit:
Internet access is prohibited for all BD-Live
contents.
≥Latin1
DivX Subtitle Text [DivX]
≥Latin2
Select a suitable item according to the language used for DivX
≥Cyrillic
subtitles text (> 21).
≥This item is displayed only when pressing [SETUP] after playing
back a file.
RQT9334
(ENG)
32
English, German, Spanish, etc.
Polish, Czech, Hungarian, etc.
Russian, etc.
DMPB15P-RQT9334_eng.book 33 ページ
2009年3月28日
土曜日
午後2時39分
“Video”
Still Mode (paused video) [BD-V] [AVCHD] [DVD-V]
Select the type of picture shown when you pause playback
(> 48, Frames and fields).
≥Auto
≥Field:
≥Frame:
Seamless Play ]DVD-VR]
Select the play mode between playlist chapter segments and
partially deleted titles.
≥On:
≥Off:
Select if jittering occurs when “Auto” is selected.
(The picture is coarser.)
Select if small text or fine patterns cannot be seen
clearly when “Auto” is selected.
(The picture is clearer and finer.)
The chapters in playlists are played seamlessly. This
does not work while searching or when there are
several audio types included on the playlist.
Additionally, the positioning of chapter segments may
change slightly.
The points where chapters in playlists change are
played accurately, but the picture may freeze for a
moment.
“Audio”
Dynamic Range Compression [BD-V] [AVCHD] [DVD-V] [DivX] ≥On
(Dolby Digital, Dolby Digital Plus and Dolby TrueHD only)
Change the dynamic range (> 48) for late night viewing.
≥Off
Digital Audio Output
≥Press [OK] to show the following settings.
≥For details on digital output (> 37)
Select whether Dolby Digital,
Dolby Digital Plus, Dolby TrueHD,
DTS Digital Surround,
DTS-HD High Resolution Audio or
DTS-HD Master Audio is output in
“Bitstream” or “PCM” format.
≥Not making the proper settings
may result in noise.
≥If the unit is connected with the
HDMI AV OUT terminal, the
specifications of the connected
equipment take precedence over
this unit and audio selected in
these items may not be output
(e.g., when a television is
connected, the HDMI audio output
of this unit is limited to downmixed 2ch.)
BD-Video Secondary Audio [BD-V]
≥Bitstream:
Select “Bitstream” when the connected equipment can
decode the respective audio format.
j Connect equipment supporting HDMI (High Bit rate Audio)
and use a High Speed HDMI Cable in order to output high
bit rate audio such as Dolby Digital Plus, Dolby TrueHD,
DTS-HD High Resolution Audio or DTS-HD Master Audio.
≥PCM:
Select “PCM” when the connected equipment cannot decode
the respective audio format.
Refer to the operating instructions for connected devices to
verify whether or not they can decode each of the audio
formats.
≥On:
Turn on/off the button click sound on the menu and audio with
secondary video in picture-in-picture mode. (> 17)
≥Off:
Downmix
Switch the downmix system for playing back multi-channel
surround sound.
≥When “Dolby D/Dolby D +/Dolby TrueHD” or “DTS/DTS-HD” is
set to “Bitstream”, there are no downmix effects for the
outputted audio.
≥The audio will be outputted in “Stereo” in the following cases:
j AVCHD playback
j Playback of button click sound on the menu and audio with
secondary video in picture-in-picture mode
The primary audio and secondary audio are mixed
and output. The sampling frequency is converted to
48 kHz.
The button click sound on the menu and secondary
audio are not output.
When connected to equipment that does
not support the virtual surround function.
≥Surround encoded:When connected to equipment that
supports the virtual surround function (to
convert 2-channel to multi channel
surround).
≥Stereo:
Settings
Dolby D/Dolby D +/
Dolby TrueHD
DTS/DTS-HD
RQT9334
(ENG)
33
DMPB15P-RQT9334_eng.book 34 ページ
2009年3月28日
土曜日
午後2時39分
Changing the unit’s settings (continued)
“Display”
Status Messages
≥Automatic
≥Off
Choose whether to show status messages automatically.
On-screen Language
≥English
≥Français
≥Español
Choose the language for these menus and on-screen messages.
Screen Saver Function
This is to prevent burn-in on the television screen.
License
≥On:
j No activity has occurred for 10 minutes or longer, the
screen swtiches to the other states automatically.
j When playing the 4:3 image, the masked-off area on the
screen become gray.
[Only when connecting with an HDMI cable, “TV Aspect”
(> below) is set to “16:9” and “HDMI Resolution”
(> below) is set to any mode other than “480p”.]
≥Off
Information about the software used by this unit is displayed.
“TV Aspect/HDMI Function Settings”
TV Aspect
“TV Aspect” operates on the screen of the unit or the connected
TV.
To view an image connected to a 4:3 TV:
≥4:3 Pan & Scan: Video recorded for a widescreen is played
as Pan & Scan (unless prohibited by the
producer of the disc). When playing BDVideo, video is output as “4:3 Letterbox”.
≥4:3 Letterbox:
Video recorded for a widescreen is played
in the letterbox style.
To view an image on the unit or connected to a 16:9
widescreen TV:
≥16:9:
Video recorded for 4:3 aspect screen is
displayed as a 4:3 ratio image in the center
of the screen.
≥16:9 Full:
Video recorded for 4:3 aspect screen is
displayed as a horizontally stretched 16:9
image.
HDMI Connection
≥Press [OK] to show the following settings.
HDMI Resolution
≥Auto:
Automatically selects the output resolution
best suited to the connected television
The items supported by the connected devices are indicated on
(1080/24p*, 1080i, 720p or 480p).
the screen as “¢”. When any item without “¢” is selected, the
≥480p
≥720p
images may be distorted.
≥1080i
≥If the image is distorted, set to “480p” or set again correctly.
j When the unit is connected to an amplifier/receiver that does
not support the resolution set on the unit, the video cannot
be output properly.
* 1080/24p can only be output in the conditions below when
“24p Output” (> below) is set to “On”.
j [BD-V] Playing back 24p images
j [DVD-V] Playing back with the settings for playback “24p”
(> 24) “On”
24p Output [BD-V] [DVD-V]
≥On:
Images in 1080/24p are output in 24p as they are.
j When outputting 1080/24p signal, we recommend using
This unit displays each frame at 1/24 second intervals – the
High Speed HDMI Cables that have the HDMI logo (as
same interval originally shot with the film camera.
shown on the cover) and are less than 5.0 meters (16.4 ft.)
≥Only when this unit is connected to a TV supporting 1080/24p
to prevent video distortion etc.
output via an HDMI cable, you can set to “On”.
≥If this unit is connected to an HDTV through other equipment, ≥Off
it must also be 1080p compatible.
HDMI RGB Output Range
Effective when connected to a device that only supports RGB
output.
HDMI Audio Output
Set whether or not to output audio from the HDMI AV OUT
terminal.
VIERA Link
Set to use “HDAVI Control” function when connected with an
HDMI cable to a device that supports “HDAVI Control”.
RQT9334
(ENG)
34
≥Standard: The video is output as it is.
≥Enhanced: When the black and white contrast of a video is low,
the signal is enhanced to reproduce clear video.
≥On
≥Off
≥On
≥Off:
Select when you do not want to use “HDAVI Control”.
DMPB15P-RQT9334_eng.book 35 ページ
2009年3月28日
土曜日
午後2時39分
“Network”
IP Address/DNS Settings (> 28)
Proxy Server Settings (> 29)
Network Service (> 30) (VIERA CAST)
≥Press [OK] to show the following settings.
Network Lock
≥On
You can restrict using VIERA CAST.
≥Follow the on-screen instructions. Enter a 4-digit password
with the numbered buttons when the password screen is
shown. It will be the common password for “DVD-Video
Ratings”, “BD-Video Ratings” and “Network Lock”.
≥Do not forget your password.
Changing settings (When “On” is selected)
≥Change Password
Audio Auto Gain Control
≥On
≥Off
≥On
≥Off
≥Off
Volume that is different depending on the contents is
adjusted automatically to the standard volume while using the
VIERA CAST.
≥Depending on contents, this function effect will not work.
≥Select “Off” when the audio is warped.
Reduce to Screen Size
The screen is displayed reduced so the displayed screen of the
content does not get truncated.
Time Zone
By selecting the time zone, it is possible to set the unit’s time to
match your location.
≥Some VIERA CAST contents require the time zone to be set.
Set the time zone if necessary.
DST
≥GMT s12 to r12
(The initial setting is “s5”.)
GMT s5 l EST (Eastern Standard Time)
GMT s6 l CST (Central Standard Time)
GMT s7 l MST (Mountain Standard Time)
GMT s8 l PST (Pacific Standard Time)
GMT s9 l AKST (Alaska Standard Time)
GMT s10 l HST (Hawaii Standard Time)
≥On
≥Off
Settings
Select “On” when using Daylight Saving time.
RQT9334
(ENG)
35
DMPB15P-RQT9334_eng.book 36 ページ
2009年3月28日
土曜日
午後2時39分
Changing the unit’s settings (continued)
“Others”
Auto Power Off
≥On
≥Off:
≥During disc or SD card operation only
Select whether the unit is automatically turned off when about
15 minutes (about 5 minutes when using the battery pack) have
elapsed while stopped.
Quick Start
≥On:
Speed of startup from power off is increased.
≥Quick Start only functions when the AC adaptor is connected.
Select when you do not want to use this function.
Since internal control unit will be powered, power
consumption in standby mode (> 46) will increase in
comparison to when “Off”.
≥Off
Easy Setting
≥Yes
≥No
≥Yes
≥No
≥On
≥Off
≥Yes
≥No
You can execute basic settings
(“On-screen Language”).
Restore Default Settings
This returns all values in the Setup menu and the on-screen
menu, except for “On-screen Language”, “IP Address/DNS
Settings”, “Proxy Server Settings”, “Network Service”, “DVDVideo Ratings” and “BD-Video Ratings” to the default settings.
DivX Registration [DivX] (> 20)
You need this registration code to purchase and play DivX
Video-on-Demand (VOD) content.
Firmware Update (> 31)
≥Press [OK] to show the following settings.
Automatic Update Check
When this equipment remains connected to the Internet, it will
check for the latest firmware version when it is turned on and
you can update it if necessary.
Update Now
You can update the firmware manually.
≥Only when connecting the AC adaptor
Language code list
Abkhazian:
6566
Afar:
6565
Afrikaans:
6570
Albanian:
8381
6577
Amharic:
Arabic:
6582
Armenian:
7289
Assamese:
6583
Aymara:
6589
Azerbaijani:
6590
Bashkir:
6665
Basque:
6985
Bengali; Bangla:
6678
Bhutani:
6890
Bihari:
6672
Breton:
6682
Bulgarian:
6671
Burmese:
7789
Byelorussian: 6669
Cambodian:
7577
RQT9334
(ENG)
36
Enter the code with the numbered buttons.
Catalan:
Chinese:
Corsican:
Croatian:
Czech:
Danish:
Dutch:
English:
Esperanto:
Estonian:
Faroese:
Fiji:
Finnish:
French:
Frisian:
Galician:
Georgian:
German:
Greek:
Greenlandic:
Guarani:
6765
9072
6779
7282
6783
6865
7876
6978
6979
6984
7079
7074
7073
7082
7089
7176
7565
6869
6976
7576
7178
Gujarati:
Hausa:
Hebrew:
Hindi:
Hungarian:
Icelandic:
Indonesian:
Interlingua:
Irish:
Italian:
Japanese:
Javanese:
Kannada:
Kashmiri:
Kazakh:
Kirghiz:
Korean:
Kurdish:
Laotian:
Latin:
Latvian, Lettish:
7185
7265
7387
7273
7285
7383
7378
7365
7165
7384
7465
7487
7578
7583
7575
7589
7579
7585
7679
7665
7686
Lingala:
Lithuanian:
Macedonian:
Malagasy:
Malay:
Malayalam:
Maltese:
Maori:
Marathi:
Moldavian:
Mongolian:
Nauru:
Nepali:
Norwegian:
Oriya:
Pashto, Pushto:
Persian:
Polish:
Portuguese:
Punjabi:
Quechua:
7678
7684
7775
7771
7783
7776
7784
7773
7782
7779
7778
7865
7869
7879
7982
8083
7065
8076
8084
8065
8185
Rhaeto-Romance:
8277
Romanian:
8279
Russian:
8285
Samoan:
8377
Sanskrit:
8365
Scots Gaelic: 7168
Serbian:
8382
Serbo-Croatian: 8372
Shona:
8378
Sindhi:
8368
Singhalese:
8373
Slovak:
8375
Slovenian:
8376
Somali:
8379
Spanish:
6983
Sundanese:
8385
Swahili:
8387
Swedish:
8386
Tagalog:
8476
Tajik:
8471
Tamil:
Tatar:
Telugu:
Thai:
Tibetan:
Tigrinya:
Tonga:
Turkish:
Turkmen:
Twi:
Ukrainian:
Urdu:
Uzbek:
Vietnamese:
Volapük:
Welsh:
Wolof:
Xhosa:
Yiddish:
Yoruba:
Zulu:
8465
8484
8469
8472
6679
8473
8479
8482
8475
8487
8575
8582
8590
8673
8679
6789
8779
8872
7473
8979
9085
DMPB15P-RQT9334_eng.book 37 ページ
2009年3月28日
土曜日
午後2時39分
Audio and video information
About audio from audio output terminals
Before connecting, read the table below, and confirm the desired audio type and necessary settings (“BD-Video Secondary Audio”,
“Dolby D/Dolby D +/Dolby TrueHD” or “DTS/DTS-HD”). (> 33)
≥The number of channels listed is the maximum possible number of output channels.
HDMI AV OUT
Terminal
“Dolby D/Dolby D +/Dolby
TrueHD”/“DTS/DTS-HD”
“BD-Video Secondary Audio”
Dolby Digital/
Dolby Digital EX*4
Dolby Digital Plus
Dolby TrueHD
DTS Digital Surround/
DTS-ES*4
DTS-HD High Resolution Audio
HDMI AV OUT
“Bitstream”*1
“On”*3
“Off”
Dolby Digital/
Dolby Digital EX*5
Dolby Digital/
Dolby Digital EX
Dolby Digital
Dolby Digital Plus
DTS Digital Surround
“On”
“Off”
5.1ch PCM*6
Dolby TrueHD
DTS Digital Surround/ DTS Digital Surround/
DTS-ES*5
DTS-ES
DTS-HD Master Audio
7.1ch LPCM
“PCM”*2
DTS-HD High
Resolution Audio
[DVD-V] 5.1ch
[BD-V] 7.1ch *7
[BD-V] 7.1ch*6, *7
DTS-HD Master Audio
Down-mixed 5.1ch
PCM
7.1ch PCM
Down-mixed 5.1ch
PCM*3
7.1ch PCM
≥Also, depending on the specifications or the settings of the amplifier/receiver, the results of the output may vary.
*1 When the connected equipment is not supported with these audio formats, the audio is output as Dolby Digital bitstream, DTS
Digital Surround bitstream or down-mixed 2ch PCM (e.g., TV).
*2 When the connected equipment is not supported with multi channel surround, the audio is output as down-mixed 2ch PCM.
*3 [BD-V]: When playing BD-Video without secondary audio or button click sound, the audio is output as the same format as if “BDVideo Secondary Audio” was set to “Off”.
*4 With PCM output, Dolby Digital EX and DTS-ES will be PCM audio decoded as Dolby Digital and DTS Digital Surround respectively.
*5 [BD-V]: When “BD-Video Secondary Audio” is set to “On”, Dolby Digital EX is output as Dolby Digital and DTS-ES is output as DTS
Digital Surround, however if playing BD-Video without secondary audio or button click sound, the audio is output as the original format.
*6 The output is PCM audio decoded as Dolby Digital for Dolby Digital Plus or Dolby TrueHD, and as DTS Digital Surround for DTS-HD
High Resolution Audio and DTS-HD Master Audio.
*7 [BD-V]: When the connecting equipment supports 7.1 channel surround, output will be extended from 5.1 ch or 6.1 ch to 7.1 ch
according to the specification of DTS, Inc.
Enjoying High Bit rate Audio of BD-Video
NECESSARY CONNECTIONS
≥HDMI AV OUT terminal: (> 25)
NECESSARY SETTINGS
≥Set “BD-Video Secondary Audio” to “Off”. (> 33)
≥Set “HDMI Audio Output” to “On”. (> 34)
≥HDMI AV OUT terminal: Set “Dolby D/Dolby D +/Dolby TrueHD” or “DTS/DTS-HD” to “Bitstream” or “PCM”. (> 33)
Settings
[BD-V]
This unit supports high bit rate audio (Dolby Digital Plus, Dolby TrueHD, DTS-HD High Resolution Audio and DTS-HD Master Audio) adopted in
BD-Video. In order to enjoy these audio formats, the following conditions are necessary. (Part shown in the shaded area of table given above)
Regarding 24p output
[BD-V]
Many BD-Video movie contents are recorded in 24 frames/second in accordance with the film materials. However, they will normally
be output in 60 frames/second in accordance with the display format. These can be output in 24p as the original. Therefore, highquality video can be enjoyed, such as the improved clarity, enhanced perspective, etc.
Reference
≥The button click sound on the menu and audio with secondary video in picture-in-picture mode (> 17) is not output.
NECESSARY CONNECTIONS
≥Connect to a TV supporting 1080/24p input via an HDMI cable.
NECESSARY SETTINGS
≥“24p Output” and “HDMI Audio Output”: “On” (> 34)
RQT9334
(ENG)
37
DMPB15P-RQT9334_eng.book 38 ページ
2009年3月28日
土曜日
About MP3/JPEG/DivX
files
午後2時39分
Reference
MP3
File format
MP3
Playable
media
CD-R*1, CD-RW*1, DVD-R*1,, DVD-R DL*1
Extension
Files must have the extension “.mp3” or
“.MP3”.
Compression 32 kbps to 320 kbps
rate
Sampling
rate
44.1 kHz/48 kHz
Reference
ID3 tags: version 1, 2.2, 2.3, 2.4
ID3 is a tag embedded in MP3 track to provide
information about the track.
This unit supports the versions listed above
but only titles and the names of artists can be
displayed.
≥If there is a large amount of still picture data
etc. within a MP3 file, play may not be
possible.
JPEG
File format
JPEG
Playable
media
CD-R*1, CD-RW*1, DVD-RAM*2, DVD-R*1,
DVD-R DL*1, BD-RE* 3, SD card
Extension
Files must have the extension “.jpg” or “.JPG”.
resolution
between 34k34 and 8192k8192 pixels
(sub sampling is 4:2:2 or 4:2:0)
Reference
JPEG conforming DCF*4 is supported.
Thawing Time: approx. 2 sec. (7 M pixels)
≥MOTION JPEG and Progressive JPEG is
not supported
DivX
RQT9334
(ENG)
38
File format
DivX
Playable
media
CD-R*1, CD-RW*1, DVD-R*1, DVD-R DL*1
Extension
Files must have the extension “.DIVX”, “.divx”,
“.AVI” or “.avi”.
resolution
between 32k32 and 720k576 pixels
≥Certified to the DivX Home Theater Profile.
Video
j Number of stream: Up to 1
j Codec: DIV3, DIV4, DIVX, DV50, DIV6
j FPS (Frame Per Second): Up to 30 fps
Audio
j Number of stream: Up to 8
j Format: MP3, MPEG, Dolby Digital
j Multi channel: Dolby Digital is possible.
MPEG multi is 2 ch conversion.
≥GMC (Global Motion Compensation) is not
supported.
≥Picture may stop if the DivX files are greater
than 2 GB.
Subtitles text file of DivX
File format
Subtitles text file of DivX
Playable
media
CD-R*1, CD-RW* 1, DVD-R*1, DVD-R DL*1
File format
MicroDVD, SubRip, or TMPlayer
Extension
Files must have the extension “.SRT”, “.srt”,
“.SUB”, “.sub”, “.TXT”, or “.txt”
Reference
≥The DivX video file and subtitles text file are
inside the same folder, and the file names
are the same except for the file extensions.
≥If there are more than one subtitles text files
inside the same folder, they are displayed in
the following order of priority: “.srt”, “.sub”,
“.txt”.
≥In the following situations, the subtitles
cannot be displayed as recorded.
Furthermore, depending on the methods
used to create the file or the state of the
recording, only parts of the subtitles may be
displayed, or the subtitles may not be
displayed at all.
j When special text or characters are
included in the subtitles text.
j When the file size is larger than 256 KB.
j When characters with specified styling
are included in the subtitle data.
j Codes that specify the character style
within files are displayed as subtitle
characters.
j When data with a different format exists
within the subtitle data.
≥If the file name of the DivX video file is not
displayed correctly on the menu screen (the
file name is displayed as “_”), the subtitles
text may not be displayed correctly.
≥Depending on the disc, the subtitles text
cannot be displayed when search and other
such operations are being performed.
≥English alphabet and Arabic numerals are displayed
correctly. Other characters may not be displayed correctly.
≥The display order on this unit may differ from how the order is
displayed on a computer.
≥Depending on how you create the media (writing software), files
and folders may not play in the order you numbered them.
≥This unit is not compatible with packet-write format.
≥Depending on the recording conditions, the media may not play.
≥Operation may take time to complete when there are many files
and/or folders and some files may not display or be playable.
DMPB15P-RQT9334_eng.book 39 ページ
2009年3月28日
土曜日
*1 ISO9660 level 1 or 2 (except for extended formats), Joliet
This unit is compatible with multi-session.
This unit is not compatible with packet writing.
*2 Discs must conform to UDF 2.0.
*3 Discs must conform to UDF 2.5.
*4 Design rule for Camera File system: unified standard
established by Japan Electronics and Information
Technology Industries Association (JEITA).
午後2時39分
Structures of still picture (JPEG) folders
in DVD-R/DVD-R DL/CD-R/CD-RW
Files inside a folder are displayed in the order they were
updated or taken.
e.g.,
Root
Folder A
Structure of folders that can be
played in this unit
Folder B
You can play files on this unit by structure of folders as
shown below. However depending on the method of
writing data (writing software), play may not be in the order
you numbered the folders.
Folder which can be displayed with this unit
¢¢¢: Numbers
XXX: Letters
*1 ¢¢¢: from 001 to 999
*2 ¢¢¢: from 100 to 999
XXX: up to 5 figures
*3 ¢¢¢¢: from 0001 to 9999
Folder C
in BD-RE/DVD-RAM
≥Folder structure is not displayed.
e.g.,
Root
JPEG
Structure of MP3 folders
*1
DCIM
in DVD-R/DVD-R DL/CD-R/CD-RW
Prefix the file names with 3-digit numbers in the order you
want to play them.
XXXXX*2
XXXX.JPG*3
e.g.,
Root
DCIM
XXXXX*2
XXXX.JPG*3
001XXXX.mp3
002XXXX.mp3
001
Folder A
003XXXX.mp3
004XXXX.mp3
005XXXX.mp3
Folder B
006XXXX.mp3
007XXXX.mp3
008XXXX.mp3
009XXXX.mp3
Folder C
010XXXX.mp3
011XXXX.mp3
012XXXX.mp3
Structure of DivX folders
in SD card
Displays JPEG files in all folders.
≥Folder structure is not displayed.
e.g.,
Root
DCIM
XXXXX *2
XXXX.JPG*3
in DVD-R/DVD-R DL/CD-R/CD-RW
Files inside a folder are displayed in the order they were
updated or taken.
e.g.,
Root
Folder A
P0000001.divx
P0000002.divx
Folder A
P0000003.divx
P0000004.divx
P0000005.divx
P0000006.divx
P0000007.divx
P0000008.divx
P0000009.divx
Folder C
P0000010.divx
P0000011.divx
P0000012.divx
Reference
Folder B
RQT9334
(ENG)
39
DMPB15P-RQT9334_eng.book 40 ページ
2009年3月28日
土曜日
午後2時39分
R eference
Indicators and screen messages
Indicators
The [Í] indicator flashes
≥The unit has malfunctioned. Consult your dealer.
rapidly.
The [Í] indicator flashes
slowly.
≥“Monitor” on LCD Menu is “Off” (no image). Turn the unit off when no image is being played.
The [CHARGE] indicator
flashes rapidly.
≥There is a problem with the battery pack. Turn the unit on and check the message on the
LCD. (D below, 41)
The [CHARGE] indicator
flashes slowly.
≥Battery pack charge is low. The unit will turn off automatically after a few minutes.
Screen messages
Cannot read. Please check the
disc.
RQT9334
(ENG)
40
≥Clean the disc. (> 5)
≥You inserted a disc that has not been finalized. (> 6)
ERROR U580
≥A problem has occurred with the battery pack. Consult your dealer.
ERROR U581
≥The battery pack has been recharging but has failed to recharge for some reason. Recharge
again.
ERROR U582
≥You are recharging in a location that is too hot or too cold. Recharge at normal temperature
[i5 to i35 oC (i41 to i95 oF)].
PLEASE WAIT
≥The unit is starting up. Wait until the display disappears.
F99
≥The unit is not operating correctly. Press [POWER Í/I] on the unit for 3 seconds or longer
and turn off the unit. Then, turn on the unit again by pressing [POWER Í/I].
U72
U73
≥There was a problem when connecting the HDMI.
j Connected device is not compatible with HDMI.
j Use a cable with an HDMI logo.
j The HDMI cable is damaged.
U76
≥BD-RE, BD-R, BD-Video or DVD Video with copyright protection cannot be played back
since the device connected to the HDMI terminal is not compatible with the copyright
protection.
U77
≥Video cannot be output since the copyright protection information on the BD-RE, BD-R, BDVideo or DVD Video being played back is not valid.
F ∑∑
H ∑∑
(∑∑ stands for a number.)
≥A problem has occurred. (Numbers following the “F” or the “H” will be different depending on
the status of the unit) Turn off the unit once, and turn it back on. Alternatively, turn off the
unit, disconnect the AC adaptor and the battery pack, and attach them back again.
Authorization Error.
This unit is not authorized to
play this title.
≥[DivX]: You are trying to play the DivX VOD content that was purchased with a different
registration code. You cannot play the content on this unit. (> 20)
Cannot play.
≥You inserted an incompatible disc (Discs recorded in PAL video, etc.). (> 6)
Cannot display on this unit.
≥You tried to play a non-compatible image. (> 38)
≥Re-insert the SD card.
No disc is inserted.
≥The disc may be upside down.
Rental Expired.
≥[DivX]: The DivX VOD content has zero remaining plays. You cannot play it. (> 20)
$ This operation is not
available.
≥Some operations are unsupported by the unit. For example;
j [BD-V]: During playback, reverse slow-motion or reverse frame-by-frame is not possible.
$ This operation is prohibited
by this disc.
≥Depending on the disc, you may not be able to perform search or skip when film previews
and warning screens are being played back.
Cannot connect.
Please check the connection of
the LAN cable.
≥When a hub is used but its Link lamp does not light up, check the cable connection, LAN
terminal connection, cable itself (a crossover cable may have been used by mistake), etc.
(> 28)
IP address is not set.
≥The “IP Address” in “IP Address/DNS Settings” is “---. ---. ---. ---”. Set the “IP Address”,
“Subnet Mask”, and “Default Gateway”. (Select the automatic address acquisition if
necessary.) (> 29)
Cannot obtain IP address using ≥If you use a hub, then check the connection between the hub and the router.
j Use the UPLINK port of the hub to connect to a router. (> 28)
DHCP.
j Check whether or not the hub’s Link lamp lights up. If it does not light up, then check the
Please check the connection or
cable connection, LAN terminal connection, cable itself (a crossover cable may have
router settings.
been used by mistake), etc.
≥If the above conditions are OK, then the router may not operate in DHCP mode. Check the
router settings and operation. You may reset the router to restore it to normal. (> 29)
DMPB15P-RQT9334_eng.book 41 ページ
2009年3月28日
土曜日
午後2時39分
This IP address is already in
use.
Please check the IP address
setting.
≥This unit’s IP address is used by another device. Check the IP addresses of this unit,
personal computers, and routers, etc. If necessary, reconfigure them to avoid IP addresses
from being duplicated.
Unable to perform Connection
Test.
Please try again.
≥Turn the unit off. Disconnect the power source (the AC adaptor or battery pack) and
reconnect it and try again. If the same symptom persists, then consult your dealer.
≥If you use a hub, then check the connection between the hub and the router. (> 28)
j Use the UPLINK port of the hub to connect to a router.
j If the hub’s Link lamp does not light up, then check the cable connection, LAN terminal
connection, cable itself (a crossover cable may have been used by mistake), etc.
≥Check the “IP Address”, “Subnet Mask”, and “Default Gateway” in the “IP Address/DNS
Settings”. (> 29)
≥If the MAC address information is required, then press [SETUP] to display the “Network”
menu. (> 28)
Network connection refused.
Please confirm Setup “BD-Live
Internet Access.”
≥When you set “BD-Live Internet Access” to “Allow (Limited)” and play BD-Live contents
which do not have a content owner certificate, the Internet access of the content is not
allowed. If you allow the content to connect to Internet, set “BD-Live Internet Access” to
“Allow (ALL)”. (> 32)
Unable to check for latest
firmware version.
Please try again later.
≥The firmware download server is currently unavailable. Please try again later.
Reference
IP address not set correctly.
Connection Test was
unsuccessful. No reply
from host.
Please check the connection or
router settings.
RQT9334
(ENG)
41
DMPB15P-RQT9334_eng.book 42 ページ
2009年3月28日
土曜日
午後2時39分
Troubleshooting guide
Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the solutions
indicated in the chart do not solve the problem, refer to “Customer Services Directory (United States and Puerto Rico)” on page 50
if you reside in the U.S.A. and Puerto Rico, or refer to “Product information” on page 51 if you reside in Canada.
The following do not indicate malfunction.
≥Sound from the AC adaptor during recharging.
≥The battery pack warming up when recharging or during use.
≥The surface and area around the unit becoming warm when used for long periods.
Move the unit after waiting for 3 minutes after unplugging the AC adaptor when it needs to be moved or maintained.
≥Operating noises when the unit is turned on.
Safety devices may be operating when the unit does not respond to operations.
1 Press [POWER Í/I] on the unit to turn it off.
If the unit is not turned off, hold down for approximately 3 seconds to force the power off.
2 Press [POWER Í/I] on the unit to turn it on.
If operation is still not possible after performing the above operations, consult the dealer where the unit was purchased.
To reset this unit
To restore the unit if it freezes
≥Press and hold [POWER Í/I] on the unit for 3 seconds.
due to one of the safety devices
(The settings remain unchanged.)
being activated.
To return all settings other than ≥Select “Yes” in “Restore Default Settings” in the Setup menu.
This returns all values in the Setup menu and the on-screen menu, except for “On-screen
some settings to the factory
Language”, “IP Address/DNS Settings”, “Proxy Server Settings”, “DVD-Video Ratings”, “BDpreset.
Video Ratings” and “Network Service” to the default settings. (> 36)
To return all settings to the
factory preset
≥Reset the unit as follows:
1 Press [POWER Í/I] on the unit to turn off the unit.
2 Press and hold [POWER Í/I] and [RETURN ] on the unit at the same time for more
than 5 seconds until “PLEASE WAIT” is displayed on the LCD.
3 The power will turn on and then turn off.
Power
No power.
≥Check connections to the AC adaptor or battery pack. (> 11)
≥The unit has protection circuitry that is activated if it becomes too hot or too cold. The unit
will not work if this occurs. Use the unit between 5 oC (41 oF) and 35 oC (95 oF).
≥Hold down [POWER Í/I] for some time.
≥The unit may not come on immediately after it is turned off. Once the “BYE” display
disappears, press [POWER Í/I] and turn the unit on.
≥The unit can be turned on only when the unit is closed with the screen facing outwards
(> 10, 3 or 4 in “Installation of the unit”).
Unit turns off automatically.
≥The unit turns off after it has been stopped for about 15 minutes (about 5 minutes when the
unit is powered by the battery pack) to conserve power (only when “Auto Power Off” in the
Setup menu is set to “On”). (> 36) Turn the unit on again.
≥Press [OFF TIMER] and the unit will be turned off automatically. (> 12)
≥Safety devices may be operating. Press [POWER Í/I] and turn the unit on.
≥When using VIERA Link (HDMI), the unit will be automatically turned off if the TV is turned off.
If VIERA Link (HDMI) is not being used, set “VIERA Link” settings to “Off”. (> 34)
≥If the screen is rotated when the unit is turned on, the display on the screen will disappear
and the unit will be automatically turned off. (> 10)
Cannot charge or the [CHARGE] ≥The charging time increases when the temperature is too hot or too cold, and charging may
indicator fails to light.
not be possible under some circumstances.
≥Check connections to the AC adaptor or battery pack. (> 11)
Play time dramatically reduced
after recharging.
RQT9334
(ENG)
42
≥The battery pack has reached the end of its service life (It can be recharged about 300
times).
DMPB15P-RQT9334_eng.book 43 ページ
2009年3月28日
土曜日
午後2時39分
Operation
The unit is on but cannot be
operated.
≥The unit can be operated only when closed with the screen facing outwards. (> 10, 3 or 4
in “Installation of the unit”)
≥Is the incorrect playback media or operation function selected?
≥The unit may not be operating properly due to lightning, static electricity or some other
external factor. Turn the unit off and then back to ON. Alternatively, turn the unit off,
disconnect the power source (AC or battery pack), and then reconnect it.
≥Condensation has formed. Wait 1 to 2 hours for it to evaporate.
Play fails to start even when
[1] (PLAY) is pressed.
Play starts but then stops
immediately.
≥Insert the media correctly with the label facing up. (> 13)
≥The media is dirty. (> 5)
≥You tried to play a blank media or unplayable media on this unit. (> 6)
≥[DivX]: If playing DivX VOD content, refer to the homepage where you purchased it. (> 20)
No response when remote
control buttons pressed.
≥The unit can be operated only when closed with the screen facing outwards. (> 10, 3 or 4
in “Installation of the unit”)
≥Check that the battery is installed correctly. (> 9)
≥The battery is depleted: Replace it with new one. (> 9)
≥Point the remote control at the remote control sensor and operate. (> 9)
Start up is slow.
≥Make sure that “Quick Start” is set to “On”. (> 36)
≥Start up takes time in the following situations.
j Immediately after a power failure or the AC adaptor is connected.
j When the unit is connected with an HDMI cable.
It takes time before play starts.
Played back image is distorted
or does not playback correctly.
([AVCHD])
≥High definition video (transfer rate of 18 Mbps or faster) cannot be played back correctly if it
was recorded on a DVD compatible to double speed or slower.
Cannot set “On” in “24p Output”. ≥Only when this unit is connected to a TV supporting 1080/24p output via an HDMI cable, you
can set to “On”. (> 34)
LCD
No picture on the LCD.
≥Check connections. (> 11)
≥Select “On” in “Monitor”. (> 13)
≥The LCD screen is turned off automatically when the LCD screen is rotated. (> 10)
≥The LCD screen can be turned on only when the unit is closed with the screen facing
outwards. (> 10, 3 or 4 in “Installation of the unit”)
≥[DivX]: Images may not be output due to how files were created. (> 38)
The LCD is dark.
≥Select the appropriate picture quality mode. (> 13)
LCD pixels turn black or radiate
different colors.
≥The LCD is constructed with precision technology so 99.99 % of the pixels are active, but of
the remaining of 0.01 %, there are pixels that may be black or emit light constantly. This
phenomenon is not a malfunction.
Picture is distorted.
≥The quality of video will lower on the screen of this unit when HDMI is connected. (> 25)
There is a lot of after-image
when playing video.
≥Turn “3D NR” or “Integrated NR” off if it is on. (> 24)
The 4:3 aspect ratio picture
expands left and right.
≥Check the setting for “TV Aspect”. (> 34)
≥Check the setting for “Screen Aspect”. (> 16)
Screen size is wrong.
Still pictures (JPEG) do not
play back normally.
≥The images that were edited on the PC, such as Progressive JPEG, etc., may not play
back. (> 38)
No sound from the unit’s
speaker.
≥The speaker is off if headphones are connected.
≥Turn up the volume. (> 14)
Cannot hear the desired audio
type.
≥Press [AUDIO] to select the audio. (> 16)
≥[DivX]: Audio may not be output depending on how files were created. (> 38)
Cannot switch audio.
≥There are discs for which audio cannot be changed because of how the disc was created.
≥When connecting an amplifier/receiver using an HDMI cable, you cannot switch the audio if
“Dolby D/Dolby D +/Dolby TrueHD” or “DTS/DTS-HD” is set to “Bitstream”. Set “Dolby D/Dolby
D +/Dolby TrueHD” or “DTS/DTS-HD” to “PCM” or connect using AV IN/OUT terminal. (> 33)
Reference
Sound
RQT9334
(ENG)
43
DMPB15P-RQT9334_eng.book 44 ページ
2009年3月28日
土曜日
午後2時39分
Troubleshooting guide (continued)
Connection
The images from this unit do
not appear on the television.
Picture is distorted.
Jittering occurs.
≥Make sure that the television is connected to the AV IN/OUT terminal or HDMI AV OUT
terminal on this unit. (> 25)
≥Make sure that the television’s input setting (e.g., VIDEO 1) is correct.
≥If “24p Output” is set to “On” when the unit is connected to a TV through any terminal other
than HDMI, images may not display properly. In this case, set “24p Output” to “Off”. (> 34)
≥When “24p Output” is set to “On”, HDMI authentication takes place where 24p images
switch to other images, and a black screen is displayed. (> 34)
≥When “24p Output” is set to “On”, jittering may occur while playing DVD-Video other than
24p images. In this case, turn “24p Output” to “Off”. (> 34)
≥An incorrect resolution is selected in “HDMI Resolution”, when the television is connected to HDMI
AV OUT terminal. Set the item again.
≥Picture may not be seen when more than 4 devices are connected with HDMI cables.
Reduce the number of connected devices.
The screen changes
automatically.
≥When the “Screen Saver Function” in the Setup menu is set to “On”, the display may return to
the screen saver mode automatically if there is no operation for 10 minutes or more. (> 34)
Video is not output in high
definition.
≥High definition video cannot be output through the AV IN/OUT terminal.
≥Confirm that the “HDMI Resolution” in the Setup menu is set properly. (> 34)
Audio is not output in
bitstream.
≥Dolby Digital Plus, Dolby TrueHD, and DTS-HD audio are not output in bitstream. To output the
bitstream, select “Restore Default Settings” to restore the factory presets and make proper settings.
The 4:3 aspect ratio picture
expands left and right.
≥Use the television to change the aspect. Refer to your television’s operating instructions.
≥When using an HDMI cable, change “TV Aspect” type to “4:3 Pan & Scan”. (> 34)
Screen size is wrong.
No sound from other speakers.
≥Check all connections and settings. (> 25)
Cannot hear the desired audio
type.
≥Audio may not be heard when more than 4 devices are connected with HDMI cables.
Reduce the number of connected devices.
Cannot switch audio.
≥When connecting an amplifier/receiver using an HDMI cable, you cannot switch the audio if
“Dolby D/Dolby D +/Dolby TrueHD” or “DTS/DTS-HD” is set to “Bitstream”. Set “Dolby D/Dolby
D +/Dolby TrueHD” or “DTS/DTS-HD” to “PCM” or connect using AV IN/OUT terminal. (> 33)
The subtitles overlap closed
captions recorded on discs.
≥Turn off the subtitles or turn off the closed caption setting on the TV. (> 23)
Card
The capacity of the SD card
decreased.
≥When a BD-Video that supports BD-Live is used, and an SD card is in the slot, data may be
written to the SD card. (> 17)
Music on an SD card cannot be
played.
≥Data that can be played from an SD card are AVCHD, MPEG2 and JPEG data. (> 7)
The contents of the card
cannot be read.
≥The card is not compatible or the contents on the card may be damaged. (> 7)
≥Turn off and then turn on the unit again.
Network
RQT9334
(ENG)
44
I can’t connect to the network.
≥Are you subscribed to high speed internet connection? Check that the LAN cable is
properly connected. (> 28)
≥Have you plugged a telephone cord into the LAN terminal on this unit? Connect with a
straight LAN cable. (> 28)
≥Confirm the power for the modem or broadband router is turned on.
≥Confirm the network settings. Follow any instructions you may have received from your ISP
(Internet Service Provider) and make changes to the settings.
≥Are the broadband router settings correct? Read the operating instructions for the broadband router.
≥Is the broadband router and/or modem connected correctly? Check the operating
instructions for each device and connect accordingly.
≥Check the “Network” and “BD-Live Internet Access” settings. (> 28, 32, 35)
VIERA CAST does not operate
or connect.
≥Is the network connection correct? (> 28)
≥Image of the video contents may be incomplete or may not display depending on how busy
the environment or the connected line is.
DMPB15P-RQT9334_eng.book 45 ページ
2009年3月28日
土曜日
午後2時39分
Other difficulties with playback
Audio and video momentarily
pause.
≥This occurs between playlist chapters or scenes ([AVCHD]).
≥When playing a title recorded on both layers, the unit automatically switches between
layers and plays the title in the same way as a normal program. However, video and audio
may momentarily cut out when the unit is switching layers.
BD-Video or DVD-Video is not
played.
≥Ensure the disc is for the correct BD-Video region code or DVD-Video region number, and
is not defective. (> cover)
≥You have set a ratings level to limit BD-Video or DVD-Video play. Change this setting.
(> 32)
≥Some BD-Video can only be output with HDMI.
Picture-in-picture is not played
with BD-Video.
≥Confirm whether the disc supports picture-in-picture.
BD-Live is not played with BDVideo.
≥Confirm whether the disc supports BD-Live. (> 17)
≥The inserted SD card does not have sufficient available capacity. (> 17)
≥The SD card is write-protected. (> 7)
≥Sub contents copied to an SD card are provided by the disc producer as a part of the BDVideo content. Even if you record images and audio onto an SD card, it cannot be played
as a BD-Live. (> 17)
Alternative soundtrack and
subtitles cannot be selected.
≥The languages are not recorded on the media.
≥You may not be able to use the on-screen menu to change the soundtrack and subtitles on
some discs. Use the disc’s menus to make changes. (> 14)
No subtitles.
≥Subtitles are not recorded on the media.
≥Turn the subtitles on. Set “Subtitle” on the on-screen menu to “On”. (> 23)
≥When progressive output is on, closed captions cannot be displayed.
Angle cannot be changed.
≥Angles can only be changed during scenes where different angles are recorded.
The resume play function does
not work.
≥The memorized position is cleared in the following instances:
j [∫] is pressed several times.
j The disc or SD card is removed.
j The unit is turned off during CD or SD card playback.
j The unit is turned off due to such occurrences as power outage, the removal of the AC
adaptor or waste of the battery pack’s remaining power when the unit is turned on.
≥The resume play function may not work depending on the media.
≥[BD-V]: On BD-Video discs including BD-J, the resume play function does not work.
You have forgotten your ratings
password.
≥While the disc and SD card are removed, press and hold [SKIP :] and [SUB MENU ] on
the unit at the same time for more than 5 seconds. Turn the unit off. “DVD-Video Ratings”,
“BD-Video Ratings” and “Network Service” will return to the default settings.
The VIERA Link does not work.
≥Is the unit screen facing outward and closed? (> 10, 3 or 4 in “Installation of the unit”)
The unit cannot be operated with the TV remote control in any other condition.
≥When using the unit with only the battery pack, operate after turning the unit on. (> 12)
When a recorder or player etc.
is operated with a remote
control, the unit is also
simultaneously operated.
≥Change the remote control codes on the Panasonic recorders or players.
Reference
When the unit’s remote control
is operated, other Panasonic
recorders or players etc. are
also simultaneously operated.
RQT9334
(ENG)
45
DMPB15P-RQT9334_eng.book 46 ページ
2009年3月28日
土曜日
Specifications
Power supply:
Pickup:
Wave length:
DC 12 V (DC IN terminal)/
DC 7.2 V (Exclusive battery terminal)
Power consumption (using included AC adaptor):
Play Mode:
Approx. 22 W (Unit only Approx. 18 W)
Recharge mode:
Approx. 12 W
Standby mode (Quick Start “Off”):
Approx. 0.5 W
Standby mode (Quick Start “On”):
Approx. 5 W
AC adaptor:
Power source:
Power consumption:
DC output:
Car DC Adaptor:
DC output:
AC 110 to 240 V, 50/60 Hz
36 W
12 V, 2000 mA
DY-DB15 (included)
7.2 V
4200 mAh
Dimensions (WkHkD) (excluding protrusions and battery):
256 mm (W)k202 mm (H)k58.7 mm (D)
(10 5/64qk7 31/32qk2 5/16q)
Mass (Weight):
(including battery)
(without battery)
Approx. 1688 g (59.54 oz)
Approx. 1455 g (51.32 oz)
Operating temperature range: i5 to i35 oC (i41 to i95 oF)
Operating humidity range: 10 to 80 % RH (no condensation)
Signal system:
NTSC
LCD screen:
8.9q α-Si, TFT wide-screen LCD (1024k600kRGB)
HDMI AUDIO/VIDEO output:
Number of terminals:
LAN:
Number of terminals:
1 system
1 system (10BASE-T/100BASE-TX)
AUDIO/VIDEO output/input:
Output/input terminal:
‡ 3.5 mm (1/8q) mini jack
Number of terminals:
1 system (output/input selectable)
Composite-video:
Output/input level:
1 Vp-p (75 ≠)
Audio:
Output/input level:
1.5 Vrms (1 kHz, 0 dB, 10 k≠)
Audio performance:
Frequency response:
≥DVD (linear audio):
4 Hz to 22 kHz (48 kHz sampling)
4 Hz to 44 kHz (96 kHz sampling)
≥CD audio:
4 Hz to 20 kHz
S/N ratio:
100 dB
Dynamic range:
90 dB
Total harmonic distortion:
0.015 %
Speaker:
Output:
Headphone output:
Output:
Number of terminals:
46
405 nm/661 nm/783 nm (BD/DVD/CD)
Laser power:
CLASS II/CLASS II/CLASS IIIb (BD/DVD/CD) HHS/for USA
CLASS 2/CLASS 2M/CLASS 3B (BD/DVD/CD) IEC/for Canada
Playable disc:
BD-Video
BD-ROM:
BD-RE:
BD-R:
DVD-RAM:
DVD-R/DVD-R DL:
12 V, 2 A (Vehicle with 12 V battery only)
Battery pack (lithium ion):
Voltage:
Capacity (Minimum):
RQT9334
(ENG)
午後2時39分
0.5 W i 0.5 W (8 ≠)
‡ 3.5 mm (1/8q) stereo mini jack
1 system
DVD-RW:
+R/+RW/+R DL:
DVD-VIDEO:
CD-Audio:
CD-R/CD-RW:
Version 2
Version 3 (Single Layer, Dual Layer),
JPEG
Version 2 (Single Layer, Dual Layer)
DVD Video Recording format,
AVCHD format, JPEG
DVD-Video format*1, DVD-Video
Recording format*1, AVCHD format*1,
DivX*2, *3, JPEG*2, MP3*2
DVD-Video format*1, DVD-Video
Recording format*1, AVCHD format*1
Video*1, AVCHD format*1
DVD-Video format
CD-DA
CD-DA, JPEG*2, MP3*2, DivX*2, *3
SD card:
SD Memory Card*4 formatted FAT12, FAT16, FAT32*5:
JPEG, AVCHD format, MPEG-2
JPEG*6:
Playable media:
BD-RE, DVD-RAM, DVD-R, DVD-R DL,
CD-R, CD-RW, SD card
Pixels:
34 k 34 to 8192 k 8192
Sub Sampling:
4:2:2, 4:2:0
Maximum numbers of folders
≥CD-R, CD-RW:
99
≥BD-RE, DVD-RAM, DVD-R, DVD-R DL, SD card:
300
Maximum numbers of files
≥CD-R, CD-RW:
999
≥BD-RE:
9999
≥DVD-RAM, DVD-R, DVD-R DL, SD card:
3000
MP3:
Playable media:
Compression rate:
Sampling rate:
DVD-R, DVD-R DL, CD-R, CD-RW
32 kbps to 320 kbps
44.1 kHz, 48 kHz
AVCHD (H.264):
Playable media: DVD-RAM, DVD-R, DVD-R DL, DVD-RW,
+R, +RW, +R DL, SD card
File format:
AVCHD format V1.0
HDMI:
480p(525p) / 720p(750p) / 1080i(1125i) / 1080/24p
HDMITM (x.v.ColorTM, High Bit rate Audio)
This unit supports “HDAVI Control 4” function.
2009年3月28日
土曜日
Specifications are subject to change without notice.
*1 Finalizing is necessary.
*2 ISO9660 level 1 or 2 (except for extended formats),Joliet
This unit is compatible with multi-session.
This unit is not compatible with packet writing.
*3 Certified to the DivX Home Theater Profile.
GMC (Global Motion Compensation) is not supported.
Maximum number of folders recognizable: 300 folders.
(including the root folder)
Maximum number of files recognizable: 200 files.
*4 includes SDHC card
includes miniSD Cards (need a miniSD Adaptor.)
includes microSD/microSDHC Cards (need a microSD
Adaptor.)
*5 Not support long file name
*6 Motion JPEG not supported
≥Useable capacity will be less. (SD Card)
午後2時39分
Licenses
Java and all Java-based trademarks and logos are
trademarks or registered trademarks of Sun Microsystems,
Inc. in the United States and other countries.
Manufactured under license from Dolby Laboratories. Dolby
and the double-D symbol are trademarks of Dolby
Laboratories.
Manufactured under license under U.S. Patent #’s:
5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616;
6,487,535 & other U.S. and worldwide patents issued &
pending.
DTS is a registered trademark and the DTS logos, Symbol,
DTS-HD and DTS-HD Advanced Digital Out are trademarks
of DTS, Inc.
© 1996-2008 DTS, Inc. All Rights Reserved.
This product incorporates copyright protection technology
that is protected by U.S. patents and other intellectual
property rights. Use of this copyright protection technology
must be authorized by Macrovision, and is intended for home
and other limited viewing uses only unless otherwise
authorized by Macrovision. Reverse engineering or
disassembly is prohibited.
HDMI, the HDMI logo and High-Definition Multimedia
Interface are trademarks or registered trademarks of HDMI
Licensing LLC.
This product is licensed under the AVC patent portfolio
license and VC-1 patent portfolio license for the personal and
non-commercial use of a consumer to (i) encode video in
compliance with the AVC Standard and VC-1 Standard
(“AVC/VC-1 Video”) and/or (ii) decode AVC/VC-1 Video that
was encoded by a consumer engaged in a personal and
non-commercial activity and/or was obtained from a video
provider licensed to provide AVC/VC-1 Video. No license is
granted or shall be implied for any other use. Additional
information may be obtained from MPEG LA, LLC.
See http://www.mpegla.com.
HDAVI Control™ is a trademark of Panasonic Corporation.
“x.v.Color™” is a trademark.
VIERA Link™ is a trademark of Panasonic Corporation.
VIERA CAST™ is a trademark of Panasonic Corporation.
EZ Sync™ is a trademark of Panasonic Corporation.
“AVCHD” and the “AVCHD” logo are trademarks of
Panasonic Corporation and Sony Corporation.
SDHC Logo is a trademark.
Portions of this product are protected under copyright law
and are provided under license by ARIS/SOLANA/4C.
Plays DivX® video
DivX® is a registered trademark of
DivX, Inc., and is used under license.
“Blu-ray Disc” is trademark.
“BD-LIVE” logo is trademark of Blu-ray Disc Association.
“BONUSVIEW” is trademark of Blu-ray Disc Association.
Reference
DMPB15P-RQT9334_eng.book 47 ページ
YouTube and Picasa are trademarks of Google, Inc.
RQT9334
(ENG)
47
DMPB15P-RQT9334_eng.book 48 ページ
2009年3月28日
土曜日
Glossary
AVCHD
AVCHD is a new format (standard) for high definition video
cameras that can be used to record and play high-resolution
HD images.
BD-J
Some BD-Video discs contain Java applications, and these
applications are called BD-J. You can enjoy various interactive
features in addition to playing normal video.
BD-Live
This is a BD-Video (BD-ROM Profile 2) that supports the new
functions such as Internet connection, etc. in addition to the
BONUSVIEW function.
Bitstream
This is the digital form of multi-channel audio data (e.g., 5.1
channel) before it is decoded into its various channels.
BONUSVIEW (Final Standard Profile)
This is a BD-Video (BD-ROM Profile 1 version 1.1) that
supports the new functions such as Picture-in-picture and
Secondary Audio, etc.
DivX
DivX is a popular media technology created by DivX, Inc. DivX
media files contain highly compressed video with high visual
quality that maintains a relatively small file size.
DNS Server
A server which acts like a telephone directory and translates
Internet domain names into IP addresses.
Dolby Digital
This is a method of coding digital signals developed by Dolby
Laboratories. Apart from stereo (2-channel) audio, these
signals can also be multi-channel audio.
Dolby Digital Plus
Multi-channel audio and higher audio quality is made possible
using Dolby Digital Plus. BD-Video supports up to 7.1 channel
output.
* This unit allows audio to be decoded to a maximum of 5.1 ch
of PCM audio and output from the HDMI terminal. Also, audio
can be output with “Bitstream” to an AV amplifier that
supports it.
Dolby TrueHD
Dolby TrueHD is a very high quality audio format that
reproduces the studio master audio. BD-Video supports up to
7.1 channel output.
* This unit allows audio to be decoded to a maximum of 5.1 ch
of PCM audio and output from the HDMI terminal. Also, audio
can be output with “Bitstream” to an AV amplifier that
supports it.
Down-mixing
This is the process of remixing the multi-channel audio found
on some discs into fewer channels.
DTS (Digital Theater Systems)
This surround system is used in many movie theaters. There is
good separation between the channels, so realistic sound
effects are possible.
RQT9334
(ENG)
48
午後2時39分
DTS-HD
DTS-HD is a high-quality, sophisticated audio format used in
movie theaters. Previous DTS Digital Surround-compatible
equipment can play DTS-HD as DTS Digital Surround audio.
BD-Video supports up to 7.1 channel output.
DTS-HD High Resolution Audio
This is a signal format achieved by improving the previous
DTS, DTS-ES and DTS96/24 formats. It is compatible with
sampling frequency 96 kHz/48 kHz. BD-Video supports up to
7.1 channel output.
DTS-HD Master Audio
This is a lossless audio format and compatible with 96 kHz/
7.1ch or less. In addition, faithful reproduction of the master
audio is enabled using lossless audio encoding technology.
BD-Video supports up to 7.1 channel output.
Dynamic range
Dynamic range is the difference between the lowest level of
sound that can be heard above the noise of the equipment and
the highest level of sound before distortion occurs.
Dynamic range compression means reducing the gap between
the loudest and softest sounds. This means you can listen at
low volumes but still hear dialog clearly.
Film and video
DVD-Video are recorded using either film or video. This unit
can determine which type has been used, then uses the most
suitable method of progressive output.
Film:
Recorded at 24 frames per second. (Recorded at
30 frames per second as well). Generally
appropriate for motion picture films.
Video:
Recorded at 30 frames/60 fields per second.
Generally appropriate for TV drama programs or
animation.
Folder
This is a place on the disc or SD card where groups of data are
stored together. Additional folders can be created within
folders, and you can make detailed classifications depending
on the folder structure. (> 39)
Frames and fields
Frames refer to the single images that constitute the video you
see on your television. Each frame consists of two fields.
u
Frame
r
Field
Field
≥A frame still shows two fields, so there may be some blurring,
but picture quality is generally better.
≥A field still shows less picture information so it may be
rougher, but there is no blurring.
Gateway
IP address of the electronic device providing Internet access.
Usually called a router IP address. (e.g., 192.168.0.1)
HDMI (High-Definition Multimedia Interface)
HDMI is a digital interface for consumer electronic products.
Unlike conventional connections, it transmits uncompressed
digital video and audio signals on a single cable.
Hub
Used for connecting more than one device to the network.
2009年3月28日
土曜日
IP address
A set of numbers which distinguish each device on the network
when, for example, connected to the Internet. When using a
PC in a LAN to access a PC or device that is not included in the
LAN, the IP address is called the local IP address. (e.g.,
192.168.0.10)
JPEG (Joint Photographic Experts Group)
This is a system used for compressing/decoding color still
pictures. If you select JPEG as the storage system on digital
cameras, etc., the data will be compressed to 1/10–1/100 of its
original size. The benefit of JPEG is less deterioration in picture
quality considering the degree of compression.
LAN (Local Area Network)
A group of linked devices in a company, school or home.
Indicates the boundaries of a particular network.
Local storage
This storage area is used as a destination for sub contents for
playing BD-Live on BD-Video.
LPCM (Linear PCM)
This is a type of PCM format.
These are uncompressed digital signals, similar to those found
on CDs.
MPEG2 (Moving Picture Experts Group)
A standard for efficiently compressing and expanding color
video.
MPEG2 is a compression standard used for DVD and satellite
based digital broadcasting.
MP3 (MPEG Audio Layer 3)
An audio compression method that compresses audio to
approximately one tenth of its size without any significant loss
of audio quality.
Pan&Scan/Letterbox
In general, DVD-Video are produced with the intention that they
be viewed on a widescreen television (16:9 aspect ratio), so
images often don’t fit regular (4:3 aspect ratio) televisions. Two
styles of picture, “Pan & Scan” and “Letterbox”, deal with this
problem.
Pan&Scan: The sides are cut off so the
picture fills the screen.
Letterbox: Black bands appear at the top
and bottom of the picture so
the picture itself appears in an
aspect ratio of 16:9.
PCM (Pulse Code Modulation)
This is one format for converting analog audio into digital audio,
enabling you to enjoy digital audio with no hassle.
Picture-in-picture
This is a function of BD-Video that plays the primary video and
secondary video simultaneously. For instance, the function is
capable of playing the original movie as the primary video while
playing video commentary from the film director on a small
screen as a secondary video.
午後2時39分
Progressive/Interlace
The video signal standard of NTSC has 480 interlaced (i) scan
lines, whereas progressive (p) scanning uses twice the number
of scan lines, and this is referred to as 480p. Using progressive
output, you can enjoy watching high resolution video.
Router
Distinguishes the IP address assigned to each device, such as
the PC, and relays the flow of data within the network.
Sampling frequency
Sampling is the process of converting the heights of sound
wave (analog signal) samples taken at set periods into digits
(digital encoding). Sampling frequency is the number of
samples taken per second, so larger numbers mean more
faithful reproduction of the original sound.
Subnet mask
Enables efficient network use. A set of numbers which identify
which part of the IP address allocated to every device
connected to the router is the network portion.
VIERA CASTTM
An information service unique to Panasonic where specific
Web sites can be viewed on this unit by connecting to the
Internet without using a PC.
x.v.ColorTM
x.v.Color TM is a name for devices that are compatible with the
xvYCC format, an international standard for expanded color in
motion pictures, and that follow the rules for signal
transmission.
You can enjoy vivid colors of wider color ranges for a more
realistic picture when connected to a TV that supports the
x.v.Color TM with HDMI cable.
1080i (1125i)
In one high definition image, 1080 (1125) alternating scan lines
pass to create an interlaced image. Because 1080i (1125i)
more than doubles current television broadcasts of 480i, the
detail is much clearer and creates a more realistic and rich
image.
1080p (1125p)
In one high definition image, 1080 (1125) scan lines pass at the
same time to create a progressive image. Since progressive
video does not alternate scan lines like interlace, there is a
minimal amount of screen flicker.
* This unit can only output 1080/24p.
24p
This is a progressive image recorded at a rate of 24 frames per
second.
720p (750p)
In one high definition image, 720 (750) scan lines pass at the
same time to create a progressive image. Since progressive
video does not alternate scan lines like interlace, there is a
minimal amount of screen flicker.
Reference
DMPB15P-RQT9334_eng.book 49 ページ
RQT9334
(ENG)
49
DMPB15P-RQT9334_eng.book 50 ページ
2009年3月28日
土曜日
午後2時39分
Limited Warranty (For U.S.A. and Puerto Rico Only)
Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094
Panasonic Portable Blu-ray Disc Player Limited Warranty
Limited Warranty Coverage (For U.S.A. and Puerto Rico Only)
If your product does not work properly because of a defect in materials
or workmanship, Panasonic Consumer Electronics Company (referred to
as “the warrantor”) will, for the length of the period indicated on the chart
below, which starts with the date of original purchase (“Limited Warranty
period”), at its option either (a) repair your product with new or
refurbished parts, or (b) replace it with a new or a refurbished product.
The decision to repair or replace will be made by the warrantor.
Product or Part Name
Parts
Labor
One (1) Year
One (1) Year
Rechargeable Batteries
(in exchange for defective item)
Ninety (90)
Days
Not Applicable
Headrest mounting bracket,
Headphones, Accessories
(in exchange for defective item)
Ninety (90)
Days
Not Applicable
Portable Blu-ray Disc Player
During the “Labor” Limited Warranty period there will be no charge for
labor. During the “Parts” warranty period, there will be no charge for
parts. You must mail-in your product during the warranty period. If
non-rechargeable batteries are included, they are not warranted. This
Limited Warranty only applies to products purchased and serviced in the
United States or Puerto Rico. This Limited Warranty is extended only to
the original purchaser and only covers product purchased as new. A
purchase receipt or other proof of original purchase date is required for
Limited Warranty service.
Mail-In Service
For assistance in the U.S.A. and Puerto Rico in obtaining repairs please
ship the product prepaid to:
Centralized Factory Service Center
Panasonic Service and Technology Company
410B Airport Road
Elgin, IL 60123-9333
Attention: BD/DVD Repair
Please carefully pack and ship, prepaid and insured, to Elgin Centralized
factory Service Center.
When shipping the unit carefully pack, include all accessories, and send
it prepaid, adequately insured and preferably in the original carton.
Include a letter detailing the complaint, a return address and provide a
day time phone number where you can be reached. A valid registered
receipt is required under the Limited Warranty.
IF REPAIR IS NEEDED DURING THE LIMITED WARRANTY PERIOD
THE PURCHASER WILL BE REQUIRED TO FURNISH A SALES
RECEIPT/PROOF OF PURCHASE INDICATING DATE OF
PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE.
CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT
RECEIVED WITHOUT SUCH PROOF OF PURCHASE.
Limited Warranty Limits And Exclusions
This Limited Warranty ONLY COVERS failures due to defects in
materials or workmanship, and DOES NOT COVER normal wear and
tear or cosmetic damage. The Limited Warranty ALSO DOES NOT
COVER damages which occurred in shipment, or failures which are
caused by products not supplied by the warrantor, or failures which
result from accidents, misuse, abuse, neglect, mishandling,
misapplication, alteration, faulty installation, set-up adjustments,
misadjustment of consumer controls, improper maintenance, power line
surge, lightning damage, modification, or commercial use (such as hotel,
office, restaurant, or other business), rental use of the product, or
service by anyone other than a Factory Service Center or other
Authorized Servicer, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED
UNDER “LIMITED WARRANTY COVERAGE”. THE WARRANTOR IS
NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT
OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes
damages for lost time, cost of having someone remove or re-install an
installed unit if applicable, travel to and from the servicer, loss of or
damage to media or images, data or other recorded content. The items
listed are not exclusive, but are for illustration only.)
ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE
WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE
PERIOD OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or
consequential damages, or limitations on how long an implied Limited
Warranty lasts, so the exclusions may not apply to you.
This Limited Warranty gives you specific legal rights and you may also
have other rights which vary from state to state. If a problem with this
product develops during or after the Limited Warranty period, you may
contact your dealer or Service Center. If the problem is not handled to
your satisfaction, then write to the warrantor’s Consumer Affairs
Department at the addresses listed for the warrantor.
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS
LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.
Customer Services Directory
(United States and Puerto Rico)
Obtain Product Information and Operating Assistance; locate
your nearest Dealer or Service Center; purchase Parts and
Accessories; or make Customer Service and Literature requests
by visiting our Web Site at:
http://www.panasonic.com/help
or, contact us via the web at:
http://www.panasonic.com/contactinfo
You may also contact us directly at:
1-800-211-PANA (7262),
Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.
For hearing or speech impaired TTY users, TTY: 1-877-833-8855
Accessory Purchases
(United States and Puerto Rico)
Purchase Parts, Accessories and Instruction Books online for
all Panasonic Products by visiting our Web Site at:
http://www.pstc.panasonic.com
or, send your request by E-mail to:
[email protected]
You may also contact us directly at:
1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only)
(Monday – Friday 9 am to 9 pm, EST.)
Panasonic Service and Technology Company
20421 84th Avenue South, Kent, WA 98032
(We Accept Visa, MasterCard, Discover Card, American
Express, and Personal Checks)
For hearing or speech impaired TTY users, TTY : 1-866-605-1277
As of October 2008
User memo:
DATE OF PURCHASE _________________________
DEALER NAME_______________________________
DEALER ADDRESS ___________________________
____________________________________________
TELEPHONE NUMBER ________________________
RQT9334
(ENG)
50
The model number and serial number of this product can be found
on the rear of the unit.
Please note them in the space provided below and keep for future
reference.
MODEL NUMBER
DMP-B15
SERIAL NUMBER _____________________________________
DMPB15P-RQT9334_eng.book 51 ページ
2009年3月28日
土曜日
午後2時39分
Limited Warranty (For Canada Only)
Panasonic Canada Inc.
PANASONIC PRODUCT – LIMITED WARRANTY
Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect for a period
as stated below from the date of original purchase.
Technics Audio Product
Panasonic Portable/Clock Radio (without Tape, CD, MD)
Panasonic Audio/SD Audio Product
Panasonic BD/DVD Product
Panasonic Combination DVD Player/VCR
Panasonic Combination DVD Recorder/VCR
Accessories including rechargeable batteries
One (1) year, parts
One (1) year, parts
One (1) year, parts
One (1) year, parts
One (1) year, parts
One (1) year, parts
Ninety (90) days
and labour
and labour
and labour
and labour
and labour
and labour
LIMITATIONS AND EXCLUSIONS
This warranty does not apply to products purchased outside Canada or to any product which has been improperly installed, subjected to usage for
which the product was not designed, misused or abused, damaged during shipping, or which has been altered or repaired in any way that affects the
reliability or detracts from the performance, nor does it cover any product which is used commercially. Dry cell batteries are also excluded from
coverage under this warranty.
This warranty is extended to the original end user purchaser only. A purchase receipt or other proof of date of original purchase is required before
warranty service is performed.
THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES.
In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied
warranties, so the above limitations and exclusions may not be applicable.
WARRANTY SERVICE
FOR PRODUCT OPERATION ASSISTANCE, please contact:
Our Customer Care Centre:
Telephone #:
1-800 #:
Fax #:
Email link:
(905) 624-5505
1-800-561-5505
(905) 238-2360
“Customer support” on www.panasonic.ca
FOR PRODUCT REPAIRS, please locate your nearest Authorized Servicentre at www.panasonic.ca :
Link : “ServicentresTM locator” under “Customer support”
IF YOU SHIP THE PRODUCT TO A SERVICENTRE
Carefully pack and send prepaid, adequately insured and preferably in the original carton.
Include details of the defect claimed, and proof of date of original purchase.
Product Service
1 Damage requiring service—The unit should be serviced by qualified service personnel if:
2
3
4
(a)The AC power supply cord or AC adaptor has been damaged; or
(b)Objects or liquids have gotten into the unit; or
(c)The unit has been exposed to rain; or
(d)The unit does not operate normally or exhibits a marked change in performance; or
(e)The unit has been dropped or the cabinet damaged.
Servicing—Do not attempt to service the unit beyond that described in these operating instructions. Refer all other servicing to authorized
servicing personnel.
Replacement parts—When parts need replacing ensure the servicer uses parts specified by the manufacturer or parts that have the same
characteristics as the original parts. Unauthorized substitutes may result in fire, electric shock, or other hazards.
Safety check—After repairs or service, ask the servicer to perform safety checks to confirm that the unit is in proper working condition.
Product information
In Canada, contact the Panasonic Canada Inc. Customer Care Centre at 1-800-561-5505, or visit the website (www.panasonic.ca), or an authorized
Servicentre closest to you.
Reference
For product information or assistance with product operation:
In the U.S.A. and Puerto Rico, refer to “Customer Services Directory (United States and Puerto Rico)” on page 50.
RQT9334
(ENG)
51
DMPB15P-RQT9334_eng.book 52 ページ
2009年3月28日
土曜日
午後2時39分
Index
A AC adaptor . . . . . . . . . . . . . . . . . 11
Angle . . . . . . . . . . . . . . . . . . . . . . 23
Audio
Attribute . . . . . . . . . . . . . . . . . . 23
Changing audio . . . . . . . . . . . . 16
Channel . . . . . . . . . . . . . . . . . . 23
Language . . . . . . . . . . . . . . 23, 32
AVCHD. . . . . . . . . . . . . . . . . . . . . 48
B BD-J . . . . . . . . . . . . . . . . . . . . . . . 48
BD-Live . . . . . . . . . . . . . . . . . 17, 48
BD-Video Ratings . . . . . . . . . . . . 32
BONUSVIEW (Final Standard
Profile) . . . . . . . . . . . . . . . . . . 17, 48
C Chapter . . . . . . . . . . . . . . . . . . . . 15
Cleaning
Disc . . . . . . . . . . . . . . . . . . . . . . 5
Lens . . . . . . . . . . . . . . . . . . . . . . 5
Main unit. . . . . . . . . . . . . . . . . . . 5
Connection
HDMI . . . . . . . . . . . . . . . . . . . . 25
D Dialog Enhancer . . . . . . . . . . . . . 24
Direct Navigator . . . . . . . . . . . . . 14
Disc and card handling . . . . . . . . 5
Discs that cannot be played . . . . 7
DivX . . . . . . . . . . . . . . . . 20, 38, 48
DNS Server . . . . . . . . . . . . . . 28, 48
Dolby Digital . . . . . . . . . . 33, 37, 48
Dolby Digital Plus. . . . . . 33, 37, 48
Dolby TrueHD . . . . . . . . . 33, 37, 48
DTS . . . . . . . . . . . . . . . . . 33, 37, 48
DTS-HD . . . . . . . . . . . . . . 33, 37, 48
F Finalize . . . . . . . . . . . . . . . . . . . . . 6
Firmware . . . . . . . . . . . . . . . . . . . 31
Format . . . . . . . . . . . . . . . . . . . . . 17
Frame-by-frame . . . . . . . . . . . . . 16
H HDMI . . . . . . . . . . . . . . . . . . . 25, 48
I IP address . . . . . . . . . . . . . . . 28, 49
J JPEG . . . . . . . . . . . . . . . . 18, 38, 49
L LAN . . . . . . . . . . . . . . . . . . . . 28, 49
Language
Audio . . . . . . . . . . . . . . . . . 23, 32
Code list . . . . . . . . . . . . . . . . . . 36
Menu. . . . . . . . . . . . . . . . . . . . . 32
On-screen. . . . . . . . . . . . . . . . . 34
Soundtrack . . . . . . . . . . . . . . . . 23
Subtitle . . . . . . . . . . . . . . . . 23, 32
Local storage . . . . . . . . . . . . . . . 49
LPCM . . . . . . . . . . . . . . . . . . . . . . 49
M Maintenance . . . . . . . . . . . . . . . . . 5
Menu
On-screen. . . . . . . . . . . . . . . . . 23
Pop-up . . . . . . . . . . . . . . . . . . . 14
Setup . . . . . . . . . . . . . . . . . . . . 32
MPEG2 . . . . . . . . . . . . . . . . . . . . . 49
MP3 . . . . . . . . . . . . . . . . . 22, 38, 49
N Noise reduction (NR)
Integrated NR . . . . . . . . . . . . . . 24
3D NR. . . . . . . . . . . . . . . . . . . . 24
O Off Timer . . . . . . . . . . . . . . . . . . . 12
On-screen
Language . . . . . . . . . . . . . . . . . 34
Menu. . . . . . . . . . . . . . . . . . . . . 23
Status messages . . . . . . . . . . . 16
P Picture-in-picture . . . . . . . . . . . 17
Playlist . . . . . . . . . . . . . . . . . . . . . 12
Pop-up Menu. . . . . . . . . . . . . . . . 14
Product Disposal . . . . . . . . . . . . . 5
Progressive . . . . . . . . . . . . . . 24, 49
Properties
Chapter . . . . . . . . . . . . . . . . . . . 15
Still picture . . . . . . . . . . . . . . . . 19
Proxy Server . . . . . . . . . . . . . . . . 29
Q Quick Start. . . . . . . . . . . . . . . . . . 36
R Ratings level . . . . . . . . . . . . . . . . 32
Remote control . . . . . . . . . . . . . . . 9
Repeat play . . . . . . . . . . . . . . . . . 24
Restore Default Settings . . . . . . 36
Resume play function . . . . . . . . 15
S SD card . . . . . . . . . . . . . . . . . 13, 17
Search . . . . . . . . . . . . . . . . . . . . . 15
Selected playback . . . . . . . . . . . 16
Setup menu . . . . . . . . . . . . . . . . . 32
Skip . . . . . . . . . . . . . . . . . . . . . . . 15
Slideshow . . . . . . . . . . . . . . . . . . 18
Slow-motion . . . . . . . . . . . . . . . . 15
Soundtrack . . . . . . . . . . . . . . . . . 23
Status Message. . . . . . . . . . . . . . 16
Still pictures . . . . . . . . . . . . . . . . 18
Subtitle . . . . . . . . . . . . . . . . . . . . 23
V VIERA CASTTM . . . . . . . . . . . . . . 30
VIERA LinkTM
“HDAVI ControlTM” . . . . . . . . . . . . . . 26
X x.v.ColorTM . . . . . . . . . . . . . . . . . . 49
24p. . . . . . . . . . . . . . . . . . . . . . . . 24, 34
-If you see this symbolInformation on Disposal in other Countries outside the
European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact
your local authorities or dealer and ask for the correct
method of disposal.
Panasonic Consumer Electronics
Company, Division of Panasonic
Corporation of North America
One Panasonic Way, Secaucus,
New Jersey 07094
http://www.panasonic.com
Panasonic Canada Inc.
5770 Ambler Drive
Mississauga, Ontario
L4W 2T3
www.panasonic.ca
p
C Panasonic Corporation 2009
Printed in China
RQT9334-Y
F0309BL0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
