Panasonic Blood Pressure Monitor EW-BU35 User manual
BU35.indb

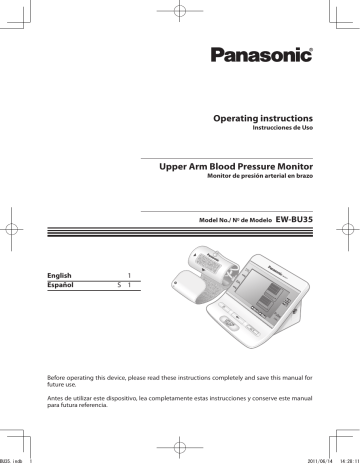

Operating instructions
Instrucciones de Uso
Upper Arm Blood Pressure Monitor
Monitor de presión arterial en brazo
Model No./ Nº de Modelo
English
Español
1
S 1
EW-BU35
3
Before operating this device, please read these instructions completely and save this manual for
future use.
Antes de utilizar este dispositivo, lea completamente estas instrucciones y conserve este manual
para futura referencia.
1
2011/06/14
14:28:11
BEFORE USE
Panasonic Oscillometric Automatic Arm Blood Pressure Monitor Model EW-BU35 is a
device intended to measure systolic and diastolic blood pressure and pulse rate of an
adult individual by using a pressurized cuff on the arm. The device is not intended for
use on neonatal, infants and children. The device is designed for home use only, not
for ambulatory measurement (measurement recorded continuously during the day).
Specifications of this device are listed in page 21.
English
BU35.indb
BEFORE USE
Blood pressure measurements determined with this device are equivalent to those
obtained by a trained observer using the cuff/stethoscope auscultation method,
within the limits prescribed by the American National Standard, Manual, Electronic or
automated sphygmomanometers.
If you suffer from disorder of heart rhythm, known as arrhythmia only use this blood
pressure monitor in consultation with your doctor. In certain cases oscillometric
measurement method can produce incorrect readings.
Flashing System for hypertensive readings are based on blood pressure values
classified in the paper: “JNC 7 Express; The Seventh Report of the Joint National
Committee on Prevention, Detection, Evaluation and Treatment of High Blood
Pressure; U.S. DEPARTMENT OF HEALTH AND HUMAN SERVICES; National Institute
of Health; National Heart, Lung, and Blood Institute; National High Blood Pressure
Education Program; NIH Publication No. 03-5233; May 2003.” The display values are
generally known, but not proven, to be an indicator of your blood pressure.
The EW-BU35 is not intended to be used as a diagnostic device. Contact your
physician if prehypertensive or hypertensive values are indicated.
1
1
2011/06/14
14:28:12
BU35.indb
BEFORE USE
Table of contents
BEFORE USE
English
Introduction........................................................................ 3
Basics of Blood Pressure..................................................... 3
Important Instructions Before Use.................................... 3
Precautions to Ensure Safe, Reliable Operation............... 5
Easily Check Your Blood Pressure Readings
Against the JNC 7* Classification........ 6
Parts identification............................................................. 7
Display................................................................................. 9
Inserting batteries.............................................................. 10
When using the main unit with the AC adapter............... 10
Setting the time and date.................................................. 11
Wrapping the cuff............................................................... 12
HOW TO USE
Getting into the measurement position........................... 13
Taking a reading (Measuring/Recording measurements)........ 14
About each indicators........................................................ 15
Recalling readings from memory...................................... 17
Deleting all data stored in memory.................................. 17
Comparing with old measurements.................................. 18
Monthly average (All)...............................................................................18
Weekly average (All, AM, PM)................................................................18
Comparing with old measurements (continued)............. 19
All data (All, AM, PM) . ..............................................................................19
Storage................................................................................ 20
APPENDIX
Care and maintenance........................................................ 21
Specifications...................................................................... 21
Explanation of rating plate symbols................................. 22
Q&A...................................................................................... 23
Troubleshooting................................................................. 24
FCC STATEMENT.................................................................. 26
2
2
2011/06/14
14:28:12
Introduction
Thank you for purchasing the Panasonic Automatic Arm Blood Pressure Monitor EW-BU35.
English
BU35.indb
BEFORE USE
Measuring your own blood pressure is an important way of monitoring your health. High
blood pressure (hypertension) is a major health problem which can be treated effectively
once detected. Measuring your blood pressure between doctor visits on a regular basis
in the comfort of your home, and keeping a record of the measurements, will help you
monitor any significant changes in your blood pressure. Keeping an accurate record of
your blood pressure will help your doctor diagnose and possibly prevent any health
problems in the future.
Basics of Blood Pressure
Your heart acts like a pump, sending blood surging through your blood vessels each
time it contracts. Blood pressure is the pressure exerted by blood pumped from the
heart on the walls of blood vessels. Systolic pressure is the pressure exerted when the
heart contracts and pumps blood into the arteries. Diastolic pressure is the pressure
exerted when the heart expands, or relaxes. When you or your doctor take your blood
pressure, both your systolic and diastolic pressures are measured. If your blood pressure
measurement is 120 mmHg over 80 mmHg (120/80), for example, your systolic pressure
is 120 mmHg while your diastolic pressure is 80 mmHg.
Important Instructions Before Use
111 Do not confuse self-monitoring with self-diagnosis. Blood pressure measurements
should only be interpreted by a health care professional who is familiar with your
medical history.
222 If you are taking medication, consult with your physician to determine the most
appropriate time to measure your blood pressure. NEVER change a prescribed
medication without first consulting with your physician.
333 Blood pressure can vary based on many factors, including age, gender, weight and
physical condition. In general, a person’s blood pressure is lower during sleep and
higher when he or she is active. Blood pressure can change easily in response to
physiological changes. The setting in which a person’s blood pressure is measured
can also affect the results.
Having one’s blood pressure measured by a healthcare professional in a hospital
or clinic can cause nervousness and may result in a temporarily elevated reading.
Because blood pressure measurements taken in a clinical setting can vary
considerably from those taken at home, a person’s blood pressure should be
measured not only occasionally in the doctor’s office, but also on a regular basis at
home. Also, if you find that your blood pressure is lower at home, this is not unusual.
To accurately compare with your physician’s reading, take your Panasonic blood
pressure monitor to your doctor’s office and compare readings in this setting.
444 People suffering from cardiac arrhythmia, vascular constriction, liver disorders or
diabetes, people with cardiac pacemakers or a weak pulse, and women who are
pregnant should consult their physician before measuring their blood pressure
themselves. Different values may be obtained due to their condition.
3
3
2011/06/14
14:28:12
BU35.indb
555 Try to take your blood pressure measurements at the same time and under the same
conditions every day.
●● The ideal time to measure your blood pressure (to obtain your so-called “base
blood pressure”) is in the morning just after waking up, before having breakfast
and before any major activity or exercise. If this is not possible, however, try to take
measurements at a specified time prior to breakfast, and before you have become
active. You should relax for about 5 minutes before taking the measurement.
The following situations may cause substantial variations in blood pressure
readings and should therefore be avoided at least 30 minutes prior to taking your
blood pressure.
Blood pressure will be higher than usual:
- when you are excited or tense
- when you are taking a bath
- during exercising or soon after exercising
- when it is cold
- within one hour after eating
- after drinking coffee, tea or other beverages containing caffeine
- after smoking tobacco
- when your bladder is full
- when in a moving vehicle
Blood pressure will be lower than usual:
- after taking a bath
- after drinking alcohol
666 Measurements may be impaired if this unit is used near a television, microwave
oven, X-ray equipment or other devices with strong electrical fields. To prevent
such interference, use the unit at a sufficient distance from such devices or turn the
devices off.
777 This unit is designed for use by adults. Consult with your physician before using this
unit on a child. Do not use on neonatal, infants and children.
888 This unit is not suitable for continuous monitoring during medical emergencies or
operations.
999 Do not use the unit for any purpose other than measuring blood pressure. Do not
use the unit together with other devices.
1111 Improper handling of batteries may result in battery rupture or in corrosion from
battery leakage. Please observe the following to ensure proper use of batteries.
aaa Be sure to turn off the power after use.
bbb Do not mix different types or sizes of batteries.
ccc Change all batteries at the same time. Do not mix old and new batteries.
ddd Be sure to insert batteries with correct polarity, as instructed.
eee Remove batteries when they are worn out, dispose of them properly according to
all applicable environmental regulations.
fff Do not disassemble batteries or throw them into a fire.
ggg Do not short-circuit batteries.
hhh Do not attempt to recharge the batteries included with the unit.
1111 Caution: Use only accessories that are recommended for your model. Substitution
may result in measurement error.
English
BEFORE USE
4
4
2011/06/14
14:28:12
Precautions to Ensure Safe, Reliable Operation
111
222
333
444
English
BU35.indb
BEFORE USE
Do not drop the unit. Protect it from sudden jars or shocks.
Do not insert foreign objects into any openings.
Do not attempt to disassemble the unit.
If the unit has been stored at temperatures below 32 °F (0 °C), leave it in a warm
place for about 15 minutes before using it. Otherwise, the cuff may not inflate
properly.
555 Do not store the unit in direct sunlight, high humidity or dust.
666 When cleaning, unplug the AC adapter from the AC outlet before cleaning. Also, do
not plug in or unplug the AC adapter with wet hands.
Doing so may result in electric shock or fire.
777 Do not spill water on the main unit or AC adapter. Doing so may cause electric shock,
short-circuiting, or product damage.
888 Do not use the AC adapter if it is damaged or if it plugs into the AC outlet loosely.
Doing so may result in electric shock, overheating or short-circuiting.
999 If the product does not operate properly or seems strange, stop use and unplug the
AC adapter immediately, and request inspection and service. Failure to do so could
result in the risk of an accident, electric shock, or fire.
1111 When using the AC adapter, make sure it is fully inserted into the AC outlet. Failure to
do so could result in electric shock, overheating or short-circuiting.
1111 When the product is not in use, unplug the AC adapter from the AC outlet.
1111 When unplugging the AC adapter, do not pull on the cord. Always grasp the AC
adapter body and unplug it. Failure to do so could result in the risk of electric shock,
short-circuiting, or fire.
1111 Do not insert any object in the AC adapter or allow debris to collect on it. Doing so
could result in the risk of electric shock, short-circuiting, or fire.
1111 Do not scratch, damage, modify, forcibly bend, pull, or twist the AC adapter cord.
In addition, do not place heavy objects on top of the cord or pinch it with objects.
Do not wrap the cord around the main unit and the AC adapter. Doing any of these
things may result in the risk of fire or electric shock.
1111 Do not step on the AC adapter. Doing so may cause an accident or injury.
1111 Do not use a voltage converter. Doing so may cause fire or electric shock.
1111 This AC adapter EW-2B02 is designed for use only with Panasonic Blood Pressure
Monitor, model EW-BU35. Use with other electrical devices may result in death or
serious personal injury.
1111 ALWAYS unplug the AC adapter from the power outlet before performing
maintenance.
1111 Do not let this product to be used by children.
2222 Do not let this product to be used by people who cannot express their feelings,
or who cannot operate the product by themselves. Do not use the unit on an arm
where a catheter has been inserted. Such use may result in an accident or injury.
2222 Use AC adapter only with electrical outlet of voltages marked on name plate. For use
in the U.S.A., use AC adapter only with AC 120 V electrical outlet. Use with electrical
outlets at other voltages may result in the risk of fire, electric shock, or burns.
2222 Do not allow any material to drape over the AC adapter. Doing so could result in the
risk of fire.
2222 Do not modify or attempt to repair the product or AC adapter by yourself.
Doing so could result in the risk of fire, electric shock, or personal injury.
5
5
2011/06/14
14:28:12
BU35.indb
BEFORE USE
Easily Check Your Blood Pressure Readings Against the JNC 7* Classification
Blood Pressure Categories
100
90
80
Stage 2 Hypertension
e.g.: SBP 165
DBP 105
Stage 1 Hypertension
e.g.: SBP 150
DBP 95
English
Diastolic Blood Pressure (DBP)
(mmHg)
Prehypertension e.g. : SBP 130
DBP 85
Normal e.g.: SBP 115
DBP 75
120
140
160 (mmHg)
Systolic Blood Pressure (SBP)
If the two blood pressure measurements (systolic, diastolic) fall into separate categories,
your level is classified in the higher of the two categories. For example, a Stage 2 systolic
reading, but a diastolic pressure reading in the normal range.
*JNC 7: The Seventh Report of the Joint National Committee on Prevention, Detection,
Evaluation and Treatment of High Blood Pressure National Institute of Health (NIH)
Publication; No. 03-5233, May 2003
IMPORTANT:
●● Do not be alarmed by temporarily high or low readings because fluctuations in a
person’s blood pressure are not uncommon. If possible, measure and record your
blood pressure at the same time every day, and consult your physician if you have
questions or concerns.
●● If abnormal variations in blood pressure are observed in measurement, please consult
your physician.
6
6
2011/06/14
14:28:12
Parts identification
Main unit
Left side
English
BU35.indb
BEFORE USE
Right side
3
7
6
1
2
3
Bottom
4
8
5
1 Display
4 OFF/ON & START
7 Cuff socket
2 Clock button
5 Memory/Recall
8 Battery cover
3 Graph switching
6 Connector
button
button
button
(for AC adapter)
7
7
2011/06/14
14:28:13
BU35.indb
BEFORE USE
Cuff
English
Guide mark
Direction mark
Tube
Cuff plug
Guide Scale
Hook and loop fastener
Includes
Main unit
Cuff
Batteries
AC adapter
Pouch
Operating instructions
Quick guide
Guarantee card
Accessories
AC adapter
(EW-2B02)
Pouch
Plug
* Specifications of the product or parts may be changed without prior notice.
8
8
2011/06/14
14:28:13
Display
1
2
3
4
5
6 7
11
12 13
English
BU35.indb
BEFORE USE
8
1 Battery icon
Notifies when running out of
battery
2 Systolic blood
pressure
Displays measured or stored
value
3 Trend graph
Shows the value of blood
pressure in graphs.
4 AM mark/PM mark
Displays when recalling the
measurements of AM or PM
5 Date/Time/Memory
number
9
10
6 Record mark
Displays when the measurement
can be recorded or when the
recorded measurement is
displayed
7 Average mark
Displays when recalling the
average measurements
8 Pulse indicator
Displays pulse rhythm
11 Pulse
Shows the pulse
12 Irregular pulse detection
Displays if irregular pulse is
detected during measurement
13 Movement warning
Detects irregular arm
movements
9 Diastolic blood
pressure
Displays measured or stored
value
10 Month/Week mark
Displays separately when the
trend graph is on a monthly/
weekly basis
9
9
2011/06/14
14:28:14
BU35.indb
BEFORE USE
3
2.
Check the polarity of the batteries and
install them correctly, as shown.
3.
Replace the battery cover and slide it closed.
CAUTION :
Replace batteries when :
English
Inserting batteries
** Always use alkaline batteries. (4 AA-size LR6 alkaline batteries)
** When replacing batteries, always use 4 fresh alkaline batteries of the same type from
the same manufacturer, and replace them simultaneously.
** If the product will not be used for a long time, remove the batteries.
1. Turn the main unit over and remove the
battery cover by sliding it in the direction
1
2
.
of the arrow while pressing lightly on
●● Always follow the cautions printed on the batteries.
●● Check the polarity of the batteries and install
them correctly.
●● Remove worn out batteries promptly.
●● If the product will not be used for a long time,
remove the batteries.
●● Batteries should be used before their expiration date.
Use after the expiration date may result in injury or
staining of the surrounding area due to generation
of heat, bursting, or leakage.
●● The “low battery”
indicator is displayed.
●● No display appears even
if
is pressed.
Concerning Batteries :
●● Batteries last for approx. 500 times, which is 3 times/day for 5 months (when using Panasonic alkaline
batteries AA cell LR6). (Under the condition that the room temperature is 73°F (23°C), 170mmHg pressured,
and the length of upper arm is 11-3/4" (30cm). )
●● If batteries other than alkaline batteries are used or batteries are used in a cold room, or measuring a person
with high blood pressure, battery life may be dramatically shorter.
*Use alkaline batteries. (Panasonic Oxyride batteries can also be used.)
●● Be sure to replace batteries once a year to prevent battery leakage.
When using the main unit with the AC adapter
Be sure to use only the exclusive AC adapter (EW-2B02).
1.
Insert the AC adapter plug into the
connector on the side of the main unit.
2.
Plug the AC adapter fully into the AC outlet.
3
2
1
Caution when using only the AC adapter
When no batteries are installed in the main unit and the AC adapter is unplugged from the AC outlet
or main unit, the set date and time will be reset and deleted. (Stored data will be retained.) Because of
this, even when using the AC adapter, it is recommended that batteries be installed in the main unit.
10
10
2011/06/14
14:28:15
Setting the time and date
English
BU35.indb
BEFORE USE
* Set the date and time before selecting the OFF/ON & START button.
* Be sure to set the date and time before taking the first measurement after purchasing
the blood pressure monitor or after changing the batteries.
* During setting, if no button is pressed for 5 minutes or more, the clock will be
displayed as "-:--", and the power will be off without saving any settings. It is also
possible to perform measurement and recording even under this circumstance.
However, the record will not include any time information.
Adjust the flashing numbers
sequently
Hold
"year"
Adjust numbers
1.
2.
Complete setting
Hold
(for 3 seconds or
longer).
"year (2011)" will flash.
Adjust the "year".
(1) Press
to set the desired
number.
(2) Press
to complete the
setting.
● Setting range for years is from 2011 to
2050.
"month"
3.
Adjust the "month" --> " date" --> "hour"
--> "minutes" by repeating procedures in
step 2.
4.
Press
mm/dd
"date"
"hour"
"minutes"
to complete the
settings.
● This setting cannot be completed by
pressing
before adjusting
the "hour" and "month". Be sure to press
after adjusting the "hour"
and "month" to complete settings.
● The set time will disappear after 5 seconds.
* To reset, perform the procedures in
step 1. to 4.
11
11
2011/06/14
14:28:17
BU35.indb
BEFORE USE
The cuff can be used on either upper arm. This section shows an example of wrapping
the cuff on the left arm.
** The difference in blood pressure between left and right arm may be around 10
mmHg. Be sure to always use the same arm. It is recommended to use the arm with
the higher blood pressure.
Cuff socket
1. Insert the cuff plug into the cuff socket all the way in.
Align the tube
pointing toward
the middle finger.
Approx. 1 inch
(2 to 3cm)
hook and loop fastener
Points when wrapping
Be sure to always wrap on the same
position by using the guide.
(if your weight / arm circumference
did not change
significantly.)
2.
Fit the cuff to the upper arm.
●● Fit the preformed cuff onto the upper arm
with the direction mark at the inner side.
●● Wrap the cuff on bare skin.
3.
Wrap the cuff.
●● Align the tube pointing toward the middle
finger.
●● Align the rotating part of the tube to the
line extended from the middle finger.
●● Set apart 1 inch (2 to 3cm) from the elbow
joint.
●● Wrap the cuff with a gap of 1 or 2 fingers.
Be careful that the cuff is not too tight.
●● Press the hook and loop fastener down
well to fasten the cuff.
English
Wrapping the cuff
The cuff can be used on either upper arm.
<Example for wrapping on the right arm.>
1
2
3
12
12
2011/06/14
14:28:18
Getting into the measurement position
Sit quietly and relax while taking measurements.
Take a measurement while sitting at a desk and positioning the cuff at heart level
as shown in the image below.
** Differences in height will cause differences in measured blood pressure values.
English
BU35.indb
HOW TO USE
1.
Place the elbow on the table or on
something similar.
2.
3.
Align the height of the cuff to the heart.
Relax with your palm facing up.
Use the same upper arm with the same posture at the same time every day.
We recommend three measurements a day.
First···
Upon Waking (Because, with almost no influence from body
movements, the blood pressure is closest to that at night.)
Second···
Before Lunch (Because, with no influence from the meal, it provides
blood pressure values close to the highest of the day.)
Third···
At Bedtime (So as to obtain data close to your average blood pressure
values during the day.)
This way, by taking measurements morning, noon and night, you can use the unit to
learn the patterns of and monitor your blood pressure.
In the following situations, measurements might be abnormally influenced.
●● Within 1 hour after eating or drinking alcohol
●● Immediately after drinking coffee or tea, or smoking
●● In a moving vehicle
●● Immediately after exercising or taking a bath (Wait at least 20 minutes and take a
measurement while staying quiet.)
●● In cold places (Take measurements at room temperatures around 68 °F (20 °C).)
●● When you need to urinate (Wait several minutes after urinating before taking
measurements.)
Be sure to comply with the following points for accurate measurements. Not
following these points may make it impossible to obtain meaningful measurements:
●● Do not move your body, arm, or fingertips.
●● Do not touch the main unit or the cuff during measurement.
●● Do not talk.
●● Do not use devices emitting strong signals, such as cellular phones, near the main
unit. The measurement may not be performed correctly due to the signal and this
may lead to malfunctions.
13
13
2011/06/14
14:28:18
BU35.indb
HOW TO USE
Taking a reading (Measuring/Recording measurements)
Please start taking a reading under the condition that the power is off.
1.
Press
.
After the entire display has been lit, the cuff
will be pressurized and measurement will be
taken automatically.
●● The pressure value and the time will be
displayed.
mark will flash and the unit will
●● The
beep with the pulse, detected during
pressurization.
Finish
Memory
English
Start
After the measurement is completed, the unit
will beep, and the blood pressure value and
pulse rate will be displayed.
* It will beep 4 times.
and the graph " " are blinking.
●● " "
For how to see the graph, refer to page 16.
●● According to the measurement result,
safety/warning indicators may be
displayed. For details, refer to page 15, 16.
2.
To store the measured values.
press
.
will go from flashing to being
●● " "
steadily lit.
●● The memory number, measurement date,
and time are alternately displayed.
, the unit
●● If you do not press
will shut down automatically after approx.
5 minutes.
3.
To complete the measurement, press
.
●● This unit can store a maximum of 270 measurement values.
●● When exceeding 270 stored measurements, stored data will be overwritten,
beginning with the oldest data.
14
14
2011/06/14
14:28:21
About each indicators
English
BU35.indb
HOW TO USE
To perform a correct measurement, this unit provides a movement detection
function and an irregular pulse warning function. When the indicators appear, the
correct measurement might not have been obtained. If any indicator appears, it is
recommended to repeat the measurement. Stay calm and relax for four to five minutes,
before perfoming a new measurement.
** The "
" and "
" indicator will be recorded together with the measurement
value.
Movement detection function
The movement detection function is to indicate, with
, extra pressure on the cuff caused by movements
of the arm during the measurement. When movement is
detected and the measurement is completed, the indicator
is displayed after flashing for approx. 6 seconds.
If the movements exceed acceptable levels, no reliable
measurement can be performed and the error message "U
12" will be displayed.
Irregular pulse warning function
If the pulse rate varies by more than ±25 % from the
will
average while a measurement is being taken,
be displayed when the measurement is completed. The
indicator is displayed after flashing for approx. 6 seconds.
If the
indicator is displayed an irregular pulse rate is detected, which is not
necessarily caused by arrhythmia.
●● Don’t try to interpret readings or attempt to treat any condition yourself. Always
follow the guidance of a health professional.
●● However if this indicator continues to display, consult your physician.
Advice:
In general, blood pressure measurements are lower for the second measurement
because you are less nervous and are more tranquil. For people who easily get tense,
measuring twice each time is very effective. It is recommended to store all values
when performing two measurements or more. When taking two measurements,
always stay quiet for 4 to 5 minutes after the first measurement before taking the
second measurement.
15
15
2011/06/14
14:28:22
BU35.indb
HOW TO USE
If the measured values fall within the hypertension range, the reading displayed on
screen flashes on and off to alert user.
According to JNC 7 Classification, values consistently in excess of 140 mmHg (Sys.) and/
or 90 mmHg (Dia.) are considered to constitute high blood pressure.
Blood pressure readings will flash for
approx. 5 seconds when in the high
blood pressure range.
(mmHg)
Diastolic
Hypertension
(Stage 1, Stage 2)
90
80
SYS
Going to sleep
Prehypertension
Normal
120 140
The range of high blood pressure is as
follows:
●● Systolic blood pressure: 140 mmHg
and over
●● Diastolic blood pressure: 90 mmHg
and over
Waking up
English
Reading the blood pressure display
DIA
(mmHg)
Systolic
Blood pressure is not a fixed parameter!
The blood pressure fluctuations of this
example of a day profile show why a single
value is not suitable for diagnosis and
therapy.
For people with high blood pressure a
fluctuation of up to 50mmHg within the
course of a day can occur.
16
16
2011/06/14
14:28:23
Recalling readings from memory
When the unit is turned off, saved readings can be recalled.
1.
Press
.
The latest record will be displayed.
English
BU35.indb
HOW TO USE
"Latest"
2.
To display previous data, press
again.
"Previous"
●● New data will be displayed every time
when pressing
.
"Second
to last"
3.
To complete the measurement,
press
.
The power will be switched off automatically
after approx. 30 seconds even though
without pressing
.
Deleting all data stored in memory
All of the stored measurements can be deleted. The data cannot be deleted individually.
111 Recall stored data using
.
again and hold it (for approx. 3 seconds) until all readings are
222 Press
deleted.
If everything has been deleted, "000" will be displayed.
17
17
2011/06/14
14:28:24
BU35.indb
HOW TO USE
Comparing with old measurements
1.The displayed graph can be switched.
►Monthly
Average
(All)
►Weekly
Average
(All)
(A.M)
(P.M)
►All Data
(All)
(A.M)
(P.M)
English
The data can be recalled after recording or when the power is off.
* Correct comparison cannot be done if the date/time is set incorrectly.
* Comparison cannot be displayed without data.
2.Confirm the previous data.
● The blinking point moves
backward with every press of the
button.
● The measurement of the blinking
point is also displayed.
Monthly average (All)
● The average measurement from 1 to 4
months ago, 6 months ago, 9 months ago,
and 12 months ago (displayed as
" " ) can be compared with the latest one
(displayed as " ").
● The blinking point moves backward with
.
every press of
● Comparison cannot be displayed without
data.
Weekly average (All, AM, PM)
*This display shows the case of "AM".
● The average measurement from 1 to 4
weeks ago, 6 weeks ago, 9 weeks ago, and
12 weeks ago (displayed as " " ) can be
compared with the latest one (displayed
as " ").
● The measurement can be switched
between All, AM and PM.
● The blinking point moves backward with
every press of
.
● Comparison cannot be displayed without
data.
18
18
2011/06/14
14:28:26
Comparing with old measurements (continued)
All data (All, AM, PM)
*This display shows the case of "PM".
English
BU35.indb
HOW TO USE
● The recorded measurement (displayed
as " ") can be compared with the latest
one (displayed as " ").
● The measurement can be switched
between All, AM and PM.
● The blinking graph moves backward
with every press of
.
(Maximum 270)
● The latest measurement is always
displayed at the right side of the graph.
AM (3:00 AM to 11:00 AM)
PM (6:00 PM to 2:59 AM)
How to read the graphs
Whether the systolic and diastolic blood pressure values are in the high blood
pressure region or normal blood pressure region is judged based on the JNC 7
Trend Graph (Upper: Systolic blood pressure)
180mmHg and over
Orange 160mmHg to 179mmHg
140mmHg to 159mmHg
Yellow 120mmHg to 139mmHg
Green
less than 120mmHg
Hypertension (severe)
Hypertension (moderate)
Hypertension (mild)
Borderline
Normal blood pressure
Trend Graph (Lower: Diastolic blood pressure)
Orange
Yellow
Green
100mmHg and over
90mmHg to 99mmHg
80mmHg to 89mmHg
less than 80mmHg
Hypertension (severe, moderate)
Hypertension (mild)
Borderline
Normal blood pressure
19
19
2011/06/14
14:28:27
BU35.indb
HOW TO USE
Storage
1
3
1.
2.
Unplug the AC adapter from the AC outlet.
3.
Close the hook and loop fastener of the
cuff.
4.
Fold the spare cuff material inside the cuff.
5.
Place the tube into the cuff.
●● Do not wrap the tube around the main
unit. It may get damaged by excessive
force on the tube.
●● Be careful not to bend the tube.
6.
Place the main unit and the cuff into the
accessory pouch.
●● To prevent from unexpectedly operations
during delivery, do not put the cuff or the
accessories on the main unit.
Unplug the plug from the main unit.
1
English
2
2
3
1
7
8
8
20
20
2011/06/14
14:28:28
Care and maintenance
English
BU35.indb
APPENDIX
●● Do not apply excessive force to the instrument or drop the instrument.
- Doing so may cause damage.
●● Measurements may be affected if the device is used close to televisions, microwave
oven, X-ray equipment or other devices with strong electrical fields. Measure blood
pressure at a sufficient distance from such devices or switch them off.
●● If the instrument is stored at temperatures below the freezing point, do not use it
immediately. Leave it in a warm place for at least an hour before use.
- If the instrument is not allowed to warm up, it may not pressurize.
●● Do not insert dust or foreign objects into the instrument.
- Doing so may result in damage.
●● If the instrument becomes dirty, clean it with a soft cloth moistened with warm water
or soapy water. Do not use alcohol, benzene, or paint thinner.
- Use of such chemicals may result in cracking or discoloration.
●● For storage, avoid high temperatures, high humidity, and direct sunlight.
- Storage under such conditions may result in damage.
●● The cuff cannot be washed.
Specifications
Power source
DC 6 V (4 AA/LR6 size alkaline batteries)
AC 120 V 60 Hz (when using AC adapter)
Digital LCD
Display
Method of measurement
Measurement range
Operation temperature/humidity range
Storage temperature/humidity range
Measurable arm circumference
Oscillometric system
Pressure: 0 mmHg to 280 mmHg
Pulse rate: 30 to 160 beats per minute
Pressure: Within ±3 mmHg
Pulse rate: Within ±5 %
50 °F to 104 °F (10 °C to 40 °C), 30 % to 85 % RH
–4 °F to 140 °F (–20 °C to 60 °C), 10 % to 95 % RH
Approx. 7-3/4" to 15" (20 cm to 38 cm)
Weight
Approx. 10.9 oz. (310 g) (not including batteries)
Dimensions
3" × 5" × 4-1/2" (7.9 cm × 13.0 cm × 11.5 cm)
Protection against
electric shock
Internally powered equipment, Type BF applied part
Accuracy
The blood pressure monitor might not perform to specifications if stored or used outside
the specified temperature and humidity ranges.
AC adapter
Input
Output
AC 120 V 60 Hz
DC 6 V 500 mA
21
21
2011/06/14
14:28:28
BU35.indb
APPENDIX
Explanation of rating plate symbols
Read the operating instructions carefully before use.
Protection against electric shock Type BF applied part (Blood pressure monitor)
Protection against electric shock Class II equipment (AC adapter)
English
AC
DC
22
22
2011/06/14
14:28:29
Q&A
Q
A
English
BU35.indb
APPENDIX
Q
A
Why are the blood pressure values measured at home different from those measured at
the doctor’s office?
Blood pressure varies 24 hours a day.
In addition, it can change greatly depending on the weather, your mental state, exercise, etc. .
In particular, there is the phenomenon of “White coat hypertension” at doctor’s offices, where
the blood pressure measured in a doctor’s office is higher because of stress or worry.
In addition, if the blood pressure measured at home is sometimes higher and sometimes
lower than the blood pressure measured at the doctor’s office, the following can be
considered. Please pay attention to these points when taking measurements.
1. Is the cuff wrapped firmly?
●● Make sure that the cuff is not wrapped too loosely or too tightly.
●● Is the cuff wrapped around the upper arm? Make sure it is not partly covering the elbow.
See page 8 for how to wrap the cuff correctly.
2. Were you worried or upset during measurements?
Before taking measurements, take 2 or 3 deep breaths and relax, so that your blood pressure
stabilizes.
When should I measure my blood pressure?
We recommend three measurements a day.
First ..........
Second ...
Third .........
Upon Waking (Because, with almost no influence from body movement, the
blood pressure is closest to that at night.)
Before Lunch (Because, with no influence from the meal, it provides blood
pressure values close to the highest of the day.)
At Bedtime (So as to obtain data close to your average blood pressure values
during the day.)
This way, by taking measurements morning, noon and night, you can use the unit to learn the
patterns of and monitor your blood pressure.
●● Use of the "Comparing with Old Measurement" function can aid in the detection of a
blood pressure pattern known as “early morning surge” in which blood pressure rises
rapidly in the morning. (See page 18.)
Q
A
indicator was displayed, I retried the measurement by setting my arm in
Since the
the proper position. But the indicated value is still higher than usual.
indicator is just a guide for the proper measurement method.
The
indicator is displayed but the measured value is
If you correct your posture when the
still higher or lower than usual, retry the measurement.
The following causes are suspected.
●● Did you measure properly (in proper posture)?
●● Measure as indicated on pages 12–13.
●● Measured immediately after smoking.
●● Measured when irritated or emotional.
●● Measured in cold environments.
●● For persons who have a physical constitution with less fluctuation in the pulse rate.
●● If you are concerned about the results, retry the measurement after staying quiet for 4 to
5 minutes.
23
23
2011/06/14
14:28:29
BU35.indb
APPENDIX
Q&A (continued)
The
A
The
indicator is a function to notify you that your arm is bent or to indicate extra loads
on the cuff.
Therefore, it may not indicate motions (bending an arm slightly, etc.) that do not affect the cuff.
If you are concerned about the result, retry the measurement.
indicator does not light when an arm is moved.
English
Q
Troubleshooting
Display
Status before error
The indication disappears in the
middle of the operation. (the
is displayed. mark is displayed.)
Your arm or body moved.
Pressurization to more than
280 mmHg was performed. (Cuff
pressurizes several times.)
Cause and solution
Batteries are exhausted. (See page 10.)
Has the unit detected movement? (See
page 15.)
Were measurements taken
according to the proper procedure and in
the correct posture? (See page 13.)
is displayed. Pressure decreased suddenly.
Cuff does not inflate.
The measurement is not possible
though the cuff inflates.
Cuff pressurizes several times.
Failure of the main unit
is displayed.
●● Is the cuff wrapped properly?
●● Is the cuff plug inserted correctly into
the socket?
(See page 12.)
Take it to the store where it was purchased
for testing and repairs.
24
24
2011/06/14
14:28:30
Troubleshooting (continued)
English
BU35.indb
APPENDIX
Symptom
Possible cause
Systolic or diastolic blood pressure value ●● The position of the cuff is higher or lower than your
is high or low.
heart when measuring.
●● Cuff is not wrapped correctly.
●● You moved or talked during measurements. (See page
13.)
Value is different from that measured by ●● Blood pressure varies in response to minute changes
the doctor.
in your mental state, such as your reaction to a doctor’s
presence.
Measurement values are different with
●● Sit quietly for 4 to 5 minutes and then take another
each measurement.
measurement. (See page 22.)
No display appears even when the OFF/ ●● Batteries are installed with the polarities wrong.(See
ON & START button is pressed.
page 10.)
●● Batteries are exhausted. (See page 10.)
indicator flashes when
There was a significant fluctuation in pulse when readings
The
readings are being taken.
were being taken. (See pages 15–16.)
indicator flashes when
Your arm or body moved or the buttons are pressed
The
readings are being taken.
during the measurement. (See page 15.)
flashes even though I did not In some cases this will be displayed when you have tensed
The
move my arm or body.
the muscles in your hand. Relax the muscles in your hand
and take the reading again. (See page 15.)
Instrument is broken.
Take it to the store where it was purchased for testing and
repairs.
25
25
2011/06/14
14:28:31
BU35.indb
APPENDIX
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
English
FCC STATEMENT
●● Reorient or relocate the receiving antenna.
●● Increase the separation between the equipment and receiver.
●● Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
●● Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, install and use in accordance with
provided instructions. Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to operate this
equipment.
Product Information for FCC
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
26
26
2011/06/14
14:28:31
BU35.indb
For questions or assistance with your blood pressure
monitor, call us at 1-800-338-0552.
Panasonic Corporation of North America
One Panasonic Way 1H-1 Secaucus, NJ 07094
1-800-338-0552 (USA only) for questions and comments
No.1 EN, SP(アメリカ)
© Panasonic Electric Works Co., Ltd. 2011
29
1
W9030BU35201
Issued date: 2011-06-14
Printed in China
Impreso en China
2011/06/14
14:28:43
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
