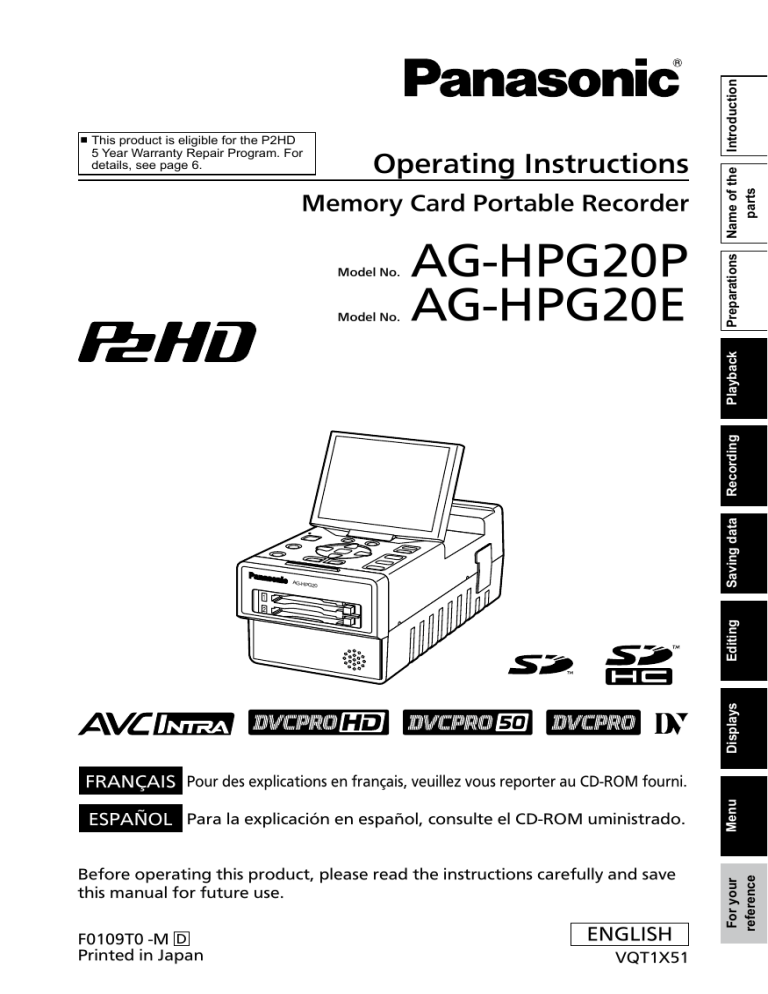

Memory Card Portable Recorder
Model No.
Introduction
Saving data
Recording
Playback
Model No.
AG-HPG20P
AG-HPG20E
Name of the
parts
Operating Instructions
Preparations
■ This product is eligible for the P2HD
5 Year Warranty Repair Program. For
details, see page 6.
Displays
Editing
AG-HPG2
0
Before operating this product, please read the instructions carefully and save
this manual for future use.
F0109T0 -M D
Printed in Japan
ENGLISH
VQT1X51
For your
reference
ESPAÑOL Para la explicación en español, consulte el CD-ROM uministrado.
Menu
FRANÇAIS Pour des explications en français, veuillez vous reporter au CD-ROM fourni.
Read this first!
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER TO SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
WARNING:
• TO REDUCE THE RISK OF FIRE OR
SHOCK HAZARD, DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
• TO REDUCE THE RISK OF FIRE
OR SHOCK HAZARD, KEEP THIS
EQUIPMENT AWAY FROM ALL LIQUIDS.
USE AND STORE ONLY IN LOCATIONS
WHICH ARE NOT EXPOSED TO THE
RISK OF DRIPPING OR SPLASHING
LIQUIDS, AND DO NOT PLACE ANY
LIQUID CONTAINERS ON TOP OF THE
EQUIPMENT.
WARNING:
Always keep memory cards out of the reach of
babies and small children.
CAUTION:
TO REDUCE THE RISK OF FIRE OR SHOCK
HAZARD AND ANNOYING INTERFERENCE,
USE THE RECOMMENDED ACCESSORIES
ONLY.
CAUTION:
Excessive sound pressure from earphones
and headphones can cause hearing loss.
indicates safety information.
CAUTION:
THE MAINS PLUG OF THE POWER
SUPPLY CORD SHALL REMAIN READILY
OPERABLE.
THE AC RECEPTACLE (MAINS SOCKET
OUTLET) SHALL BE INSTALLED NEAR
THE EQUIPMENT AND SHALL BE EASILY
ACCESSIBLE.
TO COMPLETELY DISCONNECT THIS
EQUIPMENT FROM THE AC MAINS,
DISCONNECT THE POWER CORD PLUG
FROM THE AC RECEPTACLE.
CAUTION:
Danger of explosion or fire if battery is
mistreated.
For Battery Pack
• Replace only with same or specified type.
• Do not disassemble or dispose of in fire.
• Do not store in temperatures over 60°C
(140°F).
• Use specified charger.
• Do not leave the battery in an automobile
exposed to direct sunlight for a long period
of time with doors and windows closed.
Memory Card Portable Recorder
The rating plate is on the underside of the unit.
AC Adapter
The rating plate is on the underside of the AC
Adapter.
Disconnect the AC mains plug from the AC
mains socket when not in use.
CAUTION:
In order to maintain adequate ventilation, do
not install or place this unit in a bookcase,
built-in cabinet or any other confined space.
To prevent risk of electric shock or fire hazard
due to overheating, ensure that curtains
and any other materials do not obstruct the
ventilation.
indicates safety information.
FCC NOTICE (USA)
Declaration of Conformity
Model Number:
AG-HPG20P
Trade Name:
Panasonic
Responsible Party:Panasonic Corporation of North America One Panasonic Way, Secaucus, NJ
07094
Support contact:
Panasonic Broadcast & Television Systems Company 1-800-524-1448
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
To assure continued compliance, follow the attached installation instructions and do not make any
unauthorized modifications.
CAUTION:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
The user may find the booklet “Something About Interference”
available from FCC local regional offices helpful.
FCC Warning:
To assure continued FCC emission limit compliance, follow the attached installation instructions and
the user must use only shielded interface cables when connecting to host computer or peripheral
devices. Also any unauthorized changes or modifications to this equipment could void the user's
authority to operate this device.
NOTIFICATION (Canada)
This class B digital apparatus complies with Canadian ICES-003.
Operating precaution
Operation near any appliance which generates strong magnetic fields may give rise to noise in the video
and audio signals. If this should be the case, deal with the situation by, for instance, moving the source
of the magnetic fields away from the unit before operation.
IMPORTANT
“Unauthorized recording of copyrighted television programs, video tapes and other materials may infringe the
right of copyright owners and be contrary to copyright laws.”
Read this first! (continued)
For U.K.
indicates safety information.
Caution for AC Mains Lead
FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This product is equipped with 2 types of AC mains cable. One is for continental Europe, etc.
and the other one is only for U.K.
Appropriate mains cable must be used in each local area, since the other type of mains cable is
not suitable.
FOR CONTINENTAL EUROPE, ETC.
Not to be used in the U.K.
FOR U.K. ONLY
This appliance is supplied with a moulded
three pin mains plug for your safety and
convenience.
A 5 amp fuse is fitted in this plug.
Should the fuse need to be replaced please
ensure that the replacement fuse has a rating
of 5 amps and that it is approved by ASTA or
BSI to BS1362.
Check for the ASTA mark
or the BSI mark
on the body of the fuse.
If the plug contains a removable fuse cover
you must ensure that it is refitted when the
fuse is replaced.
If you lose the fuse cover the plug must
not be used until a replacement cover is
obtained.
A replacement fuse cover can be purchased
from your local Panasonic Dealer.
FOR U.K. ONLY
How to replace the fuse
1. Open the fuse compartment with a
screwdriver.
2. Replace the fuse
Fuse
For USA and Canada
A lithium ion/polymer battery that is recyclable powers the product you have purchased.
Please call 1-800-8-BATTERY for information on how to recycle this battery.
IMPORTANT SAFETY INSTRUCTIONS
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
11)
12)
13)
14)
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding-type plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit
into your outlet, consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus. When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
Unplug this apparatus during lightning storms or when unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
Recommendation for Use of Genuine Panasonic Battery
(Rechargeable Battery)
Thank you for using a Panasonic product.
It has been found that counterfeit battery packs which look very similar to the genuine product are
made available to purchase in some markets. Some of these battery packs are not adequately
protected with internal protection to meet the requirements of appropriate safety standards. There is
a possibility that these battery packs may lead to fire or explosion. Please be advised that we are not
liable for any accident or failure occurring as a result of use of a counterfeit battery pack. To ensure that
safe products are used we would recommend that a genuine Panasonic battery pack is used.
• Be aware that many batteries sold at extremely cheap prices or in situations where it is difficult to
verify the actual products before purchase have proven to be counterfeit.
To remove the battery
Main Power Battery
Back-up Battery (Lithium Battery)
Remove the battery while pressing the battery
eject button.
For the removal of the battery for disposal at the
end of its service life, please consult your dealer.
OUTPUT
CH 1
VIDEO
INPUT
HD/SD-SDI HD/SD-SDI
AUDIO
CH 2
DVCPRO/DV
Battery
eject
button
PUSH
P2HD 5 Year Warranty Repair Program*1
Thank you for purchasing this Panasonic P2HD device.
Register as a user for this device to receive a special service warranty up to five
years of free warranty repairs.
Customers who register as users on the website will receive
an extended warranty repair valid for up to five years.
2nd year 3rd year 4th year 5th year*5
1st year
P2HD
Basic
device*2 warranty*3
*1:
*2:
*3:
*4:
*5:
Extended warranty repair*4
Please note that this extended warranty is not available in some countries/regions.
Not all models eligible for extended warranty coverage.
The basic warranty period may vary depending on the country/region.
Not all repair work is covered by this extended warranty.
The maximum warranty period may be adjusted depending on the number of hours
the device has been used.
Free 5 years of Warranty Repairs
Purchase
P2 product
Register online
within 1 month
“Registration Notice”
e-mail sent
Make sure to save the “Registration Notice”
e-mail during the warranty period.
Details about user registration and the extended warranty:
http://panasonic.biz/sav/pass_e/
Please note, this is a site that is not maintained by Panasonic Canada Inc. The Panasonic Canada Inc. privacy
policy does not apply and is not applicable in relation to any information submitted. This link is provided to
you for convenience.
EMC NOTICE FOR THE PURCHASER/USER OF THE APPARATUS
1. Applicable standards and operating environment for AG-HPG20E
The apparatus is compliant with:
• standards EN55103-1 and EN55103-2 1996.and
• electromagnetic environments E1, E2, E3, E4 and E5.
2. Pre-requisite conditions to achieving compliance with the above standards
<1> Peripheral equipment to be connected to the apparatus and special connecting cables
• The purchaser/user is urged to use only equipment which has been recommended by us
as peripheral equipment to be connected to the apparatus.
• The purchaser/user is urged to use only the connecting cables described below.
<2> For the connecting cables, use shielded cables which suit the intended purpose of the apparatus.
• Video signal connecting cables
Use double shielded coaxial cables, which are designed for 75-ohm type high-frequency
applications, for SDI (Serial Digital Interface).
Coaxial cables, which are designed for 75-ohm type high-frequency applications, are
recommended for analog video signals.
• Audio signal connecting cables
If your apparatus supports AES/EBU serial digital audio signals, use cables designed for
AES/EBU.
Use shielded cables, which provide quality performance for high-frequency transmission
applications, for analog audio signals.
• Other connecting cables (IEEE1394, USB)
Use shielded cables, which provide quality performance for high-frequency applications, as
connecting cables.
• If your apparatus is supplied with ferrite core(s), they must be attached on cable(s)
following instructions in this manual.
3. Performance level
The performance level of the apparatus is equivalent to or better than the performance level
required by these standards.
However, the apparatus may be adversely affected by interference if it is being used in an EMC
environment, such as an area where strong electromagnetic fields are generated (by the presence
of signal transmission towers, cellular phones, etc.). In order to minimize the adverse effects of the
interference on the apparatus in cases like this, it is recommended that the following steps be
taken with the apparatus being affected and with its operating environment:
1. Place the apparatus at a distance from the source of the interference.
2. Change the direction of the apparatus.
3. Change the connection method used for the apparatus.
4. Connect the apparatus to another power outlet where the power is not shared by any
other appliances.
Operating precautions
When using the unit in rainy or snowy weather,
at the beach or other locations, take care to
protect it from precipitation and sea water.
• Otherwise, trouble may occur in the unit and
its cards. (It may not be possible to restore the
original functions)
Keep the unit away from appliances (such
as TV sets and TV game machines) which
generate magnetic fields.
• When the unit is used on top of or near a TV set,
the images and sound may be distorted by the
electromagnetic waves emanating from the TV
set.
• Strong magnetic fields generated by speakers
or large motors may damage the recordings or
distort the images.
• The electromagnetic waves emanating from
microprocessors may adversely affect the unit
and distort the images and sound.
• If the unit is adversely affected by an appliance
that generates magnetic fields and fails to
operate properly as a result, turn off its power,
and either remove its battery or unplug the AC
adapter from the power outlet. Then install the
battery again or re-connect the AC adapter. After
doing this, turn the unit’s power back on.
Do not use the unit near a radio transmitter or
high-voltage appliance.
• Doing so may adversely affect the recorded
images and sound.
When using the unit at the beach or similar
locations, take care to protect it from sand and
dust.
• Sand and dust may damage the unit and its
cards. (Take particular care when inserting or
ejecting the cards)
AC adapter and battery
• When the battery temperature is extremely high
or extremely low or when the battery has not
been used for a prolonged period and been left
discharged, the [CHARGE] lamp will blink several
times, and charging will start automatically.
• If the [CHARGE] lamp continues blinking even
when the battery temperature is normal, this may
be a sign of trouble in the battery or AC adapter.
Consult with your dealer.
• When the battery is warm, it will take longer than
usual to recharge it.
• When the AC adapter is used near a radio, the
sound from the radio may be distorted. Use the
AC adapter and radio at a distance of at least 1
meter from each other.
• Noise is output while the AC adapter is being
used, but this is not a sign of trouble.
When carrying the unit around, take care not
to drop it.
• Strong impacts may damage the unit’s body,
preventing it from operating properly.
Do not expose the unit to insecticides or
volatile sprays or liquids.
• These substances may deform the unit’s body or
cause its paint to peel off.
• Do not bring the unit into contact with products
made of rubber or vinyl for prolonged periods of
time.
Characteristics of the battery
A rechargeable lithium-ion battery is used in this
unit. Electrical energy is generated by the chemical
reactions taking place inside it. These reactions
are susceptible to the effects of the ambient
temperature and humidity, and the higher or the
lower the temperature, the quicker the battery
charge will be used up. When the battery is used
where the temperature is extremely low, it may last
only 5 minutes or so even if the battery has been
fully charged.
When the battery reaches an extremely high
temperature, its protection function is activated,
making it impossible for the battery to be used for
a while.
After using the unit, always remember to
remove the battery.
Be sure to remove the battery from the unit. (If it
is left in place, a very faint current will continue to
flow even when the unit’s power has been turned
off) If the battery is left in place for a prolonged
period, it may discharge excessively so that it
cannot be used again even when it is charged at a
later time.
Protect the battery terminals.
Keep the battery terminals free from dust and
foreign matter.
If the battery has been inadvertently dropped,
check whether its body and terminal area have
been deformed.
Installing a deformed battery in the unit or in the
AC adapter may damage the unit or AC adapter.
Precautions when P2 cards and SD cards are to
be destroyed or given to other parties
The formatting and deletion functions provided by
the unit and personal computers serve merely to
change the file management information: they will
not completely erase all the data on the card.
When a card is to be destroyed or given to
another party, it is recommended that you destroy
the actual card physically or use a data deletion
software program for use with personal computers
available on the market to completely erase all the
data on the card.
You, the user, are responsible for managing the
data on your cards.
Liquid crystal display
• When the same image or characters are left
displayed on the LCD monitor for a prolonged
period, they may become burned into the screen.
However, the original condition of the screen will
be restored after the power has been kept off for
several hours.
• The liquid crystal part of the monitor has been
fabricated using high-precision technology. The
number of its effective pixels is more than 99.99
%, but this still leaves less than 0.01 % of its
pixels which may be missing or permanently
lighted. This is not a sign of trouble and will have
absolutely no effect on the images which have
been recorded.
• The surface of the liquid crystal display may be
marked or scratched if it is wiped or rubbed firmly
with a rough cloth.
• The response speed and brightness of the liquid
crystal change depending on the temperature at
which the display is used.
• Condensation may form on the liquid crystal part
of the monitor if the unit is placed in a location
where there is a significant difference in the
temperature levels. If this happens, wipe off the
condensation with a soft dry cloth.
• If the unit becomes very cold, the LCD monitor
screen will be darker than usual immediately
after the power has been turned on. When the
temperature inside the unit rises, the normal
brightness will be restored.
Connector protection
Attach the connector covers when the connectors
are not in use.
Contents
Read this first!................................................. 2
IMPORTANT SAFETY INSTRUCTIONS.......... 5
Recommendation for Use of Genuine
Panasonic Battery
(Rechargeable Battery)........................... 5
Operating precautions.................................... 8
How to use the unit....................................... 12
Introduction
About this manual......................................... 15
Before use...................................................... 15
Accessories................................................... 17
Name of the parts
Name of the parts.......................................... 18
Operation area................................................. 18
Mechanism area and input/output connector
area.............................................................. 19
Preparations
Charging the battery..................................... 20
Charging........................................................... 20
Installing and removing the power
supply..................................................... 21
Installing and removing the battery.................. 21
Connecting and disconnecting
the power cable............................................ 21
Basic operations........................................... 22
Turning the power on and off............................ 22
Using the LCD monitor..................................... 22
Menu operations............................................... 23
Operation modes.............................................. 24
LCD monitor settings........................................ 26
Setting date and time....................................... 27
P2 cards......................................................... 28
Inserting P2 cards............................................ 28
P2 card access LED and P2 card status.......... 28
Formatting P2 cards......................................... 29
P2 card protection............................................ 29
Ejecting P2 cards............................................. 30
P2 card recording durations............................. 31
Dividing clips over 4 GB in size........................ 31
LOOP REC recording....................................... 32
Other............................................................... 32
USER button.................................................... 32
Charging the internal battery............................ 32
Using SD/SDHC memory cards.................... 33
Inserting and removing the SD card................. 33
Formatting SD cards........................................ 33
Precaution for using SD cards.......................... 33
Saving USER files on SD cards................... 34
10
Playback
Thumbnail display......................................... 35
Playback formats.............................................. 35
Names and functions of thumbnail display
screen parts.................................................. 35
Changing the displays on the thumbnail
display screen.............................................. 38
Setting the items to be displayed..................... 39
Clip management.......................................... 40
Selecting clips.................................................. 40
Deleting clips.................................................... 40
Repairing and connecting clips........................ 41
Copying clips.................................................... 42
Displaying the clip information.......................... 43
Editing the clip information............................... 45
Adding meta-data to clips................................. 46
Adding shot marks to clips............................... 54
Displaying the P2 card status........................... 54
Displaying SD card information........................ 56
Clip playback................................................. 57
Playing back clips............................................. 57
Single clip playback.......................................... 58
Variable-speed playback.................................. 59
Clip and text memo forward/reverse................ 59
Rapid forward/rapid reverse playback.............. 59
Frame feed playback........................................ 59
Repeat playback............................................... 59
Adding text memos........................................... 60
Playback from text memo position................... 60
Deleting text memos......................................... 61
Dividing and copying clips using text memos.... 61
Replacing thumbnail images............................ 61
Outputting images to an external monitor
for playback........................................... 62
Setting the outputs........................................... 62
Adjusting the output volume level during
recording and playback................................ 62
Adjusting the output volume level during
variable-speed playback............................... 62
Recording
Recording data on P2 cards......................... 63
Recording......................................................... 63
2-slot continuous recording ............................. 64
Waveform monitor (WFM) displays.................. 64
Time code displays........................................... 65
Setting the recording time code........................ 65
Set the user’s bit............................................... 66
Saving data
Copying data from P2 cards to the
hard drive............................................... 67
Switching to the USB HOST mode................... 68
Usable hard drives........................................... 68
Types of hard drives and usable functions....... 69
Formatting the hard drive................................. 70
Exporting data to a hard drive in 1-card
increments.................................................... 71
Exporting one clip at a time to a hard drive...... 72
Hard drive data display..................................... 74
Deleting the partition........................................ 75
Thumbnail displays of clips on the hard drive.... 76
Displaying the clip information on the
hard drive..................................................... 76
Connecting the hard drive for use............... 77
Importing data from a hard drive to P2 cards.... 77
Easy playback of clips on the hard drive
(For viewing materials)................................. 78
Deleting clips on the hard drive........................ 78
Editing
Editing by means of external devices......... 79
Editing data content on the P2 card
(USB DEVICE mode)................................... 79
Editing in the USB DEVICE mode.................... 79
Displays
Screen displays............................................. 80
Menu
Basic operations on the setting menus...... 88
Initializing the setting menu.............................. 88
Setting menu configuration.......................... 89
List of setting menus.................................... 90
RECORDING SETUP screen........................... 90
TIMECODE SETUP screen.............................. 93
SW MODE screen............................................ 97
PLAYBACK FUNCTIONS screen..................... 98
AV OUT SETUP screen.................................... 99
DISPLAY SETUP screen................................ 103
CARD FUNCTIONS screen........................... 105
OTHER FUNCTIONS screen......................... 106
DIAGNOSTIC screen..................................... 107
OPTION MENU screen.................................. 108
For your reference
Warning system table................................. 109
Troubleshooting (Q&A)............................... 110
Software information for this product....... 112
Updating the drivers installed
in the unit.............................................. 113
Maintenance................................................. 113
Condensation............................................... 113
Storage precautions.................................... 114
Handling the data recorded on
P2 cards................................................ 115
Use of SD/SDHC memory cards................. 116
Specifications.............................................. 117
Normal displays................................................ 80
Major warning displays..................................... 82
Selecting what is to be displayed
on the screen................................................ 85
Recording/output supporting format........... 86
11
How to use the unit
Housed in a compact cabinet which can be battery-powered, this Memory Card Portable Recorder is
a compact recording/playback unit coming with two P2 card slots, a 3.5-inch LCD monitor, USB 2.0,
IEEE1394, composite signal, SDI and many other input/output signal connectors. It can be easily operated
to play back the data content which has been shot by a P2 camera recorder. It is also capable of backup
recording and file management, and it supports outdoor field recording.
Playing back data content on the P2 card
1
Playing back the data on the unit’s LCD
monitor (Page 57)
Data content (both pictures and sound) which has been shot on P2 cards using a P2 camera recorder can
be played back on the spot.
AG-HPG20 (this unit)
P2 camera recorder
P2 card
AG-HPG20
2
Outputting the data to the external monitor
for playback (Page 62)
The data content (both pictures and sound) on P2 cards can be output to the external monitor, and played back.
AG-HPG20 (this unit)
External monitor
P2 card
AG-HPG20
HD/SD-SDI output
Video output/Audio
output
• Use VIDEO/SDI/1394 output for monitoring purpose in other modes than playback mode. It is not
suitable for recording purpose because Pictures/Sound/Time cord (TC/UB) may become incorrect.
• If the content on the P2 card has been recorded in DVCPRO HD, DVCPRO50, DVCPRO25 or DV
format, signals are also output from DVCPRO/DV input/output connector (IEEE1394).
(AVC-Intra100 and AVC-Intra50 do not support 1394 output)
Recording data on P2 cards
3
1394 connection (Page 63)
You can record data on P2 cards by connecting the unit to the external devices equipped with 1394
(DVCPRO/DV stream) output, such as a P2 camera recorder. The unit’s recording start and stop
operations can be performed from some camera recorders.
• Recording in AVC-Intra100 and AVC-Intra50 modes is not possible with 1394 input.
AG-HPG20 (this unit)
P2 camera recorder
P2 card
1394 cable
12
AG-HPG20
4
HD/SD-SDI connection (Page 63)
You can record data on P2 cards by connecting the unit to the external devices equipped with HD/SD-SDI
output. The unit’s recording start and stop operations can be performed from some camera recorders.
(When SDI input is selected)
(For supporting devices, refer to page 91)
AG-HPG20 (this unit)
P2 card
HD/SD-SDI signal
AG-HPG20
Using an external hard drive (HDD)
5
Saving data onto an external hard drive
(Page 67)
The data content on P2 cards can be saved onto an external HDD.
Also, the P2 content saved on an external HDD can be reloaded onto a P2 card.
(Only in the USB HOST mode)
• 1394 connection (File transfer) is not supported.
AG-HPG20 (this unit)
Hard drive
P2 card
USB 2.0 cable
AG-HPG20
6
Checking the content saved onto an
external hard drive (Page 78)
The P2 content saved on an external HDD can be played back and checked. (Pulldown playback
(Playback with some images skipped))
(Only in the USB HOST mode)
• 1394 connection (File transfer) is not supported.
• Both audio and images will not be output to the DVCPRO/DV input/output connector (IEEE1394).
AG-HPG20 (this unit)
Hard drive
USB 2.0 cable
AG-HPG20
External monitor
HD/SD-SDI output
Video output/Audio
output
13
How to use the unit (continued)
Using a PC
7
Editing by connecting the unit to a PC
(Page 79)
The unit can be USB-connected to a PC, and the PC can then be used to edit (i.e. exchanging data, etc.)
the data content on P2 cards. (USB DEVICE mode)
• 1394 connection (File transfer) is not supported.
AG-HPG20 (this unit)
PC
P2 card
AG-HPG20
14
USB 2.0 cable
Note concerning illustrations in these instructions
• Illustrations (portable recorder, menu screens, etc.) in these operating instructions differ slightly from the
actual portable recorder.
References
• References are shown as (Page 15).
Introduction
About this manual
Each explanation, company names and product names described in these operating instructions are
trademarks or registered trademarks of each company.
Before use
Be absolutely sure to check the date, time and time zone, and set them if necessary.
• The calendar and time zone affect the management and playback sequence of the data content which
has been recorded. Before recording, set and check year/month/day, time and time zone. (Page 27)
No compensation can be made for video recordings.
• The manufacturer will not provide any compensation in the event that images fail to be recorded due to
trouble while the unit and P2 card are being used.
Concerning copyrights
• You may use the images and sound which you have recorded for your own personal enjoyment only;
under copyright laws, you may not use them for any other purpose without the permission of the
copyright holders.
IEEE1394 cable connection
Be sure to observe the following when connecting the IEEE1394 cable (optional). (Improper connection
may cause malfunction in this unit and external devices)
• Before connecting or disconnecting the IEEE1394 cable, you must turn off the power of all devices
connected to the unit.
Devices equipped with earth terminals must be used in the grounded condition (or in the connected
condition to the commonly-used GND).
• When connecting the unit to a component which uses a 4-pin type of connector, be sure to connect this
unit’s connector (6-pin type) first.
• IEEE1394 cable connector has a direction.
• When connecting the unit to a component which uses a 6-pin type of IEEE1394 connector, be sure to
check the shape before connection as below
(Correct)
IEEE1394
connector
IEEE1394
cable edge
(Wrong)
IEEE1394
connector
IEEE1394
cable edge
• During recording or playback in AVC-Intra100 and AVC-Intra50 modes, input/output from the DVCPRO/
DV input/output connector (IEEE1394) is not possible.
15
Before use (continued)
Media which can be used with this unit
You may use the following media. For further details, refer to the pages on the media concerned.
• P2 cards (Page 28)
• SD/SDHC memory cards (Page 33)
Screw holes
M5 (5 mm diameter) screws with a length of 10 mm can be used for the four screw holes on the side
panels of the unit.
When using the screws, do not tighten them too much. The unit may be damaged if screws other than 10
mm long M5 (5 mm diameter) screws are used.
Screw holes
The other side panel also has two screw holes.
Refer to page 8 for other operating precautions.
16
Battery*
AC adapter
AC power supply cords
AG-HPG20P
AG-HPG20E
(For the U.K.)
Introduction
Accessories
(For areas other than
the U.K.)
DC cord
CD-ROM
* For the model number of the battery, refer to the [ACCESSORIES] item. (Page 118)
17
Name of the parts
Operation area
1
9
2
4
10
11
3
5
6
7
8
EXIT/2
12
ALT/3
13
1REC button (Page 63)
9COUNTER button (Page 65)
2POWER button (Pages 22, 110)
10RESET button
(Pages 26, 34, 65, 66)
3PLAY button (Pages 23, 58)
4STILL/SET button (Pages 23, 58)
5REW button (Pages 23, 58)
6THUMBNAIL/MODE button
(Page 24)
11 FF button (Pages 23, 58)
12 USER/EXIT/ALT button (Page 32)
13PAGE/AUDIO MON/VAR button
(Pages 40, 59, 62)
7STOP button (Pages 23, 58)
8MENU/MODE CHK button
(Pages 23, 32)
18
• The button names are described such as
[THUMBNAIL/MODE] in this manual from now.
Mechanism area and input/output connector area
13
14 15 16
17
20
OUTPUT
CH 1
VIDEO
INPUT
HD/SD-SDI HD/SD-SDI
AUDIO
CH 2
DVCPRO/DV
2
REC
POWER
SET
COUNTER
RESET
USER
THUMBNAIL
/MODE
Name of the
parts
8
1
1
EXIT/2
MENU/MODE CHK
ALT/3
AG-HPG
PAGE / AUDIO MON / VAR
20
3
4
6
7
10
5
HOST
21
1LCD monitor (Pages 22, 26)
2Power display LED (Pages 22, 109)
3SD card access LED (Page 33)
4P2 card access LEDs (Page 28)
5Card slot cover (Pages 28, 30)
6SD card slot (Page 33)
7P2 card slots (Page 28)
8LCD monitor open button (Page 22)
9Speaker (Pages 62, 82)
9
18
DEVICE
11
PUSH
19
12
13 AUDIO OUT CH1/CH2 connectors
(Page 62)
14 VIDEO OUT connector (Page 62)
15 HD/SD-SDI OUT connector (Page 62)
16 HD/SD-SDI IN connector (Page 63)
17 DVCPRO/DV input/output connector
(IEEE1394) (Page 63)
18USB HOST connector (USB2.0 Type A)
(Page 67)
10Connector area cover
19 USB DEVICE connector (USB2.0 Type B)
(Page 79)
11Battery eject button (Page 21)
20Headphone jack (Pages 62, 82)
12Battery (Page 20)
21P2 card eject button (Page 30)
• Use a cable equivalent level of 5C-FB with a double-layer shield to connect to HD/SD-SDI IN or HD/SDSDI OUT connector.
• Use a cable with a double-layer shield to connect to DVCPRO/DV input/output connector (IEEE1394).
19
Charging the battery
Charging
The battery has not been charged at the time of
purchase.
Before using the battery, give it a full charge using
the AC adapter. It is recommended that you have a
spare battery available in case you need it.
Charging time and play time of supplied battery
it with the mark on the AC adapter, and
slide it into position.
• If the DC cord is connected to the AC adapter,
disconnect it before proceeding any further.
The battery cannot be charged if this cable is
left connected.
• The times given in the above table are
approximate figures based on playback in the
AVC-Intra100 mode.
• The times given in the above table are obtained
at an ambient operating temperature of 20 °C (68
°F) and an ambient relative humidity of 60 %. It
may take longer to charge the battery at other
temperature and humidity levels.
1 Place the battery horizontally while aligning
2Connect the AC cable to the power outlet.
• The POWER and CHARGE lamps on the AC
adapter light, and charging starts.
• If the CHARGE lamp fails to light when the
battery has been installed, remove the battery
and then re-install it.
POWER
CHARGE
• When the battery has been charged, the
CHARGE lamp on the AC adapter goes off.
• Depending on the country and region, the
actual configuration of the power cord, plug,
and power outlet may differ from those shown
in these operating instructions.
3Slide the battery out of position, and remove it.
20
Capacity
5400 mAh
Charging
time
Approx. 330
minutes
Continuous
playback time
Approx. 230
minutes
• While the battery is being used or charged, it will
become hot.
• If the playback and stop operations are repeated
more than necessary, the playback time will be
shorter than the time given in the above table.
When the battery is to be stored for a prolonged
period, it is recommended that you charge it once
a year, use the battery in the unit until its charge
is used up, and then return it to storage.
• When the battery temperature becomes
extremely high or low or when a discharged
battery has been left unused for a prolonged
time, the CHARGE lamp will blink several times,
and charging will commence automatically.
• When the CHARGE lamp continues to blink even
when the battery is at the right temperature,
it may indicate a failure in the battery or AC
adapter. Contact your dealer.
• When the battery is warm, it will take longer than
usual to recharge it.
• When the AC adapter is used near a radio, the
sound from the radio may be distorted. Use the
AC adapter and radio at a distance of at least 1
meter from each other.
• Noise may be heard from the AC adapter while
the AC adapter is being used: this is normal and
not a sign of trouble.
• The battery cannot be charged when power is
supplied to the unit from the AC adapter.
• No guarantees are given for the operation of the
CGR-D16/CGR-D16s (1600 mAh) battery pack.
Installing and removing the power supply
Installing and removing the battery
Insertion
Removal
1 Slide and insert the battery until it clicks
1 Press [POWER] for at least 2 seconds to
into place.
VIDEO
INPUT
2 Remove the battery while pressing the
HD/SD-SDI HD/SD-SDI
AUDIO
CH 2
battery eject button.
• Support the battery with your hand to ensure
that it will not drop down.
DVCPRO/DV
PUSH
OUTPUT
CH 1
VIDEO
INPUT
HD/SD-SDI HD/SD-SDI
AUDIO
CH 2
DVCPRO/DV
Battery
eject
button
Preparations
OUTPUT
CH 1
turn the power off, and check that the power
display LED has gone off. (Page 22)
PUSH
Connecting and disconnecting the power cable
Insertion
Removal
1 Connect the DC cord to the AC adapter.
2Connect the AC power supply cord into the
1 Press [POWER] for at least 2 seconds to
power outlet.
3Slide and insert the DC cord plate until it
clicks into place.
turn the power off, and check that the power
display LED has gone off. (Page 22)
2Remove the DC cord’s battery connector
while pressing the battery eject button.
3 Disconnect the AC power supply cord from
OUTPUT
CH 1
VIDEO
INPUT
HD/SD-SDI HD/SD-SDI
the power outlet.
AUDIO
CH 2
DVCPRO/DV
DC cord’s
battery
connector
PUSH
• The battery cannot be charged when power is
supplied to the unit from the AC adapter.
• The AC adapter is designed to work anywhere
in the world with supply voltages ranging from
100 V to 240 V and with power line frequencies
of 50 Hz and 60 Hz. However, in some countries
the shape of the power outlet receptacle differs.
In cases like this, obtain the plug that will fit the
receptacle. Obtain the conversion plugs after
consulting with your dealer.
• When the unit is not being used, disconnect the
AC cable from the power outlet.
21
Basic operations
Turning the power on and off
Hold down [POWER] for at least 1 second.
• The power display LED lights, and the power is turned on.
• When [POWER] has been held down for more than 2 seconds while the power is on, the power display
LED will go off, and the power will be turned off.
Using the LCD monitor
1 Hold down [POWER] for at least 1 second to turn the power on.
2Raise the LCD monitor while pressing the LCD monitor open button in the direction shown by
the arrow.
AG-HPG20
AG-HPG20
3Set the LCD screen to the angle where it is easiest to see its displays.
LCD monitor screen
Turn the LCD monitor
screen 180 degrees
counterclockwise so that
it is facing the front.
• The monitor cannot
be turned more than
180 degrees. Applying
excessive force beyond
this limit may cause
damage the unit.
180º
AG-HPG20
LCD monitor screen
90º
In the clockwise
direction, the screen
can be turned up to 90
degrees.
• The monitor cannot
be turned more than
90 degrees. Applying
excessive force beyond
this limit may cause
damage the unit.
AG-HPG20
Make sure that the LCD monitor is raised upright before turning it.
Function buttons
REC
POWER
SET
COUNTER
RESET
USER
THUMBNAIL
/MODE
1
EXIT/2
MENU/MODE CHK
ALT/3
PAGE / AUDIO MON / VAR
22
Once the LCD monitor
screen is positioned to
face the front, it cannot
be turned any further
in the counterclockwise
direction.
• Applying excessive
force beyond this limit
may cause damage
the unit.
120º
The LCD monitor screen
will not tilt more than
120 degrees toward the
function buttons.
• Applying excessive
force beyond this limit
may cause damage
the unit.
Menu operations
This unit is provided with three kinds of screens: the thumbnail display screen, normal display screen
(SDI/1394 input recording standby mode, INT SG (Page 91), playback standby mode, etc.) and PC mode
screen (USB HOST mode, USB DEVICE mode). When [MENU/MODE CHK] is pressed on any of these
screens, the menu will be displayed. (No menus are displayed in the USB DEVICE mode)
Operations performed when the function buttons are pressed
This is used to move the menu
highlighting to the item on the left;
depending on the menu item, it is
used to change the value.
This is used to display
the menus. When it is
pressed while a menu is
displayed, the menu is
exited.
When EXIT is assigned
to [EXIT/2], if you press
[EXIT/2] while a menu
is displayed, the menu
is exited.
This is used to select items and
enter their values. When there is a
sub-menu, it is used to display the
sub-menu.
Preparations
This is used to move the menu highlighting to the item above;
depending on the menu item, it is used to change the value.
This is used to move the menu
highlighting to the item on the right;
depending on the menu item, it is
used to change the value.
This is used to move the menu highlighting to
the item below; depending on the menu item, it
is used to change the value.
EXIT/2
AG-HPG20
ALT/3
Example of a menu operation: (when the
thumbnail display screen is displayed)
1 Press [MENU/MODE CHK] to display the
menu.
2Press
and to move the menu
highlighting, and select the item.
3Press
.
• If another menu has been displayed, repeat
steps 2 and 3.
• Depending on the item, the value is changed
using , , and .
• Depending on the item, a confirmation screen
will be displayed.
• Depending on the item, the original screen is
restored automatically.
4Press [MENU/MODE CHK] to exit the menu.
For details on the menu operations on the normal
display screen, refer to “Basic operations on the
setting menus” on page 88.
23
Basic operations (continued)
Operation modes
This unit has the following 3 modes which can be selected by pressing [THUMBNAIL/MODE].
Turn on the power.
Thumbnail display screen
On this screen, the data content on the P2 cards is displayed as
thumbnails to play back or manage the clips.
Playback
(PLAY, STILL, FF, REW)
Hold down this button
for at least 2 seconds
to switch to the PC
mode.
Stop (STOP)
When a P2 card
has been ejected
Normal display screen
•Connect the unit to the devices equipped with the HD/SD-SDI input/
output or IEEE1394 connector, or set INT SG (Page 91) for playback and
recording.
Playback
TC 12 : 34 : 56 : 00 1 2 106 min
P2 LACK
REPEAT HDD
1080i
AVC-I100
60
LOCK
SQU
JUN
60 : 24P
C
H
C
H
1
2
19
2009
TEXT MEMO
23 : 59 : 59
USB HOST
Recording
3 CH
4 CH
• Display the menu, and perform the various settings.
CARD FUNCTIONS
USER FILE
SD CARD FORMAT
RETURN
CHANGE
24
PUSH MENU TO EXIT
Hold down this button
for at least 2 seconds
to switch to the PC
mode.
PC mode
Connect the unit to an external device, and save or manage the clips. Depending on the
connection method and purpose, the USB HOST mode and USB DEVICE mode are available;
perform the mode settings using the setting menu on the normal display screen.
Preparations
• USB HOST mode
Connect to a device equipped with a USB connector, and operate the connected device.
• USB DEVICE mode
Connect to a device equipped with a USB connector, and operate the data on the unit’s P2 card
from the connected device.
USB DEVICE
Press and hold at least 2 seconds
to return to the thumbnail display
screen.
25
Basic operations (continued)
LCD monitor settings
1 Hold down [POWER] for at least 1 second to
turn the power on.
First check that an image is displayed on the
LCD monitor, and then adjust the angle of the
monitor to the position where it is easiest to see
its displays.
2Press [THUMBNAIL/MODE] to display the
normal display screen.
3Press [MENU/MODE CHK].
• Basic operations on the setting menus (Page
88)
4Using
, , and , select “CHANGE” for
the “LCD SETTING” item on the setting
menu “DISPLAY SETUP” screen.
DISPLAY SETUP
OSD OUT SEL
DATE/TIME
LEVEL METER
CARD/BATT
P2CARD REMAIN
OTHER DISPLAY
LCD BACKLIGHT
LCD SETTING
LCD
OFF
CH1-4
ON
TOTAL
ON
RETURN
CHANGE
PUSH MENU TO RETURN
5 Using
and
, select the item to be set.
LCD SETTING
LCD COLOR LEVEL
[_]
[+]
LCD BRIGHTNESS
[_]
[+]
LCD CONTRAST
[_]
[+]
PUSH MENU TO RETURN
LCD COLOR LEVEL:
This adjusts the color
density of the screen.
LCD BRIGHTNESS:
This adjusts the screen
brightness.
LCD CONTRAST:
This adjusts the screen
contrast.
• Note that if you set all LCD adjustment values to
minimum, the menu screen will become difficult
to see.
26
6 Using
or
, adjust the selected item.
• When [RESET] is pressed, the adjusted values of
the selected items can be restored to their factory
settings.
7Press [MENU/MODE CHK] 3 times to return
to the normal display screen.
Setting date and time
The “CLOCK SETTING” value is recorded on the data content (clips), and it affects the sequence in which
the thumbnails are played back. Before recording, be absolutely sure to check the “CLOCK SETTING” and
“TIME ZONE” settings, and set them if necessary. Described below is the procedure for setting date and
time to 5:20 PM on May 25, 2009.
turn the power on.
7 Press
to move the setting item to
“MONTH”.
2 Press [THUMBNAIL/MODE] to display the
CLOCK SETTING
YEAR 2009
MONTH APR
DAY
24
HOUR
13
MINUTE 07
normal display screen.
3Press [MENU/MODE CHK].
• Basic operations on the setting menus (Page
88)
4 At the “TIME ZONE” item on the setting
menu “OTHER FUNCTIONS”, change the
time difference from Greenwich Mean Time
using and , and press . (Page 106)
OTHER FUNCTIONS
PC MODE SELECT
BEEP SOUND
CLOCK SETTING
TIME ZONE
POWER SAVE
SYSTEM FREQ
USER FILE
USB HOST
OFF
>>>
0:00
OFF
59.94Hz
>>>
PUSH MENU TO RETURN
5 Select “CHANGE” for the “CLOCK
SETTING” item on the setting menu
“OTHER FUNCTIONS” screen.
OTHER FUNCTIONS
PC MODE SELECT
BEEP SOUND
CLOCK SETTING
TIME ZONE
POWER SAVE
SYSTEM FREQ
USER FILE
USB HOST
OFF
RETURN
CHANGE
OFF
59.94Hz
>>>
+/- : PUSH
SEL : PUSH
/
/
Preparations
1 Hold down [POWER] for at least 1 second to
PUSH MENU TO RETURN
8 Press
or
to set “MONTH” to “MAY”.
CLOCK SETTING
YEAR 2009
MONTH MAY
DAY
24
HOUR
13
MINUTE 07
+/- : PUSH
SEL : PUSH
/
/
PUSH MENU TO RETURN
9 Use the same method as in steps 7 and 8 to
set “DAY”, “HOUR” and “MINUTE”.
• The 24-hour clock system is used by this unit.
CLOCK SETTING
YEAR 2009
MONTH MAY
DAY
25
HOUR
17
MINUTE 20
+/- : PUSH
SEL : PUSH
/
/
PUSH MENU TO RETURN
PUSH MENU TO RETURN
6 Press
or
to set “YEAR” to “2009”.
CLOCK SETTING
YEAR 2009
MONTH APR
DAY
24
HOUR
13
MINUTE 07
+/- : PUSH
SEL : PUSH
/
/
10Press [MENU/MODE CHK] 3 times to
return to the normal display screen.
• There may be a time error. Check if the
CLOCK shows the correct time before
shooting.
• If the unit is going to be used overseas, do
not set the “CLOCK SETTING” to the current
time but input the time difference from GMT
using the “TIME ZONE”.
PUSH MENU TO RETURN
Any year from 2000 to 2037 can be set.
27
P2 cards
Inserting P2 cards
When the unit is to be used for the first time, the first step is always to set the internal clock. (Page 27)
1 Hold down [POWER] for at least 1 second to
turn the power on.
2Open the card slot cover, and insert the P2
card into the P2 card slot as far as it will go.
Push further until the P2 card eject button
pops out.
• When the P2 card is inserted into the unit, the
P2 card status is displayed by the P2 card
access LED.
For details on the P2 card status displayed,
refer to “P2 card access LED and P2 card
status” in the chart below.
3Tip the popped-out P2 card eject button to
the right side and close the card slot cover.
P2 card eject button
P2 card access LED and P2 card status
P2 card access LED
P2 card status
Lights up green
Data can be saved on the card or loaded from the card.
Lights up orange
Data can be saved on the card or loaded from the card, and currently
this card is supposed to be used for recording.
Blinks in orange
Data is now being saved or loaded.
Blinks rapidly in orange
The recognition process of the P2 card is underway.
The P2 card is full. Data can be read out only.
Blinks in green
The write-protect switch on the P2 card is at the PROTECT setting.
Data can be loaded only.
The P2 card has not been formatted properly. Re-format the card using
the unit.
Off
The card cannot be used by the unit. Replace the card.
The P2 card is not installed.
The P2 card is not being accessed in the USB DEVICE mode.
• The P2 card statuses can be checked in detail.
Refer to “Displaying the P2 card status” on page 54.
28
Formatting P2 cards
1 Hold down [POWER] for at least 1 second to
4 Select “YES” on the confirmation screen,
2Press [MENU/MODE CHK].
3 Using , and , select “OPERATION”
5 When the completion message has
– “FORMAT”, and press .
• A screen such as the one shown below
now appears. Select the number of the slot
in which the P2 card to be formatted has
been inserted. If the card is not going to be
formatted, select “EXIT”.
• If [MENU/MODE CHK] is pressed, the menu
display is cleared.
and press .
• The selected P2 card is now formatted.
appeared, press “OK” (
).
If you format the P2 card, all the data saved on the
P2 card is deleted.
Preparations
turn the power on.
The thumbnail screen now appears.
P2 card protection
To prevent the data recorded on the P2 card from being deleted by mistake, set the write-protect switch on
the P2 card to PROTECT.
Write-protect
switch
29
P2 cards (continued)
Ejecting P2 cards
1 Confirm P2 card access LED is not blinking
orange.
2Open the card slot cover and raise the P2
card eject button.
3Push the P2 card eject button to remove the
P2 card.
P2 card eject button
2
1
4After ejecting the P2 card, close the card
slot cover.
• Do not eject cards or turn off the power in the
following situations: otherwise, this may cause
P2 card trouble.
1)While the orange P2 card access LED is
changing from blinking to lighting after the P2
card has been inserted
2)During recording, during the process to
complete recording or while the P2 card
access LED is blinking
3)While the P2 card access LED is blinking
(i.e. while copying, formatting, etc.)
30
• In the event that a P2 card is ejected while being
accessed or formatted, “TURN POWER OFF” is
displayed on the LCD monitor. In a case like this,
turn the power off and then turn it back on.
When a card was ejected while it was being
formatted:
Re-format the card.
When a card was ejected while its data was
being accessed:
Something may have gone wrong with one of the
clips (Page 35). Check the clips, and repair the
abnormal one. (For details on repairing clips →
Page 41)
• During playback, a P2 card will not be recognized
even if it has been inserted into the other empty
slot, and the P2 card access LED will not
light. After playback is completed, the P2 card
recognition process is started.
• If the P2 card is ejected while thumbnails are
displayed, the thumbnail display screen will be
cleared and the normal display screen appears.
Precaution for using P2 cards
P2 cards must always be formatted using a P2
device prior to use.
DVCPRO50
Audio 4CH
AVC-Intra50
Audio 8CH
DVCPRO HD
AVC-Intra100
Audio 8CH ∗
Approx. 4 minutes
Capacity
DVCPRO/DV
Audio 2/4CH
4 GB
Approx. 16 minutes
Approx. 8 minutes
8 GB
Approx. 32 minutes
Approx. 16 minutes
Approx. 8 minutes
16 GB
Approx. 64 minutes
Approx. 32 minutes
Approx. 16 minutes
32 GB
Approx. 128 minutes
Approx. 64 minutes
Approx. 32 minutes
64 GB
Approx. 256 minutes
Approx. 128 minutes
Approx. 64 minutes
∗ Native recordings such as 720p/30pN, 720p/24pN, 720p/25pN, 1080/30pN, 1080/24pN and 1080/25pN
are not available on this unit.
• AJ-P2C002SG (2 GB) cards cannot be used.
• The memory needed for management and other purposes is included in the memory figure displayed, so
the amount of memory you can use for recording is less than what is displayed.
• The above chart shows continuous recording time for 1 clip in each capacity. Depending on the number
of clips, available recording time on the whole may be shorter that the above time.
• Depending on the type of P2 card, you may need to update the driver installed in the unit. (Page 113)
Preparations
P2 card recording durations
Dividing clips over 4 GB in size
• Dividing clips recorded on P2 cards
If, when a P2 card with a memory capacity of 8 GB or more is used in this unit, the continuous recording
time for a single session exceeds the time shown in the table below, the recording will automatically
continue as another clip. Furthermore, when performing thumbnail operations (such as display, delete,
repair or copy) for clips using the P2 device, these operations can be performed with all the clips treated
as a single clip. The clips may be displayed as separate clips with non-linear editing software and PCs.
Recording format
Recording time
DVCPRO HD
Approx. 5 minutes
DVCPRO50
Approx. 10 minutes
DVCPRO/DV
Approx. 20 minutes
AVC-Intra100
Approx. 5 minutes
AVC-Intra50
Approx. 10 minutes
31
P2 cards (continued)
LOOP REC recording
With this function, when the recording buffer is full, the recording will loop back to the beginning and
new contents will start overwriting the older contents of the buffer. Using LOOP REC, the recording will
always consist of the most recent minutes recorded. The size of the recording buffer is determined by
the amount of available space on both of the P2 cards. To use LOOP REC function, set “LOOP REC” to
“ON” on the setting menu “RECORDING SETUP” screen. (Page 91)
• Once the unit is turned OFF, LOOP REC function will be disabled (OFF) next time the unit is turned ON.
• To perform LOOP REC, use P2 cards with remaining memory of 1 minute or more respectively.
• While performing LOOP REC, all P2 card access LEDs light orange. If you remove either of the P2 card,
LOOP REC stops.
• When the LOOP REC mode is active, “LOOP” is displayed on the first line of the screen display.
However, LOOP REC cannot be performed if only 1 card is inserted in the LOOP REC mode. In this
case, “ P2 LACK” and “L-” blinks.
• The remaining time for the P2 card in the LOOP REC mode is approximate.
• Shot marks cannot be added or released during LOOP REC.
• Text memos cannot be recorded during LOOP REC.
• When selecting 1394 input, LOOP REC is not available.
■ To exit the LOOP REC mode
There are following 2 ways.
• Set “LOOP REC” to OFF on the setting menu “RECORDING SETUP” screen.
• Turn off the power.
Other
USER button
The following features are allocated to the buttons
at the time of shipping.
You can assign EXIT function to USER2 button
only as well as ALT function to USER3 button only.
For details, refer to the USER1-3 items (Page 97)
on the setting menu “SW MODE” screen.
The date (year/month/day) and time are stored in
the memory by the internal battery. When the
display has appeared on the LCD monitor screen,
it means that the internal battery charge is low.
Follow the steps below to charge the battery. After
the battery has been fully charged, set Year/Month/
Day and time.
USER1: SYS FORMAT
USER2: EXIT
USER3: ALT
1 Connect the AC adapter to the unit.
• The functions allocated to [USER] will be
displayed while [MENU/MODE CHK] on the
normal display screen is held down for at least 2
seconds.
• Depending on the mode, allocated functions may
not be operable.
32
Charging the internal battery
Keep the unit’s power turned off.
2 Maintain this condition for about 4 hours.
The internal battery will now be charged.
If
appears even after the internal battery has
been charged, the battery must be replaced. Ask
your dealer for another battery.
Using SD/SDHC memory cards
Inserting and removing the SD card
<Insertion>
THUMBNAIL
OPERATION
PROPERTY
META DATA
HDD
DELETE
FORMAT
SLOT1
SLOT2
REPAIR CLIP
SD CARD
RE-CONNECTION
EXIT
COPY
EXCH. THUMBNAIL
EXIT
EXIT
1 Open the card slot cover, and insert the
4 Select “YES” on the confirmation screen,
2 Close the card slot cover.
5 When the completion message has
card, making sure the SD card is oriented as
shown.
SD card
access
LED
and press .
• The selected SD card is now formatted.
appeared, press “OK” ( ).
Preparations
USER files can be saved or loaded using SD or
SDHC memory cards (both types of cards will now
be referred to as “SD cards”). (Page 34)
In addition, if you save a meta-data upload file on
the SD card, it can be loaded and recorded as clip
meta-data. (Page 46)
• You can also format the SD card at the “SD
CARD FORMAT” item on the setting menu
“CARD FUNCTIONS” screen. (Page 105)
• With SDHC cards, 32 KB of memory will have
already been used up.
Precaution for using SD cards
<Removal>
1 Open the card slot cover, and confirm that
the SD card access LED is not lighted.
2 Push the center part of SD card and pull
straight out.
3 Close the card slot cover.
With this unit, use SD cards which meet the SD
standard or SDHC standard. Always remember to
use this unit to format the SD cards. SD cards with
the following memory sizes can be used within this
unit.
SD (8 MB to 2 GB):
8 MB
16 MB
32 MB
64 MB
256 MB
512 MB
1 GB
2 GB
16 GB
32 GB
128 MB
SDHC (4 GB to 32 GB):
4 GB
8 GB
1 Hold down [POWER] for at least 1 second to
To obtain the latest information which is not
provided in these Operating Instructions, access
the P2 support page on the web site below.
https://eww.pavc.panasonic.co.jp/pro-av/
2Press [MENU/MODE CHK].
3 Using , and , select “OPERATION”
• When using the SD cards, always remember to
close the card slot cover.
• Also refer to “Use of SD/SDHC memory cards”
on page 116.
Formatting SD cards
turn the power on.
– “FORMAT” – “SD CARD”, and press .
• If the card is not going to be formatted, select
“EXIT”.
33
Saving USER files on SD cards
9 Press [MENU/MODE CHK] four times to
Up to four sets of settings can be saved as four
files on the SD card, and they can be loaded from
the card.
• The menu setting value on the thumbnail display
screen cannot be saved or loaded.
display the normal display screen.
1 Insert the SD card to the SD card slot.
2 Press [THUMBNAIL/MODE] to display the
normal display screen.
3 Press [MENU/MODE CHK].
4 Select “USER FILE” on the setting menu
“CARD FUNCTIONS”, select “CHANGE”,
and press .
• Basic operations on the setting menus (Page 88)
CARD FUNCTIONS
USER FILE
SD CARD FORMAT
RETURN
CHANGE
5 Select “FILE SELECT”, and press .
6 Using or , select the file number (1 to 4),
PUSH MENU TO EXIT
and press
.
USER FILE (SD CARD)
FILE SELECT
READ
WRITE
FILE 1
FILE 2
FILE 3
FILE 4
TITLE RELOAD
7 Using
and
1
>>>
>>>
TITLE1
TITLE2
TITLE3
TITLE4
>>>
, select “WRITE”, and press
.
USER FILE (SD CARD)
FILE SELECT
READ
WRITE
FILE 1
FILE 2
FILE 3
FILE 4
TITLE RELOAD
1
>>>
RETURN
CHANGE
TITLE2
TITLE3
TITLE4
>>>
8 Display “YES” using
and , and press .
• In the figure below, “TITLE1” is the filename.
• After the data has been saved, “WRITE OK”
is displayed.
• The USER file which was written changes to
a white display.
USER FILE (SD CARD)
WRITE FILE 1
YES - - - - PUSH SET
NO
TITLE EDIT
TITLE1
34
To give titles to files
1) Perform steps 1 to 7.
2) Select the characters using and , and
move to the next character using .
• The number of characters which can be input
is 8.
• Any of the following characters can be input.
(Space), A to Z, 0 to 9, : ; < = > ? @ [ \ ] ^ _ -. /
• All the characters can be deleted using the
unit’s [RESET] button.
3) After all the characters have been input, press
at the left end of the characters (or at the
right end), display “YES” using , and press .
• After the data has been saved, “WRITE OK”
is displayed.
To load a file
1) Perform steps 1 to 6.
2) Move to “READ” using and , display “YES”,
and press .
• The files are loaded.
3) If “TURN POWER OFF” appears after loading,
turn off the power, and then turn it back on. The
loaded files are now set.
To reload the files from the SD card:
1) Perform steps 1 to 4.
2) Using and , move to “TITLE RELOAD”,
display “YES”, and press .
• The files are now re-loaded.
• If “WRITE NG FORMAT ERROR” is displayed,
format the SD card. (Page 33)
• If “WRITE NG WRITE PROTECT” is displayed,
release the SD card protection.
• If “WRITE NG CANNOT ACCESS” is displayed,
complete the other operations (such as playback),
and then proceed to operate.
• If “WRITE NG ERROR” is displayed, the SD card
may be defective. Replace the card.
Thumbnail display
The video data produced on a P2 card by a single shooting session is referred to as a clip. When the
unit’s power is turned on, the clips are displayed as thumbnails on the LCD monitor. (If there are many
clips, it will take a few moments for all the clips to be displayed)
Playback
The formats which can be played back by this unit are as follows.
This unit cannot necessarily play back all the following formats simultaneously. Only the formats that
support the setting menu “SYSTEM FREQ” can be actually played back.
AVC-Intra100, AVC-Intra50
1080/60i
1080/50i
1080/30pN (native recording)*
1080/24pN (native recording)*
1080/25pN (native recording)
720/60p
720/30pN (native recording)*
720/24pN (native recording)*
720/50p
720/25pN (native recording)
DVCPRO HD
1080/60i (30p over 60i, 24p over 60i, 24pA over 60i)*
1080/50i (25p over 50i)
720/60p (30p over 60p, 24p over 60p)*
720/30pN (native recording)*
720/24pN (native recording)*
720/50p (25p over 50p)
720/25pN (native recording)
DVCPRO50/25, DV
480/60i (30p over 60i, 24p over 60i, 24pA over 60i)
576/50i (25p over 50i)
∗ 24p, 30p, 60p and 60i operate with the actual frequencies of 23.98p, 29.97p, 59.94p and 59.94i respectively.
Preparations
Playback formats
Names and functions of thumbnail display screen parts
Menu configuration of thumbnail display screen (until the second hierarchy)
THUMBNAIL
ALL CLIP
SAME FORMAT CLIPS
SELECTED CLIPS
MARKED CLIPS
TEXT MEMO CLIPS
SLOT CLIPS
SETUP
EXIT
META DATA
LOAD
RECORD
USER CLIP NAME
INITIALIZE
PROPERTY
EXIT
OPERATION
DELETE
FORMAT
REPAIR CLIP
RE-CONNECTION
COPY
EXCH. THUMBNAIL
EXIT
PROPERTY
CLIP PROPERTY
CARD STATUS
DEVICES
PROPERTY SETUP
EXIT
HDD
EXPORT
EXPLORE
SETUP
EXIT
(Continued on the next page)
35
Thumbnail display (continued)
Names and functions of thumbnail display screen parts (continued)
15
2
7
8 9
1
10 11 12 13 14
3
5
4
6
1 Display statuses
The types of information which are displayed on
the screen are displayed as follows.
P2
1 2
ALL:
All clips
SAME FORMAT:
Clip whose format is the
same as the system format
SELECT:
Clip selected by the STILL/
SET button
(Gray)
MARKER:
Clip to which the shot mark
has been added
1 2*
TEXT MEMO:
Clip with text memo data
SLOT n:
Clip on the P2 card in slot
“n”
PROPERTY:
Detailed clip information
P2/REMAIN:
Media information
(remaining memory)
P2/USED:
Media information
(used memory)
META DATA:
meta-data set on this unit
When you select SDI on the setting menu
“INPUT SELECT” and input a signal into SDI
input connector, input the same signal as the
one set on the setting menu “SYS FORMAT”. If
you input a signal with the different format, the
thumbnail display will be distorted also.
36
2 P2 card slot numbers and hard drive
statuses
HDD
• P2 card
1 2
(White)
1 2*
(Yellow)
The numbers of the P2 card slots
where P2 cards have not been
inserted are displayed in gray.
The numbers of the P2 card slots
where P2 cards have been inserted
are displayed in white.
The number of the P2 card slot,
which contains a P2 card with a clip
that has its cursor position recorded,
is displayed in yellow. When a single
clip has been recorded on a multiple
number of P2 cards, all the slot
numbers of the cards on which the
clip is recorded will be displayed in
yellow.
* The frame is displayed in pink when the inserted
P2 card is in one of the following statuses:
• RUN DOWN CARD (Page 84)
The maximum number of overwrites on the P2
card has been exceeded.
• DIR ENTRY NG CARD (Page 83)
The directory structure on the P2 card is not
supported.
(Gray)
(White)
(Yellow)
(Red)
When a mode other than the USB
HOST mode is established or when
the USB HOST mode is established
but the hard drive is not connected,
this status is displayed in gray.
When the USB HOST mode is
established and the hard drive that
can be used is connected, this
status is displayed in white.
When the USB HOST mode is
established and the clips on the hard
drive are displayed as thumbnails,
this status is displayed in yellow.
When the USB HOST mode is
established and the hard drive is not
in the data copy enable status, this
status is displayed in red.
3 Clip information display
Depending on what has been set on the
thumbnail display screen (Page 39), the
time code at the clip recording start point or
the user’s bit, shooting time, shooting date,
shooting date/time, USER CLIP NAME or
SLOT number is displayed.
4 Clip format
The compression format, video recording
format and frame rate of the clip where the
cursor is positioned is displayed.
5 Duration
The length of the clip where the cursor is
positioned is displayed.
6 USB HOST mode indicator
This appears when the USB HOST mode has
been selected.
7 Clip number
These are the numbers which have been set
by the unit for all the correctly recognized clips
on a P2 card. The numbers are allocated in
sequence starting from the earliest shooting
date/time. The clips which cannot be played
back are displayed in red.
8 X Defective clip indicator
? Unknown clip indicator
This indicates clips whose recording contains
problems for reasons such as the power being
cut off while they were being recorded. It may
be possible to repair clips which are indicated
by the yellow defective clip indicator. For further
details, refer to “Repairing defective clips”
(Page 41). It is not possible to repair clips which
are indicated by the red defective clip indicator
so delete them. If these clips cannot be deleted,
format the P2 card. In the case of formats
incompatible with this unit, ? is displayed
instead of X .
9 ! Incomplete clip indicator
This appears when a single clip has been
recorded onto a multiple number of P2 cards
and one of the P2 cards concerned has not
been inserted into the P2 card slot.
10 M Shot mark indicator
This is indicated on the clips of which a shot
mark has been added to their thumbnails.
Playback
• HDD
11 P Clip-with-proxy indicator
This indicates clips for which a proxy has been
additionally recorded.
12 T Text memo indicator
This indicates clips with text memo data.
13 E Edit-copy clip indicator
This indicates clips which have been editcopied by the AJ-HPM110 or other model which
supports the edit-copy function. For details on
the edit-copy function, refer to the operating
instructions of the model which supports the
function.
14 w Wide indicator
This indicates clips which have been recorded
using the 16:9 aspect ratio. It does not indicate
clips which were formatted by a hard drive.
15
Remaining battery charge display
As the remaining charge drops, the display
changes in the following sequence:
and
.
When the charge is virtually depleted, the
(or
) display changes to red.
(While the AC adapter is being used, a display
other than
may appear: this is normal
and not a sign of trouble)
37
Thumbnail display (continued)
Changing the displays on the thumbnail display screen
You can customize the thumbnail display screen to better suit your operating needs for more efficient
operation.
1 Display the thumbnail display screen.
2Press [MENU/MODE CHK].
3Using , and , select the type of
clip to be displayed at the lower level of
“THUMBNAIL”, and press .
ALL CLIP:
Select this to display all the clips.
SAME FORMAT
CLIPS:
Select this to display the clips whose format is the same as the system format.
SELECTED CLIPS: Select this to display the clips selected by the STILL/SET button.
38
MARKED CLIPS:
Select this to display the clips to which shot marks have been added.
TEXT MEMO
CLIPS:
Select this to display the clips with text memo data.
SLOT CLIPS:
Select this to display the clips on the P2 card of slot number “n”.
SETUP:
This enables you to change the display of the thumbnail indicators, data displays and
other settings.
EXIT:
Select this to return to the previous menu.
Setting the items to be displayed
You can customize how the thumbnails are to be displayed to better suit your intended application. This
enables you to change the display of the thumbnail indicators, data displays and other settings.
DATE
FORMAT:
set at the lower level of “THUMBNAIL”
– “SETUP”, and press .
INDICATOR:
MARKER Shot mark indicator
DATA
DISPLAY:
TEXT
MEMO
Text memo indicator
WIDE
Wide indicator
PROXY
Proxy indicator
This menu item enables you to select
what is to be displayed in the clip
information display (Page 37).
TC
Time code
UB
User’s bit
TIME
Time of recording
DATE
Date of recording
THUMBNAIL
SIZE:
Up to 15 characters from
the beginning of the user
clip name are displayed.
(When displayed in English)
SLOT
Slot number
Year/month/day
M-D-Y
Month/day/year
D-M-Y
Day/month/year
This menu item enables you to select
the size of the thumbnails which will
be displayed on screen.
LARGE
Large size (The
thumbnail is displayed
with width 3 x length 2)
NORMAL Standard size (The
thumbnail is displayed
with width 4 x length 3)
PLAYBACK
RESUME:
DATE TIME Date/time of recording
USER
CLIP
NAME
Y-M-D
• This setting will also be reflected
in the preparation dates of the file
displays such as the dates of the
recordings which are displayed
as one of the clip properties, the
dates of the recordings which are
displayed when DATE has been
selected as the DATA DISPLAY
item setting, and the loading dates
of the meta-data.
This menu item enables you to set
the indicator on the thumbnail to be
displayed/not displayed.
ALL HIDE If selected, none of the
indicators are displayed.
If not selected, the
indicators are displayed
in line with the settings of
the menu items below.
This menu enables you to select the
display format for recording date.
Playback
1 Display the thumbnail display screen.
2Press [MENU/MODE CHK].
3Using , and , select the item to be
When the cursor was not moved from
the clip where playback was stopped,
the next playback starts from that
stopped position.
ON
Select “ON” to play back
from the stop position.
OFF
Select “OFF” to play
back the clip from its
beginning.
THUMBNAIL
INIT:
This menu item enables you to return
the thumbnail display settings to the
factory settings.
SORT:
This menu item enables you to
set the order of clip display in the
thumbnail display.
EXIT:
OFF
Normal
SLOT
Sort the order of display
by the slot number
Select this to return to the previous
menu.
The underlined settings are the factory mode settings.
39
Clip management
Selecting clips
When performing operations on the thumbnail display screen, select the clip which will be the target of
these operations as follows.
1 Using
, , or , move the cursor (yellow
frame) to the target clip.
To move the cursor to left or right, use or .
You can also use or by pressing and holding
[ALT/3].
To move the cursor up and down, use or by
pressing and holding [ALT/3].
This operation on the rest of the pages in this
manual is referred to as “cross cursor operation”.
2Press
.
A bluish-green frame now appears at the clip
where the cursor is positioned to indicate that the
clip has been selected.
To allocate functions to the USER buttons, refer to “USER button” (Page 32).
[ALT/3] does not work when ALT function is not allocated to [ALT/3].
By repeating steps 1 and 2, you can select a multiple number of clips.
If you select a clip and move the cursor to another clip, and then press while pressing and holding
[ALT/3], you can select from the last selected clip until the clip at the cursor position at a time.
or
of
.
• To move from one page to another, press
•
•
•
•
To release the selection
1 Move the cursor to the selected clip, and press
The selection is released.
again.
• By pressing [EXIT/2] while pressing [ALT/3], you can cancel the selection of the selected clips all together.
Deleting clips
You can delete unwanted clips from the P2 card by proceeding as follows.
1 Display the thumbnail display screen.
2 Select the clips to be deleted.
3Press [MENU/MODE CHK].
4 Using , and , select “OPERATION”
– “DELETE”, and press
.
5 Select “YES”, and press .
6 When the completion message has
appeared, press “OK” (
).
• It may not be possible to delete clips for which the X defective clip indicator or ? unknown clip indicator is
displayed.
40
Repairing and connecting clips
Repairing defective clips
Connecting incomplete clips
1 Display the thumbnail display screen.
2 Select the clip to be repaired.
3Press [MENU/MODE CHK].
4 Using , and , select “OPERATION”
– “REPAIR CLIP”, and press
5 Select “YES”, and press
.
.
• It is not possible to repair clips with some types
of damage. These kinds of clips are identified by
the red X .
In some cases, clips recorded on a multiple
number of P2 cards may not be recognized as
a single continuous clip and may be recognized
as an incomplete clip ( ! indicator) instead. At
times like this you can use the connecting function
to restore the “incomplete” clip to a continuous
(originally connected) clip.
1 Display the thumbnail display screen.
2 Select the incomplete clip to be connected.
3Press [MENU/MODE CHK].
4 Using , and , select “OPERATION”
– “RE-CONNECTION”, and press
5 Select “YES”, and press
.
.
Playback
The defective clip indicator (yellow X ) appears
in order to indicate that there is a problem in the
clip such as the power having been suddenly cut
off while it was being recorded. You can repair
problem clips by proceeding as follows.
A clip is recognized as incomplete when:
• A clip recorded on a multiple number of P2 cards
has been copied separately from one card and
then from another or other cards.
• A clip recorded on a multiple number of cards
has first been copied separately from one card
and then from another or other cards onto a hard
drive and then written back onto the P2 cards.
• A long clip lasting more than 5 minutes in the
AVC-Intra100 or DVCPRO HD format (10 or
so minutes in the AVC-Intra50 or DVCPRO50
format, or 20 or so minutes in the DVCPRO or
DV format) has first been copied to a hard drive
and then written back onto the P2 cards.
• Normally, thumbnails with the incomplete clip
indicator are displayed side by side.
• If only parts of incomplete clips separated into 3
or more have been connected, the incomplete
clip indicators will remain on the screen until
all the clips which make up the original clip are
connected.
41
Clip management (continued)
Copying clips
Clips can be copied onto the P2 card in the other P2 card slot.
• While clips are being copied, do not turn off the power or eject the card. Otherwise, defective clips will be
produced. If defective clips are produced, delete them, and copy the original clips again.
• Copy incomplete clips after having connected them.
1 Display the thumbnail display screen.
2 Select the clip to be copied.
3Press [MENU/MODE CHK].
4 Using , and , select “OPERATION”
– “COPY” – “SLOT n” (where “n” is the
number of the P2 card slot into which the
copy destination P2 card was inserted), and
press .
5 Select “YES”, and press
Clip copying now starts.
.
• To stop the copying process at any time, press
and select [YES] to cancel the copying. The
partially copied clip at the copy destination will
be deleted.
• If there is a clip with the same GLOBAL CLIP ID-one which, for instance, was previously copied to
the copy destination--“OVER WRITE” will appear.
To overwrite the existing clip, select “YES” or to
cancel the overwriting, select “NO”, and press .
(When you copy some portion of a clip which has
been recorded on a multiple number of P2 cards,
“OVER WRITE” also appears when copying the
remaining portion of the clip.)
42
6 When the completion message has
appeared, press “OK” (
).
Clips cannot be copied when any of the following
error messages are displayed.
• “LACK OF REC CAPACITY!”
Clips will not be copied because there is not
enough space left on the destination P2 card.
• “UNKNOWN CONTENTS FORMAT!”
Clips will not be copied because the selected
clips include defective clips.
• “NO COPY TO SAME CARD!”
Clips will not be copied because an attempt is
being made to copy clips to the same card.
• “TOO MANY CLIPS!”
Clips will not be copied because too many clips
have been selected.
• You can extract and copy a portion or subset of
a clip. If you start copying while selecting a text
memo at the bottom of the text memo screen, the
block between the selected text memo position
and the next text memo is copied. If there is no
text memo after the selected text memo, the
block from the text memo position to the end of
the clip will be copied.
• Clips displayed by the X defective clip indicator
cannot be copied.
• It may not be possible to copy clips for which the
? unknown clip indicator is displayed.
Displaying the clip information
You can display detailed information about clips on the screen, and check it.
1 Display the thumbnail display screen.
2 With cross cursor operation, move the
cursor to the target clip.
3Press [MENU/MODE CHK].
4 Using and , select “PROPERTY”, and
press
.
5 Select “CLIP PROPERTY” on the sub-menu
.
Information on the target clip now appears on the
screen.
1)
2)
3)
4)
5)
1) Information added to clips (Page 37)
The indicators or numbers of text memos or
voice memos, which have been added into
clips, are displayed. In addition, when a P2 card
on which clips have been recorded has been
write-protected, the
mark is displayed.
• V Voice memo indicator
This is displayed on clips to which voice memos
have been added. It appears only in the clip
property mode.
• Voice memos cannot be recorded or played back
using this unit.
4) Clip information
The following information is displayed.
CLIP NAME:
The filename of the clip as
recorded on the P2 card
START TC:
Time code when recording was
started
START UB:
User’s bit when recording was
started
DATE:
Date on which the clip was
recorded
TIME:
Time at which the clip was
recorded
DURATION:
Length of the clip
V_FORMAT:
Recording format of the clip
Playback
displayed, and press
FRAME RATE: Playback frame rate
REC RATE:
Recording frame rate (displayed
for clips specially recorded by
the camera recorder (i.e. VFR
recording))
When or is pressed, the information of the
previous or next clip is displayed.
5) Clip meta-data
Items for referencing the detailed information
on the clips (clip meta-data) are displayed.
(Continued on the next page)
2) Clip number
3) Thumbnail
43
Clip management (continued)
Displaying the clip information (continued)
6 If necessary, reference the clip meta-data
NEWS:
Reporter, news-gathering object, etc.
(reporter, purpose of news gathering,
object of news gathering)
MEMO:
Text memo number, recording
position, name, text content
contents.
When the clip meta-data item is selected using
and , and then is pressed, the following
information is displayed.
GLOBAL CLIP A unique number which is not
ID:
assigned to any other clips
44
USER CLIP
NAME:
Clip name which can be assigned by
the user
Normally, the GLOBAL CLIP ID is
provided as the clip name.
VIDEO:
Video signal system, etc. (frame rate,
pull-down, aspect ratio)
AUDIO:
Audio channel system, etc. (sampling
rate, bit rate)
ACCESS:
Last update date, etc.
(name of the person who created
the clip and date on which it was
created, date on which the clip was
last updated and name of the person
who last updated the clip)
DEVICE:
Serial number of device used to
record the clip, etc. (name of the
device manufacturer, serial number,
model number)
SHOOT:
Recording start and end dates, etc.
(name of person who shot the clip,
date on which shooting started, date
on which shooting ended, shooting
location information, altitude,
longitude, latitude, shooting location
information source, shooting location)
SCENARIO:
Program name, scene number, etc.
(program name, scene number, take
number)
• The recording position is indicated
by the number of frames from
the beginning. On a thumbnail
text memo display, this recording
position is indicated as a time code
instead.
• Texts consisting of up to 1000
characters can be attached, but
only the first 100 characters will
actually be displayed.
or
is used to move from one
•
text memo number to another.
THUMBNAIL:
Information on the thumbnail images
The frame positions and sizes (offset
value from the beginning of the clip,
height and width) of the thumbnail
source images are displayed.
7 Press [MENU/MODE CHK], and select
“EXIT” to exit.
Editing the clip information
You can edit the detailed clip information (clip meta-data).
1 Display the thumbnail display screen.
2 With cross cursor operation, move the
7 The soft keyboard screen now appears.
With cross cursor operation, select
characters to be input, and while entering
them using , edit the information.
cursor to the target clip.
3Press [MENU/MODE CHK].
4 Using , and , select “PROPERTY”
5 Using
and
and press .
USER CLIP NAME :
060A2B340101010501010D4313000000C2A90ADE46
1505F00080458200000002
.
1
q
a
z
, select the item to be edited,
6 The window with the items to be edited now
appears so select an item using
and then press .
and
: 05F00080458200000002
,
2
w
s
x
3
e
d
c
4
r
f
v
5
t
g
b
6 7 8
y u i
h j k
n m
9
o
l
0 SP BS
p - Caps
. _ OK
EXIT
8 Select “OK” with cross cursor operation,
and press to quit editing.
• To edit another item, repeat steps 6 to 8.
9 Using
display.
and
Playback
– “CLIP PROPERTY”, and press
• The clip information is displayed.
USER CLIP NAME
, select “OK” to exit the item
10Press [MENU/MODE CHK], and select
“EXIT” to exit the clip information screen.
You can edit the following information.
USER CLIP NAME
ACCESS
SHOOT
SCENARIO
NEWS
MEMO
CREATOR
SHOOTER
LOCATION
PLACE NAME
PROGRAM NAME
SCENE NO.
TAKE NO.
REPORTER
PURPOSE
OBJECT
PERSON
TEXT
ALTITUDE
LONGITUDE
LATITUDE
This displays the name of the clip which
has been set by the user; the global clip ID
is set as the default value.
Name of the person who did the recording
Name of the person who did the shooting
Altitude of the shooting location
Longitude of the shooting location
Latitude of the shooting location
Place name
Program name
Scene number
Take number
Name of the reporter
Purpose of the news gathering
Object of the news gathering
Name of the person who recorded the text
memo which was added to the clip
Content of the text memo
• “LONGITUDE” and “LATITUDE” cannot be deleted separately. To delete, set “ALTITUDE” to blank.
• To modify the meta-data of clips displayed by the incomplete clip indicator ! , insert the P2 card on which
the remaining clips were recorded.
• Attached memo items of 100 characters or more cannot be modified.
• When editing “LONGITUDE” or “LATITUDE”,
or
is sometimes used to move to the item.
45
Clip management (continued)
Adding the meta-data to clips
If the meta-data upload file which contains the name of shooter or reporter, shooting location or text memo
information is saved on the SD card, it can be loaded and recorded as clip meta-data.
Create the meta-data upload file on a PC
↓
Save it on a SD card
↓
Load the meta-data upload file onto this unit
↓
When images are recorded, the meta-data is added to the clip.
Preparation of the meta-data upload file
You can create the meta-data upload file on a PC using the P2 viewer (the latest updated version). You
can also create meta-data upload files using the P2 Contents Management System (P2CMS) software, on
either a Windows or Macintosh computer.
The P2 viewer is an application to operate clips recorded on the P2 card. Distributed as free software, this
is used on a Windows PC.
https://eww.pavc.panasonic.co.jp/pro-av/
Install the P2 viewer or P2 Contents Management System (P2CMS) software (the latest updated version)
to PC, create the meta-data upload file and write it onto the SD card.
• P2 viewer must be the latest updated version.
For details on creating the meta-data upload file, refer to Help section of the P2 viewer.
For SD cards, refer to page 33.
46
Setting to add meta-data
■ Select the method to record USER CLIP NAME
Set the recording method of USER CLIP NAME.
1 Display the thumbnail display screen.
2 Press [MENU/MODE CHK].
3 With cross cursor operation, move the cursor to “META DATA”–“USER CLIP NAME”.
4Move the cursor to “TYPE1” or “TYPE2” and press .
Recording method
Use clip meta-data
Not use clip meta-data*
Playback
Make the setting to load the meta-data upload file onto this unit
USER CLIP NAME to be recorded
TYPE1
Loaded meta-data setting value
TYPE2
Loaded meta-data setting value + COUNT value
TYPE1
The same as GLOBAL CLIP ID
TYPE2
The same as CLIP NAME
* When the meta-data upload file has been loaded, but “META DATA”–“RECORD” is “OFF”
5 Press [MENU/MODE CHK] to end the procedure.
(Continued on the next page)
47
Clip management (continued)
Adding the meta-data to clips (continued)
COUNT value
COUNT value is displayed in 4-digit number. COUNT value is added by 1 increment every time a new clip
is generated by P2 card recording after the recording method of “USER CLIP NAME” is set to “TYPE2”
and the clip meta-data is loaded.
■ Resetting the COUNT value
You can reset the COUNT value according to the following operation.
1 Display the thumbnail display screen.
2 Press [MENU/MODE CHK].
3With cross cursor operation, move the cursor to “META DATA”–“PROPERTY”–“USER CLIP
NAME” and press
48
.
The COUNT value is reset to 1.
5 Press [MENU/MODE CHK] or [EXIT/2] to end the procedure.
.
(Continued on the next page)
Playback
4 With cross cursor operation, move the cursor to “COUNT RESET” and press
49
Clip management (continued)
Adding the meta-data to clips (continued)
How the COUNT value of USER CLIP NAME is added when the data exceeds 4 GB
In the following cases, 1 shot is recorded as multiple clips and the COUNT value is added by 1 increment
and recorded.
• When a P2 card with the capacity of over 8 GB is used and the continuous recording at a time exceeds a
certain period of time
For further details, refer to “Dividing clips over 4 GB in size” (Page 31).
• When 1 recording straddles 2 cards and is recorded on both cards
Furthermore, when performing thumbnail display and property display using the P2 device, Clip 1’s
thumbnail and COUNT value are displayed.
Loading the meta-data setting value
You can load the meta-data setting value from the SD card according to the following operation.
1 Insert the SD card containing the meta-data upload file into this unit.
2 Display the thumbnail display screen.
3 Press [MENU/MODE CHK].
4 With cross cursor operation, move the cursor to “META DATA”–“LOAD” and press
The file name of the meta-data upload file in the SD card is displayed.
5With cross cursor operation, move the cursor to the file to be loaded and press
6 Move the cursor to “YES” and press .
The meta-data is loaded.
7 Press [MENU/MODE CHK] to end the procedure.
50
.
.
Checking and revising the loaded meta-data
You can check and revise the meta-data loaded from the SD card.
1 Press [THUMBNAIL/MODE].
The thumbnail screen appears on the LCD monitor.
2 Press [MENU/MODE CHK] to select “META DATA”–“PROPERTY” from the thumbnail menu.
Playback
The following screen appears.
3 With cross cursor operation, move the cursor and press
You can check each setting content of the loaded meta-data.
.
4 While checking each setting content of the meta-data, move the cursor with cross cursor
operation to the item for which you wish to change the setting content and press
The soft keyboard screen appears. Now, you can change the setting. (Page 45)
.
(Continued on the next page)
51
Clip management (continued)
Adding the meta-data to clips (continued)
Checking and revising the loaded meta-data (continued)
With cross cursor operation, move the cursor to the item of meta-data you wish to check and press
Then the information is displayed.
USER CLIP NAME:
User clip name
CREATOR:
Creator
LAST UPDATE PERSON:
Last update person
SHOOT:
Shooter
PLACE NAME:
Shooting place
SCENARIO:
Program name, scene number, take number
NEWS:
Reporter, purpose of news gathering, object of news gathering
MEMO:
Memo input person, text information
• A
fter checking the content, press [EXIT/2] or .
The information screen disappears.
• To finish the setting change procedure, select “OK”
5 Press [MENU/MODE CHK] to end the procedure.
Deleting the meta-data
You can delete the meta-data saved in this unit according to the following operation.
1 Display the thumbnail display screen.
2 Press [MENU/MODE CHK].
3 With cross cursor operation, move the cursor to “META DATA”–“INITIALIZE” and press
4 Move the cursor to “YES” on the confirmation screen and press
The meta-data will be deleted.
5 Press [MENU/MODE CHK] to end the procedure.
52
.
.
.
Recording clips to which the meta-data was added
You can add the loaded meta-data to clips when recording clips.
Playback
1 Display the thumbnail display screen.
2 Press [MENU/MODE CHK].
3 With cross cursor operation, move the cursor to “META DATA”–“RECORD”.
4 Move the cursor to “ON” and press
.
With this setting, you can record video and the loaded meta-data at the same time. USER CLIP NAME
is added as meta-data according to the set recording method.
5 Press [MENU/MODE CHK] to end the procedure.
6 Recording video on this unit.
• If you set “OFF” in step 4, meta-data is not added to the clip.
53
Clip management (continued)
Adding shot marks to clips
You can differentiate one clip from all the other clips by adding shot marks.
1 Display the thumbnail display screen.
2 With cross cursor operation, move the cursor to the target clip.
3 Press [USER] in which the shot mark function was allocated. (Page 32)
To release a shot mark, repeat the above steps.
If the video data created by a shooting session consists of a multiple number of clips, it will not be
possible to add or release the shot marks unless all the P2 cards containing the video data are inserted
into the slots.
• Shot marks cannot be added into the clips on a card whose write protect switch is at the PROTECT
position.
• Shot marks can be added during recording as well. (Page 63)
• Shot marks cannot be added or released during playback.
• Shot marks cannot be added or released during LOOP REC.
Displaying the P2 card status
The statuses of the P2 card slots, operation statuses of the P2 cards and other card information can be
displayed on the screen, and checked.
1 Display the thumbnail display screen.
2 Press [MENU/MODE CHK].
3 Using , and , select “PROPERTY”
[When REMAIN has been selected]
1)
2)
– “PROPERTY SETUP” – “P2 CARD CAP”,
and press .
4 Use
and to select the item to be set,
and press .
REMAIN:
Remaining memory display
(default value)
USED:
Used memory display
5 Press
6 Using
.
and
and press .
3)
5)
4)
[When USED has been selected]
1)
, select “CARD STATUS”,
2)
3)
5)
4)
54
2) P2 card status
With the remaining memory display, the P2
card’s remaining memory is indicated using
a meter and as a percentage. With the used
memory display, the P2 card’s used memory is
indicated using a meter and as a percentage.
Depending on the status of the card, one of the
following messages may be displayed.
FORMAT
ERROR:
An unformatted P2 card has
been inserted.
NOT
SUPPORTED:
A card which is not supported
by the unit has been inserted.
NO CARD:
A P2 card has not been
inserted.
P2 card details display
When the cursor is moved to the slot whose P2
card status is displayed and is pressed, the
model number of the P2 card and other detailed
information on the card will be displayed. When
is pressed again, the detailed information is
cleared.
The card details are displayed as follows.
BRAND
: Panasonic
MODEL NO.
: AJ-P2C032RG
SERIAL NO.
: AAF07L0520
USER ID
:
3) P2 card remaining memory (or used
memory) and total memory
A figure representing the remaining memory
(or used memory) of P2 cards/total memory
is displayed in minute equivalent. Fractions of
a minute are discarded so that the total of the
remaining memory (or used memory) on each
P2 card may not exactly correspond to the total
memory.
4) Slot remaining memory (or used memory)
total
A figure representing the total for the remaining
memory (or used memory) of the cards in the
two P2 card slots is displayed.
• The free memory of a write-protected P2 card
is not included in the remaining memory.
5) P2 card warning displays
is displayed when the P2 card is in one of
the following statuses:
Details of the warnings can be checked on the
P2 card details display.
• RUN DOWN CARD:
The maximum number of overwrites on the
P2 card has been exceeded.
• DIR ENTRY NG:
The directory structure on the P2 card is not
supported.
Playback
1) Write-protect mark
The
mark is displayed when a P2 card is
write-protected.
OK
55
Clip management (continued)
Displaying SD card information
You can display the usage statuses of SD cards on the screen, and check them.
1 Display the thumbnail display screen.
2Press [MENU/MODE CHK].
3 Using , and , select “PROPERTY”
– “DEVICES” – “SD CARD”, and press
The following information is displayed.
.
SD STANDARD: Whether the SD card has
been formatted in compliance
with the SD/SDHC standard is
displayed.
SUPPORTED: The card format
complies with the SD/SDHC
standard.
NOT SUPPORTED: The card
format does not comply with the
SD/SDHC standard.
USED:
Used memory [bytes]
BLANK:
Free memory [bytes]
TOTAL:
Total memory [bytes]
NUMBER OF
CLIPS:
Number of clips contained on
the SD card when the clips
were copied onto the SD card
with a proxy or P2 camerarecorder
PROTECT:
Write-protect status
• Proxy recording is not possible with this unit.
4 Press .
5 Press [MENU/MODE CHK] to exit the
procedure.
56
Clip playback
Playing back clips
1 Display the thumbnail display screen.
2 With cross cursor operation, move the
cursor (yellow frame) to the target clip.
3 Press
• When playing back a clip, there is no need to select it (provided that the bluish-green frame is displayed
on the thumbnail).
• It is not possible to play back clips for which the X defective clip indicator or ? unknown clip indicator
(Page 37) is displayed.
• The clips whose clip numbers are displayed in red cannot be played back.
• By changing the thumbnail display setting (Page 38), you can play back only the clips you have selected,
or play back only the clips in which text memos have been inserted, for instance.
• If you press while playing back the clip, the playback stops and the thumbnail screen is restored.
• If the playback is stopped, the cursor position moves to the clip played back just before this clip.
• The next playback start position is determined according to the setting menu: “THUMBNAIL”–“SETUP”–
“PLAYBACK RESUME” (Page 39).
• If you play back various formats (AVC-Intra100, AVC-Intra50, DVCPRO HD, DVCPRO50, DVCPRO, DV),
the images and sounds are distorted between clips. This is not a malfunction.
• Easy playback of clips stored on the external hard drive is available also. Refer to “Easy playback of clips
on the hard drive (For viewing materials)” on page 78.
• If you change the thumbnail display screen to the text memo display, you can start playback from the text
memo position. Refer to “Playback from the text memo position” on page 60.
• The unit does not support hot swap playback (Switching cards while playing back the continuously
recorded clips which were recorded onto multiple cards).
• If the clips in AVC-Intra50 and AVC-Intra100 formats are played back, they are not output to the
DVCPRO/DV input/output connector (IEEE1394).
Playback
.
Playback starts from the clip where the cursor
is positioned. When this clip has finished
playing back, the subsequent clips are played
back in turn, and when the last clip has been
played back, the thumbnail screen is restored.
• When “TEXT MEMO” is allocated to [USER]
(Page 97), text memos can be added during
playback. (but shot marks cannot be added)
(Continued on the next page)
57
Clip playback (continued)
Playing back clips (continued)
Basic playback operations
Play ( )
When this button is pressed during stop, playback begins from the start of the selected
clips*. When it is pressed during playback, the variable-speed playback (Page 59) is set,
and the clips are played back at the 1x speed.
* If you do not move the cursor when “PLAYBACK RESUME” is “ON”, the playback
starts from the last stop position.
Rapid forward playback ( )
When this button is pressed during playback, the clip currently selected is played rapidly
in the forward direction (at 4x normal speed). When the thumbnail display screen is not
displayed, this type of playback is possible even during stop. If the button is held down,
the playback speed is increased. (The setting value for “SPEED MAX” on the setting
menu “PLAYBACK FUNCTIONS” is set.) When it is pressed during pause, the next clip or
text memo is selected for playback. (Depends on the setting for the “SEEK POS” item on
the setting menu “PLAYBACK FUNCTIONS”.)
Rapid reverse playback ( )
When this button is pressed during playback, the clip currently selected is played rapidly
in the reverse direction (at 4x normal speed). When the thumbnail display screen is not
displayed, this type of playback is possible even during stop. If the button is held down,
the playback speed is increased. (The setting value for “SPEED MAX” on the setting
menu “PLAYBACK FUNCTIONS” is set.) When it is pressed during pause, the previous
clip or text memo is selected for playback. (Depends on the setting for the “SEEK POS”
item on the setting menu “PLAYBACK FUNCTIONS”.)
Stop ( )
If you press during playback, the playback stops and the thumbnail display screen is
restored.
Pause ( )
When this button is pressed again, playback is resumed.
Single clip playback
When “ONE CLIP” is assigned to [USER] (Page
97), if you press the [USER], only the clip at the
cursor position can be played back.
58
• When the single clip playback finishes or you
press , the playback stops and the thumbnail
display screen is restored. The cursor moves to
the next clip.
• During the single clip playback, all buttons but
are disabled.
• The single clip playback starts from the beginning
of the clip, regardless of whatever setting for
“PLAYBACK RESUME” is made.
• During the single clip playback, you cannot add
a text memo.
Frame feed playback
Variable-speed playback
You can change the playback speed and search
for specific locations.
1 Press
2 Press
2Press
during playback.
is displayed.
, and change the playback speed.
X /X
or X /X
is displayed.
• Each time you press the button, the playback
speed changes.
(The maximum value for the variable speed
is determined according to the setting value
for “SPEED MAX” on the setting menu
“PLAYBACK FUNCTIONS” (Page 99).)
No sound will be played back at over the 10x
speed. If you continue to press the button,
the playback speed changes in order. The
sound of the variable-speed playback will not
be played back during the clip easy playback
from the hard drive.
• Use
to increase the speed, and
to
decrease it.
• The playback speed becomes 0 by pressing
and
at the same time.
To return to normal playback, press
during playback to establish the
pause mode.
.
During variable-speed playback (including 1x
speed) of native recorded materials, the pulldown
sequence may not be even.
Clip and text memo forward/reverse
.
• The clips are fed frame by frame in the
forward direction using
and in the reverse
direction using .
or
is displayed during operation.
• When the button is held down, frame feeding
is continued.
To return to normal playback, press
.
Repeat playback
The selected clip is played repeatedly.
1 Press [THUMBNAIL/MODE] to display the
normal display screen.
2Press [MENU/MODE CHK].
3 Using , and , select “PLAYBACK
FUNCTIONS” – “REPEAT PLAY” – “ON”,
and press .
4 Press [MENU/MODE CHK] twice.
The repeat playback icon appears on the
normal display screen.
1 2 106 min
Repeat
playback icon
1080i
AVC-I100
60
1 Press
5 Press [THUMBNAIL/MODE] to display the
2Press
6 Using
during playback to establish the
pause mode.
or .
The playback position moves to the beginning
of clip or text memo position according to the
setting value on the setting menu “SEEK POS”
(Page 99). CLIP or CLIP&T
, CLIP or
CLIP&T
is displayed during operation.
Rapid forward/rapid reverse playback
1 During playback, press
or .
The clip is played back rapidly at 4x normal
speed in the forward or reverse direction. When
the button is held down, the speed increases.
(The maximum speed is determined according to
the setting value for “SPEED MAX” on the setting
menu “PLAYBACK FUNCTIONS” (Page 99).)
or
is displayed during operation.
To return to normal playback, press
.
Playback
1X
1 Press
thumbnail display screen.
C
H
C
H
1
2
3 CH
4 CH
or , move the cursor (yellow frame)
to the repeat playback clip, and press .
7Press [MENU/MODE CHK].
8 Using , and , select “THUMBNAIL”
– “SELECTED CLIPS”, and press
9 Press
.
.
The selected clip is now played back repeatedly.
• Playback is repeated until is pressed.
• If “SELECTED CLIPS” is not selected for the
thumbnail display setting, all the currently
displayed clips which can be played back will be
played back repeatedly.
• To turn off the repeat playback setting, select
“OFF” in step 3.
• When rapid forward or rapid reverse playback
is performed during repeat playback, playback
stops after the first playable clip or last playable
clip is played back.
59
Clip playback (continued)
Adding text memos
1 During recording, playback or thumbnail
display, press [USER] to which the “TEXT
MEMO” was allocated.
• If you press this button during recording or
playback, the text memo is added to the
position at which the button is pressed.
• If you press this button while the thumbnail
display screen is displayed, the text memo is
added to the clip’s thumbnail image position
(normally the beginning of the clip).
• Up to 100 text memos can be added to one clip.
• During playback, if you press the [USER] to
which the “TEXT MEMO” was allocated, the
playback image may tentatively stops. This is not
a malfunction.
• The text memo can be added only at 1x speed or
while paused.
• During the single clip playback or LOOP REC,
you cannot add a text memo.
Playback from text memo position
1 Display the thumbnail display screen.
2Press [MENU/MODE CHK].
3 Using , and , select “THUMBNAIL”
– “TEXT MEMO CLIPS”, and press .
Thumbnails of the clips to which text memos
were added now appear at the top of the LCD
monitor screen. Information about the text
memo of the clip pointed by the cursor appears
at the bottom of the LCD monitor screen.
The cursor moves here.
5 Using
Thumbnail
display area
Indicated here are the still
images located at the text
memos.
Indicated here is the total
number of text memos which
were added to the clips.
When the text memo display screen is
displayed as above, the image by EE output is
displayed BLACK.
4 Using
and , move the cursor to the clip
which is to be played back, and press .
The cursor moves to the bottom of the LCD
monitor screen.
60
or , move the cursor to the
number of the text memo to be played back,
and press .
Playback starts from the time code position of
the text memo where the cursor is positioned.
When playback ends at the end of the clip,
the thumbnail screen is restored, and the
cursor returns to the time code position where
playback was started.
6 Press [MENU/MODE CHK], and then select
“EXIT” using , , and press .
When EXIT is assigned to the [USER], if you
press [EXIT/2], the cursor returns to the top of
the thumbnail screen.
• Text memos can be added while clips are being
played back or recorded. Refer to the above
“������������������������������������������
Adding text memos”. Note that text memos
cannot be added during playback from the above
text memo position.
• During playback from the text memo position, all
buttons but are disabled.
Deleting text memos
Replacing thumbnail images
1 Perform the operation from steps 1 to 4
The thumbnail display image of clip can be
replaced with the still image at the text memo
position.
in “Playback from text memo position”,
and move to the bottom of the text memo
screen.
1 Perform the operation from steps 1 to 4
2Move the cursor to the text memo to be
in “Playback from text memo position”,
and move to the bottom of the text memo
screen.
deleted, and press .
A multiple number of text memos can be
selected.
2Using
“OPERATION” – “DELETE” using
.
,
and
3Press [MENU/MODE CHK].
4Using , and , select “OPERATION”
4Select “YES”, and press
.
The text memo is now deleted.
– “EXCH. THUMBNAIL”, and press
Dividing and copying clips using text
memos
.
Playback
or , move the cursor to the text
memo still image you wish to make the
thumbnail display image.
3Press [MENU/MODE CHK], and then select
1 Perform the operation from steps 1 to 4
in “Playback from text memo position”,
and move to the bottom of the text memo
screen.
2Move the cursor to the text memo to be
copied, and press .
A multiple number of text memos can be
selected.
3Press [MENU/MODE CHK], and then select
“OPERATION” – “COPY” using
and press .
,
and
,
4Using
or and , select the slot with the
copy destination card, select “YES”, and
press .
Copying is now executed.
5 When the completion message has
appeared, press “OK” ( ).
• The block between the selected text memo and
the next text memo is copied. If there is no text
memo after the selected text memo, the block
from the text memo position to the end of the clip
will be copied.
• While copying is underway, the progress made
in copying and cancel are displayed. To stop the
copying at any time, press . The “YES/NO”
confirmation screen now appears. Using and
, select “YES”.
5 Select “YES”, and press
.
The thumbnail display image is replaced with
the still image at the cursor position.
• You can view the thumbnail change position
(number of frames from the start) using the clip
information display “THUMBNAIL” item (Page
44). “0” is normally displayed for the thumbnail of
the start frame.
• Playback from a thumbnail begins from the start
of the clip even when the thumbnail has been
changed.
61
Outputting images to an external monitor for playback
You can connect an external monitor to the output connector of the unit, output clips to the external monitor
and play them back on the monitor.
AUDIO OUT CH1/
CH2 connectors
HD/SD-SDI
OUT connector
OUTPUT
CH 1
VIDEO
INPUT
HD/SD-SDI HD/SD-SDI
AUDIO
CH 2
DVCPRO/DV
VIDEO OUT connector
External monitor
This unit
HD/SD-SDI output
Video output/audio output
AG-HPG20
Setting the outputs
1 Hold down [POWER] for at least 1 second to turn the power on.
2 Press [THUMBNAIL/MODE].
The normal display screen appears.
3Press [MENU/MODE CHK].
4 Using and , select “AV OUT SETUP” setting item, and press
5 Using and , select the setting, and press .
6 Press [MENU/MODE CHK] to end the procedure.
.
Adjusting the output volume level during recording and playback
The volume level of the sound from the speaker or headphone jack can be adjusted by pressing
during recording or playback.
The volume level of the sound from the speaker or headphone jack can be adjusted by pressing [ALT/3]
and
when the thumbnail display screen is displayed. Refer to AV OUT SETUP screen on page 99.
• ALT function must be assigned to [ALT/3] on the setting menu “SW MODE” (Page 97).
Adjusting the output volume level during variable-speed playback
The volume level of the sound from the speaker or headphone jack can be adjusted by pressing [ALT/3]
and
during variable-speed playback. Refer to AV OUT SETUP screen on page 99.
• ALT function must be assigned to [ALT/3] on the setting menu “SW MODE” (Page 97).
62
Recording data on P2 cards
You can connect a digital video component equipped with a SDI connector or IEEE 1394 connector, and
record video signals, audio signals or time codes, etc. on the unit.
DVCPRO/DV input/output
connector (IEEE1394)
This Unit
AG-HPG20
1394 cable
(optional accessory)
HD/SD-SDI IN connector
Playback
Digital
component
Recording
SDI
Recording
1 Hold down [POWER] for at least 1 second to
turn the power on.
The thumbnail screen appears.
2 Press [THUMBNAIL/MODE].
The normal display screen appears.
1 2 106 min
4 Set the following items.
Setting item
Menu
Input signal
“RECORDING SETUP”–
“INPUT SELECT”
Recording format*
“RECORDING SETUP”–
“SYS FORMAT”,
“REC FMT(SD)”,
“REC FMT(HD)”
Time code, user’s bit “TIMECODE SETUP”
AVC-I100
60
* The
video format of the input signal and the
C
H
C
H
1
2
3 CH
4 CH
3Press [MENU/MODE CHK].
recording format on this unit must be the same.
For details, refer to the setting menu
“RECORDING SETUP” (Page 90) and
“TIMECODE SETUP” (Page 93).
5 Press the two [REC] buttons together.
Recording now starts.
• To stop the recording, press .
• While recording is underway, text memos or
shot marks assigned to [USER] (Page 97)
can be added.
(Continued on the next page)
63
Recording data on P2 cards (continued)
Recording (continued)
• By making HD-SDI/1394 connection to a camera recorder equipped with an external device control
function, the unit can be made to start recording, pause recording, etc. by the camera recorder. For
details on devices compatible with HD-SDI connection and settings on this unit, refer to “AUTO REC” on
the setting menu “RECORDING SETUP” (Page 91).
Also, refer to the operating instructions of the camera recorder.
• Recording is not available in PC mode (Page 25).
• The unit does not support native recordings.
• Before recording, check that video signals are being input.
• If the input signal format changes during recording, recording does not proceed properly.
• Do not stop the signal output at the external device or disconnect the device’s cable during recording.
Otherwise, the device may not recognize signals when recording is undertaken again.
• Do not start recording in the condition that invalid signals or continuously distorted signals are input. The
device may not operate normally.
• When time information data identification code (DBB1) in SLTC or SVITC superimposed onto SDI input
signals is lost or ON/OFF is switched during EE/recording, the images may be distorted at those timings.
(When SDI is set on the setting menu “INPUT SELECT” (Page 90))
The followings are restrictions when 1394 input is selected.
• No signals are recorded if the same video signals as those for recording format are not input.
• Recording in AVC-Intra100 and AVC-Intra50 formats is not possible.
• Recording sound is 4ch for DVCPRO HD input (Page 118).
2-slot continuous recording
If P2 cards have been inserted into both of the P2 card slots, you can continuously record images first
on one card and then on the other. While images are being recorded on one card, you can replace the
other card with a fresh card and in this way record continuously onto 3 or more cards. (This is called hot
swap recording.) However, the fresh P2 card may not be recognized when it is inserted into the empty
slot at certain timings (Before and after when recording continuously from one slot to the other). It is
recommended that you insert a fresh P2 card while the card on which images are being recorded still has
at least one minute of remaining memory.
When “SLOT SEL” is assigned to [USER] for the USER1-3 items (Page 97) on the setting menu “SW
MODE”, you can change the slot targeted for recording at the touch of a button.
• Changing slots is not possible while recording is in progress, so do this in the recording standby status.
• The unit does not support hot swap playback.
Waveform monitor (WFM) displays
You can display the simplified waveform monitor on screen, and monitor the images.
The monitor can be displayed when the “WFM” item on the setting menu “DISPLAY SETUP” screen is set.
• When “WFM” is assigned to [USER] for the USER1-3 items (Page 97) on the setting menu “SW MODE”:
When the “WFM” setting on “DISPLAY SETUP” is “OFF”
Each time the button is pressed, the setting is switched as follows: “WAVE”→“VECTOR”→“OFF”→
“WAVE”.
When the “WFM” setting on “DISPLAY SETUP” is “WAVE”
Each time the button is pressed, the setting is switched as follows: “WAVE”→“OFF”→“WAVE”.
When the “WFM” setting on “DISPLAY SETUP” is “VECTOR”
Each time the button is pressed, the setting is switched as follows: “VECTOR”→“OFF”→“VECTOR”.
• The output with superimposed WFM is linked to the selection on the setting menu “OSD OUT SEL”.
• The display appears during clip playback and when input signals are being supplied.
64
You can change what is displayed in the time code
display area. (Page 80)
1 Press [COUNTER].
Each time the button is pressed, the data
changes as follows.
TC:
UB:
FR:
No display:
COUNTER:
Time code displays
User’s bit value
Frame rate information
No data displayed
Counter display (Except for
playback process)
Resetting the counter value
On the normal display screen, press [RESET]
while the counter value is displayed.
• When the time code display during recording
is COUNTER, you can select whether to
display the counter value by clip, or to display
the total counter value on the setting menu
“DISPLAY SETUP” – “REC COUNTER”.
Setting the recording time code
You can select the recording time code at the “EXT
TC REGEN” item on the setting menu “TIMECODE
SETUP”. For details, refer to the setting menu
“TIMECODE SETUP”. (Page 93)
Setting the recording time code
On the setting menu “TIMECODE SETUP”, set the
following time code related items. (Page 93)
• TC MODE
• TCG
• TC PRESET
Specifying the time code (TC PRESET)
Set the time code value on “TC PRESET” so you
can record a value of your choice as the initial
setting for the time code to be used at the start of
recording.
1 Hold down [POWER] for at least 1 second to
turn the power on.
2 Select “OFF” on the “EXT TC REGEN” item
on the setting menu “TIMECODE SETUP”.
• Basic operations on the setting menus (Page
88)
3Select “CHANGE” for the “TC PRESET” item
on “TIMECODE SETUP”, and press
.
TIMECODE SETUP
EXT TC REGEN
TC MODE
TCG
TC PRESET
EXT UB REGEN
UB MODE
UB PRESET
VITC BLANK
ON
DF
REC RUN
RETURN
CHANGE
FRM.RATE
>>>
THRU
PUSH MENU TO RETURN
4When the following screen appears, set the
Recording
Time code displays
time code value.
• Using and , select the time code value.
TC PRESET
REC RUN
10:32:23:24
h min
s frm
/
+/- : PUSH
/
SEL : PUSH
PRESET : PUSH SET
Using , move to the next digit, and using
and , select the time code value again.
TC PRESET
REC RUN
10:32:23:24
h min
s frm
/
+/- : PUSH
/
SEL : PUSH
PRESET : PUSH SET
If [RESET] is pressed while setting the time code,
the time code value will be reset to zero.
(Continued on the next page)
65
Recording data on P2 cards (continued)
5 Set the user’s bit.
Setting the recording time code
(continued)
Specifying the time code (TC PRESET)
(continued)
5 After the time code value has been set,
press
6 Using
Using and , select the user’s bit characters.
• You can use numbers from 0 to 9 and letters
from A to F.
UB PRESET
0 0 0 0 0 0 0 0
.
, move to “YES”, and press
/
+/- : PUSH
/
SEL : PUSH
PRESET : PUSH SET
.
TC PRESET
PRESET OK?
YES
NO
___
Using , move to the next digit, and press
and again to select the character.
PUSH SET
UB PRESET
0 0 0 0 0 0 0 0
7Press [MENU/MODE CHK] 2 times to release
the menu mode.
/
+/- : PUSH
/
SEL : PUSH
PRESET : PUSH SET
Set the user’s bit
Setting user’s bit allows you to store 8-digit
information (such as the date and time) in the
hexadecimal format on the sub code area.
User’s bit is automatically saved in the memory
and retained after you turn off the power.
If [RESET] is pressed while setting the user’s bit,
the user’s bit value will be reset to zero.
1 Hold down [POWER] for at least 1 second to
turn the power on.
2Select “OFF” for the “EXT UB REGEN” item
on the setting menu “TIMECODE SETUP”.
• Basic operations on the setting menus (Page
88)
6 After the user’s bit has been set, press
7Using , move to “YES”, and press .
.
UB PRESET
PRESET OK?
YES
NO
___
PUSH SET
3Select “USER” for the “UB MODE” item on
“TIMECODE SETUP”.
4Select “CHANGE” for the “UB PRESET”
item on “TIMECODE SETUP”, and press
TIMECODE SETUP
EXT TC REGEN
TC MODE
TCG
TC PRESET
EXT UB REGEN
UB MODE
UB PRESET
VITC BLANK
OFF
DF
REC RUN
>>>
ON
USER
RETURN
CHANGE
PUSH MENU TO RETURN
66
.
8Press [MENU/MODE CHK] 2 times to release
the menu mode.
Copying data from P2 cards to the hard drive
You can connect a hard drive equipped with a USB 2.0, and copy data from P2 cards onto the hard drive.
Hard drive
USB cable
(optional accessory)
USB HOST connector
(USB2.0 Type A)
AG-HPG20
Saving data
• Use a hard drive which meets the following conditions.
1) The hard drive must be used within its guaranteed operating ranges (temperature, etc.).
2) The hard drive must not be installed where it will be susceptible to vibration or be unstable.
• Hard drives with a memory size of 2 TB or more are not supported.
• In the case of some hard drives, the intended operations may not be performed properly.
• A hard drive with a SATA (serial ATA) or PATA (parallel ATA) interface connected through a USB
conversion cable may not be recognized.
• While formatting or copying is in progress, do not disconnect the cables, eject the P2 cards or turn off the
power of the unit or hard drive. Such actions will require the power to be turned on again.
• A hard drive is a high-precision device: as such, when it is used under certain conditions, it may quite
possibly fail to read or write data.
Panasonic disclaims all liability for the loss of data caused by a failure of or any form of trouble occurring
in the hard drive, and also for any direct and indirect damages suffered as a result of such failure or
trouble. Users are asked to bear this in mind.
• When the data on the hard drive used for copying data from the unit has been updated by a PC or other
devices, no guarantees can be made for the subsequent operations involving the unit or for the data on
the hard drive.
• It is recommended that you repair P2 cards containing defective clips* before copying their data using
the unit.
∗ A “defective clip” is a clip with some kind of problem in its recording which was caused because a P2
card was ejected or the power was turned off while its recording was still in progress, and it is indicated
by the X mark when the thumbnail screen is displayed.
• If, when the drive mount converter which Panasonic makes available free of charge from its web site
given below is used and the hard disk has been connected to a Windows PC, the hard disk partition
can be mounted in the specified folder. Use this when there is an overlap between one or more already
allocated network and drives so that one or more partitions are concealed as a result.
https://eww.pavc.panasonic.co.jp/pro-av/
Recording
The following conditions must be met when using a USB connection.
• This unit supports only USB 2.0. Use a USB 2.0-compatible hard drive.
• Only one hard drive must be connected.
• Operations can not be guaranteed if a hub or other device is connected between the unit and hard drive.
Use of a USB cable no longer than 3 meters is recommended.
67
Copying data from P2 cards to the hard drive (continued)
Switching to the USB HOST mode
1 Hold down [POWER] for at least 1 second to
turn the power on.
The thumbnail screen now appears.
2 Press [THUMBNAIL/MODE] to display the
normal display screen.
7 Hold down [THUMBNAIL/MODE] for at least
2 seconds.
The USB HOST mode is now established,
and “USB HOST” appears at the bottom of the
thumbnail screen.
3 Press [MENU/MODE CHK].
4 Using , and , select “OTHER
FUNCTIONS” – “PC MODE SELECT”, and
press .
5 Using
press
.
and
, select “USB HOST”, and
6 Press [MENU/MODE CHK] twice to display
the normal display screen.
• Use a hard drive with enough memory to
accommodate the data to be copied.
To exit the USB HOST mode
1 Hold down [THUMBNAIL/MODE] for at least
2 seconds.
The USB HOST mode is cancelled, and “USB
HOST” disappears at the bottom right of the
screen.
Usable hard drives
The following hard drive can be used.
• Panasonic portable hard disk unit for P2 store (AJ-PCS060G)
• Any hard drive which can be connected using USB 2.0
• USB bus power (5 V, 0.5 A) is also supported, but some hard drives cannot be started up using it. If this
is the case, supply power from a separate source to the hard drive.
• Some hard drives may not operate properly.
• Do not use USB memories or other removable media.
68
Types of hard drives and usable functions
The functions that can be used differ from one hard drive to another. The hard drive type is displayed
following [PARTITION:] on the left of the HDD EXPLORE screen in the unit’s HOST mode.
Features
Functions that can be used
TYPE S
This is a special format for writing
and reading all the data on one card
at a time at high speed. This is the
format used when a hard drive is
formatted by the unit.
Writing and reading all the data
on one card at a time, thumbnail
displays, reading data one clip at a
time, clip playback, formatting
P2STORE
This refers to the P2 store (AJPCS060G) hard drive. It cannot be
used to write data.
Reading all the data on one card at
a time, thumbnail displays, reading
data one clip at a time, clip playback
FAT
The first basic partition format is
FAT16 or FAT32.
When the [CONTENTS] folder is
not present in the root folder of the
partition, create it.
Thumbnail displays, Writing and
reading on one clip at a time, clip
playback, formatting
• After this drive has been formatted
by the unit, it is treated as a
“TYPE S” drive.
OTHER
All other types of hard drives
• This applies when a file system
other than FAT16 and FAT32,
such as NTFS, is used as a first
partition.
Formatting
• After this drive has been formatted
by the unit, it is treated as a
“TYPE S” drive.
Saving data
Hard drive type
69
Copying data from P2 cards to the hard drive (continued)
Formatting the hard drive
Formatting initializes the hard drive to a format which can be used by TYPE S.
• Bear in mind that when the hard drive is formatted, all the existing data on that drive will be erased.
1 Switch to the USB HOST mode.
2 Connect the USB hard drive.
3Press [MENU/MODE CHK].
4 Using , and , select “HDD” – “EXPLORE”, and press
The HDD EXPLORE screen is opened.
.
5 Press [MENU/MODE CHK], select “OPERATION” – “FORMAT (HDD)” using
press
6 Select “YES”, and press .
7 When the confirmation message appears again, select “YES”, and press
The hard drive is now formatted.
8 When the completion message has appeared, press “OK” (
70
,
.
).
.
and
, and
Exporting data to a hard drive in 1-card increments
If you are using a TYPE S hard drive, you can export all the data on one P2 card at a time to the hard drive
(write data from P2 cards onto the hard drive). Before proceeding, use the unit to format the hard drive.
(Bear in mind that all the data recorded on the hard drive will be erased.) The data of up to 23 cards can
be stored on the hard drive. The computer or other device used will recognize each P2 card from which the
data is exported to be a separate drive.
Format the hard drive only if it has not been
formatted by the unit.
Refer to “Formatting the hard drive” (Page 70).
3 Insert the P2 card.
4 Press [MENU/MODE CHK].
5 Using , and , select “HDD” –
“EXPORT”, and press
.
• A progress bar is displayed while the data is
being exported.
• To stop exporting the data at any time, press ,
move the cursor to “YES” on the “CANCEL”
confirmation display, and press . If the export
process has completed for a card before
cancellation, the copy has been completed.
• It will take less time for the exporting to be
completed if you set it up so that verification
of the two sets of data is not required during
exporting. To do this, set the menu item “HDD”
– “SETUP” – “VERIFY” to “OFF”.
• The copying of the P2 card data will also be
terminated if the process is aborted during
verification of the two sets of data.
When the exporting is completed, “COPY
COMPLETED!” appears on the screen.
Saving data
1 Switch to the USB HOST mode.
2 Connect the USB hard drive.
6 Select the number of the P2 card slot where
the P2 copy source card was inserted, and
press .
If you select “ALL SLOT”, all data on all cards
which have been inserted is exported at a time.
7 Select “YES”, and press
.
71
Copying data from P2 cards to the hard drive (continued)
Exporting one clip at a time to a hard drive
Clips can be copied onto the hard drive in FAT type.
1 Switch to the USB HOST mode.
2 Display the thumbnail display screen.
3 Select the clip on the P2 card to be copied
onto the hard drive.
4 Press [MENU/MODE CHK].
5 Using , and , select “OPERATION”–
“COPY”–“HDD (FAT)”, and press .
If the hard drive in FAT type is not connected,
the menu cannot be activated.
6 Select “YES”, and press
Clip copying now starts.
.
• While clips are being copied, do not turn off the power or eject the card. Otherwise, defective clips will be
produced. If defective clips are produced, delete them, and copy the original clips again.
Copy incomplete clips after having connected them (Page 41).
• To stop the copying process at any time, press
to cancel the copying. The partially copied clip at the
copy destination will be deleted.
If there is a clip with the same GLOBAL CLIP ID –one which, for instance, was previously copied to the
copy destination– “OVER WRITE” will appear. To overwrite the existing clip, select “YES” or to cancel the
overwriting, select “NO”, and press . (When you copy some portion of a clip which has been recorded
on a multiple number of P2 cards, “OVER WRITE” also appears when copying the remaining portion of
the clip.)
72
Clips cannot be copied when any of the following error messages are displayed.
• “LACK OF REC CAPACITY!”
Clips will not be copied because there is insufficient space available on the hard disk.
• “UNKNOWN CONTENTS FORMAT!”
Clips will not be copied because the selected clips include defective clips.
• “TOO MANY CLIPS!”
Clips will not be copied because too many clips have been selected.
Up to 1000 clips can be copied onto the FAT type of hard drive on this unit.
If you have created on the hard drive a clip whose size is larger than the capacity of one P2 card, such a
clip cannot be returned to the P2 card.
Saving data
• Clips displayed by the X defective clip indicator cannot be copied.
• It may not be possible to copy clips for which the ? unknown clip indicator is displayed.
73
Copying data from P2 cards to the hard drive (continued)
Hard drive data display
You can display the hard drive information.
1 Switch to the USB HOST mode.
2 Connect the USB hard drive.
3Press [MENU/MODE CHK].
4 Using , and , select “HDD” –
1.
PARTITION
Type of hard drive
2.
VENDOR
Name of vender
3.
MODEL
Hard drive model name
4.
SIZE
Total memory size of hard
drive
5.
USED
Amount of hard drive
memory used (unit: GB) and
area of P2 card used (unit:
cards)
6.
REMAIN
Remaining hard drive
memory (unit: GB)*
“EXPLORE”, and press .
The hard drive information is displayed.
With a TYPE S or P2STORE hard drive
7
1
2
3
4
5
6
With FAT
1
2
7.Partition number
Partition (unit equivalent to
one P2 card) number inside
hard drive
* As for the hard drive in FAT type, the remaining
memory only for the target area on the hard drive
is displayed.
• Using and , you can switch the display
between the list with the dates/times and the
names of the partitions given by the user. If
the hard drive is in FAT type, switching is not
possible.
• If the hard drive is in TYPE S type, when the hard
drive thumbnail display or the EXPLORE display
is on the screen, press [MENU/MODE CHK], and
select “OPERATION”–“CHANGE PARTITION
NAME”. You can now apply a name (up to 20
characters) to the partition.
(This is not possible with hard drives in other
types than TYPE S.)
3
4
6
• If an invalid partition is present on the P2 store hard
drive, the partition information is displayed in gray.
• With a FAT type of hard drive, only the first
partition is displayed.
74
Deleting the partition
You can delete the last partition on a TYPE S hard drive.
1 Switch to the USB HOST mode.
2 Connect the USB hard drive.
3 Press [MENU/MODE CHK].
4 Using , and , select “HDD”–“EXPLORE”, and press
The hard drive information is displayed.
.
6 Select “OPERATION”–“DELETE LAST PARTITION”, and press
.
The last partition will be deleted. If the cursor is not present at the last partition, “DELETE LAST
PARTITION” menu cannot become effective.
Saving data
5 Move the cursor and select the last partition.
• Only the last partition can be deleted. The deleted partition cannot be restored. Check this point before
deleting.
• Partitions wherever in the middle position cannot be deleted.
75
Copying data from P2 cards to the hard drive (continued)
4) Disk information
Thumbnail displays of clips on the
hard drive
NUMBER (NO.): Partition number (1 to 23)
PARTITION:
You can also display and manage thumbnails of
the clips stored on the hard drive just as you can
with clips on the P2 cards installed in the unit.
1 Display the HDD EXPLORE screen.
2 Using and , select the partition to be
Type of the hard disk is
displayed. (Page 69)
DATE/TIME:
Partition recording date/time
VERIFY:
Setting for verifying during
recording, and verifying results
ON/
The two sets of data
FINISHED: have been verified
and found to match.
displayed, and press .
The clips of the partition are now displayed as
thumbnails.
ON/
FAILED:
The two sets of
data have been
verified and found
not to match.
OFF:
The two sets of data
were not verified.
• “– –” is displayed in the case
of a P2 store hard drive.
NAME:
1)
4)
2)
• When the menu is displayed and “EXIT” is
selected, the HDD EXPLORE screen is restored.
• If necessary, you can change the displays on the
thumbnail display screen. The steps taken to do
this are the same as for the thumbnail displays
for cards. Refer to “Changing the displays on
the thumbnail display screen” (Page 38). Other
operations (repair, connect, adding text memo,
etc.) are not available.
• Clips can be deleted from the thumbnail display
screen of the FAT type of hard drive, but other
operations (repair, connect, adding text memo, etc.)
are not available.
• With a FAT type of hard drive, clips after the first
thousand clips will not be displayed.
• DATE/TIME is displayed in Coordinated Universal
Time (UTC) with the P2 store hard drive.
Displaying the clip information on the
hard drive
3)
1) Display statuses
Displays the thumbnail display status of the
hard drive clips.
2) Partition information
The following information is displayed.
SERIAL:
Serial number of P2 card
MODEL:
Model name of P2 card
3) Recording mode and system format
The recording mode of the clip at the cursor
position and system format are displayed.
76
Partition name
You can display detailed information about clips
on the screen, and check it. This information is the
same as the properties of the clips on the P2 cards.
1 Select the target clip on the thumbnail
display screen of the hard drive.
You can display detailed information about clips
on the screen, and check it.
2 Press [MENU/MODE CHK].
3 Using , and , select “PROPERTY”–
“CLIP PROPERTY”, and press .
For details, refer to “Displaying the clip
information” (Page 43).
Connecting the hard drive for use
Importing data from a hard drive to P2 cards
Importing Data by the partition from
TYPE S Hard Disk or P2 store
You can import data (load data from the hard drive
to a P2 card) at one partition at a time (one card at
a time) onto a P2 card of the same model number
as the original card.
1 Insert the P2 card that will serve as the
import destination.
Insert the P2 card which has been formatted.
2Press [MENU/MODE CHK].
3Using , and , select “HDD” –
Importing Data to a P2 Card by the clip
.
You can select the hard drive clips, and import
them onto a P2 card.
4Using
and , select the copy source
partition, and press .
5 Press [MENU/MODE CHK].
6 Using , and , select “OPERATION”
– “IMPORT” – “ALL CLIP”, and press
.
1 Insert the P2 card that will serve as the
import destination.
2Press [MENU/MODE CHK].
3Using , and , select “HDD” –
“EXPLORE”, and press
.
4Using
and , select the copy source
partition, and press .
5 Select the clip to be copied.
6 Press [MENU/MODE CHK].
7Using , and , select “OPERATION”
Saving data
“EXPLORE”, and press
• When data has been imported to a P2 card which
is different from the source P2 card, some clips
may be incomplete (in which case, they will be
indicated by the ! indicator). If this is the case,
use the connecting function to reconfigure these
clips. Refer to “Connecting incomplete clips”
(Page 41).
• Using a menu setting, you can choose whether to
verify the two sets of data when copying.
• It is not possible to import data one partition at a
time onto a P2 card of a different model number.
Instead, import data one clip at a time.
– “IMPORT” – “SELECTED CLIPS”, and
press .
8Using
7Move the cursor to the number of the
P2 card slot which serves as the import
destination and which contains a formatted
P2 card, and press .
8Select “YES”, and press
.
Importing now begins.
When importing is completed, “COPY
COMPLETED!” appears on the screen.
and , select the number of the P2
card slot whose data is to be imported, and
press .
9Select “YES”, and press
.
Importing now begins. When importing is
completed, “COPY COMPLETED!” appears on
the screen.
• Verifying is not executed when importing one clip
at a time.
• For the precautions to be observed when
importing one clip at a time, refer to “Copying
clips” (Page 42).
• You cannot import to the P2 card clips whose
size is larger than the capacity of the P2 card.
77
Connecting the hard drive for use (continued)
Easy playback of clips on the hard
drive (For viewing materials)
Easy playback of clips saved on the hard drive can
be performed.
Deleting clips on the hard drive
You can delete unwanted clips from a FAT hard
drive by proceeding as follows.
1 Display the thumbnail display screen of the
clips on the hard drive. (Page 76)
2With cross cursor operation, move the
cursor to the clip you wish to play back.
3Press
.
The clip is played back.
1 Display the thumbnail display screen of the
clips on the hard drive. (Page 76)
2Select the clips to be deleted.
3Press [MENU/MODE CHK].
4Using , and , select “OPERATION”–
“DELETE”, and press
The basic operation is the same as clip playback
operation (Page 57). There are some different
points as below.
• Depending on the playback format, playback
proceeds while some images are skipped.
• Depending on the performance of hard drive
or usage status, proper playback may not be
possible.
• This unit does not support slow playback.
• No sound will be output during variable-speed
playback.
• Text memos and shot marks cannot be added
to the hard drive materials regardless of while
playing back or displaying thumbnails.
• Do not make an impact on the hard drive.
• When the P2 store operation setting, “Impact
detection in USB mode” is ON, and if you make
an impact on P2 store while the clip on the hard
drive is played, the playback may stop and the
thumbnail display screen may be restored.
• While the easy playback of a clip on the hard drive
is performed, do not insert or eject the P2 card.
The subsequent operations may become invalid.
• Time code (TC/UB) is output discontinuously.
78
.
5 Select “YES”, and press .
6 When the completion message has
appeared, press “OK” ( ).
It may not be possible to delete clips for which
the X defective clip indicator or ? unknown clip
indicator is displayed.
Editing by means of external devices
Editing data content on the P2 card (USB DEVICE mode)
You can connect a personal computer (Windows, Apple Macintosh) to this unit using a USB cable, and
operate the contents on the unit’s P2 cards from the computer.
This unit
Personal
computer
USB cable
USB DEVICE connector
(optional accessory)
(USB2.0 Type B)
AG-HPG20
Editing in the USB DEVICE mode
The following conditions must be met when using a USB connection.
• PCs mounted with Windows 2000 (SP4 or later version), Windows XP Professional (SP2 or later
version), Windows Vista (Business or upgraded version) or Mac OS X10.4.8.
• When making a USB connection for the first time, install the P2 software from the CD-ROM provided with
the unit onto the PC.
• This unit supports only USB 2.0. Use a USB 2.0-compatible PC.
• Only one PC must be connected.
• Operation will not be possible if a hub or other device is connected between the unit and PC. A USB
cable more than 3 meters long must not be used. Otherwise, malfunctioning may occur.
2Press [THUMBNAIL/MODE] to display the
normal display screen.
3Press [MENU/MODE CHK].
4Using , and , select “OTHER
FUNCTIONS”–“PC MODE SELECT”, and
press .
5 Using
press
.
and
, select “USB DEVICE”, and
6 Press [MENU/MODE CHK] twice to display
the normal display screen.
7Hold down [THUMBNAIL/MODE] for at least
2 seconds.
After “USB DEVICE” is displayed, “USB
DEVICE CONNECT” is displayed once the file
access becomes possible.
• The mode cannot be changed or menus
cannot be displayed while the USB DEVICE
mode is established.
• Do not remove the P2 card while the USB
connection is established.
8Edit the data on the P2 card using the
personal computer.
9After the data has been edited, disconnect
the USB cable.
The display on the LCD monitor changes from
“USB DEVICE CONNECT” to “USB DEVICE
DISCONNECT.”
• When disconnecting the cable, perform the
“safe removal of hardware” procedure at the
personal computer.
10Hold down [THUMBNAIL/MODE] for at
Saving data
turn the power on.
The thumbnail screen now appears.
Editing
1 Hold down [POWER] for at least 1 second to
least 2 seconds.
The normal display screen is restored.
• While the USB connection is established, the
P2 card access LEDs will light up only when
accessed.
• In the USB DEVICE mode, no signals can be
output to an external monitor.
79
Screen displays
Normal displays
18
1
2
3
6
4
5
7
TC 12 : 34 : 56 : 00 1 2 106 min
P2 LACK
REPEAT HDD
17
16
1080i
AVC-I100
14
LOCK
SQU
13
60
8
9
JUN
19
60 : 24P
C
H
C
H
1
2
2009
TEXT MEMO
23 : 59 : 59
USB HOST
3 CH
4 CH
10
1 Time code displays
Each time [COUNTER] is pressed, the following
data (or no information displayed) is selected
in turn.
COUNTER: (Except for playback process)
Counter value
The counter value can be reset for each recording
clip according to the setting menu “DISPLAY
SETUP”–“REC COUNTER” (Page 105). In this
case, CLIP is displayed at the beginning.
TC:
Time code value: [TC *] is displayed when
the time code value could not be read
correctly from the P2 card.
UB:
User’s bit: [UB *] is displayed when the user’s
bit value could not be read correctly from the
P2 card.
FR:
Information on the frame rate of recordings shot
by the camera recorder such as the AG-HVX200
FR 60I : 60i interlace mode
(60 fields per second)
FR 60P : 60p progressive mode
(60 frames per second)
FR 30P : 30p progressive mode
(30 frames per second)
FR 24P : 24p progressive mode
(24 frames per second)
FR 24PA : 24p advanced mode
(24 frames per second)
FR 50I : 50i interlace mode
(50 fields per second)
FR 50P : 50p progressive mode
(50 frames per second)
FR 25P : 25p progressive mode
(25 frames per second)
FR―― : No information
No information displayed
80
19
VOLUME [ _ ]
15
12
11
[+]
20
2 Warning information
P2 :
This blinks when no P2 cards have been
inserted or if all inserted P2 cards are writeprotected.
P2 FULL :
This blinks when there is no more free
memory on the P2 card.
P2 LACK :
This blinks when there is no more free
memory necessary for LOOP recording on the
P2 card or when only 1 P2 card is inserted.
:
This blinks when there is no charge left in the
battery.
:
This blinks when the internal battery for the
calendar has no charge left. (Page 32)
3 System format displays
During recording or on standby, the system
format of the setting menu is displayed.
During playback, the system format of the clip
being played back is displayed.
1080i:
Recording and playback in the 1080i system
format
720P:
Recording and playback in the 720p system
format
576i:
(When “SYSTEM FREQ” on the setting menu
“OTHER FUNCTIONS” is 50Hz)
Recording and playback in the 576i system
format
480i:
(When “SYSTEM FREQ” on the setting menu
“OTHER FUNCTIONS” is 59.94Hz)
Recording and playback in the 480i system
format
5 System frequency displays
60: 59.94 Hz
50: 50 Hz
6 INPUT LOCK
This is displayed when the following conditions
are satisfied at the same time and the output
signal is locked (synchronized) to the input signal.
• When INPUT is set for the setting menu
“PLAYBACK FUNCTIONS”–“SDI IN LOCK”
(Page 99).
• When the signal format is the same as the
one set on the setting menu “RECORDING
SETUP”–“SYS FORMAT”
• When the proper SDI signal is input
When LOCK is displayed, the output signal is
locked (synchronized) to the SDI input signals,
but does not match the phase.
7 Squeeze recording display
This is displayed in the following conditions.
• When the setting menu “SYS FORMAT” is set
to 480/60i or 576/50i and the setting menu
“WIDE SELECT” is set to “WIDE”
• When squeeze-recorded (wide-recorded)
images are played back
• When signals with WIDE information recorded
are input with 1394 connection
8 Date and time display
The mmm dd yyyy hh:mm:ss format (month/
day/year/hours/minutes/seconds) is used to
display the date and time.
• The date and time set by the camera recorder
are displayed when the unit is connected to
the AG-HVX200 or other camera recorder
using a 1394 cable.
9 Playback frame rate display
24P, 24PA, 60P, 30P, 50P, 25P
• The “Variable rate: recording rate” display
appears when native recording clips shot by a
camera recorder, such as the AG-HVX200 are
played back.
Example: 12:24P
12P ( for the variable rate recording
of clips that are not native
recording clips)
• The frame rate is not displayed during the
playback of 60i or 50i content.
10 Audio level meter display
During recording or on standby, input level is
displayed. During playback, audio level being
played back is displayed. The channel level
set for the “LEVEL METER” item on the setting
menu “DISPLAY SETUP” is displayed.
11 USB HOST display
This display appears while the USB HOST
mode is established.
12 Text memo, shot mark displays
These displays appear for about 3 seconds when
[USER], to which a shot mark or a text memo
has been assigned ahead of time, is pressed and
the shot mark or text memo is recorded.
MARK ON:
When a shot mark has been added
MARK OFF:
When a shot mark has been deleted
TEXT MEMO:
When a text memo has been added
INVALID:
When shot marks or text memos cannot be
added or deleted
13 Information display
The following information is displayed
depending on the circumstances.
• Warning displays, error displays
• Displays for mode switching using [USER]
(OSD OUTSEL, AUDIO OUT, SLOT SEL,
SYS FORMAT, INPUT SELECT, REC
FMT(SD), REC FMT(HD))
• Display when [MENU/MODE CHK] is pressed
and held (Page 85)
14 Operation status displays
REC: Recording
L-REC: Loop recording
PAUSE: Recording standby
L-PAUSE: Loop recording on standby
A -: AUTO REC setting display (This is
displayed with other recording displays
except for in USB HOST mode.)
(Continued on the next page)
Displays
4 Compressed recording format display
During recording or on standby, the recording
format of the setting menu is displayed.
During playback, the compressed recording
format of the clip being played back is displayed.
AVC-I 100:
AVC-Intra100 compressed recording format
AVC-I 50:
AVC-Intra50 compressed recording format
HD:
DVCPRO HD compressed recording format
50M:
DVCPRO50 compressed recording format
25M:
DVCPRO compressed recording format
DV:
DV compressed recording format
81
Screen displays (continued)
: Normal playback
: Playback pause
REPEAT : Repeat playback
1CLIP : Single clip playback
1CLIP R : Single clip repeat playback
(
):
Rapid forward playback (rapid reverse playback)
(
):
Forward frame feed playback (reverse frame
feed playback)
x /x
(x /x
):
Forward variable-speed playback (reverse
variable-speed playback)
CLIP
(CLIP
):
Forward clip feed (reverse clip feed)
15 HDD easy playback display
This is displayed during easy playback from
the hard drive. When playback performance
deteriorates, the display blinks for 3 minutes.
When the hard drive is damaged or vibrations
are added to the hard drive, the display may
become incorrect.
16 Repeat playback setting display
This appears when “ON” has been selected for
the “REPEAT PLAY” item on the setting menu
“PLAYBACK FUNCTIONS”.
17 Remaining battery charge display
As the remaining charge drops, the display
changes in the following sequence:
and
.
When the charge is low, “LOW BATTERY”
appears on the LCD monitor.
(While the AC adapter is being used, a display
other than
may appear: this is normal
and is not a sign of trouble.)
18 Media information displays
The card slots in which P2 cards have been
inserted and the basic information on the cards
are displayed.
1 2 Lighted:
Recordable P2 card
1 2 Lighted in green:
P2 card targeted for recording
1 2 Blinking:
Card recognition underway
:
No card inserted
P : Write-protected card
F : No memory remaining
X : Card cannot be recognized
E : Improperly formatted P2 card (which can be
used if it is formatted properly)
82
19 Remaining media memory displays
The amount of memory remaining on the
card in the slot targeted for recording is
displayed when “ONE CARD” is selected for
the “P2CARD REMAIN” item on the setting
menu “DISPLAY SETUP”. The target slot
can be switched to another slot using “SLOT
SEL” assigned to [USER]. When “TOTAL” is
selected, the total amount of memory remaining
on the two cards is displayed.
20 Monitor volume level meter
When
is pressed, the level of the
volume which is output from the speaker and
headphone jack is displayed.
You can adjust the volume level using the
and
buttons.
During variable-speed playback, while holding
down [ALT/3], press
and
button to adjust
the volume.
Major warning displays
This section provides major warning displays
which are displayed on the LCD monitor. For other
warning displays, check the displayed messages.
■C
CANNOT ACCESS!
Data cannot be accessed because of a
problem in the content or for some other
reason. Restore the media or clips to the
normal operating status, and then use the
data.
CANNOT ACCESS CARD!
An error occurred while accessing the P2
card. Check the P2 card.
CANNOT ACCESS TARGET!
An error occurred while accessing the
connection destination target. Check the
hard drive status and connections.
CANNOT DELETE!
Data cannot be deleted because of a
mismatch in the content versions. Ensure
that the same content version as the device
is used.
CANNOT FORMAT!
The P2 card cannot be formatted because of
a problem. Check the P2 card.
CANNOT RECOGNIZE HDD!
The connection destination target cannot be
recognized correctly. Turn the power of the
hard drive off and then back on or change
the connected hard drive.
CANNOT REPAIR!
You thought the clip would be repaired and
it was tried to be repaired, but could not
actually be repaired. Check the selected clip.
■I
■L
■M
MISMATCH COMPONENT!
Data cannot be copied because the copy
source and copy destination P2 cards have
different model numbers. Either use P2 cards
of the same model number, or copy data one
clip at a time.
CARD IS EMPTY! CANNOT COPY!
The P2 card whose data is to be copied
is blank. A blank card cannot be copied
because there is no data to be copied.
■D
■F
■H
MISSING CLIP!
Shot marks cannot be added to clips that
span across multiple cards if all cards are not
inserted to the unit's slots. Insert all the cards
containing the consecutive clips.
■N
DIR ENTRY NG CARD
The directory structure on the P2 card is not
supported.
Operation continues. However, back up data
on the P2 card as soon as possible, and
format the card before using it again.
HDD DISCONNECTED!
The hard drive has been disconnected.
Re-establish the USB connection. If the hard
drive still fails to operate properly, turn its
power off, and then turn it back on.
NO CARD!
No P2 card or SD card has been inserted.
Insert media which is supported.
NO COPY TO SAME CARD!
Data cannot be copied because the same
card is being specified for the copy source
and copy destination. Copy the data onto
a card which does not contain the selected
clip.
FORMAT ERR!
The card does not comply with the P2
standard.
HDD CAPACITY FULL!
The hard drive does not have enough free
memory. Use a new hard drive or formatted
hard drive since the connection destination
target does not have enough remaining
memory.
LACK OF REC CAPACITY!
There is not enough memory on the card for the
clips to be recorded. Insert a card with enough
memory on the card for the clips to be recorded.
LOW BATTERY
No operation is possible because the battery
charge is depleted.
CARD FULL!
The P2 card or SD card is full. Insert media
with free space.
COPY INHIBITED
The input signals are copy-guarded so they
cannot be recorded correctly.
INCOMPATIBLE CARD
The card complies with the different standard
and so it cannot be used.
NO REPAIR CLIP!
The clip to be repaired has not been
selected.
■P
Displays
CANNOT RE-CONNECT!
Clips cannot be reconnected because
content which is contained on no more than
one card has been selected or because of a
similar reason. Check the selected content.
P2 CARD IS UNFORMATTED!
The P2 card has not been formatted. Use a
P2 card which has been formatted.
PLEASE FORMAT P2 CARD!
When importing a partition from a hard disk
to a P2 card, only use a freshly formatted
P2 card to copy to. After formatting the card
using the P2 device, initiate copying again.
83
Screen displays (continued)
■R
■T
RUN DOWN CARD
The maximum number of overwrites on the
P2 card has been exceeded.
Operation continues. However, recording
or playback may not operate correctly. It is
recommended that you replace the P2 card
with another one.
Error displays
Errors are displayed when trouble has occurred
in the unit, P2 card, etc. If the error persists even
after turning the power off and back on, depending
on what the error message says, replace the card
or contact your dealer.
■ Number
1394 INITIAL ERROR
(Connection trouble)
There is trouble in the DVCPRO/DV input/
output connector (IEEE1394) connection or the
signals are not being input or output correctly.
Check the connections between the unit and
the other device. If the error display is not
cleared, turn the power off and then back on.
TOO MANY CLIPS!
Too many clips have been selected. Reduce
the number of clips which have been selected.
TOO MANY PARTITIONS!
There are too many partitions. The maximum
number of partitions available on the hard
drive is 23 in the USB HOST mode. Use a
new hard drive or formatted hard drive.
TOO MANY TARGETS!
A multiple number of devices have been
connected. Only one USB hard drive must be
connected. Make sure if a hub, multi-HDD,
etc. are not used. After disconnecting the
unnecessary devices, turn the power of the
required device off and then turn it back on.
■C
TURN POWER OFF!
Turn the power off, and turn it back on for use.
■U
UNKNOWN CONTENTS FORMAT!
A contents version mismatches or this is
a clip for which the unknown clip indicator
is displayed. Match the unit and contents
versions.
■R
■S
UNKNOWN DEVICE CONNECTED!
A DVD drive or other devices which are
not supported have been connected. After
disconnecting the unnecessary devices, turn
the power of the required device off and then
turn it back on.
■V
VERIFICATION FAILED!
A mismatch was found by verification after
copying. Copy the data again.
■W
WRITE PROTECTED!
The P2 card or SD card is write-protected.
Insert media on which data can be saved.
84
■T
1394 INPUT ERROR (OTHER FORMAT)
The input signal format differs from the
system format.
CANNOT PLAY
This appears when trouble has occurred
during playback.
CARD ERR (1) (2) (1/2)
(Trouble with the P2 card in the slot
corresponding to the number shown)
• If the warning persists, turn off the power.
• If the warning persists even when recording
is initiated again, replace the existing card
with another one.
REC WARNING
This appears when trouble has occurred during
recording. Initiate the recording again. If the
warning is still displayed, consult your dealer.
SYSTEM ERROR
This appears in the following abnormal
situations.
• This appears when trouble has occurred
in the system. Turn the system’s power off
and then back on.
• This error may appear with some
connected hard drives. Check the
connected hard drive.
P2 MICON ERROR (no response from P2
microprocessor), P2 CONTROL ERROR (P2
control trouble)
TURN POWER OFF
This appears when trouble has occurred
because a card was ejected while its data
was being accessed. Turn the system’s
power off and then back on.
Selecting what is to be displayed on the screen
The following items appearing on the LCD monitor screen are displayed when [MENU/MODE CHK] is
held down or when a setting for the “OTHER DISPLAY” item (Page 103) on the setting menu “DISPLAY
SETUP” screen has been selected.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
MODE CHECK
Time code displays
Warning information
System format displays
Compressed recording format display
System frequency displays
INPUT LOCK
Squeeze recording display
Date and time display
Playback frame rate display∗
—
OTHER DISPLAY setting
ON
OFF
—
—
—
—
x
—
x
x
x
—
x
—
—
—
—
—
—
—
—
—
x
x
x
x
x
—
—
—
—
x
x
x
x
—
—
Audio level meter display
USB HOST display
Text memo, shot mark displays
Information display
Operation status displays
HDD easy playback display
Repeat playback setting display
Remaining battery charge display
Media information displays
Remaining media memory displays
Monitor volume level meter
Setting compressed recording format
USER SW
INPUT SELECT
Audio output channel
—
—
: Displayed
x : Not displayed
— : Displayed by another setting
“ ” in the MODE CHECK column indicates the items which are displayed when [MENU/MODE CHK] is held down.
* The FRAME RATE is not displayed when the 60i format is used.
TC 12 : 34 : 56 : 00 1 2 106 min
1080i
HD
60
C
H
C
H
1
2
HD
USER SW
1:SYS FORMAT
2:EXIT
3:ALT
INPUT SELECT INT SG
AUDIO CH1・CH2 CH1-8
JUN 19 2009 23 : 59 : 59
3 CH
4 CH
21
22
23
24
21 Setting compressed recording format
The compressed recording format that has been
set is displayed. (Page 81)
Displays
Item displayed
22 USER SW
The functions assigned to USER 1 to 3 on the
setting menu “SW MODE” are displayed. (Page 97)
23 INPUT SELECT
Input signals for video and audio are displayed.
(Page 90)
24 Audio output channel
The setting values for “AUDIO OUT” (Page 98)
and “SD SDI AUDIO” (Page 101) are displayed
from left.
85
Recording/output supporting format
■ Setting the system frequency
The recording/output format is selected as below by setting the setting menu.
AG-HPG20 output format (EE/recording)
Setting menu
SYSTEM
FREQ
Recording
SYS
REC FMT
25M
REC FMT INPUT
FORMAT
(SD)
REC CH
(HD)
SELECT
Output
1080/60i
1080/50i
–
–
DVCPRO
(DVCPRO
HD)
1394
1080i
Audio 8ch
1080i
8ch
1080i
Audio
4ch only
(ch1-4)
59.94Hz
/50Hz
720/60P
720/50P
–
–
DVCPRO
(DVCPRO
HD)
1394
50M
(DVCPRO50)
–
4CH
480/60i
576/50i
25M
(DVCPRO)
DV
2CH
–
SDI INT
SG 1394
720p
Audio 8ch
SDI INT
SG 1394
720p
8ch
720p
Audio
4ch only
(ch1-4)
480i/576i
Audio 4ch
(ch1-4)
–
–
Setting
menu
Output
SDI
SD SDI
AUDIO
SDI
AUDIO
packet∗1
AUTO
1080i
720P
1080i
1080i
720p
–
8ch
480i/576i
480i, 576i
8ch
AUTO
1080i
720P
1080i
1080i
720p
CH1-8
CH1-4/
CH5-8
480i/576i
480i, 576i
AUTO
1080i
720P
720p
1080i
720p
480i/576i
480i, 576i
AUTO
1080i
720P
720p
1080i
720p
480i/576i
480i, 576i
AUTO
1080i
480i, 576i
1080i
720P
720p
480i/576i
480i, 576i
–
480i/576i
Audio 2ch
(ch1-2)
AUTO
480i, 576i
–
1080i
1080i
720P
720p
480i/576i
480i, 576i
–
CH1-8
AVC100
AVC50
SDI
INT SG
Output
Signal
1394 signal
recorded
format
SDI SEL
on P2 card AUDIO
AVC100
AVC50
SDI
INT SG
Setting
menu
CH1-4/
CH5-8
480i/576i 2ch
<When
SDI/INT SG
is selected>
8ch
(ch5-8 are
muted.)
8ch
(ch5-8 are
muted.)
4ch
(ch5-8 are
muted.)
–
8ch
CH1-8
CH1-4/
CH5-8
8ch
–
CH1-8
480i/576i 4ch
(ch1-4)
<When
SDI/INT SG
is selected>
4ch
CH1-4/
CH5-8
–
–
–
–
4ch
8ch
(ch5-8 are
muted.)
8ch
(ch5-8 are
muted.)
4ch
(ch5-8 are
muted.)
4ch
8ch
(ch5-8 are
muted.)
4ch
4ch
(ch3-4 are
muted.∗2)
8ch
(ch3-8 are
muted.)
4ch
(ch3-4 are
muted.∗2)
∗1 When “EMBEDDED AUDIO” is OFF, AUDIO packet is not superimposed.
∗2When DV signal is input during 1394 input, and the input audio signal is 32kHz/4ch(12Bit), 4ch audio is
output.
• 1394 output: AUTO only. AVC-Intra100/AVC-Intra50 are not supported for 1394 input/output.
• Use VIDEO/SDI/1394 output for monitoring purpose in other modes than playback mode. It is not
suitable for recording purpose because Pictures/Sound/Time cord (TC/UB) may become incorrect.
86
Playback
Output
Setting menu
Output
Setting menu
Output
SYSTEM FREQ
Signal recorded on P2 card
1394 signal
format AUDIO
SDI SEL
SDI output
SD SDI
AUDIO
SDI AUDIO
packet∗
AUTO
1080/59.94i
–
8ch
CH1-8
8ch
CH1-4/CH5-8
4ch
–
8ch
CH1-8
8ch
1080/59.94i
1080/29.97p over
59.94i (2:2)
1080/23.98p over
59.94i (2:3)
1080/23.98pA over
59.94i (2:3:3:2)
1080/23.98pN
1080/29.97pN
59.94Hz
720/59.94p
720/29.97p over
59.94p (2:2)
720/23.98p over
59.94p (2:3)
720/23.98pN
720/29.97pN
480/59.94i
480/29.97p over
59.94i (2:2)
480/23.98p over
59.94i (2:3)
480/23.98pA over
59.94i (2:3:3:2)
1080/50i
1080/25p over 50i (2:2)
1080/25pN
50Hz
720/50p
720/25p over 50p (2:2)
720/25pN
576/50i
576/25p over 50i (2:2)
1080/59.94i
8ch
720/59.94p
8ch
480/59.94i
4ch (ch1-4)/
2ch (ch1-2)
1080/50i 8ch
720/50p 8ch
576/50i
4ch (ch1-4)/
2ch (ch1-2)
1080i
1080/59.94i
720P
720/59.94p
480i
480/59.94i
AUTO
720/59.94p
1080i
1080/59.94i
720P
720/59.94p
480i
480/59.94i
AUTO
480/59.94i
1080i
1080/59.94i
720P
720/59.94p
480i
480/59.94i
AUTO
1080/50i
1080i
1080/50i
720P
720/50p
576i
576/50i
AUTO
720/50p
1080i
1080/50i
720P
720/50p
576i
576/50i
AUTO
576/50i
1080i
1080/50i
720P
720/50p
576i
576/50i
CH1-4/CH5-8
4ch
–
4ch (ch1-4)
–
8ch
(ch5-8 are
muted.)
–
4ch (ch1-4)
–
8ch
CH1-8
8ch
CH1-4/CH5-8
4ch
–
8ch
CH1-8
8ch
CH1-4/CH5-8
4ch
–
4ch (ch1-4)
–
8ch
(ch5-8 are
muted.)
–
4ch (ch1-4)
Displays
AG-HPG20 output format (during playback)
Setting menu
∗ When “EMBEDDED AUDIO” is OFF, AUDIO packet is not superimposed.
• 1394 output: AUTO only. AVC-Intra100/AVC-Intra50 are not supported for 1394 input/output.
87
Basic operations on the setting menus
1 Hold down [POWER] for at least 1 second to
turn the power on.
2 Press [THUMBNAIL/MODE] to switch to the
normal display screen.
INPUT SELECT
SYS FORMAT
REC FMT(SD)
REC FMT(HD)
INT SG
25M REC CH
LOOP REC
AUTO REC
1080i
AVC-I100
60
3 CH
4 CH
1
2
3 Press [MENU/MODE CHK] to display the
menu.
Example:
MAIN MENU
1
2
3
4
5
6
7
8
. RECORDING SETUP
. TIMECODE SETUP
. SW MODE
. PLAYBACK FUNCTIONS
. AV OUT SETUP
. DISPLAY SETUP
. CARD FUNCTIONS
. OTHER FUNCTIONS
PUSH MENU TO EXIT
4 Using
and , move the highlighting to the
function to be set.
5 Press
to display the setting item.
Example:
RECORDING SETUP
INPUT SELECT
SYS FORMAT
REC FMT(SD)
REC FMT(HD)
INT SG
25M REC CH
LOOP REC
AUTO REC
SDI
1080/60i
25M
AVC100
100%CB
2CH
OFF
OFF
PUSH MENU TO RETURN
88
changed using
and
, and press
.
RECORDING SETUP
TC 12 : 34 : 56 : 00 1 2 3 min
C
H
C
H
6 Using and , move to the item to be set.
7 First press , then select the setting to be
SDI
1080/60i
720/60P
480/60i
100%CB
2CH
OFF
OFF
PUSH MENU TO RETURN
To change a numerical value, etc., use
to change the setting.
and
8 To change other items, repeat steps 6 and 7.
To exit the settings, press [MENU/MODE CHK]
and return to the normal display screen.
9 To change another function, repeat steps 3
to 7.
To exit the settings, press [MENU/MODE CHK]
and return to the normal display screen.
Initializing the setting menu
You can return (initialize) the setting menu user
files to the factory status.
1 Switch to the normal display screen.
2 Press [MENU/MODE CHK].
3 Using , and , select “OTHER
FUNCTIONS” – “USER FILE” – “INITIAL”,
and press .
4Select “YES”, using
, , and press .
When the “TURN POWER OFF” message
appears, turn off the power, and then turn it
back on.
The menu settings of the user files currently
being used are returned to the factory status.
Setting menu configuration
RECORDING SETUP
INPUT SELECT
SYS FORMAT
REC FMT(SD)
REC FMT(HD)
INT SG
25M REC CH
LOOP REC
AUTO REC
CC REC
WIDE SELECT
COMP MODE
TIMECODE SETUP
EXT TC REGEN
TC MODE
TCG
TC PRESET
EXT UB REGEN
UB MODE
UB PRESET
VITC BLANK
VITC POS-1
VITC POS-2
HD EMBD VITC
HD EMBD LTC
SW MODE
USER1
USER2
USER3
DISPLAY SETUP
OSD OUT SEL
DATE/TIME
LEVEL METER
CARD/BATT
P2CARD REMAIN
OTHER DISPLAY
LCD BACKLIGHT
LCD SETTING
LCD REVERSE
LCD ASPECT
4:3MARKER
MENU BACK
DOWNCON MODE
UPCON MODE
EDGE CROP
WFM
REC COUNTER
CARD FUNCTIONS
USER FILE
SD CARD FORMAT
OTHER FUNCTIONS
PC MODE SELECT
BEEP SOUND
CLOCK SETTING
TIME ZONE
POWER SAVE
SYSTEM FREQ
USER FILE
PLAYBACK FUNCTIONS
REPEAT PLAY
AUDIO OUT
SDI IN LOCK
SPEED MAX
SEEK POS
DIAGNOSTIC
AV OUT SETUP
SDI SEL
SDI OUT
SDI EDH
UMID REC
UMID GEN
UMID POS
EMBEDDED AUDIO
OPTION MENU
1394 STATUS
1394 CONFIG
VERSION
MODEL NAME
SERIAL NO.
OPERATION
LCD OPERATION
Menu
MAIN MENU
AUDIO REF LEVEL
SD SDI AUDIO
VIDEO SETUP
CC(F1) BLANK
CC(F2) BLANK
Menus enclosed in the broken-line frames
are not displayed in the USB
HOST mode.
89
List of setting menus
RECORDING SETUP screen
Item
Description of settings
INPUT SELECT
This is used to select the input signals for video and audio.
SDI:
Set the input signal to SDI.
<Note>
When the SDI input signal differs from the recording system format, the images are
displayed black and sound is muted. Also, TC is not correct.
(When the setting menu “SYSTEM FREQ” is set to 59.94 Hz and if exactly 60.00 Hz
signal is input, the output image becomes noise, not black.
1394:
Set the input signal to 1394.
<Note>
• When 1394 is set, additional information such as TC is not output to SDI/VIDEO
output during EE/recording.
• If 1394 is selected while AVC100 or AVC50 is selected on the setting menu “REC
FMT(HD)”, the setting menu “INT SG” is set to 100%CB on this unit.
INT SG:
Set the input signal to the built-in Signal Generator. (Page 91)
Audio is set at 1kHz of standard level.
SYS FORMAT
This is used to set the unit’s recording system format.
(When 59.94 Hz has been set)
1080/60i:
Set 1080/60i as a recording system format.
720/60P:
Set 720/60p as a recording system format.
480/60i:
Set 480/60i as a recording system format.
(When 50 Hz has been set)
1080/50i:
Set 1080/50i as a recording system format.
720/50P:
Set 720/50p as a recording system format.
576/50i:
Set 576/50i as a recording system format.
REC FMT(SD)
This is used to set the compressed recording format when “SYS FORMAT” has been
set to 480/60i or 576/50i.
50M:
Set DVCPRO50 as a compressed recording format.
25M:
Set DVCPRO as a compressed recording format.
DV:
Set DV as a compressed recording format.
REC FMT(HD)
This is used to set the compressed recording format when “SYS FORMAT” has been
set to 1080/60i or 720/60P, 1080/50i or 720/50P.
DVCPRO:
Set DVCPRO HD as a compressed recording format.
AVC50:
Set AVC-Intra50 as a compressed recording format.
AVC100:
Set AVC-Intra100 as a compressed recording format.
The underlined settings are the factory mode settings.
90
RECORDING SETUP screen (continued)
Item
Description of settings
This is used to set the type of built-in signal. In SD mode, SMPTE signal and ARIB
signal are set to BLACK.
100%CB: 100% color bar
75%CB: 75% color bar
SMPTE: SMPTE color bar
ARIB: ARIB color bar
BLACK: black
25M REC CH
This is used to set the number of audio channels for recording in DVCPRO (25M) or
DV compressed recording format.
2CH:
Record in 2-channel.
4CH:
Record in 4-channel.
<Note>
When 1394 input signal is selected, the same number of audio channel as that of
audio channel of 1394 input signal at the start of recording is recorded regardless of
setting made as above.
LOOP REC
This is used to select whether to perform LOOP REC or not.
ON:
Perform LOOP REC.
OFF:
Not perform LOOP REC.
<Note>
This is set to OFF when the power is turned on again.
AUTO REC
This is used to select whether to perform AUTO REC/STOP according to the
recording/stop signal of HD-SDI input signal sent from the camera recorder.
OFF:
Not perform AUTO REC/STOP.
TYPE1:
Perform AUTO REC/STOP according to the Recording Mark in LTC information
added to HD-SDI.
TYPE2:
Perform AUTO REC/STOP according to the Recording Mark in SVITC information
added to HD-SDI.
TYPE3:
This is selected when non-Panasonic camera recorders are used.
<Note>
• When selecting TYPE1 or TYPE2, refer to “Panasonic camera recorder, recording
format and Recording Mark” (Page 92).
• The devices supporting TYPE3 are Sony Corporation’s HDW-F900R and PDW-700.
(Confirmed in November, 2008)
Menu
INT SG
The underlined settings are the factory mode settings.
HDW-F900R and PDW-700 are registered trademarks of Sony Corporation.
91
List of setting menus (continued)
RECORDING SETUP screen (continued)
Item
CC REC
Description of settings
Only when 59.94 Hz has been set
This is used to select whether to record closed caption signals superimposed onto
SD-SDI input signals.
ON:
Record closed caption signals.
OFF:
Not record closed caption signals.
<Note>
When 1394 has been selected as an input signal, the closed caption signals
superimposed onto the input signal is recorded regardless of what setting is made on
this menu.
The underlined settings are the factory mode settings.
Panasonic camera recorder, recording format and Recording Mark
Model
Recording format
Recording Mark Type
Remarks
AJ-HDC27F, H
720/24p over 60p
TYPE1
–
AJ-HDX400P
1080/59.94i
–∗
1080/50i
–∗
1080/25p over 50i
–∗
Possible to switch to
TYPE1/TYPE2. For
operations, refer to the
operating instructions
of Panasonic’s camera
recorder.
720/59.94p
TYPE1
720/23.98p over 59.94p
TYPE1
720/29.97p over 59.94p
TYPE1
1080/59.94i
–∗
1080/23.98p over 59.94i
TYPE2
1080/29.97p over 59.94i
–∗
1080/50i
–∗
1080/25p over 50i
–∗
720/50p
TYPE1
720/50p over 50p
TYPE1
720p
TYPE1, 2
–
1080i
TYPE2
–
AJ-HDX400E
AJ-HDX900
AG-HPX500
AJ-HPX2000/2100
AJ-HPX3000
AJ-HPX2700
AJ-HPX3700
AG-HPX170/171
AG-HPX300/301
–
∗ In the initial setting, Recording Mark has not been superimposed onto the HD-SDI signals.
92
RECORDING SETUP screen (continued)
Item
Description of settings
WIDE SELECT
This is used to set whether to record WIDE information when the setting menu “SYS
FORMAT” has been set to 480/60i or 576/50i.
WIDE: Record
NORMAL: Not record
<Note>
When 1394 input has been selected on the setting menu “INPUT SELECT”, the input
signal information is recorded.
COMP MODE
Selects the compression method used during video recording.
DARK:
Records video suppressing compression video distortion that is generated by dark
areas that are about 10 IRE (70 mV) or less.
NORMAL:
Records using normal compression processing.
<Note>
DARK setting becomes effective when the following conditions are all satisfied.
• The setting menu “SYS FORMAT” is set to 720/60P or 720/50P.
• The setting menu “REC FMT (HD)” is set to DVCPRO.
• The setting menu “INPUT SELECT” is set to SDI or INT SG.
TIMECODE SETUP screen
Description of settings
This is used to select whether to clone the incoming time code, or generate new time
code using the unit's time code generator.
ON:
The time code of the external input signal selected on the setting menu “INPUT
SELECT” is recorded.
• HD-SDI input: SLTC
• SD-SDI input: VITC
• 1394 input: 1394 input time code information
OFF:
The data is recorded using the time code set on the setting menu “TC MODE” or
“TCG”.
<Note>
When this item has been set to ON, it takes priority over the “TC MODE” or “TCG”.
TC MODE
(Only when 59.94 Hz has
been set)
This is used to select the time code compensation mode when recording the time
codes of the internal time code generator. You need to set the setting menu “EXT TC
REGEN” to “OFF”.
DF: The drop frame mode is used.
NDF: The non-drop frame mode is used.
TCG
This is used to set the operation mode for running the time code of the internal time
code generator. You need to set the setting menu “EXT TC REGEN” to “OFF”.
FREE RUN:
The time code runs no matter what operating mode is established.
REC RUN:
The time code runs only during recording.
TC PRESET
This is used to set the initial value of the time code to be recorded. You need to set
the setting menu “EXT TC REGEN” to “OFF”.
Menu
Item
EXT TC REGEN
<Note>
When clips recorded with 24pN or 24PA signal are fed frame by frame, the lost TC values (not consecutive TC
values) are output.
The underlined settings are the factory mode settings.
93
List of setting menus (continued)
TIMECODE SETUP screen (continued)
Item
Description of settings
EXT UB REGEN
This is used to select whether to clone the incoming user's bit information, or generate
new user's bit information.
ON:
The signals are recorded using the user’s bit of the external input signal selected on
the setting menu “INPUT SELECT”.
OFF:
The signals are recorded using the user’s bit selected on the setting menu “UB MODE”.
<Note>
When this item has been set to ON, it takes priority over the setting menu “UB MODE”.
UB MODE
This is used to set what is to be recorded as the user’s bit. “OFF” must be selected for
the “EXT UB REGEN” item setting. (Page 66)
USER:
The user information is recorded.
TIME:
The time of the recording is recorded.
DATE:
The date/time of the recording are recorded.
TCG:
The value generated by the time code generator is recorded.
FRM. RATE:
The information of the frame rate after frame conversion is recorded.
a
b
c
d
a: Information on the verification of the user’s bit value
b: Frame sequence number
•“F” is displayed in 60i/30p or 50i/25p mode.
c: Frame rate information
• Frame rate (60, 30, 24, 50 or 25)
• I/P identification information
• Conversion information
• Frame rate factor
d: Recording control information
• Updated frame information
• REC START/STOP information
<Note>
When playing back native recorded clips
To set the SDI or 1394 output user’s bit as the frame rate information, select
FRM. RATE for this setting, and play back the clips.
UB PRESET
This is used to set the user’s bit. “OFF” must be selected for the “EXT UB REGEN”
item setting and “USER” must be selected for the “UB MODE” item setting. (Page 66)
The underlined settings are the factory mode settings.
94
TIMECODE SETUP screen (continued)
Item
Description of settings
VITC BLANK
This is used during playback to set whether to output VITC signal to the position set
on the setting menu “VITC POS-1” or “VITC POS-2”.
BLANK:
Not output
THRU:
Output
<Note>
This setting is effective only for VIDEO output and SD-SDI output.
VITC POS-1
This is used to set the insert position of VITC signal.
(When 59.94 Hz has been set)
10L
I
16L
I
20L
Menu
(When 50Hz has been set)
7L
I
11L
I
22L
<Note>
• You cannot select the same line as the lines for “VITC POS-2” on the “TIMECODE
SETUP” screen or “UMID POS” on the “AV OUT SETUP” screen.
• This setting is effective only for VIDEO output and SD-SDI output.
The underlined settings are the factory mode settings.
95
List of setting menus (continued)
TIMECODE SETUP screen (continued)
Item
VITC POS-2
Description of settings
This is used to set the insert position of VITC signal.
(When 59.94 Hz has been set)
10L
I
18L
I
20L
(When 50Hz has been set)
7L
I
13L
I
22L
<Note>
• You cannot select the same line as the lines for “VITC POS-1” on the “TIMECODE
SETUP” screen or “UMID POS” on the “AV OUT SETUP” screen.
• This setting is effective only for VIDEO output and SD-SDI output.
HD EMBD VITC
This is used to set whether to superimpose the VITC information onto HD-SDI output
or not.
ON:
Superimpose
OFF:
Not superimpose
HD EMBD LTC
This is used to set whether to superimpose the LTC information onto HD-SDI output
or not.
ON:
Superimpose
OFF:
Not superimpose
The underlined settings are the factory mode settings.
96
SW MODE screen
Item
Description of settings
This is used to set which function is to be assigned to the USER1 button.
INPUT SEL:
Input signal setting (Page 90)
SYS FORMAT:
The system format is selected. (Page 90)
REC FMT/SD:
The recording format for SD is selected. (Page 90)
REC FMT/HD:
The recording format for HD is selected. (Page 90)
SHOT MARK:
A shot mark is recorded on the clip. (Page 54)
TEXT MEMO:
A text memo is recorded. (Page 60)
LCD BL:
LCD backlight setting (Page 103)
OSD OUTSEL:
The OSD/GUI/WFM output destination is set. (Page 103)
AUDIO OUT:
AUDIO OUT selection. (Page 98)
SLOT SEL:
The P2 card slot for recording is switched. (Page 64)
LCD RVS:
LCD reverse setting (Page 104)
WFM:
Waveform monitor (Page 64)
ONE CLIP:
Single clip playback is performed. (Page 58)
USER2
This is used to set which function is assigned to “EXIT/2”.
The following function can be assigned in addition to the USER1 items.
EXIT:
EXIT function is activated.
USER3
This is used to set which function is assigned to “ALT/3”.
The following function can be assigned in addition to the USER1 items.
ALT:
ALT function is activated.
Menu
USER1
The underlined settings are the factory mode settings.
97
List of setting menus (continued)
PLAYBACK FUNCTIONS screen
Item
REPEAT PLAY
AUDIO OUT
Description of settings
This is used to set repeat playback. (Page 59)
ON:
After playing back the last clip, the first clip is played back in succession.
OFF:
After playing back the last clip, playback stops.
<Note>
• Repeat playback is not performed when playing back from the bottom of the text
memo screen.
• If a P2 card is ejected during repeat playback, playback stops when the clip on the
ejected P2 card is reached.
• If a P2 card is inserted during repeat playback, the clips on the inserted P2 card will
be played back when repeat playback is next performed.
This is used to set the audio signals to be output from the AUDIO OUT connectors
(pin jacks), speaker and headphone jack.
CH1 · CH2:
CH1 connector = CH1 signal, CH2 connector = CH2 signal
CH1:
CH1 connector = CH1 signal, CH2 connector = CH1 signal
CH2:
CH1 connector = CH2 signal, CH2 connector = CH2 signal
CH3 · CH4:
CH1 connector = CH3 signal, CH2 connector = CH4 signal
CH3:
CH1 connector = CH3 signal, CH2 connector = CH3 signal
CH4:
CH1 connector = CH4 signal, CH2 connector = CH4 signal
CH5 · CH6:
CH1 connector = CH5 signal, CH2 connector = CH6 signal
CH5:
CH1 connector = CH5 signal, CH2 connector = CH5 signal
CH6:
CH1 connector = CH6 signal, CH2 connector = CH6 signal
CH7 · CH8:
CH1 connector = CH7 signal, CH2 connector = CH8 signal
CH7:
CH1 connector = CH7 signal, CH2 connector = CH7 signal
CH8:
CH1 connector = CH8 signal, CH2 connector = CH8 signal
The underlined settings are the factory mode settings.
98
PLAYBACK FUNCTIONS screen (continued)
Item
SDI IN LOCK
SPEED MAX
SEEK POS
Description of settings
This is used to select whether the P2 playback output signal is locked (synchronized)
to the SDI input signals.
INT:
It is not locked (synchronized).
INPUT:
When the SDI input signal is present, it is locked (synchronized) to the input signal.
It is not locked (synchronized) when the input signal is not present.
<Note>
When SDI is set on the setting menu “INPUT SELECT” and the same SDI input signal
as the one set on the setting menu “SYS FORMAT” is input, the output signal is
locked (synchronized) to the SDI input signal in EE/recording condition regardless of
the setting for the setting menu “SDI IN LOCK”.
This is used to set the maximum speed of the variable-speed playback and rapid
forward/rapid reverse playback.
X32: 32x speed
X60: 60x speed
X100: 100x speed
When using the navigation buttons to jump to the next clip, this menu item controls
whether the unit will jump to the beginning of the next clip, or to the next text memo
position.
CLIP: The beginning of the clip
CLIP&TMEMO: The beginning of the clip and text memo setting point
AV OUT SETUP screen
SDI OUT
SDI EDH
Description of settings
This is used to set the video signal output from HD/SD-SDI OUT connector.
(When the 59.94 Hz system format is set)
AUTO:
The output is automatically switched according to the clip format during playback.
The output is automatically switched according to the setting menu “SYS FORMAT”
during situations other than playback.
1080i: 1080/59.94i
720P: 720/59.94p
480i: 480/59.94i
(When the 50 Hz system format is set)
AUTO:
The output is automatically switched according to the clip format during playback.
The output is automatically switched according to the setting menu “SYS FORMAT”
during situations other than playback.
1080i: 1080/50i
720P: 720/50p
576i: 576/50i
This is used to set the SDI output.
ON: SDI signals are output.
OFF: SDI signals are not output.
This is used to set whether to superimpose error detection handling (EDH) when SDSDI signals are output.
ON: EDH is superimposed.
OFF: EDH is not superimposed.
Menu
Item
SDI SEL
The underlined settings are the factory mode settings.
99
List of setting menus (continued)
AV OUT SETUP screen (continued)
Item
Description of settings
UMID REC
This is used to set whether to record UMID information.
ON:
Record
OFF:
Not record
UMID GEN
This is used to set the creation method of UMID information to be recorded when the
setting menu “UMID REC” is set to “ON”.
INT:
The newly created UMID information is always recorded.
EXT:
The UMID information superimposed onto the input signals is always recorded.
The newly created UMID information is recorded when the information is not
superimposed onto the input signal.
UMID POS
This is used to set the line on which the UMID information is superimposed.
BLANK
12L
I
17L
I
19L
<Note>
• You cannot select the same line as the lines for “VITC POS-1”, “VITC POS-2” on
the “TIMECODE SETUP” screen.
• When playing back the native clip in DVCPRO HD format, UMID has NO-INFO.
The underlined settings are the factory mode settings.
100
AV OUT SETUP screen (continued)
Item
Description of settings
EMBEDDED AUDIO
This is used to set whether to superimpose the audio data onto HD-SDI output and
SD-SDI output.
ON:
Superimpose
OFF:
Not superimpose
AUDIO REF LEVEL
This is used to set the normal level.
(AG-HPG20P)
FS-20:
– 20dB
FS-18:
– 18dB
FS-12:
– 12dB
(AG-HPG20E)
FS-20:
– 20dB
FS-18:
– 18dB
FS-12:
– 12dB
SD SDI AUDIO
This is used to select the audio channel which is superimposed onto SD-SDI when
HD signal is down-converted and output as SD-SDI signal.
CH1-4:
CH1-4 is output to CH1-4.
CH5-8:
CH5-8 is output to CH1-4.
CH1-8:
CH1-8 is output to CH1-8.
Menu
VIDEO SETUP
The setup level of the video signals during playback is set.
(This item is displayed only 0%:
when 59.94 Hz is set)
0% is set as the output setup level.
7.5%:
7.5% is set as the output setup level.
The underlined settings are the factory mode settings.
101
List of setting menus (continued)
AV OUT SETUP screen (continued)
Item
Description of settings
CC(F1) BLANK
Only when 59.94 Hz has been set
This is used to make ON/OFF setting of the closed caption signal in the first field
output from SD-SDI output and VIDEO output.
BLANK:
Forced blanking
THRU:
Output
<Note>
In recording/recording standby status, the closed caption signals superimposed onto
the input signals are output.
CC(F2) BLANK
Only when 59.94 Hz has been set
This is used to make ON/OFF setting of the closed caption signal in the second field
output from SD-SDI output and VIDEO output.
BLANK:
Forced blanking
THRU:
Output
<Note>
In recording/recording standby status, the closed caption signals superimposed onto
the input signals are output.
The underlined settings are the factory mode settings.
102
DISPLAY SETUP screen
Item
Description of settings
This is used to select to output the information displayed on the LCD monitor to the
video output signal and SDI output signal.
LCD:
The information is displayed only on the LCD monitor.
LCD·VIDEO:
The information is displayed both on the LCD monitor and VIDEO output.
ALL:
The information is displayed on the LCD monitor, VIDEO output and SDI output.
<Note>
• When the setting menu “WFM” is set to “OFF”, WFM is not output.
• When OSD OUT SEL is set for [USER] on the setting menu “SW MODE”, the output
destination of information circulates as follows according to the setting value for this item.
For LCD:
LCD monitor → LCD monitor… (Not circulate)
For LCD·VIDEO:
LCD monitor → LCD monitor and VIDEO output → LCD monitor…
For ALL:
LCD monitor → LCD monitor and VIDEO output → LCD monitor, VIDEO output and
SDI output → LCD monitor…
• Even when the output destination of information is switched on [USER], the “OSD
OUT SEL” setting value remains the same.
DATE/TIME
This is used to select the setting for displaying the date and time on the LCD monitor.
TIME: The time is displayed.
DATE: The date is displayed.
TIME&DATE: The date and time are displayed.
OFF: The date and time are not displayed.
LEVEL METER
This is used to set the audio level meter display to ON or OFF.
CH1-4: The audio from CH1 to CH4 is displayed.
CH5-8: The audio from CH5 to CH8 is displayed.
OFF: No display
CARD/BATT
This is used to set the display of the amount of memory remaining on the card and
charge level remaining in the battery to ON or OFF.
ON: Display
OFF: No display
<Note>
As the remaining charge drops, the amount of remaining memory is displayed even if
this menu item is set to off.
P2CARD REMAIN
This is used to set how the display of the amount of memory remaining on the P2 card
is to be calculated.
ONE-CARD:
The amount of memory remaining on the P2 card in the selected slot is calculated.
TOTAL:
The amount of memory remaining on the P2 cards in both slots is calculated.
OTHER DISPLAY
This is used to set the information to be displayed on the LCD monitor. (Page 85)
ON: All display
OFF: No display
LCD BACKLIGHT
This is used to adjust the backlight of the LCD monitor. The backlight becomes
brighter than usual when HIGH is selected.
HIGH:
The level of brightness of the LCD monitor is set as HIGH.
NORMAL:
The level of brightness of the LCD monitor is set as NORMAL.
Menu
OSD OUT SEL
The underlined settings are the factory mode settings.
103
List of setting menus (continued)
DISPLAY SETUP screen (continued)
Item
LCD SETTING
Description of settings
This is used to adjust the display level of the images on the LCD monitor. (Page 26)
RETURN: No adjustment
CHANGE: Adjusted
LCD COLOR LEVEL
LCD BRIGHTNESS
LCD CONTRAST
<Note>
Note that if you set all LCD adjustment values to minimum, the menu screen will
become difficult to see.
LCD REVERSE
This is used to set the function for reversing the top/bottom and left/right of the
images displayed on the LCD monitor.
NORMAL: The images are displayed normally.
REVERSE: The images are displayed with their top/bottom and left/right reversed.
<Note>
When REVERSE is set, the direction in which the menu highlighting moves and the
direction of the cursor movement on the thumbnail display screen can be reversed in
the up/down or left/right direction.
LCD ASPECT
This is used to select the aspect ratio for the LCD monitor when displaying clips in SD
format.
AUTO:
The aspect ratio is automatically selected based on the input signal, information of
the signal etc. recorded on the P2 card.
4:3: The aspect ratio is fixed at 4:3.
<Note>
When images are displayed with the 16:9 aspect ratio, black bands appear at the top
and bottom of the screen. No parts of the images are missing.
4:3MARKER
This is used to set whether to display 4:3 marker on the LCD monitor.
ON: Display
OFF: No display
MENU BACK
This is used to reduce the transmittance of the background behind the menu display
screen so that the menu characters can be seen more easily.
ON: The background transmittance is reduced.
• This transmittance is not reduced while “LCD SETTING” on the setting menu
“DISPLAY SETUP” is being set.
OFF: The background transmittance is 100 %.
DOWNCON MODE
This is used to select the aspect ratio for down-conversion to SD-SDI output and
VIDEO output.
SIDE CROP:
The magnification is changed while matching the input size to the output size along
the vertical axis. (The aspect ratio is unchanged.)
LETTER BOX:
The magnification is changed while matching the input size to the output size along
the horizontal axis. (The aspect ratio is unchanged.)
SQUEEZE:
The magnification is changed while matching the input size to the output size along
the horizontal and vertical axis. (The aspect ratio may be distorted.)
The underlined settings are the factory mode settings.
104
DISPLAY SETUP screen (continued)
Item
Description of settings
UPCON MODE
This is used to select the aspect ratio for up-conversion to HD-SDI output.
S-PANEL:
The magnification is changed while matching the input size to the output size along
the vertical axis. (The aspect ratio is unchanged.)
CROP:
The magnification is changed while matching the input size to the output size along
the horizontal axis. (The aspect ratio is unchanged.)
STRETCH:
The magnification is changed while matching the input size to the output size along
the horizontal and vertical axis. (The aspect ratio may be distorted.)
EDGE CROP
This is used to set the cutting position of down-converted SD-SDI output and VIDEO
output images when the setting menu “DOWNCON MODE” is set to “SIDE CROP”.
–120 ~ 0 ~ +120
<Note>
LCD monitor remains in “LETTER BOX” size.
WFM
This is used to switch the display of the waveform monitor.
OFF:
No display
WAVE:
Wave shape display
VECTOR:
Vector display
When WFM is assigned to [USER], the setting value circulates as follows.
• When the WFM setting value is OFF:
OFF → WAVE → VECTOR → OFF…
• When the WFM setting value is WAVE:
OFF → WAVE → OFF…
• When the WFM setting value is VECTOR:
OFF → VECTOR → OFF…
<Note>
Even when the WFM display is switched on [USER], the “WFM” setting value remains
the same.
REC COUNTER
This is used to select the counter operation during recording.
TOTAL:
Counting continues until it is reset on [RESET].
CLIP:
The counter is reset when the shooting starts, then counts the time of the shooting
unit.
<Note>
This is displayed only during recording standby or recording.
Item
Description of settings
USER FILE
Up to 4 sets of setting values on the setting menu can be saved on the SD card. Titles
can be given to the files which have been saved. (Page 34)
SD CARD FORMAT
This is used to format SD cards. (Page 33)
Menu
CARD FUNCTIONS screen
The underlined settings are the factory mode settings.
105
List of setting menus (continued)
OTHER FUNCTIONS screen
Item
Description of settings
PC MODE SELECT
This is used to select the data transfer mode.
USB HOST:
USB-connected HDD can be controlled.
USB DEVICE:
Recognizable from a PC connected via USB
BEEP SOUND
This is used to set the beep sound to ON or OFF. (Page 109)
ON:
The beep sound is output
OFF:
The beep sound is not output
<Note>
The sound from the output connectors is muted when beeps are sounded.
CLOCK SETTING
This is used to set the unit’s internal calendar. (Page 27)
TIME ZONE
The time is set in 30-minute increments from 12:00 hours behind GMT to 13:00 hours
ahead of GMT (Note that + 12:30 cannot be set, but + 12:45 can be set.). (Refer to
the table below.)
0:00
Time
difference
(from GMT)
00:00
– 01:00
– 02:00
– 03:00
– 04:00
– 05:00
– 06:00
– 07:00
– 08:00
– 09:00
– 10:00
– 11:00
– 12:00
+ 13:00
+ 12:00
+ 11:00
+ 10:00
+ 09:00
+ 08:00
+ 07:00
+ 06:00
+ 05:00
+ 04:00
+ 03:00
+ 02:00
+ 01:00
Region (city)
Greenwich
Azores
Central Atlantic
Buenos Aires
Halifax (Nova
Scotia)
New York
Chicago
Denver
Los Angeles
Alaska
Hawaii
Midway Islands
Kwajalein Atoll
New Zealand
Solomon Islands
Guam
Tokyo
Beijing
Bangkok
Dhaka
Islamabad
Abu Dhabi
Moscow
Eastern Europe
Central Europe
Time
difference
(from GMT)
– 00:30
– 01:30
– 02:30
– 03:30
Region (city)
Newfoundland
– 04:30
– 05:30
– 06:30
– 07:30
– 08:30
– 09:30
– 10:30
– 11:30
+ 11:30
+ 10:30
+ 09:30
+ 08:30
+ 07:30
+ 06:30
+ 05:30
+ 04:30
+ 03:30
+ 02:30
+ 01:30
+ 00:30
+ 12:45
Marquesas Islands
Norfolk Islands
Lord Howe Island
Darwin Islands
Rangoon
Mumbai (Bombay)
Kabul
Teheran
Chatham Islands
The underlined settings are the factory mode settings.
106
OTHER FUNCTIONS screen (continued)
Item
Description of settings
POWER SAVE
This is used to select the power-saving mode which is to be established when none of
the buttons have been operated for 5 or so minutes.
ON:
The unit’s power is turned off.
OFF:
The unit’s power is not turned off, and it remains in the power ON mode.
• While the unit is connected by an IEEE1394 cable or USB cable to an external
device and communicating with it, the power will not be turned off even if the
function keys or buttons have not been operated for the prescribed period of time.
• Even when ON is selected as this item’s setting, the power will not be turned
off during playback (variable-speed playback and rapid forward/rapid reverse
playback including pause).
SYSTEM FREQ
This is used to switch the system frequency.
59.94 Hz, 50 Hz (AG-HPG20P)
59.94 Hz, 50 Hz (AG-HPG20E)
<Note>
When the system frequency has been changed, turn the unit’s power off and then
back on so that the setting takes effect.
USER FILE
LOAD:
The settings of the user files last saved are loaded.
SAVE:
The settings of the user files which have been changed are stored.
INITIAL:
The user file settings are returned to the factory settings.
In order for the settings to take effect after loading or initializing, turn off the unit’s
power and turn it back on.
• Even when initializing has been performed, the setting on the setting menu “TIME
ZONE” (Page 106) will remain unchanged.
DIAGNOSTIC screen
Item
Description of settings
This is used to display the version.
More detailed version is displayed on the sub screen.
MODEL NAME
This is used to display the model name.
SERIAL NO.
This is used to display the product number.
OPERATION
This is used to display the power-on time (using 5 digits).
LCD OPERATION
This is used to display the power-on time (using 5 digits) for the backlight of the LCD
monitor.
Menu
VERSION
The underlined settings are the factory mode settings.
107
List of setting menus (continued)
OPTION MENU screen
If [MENU/MODE CHK] is pressed with
displayed on the setting menu.
Item
held down on the normal display screen, OPTION MENU is
Description of settings
1394 STATUS
The 1394 status display sub-screen is displayed.
FORMAT:
Format of the input or output signals
RATE:
Transfer rate of the input or output signals
60/50:
System of input or output signals
CH:
Value of the channels whose signals are input or output
SPEED:
Transfer speed of the input or output signals
STATUS:
Status of the signals which are input or output by the IEEE1394 digital interface
VIDEO:
Status of the input or output video signals
AUDIO:
Status of the input or output audio signals
1394 CONFIG
This is the 1394 expansion menu.
DFLT:
For normal operation, keep this setting.
1-255
The underlined settings are the factory mode settings.
108
Warning system table
When trouble is detected immediately after the power is turned on or during operation, the user is alerted
by the power display LED and beep sound (provided that “ON” is selected for the “BEEP SOUND” setting
on the setting menu “OTHER FUNCTIONS” (Page 106)).
Priority
Type of
warning
1
System error
2
P2 card
ejection
trouble
TURN POWER OFF
Blinks in red.
Low battery
charge
LOW BATTERY
Blinks in red. Blinks with
the remaining battery
display empty. (This
display appears even
when it has been set to
OFF on the setting menu.)
P2 card full
P2 FULL
Blinks in red (display
appears only for 3
seconds when [REC] is
pressed).
Blinks at
Beeps
a rate of 4
continuously
times per
upon
second upon
completion of
completion of
recording.
recording.
Recording
trouble
REC WARNING
Cause displayed*2,
blinks in red.
Beeps
Blinks at a
intermittently
rate of 4 times at a rate of
per second.
4 times per
second.
Near low
battery
charge
One block on the
remaining battery
display is blinking. (This
display appears even
when it has been set
to OFF on the setting
menu.)
3
4
5
6
7
P2 card
nearly full
8
Input image
frame
distorted
during
recording
LCD monitor screen
display
SYSTEM ERROR
Cause displayed*1,
blinks in red.
Power display
Warning description and
Beep sound
LED
record/playback operation
Blinks at a
P2 microprocessor or
Beeps
rate of 4 times
control trouble. Operation
continuously.
per second.
is stopped.
Trouble has occurred in the
internal memory because a
Blinks at a
Beeps
P2 card was ejected while
rate of 4 times
continuously. its data was being accessed.
per second.
Both access LEDs blink in
orange (4 Hz).
Blinks at a
rate of once
per second.
Blinks at a
rate of once
per second.
Beeps
continuously.
None
Action to be taken
Check the cause
display*1, and consult
your vendor.
Turn off the power.
If something is wrong
with the clips on the
ejected P2 card, repair
them.
The battery charge is low.
Recording or playback
stops. If the voltage falls
further, the power is
automatically turned off.
Replace the battery.
There is no more free
memory left on the P2
card. Recording is
stopped*3.
Delete the unnecessary
clips or insert a new
card.
Recording trouble.
Recording is stopped*4.
Turn off the power and turn
it back on. Then check
the recording/playback.
Replace the P2 card
if recording cannot be
performed properly.
The battery charge is
falling to low. Operation is
continued.
Replace the battery as
necessary.
Under 2 minutes of
memory remaining on
the P2 card (remaining
Replace the P2 card
Remaining media
None
memory display shows
or add another card as
memory display blinks.
less than one minute).
necessary.
This warning appears only
during recording.
Recording stops due to
Beeps
Blinks at a
the input signal distortion.
intermittently
rate of once a
The recording will
IRREGULAR FRM SIG
at a rate of
Check the input signals.
second during
automatically resume
2 times per
recording.
when input signals are
second.
stabilized.
Blinks at a
rate of once a
second during
recording.
For your
reference
P2 SYSTEM ERROR Cause display
• P2 MICON ERROR: P2 microprocessor does not respond.
• P2 CONTROL ERROR: Trouble has occurred in the P2 recording control.
• REC RAM OVERFLOW: Recording RAM overflow
∗2 REC WARNING Cause display
• CARD ERROR∗: P2 card trouble (slot number of trouble card is displayed in ∗)
• REC RAM OVERFLOW: Recording RAM overflow
• ERROR: Other recording trouble
∗3 The warning is cleared when any one of the following operations is performed.
• When a playback function button (STOP, PLAY, STILL, FF or REW) is pressed
• When the PC mode is selected while [THUMBNAIL/MODE] is held down for more than 2 seconds
• When a P2 card has been ejected or another card has been inserted
∗4 The warning is cleared when any one of the following operations is performed.
• When a playback function button (STOP, PLAY, STILL, FF or REW) is pressed
• When a P2 card has been ejected
Menu
∗1
109
Troubleshooting (Q&A)
Power-related Q&A
No power.
• Has the battery or AC adapter been connected properly? Check the P 21
connections.
• When turning on the power, hold down [POWER] for at least 1
P 22
second.
The power suddenly goes
off without warning.
• In order to preserve the battery charge, the power will be
automatically turned off when more than 5 minutes with no
operations performed have elapsed. Check the setting menu:
“OTHER FUNCTIONS”–“POWER SAVE”.
The power is turned on but
it goes off immediately.
• Has the battery charge been depleted? If the remaining battery
P 82
charge display is blinking or
is displayed, it means that there
is little or no charge left in the battery. Charge the battery or replace
the existing battery with a fully charged battery.
P 107
Battery-related Q&A
The battery charge is
depleted quickly.
• Was the battery charged sufficiently? Charge the battery until the
CHARGE lamp on the AC adapter goes off.
P 20
• Is the battery being used in a location where the temperature is
low? Batteries are affected by the ambient temperature. Batteries
operate for shorter periods of time at low-temperature locations.
—
• Has the battery reached the end of its service life? The battery may —
have reached the end of its service life. Although the service life will
differ depending on how the battery has been used, if the battery
can be used only for short periods of time even after it has been
fully charged, it means that it has reached the end of its service life.
The battery cannot be
charged.
110
• The battery cannot be charged if the DC cord is connected to the
AC adapter.
P 21
Recording
Recording does not start.
• Is the unit’s power on?
P 22
• Has the battery reached the end of its service life? The battery may —
have reached the end of its service life. Although the service life will
differ depending on how the battery has been used, if the battery
can be used only for short periods of time even after it has been
fully charged, it means that it has reached the end of its service life.
• Is the P2 card’s write-protect switch at the PROTECT position?
Images cannot be recorded while this switch is at the PROTECT
position.
P 29
• Does the P2 card have very little remaining memory? Either save
the data concerned on another media and delete the unnecessary
data on the P2 card concerned or replace the P2 card with a new
card.
• Has the P2 card been formatted properly? Does the card have a
format which cannot be used? Format the card using the unit.
• P2 cards with a memory size of 2 GB cannot be used.
P 55
The clip created during one • A clip may be recorded in the divided state when the input signal is
recording has been divided.
distorted during recording.
P 29
P 31
—
For your
reference
The P2 card has been
inserted properly, but
recording is not possible.
111
Troubleshooting (Q&A) (continued)
Playback
Mosaic-like noise appears
during rapid forward or
rapid reverse playback.
• This phenomenon is characteristic of digital equipment. It is not a
sign of trouble.
No playback pictures
appear even though the TV
set is connected properly.
• Is the input selector on the TV set at the “video input” position?
—
Carefully read the instructions accompanying the TV set, and select
the connected video input connector.
—
No playback sound is heard • Has the unit’s volume level been turned down too low? Press the
from the unit’s speaker.
PAGE/AUDIO MON/VAR “+” button, and adjust the volume level.
• No sound can be heard from the speaker when headphones are
connected to the headphone jack.
P 82
No hot swap playback.
• This unit does not support hot swap playback. To continue
playback, stop playback, and then replace the P2 card with another
card.
P 64
• Has the SD card been formatted properly? Format the card using
the unit.
P 33
—
SD card
Data cannot be read on the
SD card.
Software information for this product
1. Customer advisory: This product includes software licensed under the GNU General Public License
(GPL) and GNU Lesser General Public License (LGPL); customers have the right to download, modify,
and redistribute source code for this software.
Descriptions of the GPL and LGPL are stored on the installation CD included with this camera-recorder.
See the folder named \LDOC. (The description is the original (written in English)) To download the
relevant source code, visit https://eww.pavc.panasonic.co.jp/pro-av/
Please note that we cannot answer any questions you may have about the content, etc. of any source
code you may obtain from the above Web site.
2. This product includes software licensed under the MIT License. A description of the MIT is stored on
the installation CD included with this portable recorder. See the folder named \LDOC. (The description
is the original (written in English))
112
Updating the drivers installed in the unit
The driver can be updated using either of the following two methods.
1.Checking the current version of the driver and performing the update using the dedicated tool
(P2_Status_Logger)
PASS (P2 Asset Support System) is only available to customers who have completed customer
registration with Panasonic.
Log in to PASS and use the dedicated tool (P2_Status_Logger) to check the version information of the
driver on the unit and download links to pages containing the necessary drivers.
For further information about downloading and using P2_Status_Logger, log in to PASS and refer to the
relevant pages.
Besides access to PASS, completing customer registration has a number of other benefits. For further
details, refer to the PASS (P2 Asset Support System) website (http://panasonic.biz/sav/pass_e/).
2. Checking the current version of the driver using the unit and performing the update
From the MAINTENANCE menu page, check the current version of the driver on the unit using the
setting menu “DIAGNOSTIC”–“VERSION”. Then, access the website listed below for the latest driverrelated information and download the driver as required.
■ Notes
• The update is completed by loading the downloaded file onto the unit via an SD card. For further details
about the updating methods, refer to the following website.
https://eww.pavc.panasonic.co.jp/pro-av/
• Be sure to use a compatible SD card. The unit is compatible with SD cards based on the SD and SDHC
standards. Also, be sure to format the memory card using the unit before use.
Maintenance
Do not use benzine or paint thinners to clean the unit.
• Doing so may deform the unit or cause its paint to peel off.
• Before cleaning the unit, remove the battery or unplug the AC cord from the power outlet.
• Wipe the unit with a clean soft cloth. To remove stubborn dirt, dip a cloth into some kitchen detergent
which has been diluted with water, wring it out and wipe off the dirt, and then use a dry cloth to take up
any remaining moisture.
When condensation forms on or inside the unit, the principle behind its formation is the same as when
droplets of water form on the window panes of a heated room. It forms when the unit and its cards are
brought into a space with significantly different temperature and humidity levels, specifically when:
• They have been brought to a very humid location full of steam or to a room immediately after the heating
has been turned on.
• They have suddenly been brought from an air-conditioned place to a location with high temperature and
humidity levels.
If the unit and its cards are brought to such locations, do not turn on the unit’s power but leave the unit and
cards standing for about 10 minutes.
For your
reference
Condensation
113
Storage precautions
Before storing the unit, remove its battery.
Select a location with minimal moisture and a
relatively constant temperature to store the unit.
[Recommended ambient temperature: 15 °C to 25 °C
(59 °F to 77 °F)]
[Recommended relative humidity: 40 % to 60 %]
Unit
• Wrap the unit in a soft cloth to protect it from dust
and dirt.
• Avoid places exposed to the direct sunlight to
keep this unit as the exterior parts and LCD
screen may be damaged.
Battery
• The service life of the battery will be shortened
if the battery is kept where the temperature is
extremely high or extremely low.
• Storing the unit in a location with high
concentrations of oily smoke or dust may cause
the connectors to become corroded and other
trouble to occur.
• Ensure that the battery terminals are not
brought into contact with any metal objects
(such as necklaces or hairpins). Otherwise,
the terminals may be shorted and generate
heat which could cause burns if touched.
• When the battery is to be stored for a prolonged
period, it is recommended that you charge it once
a year, use the battery in the unit until its charge
is used up, and then return it to storage.
114
P2 card, SD card
• After removing the P2 cards from the unit, always
remember to cover their terminals with the
dedicated caps to keep sand and dust away from
the connector areas. Keep the P2 cards in their
protective cases when storing them or carrying
them around.
• After removing the SD cards from the unit,
always remember to put them in their protective
cases.
• Do not store the cards wherever there are
corrosive gases in the atmosphere.
• Do not leave the cards inside vehicles or in
places exposed to direct sunlight or where the
temperature will be high.
• Do not leave the cards in places where the
humidity level is high or where there is a great
deal of dust.
Handling the data recorded on P2 cards
“P2 cards” are semiconductor memory cards which have been adopted as the recording media for the
“DVCPRO P2 series” of professional-use video production and broadcast equipment.
The data recorded on the P2 card (P2 data) is
in a file format which is highly compatible with
personal computers. The data file structure
has its own format, the files contain not only
the video and audio data which are converted
into MXF files but various other important
information, and the data is associated in the
folder configuration shown on the right.
Changing or deleting some of this
information may result in trouble: for
instance, it may make it impossible for the
data to be recognized as P2 data or for the
cards to be used in P2 devices.
Drive:\
CONTENTS
AUDIO
CLIP
ICON
PROXY
VIDEO
VOICE
LASTCLIP.TXT*
All of these folders are needed.
*Saved in this file is the information of the last
clip recorded by the P2 device.
In order to prevent any of the information from being lost when transferring the data on a P2 card to
a personal computer or writing the data stored in a personal computer onto a P2 card, be absolutely
sure to download the dedicated software, “P2 viewer” or “P2 content management software” from the
following web site and use it for this purpose.
(For supporting OS, refer to the following web site as well.)
https://eww.pavc.panasonic.co.jp/pro-av/
When transferring data to a personal computer using a regular IT tool such as Microsoft Windows
Explorer or Apple Finder, proceed as follows.
To return the data to the P2 card, be absolutely sure to use the “P2 viewer” or “P2 content management
software”.
• T
ransfer the data together with the CONTENTS folder and LASTCLIP.TXT file.
Do not perform any operations for the files under the CONTENTS folder.
When copying data, copy the LASTCLIP.TXT file together with the CONTENTS folder.
• When transferring the data on a multiple number of P2 cards to a personal computer, create the
folder for each P2 card in order to prevent the same clip names from being overwritten.
• Do not delete the data on P2 cards.
• P2 cards must always be formatted using a P2 device prior to use.
For your
reference
• “Microsoft” and “Windows” are the registered trademarks of Microsoft Corporation of the United States in
the United States and other countries.
• “Apple” and “Macintosh” are the registered trademarks of Apple Inc., of the United States in the United
States and other countries.
115
Use of SD/SDHC memory cards
In this unit, use SD cards which comply with the SD standard or SDHC standard.
If miniSD or miniSDHC cards are going to be used in this unit, be absolutely sure to install the special
adapter prior to using them. (The unit will not operate properly if only the adapter is installed on the unit)
Cards that you can use
• SD™ memory cards (including miniSD™ cards)
• SDHC™ memory cards (including miniSDHC™ cards)
Cards that you cannot
use
All memory cards except the ones
shown on the left
• MultiMediaCard
SD cards with the following memory sizes can be used within this unit.
SD (8 MB to 2 GB):
8 MB
16 MB
32 MB
64 MB
256 MB
512 MB
1 GB
2 GB
16 GB
32 GB
128 MB
SDHC (4 GB to 32 GB):
4 GB
8 GB
It is recommended that the SD and SDHC memory cards or the miniSD and miniSDHC cards made by
Panasonic be used.
For the latest information on the unit and the memory cards which can be used by the unit, access the P2
support page on the web site below.
https://eww.pavc.panasonic.co.jp/pro-av/
• S
DHC is a new standard for memory cards with memory sizes of 2 GB or more which was formulated
in 2006 by the SD Association.
• The SD card logo is a registered trademark.
• MMC (MultiMediaCard) is a registered trademark of Infineon Technologies AG.
116
Specifications
Supply voltage
Power consumption
DC7.2 V/7.9 V
12 W
indicates safety information.
Operating ambient temperature
0 °C to 40 °C (32 °F to 104 °F)
Operating ambient humidity
10 % to 80 % (no condensation)
Storage ambient temperature
–20 °C to 50 °C (-4 °F to 122 °F)
Weight
1.1 kg (2.42 lb) (main unit)
Dimensions (W x H x D)
104.0 mm x 83.0 mm x 227.0 mm
(4-3/32 inches x 3-9/32 inches x 8-15/16 inches)
(Excluding the foot parts and protrusions such
as the cap)
Recording media
P2 card
[VIDEO]
Video recording formats
1080/59.94i, 1080/50i, 720/59.94p, 720/50p
(AVC-Intra100/AVC-Intra50/DVCPRO HD format
switching)
480/59.94i, 576/50i (DVCPRO50/DVCPRO/DV
format switching)
•AVC-Intra100/AVC-Intra50 are not supported
for 1394 input.
Playback formats
AVC-Intra100/AVC-Intra50
1080/59.94i
1080/50i
1080/29.97pN (native recording)
1080/23.98pN (native recording)
1080/25pN (native recording)
720/59.94p
720/29.97pN (native recording)
720/23.98pN (native recording)
720/50p
720/25pN (native recording)
DVCPRO HD
1080/59.94i (29.97p over 59.94i, 23.98p over
59.94i, 23.98pA over 59.94i)
1080/50i (25p over 50i)
720/59.94p (29.97p over 59.94p, 23.98p over
59.94p)
720/29.97pN (native recording)
720/23.98pN (native recording)
720/50p (25p over 50p)
720/25pN (native recording)
DVCPRO50/DVCPRO/DV
480/59.94i (29.97p over 59.94i, 23.98p over
59.94i, 23.98pA over 59.94i)
576/50i (25p over 50i)
Sampling frequency
AVC-Intra100/DVCPRO HD:
Y: 74.176MHz (59.94Hz)
74.25MHz (50Hz)
PB/PR: 37.088MHz (59.94Hz)
37.125MHz (50Hz)
DVCPRO50:
Y: 13.5MHz
PB/PR: 6.75MHz
DVCPRO:
Y: 13.5MHz
PB/PR: 3.375MHz
Quantizing
AVC-Intra100/AVC-Intra50: 10bits
DVCPRO HD/DVCPRO50/DVCPRO/DV: 8bits
Video compression system
AVC-Intra100/AVC-Intra50:
MPEG-4 AVC/H.264 Intra-Profile
DVCPRO HD:
DV base (SMPTE 370M)
DVCPRO50/DVCPRO:
DV base (SMPTE 314M)
DV:
DV (IEC 61834-2)
Video input
HD/SD-SDI input: BNC x 1 selectable
HD: Compliance with SMPTE 292M/296M/
299M standards (The return loss does
not satisfy the specifications.)
SD: Compliance with SMPTE 259M-C/
272M-A/ITU-R BT.656-4 standards
Video outputs
HD/SD-SDI output: BNC x 1 selectable
HD : Compliance with SMPTE 292M/296M/
299M standards (The return loss does
not satisfy the specifications.)
SD : Compliance with SMPTE 259M-C/
272M-A/ITU-R BT.656-4 standards
Analog composite output:
BNC x 1, Video: 1.0 Vp-p, 75 Ω
For your
reference
[GENERAL]
117
Specifications (continued)
[MEMORY CARDS]
Recording/playback time
Formatting
Capacity No. of
of the P2 cards
card
used
4 GB
8 GB
16 GB
32 GB
64 GB
1 card
2
cards
1 card
2
cards
1 card
2
cards
1 card
2
cards
1 card
2
cards
DVCPRO/
DV Audio
2CH/4CH
Approx. 16
minutes
Approx. 32
minutes
Approx. 32
minutes
Approx. 64
minutes
Approx. 64
minutes
Approx. 128
minutes
Approx. 128
minutes
Approx. 256
minutes
Approx. 256
minutes
Approx. 512
minutes
DVCPRO50
DVCPRO HD
Audio 4CH
AVC-Intra 100
AVC-Intra50
Audio 8CH
Audio 8CH
Approx. 8
minutes
Approx. 16
minutes
Approx. 16
minutes
Approx. 32
minutes
Approx. 32
minutes
Approx. 64
minutes
Approx. 64
minutes
Approx. 128
minutes
Approx. 128
minutes
Approx. 256
minutes
Approx. 4
minutes
Approx. 8
minutes
Approx. 8
minutes
Approx. 16
minutes
Approx. 16
minutes
Approx. 32
minutes
Approx. 32
minutes
Approx. 64
minutes
Approx. 64
minutes
Approx. 128
minutes
[AUDIO]
Audio recording formats
48kHz 16bits 8CH
(AVC-Intra100, AVC-Intra50, DVCPRO HD*)
* 48kHz 16bits 4CH for 1394 input
48kHz 16bits 4CH
(DVCPRO50)
48kHz 16bits 2CH or 4CH
(DVCPRO, DV)
• 32 kHz, 12 bits, 4 channel input signals in the
DV format are converted into 48 kHz, 16 bits
and 4 channels, and recorded.
Audio input
SDI input BNC × 1
(HD: Compliance with SMPTE 292M/296M/
299M, SD: Compliance with SMPTE 259MC/272M-A/ITU-R BT.656-4)
[OTHER INPUTS/OUTPUTS]
IEEE1394 digital input/output
IEEE1394a 6-pin x 1
USB 2.0
HOST x 1 (type A, bus power)
DEVICE x 1 (type B)
[P2 CARD SLOTS]
P2 card slots x 2
[SD CARD SLOT]
SD/SDHC memory card slot x 1
(MultiMediaCards cannot be used.)
[LCD MONITOR]
3.5-inch LCD color monitor (210,000 pixels)
[AC ADAPTER]
Rated input
100 V to 240 V AC, 50/60 Hz, 24 W
Rated output
7.9 V DC, 1.9 A (Video Camera)
8.4 V DC, 1.2 A (during charging)
indicates safety information.
Weight
160 g (0.35 lb)
Dimensions (W x H x D)
70.0 mm × 44.5 mm × 116.0 mm
(2-3/4 inches x 1-3/4 inches x 4-9/16 inches)
[ACCESSORIES]
Battery
CGA-D54/CGA-D54s (5400 mAh: identical to
supplied battery)
Audio outputs
SDI output BNC × 1
(HD: Compliance with SMPTE 292M/296M/
299M, SD: Compliance with SMPTE 259MC/272M-A/ITU-R BT.656-4)
LINE output
Pin jacks x 2 (CH1, CH2)
Headphones
Stereo mini-jack (3.5 mm diameter) x 1
Internal speaker
20 mm round type x 1 (monaural)
Headroom
12/18/20dB (selectable)
118
Inrush current, measured according to European
standard EN55103-1: 6.4A
Weight and dimensions are approximate.
Specifications are subject to change without notice.
For Europe
Information for Users on Collection and Disposal of Old Equipment and used
Batteries
These symbols on the products, packaging, and/or accompanying documents mean that
used electrical and electronic products and batteries should not be mixed with general
household waste.
For proper treatment, recovery and recycling of old products and used batteries, please
take them to applicable collection points, in accordance with your national legislation and
the Directives 2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save valuable
resources and prevent any potential negative effects on human health and the environment
which could otherwise arise from inappropriate waste handling.
For more information about collection and recycling of old products and batteries, please
contact your local municipality, your waste disposal service or the point of sale where you
purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national
legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or
supplier for further information.
Information on Disposal in other Countries outside the European
Union
These symbols are only valid in the European Union. If you wish to discard these items,
please contact your local authorities or dealer and ask for the correct method of disposal.
Note for the battery symbol (bottom two symbol examples):
For your
reference
This symbol might be used in combination with a chemical symbol. In this case it complies
with the requirement set by the Directive for the chemical involved.
119
P E
Was this manual useful for you? yes no
Thank you for your participation!
