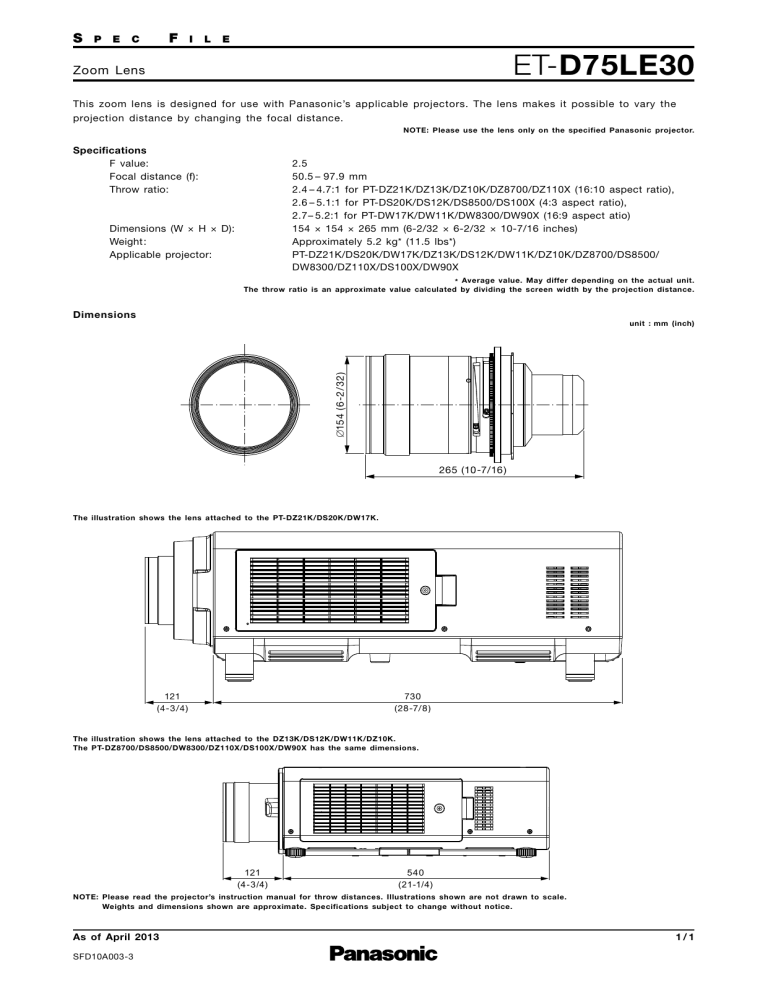

ET-D75LE30
Zoom Lens
This zoom lens is designed for use with Panasonic’s applicable projectors. The lens makes it possible to vary the
projection distance by changing the focal distance.
NOTE: Please use the lens only on the specified Panasonic projector.
Specifications
F value:
Focal distance (f):
Throw ratio:
2.5
50.5 – 97.9 mm
2.4 – 4.7:1 for PT-DZ21K/DZ13K/DZ10K/DZ8700/DZ110X (16:10 aspect ratio),
2.6 – 5.1:1 for PT-DS20K/DS12K/DS8500/DS100X (4:3 aspect ratio),
2.7– 5.2:1 for PT-DW17K/DW11K/DW8300/DW90X (16:9 aspect atio)
154 × 154 × 265 mm (6-2/32 × 6-2/32 × 10-7/16 inches)
Approximately 5.2 kg* (11.5 lbs*)
PT-DZ21K/DS20K/DW17K/DZ13K/DS12K/DW11K/DZ10K/DZ8700/DS8500/
DW8300/DZ110X/DS100X/DW90X
Dimensions (W × H × D):
Weight:
Applicable projector:
* Average value. May differ depending on the actual unit.
The throw ratio is an approximate value calculated by dividing the screen width by the projection distance.
Dimensions
’154 ( 6-2/32)
unit : mm (inch)
265 (10-7/16 )
The illustration shows the lens attached to the PT-DZ21K/DS20K/DW17K.
121
(4-3/4)
730
(28-7/8 )
The illustration shows the lens attached to the DZ13K/DS12K/DW11K/DZ10K.
The PT-DZ8700/DS8500/DW8300/DZ110X/DS100X/DW90X has the same dimensions.
121
(4-3/4)
540
(21-1/4)
NOTE: Please read the projector’s instruction manual for throw distances. Illustrations shown are not drawn to scale.
Weights and dimensions shown are approximate. Specifications subject to change without notice.
As of April 2013
SFD10A003-3
1/1
