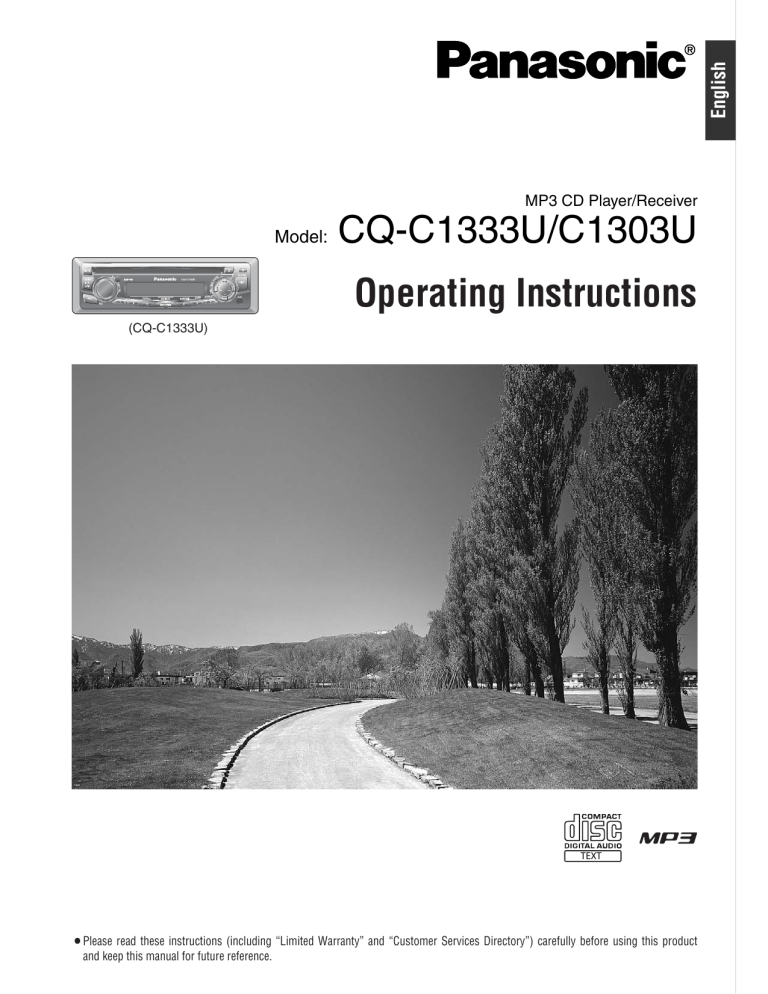

CQ-C1401U
MP3 CD Player/Receiver
Model:
CQ-C1333U/C1303U
Operating Instructions
(CQ-C1333U)
TEXT
¡Please read these instructions (including “Limited Warranty” and “Customer Services Directory”) carefully before using this product
and keep this manual for future reference.
English
WMA MP3 CD Player/Receiver with CD Changer Control
Safety Information
■ Read the operating instructions for the unit and all other components of your car audio system carefully before using the system.
They contain instructions about how to use the system in a safe and
effective manner. Panasonic assumes no responsibility for any problems resulting from failure to observe the instructions given in this
manual.
Warning
This pictograph intends to alert you to the presence of
important operating instructions and installation
instructions. Failure to heed the instructions may
result in severe injury or death.
Warning
Observe the following warnings when using this
unit.
❑ The driver should neither watch the display nor operate
the system while driving.
Watching the display or operating the system will distract the driver from looking ahead of the vehicle and can cause accidents.
Always stop the vehicle in a safe location and use the parking
brake before watching the display or operating the system.
❑ Use the proper power supply.
This product is designed for operation with a negative grounded
12 V DC battery system. Never operate this product with other battery systems, especially a 24 V DC battery system.
❑ Keep batteries and insulation film out of reach of infants.
Batteries and insulation film can be ingested, so keep them out of
the reach of infants. If an infant ingests a battery or insulation film,
please seek immediate medical attention.
❑ Protect the Deck Mechanism.
Do not insert any foreign objects into the slot of this unit.
❑ Do not disassemble or modify the unit.
Do not disassemble, modify the unit or attempt to repair the product yourself. If the product needs to be repaired, consult your
dealer or an authorized Panasonic Servicenter.
❑ Do not use the unit when it is out of order.
If the unit is out of order (no power, no sound) or in an abnormal
state (has foreign objects in it, is exposed to water, is smoking, or
smells), turn it off immediately and consult your dealer.
❑ The remote control unit should not lie about in the car.
If the remote control unit lies about, it could fall on the floor while
driving, get wedged under the brake pedal, and lead to a traffic
accident.
❑ Refer fuse replacement to qualified service personnel.
When the fuse blows out, eliminate the cause and have it replaced
with the fuse prescribed for this unit by a qualified service engineer. Incorrect replacement of the fuse may lead to smoke, fire,
and damage to the product.
■ This manual uses pictographs to show you how to use the product
safely and to alert you to potential dangers resulting from improper
connections and operations. The meanings of the pictographs are
explained below. It is important that you fully understand the meanings of the pictographs in order to use this manual and the system
properly.
Caution
This pictograph intends to alert you to the presence of
important operating instructions and installation instructions. Failure to heed the instructions may result in
injury or material damage.
Observe the following warnings when installing.
❑ Disconnect the lead from the negative (–) battery terminal before installation.
Wiring and installation with the negative (–) battery terminal connected may cause electrical shock and injury due to a short circuit.
Some cars equipped with the electrical safety system have specific
procedures of battery terminal disconnection.
FAILURE TO FOLLOW THE PROCEDURE MAY LEAD TO THE
UNINTENDED ACTIVATION OF THE ELECTRICAL SAFETY SYSTEM
RESULTING IN DAMAGE TO THE VEHICLE AND PERSONAL
INJURY OR DEATH.
❑ Never use safety-related components for installation,
grounding, and other such functions.
Do not use safety-related vehicle components (fuel tank, brake,
suspension, steering wheel, pedals, airbag, etc.) for wiring or fixing the product or its accessories.
❑ Installing the product on the air bag cover or in a location
where it interferes with airbag operation is prohibited.
❑ Check for piping, gasoline tank, electric wiring, and other
items before installing the product.
If you need to open a hole in the vehicle chassis to attach or wire
the product, first check where the wire harness, gasoline tank, and
electric wiring are located. Then open the hole from outside if possible.
❑ Never install the product in a location where it interferes
with your field of vision.
❑ Never have the power cord branched to supply other
equipment with power.
❑ After installation and wiring, you should check the normal operation of other electrical equipment.
The continuation of their using in abnormal conditions may cause
fire, electrical shock or a traffic accident.
❑ In the case of installation to an airbag-equipping car,
confirm warnings and cautions of the vehicle manufacturer before installation.
❑ Make sure the leads do not interfere with driving or getting in and out of the vehicle.
❑ Insulate all exposed wires to prevent short circuiting.
Caution
Observe the following cautions when using this
unit.
❑ Keep the sound volume at an appropriate level.
Keep the volume level low enough to be aware of road and traffic
conditions while driving.
❑ This unit is designed for use exclusively in automobiles.
❑ Do not operate the unit for a prolonged period with the
engine turned off.
Operating the audio system for a long period of time with the
engine turned off will drain the battery.
❑ Do not expose the unit to direct sunlight or excessive
heat.
Otherwise these will raise the interior temperature of the unit,
and it may lead to smoke, fire, or other damage to the unit.
❑ Do not use the product where it is exposed to water,
moisture, or dust.
Exposure of the unit to water, moisture, or dust may lead to
smoke, fire, or other damage to the unit. Make especially sure
that the unit does not get wet in car washes or on rainy days.
Observe the following cautions when installing.
❑ Refer wiring and installation to qualified service personnel.
Installation of this unit requires special skills and experience. For
maximum safety, have it installed by your dealer. Panasonic is
not liable for any problems resulting from your own installation
of the unit.
❑ Follow the instructions to install and wire the product.
Not following the instructions to properly install and wire the
product could cause an accident or fire.
❑ Take care not to damage the leads.
When wiring, take care not to damage the leads. Prevent them
from getting caught in the vehicle chassis, screws, and moving
parts such as seat rails. Do not scratch, pull, bend or twist the
leads. Do not run them near heat sources or place heavy objects
on them. If leads must be run over sharp metal edges, protect
the leads by winding them with vinyl tape or similar protection.
❑ Use the designated parts and tools for installation.
Use the supplied or designated parts and appropriate tools to
install the product. The use of parts other than those supplied or
designated may result in internal damage to the unit. Faulty
installation may lead to an accident, a malfunction or fire.
❑ Do not block the air vent or the cooling plate of the unit.
Blocking these parts will cause the interior of the unit to overheat and will result in fire or other damage.
Caution
THIS PRODUCT UTILIZES A CLASS I LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
❑ Do not install the product where it is exposed to strong
vibrations or is unstable.
Avoid slanted or strongly curved surfaces for installation. If the
installation is not stable, the unit may fall down while driving and
this can lead to an accident or injury.
❑ Installation Angle
The product should be installed in a horizontal position with the
front end up at a convenient angle, but not more than 30˚.
The user should bear in mind that in some areas there may be
restrictions on how and where this unit must be installed.
Consult your dealer for further details.
❑ Wear gloves for safety. Make sure that wiring is completed before installation.
❑ To prevent damage to the unit, do not connect the
power connector until the whole wiring is completed.
❑ Do not connect more than one speaker to one set of
speaker leads. (except for connecting to a tweeter)
CQ-C1333U
Observe the following cautions when using Front
Panel AUX.
❑ Set the volume to low enough before the AUX connection is completed.
Failure to observe this may cause loud noise and, consequently, damage your speakers and your hearing.
❑ Do not connect the front panel AUX directly with a
speaker/headphone output. Failure to observe this may
distort sound and break the internal amplifier.
Observe the following cautions when handling the
battery for the remote control unit.
● Use only specified battery (CR2025).
● Match the polarity of the battery with the (+) and (–) marks in
the battery case.
● Replace dead battery as soon as possible.
● Remove the battery from the remote control unit when not using
it for an extended period of time.
● Insulate the battery (by placing them in a plastic bag or covering
them with vinyl tape) before disposal or storage.
● Dispose of the battery according to the local regulations.
● Do not disassemble, recharge, heat or short the battery. Do not
throw a battery into a fire or water.
In case of battery leakage
● Thoroughly wipe the battery liquid off the battery case and insert
new battery.
● If any part of your body or clothing comes into contact with battery liquid, wash it with plenty of water.
● If battery liquid comes into contact with your eyes, wash them
with plenty of water and get immediate medical attention.
The following applies only in the U.S.A.
Part 15 of the FCC Rules
FCC Warning:
Any unauthorized changes or modifications to this equipment
would void the user's authority to operate this device.
Before Reading These Instructions
Differences
between 2 models
Panasonic welcomes you to our constantly growing family of electronic products owners.
We endeavor to give you the advantages of precise electronic and mechanical engineering, manufactured with carefully selected components, and
assembled by people who are proud of the reputation their work has built for our company. We know this product will bring you many hours of
enjoyment, and after you discover the quality, value and reliability we have built into it, you too will be proud to be a member of our family.
This operating instruction manual is for 2 models CQ-C1333U and CQ-C1303U. All illustrations throughout this manual represent model CQ-C1333U unless otherwise specified. The following table describes the differences between 2 models.
Features
Pre-Out Connector
Models
Remote Control Unit
CQ-C1333U
CQ-C1303U
2 (Front/Rear)
1 (Rear)
Included
Not Supported
Yes
No
AUX-IN
Note: The reproduction of WMA files is not supported.
Customer Services Directory
U.S.A.
Obtain Product Information and Operating Assistance;
locate your nearest Dealer or Servicenter; purchase Parts
and Accessories; or make Customer Service and Literature
requests by visiting our Web Site at:
http://www.panasonic.com/support
or, contact us via the web at:
http://www.panasonic.com/contactinfo
You may also contact us directly at:
1-800-211-PANA (7262),
Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm,
EST.
For hearing or speech impaired TTY users, TTY : 1-877-8338855
CANADA
WARRANTY SERVICE
FOR PRODUCT OPERATION ASSISTANCE, please contact:
Our Customer Care Centre:
Telephone #:
(905) 624-5505
1-800 #:
1-800-561-5505
Fax #:
(905) 238-2360
Email link:
“Contact Us” on www.panasonic.ca
FOR PRODUCT REPAIRS, please locate your nearest
Authorized Servicentre at www.panasonic.ca:
Link : “ServicentresTM locator” under “Customer support”
Accessory Purchases:
Purchase Parts, Accessories and Instruction Books online
for all Panasonic Products by visiting our Web Site at:
http://www.pasc.panasonic.com
or, send your request by E-mail to:
[email protected]
You may also contact us directly at:
1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only)
(Monday-Friday 9 am to 8 pm, EST.)
Panasonic Services Company
20421 84th Avenue South, Kent, WA 98032
(We accept Visa, MasterCard, Discover Card, American
Express, and Personal Checks)
For hearing or speech impaired TTY users, TTY : 1-866-6051277
Service in Puerto Rico
Panasonic Puerto Rico, Inc.
Panasonic Sales Company
Factory Servicenter:
Ave. 65 de Infantería, Km. 9.5, San Gabriel Industrial Park,
Carolina, Puerto Rico 00985
Phone (787) 750-4300, Fax (787) 768-2910
Panasonic Factory Service:
Vancouver
Panasonic Canada Inc.
12111 Riverside Way
Richmond, BC V6W 1K8
Tel: (604) 278-4211
Fax: (604) 278-5627
Toronto
Panasonic Canada Inc.
5770 Ambler Drive
Mississauga, ON L4W 2T3
Tel: (905) 624-8447
Fax: (905) 238-2418
IF YOU SHIP THE PRODUCT TO A SERVICENTRE
Carefully pack and send prepaid, adequately insured and
preferably in the original carton.
Include details of the defect claimed, and proof of date of
original purchase.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty
lasts, so the exclusions may not apply to you.
U.S.A.
PANASONIC CONSUMER ELECTRONICS COMPANY,
DIVISION OF PANASONIC CORPORATION OF NORTH AMERICA
One Panasonic Way, Secaucus, New Jersey 07094
This warranty gives you specific legal rights and you may also have other
rights which vary from state to state. If a problem with this product
develops during or after the warranty period, you may contact your dealer or Servicenter. If the problem is not handled to your satisfaction, then
write to warrantor’s Consumer Affairs Department at the addresses of the
warrantor.
PANASONIC SALES COMPANY,
DIVISION OF PANASONIC PUERTO RICO, INC.
Ave. 65 de infanteria, Km. 9.5, San Gabriel Industrial Park
Carolina, Puerto Rico 00985
PARTS AND SERVICE WHICH ARE NOT COVERED BY THIS LIMITED
WARRANTY ARE YOUR RESPONSIBILITY.
PANASONIC AUTO PRODUCTS
LIMITED WARRANTY
LIMITED WARRANTY COVERAGE
If your product does not work properly because of defects in materials
and workmanship.
Panasonic Consumer Electronics Company or Panasonic Sales Company
(collectively referred to as “the warrantor”) will, for the length of the period indicated in the chart below, which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with
new or refurbished parts, or (b) replace it with a new or refurbished
product. The decision to repair or replace will be made by the warrantor.
Limited Warranty
Categories
Parts
Labor
Audio Components (except items listed below)
One (1) Year
One (1) Year
MXE Series Audio Components (except items
listed below)
Speakers
Two (2) Years
Two (2) Years
One (1) Year
Not Applicable
Accessories (in exchange for defective items)
Ninety (90) Days Not Applicable
During the “Labor” warranty period, there will be no charge for labor.
During the “Parts” warranty period, there will be no charge for parts. You
must carry-in or mail-in your product during the warranty period. If nonrechargeable batteries are included, they are not warranted. This warranty
only applies to products purchased and serviced in the United States or
Puerto Rico. This warranty is extended only to the original purchaser of a
new product which was not sold “as is”. A purchase receipt or other
proof of the original purchase date is required for warranty service.
CARRY-IN OR MAIL-IN SERVICE
For Carry-In or Mail-In Service in the United States, call 1-800-211-PANA
(7262) or visit
Panasonic Web Site: http://www.panasonic.com
For assistance in Puerto Rico, call Panasonic Sales Company (787)-7504300 or fax (787)-768-2910.
LIMITED WARRANTY LIMITS AND EXCLUSIONS
This warranty ONLY COVERS failures due to defects in materials and
workmanship, and DOES NOT COVER normal wear and tear or cosmetic
damage. The warranty ALSO DOES NOT COVER damages which occurred
during shipment, failures which are caused by products not supplied by
the warrantor, failures which result from accident, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up
adjustment, maladjustment of consumer control, improper maintenance,
improper antenna, inadequate signal reception or pickup, power line
surge, improper voltage supply, lightning, modification, commercial use
(such as use in hotels, offices, restaurants, or other business uses) or
rental use of the product, or service by anyone other than the technician
from Factory Servicenter or other authorized service centers, or damage
that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER
“LIMITED WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE
FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM
THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF
THIS WARRANTY. (As examples, this excludes damages for lost time,
cost of having someone remove or re-install an installed unit if applicable, travel to and from the sevicer, and loss of media, data or other memory contents. The items listed are not exclusive, but are for illustration
only.) ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE
WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF
THE LIMITED WARRANTY.
Customer’s Record
Model
No.
Serial
No.
Dealer’s
No.
Code
No.
Dealer’s
Address
Date of
Purchase
CANADA
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga Ontario L4W 2T3
PANASONIC PRODUCT LIMITED WARRANTY
Panasonic Canada Inc. warrants this product to be free from defects in
materials and workmanship and agrees to remedy any such defect for a
period as stated below from the date of original purchase.
CAR AUDIO PRODUCT – ONE (1) YEAR, PARTS AND LABOUR
(The labour to install or remove the product is not warranted)
LIMITATIONS AND EXCLUSIONS
This warranty does not apply to products purchased outside Canada or to
any product which has been improperly installed, subjected to usage for
which the product was not designed, misused or abused, damaged during shipping, or which has been altered or repaired in any way that
affects the reliability or detracts from the performance, nor does it cover
any product which is used commercially. Dry cell batteries are also
excluded from coverage under this warranty.
This warranty is extended to the original end user purchaser only. A purchase receipt or other proof of the original purchase date is required
before warranty service is performed.
THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE.
IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY
SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES.
In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of
implied warranties, so the above limitations and exclusions may not be
applicable.
Battery
Installation
First Time Power On
Preparation
your car's ignition switch to the ACC or
1 Set
ON position.
ACC
ON
2 Press [SRC] (PWR: Power).
CQ-C1333U
Pull the insulation film out from the backside of the remote
control gently.nly
The 12-hour system is used for the clock.
1 Press [DISP] (CLOCK).
Note: Battery Information:
Battery Type: Panasonic lithium battery (CR2025) (Included in
the remote control)
Battery Life: Approximately 6 months under normal use (at
room temperature)
Clock Display at Power Off
Press [DISP] to change the display.
(clock display)
2 Hold down [DISP] (CLOCK) for more than 2
Display off
seconds.
Hours blinks
3
Clock display
Adjust the hour.
Clock Setting
Hours set
[[]: sets the hour ahead.
[]]: sets the hour back.
4 Press [DISP] (CLOCK).
Minutes blinks
5 Adjust the minute.
Minutes set
[[]: sets the minute ahead.
[]]: sets the minute back.
6 Press [DISP] (CLOCK).
Complete
Notes:
¡ “ADJUST” is displayed before adjusting the clock.
¡ Hold down []] or [[] to change numbers rapidly.
Cleaning the
Unit
Maintenance
Your product is designed and manufactured to ensure the minimum of maintenance. Use a soft cloth for routine exterior cleaning. Never use benzine, thinner, or other solvents.
Fuse
If the replaced fuse fails, contact your nearest authorized Panasonic Servicenter.
Warning
¡ Use fuses of the same specified rating (15 A). Using substitutes or fuses with higher ratings, or connecting the unit
directly without a fuse could cause fire or damage to the unit. If the replaced fuse fails, contact your nearest
authorized Panasonic Servicenter.
Anti-Theft System
This unit is equipped with a removable face plate. Removing this face plate makes the unit totally inoperable.
¡ This face plate is not waterproof. Do not expose it to
water or excessive moisture.
¡ Do not remove the face plate while driving your car.
¡ Do not place the face plate on the dashboard or nearby
areas where the temperature rises high.
(Anti-Theft System)
Face Plate Removing/Mounting
Caution
¡ Do not touch the contacts on the face plate and the main
unit, since this may result in poor electrical contact.
¡ If dirt or other foreign substances get on the contacts,
wipe them off with a clean and dry cloth.
Removing
Mounting
1 Turn off the power.
2 Press [ ]. The face plate will open.
3 Pull it out toward you.
1 Slide the left side of the face plate in place.
2 Press the right end of face plate until a
[
“click” is heard.
]
Notes on
CD-Rs/RWs
Notes on CD/CD Media (CD-ROM, CD-R, CD-RW)
Notes on Discs
If you use commercial CDs, they must have the label
shown at right.
Some copy-protected music CDs are not playable.
TEXT
How to hold a disc
¡ Do not touch the underside of a disc.
¡ Do not scratch on a disc.
¡ Do not bend a disc.
¡ When not in use, keep a disc in a case.
Printed side
Do not use irregularly shaped discs.
Do not leave discs in the following places:
¡ Direct sunlight
¡ Near car heaters
¡ Dirty, dusty and damp areas
¡ Seats and dashboards
Do not attach any seals or
labels to your discs.
Do not use irregularly
shaped discs.
Disc cleaning
Use a dry, soft cloth to wipe from the center outward.
Do not attach any seals or labels to your discs.
Do not write on the disc label with a ballpoint pen or
other hard-point pens.
¡ You may have trouble playing back some CD-R/RW discs
recorded using CD recorders (CD-R/RW drives), either due
to their recording characteristics or dirt, fingerprints,
scratches, etc. on the disc surface.
¡ CD-R/RW discs are less resistant to high temperatures and
high humidity than ordinary music CDs. Leaving them
inside a car for extended periods may damage and make
playback impossible.
¡ Some CD-R/RWs cannot be played back successfully due
to incompatibility among writing software, a CD recorder
(CD-R/RW drive) and the discs.
¡ This player cannot play the CD-R/RW discs if the session is
not closed.
¡ This player cannot play the CD-R/RW discs which contain
other than CD-DA data or MP3.
¡ Be sure to observe the instructions of the CD-R/RW disc
for handling it.
<Correct>
¡ The file extension “.mp3” should be assigned to each file
depending on the file format.
¡ This unit does not have the play list function.
¡ Although Multi-session recording is supported, the use of
Disc-at-Once is recommended.
Supported file systems
ISO 9660 Level 1/Level 2, Apple Extension to ISO 9660, Joliet,
Romeo
Note: Apple HFS, UDF 1.50, MIX mode CD, CD Extra is not
supported.
Compression formats
(Recommendation: “Points to remember when making
MP3 files” on the right.)
Recording MP3 files on a CD-media
¡ You are recommended to minimize the chances of making a disc that contains both CD-DA files and MP3 files.
¡ If CD-DA files are on the same disc as MP3 or files, the
songs may not play in the intended order, or some songs
may not play at all.
¡ Do not record files other than MP3 files and unnecessary
folder on a disc.
¡ The name of MP3 file should be added by rules as shown in
the following descriptions and also comply with the rules of
each file system.
¡ You may encounter trouble in playing MP3 files or displaying the information of MP3 files recorded with certain writing software or CD recorders.
<Wrong>
¡ MPEG 1 audio layer 3
Bit rate: 32 k-320 kbps
VBR: Yes
Sampling frequency:
32, 44.1, 48 kHz
¡ MPEG 2 audio layer 3
Bit rate: 8 k-160 kbps
VBR: Yes
Sampling frequency:
16, 22.05, 24 kHz
Notes on MP3
Note: MP3 encoding and writing software is not supplied
with this unit.
Folder selection order/file playback order
Root Folder
(Root Directory)
1
Points to remember when making MP3 files
¡ High bit rate and high sampling frequency are recommended for high quality sounds.
¡ Selecting VBR (Variable Bit Rate) is not recommended
because playing time is not displayed properly and sound
may be skipped.
¡ The playback sound quality differs depending on the
encoding circumstances. For details, refer to the user
manual of your own encoding software and writing software.
¡ It is recommended to set the bit rate to “128 kbps or
more” and “fixed”.
Caution
Notes on MP3
Never assign the “.mp3”, file name extension to
a file that is not in the MP3 format. This may
not only produce noise from the speaker damage, but also damage your hearing.
Display Information
2
q
Folder Selection
4
3
e
w
5
6
7
Tree 2
1
–
8
r
8
Tree 1
In the order
File Selection
In the order
–
y
q
Tree 3
t
y
Tree 4
Tree 8
(Max.)
Maximum number of files/folders
¡ Maximum number of files: 999
¡ Maximum number of files in one folder: 255
¡ Maximum depth of trees: 8
¡ Maximum number of folders: 255 (Root folder is included.)
Notes:
¡ This unit counts the number of folders irrespective of the
presence or absence of MP3 file.
¡ If the selected folder does not contain any MP3 files, the
nearest MP3 files in the order of playback will be played.
¡ Playback order may be different from other MP3 players
even if the same disc is used.
¡ “ROOT” appears when displaying the root folder name.
Displayed items
¡ CD-TEXT
Disc title
Track title
¡ MP3 (ID3 tag)
Album name
Title name/Artist name
¡ MP3
Folder name
File name
Displayable characters
Copyright
¡ Name files and folders in accordance with the standard of
each file system. Refer to the instructions of writing software for details.
¡ ASCII character set and special characters in each language can be displayed.
It is prohibited by copyright laws to copy, distribute and
deliver copyrighted materials such as music without the
approval of copyright holder except enjoying yourself personally.
Notes:
¡ With some software in which MP3 format files have been
encoded, the character information may not be displayed
properly.
¡ Undisplayable characters and symbols will be converted
into an asterisk ( ).
No warranty
Above description complies with our investigations as of
September 2005. It has no warranty for reproducibility and
displayability of MP3.
Remote Control Unit
CQ-C1333U
Notes:
¡ This instruction manual explains operations for use with the buttons on the main unit. (Different operations excluded)
¡ Aim the remote control at the remote sensor and operate it.
[BAND]
[0] to [9]
selects a band in the tuner source,
selects a preset station (1 to 6),
toggles pause/play in player source,
presets the current station (Hold it down for more
executes the APM in tuner source (Hold it down for more than 2 seconds).
than 2 seconds.),
inputs the number in direct selection.
[#] (NUMBER)
[MENU] (SEL: Select)
[SRC] (SOURCE)
executes the direct selection.
selects the items in the audio menu.
selects a source.
[RANDOM] [SCAN] [REPEAT]
(POWER)
toggles on/off each play mode.
toggles power on/off.
[]] [[]
down/up the frequency (Hold it down for more
POWER
than 0.5 seconds and release it for seek tuning.
SOURCE MENU
SEL
SRC
[{] [}]
[VOL] (volume)
VOL
SET
skip to the previous/next folder in player mode.
adjusts the volume,
MUTE
BAND
[6] [7]
and selects the value in the audio menu, etc.
1
2
3
skip to the previous/next track/file in player mode.
RANDOM SCAN REPEAT
5
4
6
Hold it down for fast reverse/fast forward.
[MUTE]
7
8
9
0
DISP
TUNE
TUNE
#
toggles mute on/off.
NUMBER
CAR AUDIO
Direct Access
A track (CD mode), file, folder (MP3 mode) can be directly
selected.
Example: Track number 5
Functions
1 Press [#] (NUMBER).
2 Press [5].
3 Press [BAND] (SET).
Notes:
¡ To suspend direct selection, press [DISP].
¡ For folder selection, enter a number after pressing [#]
(NUMBER) twice.
Functions only on Main unit
The following functions are not available on remote control
unit.
¡SQ selection
¡Scroll
¡Disc eject
[DISP] (Display)
switches the information on display,
and exits the audio menu.
Battery Replacement
CQ-C1333U
q Remove the battery holder with the Tough pointed object
remote control unit placed on a flat
surface.
q Stick your thumbnail into the
w
groove, and push the holder in
q
the direction of the arrow at the
Back side
same time.
w Pull it out in the direction of the
2
arrow using a tough pointed object.
w Put a battery in the case with (+)
side facing up.
3
e Put the case back.
Warning
¡Keep batteries away from children to avoid the risk of
accidents. If an infant ingests a battery, please seek
immediate medical attention.
Caution
¡ Remove and dispose of an old battery immediately.
¡ Do not disassemble, heat or short a battery. Do not
throw a battery into a fire or water.
¡ Follow local regulations when disposing of a battery.
¡ Improper use of batteries may cause overheating, an
explosion or ignition, resulting in injury or a fire.
Notes: Battery Information:
Battery Type: Panasonic lithium battery (CR2025) (Included
in the remote control)
Battery Life: Approximately 6 months under normal use (at
room temperature)
General
CQ-C1333U
Remote Control Sensor
(VOL) (Volume)
*AUX IN :
[MUTE]
toggles mute on/off.
lights when mute is on.
(SQ) (Sound Quality)
selects a sound type (SQ).
[SRC] (Source)
selects a source.
[PWR] (Power)
toggles power on/off.
CQ-C1333U
Set the volume level to
low enough before the
AUX connection is completed.
Power On/Off
Power on: Press [SRC] (PWR).
Power off: Hold down [SRC] (PWR) for more
than 1 second.
Press [SRC] to change the source.
Disc Player
SQ is a function that can call up various sound types at
the touch of button in accordance with your listening
music type.
Press [SQ] to select the sound type as follows:
(FLAT) flat frequency response:
does not emphasize any part. (Default)
Source Selection
General Operations
[AUX] (AUX IN)
to a line output of an external
sound/audio device.
(ex. Silicon audio player, HDD audio
player, etc)
(for details
Installation Instructions)
SQ (Sound Quality)
Set your car's ignition switch to the ACC or ON position.
Radio
*
Caution
*
CQ-C1333U
AUX IN
(ROCK) speedy and heavy sound:
exaggerates bass and treble.
(POP) wide-ranged and deep sound:
slightly emphasizes bass and treble.
(VOCAL) clear sound:
emphasizes middle tone and slightly emphasizes treble.
Volume Adjustment
(Setting Range: 0 to 40, Default: 18)
Turn [VOL].
Note: Settings of SQ, bass and treble are influenced one
another. If such an influence causes distortion to the
audio signal, readjust bass/treble or volume.
Mute
ON: Press [MUTE]. (
OFF: Press [MUTE] again.
lights.)
Radio (AM/FM)
[BAND]
selects a band in the radio source.
[APM] (Auto Preset Memory)
executes APM in the radio source. (Hold it
down for more than 2 seconds.)
[TUNE ]] [TUNE []
down/up the frequency. (Hold it
down for more than 0.5 seconds
and release it for seek tuning.)
[DISP] (Display)
switches the information on
the display.
[SRC] (Source)
selects a source.
Preset buttons [1] to [6]
selects a preset station in the radio source,
and presets the current station. (Hold it down
for more than 2 seconds.)
1 Press [SRC] to select the radio source.
2 Press [BAND] to select a band.
3 Select a station.
Frequency adjustment
Operation Flow
[TUNE]]: Lower
[TUNE[]: Higher
Note: Hold down either of them for more than 0.5 seconds and release it for seek tuning.
Preset station selection
Press the corresponding preset button from
[1] to [6] to tune in a preset station.
lights while receiving an FM stereo signal.
Frequency Preset Number
Radio Source Display
Band
Press [DISP] to change the display.
Radio mode display (Default)
Clock display
Up to 6 stations can be preset in AM, FM1, FM2, and FM3
respectively.
Preset stations can be simply called up by pressing [1] to [6].
Auto Preset Memory (APM)
With this operation, stations with good receiving conditions can
be automatically stored in the preset memory.
1 Select a band.
2 Hold down [BAND] (APM) for more than 2
seconds.
Station Preset
Display change
The preset stations under best receiving conditions are
received for 5 seconds each after presetting the stations
(SCAN). To stop scanning, press one of the buttons from
[1] to [6].
Note: New stations overwrite existing saved stations.
Manual station preset
1 Tune into a station.
2 Hold down one of the preset buttons from
[1] to [6] for more than 2 seconds.
(blinks once)
Note: New stations overwrite existing saved stations.
Audio Settings
(VOL)
selects a value in the audio menu.
(PUSH SEL) (Push to Select)
selects items in the audio menu.
[DISP] (Display)
exits from the audio menu.
1 Press [VOL] (PUSH SEL) to display the audio menu display.
Note: If no operation takes place for more than 5 seconds in the audio menu (2 seconds in Main volume adjustment), the display returns to the regular mode.
2 Press [VOL] (PUSH SEL) to select a
mode to be adjusted.
3 Turn [VOL] clockwise or counterclockwise to adjust.
Volume
(Setting Range: 0 to 40, Default: 18)
q : Up
w : Down
Bass
Audio menu
(Setting Range: –12 dB to +12 dB by 2 dB,
Default: 0 dB)
q : Increased
w : Decreased
Treble
(Setting Range: –12 dB to +12 dB by 2 dB,
Default: 0 dB)
q : Increased
w : Decreased
Balance
(Setting Range: 15 levels each, Default CNT (center))
q : Right enhanced
w : Left enhanced
Fader
(Setting Range: 15 levels each, Default CNT (center))
Note: If the fader is set to front, the pre-amp. output
(rear) is decreased.
q : Front enhanced
w : Rear enhanced
Player (Disc Player)
Disc slot
takes a disc in with the printed side facing up.
Notes:
¡ The power will be turned on automatically when
a disc is loaded.
¡ A disc which has both CD-DA data and MP3
data on it may not be reproduced normally.
[6] [7]
skip to the previous/next
track/file in the player mode.
Hold down either of them for
fast reverse/fast forward.
Printed side up
[u] (Eject)
ejects the disc.
(y / 5) (Pause/Play)
toggles pause/play in the
player source.
indicator
[3] (SCROLL)
scrolls the information on display.
[DISP] (Display)
switches the information on
the display.
[SRC] (Source)
selects a source.
Caution
¡ Do not insert a disc when the
indicator lights.
¡ Refer to the section of “Notes on Discs” and “Notes
on MP3.
¡ This unit does not support 8 cm {3”} discs.
¡ If you insert an 8 cm {3”} disc and cannot eject it, turn ACC of
your car off once and turn it on again, then press [u] (Eject).
1 Press [SRC] to select the Disc Player
source.
2 Select a desired portion.
[}] [{]
skip to the previous/next folder in MP3 mode.
[4] (RANDOM)/[5] (SCAN)/[6] (REPEAT)
toggles on/off each play mode.
¡ Do not insert foreign objects into the disc slot.
Folder selection (MP3)
Press [{] / [}].
Disc Player (MP3 disc):
Previous/next folder
Operation Flow
Track/file selection
Press [6] / [7].
Note: To perform fast forward/reverse, hold down
either of them.
Disc Player (CD-DA disc):
Previous/next track
Disc Player (MP3 disc):
Previous/next file
Pause
Press [BAND] (y / 5).
Press again to cancel.
CD-DA mode display
Random indicator
Track number
Display change
Press [DISP] to change the display.
Play time
Disc Player
(CD-DA disc):
Player Source Display
Repeat indicator
MP3 mode display
lights when folder random/repeat/scan is on.
Folder number
Disc Player (MP3 disc):
Normal
Normal
Disc title
Play time
Track title
Folder name/
Album*
File name/
Title, artist*
Clock
Clock
File number
*ID3 Tag On/Off
Hold down [3] for more
than 2 seconds.
Repeat indicator
Random indicator
album title and song
title/artist name are displayed.
(Default)
folder name/file name are
displayed.
Notes:
¡ For scrolling text, press [3] (SCROLL).
¡ “NO TEXT” is displayed when there is no information on the disc.
Random play
All the available tracks/files are played in a random sequence.
Press [4] (RANDOM).
Random, Repeat, Scan
Press again to cancel.
Folder random play (MP3)
All the available files in current folder are played in a random
sequence.
Hold down [4] (RANDOM) for more than 2
seconds.
Hold down again to cancel.
Repeat play
The current track/file is repeated.
Press [6] (REPEAT).
Press again to cancel.
Folder repeat play (MP3)
The current folder is repeated.
Hold down [6] (REPEAT) for more than 2
seconds.
Hold down again to cancel.
Scan play
The first 10 seconds of each tracks/files is played in sequence.
Press [5] (SCAN).
Press again to cancel.
Folder scan play (MP3)
From the next folder, the first 10 seconds of the first file in
each album is played in sequence.
Hold down [5] (SCAN) for more than 2 seconds.
Hold down again to cancel.
Troubleshooting
If You Suspect Something Wrong
Check and take steps as described below.
If the described suggestions do not solve the problem, it is recommended to take the unit to your nearest authorized Panasonic
Servicenter. The product should be serviced only by qualified personnel. Please refer the checking and the repair to professionals.
Panasonic shall not be liable for any accidents arising out of neglect
of checking the unit or your own repair after your checking.
Warning
¡ Do not use the unit in an irregular condition, for example, without sound, or with smoke or a foul smell, which can cause
ignition or electric shock. Immediately stop using the unit and
consult your dealer.
¡ Never try to repair the unit by yourself because it is dangerous
to do so.
Note: For whatever is printed in italics in “Check point” column,
Conduct the operations and checks by yourself.
Check point
Trouble
Common
No power
No sound
Noise
No sound from
left, right, front,
or rear speaker
Left and right
sounds are
reversed
Disc Player
● Start the engine. (Or turn the ignition
switch to the ACC position.)
● Verify the wiring. (battery lead, power
lead, ground lead, etc.)
● Fuse blown (Contact the nearest
Panasonic Servicenter.)
● Ask a professional for fuse replacement.
● Be sure to use the same rated fuse.
● Disable the mute function.
● Verify the wiring.
● Wait until the dew disappears before
turning on the unit.
● Make sure that grounding is established
properly.
Preset data
deleted
No sound, or disc
is automatically
ejected
● Load the disc correctly.
● Clean the disc.
Sound skip,
poor sound
quality
● Clean the disc.
Sound skip
due to
vibration
● The maximum permissible tilt angle is
30°.
● Secure the unit.
Disc
unejectable
● Press [u]. If the disc is still not ejected,
contact the nearest Panasonic
Servicenter.
Error Display Messages
● Adjust the balance and fader.
● Verify the wiring.
● Connect the speaker lead correctly.
Radio
Frequent
noise
Check point
Trouble
● Tune in to another station of high-intensity waves.
● Make sure that the antenna mounted
point is grounded properly.
● The preset memory is cleared to return
to the original factory setting when the
power connector or battery is disconnected.
(The disc is ejected automatically.)
The disc is dirty, or is upside down.
The disc has scratches.
● Check the disc.
No operation by some cause.
● If normal operation is not restored, consult your dealer or the nearest
Servicenter to ask for repairs.
Cannot read the file
● Check the file.
Memorandum
Memorandum
Specifications
General
FM Stereo Radio
Power supply
: DC 12 V (11 V – 16 V DC), test voltage
14.4 V, negative ground
Current consumption
: Less than 2.2 A (CD mode; 0.5 W x 4
channels)
Maximum power output
: 50 W x 4 channels (at 1 kHz), volume
control maximum
Tone adjustment range
: Bass: ±12 dB at 100 Hz,
Treble: ±12 dB at 10 kHz
Speaker impedance
:4 – 8 :
Pre-amp output voltage
: 2.5 V (CD mode, 1 kHz, 0 dB)
Pre-amp output impedance : 200 :
Dimensions (W x H x D)
: 178 x 50 x 155 mm
{7” x 1 15/16” x 6 2/16”}
Weight
: 1.3 kg {2 lbs. 14 oz}
CQ-C1333U
Front AUX input
Input impedance
: 10 k:
Allowable external input : 2.0 V
Connector
: 3.5 mm ø stereo mini-pin
Disc Player
Sampling frequency
DA converter
Pick-up type
Light source
Wave length
Frequency response
Signal to noise ratio
Total harmonic distortion
Wow and flutter
Channel separation
: 8 times oversampling
: 1 bit DAC System
: Astigma 3-beam
: Semiconductor laser
: 790 nm
: 20 Hz – 20 kHz (±1 dB)
: 96 dB
: 0.01 % (1 kHz)
: Below measurable limits
: 75 dB
Frequency range
Usable sensitivity
50 dB quieting sensitivity
Frequency response
Alternate channel selectivity
Stereo separation
Image rejection ratio
IF rejection ratio
Signal/noise ratio
: 87.9 MHz – 107.9 MHz
: 11.0 dBf. (75 :)
: 15.2 dBf. (75 :)
: 30 Hz – 15 kHz (±3 dB)
: 75 dB
: 35 dB (1 kHz)
: 55 dB
: 100 dB
: 62 dB
AM Radio
Frequency range
Usable sensitivity
: 530 kHz – 1 710 kHz
: 28 dB/μV (S/N 20 dB)
Above specifications comply with EIA standards.
Power Output:
18 W RMS x 4 Channels at 4 : and d 1%
THD+N
Signal to Noise Ratio:
85 dBA (reference: 1 W into 4 :)
Notes:
¡ Specifications and design are subject to modification without
notice due to improvements.
¡ Some figures and illustrations in this manual may be different
from your product.
Accessories
Instruction kit
Operating Instructions
(English: YFM284C484CA)
(Français: YFM284C485CA)
(Español: YFM284C486CA)
Q'ty: 1 set
Installation Instructions
(YFM284C490CA)
Q'ty: 1
Owners Information
Card
Mounting Collar
Installation kit (ZZBISC1101U-J)
(FX0214C384ZA)
Lock Cancel Plate
Q'ty: 1
(FX0214C385ZA)
Q'ty: 2
Trim Plate
Q'ty: 1
Power Connector
(YGAJ021012)
(YFC054C079YA)
Mounting Bolt
Q'ty: 1
(YEJV014C002N)
Rubber Bushing
Q'ty: 1
(YFS014C095ZA)
Q'ty: 1
POWER
SOURCE MENU
SEL
SRC
VOL
SET
BAND
1
MUTE
2
3
RANDOM
SCAN
REPEAT
4
5
7
9
0
DISP
TUNE
#
NUMBER
CAR AUDIO
Q'ty: 1
6
8
TUNE
CQ-C1333U
Remote Control Unit
(includes a battery)
(EUR7641010)
Notes:
¡ The number in parentheses underneath each accessory part name is the part number for maintenance and service.
¡ Accessories and their part numbers are subject to modification without prior notice due to improvements.
¡ Mounting Collar and Trim Plate are mounted on the main unit at shipment.
Q'ty: 1
© 2005 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.
Panasonic Consumer
Electronics Company,
Division of Panasonic
Corporation of North America
One Panasonic Way, Secaucus,
New Jersey 07094
http://www.panasonic.com
Panasonic Sales Company,
Division of Panasonic Puerto
Rico, Inc. (“PSC”)
Ave. 65 de Infanteria, Km. 9.5
San Gabriel Industrial Park,
Carolina, Puerto Rico 00985
http://www.panasonic.com
Panasonic Canada Inc.
5770 Ambler Drive,
Mississauga, Ontario
L4W 2T3
http://www.panasonic.ca
YFM284C484CA PTW1205-1
Printed in China(Y)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
