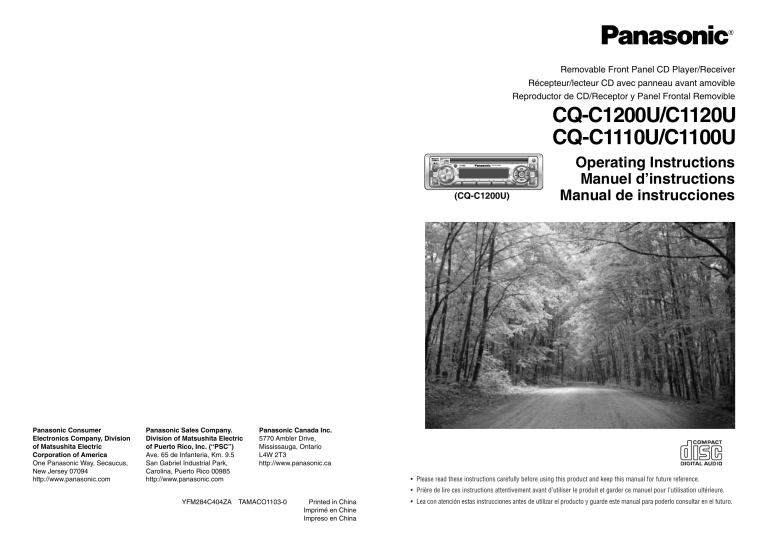

Removable Front Panel CD Player/Receiver
Récepteur/lecteur CD avec panneau avant amovible
Reproductor de CD/Receptor y Panel Frontal Removible
CQ-C1200U/C1120U
CQ-C1110U/C1100U
BA
ND
UME / PUSH SEL
VOL
CQ-C1200U
D•M
APM
TUNE
TRACK
CLOCK
POWER
SR
C
MUTE
7
8
1
2
9
3
10
11
4
5
12
6
SCAN
SQ
(CQ-C1200U)
Panasonic Consumer
Electronics Company, Division
of Matsushita Electric
Corporation of America
One Panasonic Way, Secaucus,
New Jersey 07094
http://www.panasonic.com
Panasonic Sales Company.
Division of Matsushita Electric
of Puerto Rico, Inc. (“PSC”)
Ave. 65 de Infanteria, Km. 9.5
San Gabriel Industrial Park,
Carolina, Puerto Rico 00985
http://www.panasonic.com
REP
DIS
P
Operating Instructions
Manuel d’instructions
Manual de instrucciones
Panasonic Canada Inc.
5770 Ambler Drive,
Mississauga, Ontario
L4W 2T3
http://www.panasonic.ca
• Please read these instructions carefully before using this product and keep this manual for future reference.
• Prière de lire ces instructions attentivement avant d’utiliser Ie produit et garder ce manuel pour l’utilisation ultérieure.
YFM284C404ZA
TAMACO1103-0
Printed in China
Imprimé en Chine
Impreso en China
• Lea con atención estas instrucciones antes de utilizar el producto y guarde este manual para poderlo consultar en el futuro.
E
N
G
L
I
S
H
Safety Information
Consignes de sécurité
The following applies only in the U.S.A.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE
THIS APPLIANCE TO RAIN, SPLASHING, DRIPPING
OR MOISTURE.
CAUTION!
THIS PRODUCT UTILIZES A CLASS I LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR
YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
Part 15 of the FCC Rules
FCC Warning:
Any unauthorized changes or modifications to this
equipment would void the user's authority to operate
this device.
NOTICE:
This product contains lead in some components.
Disposal of these materials may be regulated in
your community due to environmental considerations.
For disposal or recycling information please contact
your local authorities, or the Electronics Industries
Alliance: <http://www.eiae.org.>
Laser products:
Wave length: 780 nm
Laser power: No hazardous radiation is emitted with
safety protection.
ADVERTENCIA:
AVERTISSEMENT:
AFIN DE LIMITER LES RISQUES D’INCENDIE OU
D’ÉLECTROCUTION OU ENCORE D’ENDOMMAGEMENT DE L’APPAREIL, N’EXPOSEZ PAS CET
APPAREIL À LA PLUIE, AUX ÉCLABOUSSURES
D’EAU OU À L’HUMIDITÉ.
ATTENTION!
CET APPAREIL EST UN PRODUIT LASER DE LA
CLASSE I.
L'UTILISATION DE COMMANDES OU RÉGLAGES
OU L'EXÉCUTION D'OPÉRATIONS AUTRES QUE
CELLES QUI SONT INDIQUÉES DANS CE DOCUMENT PEUVENT RÉSULTER EN UNE EXPOSITION À
UN RAYONNEMENT DANGEREUX.
N'OUVREZ PAS LES COUVERCLES ET N'ESSAYEZ
PAS D'EFFECTUER VOUS-MÊME DES RÉPARATIONS. ADRESSEZ-VOUS À UN PERSONNEL
QUALIFIÉ POUR TOUTE RÉPARATION.
Longueur d’onde: 780 nm
Puissance du laser: Aucune radiation dangereuse
n’est émise avec la protection
de sécurité.
PLEASE FOLLOW THE LAWS AND REGULATIONS
OF YOUR STATE, PROVINCE OR COUNTRY FOR
INSTALLATION OF THE UNIT.
PARA REDUCIR EL PELIGRO DE INCENDIOS Y DE
DESCARGAS ELÉCTRICAS ASÍ COMO DE DAÑOS DEL
PRODUCTO, NO LO EXPONGA A LA LLUVIA, A
SALPICADURAS, CONDENSACIÓN DE AGUA NI
HUMEDAD.
F
R
A
N
Ç
A
I
S
¡PRECAUCIÓN!
Produits laser:
CAUTION:
Información para su seguridad
ATTENTION:
OBSERVEZ LES LOIS ET RÉGLEMENTS DE VOTRE
PROVINCE OU PAYS POUR L’INSTALLATION DE
L’APPAREIL.
ÉSTE ES UN PRODUCTO LÁSER DE LA CLASE I.
LA UTILIZACIÓN DE CONTROLES, EL HACER
AJUSTES O EL SEGUIR PROCEDIMIENTOS DISTINTOS DE LOS ESPECIFICADOS EN ESTE MANUAL PODRÍA CAUSAR UNA EXPOSICIÓN PELIGROSA A LA RADIACIÓN.
NO ABRA LAS CUBIERTAS NI HAGA REPARACIONES USTED MISMO. SOLICITE LOS TRABAJOS DE SERVICIO AL PERSONAL CALIFICADO.
E
S
P
A
Ñ
O
L
Productos láser:
Longitud de onda: 780 nm
Potencia láser: Con protección de seguridad no se emite
radiación peligrosa.
PRECAUCIÓN:
RESPETE LAS LEYES Y REGULACIONES DE SU ESTADO, PROVINCIA O PAÍS PARA LA INSTALACIÓN DEL
APARATO.
Lo siguiente se aplica solamente a los EE.UU.
Parte 15 de los Reglamentos FCC
Advertencia FCC:
Cualesquier cambios o modificaciones sin autorización a este equipo puede anular la autoridad del
usuario para operar este dispositivo.
AVISO:
Este producto contiene plomo en algunos componentes.
La eliminación de estos materiales puede estar reglamentado en
su comunidad debido a las consideraciones ambientales.
Para informarse acerca de la eliminación o reciclaje
comuníquese con las autoridades locales, o la Alianza de
Industrias Electrónicas: <http://www.eiae.org.>
Il est recommandé de noter, dans l’espace prévu cidessous, les numéros de modèle et de série inscrits
soit à l’arrière soit sous le fond de l’appareil, et de
conserver ce manuel comme mémorandum de
l’achat afin de permettre l’identification de l’appareil
en cas de vol.
Find the model number and serial number on either the back or bottom of the unit. Please record them in the
space below and retain this booklet as a permanent record of your purchase to help with identification in case of
theft.
MODEL NUMBER
DATE PURCHASED
2
CQ-C1200U/C1120U/C1110U/C1100U
CQ-C1200U/C1120U/C1110U/C1100U
SERIAL NUMBER
FROM
NUMÉRO DE MODÈLE
CQ-C1200U/C1120U
CQ-C1110U/C1100U
Busque el número del modelo y el número de serie
ya sea en la parte trasera o en el fondo de la unidad.
Sírvase anotar dichos números en el espacio siguiente, y mantenga este manual como una anotación permanente de su compra para ayudar a la
identificación en el caso de robo.
NÚMERO DEL MODELO CQ-C1200U/C1120U
CQ-C1110U/C1100U
NUMÉRO DE SÉRIE
NÚMERO DE SERIE
DATE DE L’ACHAT
FECHA DE COMPRA
VENDEUR
NOMBRE DE LA TIENDA
CQ-C1200U/C1120U/C1110U/C1100U
3
Panasonic welcomes you to our ever growing family of electronic product owners. We know that this product will bring you many hours of enjoyment. Our reputation is built on precise electronic and mechanical
engineering, manufactured with carefully selected components and assembled by people who take pride in
their work. Once you discover the quality, reliability, and value we have built into this product, you too will
be proud to be a member of our family.
E
N
G
L
I
S
H
❐ Use this Product Safely
Panasonic est heureuse de vous compter parmi les utilisateurs de ses appareils électroniques. Nous pouvons vous
assurer que cet appareil vous procurera de longues heures d’agrément. Notre réputation est fondée sur une ingénierie
électronique et mécanique de haute précision, laquelle préside à la fabrication d’appareils ne comportant que des composants de choix assemblés par un personnel soucieux de la bonne réputation acquise par la qualité de son travail.
Après avoir découvert la qualité, la valeur et la fiabilité de cet appareil, vous aussi serez fier d’être un client Panasonic.
❐ Précautions à prendre
When Driving
Disc Mechanism
Au volant
Mécanisme de disque
Keep the volume level low enough to be aware of road
and traffic conditions.
Do not insert coins or any small objects. Keep screwdrivers and other metallic objects away from the disc
mechanism and disc.
Réglez le volume à un niveau qui ne risque pas de masquer les bruits ambiants.
N’insérez pas de pièces de monnaie ou de petits objets.
Gardez les tournevis et autres objets métalliques à l’écart
du mécanisme de disque et du disque.
Use Authorized Servicenters
Afin de prévenir tout risque de court-circuit ou d’incendie, n’exposez pas l’équipement, y compris les hautparleurs et les disques, à l’eau ou à une humidité excessive.
When Washing Your Car
Do not expose the product, including the speakers and
CDs, to water or excessive moisture. This could cause
electrical shorts, fire, or other damage.
When Parked
Parking in direct sunlight can produce very high temperatures inside your car. Give the interior a chance to cool
down before switching the unit on.
Use the Proper Power Supply
Do not attempt to disassemble or adjust this precision
product. Please refer to the Servicenter list included with
this product for service assistance.
For Installation
The product should be installed in a horizontal position
with the front end up at a convenient angle, but not more
than 30˚.
This product is designed to operate with a 12 DC, negative ground battery system (the normal system in a North
American car).
Lavage de la voiture
Voiture stationnée
L’habitacle d’une voiture immobile exposée au soleil
toutes vitres fermées devient rapidement très chaud.
Laissez rafraîchir l’intérieur du véhicule avant d’utiliser
l’appareil.
Réparation
Ne tentez pas de démonter ou d’ajuster l’appareil vousmême. Veuillez vous référer à la liste des centres de service fournie avec cet appareil pour contacter le service
d’assistance.
Installation
L’apppareil doit être installé en position horizontale avec
son extrémité avant inclinée vers le haut à un angle commode, mais ne dépassant pas 30˚.
Source d’alimentation
Cet appareil est conçu pour fonctionner sur un système
d’alimentation avec batterie de 12 V c.c. à masse
négative (système standard sur les voitures de construction nord-américaine).
❐ Accessories
•The numbers in parentheses indicate order numbers. In case that any of these
parts is/are missing, please inform your dealer of the number(s) and its name(s).
• Operating Instructions (YFM284C404ZA) .................................................................................................................1
• Removable face plate case (YFC054C061ZA)........................................................................................................1
• Installation Hardware .....................................................................................................................1 set (a page 28)
• Remote Control Unit Only for CQ-C1200U/C1120U/C1110U (YEFX9992013B).............................................................1
• CR2025 Lithium Battery Only for CQ-C1200U/C1120U/C1110U ..............................................................................1
• Warranty Card...........................................................................................................................................................1
❐ Features
• CD-R/CD-RW playable
• New simple-setting tone control "SQ" (Sound Quality) (a page 12)
• 4-channel high power amplifier
(50 W x 4 max. for CQ-C1200U/C1120U, 45 W x 4 max. for CQ-C1110U/C1100U)
• 2.5 V preamplifier outputs (front (excluding CQ-C1100U), rear)
• 2.5 V Sub-woofer output (only for CQ-C1200U)
• 18 FM and 6 AM presets with preset scan (a page 14)
• Anti-theft system provided by the removable faceplate (a page 19)
4
CQ-C1200U/C1120U/C1110U/C1100U
•Les caractères entre parenthèses représentent le code à spécifier d’une commande. Au cas où
l’une de ces pièces serait manquante, veuillez informer votre revendeur de ce code et du nom
de pièce.
• Manuel d’instructions (YFM284C404ZA) ..................................................................................................................1
• Étui de rangement du panneau avant amovible (YFC054C061ZA) ..............................................................................1
• Matériel d’installation...........................................................................................................1 ensemble (a page 50)
• Télécommande Uniquement pour les modèles CQ-C1200U/C1120U/C1110U (YEFX9992013B) ...............................1
• Pile au lithium CR2025 Uniquement pour les modèles CQ-C1200U/C1120U/C1110U ...........................................1
• Carte de garantie .......................................................................................................................................................1
❐ Accessoires
❐ Caractéristiques
• Lecture des CD-R/CD-RW
•Nouvelle commande de tonalité à réglage simple "SQ" (a page 34)
• Amplificateur de puissance élevée à 4 canaux
(50 W x 4 max. pour modèles CQ-C1200U/C1120U, 45 W x 4 max. pour modèles CQ-C1110U/C1100U)
• Sortie du préamplificateur de 2,5 V (avant (sauf CQ-C1100U), arrière)
• Sortie d’extrêmes-graves de 2,5 V (uniquement pour le CQ-C1200U)
• 18 canaux FM prédéfinis et 6 canaux AM prédéfinis avec balayage des canaux prédéfinis (a page 36)
• Système antivol prévu par un panneau avant amovible (a page 41)
CQ-C1200U/C1120U/C1110U/C1100U
5
F
R
A
N
Ç
A
I
S
Panasonic le da la bienvenida a la familia constantemente en aumento de poseedores de productos electrónicos. Nos
esforzamos en proporcionarle las ventajas de la ingeniería mecánica y electrónica de precisión, de una fabricación con
componentes cuidadosamente seleccionados, y de un montaje realizado por personas orgullosas de la reputación que
su trabajo ha cimentado para nuestra empresa. Estamos seguros de que este producto le proporcionará muchas horas
de distracción y, una vez comprobada la calidad, el valor y la fiabilidad incorporados, usted también se sentirá orgulloso
de pertenecer a nuestra familia.
❐ Uso de este equipo con seguridad
Cuando conduzca
Mecanismo de disco
Mantenga el nivel del volumen suficientemente bajo para
estar atento a la carretera y a las condiciones del tráfico.
No inserte monedas ni ningún objeto pequeño. Mantenga
los destornilladores u otros objetos metálicos apartados
del mecanismo de disco y del disco.
Cuando lave el automóvil
No exponga el equipo, incluyendo los altavoces y los
CDs, al agua o a una humedad excesiva. Esto puede
causar cortocircuitos eléctricos, incendios u otros daños.
E
S
P
A
Ñ
O
L
Uso de los centros de servicio autorizados
No intente desmontar ni ajustar este equipo de precisión.
Consulte la lista de centros de servicio incluidos con este
producto para acudir a ellos cuando sea necesario.
Cuando esté estacionado
El estacionamiento a la luz solar directa puede producir
temperaturas muy altas en el interior de su vehículo.
Procure enfriar el interior antes de encender la unidad.
Instalación
La unidad deberá instalarse en posición horizontal, con el
extremo delantero hacia arriba formando un ángulo conveniente, pero con no más de 30˚.
Uso de la alimentación apropiada
Este equipo ha sido diseñado para funcionar con un sistema de batería de 12 V CC con negativo a masa (el sistema normal en un vehículo norteamericano).
Note: This operating instruction manual is for 4 models CQ-C1200U, CQ-C1120U, CQ-C1110U and CQ-C1100U.
All illustrations throughout this manual represent model CQ-C1200U unless otherwise specified. The following table
describes the differences among 4 models.
Models
CQ-C1200U
Maximum power output
50 W
Preamp output connector
Features
CQ-C1120U
CQ-C1110U
CQ-C1100U
50 W
45 W
45 W
Rear/Front
Rear/Front
Rear/Front
Rear
Remote control unit
Included
Included
Included
Not applicable
Sub-Woofer output
Yes
No
No
No
Illumination color for D·M
/REP/s/d
Blue
Blue
Red
Red
Puissance de sortie maximum
50 W
50 W
45 W
45 W
• Estuche de la placa frontal extraíble (YFC054C061ZA)...............................................................................................1
• Accesorios suministrados .......................................................................................................1 juego (a página 72)
• Unidad del controlador remote Sólo para CQ-C1200U/C1120U/C1110U (YEFX9992013B)..........................................1
• CR2025 Pila de litio Sólo para CQ-C1200U/C1120U/C1110U ...................................................................................1
• Tarjeta de garantía.....................................................................................................................................................1
Connecteur de sortie de préamplificateur
Arrière/avant
Arrière/avant
Arrière/avant
Arrière
Télécommande
Incluse
Incluse
Incluse
Non applicable
Sortie d’extrêmes-graves
Oui
Non
Non
Non
Couleur d’éclairage pour D·M
/REP/s/d
Bleu
Bleu
Rouge
Rouge
CQ-C1200U/C1120U/C1110U/C1100U
E
S
P
A
Ñ
O
L
Remargue: Ce mode d'emploi a été rédigé pour les trois modèles suivants: CQ-C1200U, CQ-C1120U, CQ-C1110U et
CQ-C1100U. Toutes les illustrations qui apparaissent tout au long de ce manuel représentent le modèle CQ-C1200U
sauf indication contraire. Le tableau ci-dessous mentionne les différences qui existent entre les 4 modèles.
Modèles
• Reproducción CD-R/CD-RW
• Control de tono de ajuste simple "SQ" (Sound Quality) (a página 56)
• Amplificador de alta potencia de 4 canales
(50 W x 4 máx. para CQ-C1200U/C1120U, 45 W x 4 máx. para CQ-C1110U/C1100U)
• Salida de preamplificador 2,5 V (delantero (excluyendo el modelo CQ-C1100U), trasero)
• Salida de altavoz de graves secundario 2,5 V (solamente para el modelo CQ-C1200U)
• 18 FM y 6 FM preajustes con exploración de preajuste (a página 58)
• Sistema antirrobo provisto por el panel frontal extraíble (a página 63)
F
R
A
N
Ç
A
I
S
Différences entre les 4 modèles
•Los números entre paréntesis indican los números de pedido. En caso de faltar alguna de estas partes, informe el número y el nombre correspondientes a su distribuidor.
• Manual de Instrucciones (YFM284C404ZA).....................................................................................................1
❐ Características
6
Differences among 4 models
Caractéristiques
CQ-C1200U
CQ-C1120U
❐ Accesorios
E
N
G
L
I
S
H
CQ-C1110U
CQ-C1100U
Diferencia entre los 4 modelos
Nota: Este manual de instrucciones esta preparado para 4 modelo: CQ-C1200U, CQ-C1120U, CQ-C1110U y CQC1100U. Todas las ilustraciones de este manual representan el modelo CQ-C1200U a menos que se indique lo contrario. La tabla siguiente indica las diferencias entre los 4 modelos.
Modelos
Características
CQ-C1200U
CQ-C1120U
CQ-C1110U
CQ-C1100U
Potencia de alimentación máxima
50 W
50 W
45 W
45 W
Conector de salida de preamplificador
Trasero/Delantero
Trasero/Delantero
Trasero/Delantero
Trasero
Unidad de control remoto
Incluido
Incluido
Incluido
No es aplicable
Salida de altavoz de graves secundario Sí
No
No
No
Color de iluminación para D·M Azul
/REP/s/d
Azul
Rojo
Rojo
CQ-C1200U/C1120U/C1110U/C1100U
7
Recommended optional systems
❒ How to build the optimal audio system for you ...
It is the shortcut for getting the best quality sound to use the Panasonic audio component system.
For details, please contact your local dealer or nearest Panasonic servicenter.
E
N
G
L
I
S
H
Contents
Safety Information (Part 15 of the fcc Rules) . . . . . . . . . . . . . . . . . . . Page 2
Use this product safely . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Differences among 4 models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Recommended optional systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
❒ Power and Sound Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Power, volume, mute, display change, SQ (sound quality), audio mode
(bass/treble/balance/fader/sub woofer)
❒ Clock Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Initial time, time reset
❒ Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Radio mode, band, manual tuning, seek tuning, direct memory, preset
station setting, preset station calling, display change
❒ CD Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Disc insert and playback, stop and disc eject, listening to a CD, CD player
mode, display change, pause, track selection, track search, direct track
selection, repeat play, random play, scan play
❒ Remote Control Unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Only for CQ-C1200U/C1120U/C1110U
Battery installation, battery notes, control reference guide
❒ Anti-Theft System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Remove the removable face plate, place the removable face plate into
case, install removable face plate
❒ Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Preliminary steps, if you suspect something wrong, troubleshooting tips,
error display messages, product servicing, replace the fuse
❒ Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Care of the unit, notes on discs, notes on CD-Rs/RWs
❒ Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Overview, required tools, dashboard specifications, identify all leads,
connect all leads, final installation, final checks, preparation, dashboard
installation, installation hardware
❒ Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
❒ To Remove the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
❒ Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
8
CQ-C1200U/C1120U/C1110U/C1100U
CQ-C1200U/C1120U/C1110U/C1100U
9
F
R
A
N
Ç
A
I
S
Table des matières
Índice
Consignes de sécurité . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page13
Précautions à prendre . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Accessoires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Caractéristiques. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Différences entre les 4 modèles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Chaînes optionnelles recommandées . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Información para su seguridad (Parte 15 de los Reglamentos FCC). . . . . . . Página13
Uso de este equipo con seguridad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Accesorios. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Características. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Diferencia entre los 4 modelos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Sistemas opcionales recomendados . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
❒ Commandes d’alimentation et de son . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Alimentation, volume, coupure du son, SQ, changement d’affichage, mode audio
(graves/aigus/balance/équilibre/extrêmes-graves)
❒ Controles de alimentación y sonido . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Alimentación, volumen, silenciamiento, cambio de pantalla, SQ (sound quality),
modo de audio (graves/agudos/balance derecho-izquierdo/balance delanterotrasero/altavoz de subgraves)
❒ Réglage de l'horloge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Heure initiale, pour ajuster l’heure à nouveau
❒ Ajuste del reloj. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Hora inicial, reajuste de hora
❒ Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Mode radio, bande, syntonisation manuelle, syntonisation par recherche, mémoire
directe, réglage des stations présyntonisées, appel de station présyntonisée,
changement d’affichage
❒ Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Modo de la radio, banda, sintonización manual, sintonización de búsqueda,
memoria directa, ajuste de emisoras presintonizadas, llamada de emisoras
presintonizadas, cambio de pantalla
❒ Lecteur CD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Insertion de disque et lecture, arrêt et éjection de disque, écoute d'un disque CD, mode de
lecteur de CD, changement d'affichage, pause, sélection de plages, sélection directe de
plages, lecture répétée, lecture aléatoire, lecture des débuts de plage
❒ Reproductor de CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Inserción y reproducción del disco, parada y explusión del disco, para escuchar un
CD, Modo de reproducción de CD, cambio de pantalla, pausa, selección de pista,
selección directa de pista, búsqueda de pista, repetición de reproducción,
reproducción aleatoria, reproducción por exploración
❒ Préparatifs de la télécommande . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
❒ Preparación del controlador remoto . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Uniquement pour les modèles CQ-C1200U/C1120U/C1110U
Sólo para CQ-C1200U/C1120U/C1110U
Installation de la pile, remarques sur la pile, guide des commandes
Sustitución de la pila, notas sobre la pila, guía de referencia de control
❒ Système antivol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Retrait du panneau avant amovible, mise en place du panneau avant amovible
dans l’étui, installation du panneau avant amovible
❒ Sistema antirrobo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Vuelva a ajustar el panel delantero, coloque la placa frontal extraíble en la caja, instale la
placa frontal extraíble
❒ En cas de difficulté . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Étapes préliminaires, lorsqu’on soupçonne que quelque chose est défectueux, guide de dépannage,
messages d’erreur affichés, service après-vente de l’appareil, remplacement d’un fusible
❒ Solución de problemas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Pasos preliminares, si cree que hay algo que no funciona bien, consejos para
localizar y solucionar averías, mensajes de visualización de error, servico técnico del
producto, reemplazo del fusible
❒ Entretien . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Entretien de l'appareil, remarques relatives aux disques, remarques relatives aux
CD-R/RW
❒ Guide d’installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Généralités, outils requis, dégagement requis dans le tableau de bord, identifiez
tous les fils et câbles, raccordez tous les fils, installation finale, vérifications
finales, préparation, installation sur le tableau de bord, matériel d’installation
❒ Branchements électriques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
10
❒ Mantenimiento . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Cuidado del aparato, notas sobre los discos, notas sobre discos CD-R/RW
❒ Guía de instalación. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Perspectiva general, herramientas necesarias, especificaciones del salpicadero, identificación
de todos los conductores, conexión de todos los conductores, instalación final,
comprobaciones finales, preparación, Instalación en el tablero de instrumentos, accesorios
suministrados
❒ Conexiones eléctricas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
❒ Comment retirer l’appareil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
❒ Para extraer el aparato. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
❒ Données techniques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
❒ Especificaciones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
CQ-C1200U/C1120U/C1110U/C1100U
E
S
P
A
Ñ
O
L
CQ-C1200U/C1120U/C1110U/C1100U
11
CQ-C1200U
POWER
CLOCK
E
N
G
L
I
S
H
E
N
G
L
I
S
H
3
4
POWER
14
CQ-C1200U/C1120U/C1110U/C1100U
CQ-C1200U/C1120U/C1110U/C1100U
15
E
N
G
L
I
S
H
E
N
G
L
I
S
H
CD Player
Disc Insert and Playback
Disc insert
5
u (eject)
Playback will start automatically after the player
recognized the loaded disc as an ordinary music
CD. (When a CD-R or CD-RW which has CD-DA
formatted data as the same as an ordinary music
CD is loaded, this player recognizes it as an ordinary music CD.)
“LOAd” will be displayed until the disc is loaded.
Label side
Notes:
• Do not insert a disc when “DISC” indicator
lights.
• The power will be turned on automatically when a
disc is loaded.
Cautions:
• Only 5" (12 cm) CD, CD-DA data recorded CD-R and CD-RW discs are available for this unit.
• This unit does not support CD text display.
• This unit does not support MP3 and WMA disc playback.
• Refer to page 24 about notes on CD-Rs/RWs.
• This unit is not designed for any 3" (8 cm) disc.
• If you insert an 3" (8 cm) disc and can not eject it, turn ACC of your car off once and turn it on again, then
press [u] (eject).
• Do not use irregularly shaped discs.
• Do not use discs that have a seal or label attached.
• Do not insert foreign matter into the disc slot.
Pause (y / 5)
Direct Track Selection
Press [BAND] (y / 5) to pause.
Press [BAND] (y / 5) again to resume
the playback.
• Press a track number button from
[1] to [6].
The corresponding track starts
playing.
• Press and hold a track number button from [7] to [12] ([1] to [6]) for
more than 1 second.
The corresponding track starts
playing.
UME / PUSH SE
L
CQ-C1200U
BA
ND
VO L
Stop and Disc Eject
D•M
APM
DISC
TUNE
TRACK
TRACK
CLOCK
POWER
C
SR
Press [u] (eject) to stop CD play and eject the disc.
During disc ejection, “EJ” (eject) will be displayed.
MUTE
7
8
11
22
33
10
11
44
55
12
66
SCAN
REP
SQ
DI
SP
Scan PlayC
Listening to a CD
CD Player Mode
<Disc indicator>
• lights when the disc is loaded.
• Do not insert a disc when “DISC”
indicator lights.
Press [SRC] (source) to change to the CD play mode.
Playback will start automatically when a disc is loaded.
Track Selection
Track Search
Press [d TRACK]: Advance to the next track.
Press [s TRACK]: Back to the beginning of the current track.
Back to the previous track. (Press twice.)
Press and hold ...
[d TRACK]: Fast forward
[s TRACK]: Fast reverse
Release to resume the regular play.
CD player
Radio
<CD player display>
Track playing time
BA
ND
UME / PUSH SEL
VOL
Track number
Repeat play
D•M
TUNE
TRACK
DISC
TRACK
CLOCK
POWER
C
SR
MUTE
7
8
1
2
9
3
10
11
4
5
12
6
SCAN
SQ
REP
SP
DI
Random play
Display Change
Press [DISP] (display) to switch to the clock display.
DISC
TRACK
Clock display
Track playing time
track number
CQ-C1200U/C1120U/C1110U/C1100U
• Press [REP].
The current track is repeated.
• Press [REP] again to cancel.
REP: Repeat indicator
• Press and hold [REP] (RANDOM) for
more than 2 seconds.
All the tracks are played in random order.
• Press and hold [REP] (RANDOM) again
to cancel.
R 5 : Random indicator
REP
DISC
TRACK
CQ-C1200U
APM
16
9
6
Scan playC
• Press and hold [SQ] (SCAN), for more than
2 seconds.
The first 10 seconds of each track on the
disc are played in sequence.
• Press and hold [SQ] (SCAN) again to
cancel.
R5
DISC
TRACK
DISC
CQ-C1200U/C1120U/C1110U/C1100U
TRACK
blinks.
17
Only for CQ-C1200U/C1120U/C1110U
E
N
G
L
I
S
H
Remote Control Unit
Anti-Theft System
Battery Installation
This unit is equipped with a removable face plate. Removing this face plate makes the radio totally inoperable.
Remove the battery holder.
Pull the battery holder by the position B while pushing position A in the direction indicated by the arrow.
Install the battery on the battery holder.
Place a battery in the holder with its “+” side facing
up as shown in the figure.
Insert the battery holder.
Push the battery holder back into its original position.
7
Battery Notes
E
N
G
L
I
S
H
Lithium battery
8
Back side
1 Remove the removable face plate
Switch off the power of the unit.
Remove the removable face plate.
Position B
Battery holder
Position A
Remove and dispose of an old battery immediately.
Battery Information:
• Battery type: Panasonic lithium battery (CR2025)
• Battery life: Approximately 6 months with normal use (at room temperature)
q Press [
]. The removable face plate will
be opened.
w Push the face plate to either the right or
left.
e Pull it out toward you.
Contact
w
q Press
Caution: Improper use of batteries may cause overheating, an explosion or ignition, resulting in injury or a
fire. Battery leakage may damage the unit.
2 Place the Removable
Face Plate into Case
• Do not disassemble or short the battery. Do not throw a battery into a fire.
• Keep batteries away from children to avoid the risk of accidents.
• Be careful to observe proper local disposal rules when you dispose of batteries.
Gently press the bottom of the case and
open the cover. Place the face plate into
the case and take it with you when you
leave the car.
Control Reference Guide
Removable face plate case
Buttons of the remote control function in the same way as the controls on the main unit of the reference page.
Point the remote control unit at the main unit’s sensor.
BA
ND
UME / PUSH SEL
VOL
APM
C
PWR
[MODE]
(Mode (source))
(➡ pages 14, 16)
[BAND]
(Band) (Pause)
(➡ page 14, 17)
POWER
(ATT)
SR
[PWR]
(Power)
(➡ page 12)
MUTE
MODE
VOL
PRG
[MUTE]
(Mute)
(➡ page 12)
MUTE
7
8
1
2
[VOL] [j] [i]
(Volume )
(➡ page 12)
Install Removable Face
Plate
q Slide the left side of the removable face
w
Tab
plate in place.
w Press the right end of the removable
face plate until “click” is heard.
q
BAND/DISC UP
Cutout
TUNE
TRACK
[TUNE] [TRACK] [k] [l] [] []
(Tune/track selection/track search)
(➡ page 14, 17)
Car Audio
Note: CQ-C1100U has no remote control function.
18
9
3
CQ-C1200U/C1120U/C1110U/C1100U
Cautions:
• This face plate is not waterproof. Do not expose it to water or excessive moisture.
• Do not remove the face plate while driving your car.
• Do not place the face plate on the dashboard or nearby areas where the temperature rises to high level.
• Do not touch the contacts on the face plate or the main unit, since this may result in poor electrical contacts.
• If dirt or other foreign substances get on the contacts, wipe them off with a clean and dry cloth.
CQ-C1200U/C1120U/C1110U/C1100U
19
E
N
G
L
I
S
H
E
N
G
L
I
S
H
Troubleshooting
Preliminary Steps
Check and take steps as described in the tables below.
9
If You Suspect Something Wrong
Immediately switch the power off.
Disconnect the power connector and check that there is neither smoke nor heat from the unit before asking for repairs.
Never try to repair the unit by yourself because it is dangerous
to do so.
Cautions:
• Do not use the unit if it malfunctions or if
there is something wrong.
• Do not use the unit in irregular condition, for example, without sound, or with
smoke or foul smell, which can cause
ignition or electric shock. Immediately
stop using it and call the store where
you purchased it.
❐ Radio
Trouble
Poor reception or noise
Antenna installation or wiring of antenna cable is faulty.
➡Check whether the antenna mounting position and its wiring are correct. In addition, check to see whether the antenna ground is securely
connected to the chassis.
The number of auto preset
stations is less than 6.
The number of receivable stations is less than 6.
➡Move to an area where receivable stations number is maximum, and
try presetting.
❐ Common
Cause/Step
Car’s ignition switch is not on.
➡Turn your car’s ignition switch to ACC or ON.
The power cord (battery, ACC and ground) is connected in the wrong way.
➡Check the wiring.
No power.
Grounding wire is not correctly connected.
➡Connect the grounding wire to a metal part of the car.
❐ CD
Trouble
Mute is set to ON.
➡Set it to OFF.
Noise.
The wiring of the speaker line is not correct, or a break or poor contact
arises.
➡Check the wiring in accordance with the wiring diagram.
Disc is in the CD compartment but no sound is
made, or disc is ejected
automatically.
• Disc is dirty.
• Disc has scratches.
➡Clean disc, referring to the section on “Notes on Discs”.
A disc that has data other than CD-DA type is loaded.
➡Discs that have CD-DA type data should be used.
Condensation (dew).
➡Wait for a while before use.
➡The unit may not successfully play back a CD-R/RW that is made in
combination of writing software, a CD recorder (CD-R/RW drive)
and a disc which are incompatible one another. Refer to instructions for the concerned devices for details.
There is an electromagnetic-wave generator such as a cellular phone near the unit
or its electrical lines.
➡Keep an electromagnetic-wave generator such as a cellular phone away
from the unit and the wiring of the unit. In case that noise cannot be eliminated due to the wiring harness of the car, consult your dealer.
• Disc is dirty.
• Disc has scratches.
➡Clean disc, referring to the section on “Notes on Discs”.
Grounding wire is not correctly connected.
➡Connect the grounding wire to a metal part of the car.
20
Cause/Step
The disc is inserted upside down.
➡Place disc in the correct direction with the label side up.
Fuse is burnt out.
➡Call the store where you purchased the unit, or your nearest
Servicenter (see the attached sheet) and ask for fuse replacement.
No sound.
Cause/Step
No power is supplied to the antenna amplifier (when using a film antenna, etc.).
➡Check the wiring of the antenna amplifier battery lead.
Troubleshooting Tips
Trouble
10
CQ-C1200U/C1120U/C1110U/C1100U
Sound skips, bad sound
quality. (e.g. caused by
noise)
➡The unit may not successfully play back a CD-R/RW that is made up
of a combination of writing software, a CD recorder (CD-R/RW
drive) and a disc which are incompatible with one another. Refer to
instructions for the concerned devices for details.
CQ-C1200U/C1120U/C1110U/C1100U
21
E
N
G
L
I
S
H
E
N
G
L
I
S
H
Troubleshooting (Continued)
❐ CD (Continued)
11
❐ Remote Control Unit
Trouble
Sound skips due to
vibration.
Cause/Step
Trouble
Battery polarities are reversed.
➡Insert the battery correctly.
Instable mounting.
➡Mount the unit securely with the mounting parts, referring to the
section on installation.
Wrong battery.
➡Check the battery.
Disc is not ejected.
Time is counted but no
sound comes out.
The first track of a mix mode disc was reproduced. (Mix mode is a format in which data except music is recorded on the first track and music
data is recorded on other than the first track in a session.)
➡Play back music data recorded on other than the first track.
Buttons are invalid for
operation.
Left and right sounds
are reversed in stereo
listening.
Cause/Step
Battery has run down.
➡Replace the battery.
Remote control unit is in the wrong direction.
➡Direct the remote control unit at sensor on the front panel.
Error Display Messages
❐ CD
Display
❐ Sound Setting
Trouble
12
Cause/Step
Mounting angle is over 30˚.
➡Adjust mounting angle to less than 30˚.
• Disc is defective.
• Mechanical trouble.
➡Press [u] (eject). If normal operation is not restored, call the store
where you purchased the unit or the nearest Servicenter to ask for
repairs.
No sound from left,
right, front or rear
speakers.
Only for CQ-C1200U/C1120U/C1110U
(The disc is ejected automatically)
Left and right balance, or front and rear balance is off on one side.
➡Adjust balance/fader setting as appropriate.
(The disc is ejected automatically)
Cables are not correctly connected.
➡Connect the cables correctly.
Cause/Step
• Disc is dirty, or is upside down.
• A disc that has data other than CD-DA type is loaded.
➡Check the disc.
Disc has scratches.
➡Check the disc.
No operation by some cause.
➡If normal operation is not restored, call the store where you purchased the unit or the nearest Servicenter to ask for repairs.
The right speaker wire is connected to the left speaker and the left
speaker wire to the right speaker.
➡Connect the speaker wires to the correct ones.
Product Servicing
If the suggestions in the charts do not solve the problem, we recommend that you take it to your nearest
authorized Panasonic Servicenter. The product should be serviced only by a qualified technician.
Replace the Fuse
Use fuses of the same specified rating (15 A). Using different substitutes or fuses with higher ratings, or connecting the product directly without a fuse, could cause fire or damage to the unit.
If the replacement fuse fails, contact your nearest Panasonic Servicenter for service.
22
CQ-C1200U/C1120U/C1110U/C1100U
CQ-C1200U/C1120U/C1110U/C1100U
23
E
N
G
L
I
S
H
Maintenance
13
❐ Cleaning this Unit
❐ Caution on Cleaning
Use a dry, soft cloth to wipe.
Never use solvents such as benzine, thinner as they
may mar the surface of the unit.
E
N
G
L
I
S
H
Installation
WARNING
Care of the Unit
Notes on discs
Do not play any ordinary music CDs with labels
other than this one.
14
❐ This installation information is designed for experienced installers and is not
intended for non-technical individuals. It does not contain warnings or cautions of
potential dangers involved in attempting to install this product.
Any attempt to install this product in a motor car by anyone other than a qualified
installer could cause damage to the electrical system and could result in serious
personal injury or death.
❐ If your car is equipped with air bag and/or anti-theft systems, specific procedures
How to hold the disc
• Do not touch the underside of the disc.
• Do not scratch the discs.
• Do not bend disc.
• When not in use, keep the disc in the case.
may be required for connection and disconnection of the battery to install this product.
Before attempting installation of this electronic component, contact your car dealer
or manufacturer to determine the required procedure and strictly follow their instructions.
FAILURE TO FOLLOW THE PROCEDURE MAY RESULT IN THE UNINTENDED DEPLOYMENT OF AIR BAGS OR ACTIVATION OF THE ANTI-THEFT SYSTEM RESULTING IN
DAMAGE TO THE VEHICLE AND PERSONAL INJURY.
Label side
Do not use irregularly shaped discs.
Do not leave discs in the following places:
• Direct sunlight
• Near car heaters
• Dirty, dusty and damp areas
• On seats and dashboards
Do not use irregularly shaped discs.
<Right>
<Wrong>
Disc cleaning
Use a dry, soft cloth to wipe from the center outward.
Do not attach any seals or labels to your discs.
Do not write on the disc label in a heavy pen or ballpoint pen stroke.
Notes on CD-Rs/RWs
• You may have trouble playing back some CD-R/RW discs recorded on CD recorders (CD-R/RW drives),
either due to their recording characteristics or dirt, fingerprints, scratches, etc. on the disc surface.
• CD-R/RW discs are less resistant to high temperatures and high humidity than ordinary music CDs.
Leaving them inside a car for extended periods may damage them and make playback impossible.
• The unit may not successfully play back a CD-R/RW that was made by the combination of writing software, a CD recorder (CD-R/RW drive) and a disc if they are incompatible one another.
• This player cannot play the CD-R/RW discs if the session is not closed.
• This player cannot play the CD-R/RW discs which contains other than CD-DA data.
• Be sure to observe the instructions of CD-R/RW disc for handling it.
❐ Overview
This product should be installed by a professional.
However, if you plan to install this product yourself,
your first step is to decide where to install it. The
instructions in these pages will guide you through
the remaining steps:
(Please refer to the “WARNING” statement above.)
• Identify and label the car wires.
• Connect the car wires to the wires of the power
connector.
• Install the unit in the dashboard.
• Check the operation of the unit.
If you encounter problems, please consult your nearest
professional installer.
Caution: This unit operates with a 12 V DC negative ground auto battery system only. Do not
attempt to use it in any other system. Doing so
could cause serious damage.
…Keep for future reference in case the product needs
servicing.
• Installation Hardware…Needed for in-dash installation.
❐ Required Tools
You’ll need a screwdriver, a 1.5 V AA battery, and the following:
12 V DC
Test bulb
Electrical
tape
Side-cut
pliers
❐ Dashboard Specifications
Thickness Min. 3⁄16" (4.75 mm)
Max. 7⁄32" (5.56 mm)
23⁄32" (53 mm)
Before you begin installation, look for the items which are
packed with your unit.
75⁄32" (182 mm)
• Warranty Card…Fill this out promptly.
• Panasonic Servicenter List for Service Directory
24
CQ-C1200U/C1120U/C1110U/C1100U
CQ-C1200U/C1120U/C1110U/C1100U
25
E
N
G
L
I
S
H
Installation (Continued)
15
The first step in installation is to identify all the car wires
you’ll use when hooking up your sound system.
As you identify each wire, we suggest that you label it
using masking tape and a permanent marker. This will
help avoid confusion when making connections later.
❐ Identify All Leads
Note: Do not connect the power connector to the stereo
unit until you have made all connections. If there are no
plastic caps on the stereo hooking wires, insulate all
exposed leads with electrical tape until you are ready to
use them. Identify the leads in the following order.
Power Lead
If your car has a radio or is pre-wired for one:
Cut the connector wires one at a time from the plug (leaving the leads as long as possible) so that you can work
with individual leads.
Turn the ignition on to the accessory position, and ground
one lead of the test bulb to the chassis.
Touch the other lead of the test bulb to each of the
exposed wires from the cut radio connector plug. Touch
one wire at a time until you find the outlet that causes the
test bulb to light.
Now turn the ignition off and then on. If the bulb also
turns off and on, that outlet is the car power lead.
If your car is not wired for an audio unit:
Go to the fuse block and find the fuse port for radio
(RADIO), accessory (ACC), or ignition (IGN).
Battery Lead
If your stereo unit has a yellow lead, you will need to
locate the car’s battery lead. Otherwise you may ignore
this procedure. (The yellow battery lead provides continuous power to maintain a clock, memory storage, or other
function.)
If your car has a radio or is pre-wired for one:
With the ignition and headlights off, identify the car battery lead by grounding one lead of the test bulb to the
chassis and checking the remaining exposed wires from
the cut radio connector plug.
26
CQ-C1200U/C1120U/C1110U/C1100U
If your car is not wired for an audio unit:
Go to the fuse block and find the fuse port for the battery,
usually marked BAT.
Speakers
Identify the car speaker leads. There are two leads for
each speaker which are usually color coded.
A handy way to identify the speaker leads and the speaker
they are connected with is to test the leads using a 1.5 V
AA battery as follows.
Hold one lead against one pole of the battery and stroke
the other lead across the other pole. You will hear a scraping sound in one of the speakers if you are holding a
speaker lead.
If not, keep testing different lead combinations until you
have located all the speaker leads. When you label them,
include the speaker location for each.
Antenna Motor
If your car is equipped with an automatic power antenna,
identify the car motor antenna lead by connecting one
bulb tester lead to the car battery lead and touching the
remaining exposed wires from the cut radio connector
plug one at a time. You will hear the antenna motor activate when you touch the correct wire.
Antenna
The antenna lead is a thick, black wire with a metal plug at
the end.
❐ Connect All Leads
Now that you have identified all the wires in the car, you
are ready to begin connecting them to the stereo unit
wires. The wiring diagram (\ page 30) shows the proper
connections and color coding of the leads.
We strongly recommend that you test the unit before
making a final installation.
You can set the unit on the floor and make temporary connections to test the unit. Use electrical tape to cover all
exposed wires.
carefully to avoid damaging the speakers and the stereo
unit.
The speakers used must be able to handle more than 50
W (CQ-C1200U/C1120U)/45 W (CQ-C1110U/C1100U) of
audio power. If using an optional audio amplifier, the
speakers should be able to handle the maximum amplifier
output power. Speakers with low input ratings can be
damaged. Speaker impedance should measure 4–8 Ω,
which is typically marked on most speakers. Lower or
higher impedance speakers will affect output and can
cause both speaker and stereo unit damage.
E
N
G
L
I
S
H
❐ Final Installation
Lead Connections
Connect all wires, making sure that each connection is
insulated and secure. Bundle all loose wires and fasten
them with tape so they will not fall down later. Now insert
the stereo unit into the mounting collar.
Congratulations! After making a few final checks, you’re
ready to enjoy your new auto stereo system.
16
❐ Final Checks
Motor Antenna
Connect the car motor antenna lead to the dark blue
motor antenna relay control lead.
(Do not confuse the antenna lead with blue/white stripe
lead for a power amplifier.)
1. Make sure that all wires are properly connected and
insulated.
2. Make sure that the stereo unit is securely held in the
mounting collar.
3. Turn on the ignition to check the unit for proper operation.
Battery
Connect the yellow battery lead to the correct radio wire
or to the battery fuse port on the fuse block.
If you have difficulties, consult your nearest authorized
professional installer for assistance.
Antenna
Connect the antenna by plugging the antenna lead into the
antenna receptacle.
Equipment
Connect any optional equipment such as an amplifier,
according to the instructions furnished with the equipment. Leave about 12" (30 cm) of distance between the
speaker leads/amplifier unit and the antenna/antenna
extension cord. Read the operating and installation
instructions of any equipment you will connect to this
unit.
Power
Connect the red power lead to the correct car radio wire
or to the appropriate fuse port on the fuse block.
If the stereo unit functions properly with all these connections made, disconnect the wires and proceed to the final
installation.
Caution: Connect the red power lead last, after
you have made and insulated all other connections.
Ground
Connect the black ground lead of the power connector to
the metal car chassis.
Speakers
Connect the speaker wires. See the wiring diagram
(\ page 30) for the proper hookups. Follow the diagram
CQ-C1200U/C1120U/C1110U/C1100U
27
E
N
G
L
I
S
H
E
N
G
L
I
S
H
Installation (Continued)
❐ Preparation
❐ Installation Hardware
Warning: If your car is equipped with air bag
and/or anti-theft systems, specific procedures
may be required for connection and disconnection of the battery to install this product.
Before attempting installation of this electronic
component, contact your car dealer or manufacturer to determine the required procedure and
strictly follow their instructions.
FAILURE TO FOLLOW THE PROCEDURE MAY
RESULT IN THE UNINTENDED DEPLOYMENT OF
AIR BAGS OR ACTIVATION OF THE ANTI-THEFT
SYSTEM RESULTING IN DAMAGE TO THE VEHICLE AND PERSONAL INJURY.
17
• Disconnect the cable from the negative
battery
terminal (see warning and caution below).
• Remove Mounting Collar q and Trim Plate u from the
main unit temporarily, which are already mounted at
shipment.*
Caution: Various settings that have been stored in the
memory in other on-board equipment (car navigation
etc.) may be lost if the battery terminals are disconnected.
Therefore, we recommend to make a record of or to
back up the settings before disconnecting the terminals.
After completing installation of the main unit, set the
equipment again according to the record.
No.
Item
Diagram
Q’ty
q
Mounting Collar*
(FX0214C316ZA)
1
w
Hex. nut (5 mmø)
(YJN994C002ZA)
1
e
Rear support strap
(YFG044C002ZA)
1
r
Tapping screw (5 mmø×16 mm)
(XTT5+16AFK)
1
t
Mounting Bolt (5 mmø)
(YEJV014C002A)
1
y
Power Connector
(YEAJ02877)
1
u
Trim Plate*
(YFC054C063ZA)
1
i
Dismounting Plate
(YFX214C323ZA)
2
Cautions:
¡We strongly recommend that you wear gloves for installation work to protect yourself from injuries.
¡When bending the mounting tab of the mounting collar with a screwdriver, be careful not to injure your
hands and fingers.
1
First complete the electrical connections, and
then check them for correctness.(a page 30)
The included Mounting Collar q is
designed specially for this unit. Do
not use it to attach any other model.
18
Insert Mounting Collar q into the dashboard, and bend the mounting tabs out
with a screwdriver.
The tabs to be bent vary depending on
the car. To securely install the unit, fully
bend a number of the tabs so that there
is no rattling.
Example:
Tab
q Mounting
Collar
y Power Connector
Mounting Holes
t Mounting Bolt
(a) Using the rear support strap e
Fire wall of car
r Tapping screw
(5 mmø×16 mm)
2
3 mmø
w Hex. nut
(5 mmø)
• Unit should be installed in a horizontal position with the
front end up at a convenient angle, but not more than 30°.
Mounting Springs (C)
e Rear support strap
t Mounting bolt (5 mmø)
Establish the rear connection of the unit.
After fixing Mounting Bolt t and Power Connector
y, fix the rear of the unit to the car body by either
method (a) or (b) shown the previous page.
3
Insert Trim Plate u.
4
After installation reconnect the negative
(–) battery terminal.
q Mounting collar
Less than 30°
❐ Dashboard Installation
Installation Opening
This unit can be installed in any dashboard having
an opening as shown below. The dashboard should
be 3 ⁄ 16" (4.75 mm)–7 ⁄ 32" (5.56 mm) thick in
order to be able to support the unit.
23/32"
(53 mm)
75/32"
(b) Using the rubber cushion (option)
Rubber cushion (option)
Rear support bracket
(provided on the car)
t Mounting bolt
(5 mmø)
q Mounting collar
Engage the Mounting
Springs (C) in the
mounting holes of the
Mounting Collar q
firmly.
Mounting
Hole
Mounting Spring
(182 mm)
28
CQ-C1200U/C1120U/C1110U/C1100U
CQ-C1200U/C1120U/C1110U/C1100U
29
1
BATTERY 15A
ACC
FRONT SP
(–)
(+)
(–)
(+)
REAR SP
(–)
(+)
(–)
(+)
E
N
G
L
I
S
H
E
N
G
L
I
S
H
Specifications
1
Switch off the power of the unit.
❐ General
Power supply:
Current consumption:
Maximum power output:
21
2
Remove the removable face plate.
q Press [
]. The removable face plate will
be opened.
w Push the face plate to either the right or
left.
e Pull it out towards you.
Contact
w
q Press
3
Remove the Trim Plate u with a screwdriver.
22
±12 dB at 100 Hz
±12 dB at 10 kHz
4–8 Ω
2.0 V (CD play mode; 1 kHz, 0 dB)
200 Ω
2.0 V (CQ-C1200U)
200 Ω (CQ-C1200U)
15
7
7"×1 /16 "×5 /8 " (178×50×155 mm)
3 lbs. 1 oz (1.4 kg)
u Trim Plate
Screwdriver
1
2
4
Tone adjustment range:
Bass:
Treble:
Suitable speaker impedance:
Preamp output voltage:
Output impedance:
Sub-Woofer output voltage:
Sub-Woofer output impedance:
Dimensions (W×H×D):
Weight:
12 V DC (11 V–16 V), test voltage 14.4 V, negative ground
Less than 2.2 A (CD play mode; 0.5 W×4 channels)
50 W×4 channels at 1 kHz, volume control maximum (CQ-C1200U/C1120U)
45 W×4 channels at 1 kHz, volume control maximum (CQ-C1110U/C1100U)
q Insert the Dismounting plate i along
the grooves on both sides of the main
unit until “click” is heard.
w Pull out the unit while pushing the plates
further inside.
q Insert
❐ FM Stereo Radio
Frequency range:
Usable sensitivity:
50 dB quieting sensitivity:
Frequency response:
Alternate channel selectivity:
Stereo separation:
Image response ratio:
IF response ratio:
Signal/noise ratio:
87.9 MHz–107.9 MHz
11.0 dBf. (1.25 µV, 75 Ω)
15.2 dBf. (1.6 µV, 75 Ω)
30 Hz–15 kHz (±3 dB)
75 dB
42 dB (1 kHz)
75 dB
100 dB
70 dB
❐ AM Radio
Frequency range:
Usable sensitivity:
Insert the tab
end in the
outer groove.
“Click”
Remove the unit by pulling with both hands.
i Dismounting plate
w Pull out
530 kHz–1 710 kHz
28 dB/µV (25 µV, S/N 20 dB)
❐ CD Player
Sampling frequency:
DA converter:
Error correction system:
Pick-up type:
Light source:
Wave length:
Frequency response:
Signal/noise ratio:
Total harmonic distortion:
Wow and flutter:
Channel separation:
8 times oversampling
1 bit DAC system
Panasonic super decoding algorithm
Astigma 3-beam
Semiconductor laser
780 nm
20 Hz–20 kHz (±1 dB)
96 dB
0.01 % (1 kHz)
Below measurable limits
75 dB
Above specifications comply with EIA standards.
Note: Specifications and the design are subject to modification without notice due to improvements in technology.
32
CQ-C1200U/C1120U/C1110U/C1100U
CQ-C1200U/C1120U/C1110U/C1100U
33
