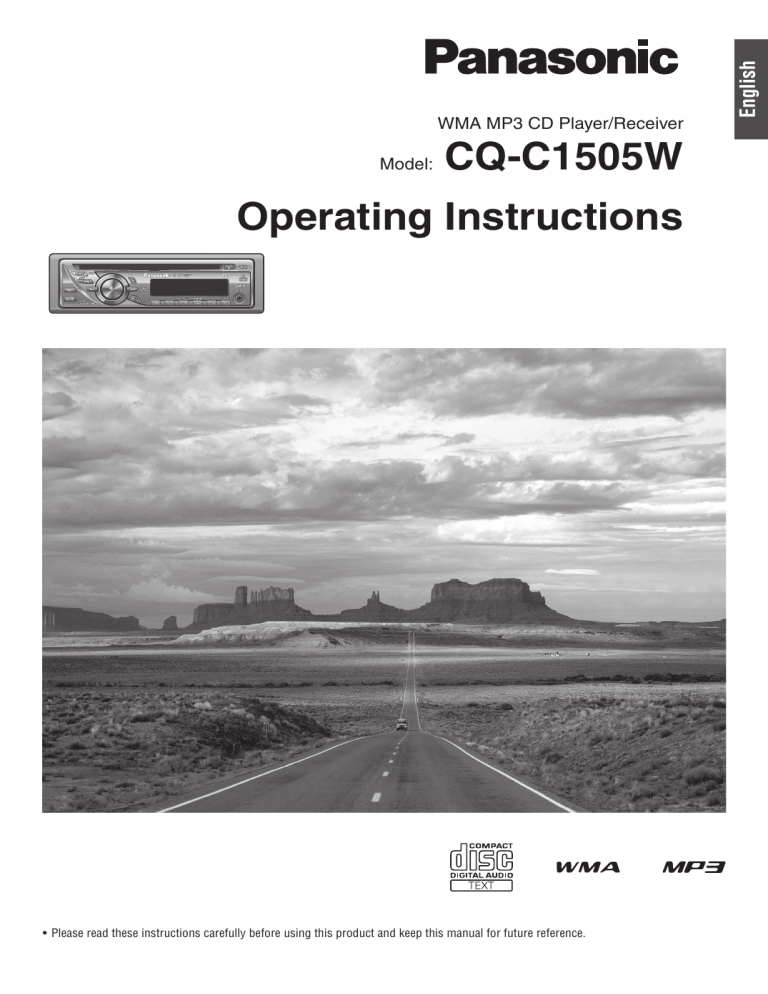

Model:
CQ-C1505W
Operating Instructions
• Please read these instructions carefully before using this product and keep this manual for future reference.
English
WMA MP3 CD Player/Receiver
Safety Information
 Read the operating instructions for the unit and all other
components of your car audio system carefully before using the
system. They contain instructions about how to use the system in
a safe and effective manner. Panasonic assumes no responsibility
for any problems resulting from failure to observe the instructions
given in this manual.
 This manual uses pictographs to show you how to use the product
safely and to alert you to potential dangers resulting from improper
connections and operations. The meanings of the pictographs
are explained below. It is important that you fully understand the
meanings of the pictographs in order to use this manual and the
system properly.
This pictograph intends to alert you to the presence
of important operating instructions and installation
instructions. Failure to heed the instructions may result
Warning
in severe injury or death.
This pictograph intends to alert you to the presence
of important operating instructions and installation
instructions. Failure to heed the instructions may result in
Caution
injury or material damage.
Warning
Observe the following warnings when using this
unit.
The driver should neither watch the display nor operate
the system while driving.
Watching the display or operating the system will distract the
driver from looking ahead of the vehicle and can cause accidents.
Always stop the vehicle in a safe location and use the parking
brake before watching the display or operating the system.
Use the proper power supply.
This product is designed for operation with a negative grounded
12 V DC battery system. Never operate this product with other
battery systems, especially a 24 V DC battery system.
Keep batteries and insulation film out of reach of infants.
Batteries and insulation film can be ingested, so keep them out
of the reach of infants. If an infant ingests a battery or insulation
film, please seek immediate medical attention.
Protect the Deck Mechanism.
Do not insert any foreign objects into the slot of this unit.
Do not disassemble or modify the unit.
Do not disassemble, modify the unit or attempt to repair the
product yourself. If the product needs to be repaired, consult your
dealer or an authorized Panasonic Service Center.
Do not use the unit when it is out of order.
If the unit is out of order (no power, no sound) or in an abnormal
state (has foreign objects in it, is exposed to water, is smoking, or
smells), turn it off immediately and consult your dealer.
The remote control unit should not lie about in the car.
If the remote control unit lies about, it could fall on the floor while
driving, get wedged under the brake pedal, and lead to a traffic
accident.
Refer fuse replacement to qualified service personnel.
When the fuse blows out, eliminate the cause and have it replaced
with the fuse prescribed for this unit by a qualified service
engineer. Incorrect replacement of the fuse may lead to smoke,
fire, and damage to the product.
Observe the following warnings when installing.
Disconnect the lead from the negative (–) battery
terminal before installation.
Wiring and installation with the negative (–) battery terminal
connected may cause electrical shock and injury due to a short
circuit. Some cars equipped with the electrical safety system have
specific procedures of battery terminal disconnection.
FAILURE TO FOLLOW THE PROCEDURE MAY LEAD TO THE
UNINTENDED ACTIVATION OF THE ELECTRICAL SAFETY
SYSTEM RESULTING IN DAMAGE TO THE VEHICLE AND
PERSONAL INJURY OR DEATH.
Never use safety-related components for installation,
grounding, and other such functions.
Do not use safety-related vehicle components (fuel tank, brake,
suspension, steering wheel, pedals, airbag, etc.) for wiring or
fixing the product or its accessories.
Installing the product on the air bag cover or in a
location where it interferes with airbag operation is
prohibited.
Check for piping, gasoline tank, electric wiring, and
other items before installing the product.
If you need to open a hole in the vehicle chassis to attach or wire
the product, first check where the wire harness, gasoline tank,
and electric wiring are located. Then open the hole from outside
if possible.
Never install the product in a location where it interferes
with your field of vision.
Never have the power cord branched to supply other
equipment with power.
After installation and wiring, you should check the
normal operation of other electrical equipment.
The continuation of their using in abnormal conditions may cause
fire, electrical shock or a traffic accident.
In the case of installation to an airbag-equipping
car, confirm warnings and cautions of the vehicle
manufacturer before installation.
Make sure the leads do not interfere with driving or
getting in and out of the vehicle.
Insulate all exposed wires to prevent short circuiting.
Caution
Observe the following cautions when using this unit.
Keep the sound volume at an appropriate level.
Keep the volume level low enough to be aware of road and traffic
conditions while driving.
This unit is designed for use exclusively in automobiles.
Do not operate the unit for a prolonged period with the
engine turned off.
Operating the audio system for a long period of time with the
engine turned off will drain the battery.
Do not expose the unit to direct sunlight or excessive
heat.
Otherwise these will raise the interior temperature of the unit, and
it may lead to smoke, fire, or other damage to the unit.
Do not use the product where it is exposed to water,
moisture, or dust.
Exposure of the unit to water, moisture, or dust may lead to
smoke, fire, or other damage to the unit. Make especially sure that
the unit does not get wet in car washes or on rainy days.
Set the volume level to low enough before the AUX
connection is completed.
Failure to observe this, the loud noise may come out and damage
your speakers and your hearing. Direct connection of the speaker/
headphone output of an external device without any attenuator
may distort sound or damage the connected external device.
Observe the following cautions when installing.
Refer wiring and installation to qualified service
personnel.
Installation of this unit requires special skills and experience. For
maximum safety, have it installed by your dealer. Panasonic is not
liable for any problems resulting from your own installation of the
unit.
Follow the instructions to install and wire the product.
Not following the instructions to properly install and wire the
product could cause an accident or fire.
Take care not to damage the leads.
When wiring, take care not to damage the leads. Prevent them
from getting caught in the vehicle chassis, screws, and moving
parts such as seat rails. Do not scratch, pull, bend or twist the
leads. Do not run them near heat sources or place heavy objects
on them. If leads must be run over sharp metal edges, protect the
leads by winding them with vinyl tape or similar protection.
Caution
THIS PRODUCT IS A CLASS I LASER PRODUCT.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR BY YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
Use the designated parts and tools for installation.
Use the supplied or designated parts and appropriate tools to
install the product. The use of parts other than those supplied
or designated may result in internal damage to the unit. Faulty
installation may lead to an accident, a malfunction or fire.
Do not block the air vent or the cooling plate of the unit.
Blocking these parts will cause the interior of the unit to overheat
and will result in fire or other damage.
Do not install the product where it is exposed to strong
vibrations or is unstable.
Avoid slanted or strongly curved surfaces for installation. If the
installation is not stable, the unit may fall down while driving and
this can lead to an accident or injury.
Installation Angle
The product should be installed in a horizontal position with the
front end up at a convenient angle, but not more than 30˚.
The user should bear in mind that in some areas there may be
restrictions on how and where this unit must be installed. Consult
your dealer for further details.
Wear gloves for safety. Make sure that wiring is
completed before installation.
To prevent damage to the unit, do not connect the power
connector until the whole wiring is completed.
Do not connect more than one speaker to one set of
speaker leads. (except for connecting to a tweeter)
Observe the following cautions when handling the
battery for the remote control unit.
• Use only specified battery (CR2025).
• Match the polarity of the battery with the (+) and (–) marks in the
battery case.
• Replace a dead battery as soon as possible.
• Remove the battery from the remote control unit when not using it
for an extended period of time.
• Insulate the battery (by placing them in a plastic bag or covering
them with vinyl tape) before disposal or storage.
• Dispose of the battery according to the local regulations.
• Do not disassemble, recharge, heat or short the battery. Do not
throw a battery into a fire or water.
In case of battery leakage
• Thoroughly wipe the battery liquid off the battery case and insert
new battery.
• If any part of your body or clothing comes into contact with
battery liquid, wash it with plenty of water.
• If battery liquid comes into contact with your eyes, wash them
with plenty of water and get immediate medical attention.
Before Reading These Instructions
Panasonic welcomes you to our constantly growing family of electronic products owners.
We endeavor to give you the advantages of precise electronic and mechanical engineering, manufactured with carefully selected components, and
assembled by people who are proud of the reputation their work has built for our company. We know this product will bring you many hours of
enjoyment, and after you discover the quality, value and reliability we have built into it, you too will be proud to be a member of our family.
Accessories
Instruction kit
Installation kit (YEP0FZ5698) Q’ty: 1
Operating Instructions
(English: YEFM285920)
(Русский: YEFM285921)
(中文: YEFM285922)
(한국어: YEFM285923)
Lock Cancel Plate
Q’ty: 1
(YEFX0217263A)
Q’ty: 1
Trim Plate
Mounting Bolt (5 mm )
Q’ty: 1 set
Installation Instructions
(YEFM294291)
Mounting Collar
(YEFC051020)
Q’ty: 1
Power Connector
(YGAJ021009)
Rubber Bushing
Q’ty: 1
Remote Control Unit
(includes a battery)
(EUR7641010)
Q’ty: 1
Removable Face Plate
Case
(YEFA131839A)
Q’ty: 1
Notes:
• The number in parentheses underneath each accessory part name is the part number for maintenance and service.
• Accessories and their part numbers are subject to modification without prior notice due to improvements.
• Mounting Collar and Trim Plate are mounted on the main unit at shipment.
Specifications
General
Power supply
Current consumption
Maximum power output
Power output
Tone adjustment range
Speaker impedance
Pre-amp output voltage
Pre-amp output impedance
Dimensions (W x H x D)
Weight
Front AUX input
Input impedance
Allowable external input
Connector
FM Stereo Radio
: DC 12 V (11 V – 16 V DC), test voltage
14.4 V, negative ground
: Less than 2.1 A (CD mode; 0.5 W x 4
channels)
: 50 W x 4 channels (at 1 kHz), volume
control maximum
: 18 W x 4 CH (1 kHz, 1 %, 4 )
: Bass: ±12 dB at 100 Hz,
Treble: ±12 dB at 10 kHz
:4–8
: 2.5 V (CD mode, 1 kHz, 0 dB)
: 200 
: 178 x 50 x 160 mm
: 1.3 kg
: 10 k
: 2.0 V
: 3.5 mm  Stereo mini-pin
Disc Player
Sampling frequency
DA converter
Pick-up type
Light source
Wave length
Frequency response
Signal to noise ratio
Total harmonic distortion
Wow and flutter
Channel separation
: 8 times oversampling
: 1 bit DAC System
: Astigma 3-beam
: Semiconductor laser
: 790 nm
: 20 Hz – 20 kHz (±1 dB)
: 96 dB
: 0.01 % (1 kHz)
: Below measurable limits
: 75 dB
Frequency range
Usable sensitivity
Frequency response
Alternate channel selectivity
Stereo separation
Image rejection ratio
IF rejection ratio
Signal/noise ratio
: 87.50 MHz – 108.00 MHz
: 6 dB/µV (S/N 30 dB)
: 30 Hz – 15 kHz (±3 dB)
: 75 dB
: 35 dB (1 kHz)
: 70 dB
: 100 dB
: 62 dB
AM Radio
Frequency range
Usable sensitivity
: 531 kHz – 1 602 kHz
: 28 dB/µV (S/N 20 dB)
Notes:
• Specifications and design are subject to modification without
notice due to improvements.
• Some figures and illustrations in this manual may be different
from your product.
Matsushita Electric Industrial Co., Ltd.
Web Site: http://panasonic.net
YEFM285920A FT1106-1116
Printed in China
First Time Power On
your car’s ignition switch to the ACC or
1 Set
ON position.
Battery Installation
Preparation
Pull the insulation film out from the backside of the remote
control gently.
Note: Battery Information:
Battery Type: Panasonic lithium battery (CR2025) (Included in
the remote control)
Battery Life: Approximately 6 months under normal use (at
room temperature)
The 24-hour system is used for the clock.
6 Press [DISP].
ACC
ON
2 Press [SOURCE] (PWR: Power).
1 Press [DISP].
Completed
(clock display)
Notes:
2
Hold down [DISP] for more than 2 seconds.
Hour blinks
• “ADJUST” is displayed before adjusting the clock.
• Hold down [] or [] to change numbers rapidly.
Clock Display at Power Off
Clock Setting
Press [DISP] to change the display.
3 Adjust the hour.
Display off
Hour entered
[]: sets the hour ahead.
[]: sets the hour back.
Clock display
4 Press [DISP].
Minute blinks
5 Adjust the minute.
Minute entered
[]: sets the minute ahead.
[]: sets the minute back.
Cleaning the
Unit
Maintenance/Fuse
Your product is designed and manufactured to ensure the minimum of maintenance. Use a dry, soft cloth for routine exterior
cleaning. Never use benzine, thinner, or other solvents.
If the fuse blows out, consult your dealer, or your nearest authorized Panasonic Service Center.
Fuse
Warning
• Use fuses of the same specified rating (15 A). Using substitutes or fuses with higher ratings, or connecting the unit directly
without a fuse could cause fire or damage to the unit. If the replaced fuse fails, contact your nearest authorized
Panasonic Service Center.
Anti-Theft System
This unit is equipped with a removable face plate. Removing this face plate makes the unit totally inoperable.
Caution
(Anti-Theft System)
Face Plate Removing/Mounting
• This face plate is not waterproof. Do not expose it to water
or excessive moisture.
• Do not remove the face plate while driving your car.
• Do not place the face plate on the dashboard or nearby
areas where the temperature rises high.
• Do not touch the contacts on the face plate and the main
unit, since this may result in poor electrical contact.
• If dirt or other foreign substances get on the contacts, wipe
them off with a clean and dry cloth.
Removing
Mounting
1 Turn off the power.
2 Press []. The face plate will open.
3 Pull it out toward you.
1 Slide the left side of the face plate in place.
the right end of face plate until a
2 Press
“click” is heard.
[]




Notes on Discs
If you use commercial CDs, they must have either of these labels shown
at right.
Some copy-protected music CDs are not playable.
Notes on CD/CD Media
(CD-ROM, CD-R, CD-RW)
How to hold the disc
•
•
•
•
Do not leave discs in the following places:
•
•
•
•
In direct sunlight
Near car heaters
Dirty, dusty and damp areas
On seats and dashboards
Disc cleaning
Labels created by a printer,
Protective films or sheets
Irregularly shaped discs
Disc with adhered
stickers or tape
Discs with cracks, scratches
or parts missing
Use a dry, soft cloth to wipe from the center outward.
<Correct>
<Wrong>
Do not write on the disc label with a ballpoint
pen or other hard-point pens.
Notes on CD-Rs/RWs
Printed side
Do not touch the underside of the disc.
Do not scratch on the disc.
Do not bend the disc.
When not in use, keep disc in the case.
• You may have trouble playing back some CD-R/RW discs
recorded using CD recorders (CD-R/RW drives), either
due to their recording characteristics or dirt, fingerprints,
scratches, etc. on the disc surface.
• CD-R/RW discs are less resistant to high temperatures and
high humidity than ordinary music CDs. Leaving them inside
a car for extended periods may damage and make playback
impossible.
• Some CD-R/RWs cannot be played back successfully due to
incompatibility among writing software, a CD recorder (CDR/RW drive) and the discs.
• This player cannot play the CD-R/RW discs if the session is
not closed.
• This player cannot play the CD-R/RW discs which contain
other than CD-DA or MP3/WMA data (Video CD, etc.).
• Be sure to observe the instructions of the CD-R/RW disc for
handling it.
Recording MP3/WMA files on a CD-media
• You are recommended to minimize the chances of making
a disc that contains both CD-DA files and MP3/WMA files.
• If CD-DA files are on the same disc as MP3 or WMA files,
the songs may not play in the intended order, or some
songs may not play at all.
• When storing MP3 data and WMA data on the same disc,
use different folders for each data.
• Do not record files other than MP3/WMA files and
unnecessary folder on a disc.
• The name of MP3/WMA file should be added by rules as
shown in the following descriptions and also comply with
the rules of each file system.
• You may encounter trouble in playing MP3/WMA files or
displaying the information of MP3/WMA files recorded with
certain writing software or CD recorders.
• The file extension “.mp3” or “.wma” should be assigned to
each file depending on the file format.
• This unit does not have the play list function.
• Although Multi-session recording is supported, the use of
Disc-at-Once is recommended.
Supported file systems
ISO 9660 Level 1/Level 2, Apple Extension to ISO 9660, Joliet,
Romeo
Note: Apple HFS, UDF 1.50, MIX mode CD, CD Extra is not
supported.
Compression formats
(Recommendation: “Points to remember when making
MP3/WMA files” on the right.)
• MPEG 1 audio layer 3
Bit rate: 32 k–320 kbps
VBR: Yes
Sampling frequency:
32, 44.1, 48 kHz
• MPEG 2 audio layer 3
Bit rate: 8 k–160 kbps
VBR: Yes
Sampling frequency:
16, 22.05, 24 kHz
• Windows Media Audio Ver. 7, 8, 9*
Bit rate: 32 k–192 kbps
VBR: Yes
Sampling frequency:
32, 44.1, 48 kHz
* WMA 9 Professional/LossLess/Voice are not supported.
Notes on MP3/WMA
Note: MP3/WMA encoding and writing software is not supplied with this unit.
Points to remember when making MP3/WMA files
Common
• High bit rate and high sampling frequency are
recommended for high quality sounds.
• Selecting VBR (Variable Bit Rate) is not recommended
because playing time is not displayed properly and sound
may be skipped.
• The playback sound quality differs depending on the
encoding circumstances. For details, refer to the user
manual of your own encoding software and writing
software.
Notes:
• With some software in which MP3/WMA format files
have been encoded, the character information may not be
displayed properly.
• Undisplayable characters and symbols will be converted
into an asterisk ( ).
Folder selection order/file playback order
1
Root folder (Root Directory)
2
Folder Selection
In the order 1
MP3*
File Selection
In the order
3
5
WMA
6
• It is recommended to set the bit rate to “64 kbps or more”
and “fixed”.
• Do not set the copy protect attribute on the WMA file to
enable this unit to play back.
Notes on MP3/WMA
8
4
• It is recommended to set the bit rate to “128 kbps or
more” and “fixed”.
* MPEG Layer-3 audio coding technology licensed from
Fraunhofer IIS and Thomson.
8
7
Caution
Tree 1
• Never assign the “.mp3”, or “.wma” file name
extension to a file that is not in the MP3/WMA format.
This may not only produce noise from the speaker
damage, but also damage your hearing.
Display Information
Displayed items
• CD-TEXT
Disc title
Track title
• MP3/WMA
Folder name
File name
• MP3 (ID3 tag)
Album name
Title name/Artist name
• WMA (WMA tag)
Album name
Title name/Artist name
Displayable characters
• Displayable length of file name/folder name: within
32 characters. (Unicoded file and folder names are
reduced by half in the number of displayable characters.)
• Name files and folders in accordance with the standard
of each file system. Refer to the instructions of writing
software for details.
• ASCII character set and special characters in each
language can be displayed.
Tree 2
Tree 3
Tree 4 ......................... Tree 8
(Max.)
Maximum number of files/folders
•
•
•
•
Maximum number of files: 999
Maximum number of files in one folder: 255
Maximum depth of trees: 8
Maximum number of folders: 255 (Root folder is included.)
Notes:
• This unit counts the number of folders irrespective of the
presence or absence of MP3/WMA file.
• If the selected folder does not contain any MP3/WMA files,
the nearest MP3/WMA files in the order of playback will be
played.
• Playback order may be different from other MP3/WMA
players even if the same disc is used.
• “ROOT” appears when displaying the root folder name.
Windows Media, and the Windows
logo are trademarks, or registered
trademarks of Microsoft Corporation
in the United States and/or other
countries/regions.
Copyright
No warranty
It is prohibited by copyright laws to copy, distribute and
deliver copyrighted materials such as music without the
approval of copyright holder except enjoying yourself
personally.
Above description complies with our investigations as of
September 2006. It has no warranty for reproducibility and
displayability of MP3/WMA.
Remote Control Unit
Notes:
• This instruction manual explains operations for use with the buttons on the main unit. (Different operations excluded)
• Aim the remote control at the remote sensor and operate it.
[0] to [9]
selects a preset station (1 to 6),
presets the current station (Hold it down for more than
2 seconds.),
inputs the number in direct selection.
[#] (NUMBER)
executes the direct selection.
[RANDOM] [SCAN] [REPEAT]
toggles on/off each play mode.
[] []
down/up the frequency (Hold it down for more than
0.5 seconds and release it for seek tuning.)
[] []
[BAND]
selects a band in the tuner source, toggles pause/play in player source,
executes the APM (Auto Preset Memory) in tuner source
(Hold it down for more than 2 seconds).
[SRC] (SOURCE)
selects a source.
(POWER)
toggles power on/off.
[] []
skip to the previous/next track/file in player mode. Hold
it down for fast reverse/fast forward.
[DISP] (Display)
switches the information on
display, and exits the audio menu.
Direct Access
A track (CD mode), file, folder (MP3/WMA mode) can be
directly selected.
Example: Track number 5
 Put a battery in the case with (+) side facing up.
 Put the case back.

1 Press [#] (NUMBER).
2 Press [5].
3 Press [BAND] (SET).

Notes:
• To suspend direct selection, press [DISP].
• For folder selection, enter a number after pressing [#]
(NUMBER) twice.
Functions
[VOL] (volume)
adjusts the volume, and selects
the value in the audio menu, etc.
[MUTE]
toggles mute on/off.
skip to the previous/next folder in player mode.
Functions only on Main unit
The following functions are not available on remote control
unit.
• SQ selection
• Scroll
• Disc eject
Battery Replacement
 Remove the battery holder
with the remote control unit
placed on a flat surface.
 Stick your thumbnail
into the groove, and
push the holder in the
direction of the arrow,
and at the same time.
 Pull it out in the
direction of the arrow
using a tough pointed
object.
[MENU] (SEL: Select)
selects the items in the audio
menu.
Warning
• Keep batteries away from children to avoid the risk of
accidents. If an infant ingests a battery, please seek
immediate medical attention.
Caution
• Remove and dispose of an old battery immediately.
• Do not disassemble, heat or short a battery. Do not
throw a battery into a fire or water.
• Follow local regulations when disposing of a battery.
• Improper use of batteries may cause overheating, an
explosion or ignition, resulting in injury or a fire.
Tough pointed object
Notes: Battery Information:
Battery Type: Panasonic lithium battery (CR2025) (Included
in the remote control)
Battery Life: Approximately 6 months under normal use (at
room temperature)
1
Back side
2
General
[SOURCE] (Source)
selects a source.
[PWR] (Power)
toggles power on/off.
[VOL] (Volume)
[SQ] (Sound Quality)
selects a sound type
(SQ).
Remote Control Sensor
[MUTE]
toggles mute on/off.
Caution
• Set the volume level to low
enough before the AUX
connection is completed.
Failure to observe this, the
loud noise may come out and
damage your speakers and your
hearing.
Power On/Off
Power on: Press [SOURCE] (PWR).
Power off: Hold down [SOURCE] (PWR) for
more than 1 second.
Press [SOURCE] to change the source.
Disc Player
Volume Adjustment
(Setting Range: 0 to 40, Default: 18)
Turn [VOL].
Mute
ON: Press [MUTE]. (
OFF: Press [MUTE] again.
lights.)
SQ is a function that can call up various sound types at the
touch of button in accordance with your listening music type.
Press [SQ] to select the sound type (SQ) as
follows:
(FLAT) flat frequency response:
does not emphasize any part.
(Default)
Source Selection
General Operations
*AUX IN:
SQ (Sound Quality)
Set your car’s ignition switch to the ACC or ON position.
Radio
*[AUX] (AUX IN) (3.5 mm  stereo)
From line output of external sound/audio
device (ex. Silicon-audio player, HDD
player, etc.)
*
AUX IN
(ROCK) speedy and heavy
sound:
exaggerates bass and treble.
(POP) wide-ranged and deep
sound:
slightly emphasizes bass and
treble.
(VOCAL) clear sound:
emphasizes middle tone and
slightly emphasizes treble.
Notes:
• If no operation takes place for more than 5 seconds in the
SQ selection mode, the display returns to the regular mode.
• Settings of SQ, bass and treble are influenced one another.
If such an influence causes distortion to the audio signal,
readjust bass/treble or volume.
• For further information on Bass, Treble, Balance and Fader
settings, refer to Audio Settings.
Radio (AM/FM)
[SOURCE] (Source)
selects a source.
[DISP] (Display)
switches the information on the
display.
[BAND]
selects a band in the radio source.
[APM] (Auto Preset Memory)
executes APM in the radio source. (Hold it down for more than 2 seconds.)
[TUNE ] [TUNE ]
down/up the frequency. (Hold it down
for more than 0.5 seconds and release
it for seek tuning.)
Preset buttons [1] to [6]
selects a preset station in the radio source,
and presets the current station. (Hold it down for more
than 2 seconds.)
1 Press [SOURCE] to select the radio source. 3 Select a station.
Frequency adjustment
2 Press [BAND] to select a band.
[TUNE ]: Lower
[TUNE ]: Higher
Operation Flow
Note: Hold down for 0.5 sec. or more and release for station
search.
Preset station selection
Press the corresponding preset button from [1]
to [6] to tune in a preset station.
Band
Frequency
Preset Number
Display change
Press [DISP] to change the display.
Radio Source Display
Radio mode display (Default)
lights while receiving an FM stereo signal.
Clock display
Up to 6 stations can be preset in AM, FM1, FM2, and FM3 respectively.
Preset stations can be simply called up by pressing [1] to [6].
Auto Preset Memory (APM)
Station Preset
With this operation, stations with good receiving conditions
can be automatically stored in the preset memory.
1 Select a band.
down [BAND] (APM) for more than
2 Hold
2 seconds.
The preset stations under best receiving conditions are
received for 5 seconds each after presetting the stations
(SCAN). To stop scanning, press one of the buttons from
[1] to [6].
Note: New stations overwrite existing saved stations.
Manual station preset
1 Tune into a station.
down one of the preset buttons from
2 Hold
[1] to [6] for more than 2 seconds.
(blinks once)
Note: New stations overwrite existing saved stations.
Audio Settings
[VOL]
selects a value in the audio menu.
(PUSH SEL) (Push to select)
selects items in the audio menu.
[DISP] (Display)
exits from the audio menu.
[VOL] (PUSH SEL) to display the audio menu display.
1 Press
Note: If no operation takes place for more than 5 seconds in the audio menu (2 seconds in Main volume adjustment),
the display returns to the regular mode.
Press [VOL] (PUSH SEL) to select a
2 mode
to be adjusted.
[VOL] clockwise or counterclockwise
3 Turn
to adjust.
Volume
(Setting Range: 0 to 40, Default: 18)
: Up
: Down
Bass
Audio menu
(Setting Range: –12 dB to +12 dB by 2 dB,
Default: 0 dB)
: Increased
: Decreased
Treble
(Setting Range: –12 dB to +12 dB by 2 dB,
Default: 0 dB)
: Increased
: Decreased
Balance
(Setting Range: 15 levels each, Default CNT (center))
: Right enhanced
: Left enhanced
Fader
(Setting Range: 15 levels each, Default CNT (center))
: Front enhanced
: Rear enhanced
Notes:
• If the fader is set to front, the pre-amp. output (rear) is decreased.
• For further information on SQ (Sound Quality) settings, refer to General.
• Settings of SQ, bass and treble are influenced one another. If such an influence causes distortion to the audio signal, readjust bass/treble or volume.
Player (Disc Player)
Disc slot
takes a disc in with the printed side facing up.
Notes:
• The power will be turned on automatically
when a disc is loaded.
• A disc which has both CD-DA data and
MP3/WMA data on it may not be reproduced
normally.
[] (Eject)
ejects the disc.
Printed side up
[SOURCE] (Source)
selects a source.
() (Play/Pause)
toggles pause/play in the player
source.
[DISP] (Display)
switches the information on
the display.
[] []
skip to the previous/next
track/file in the player mode.
Hold down either of them for
fast reverse/fast forward.
Caution
• Do not insert a disc when the
indicator lights.
• Refer to the section of “Notes on Discs” and “Notes on MP3/
WMA”.
• This unit does not support 8 cm discs.
• If you insert an 8 cm disc and cannot eject it, turn ACC of your
car off once and turn it on again, then press [] (Eject).
[4] (RANDOM)/[5] (SCAN)/[6] (REPEAT)
[] []
skip to the previous/ toggles on/off each play mode.
[3] (SCROLL)
next folder.
scrolls the information on display.
• Do not insert foreign matter into the disc slot.
Operation Flow
[SOURCE] to select the Disc Player
1 Press
source.
2 Select a desired portion.
Track/file selection
Press [] / [].
Note: To perform fast forward/reverse, hold down either of
them.
Disc Player (CD-DA disc):
Previous/next track
Disc Player (MP3/WMA disc):
Previous/next file
Folder selection (MP3/WMA)
Press [] / [].
Pause
Press [BAND] ().
Press again to cancel.
CD-DA mode display
Track number
Display change
Play time
Press [DISP] to change the display.
Disc Player
(CD-DA disc):
Player Source Display
Lights when the
disc is loaded.
Play Mode
indicators
MP3/WMA mode display
Folder number
File number
Disc Player (MP3/WMA disc):
Normal
Normal
Disc title
Play time
Track title
Folder name/
Album*
Clock
File name/
Title, artist*
Clock
*ID3/WMA Tag On/Off
Hold down [3] for more than
2 seconds.
lights when folder random/
Play Mode
repeat/scan is on.
indicators
album title and song title/
artist name are displayed.
(Default)
folder name/file name are
displayed.
Notes:
• For scrolling text, press [3] (SCROLL).
• “NO TEXT” is displayed when there is no information on the disc.
Random play
Random, Repeat, Scan
All the available songs (tracks/files) are played in a random
sequence.
Press [4] (RANDOM).
Press again to cancel.
Folder random play (MP3/WMA)
All the available files in current folder are played in a random
sequence.
Hold down [4] (RANDOM) for more than
2 seconds.
Hold down again to cancel.
Repeat play
The current song (track/file) is repeated.
Press [6] (REPEAT).
Press again to cancel.
Folder repeat play (MP3/WMA)
The current folder is repeated.
Hold down [6] (REPEAT) for more than
2 seconds.
Hold down again to cancel.
Scan play
The first 10 seconds of each songs (tracks/files) is played in
sequence.
Press [5] (SCAN).
Press again to cancel.
Folder scan play (MP3/WMA)
From the next folder, the first 10 seconds of the first file in
each folder is played in sequence.
Hold down [5] (SCAN) for more than
2 seconds.
Hold down again to cancel.
Troubleshooting
If You Suspect Something Wrong
Check and take steps as described below.
If the described suggestions do not solve the problem, it is
recommended to take the unit to your nearest authorized Panasonic
Service Center. The product should be serviced only by qualified
personnel. Please refer the checking and the repair to professionals.
Panasonic shall not be liable for any accidents arising out of neglect of
checking the unit or your own repair after your checking.
Never take measures especially those other than indicated by italic
letters in “Possible Solution” described below because those are
too dangerous for users to handle themselves.
Trouble
Possible Solution
Common
Warning
• Do not use the unit in an irregular condition, for example, without
sound, or with smoke or a foul smell, which can cause ignition or
electric shock. Immediately stop using the unit and consult your
dealer.
• Never try to repair the unit by yourself because it is dangerous to
do so.
Trouble
Radio
• Start the engine. (Or turn the ignition
•
No power
•
•
•
No sound
switch to the ACC position.)
Verify the wiring. (battery lead, power
lead, ground lead, etc.)
Fuse blown (Contact the nearest Panasonic
Service Center.)
Ask a professional for fuse replacement.
Be sure to use the same rated fuse.
• Disable the mute function.
• Verify the wiring.
• Wait until the dew disappears before
turning on the unit.
Noise
No sound from
left, right, front,
or rear speaker
Left and right
sounds are
reversed
• Make sure that grounding is established
properly.
• Adjust the balance and fader.
• Verify the wiring.
• Connect the speaker lead correctly.
Sound skip due
to vibration
Disc not
ejectable
• Tune in to another station of high-intensity
Frequent noise
waves.
• Make sure that the antenna mounted point
is grounded properly.
Preset data
deleted
• The preset memory is cleared to return to
the original factory setting when the power
connector or battery is disconnected.
Error Display Messages
(The disc is ejected automatically.)
The disc is dirty or upside down.
• Check the disc.
(The disc is ejected automatically.)
The disc has scratches.
• Check the disc.
No operation by some cause.
• If normal operation is not restored, consult
your dealer or the nearest Service Center
to ask for repairs.
Cannot read the file
• Check the disc.
Disc Player
No sound,
or disc is
automatically
ejected
Sound skip,
poor sound
quality
Possible Solution
• Load the disc correctly.
• Clean the disc.
• Clean the disc.
• The maximum permissible tilt angle is
30°.
• Secure the unit.
• Press []. If the disc is still not ejected,
contact the nearest Panasonic Service
Center.
A WMA file can be copyrighted.
• The file protected by copyright is not
playable.
Memorandum
Memorandum
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
