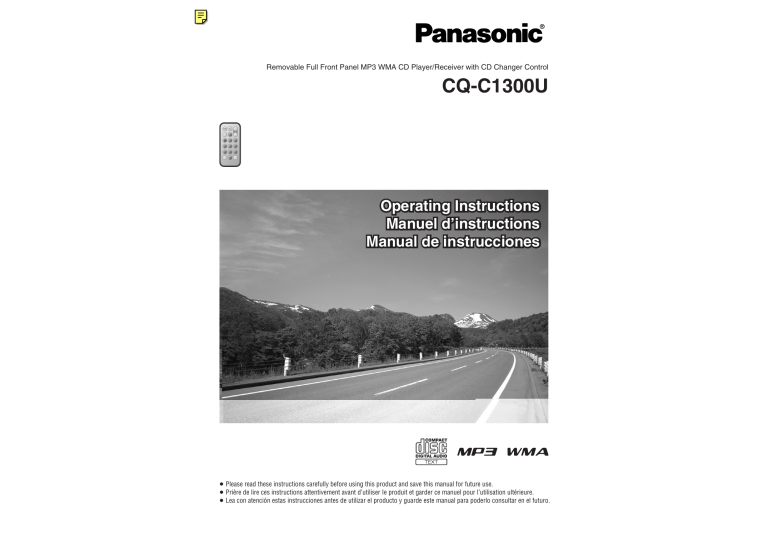

Removable Full Front Panel MP3 WMA CD Player/Receiver with CD Changer Control
CQ-C1300U
Operating Instructions
Manuel d’instructions
Manual de instrucciones
≥ Please read these instructions carefully before using this product and save this manual for future use.
≥ Prière de lire ces instructions attentivement avant d’utiliser Ie produit et garder ce manuel pour l’utilisation ultérieure.
≥ Lea con atención estas instrucciones antes de utilizar el producto y guarde este manual para poderlo consultar en el futuro.
Safety Information
Precautions
When Driving
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
Keep the volume level low enough to be aware of
road and traffic conditions.
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, AND ANNOYING INTERFERENCE, USE
ONLY THE INCLUDED COMPONENTS.
Do not expose the product, including the speakers
and CDs, to water or excessive moisture. This could
cause electrical shorts, fire, or other damage.
When Washing Your Car
CAUTION:
When Parked
THIS PRODUCT IS A CLASS I LASER
PRODUCT.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY RESULT
IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR
YOURSELF. REFER SERVICING TO QUALIFIED
PERSONNEL.
Parking in direct sunlight can produce very high
temperatures inside your car. Give the interior a
chance to cool down before switching the unit on.
Use the Proper Power Supply
This product is designed to operate with a 12 V DC,
negative ground battery system (the normal system
in a North American car).
Disc Mechanism
The following applies only in the U.S.A.
Part 15 of the FCC Rules
FCC Warning:
Any unauthorized changes or modifications to
this equipment would void the user’s authority
to operate this device.
NOTICE:
This product has a fl uorescent lamp that
contains a small amount of mercury. It
also contains lead in some components.
Disposal of these materials may be regulated
in your community due to environmental
considerations.
For disposal or recycling information
please contact your local authorities,
or the Electronics Industries Alliance:
<http://www.eiae.org.>
Do not insert coins or any small objects. Keep
screwdrivers and other metallic objects away from
the disc mechanism and disc.
Use Authorized Servicenters
This product is made of precision parts. Do not
attempt to disassemble or adjust any parts. Please
refer to the Servicenter list including with this
product for service assistance.
CQ-C1300U
Accessories
Item
Remote Control Unit
(YEFX9992663)
Lithium Battery
<CR2025>
Instruction Kit
≥ Operating Instructions
(YEFM284144)
≥ Warranty Card, etc.
Diagram
Q’ty
1
1
This product should be installed in a horizontal
position with the front end up at a convenient angle,
but not more than 30°.
Note:
≥ The preset memory is cleared to return to the
original factory setting when the power connector
or battery is disconnected.
Item
Screw kit (YEP0FZ3315)
≥ Hex. Nut (5 mm‡)
Diagram
Q’ty
1
≥ Tapping Screw
(5 mm‡t16 mm)
1
≥ Mounting Bolt
(5 mm‡)
1
≥ Lock Cancel Plate
2
Rear Support Strap
(YEFG04024)
1
1
1 set
For Installation
Find the model number and serial number on either the back or bottom of the unit. Please record them in the
space below and retain this booklet as a permanent record of your purchase to help with identification in case
of theft.
MODEL NUMBER
SERIAL NUMBER
DATE PURCHASED
FROM
Panasonic welcomes you to our ever growing family of electronic product owners. We know that
this product will bring you many hours of enjoyment. Our reputation is built on precise electronic and
mechanical engineering, manufactured with carefully selected components and assembled by people
who take pride in their work. Once you discover the quality, reliability, and value we have built into this
product, you too will be proud to be a member of our family.
Mounting Collar
(YEFX0216165)
1
Removable Face Plate
Case
(YEFA131839)
1
Trim Plate
(YEFC05616)
1
Power Connector
(YEAJ02877)
1
E
N
G
L
I
S
H
Features
Preparation
MP3/WMA Playback from CD-R/RW
CD Changer Control
You can play your MP3/WMA (Windows Media
Audio) files as well as regular CDs.
With up to 10 to 12 times* the capacity of a
conventional CD, a single MP3/WMA-encoded disc
can keep you entertained throughout your entire
journey.
*Depending on bit rate.
You can connect the optional CD changer unit. For
details, refer to the operating instructions on the CD
changer unit.
The 12-hour system is used for the clock.
Remote Control Unit
Lithium battery
(included)
Back side
SQ (Sound Quality)
SQ is a function that can call up various sound
types at the touch of button in accordance with your
listening music type.
Large-sized Volume Control
2
An large-sized rotary volume control that looks like
one belonging to a Hi-Fi audio system is featured.
E
N
G
L
I
S
H
≥ Turn your car’s ignition key to the ACC or ON
position.
≥ Press [SRC] (POWER).
≥ When the power is switched on for the first time,
a demonstration appears on the display.
Press [DISP] (display) to change to regular
mode. (page 16)
1 Press [DISP] (display).
Position B
3
2 Press and hold [DISP] (display) again for more
than 2 seconds.
System Upgrade
Battery holder
1
Position A
Battery Installation
1 Remove the battery holder.
Pull the holder out at position B while pushing
position A as indicated.
CQ-C1300U
Hours blink
Hours:
3 Press [%] or [$].
4 Press [DISP] (display).
2 Install the battery on the battery holder.
3 Insert the battery holder back into its original
position.
Minutes:
5 Press [%] or [$].
Battery Notes
Note:
≥ This unit does not support Sirius satellite radio.
≥ You cannot connect 2 CD changers using the dual
CD changer selector (CA-CD55U, option).
CD changer
(CX-DP880U,
option)
Stereo power
amplifier
(option)
Before Reading these Instructions
This can only be controlled through the
main unit.
Operations with neither mark can be performed
either by the main unit or the remote control unit.
8
CQ-C1300U
This can only be controlled through the
remote control unit.
≥ Battery type: Panasonic lithium battery (CR2025)
(included)
≥ Battery life: Approximately 6 months under
normal use (at room temperature)
Caution:
≥ Improper use of the battery may cause
overheating, an explosion or ignition, resulting
in injury or a fire.
≥ Remove and dispose of an old battery
immediately.
≥ Do not disassemble or short the battery. Do not
throw a battery into a fire.
≥ Keep the battery away from children to avoid the
risk of accidents.
≥ Follow local regulations when disposing of the
battery.
6 Press [DISP] (display).
Note:
≥ “ADJUST” is displayed before adjusting the clock.
≥ Press and hold [%] or [$] to change numbers
rapidly.
Display Change
Press [DISP] (display).
When the power is off:
CQ-C1300U
9
E
N
G
L
I
S
H
E
N
G
L
I
S
H
Contents
Audio Settings....................................................... 28
Volume, bass/treble, balance/fader
1
2
Troubleshooting..................................................... 30
Preliminary steps, if you suspect something wrong, troubleshooting tips, error
display messages, maintenance, product servicing, fuse
Notes on Discs ...................................................... 36
Notes on CD/CD media (CD-R, CD-RW, CD-ROM), notes on CD-Rs/RWs
Anti-Theft System................................................... 37
Remove the removable face plate, install removable face plate
Installation Guide................................................... 38
Electrical Connections ............................................. 44
Wiring diagram, upgrading the system, speaker system connection
Specifications ....................................................... 47
14
CQ-C1300U
CQ-C1300U
15
E
N
G
L
I
S
H
E
N
G
L
I
S
H
General
Point the remote control unit at the
remote control signal sensor.
3
Source
4
Volume
[VOL "]: Up
[VOL #]: Down
Up
Down
Setting range: 0 to 40
(default: 18)
Note:
≥ The volume level can be set independently for
each source. (For radio, one volume setting for
AM, one volume setting for all FMs)
16
CQ-C1300U
CQ-C1300U
17
18
CQ-C1300U
CQ-C1300U
19
E
N
G
L
I
S
H
Before Disc Playback
E
N
G
L
I
S
H
CD Player
Disc Insert
Do not watch the scroll display while driving.
indicator
7
[:]/[9] (6/5)
(Track/fast forward/fast reverse)
8
[BAND]
(;/1:
Pause)
Playback will start automatically after recognizing
the data of the loading disc.
Note:
≥ Do not insert a disc when
indicator lights
because a disc is already loaded.
[SRC] (Source)
[3] (SCROLL) [4] (RANDOM) [5] (SCAN) [6] (REPEAT)
Display Change
Press [DISP] (display).
[DISP]
(Display)
Scan Play
The first 10 seconds of each tracks are played in
sequence.
Press [5] (SCAN).
Press [5] (SCAN) again to cancel.
Repeat Play
≥ It may take some time to start playing.
Note:
≥ The power will be turned on automatically when
a disc is loaded.
≥ A disc which has both CD-DA data and
MP3/WMA data on it may not be reproduced
normally. (For example, it may be reproduced
without sound.)
≥ Refer to the section on “Notes on MP3/WMA”
(page 24) and “Notes on Discs” (page 36).
The current track is repeated.
Press [6] (REPEAT). (
lights.)
Press [6] (REPEAT) again to cancel.
Note:
≥ “NO TITLE” is displayed when there is no
information on the disc.
≥ Press [3] (SCROLL) to have an another circle
scroll while a title is displayed.
Track Selection
[9]: Next track
[:]: Beginning of the current track
For the previous track, press twice.
Direct Track Selection
Example: track number 10
1 Press [fl].
2 Press [1] [0].
3 Press [BAND] (SET).
Note:
≥ To suspend direct selection, press [DISP]
(display) or [fl].
≥ Random, scan and repeat play are canceled once
[fl] is pressed.
Fast Forward/Fast Reverse
Press and hold
[9] (5): Fast forward
[:] (6): Fast reverse
Release to resume the playback.
Pause
Press [;/1].
Press [;/1] again to cancel.
[0] to [9]
(Track number)
[4] (Random play)
[5] (Scan play)
[6] (Repeat play)
[6] [5] (Track)
Random Play
All available tracks are played in a random sequence.
Press [4] (RANDOM). (
lights.)
Press [4] (RANDOM) again to cancel.
20
CQ-C1300U
CQ-C1300U
21
E
N
G
L
I
S
H
E
N
G
L
I
S
H
MP3/WMA Player
Do not watch the scroll display while driving.
9
10
Fast Forward/Fast Reverse
Press and hold
[9] (5): Fast forward
[:] (6): Fast reverse
Release to resume the playback.
Pause
Press [;/1].
Press [;/1] again to cancel.
ID3/WMA Tag Setting
Press and hold [3] for more than 2 seconds.
When a folder name is displayed:
TAG ON: The album title is displayed.
TAG OFF: The folder name is displayed.
When a file name is displayed:
TAG ON: The title/artist name is displayed.
TAG OFF: The file name is displayed.
22
CQ-C1300U
CQ-C1300U
23
E
N
G
L
I
S
H
E
N
G
L
I
S
H
MP3/WMA Player (continued)
Notes on MP3/WMA
11
What is MP3/WMA?
MP3 (MPEG audio layer 3) and WMA (Windows
Media™ Audio) are the compression formats of
digital audio. The former is developed by MPEG
(Motion Picture Experts Group), and the latter is
developed by Microsoft Corporation. Using these
compression formats, you can record the contents
of about 10 music CDs on a single CD media. (This
figures refer to data recorded on a 650 MB CD-R
or CD-RW at a fixed bit rate of 128 kbps and a
sampling frequency of 44.1 kHz.)
Note:
≥ MP3/WMA encoding and writing software is not
supplied with this unit.
≥ CD writing software is not supplied with this unit.
Points to Remember When
Making MP3/WMA Files
Common:
≥ High bit rate and high sampling frequency are
recommended for high quality sounds.
≥ Selecting VBR (Variable Bit Rate) is not
recommended because playing time is not
displayed properly and sound may be skipped.
≥ The playback sound quality differs depending on
the encoding circumstances. For details, refer to
the user manual of your own encoding software
and writing software.
MP3:
≥ It is recommended to set the bit rate to “128 kbps
or more” and “fixed”.
WMA:
≥ It is recommended to set the bit rate to “64 kbps
or more” and “fixed”.
≥ Do not set the copy protect attribute on the WMA
file to enable this unit to playback.
Caution:
≥ Never assign the “.mp3”, or “.wma” file
name extension to a file that is not in the
MP3/WMA format. This may not only produce
noise from the speaker damage, but also
damage your hearing.
24
CQ-C1300U
12
Display Information
∫ Displayed Items
CD-TEXT
≥ Disc title
≥ Track title
MP3 (ID3 tag)
≥ Album title
≥ Title and artist
MP3/WMA
≥ Folder name
≥ File name
WMA (WMA tag)
≥ Album title
≥ Title and artist
∫ Displayable Characters
≥ Displayable length of file name/folder name:
within 128 characters
≥ Name files and folders in accordance with
the standard of each file system. Refer to the
instructions of writing software for details.
≥ ASCII character set and special characters in each
language can be displayed.
ASCII character set:
A to Z, a to z, digits 0 to 9, and the following
symbols:
(space) ! ” ’ # $ % & ( ) * + , - . / : ; < = > ? @ [ \ ] ^
_`{|}~
Special characters:
ÀÁÂÃÅÄàáâãåä
ÒÓÔÕÖòóôõö
ÙÚÛÜùúûü
Note:
≥ With some software in which MP3/WMA format
files have been encoded, the character information
may not be displayed properly.
≥ Undisplayable characters and symbols will be
converted into an asterisk.
Windows Media, and
the Windows logo are
trademarks, or registered
trademarks of Microsoft
Corporation in the United
States and/or other
countries.
Compression formats:
(Recommendation: “Points to Remember When Making MP3/WMA Files” on the previous page)
Compression method
Bit rate
VBR Sampling frequency
MPEG 1 audio layer 3 (MP3)
32 kbps−320 kbps Yes 32, 44.1, 48 kHz
MPEG 2 audio layer 3 (MP3)
8 kbps−160 kbps Yes 16, 22.05, 24 kHz
Windows Media Audio Ver. 2/Ver. 8/Ver. 9* 64 kbps−192 kbps No
32, 44.1, 48 kHz
Copyright:
It is prohibited by copyright laws to copy, distribute
and deliver copyrighted materials such as music
without the approval of copyright holder except
enjoying yourself personally.
CQ-C1300U
25
E
N
G
L
I
S
H
E
N
G
L
I
S
H
CD Changer Control
13
14
CD changer functions are designed for optional
Panasonic CD changer unit.
≥ Connect the CD changer, and load a magazine
(CDs).
≥ You cannot connect 2 CD changers using the
dual CD changer selector (CA-CD55U, option).
Disc Selection
["]: Next disc
[#]: Previous disc
Track Selection
[9]: Next track
[:]: Beginning of the current track
For the previous track, press twice.
Fast Forward/Fast Reverse
Press and hold
[9] (5): Fast forward
[:] (6): Fast reverse
Release to resume the playback.
26
CQ-C1300U
CQ-C1300U
27
E
N
G
L
I
S
H
E
N
G
L
I
S
H
Audio Settings
1 Press [VOLUME]
(SEL: select).
15
Volume
Default:18
Setting range: 0 to 40
Bass/Treble
2 Turn [VOLUME].
[VOLUME "]: Up
[VOLUME #]: Down
[VOLUME "]: Increased
[VOLUME #]: Decreased
You can adjust the bass and treble sound.
Default: BAS (bass) 0 dB
TRE (treble) 0 dB
Setting range: j12 dB to i12 dB (by 2 dB)
[VOLUME "]: Increased
[VOLUME #]: Decreased
Balance/Fader
[VOLUME "]: Right enhanced
[VOLUME #]: Left enhanced
You can adjust the sound balance among the
front, rear, right and left speakers.
Default: BAL (balance) CNT (center)
FAD (fader) CNT (center)
Setting range: 15 levels each
28
CQ-C1300U
16
(Press [VOL "] or [VOL #]
on the remote control unit.)
[VOLUME "]: Front enhanced
[VOLUME #]: Rear enhanced
Note:
≥ Press [DISP] (display) to return to the
regular mode.
≥ If no operation takes place for more than
7 seconds in audio setting (2 seconds in
the volume setting), the display returns to
the regular mode.
≥ The volume can also be adjusted directly
using [VOLUME] on the main unit.
(page 17)
≥ The effect of SQ can be adjusted by
bass/treble adjustment. For some music
sources or at some volume levels, the
sound quality is not desirable because
sound is distorted, or the effect is not
sufficient because the BAS effect is limited.
In such cases, turn down the sound volume
or readjust the bass/treble setting.
≥ Please refer to page 17 for information on
SQ setting.
CQ-C1300U
29
E
N
G
L
I
S
H
Troubleshooting
17
Check and take steps as described in the tables below.
Preliminary Steps
If You Suspect Something Wrong
Immediately switch the power off.
Disconnect the power connector and check that there is
neither smoke nor heat from the unit before asking for
repairs. Never try to repair the unit by yourself because it
is dangerous to do so.
Caution:
≥ Do not use the unit if it malfunctions or if
there is something wrong.
≥ Do not use the unit in abnormal condition,
for example, without sound, or with smoke
or foul smell, which can cause ignition or
electric shock. Immediately stop using it and
call the store where you purchased it.
Problem
Noise
Possible cause
q Common
Problem
No power to the unit
Sound is not
generated.
The demonstration
screen displayed and
no operable.
Some operations are
not executable.
30
CQ-C1300U
Possible cause
Possible solution
The power cord (battery, ACC and
ground) is connected in the wrong
way.
Check the wiring.
Fuse blow out
Eliminate the cause of fuse blow out
and replace the fuse with new one.
Consult your dealer.
MUTE is set to ON.
Set MUTE to OFF.
The wiring of the speaker lines
are not correct, or a break or poor
contact arises.
Check the wiring in accordance with
the wiring diagram.
You cannot operate the unit while
the demonstration screen appears.
Press [DISP] (display) to end the
demonstration screen.
If the demonstration screen appears Check the battery wiring in accordance
frequently, there is a possibility that with the wiring diagram.
poor contact or wrong wiring arises
between the battery lead of the unit
and the battery cable of the car.
(The battery lead should be always
powered.)
Some operations are not executable Read the operating instructions
in particular modes such as menu carefully and cancel the mode. In case
mode.
the unit is still out of order, consult the
dealer.
Possible solution
There is an electromagnetic-wave
generator such as a cellular phone
near the unit or its electrical lines.
Keep an electromagnetic-wave
generator such as a cellular phone
away from the unit and the wiring of
the unit. In case the noise cannot be
eliminated due to the wiring harness
of the car, consult your dealer.
The contact of the ground lead is
poor.
Make sure that the ground lead is
connected to an unpainted part of the
chassis securely.
Noise is made in
step with engine
revolutions.
Alternator noise comes from the
car.
Change the wiring position of the
ground lead.
No sound from
speaker(s)
Balance/fader setting is not
appropriate.
Readjust balance/fader.
There is a break, a short circuit,
poor contact or wrong wiring
regarding the speaker wiring.
Check the speaker wiring.
Some speakers are out of order.
Replace the speaker with new one.
The speaker wiring is confused
between right and left.
Perform the speaker wiring in
accordance with the wiring diagram.
Antenna installation or wiring of
antenna cable is faulty.
Check whether the antenna mounting
position and its wiring are correct.
In addition, check to see whether the
antenna ground is securely connected
to the chassis.
Troubleshooting Tips
The speaker channels
are reversed between
right and left.
E
N
G
L
I
S
H
18
Mount a noise filter on the power
supply.
q Radio
Poor reception or
noise
No power is supplied to the antenna Check the wiring of the antenna battery
amplifier (when using a film
lead.
antenna, etc.).
The number of auto
preset stations are
less than 6.
The number of receivable stations
are less than 6.
Move to an area where receivable
stations number is maximum, and try
presetting.
Preset stations cannot
be stored.
The contact of the battery lead is
poor, or the battery lead is not
always powered.
Make sure that the battery lead is
connected securely, and preset
stations again.
CQ-C1300U
31
E
N
G
L
I
S
H
E
N
G
L
I
S
H
Troubleshooting (continued)
q CD/MP3/WMA
19
Problem
No playback or disc
ejected
The CD-R/RWs that
are playable on
other devices are not
playable on this unit.
q Remote Control Unit
Possible cause
The disc is inserted upside down.
Possible solution
Insert a disc correctly.
There is a flaw or foreign objects on Remove the foreign objects, or use a
the disc.
flawless disc.
The disc has unplayable formatted
data.
Refer to the description about
MP3/WMA for playable sound data
except CD-DA (i.e. music CD).
The unit plays back the ROM track
of a mix mode CD.
Skip the ROM track.
The playability of some CD-R/RWs
may depend on the combination
of media, recording software
and recorder to be used even if
these CD-R/RWs are playable on
other devices such as a personal
computer.
Make CD-R/RWs in different
combination of media, recording
software and recorder after referring to
the description about MP3/WMA.
Problem
No response to
pressing buttons
The battery is inserted in the
Insert a correct battery in the correct
wrong direction. A wrong battery is direction.
inserted.
The battery is weak.
Replace the battery with new one.
The aiming direction of the remote
control unit is wrong.
Aim the remote control unit at the
sensor of the unit and press buttons.
The sensor is exposed to direct
Block off sunlight to the sensor.
sunlight. (The remote control unit
may not be operable when the
sensor is exposed to direct sunlight.
In such a case, the system is not
faulty.)
q CD/MP3/WMA
Display
There is a flaw or foreign objects on Remove the foreign objects, or use a
the disc.
flawless disc. For MP3/WMA, refer to
the description about MP3/WMA.
Sound skipping due to
vibration
The unit is not sufficiently secured. Secure the unit to the console box with
the rear support strap, etc.
The unit is tilted at over 30° in the
front-to-end direction.
Make the angle 30° or less.
A label is peeled off from the CD in
the unit.
Refer repair to the dealer where you
purchased the unit.
The microcontroller in the unit
operates abnormally due to noise
or other factors.
Unplug the power cord and plug it
again. In case the unit is still out of
order, consult the dealer.
Note:
≥ Refer to the section on “Notes on MP3/WMA” (page 24).
20
Possible solution
Error Display Messages
Sound skipping or
noise
Disc unejectable
Possible cause
Possible cause
Possible solution
Disc is dirty, or is upside down.
Check the disc.
Disc has scratches.
Check the disc.
No operation by some cause.
If normal operation is not restored,
call the store where you purchased the
unit or the nearest Servicenter to ask
for repairs.
MP3/WMA §
The player cannot read the file you
are trying to play for some reason.
(File recorded in an unsupported
file system, compression scheme,
data format, file name extension,
damaged data, etc.)
Select a file that the player can read.
Confirm the type of data recorded
on the disc. Create a new disc if
necessary.
WMA §
An attempt has been made to play
a copy-protected WMA file.
Play WMA files which are not
copy-protected.
No disc in the player.
Insert a disc into the player.
§ If all the files cannot be played, E4 or E5 remains on the display.
32
CQ-C1300U
CQ-C1300U
33
E
N
G
L
I
S
H
E
N
G
L
I
S
H
Troubleshooting (continued)
q CD Changer Control
21
Display
Maintenance
Possible cause
Disc is dirty, or is upside down.
A disc other than a music CD
(CD-DA type) is loaded.
Possible solution
Check the disc.
(The changer automatically switches
to the next disc.)
Your product is designed and manufactured to
ensure a minimum of maintenance. Use a dry and
soft cloth for routine exterior cleaning. Never use
benzine, thinner or other solvents.
22
Product Servicing
Disc has scratches.
Check the disc.
(The changer automatically switches
to the next disc.)
No operation by some cause.
If normal operation is not restored,
call the store where you purchased the
unit or the nearest Servicenter to ask
for repairs.
The display continues if you cannot
switch off the power.
No disc is in the changer
(magazine).
Insert discs into the changer
(magazine).
The changer has become
disconnected from the unit in the
changer mode.
Verify that correct connections have
been made.
If the suggestions in the charts do not solve the
problem, we recommend that you take it to your
nearest authorized Panasonic Servicenter. The
product should be serviced only by a qualified
technician.
Fuse
Use fuses of the same specified rating (15 A). Using
different substitutes or fuses with higher ratings,
or connecting the unit directly without a fuse, could
cause fire or damage to the unit.
If the replacement fuse fails, contact your nearest
Panasonic Servicenter for service.
Note:
≥ Messages in the action and display sections of the error chart vary with changers.
Refer to the operating instructions of the CD changer for details.
34
CQ-C1300U
CQ-C1300U
35
E
N
G
L
I
S
H
Notes on Discs
E
N
G
L
I
S
H
Anti-Theft System
Notes on CD-Rs/RWs
23
≥ You may have trouble playing back some
CD-R/RW discs recorded on CD recorders
(CD-R/RW drives), either due to their recording
characteristics or dirt, fingerprints, scratches, etc.
on the disc surface.
≥ CD-R/RW discs are less resistant to high
temperatures and high humidity than ordinary
music CDs. Leaving them inside a car for
extended periods may damage them and make
playback impossible.
≥ Some CD-R/RWs cannot be played back
successfully thanks to incompatibility among
writing software, a CD recorder (CD-R/RW drive)
and the discs.
≥ This player cannot play the CD-R/RW discs if the
session is not closed.
≥ This player cannot play the CD-R/RW discs which
contains other than CD-DA or MP3/WMA data.
≥ Be sure to observe the instructions of CD-R/RW
disc for handling it.
Caution:
≥ This face plate is not waterproof. Do not expose
it to water or excessive moisture.
≥ Do not remove the face plate while driving your
car.
≥ Do not place the face plate on the dashboard
or nearby areas where the temperature rises to
high level.
24
≥ Do not touch the contacts on the face plate or
on the main unit, since this may result in poor
electrical contacts.
≥ If dirt or other foreign substances get on the
contacts, wipe them off with a clean and dry
cloth.
≥ To avoid damaging the face plate, do not push it
down or place objects on it while it is open.
Remove the Removable Face Plate
1 Switch off the power of the unit. (page 16)
2 Press ['] (release button).
The face plate will be opened.
Plastic tab
3 Pull on the right side of the unit.
4 Gently press the bottom of the case and open the
cover. Place the face plate into the case and take
it with you when you leave the car.
36
CQ-C1300U
CQ-C1300U
37
E
N
G
L
I
S
H
E
N
G
L
I
S
H
Installation Guide
WARNING
25
This installation information is
designed for experienced installers
and is not intended for non-technical
individuals. It does not contain
warnings or cautions of potential
dangers involved in attempting to
install this product.
Any attempt to install this product in
a motor car by anyone other than a
qualified installer could cause damage
to the electrical system and could result
in serious personal injury or death.
If your car is equipped with air bag
and/or anti-theft systems specific
procedures may be required for
connection and disconnection of the
battery to install this product.
Before attempting installation of this
electronic component contact your car
dealer or manufacturer to determine
the required procedure and strictly
follow their instructions.
FAILURE TO FOLLOW THE PROCEDURE
MAY RESULT IN THE UNINTENDED
DEPLOYMENT OF AIR BAGS OR
ACTIVATION OF THE ANTI-THEFT
SYSTEM RESULTING IN DAMAGE TO
THE VEHICLE AND PERSONAL INJURY.
Overview
Caution:
≥ This unit operates with a 12 V DC
negative ground auto battery system only.
Do not attempt to use it in any other system.
Doing so could cause serious damage.
This product should be installed by a professional.
However, if you plan to install this product yourself,
your first step is to decide where to install it. The
instructions in these pages will guide you through
the remaining steps:
(Please refer to the “WARNING” statement.)
Installation Hardware
No.
Item
1 Mounting collar
Diagram Q’ty
1
≥ Identify and label the car wires.
≥ Connect the car wires to the wires of the power
connector.
≥ Install the unit in the dashboard.
≥ Check the operation of the unit.
2 Hex. nut (5 mm‡)
1
3 Rear support strap
1
If you encounter problems, please consult your
nearest professional installer.
4 Tapping screw
(5 mm‡k16 mm)
1
Before you begin installation, look for the items
which are packed with your unit.
5 Mounting bolt
(5 mm‡)
1
6 Power connector
1
7 Trim plate
1
8 Lock cancel plate
2
≥ Warranty Card... Fill this out promptly.
≥ Panasonic Servicenter List for Service
Directory... Keep for future reference in case the
product needs servicing.
≥ Installation Hardware... Needed for in-dash
installation.
Dashboard Specifications
Thickness Min. 3/16q (4.75 mm)
Max. 7/32q (5.56 mm)
23/32q (53 mm)
Required Tools
You’ll need a screwdriver, a 1.5 V AA battery, and
the following:
12 V DC
Test bulb
Electrical tape
Side-cut
pliers
75/32q (182 mm)
Preparation
≥ We strongly recommend that you wear gloves
for installation work to protect yourself from
injuries.
≥ When bending the mounting tabs of the
mounting collar with a screwdriver, be careful
not to injure your hands and fingers.
≥ Disconnect the cable from the negative - battery
terminal (see caution below).
≥ Unit should be installed in a horizontal position
with the front end up at a convenient angle, but
not more than 30o.
26
Less than 30o
Caution:
≥ If your car is equipped with air bag and/or
anti-theft systems specific procedures may
be required for connection and disconnection
of the battery to install this product.
≥ Before attempting installation of this
electronic component contact your car
dealer or manufacturer to determine the
required procedure and strictly follow their
instructions.
≥ FAILURE TO FOLLOW THE PROCEDURE MAY
RESULT IN THE UNINTENDED DEPLOYMENT
OF AIR BAGS OR ACTIVATION OF THE
ANTI-THEFT SYSTEM RESULTING IN DAMAGE
TO THE VEHICLE AND PERSONAL INJURY.
Note:
≥ Various settings that have been stored in the
memory in order on-board equipment (car
navigation etc.) may be lost if the battery
terminals are disconnected.
Therefore, we recommend to make a record of
or to back up the settings before disconnecting
the terminals.
After completing installation of the main unit,
set the equipment again according to the
record.
Dashboard Installation
Installation Opening
23/32q (53 mm)
75/32q (182 mm)
This unit can be installed in any dashboard having
an opening as shown above. The dashboard should
be 3/16q (4.75 mm)–7/32q (5.56 mm) thick in order to
be able to support the unit.
38
CQ-C1300U
CQ-C1300U
39
E
N
G
L
I
S
H
Installation Guide (continued)
27
The first step in installation is to identify all the
car wires you’ll use when hooking up your sound
system.
As you identify each wire, we suggest that you label
it using masking tape and a permanent marker. This
will help avoid confusion when making connections
later.
Identify All Leads
Note:
≥ Do not connect the power connector to the stereo
unit until you have made all connections. If there
are no plastic caps on the stereo hooking wires,
insulate all exposed leads with electrical tape until
you are ready to use them. Identify the leads in
the following order.
Power Lead
If your car has a radio or is
pre-wired for one:
Cut the connector wires
one at a time from the plug
(leaving the leads as long
as possible) so that you can
work with individual leads.
Turn the ignition on to the accessory position, and
ground one lead of the test bulb to the chassis.
Touch the other lead of the test bulb to each of the
exposed wires from the cut radio connector plug.
Touch one wire at a time until you find the outlet
that causes the test bulb to light.
Now turn the ignition off and then on. If the bulb
also turns off and on, that outlet is the car power
lead.
If your car is not wired for an audio unit:
Go to the fuse block and find the fuse port for radio
(RADIO), accessory (ACC), or ignition (IGN).
Battery Lead
If your stereo unit has a yellow lead, you will need
to locate the car’s battery lead. Otherwise you may
ignore this procedure. (The yellow battery lead
provides continuous power to maintain a clock,
memory storage, or other function.)
If your car has a radio or is pre-wired for one:
With the ignition and headlights off, identify the car
battery lead by grounding one lead of the test bulb
to the chassis and checking the remaining exposed
wires from the cut radio connector plug.
If your car is not wired for an audio unit:
Go to the fuse block and find the fuse port for the
battery, usually marked BAT.
Speakers
Identify the car speaker leads. There are two leads
for each speaker which are usually color coded.
A handy way to identify the speaker leads and the
speaker they are connected with is to test the leads
using a 1.5 V AA battery as follows.
Hold one lead against one pole of the battery and
stroke the other lead across the other pole. You will
hear a scraping sound in one of the speakers if you
are holding a speaker lead.
If not, keep testing different lead combinations until
you have located all the speaker leads. When you
label them, include the speaker location for each.
Antenna Motor
If your car is equipped with an automatic power
antenna, identify the car motor antenna lead by
connecting one bulb tester lead to the car battery
lead and touching the remaining exposed wires
from the cut radio connector plug one at a time. You
will hear the antenna motor activate when you touch
the correct wire.
Antenna
The antenna lead is a thick, black wire with a metal
plug at the end.
Connect All Leads
Now that you have identified all the wires in the
car, you are ready to begin connecting them to the
stereo unit wires. The wiring diagram (page 44)
shows the proper connections and color coding of
the leads.
We strongly recommend that you test the unit
before making a final installation.
You can set the unit on the floor and make
temporary connections to test the unit. Use
electrical tape to cover all exposed wires.
Important:
≥ Connect the red power lead last, after you have
made and insulated all other connections.
Ground
Connect the black ground lead of the power
connector to the metal car chassis.
Speakers
Connect the speaker wires. See the wiring diagram
(page 44) for the proper hookups. Follow the
diagram carefully to avoid damaging the speakers
and the stereo unit.
The speakers used must be able to handle more
than 50 W of audio power. If using an optional
audio amplifier, the speakers should be able to
handle the maximum amplifier output power.
Speakers with low input ratings can be damaged.
Speaker impedance should measure 4–8 ≠, which
is typically marked on most speakers. Lower or
higher impedance speakers will affect output and
can cause both speaker and stereo unit damage.
Motor Antenna
Connect the car motor antenna lead to the dark blue
motor antenna relay control lead.
(Do not confuse the antenna lead with blue/white
stripe lead for a power amplifier.)
E
N
G
L
I
S
H
Equipment
Connect any optional equipment such as an
amplifier, according to the instructions furnished
with the equipment. Leave about 12q (30 cm) of
distance between the speaker leads/amplifier unit
and the antenna/antenna extension cord. Read
the operating and installation instructions of any
equipment you will connect to this unit.
28
Power
Connect the red power lead to the correct car radio
wire or to the appropriate fuse port on the fuse
block.
If the stereo unit functions properly with all these
connections made, disconnect the wires and
proceed to the final installation.
Final Installation
Lead Connections
Connect all wires, making sure that each connection
is insulated and secure. Bundle all loose wires and
fasten them with tape so they will not fall down
later. Now insert the stereo unit into the mounting
collar.
Congratulations! After making a few final checks,
you’re ready to enjoy your new auto stereo system.
Final Checks
1. Make sure that all wires are properly connected
and insulated.
2. Make sure that the stereo unit is securely held in
the mounting collar.
3. Turn on the ignition to check the unit for proper
operation.
If you have difficulties, consult your nearest
authorized professional installer for assistance.
Battery
Connect the yellow battery lead to the correct radio
wire or to the battery fuse port on the fuse block.
Antenna
Connect the antenna by plugging the antenna lead
into the antenna receptacle.
40
CQ-C1300U
CQ-C1300U
41
42
CQ-C1300U
CQ-C1300U
43
+
FRONT SP
+
+
REAR SP
+
-
44
CQ-C1300U
CQ-C1300U
45
E
N
G
L
I
S
H
Electrical Connections (continued)
Specifications
Upgrading the System
33
General
Note:
≥ You cannot connect 2 CD changers using the dual
CD changer selector (CA-CD55U, option).
≥ For wiring, carefully read the operating
instructions for the devices connected.
Example combination
≥ CD changer (CX-DP880U, option)
Power supply:
Current consumption:
Maximum power output:
CD changer input cord
R (red)
RCA cord (R)
CD changer
(CX-DP880U, option)
Tone adjustment range:
Speaker impedance:
Pre-amp output voltage:
RCA cord (L)
CD.C-IN
L (white)
Pre-amp output impedance:
Dimensions (WkHkD):
DIN cord
Weight:
FM Stereo Radio
DC 12 V (11 V–16 V),
test voltage 14.4 V,
negative ground
Less than 2.2 A
(CD mode;
0.5 W 4-speaker)
50 Wk4 (at 1 kHz)
volume control maximum
Bass: d12 dB at 100 Hz
Treble: d12 dB at 10 kHz
4–8 ≠
2.5 V
(CD mode; 1 kHz, 0 dB)
200 ≠
7qk115/16qk61/8q
(178k50k155 mm)
3 lbs. 1 oz (1.4 k )
34
AM Radio
Frequency range:
Usable sensitivity:
Sampling frequency:
DA converter:
Pick-up type:
Light source:
Wave length:
Frequency response:
Signal to noise ratio:
Total harmonic distortion:
Wow and flutter:
Channel separation:
Speaker System Connection
Example combination
≥ Stereo power amplifier (option)
≥ Front speaker, rear speaker (option)
Frequency range:
87.9 MHz–107.9 MHz
Usable sensitivity:
10.2 dBf. (0.9 ¨V, 75 ≠)
50 dB quieting sensitivity: 15.2 dBf. (1.6 ¨V, 75 ≠)
Frequency response:
30 Hz–15 kHz (d3 dB)
Alternate channel selectivity: 75 dB
Stereo separation:
35 dB (1 kHz)
Image response ratio:
75 dB
IF response ratio:
100 dB
Signal to noise ratio:
62 dB
530 kHz–1 710 kHz
27 dB/¨V
(11 V, S/N 20 dB)
CD Player
Extension cord
(supplied with CX-DP880U)
CD changer control
connector
E
N
G
L
I
S
H
Note:
≥ For wiring, carefully read the operating
instructions for the devices connected.
8 times oversampling
4 DAC system
Astigma 3-beam
Semiconductor laser
780 nm
20 Hz–20 kHz (d1 dB)
96 dB
0.01 % (1 kHz)
Below measurable limits
75 dB
Pre-amp output connector (rear)
Pre-amp output connector (front)
L (white)
R (red)
RCA cord
(option)
Stereo power amplifier
(option)
(bridged connection)
46
CQ-C1300U
Front speaker (option)
External amplifier
control power lead
(Blue/white stripe)
Above specifications comply with EIA standards.
Remove the vinyl cap.
Note:
≥ Specifications and design are subject to modification without notice due to improvements.
Rear speaker (option)
CQ-C1300U
47
Panasonic Consumer
Electronics Company,
Division of Matsushita Electric
Corporation of America
One Panasonic Way, Secaucus,
New Jersey 07094
http://www.panasonic.com
Panasonic Sales Company.
Division of Matsushita Electric
of Puerto Rico, Inc. (“PSC”)
Ave. 65 de Infanteria, Km. 9.5
San Gabriel Industrial Park,
Carolina, Puerto Rico 00985
http://www.panasonic.com
YEFM284144
Panasonic Canada Inc.
5770 Ambler Drive,
Mississauga, Ontario
L4W 2T3
http://www.panasonic.ca
FT0903-2113
Printed in China
Imprimé en Chine
Impreso en China
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
