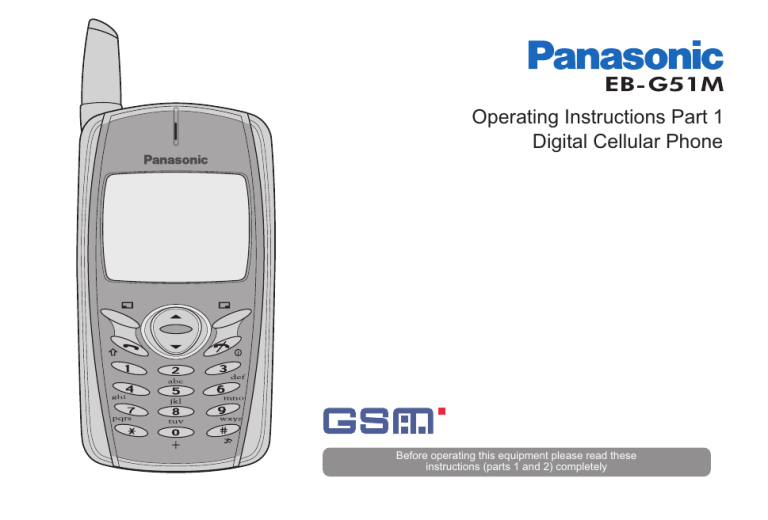

Operating Instructions Part 1
Digital Cellular Phone
Before operating this equipment please read these
instructions (parts 1 and 2) completely
Contents
Getting Started ......................................................... 1
Inserting and Removing the SIM ............................. 1
Attaching and Removing the Battery....................... 1
Charging the Battery ................................................ 2
Operation of Battery Level Indicator........................ 2
Low Battery Power Warning.................................... 2
Keys & Displays ........................................................3
Keys .........................................................................3
Display..................................................................... 4
Status Icons............................................................. 4
Symbols Used in the Manual................................... 5
Menu Display........................................................... 5
Menu Structure........................................................ 6
Shortcut from Idle Screen........................................ 7
Phone Basics ........................................................... 8
Phone ON/OFF ....................................................... 8
Displaying Menu...................................................... 8
Making Calls............................................................ 9
Answering Calls..................................................... 11
In-Call Options....................................................... 12
My Phone Menu Structure..................................... 15
My Phone................................................................
Sounds ..................................................................
Display ..................................................................
Language ..............................................................
Alert Type..............................................................
Profiles ..................................................................
User Messages .....................................................
Auto Answer..........................................................
Any Key Answer....................................................
Reset Defaults ......................................................
Shortcuts ...............................................................
My Phonebook ......................................................
T9 Input .................................................................
Games Menu Structure .........................................
Games.....................................................................
Selecting Games...................................................
Phone Book Menu Structure ................................
Phone Book............................................................
Storing...................................................................
Viewing .................................................................
Options in Phone Book .........................................
16
16
19
21
22
22
24
25
25
25
26
26
26
27
28
28
29
30
30
31
32
i
Contents
Part 2 of these Operating Instructions contains important information which should be read before operating your phone. Please
completely read the appropriate section of part 2 before continuing with part 1.
Contents
Group Settings ......................................................
Memory Status ......................................................
My Numbers..........................................................
Hot Key Dial ..........................................................
My Phonebook ......................................................
Browser Menu Structure .......................................
Browser ..................................................................
Server Setting .......................................................
WAP Activating .....................................................
Bookmarks ............................................................
Key Guard...............................................................
Messages Menu Structure ....................................
Messages................................................................
SMS ......................................................................
Options..................................................................
Broadcast ..............................................................
Auto Display ..........................................................
Text Entry ...............................................................
Shift mode .............................................................
Tegic .....................................................................
Text Input ..............................................................
Phone Option Menu Structure..............................
Phone Option .........................................................
Call Service ...........................................................
Call Divert..............................................................
Security .................................................................
ii
33
34
34
35
35
36
37
37
38
39
40
41
42
42
47
48
49
50
51
51
51
53
54
54
57
58
Codes....................................................................
Network.................................................................
CSD Setting ..........................................................
GPRS Setting........................................................
GPRS Info.............................................................
Applications Menu Structure ...............................
Applications ...........................................................
Games ..................................................................
STK (SIM Tool Kit) ................................................
Scheduler..............................................................
Clock .....................................................................
Calculator..............................................................
Currency ...............................................................
Melody Composer.................................................
Sound Folder ........................................................
Picture Folder........................................................
Records Menu Structure.......................................
Records ..................................................................
Troubleshooting ....................................................
Important Error Messages ....................................
Glossary of Terms .................................................
Accessories ...........................................................
Personal Settings ..................................................
Index .......................................................................
59
61
61
62
62
63
64
64
64
65
66
68
69
69
70
71
72
73
74
76
79
81
82
84
Getting Started
Getting Started
Some services detailed, are network dependent or may only be available on a subscription basis. Some functions are SIM dependent.
For more information contact your service provider.
Inserting and Removing the SIM
Attaching and Removing the Battery
The SIM is inserted under the battery.
Before removing the battery, ensure that the phone is
switched off and the charger is disconnected from the phone.
Inserting the SIM
Attaching the battery
SIM
2
SIM
1
1
2
Removing the battery
Removing the SIM
SIM
2
SIM
1
1
1
2
Charging the Battery
Operation of Battery Level Indicator
Connecting and disconnecting the Fast Travel Charger
The battery must be fitted in the phone before the charger is
connected. Insert the charger into the Charging Connector
and connect the travel charger to the socket-outlet. Then the
Battery Level Indicator will start scrolling. It is recommended
to charge the battery for a minimum of 4 hours before first use.
NOTE: DO NOT force the connector as this may damage the phone
and/or the charger. If the battery has been deeply discharged it may
take some time until the charge indicator is displayed.
While charging
Phone on
Charging
complete
J
Phone off
NOTE: When the battery is deeply discharged, it may take some
time (2 to 3 minutes) until charging starts.
Low Battery Power Warning
Getting Started
When charging is complete disconnect the charger from the
wall socket before removing the plug from the phone.
When the battery power is low, Battery Is Low message will
be displayed. If this occurs during conversation, finish your
call immediately. The power will automatically switch off
after the warning tone. Fully recharge the battery. See
“Charging the Battery” on this page. (Calls can be made and
received while the phone is charging.)
2
Keys & Displays
Keys & Displays
Keys
Key
4
Display
A
Personal
Handsfree
Connector
@
Earpiece
Navigation
Key
Left Softkey
Right Softkey
Cancel / Exit Key
Send Key
Power / End Key
Asterisk
Key
Quiet Mode Key
#
~
,
C
D
Charging
Connector
3
Microphone
"
!
Function
Navigation Key: Scroll or move through menus, text
and contacts. In idle mode, press to enter to the
Shortcuts.
Left Softkey: Perform the functions displayed above the
key. In idle, press and hold to enter to the SMS menu.
Right Softkey/Cancel or Exit key: Perform the
functions displayed above the key. Mainly used to
cancel and returned to the previous menu level, or
to delete text/number entries. In idle, press and
hold to enter the Profiles menu.
Numeric key pads: Enter numbers. Press and hold
one of the keys from$to,to make a Speed
Dial. In text entry mode, enter text, numbers and
characters. Press and hold#to enter a “+” or “P”.
When you need to dial an extension number, dial
the phone number first and press and hold#to
add a “P” then enter the extension number.
Send Key: Make a call or answer a call. In idle
mode, check the last dialled list.
Power/End Key: End/reject a call. During key
operation, press to return to the previous display.
In idle mode, press and hold to switch phone on/
off. In Browser mode, press and hold to end
Browser mode.
Asterisk Key: In idle, press and hold to activate Browser.
Quiet Mode Key: In idle, press and hold to switch
the Mute Mode on and off.
Display
ST Y G L N [ ]
Status Icons
J
The status icons are displayed or animated according to the
currently activated functions. The Antenna, Signal and
Battery icons are displayed when the handset is switched on
and connected to a network. In the occasion of that network
level is zero, the network icon will not be displayed.
Icon
G
Indication
Registered to a non-home network - roaming
Call divert is on
Vibration alert is on
Silent Mode is on
Message area is full
L
N
NOTE: All screen images in the manual are simulated.
P
J
K
Unread message is stored
Key Guard is enabled
Voice memo (SIM dependent)
Indicates it is possible to make emergency call
SIM supports CPHS and Line1 is selected in
Phone Option menu
Signal strength
Keys & Displays
(Flashing)
Battery full level:
- low battery
Alarm is set
GPRS is active
New voicemail message is received
4
Keys & Displays
Symbols Used in the Manual
Menu Display
Press the Navigation key in the direction
indicated by the arrow.
The menu system provides the means for accessing the
functions which do not have their own dedicated buttons on
the keypad.
A
Press Left Soft Key.
Entering to the Menu Display
@
Press Right Soft Key.
15
4
#~,
Press numeric key pads.
C
Press to answer a call or call a dialled number.
D
Press to end a call or long press to switch the
phone on/off.
From idle screen
1 A(Menu)
The main menu display has 9 menu options.
(See “Menu Structure” on page 6.)
2 4 required menuA(Select)
OR
pressing a numeric key will access a menu option directly.
Back to the Menu Display
D repeatedly until the display goes back to the Menu
display.
5
Menu Structure
My Phone
1 Sounds
2 Display
3 Language
4 Alert Type
5 Profiles
6 User Messages
7 Auto Answer
8 Any Key Answer
9 Reset Defaults
10 Shortcuts
11 My Phonebook
12 T9 Input
Games (or STK)*
1 Fillip
2 Classic rally
Phone Book
1 Browse
2 Create
3 Group Settings
4 Memory Status
5 My Numbers
6 Hot Key Dial
7 My Phonebook
Browser
1 Start Browser
2 Bookmarks
3 Settings
Key Guard
Messages
1 Create
2 Inbox
3 Outbox
4 Archive
5 User Messages
6 Memory Status
7 Options
8 Broadcast
Phone Option
1 Call Service
2 Call Divert
3 Security
4 Network
5 CSD Setting
6 GPRS Setting
7 GPRS Info
Applications
1 Games
2 (STK)*
3 Scheduler
4 Clock
5 Calculator
6 Currency
7 Melody Composer
8 Sound Folder
9 Picture Folder
Records
1 Last Dialled
2 Answered
3 Unanswered
4 Erase Records
Keys & Displays
The 9 main menus are as follows.
*STK(SIM Tool Kit) is SIM dependent.
6
Keys & Displays
Shortcut from Idle Screen
It is possible to enter the function directly from the Idle screen by pressing a key.
Short press
Long press
Key
Function
A
Menu
@
Phonebook* (Names)
1/5
D
Key
$~,
Function
Hot key dial
Browser*
Shortcuts
"
!
Last dialled record list
@
Profile menu
D
Power on/off
A
Message Menu
*The Phone must be registered with a network.
Silent mode
*The Phone must be registered with a network.
7
Phone Basics
Phone ON/OFF
1 Press and hold D for 2 to 3 seconds.
2 Phone will display Idle mode.
3 Press and hold D again to turn the power off.
Displaying Menu
A
From idle mode
A to access Menu
Menu will be displayed.
(Menu may change depending on your SIM.)
Phone Basics
D
8
Phone Basics
Making Calls
• To make a call, start in Idle mode.
Standard Dialling
1 Enter phone number C
• The dialled number is displayed.
4
2 When the other party answers, talk into the Microphone.
3 To hang up, D
C
• The length of the call is displayed.
• When Max Cost is on, the remaining units will be displayed.
@
For setting the Max Cost, see “Setting the Maximum Cost:” on page 56.
Earpiece Volume:
During a call; 4 to adjust earpiece volume
Phonebook Dialling
1
@(Names)
2 4 required contact C
9
Last Number Dialling
1
C
2 4 required contact C
International Dialling
The international access code (+) and the destination country/region code should be entered,
followed by the area code and phone number.
1 Press and hold # until “+” is displayed then enter country/region code.
2 Enter area code and phone number C
D
NOTE: Many countries/regions include an initial “0” in the area code. This should, in most
cases, be omitted when dialling international numbers. If you have difficulties making
international calls, contact your service provider.
Emergency Call
#
To make an emergency call, the antenna (
) must be present.
When SIM is inserted;
enter emergency number 112 C
When SIM is not inserted;
enter emergency number 112 C
OR
Phone Basics
C
NOTE: Making Emergency calls without a SIM is
country or network operator dependent.
@(SOS) > “Emergency Call” A(Yes)
10
Phone Basics
Answering Calls
C
4
A
@
OR
When “Any Key Answer” is ON,
From Idle menu
press any key except D
(See “Setting Any Key Answer” on page 25)
Ring Volume:
From My Phone menu
C
D
1 4 Sounds > Volume A(Select)
2 4 Adjust the volume level A(OK)
Quick Touch Silent Mode:
To quickly set the ring tone off and the vibrator on, press and hold ! in idle mode.
•
and
will be displayed on the idle screen.
One Click Mute on Incoming Call:
To set the ring tone and the vibrator off,
1 @(Mute)
If you want to reply the call,
2 A(Reply)
• If you want to reject the call, @(Reject).
11
In-Call Options
During a call, A(Menu) or @(Hold)
A(Menu) Hands Free Switch to Desktop Hands Free.
4
@
@(Hold)
Enable to make a conference call. You can talk with up to 5 parties.
Call Transfer
Connect your calling party to the other party you are holding, then
disconnect your line. (SIM dependent)
Phone Book
Open SIM Phonebook or Mobile Phonebook.
Messages
Create, check and send a message while you are talking.
- see “Messages” on page 42.
Call Status
A(End) to disconnect a line with the activating party.
@(Hold) to put a call on hold with the activating party.
To resume, A(Back) again.
Put a call on hold. To resume, A(Back). (SIM dependent)
Hold
Desktop Handsfree
Desktop Handsfree allows you to hold a conversation without holding the phone to your ear.
NOTE: Do NOT hold the phone to your ear in Handsfree mode.
During a Handheld call:
1
A(Menu)
2 4 Hands Free A(Select)
Phone Basics
A
Conference
NOTE: You can also switch between Handheld
and Handsfree by pressing and holding !.
To return to Handheld call:
A(Menu) > A(Select) to revert for Handheld operation
12
Phone Basics
DTMF Tones
DTMF tones can be sent during conversation. These are often used to access voice mail,
paging and computerised home banking. For example, you may need to input a number to
access voice mail messages. A phone number may be stored in Phone Book with DTMF
tones, allowing the number to be dialled upon recall and the DTMF number to be sent
automatically.
Send DTMF Tones During a Call:
Enter digits (# ~ ,, !, ")
C
Pause Dial
Using pauses allows you to send DTMF tones automatically.
1 Enter phone number.
2 Press and hold # until a P is displayed at the end of the phone number entered.
3 Enter DTMF digits after the pause, e.g. enter the number to access voice mail messages.
4
"
13
#
!
C
When the call is connected DTMF tones will be sent after 3 seconds.
Incoming Call While in a Call
NOTE: Call waiting must be on - see “Setting Call Waiting” on page 54. Call waiting is network dependent.
During a call, you may receive another call:
1 To answer another call, C(First call is placed on hold.)
To disconnect another call, @(Reject)
2 During a conversation with a second caller, A(Menu) or @(Swap) and select one
from the following options:
A
A(Menu)
@
Hands Free
Switch to Desktop Hands Free.
Conference
Enable to make a conference call. You can talk with up to 5 parties.
Call Transfer Connect your calling party to the other party you are holding, then
disconnect your line. (SIM dependent)
Phone Book Open SIM Phonebook or Mobile Phonebook.
D
@(Swap)
Messages
Create, check and send a message while you are talking.
- see “Messages” on page 42.
Call Status
A(End) to disconnect a line with the activating party.
@(Hold) to put a call on hold with the activating party.
To resume, A(Back) again.
Swap
Switch between two connected calls.
Phone Basics
C
To end a conference call and all connections: D
Making a Second Call
During a call:
Enter second phone number or recall it from Phone Book C. The first call is put on hold.
NOTE: Making a second call is network dependent.
14
My Phone Menu Structure
My Phone Menu Structure
My Phone
Sounds
Display
Language
Alert Type
Profiles
User Messages
Auto Answer
Normal
Quiet
Outdoor
Headset
Ring & Vibration
Vibration Only
Ring Only
None
Any Key Answer
Reset Defaults
Shortcuts
My Phonebook
T9 Input
15
SIM
Mobile
Wallpaper
Greeting
Animation
Contrast
Brightness
Colour Themes
Volume
Ring Tones
Melody Composer
Key Tone
Warning Tone
My Phone
Sounds
Changing the Volume ........................................................................................
From My Phone menu
1 4 SoundsA(Select)
2 4 VolumeA(Select)
3 4 Adjust the volume levelA(OK)
Changing the Ring Tone ....................................................................................
From My Phone menu
1 4 SoundsA(Select)
2 4 Ring TonesA(Select)
3 4 Any Call, Group Calls, Alarm or MessagesA(Select)
My Phone
4 4 required ring toneA(Select)
16
My Phone
Composing a Melody .........................................................................................
From My Phone menu
1 4 SoundsA(Select)
2 4 Melody ComposerA(Select)
3 4 required MyMusicA(Menu)
4 4 EditA(Select)
5 4 required trackA(Menu)
6 Compose your melody - See the notes chart below >A(Menu)
7 4 SaveA(Select)
You can arrange the Tempo and select an instrument (Select Instrument) before saving.
Using the following table as reference, enter notes (from the choice of low, middle and high), rests,
and duration to generate your composition.
Main Track and Sub Tracks are combined when you return to MyMusic.
17
Key
$
%
&
'
(
)
*
+
Func
C
D
E
F
G
A
B
Rep.
Key
,
#
"
!
Func
Dotted
note
Rest
Duration
Low #
Middle #
High #
Rename a melody:
From My Phone menu
1 4 SoundsA(Select)
2 4 Melody ComposerA(Select)
3 4 required musicA(Menu)
4 4 RenameA(Select)
5 Enter a name
• To erase a letter, @(Clear).
• To erase all letters, press and [email protected](Clear).
6
A(OK)
Set to Ringtone:
From My Phone menu
1 4 SoundsA(Select)
2 4 Melody ComposerA(Select)
3 4 required musicA(Menu)
4 4 Set to RingtoneA(Select)
My Phone
Viewing a melody information:
From My Phone menu
1 4 SoundsA(Select)
2 4 Melody ComposerA(Select)
3 4 required musicA(Menu)
4 4 InfoA(Select)
18
My Phone
Setting Key Tone ................................................................................................
From My Phone menu
1 4 SoundsA(Select)
2 4 Key ToneA(On/off)
Setting Warning Tone .........................................................................................
From My Phone menu
1 4 SoundsA(Select)
2 4 Warning ToneA(On/off)
Display
You can change the wallpaper
in idle mode.
Setting Wallpaper ...............................................................................................
From My Phone menu
1 4 DisplayA(Select)
2 4 [email protected](Select)
3 4 required WallpaperA(Select)
4
19
A(On/off)
You can create a greeting
message that is displayed
each time the phone is
powered on.
Setting Greeting .................................................................................................
From My Phone menu
1 4 DisplayA(Select)
2 4 [email protected](Edit)
3 Enter the GreetingA(OK)
4
Setting Display Animation ..................................................................................
From My Phone menu
1 4 DisplayA(Select)
2 4 AnimationA(Select)
3 4 required AnimationA(Select)
Setting Display Contrast ....................................................................................
From My Phone menu
1 4 DisplayA(Select)
2 4 ContrastA(Select)
3 4 Adjust the contrastA(OK)
My Phone
You can change animation
that comes up on the display
when the phone is switch on.
A(On/off)
20
My Phone
Setting Brightness ..............................................................................................
From My Phone menu
1 4 DisplayA(Select)
2 4 BrightnessA(Select)
3 4 required levelA(Select)
You can change the Colour
Themes on the display.
Setting Colour Themes ......................................................................................
From My Phone menu
1 4 DisplayA(Select)
2 4 Colour ThemesA(Select)
3 4 required colourA(Select)
Language
It is possible to change the
language that the phone uses
for display messages.
Changing the Language .....................................................................................
From My Phone menu
1 4 LanguageA(Select)
2 4 required languageA(Select)
21
Alert Type
When required, the phone can
be set up to vibrate and/or ring
when a call is received.
You can change Alert Type:
- Ring & Vibration
- Vibration Only
- Ring Only
- None
Changing Alert Type ..........................................................................................
From My Phone menu
1 4 Alert TypeA(Select)
2 4 required Alert typeA(Select)
Profiles
Activating a profile .............................................................................................
From My Phone menu
1 4 ProfilesA(Select)
2 4 required profileA(Menu)
3 4 ActivateA(Select)
Editing profiles ...................................................................................................
Ring Volume
From My Phone menu
1 4 ProfilesA(Select)
My Phone
You can switch between four
profiles in your phone each
with a distinct combination of
alert method, ring tone, etc.
Profiles are set up for use in
different environments – for
instance you might want to
create Normal profile for
everyday setting, Quiet profile
with ring tone appropriate for
formal occasions, Outdoor
profile for loud environments
and Headset profile with
vibrator when it is difficult to
hear the ring tone.
2 4 required profileA(Menu)
3 4 Change SettingsA(Select)
4 4 Ring VolumeA(Select)
5 4 Adjust volume levelA(OK)
22
My Phone
Key Tone
From My Phone menu
1 4 ProfilesA(Select)
2 4 required profileA(Menu)
3 4 Change SettingsA(Select)
4 4 Key ToneA(On/off)
Warning Tone
From My Phone menu
1 4 ProfilesA(Select)
2 4 required profileA(Menu)
3 4 Change SettingsA(Select)
4 4 Warning ToneA(On/off)
Vibrator
From My Phone menu
1 4 ProfilesA(Select)
2 4 required profileA(Menu)
3 4 Change SettingsA(Select)
4 4 VibratorA(On/off)
23
Brightness
From My Phone menu
1 4 ProfilesA(Select)
2 4 required profileA(Menu)
3 4 Change SettingsA(Select)
4 4 BrightnessA(Select)
5 4 Medium, High, Maximum or LowA(Select)
User Messages
Editing User Messages ......................................................................................
From My Phone menu
1 4 User MessagesA(Select)
2 4 required message or empty spaceA(Select)
3 Enter your messageA(Menu)
• To erase a letter, @(Clear).
• To erase all letters, press and [email protected](Clear).
4 4 Save and Send or SaveA(Select)
5 When Save and Send is selected, enter destination phone numberA(OK)
My Phone
There are 10 pre-set common
user messages and 5 empty
spaces to create your own
messages. You can also set
User Messages at User
Messages in Message menu.
- see “Editing User Messages”
on page 43.
NOTE: If the text is wider than the screen display, the text will scroll.
24
My Phone
Auto Answer
Setting Auto Answer...........................................................................................
Auto Answer can be set on. For
use this function, Personal
Handsfree Earpiece needs to
be connected to the phone.
From My Phone menu
4 Auto AnswerA(On/off)
Any Key Answer
Calls can be answered by
pressing any key (except
C).
Setting Any Key Answer.....................................................................................
From My Phone menu
4 Any Key AnswerA(On/off)
Reset Defaults
All personal settings can be
returned to their factory
default settings.
Reset Defaults....................................................................................................
From My Phone menu
1 4 Reset DefaultsA(Select)
2 “Restore Factory Settings?”A(No) [email protected](Yes)
25
Shortcuts
Shortcuts can be selected from
the following options:
Browser, Games, Phone
Book, Language, Alert Type,
Sounds, Wallpaper, Profiles,
Alarm, Calculator,
Scheduler, Inbox, Create,
Clock Setting and Currency
Setting Shortcuts................................................................................................
From My Phone menu
1 4 ShortcutsA(Select)
2 4 required shortcutsA(On/off)
Access to Shortcuts:
From Idle mode
4 required shortcutsA(Select)
My Phonebook
You need to select between
SIM Phonebook or Mobile
Phonebook for your ordinary
use. You can also set My
Phonebook at My
Phonebook in Phonebook.
- see “My Phonebook” on
page 35.
Setting SIM or Mobile Phonebook .....................................................................
From My Phone menu
1 4 My PhonebookA(Select)
2 4 SIM or MobileA(Select)
T9 Input
Setting T9 Input .................................................................................................
From My Phone menu
1 4 T9 InputA(Select)
My Phone
When you create a text, this
function helps to dramatically
reduce the number of key
presses.
2 4 Set T9 Prefer onA(On/off)
3 4 Input LanguageA(Select)
4 4 required languageA(Select)
See “Shift mode” on page 51 for detail.
26
Games Menu Structure
Games Menu Structure
Games (or STK)*
Fillip
Classic rally
* STK (SIM Tool Kit) is SIM dependent.
27
Games
Selecting Games
From Games menu
4 required gameA(Select) from Fillip and Classic rally.
NOTE: Once the power is turned off, High scores or Best scores are lost.
The car can slide in the turns if
you drive too fast and
behaves like a real car. Drive
your car as fast as you can.
When you pass all the
stations, you will get a score.
Fillip ....................................................................................................................
Key Operation:
' (move left), ) (move right), 1%(jump), $(jump left), &(jump right).
Starting Games:
Select Start game by usingA (or % (Up) and + (Down)), then ((Select).
Classic rally........................................................................................................
Key Operation:
%(Forward), '(Turn Left), )(Turn Right), +(Backward) to move the car.
Starting Games:
1 Select Start Game by pressing any numeric key except #
2 To choose your car, C (or ' or )), then ((Select).
To choose a race course, C (or ' or )), then ((Select)
NOTE: If SIM card provides SIM Tool Kit services, this menu will become the STK
Menu. You can still access Games from Applications.
Games
The parts are scattered far
and wide and some are stuck
in the treetops where
aggressive mosquitoes and
grouchy birds live, and some
have fallen into the water,
where they are guarded by
fierce piranhas.
28
Phone Book Menu Structure
Phone Book Menu Structure
Phone Book
Browse
SIM Phonebook
Mobile Phonebook
Create
SIM Phonebook
Mobile Phonebook
Group Settings
Memory Status
My Numbers
Hot Key Dial
My Phonebook
29
SIM
Mobile
Phone Book
Storing
Phone numbers can be stored
in SIM or in your phone.
In the SIM, you can store or
select:
-Phone number
-Name
If you want to store a fixed dial
number, see “Storing a Fixed
Dial Number” on page 31.
Storing a Number in SIM....................................................................................
From Phone Book menu
1 4 CreateA(Select)
2 SIM PhonebookA(Select)
3 Enter Name 5 > Phone
4 A(Save)
• “Saved in SIM” is displayed.
NOTE: The length and amount of data is SIM dependent.
The entries can be grouped
together and these are
retained even if you damage
the SIM.
Storing a Number in Mobile Phonebook ............................................................
From Phone Book menu
1 4 CreateA(Select)
2 4 Mobile PhonebookA(Select)
3 Enter Name 5
4 Enter Phone number (Phone, Tel./office, Tel./mobile) 5
5
6
7
@(Set) 4
@(Set) 4
@(Set) 4
required Caller’s ID ImageA(Select) 5
Phone Book
In the phone, you can store:
- Name
-3 Phone Numbers
(Phone, office, mobile)
-Caller’s ID
-Groups
-Melodies
required groupA(Select) 5
required melodyA(Select)
8 When entries are completed,A(Save)
• “Saved in Mobile” is displayed.
30
Phone Book
Fixed Dial is one of the
function in SIM Phonebook.
Only the numbers stored in
FDN can be dialled.
To activate this function, you
need to set Fixed Dial on.
- see “Setting Fixed Dial” on
page 60.
Storing a Fixed Dial Number ..............................................................................
To store a fixed dial number, you need to enter PIN2 code.
From Phone Book menu
1 4 CreateA(Select)
2 SIM PhonebookA(Select)
3 Enter Name 5 > Phone number
4 4 [email protected](Set)
5 5 FDNA(Select)
6
A(Save)
7 Enter PIN2 code
8A(OK)
Viewing
You can search Phonebook
by name.
Browsing the Phone Book ..................................................................................
From Phone Book menu
1 4 Browse > SIM Phonebook or Mobile PhonebookA(Select)
2 4 Search the name you wish to [email protected](View)
31
Options in Phone Book
From Phone Book menu
1 4 Browse > SIM Phonebook or Mobile PhonebookA(Select)
2 4 required contactA(Menu)
Edit
Edit the selected Phone Book entry.
Delete
Delete the selected Phone Book entry.
Delete All
Delete all Phone Book entries.
Copy to Mobile/SIM
Copy a contact to Mobile/SIM Phonebook.
Copy All to Mobile/SIM
Copy all Phone Book to Mobile/SIM Phonebook.
Search
Search for a desired item in Mobile/SIM Phonebook by entering the name.
Phone Book
The following options are available by pressingA(Select)
32
Phone Book
Group Settings
You can categorize the items
stored in the Mobile
Phonebook into 5 groups;
Friends, Colleagues,
Family, Others and VIP.
You can select a particular
ring tone for each group to
identify the incoming call.
From Phone Book menu
1 4 Group SettingsA(Select)
2 4 required GroupA(Menu)
The following options are available by pressingA(Select).
View Group
View Phone Book entry in the selected group.
Set Ring Tone
Set required ring tone.
Remove Entries
Delete all Phone Book entries in the selected group.
After selecting required Group in step 2, you can view a Phone Book entries by [email protected](View).
When there is no entry has been stored in the selecting group, “List Empty” is displayed.
The following options are available by pressingA(Menu).
33
Edit
Edit the selected Phone Book entry.
Delete
Delete the selected Phone Book entry.
Search
Search for a desired item in the selected group by entering the name.
Memory Status
Memory status shows how
many locations are available
in the Phone Book.
Viewing Memory Status .....................................................................................
From Phone Book menu
4 Memory StatusA(Select)
My Numbers
Setting My Numbers ..........................................................................................
From Phone Book menu
1 4 My NumbersA(Select)
2 4 required entryA(Menu)
3 4 EditA(Select)
4 Enter your phone number 5
5 Enter your nameA(Save)
Viewing My Numbers .........................................................................................
From Phone Book menu
1 4 My NumbersA(Select)
Phone Book
My Number is a handy
phonebook where your
names and phone numbers
can be stored and viewed.
2 4 required [email protected](View)
34
Phone Book
Hot Key Dial
Phone numbers stored at
locations 001 - 009 in the
Phonebook can be dialled
quickly.
Setting Hot Key Dial ...........................................................................................
From Phone Book menu
4 Hot Key DialA(On/off)
NOTE: This function is available only when a SIM is installed.
Making a Call by Using Hot Key Dial..................................................................
From Idle mode
1 Press and hold a digit key (1~9)
2 PressC
My Phonebook
You need to select between
SIM Phonebook or Mobile
Phonebook for your ordinary
use.
From Phone Book menu
1 4 My PhonebookA(Select)
2 4 SIM or MobileA(Select)
• Please refer to “My Phonebook” on page 26.
35
Browser Menu Structure
Start Browser
Bookmarks
Bookmark 1
…
Bookmark 10
Settings
Server Name 1
…
Server Name 5
Browser Menu Structure
Browser
36
Browser
Browser
Server Setting
The phone’s WAP (Wireless
Application Protocol) Browser
enables you to access
Internet services supported by
the network, such as news,
weather reports, sport etc.
Before Internet services can be accessed, you need to subscribe to your network operator or Internet
Service Provider (ISP) to enable the relevant configuration information. Please contact your network
service provider to ensure that your network settings are correct.
NOTE: Modifying previously entered settings can cause failure of the Browser.
From Browser menu
1 4 SettingsA(Select)
2 4 to select required [email protected](Edit)
Five server settings can be set up in the phone. If you find your server’s name under the settings
option, select the server [email protected](Edit). If no settings are present contact your Network Service
Provider for these settings. (Server Name, IP Address, IP Port, Homepage, Linger Time, Select Mode)
NOTE: You need to set CSD Setting or GPRS Setting in Phone Option before setting the server
information.
Those configuration Options will be given by your network service provider.
Once completing the entry, pressA(Save) then pressA(Activate).
The first time that the browser is activated there will be no content stored so the Home URL content
will be displayed (as defined by the network operator). The Home URL will be recalled from the cache,
each time the browser is activated. (Cache is the phone’s memory that stores content downloaded in
the past).
37
WAP Activating
From Browser menu
1 4 Start BrowserA(Select)
2 Please follow to the instructions on the display.
• While browsing a homepage, pressC and you can select the following
menus.
Home
Jump to the homepage which is set in Settings.
Bookmarks
Select one from your setting bookmarks and jump.
Save Items
Save items in your browsing homepages.
Reload
Reload the browsing homepage.
Go To URL
Enter a URL and jump to the homepage.
Show URL
Display the URL of the browsing page.
SnapShots
Capture the screen of your browsing page.
Advanced
Inbox, Restart Browser and About are available to select.
Settings
Scroll Mode, Downloads, Security and Send Referrer are available to set.
Browser
• To end Browser, press and holdD.
38
Browser
Bookmarks
Once you bookmark your
favourite page, you can
quickly jump to the page.
Setting Bookmark ...............................................................................................
Entering URL from Browser menu:
From Browser menu
1 4 BookmarksA(Select)
2 4 required empty BookmarkA(Menu)
3 4 EditA(Select)
4 Enter Title and URLA(Save)
Setting Bookmark from Homepage:
1
C > 4 Bookmarks
2 Mark SiteA
3 Enter Folder and URL
4
A(Save)
Browsing Bookmark ...........................................................................................
From Browser menu
1 4 BookmarksA(Select)
2 4 required [email protected](Launch)
39
Key Guard
Setting Key Guard .............................................................................................
From Key Guard menu
A(Yes) [email protected](No)
• When Key Guard is enabled, L appears on the display.
• Emergency calls still can be made.
• When a call is received Key Guard will be disabled temporarily, then you can answer the call.
NOTE: When making emergency calls with the “Key Guard” enabled, there will be no visual indication
that the number is being dialled.
Disabling Key Guard ..........................................................................................
When L appears on the display,
1
A(Free)
2 “Press OK to Free keypad”A(OK)
Key Guard
The Key Guard function is
used to prevent any keys from
being accidentally pressed
e.g. when the phone is being
carried.
40
Messages Menu Structure
Messages Menu Structure
Messages
Create
Inbox
Outbox
Archive
Inbox
Outbox
User Messages
Memory Status
41
Options
Message Centre
Protocol
Lifetime
Delivery Report
SMS via GPRS
Broadcast
Broadcast
Read Messages
Topic
Languages
Auto Display
Messages
SMS
Setting the Message Centre Number.................................................................
From Messages menu
1 4 Options > Message CentreA(Select)
2 Enter message centre number in international dial format
(see “International Dialling” on page 10)A(OK)
NOTE: Your network operator may have pre-installed the number. Do not change this number as it may
cause failure of SMS Messaging.
Creating a New Short Text Message .................................................................
From Messages menu
1 4 CreateA(Select)
2 Create your text message – max. 1520 characters
(see “Text Entry” on page 50)A(Menu)
3 4 SendA(Select)
4 Enter the destination phone numberA(OK)
OR
Messages
It is possible to receive,
display, edit and/or send text
messages of up to 1520
characters in ten messages
(depending on language), to
the network that has a
roaming agreement
(depending on the recipient’s
phone Options). Before
sending a message, you need
to enter the Message Centre
number into Options.
Recall a number from the [email protected](Names) >
4 required nameA(Select) >A(OK)
42
Messages
When you create a text, these options are available by A(Menu).
Send
Send a text as Short Text message.
Save
Save a text in Outbox in SIM.
Save and Send
Save a text in the Outbox in SIM and send.
Picture & Sound
Add picture and/or sound to a text.
User Messages
Use a short message stored in the phone.
For editing the User Message, see “Editing User Messages” below.
Editing User Messages ......................................................................................
From Messages menu
1 4 User MessagesA(Select)
2 4 required messageA(Select)
3 Edit the messageA(Menu)
4 Save and Send or SaveA(Select)
NOTE: When the text is wider than the screen display, the text will scroll.
43
flashes when an unread
message is received in the
Inbox.
When the Inbox is full,
will
remain until old messages are
deleted.
Reading a Received Message ...........................................................................
From Messages menu
1 4 InboxA(Select)
2 4 required [email protected](Read)
• Inbox: The received message will be stored in Inbox.
NOTE: If the message indicator is displayed constantly (does not flash), this means that the message area
is full and you need to delete old messages in order to receive new messages.
While you are reading a message, the following options are available byA(Menu).
Delete
Delete a message.
Reply
Create a replying SMS.
Forward
Forward a message to another phone.
Edit
Edit a message and save and/or send to another.
Delete All
Delete all messages in Inbox.
Extract Number
Extract numbers in messages and save in Phonebook.
Move to Archive
Move a message into Inbox in Archive.
Hyper Link
Link to a URL in a received message.
Messages
When a Short Text Message
is received, the message
indicator will flash on the
display and a user preset
audible alert will sound. If you
are in a call you will be alerted
by the vibrator.
44
Messages
Viewing Message Lists in Outbox ......................................................................
To view message lists that are stored in SIM.
• Outbox: The transmitted message will be stored in Outbox.
From Message menu
1 4 OutboxA(Select)
2 4 required [email protected](Read)
While you are reading a message, the following options are available byA(Menu).
45
Delete
Delete a message.
Edit
Edit a message and save and/or send to another.
Send
Send a SMS message after entering a recipient number.
Delete All
Delete all messages in Outbox.
Extract Number
Extract numbers in messages and save in Phonebook.
Move to Archive
Move a message from Outbox to Outbox in Archive.
Viewing Message Lists in Archive......................................................................
To view message lists which are stored in Archive.
• Inbox: When a message in Inbox is saved, the message will be saved to Inbox in Archive.
• Outbox: When a transmitted message in Outbox is saved, the message will be saved to Outbox in
Archive.
From Message menu
1 ArchiveA(Select)
2 4 Inbox/OutboxA(Select)
3 4 required messageA(Select)
While you are reading a message, the following options are available byA(Menu).
Delete a message.
Edit
Edit a message and save and/or send to another.
Forward (Inbox)/
Send (Outbox)
Forward/Send a message to another phone.
Delete All
Delete all messages in Inbox.
Viewing Memory Status .....................................................................................
From Messages menu
Messages
Memory status shows how
many locations are left to
store messages in the Inbox.
Delete
4 Memory StatusA(Select)
46
Messages
Options
Setting Options...................................................................................................
From Messages menu
4 OptionsA(Select)
NOTE: In the area where GPRS is not supported, SMS may not be sent when SMS via GPRS is on.
The following options are available:
47
Message Centre
Edit Message Centre number.
Protocol
Select required Message Type from Standard Text, Fax, X.400, Paging,
E-mail, ERMES, Voicemail.
Lifetime
Select maximum or choose a time limit for sending messages.
Delivery Report
Request a delivery report on the status of a sent message.
SMS via GPRS
Send a Short Text message via GPRS.
Broadcast
You can receive your favourite
information regularly from
your service provider.
You need to specify the
“topic(s)” of information and
the language that you wish to
receive. To receive the
broadcasts, “Broadcast”
needs to be on.
Setting Broadcast ..............................................................................................
Any topics will not appear
without your registration.
Setting Topic ......................................................................................................
From Messages menu
1 4 BroadcastA(Select)
2 4 BroadcastA(On/off)
From Messages menu
1 4 Broadcast > Topic > Current >A(Select)
2 4 required TopicA(Menu)
3 4 Add or DeleteA(Select)
Setting User defined Topic .................................................................................
From Messages menu
1 4 Broadcast > Topic > User Defined > <New entry>A(Select)
2 Enter Msg IDA(OK)
3 Enter NameA(OK)
Messages
Any topics will not appear
without your registration.
4 4 CurrentA(Select)
5 4 <Add Topic>A(Select)
6 4 required TopicA(Select)
48
Messages
Setting Language ...............................................................................................
From Messages menu
1 4 BroadcastA(Select)
2 4 LanguagesA(Select)
3 4 required LanguageA(Select)
4 To continue to add languages;
4 InsertA(Select)
To complete adding language;
4 Add to EndA(Select)
Viewing Broadcast..............................................................................................
From Messages menu
1 4 Broadcast > Read MessagesA(Select)
2 To scroll to the available topicsA(Next)
NOTE: This function depends on your Network Service Operator.
Auto Display
In idle mode, the latest Info
Message is displayed on your
phone automatically.
Setting Auto Display ...........................................................................................
From Messages menu
1 4 BroadcastA(Select)
2 4 Auto DisplayA(On/off)
49
Text Entry
You can use alphanumeric characters to enter details into the Phonebook, to create text, etc.
#
$
%
&
'
(
)
*
+
,
C
"
!
Numeric
Multi tap
(Input mode indicator: Abc, abc or ABC)
T9®(T9Abc, T9abc, T9ABC)
(Input language: English)
Punctuation 1
Space 0 . , ? ! + - = : ¿¡ ” ’ ; _
Punctuation 2
(0 ~ 9)
0
1/( )< >[]{}%~&
(1 / ( ) < > [ ] { } % ~ _ &)
1
ABC
(a b c)
ABC2Ä
(a b c 2 ä à ç)
2
DEF
(d e f)
DEF3É
(d e f 3 é è)
3
GHI
(g h i)
GHI4
(g h i 4 ì)
4
JKL
(j k l)
JKL5
(j k l 5)
5
MNO
(m n o)
MNO6ÖÑ
(m n o 6 ö ñ ò)
6
PQRS
(p q r s)
PQRS7
(p q r s 7 ß)
7
TUV
(t u v)
TUV8Ü
(t u v 8 ü ù)
8
(w x y z)
WXYZ9ÆØÅ
WXYZ
Shift mode
*Γ∆ΘΛΞΠΣΦΨΩ
(w x y z 9 æ ø å)
Shift mode
*Γ∆ΘΛΞΠΣ ΦΨΩ
Alternatives / (Hold) Space # £ $ ¥ ¤ @ \ § ^ | ↵ Alternatives / (Hold) Space # £ $ ¥ ¤ @ \ § ^ | ↵
9
Shift mode
Text Entry
Text Mode
Key
*
#
Note: Displayed characters of T9® vary depending on the selected input language.
50
Text Entry
Shift mode
Shift mode change..............................................................................................
The Shift mode changes by pressing (within 1 sec)C.
Multi tap
Tegic
Abc -> abc -> ABC
T9Abc -> T9abc -> T9ABC -> 123
If Input mode is changed, Shift mode is initialised.
Auto capital change ............................................................................................
Auto capital affects Abc and T9Abc.
When Input mode is changed to Abc or T9Abc, the first character is input as upper case and subsequent letters as lower case.
When one of the following characters [. (Period) or ! or ?] is input before a space, the next character is input as upper case.
Tegic
User Dictionary of Tegic
When edit mode is finished, all words in the editor are registered in User Dictionary of Tegic.
Text Input
To switch On/Off T9 mode, press!.
51
T9® Text Input....................................................................................................
Using this mode of text input dramatically reduces the required number of key presses.
Press a key once for any letter you require on that key. The desired letter may not be displayed. Continue pressing other keys until
the end of a word is reached; then check that the word has been typed correctly before continuing on to the next word. If the
combination of letters typed has produced a word which is not the one you require, press A repeatedly until the correct word is
displayed. Continue to the next word.
Example of Text Input in T9 Mode
To type a new message, follow these steps:
1.At the beginning of a new message press and [email protected](Clear) to delete previous text, if necessary.
2.Press C to change letter case, if necessary
3.Press%%((“Call” is displayed.
Note that the displayed words change as you type, always type to the end of the word before editing.
T9® Languages can be selected from T9 Input -see “Setting T9 Input” on page 26.
If the word you require is not in the internal dictionary then it should be entered using the Multi tap (ABC) mode.
Other Text Modes..................................................................................................................................
Select text mode (displayed in Information area on screen).
Text Entry
Multi tap mode (Abc, abc or ABC):
Each time a key is pressed in quick succession it displays the next character available on that key. Releasing the key or pressing
another key enters the character displayed. The cursor moves to the next position.
In T9 (Abc) or Multi tap (Abc) mode, the first entered letter in a sentence is in upper case.
52
Phone Option Menu
Phone Option Menu Structure
Phone Option
Time/Charges
Call Waiting
Withhold ID
Caller’s ID
Charge Settings
Line
Call Service
Call Divert
Call Bar
Codes
Fixed Dial
SIM Lock
Security
Network
CSD Setting
GPRS Setting
GPRS Info
53
Auto Network
New Network
Network List
Band Select
All Voice Calls
Not Reachable
No Reply
Busy
Status Check
Cancel All
Phone Option
Phone Option
Call Service
The duration of the Last Call
and All Voice Calls will be
displayed. When the Max
Cost is on, the remaining
units will be displayed.
When Call Waiting is
switched on, a second call can
be received.
Viewing Time/Charges .......................................................................................
From Phone Option menu
1 4 Call Service > Time/ChargesA(Select)
2 4 required service Last Call, All Voice Calls or Cost LeftA(Select)
Last Call
Display the duration of Last Call.
All Voice Calls
Display the sum of the duration for the all voice
calls.
Cost Left
When Max Cost is on, display the remaining units.
For setting the Max Cost, see “Setting the
Maximum Cost:” on page 56.
Setting Call Waiting ............................................................................................
From Phone Option menu
1 4 Call Service > Call WaitingA(Select)
2 SetA(Select)
54
Phone Option
Withhold ID allows you to
prevent showing your name
and/or number to your calling
party. You can also select
Cancel or Check Status.
Setting Withhold ID ............................................................................................
From Phone Option menu
1 4 Call ServiceA(Select)
2 4 Withhold IDA(Select)
NOTE: When checking the status the phone must be registered with a network.
Caller’s ID allows to display
Caller’s name and/or number
on your display. You can also
select Cancel or Check
Status.
Setting Caller’s ID ..............................................................................................
From Phone Option menu
1 4 Call ServiceA(Select)
2 4 Caller’s IDA(Select)
NOTE: When checking the status the phone must be registered with a network.
Firstly, Personal rate must be
entered. This is the cost that
the Service Provider charges
for one unit of call time.
NOTE: Charge Setting
is SIM dependent.
Charge Settings .................................................................................................
Setting Currency:
From Phone Option menu
1 4 Call Service > Charge SettingsA(Select)
2 4 CurrencyA(Select)
Current Setting is displayed
3
4
55
@(Set) > Enter PIN2 codeA(OK)
Enter currency units (max.3 characters)A(OK)
.
NOTE: When you set the
unit price, you will be
asked to enter your PIN2.
.
NOTE: This function is
SIM dependent.
Setting Personal Rate:
From Phone Option menu
1 4 Call Service > Charge Settings > Personal RateA(Select)
2
@(Set)
3 Enter PIN2 codeA(OK)
4 Press required personal rateA(OK)
You can set the maximum cost
of calls allowed.
NOTE: The duration of
one unit may vary between
peak and off-peak times.
Call charges can be
calculated according to the
calling time. However, the
actual tariffs charged from
your service provider may
not be reflected in the
calculation.
Setting the Maximum Cost:
From Phone Option menu
1 4 Call Service > Charge SettingsA(Select)
2 4 Max Cost A(Set)
• Current setting is displayed.
3
4
5
@(Edit) > Enter PIN2 codeA(OK)
@(Set) > 4 OnA(Select)
Enter Credit Limit >A(OK)
.
NOTE: This function is
SIM dependent.
Setting Auto Display:
From Phone Option menu
1 4 Call Service > Charge SettingsA(Select)
2 4 Auto DisplayA(On/off)
Phone Option
In Idle mode, the latest
Incoming call is displayed on
your phone automatically.
56
Phone Option
This menu can be selected
only when your SIM supports
CPHS and Line 1/2.
NOTE: This function is
SIM dependent.
Voice calls can be diverted
using different situations and
to different numbers.
For example, you may wish
voice calls to be diverted to
voicemail box when the phone
is switched off.
appears when you have
received new voice mail
messages.
This service depends on your
service provider.
57
Setting Phone Line .............................................................................................
From Phone Option menu
1 4 Call Service > LineA(Select)
2 4 Line 1/Line 2A(Select)
Call Divert
Setting Call Divert ..............................................................................................
From Phone Option menu
1 4 Call DivertA(Select)
2 4 Select the circumstances to initiate the divertA(Select)
3 4 required operation from Set, Clear, or Check StatusA(Select)
4 Enter phone number to divert toA
• When a divert situation is enabled the divert icon (G) is displayed.
• When updating or checking the status of Call Divert the phone must be registered with a network. (O)
All Voice Calls
Divert all incoming voice calls.
Not Reachable
When phone is disconnected, divert incoming voice calls.
No Reply
If call is not answered, divert incoming voice calls.
Busy
When a call is in progress, divert incoming voice calls.
Status Check
Check the current Call Divert status.
Cancel All
Cancel all Call Divert settings.
Security
Setting Call Bar ..................................................................................................
From Phone Option menu
1 4 Security > Call BarA(Select)
2 4 required setting from the menus showing belowA(Set) or
A(Select)
3 4 required operation from Set, Clear or Check StatusA(Select)
4 Enter required passwordA(Select)
All Outgoing
All Outgoing calls are barred.
Outgo Internat
International Outgoing calls are barred.
Out.int.xhome
International Outgoing calls except home are barred.
All Incoming
All Incoming calls are barred.
When Roaming
All internal incoming calls when roaming outside the home PLMN.
Status Check
Call bar status is displayed.
Cancel All
Cancel all Call Bar settings.
Password
Change Call Bar Password.
Phone Option
Call Barring restricts certain
outgoing and/or incoming
calls using a password
supplied by your service
provider. When updating/
checking the status of Call Bar
the phone must be registered
with a network.
58
Phone Option
Codes
The PIN protects your SIM
against unauthorised use. If
you enable the PIN, every
time the phone is switched on
you will be prompted to enter
the PIN.
The PIN2 controls security for
the Fixed Dial Store, Call
Charge metering and Barred
Dial.
If either PIN/PIN2 is entered
incorrectly 3 times the phone
will be locked and you will
need to enter the PUK/PUK2
code.
Contact the service provider
for the PUK/PUK2 code.
NOTE: To enter PUK
code for PIN, enter **05#
you will then be prompted
to enter the PUK code,
then follow the on-screen
instructions.
To enter PUK2 code for
PIN2, enter **052# you
will then be prompted to
enter the PUK2 code,
then follow the on-screen
instructions.
59
Change Phonecode ...........................................................................................
From Phone Option menu
1 4 Security > CodesA(Select)
2 4 Change PhonecodeA(Select) > Enter the current Phonecode, if needed A(OK)
3 Enter New PhonecodeA(OK) > Repeat the entryA(OK)
Enabling/Disabling the PIN ................................................................................
From Phone Option menu
1 4 Security > CodesA(Select)
2 4 PIN ControlA(Set)
3 Enter PIN numberA(OK) > Repeat the entryA(OK)
Changing the Security Code ..............................................................................
From Phone Option menu
1 4 Security > CodesA(Select)
2 4 Change PIN or Change PIN2A(Select)
3 Enter the current codeA(OK)
4 Enter the new codeA(OK)
5 Enter the new code to verifyA(OK)
NOTE: If the PUK/PUK2 code is entered incorrectly 10 times, the phone will cease to operate permanently. All
information stored in the SIM will be lost and the SIM will need to be replaced. Contact the service provider for more details.
Setting Fixed Dial...............................................................................................
From Phone Option menu
1 4 SecurityA(Select)
2 4 Fixed DialA(Select)
3 Enter PIN2 codeA(OK)
4 @(FDN) > 4 On
5A(OK)
• Any manually dialled phone numbers must be the same as the numbers in the Fixed Dial Store.
• A phone number may be stored, edited or deleted. You will be prompted for your PIN2 code.
Setting SIM Lock................................................................................................
From Phone Option menu
1 4 SecurityA(Select)
2 4 SIM LockA(Select)
3 Enter PhonecodeA(OK)
Phone Option
Fixed Dial is one of the
functions in SIM Phonebook.
Only numbers stored in your
SIM Phonebook can be
selected for FDN dialling.
To enter fixed dial numbers,
see “Storing a Fixed Dial
Number” on page 31.
NOTE: You are advised to write down your Phonecode. In case you forget your phonecode, you will
need to contact your service provider to unlock the SIM.
60
Phone Option
Network
You can select a network that
is available in your current
location.
.
NOTE: This function is
AWS SIM dependent.
Network setting ..................................................................................................
From Phone Option menu
1 4 NetworkA(Select)
2 4 required optionA(On/off) orA(Select)
Auto Network
Set “Auto Network” On or Off.
New Network
When “Auto Network” is on; Search an available network automatically. When “Auto
Network” is off; Select a network manually.
Network List
Create and edit a network list according to your preferences.
Band Select
Choose a network band: 900/1800, 900/1900, 900, 1800, 1900MHz.
CSD Setting
You need to complete CSD
setting before setting your
server.
- see “Server Setting” on
page 37.
Connection Setting .............................................................................................
You can set CSD setting when connecting to network.
From Phone Option menu
1 4 CSD SettingA(Select)
2 4 required settingA(Select)
3 when all the data are entered,A(Save)
61
Server Name
Enter Server Name.
Call Type
Select ISDN or Analogue.
Dial Number
Enter the common numbers in Digital and Analogue.
Login Name
Enter Login ID.
Password
Enter Password.
GPRS Setting
Connection Setting ............................................................................................
You can set GPRS setting when connecting to network.
From Phone Option menu
1 4 GPRS SettingA(Select)
2 4 required settingA(Select)
3 when all the data are entered,A(Save)
• When GPRS setting is completed, the GPRS icon (
Server Name
Enter Server Name.
GPRS APN
Enter Access Point Name.
Login Name
Enter Login ID.
Password
Enter Password.
Authentication
Select Active or Deactive.
) is displayed.
GPRS Info
Viewing GPRS Information ................................................................................
From Phone Option menu
Phone Option
You need to complete GPRS
setting before setting your
server.
- see “Server Setting” on
page 37.
1 4 GPRS InfoA(Select)
2 To reset GPRS Info;
@(Reset) > @(Yes)
62
Applications Menu Structure
Applications Menu Structure
Applications
Games
Fillip
Classic rally
STK*
Scheduler
Clock
Calculator
Currency
Clock Setting
Alarm
Power Off Time
Rate Setting
Rate Computing
Melody Composer
Sound Folder
Picture Folder
63
Predefined
Downloaded
Memory Status
Wallpaper
Caller’s ID
Memory Status
*NOTE: STK (SIM Tool Kit) is SIM
dependent.
Applications
Applications
Games
From Applications menu
1 4 GamesA(Select)
2 4 required gameA(Select).
• Please refer to “Games” on page 28.
STK (SIM Tool Kit)
This function is SIM dependent.
64
Applications
Scheduler
You can organize your
schedule to remind your
personal event, such as
planning holiday period. You
need to set clock first before
entering to the scheduler.
In the Scheduler, you can
store:
-Type (Memo or Meeting)
-Description
-Start Date
-Start Time
-End Date
-End Time
Entering a Schedule ...........................................................................................
From Applications menu
1 4 SchedulerA(Select)
2
@to select Week or Month format
3 To select a day, press numerical keys 2, 8, 4 and 6 to move the cursor ↑, ↓, ← and → , or 4 to
move the cursor ↑ or ↓ to set a day. >A(Agenda)
4 4 <New Entry>A(Select)
5 Enter required information
6
A(Save)
Viewing / Editing Scheduler................................................................................
NOTE: Ensure that the
setting of the
Scheduler will not
contravene any
regulations whereby it
may automatically
power on when in an
aircraft or medical
facility, etc. - see
“Important Information”
in Part 2.
From Applications menu
1 4 SchedulerA(Select)
2
@to select Week or Month format
3 When Month format is selected:
Select a day marked in blue by using the numerical keys (2, 8, 4 and 6) >A(Agenda)
When Week format is selected:
Schedule icon(s) will be shown corresponding to a period of time selected by pressing 4.
(Period of time: 4=0:01-4:00, 8=4:01-8:00, 12=8:01-12:00, 16=12:01-16:00, 20=16:01-20:00, 24=20:01-0:00)
Select a day by using the numeric keys (2, 8, 4 and 6) >A(Agenda)
4 4 required [email protected](View)
5 To return to the previous display,A(OK)
To edit,@(Edit) edit required informationA(Save)
65
Clock
Before setting Time & Date,
set Time Zone of your region
or the city which has same
time zone as your region.
When travelling abroad, your
home time can be changed to
your destination time.
Time Zone Setting..............................................................................................
From Applications menu
1 4 Clock > Clock Setting > Time ZoneA(Select)
2 4 required regionA(Select)
3
A(Yes) or @(No) to select “Day Light Saving?”
4 “Set This City to Local”@(OK)
5 “Success!”A(OK)
Time & Date Setting...........................................................................................
From Applications menu
1 4 Clock > Clock Setting > Time & DateA(Select)
2
Time Display Setting ..........................................................................................
From Applications menu
1 4 Clock > Clock SettingA(Select)
2 4 Display TimeA(On/off)
Applications
Time and date can be shown
on the display in idle mode.
@(Set) enter the digits for the timeA(OK)
66
Applications
Display format for time and
date can be selected.
Date Format/Time Format ..................................................................................
From Applications menu
1 4 Clock > Clock Setting > Date Format or Time FormatA(Select)
2 4 required formatA(Select)
Alarm Setting......................................................................................................
From Applications menu
1 4 Clock > AlarmA(Select)
2
@(Set) > Enter the digits for the time (24 hour clock)A(OK)
3 4 Select from Repeat Daily, Once or DisabledA(Select)
4 “Alarm Time Has Been Updated!” A(OK)
• Alarm set indicator
appears on idle display.
• When the set time is reached, the alarm will sound. When in a call the phone will vibrate.
To end alarm:
Press any key orA(OFF)
OR @(Pause) to pause the alarm and start again after 5 minutes
NOTE: Ensure that the setting of the Alarm will not contravene any regulations whereby it may
automatically power on when in an aircraft or medical facility etc. - see “Important Information” in Part 2.
67
The phone can be set to turn
itself off automatically at a
specified time using the
Power Off feature. The
procedure for setting/
adjusting the Power Off
automatically is similar to the
setting of Alarm.
Power Off Time ..................................................................................................
From Applications menu
1 4 Clock > Power Off TimeA(Select)
2 Enter the digits for the time (24 hour clock)A(OK)
3 4 Select from Repeat Daily, Once or DisabledA(Select)
4 “Power Off Time Setting Updated!”A(OK)
Calculator
From Applications menu
1 4 CalculatorA(Select)
2 Enter a number (maximum 7 digits) and it will be displayed on the upper right of the display. When
a decimal point is required, press!, when a minus sign is needed press".
3 4 to select the arithmetic operation
4 Enter a number (maximum 7 digits) and it will be displayed next to the operation symbol.
If 4 is used to select another arithmetical operation to perform, an intermediate
calculation will be performed and the result displayed on the top line.
5
A(=) to calculate
Applications
The four function calculator will
enable the user to perform
simple arithmetic calculations
(addition, subtraction,
multiplication and division).
68
Applications
Currency
The currency convertor
enables you to convert from/to
a home currency using a
conversion rate that you enter.
Setting the currency value..................................................................................
From Applications menu
1 4 CurrencyA(Select)
2 4 Rate SettingA(Select)
3 On the right side of the screen, enter your home currency rate to the
currency which you want to convert withA(OK)
4
A(Save)
Rate Computing .................................................................................................
From Applications menu
1 4 CurrencyA(Select)
2 4 Rate ComputingA(Select)
3 Enter the amount of currency which you want to convert into your
home currencyA(Convert)
Melody Composer
Please refer to “Composing a Melody” on page 17.
69
Sound Folder
The Sound Folder contains
predefined sound files and
any downloaded sound files.
You can play the sound and
set one as your Ringtone.
Setting Ringtone:
From Applications menu
1 4 Sound FolderA(Select)
2 4 Predefined or DownloadedA(Select)
3 4 required soundA(Menu)
• To see the information of the selected Ringtone, 4 InfoA(Select)
• To return to the previous menu,A(OK)
4 4 Set to RingtoneA(Select)
Viewing Memory Status:
From Applications menu
1 4 Sound FolderA(Select)
2 4 Memory StatusA(Select)
• Free Space and Total Used are displayed.
• To return to the previous menu,A(OK)
Applications
The memory status is
dependant on file sizes stored
in the Melody Composer,
Picture Folder and Sound
Folder.
70
Applications
Picture Folder
You can find lists of
predefined pictures and
downloaded pictures in both
Wallpaper folder and Caller ID
folder. You can view those
pictures, and also set one of
them for the idle screen.
Setting Wallpaper:
From Applications menu
1 4 Picture FolderA(Select) > 4 WallpaperA(Select)
2 4 Predefined or DownloadedA(Select)
3 4 required pictureA(Menu)
• To see the large picture, 4 ViewA(Select)
• To return to the previous menu,@(Back)
4 4 Set to WallpaperA(Select)
The memory status is
dependant on file sizes stored
in the Melody Composer,
Picture Folder and Sound
Folder.
Viewing Picture of Caller’s ID:
From Applications menu
1 4 Picture FolderA(Select) > 4 Caller’s IDA(Select)
2 4 Predefined or DownloadedA(Select)
3 4 required pictureA(Menu)
4 4 View or InfoA(Select)
• To return to the previous menu, @(Back)
Viewing Memory Status:
From Applications menu
1 4 Picture FolderA(Select)
2 4 Memory StatusA(Select)
• Free Space and Total Used are displayed.
• To return to the previous menu,A(OK)
71
Records Menu Structure
Last Dialled
Answered
Unanswered
Erase Records
Erase Last Dialled
Erase Answered
Erase Unanswered
Erase All
Records Menu Structure
Records
72
Records
Records
Recently dialled phone
numbers will be stored in Last
Dialled. (Max 50)
If an Incoming call with Caller
ID is answered the number
will be stored in Answered.
(Max 50)
If an Incoming call with Caller
ID is not answered the
number will be stored in
Unanswered. (Max 20)
Calling for the Last Dialled/Answered/Unanswered number ..............................
From Records menu
1 4 Choose one menu from Last Dialled, Answered or Unanswered
A(Select)
2 4 required phone number (or name) you wish to redial C.
OR
In idle, C to view the last dialled numbers directly.
To save a record in Phonebook:
After selecting desired number,
A(Menu) > 4 SaveA(Select) > 4 SIM Phonebook or Mobile PhonebookA(Select)
Enter Name and Phone numberA(Save).
NOTE: When the store is full the next phone number will overwrite the oldest.
Erasing Records.................................................................................................
From Records menu
1 4 Erase RecordsA(Select)
2 Choose one menu from Erase Last Dialled, Erase Answered,
Erase Unanswered or Erase AllA(Select).
3
73
@(Yes)
Troubleshooting
Should any problem persist contact your dealer.
Problem
Cause
Remedy
Check that the battery is fully charged and
correctly connected to the phone.
Phone will not switch on.
Extremely short battery life for a
new battery.
The network you are using and the condition
of the battery can affect battery life.
Short battery life for an old
battery.
The battery has worn out.
Replace with a new fully charged battery.
The charging indicator does not
light, the battery level indicator
does not appear and the phone
cannot be switched on when
charging.
The battery is not attached to the phone or
when the battery has been deeply
discharged the phone will take a short time
until the indicator lights.
Leave the phone charging the battery for a
few minutes before the indicator is lit and
attempting to switch it on.
Battery fails to charge.
Calls cannot be made.
Battery has been connected to the phone
after the Fast Travel Charger has been
switched on.
Ensure the battery is fitted to the phone prior
to commencing charging.
The phone is locked.
Unlock the phone.
Outgoing calls are barred.
Disable the outgoing call barring or barred
dial.
The phone is not registered to a network.
Move to a coverage area and operate your
phone after it has registered with a network.
Troubleshooting
The battery is not attached to the phone.
74
Troubleshooting
Problem
Cause
Calls cannot be made from Fixed
Dial Store.
Calls cannot be received.
The phone is not switched on.
Switch the phone on.
Incoming calls are barred.
Disable the incoming call barring.
The phone is not registered to a network.
Move to a coverage area and operate your
phone after it has registered with a network.
Emergency calls cannot be made. You are not in a GSM coverage area.
Phone numbers cannot be
recalled from Phonebook.
75
Remedy
Check whether your SIM supports Fixed
Dial.
Check if the Fixed Dial is switched on.
Check whether the phone number is stored
in the Fixed Dial.
Check that the antenna symbol S is
displayed – move to a coverage area and
operate your phone when the antenna
symbol is displayed.
The phone is locked.
Unlock the phone.
Phone number has been restricted.
Switch off restriction.
Important Error Messages
Please Insert SIM Card
SIM card is not inserted, or is not inserted correctly. Please insert the SIM card
correctly.
New Codes Not Same
When you change your password, you have to enter the new password twice to
confirm. The two codes you entered are not same. Please enter same code twice.
Password Invalid!
When you change your password, you have to enter the new password twice to
confirm. The two codes you entered are not same. Please enter same code twice.
Can’t Access Network
The service network you selected manually is inaccessible. Please contact your
service provider.
Unable to Select Network
The service network you selected manually refuse your access. Please contact
your service provider.
No Service
There is no network within range or the received signal is weak. Move to an area
which has stronger signal.
PIN Blocked! Please Enter PUK
You entered your PIN or PIN2 incorrectly three times in a row. To unblock the PIN,
please enter PUK1 or PUK2.
Important Error Messages
These are some of the most important error messages which may be displayed:
76
Important Error Messages
77
PIN2 Blocked! Please Enter PUK2
You entered your PIN or PIN2 incorrectly three times in a row. To unblock the PIN,
please enter PUK1 or PUK2.
New PIN Not Accepted
Your new PIN code is not accepted. Please try again.
New PIN2 Not Accepted
Your new PIN2 code is not accepted. Please try again.
Incorrect Entry!
You entered wrong PIN or PIN2. Please enter the correct one.
Entries Do Not Match!
When you change your password, you have to enter the new password twice to
confirm. The two codes you entered are not same. Please enter same code twice.
SIM Card Error
Make sure the SIM card is inserted correctly. Clean the SIM card with a dry cloth or
check if it is damaged. Contact your service provider.
Function Unsupported
The function you selected is not supported your service provider.
Please contact your service provider.
Invalid Password
The password that you entered is not valid. Please enter the correct password.
Not Available
The function you selected is not supported by your service provider. Please
contact your service provider.
Service Not Available
The function you selected is not supported by your service provider. Please
contact your service provider.
You entered wrong PUK. Please enter the correct one.
SIM Full! Please Delete Old
Message!
The SIM storage area for SMS is full. Please delete old messages.
SIM Not Enough Space!
Continue?
The SIM storage area is FULL. If you continue data may be lost. Please delete old
records.
Not Enough Space!
Continue?
The message storage area is FULL. If you continue data may be lost. Please delete
old records.
SIM Service Not Support
The SIM function you selected is not supported by your service provider. Please
contact your service provider.
Unregistered SIM Card
Your SIM card is not registered to your service provider. Please contact your
service provider.
Authentication Failure
Your SIM card is not registered to your service provider. Please contact your
service provider.
Blocked
Your SIM card is blocked. Please contact your service provider.
Important Error Messages
Wrong PUK!
78
Glossary of Terms
Glossary of Terms
APN
Access Point Name. Directs the user to the gateway or the required service.
CHAP
Challenge Handshake Authentication Protocol. A security feature for the GPRS network.
CSD
Circuit Switched Data. A communication method used to transmit data over telephone connections.
DTMF Tones
Dual Tone Multi-Frequency tones allow you to communicate with computerised phone systems, voice
mailboxes, etc.
EMS
Enhanced Messaging Services. One of the mail systems which use the cellular phone, and service by which
data of e-mail of the text, etc. can be transmitted and received.
GPRS
General Packet Radio Service. A GSM transmission technique that transmits and receives data in packets
rather than setting up a continuous channel. It makes very efficient use of available radio spectrum and users
pay only for volume of data sent and received.
GSM
Global System for Mobile communications. The name given to the advanced digital technology that your
phone uses.
Network Operator The organization responsible for operating a GSM network.
79
PAP
Password Authentication Protocol. A security feature in the GPRS network.
Password
Used for the control of Call Bar. Supplied by your service provider.
PIN
Personal Identification Number used for SIM security. Supplied by your service provider. If the PIN is entered
incorrectly 3 times, the PIN will be blocked.
PIN2
Personal Identification Number used for the control of Fixed Dial Store and Call Charge metering. If the PIN2
is entered incorrectly 3 times, the PIN2 will be blocked.
PIN/PIN2 Unblocking Key. Used to unblock the PIN/PIN2. Supplied by your service provider. If the PUK/
PUK2 is entered incorrectly 10 times, the PUK/PUK2 will be blocked.
Registration
The act of locking on to a GSM/GPRS network. This is usually performed automatically by your phone.
Roaming
The ability to use your phone on networks other than your Home network.
Service Provider
The organization responsible for providing access to the GSM/GPRS network.
SIM
Subscriber Identity Module. A small smart-card which stores unique subscriber and user-entered information
such as Phonebook and Short Messages. Supplied by your service provider.
SMS
Short Message Service. A basic mail system used for cellular phones. This service allows sending/receiving
short text messages.
WAP
Wireless Application Protocol. The communication standard which enables you to download resources from
the Internet to your phone.
Glossary of Terms
PUK/PUK2
80
Accessories
Accessories
Li-Ion Battery (EB-BSG50D)
Fast Travel Charger (EB-CAD55EU)
Double your talk time by having a spare
battery.
Fast Travel Charger (EB-CAD55UK)
Carry a lightweight portable
charger wherever you go to
ensure you always have power to
talk.
How to Identify a Genuine Panasonic
Accessory
Panasonic produces some of the most advanced mobile
phones available. So, as you’d expect from this class
leader, the range of accessories are second to none.
Most genuine Panasonic accessories will have a label
showing an “EB-XXX00” model number.
NOTE: Accessories are subject to change without notice.
81
Personal Settings
Item
Provisioning
Information
Setting No. 1
Provisioning
Information
Setting No. 2
Provisioning
Information
Setting No. 3
Provisioning
Information
Setting No. 4
Provisioning
Information
Setting No. 5
Personal Settings
Profile Name
Server Name
IP Address
IP Port
Homepage
Linger Time
Circuit Switched (CSD)
Server Name
Call Type
Dial Number
Login Name
Password
Packet Switched (GPRS)
Server Name
GPRS APN
Login Name
Password
Authentication
82
Personal Settings
The Serial Number can be found on the outside of the phone under the battery. For your convenience we recommend that you note
the following details as a record of your purchase.
Part Number
Serial Number
Dealer Name
Purchase Date
83
Index
Accessories .......................................................................81
Access to Shortcuts ...........................................................26
Activating a profile .............................................................22
Alarm Setting .....................................................................67
Alert Type ..........................................................................22
Answering Calls .................................................................11
Any Key Answer ................................................................25
APN ...................................................................................79
Applications .......................................................................64
Attaching and Removing the Battery .................................. 1
Auto Answer ......................................................................25
Auto capital change ............................................................51
Auto Display ......................................................................49
B
Back to the Menu Display.....................................................5
Bookmarks......................................................................... 38
Brightness.......................................................................... 24
Broadcast ...........................................................................48
Browser .............................................................................37
Browsing Bookmark............................................................39
Browsing the Phone Book ..................................................31
C
Calculator ..........................................................................68
Call Divert ..........................................................................57
Call Service .......................................................................54
Calling for the Last Dialled/Answered/
Unanswered number .......................................................... 73
Change Phonecode ........................................................... 59
Changing Alert Type .......................................................... 22
Changing the Language .................................................... 21
Changing the Ring Tone ................................................... 16
Changing the Security Code ............................................. 59
Changing the Volume ........................................................ 16
CHAP ................................................................................ 79
Charge Settings.................................................................. 55
Charging the Battery ........................................................... 2
Classic rally ....................................................................... 28
Clock .................................................................................. 66
Codes ................................................................................ 59
Composing a Melody ......................................................... 17
Connection Setting ............................................................ 61
........................................................................................... 62
Creating a New Short Text Message ................................ 42
CSD.................................................................................... 79
CSD Settings ..................................................................... 61
Currency............................................................................. 69
D
Date Format/Time Format ................................................. 67
Desktop Handsfree ............................................................ 12
Disabling Key Guard ......................................................... 40
Display ................................................................................. 4
........................................................................................... 19
Displaying Menu .................................................................. 8
84
Index
A
Index
DTMF Tones ..................................................................... 13
........................................................................................... 79
E
Earpiece Volume ................................................................. 9
Editing profiles .................................................................. 22
Editing User Messages ..................................................... 24
........................................................................................... 43
Emergency Call ................................................................. 10
EMS ................................................................................... 79
Enabling/Disabling the PIN ............................................... 59
Entering a Schedule .......................................................... 65
Entering to the Menu Display .............................................. 5
Entering URL from Browser menu ..................................... 39
Erasing Records ................................................................ 73
F
Fillip ................................................................................... 28
G
Games ............................................................................... 28
........................................................................................... 64
Getting Started .................................................................... 1
Glossary of Terms ............................................................. 79
GPRS ................................................................................ 79
GPRS Info.......................................................................... 62
GPRS Setting..................................................................... 62
Group Settings .................................................................. 33
GSM .................................................................................. 79
H
Hot Key Dial ....................................................................... 35
85
I
Important Error Messages ..................................................76
In-Call Options ...................................................................12
Incoming Call While in a Call ..............................................14
Inserting and Removing the SIM ......................................... 1
International Dialling ...........................................................10
K
Key Guard...........................................................................40
Key Operation.....................................................................28
Key Tone ............................................................................23
Keys .....................................................................................4
Keys & Displays ...................................................................4
L
Language............................................................................21
Last Number Dialling ..........................................................10
Long Press............................................................................7
Low Battery Power Warning ............................................... 2
M
Making a Call by Using Hot Key Dial .................................35
Making a Second Call ........................................................14
Making Calls ........................................................................9
Melody Composer ..............................................................69
Memory Status ...................................................................34
Menu Structure .....................................................................6
Menu Display .......................................................................5
Messages ..........................................................................42
My Numbers ......................................................................34
My Phone ...........................................................................16
N
Network .............................................................................61
Network Operator ..............................................................79
Network setting ..................................................................61
Q
Quick Touch Silent Mode ................................................... 11
R
One Click Mute on Incoming Call .......................................11
Operation of Battery Level Indicator ....................................2
Options ...............................................................................47
Options in Phone Book ......................................................32
Other Text Modes...............................................................52
Rate Computing ................................................................ 69
Reading a Received Message .......................................... 44
Records ............................................................................. 73
Registration ....................................................................... 80
Rename a melody .............................................................. 18
Reset Defaults ................................................................... 25
Ring Volume....................................................................... 11
........................................................................................... 22
Roaming ............................................................................ 80
P
S
PAP ...................................................................................79
Password ...........................................................................79
Pause Dial .........................................................................13
Personal Settings ..............................................................82
Phone Basics .......................................................................8
Phone Book .......................................................................30
Phone ON/OFF ....................................................................8
Phone Option .....................................................................54
Phonebook Dialling ..............................................................9
Picture Folder ....................................................................71
PIN .....................................................................................79
PIN2 ...................................................................................79
Power Off Time ..................................................................68
Profiles ...............................................................................22
PUK/PUK2 .........................................................................80
Scheduler .......................................................................... 65
Security ............................................................................. 58
Selecting Games ............................................................... 28
Server Setting .................................................................... 37
Service Provider ................................................................ 80
Set to Ringtone................................................................... 18
Setting Any Key Answer .................................................... 25
Setting Auto Answer .......................................................... 25
Setting Auto Display .......................................................... 49
........................................................................................... 56
Setting Bookmark .............................................................. 39
Setting Bookmark from Homepage .................................... 39
Setting Brightness ............................................................. 21
Setting Broadcast .............................................................. 48
Setting Call Bar ................................................................. 58
Setting Call Divert .............................................................. 57
O
86
Index
My Phonebook .....................................................................2
............................................................................................35
Index
Setting Call Waiting ........................................................... 54
Setting Caller’s ID .............................................................. 55
Setting Colour Themes ..................................................... 21
Setting Currency ................................................................ 55
Setting Display Animation ................................................. 20
Setting Display Contrast ................................................... 20
Setting Fixed Dial .............................................................. 60
Setting Greeting ................................................................ 20
Setting Hot Key Dial .......................................................... 35
Setting Key Guard ............................................................. 40
Setting Key Tone .............................................................. 19
Setting Language .............................................................. 49
Setting My Numbers ......................................................... 34
Setting Options ................................................................. 47
Setting Personal Rate ....................................................... 56
Setting Phone Line ............................................................ 57
Setting Ringtone ............................................................... 70
Setting Shortcuts ............................................................... 26
Setting SIM Lock ............................................................... 60
Setting SIM or Mobile Phonebook .................................... 26
Setting T9 Input ................................................................. 26
Setting the currency value ................................................ 69
Setting the Maximum Cost ................................................ 56
Setting the Message Centre Number ................................ 42
Setting Topic ..................................................................... 48
Setting User defined Topic................................................. 48
Setting Wallpaper .............................................................. 19
........................................................................................... 71
Setting Warning Tone ....................................................... 19
Setting Withhold ID ........................................................... 55
Shift mode.......................................................................... 51
Shift mode change ............................................................. 51
87
Shortcuts ............................................................................26
Shortcut from Idle Screen ....................................................7
Short press ..........................................................................7
SIM ....................................................................................80
SMS ...................................................................................42
............................................................................................80
Sounds ...............................................................................16
Sound Folder .....................................................................70
Standard Dialling .................................................................9
Starting Games ..................................................................28
Status Icons .........................................................................4
STK (SIM Tool Kit)..............................................................64
Storing ...............................................................................30
Storing a Fixed Dial Number...............................................31
Storing a Number in Mobile Phonebook .............................30
Storing a Number in SIM ...................................................30
Symbols Used in the Manual ................................................5
T
Tegic ...................................................................................51
T9 Input ..............................................................................26
T9 Text Input ......................................................................52
Text Entry ..........................................................................50
Text Input ...........................................................................51
Time & Date Setting ...........................................................66
Time Display Setting ..........................................................66
Time Zone Setting .............................................................66
To end alarm.......................................................................67
Troubleshooting .................................................................74
U
User Messages ..................................................................24
V
Vibrator ..............................................................................23
Viewing ..............................................................................31
Viewing Broadcast..............................................................49
Viewing / Editing Scheduler ...............................................65
Viewing GPRS Information................................................6 2
Viewing a melody information.............................................18
Viewing Memory Status .................................................... 34
............................................................................................46
............................................................................................70
............................................................................................71
Viewing Message Lists in Archive .....................................46
Viewing Message Lists in Outbox ......................................45
Viewing My Numbers .........................................................34
Viewing Picture of Caller’s ID ............................................71
Viewing Time/Charges ......................................................54
W
Index
WAP ..................................................................................80
WAP Activating ..................................................................38
Warning Tone ....................................................................23
88
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
